1. 1 www.elsys.ru Biometrics4U Behavior Detection HDTV Technologies – the Future of Security in the Connected Environments

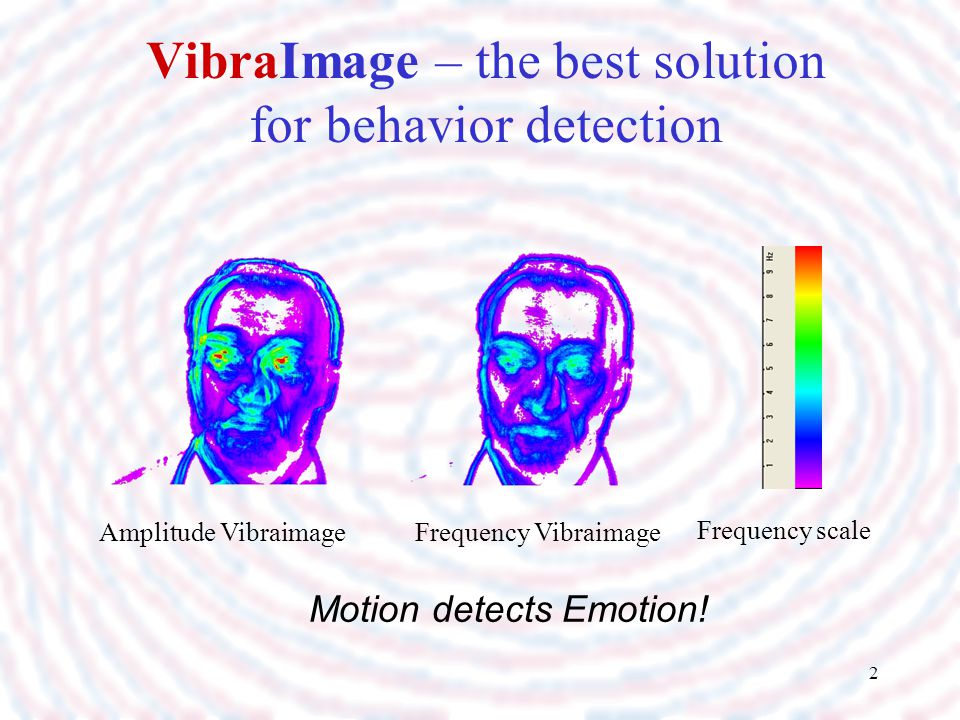

2. 2 VibraImage – the best solution for behavior detection Amplitude VibraimageFrequency Vibraimage Frequency scale Motion detects Emotion!

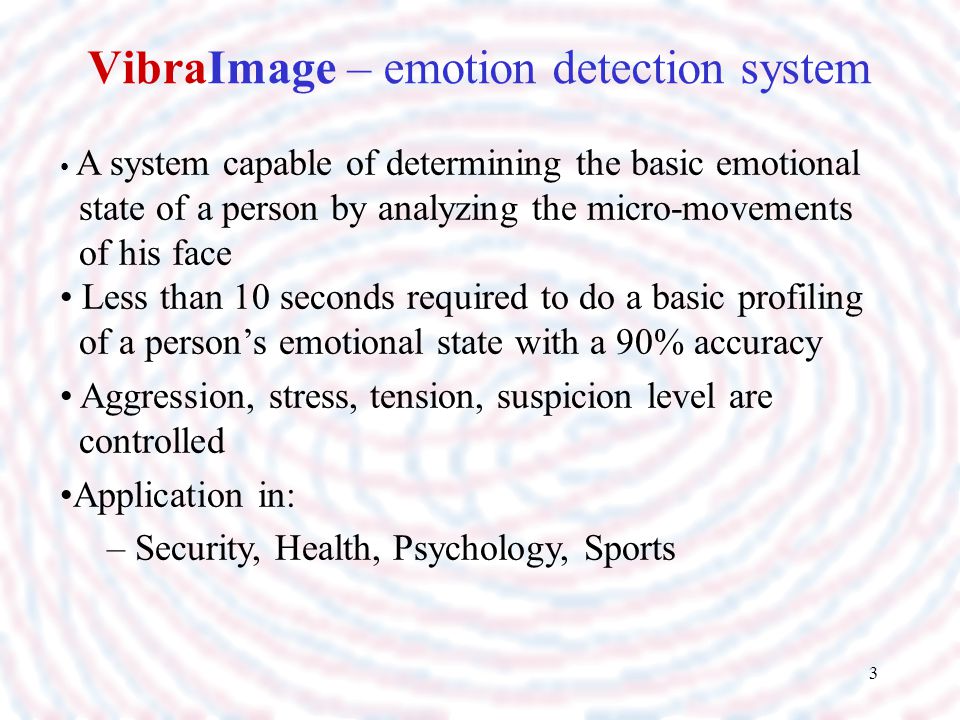

3. 3 VibraImage – emotion detection system A system capable of determining the basic emotional state of a person by analyzing the micro-movements of his face Less than 10 seconds required to do a basic profiling of a person’s emotional state with a 90% accuracy Aggression, stress, tension, suspicion level are controlled Application in: – Security, Health, Psychology, Sports

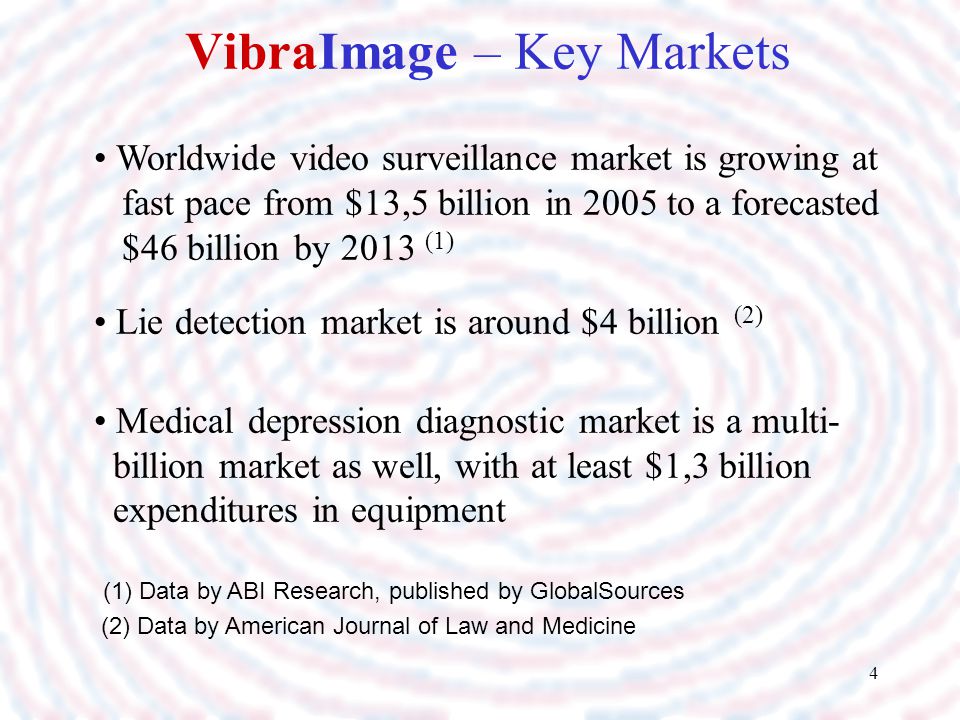

4. 4 VibraImage – Key Markets Worldwide video surveillance market is growing at fast pace from $13,5 billion in 2005 to a forecasted $46 billion by 2013 (1) Lie detection market is around $4 billion (2) Medical depression diagnostic market is a multi- billion market as well, with at least $1,3 billion expenditures in equipment (1) Data by ABI Research, published by GlobalSources (2) Data by American Journal of Law and Medicine

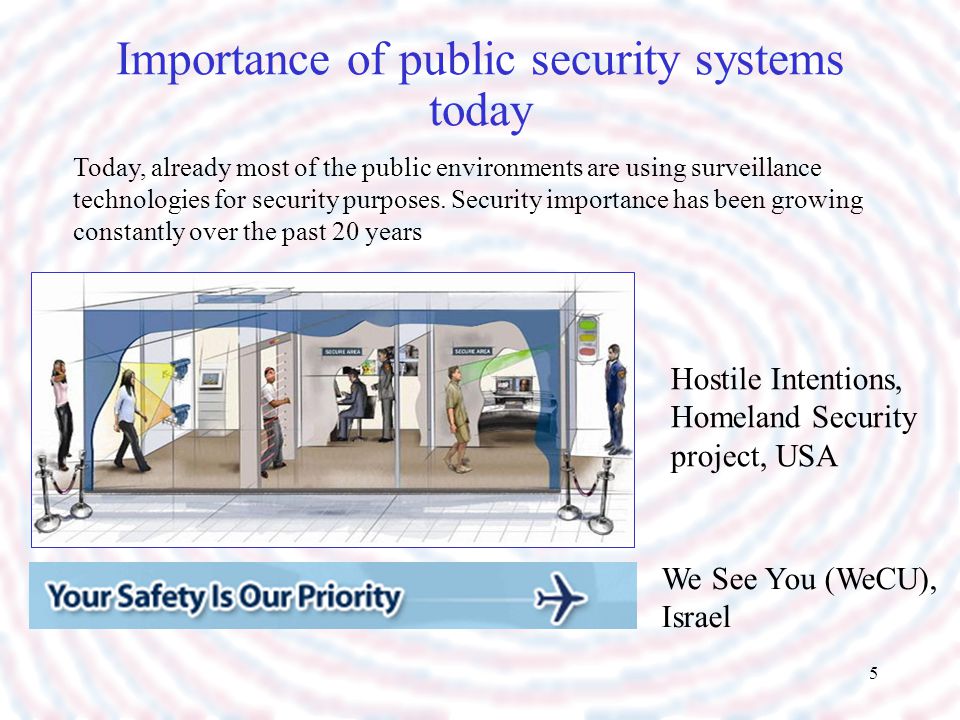

5. 5 Importance of public security systems today Hostile Intentions, Homeland Security project, USA We See You (WeCU), Israel Today, already most of the public environments are using surveillance technologies for security purposes. Security importance has been growing constantly over the past 20 years

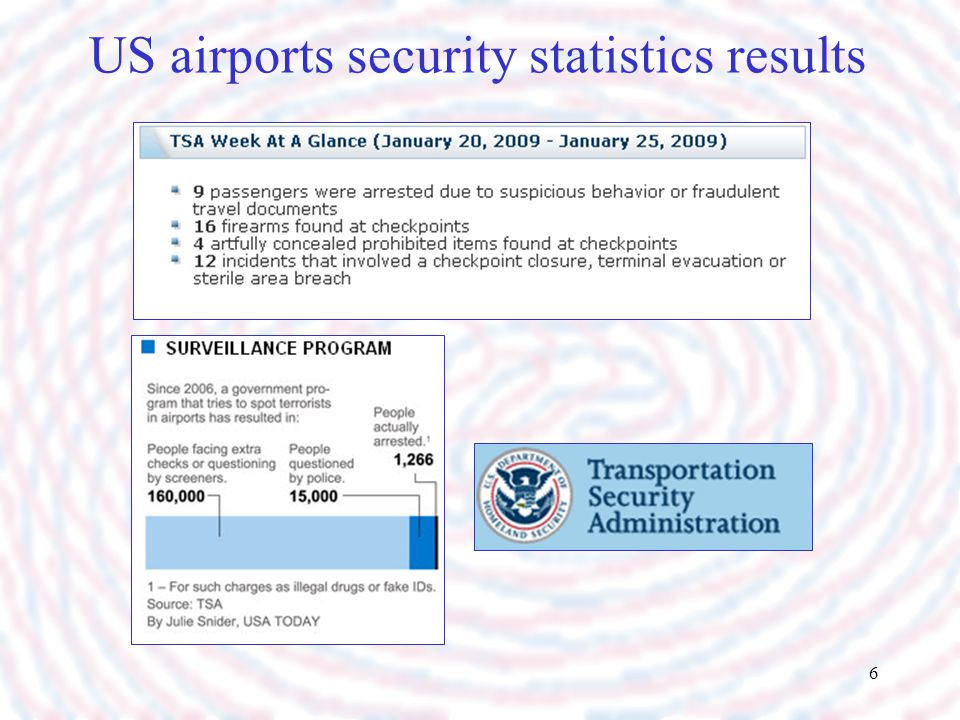

6. 6 US airports security statistics results

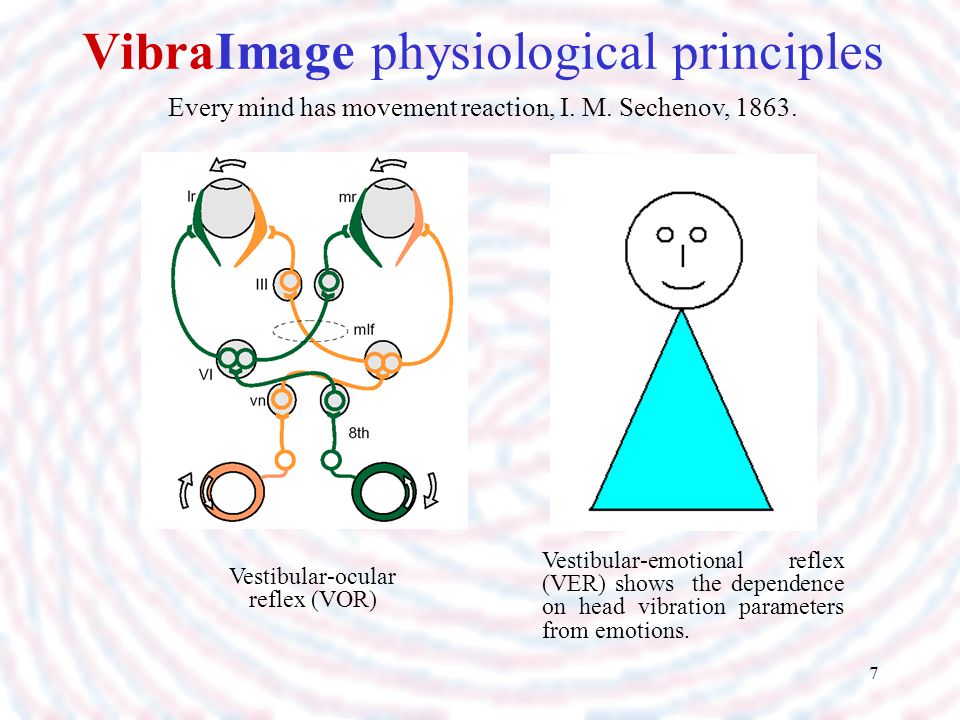

7. 7 VibraImage physiological principles Vestibular-emotional reflex (VER) shows the dependence on head vibration parameters from emotions. Vestibular-ocular reflex (VOR) Every mind has movement reaction, I. M. Sechenov, 1863.

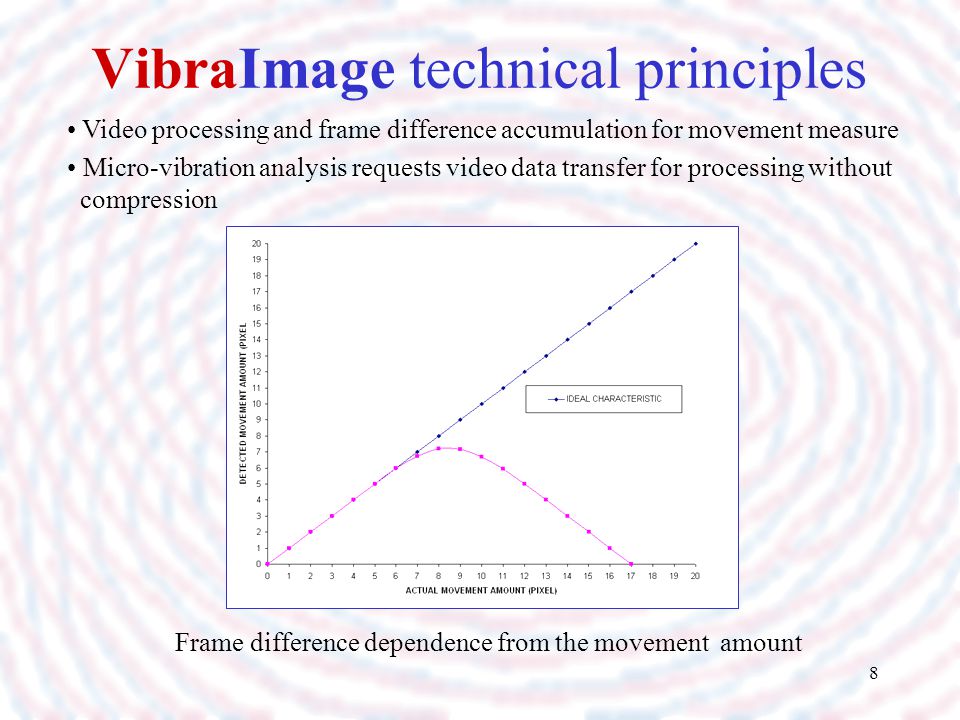

8. 8 VibraImage technical principles Frame difference dependence from the movement amount Video processing and frame difference accumulation for movement measure Micro-vibration analysis requests video data transfer for processing without compression

9. 9 VibraImage & HDTV standard VibraImage requests new standards for HDTV security cameras: (1 – 3 – 5 – 10) MP (15 – 20 – 25 – 30) fps More resolution less errors High frequency

10. 10 Typical modern airport has 100 – 1000 TV cameras Security needs fast Networking and several processing levels Airport Video Security Systems

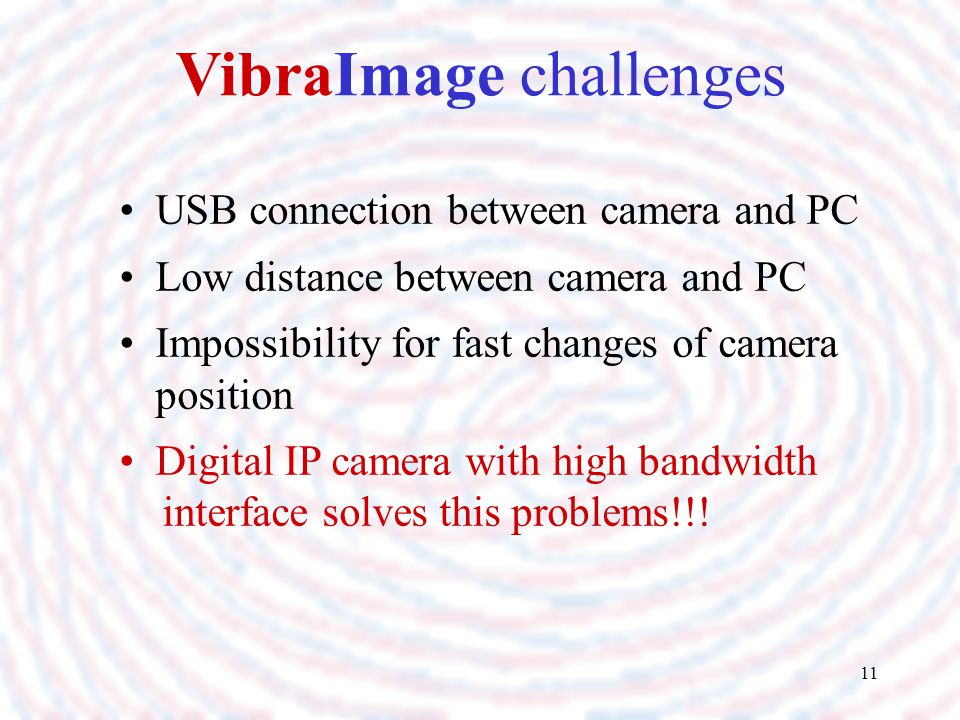

11. 11 VibraImage challenges USB connection between camera and PC Low distance between camera and PC Impossibility for fast changes of camera position Digital IP camera with high bandwidth interface solves this problems!!!

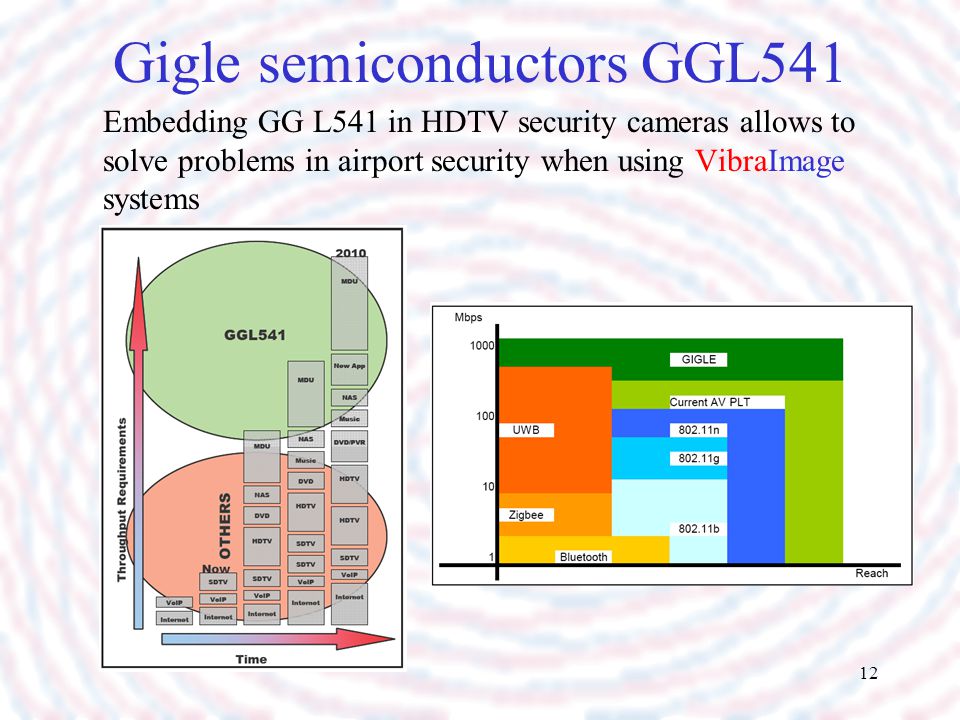

12. 12 Gigle semiconductors GGL541 Embedding GG L541 in HDTV security cameras allows to solve problems in airport security when using VibraImage systems

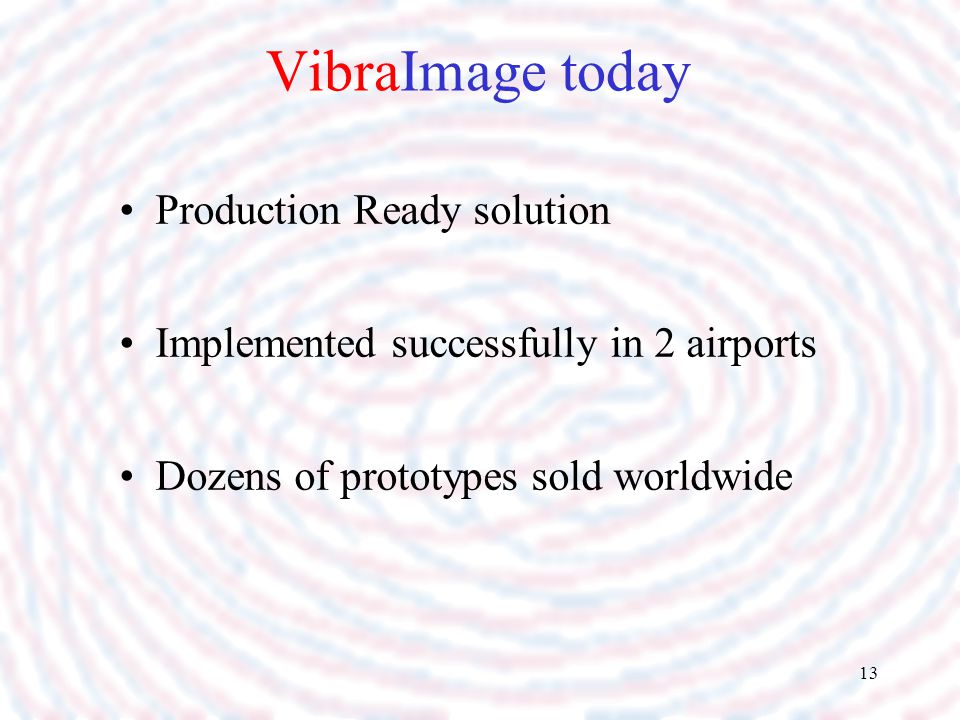

13. 13 VibraImage today Production Ready solution Implemented successfully in 2 airports Dozens of prototypes sold worldwide

14. 14 VibraImage Pulkovo airport, St.Petersburg, Russia

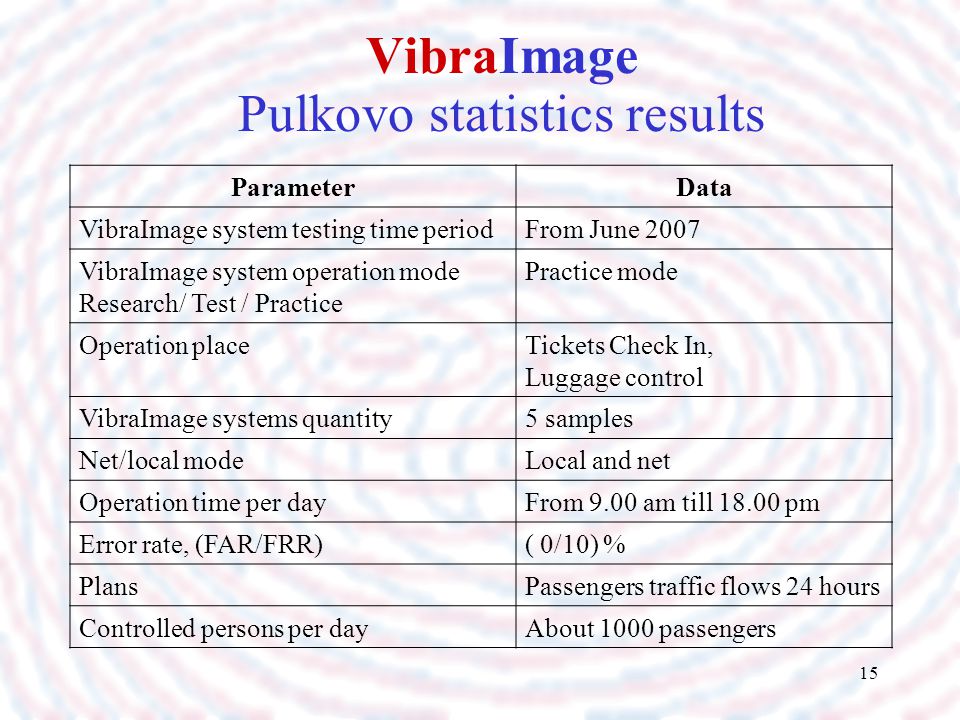

15. 15 VibraImage Pulkovo statistics results ParameterData VibraImage system testing time periodFrom June 2007 VibraImage system operation mode Research/ Test / Practice Practice mode Operation placeTickets Check In, Luggage control VibraImage systems quantity5 samples Net/local modeLocal and net Operation time per dayFrom 9.00 am till 18.00 pm Error rate, (FAR/FRR)( 0/10) % PlansPassengers traffic flows 24 hours Controlled persons per day About 1000 passengers

16. 16 VibraImage Domodedovo airport, Moscow, Russia

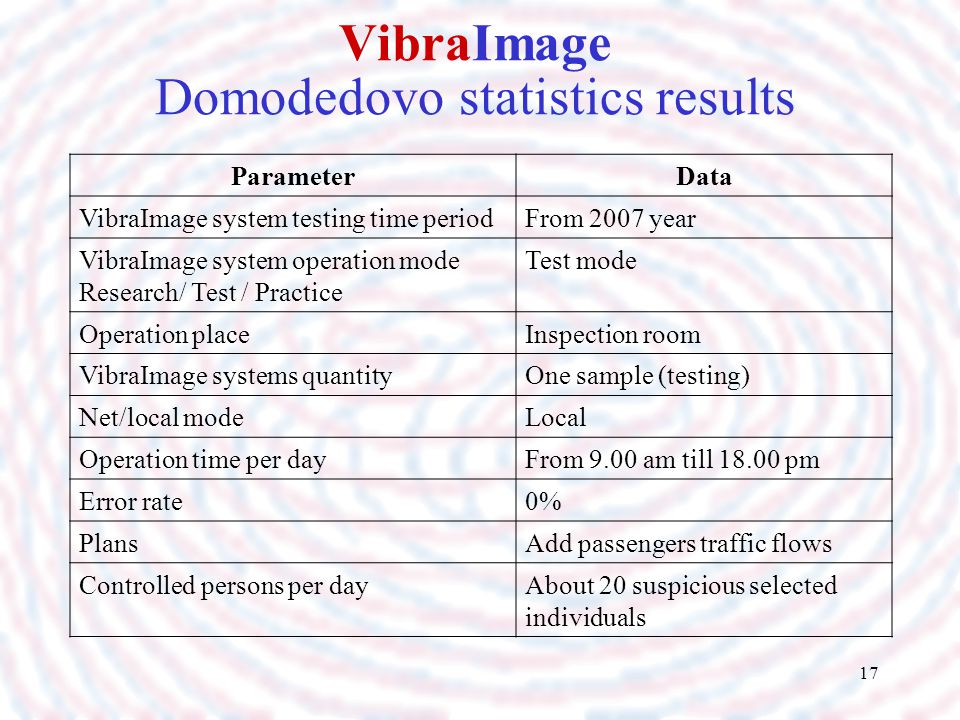

17. 17 VibraImage Domodedovo statistics results ParameterData VibraImage system testing time periodFrom 2007 year VibraImage system operation mode Research/ Test / Practice Test mode Operation placeInspection room VibraImage systems quantityOne sample (testing) Net/local modeLocal Operation time per dayFrom 9.00 am till 18.00 pm Error rate0% PlansAdd passengers traffic flows Controlled persons per day About 20 suspicious selected individuals

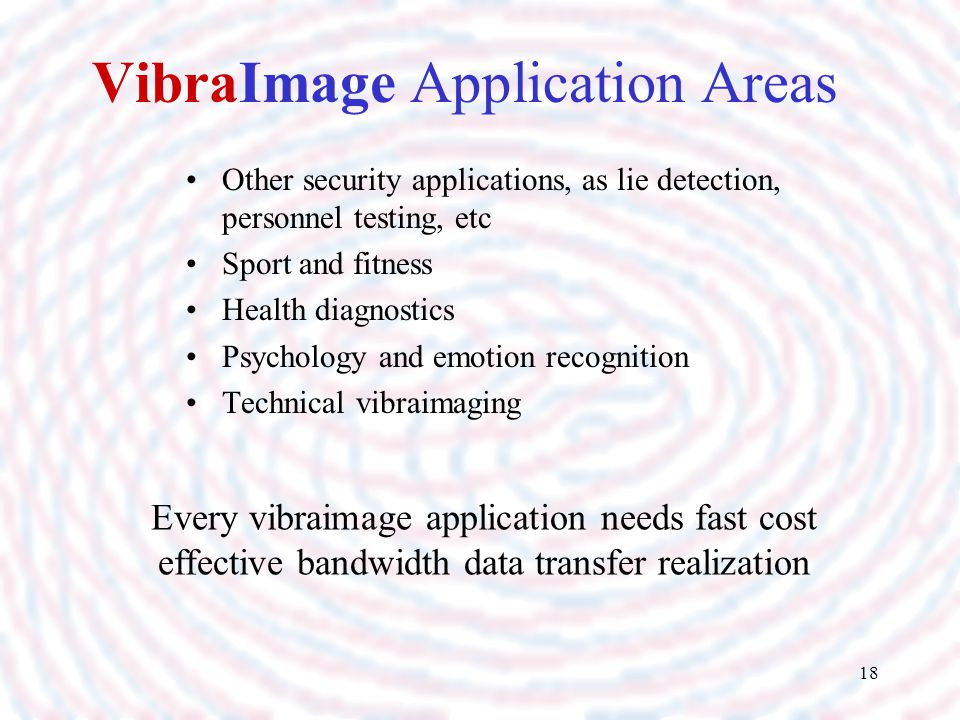

18. 18 VibraImage Application Areas Other security applications, as lie detection, personnel testing, etc Sport and fitness Health diagnostics Psychology and emotion recognition Technical vibraimaging Every vibraimage application needs fast cost effective bandwidth data transfer realization

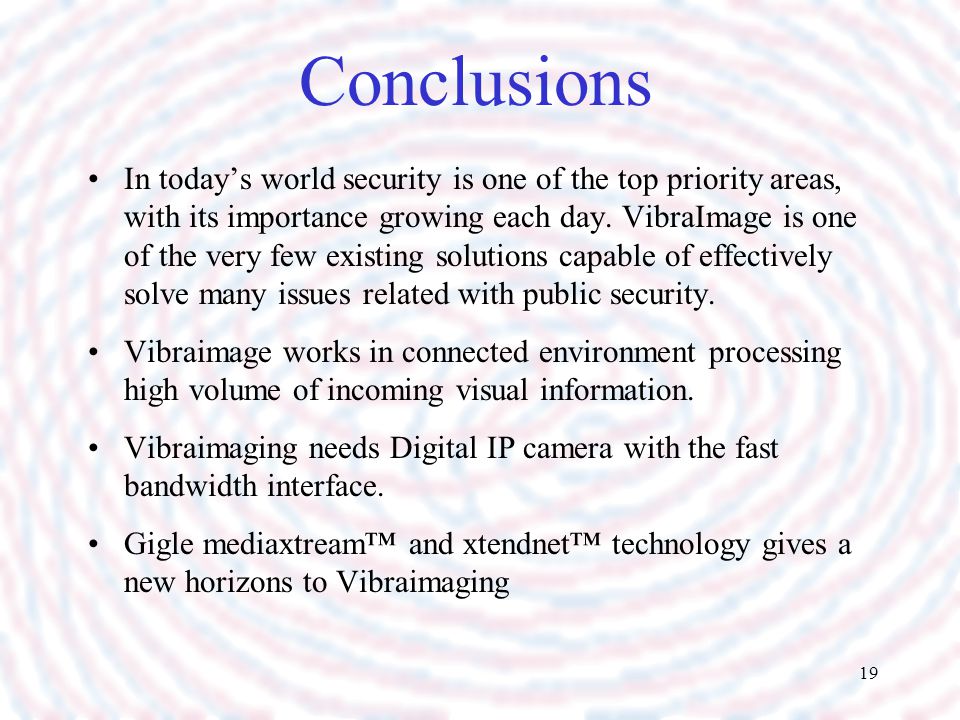

19. 19 Conclusions In today’s world security is one of the top priority areas, with its importance growing each day. VibraImage is one of the very few existing solutions capable of effectively solve many issues related with public security. Vibraimage works in connected environment processing high volume of incoming visual information. Vibraimaging needs Digital IP camera with the fast bandwidth interface. Gigle mediaxtream™ and xtendnet™ technology gives a new horizons to Vibraimaging

20. 20 Viktor Minkin e-mail: minkin@elsys.ru www.elsys.ru Contact Information
