1. HW # 61 - Begin the Group Exam (Put this on a new TOC) Warm up Place your EXTRA CREDIT and your warm up page in the center of your table. Place your OLD HW TOC in the center of the table. Week 17, Day Four Evaluate the following for x = 16. 1. 3x2. x Evaluate the following for x =. 3. 10x4. x 4812 4 3 4 2 5 1 4 1 10

2. Warm Up Response 24

3. Homework Check Practice 5-6 Check your answers ONLINE Proportions Practice- see hard copy (use document camera)

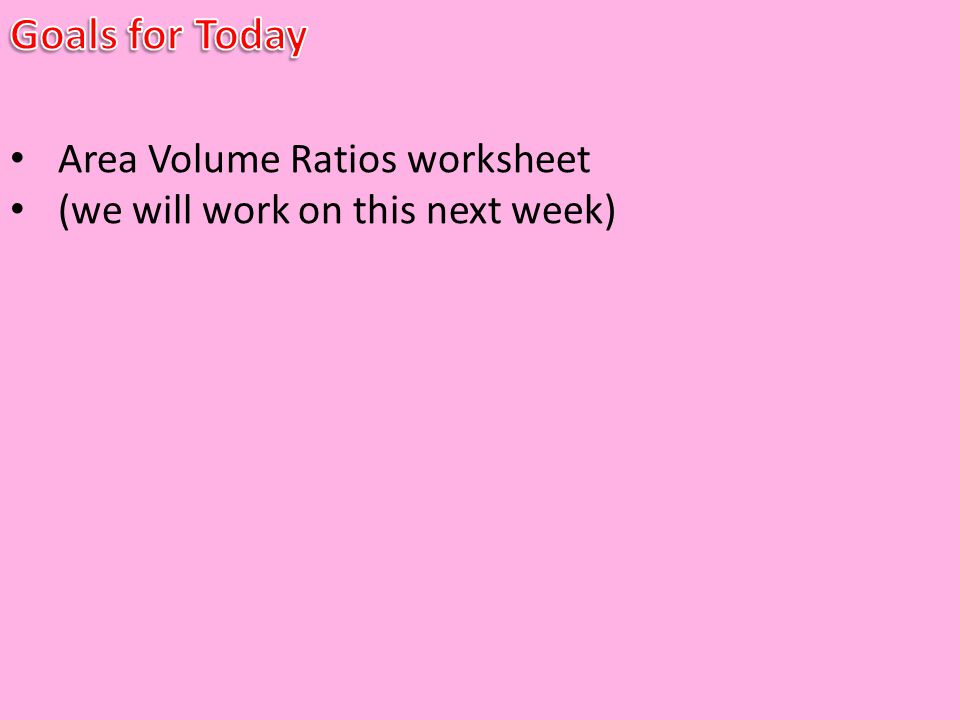

4. Area Volume Ratios worksheet (we will work on this next week)

5. Vocabulary scale drawing scale model scale scale factor

6. A scale drawing is a two-dimensional drawing of an object that is proportional to the object. A scale gives the ratio of the dimensions in the drawing to the dimensions of the object. All dimensions are reduced or enlarged using the same scale. Scales can use the same units or different units. A scale model is a three-dimensional model that is proportional to the object.

7. Under a 1000:1 microscope view, an amoeba appears to have a length of 8 mm. What is its actual length? Additional Example 1: Finding Actual Measurements Write a proportion using the scale. Let x be the actual length of the amoeba. 1000  x = 1  8The cross products are equal. x = 0.008 The actual length of the amoeba is 0.008 mm. 1000 1 = 8 mm x mm Solve the proportion.

8. Under a 10,000:1 microscope view, a fiber appears to have length of 1 mm. What is its actual length? Check It Out! Example 1 Write a proportion using the scale. Let x be the actual length of the fiber. 10,000  x = 1  1The cross products are equal. x = 0.0001 The actual length of the fiber is 0.0001 mm. 10,000 1 = 1 mm x mm Solve the proportion.

9. A. The length of an object on a scale drawing is 2 cm, and its actual length is 8 m. The scale is 1 cm: __ m. What is the scale? Additional Example 2: Using Proportions to Find Unknown Scales 1 cm x m = 2 cm 8 m 1  8 = x  2Find the cross products. 8 = 2x Divide both sides by 2. The scale is 1 cm:4 m. 4 = x Set up proportion using scale length. actual length

10. The scale a:b is read “ a to b. ” For example, the scale 1 cm:4 m is read “ one centimeter to four meters. ” Reading Math

11. The length of an object on a scale drawing is 4 cm, and its actual length is 12 m. The scale is 1 cm: __ m. What is the scale? Check It Out! Example 2 1 cm x m = 4 cm 12 m Set up proportion using scale length. actual length 1  12 = x  4Find the cross products. 12 = 4x Divide both sides by 4. The scale is 1 cm:3 m. 3 = x

12. The ratio of a length on a scale drawing or model to the corresponding length on the actual object is called the scale factor. When finding a scale factor, you must use the same measurement units. You can use a scale factor to find unknown dimensions.

13. A model of a 27 ft tall house was made using a scale of 2 in.:3 ft. What is the height of the model? Additional Example 3: Using Scale Factors to Find Unknown Dimensions Find the scale factor. The scale factor for the model is. Now set up a proportion. 1 18 2 in. 3 ft = 2 in. 36 in. = 1 in. 18 in. = 1 18 324 = 18h Convert: 27 ft = 324 in. Find the cross products. 18 = h The height of the model is 18 in. Divide both sides by 18. 1 18 = h in. 324 in.

14. A model of a 24 ft tall bridge was made using a scale of 4 in.:2 ft. What is the height of the model? Check It Out! Example 3 Find the scale factor. The scale factor for the model is. Now set up a proportion. 1 6 4 in. 2 ft = 4 in. 24 in. = 1 in. 6 in. = 1 6 288 = 6h Convert: 24 ft = 288 in. Find the cross products. 48 = h The height of the model is 48 in. Divide both sides by 6. 1 6 = h in. 288 in.

15. A DNA model was built using the scale 5 cm: 0.0000001 mm. If the model of the DNA chain is 20 cm long, what is the length of the actual chain? Additional Example 4: Life Science Application The scale factor for the model is 500,000,000. This means the model is 500 million times larger than the actual chain. 5 cm 0.0000001 mm 50 mm 0.0000001 mm == 500,000,000 Find the scale factor.

16. Additional Example 4 Continued 500,000,000 1 20 cm x cm =Set up a proportion. 500,000,000x = 1(20) x = 0.00000004 The length of the DNA chain is 4  10 -8 cm. Find the cross products. Divide both sides by 500,000,000.

17. A model was built using the scale 2 cm:0.01 mm. If the model is 30 cm long, what is the length of the actual object? Check It Out! Example 4 The scale factor for the model is 2,000. This means the actual object is two thousand times larger than the model. 2 cm 0.01 mm 20 mm 0.01 mm == 2,000 Find the scale factor.

18. Check It Out! Example 4 Continued 2,000 1 30 cm x cm =Set up a proportion. 2,000x = 1(30) x = 0.015 The length of the actual object is 1.5  10 -2 cm. Find the cross products. Divide both sides by 2,000.

19. 1. Using a in. = 1 ft scale, how long would a drawing of a 22 ft car be? 2. What is the scale of a drawing in which a 9 ft wall is 6 cm long? 3. The height of a person on a scale drawing is 4.5 in. The scale is 1:16. What is the actual height of the person? Lesson Quiz 5.5 in. 1 cm = 1.5 ft 72 in. 1 4
