1. Kampmann Products for energy efficient / sustainable buildings Friedhelm Koch Dipl.-Ing. Versorgungstechnik

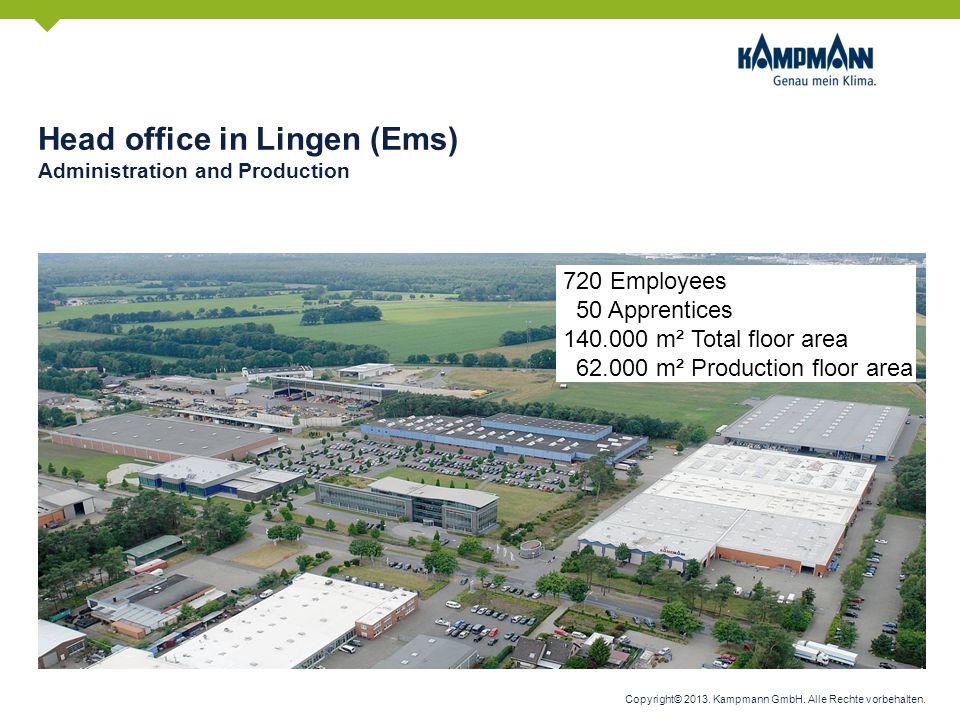

2. Head office in Lingen (Ems) Administration and Production Copyright© 2013. Kampmann GmbH. Alle Rechte vorbehalten. 720 Employees 50 Apprentices 140.000 m² Total floor area 62.000 m² Production floor area

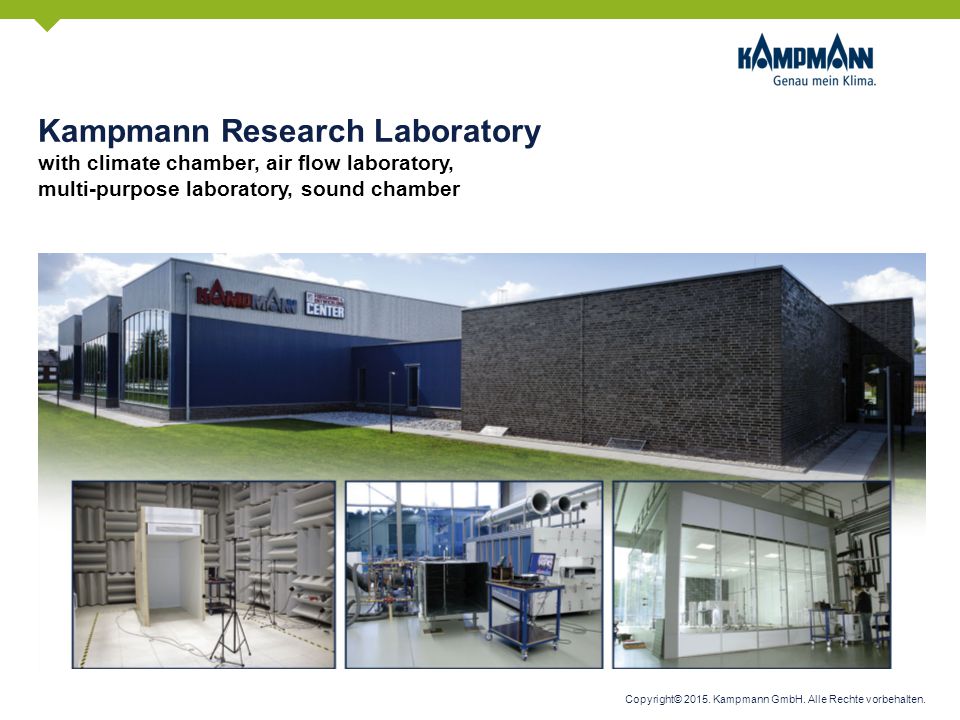

3. Kampmann Research Laboratory with climate chamber, air flow laboratory, multi-purpose laboratory, sound chamber Copyright© 2015. Kampmann GmbH. Alle Rechte vorbehalten.

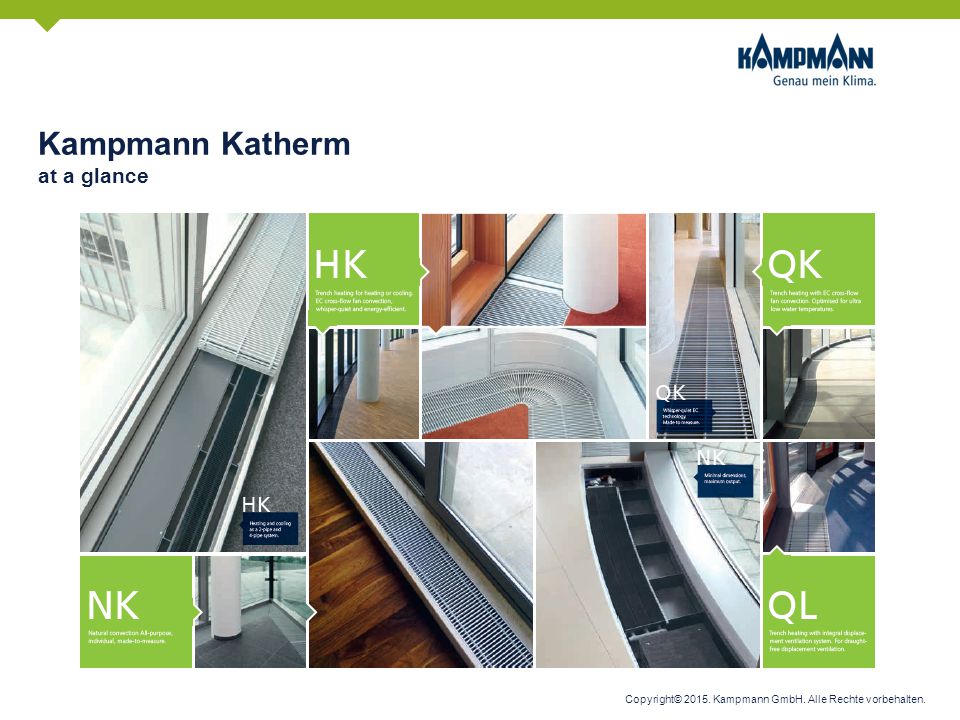

5. Kampmann Katherm at a glance Copyright© 2015. Kampmann GmbH. Alle Rechte vorbehalten.

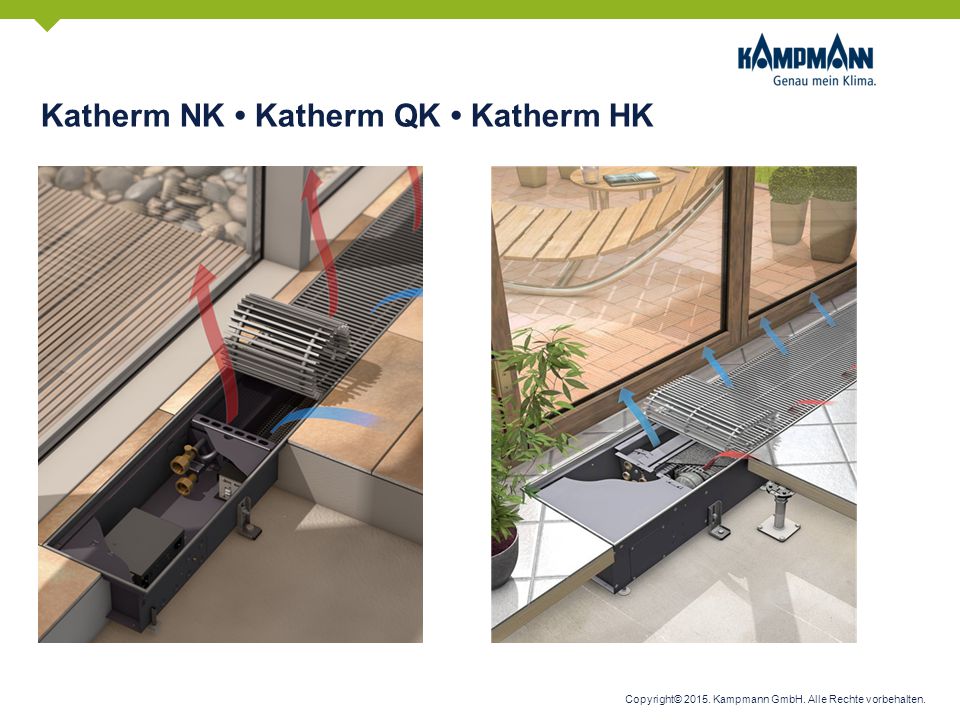

6. Katherm NK Katherm QK Katherm HK

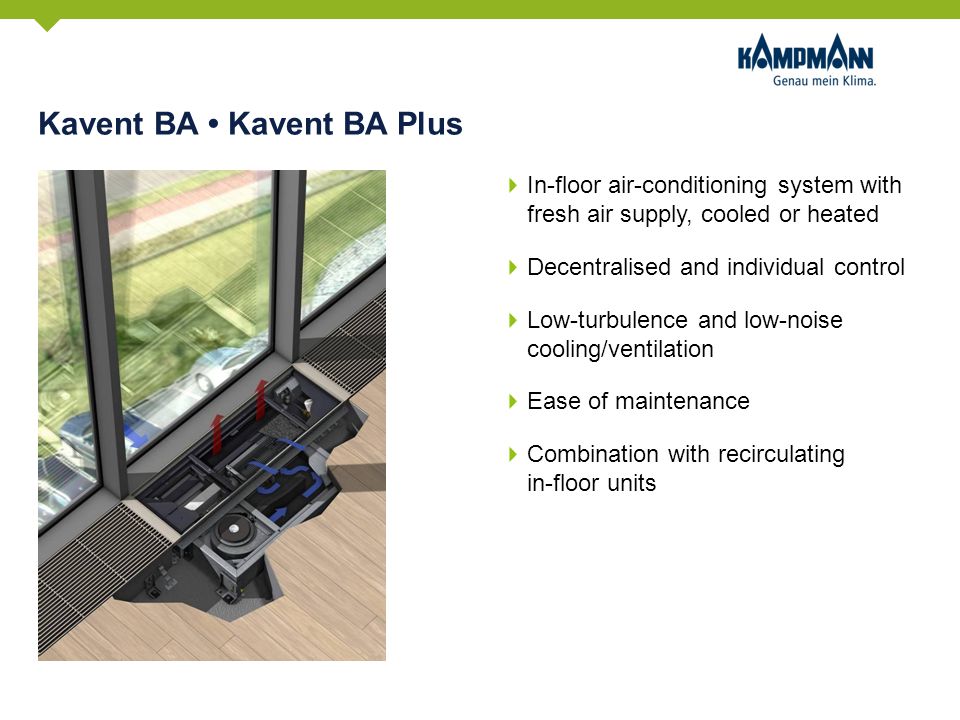

7. Kavent BA Kavent BA Plus In-floor air-conditioning system with fresh air supply, cooled or heated Decentralised and individual control Low-turbulence and low-noise cooling/ventilation Ease of maintenance Combination with recirculating in-floor units

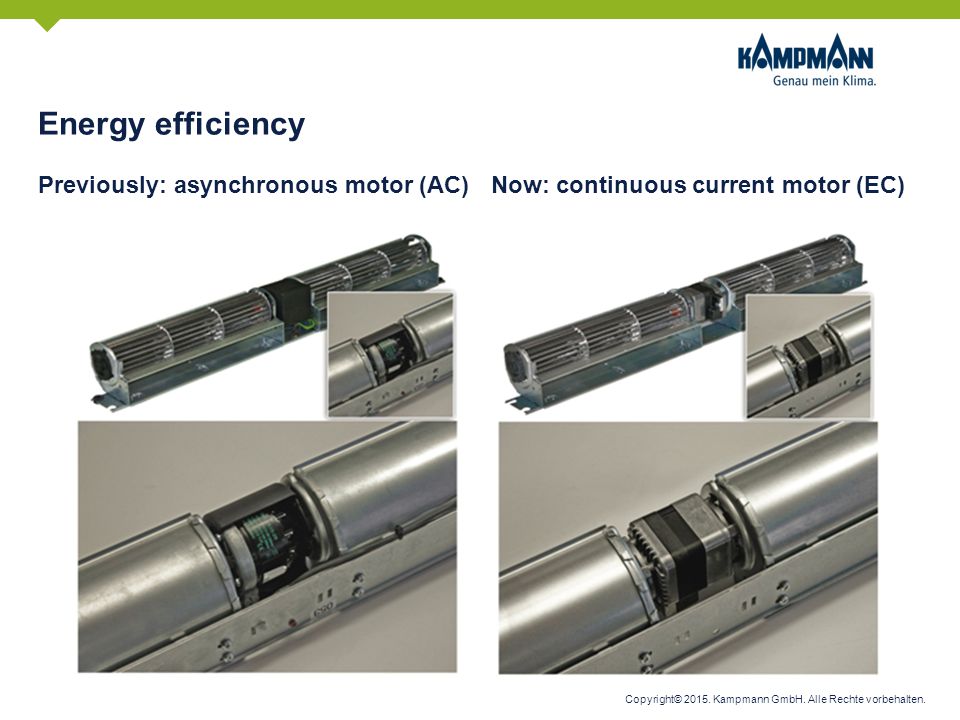

8. Copyright© 2015. Kampmann GmbH. Alle Rechte vorbehalten. Previously: asynchronous motor (AC)Now: continuous current motor (EC) Energy efficiency

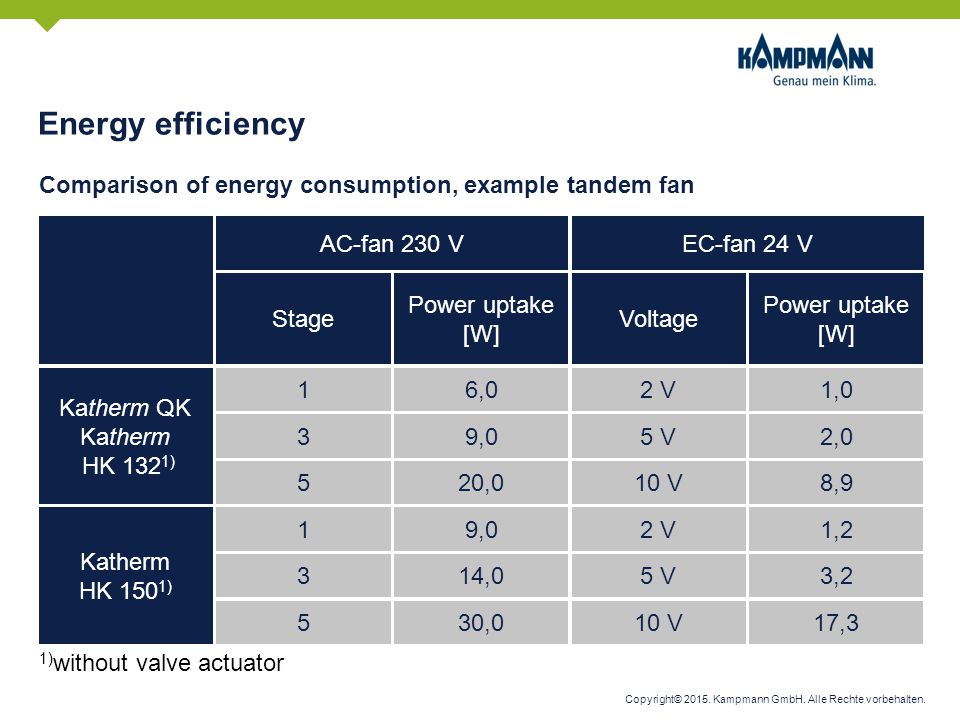

9. 5 3 1 5 3 1 30,0 14,0 9,0 20,0 9,0 6,0 17,3 3,2 1,2 8,9 2,0 1,0 10 V 5 V 2 V 10 V 5 V 2 V Katherm HK 150 1) Katherm QK Katherm HK 132 1) Stage Power uptake [W] Voltage AC-fan 230 VEC-fan 24 V 1) without valve actuator Comparison of energy consumption, example tandem fan Copyright© 2015. Kampmann GmbH. Alle Rechte vorbehalten. Energy efficiency

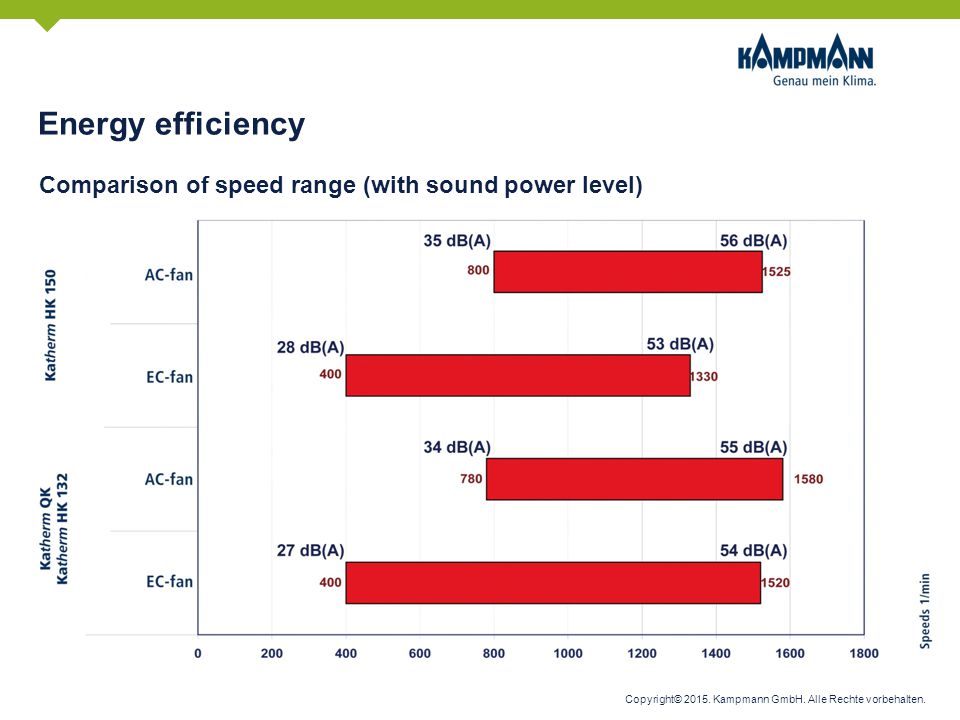

10. Comparison of speed range (with sound power level) Copyright© 2015. Kampmann GmbH. Alle Rechte vorbehalten. Energy efficiency

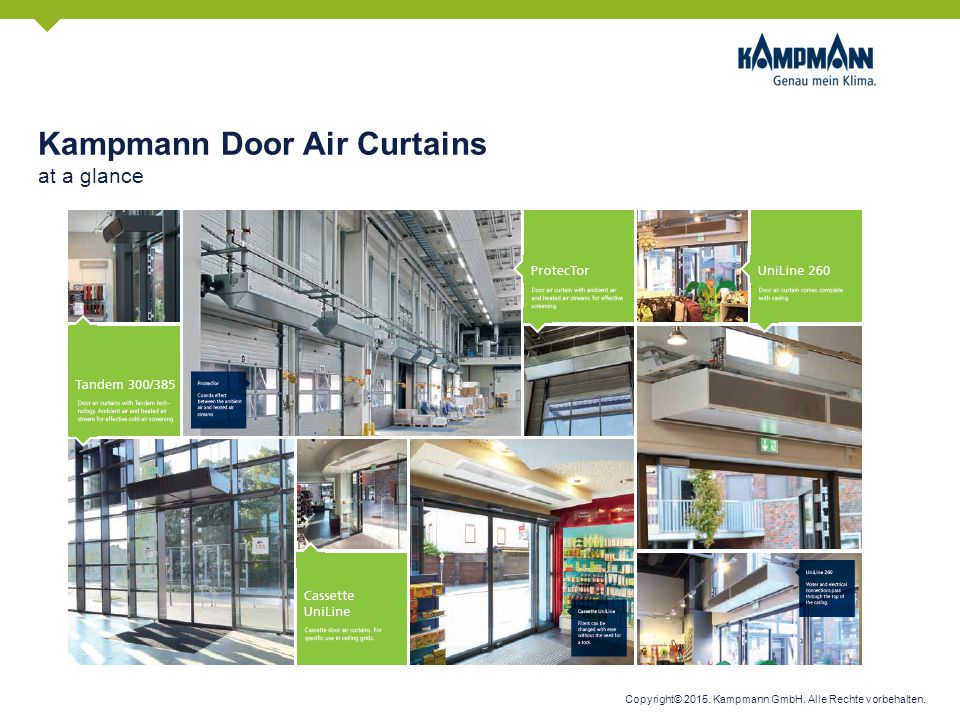

11. Kampmann Door Air Curtains at a glance Copyright© 2015. Kampmann GmbH. Alle Rechte vorbehalten.

12. Tandem 300/385 Door Air Curtains Increased shielding effect thanks to two fan groups, arranged on top of each other Ambient and warm air streams For high air flows/heat outputs Large discharge heights: 2.7 - 3.4 m with Tandem 300 3.5 - 4.0 m with Tandem 385 38% energy savings compared with conventional systems

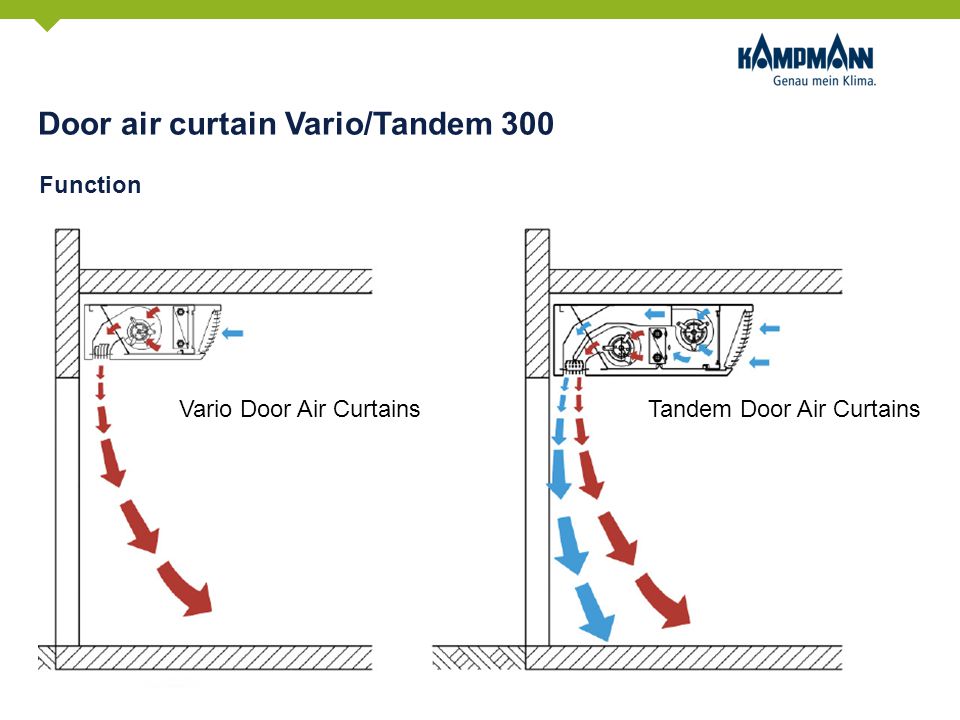

13. Function Door air curtain Vario/Tandem 300 Vario Door Air CurtainsTandem Door Air Curtains

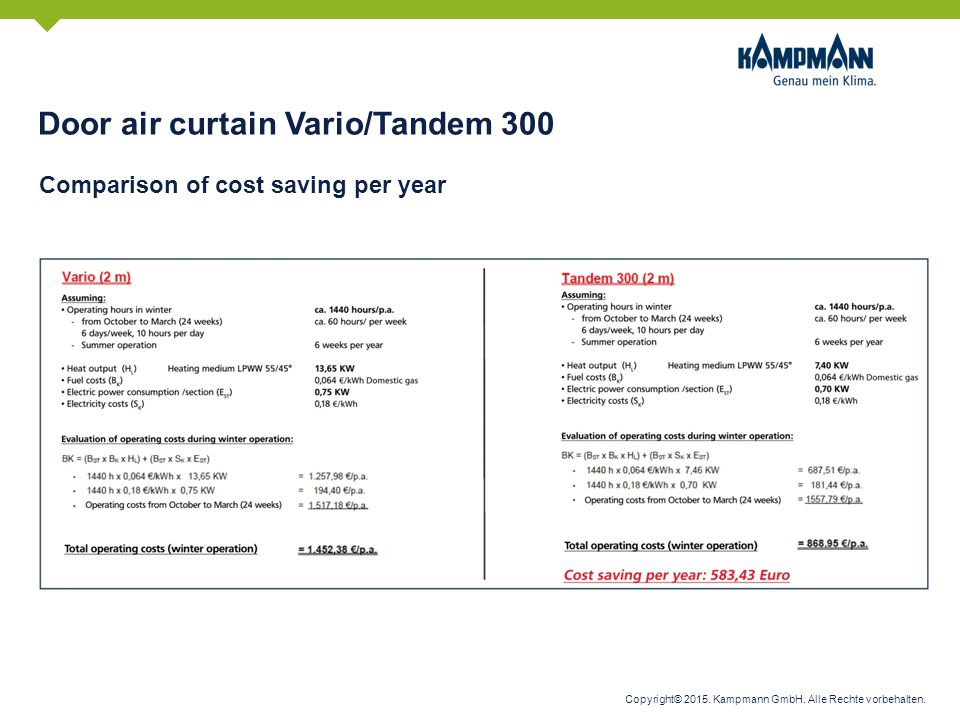

14. Copyright© 2015. Kampmann GmbH. Alle Rechte vorbehalten. Door air curtain Vario/Tandem 300 Comparison of cost saving per year

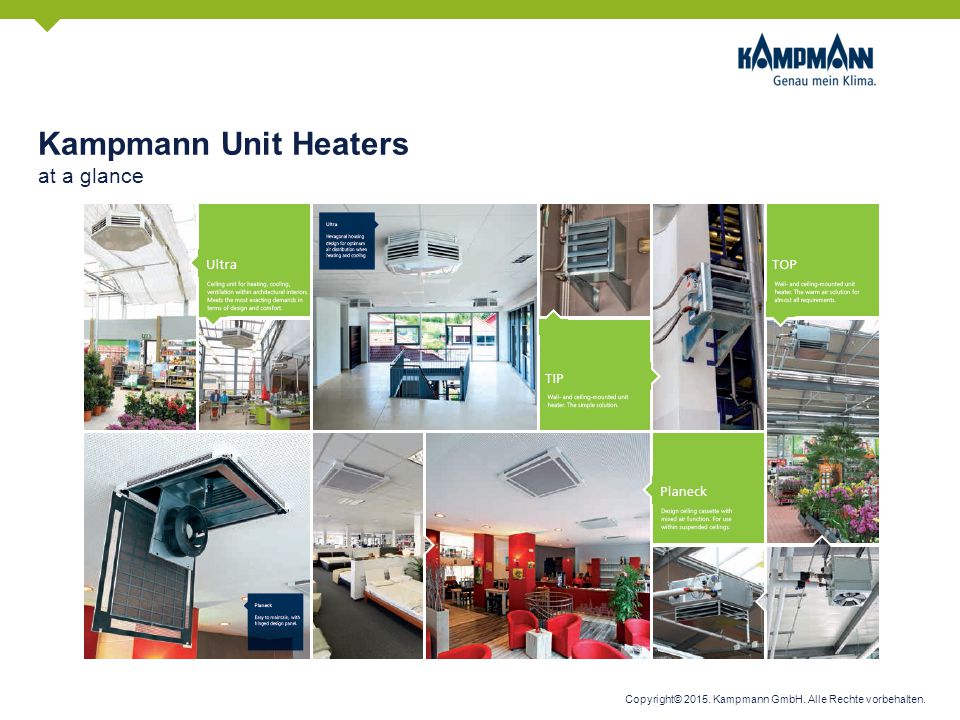

15. Kampmann Unit Heaters at a glance Copyright© 2015. Kampmann GmbH. Alle Rechte vorbehalten.

16. KaMAX Air Outlet Allow an optimum adaptation to technical and areal requirements: Ensures that room air is continually and consistently mixed due to a technically brilliant concept KaMAX (Kampmann Multi Air MiX) Bridges the thermal-up current Prevents the build-up of heat under the ceiling Results: Minimal transmission heat losses Energy costs are reduced Comfortable environment at ground level Copyright© 2015. Kampmann GmbH. Alle Rechte vorbehalten. Unit Heaters

17. KaMAX (Kampmann Multi Air MiX) Example: Height 5 - 10 m Air can be discharged at any required angle Fins are positioned vertically, so that the induction air part increases and the leaving air temperature falls Because of the strong twisting movement all air inside is involved in the air exchange A direct primary air flow is not noticeable at ground level Hall air is mixed intensively while air speed and temperature layering are low Comfort and energy savings Copyright© 2015. Kampmann GmbH. Alle Rechte vorbehalten. Unit Heaters

18. Katherm QK - H eating with fan assistance Reference: Svedbank AB, Sundbyberg (Stockholm) Copyright© 2015. Kampmann GmbH. Alle Rechte vorbehalten.

19. Special version Tandem Door Air Curtains Reference: Heathrow Airport, London Copyright© 2015. Kampmann GmbH. Alle Rechte vorbehalten.

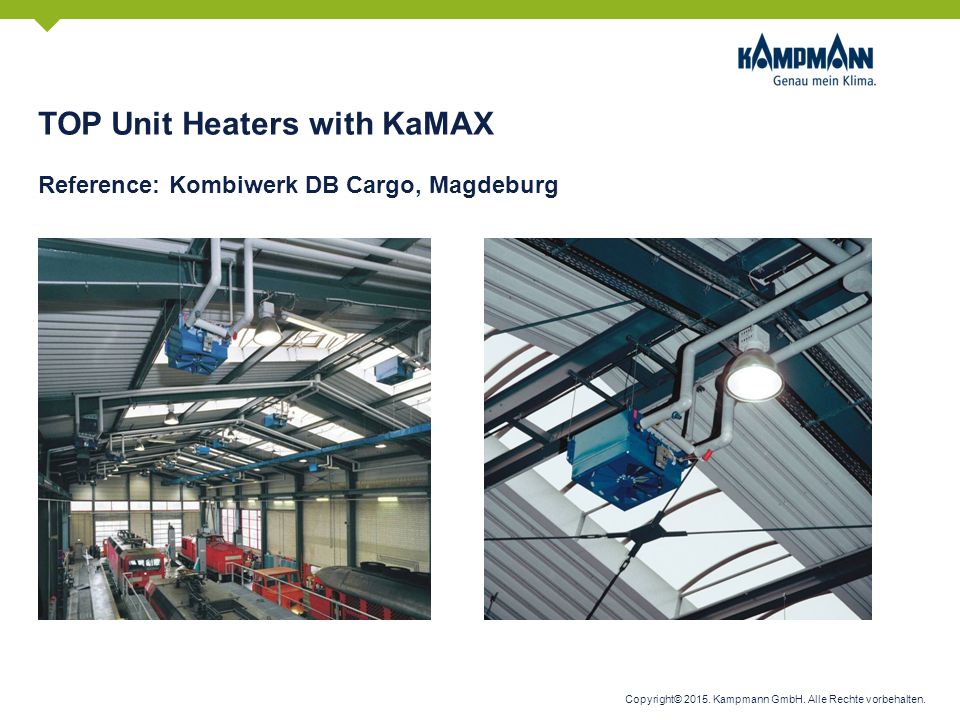

20. TOP Unit Heaters with KaMAX Reference: Kombiwerk DB Cargo, Magdeburg Copyright© 2015. Kampmann GmbH. Alle Rechte vorbehalten.

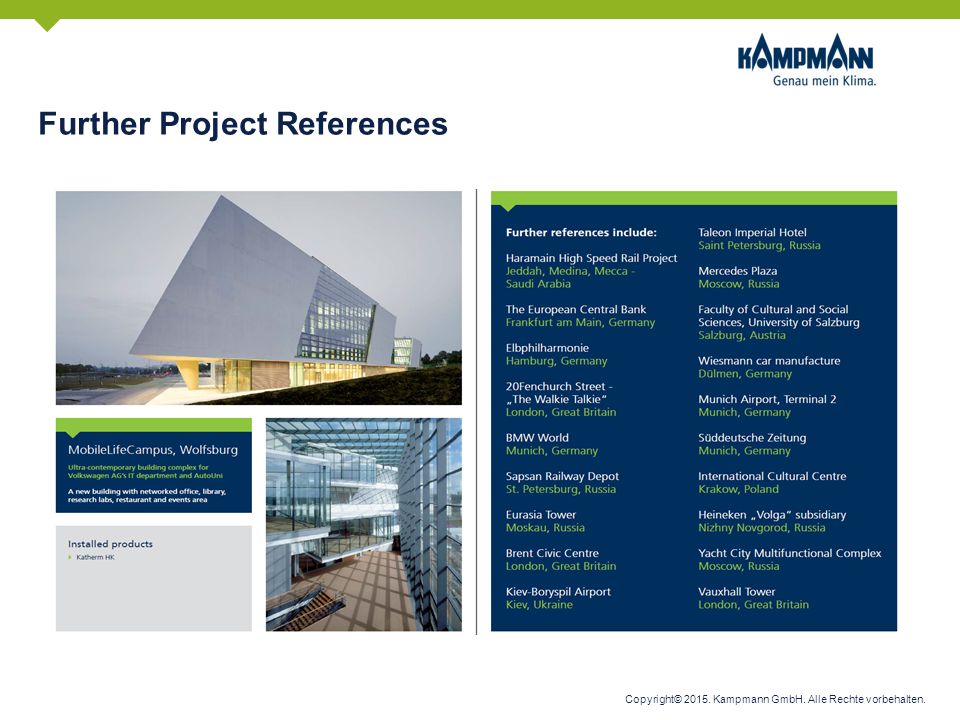

21. Further Project References Copyright© 2015. Kampmann GmbH. Alle Rechte vorbehalten.

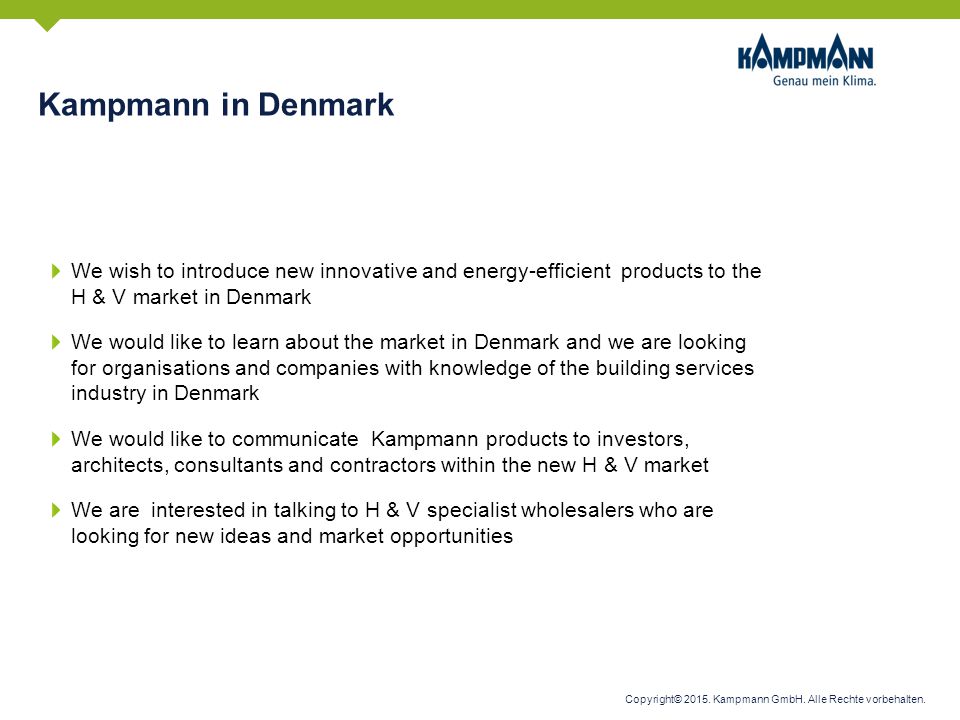

22. We wish to introduce new innovative and energy-efficient products to the H & V market in Denmark We would like to learn about the market in Denmark and we are looking for organisations and companies with knowledge of the building services industry in Denmark We would like to communicate Kampmann products to investors, architects, consultants and contractors within the new H & V market We are interested in talking to H & V specialist wholesalers who are looking for new ideas and market opportunities Copyright© 2015. Kampmann GmbH. Alle Rechte vorbehalten. Kampmann in Denmark

23. Thank you for your kind attention!
