1. CSCE 432/832 High Performance Processor Architectures An Introduction to CMP Simulators By Dongyuan Zhan 11/18/2009

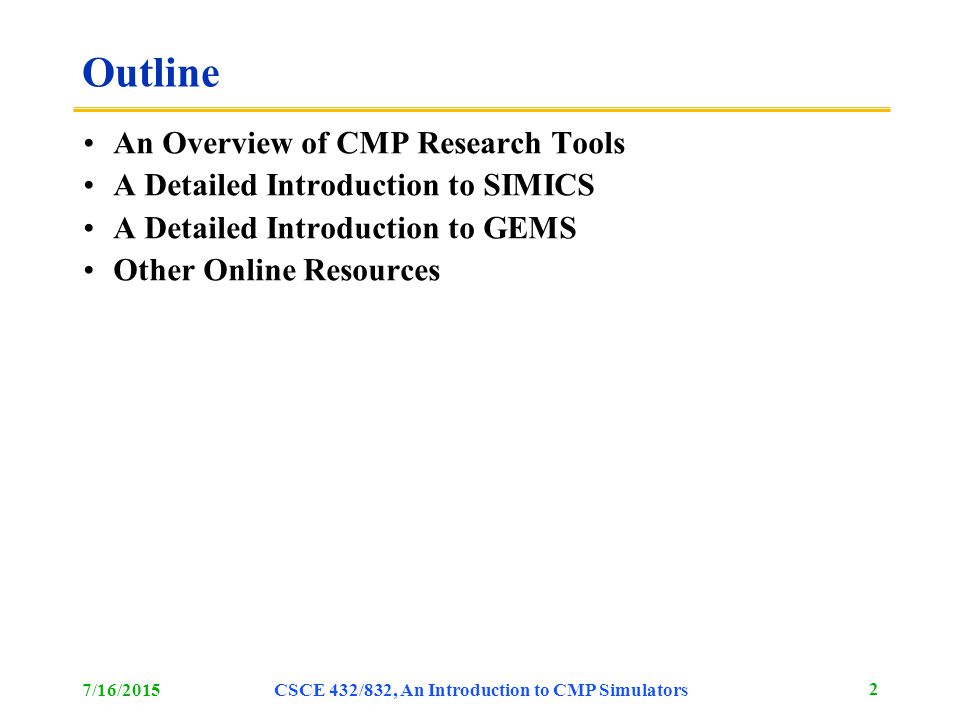

2. 7/16/2015CSCE 432/832, An Introduction to CMP Simulators 2 Outline An Overview of CMP Research Tools A Detailed Introduction to SIMICS A Detailed Introduction to GEMS Other Online Resources

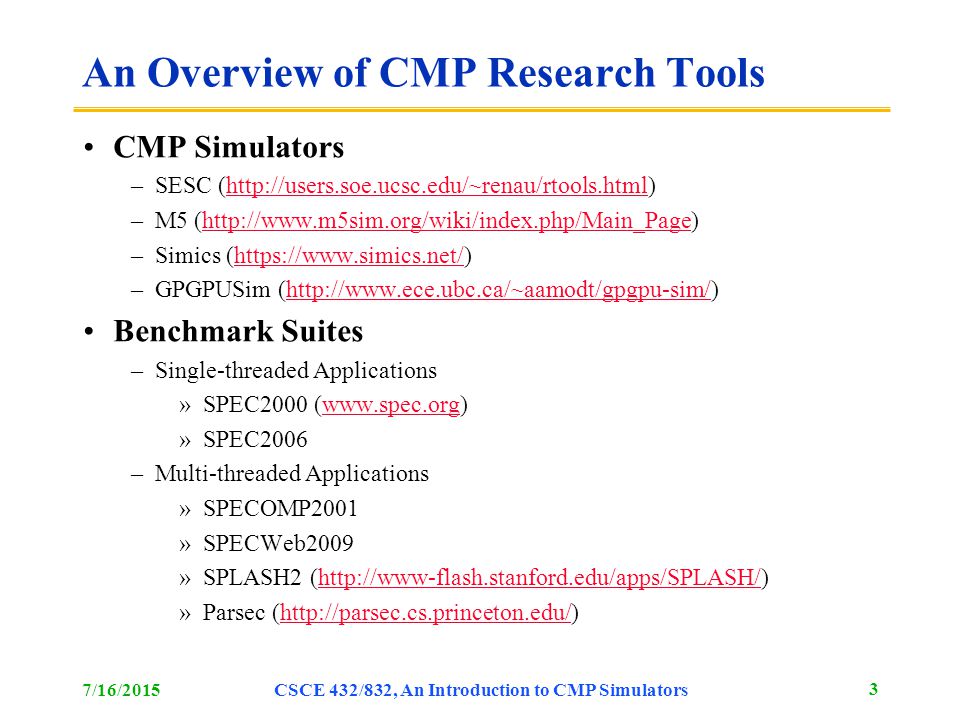

3. An Overview of CMP Research Tools CMP Simulators –SESC (http://users.soe.ucsc.edu/~renau/rtools.html)http://users.soe.ucsc.edu/~renau/rtools.html –M5 (http://www.m5sim.org/wiki/index.php/Main_Page)http://www.m5sim.org/wiki/index.php/Main_Page –Simics (https://www.simics.net/)https://www.simics.net/ –GPGPUSim (http://www.ece.ubc.ca/~aamodt/gpgpu-sim/)http://www.ece.ubc.ca/~aamodt/gpgpu-sim/ Benchmark Suites –Single-threaded Applications »SPEC2000 (www.spec.org)www.spec.org »SPEC2006 –Multi-threaded Applications »SPECOMP2001 »SPECWeb2009 »SPLASH2 (http://www-flash.stanford.edu/apps/SPLASH/)http://www-flash.stanford.edu/apps/SPLASH/ »Parsec (http://parsec.cs.princeton.edu/)http://parsec.cs.princeton.edu/ 7/16/2015CSCE 432/832, An Introduction to CMP Simulators 3

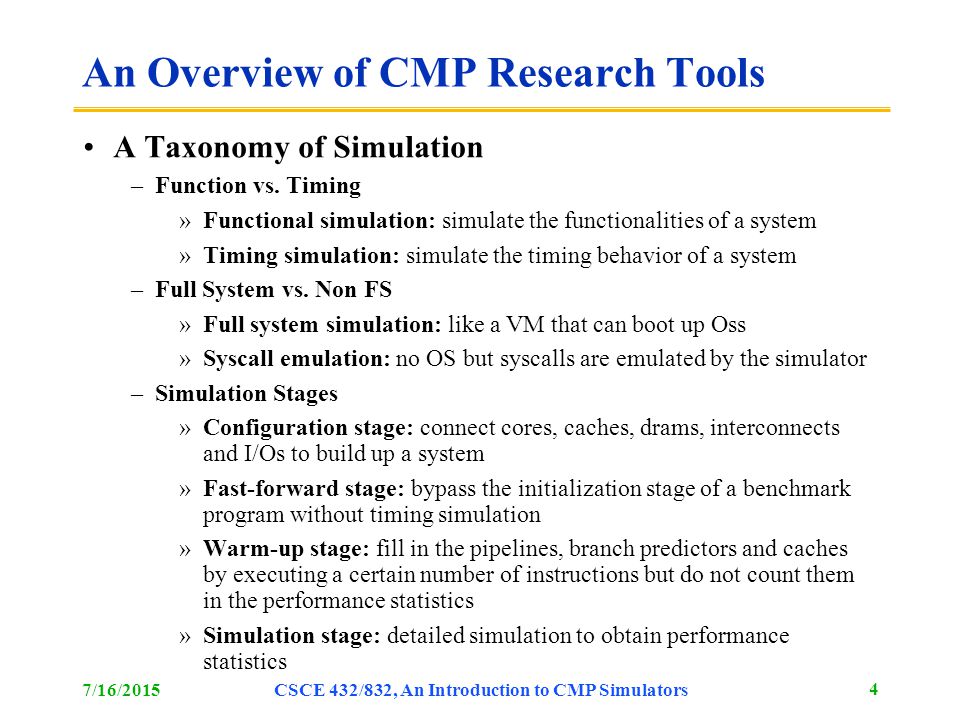

4. An Overview of CMP Research Tools A Taxonomy of Simulation –Function vs. Timing »Functional simulation: simulate the functionalities of a system »Timing simulation: simulate the timing behavior of a system –Full System vs. Non FS »Full system simulation: like a VM that can boot up Oss »Syscall emulation: no OS but syscalls are emulated by the simulator –Simulation Stages »Configuration stage: connect cores, caches, drams, interconnects and I/Os to build up a system »Fast-forward stage: bypass the initialization stage of a benchmark program without timing simulation »Warm-up stage: fill in the pipelines, branch predictors and caches by executing a certain number of instructions but do not count them in the performance statistics »Simulation stage: detailed simulation to obtain performance statistics 7/16/2015CSCE 432/832, An Introduction to CMP Simulators 4

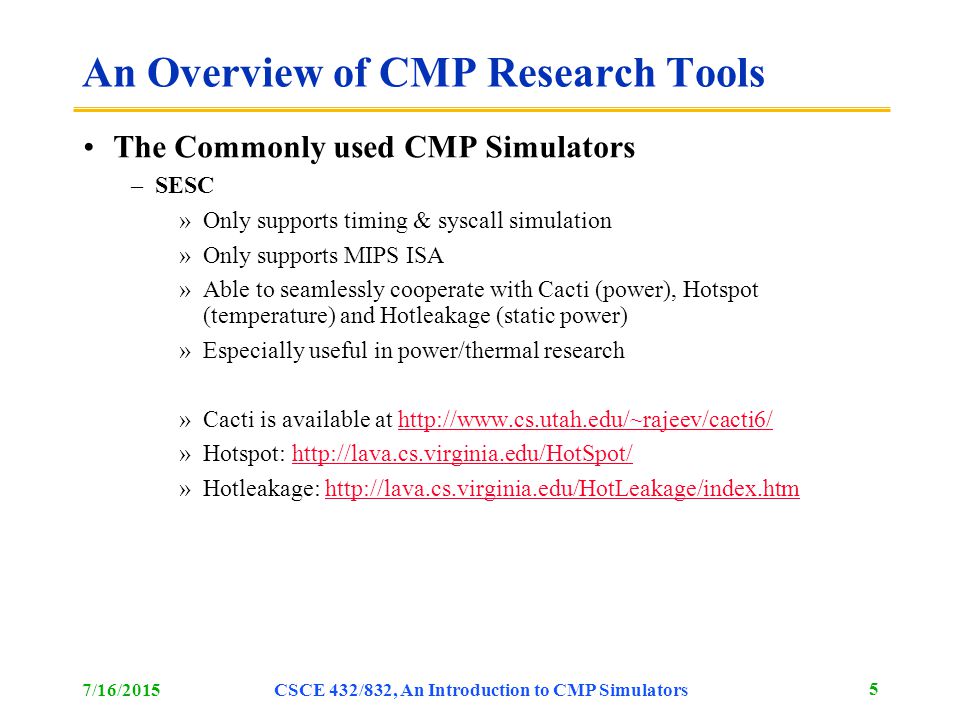

5. An Overview of CMP Research Tools The Commonly used CMP Simulators –SESC »Only supports timing & syscall simulation »Only supports MIPS ISA »Able to seamlessly cooperate with Cacti (power), Hotspot (temperature) and Hotleakage (static power) »Especially useful in power/thermal research »Cacti is available at http://www.cs.utah.edu/~rajeev/cacti6/http://www.cs.utah.edu/~rajeev/cacti6/ »Hotspot: http://lava.cs.virginia.edu/HotSpot/http://lava.cs.virginia.edu/HotSpot/ »Hotleakage: http://lava.cs.virginia.edu/HotLeakage/index.htmhttp://lava.cs.virginia.edu/HotLeakage/index.htm 7/16/2015CSCE 432/832, An Introduction to CMP Simulators 5

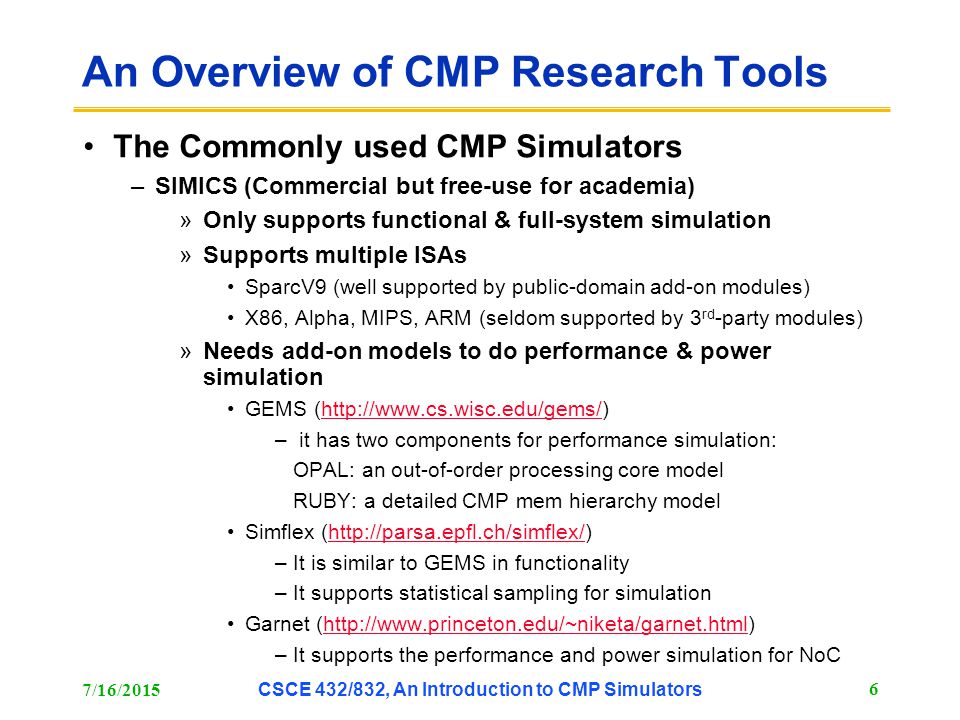

6. An Overview of CMP Research Tools The Commonly used CMP Simulators –SIMICS (Commercial but free-use for academia) »Only supports functional & full-system simulation »Supports multiple ISAs SparcV9 (well supported by public-domain add-on modules) X86, Alpha, MIPS, ARM (seldom supported by 3 rd -party modules) »Needs add-on models to do performance & power simulation GEMS (http://www.cs.wisc.edu/gems/)http://www.cs.wisc.edu/gems/ – it has two components for performance simulation: OPAL: an out-of-order processing core model RUBY: a detailed CMP mem hierarchy model Simflex (http://parsa.epfl.ch/simflex/)http://parsa.epfl.ch/simflex/ –It is similar to GEMS in functionality –It supports statistical sampling for simulation Garnet (http://www.princeton.edu/~niketa/garnet.html)http://www.princeton.edu/~niketa/garnet.html –It supports the performance and power simulation for NoC 7/16/2015 CSCE 432/832, An Introduction to CMP Simulators 6

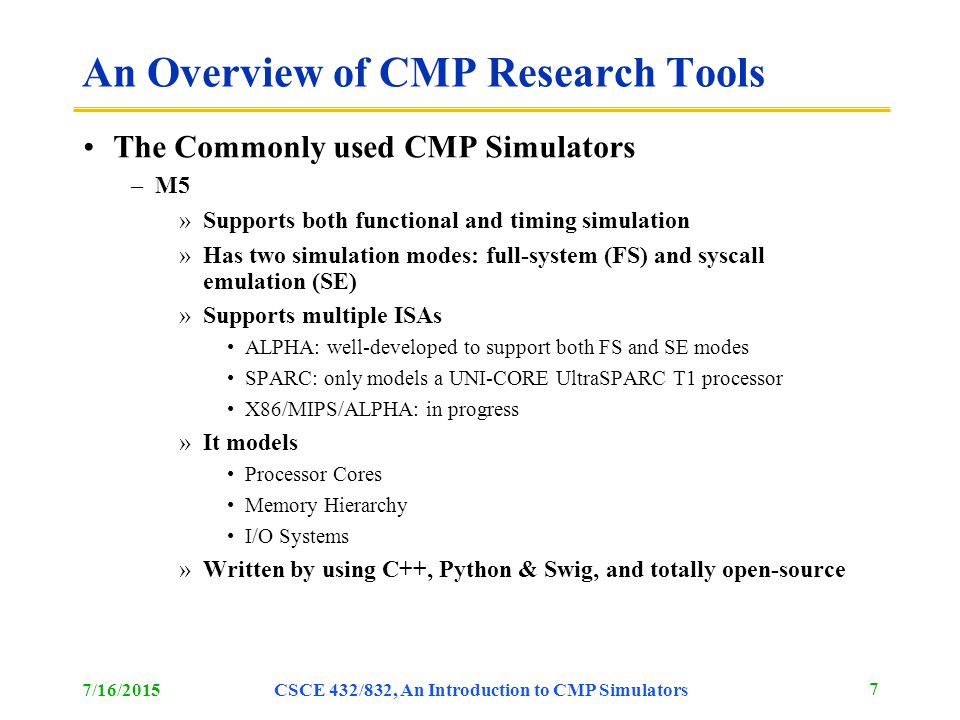

7. An Overview of CMP Research Tools The Commonly used CMP Simulators –M5 »Supports both functional and timing simulation »Has two simulation modes: full-system (FS) and syscall emulation (SE) »Supports multiple ISAs ALPHA: well-developed to support both FS and SE modes SPARC: only models a UNI-CORE UltraSPARC T1 processor X86/MIPS/ALPHA: in progress »It models Processor Cores Memory Hierarchy I/O Systems »Written by using C++, Python & Swig, and totally open-source 7/16/2015CSCE 432/832, An Introduction to CMP Simulators 7

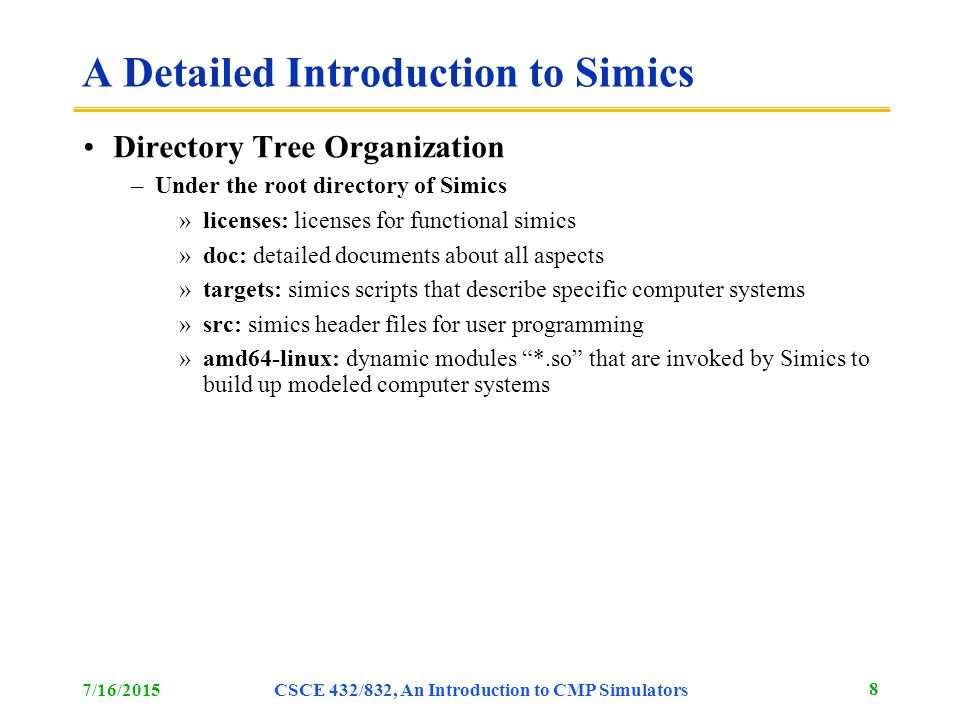

8. A Detailed Introduction to Simics Directory Tree Organization –Under the root directory of Simics »licenses: licenses for functional simics »doc: detailed documents about all aspects »targets: simics scripts that describe specific computer systems »src: simics header files for user programming »amd64-linux: dynamic modules “*.so” that are invoked by Simics to build up modeled computer systems 7/16/2015CSCE 432/832, An Introduction to CMP Simulators 8

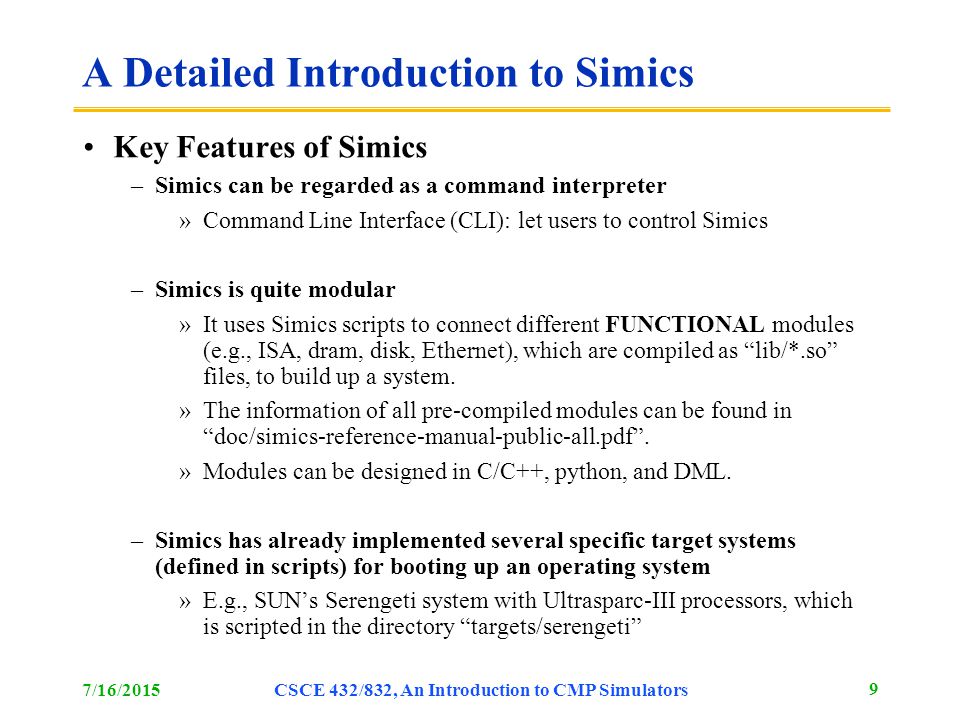

9. A Detailed Introduction to Simics Key Features of Simics –Simics can be regarded as a command interpreter »Command Line Interface (CLI): let users to control Simics –Simics is quite modular »It uses Simics scripts to connect different FUNCTIONAL modules (e.g., ISA, dram, disk, Ethernet), which are compiled as “lib/*.so” files, to build up a system. »The information of all pre-compiled modules can be found in “doc/simics-reference-manual-public-all.pdf”. »Modules can be designed in C/C++, python, and DML. –Simics has already implemented several specific target systems (defined in scripts) for booting up an operating system »E.g., SUN’s Serengeti system with Ultrasparc-III processors, which is scripted in the directory “targets/serengeti” 7/16/2015CSCE 432/832, An Introduction to CMP Simulators 9

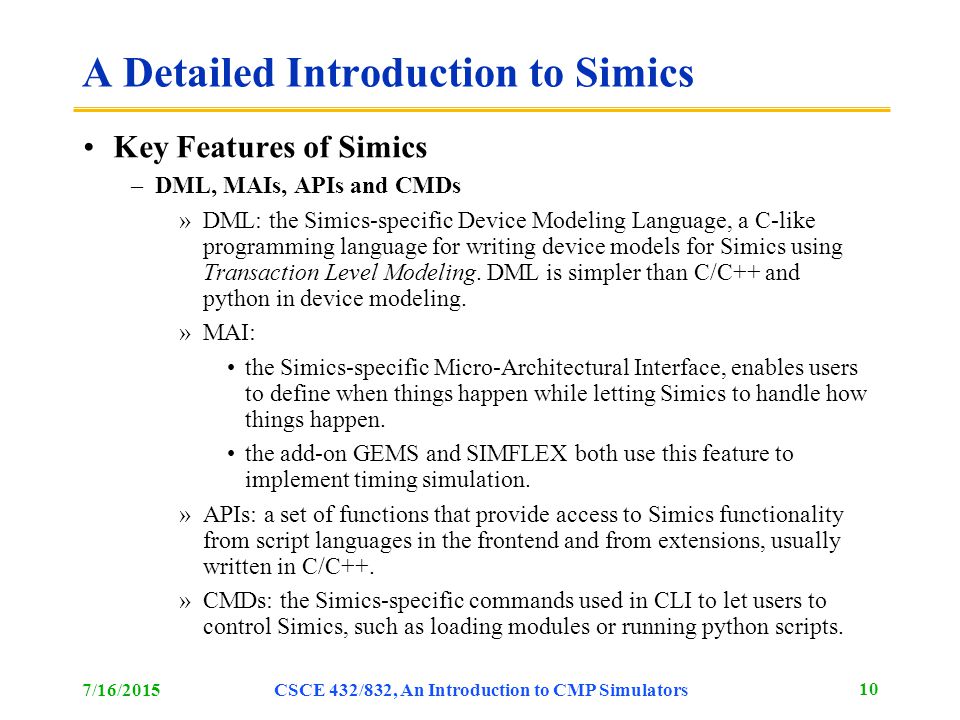

10. A Detailed Introduction to Simics Key Features of Simics –DML, MAIs, APIs and CMDs »DML: the Simics-specific Device Modeling Language, a C-like programming language for writing device models for Simics using Transaction Level Modeling. DML is simpler than C/C++ and python in device modeling. »MAI: the Simics-specific Micro-Architectural Interface, enables users to define when things happen while letting Simics to handle how things happen. the add-on GEMS and SIMFLEX both use this feature to implement timing simulation. »APIs: a set of functions that provide access to Simics functionality from script languages in the frontend and from extensions, usually written in C/C++. »CMDs: the Simics-specific commands used in CLI to let users to control Simics, such as loading modules or running python scripts. 7/16/2015CSCE 432/832, An Introduction to CMP Simulators 10

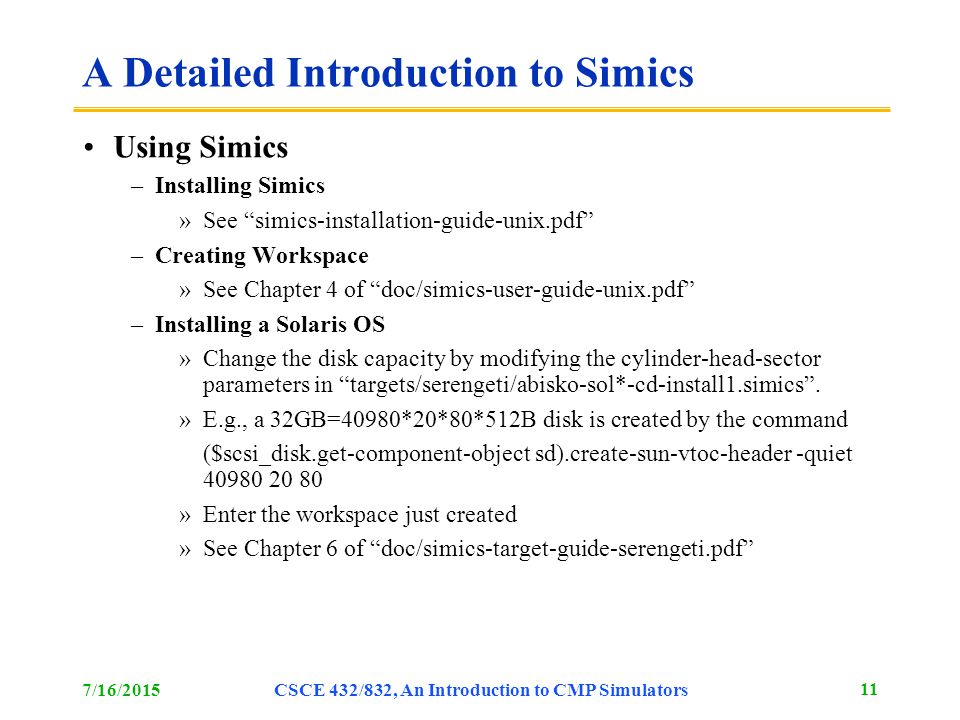

11. A Detailed Introduction to Simics Using Simics –Installing Simics »See “simics-installation-guide-unix.pdf” –Creating Workspace »See Chapter 4 of “doc/simics-user-guide-unix.pdf” –Installing a Solaris OS »Change the disk capacity by modifying the cylinder-head-sector parameters in “targets/serengeti/abisko-sol*-cd-install1.simics”. »E.g., a 32GB=40980*20*80*512B disk is created by the command ($scsi_disk.get-component-object sd).create-sun-vtoc-header -quiet 40980 20 80 »Enter the workspace just created »See Chapter 6 of “doc/simics-target-guide-serengeti.pdf” 7/16/2015CSCE 432/832, An Introduction to CMP Simulators 11

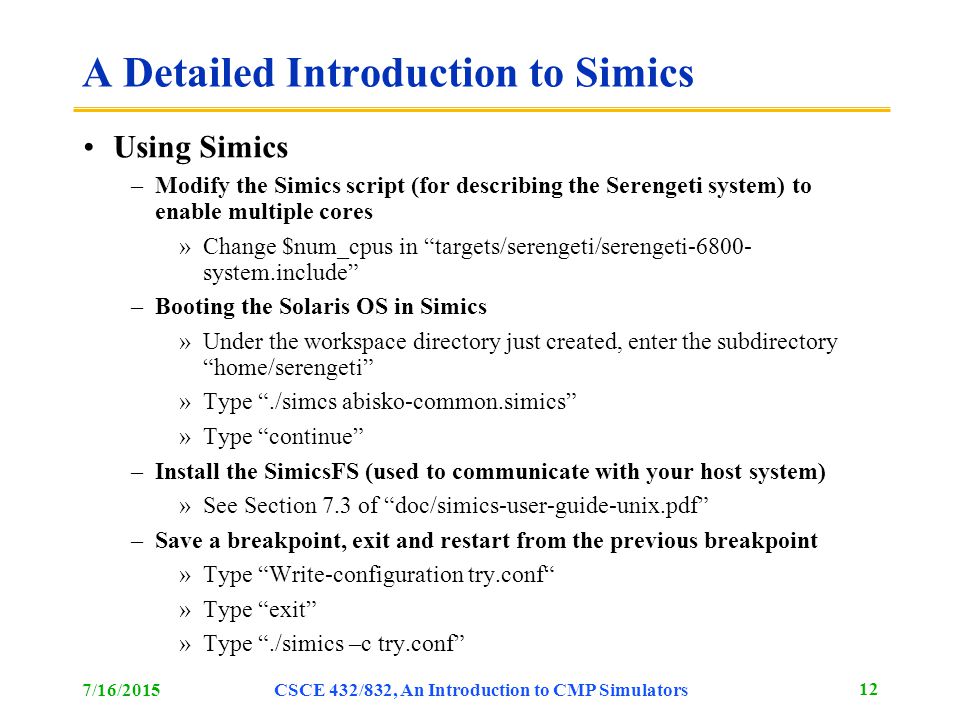

12. A Detailed Introduction to Simics Using Simics –Modify the Simics script (for describing the Serengeti system) to enable multiple cores »Change $num_cpus in “targets/serengeti/serengeti-6800- system.include” –Booting the Solaris OS in Simics »Under the workspace directory just created, enter the subdirectory “home/serengeti” »Type “./simcs abisko-common.simics” »Type “continue” –Install the SimicsFS (used to communicate with your host system) »See Section 7.3 of “doc/simics-user-guide-unix.pdf” –Save a breakpoint, exit and restart from the previous breakpoint »Type “Write-configuration try.conf“ »Type “exit” »Type “./simics –c try.conf” 7/16/2015CSCE 432/832, An Introduction to CMP Simulators 12

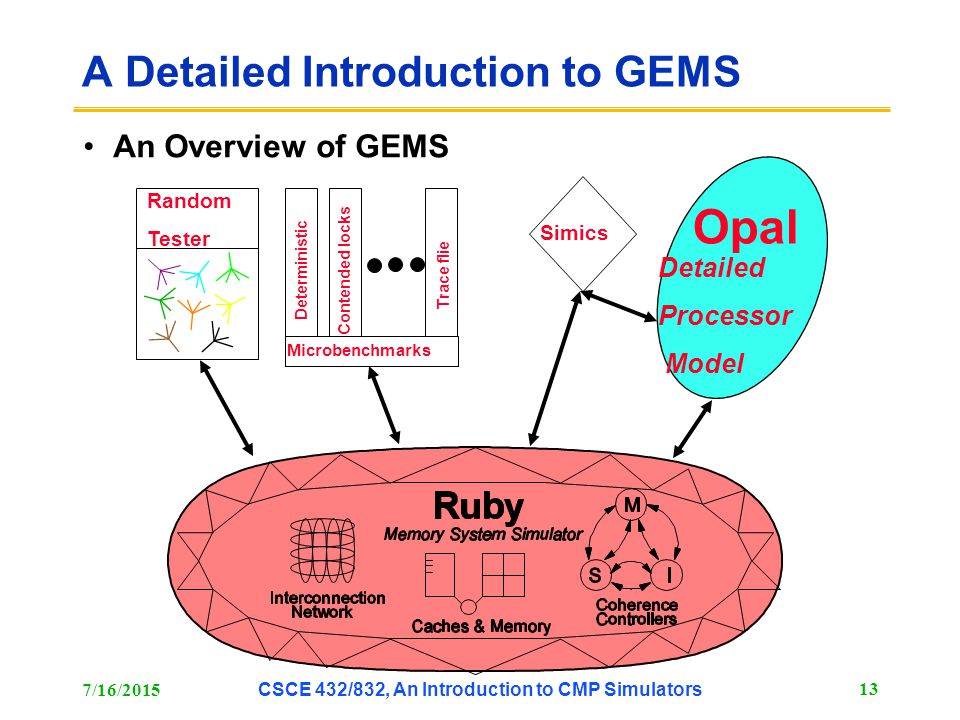

13. A Detailed Introduction to GEMS An Overview of GEMS 7/16/2015 CSCE 432/832, An Introduction to CMP Simulators 13 Detailed Processor Model Opal Simics Microbenchmarks Random Tester Deterministic Contended locks Trace flie

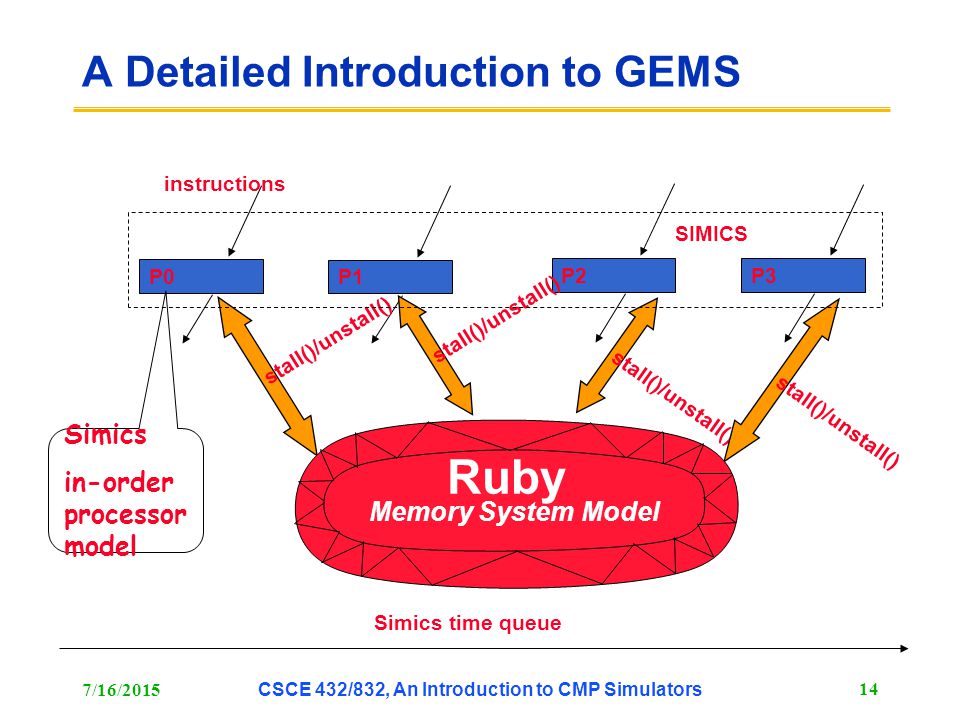

14. A Detailed Introduction to GEMS 7/16/2015 CSCE 432/832, An Introduction to CMP Simulators 14 P0 Simics time queue P1 P2 P3 stall()/unstall() instructions Simics in-order processor model SIMICS Ruby Memory System Model

15. A Detailed Introduction to GEMS Essential Components in Ruby –Caches & Memory –Coherence Protocols »CMP protocols MOESI_CMP_token: M-CMP token coherence MSI_MOSI_CMP_directory: 2-level Directory MOESI_CMP_directory: higher performing 2-level Directory »SMP protocols MOSI_SMP_bcast: snooping on ordered interconnect MOSI_SMP_directory MOSI_SMP_hammer: based on AMD Hammer »User defined protocols using GEMS SLICC 7/16/2015 CSCE 432/832, An Introduction to CMP Simulators 15

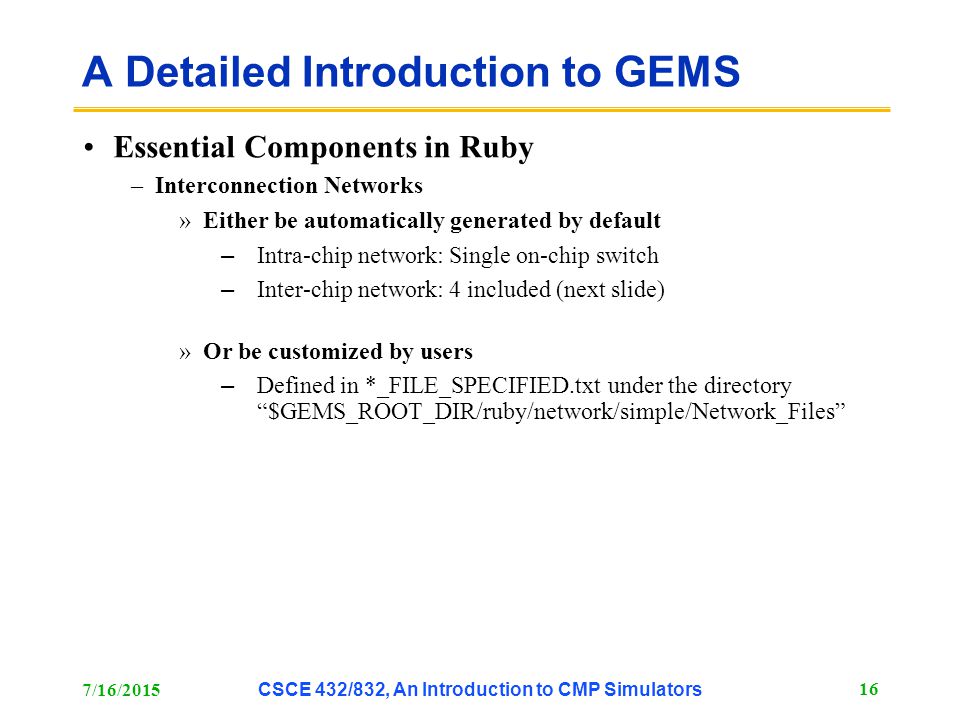

16. A Detailed Introduction to GEMS Essential Components in Ruby –Interconnection Networks »Either be automatically generated by default – Intra-chip network: Single on-chip switch – Inter-chip network: 4 included (next slide) »Or be customized by users – Defined in *_FILE_SPECIFIED.txt under the directory “$GEMS_ROOT_DIR/ruby/network/simple/Network_Files” 7/16/2015 CSCE 432/832, An Introduction to CMP Simulators 16

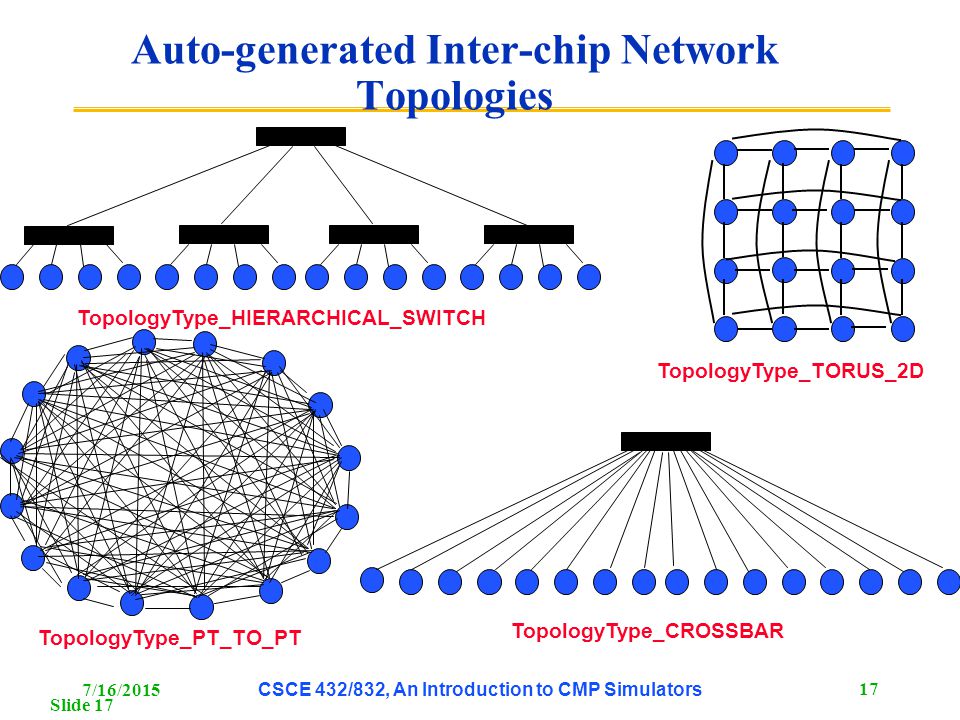

17. Auto-generated Inter-chip Network Topologies 7/16/2015 CSCE 432/832, An Introduction to CMP Simulators 17 Slide 17 TopologyType_TORUS_2D TopologyType_CROSSBAR TopologyType_HIERARCHICAL_SWITCH TopologyType_PT_TO_PT

18. Topology Parameters –Link latency »Auto-generated ON_CHIP_LINK_LATENCY NETWORK_LINK_LATENCY »Customized ‘link_latency:’ –Link bandwidth »Auto-generated On-chip = 10 x g_endpoint_bandwidth Off-chip = g_endpoint_bandwidth »Customized Individual link bandwidth = ‘bw_multiplier:’ x g_endpoint_bandwidth –Buffer size »Infinite by default »Customized network supports finite buffering Prevent 2D-mesh network deadlock through e-cube restrictive routing ‘link_weight’ –Perfect switch bandwidth 7/16/2015CSCE 432/832, An Introduction to CMP Simulators 18

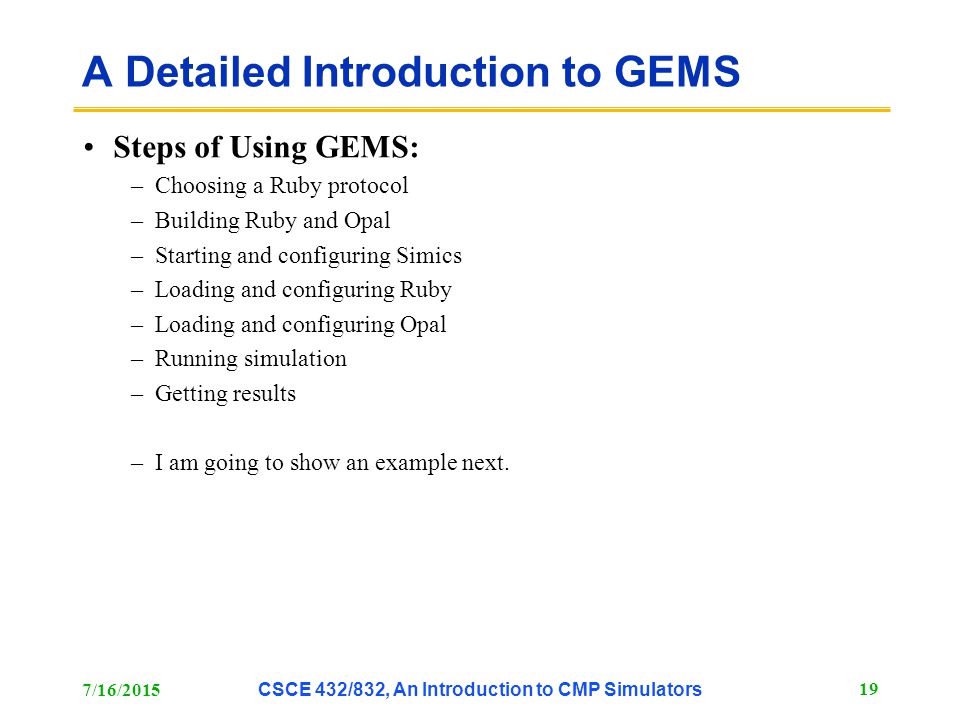

19. A Detailed Introduction to GEMS Steps of Using GEMS: –Choosing a Ruby protocol –Building Ruby and Opal –Starting and configuring Simics –Loading and configuring Ruby –Loading and configuring Opal –Running simulation –Getting results –I am going to show an example next. 7/16/2015 CSCE 432/832, An Introduction to CMP Simulators 19

20. Other Online Resources Simics Online Forum –https://www.simics.net/https://www.simics.net/ GEMS Mailing List & Archive –http://lists.cs.wisc.edu/mailman/listinfo/gems-usershttp://lists.cs.wisc.edu/mailman/listinfo/gems-users A Student wrote some articles about installing and using Simics at –http://fisherduyu.blogspot.com/http://fisherduyu.blogspot.com/ A Note by me –http://docs.google.com/View?id=dc3xsqzx_131fcdxhnhghttp://docs.google.com/View?id=dc3xsqzx_131fcdxhnhg 7/16/2015CSCE 432/832, An Introduction to CMP Simulators 20
