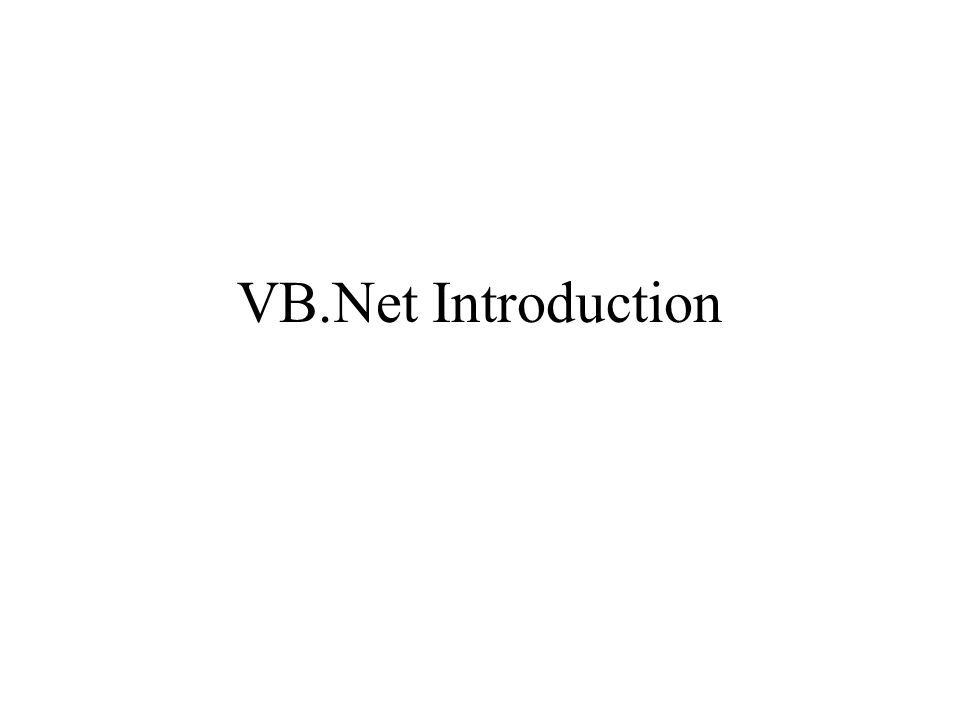

1. VB.Net Introduction

2. Visual Studio 2010 Demo Start page: New project/ Open project/Recent projects Starting project: File/New Project/ –C# or VB –Windows or Web –Project name File/New website Project windows: –Form design view/Form code view –Solution Explorer –Server Explorer –Property Window Properties and Events –ToolBox –Project/Add New Item –Project properties: Right-click project name and choose Properties Start Up form –Property window example

3. Introduction to Visual Basic.Net Event-driven programming –The interface for a VB program consists of one or more forms, containing one or more controls (screen objects). –Form and controls have events that can respond to. Typical events include clicking a mouse button, type a character on the keyboard, changing a value, etc. –Event procedure

4. Form Properties: –Name, FormBorderStyle, Text, BackColor, BackImage, Opacity Events: –Load, FormClosing, FormClosed –GotFocus, LostFocus –MouseHover, Click, DoubleCLick

5. Typical VB.Net Controls TextBox Label Button CheckBox RadioButton ListBox ComboBox PictureBox

6. Text Box Properties: –AutoSize, BorderStyle, CauseValidation, Enabled, Locked, Multiline, PasswordChar, ReadOnly, ScrollBar, TabIndex, Text, Visible, WordWrap, etc. Properties can be set at the design time or at the run time using code. To refer to a property: –ControlName.PropertyName –Ex. TextBox1.Text –Note: The Text property is a string data type and automatically inherits the properties and methods of the string data type.

7. Typical VB.Net Programming Tasks Creating the GUI elements that make up the application’s user interface. –Visualize the application. –Make a list of the controls needed. Setting the properties of the GUI elements Writing procedures that respond to events and perform other operations.

8. To Add an Event-Procedure 1. Select the Properties window 2. Click Events button 3. Select the event and double-click it. Note: Every control has a default event. Form: Load event Button control: Click event Textbox: Text Changed event –To add the default event procedure, simply double-click the control.

9. Demo Num1 Num2 Sum =.Control properties.Event: Click, MouseMove, Form Load, etc..Event procedures Sum: textBox3.text=CStr(CDbl(textBox1.text)+CDbl(textBox2.text)) Or (CDbl(textBox1.text)+CDbl(textBox2.text)).toString.Demo: Text alignment (TextAlign property)

10. Using VB Functions or.Net Methods? VB functions: Cstr, Cdbl, ….Net framework: –System.Convert TextBox3.Text = (System.Convert.ToDouble(TextBox1.Text) + System.Convert.ToDouble(TextBox2.Text)).ToString

11. VB Projects A VB project consists of several files. Visual Studio.Net automatically creates a project folder to keep all project files in the folder. –Project file –Form file –Modules –Class file –Etc.

12. Configure VB Project Project property page –Application –Compile –References Tools/Options –Environment –Projects and Solutions »VB defaults

13. VB Defaults Option Explicit: –On --- must declare variables before use Option Strict: –Off --- VB will convert the data Option Compare: –Binary --- case sensitive –Text --- case insensitive Option Infer –On --- When you set Option Infer to On, you can declare variables without explicitly stating a data type. The compiler infers the data type of a variable from the type of its initialization expression.

14. Variable Declarations Option Explicit Dim variableName as DataType Variable naming rules: –The first character must be a letter or an underscore character. –Use only letters, digits, and underscore. –Cannot contain spaces or periods. –No VB keywords Naming conventions: –Descriptive –Consistent lower and upper case characters. Ex. Camel casing: lowerUpper, employeeName

15. Control Naming Conventions The first three letters should be a lowercase prefix that indicates the control’s type. –frm, txt, lbl, btn. The first letter after the prefix should be uppercase. –txtSalary, lblMessage The part of the control name after the prefix should describe the control’s purpose in the application.

16. VB Data Types Boolean (True/False):2 bytes Byte: Holds a whole number from 0 to 255. Char: single character Date: date and time, 8 bytes. Decimal: Real number up to 29 significant digits, 16 bytes Double: real, 8 bytes Single: real, 4 bytes Integer: 4 bytes(int32, uint32) Long: 8 bytes integer Short: 2 bytes integer String Object: Holds a reference of an object

17. Variable Declaration Examples Dim empName as String Declare multiple variables with one Dim: –Dim empName, dependentName, empSSN as String Dim X As Integer, Y As Single Initiatialization –Dim interestRate as Double = 0.0715

18. Variable Default Value Variables with a numeric data type: 0 Boolean variables: False Date variables: 12:00:00 AM, January 1 of the year 1. String variables: Nothing

19. Variable Scope Block-level scope: declared within a block of code terminated by an end, loop or next statement. –If city = “Rome” then Dim message as string = “the city is in Italy” MessageBox.Show(message) –End if Procedural-level scope: declared in a procedure Class-level, module-level scope: declared in a class or module but outside any procedure with either Dim or Private keyword. Project-level scope: a module variable declared with the Public keyword.

20. Data Conversion Implicit conversion: When you assign a value of one data type to a variable of another data type, VB attempts to convert the value being assigned to the data type of the variable if the OptionStrict is set to Off. Explicit conversion: –VB.Net Functions: CStr, Ccur, CDbl, Cint, CLng, CSng, Cdate,Val, etc. –.Net System.Convert Type class’s methods: –toString

21. Date Data Type Variables of the Date data type can hold both a date and a time. The smallest value is midnight (00:00:00) of Jan 1 of the year 1. The largest value is 11:59:59 PM of Dec. 31 of the year 9999. Date literals: A date literal may contain the date, the time, or both, and must be enclosed in # symbols: –#1/30/2003#, #1/31/2003 2:10:00 PM# –#6:30 PM#, #18:30:00# Note: ControlPanel/RegionalOptions/Date

22. Date Literal Example: –Dim startDate as dateTime –startDate = #1/30/2003# Use the System.Convert.ToDateTime function to convert a string to a date value: –startDate = System.Convert.ToDateTime(“1/30/2003”) –If date string is entered in a text box: startDate = System.Convert.ToDateTime(txtDate.text) Or startDate=Cdate(txtDate.text) Date data type format methods

23. Some Date Functions Now: Current date and time Today: Current date TimeOfDay DateDiff: Demo –Days between two dates –Days to Christmas DateDiff(DateInterval.Day, Today(), #12/25/2007#) –Date data type properties and methods

24. Using Online Help MSDN VB Developer Center –http://msdn.microsoft.com/en- us/vbasic/default.aspx –Learn/Visual Basic language

25. Arithmetic and String Operators +, -, *, /. \, ^ String Concatenation: &, + Compound operator: : X= X+1 or X +=1

26. IF Statement IF condition THEN statements [ELSEIF condition-n THEN [elseifstatements] [ELSE [elsestatements]]] End If

27. Select Case Structure SELECT CASE testexpression [CASE expressionlist-n [Statements] [CASE ELSE [elsestatements] END SELECT

28. Select Case Example SELECT CASE temperature CASE <40 Text1.text=“cold” CASE < 60 Text1.text=“cool” CASE 60 to 80 Text1.text=“warm” CASE ELSE Text1.text=“Hot” End Select

29. Loop FOR index – start TO end [STEP step] [statements] [EXIT FOR] NEXT index DO [{WHILE| UNTIL} condition] [statements] [EXIT DO] LOOP

30. Do While/Do Until Private Sub Command1_Click() Dim counter As Integer counter = 0 Do While counter <= 5 Debug.write(counter) counter = counter + 1 Loop Text1.Text = counter End Sub Private Sub Command2_Click() Dim counter As Integer counter = 0 Do Until counter > 5 Debug.write(counter) counter = counter + 1 Loop Text1.Text = counter End Sub

31. With … End With With TextBox1.Height = 250.Width = 600.Text = “Hello” End With Convenient shorthand to execute a series of statements on a single object. Within the block, the reference to the object is implicit and need not be written.

32. Procedures. Sub procedure: Sub SubName(Arguments) … End Sub –To call a sub procedure SUB1 CALL SUB1(Argument1, Argument2, …)

33. Function Private Function tax(salary) As Double tax = salary * 0.1 End Function –Or Private Function tax(salary) Return salary * 0.1 End Function

34. Call by Reference Call by Value ByRef –The address of the item is passed. Any changes made to the passing variable are made to the variable itself. ByVal –Default –Only the variable’s value is passed.

35. ByRef, ByVal example Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click Dim myStr As String myStr = TextBox1.Text Call ChangeTextRef (myStr) TextBox1.Text = myStr End Sub Private Sub ChangeTextRef(ByRef strInput As String) strInput = "New Text" End Sub
