Building blocks making the composed MODCA:P (AFP) documents leif schmidt Nordea

Published by Modified over 9 years ago

Similar presentations

Presentation on theme: "Building blocks making the composed MODCA:P (AFP) documents leif schmidt Nordea"— Presentation transcript:

1 Building blocks making the composed MODCA:P (AFP) documents leif schmidt Nordea l.schmidt@nordea.com

2 20 October 2010AFP byggeklodser2 AFP building blocks Font – Raster, Outline (vector) – Character set – Code page Electronic overlays Formdef – Copy groups – Subgroups Pagedef – Pageformats – conditions Segment – (IOCA, GOCA, FS12…)

3 20 October 2010AFP byggeklodser3 AFP printing environments Development environment Test environment High volume centralized print Production environment Local print

4 20 October 2010AFP byggeklodser4 AFP resource liraries Font libraries Overlay libraries Formdef libraries Pagedef libraries Segment libraries Development environment Test environment High volume centralized print Production environment Local print

5 20 October 2010AFP byggeklodser5 MVS FontlibPdeflibFdeflibPseglibOverlib Resource libraries – development tools Overlay Generation Language (OGL) Page Presentation Formatting Aid (PPFA) Font (FSLF)

6 20 October 2010AFP byggeklodser6 WYSIWYG platform FONTlib MVS FONTlibPDEFlibFDEFlibPSEGlibOVERlib Resource libraries – development tools Overlay Generation Language (OGL) Page Presentation Formatting Aid (PPFA) Font (FSLF) AFP Designer Scanner Clipboard / coding AFP printer- driver Image Editor Word doc Font Editor Font Converter PSEGlibOVERlibFDEFlibPDEFlibOGLPPFA

7 20 October 2010AFP byggeklodser7 FONTs (raster) (X0….) Character ( set C0..) “Code page” (T1..) Character editor

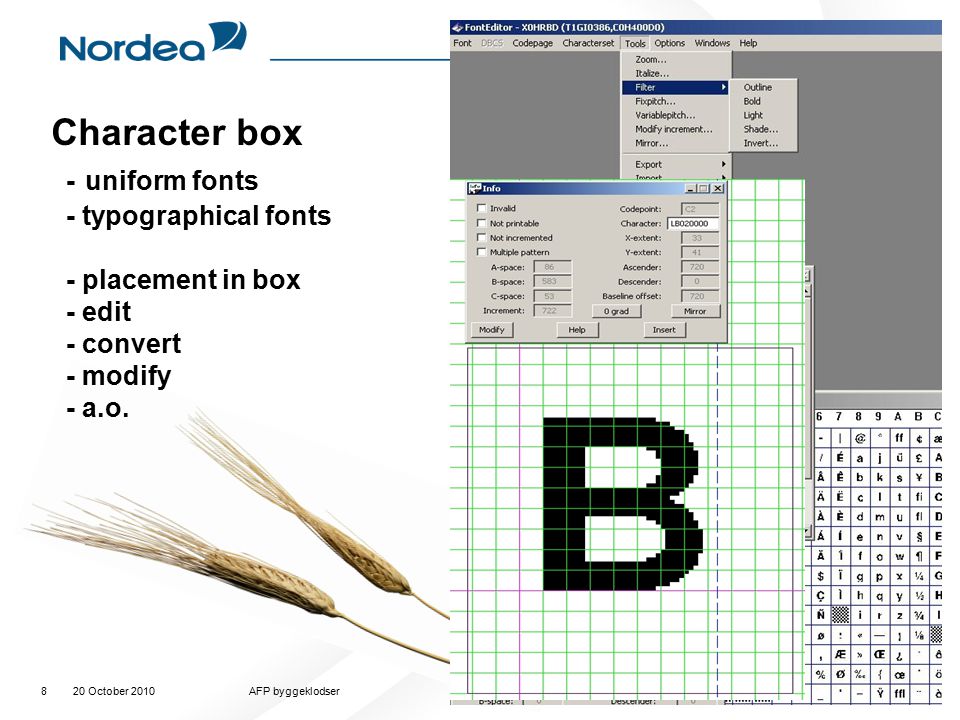

8 20 October 2010AFP byggeklodser8 Character box - uniform fonts - typographical fonts - placement in box - edit - convert - modify - a.o.

9 20 October 2010AFP byggeklodser9 Character set collection of single characters with common features FGID and GCSGID can be useful values in data exchange and conversion. So do not change values without knowing the consequences

10 20 October 2010AFP byggeklodser10 FONTS Basic information per font and character set Create raster font family with character sets Create one raster font and character set Create an outline (vector) font and character set

11 20 October 2010AFP byggeklodser11 Segments (images) Scan Convert/edit Draw / paint

12 20 October 2010AFP byggeklodser12 Overlay Standard Resources: - fonts - segments (images) Typical elements: - text (alignment) - rules - boxes - circles - path - segments Typical commands - position - settext - drawbox - place - drawrule

13 20 October 2010AFP byggeklodser13 Formdef - Copy group - subgroups - overlays O1NGRP0F O1NGRP0G

14 20 October 2010AFP byggeklodser14 Pagedef - fonts - overlays - segments - Pageformats - printline /layout - conditions - channel - field - text - font - alignment - position - direction

15 20 October 2010AFP byggeklodser15 Print resources & data

16 20 October 2010AFP byggeklodser16 zOS - DK Print vendor Application system Output management Print records RDMS ACIF parms central print Indexed composed documents Application system Print records DSN Output management Print and Post Processing zOS – Doc repository IBM CM OD ZIP & FTP Receiver job (triggered) Index Composed documents Resources Update Archives Servlet Local printer 1 transmit 2 3 Receipt 4 5 6 7 Print Ressource Libraries ACIF Resources Index Composed documents Resources ACIF parms Archives

17 20 October 2010AFP byggeklodser17 Blue string = (existing) industrial print document 1) the application delivers output records to the central document management system, RDMS 2) according to scheduled plan (Tivoli/OPC) the print data are extracted and supplied with the correct parametres for execution 3) the documents are formatted with a standard ACIF* procedure. The dataset containing the print resources is placed in front of the documents in the document dataset. The index file is not created – instead internal indexes called TLEs are created along with security marks and envelope codes. 4) the dataset is zipped and transmitted for industrial production. If the documents are planned to be archives as well the original RDMs extracted dataset is also used in the yellow string (point 2½ - 6) * ACIF = AFP Conversion and Indexing Facility. Yellow string = (existing) local print document 1) the application write output records to allocated datasets 2) according to scheduled plan (Tivoli/OPC) the output dataset is supplied with the correct parametres for execution 3) the documents are formatted with a standard ACIF procedure. The output per document logically consists of three elements: index, print resources, composed pages. They can be placed in one, two or three physical datasets. 4) the composed documents including resources and indexes are transmitted to the Swedish LPAR (Life & Pension use Connect Direct). Many of the documents are also printed on a local printer. 5) as soon as the dataset is recognized (from name, class, etc.) on the Swedish platform a receipt is send back and 6) an archive job is started using the parameters belonging to the job. A final update receipt is send back to the origin platform. 7) Servlets are used for finding and presenting the archived documents and will not be described here
