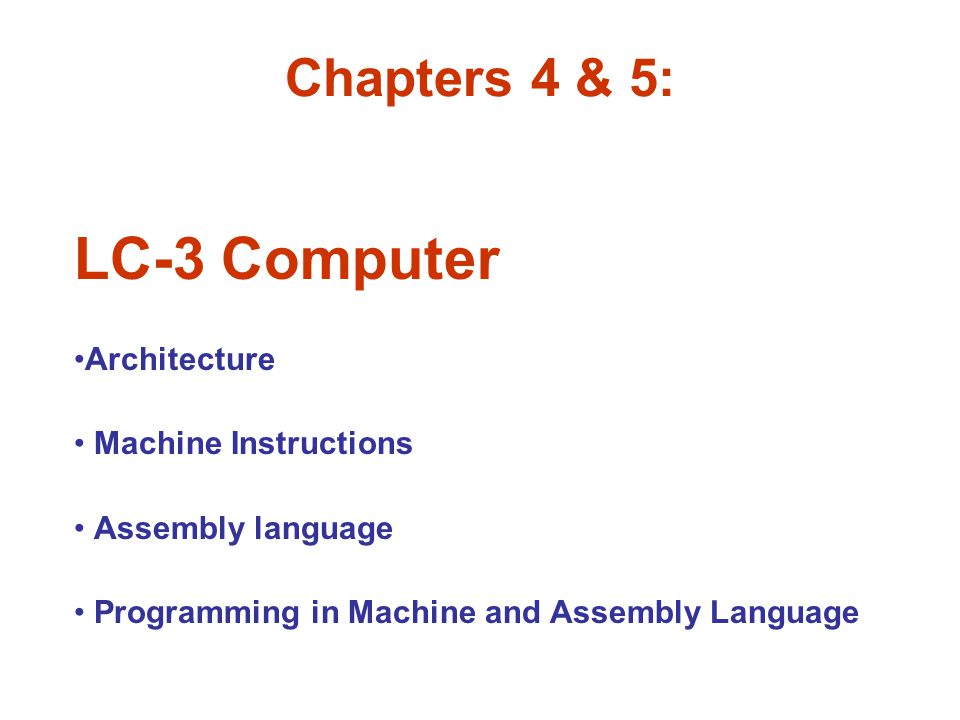

1 Chapters 4 & 5: LC-3 Computer Architecture Machine Instructions Assembly language Programming in Machine and Assembly Language

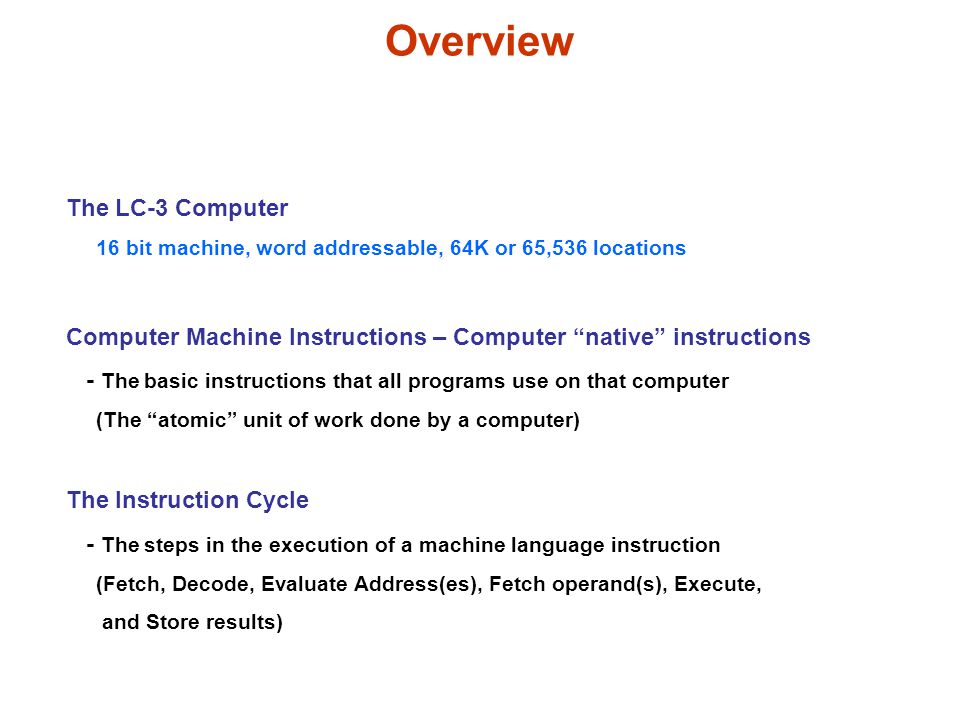

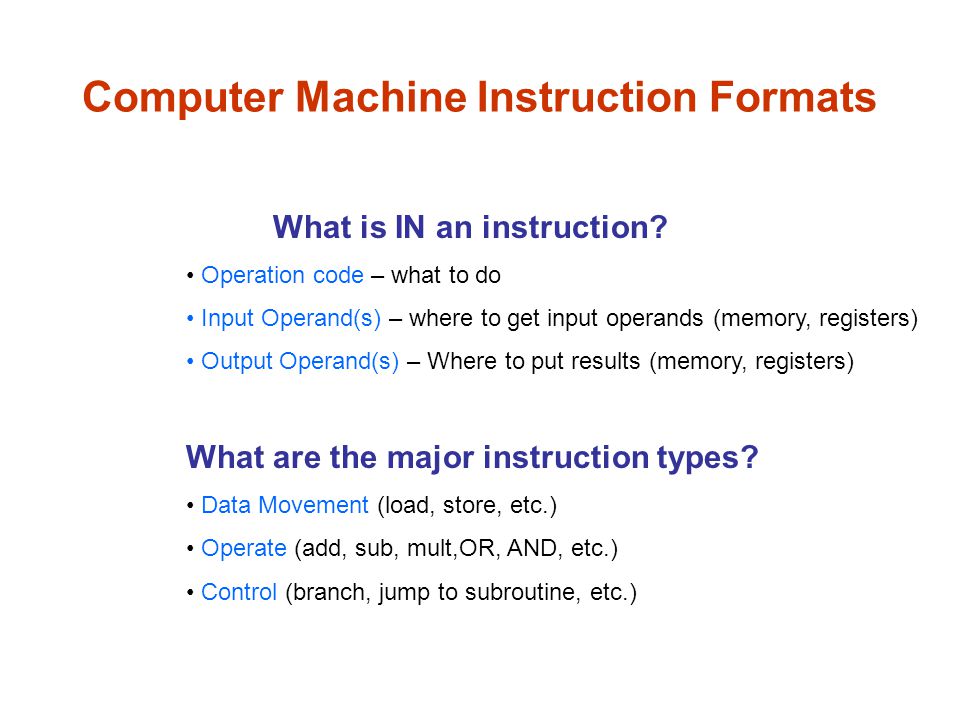

2 Overview The LC-3 Computer 16 bit machine, word addressable, 64K or 65,536 locations Computer Machine Instructions – Computer “native” instructions - The basic instructions that all programs use on that computer (The “atomic” unit of work done by a computer) The Instruction Cycle - The steps in the execution of a machine language instruction (Fetch, Decode, Evaluate Address(es), Fetch operand(s), Execute, and Store results)

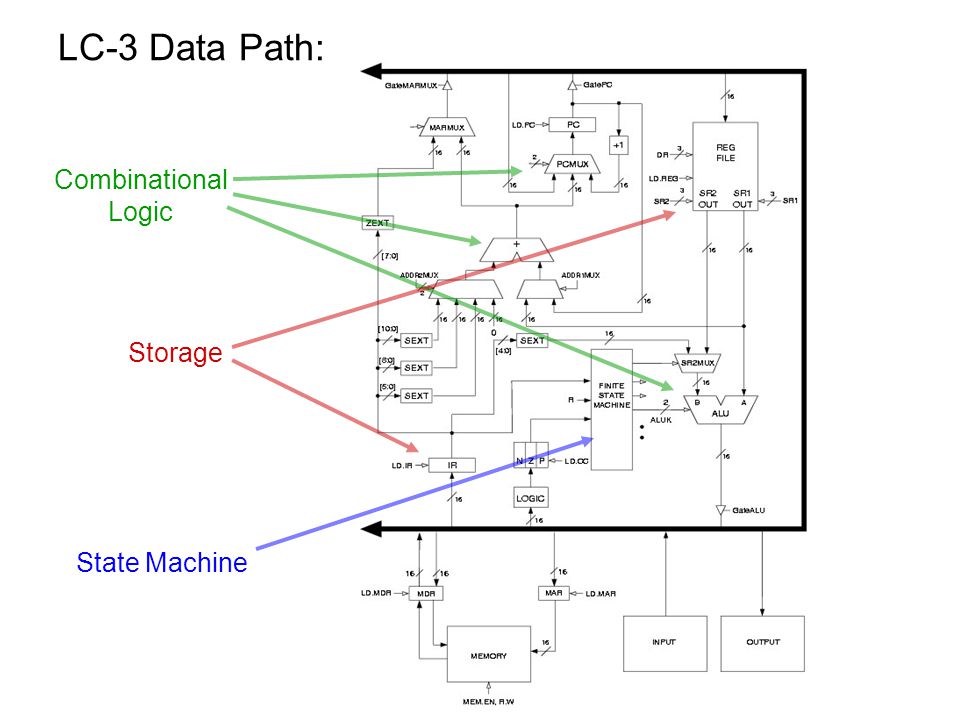

3 LC-3 Data Path: Combinational Logic State Machine Storage

4 Data Path of the LC-3

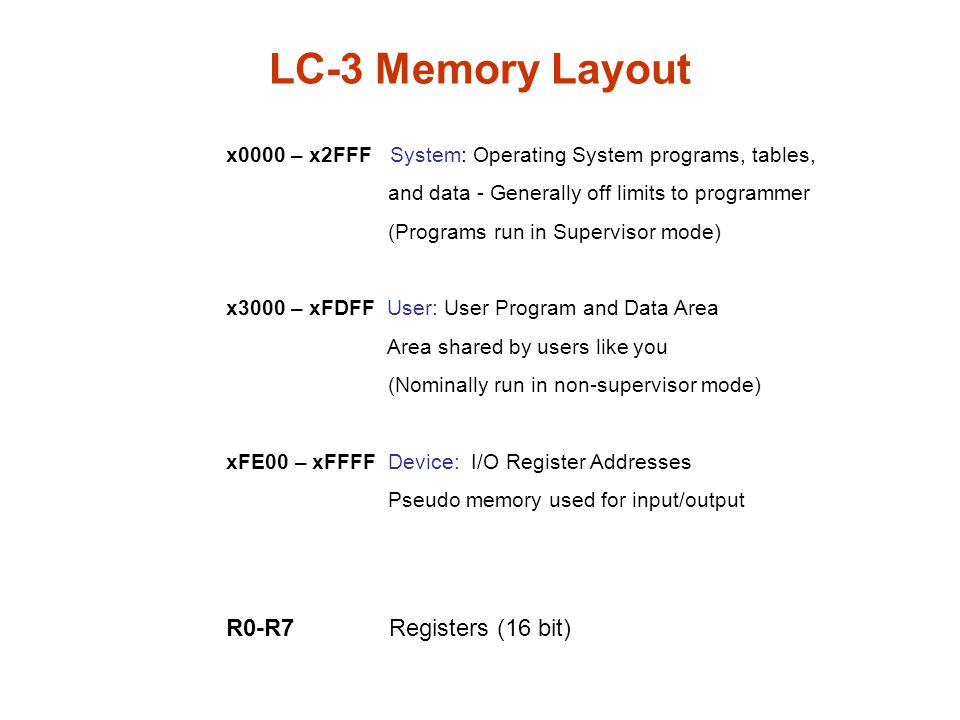

5 LC-3 Memory Layout x0000 – x2FFF System: Operating System programs, tables, and data - Generally off limits to programmer (Programs run in Supervisor mode) x3000 – xFDFF User: User Program and Data Area Area shared by users like you (Nominally run in non-supervisor mode) xFE00 – xFFFF Device: I/O Register Addresses Pseudo memory used for input/output R0-R7 Registers (16 bit)

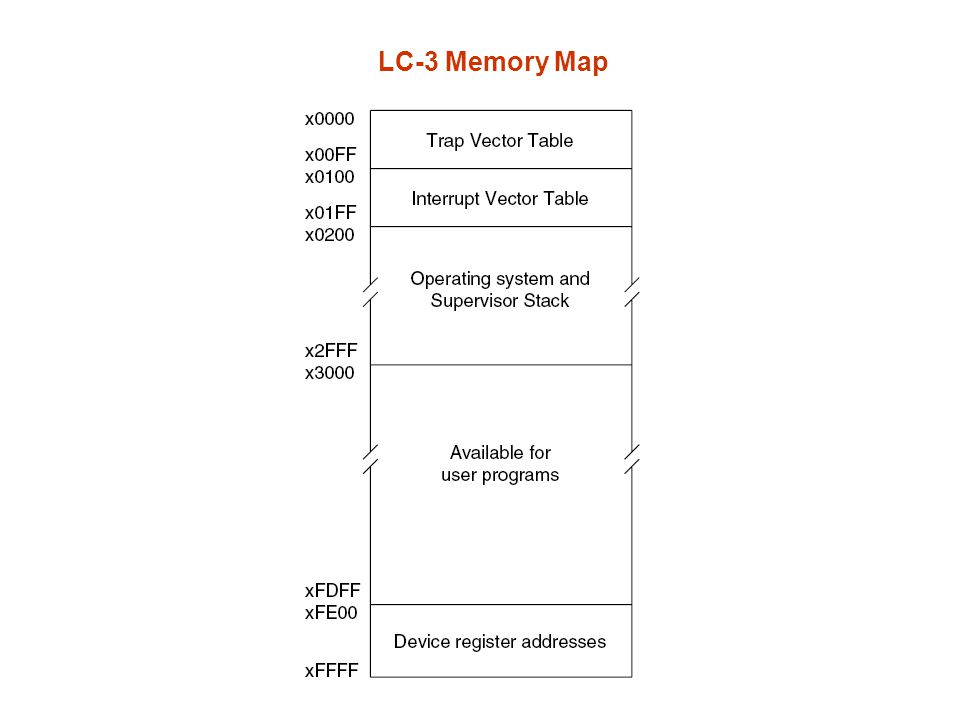

6 LC-3 Memory Map

7 Computer Machine Instruction Formats What is IN an instruction? Operation code – what to do Input Operand(s) – where to get input operands (memory, registers) Output Operand(s) – Where to put results (memory, registers) What are the major instruction types? Data Movement (load, store, etc.) Operate (add, sub, mult,OR, AND, etc.) Control (branch, jump to subroutine, etc.)

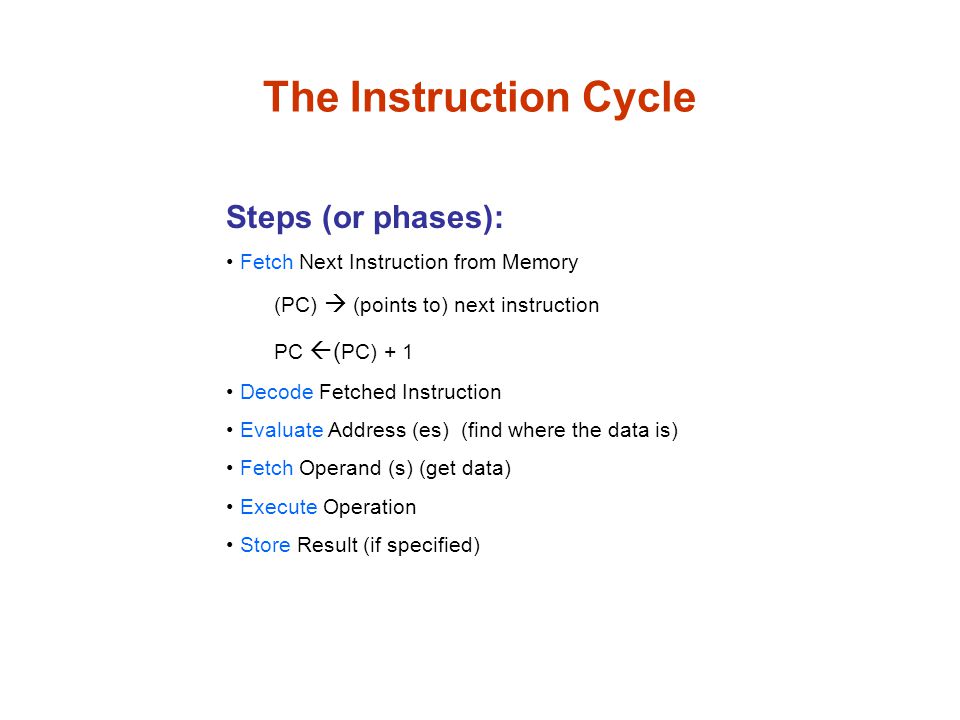

8 The Instruction Cycle Steps (or phases): Fetch Next Instruction from Memory (PC)  (points to) next instruction PC  ( PC) + 1 Decode Fetched Instruction Evaluate Address (es) (find where the data is) Fetch Operand (s) (get data) Execute Operation Store Result (if specified)

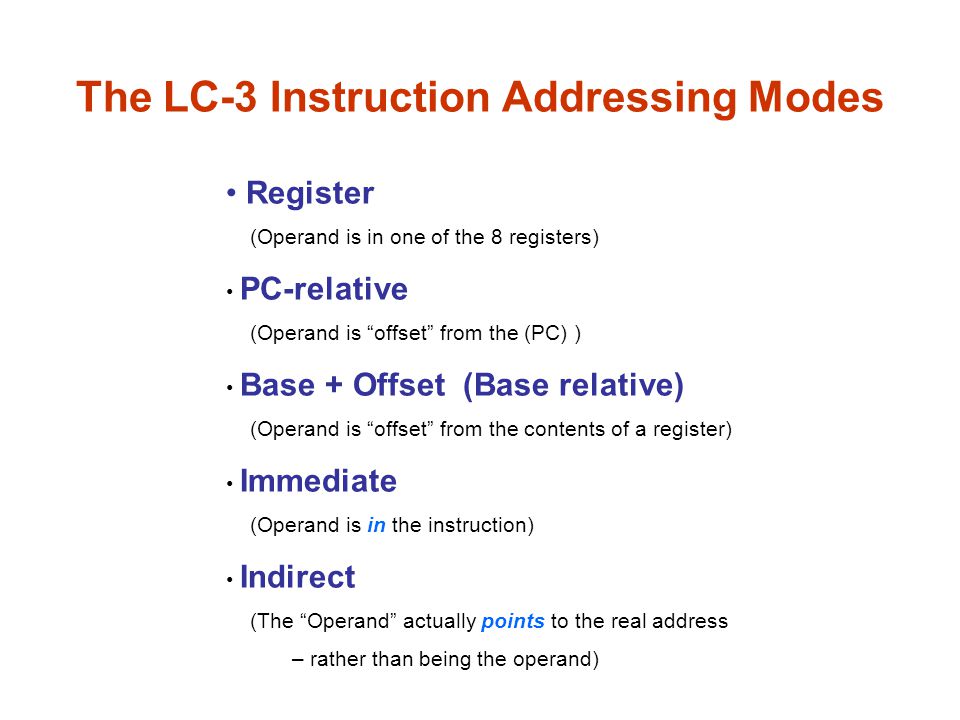

9 The LC-3 Instruction Addressing Modes Register (Operand is in one of the 8 registers) PC-relative (Operand is “offset” from the (PC) ) Base + Offset (Base relative) (Operand is “offset” from the contents of a register) Immediate (Operand is in the instruction) Indirect (The “Operand” actually points to the real address – rather than being the operand)

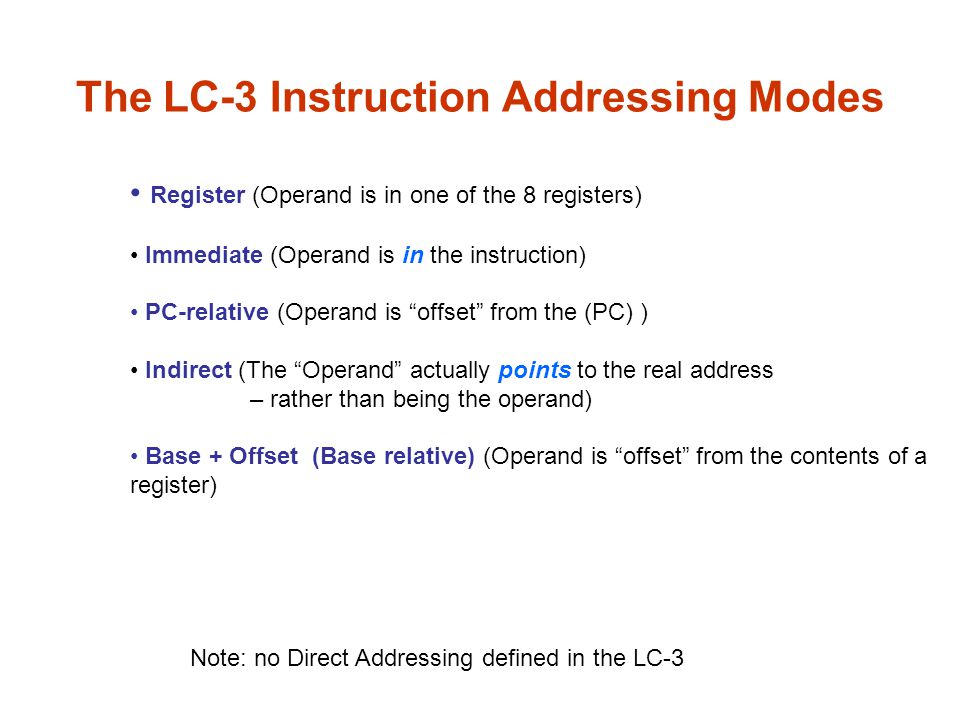

10 The LC-3 Instruction Addressing Modes Register (Operand is in one of the 8 registers) Immediate (Operand is in the instruction) PC-relative (Operand is “offset” from the (PC) ) Indirect (The “Operand” actually points to the real address – rather than being the operand) Base + Offset (Base relative) (Operand is “offset” from the contents of a register) Note: no Direct Addressing defined in the LC-3

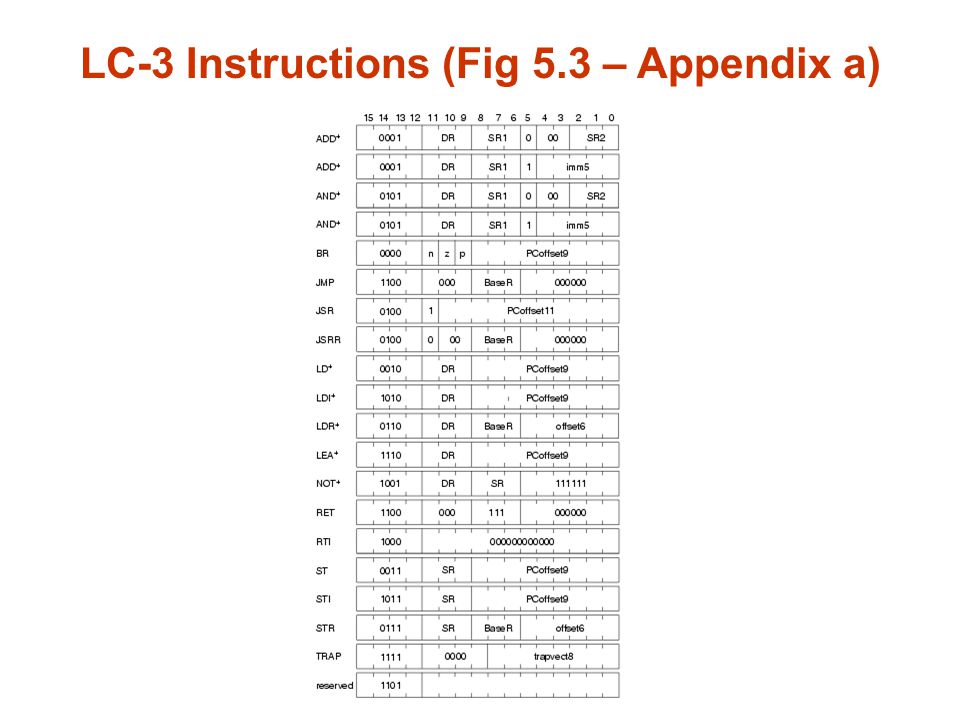

11 LC-3 Instructions (Fig 5.3 – Appendix a)

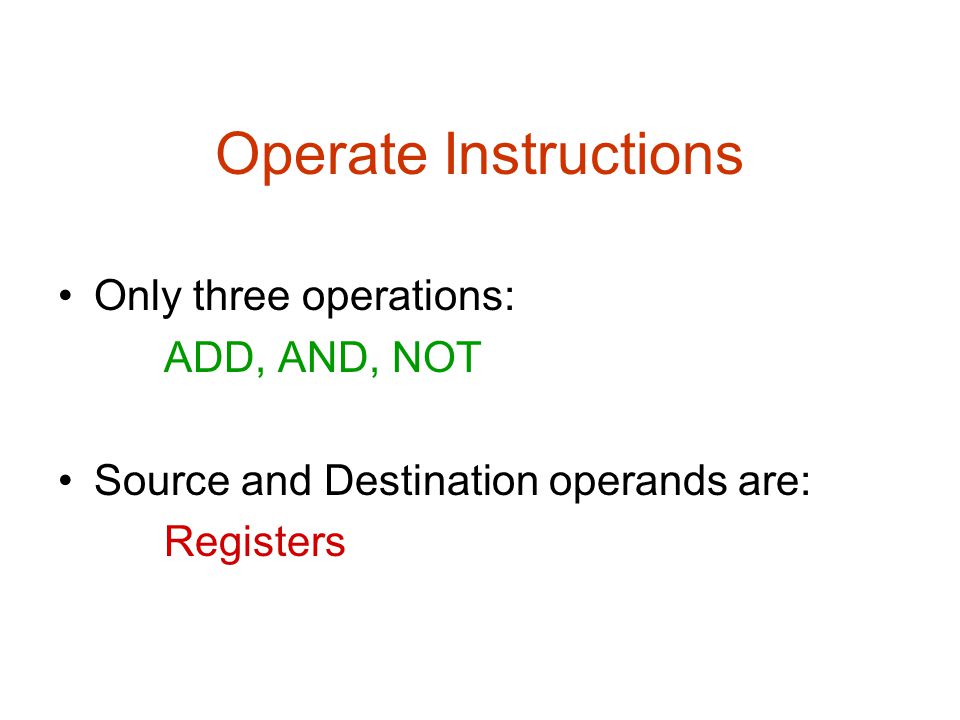

12 Operate Instructions Only three operations: ADD, AND, NOT Source and Destination operands are: Registers

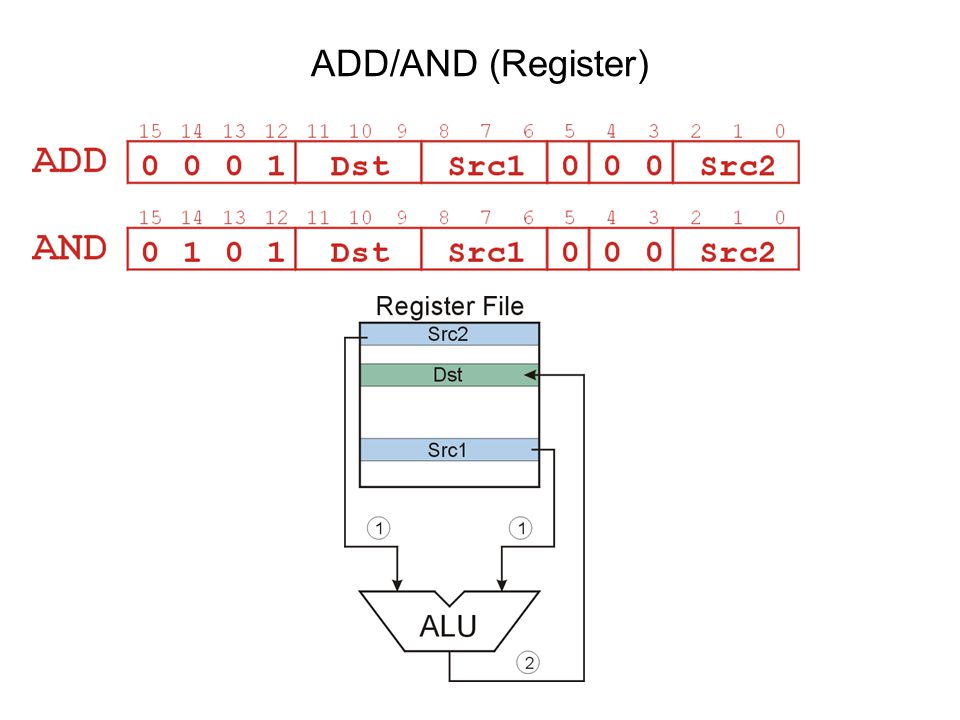

13 ADD/AND (Register)

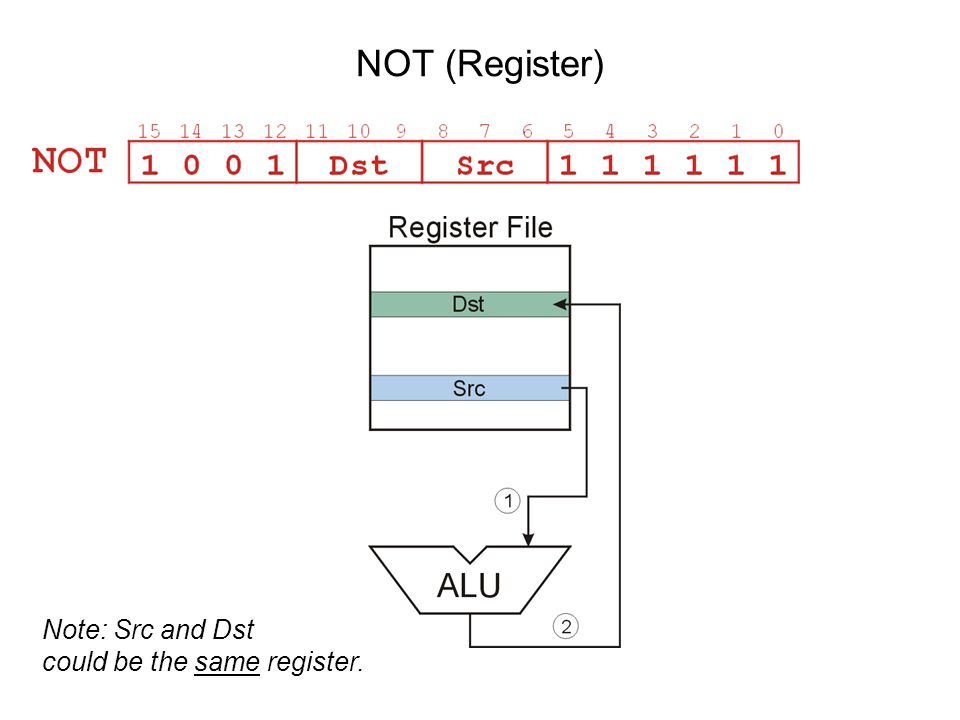

14 NOT (Register) Note: Src and Dst could be the same register.

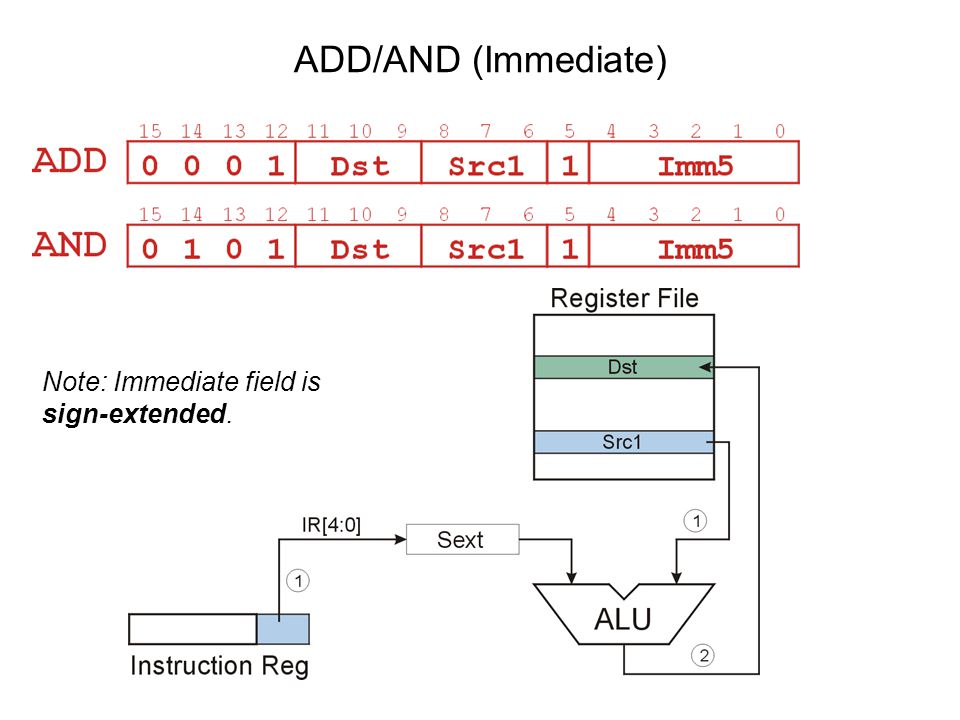

15 ADD/AND (Immediate) Note: Immediate field is sign-extended.

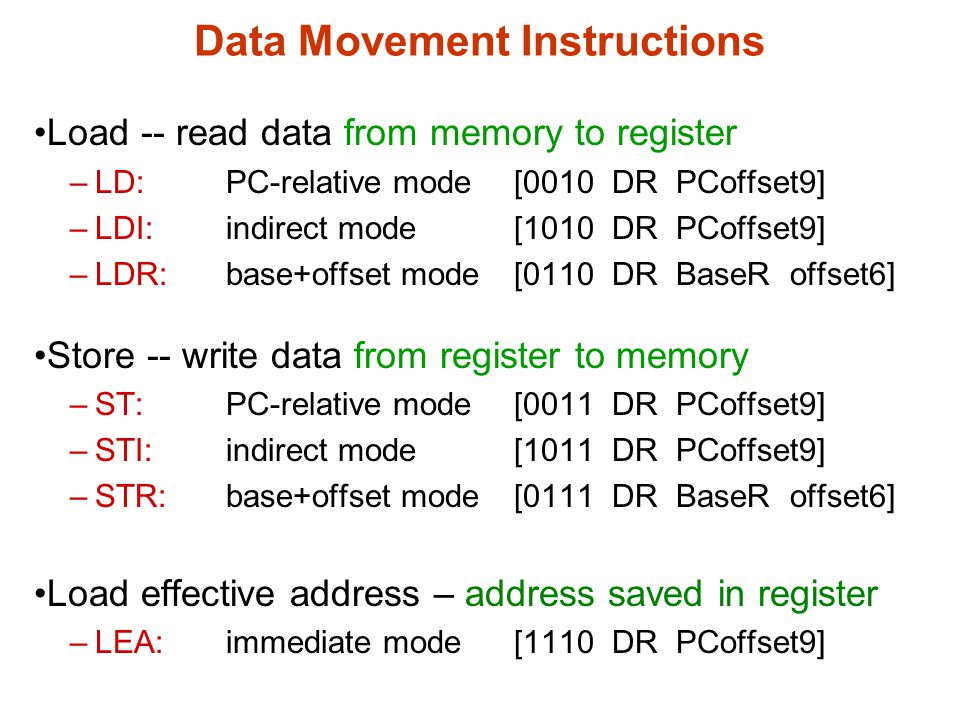

16 Data Movement Instructions Load -- read data from memory to register –LD: PC-relative mode [0010 DR PCoffset9] –LDI: indirect mode [1010 DR PCoffset9] –LDR: base+offset mode[0110 DR BaseR offset6] Store -- write data from register to memory –ST: PC-relative mode[0011 DR PCoffset9] –STI: indirect mode [1011 DR PCoffset9] –STR: base+offset mode [0111 DR BaseR offset6] Load effective address – address saved in register –LEA: immediate mode[1110 DR PCoffset9]

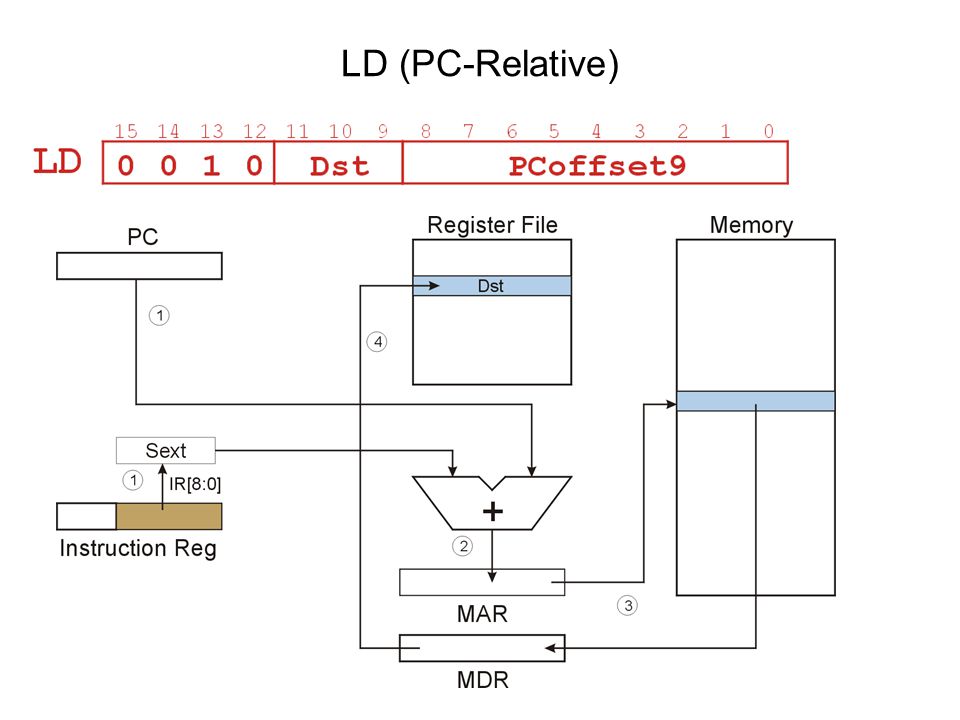

17 LD (PC-Relative)

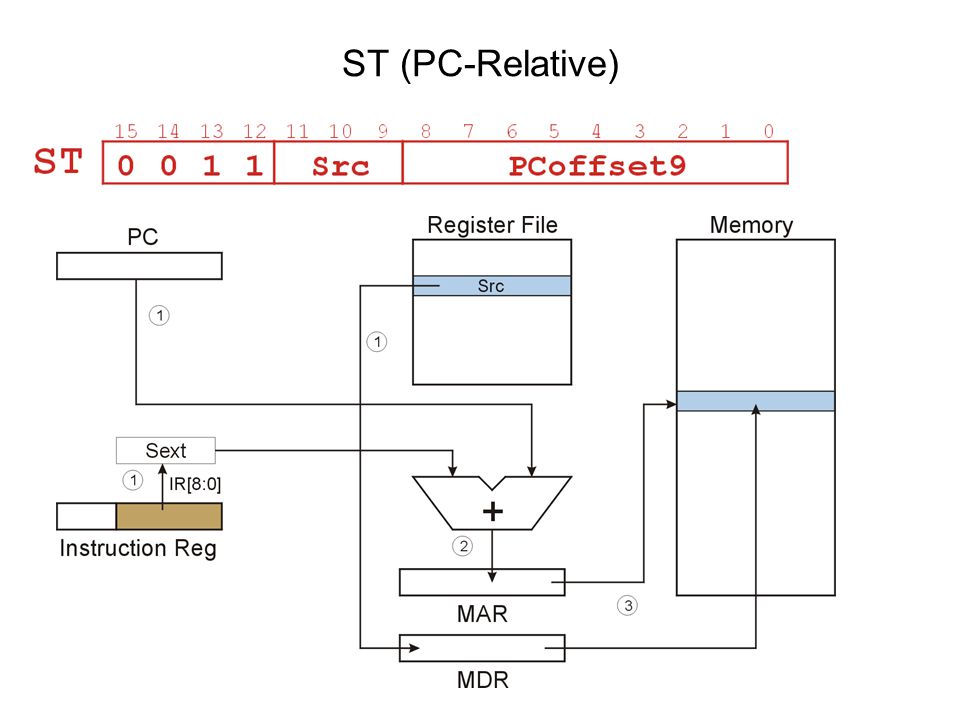

18 ST (PC-Relative)

19 LDI (Indirect)

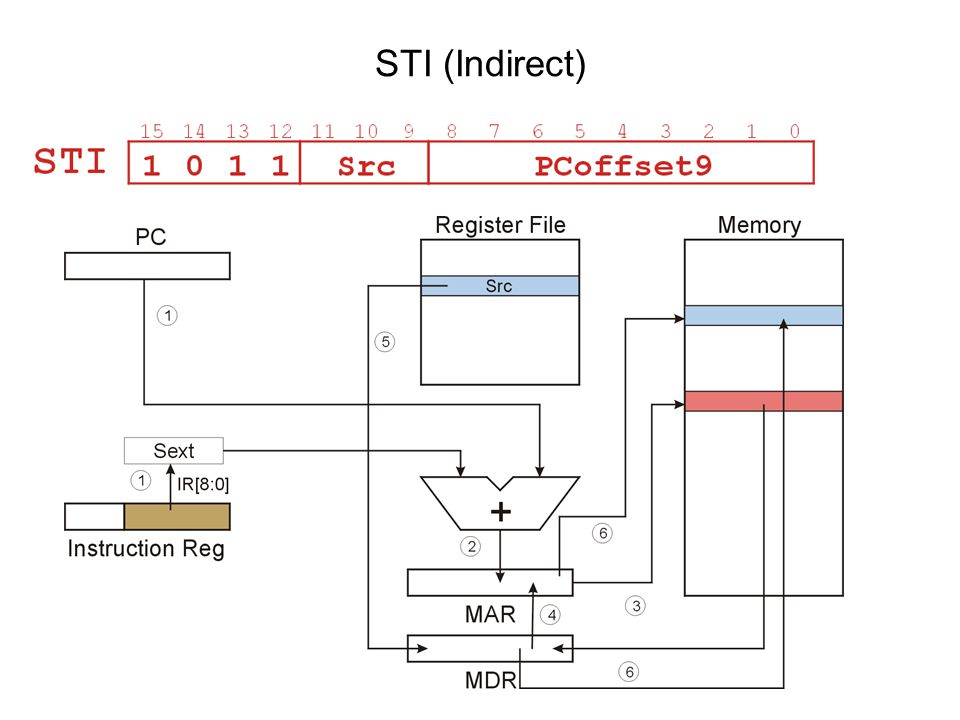

20 STI (Indirect)

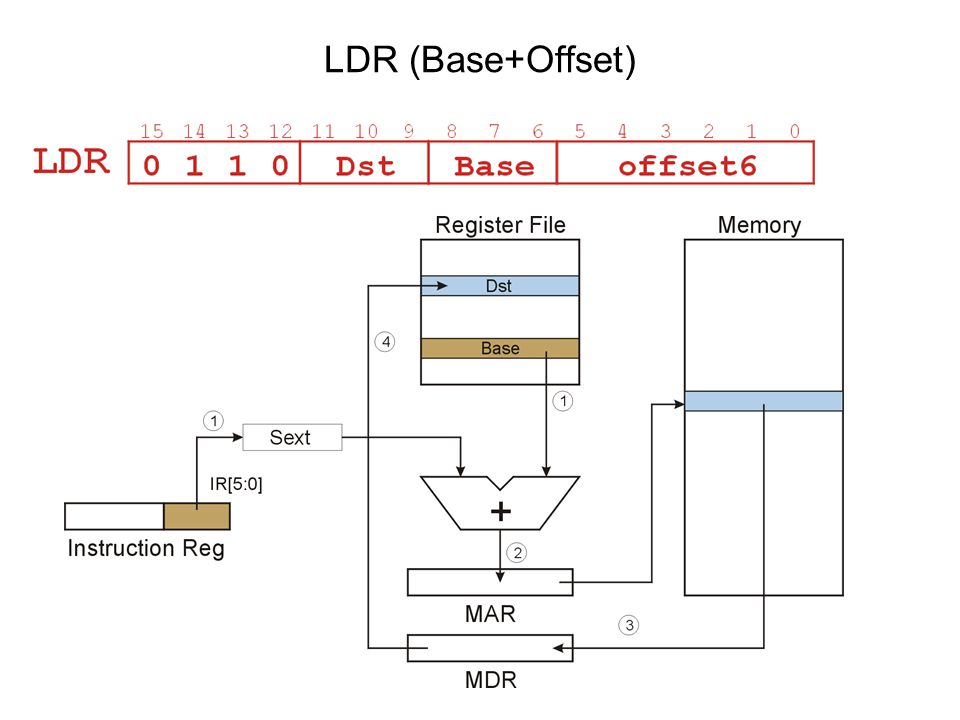

21 LDR (Base+Offset)

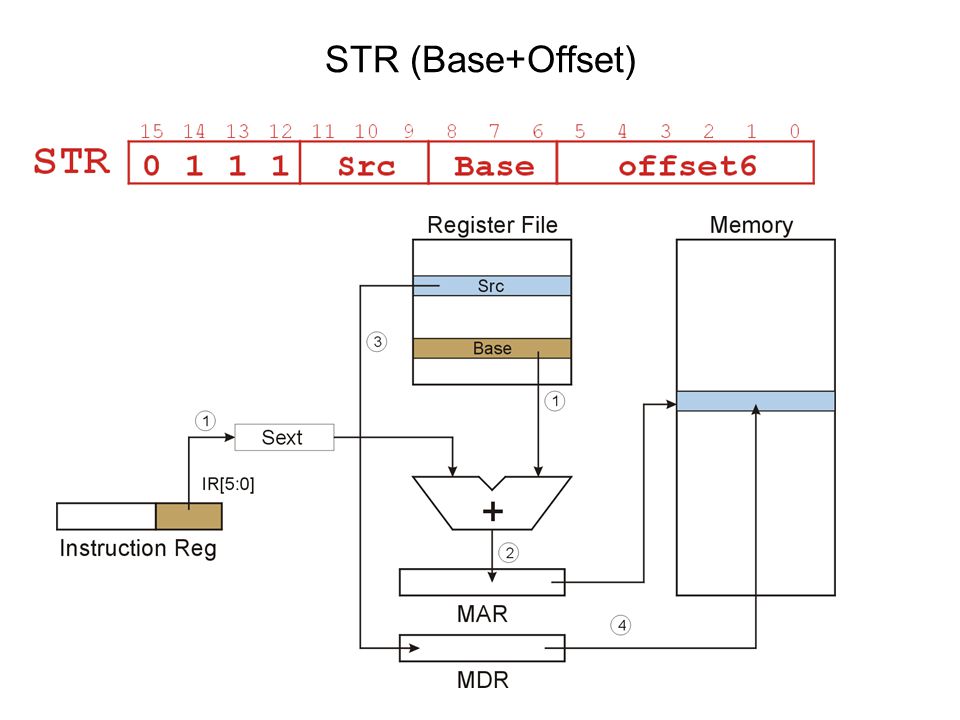

22 STR (Base+Offset)

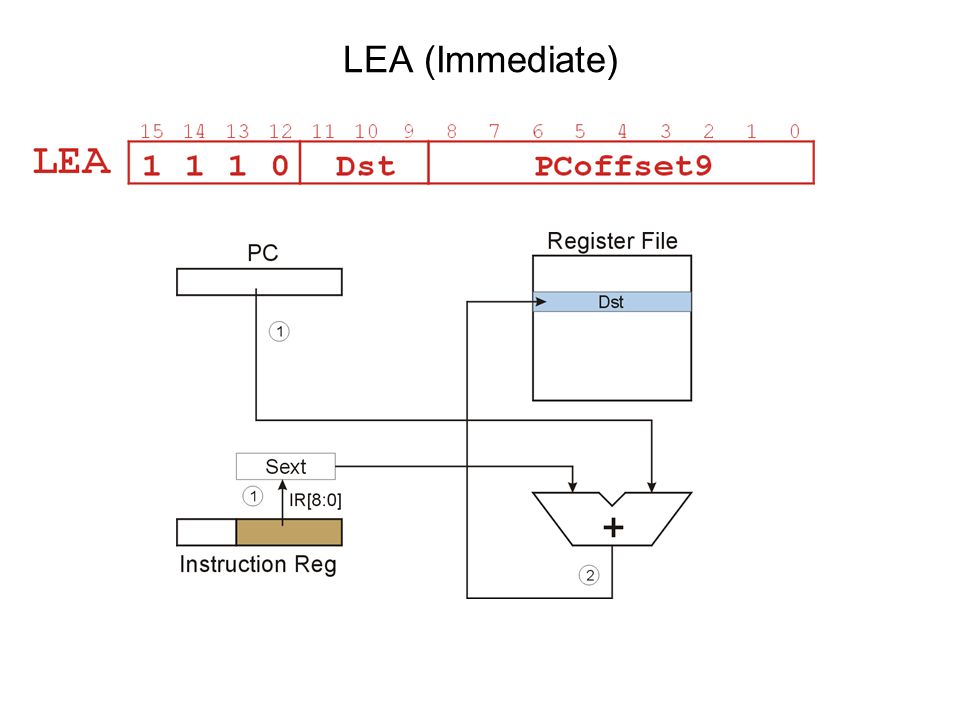

23 LEA (Immediate)

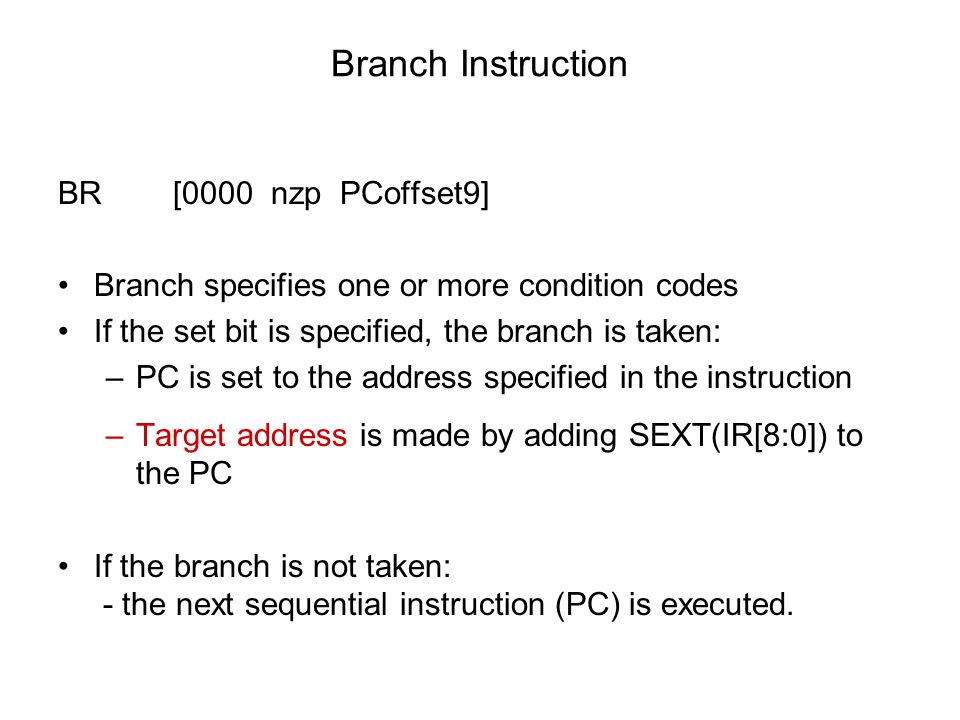

24 Branch Instruction BR [0000 nzp PCoffset9] Branch specifies one or more condition codes If the set bit is specified, the branch is taken: –PC is set to the address specified in the instruction –Target address is made by adding SEXT(IR[8:0]) to the PC If the branch is not taken: - the next sequential instruction (PC) is executed.

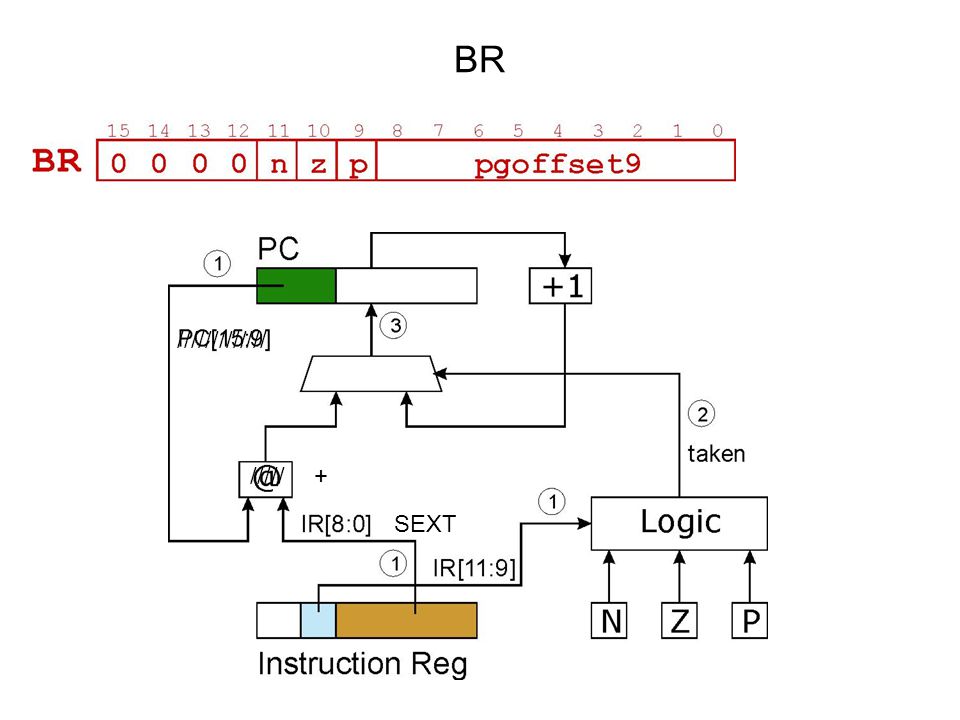

25 BR ///////////// /////+ SEXT

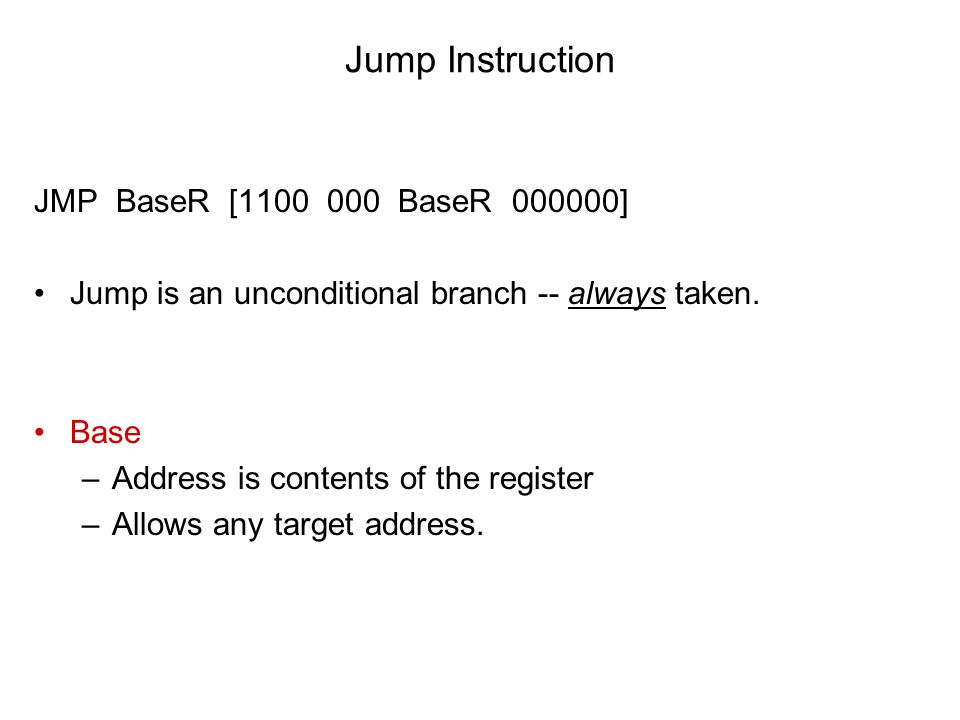

26 Jump Instruction JMP BaseR [1100 000 BaseR 000000] Jump is an unconditional branch -- always taken. Base –Address is contents of the register –Allows any target address.

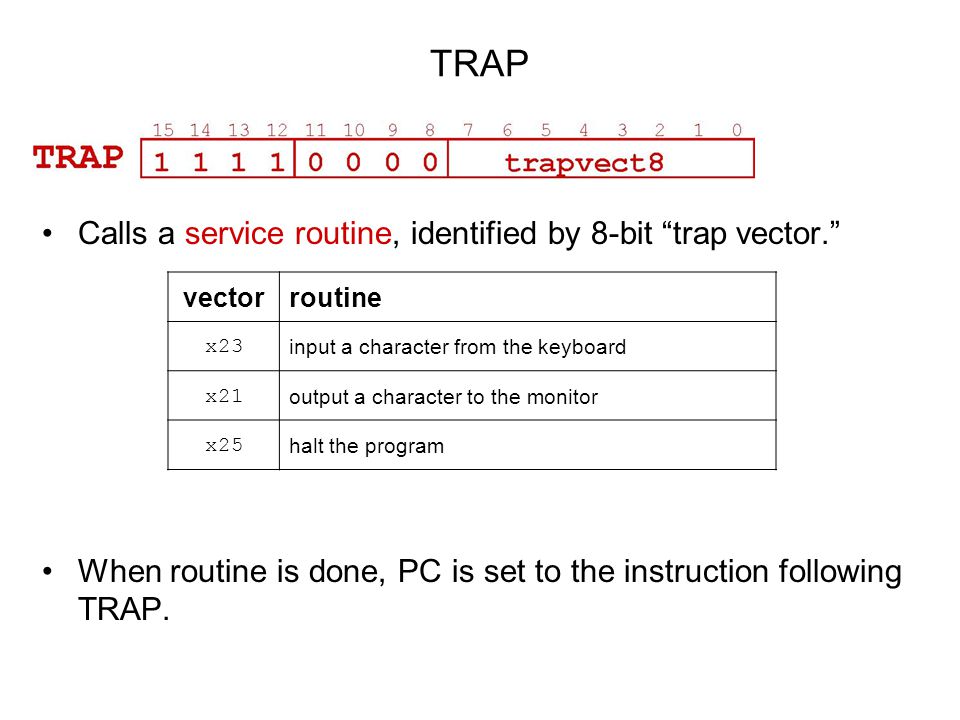

27 TRAP Calls a service routine, identified by 8-bit “trap vector.” When routine is done, PC is set to the instruction following TRAP. vectorroutine x23input a character from the keyboard x21output a character to the monitor x25halt the program

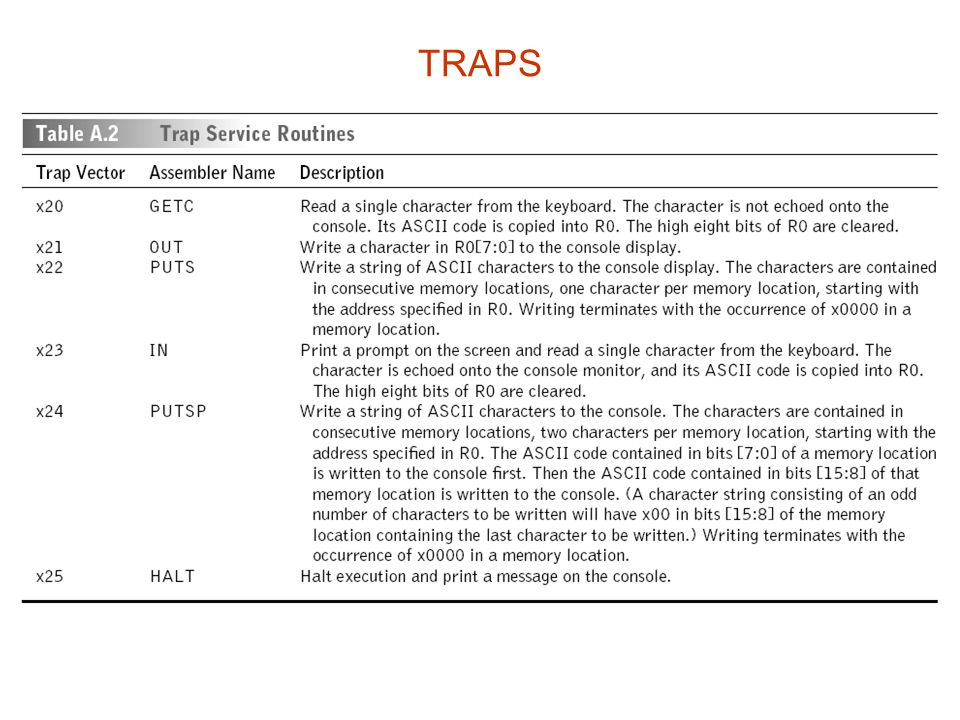

28 TRAPS

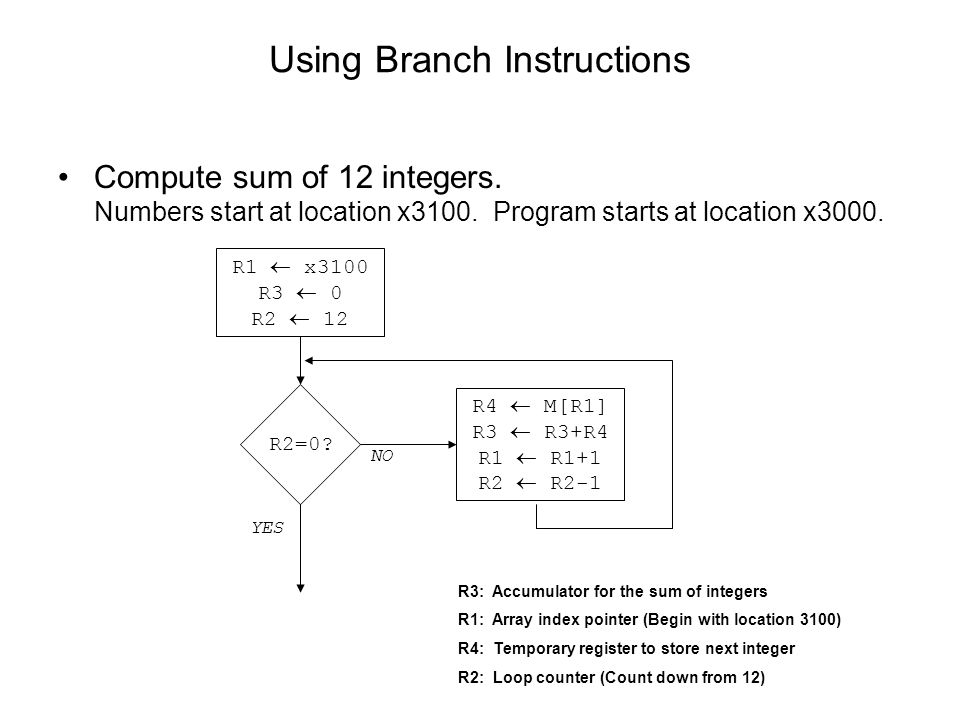

29 Using Branch Instructions Compute sum of 12 integers. Numbers start at location x3100. Program starts at location x3000. R1  x3100 R3  0 R2  12 R2=0? R4  M[R1] R3  R3+R4 R1  R1+1 R2  R2-1 NO YES R3: Accumulator for the sum of integers R1: Array index pointer (Begin with location 3100) R4: Temporary register to store next integer R2: Loop counter (Count down from 12)

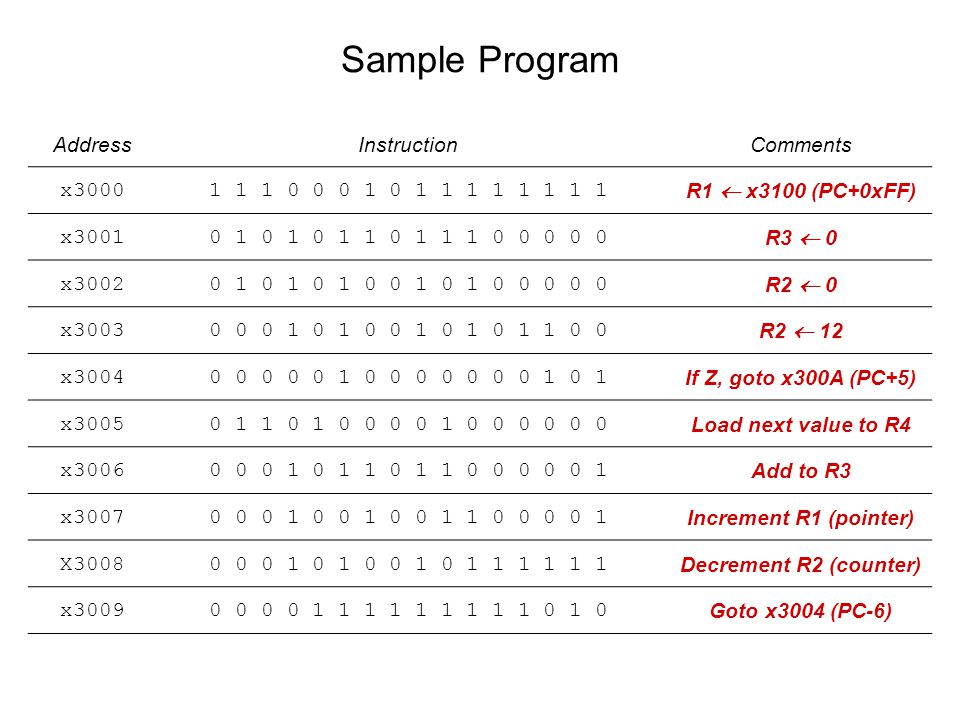

30 Sample Program AddressInstructionComments x30001 1 1 0 0 0 1 0 1 1 1 1 1 1 1 1 R1  x3100 (PC+0xFF) x30010 1 0 1 0 1 1 0 1 1 1 0 0 0 0 0 R3  0 x30020 1 0 1 0 1 0 0 1 0 1 0 0 0 0 0 R2  0 x30030 0 0 1 0 1 0 0 1 0 1 0 1 1 0 0 R2  12 x30040 0 0 0 0 1 0 0 0 0 0 0 0 1 0 1If Z, goto x300A (PC+5) x30050 1 1 0 1 0 0 0 0 1 0 0 0 0 0 0Load next value to R4 x30060 0 0 1 0 1 1 0 1 1 0 0 0 0 0 1Add to R3 x30070 0 0 1 0 0 1 0 0 1 1 0 0 0 0 1Increment R1 (pointer) X30080 0 0 1 0 1 0 0 1 0 1 1 1 1 1 1Decrement R2 (counter) x30090 0 0 0 1 1 1 1 1 1 1 1 1 0 1 0Goto x3004 (PC-6)

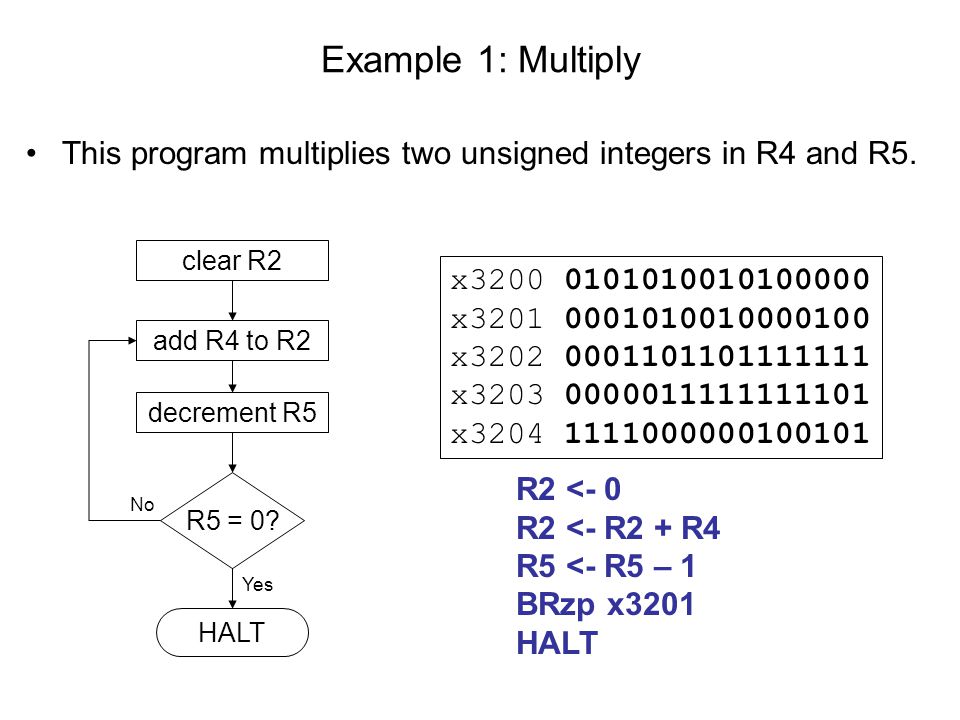

31 Example 1: Multiply This program multiplies two unsigned integers in R4 and R5. x3200 0101010010100000 x3201 0001010010000100 x3202 0001101101111111 x3203 0000011111111101 x3204 1111000000100101 clear R2 add R4 to R2 decrement R5 R5 = 0? HALT No Yes R2 <- 0 R2 <- R2 + R4 R5 <- R5 – 1 BRzp x3201 HALT
