1. This Class: Short-term climate change Climate – 30 year “average” weather conditions Short-term – over the last 1000 to 12,000 years Climate records Causes of climatic variation Past climate change

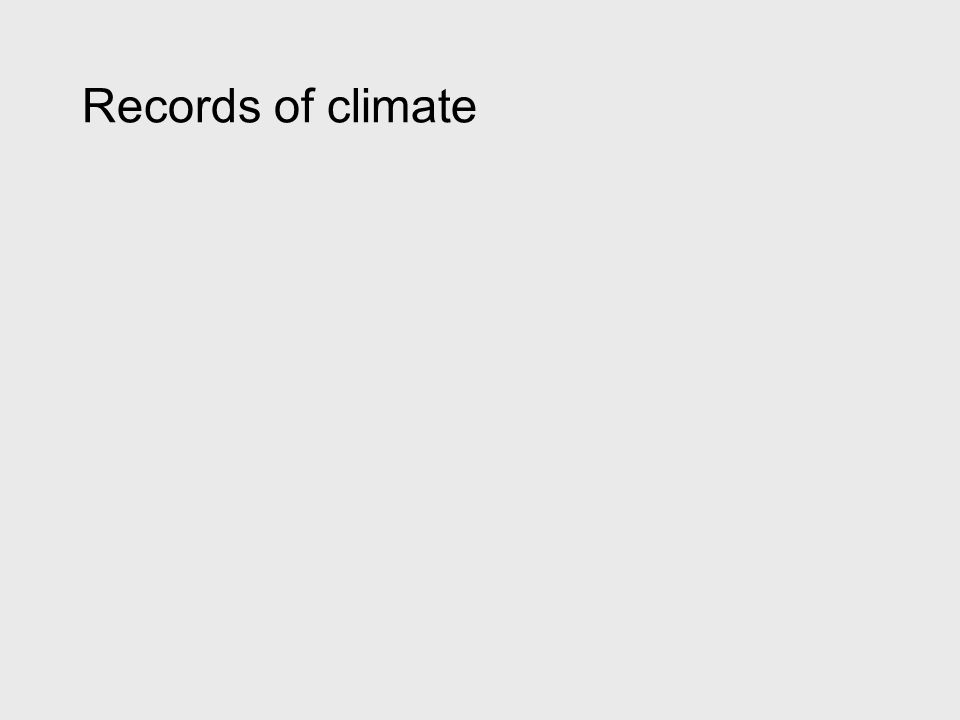

2. Records of climate

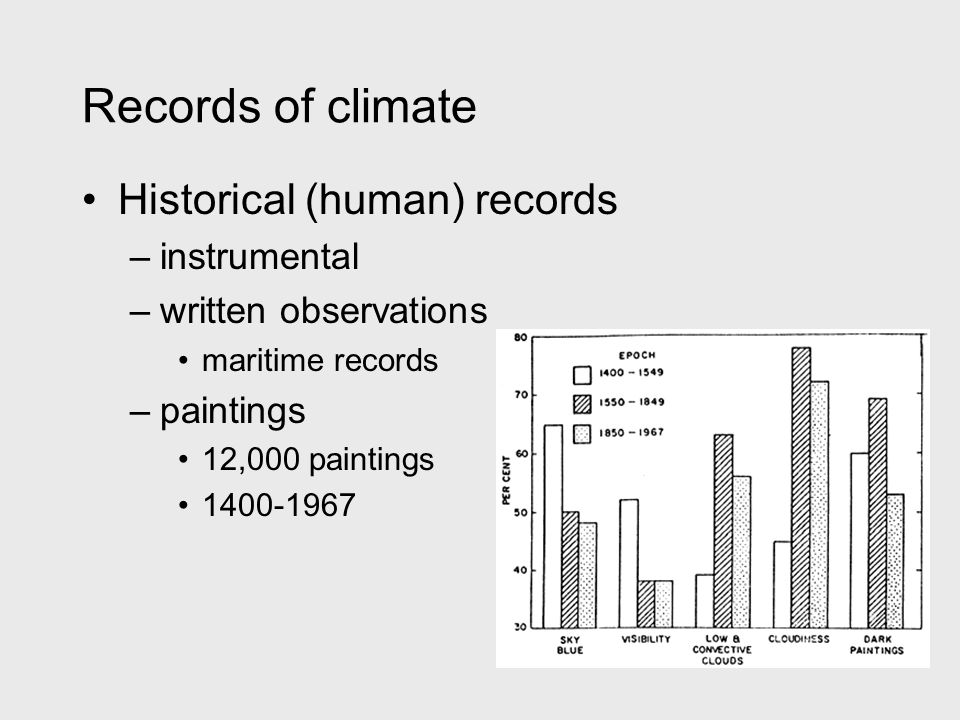

3. Historical (human) records –instrumental –written observations maritime records –paintings 12,000 paintings 1400-1967

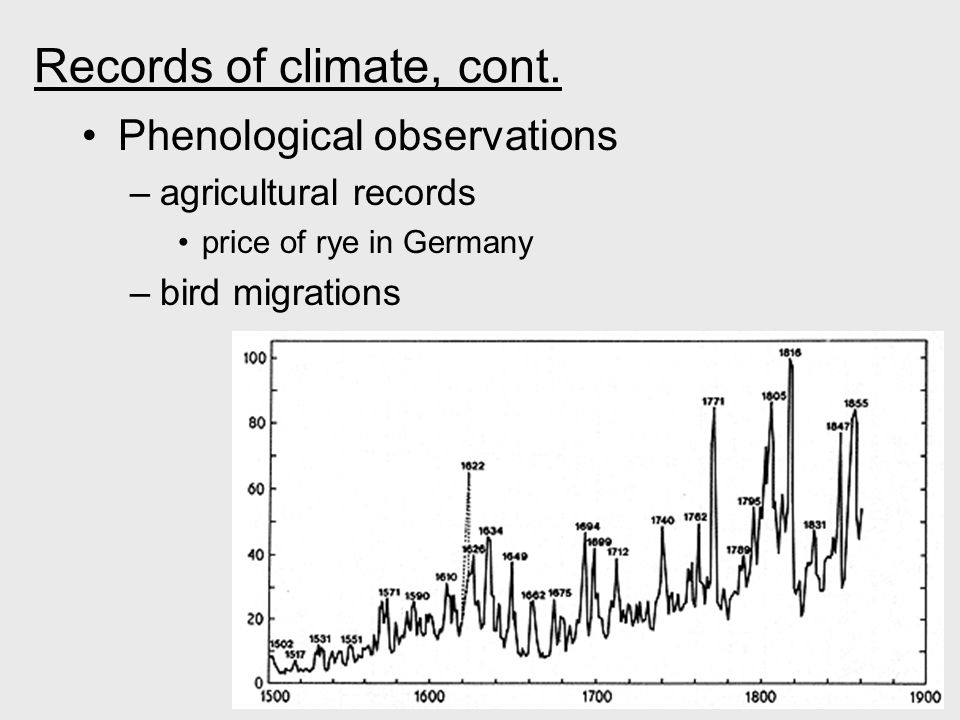

4. Records of climate, cont. Phenological observations –agricultural records price of rye in Germany –bird migrations

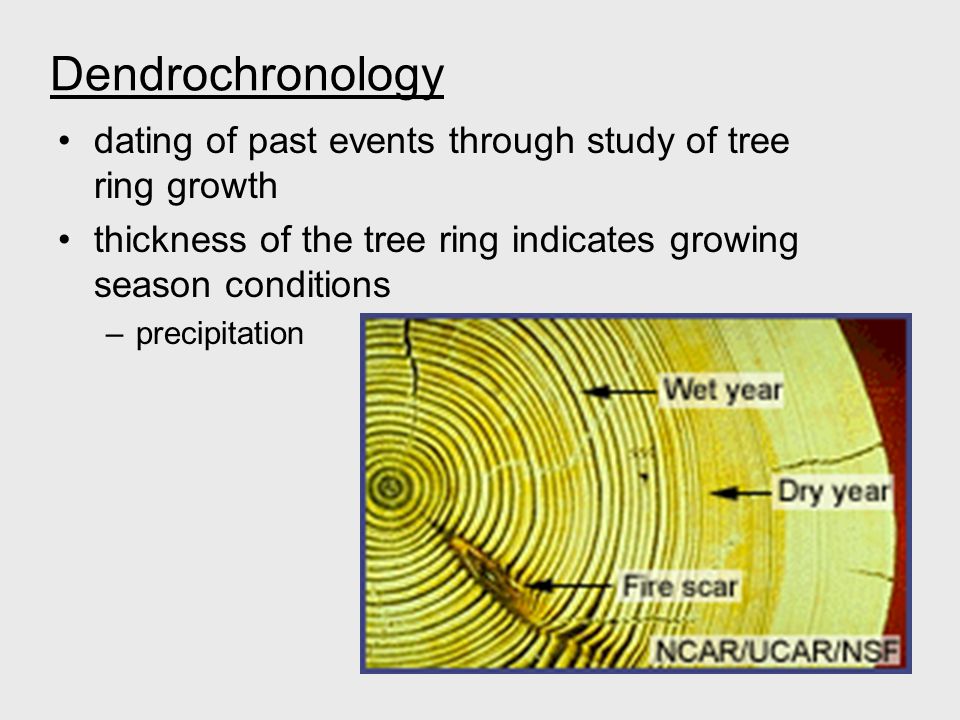

5. Dendrochronology dating of past events through study of tree ring growth thickness of the tree ring indicates growing season conditions –precipitation

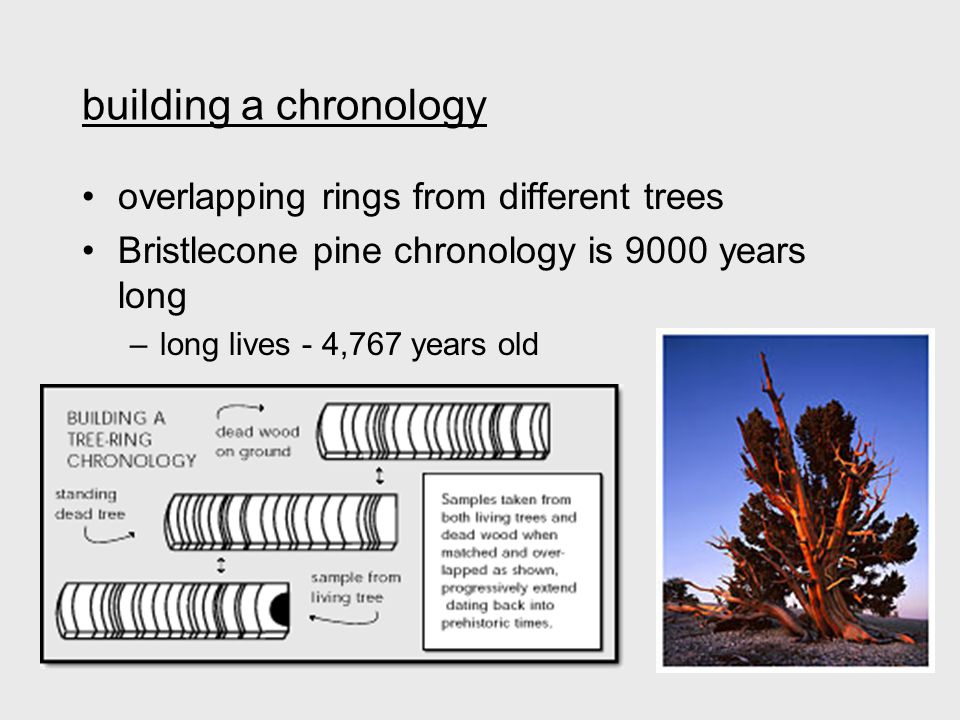

6. building a chronology overlapping rings from different trees Bristlecone pine chronology is 9000 years long –long lives - 4,767 years old

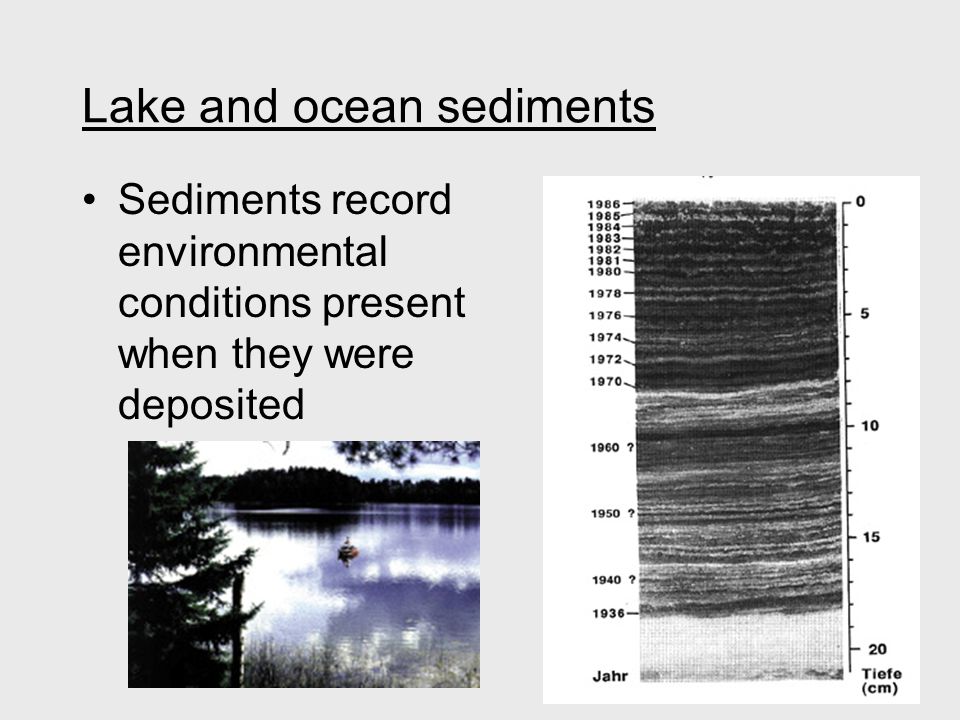

7. Lake and ocean sediments Sediments record environmental conditions present when they were deposited

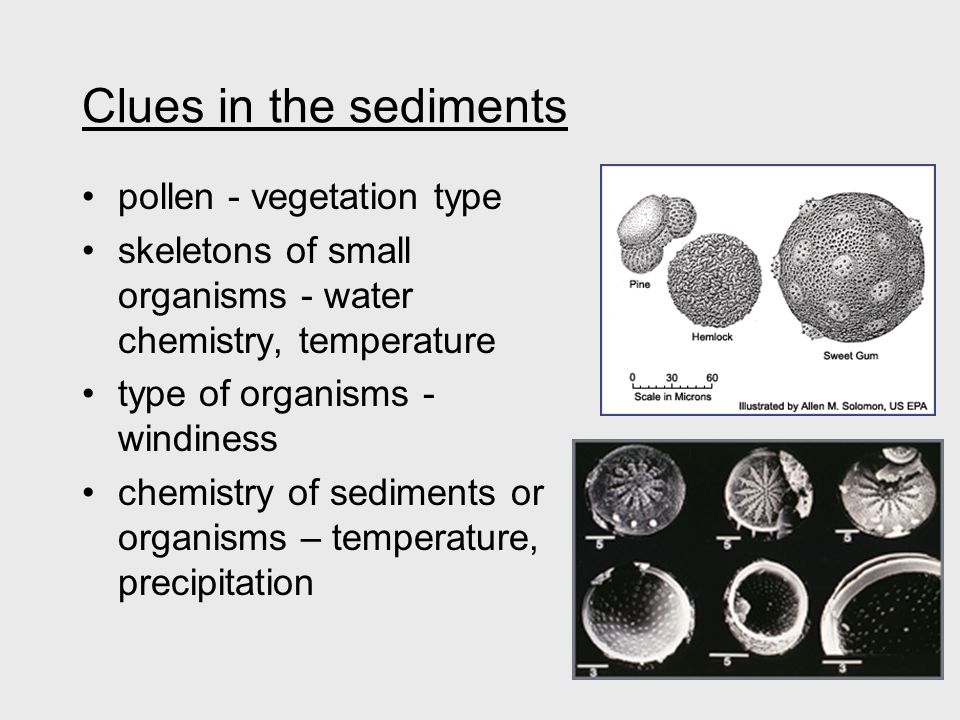

8. Clues in the sediments pollen - vegetation type skeletons of small organisms - water chemistry, temperature type of organisms - windiness chemistry of sediments or organisms – temperature, precipitation

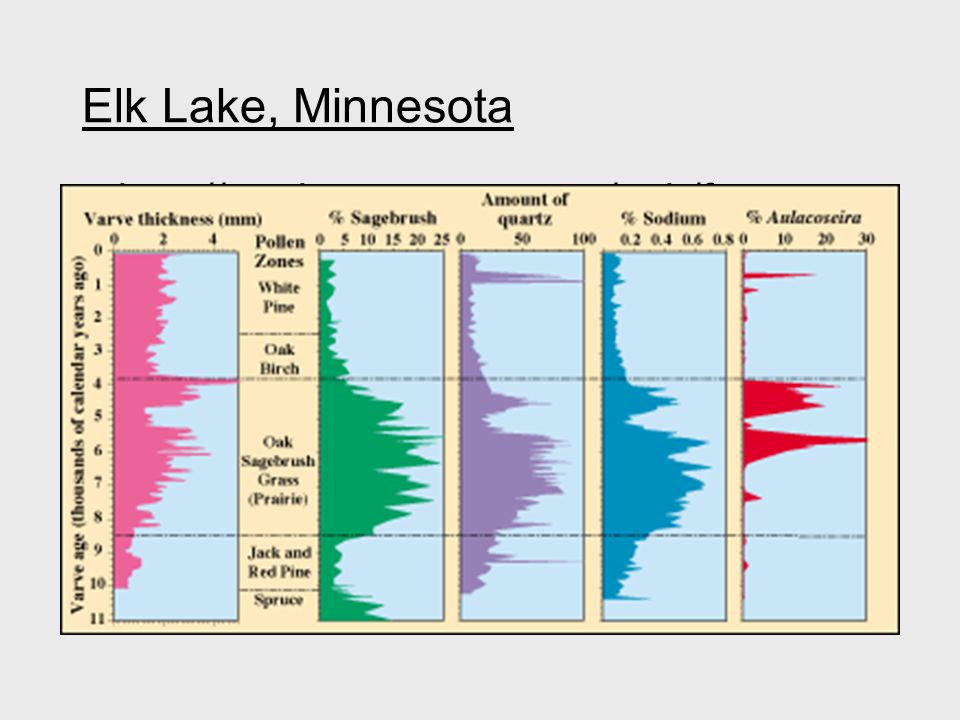

9. Elk Lake, Minnesota http://geology.cr.usgs.gov/pub/fact- sheets/fs-0059-99/

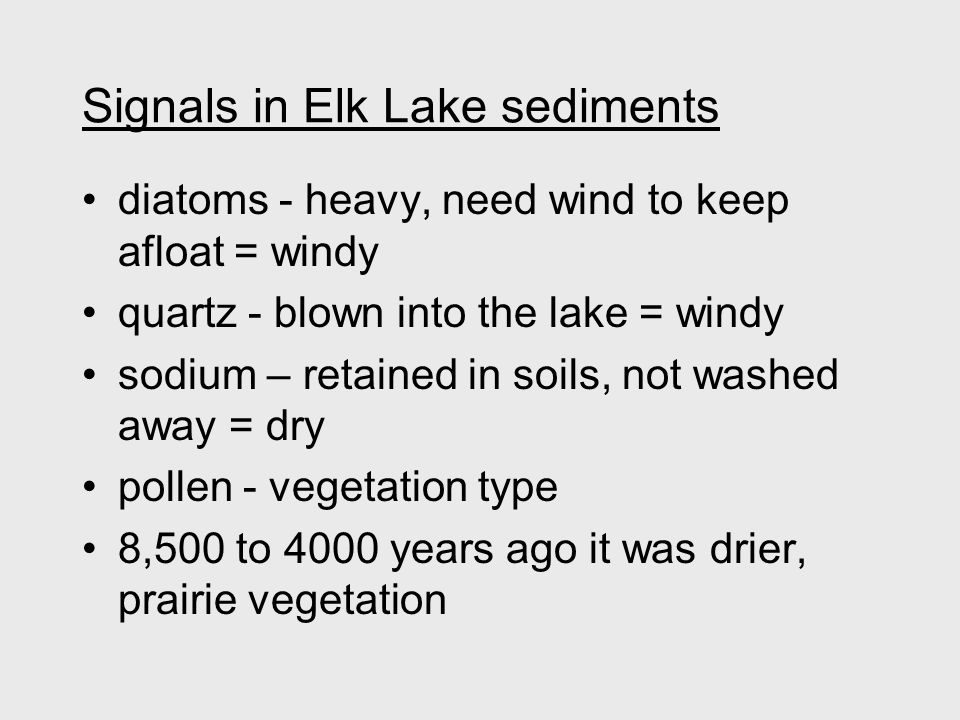

10. Signals in Elk Lake sediments diatoms - heavy, need wind to keep afloat = windy quartz - blown into the lake = windy sodium – retained in soils, not washed away = dry pollen - vegetation type 8,500 to 4000 years ago it was drier, prairie vegetation

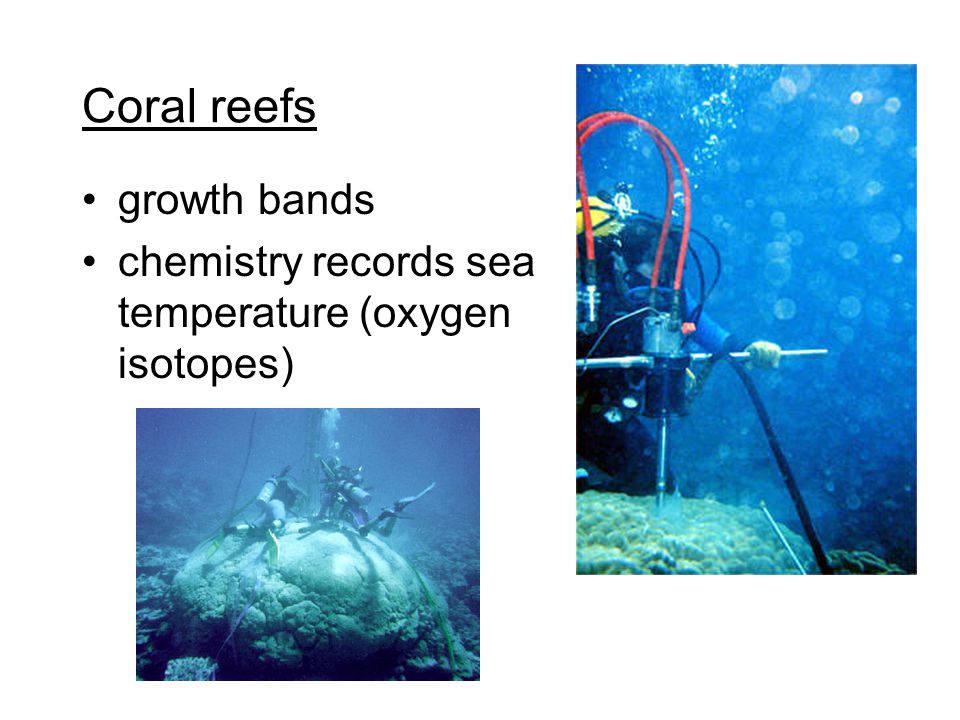

11. Coral reefs growth bands chemistry records sea temperature (oxygen isotopes)

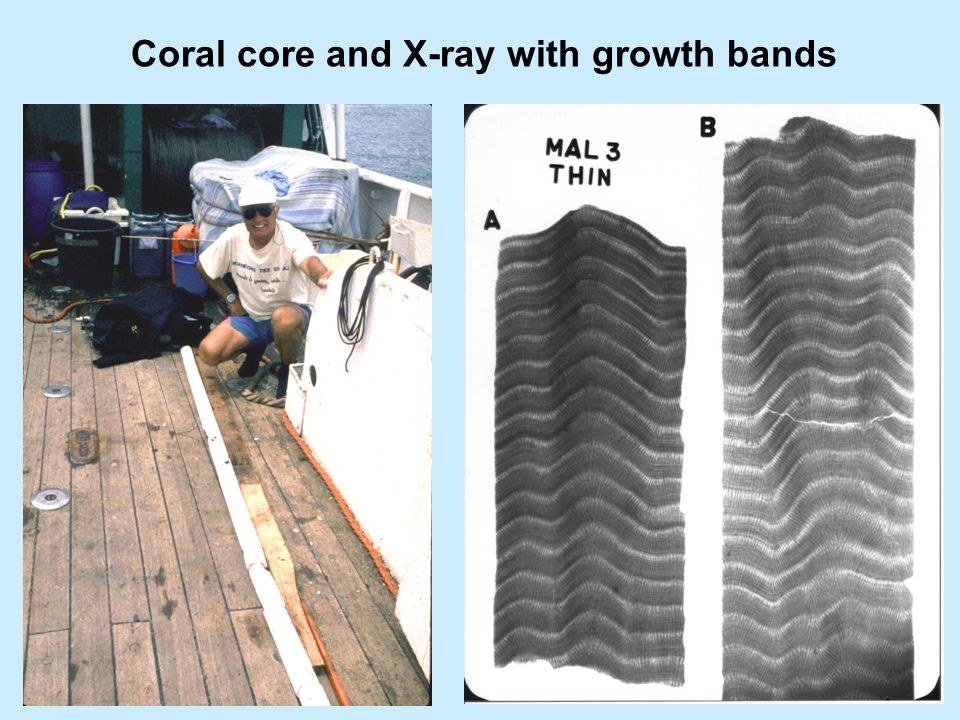

12. Coral core and X-ray with growth bands slide/ coral core and x-ray

13. slide/ calibration curve of 18O and SST in coral Calibration curve oxygen isotope temperature ( o C)

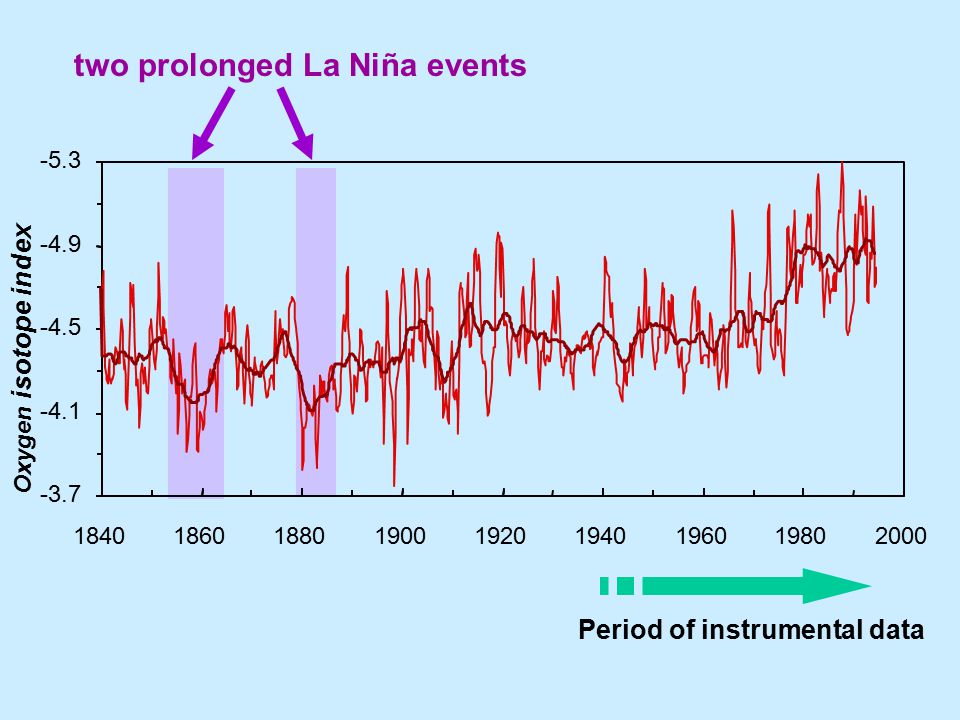

14. two prolonged La Niña events Oxygen isotope index -5.3 -4.9 -4.5 -4.1 -3.7 184018601880190019201940196019802000 Period of instrumental data

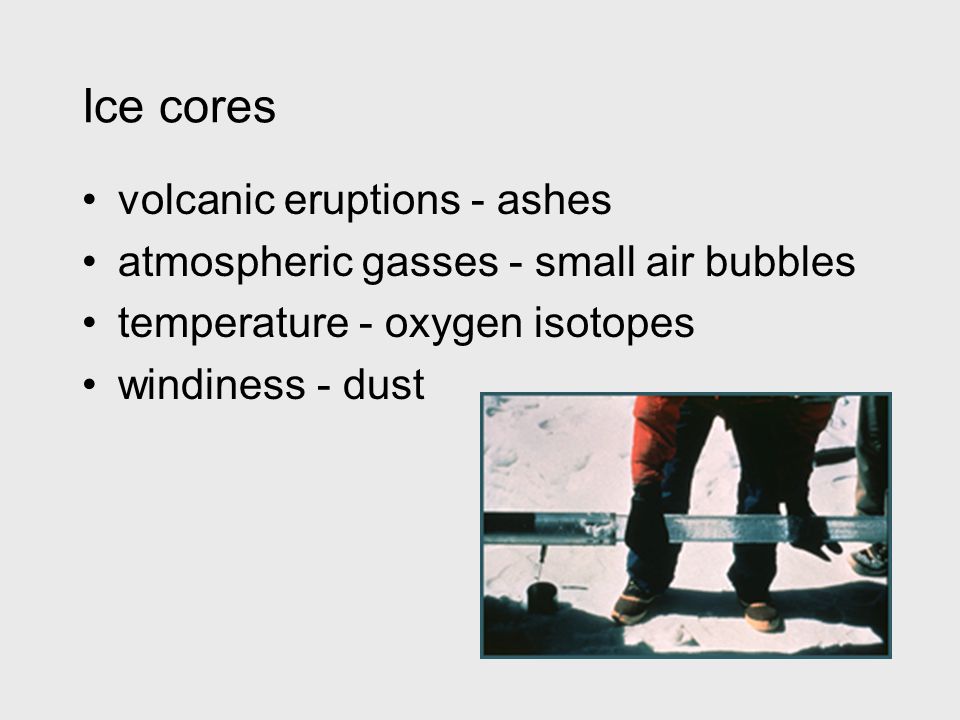

15. Ice cores volcanic eruptions - ashes atmospheric gasses - small air bubbles temperature - oxygen isotopes windiness - dust

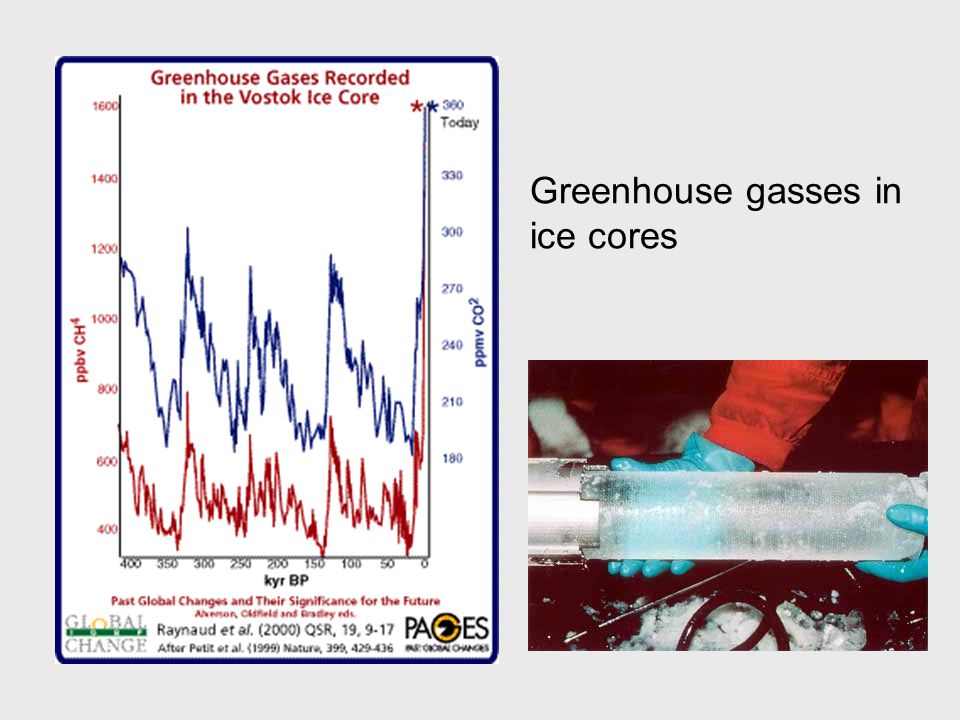

16. Greenhouse gasses in ice cores http://www.pages. unibe.ch/products/ overheads2/icecor es.html

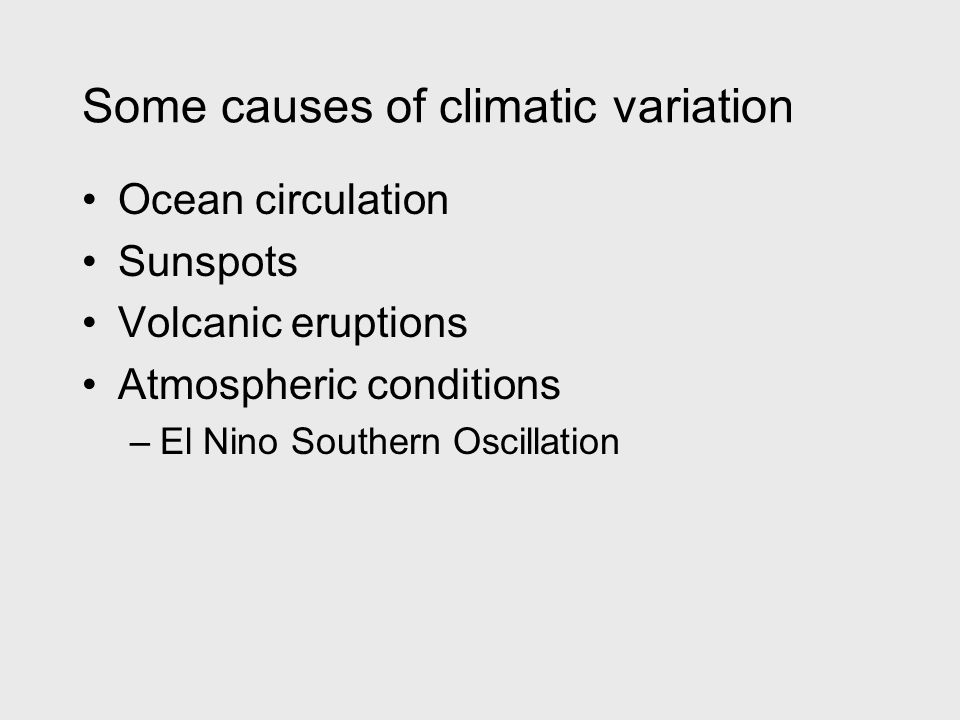

17. Some causes of climatic variation Ocean circulation Sunspots Volcanic eruptions Atmospheric conditions –El Nino Southern Oscillation

18. Currents and climate Miller 2.167

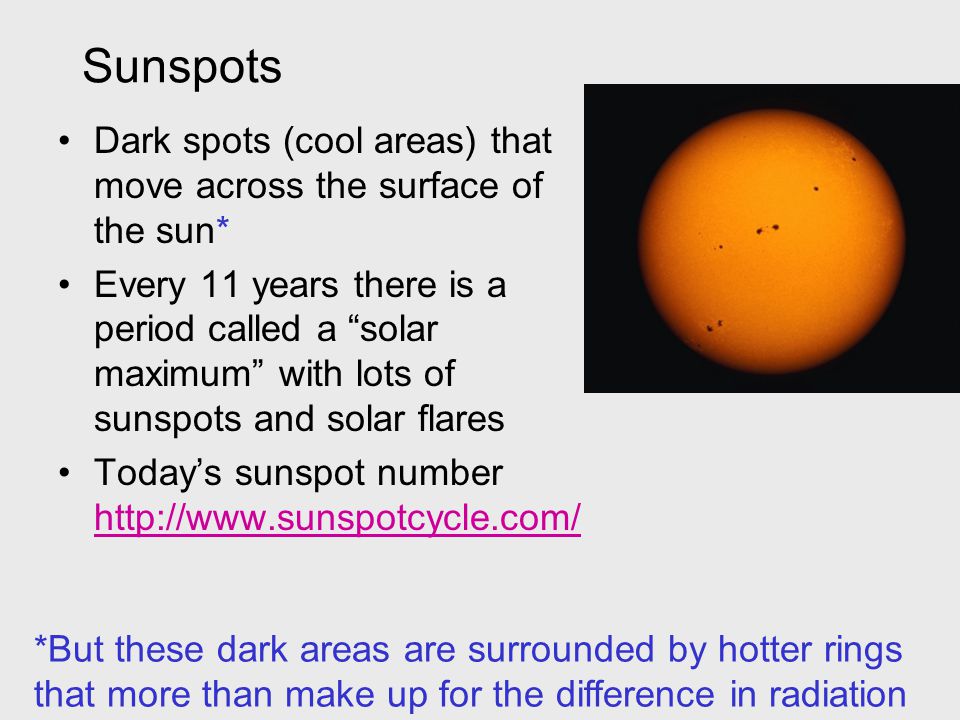

19. Sunspots Dark spots (cool areas) that move across the surface of the sun* Every 11 years there is a period called a “solar maximum” with lots of sunspots and solar flares Today’s sunspot number http://www.sunspotcycle.com/ http://www.sunspotcycle.com/ *But these dark areas are surrounded by hotter rings that more than make up for the difference in radiation

20. Fewer sunspots seem to be associated with: lower temperatures more severe winters glacial advances

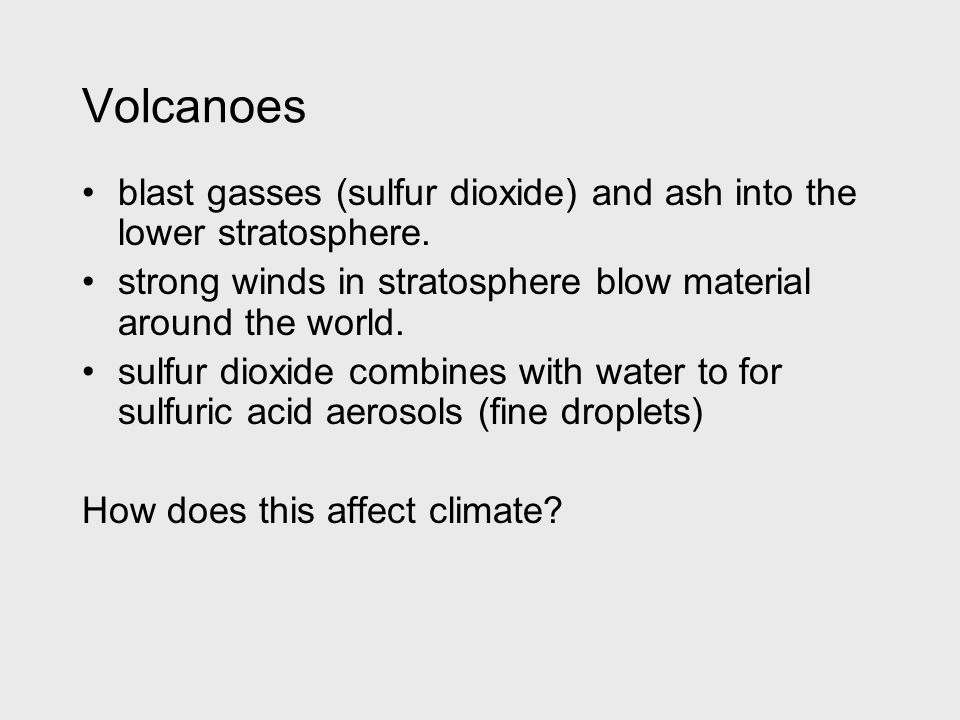

21. Volcanoes blast gasses (sulfur dioxide) and ash into the lower stratosphere. strong winds in stratosphere blow material around the world. sulfur dioxide combines with water to for sulfuric acid aerosols (fine droplets) How does this affect climate?

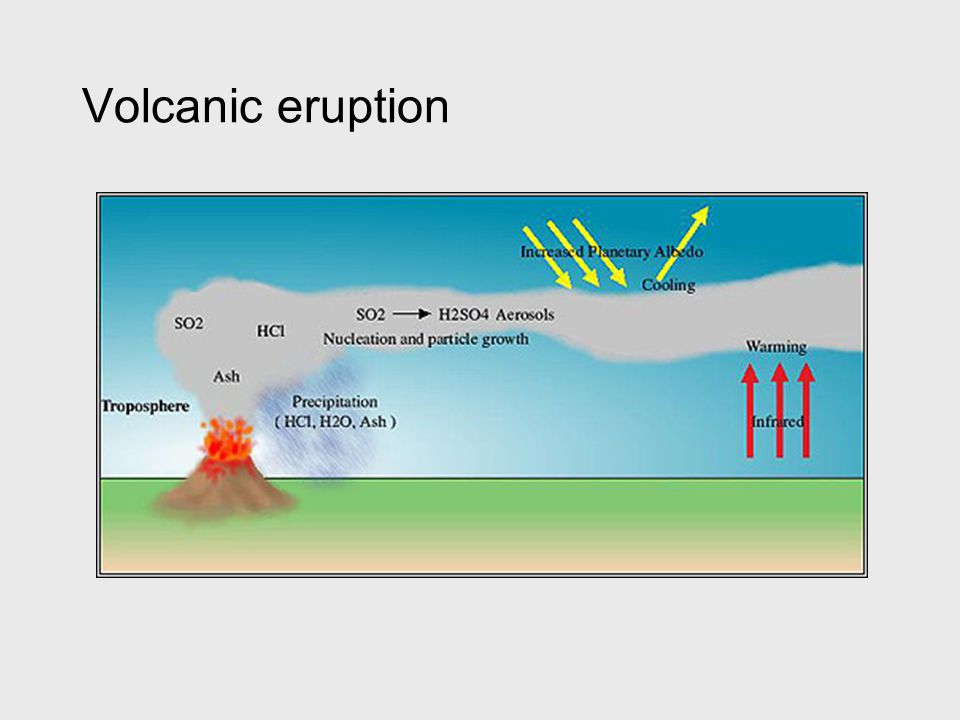

22. Volcanic eruption

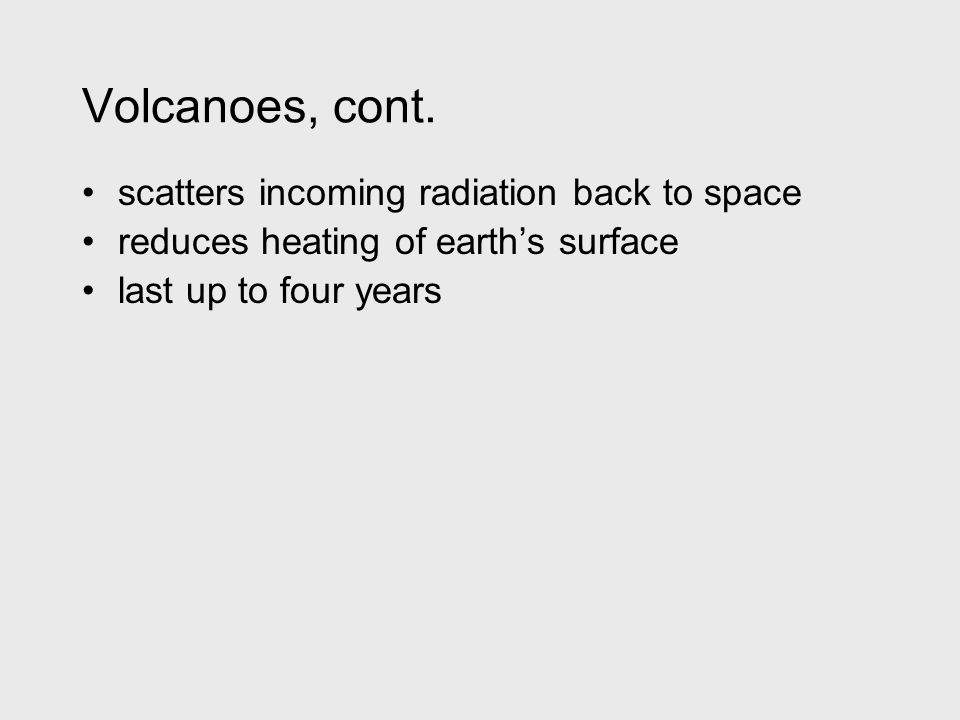

23. Volcanoes, cont. scatters incoming radiation back to space reduces heating of earth’s surface last up to four years

24. Mt Pinatubo, Philippines

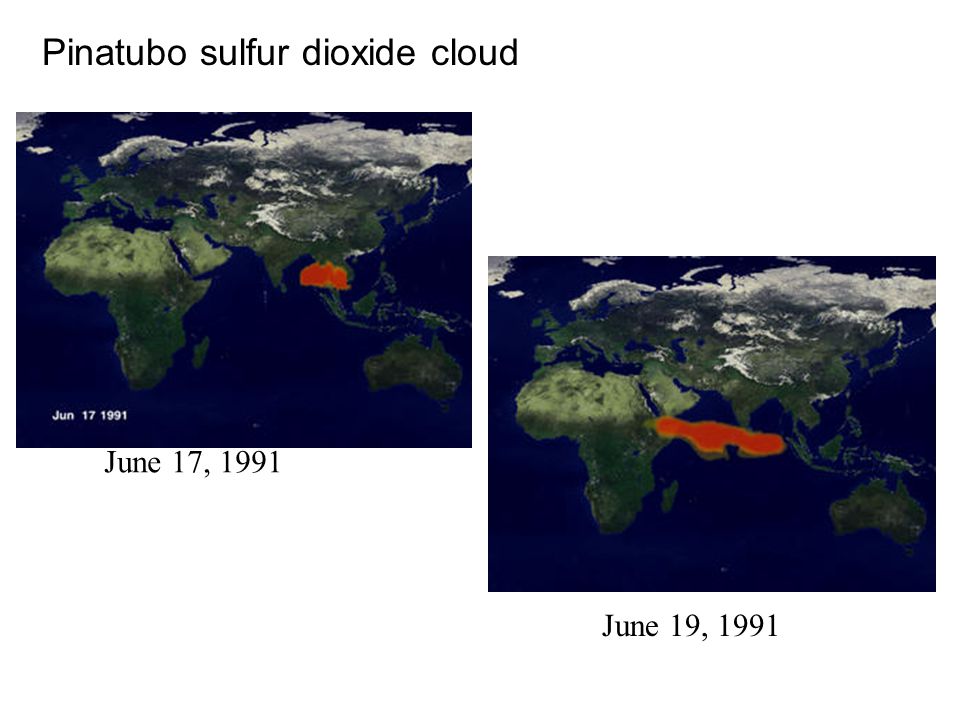

25. Pinatubo sulfur dioxide cloud June 17, 1991 June 19, 1991

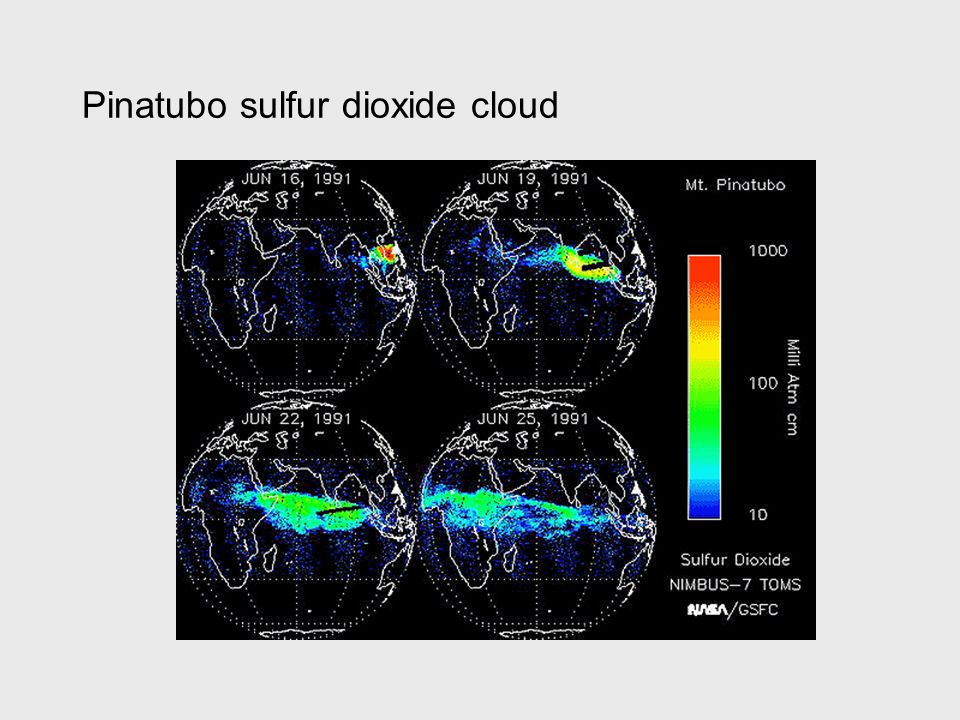

26. Pinatubo sulfur dioxide cloud

27. Pinatubo stratospheric aerosols 40 days before 40 days after 20 months after

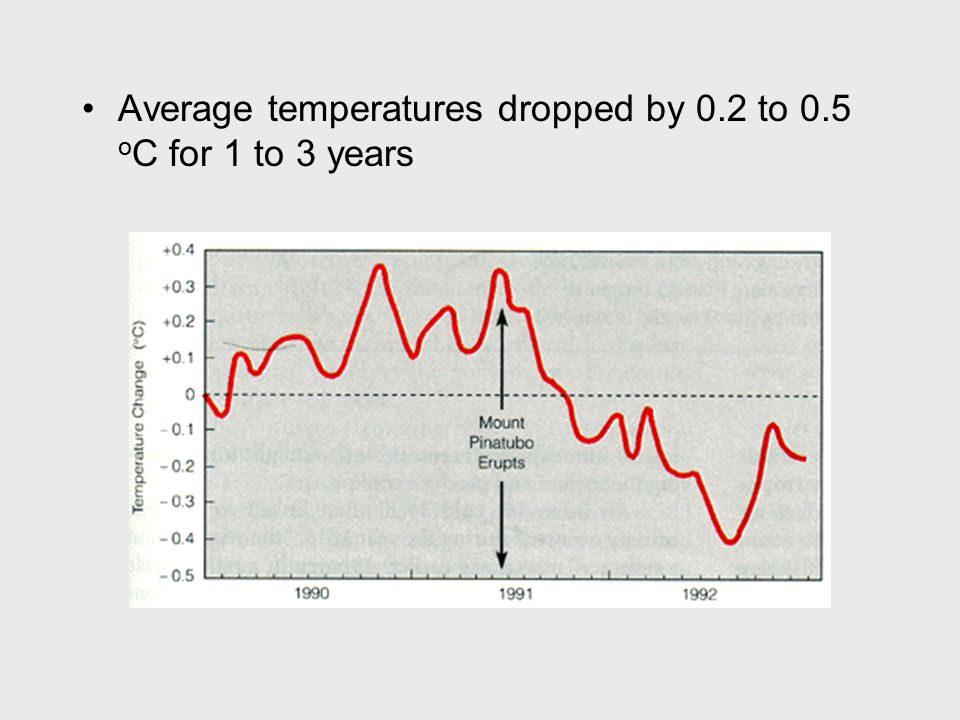

28. Average temperatures dropped by 0.2 to 0.5 o C for 1 to 3 years

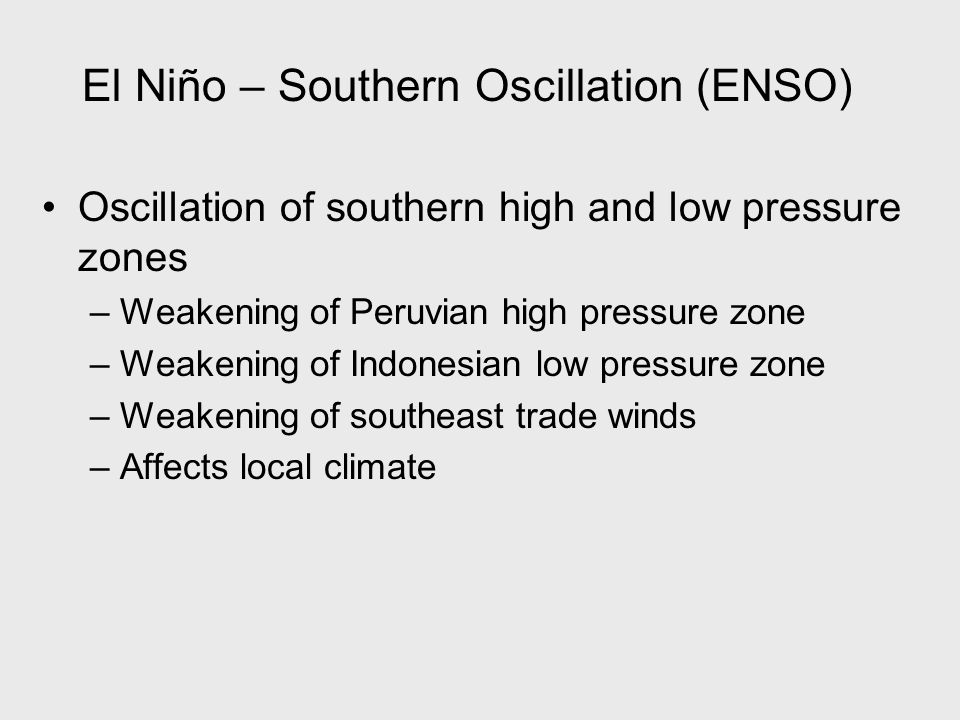

29. El Niño – Southern Oscillation (ENSO) Oscillation of southern high and low pressure zones –Weakening of Peruvian high pressure zone –Weakening of Indonesian low pressure zone –Weakening of southeast trade winds –Affects local climate

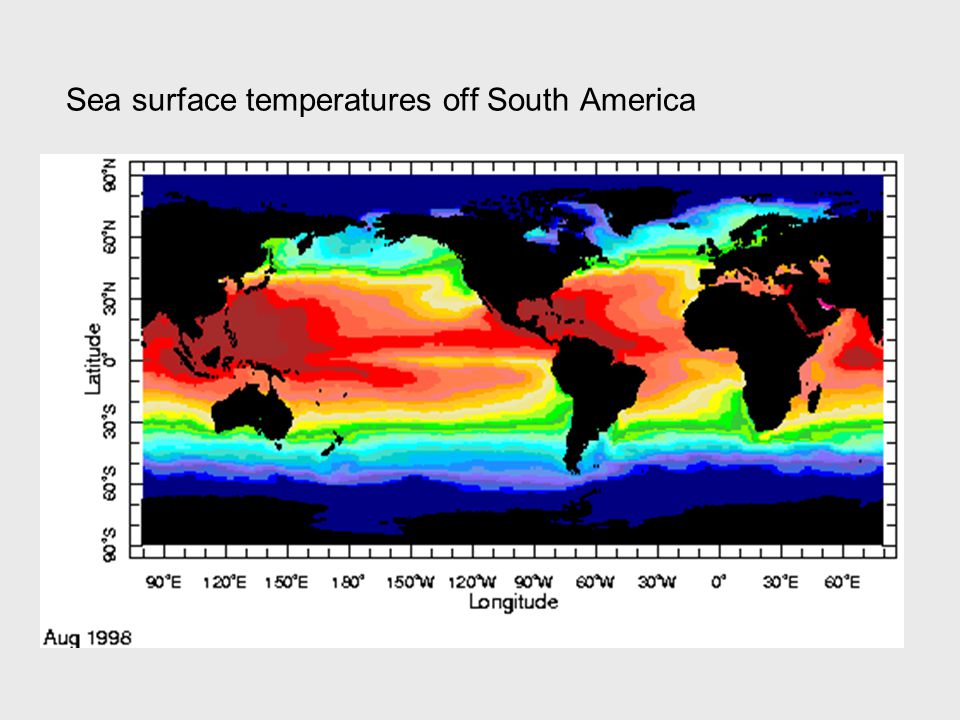

30. Sea surface temperatures off South America

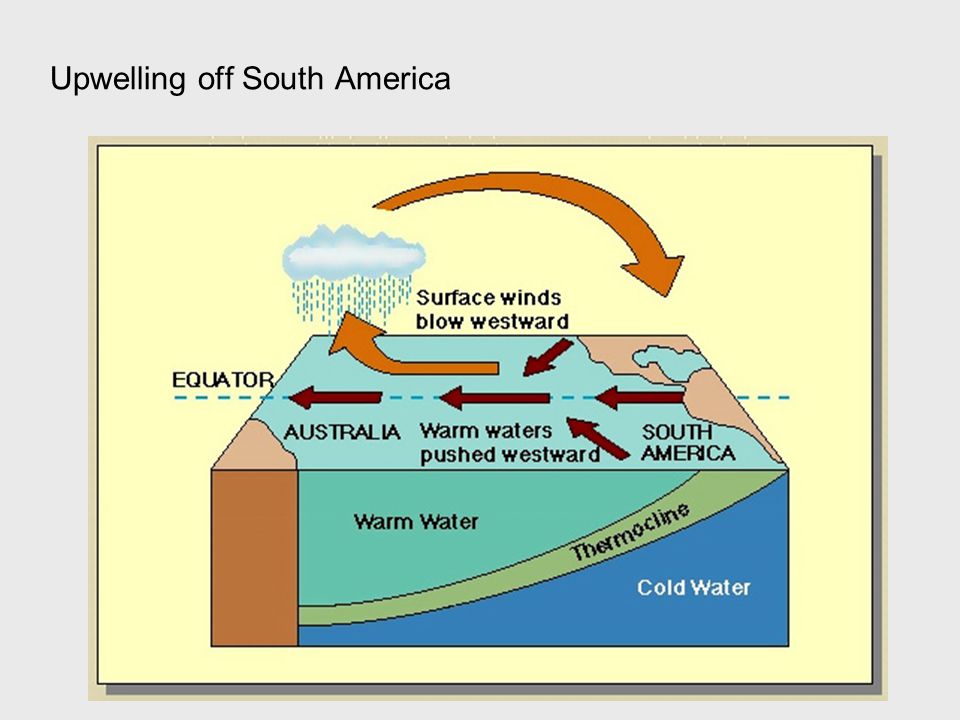

31. Upwelling off South America 9.12a 2.209

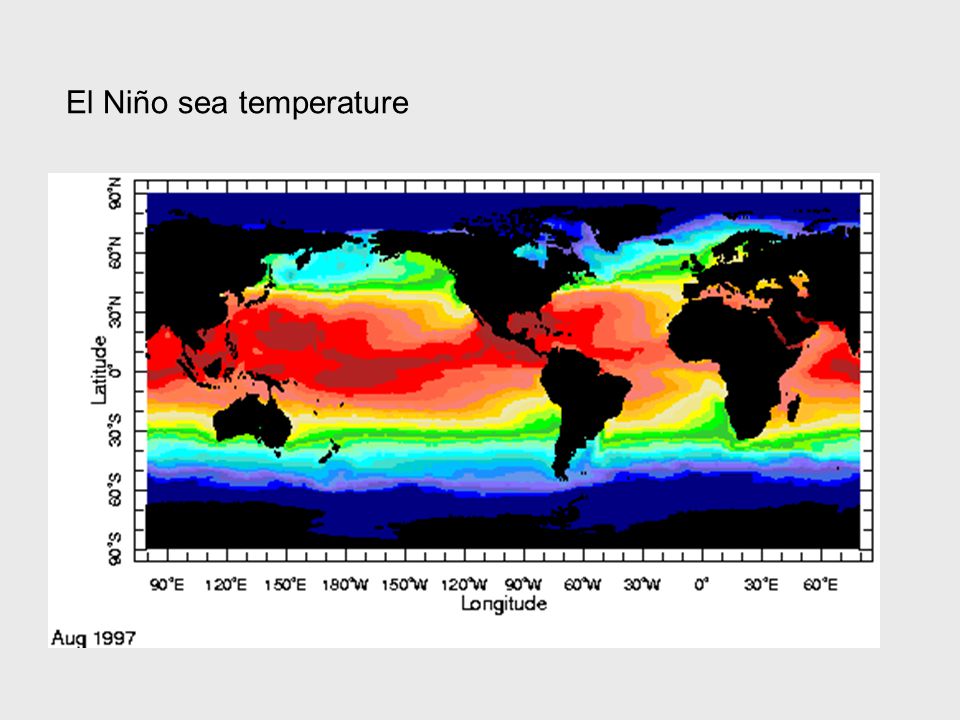

32. El Niño sea temperature

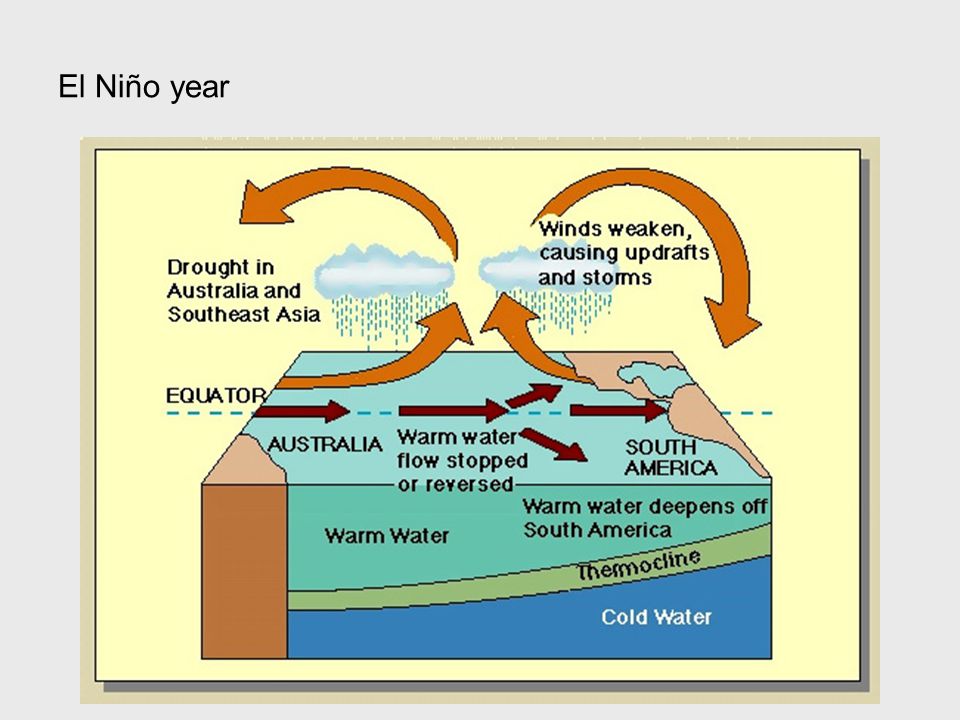

33. El Niño year 9.12b 2.207

34. ENSO teleconnections – affects on global climate Segar, 1998

35. Past periods of climate change Medieval Warm Period Little Ice Age Insert temperature recoreds

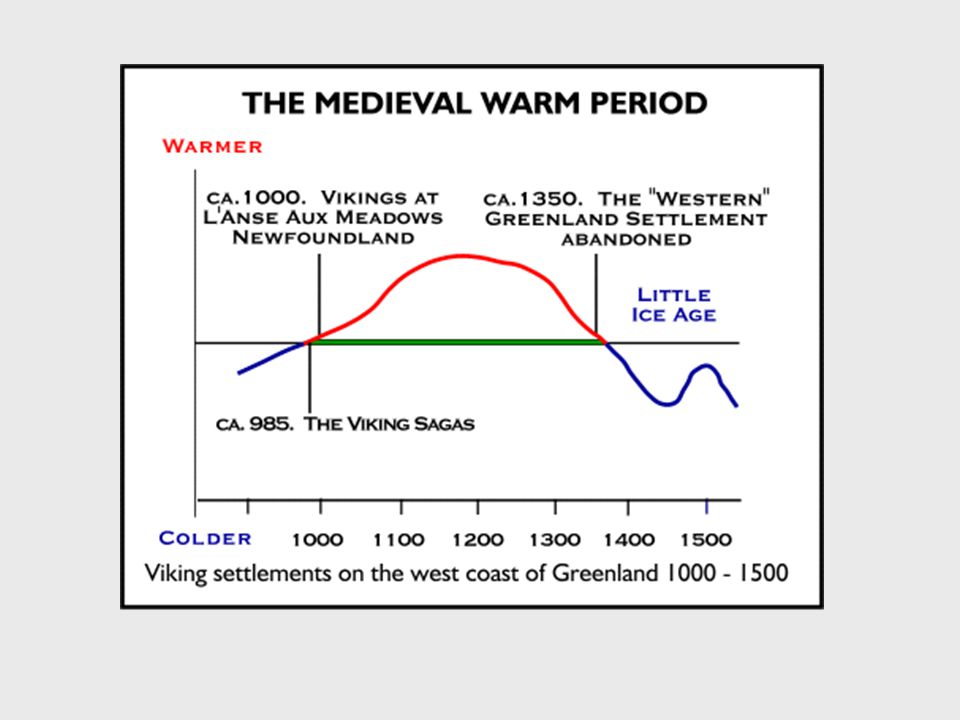

36. The Medieval Warm Period 1000 to 1300 AD regional warming (not necessarily global) Longer and warmer growing season –grapes in England Higher treelines Warmer sea surface temperatures in North Atlantic approx. 1 o C warmer than present

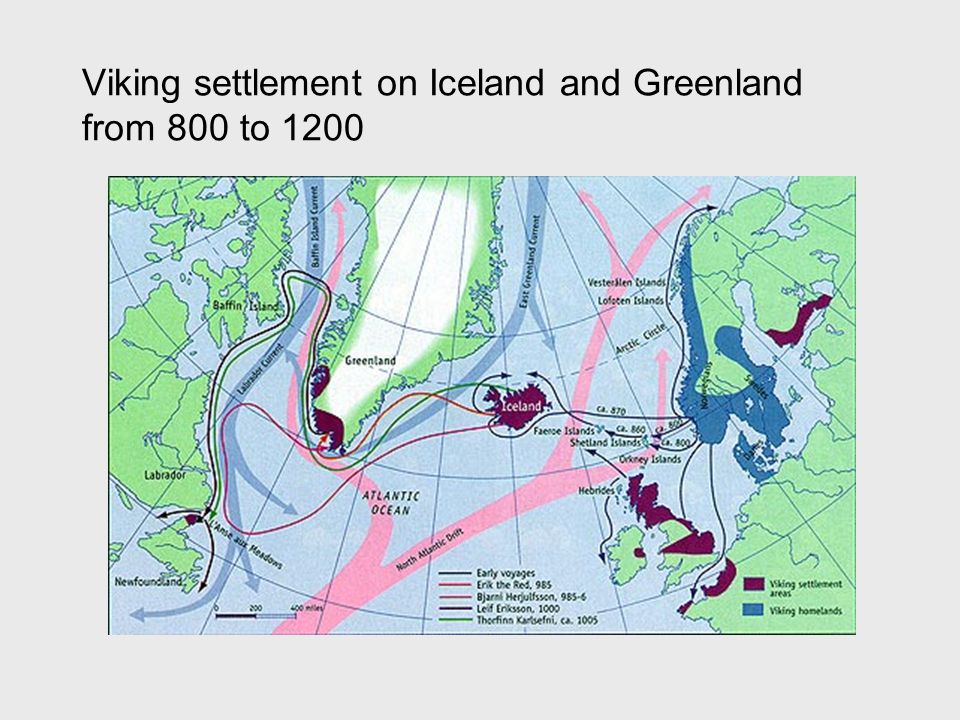

37. Viking settlement on Iceland and Greenland from 800 to 1200

39. The Little Ice Age Very cold climate between 1560 and 1890 Greater frequency of storms Glacial advances 1560-1610,1816-1890

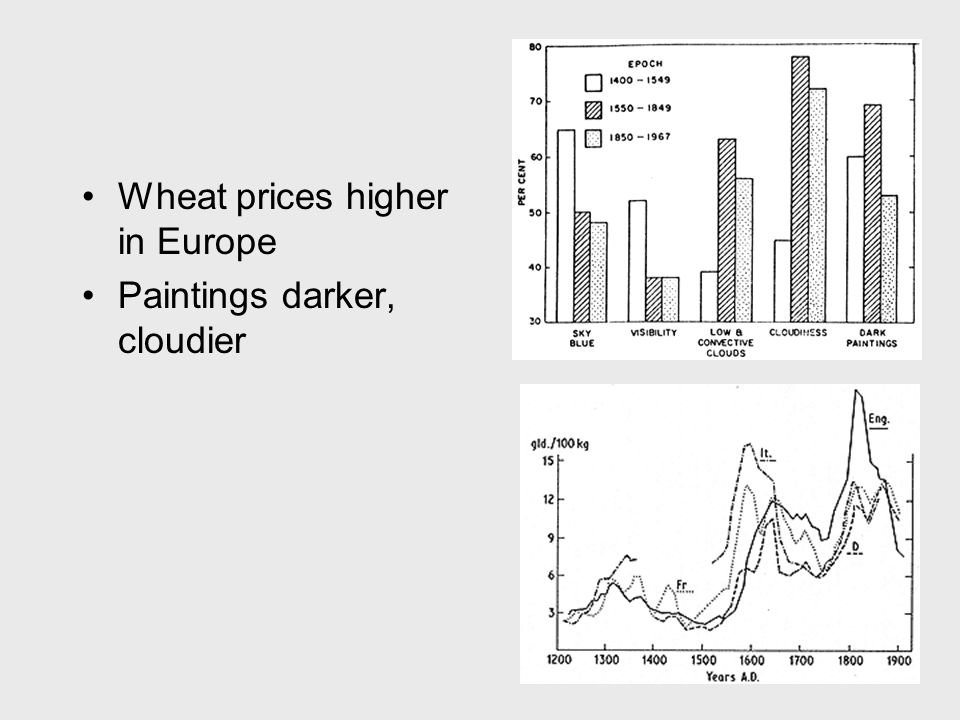

40. Wheat prices higher in Europe Paintings darker, cloudier

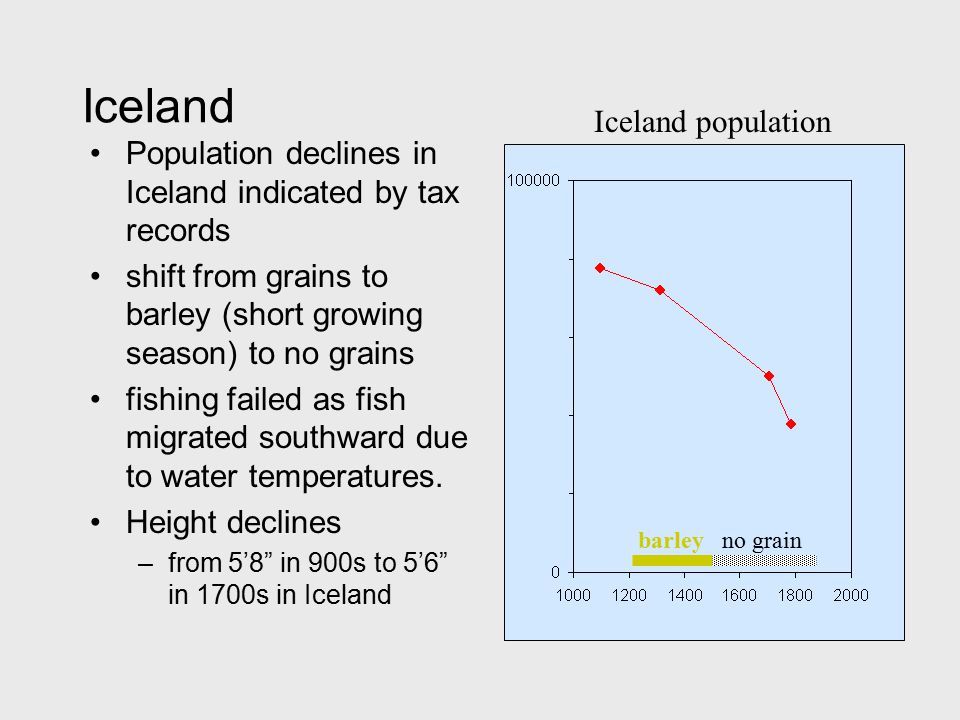

41. Population declines in Iceland indicated by tax records shift from grains to barley (short growing season) to no grains fishing failed as fish migrated southward due to water temperatures. Height declines –from 5’8” in 900s to 5’6” in 1700s in Iceland barleyno grain Iceland population Iceland

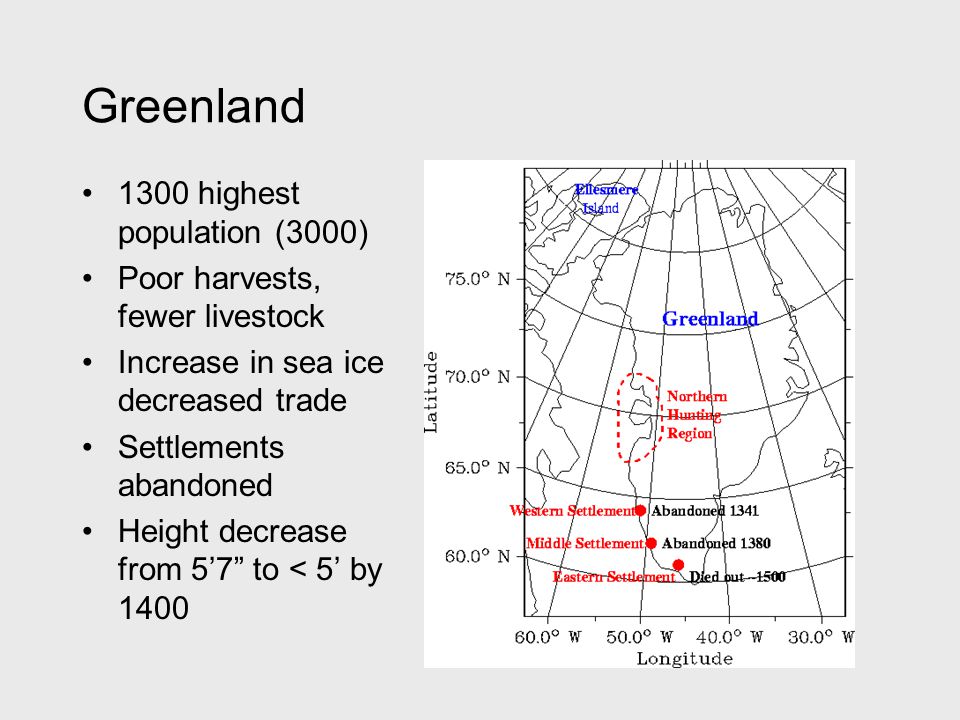

42. Greenland 1300 highest population (3000) Poor harvests, fewer livestock Increase in sea ice decreased trade Settlements abandoned Height decrease from 5’7” to < 5’ by 1400

43. Intro to activity: The Palmer Drought Severity Index

44. Based on temperature, precipitation, and tree ring records http://www.ngdc.noaa.gov/paleo/drought/drgh t_pdsi.htmlhttp://www.ngdc.noaa.gov/paleo/drought/drgh t_pdsi.html http://www.ngdc.noaa.gov/paleo/pdsiyear.htm l Locations of tree rings http://www.ngdc.noaa.gov/paleo/pdsiyear.html

46. Pinatubo sulfur dioxide cloud 3 months after eruption

47. Little ice age glacial advances

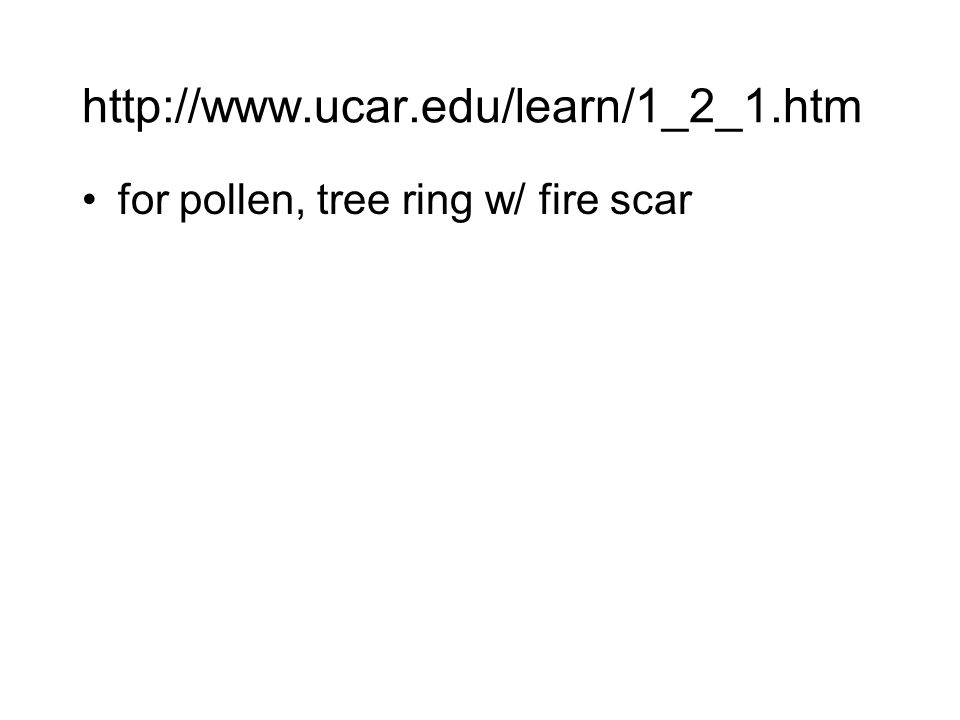

48. http://www.ucar.edu/learn/1_2_1.htm for pollen, tree ring w/ fire scar

49. Drilling a massive coral slide/ drilling coral

50. Many pictures of paintings, wheat prices, etc. http://www2.sunysuffolk.edu/mandias/lia /little_ice_age.htmlhttp://www2.sunysuffolk.edu/mandias/lia /little_ice_age.html
