1. Jaap Poot, 4 juni 2015 Dynamically scale Weblogic in a private Cloud

2. Jaap Poot Principal Oracle Consultant Since feb 2013 @ Fusion Middleware Exalogic OVM Linux DBA 2 Introduction jaap.poot@amis.nl https://nl.linkedin.com/in/jpoot https://technology.amis.nl/ http://www.fmwadmin.com/

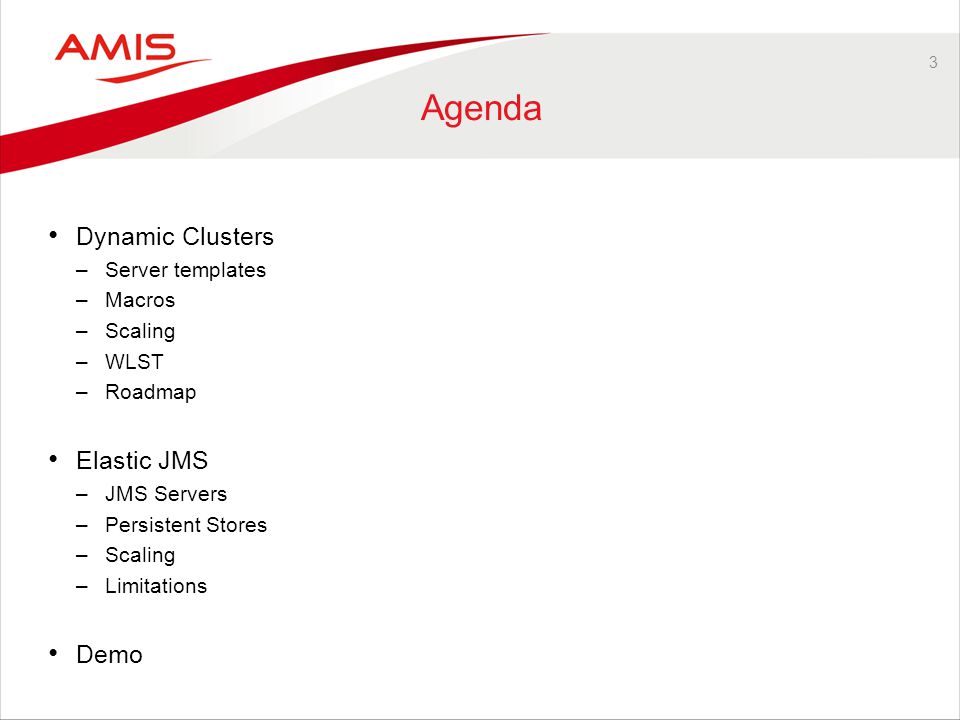

3. 3 Agenda Dynamic Clusters –Server templates –Macros –Scaling –WLST –Roadmap Elastic JMS –JMS Servers –Persistent Stores –Scaling –Limitations Demo

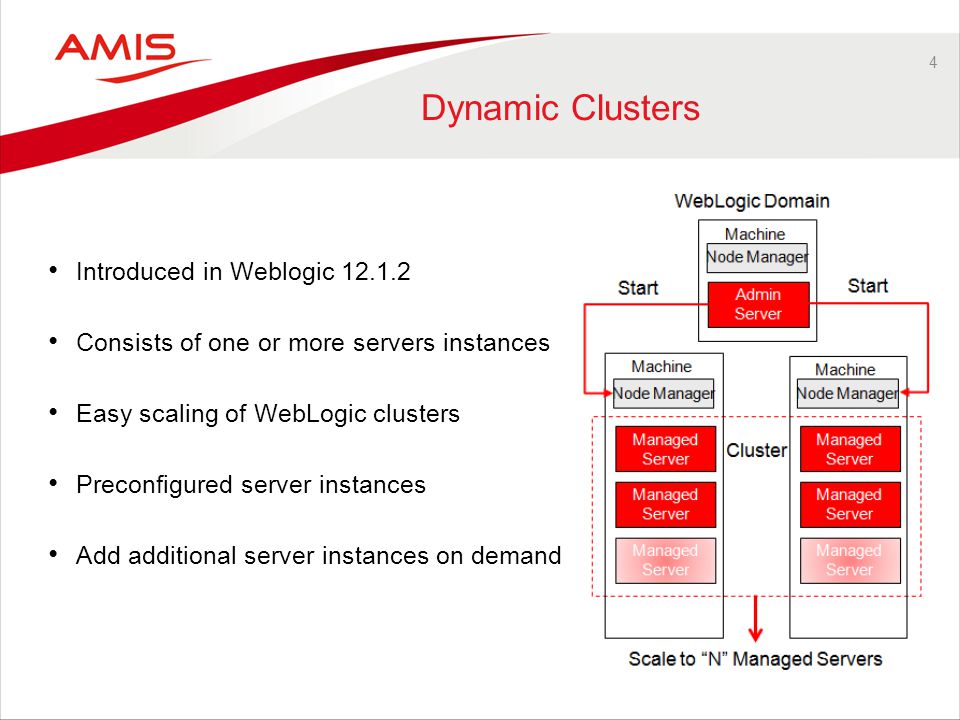

4. 4 Dynamic Clusters Introduced in Weblogic 12.1.2 Consists of one or more servers instances Easy scaling of WebLogic clusters Preconfigured server instances Add additional server instances on demand

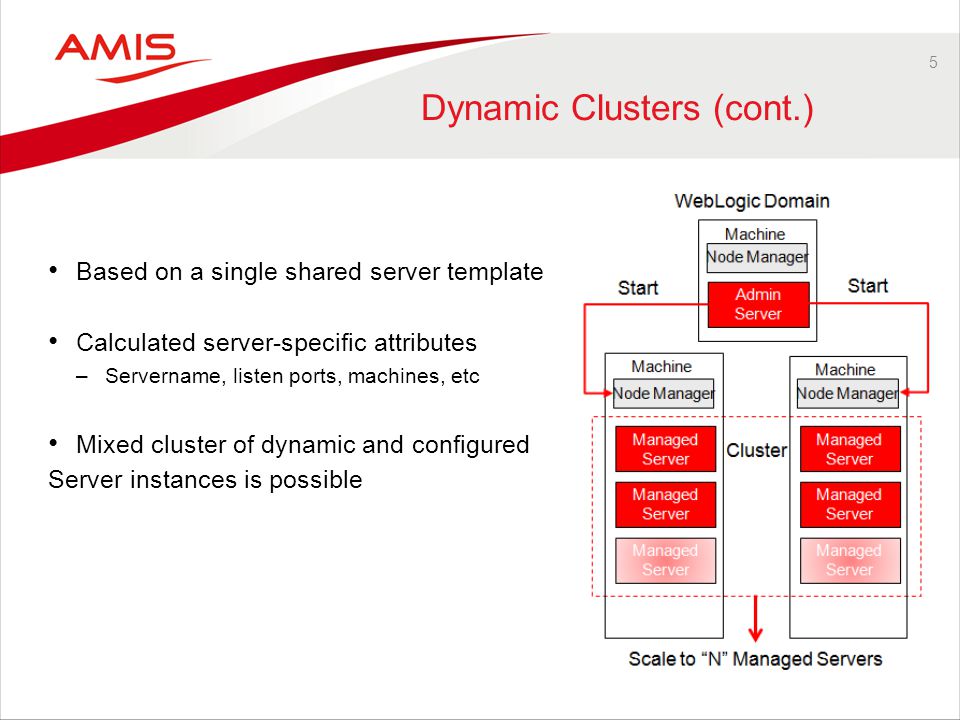

5. 5 Dynamic Clusters (cont.) Based on a single shared server template Calculated server-specific attributes –Servername, listen ports, machines, etc Mixed cluster of dynamic and configured Server instances is possible

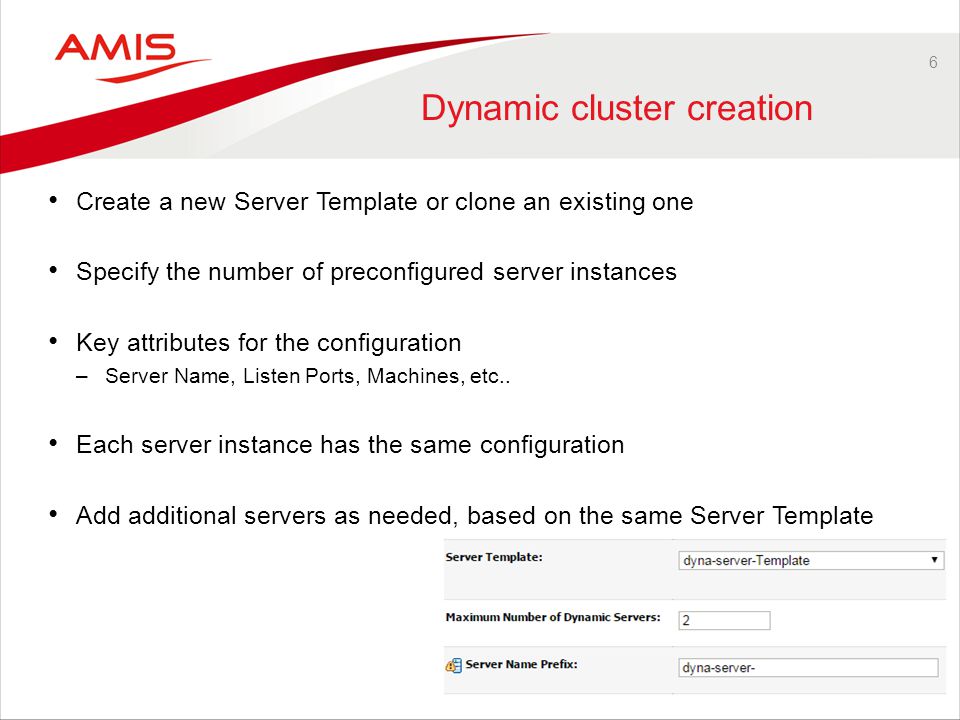

6. 6 Dynamic cluster creation Create a new Server Template or clone an existing one Specify the number of preconfigured server instances Key attributes for the configuration –Server Name, Listen Ports, Machines, etc.. Each server instance has the same configuration Add additional servers as needed, based on the same Server Template

7. 7 Server templates Specify common attributes for a group of server instances Used with dynamic clusters and configured managed servers Macros can be used for any string attribute

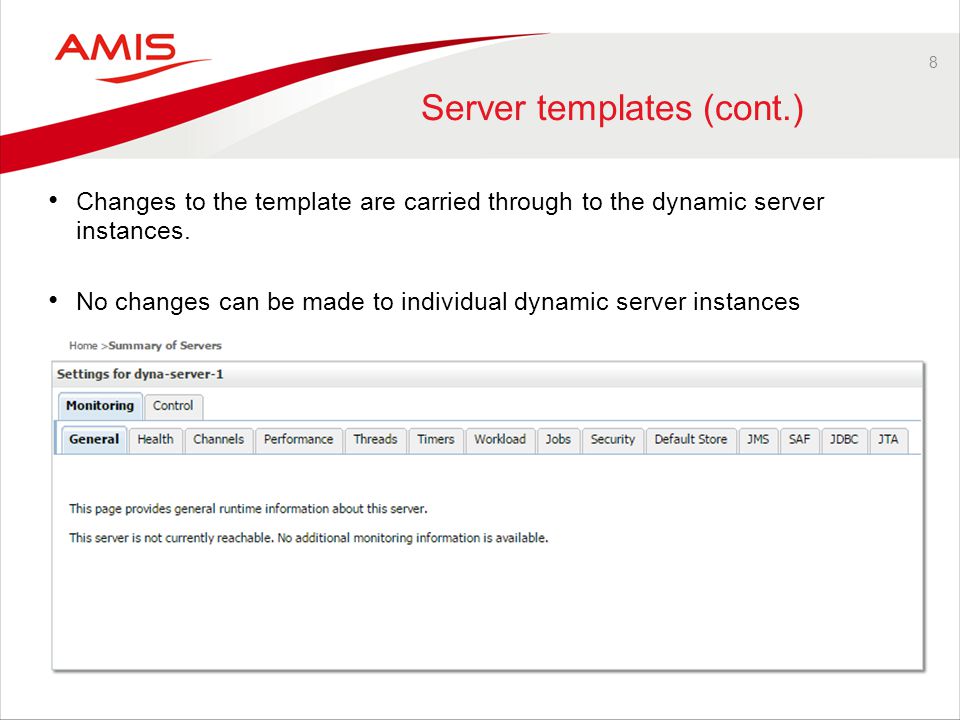

8. 8 Server templates (cont.) Changes to the template are carried through to the dynamic server instances. No changes can be made to individual dynamic server instances

9. 9 Server templates Macros Macros can be used for any string attribute. –Not for integers or referenced elements Available macros for server-specific configuration: –${id} –${serverName} –${clusterName} –${domainName} –${system-property-name}

10. 10 Server templates Macros Example of macro usage. –Define your own system property name in setUserOverride.sh HOSTNAME=`hostname` JAVA_OPTIONS="${JAVA_OPTIONS} -Dhostname=${HOSTNAME}"

11. 11 Dynamic Clusters - Scaling Prerequisites –Weblogic installed on all available servers –Unpacked domain –Nodemanager running Scale out or in as required Start/stop preconfigured server instances Increase/lower the number of preconfigured servers Change only one number! When decreasing. Servers above the maximum must be shutdown first !

12. 12 Dynamic Clusters - WLST Script all aspects of dynamic clusters Create, modify, delete server templates, dynamic clusters Simple example of Cluster creation script in Oracle documentation Use standard monitoring tools to trigger scripts for scaling in and out

13. 13 WLST scaling example wlst.sh scaleDynamicCluster.py clustername numberofservers

14. 14 Roadmap Dynamic Clusters 12.2.1

15. 15 JMS Before Weblogic Server 12.1.2 JMS Servers –Each individually configured –Targeted at a single Managed Server WebLogic Persistent Stores –Each individually configured –Targeted at a single Managed Server Subdeployments –Update the subdeployment for each new JMS Server –list each JMS Server in the cluster for a distributed queue

16. 16 Elastic JMS Target JMS Server to a (Dynamic) Cluster Simplified configuration –Configure JMS only once for a cluster. –No need for individually configured JMS Servers and related items. Elastic scalability –Elastic JMS scales when you scale the cluster Support for Dynamic Clusters –Supported on configured, dynamic and mixed clusters

17. 17 Elastic JMS – JMS Servers Configure one JMS Server for the cluster –No matter how many managed servers are in the cluster. Under the hood –A JMS server is created on each managed server

18. 18 Elastic JMS – Persistent Store Configure one Persistent Store Under the hood –A Persistent Store is created for each managed Server –For JDBC stores, each instance gets its own underlying table in the same schema

19. 19 Elastic JMS - Configuration

20. 20 Elastic JMS - Scaling JMS Servers –Adding or removing server instances to/from the cluster automatically adds or removes JMS Servers. WebLogic Persistent Stores –Like JMS Servers, adding or removing servers to/from the cluster automatically adds or removes Persistent stores Subdeployments –When you scale the cluster, a distributed queue is automatically extended/decreased to the new JMS Server instance without any changes to the subdeployment

21. 21 Elastic JMS – Limitations Automatic Service Migration (ASM) is not supported Store-and-Forward (SAF) Agents cannot be targeted Singleton destinations are not directly supported Weighted distributed destinations are not supported Replicated distributed topics (RDTs) are not supported AQ-JMS integration is not supported

22. 22 Demo Domain: demo_domain Weblogic 12.1.3.0.2 wls01.domain.local 192.168.100.41 Nodemanager AdminServer Port 7001 wls03.domain.local 192.168.100.43 Nodemanager wls02.domain.local 192.168.100.42 Nodemanager wls04.domain.local 192.168.100.44 Nodemanager

23. 23 Demo Domain: demo_domain Weblogic 12.1.3.0.2 wls01.domain.local 192.168.100.41 Nodemanager AdminServer Port 7001 wls03.domain.local 192.168.100.43 Nodemanager wls02.domain.local 192.168.100.42 Nodemanager wls04.domain.local 192.168.100.44 Nodemanager dyna-cluster dyna-server-1 Port 8001 dyna-server-2 Port 8002

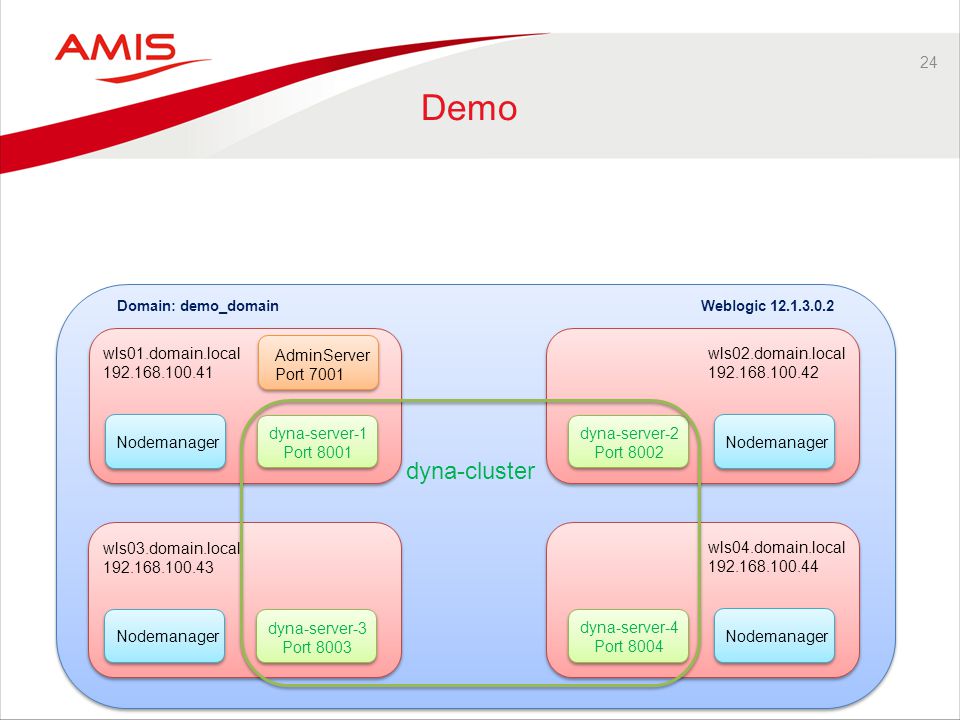

24. 24 Demo Domain: demo_domain Weblogic 12.1.3.0.2 wls01.domain.local 192.168.100.41 Nodemanager AdminServer Port 7001 wls03.domain.local 192.168.100.43 Nodemanager wls02.domain.local 192.168.100.42 Nodemanager wls04.domain.local 192.168.100.44 Nodemanager dyna-server-3 Port 8003 dyna-server-4 Port 8004 dyna-cluster dyna-server-1 Port 8001 dyna-server-2 Port 8002

25. 25 Demo Oracle HTTP Server 12.1.3 WebLogic Proxy Plug-In (mod_wl_ohs) Domain: demo_domain Weblogic 12.1.3.0.2 wls01.domain.local 192.168.100.41 Nodemanager AdminServer Port 7001 wls03.domain.local 192.168.100.43 Nodemanager wls02.domain.local 192.168.100.42 Nodemanager wls04.domain.local 192.168.100.44 Nodemanager dyna-server-3 Port 8003 dyna-server-4 Port 8004 dyna-cluster dyna-server-1 Port 8001 dyna-server-2 Port 8002

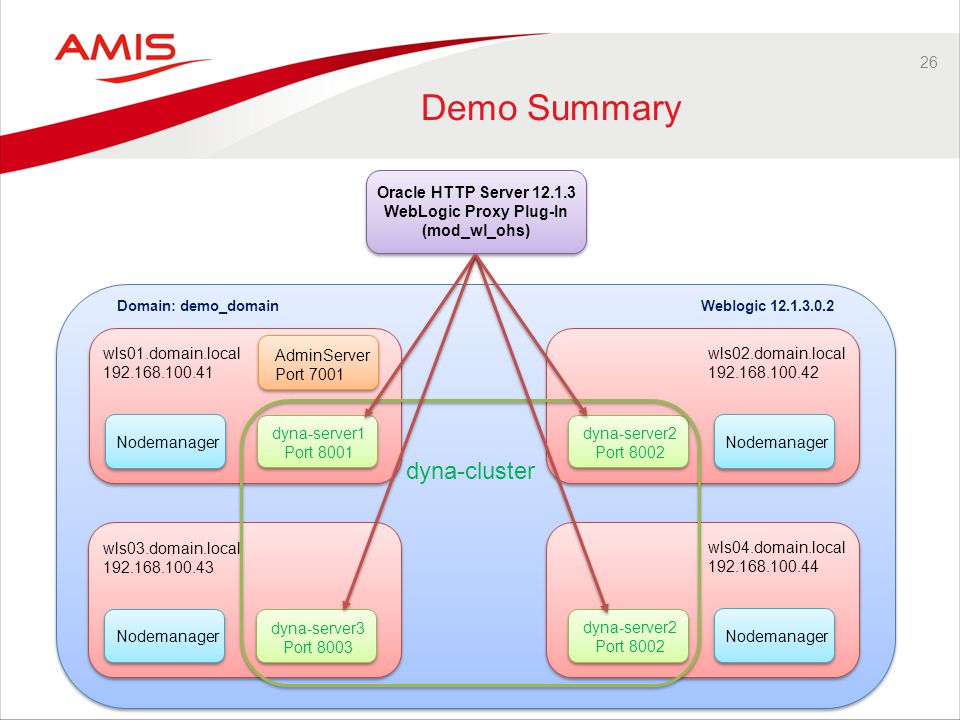

26. 26 Demo Summary Oracle HTTP Server 12.1.3 WebLogic Proxy Plug-In (mod_wl_ohs) Domain: demo_domain Weblogic 12.1.3.0.2 wls01.domain.local 192.168.100.41 Nodemanager AdminServer Port 7001 wls03.domain.local 192.168.100.43 Nodemanager wls02.domain.local 192.168.100.42 Nodemanager wls04.domain.local 192.168.100.44 Nodemanager dyna-server3 Port 8003 dyna-server2 Port 8002 dyna-cluster dyna-server1 Port 8001 dyna-server2 Port 8002

27. 27 Questions ?
