1. PowerCenter 8.6 SE Installation and Operational Guidelines

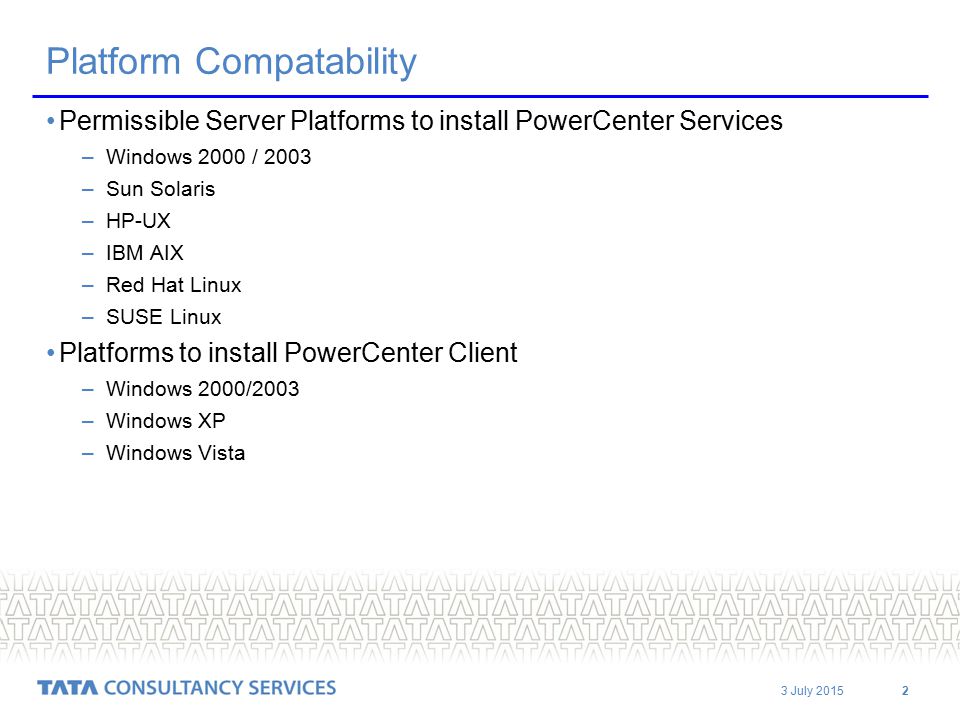

2. 3 July 2015 2 Platform Compatability Permissible Server Platforms to install PowerCenter Services –Windows 2000 / 2003 –Sun Solaris –HP-UX –IBM AIX –Red Hat Linux –SUSE Linux Platforms to install PowerCenter Client –Windows 2000/2003 –Windows XP –Windows Vista

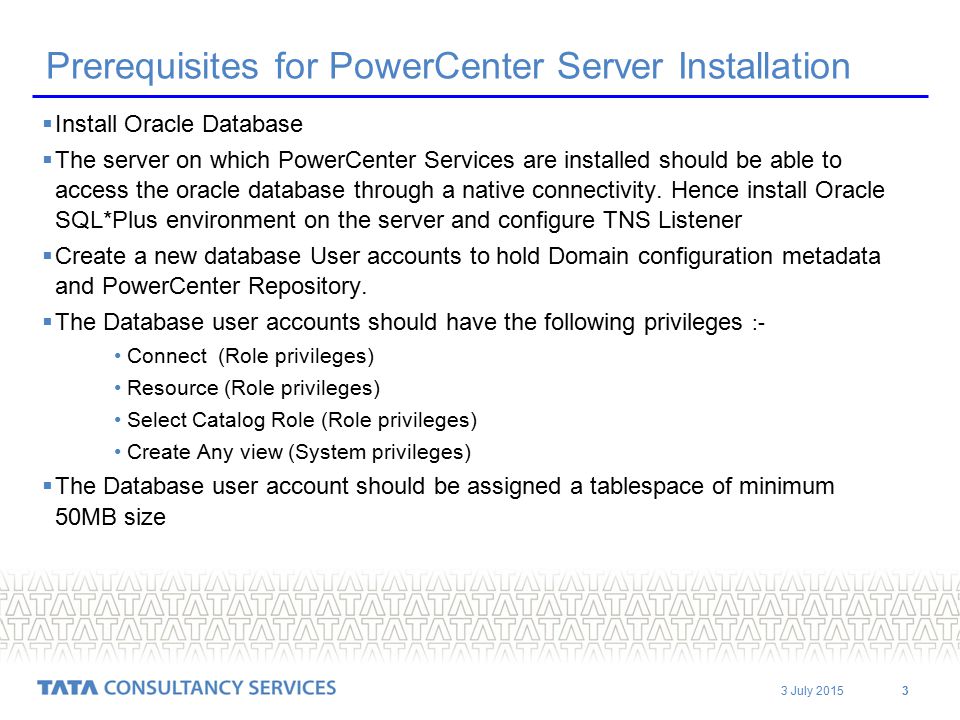

3. 3 July 2015 3 Prerequisites for PowerCenter Server Installation  Install Oracle Database  The server on which PowerCenter Services are installed should be able to access the oracle database through a native connectivity. Hence install Oracle SQL*Plus environment on the server and configure TNS Listener  Create a new database User accounts to hold Domain configuration metadata and PowerCenter Repository.  The Database user accounts should have the following privileges :- Connect (Role privileges) Resource (Role privileges) Select Catalog Role (Role privileges) Create Any view (System privileges)  The Database user account should be assigned a tablespace of minimum 50MB size

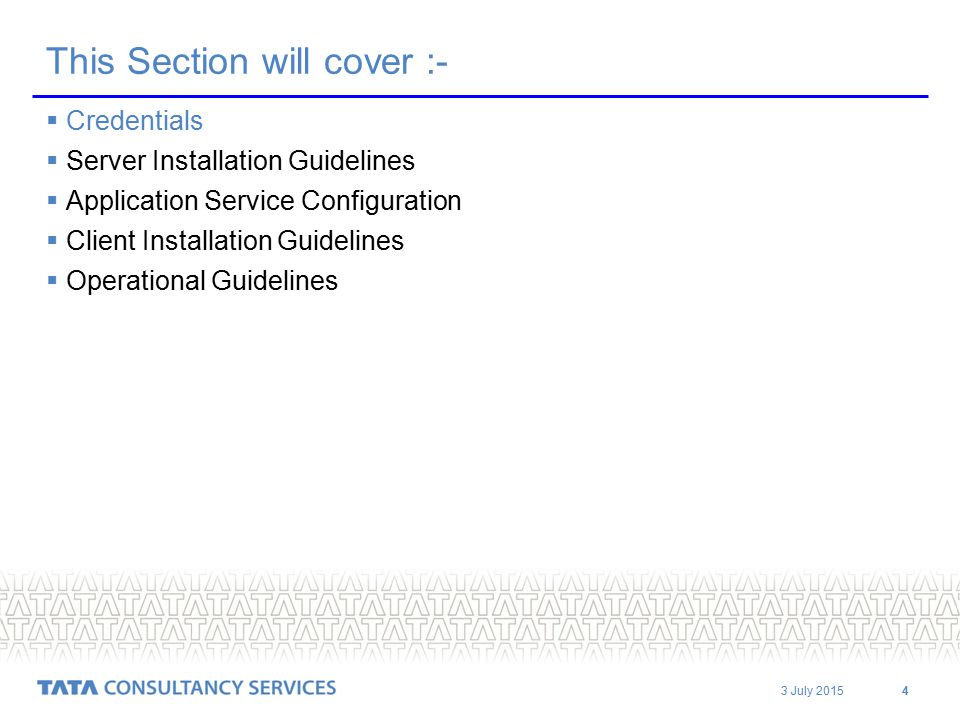

4. 3 July 2015 4 This Section will cover :-  Credentials  Server Installation Guidelines  Application Service Configuration  Client Installation Guidelines  Operational Guidelines

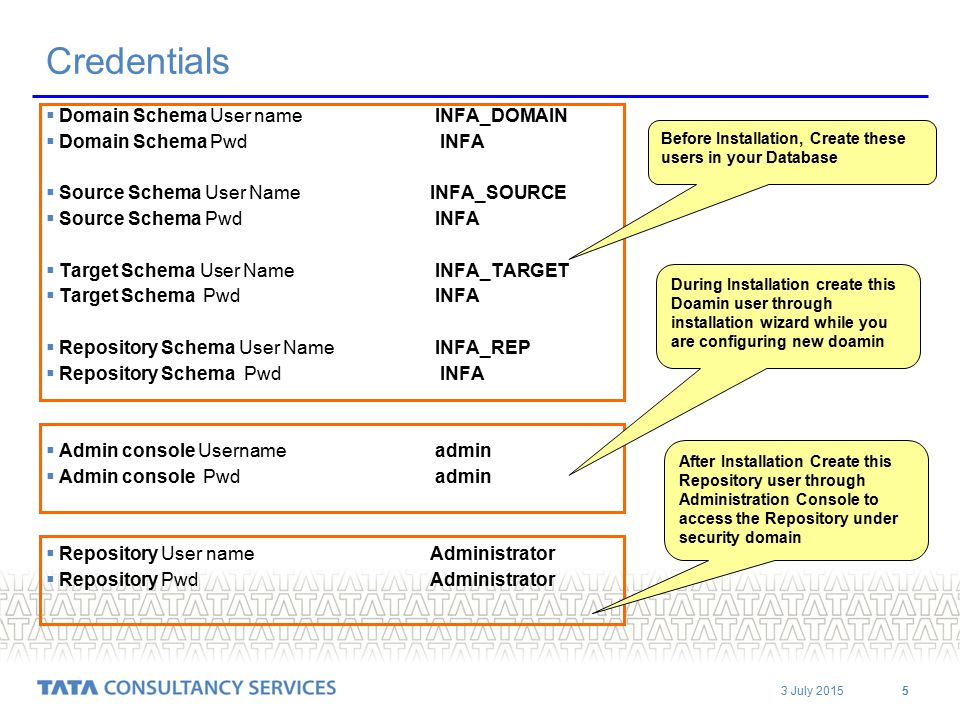

5. 3 July 2015 5 Credentials  Domain Schema User name INFA_DOMAIN  Domain Schema Pwd INFA  Source Schema User Name INFA_SOURCE  Source Schema Pwd INFA  Target Schema User Name INFA_TARGET  Target Schema Pwd INFA  Repository Schema User Name INFA_REP  Repository Schema Pwd INFA  Admin console Username admin  Admin console Pwd admin  Repository User name Administrator  Repository Pwd Administrator Before Installation, Create these users in your Database During Installation create this Doamin user through installation wizard while you are configuring new doamin After Installation Create this Repository user through Administration Console to access the Repository under security domain

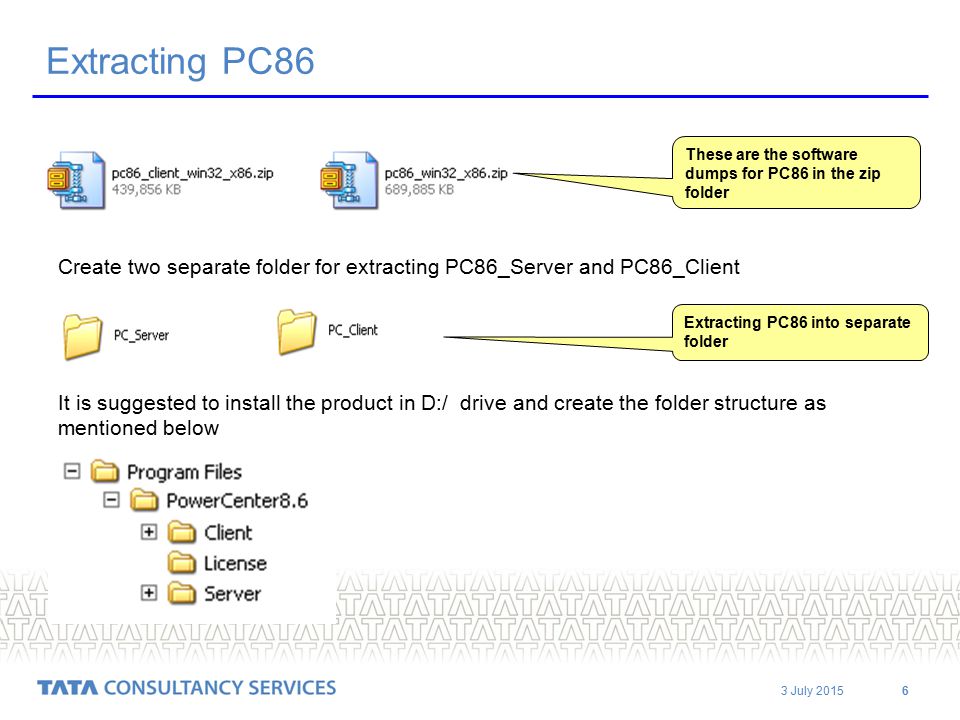

6. 3 July 2015 6 Extracting PC86 Extracting PC86 into separate folder These are the software dumps for PC86 in the zip folder Create two separate folder for extracting PC86_Server and PC86_Client It is suggested to install the product in D:/ drive and create the folder structure as mentioned below

7. 3 July 2015 7 This Section will cover :-  Introduction and Credentials  Server Installation Guidelines  Application Services Configuration  Client Installation Guidelines  Operational Guidelines

8. 3 July 2015 8 Server Installation Click on install.bat to install the server on the machine First screen that appears after Install.bat Click on the folder in which you have extract the server from the zip folder

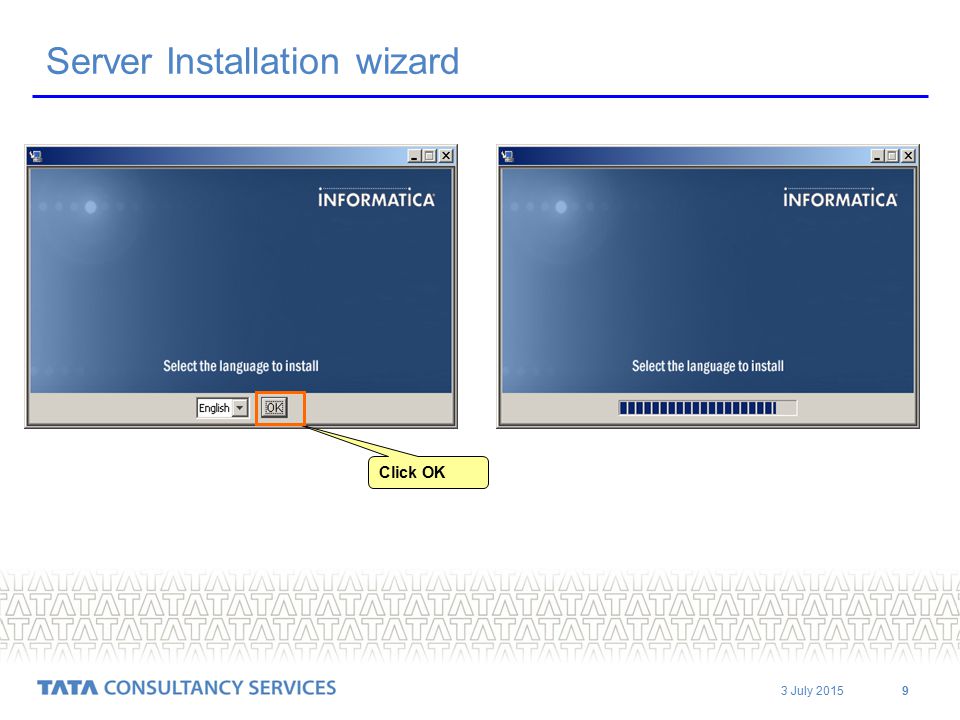

9. 3 July 2015 9 Click OK Server Installation wizard

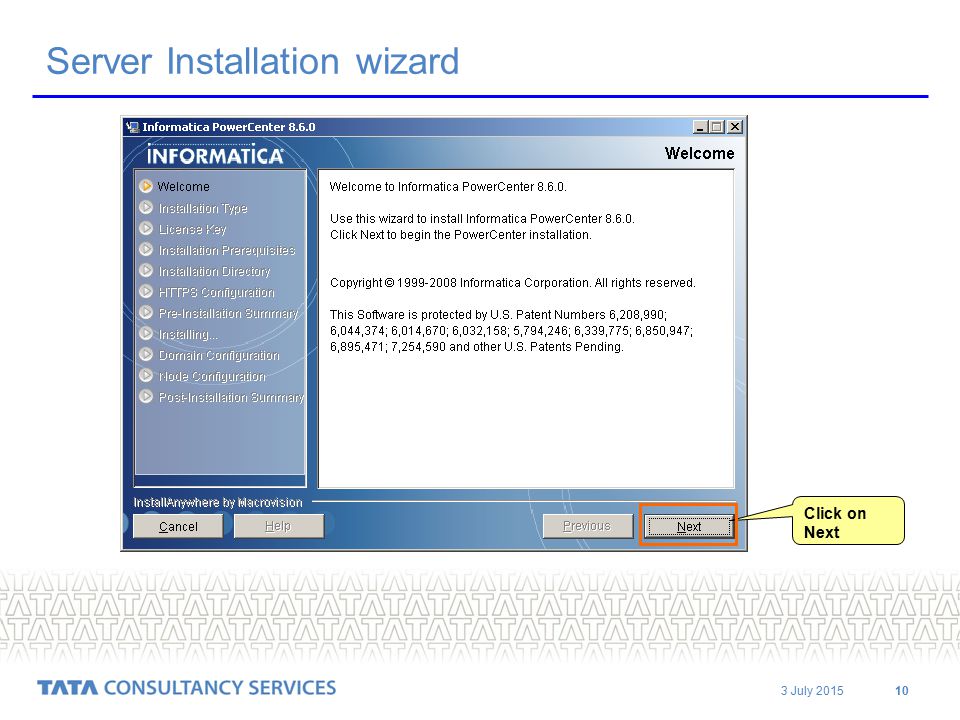

10. 3 July 2015 10 Server Installation wizard Click on Next

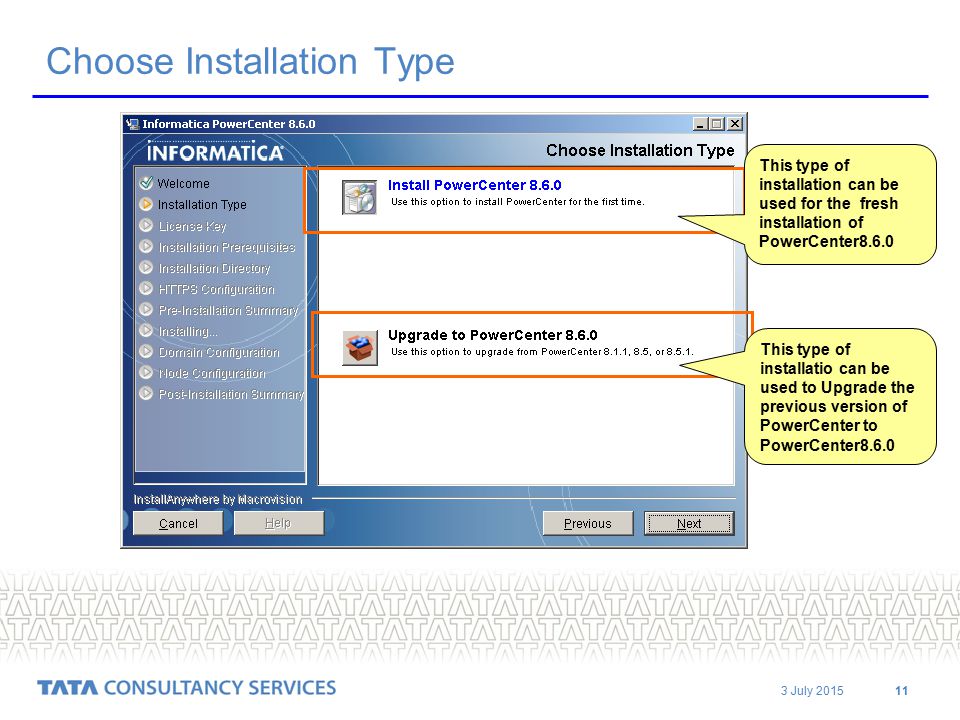

11. 3 July 2015 11 Choose Installation Type This type of installatio can be used to Upgrade the previous version of PowerCenter to PowerCenter8.6.0 This type of installation can be used for the fresh installation of PowerCenter8.6.0

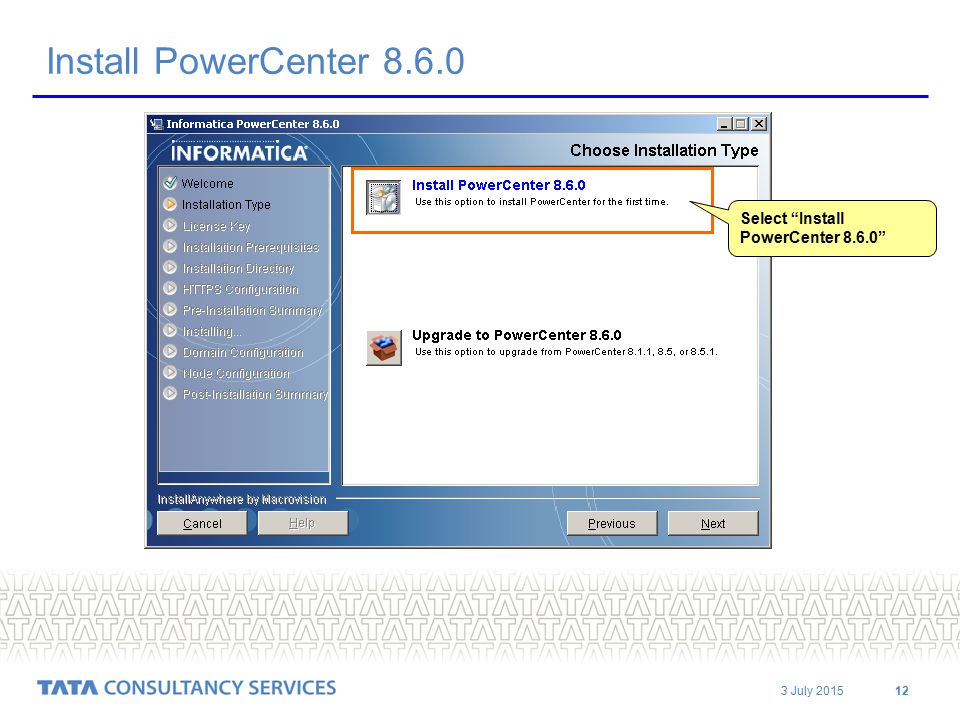

12. 3 July 2015 12 Install PowerCenter 8.6.0 Select “Install PowerCenter 8.6.0”

13. 3 July 2015 13 Browse the PowerCenter 8.6.0 License Key Browse and Specify the location of PowerCenter 8.6.0 License file. Click on Next

14. 3 July 2015 14 Check Installation Prerequisities Click on Next

15. 3 July 2015 15 Browse to change the path of the Installation Directory Click on Next Browse the Installation directory

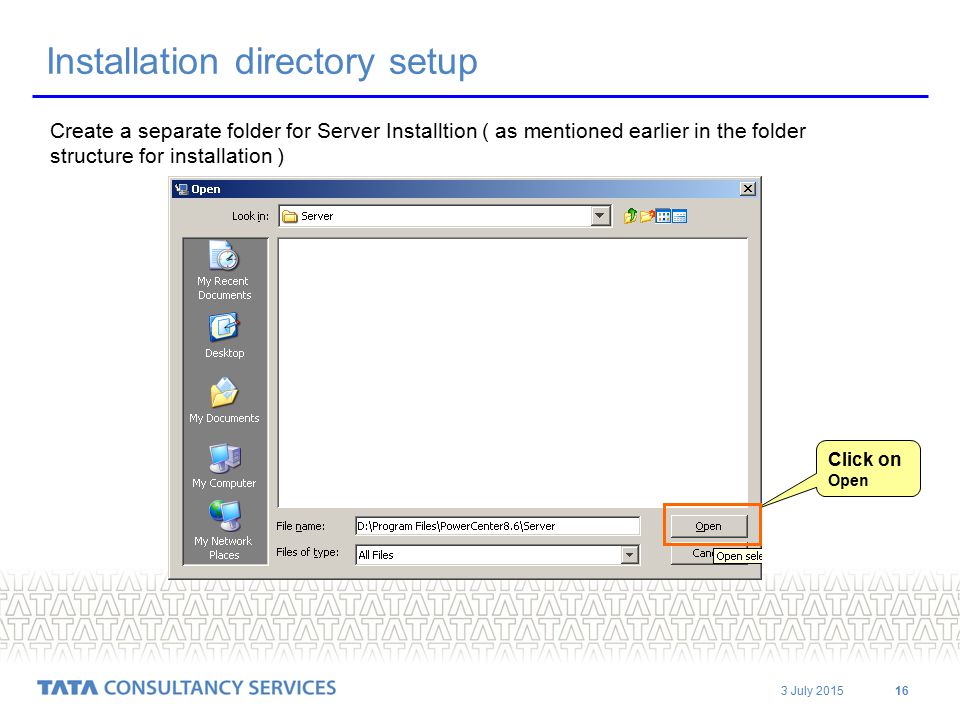

16. 3 July 2015 16 Click on Open Installation directory setup Create a separate folder for Server Installtion ( as mentioned earlier in the folder structure for installation )

17. 3 July 2015 17 Click on Next This is the path where you want to install Installation directory setup – Contd...

18. 3 July 2015 18 HTTP Configuration UnCheck it

19. 3 July 2015 19 Pre-Installation Summary Click on Install

20. 3 July 2015 20 Installing PowerCenter 8.6.0

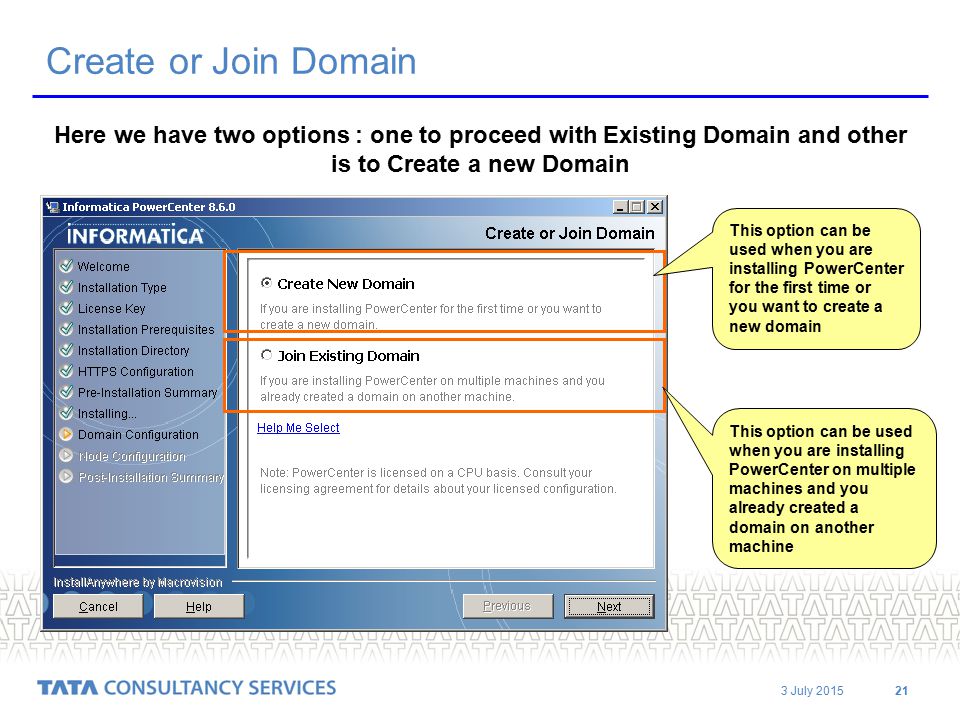

21. 3 July 2015 21 Here we have two options : one to proceed with Existing Domain and other is to Create a new Domain This option can be used when you are installing PowerCenter for the first time or you want to create a new domain This option can be used when you are installing PowerCenter on multiple machines and you already created a domain on another machine Create or Join Domain

22. 3 July 2015 22 Check the services Following Services (Database instance and Listner) should be started before moving ahead(creating a domain) To check the services click on Run >> services.msc

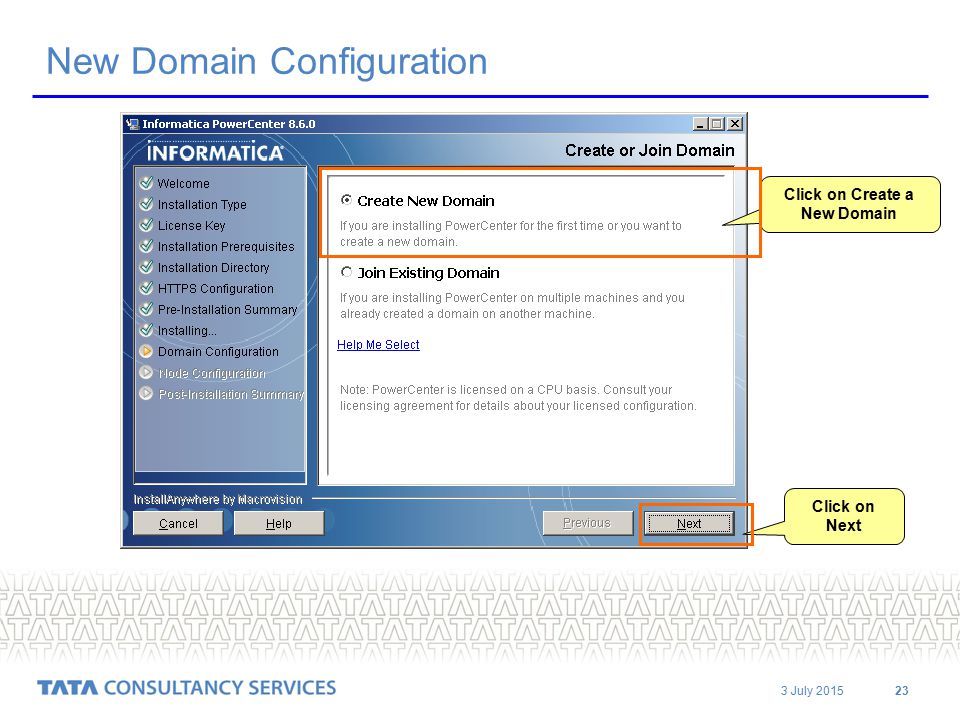

23. 3 July 2015 23 New Domain Configuration Click on Create a New Domain Click on Next

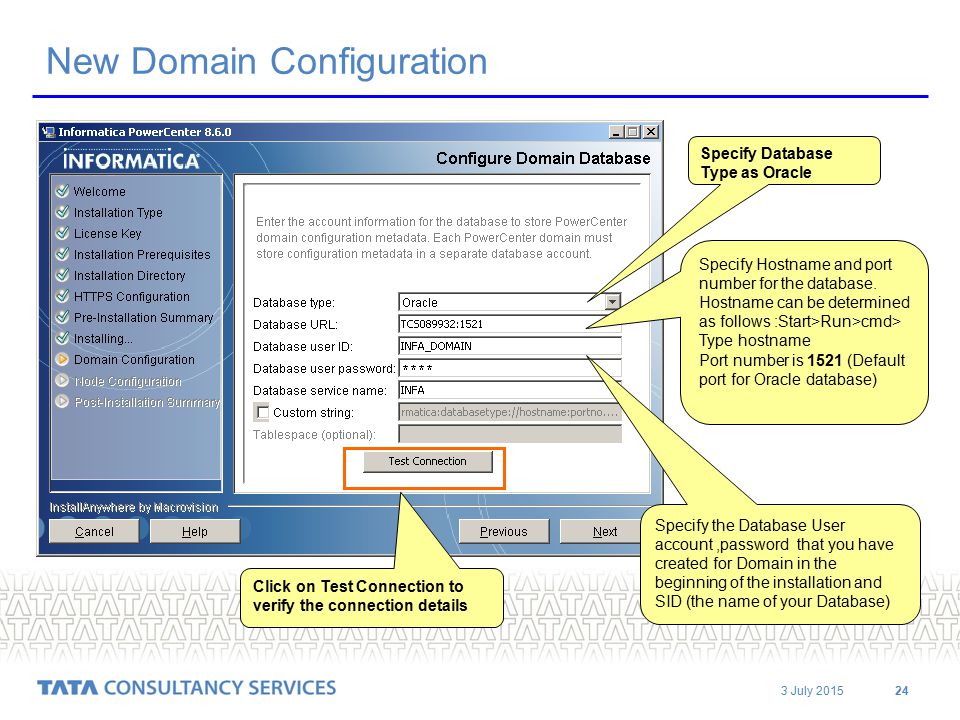

24. 3 July 2015 24 New Domain Configuration Specify Database Type as Oracle Specify Hostname and port number for the database. Hostname can be determined as follows :Start>Run>cmd> Type hostname Port number is 1521 (Default port for Oracle database) Specify the Database User account,password that you have created for Domain in the beginning of the installation and SID (the name of your Database) Click on Test Connection to verify the connection details

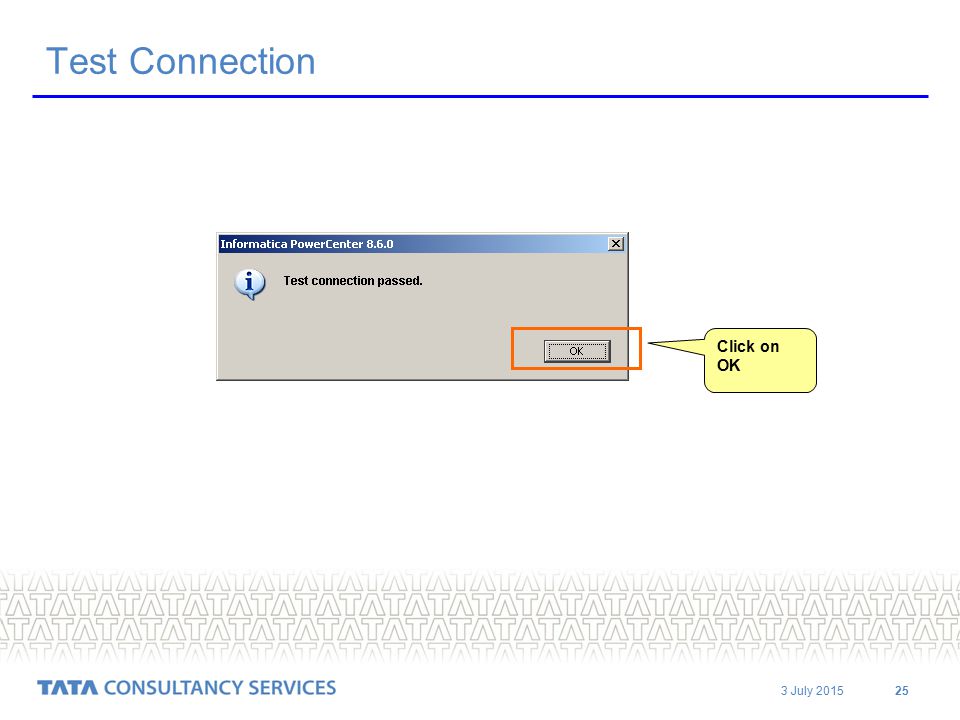

25. 3 July 2015 25 Test Connection Click on OK

26. 3 July 2015 26 Click on Next Node Configuration You can fix the range of ports using the Advanced Configuration option. Specify the following: 1.Domain name :- convention is domain_hostname 2.Hostname :- Hostname of the machine where PowerCenter is being installed 3.Node name:- convention is node01_hostname 4.Domain port no:Don’t change the value 5.Domain user name:admin 6.Domain password:admin

27. 3 July 2015 27 Advanced Configuration Click OK Click on Next

28. 3 July 2015 28 Please Wait...

29. 3 July 2015 29 Please Wait...

30. 3 July 2015 30 Click on Next UnCheck it Configuring Informatica Services

31. 3 July 2015 31 Configuring Informatica Services – Contd...

32. 3 July 2015 32 Verifying the existing licenses

33. 3 July 2015 33 Post Installation Summary Click on Done

34. 3 July 2015 34 This Section will cover :-  Introduction and Credentials  Server Installation Guidelines  Application Services Configuration  Client Installation Guidelines  Operational Guidelines

35. 3 July 2015 35 Starting the Informatica PowerCenter 8.6.0 Services Follow the steps below for opening services on the server machine:- Go to Start menu>Run>Type services.msc After successful installation a service named “Informatica Services 8.6.0” will get created.

36. 3 July 2015 36 PowerCenter 8.6.0 Administration Console Click on Launch Admin Console

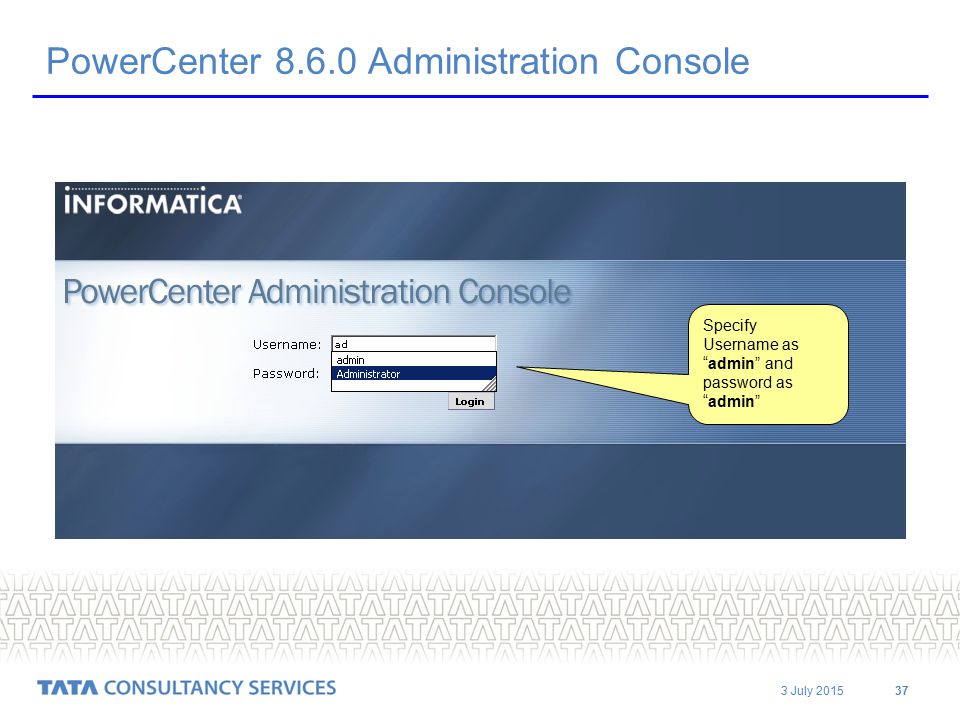

37. 3 July 2015 37 Specify Username as “admin” and password as “admin” PowerCenter 8.6.0 Administration Console

38. 3 July 2015 38 Domain and Nodes node Active Domain

39. 3 July 2015 39 Click on Create >> Repository Service Creating Repository Service

40. 3 July 2015 40 Specifying properties for new Repository Service Enter the name of your Repository Enter the SID Enter database username and password Select the Code Page Select this option for creating a new repository Use this option to reuse existing repository*

41. 3 July 2015 41 Wait......its in process

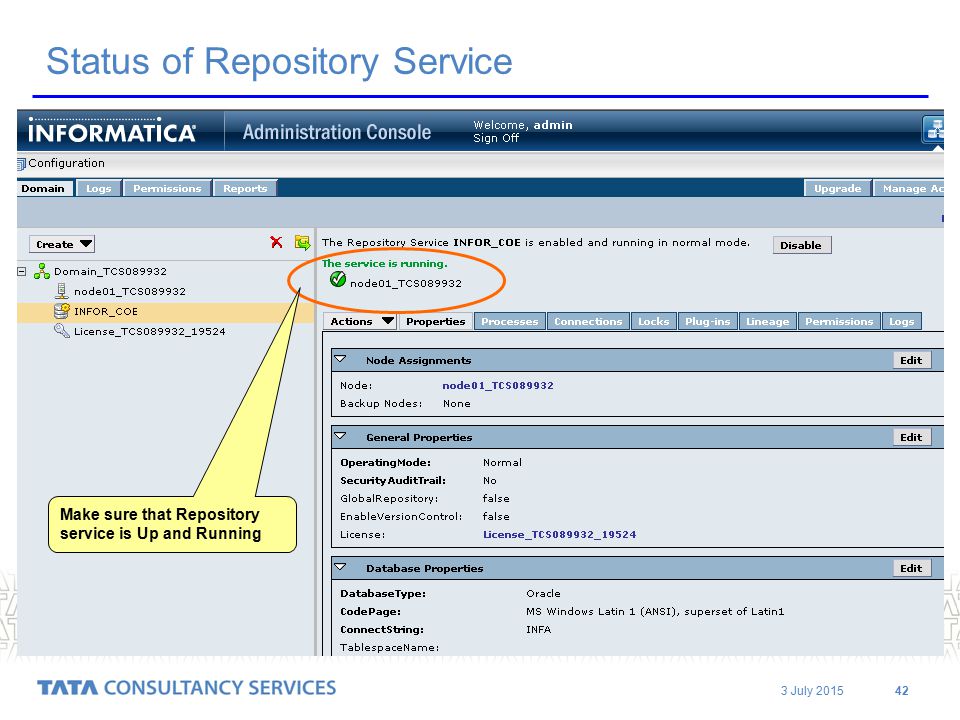

42. 3 July 2015 42 Status of Repository Service Make sure that Repository service is Up and Running

43. 3 July 2015 43 Repository Service Properties

44. 3 July 2015 44 Creating Users to access the Repository Click on Configure Security to create Repository user

45. 3 July 2015 45 Creating Repositroy User Click on Create User to create Repository User

46. 3 July 2015 46 Creating Repositroy User – Contd.. Specify Username and Password for Repository User

47. 3 July 2015 47 Setting Privileges for the Repository User Click Here to Set the Privileges to the Repository User

48. 3 July 2015 48 Setting Privileges for the Repository User – Contd..

49. 3 July 2015 49 Setting Privileges for the Repository User – Contd..

50. 3 July 2015 50 Click Here to Go back for creating a Integration Service

51. 3 July 2015 51 Creating Integration Service Click on Create >> Integration Service

52. 3 July 2015 52 Creating Integration Service – Contd... Enter Integration Service name Select Node Write Associated Repository Service name, User Name and Password that has been created through Administration Console Select Data Movement Mode as ASCII Click on OK

53. 3 July 2015 53 Specifying Code Page Chech the Box Click on OK Select the appropraite Code Page

54. 3 July 2015 54 Status of Integration Service Integration service Status Integration Service has been created

55. 3 July 2015 55 This Section will cover :-  Introduction and Credentials  Server Installation Guidelines  Application Services Configuration  Client Installation Guidelines  Operational Guidelines

56. 3 July 2015 56 Client Installation First screen that appears after Install.bat Click on the folder in which you have extract the Client from the zip folder Click on install.bat to install the Client on the machine

57. 3 July 2015 57 Click OK Server Installation wizard

58. 3 July 2015 58 Welcome wizard Click on Next

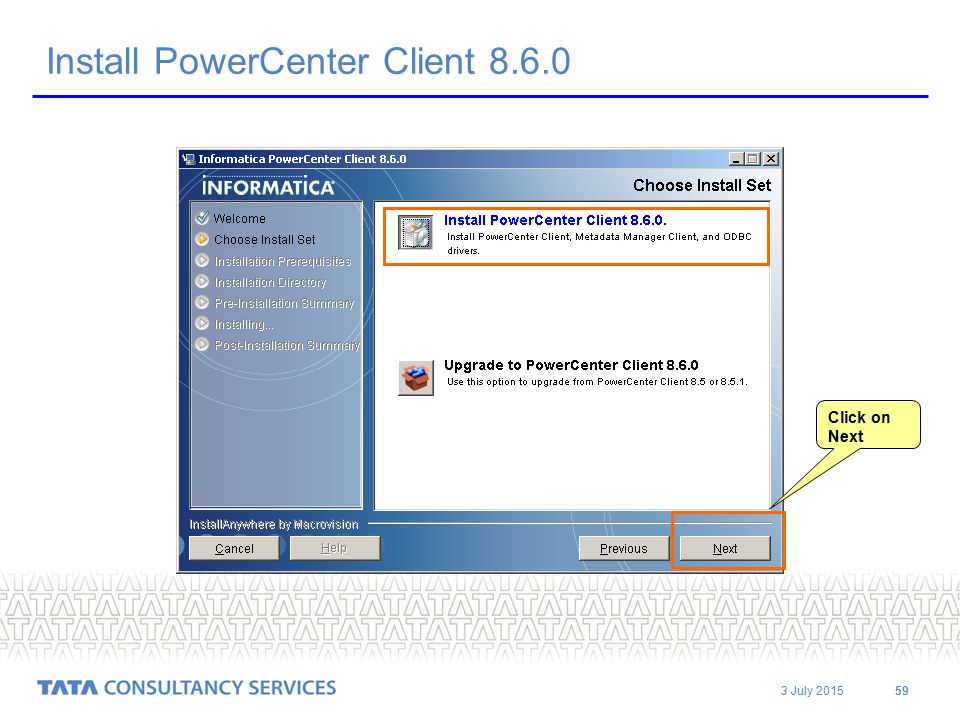

59. 3 July 2015 59 Install PowerCenter Client 8.6.0 Click on Next

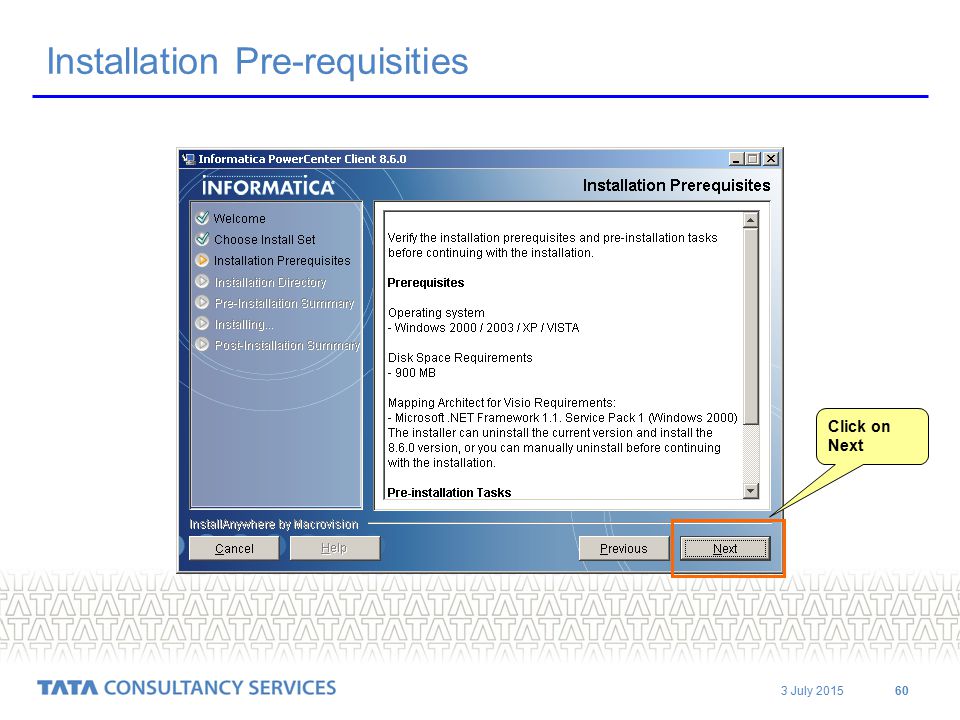

60. 3 July 2015 60 Installation Pre-requisities Click on Next

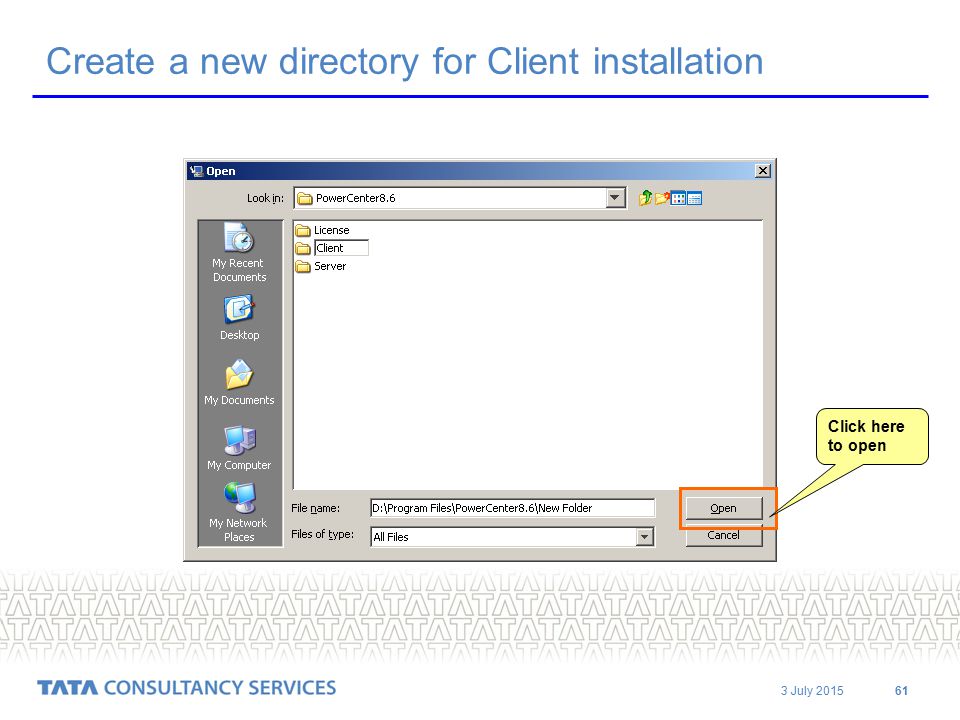

61. 3 July 2015 61 Create a new directory for Client installation Click here to open

62. 3 July 2015 62 You can Change the installation directory using this Installation Directory setup for Client installation Click on Next

63. 3 July 2015 63 Click on Install Pre – Installation Summary

64. 3 July 2015 64 Installing PC Client 8.6.0 Please Wait....

65. 3 July 2015 65 Click on Next Post – Installation Summary

66. 3 July 2015 66 Installation Complete Click on Done

67. 3 July 2015 67 This Section will cover :-  Introduction and Credentials  Server Installation Guidelines  Application Services Configration  Client Installation Guidelines  Operational Guidelines

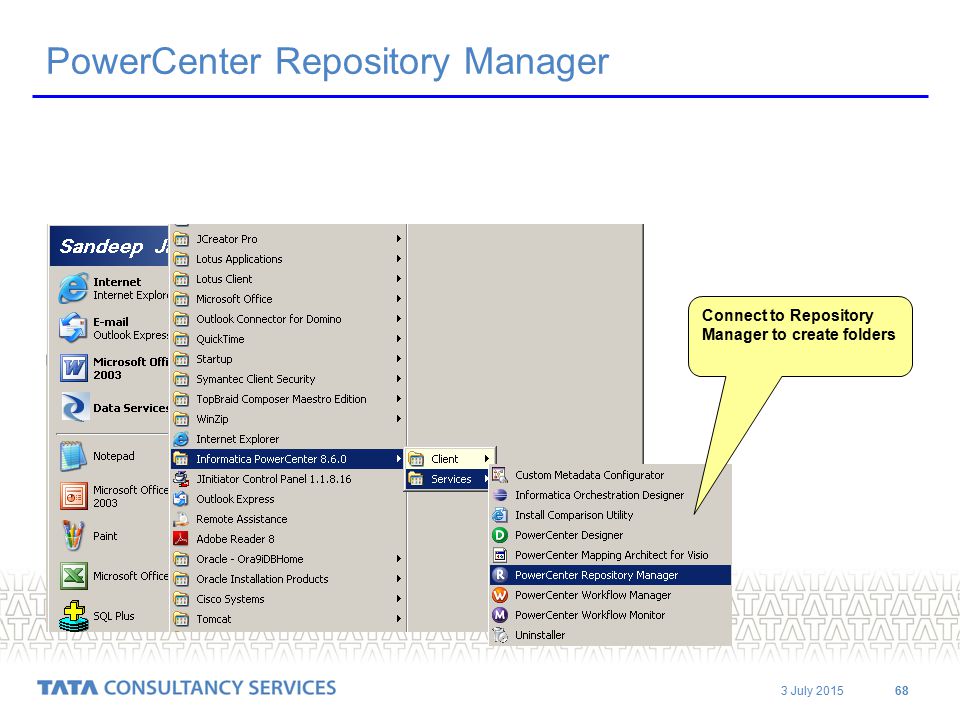

68. 3 July 2015 68 PowerCenter Repository Manager Connect to Repository Manager to create folders

69. 3 July 2015 69 PowerCenter Repository Manager Click Ok

70. 3 July 2015 70 Configuring Domain Click Here to Configure a new Domain

71. 3 July 2015 71 Configuring Domain – Contd... Click here to add a new Domain

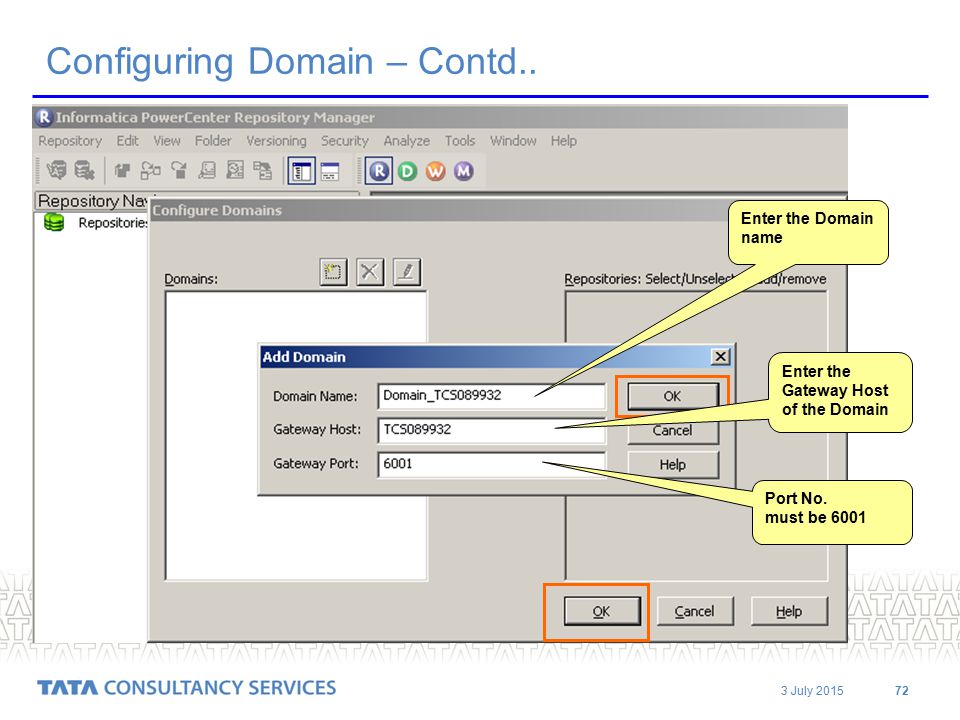

72. 3 July 2015 72 Enter the Domain name Enter the Gateway Host of the Domain Port No. must be 6001 Configuring Domain – Contd..

73. 3 July 2015 73 It displays all the associated Repositories to the selected Domain Click on OK Configuring Domain – Contd..

74. 3 July 2015 74 Configuring Domain – Contd.. Repository has been added

75. 3 July 2015 75 Connecting to Repository

76. 3 July 2015 76 Now we can create Folders with specific privileges

77. 3 July 2015 77 Creating a Folder

78. 3 July 2015 78 Creating a Folder and Setting the Permissions Click Ok

79. 3 July 2015 79 Folder is available to use Folder has been Created

80. Thank You !!
