Normal Chicken Embryo Development By Akrum Hamdy.

Similar presentations


Presentation on theme: "Normal Chicken Embryo Development By Akrum Hamdy."— Presentation transcript:

1 Normal Chicken Embryo Development By Akrum Hamdy

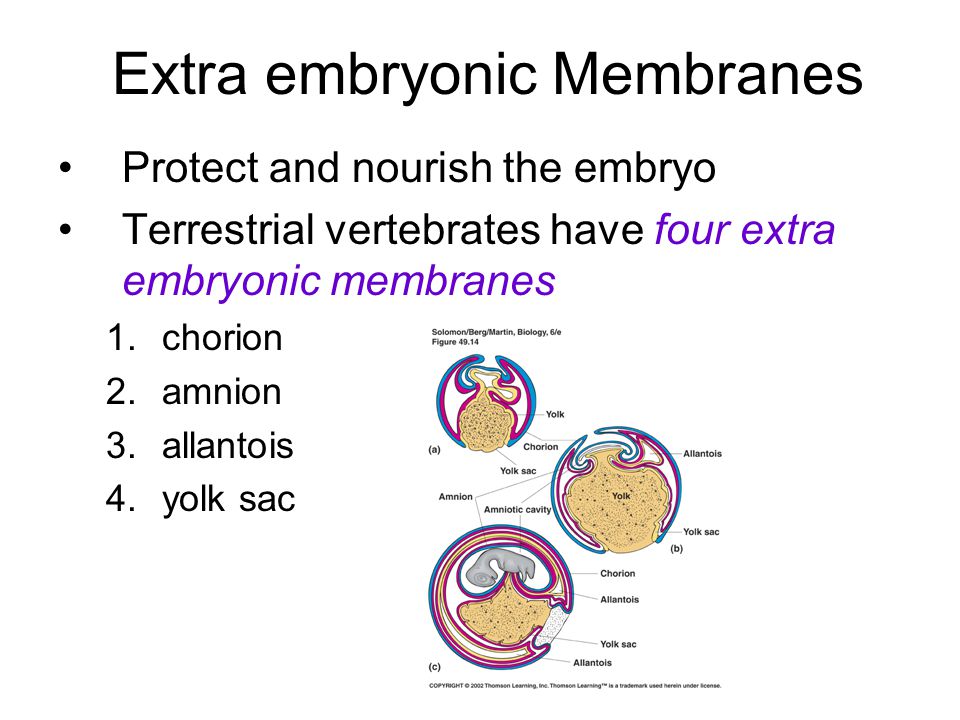

2 Extra embryonic Membranes Protect and nourish the embryo Terrestrial vertebrates have four extra embryonic membranes 1.chorion 2.amnion 3.allantois 4.yolk sac

3 1.The chorion and amnion enclose the embryo –The chorion surrounds the entire embryo in birds and reptiles it functions in gas exchange –The amnion encloses the embryo and forms an open volume between the embryo & the amnion called the amniotic cavity The amniotic cavity fills with amniotic fluid, which envelops the embryo and cushions it 2.The allantois is an outgrowth of the gut In reptiles and birds, it stores nitrogenous wastes 3.The yolk sac encloses the yolk in vertebrates with yolk-rich eggs –In humans, there is no yolk sac, but the yolk aids in formation of red blood cells

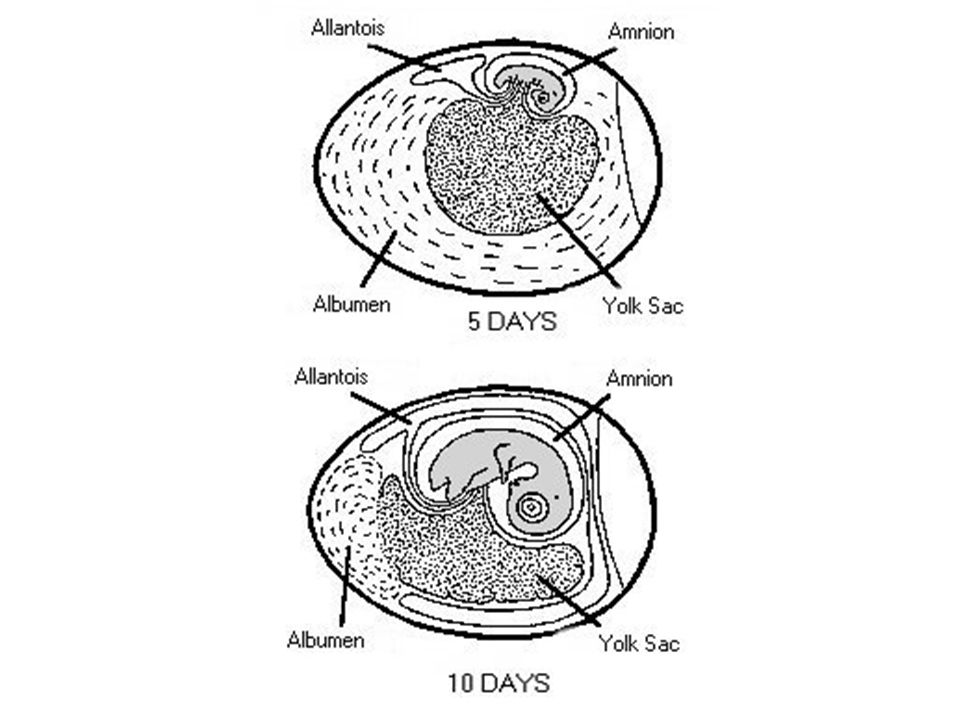

4 Extra embryonic Membranes

5

6 Chicken embryo, 21 hours. Credit: © Carolina Biological/Visuals Unlimited 310816 Primitive streak & groove

7 Chicken embryo, 43 hours. Credit: © Carolina Biological/Visuals Unlimited 310877 amnion somites heart Spinal chord

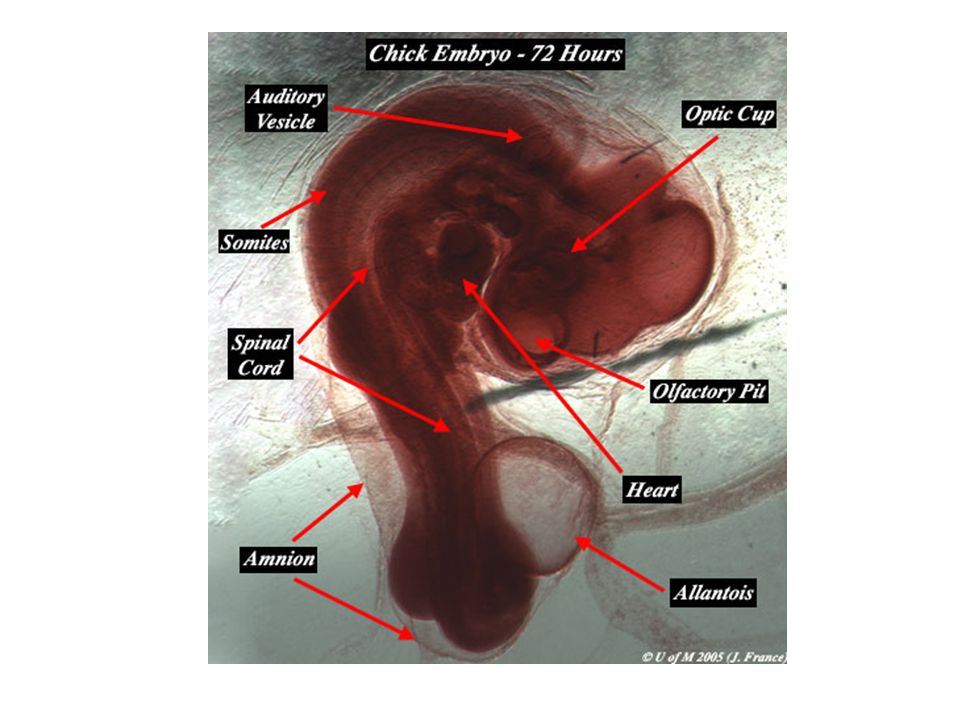

8

9 Chicken embryo, 60 hours. Credit: © Carolina Biological/Visuals Unlimited 310880 eye somites Spinal chord amnion allantois heartheart

10

11

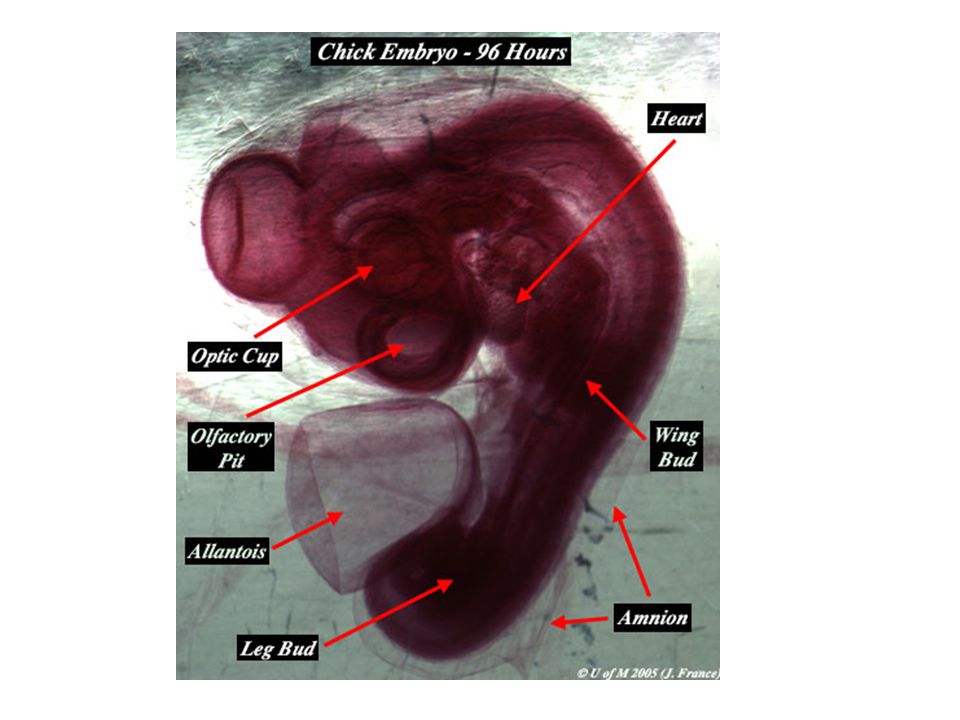

12

13

14 Chicken embryo, 8 days. Credit: © Carolina Biological/Visuals Unlimited 310882

15

16 Chick embryo, 9 days. Credit: © Carolina Biological/Visuals Unlimited 214169

17 Effect of aspirin in chick embryo development Each group will set up three containers –Each container has one chick embryo, 2 additional albumens 1.Negative control 2.Negative control (Ringers solution) 3.Experimental (aspirin in ringers solution)

18 Effect of aspirin in chick embryo development –Keep everything as sterile as possible!! –Make observations daily (except weekends) –Share observations with other members of your group –Make drawing and written descriptions of your observations.

19 Chick embryo, 13 days. Credit: © Carolina Biological/Visuals Unlimited 214173

20 Chick embryo, 16 days. Credit: © Carolina Biological/Visuals Unlimited 214176

21 Chick embryo, 19 days. Credit: © Carolina Biological/Visuals Unlimited 214179

22 Newly hatched chick on day 21. Credit: © Jerome Wexler/Visuals Unlimited 211077
