1. ECE 526 – Network Processing Systems Design IXP XScale and Microengines Chapter 18 & 19: D. E. Comer

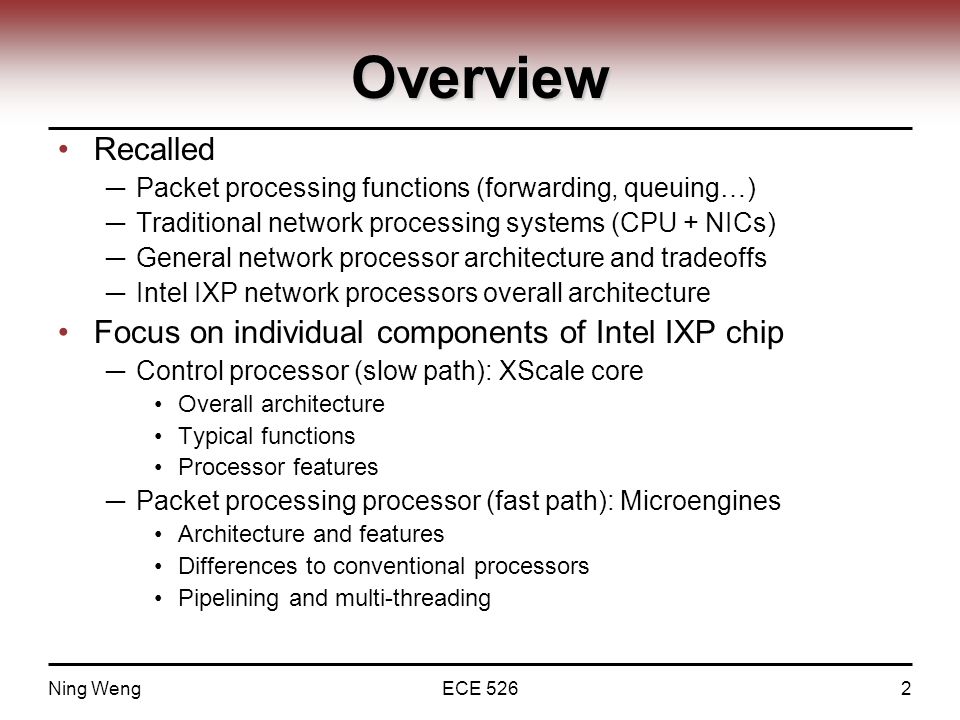

2. Ning WengECE 5262 Overview Recalled ─ Packet processing functions (forwarding, queuing…) ─ Traditional network processing systems (CPU + NICs) ─ General network processor architecture and tradeoffs ─ Intel IXP network processors overall architecture Focus on individual components of Intel IXP chip ─ Control processor (slow path): XScale core Overall architecture Typical functions Processor features ─ Packet processing processor (fast path): Microengines Architecture and features Differences to conventional processors Pipelining and multi-threading

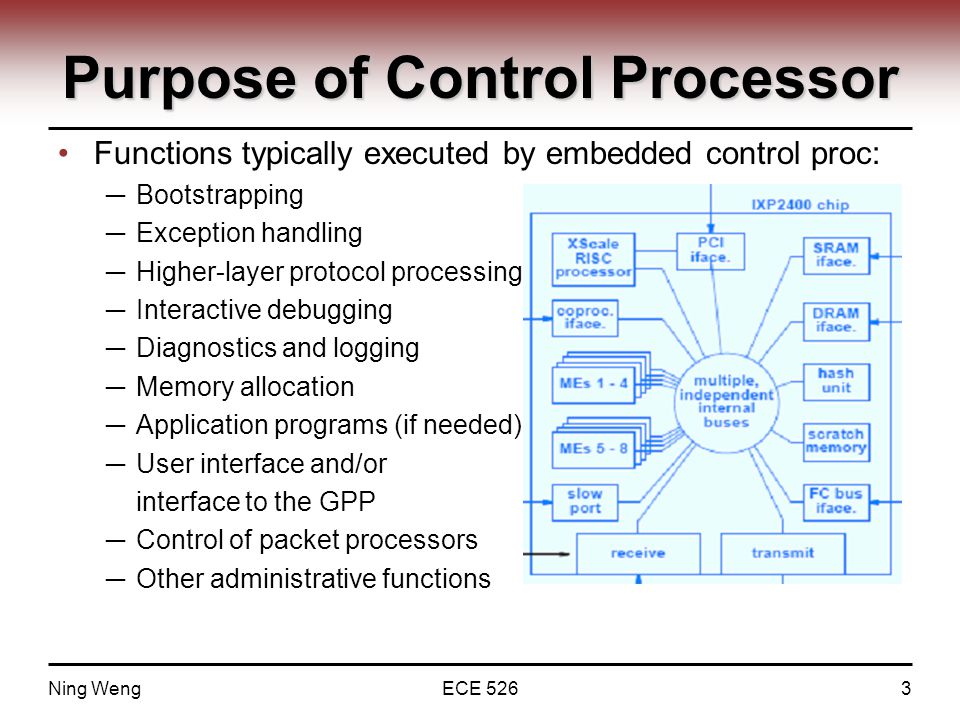

3. Ning WengECE 5263 Purpose of Control Processor Functions typically executed by embedded control proc: ─ Bootstrapping ─ Exception handling ─ Higher-layer protocol processing ─ Interactive debugging ─ Diagnostics and logging ─ Memory allocation ─ Application programs (if needed) ─ User interface and/or interface to the GPP ─ Control of packet processors ─ Other administrative functions

4. Ning WengECE 5264 XScale Memory Architecture Memory architecture ─ Uses 32-bit linear address space ─ configurable endian mode ─ Byte addressable Memory Mapping ─ Allocation of address space (2^32) to different system components ─ Accesses to memory is translated into access to component ─ Needs to be carefully crafted XScale assumes byte addressable memory ─ Underlying memory uses different size (SDRAM) ─ How does this work? Support for Virtual Memory ─ For demand paging to secondary storage

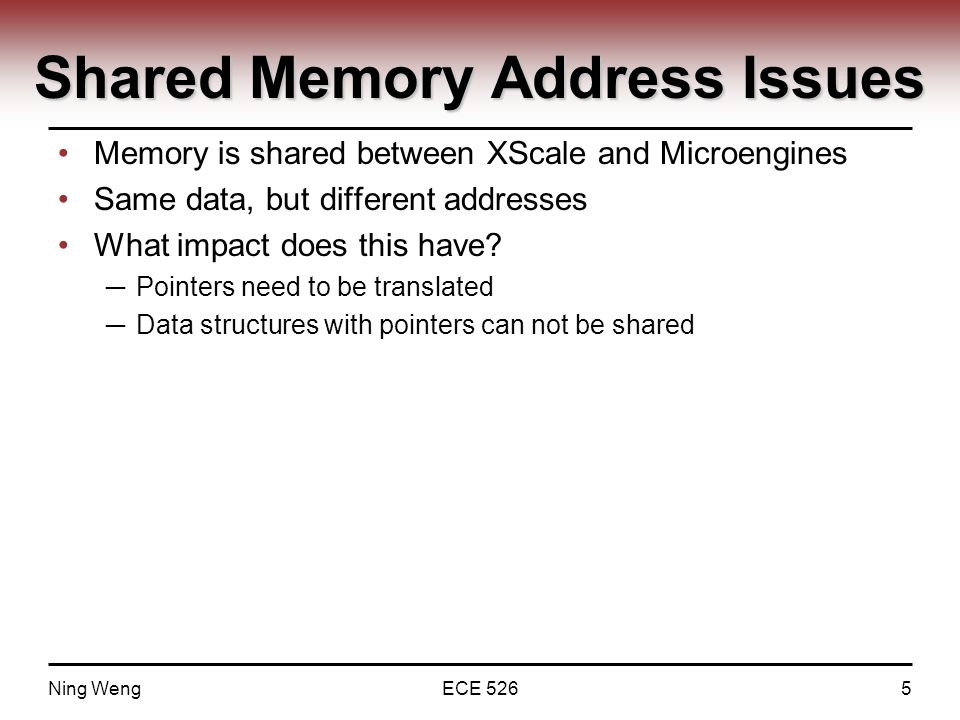

5. Ning WengECE 5265 Shared Memory Address Issues Memory is shared between XScale and Microengines Same data, but different addresses What impact does this have? ─ Pointers need to be translated ─ Data structures with pointers can not be shared

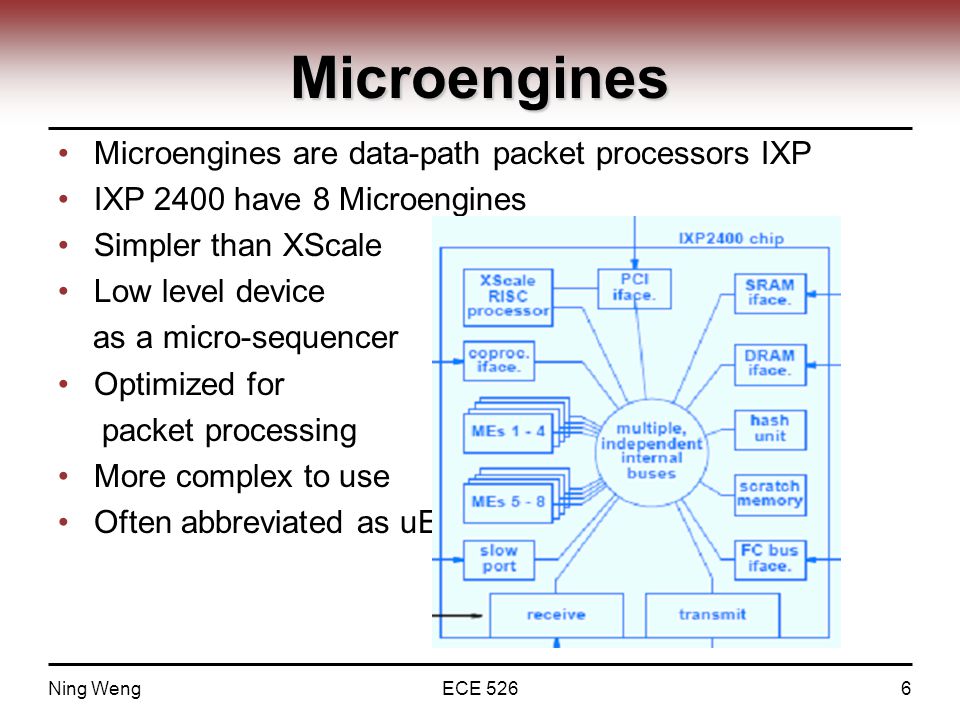

6. Ning WengECE 5266 Microengines Microengines are data-path packet processors IXP IXP 2400 have 8 Microengines Simpler than XScale Low level device as a micro-sequencer Optimized for packet processing More complex to use Often abbreviated as uE

7. Ning WengECE 5267 uE Functions uEs handle ingress and egress packet processing: ─ Packet ingress from physical layer hardware ─ Checksum verification ─ Header processing and classification ─ Packet buffering in memory ─ Table lookup and forwarding ─ Header modification ─ Checksum computation ─ Packet egress to physical layer hardware

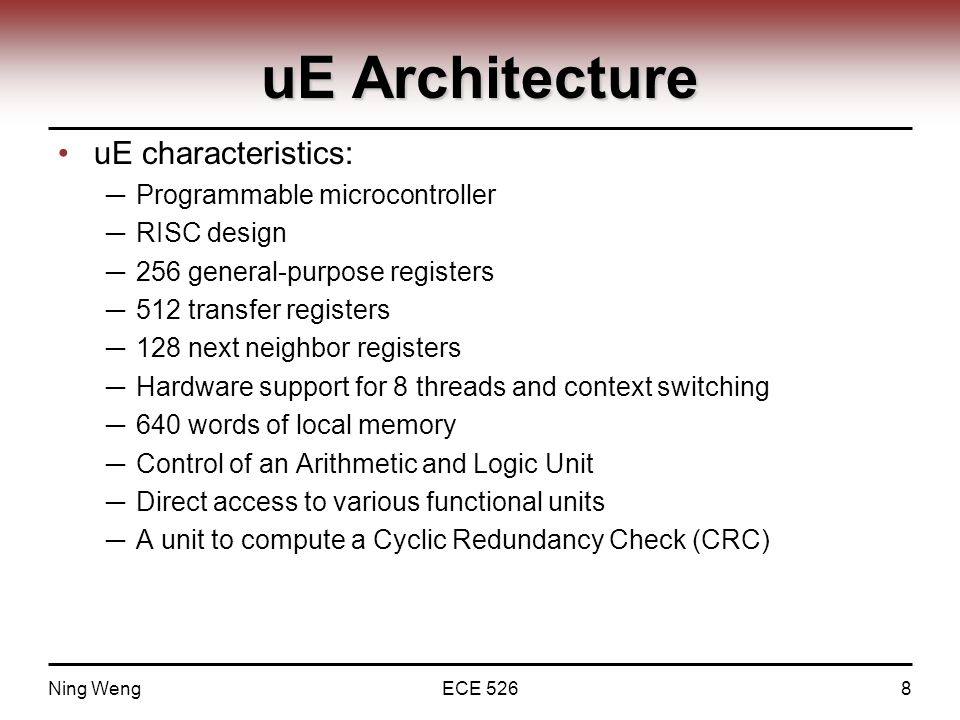

8. Ning WengECE 5268 uE Architecture uE characteristics: ─ Programmable microcontroller ─ RISC design ─ 256 general-purpose registers ─ 512 transfer registers ─ 128 next neighbor registers ─ Hardware support for 8 threads and context switching ─ 640 words of local memory ─ Control of an Arithmetic and Logic Unit ─ Direct access to various functional units ─ A unit to compute a Cyclic Redundancy Check (CRC)

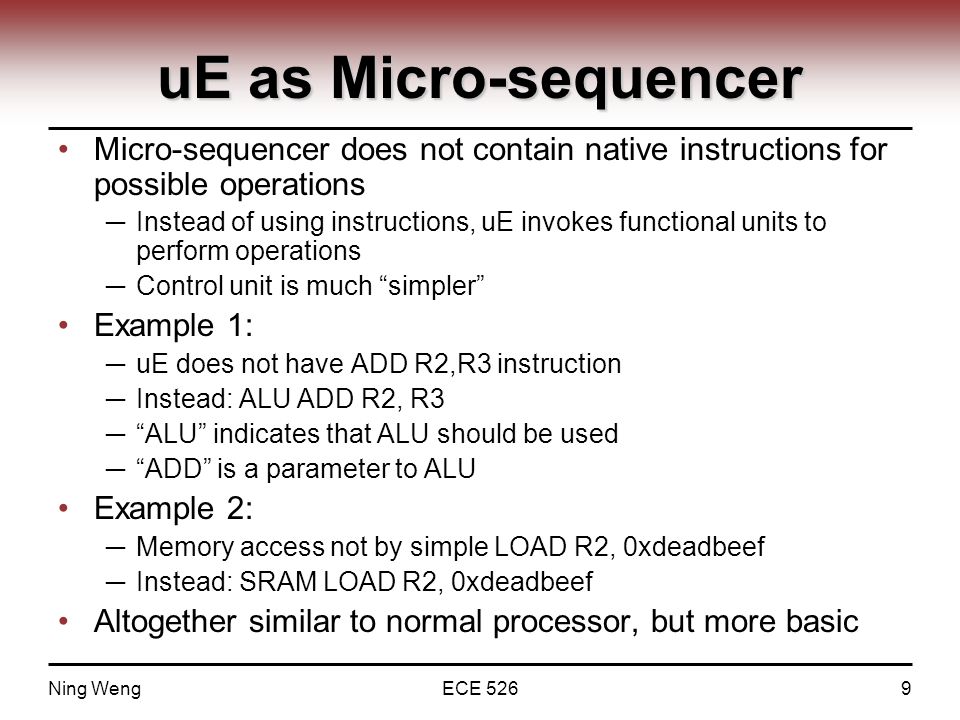

9. Ning WengECE 5269 uE as Micro-sequencer Micro-sequencer does not contain native instructions for possible operations ─ Instead of using instructions, uE invokes functional units to perform operations ─ Control unit is much “simpler” Example 1: ─ uE does not have ADD R2,R3 instruction ─ Instead: ALU ADD R2, R3 ─ “ALU” indicates that ALU should be used ─ “ADD” is a parameter to ALU Example 2: ─ Memory access not by simple LOAD R2, 0xdeadbeef ─ Instead: SRAM LOAD R2, 0xdeadbeef Altogether similar to normal processor, but more basic

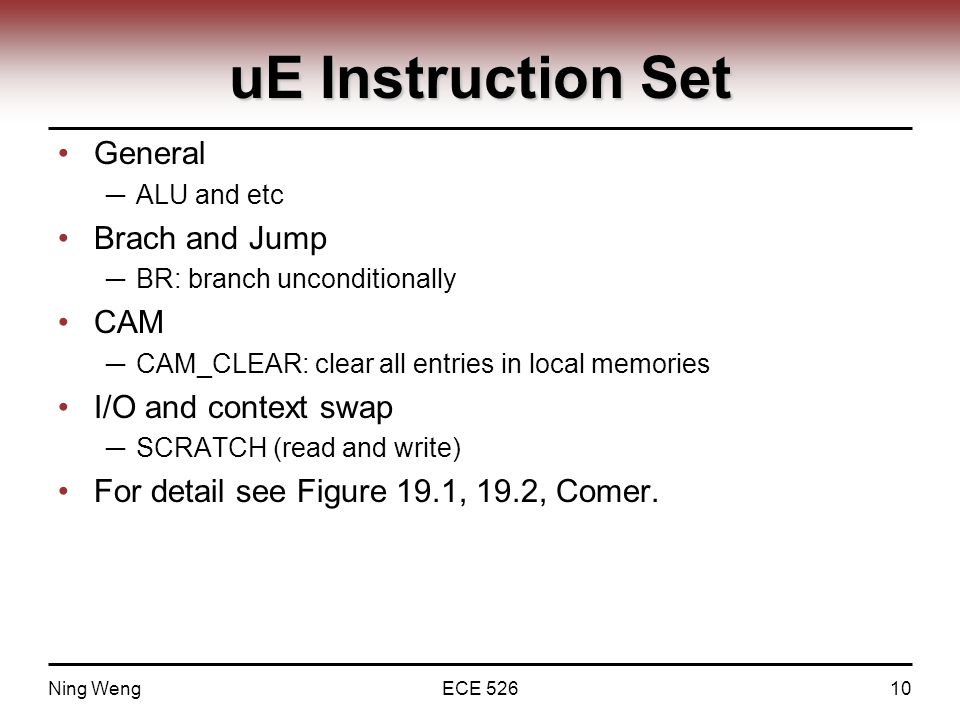

10. Ning WengECE 52610 uE Instruction Set General ─ ALU and etc Brach and Jump ─ BR: branch unconditionally CAM ─ CAM_CLEAR: clear all entries in local memories I/O and context swap ─ SCRATCH (read and write) For detail see Figure 19.1, 19.2, Comer.

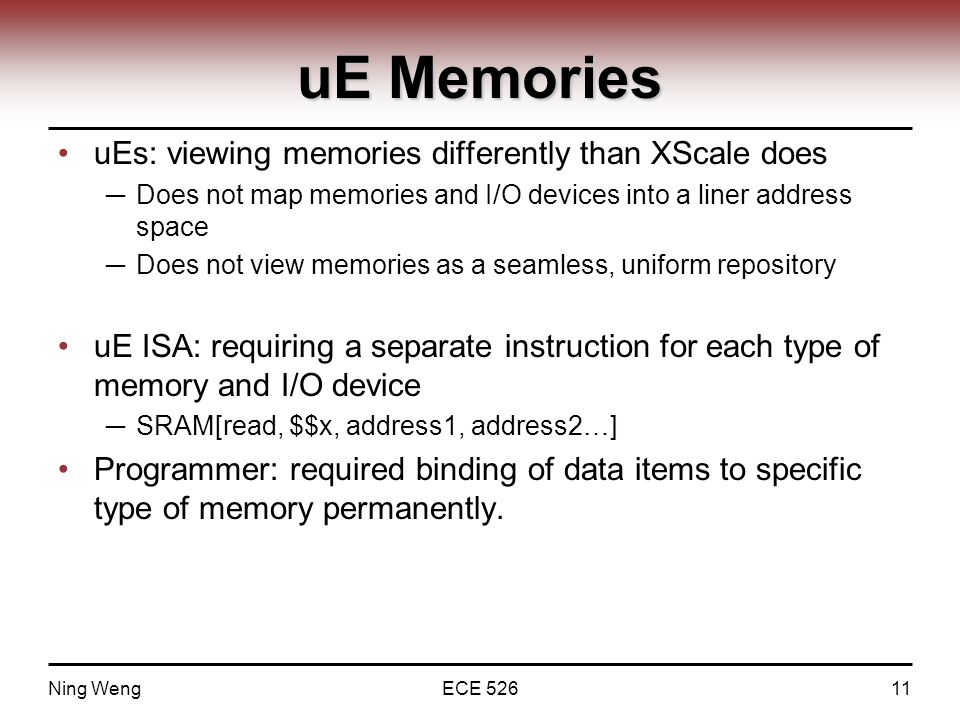

11. Ning WengECE 52611 uE Memories uEs: viewing memories differently than XScale does ─ Does not map memories and I/O devices into a liner address space ─ Does not view memories as a seamless, uniform repository uE ISA: requiring a separate instruction for each type of memory and I/O device ─ SRAM[read, $$x, address1, address2…] Programmer: required binding of data items to specific type of memory permanently.

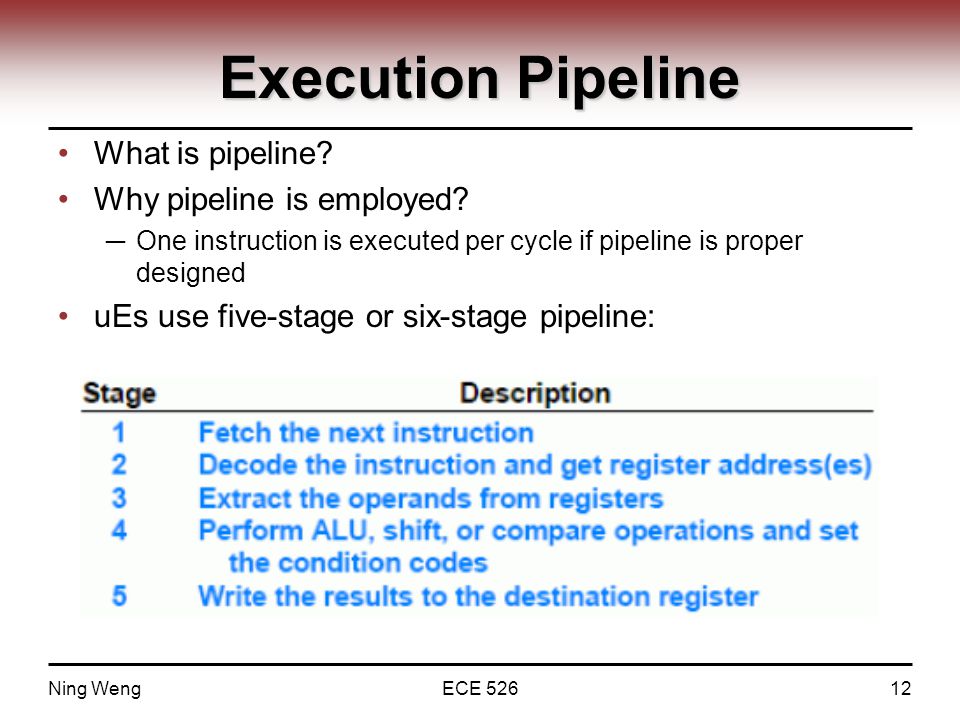

12. Ning WengECE 52612 Execution Pipeline What is pipeline? Why pipeline is employed? ─ One instruction is executed per cycle if pipeline is proper designed uEs use five-stage or six-stage pipeline:

13. Ning WengECE 52613 Pipelining

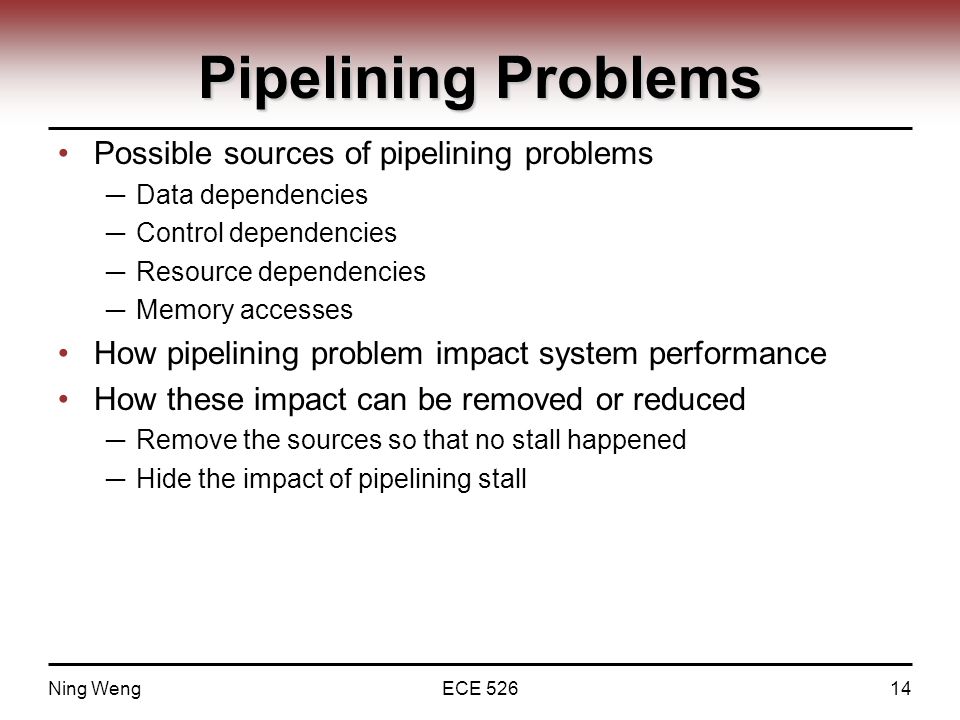

14. Ning WengECE 52614 Pipelining Problems Possible sources of pipelining problems ─ Data dependencies ─ Control dependencies ─ Resource dependencies ─ Memory accesses How pipelining problem impact system performance How these impact can be removed or reduced ─ Remove the sources so that no stall happened ─ Hide the impact of pipelining stall

15. Ning WengECE 52615 Pipeline Stalls K: ALU ADD R2, R1, R2 K+1 ALU ADD R3, R2, R3 Control dependencies, memory have even bigger impact

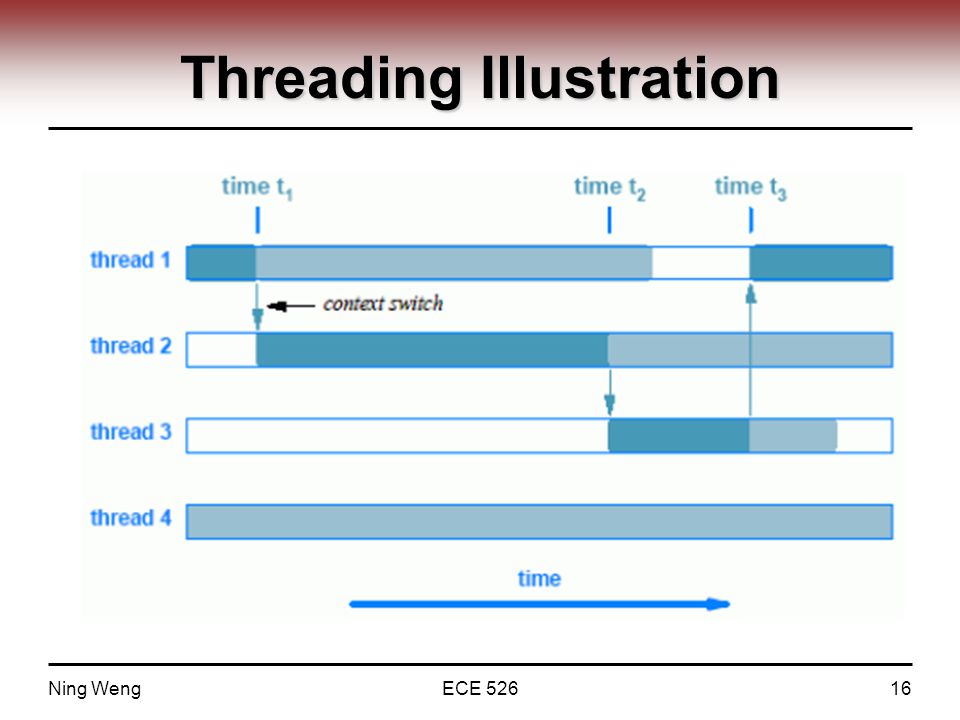

16. Ning WengECE 52616 Threading Illustration

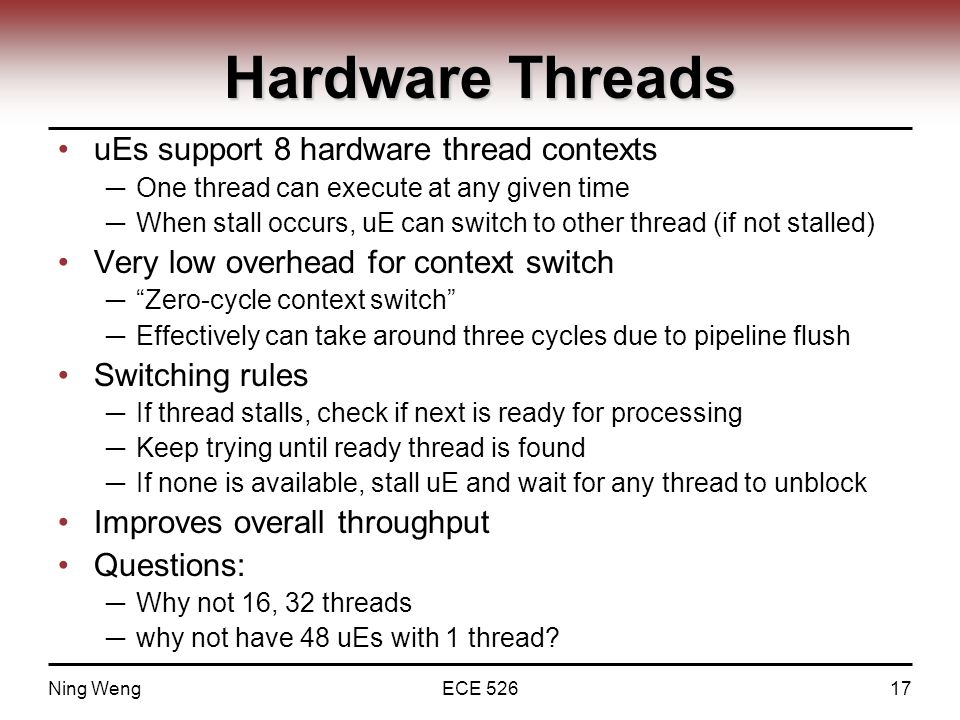

17. Ning WengECE 52617 Hardware Threads uEs support 8 hardware thread contexts ─ One thread can execute at any given time ─ When stall occurs, uE can switch to other thread (if not stalled) Very low overhead for context switch ─ “Zero-cycle context switch” ─ Effectively can take around three cycles due to pipeline flush Switching rules ─ If thread stalls, check if next is ready for processing ─ Keep trying until ready thread is found ─ If none is available, stall uE and wait for any thread to unblock Improves overall throughput Questions: ─ Why not 16, 32 threads ─ why not have 48 uEs with 1 thread?

18. Ning WengECE 52618 Summary Control processor (slow path): XScale core Overall architecture Typical functions Processor features Packet processing processor (fast path): Microengines Architecture and features Differences to conventional processors Pipelining and multi-threading

19. Ning WengECE 52619 Lab3 Brief Intel Reference Systems SDK Tutorial Lab 3

20. Ning WengECE 52620 Intel Reference Systems Hardware Testbed ─ IXP2400 network processors ─ QDRM-SRAM, Flash ROM and other memories ─ 1G optical ethernet ports ─ 100M ethernet management port ─ Serial interface ─ PCI interfaces SDK (software development kit) ─ Compiler ─ Assembler, linker ─ Simulator ─ Reference codes

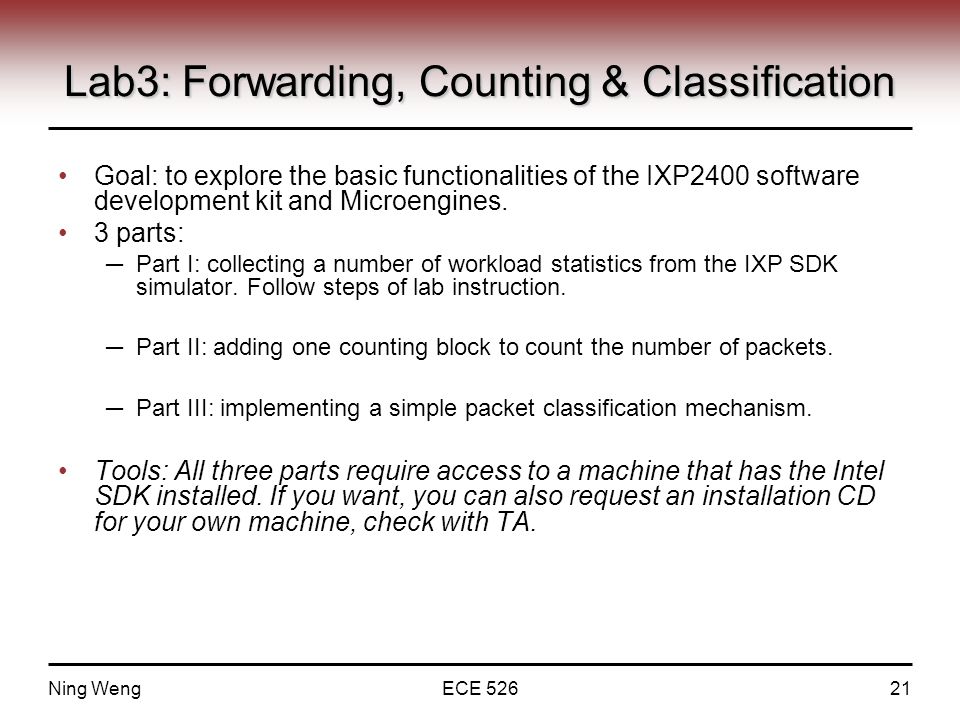

21. Ning WengECE 52621 Lab3: Forwarding, Counting & Classification Goal: to explore the basic functionalities of the IXP2400 software development kit and Microengines. 3 parts: ─ Part I: collecting a number of workload statistics from the IXP SDK simulator. Follow steps of lab instruction. ─ Part II: adding one counting block to count the number of packets. ─ Part III: implementing a simple packet classification mechanism. Tools: All three parts require access to a machine that has the Intel SDK installed. If you want, you can also request an installation CD for your own machine, check with TA.

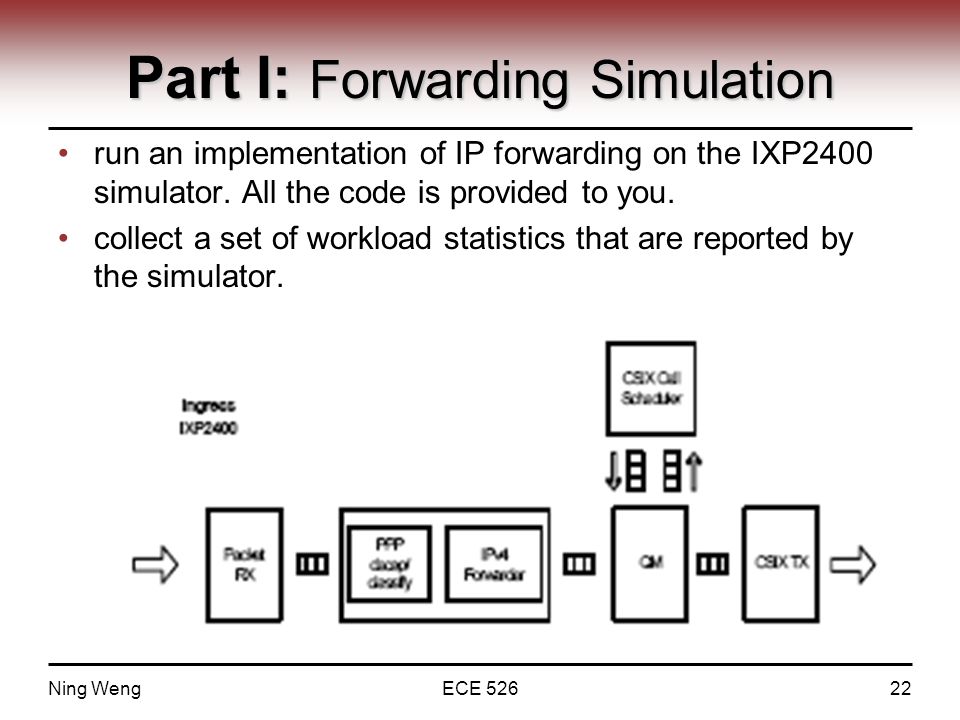

22. Ning WengECE 52622 Part I: Forwarding Simulation run an implementation of IP forwarding on the IXP2400 simulator. All the code is provided to you. collect a set of workload statistics that are reported by the simulator.

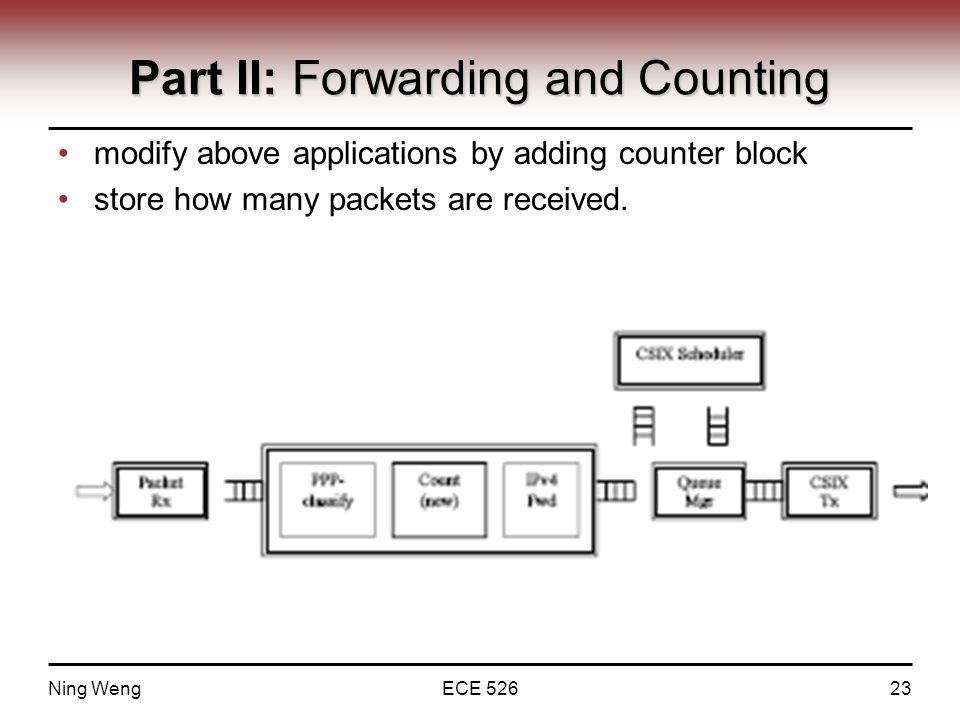

23. Ning WengECE 52623 Part II: Forwarding and Counting modify above applications by adding counter block store how many packets are received.

24. Ning WengECE 52624 Part III: Classification and Counting classifying packets based on the packet header information. There are four types of traffic that are considered in this lab: ─ Web traffic over TCP over IPv4 ─ Non-Web traffic over TCP over IPv4 ─ UDP over IPv4 ─ IPv6 modifying the code to report the number of packets in each type.

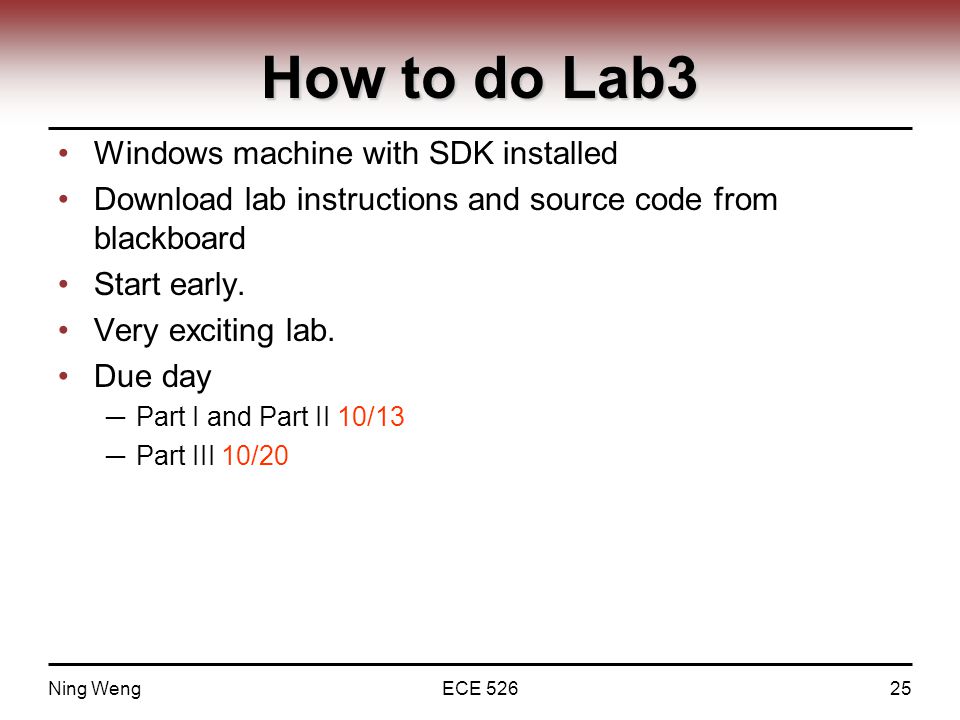

25. Ning WengECE 52625 How to do Lab3 Windows machine with SDK installed Download lab instructions and source code from blackboard Start early. Very exciting lab. Due day ─ Part I and Part II 10/13 ─ Part III 10/20
