1 Design Patterns for MVVM Unit Testing & Testability Benjamin Day

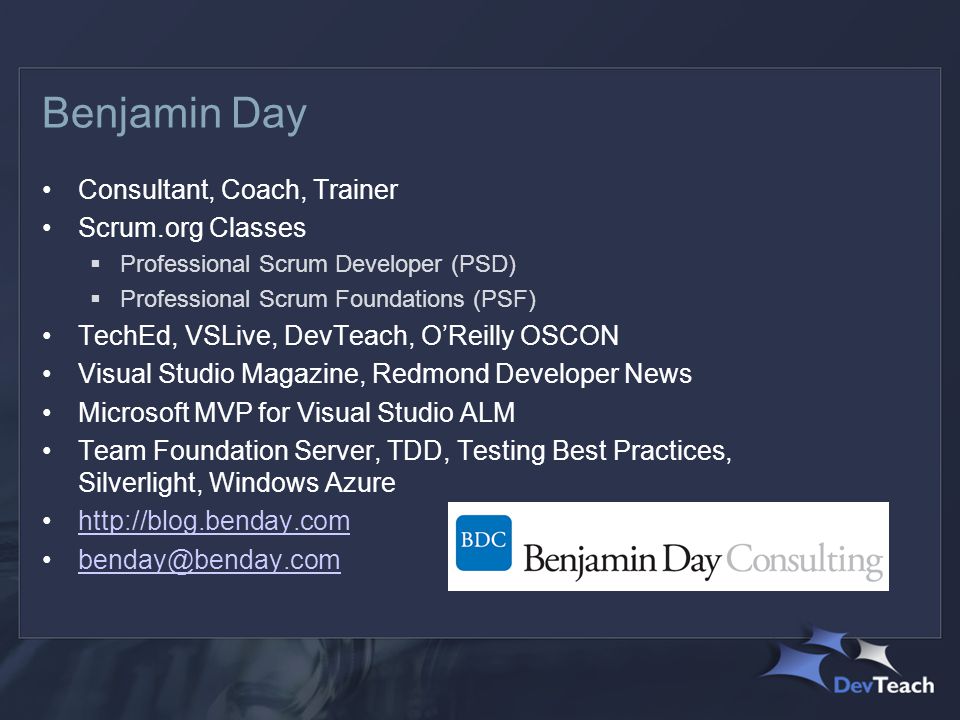

2 Consultant, Coach, Trainer Scrum.org Classes  Professional Scrum Developer (PSD)  Professional Scrum Foundations (PSF) TechEd, VSLive, DevTeach, O’Reilly OSCON Visual Studio Magazine, Redmond Developer News Microsoft MVP for Visual Studio ALM Team Foundation Server, TDD, Testing Best Practices, Silverlight, Windows Azure http://blog.benday.com benday@benday.com

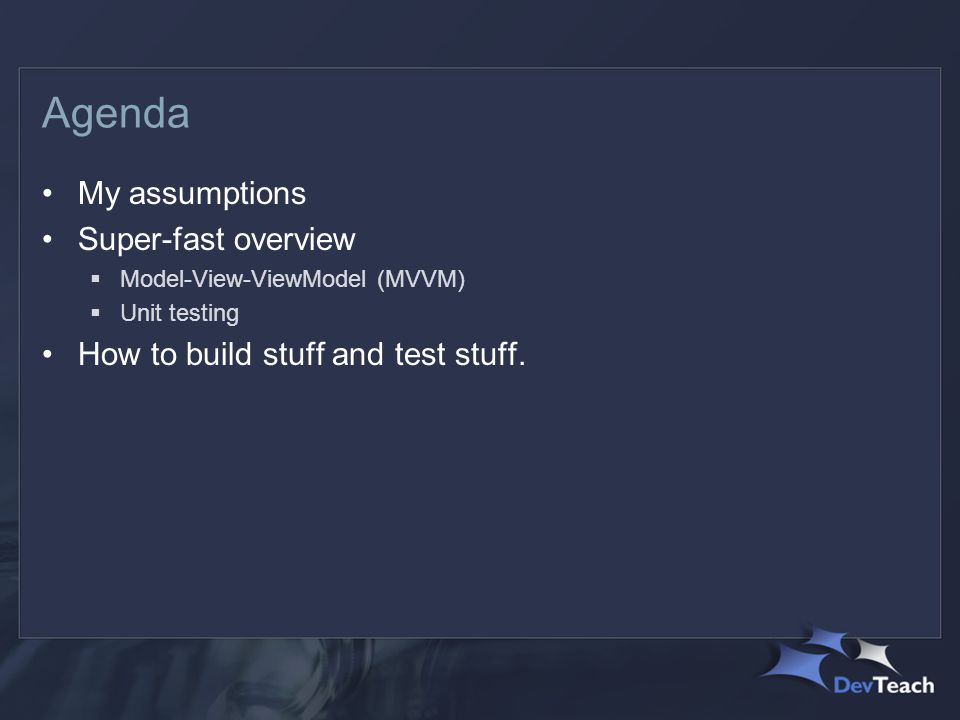

3 Agenda My assumptions Super-fast overview  Model-View-ViewModel (MVVM)  Unit testing How to build stuff and test stuff.

4 Assumptions Automated tests are required for “done” Unit tests are written by developers. QA testing is different from developer testing. MVVM in Silverlight is harder than WPF  (My demos will be in Silverlight.)

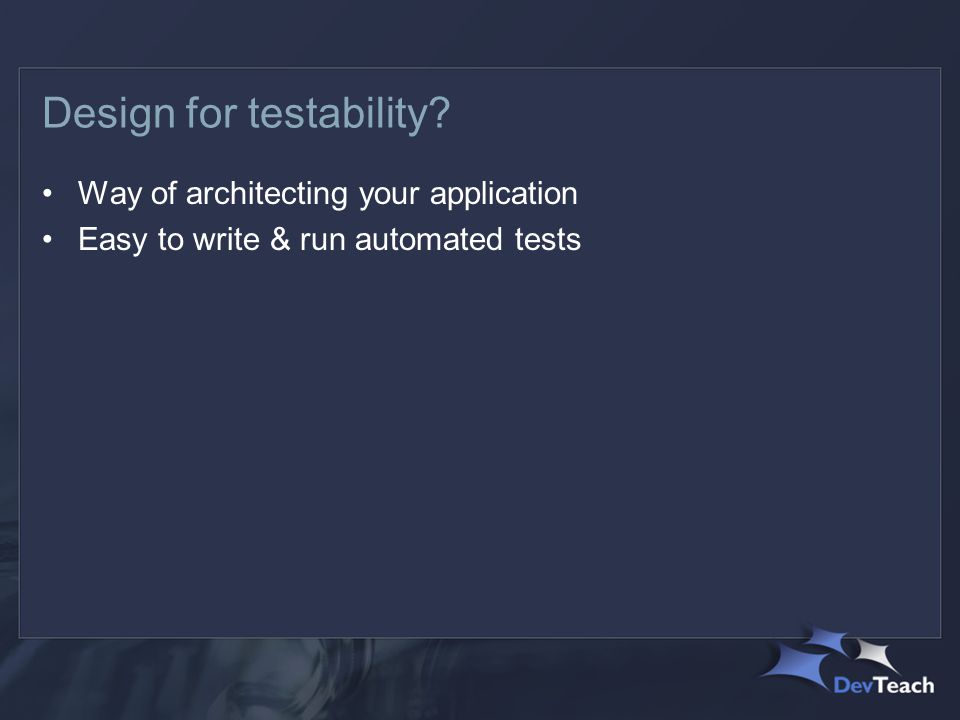

5 Design for testability? Way of architecting your application Easy to write & run automated tests

6 Things that need to be architected. Requirement: design for testability Requirement: testability in isolation  They call them unit tests for a reason.  Helps to remember Single Responsibility Principle (SRP) In Silverlight, figure out async first.  Not planning for async will crush SRP.

7 SOLID Principles of Class Design PrinciplePurpose Single Responsibility Principle A class should have one, and only one, reason to change. Open Closed PrincipleYou should be able to extend a class’s behavior without modifying it. Liskov Substitution Principle Derived classes must be substitutable for their base classes. Interface Segregation Principle Make fine grained interfaces that are client specific. Dependency Inversion Principle Depend on abstractions, not on concretions. http://butunclebob.com/ArticleS.UncleBob.PrinciplesOfOod

8 Single Responsibility Principle http://tinyurl.com/ahap3j Posters by Derick Bailey

9 Things that need to be tested. Goal: test your application without running the UI ComboBox / ListBox  Population of lists  Selection logic Field-based logic  Value, Visibility, Validation  Dependencies between fields MessageBoxes  Alerts and exceptions ProgressBar logic Model to Data Access ViewModel to Model

10 Overview of unit testing.

11 What is a Unit Test? Piece of code that verifies that another piece of code Test code verifies application code

12 What is Test-Driven Development (TDD)? Practice of developing code so that you always have proof that the code is working Mindset “Never write a single line of code unless you have a failing automated test.” -Kent Beck (“Test-Driven Development”, Addison-Wesley)

13 Why Write Unit Tests? High-quality code  Fewer bugs  Clean design  Clean code Professional Responsibility  Proof that your code works  Notification when your code is broken  Quality focus throughout the development cycle Side Effects  Code is easier to maintain, refactor  Self-documenting

14 Unit testing problems and solutions. Problems Extra code for the sake of the test Tons of setup code required to run the test User Interfaces  Best case: Hard to test  Worst case: Impossible to test Solutions Plan for testability Build a testable architecture Mocks & Stubs Dependency Injection Model-View-ViewModel

15 Plan for testability? If you build it, it needs to be tested. If you can test it with an automated test, it’s better. When you build, think of how to test it. The architecture changes when you think about how to test. It is important to remember the “Single Responsibility Principle”

16 So what is this MVVM thing?

17 Overview of MVVM.

18 What is MVVM? Model-View-ViewModel User interface interaction design pattern Cousin of Model-View-Controller (MVC) Enabled by data binding in WPF, Silverlight, WP7

19 Why use MVVM? …or MVC or MVP? Keep code organized Separate UI implementation from the logic Keep code out of the “code behind” (*.xaml.cs)  Hint: this enables Design for Testability

20 Our “To Do” list Architect the Silverlight Async solution Re-usable fields  Values, Visibility, and Validation List-based fields  ComboBox and ListBox MessageBoxes ProgressBars ViewModel to Model Model to Data Access

21 Tip: If you’re writing Silverlight, figure out your async solution early.

22 Network traffic in Silverlight It has to be async. If it isn’t, the UI thread locks…forever.

23 My initial client-side architecture.

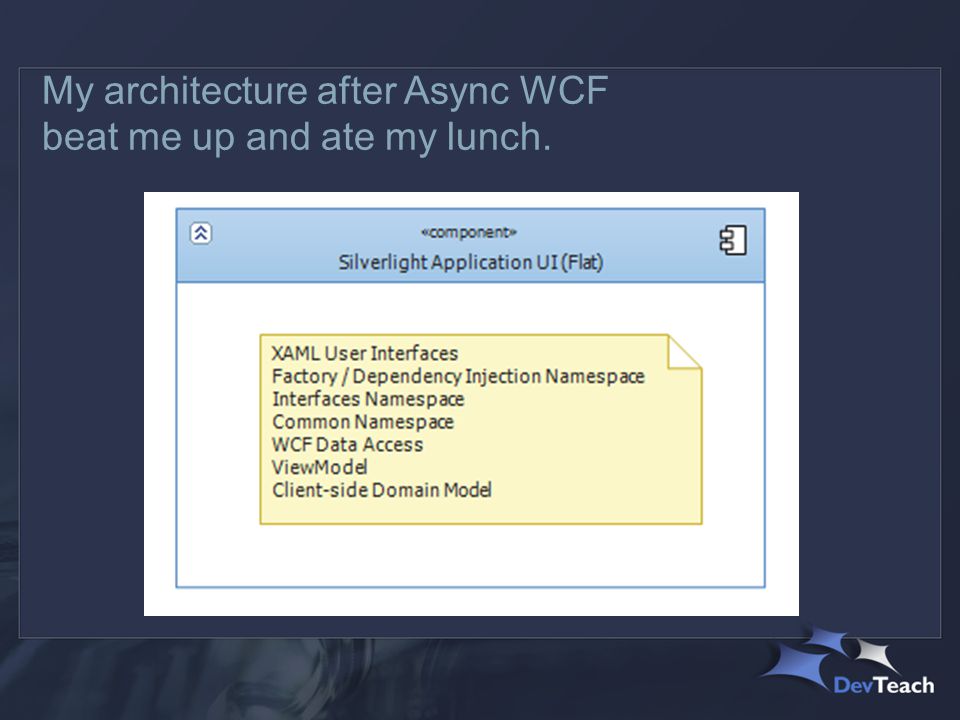

24 My architecture after Async WCF beat me up and ate my lunch.

25 Async Kills Your Repository methods can’t return populated objects  must return void Exception handling is hard  Work happens on a different thread  Exceptions can’t “bubble up” the stack You could have your *.xaml.cs handle the callbacks  Ugly  Violates “separation of concerns”  Not very testable

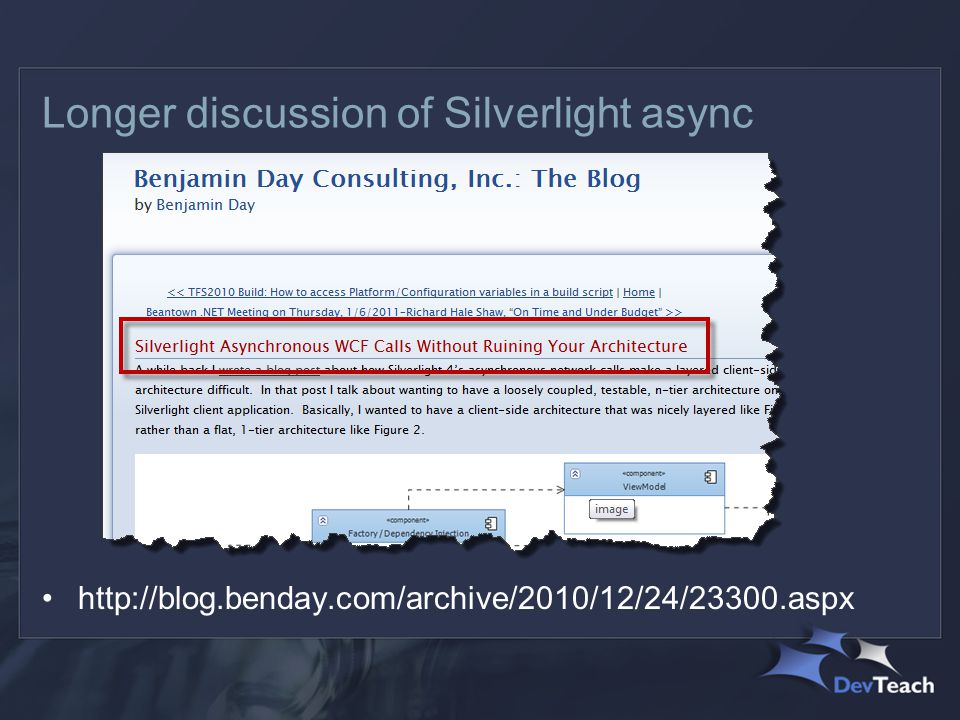

26 Longer discussion of Silverlight async http://blog.benday.com/archive/2010/12/24/23300.aspx

27 My Solution: ReturnResult “Virtual” call stack Notify(Exception) or Notify(T)

28 The “glue” between method calls

29 Reactive Extensions for.NET http://msdn.microsoft.com/en-us/devlabs/ee794896.aspx Alternate Solution

30 Our “To Do” list Architect the Silverlight Async solution Re-usable fields  Values, Visibility, and Validation List-based fields  ComboBox and ListBox MessageBoxes ProgressBars ViewModel to Model Model to Data Access

31 Primitive Obsession in your ViewModel.

32 Primitive Obsession James Shore’s “Primitive Obsession”  Too many plain scalar values  Phone number isn’t really just a string  http://www.jamesshore.com/Blog/ Validation in the get / set properties is ok but is phone number validation really the responsibility of the Person class?

33 Coarse-Grained vs. Fine-Grained Object Model James Shore blog entry talks about Responsibilities  Fine-grained = More object-oriented  Data and properties are split into actual responsibilities I’m concerned about  Responsibilities  Code Duplication  Simplicity

34 ViewModelField Provides common functionality for a property on a ViewModel

35 With & Without ViewModelField

36 Are your ViewModel properties Coarse or Fine? Fine-grained gives you room to grow ViewModelField Create custom controls that know how to talk to your ViewModelFields  Simplified binding expressions Add features later  Field validation later  Security

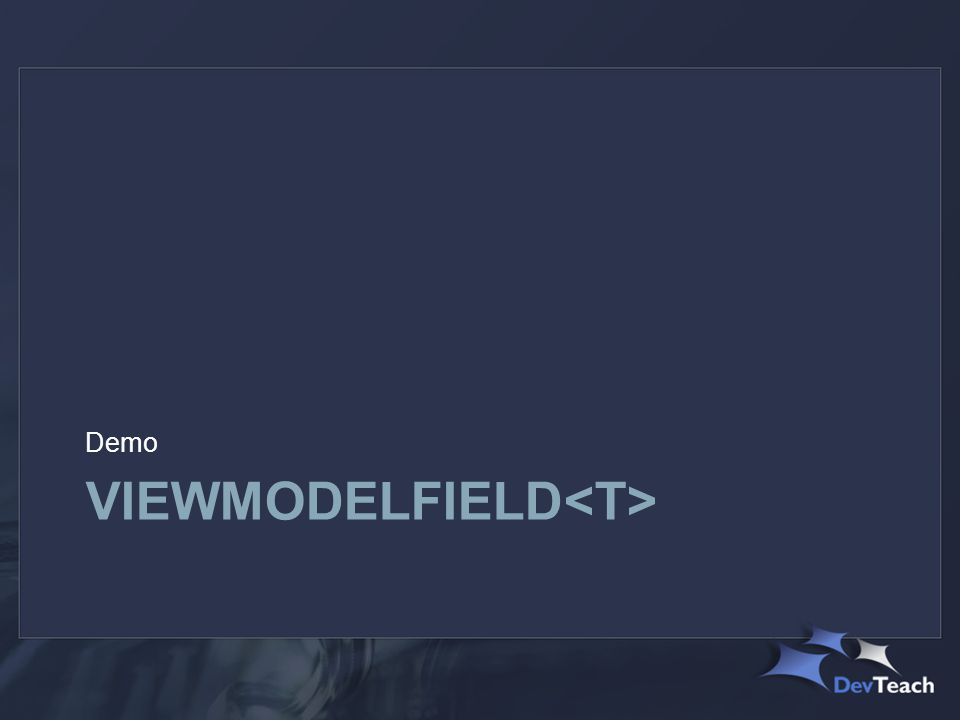

37 VIEWMODELFIELD Demo

38 COMBOBOX & LISTBOX Demo

39 MESSAGE BOXES Demo

40 PROGRESS BARS Demo

41 Our “To Do” list Architect the Silverlight Async solution Re-usable fields  Values, Visibility, and Validation List-based fields  ComboBox and ListBox MessageBoxes ProgressBars ViewModel to Model Model to Data Access

42 Focus your testing on stuff that tends to be buggy.

43 Calls to data access are buggy. The goal: Data access should take/return Model objects. Databases  ADO.NET objects don’t look like your Model  Make the db call, convert the data to Models  Take the Model, convert it to a db call WCF Services  Service Reference classes *are not* your model  Make a WCF call, convert the data to Models  Take the Model, make a WCF call This stuff is always buggy.

44 Repository & Adapter Patterns are your friend

45 What is Repository?

46 The Repository Pattern “Mediates between the domain and data mapping layers using a collection-like interface for accessing domain objects.”  http://martinfowler.com/eaaCatalog/repository.html http://martinfowler.com/eaaCatalog/repository.html Encapsulates the logic of getting things saved and retrieved

47 Synchronous Repository

48 Synchronous SQL Server & WCF

49 A Big Picture

50 What is Adapter?

51 Adapter Pattern “…converts the interface of a class into another interface the clients expect. Adapter lets classes work together that couldn’t otherwise because of incompatible interfaces.” from “Head First Design Patterns” by Elisabeth & Eric Freeman

52 My version of Adapter Pattern Take object of Type A and convert it in to object of Type B

53 Why are these patterns your friend? If you “Add Service Reference”, these are *NOT* your Models or ViewModels  (I know it might be tempting.)  (Remember, it’s 2 applications.) $0.02, you want your own Models and ViewModels  Breaks the dependency on the WCF services You’ll convert to/from the Service Reference objects

54 Why are these patterns your friend? Help focus your mind Better design Help contain bugs  These conversions to/from will be buggy Help localize change  Service endpoint designs will change often Unit test the conversions separately  (Remember it’s a “unit” test.)

55 Keep the Adapt separated from the Retrieve Two classes  Repository knows how to talk to the WCF service  Adapter knows how to turn the Service Reference types into Models Single Responsibility Principle (SRP)

56 REPOSITORY & ADAPTER demo

57 Our “To Do” list Architect the Silverlight Async solution Re-usable fields  Values, Visibility, and Validation List-based fields  ComboBox and ListBox MessageBoxes ProgressBars ViewModel to Model Model to Data Access

58 No shortcuts: Keep your ViewModels & Models separate.

59 It will be tempting to have your Repository/Adapter layer create ViewModels  (Don’t.) There’s a reason why it’s called Model-View-ViewModel

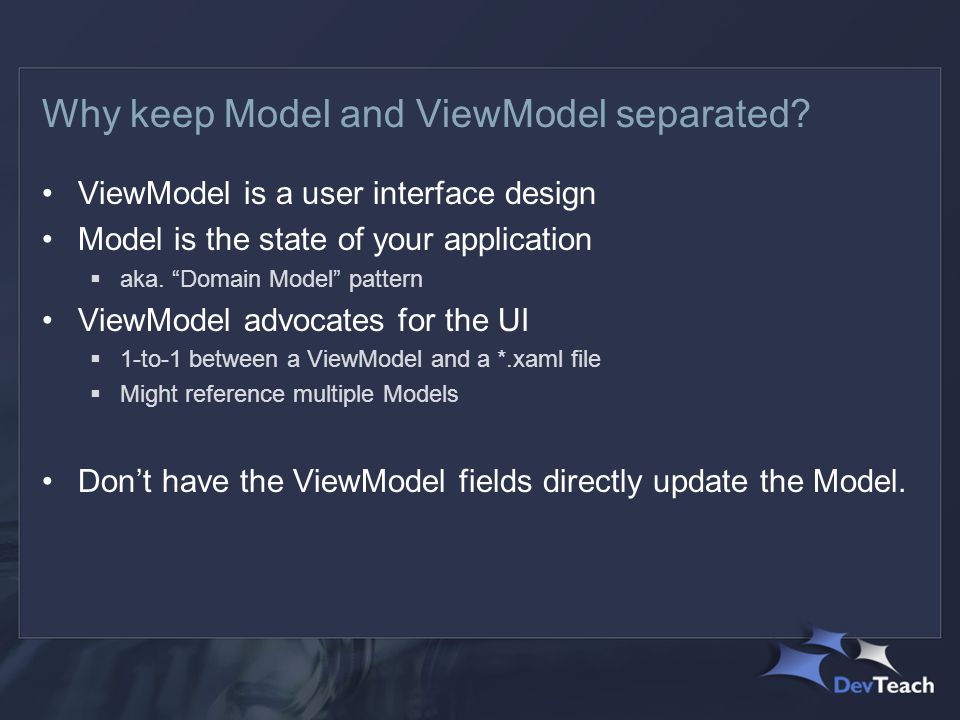

60 Why keep Model and ViewModel separated? ViewModel is a user interface design Model is the state of your application  aka. “Domain Model” pattern ViewModel advocates for the UI  1-to-1 between a ViewModel and a *.xaml file  Might reference multiple Models Don’t have the ViewModel fields directly update the Model.

61 It’s all about the Cancel button. If you’re “two way” data bound, How do you undo?

62 Cancel: ViewModel wraps Model ViewModel populates itself from the Model User edits the screen, ViewModel gets updated Model doesn’t get changed until Save button is clicked. Model is The Boss.

63 VIEWMODEL TO MODEL ADAPTER demo

64 Summary: Our “To Do” list Architect the Silverlight Async solution Re-usable fields  Values, Visibility, and Validation List-based fields  ComboBox and ListBox MessageBoxes ProgressBars ViewModel to Model Model to Data Access

65 Thank you. blog.benday.com | www.benday.com | benday@benday.com

66 Other Resources http://tinyurl.com/3d2soe8

67 Other Resources http://tinyurl.com/ln248h

68 Other Resources http://tinyurl.com/3pf8vxd
