1. Synology Inc. 2009/07/07

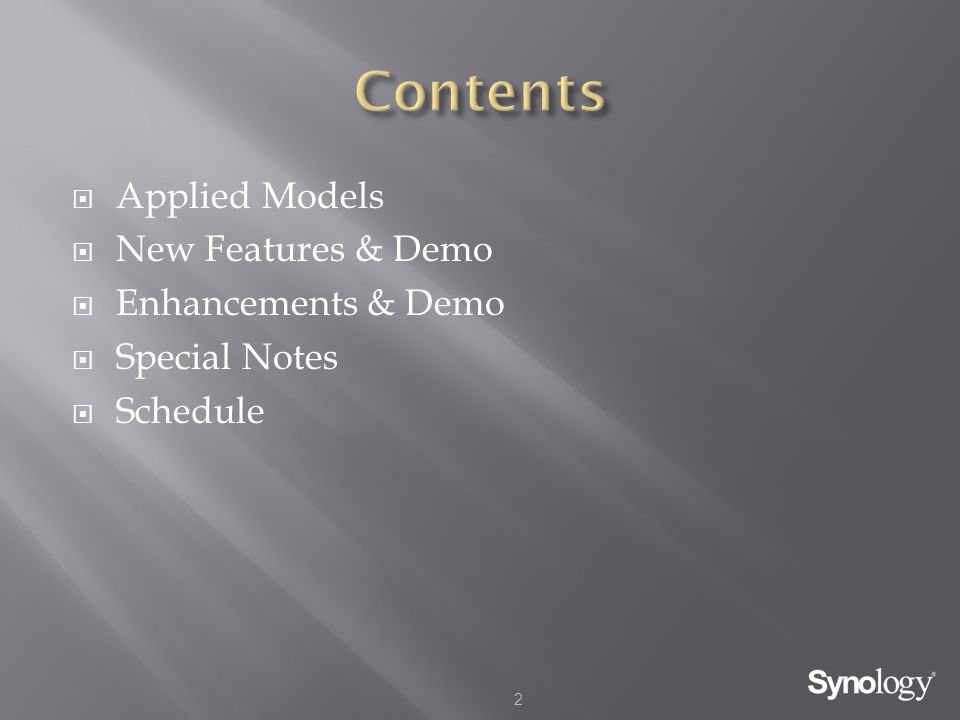

2.  Applied Models  New Features & Demo  Enhancements & Demo  Special Notes  Schedule 2

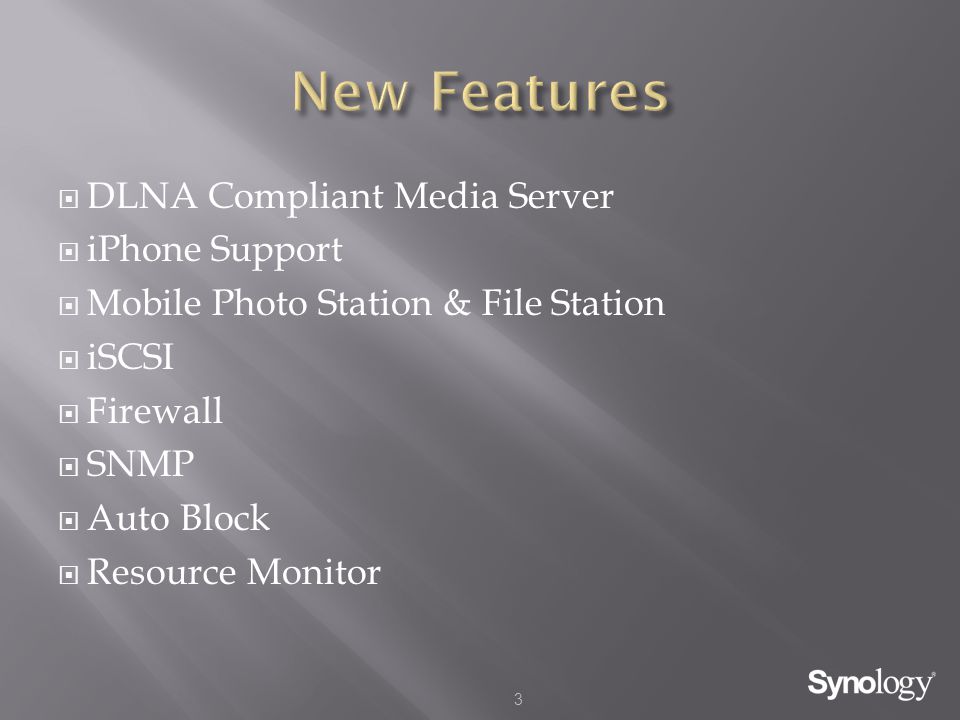

3.  DLNA Compliant Media Server  iPhone Support  Mobile Photo Station & File Station  iSCSI  Firewall  SNMP  Auto Block  Resource Monitor 3

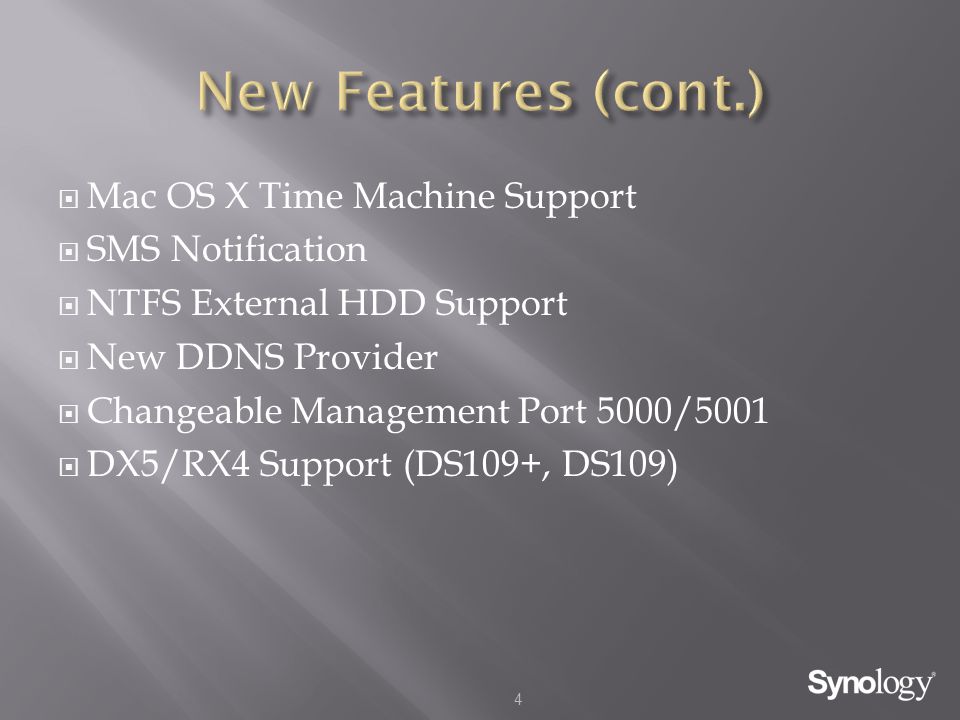

4.  Mac OS X Time Machine Support  SMS Notification  NTFS External HDD Support  New DDNS Provider  Changeable Management Port 5000/5001  DX5/RX4 Support (DS109+, DS109) 4

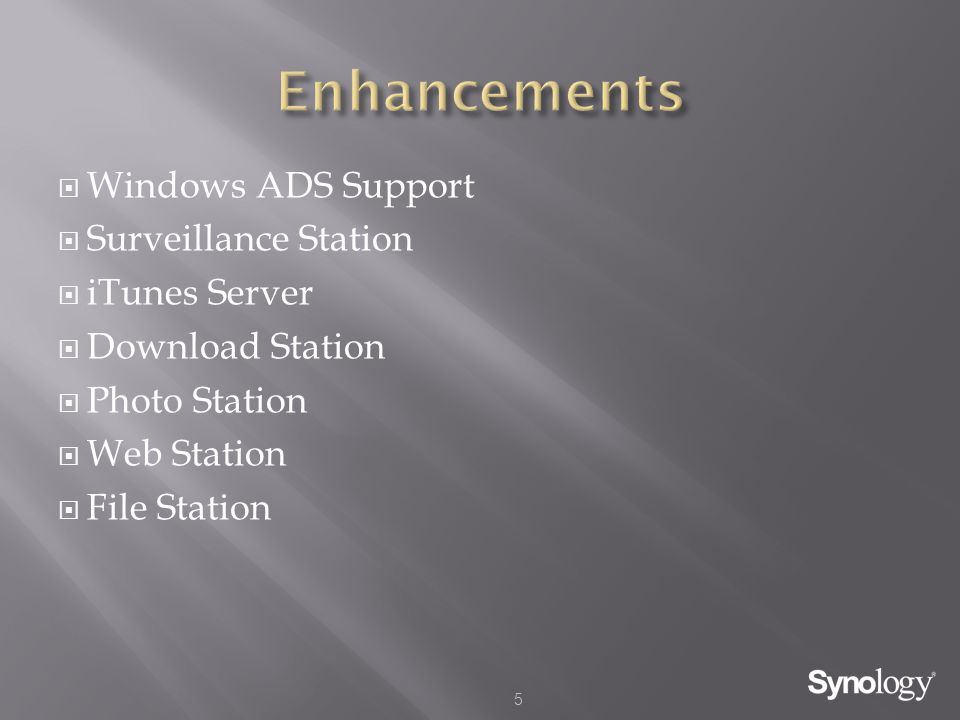

5.  Windows ADS Support  Surveillance Station  iTunes Server  Download Station  Photo Station  Web Station  File Station 5

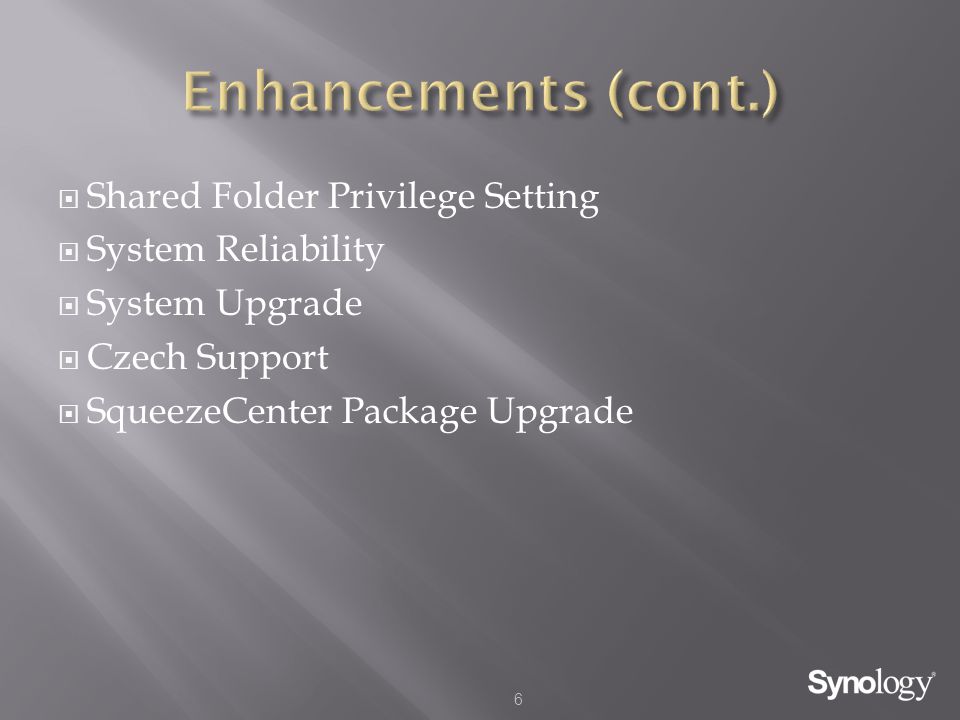

6.  Shared Folder Privilege Setting  System Reliability  System Upgrade  Czech Support  SqueezeCenter Package Upgrade 6

7.  9-series:  RS409+, RS409RP+, RS409  DS509+, DS409+, DS409, DS209+II, DS209+, DS209, DS209j, DS109+, DS109, DS109j, DS409slim  8-series:  RS408, RS408-RP  DS508, DS408, DS108j  7-series:  RS407  CS407, CS407e, DS207+, DS207, DS107+, DS107, DS107e 7

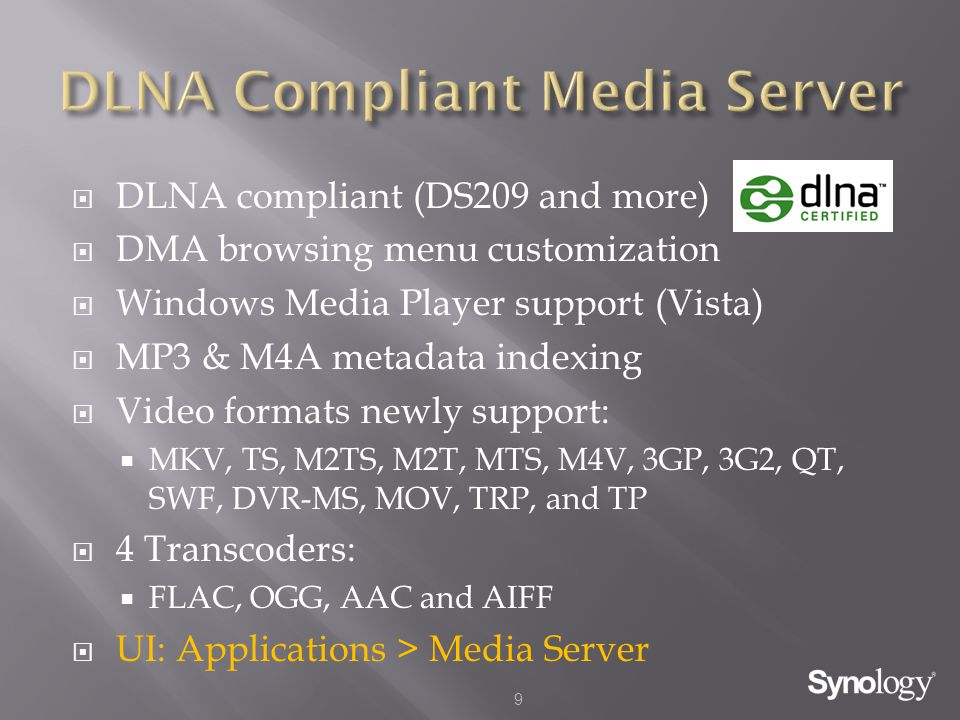

9.  DLNA compliant (DS209 and more)  DMA browsing menu customization  Windows Media Player support (Vista)  MP3 & M4A metadata indexing  Video formats newly support:  MKV, TS, M2TS, M2T, MTS, M4V, 3GP, 3G2, QT, SWF, DVR-MS, MOV, TRP, and TP  4 Transcoders:  FLAC, OGG, AAC and AIFF  UI: Applications > Media Server 9

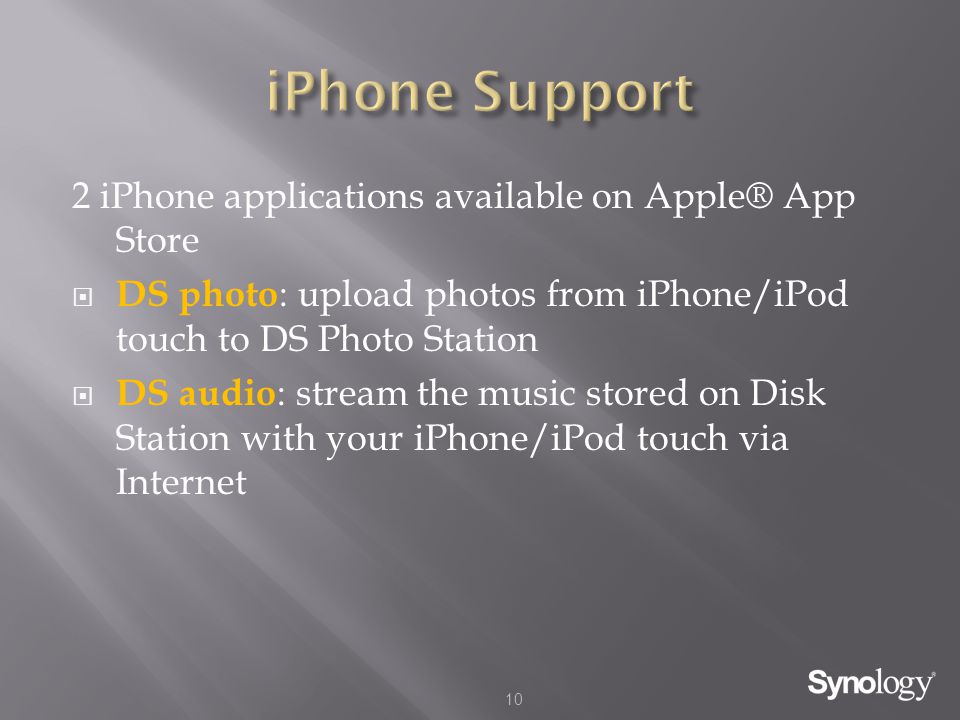

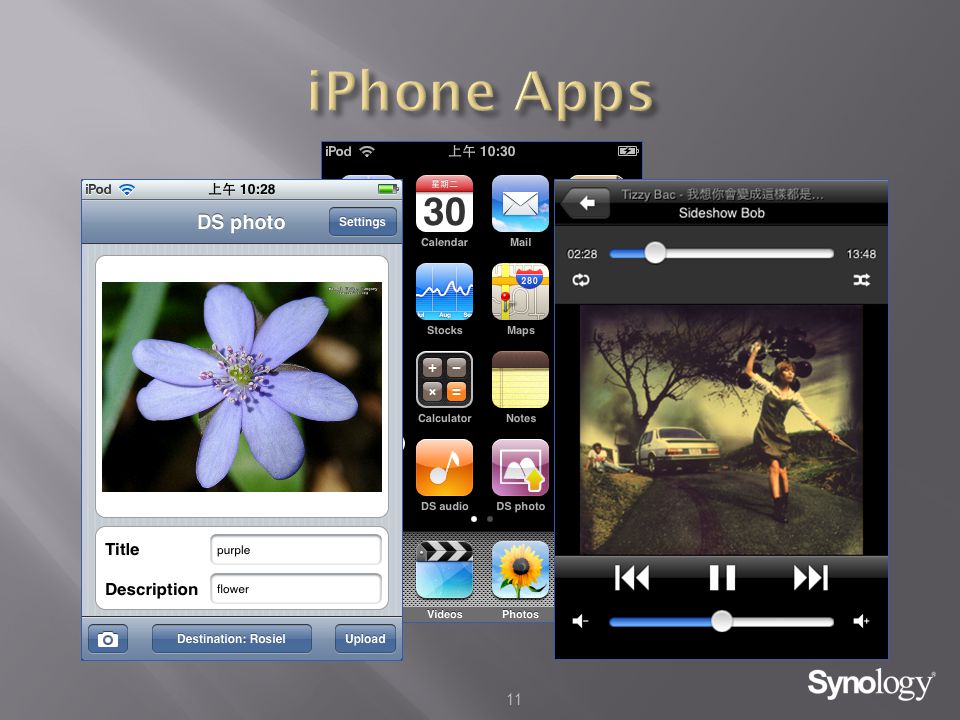

10. 2 iPhone applications available on Apple® App Store  DS photo : upload photos from iPhone/iPod touch to DS Photo Station  DS audio : stream the music stored on Disk Station with your iPhone/iPod touch via Internet 10

11. 11

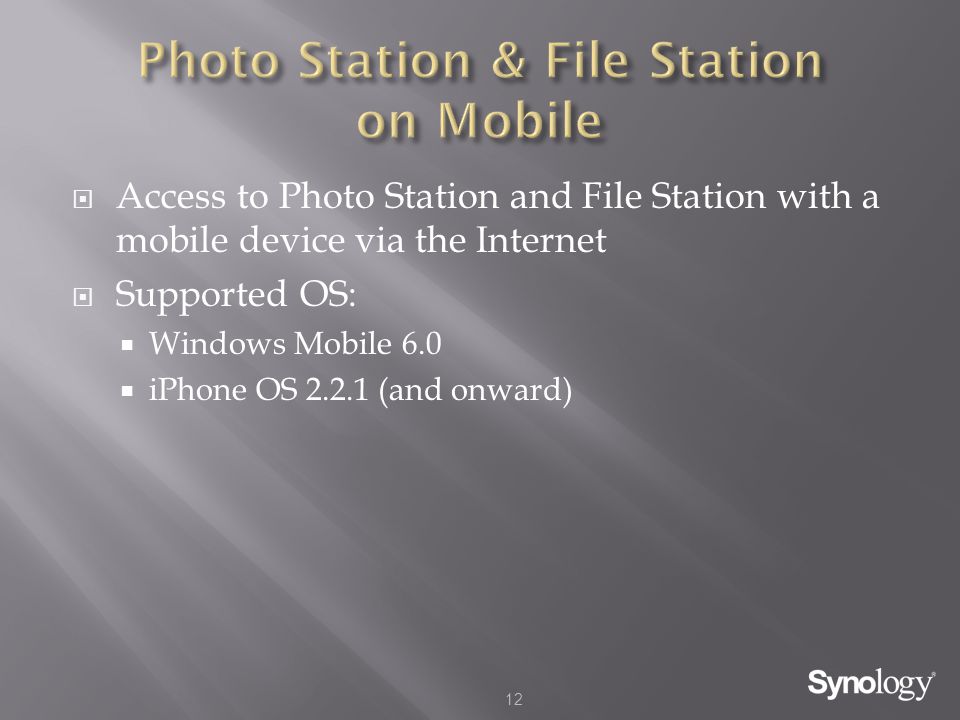

12.  Access to Photo Station and File Station with a mobile device via the Internet  Supported OS:  Windows Mobile 6.0  iPhone OS 2.2.1 (and onward) 12

13. 13

14.  iSCSI Target Support  Expandable  Up to 10 iSCSI targets on each Disk Station  UI: Storage > iSCSI Target * Not supported on DS109j, DS108j, DS107 and DS107e. 14 iSCSI Initiator iSCSI Target Switch

15.  Built-in firewall to decide which service or IP address are allowed to access the Disk Station  Prevent uninvited connections  UI: Network Services > Firewall 15

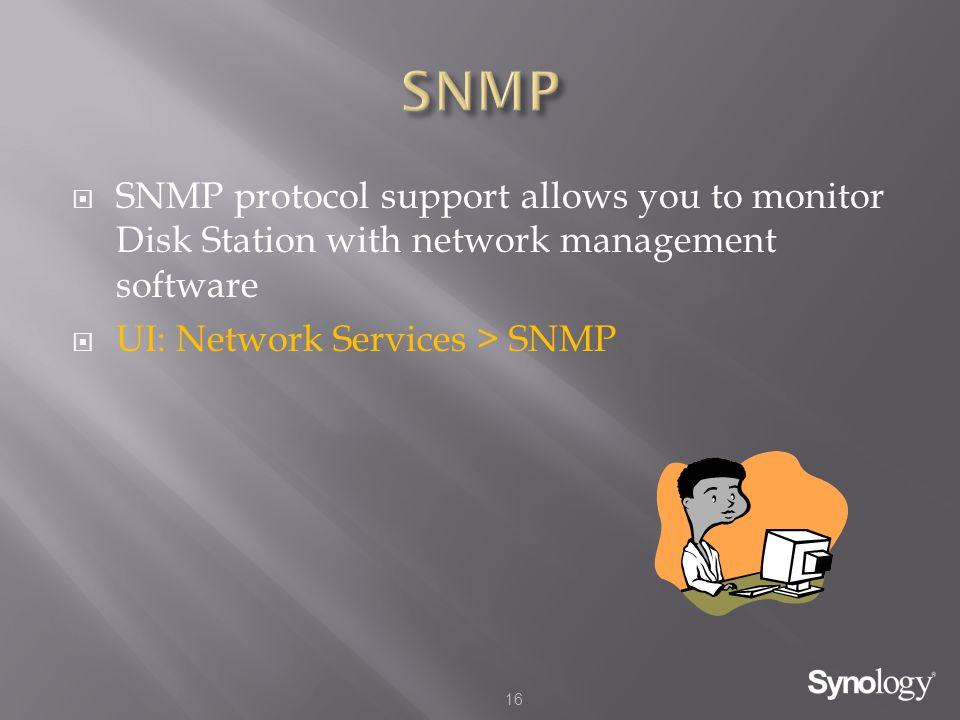

16.  SNMP protocol support allows you to monitor Disk Station with network management software  UI: Network Services > SNMP 16

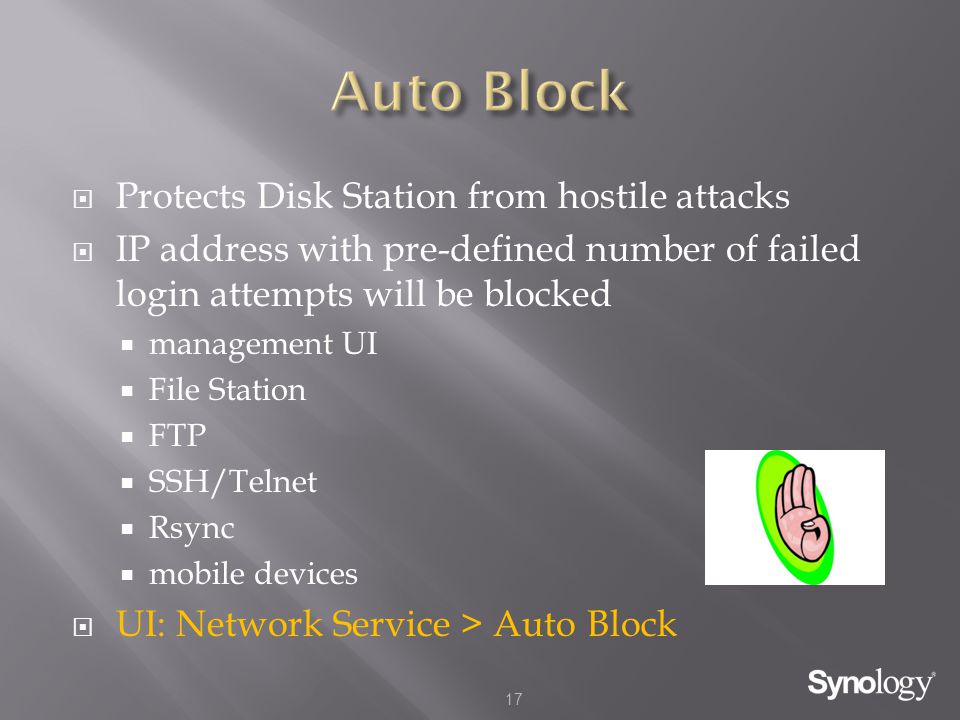

17.  Protects Disk Station from hostile attacks  IP address with pre-defined number of failed login attempts will be blocked  management UI  File Station  FTP  SSH/Telnet  Rsync  mobile devices  UI: Network Service > Auto Block 17

18.  Easily monitor Disk Station’s  CPU usage,  memory usage,  network flow and  volume usage  UI: Information > Resource Monitor 18

19.  Enable the Mac OS X Time Machine support simply by choosing a destination folder on your Disk Station  Easily back up data of your Mac OS to the server  File Sharing > Win/Mac OS 19

20.  Be notified immediately if any critical event occurs on your Disk Station  System > Notification 20

21.  Supports writing data to the NTFS formatted external hard disk. 21 NTFS FAT32EXT3

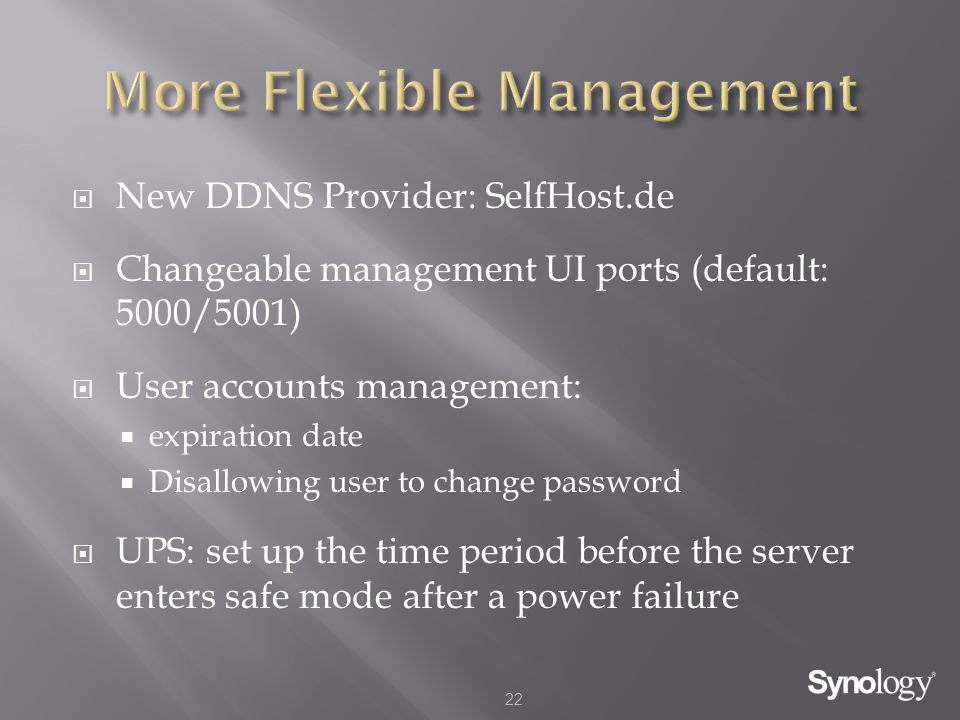

22.  New DDNS Provider: SelfHost.de  Changeable management UI ports (default: 5000/5001)  User accounts management:  expiration date  Disallowing user to change password  UPS: set up the time period before the server enters safe mode after a power failure 22

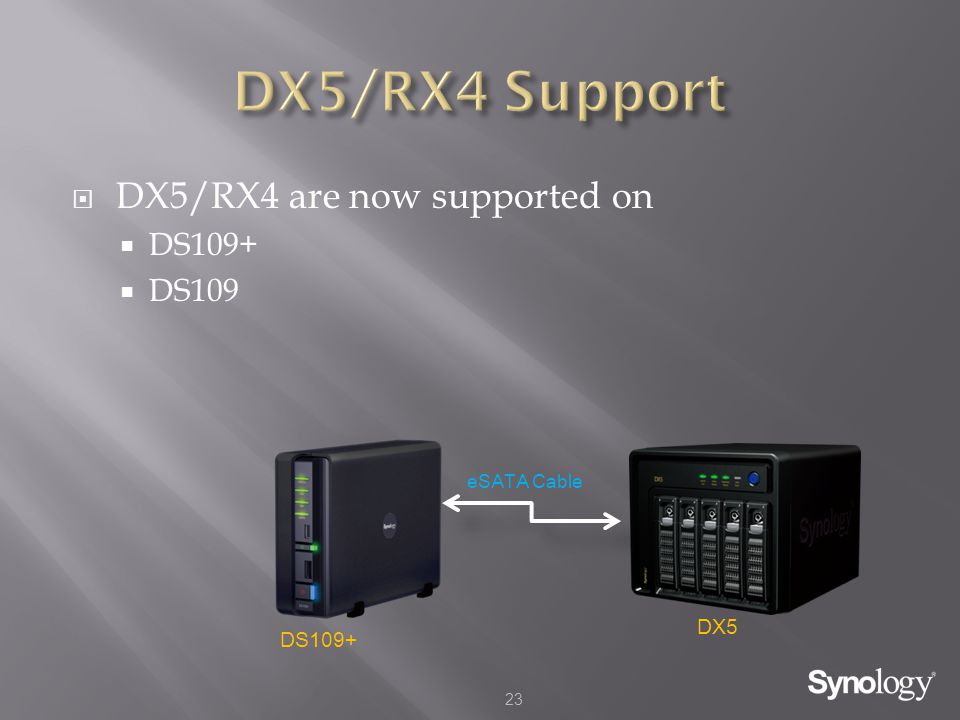

23.  DX5/RX4 are now supported on  DS109+  DS109 23 DS109+ DX5 eSATA Cable

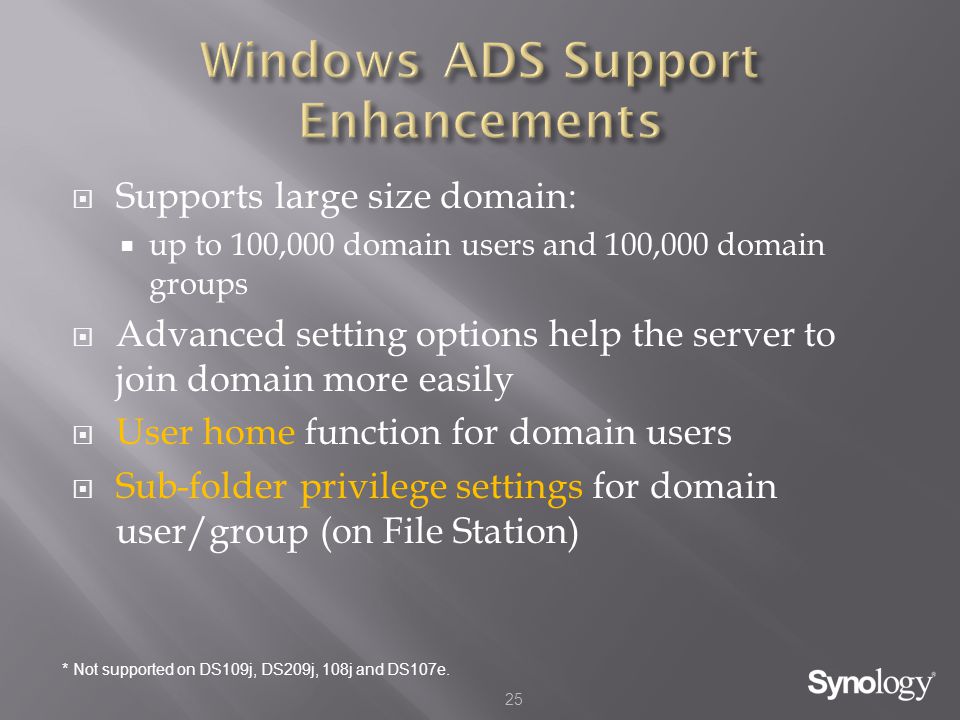

25.  Supports large size domain:  up to 100,000 domain users and 100,000 domain groups  Advanced setting options help the server to join domain more easily  User home function for domain users  Sub-folder privilege settings for domain user/group (on File Station) * Not supported on DS109j, DS209j, 108j and DS107e. 25

26.  Flexible live view layout  Enhanced live view and event playback  digitally zoom in/out  drag and move the frame  slow/fast forward event playback  MPEG-4 over RTP support  SMS notification 26

27.  50 cameras newly supported, making the total 189  Camera support numbers are increased to 8 and 12 on certain 9-series models* * 12 cameras support: DS509+, RS409+, RS409RP+, DS409+, DS209+II, DS109+ 8 cameras support: DS509, RS409, DS409, DS409slim, DS209, DS109 Extra licenses are required. 27

28.  Video files sharing support:  MOV  MP4  M4V  Metadata indexing supports (MP3 and M4A)  composer  disc number  track number  album artwork  comment 28

29.  RSS and RapidShare download support  BitTorrent: private tracker support is improved  eMule:  Create multiple download tasks  protocol obfuscation support  External hard drive can be assigned as the download service location  e-Mail notification upon a download task complete 29

30.  3 new Photo Station templates and  5 more Blog banners.  Improved thumbnails quality (applied to newly added photos)  Big thumbnail (640px): 70% => 80%  Small thumbnail (120px): 70% => 90%  Sharp 30

31.  Added PHP cache option which will enhance the PHP application performance 31

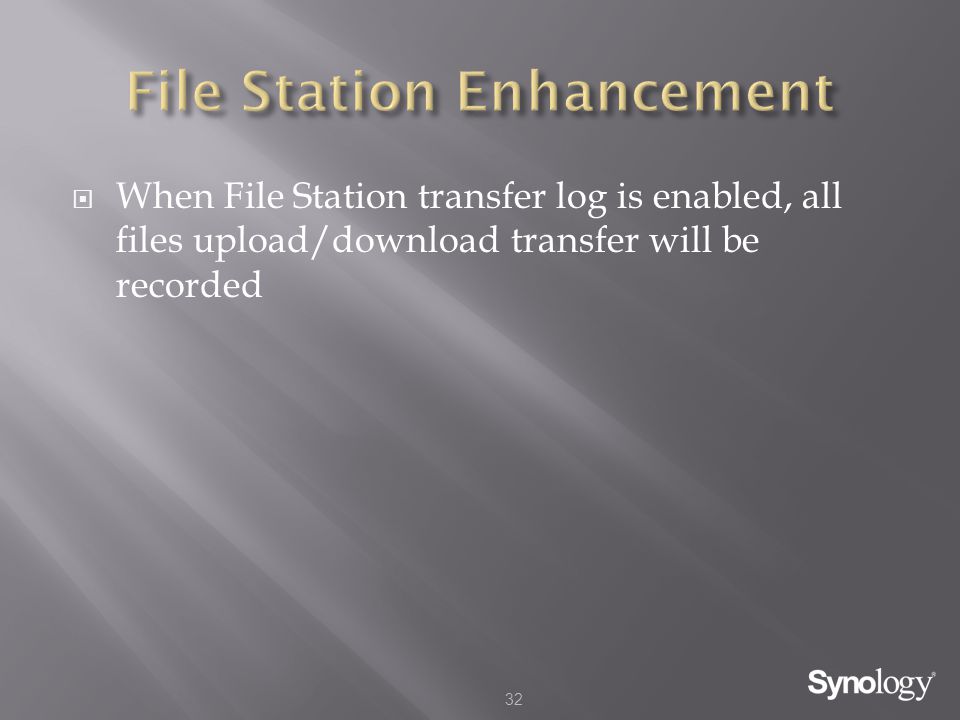

32.  When File Station transfer log is enabled, all files upload/download transfer will be recorded 32

33.  Write-only privilege (apply to File Station and FTP) is subdivided into 3 options:  1) disable directory browsing  2) disable file downloading  3) disable modification of existing files  UI: Privileges > Shared Folder 33

34.  System reliability is improved with  Protect hard disk from unexpected disconnection (ex: power surge, time out)  disk bad sector remap mechanism 34

35.  Samba is upgraded to 3.2.8.  Apache is upgraded to 2.2.11.  PHP is upgraded to 5.2.10.  MySQL is upgraded to 5.1.34.  OpenSSH is upgraded to 4.7.  OpenSSL is upgraded to 0.9.8k.  PostgreSQL is upgraded to 8.3.7. 35

36.  Czech Support: added to  DSM 2.2  Synology Assistant  Synology Download Redirector  Synology Data Replicator 3  SqueezeCenter Upgrade  SqueezeCenter package is upgraded to 7.3.3 36

38.  Browser Support:  Internet Explorer 6, 7, 8  Firefox 3, 3.5  Safari 3, 4 (Mac)  “Photo” shared folder sub-folder privileges setting is disabled to ensure proper operation of Photo Station. 38

39.  On all Rack Station models including RS409+, RS409RP+, RS409, RS408, RS408-RP and RS407, the following consumer features are disabled:  Audio Station  Download Station  iTunes server  UPnP service  All the media files will be re-indexed after the firmware upgrade; photo thumbnails will not be regenerated 39
