1. VHDL and HDL Designer Primer Instructor: Jason D. Bakos

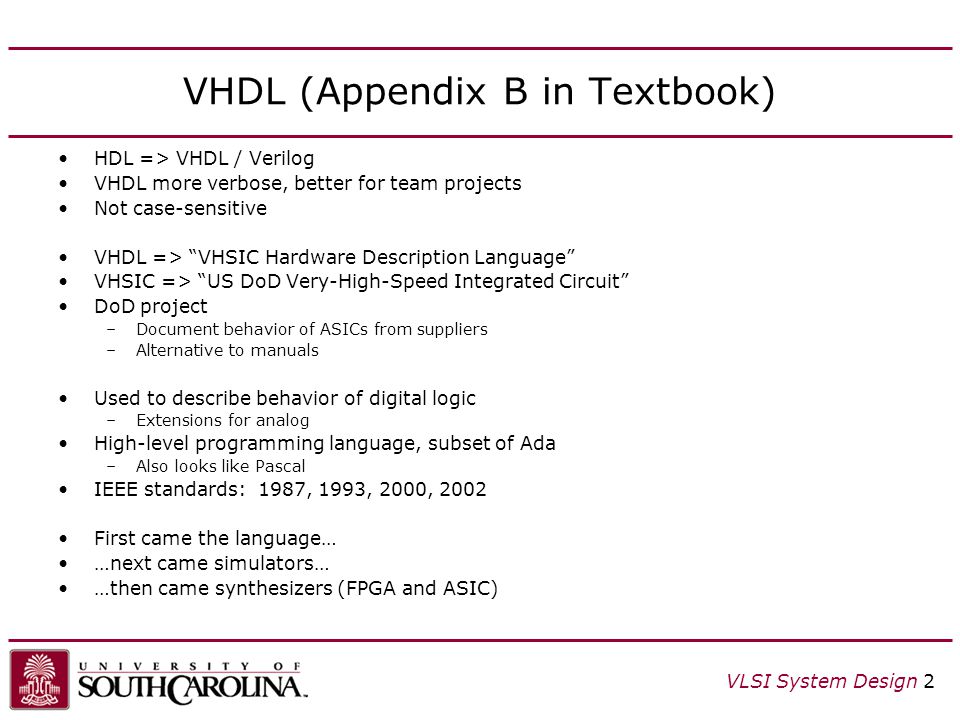

2. VLSI System Design 2 VHDL (Appendix B in Textbook) HDL => VHDL / Verilog VHDL more verbose, better for team projects Not case-sensitive VHDL => “VHSIC Hardware Description Language” VHSIC => “US DoD Very-High-Speed Integrated Circuit” DoD project –Document behavior of ASICs from suppliers –Alternative to manuals Used to describe behavior of digital logic –Extensions for analog High-level programming language, subset of Ada –Also looks like Pascal IEEE standards: 1987, 1993, 2000, 2002 First came the language… …next came simulators… …then came synthesizers (FPGA and ASIC)

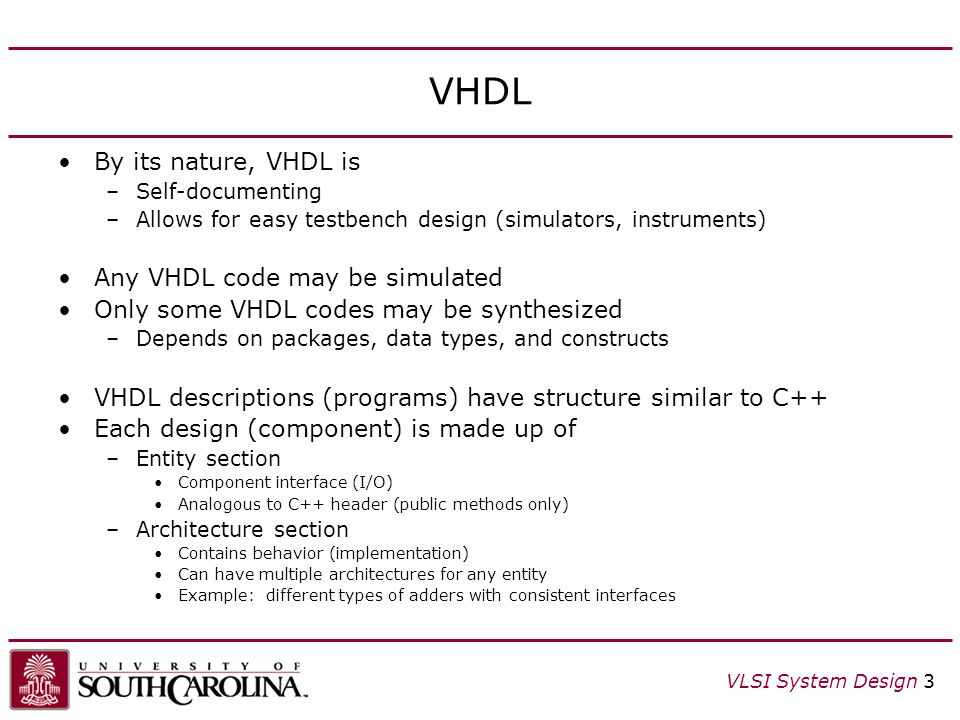

3. VLSI System Design 3 VHDL By its nature, VHDL is –Self-documenting –Allows for easy testbench design (simulators, instruments) Any VHDL code may be simulated Only some VHDL codes may be synthesized –Depends on packages, data types, and constructs VHDL descriptions (programs) have structure similar to C++ Each design (component) is made up of –Entity section Component interface (I/O) Analogous to C++ header (public methods only) –Architecture section Contains behavior (implementation) Can have multiple architectures for any entity Example: different types of adders with consistent interfaces

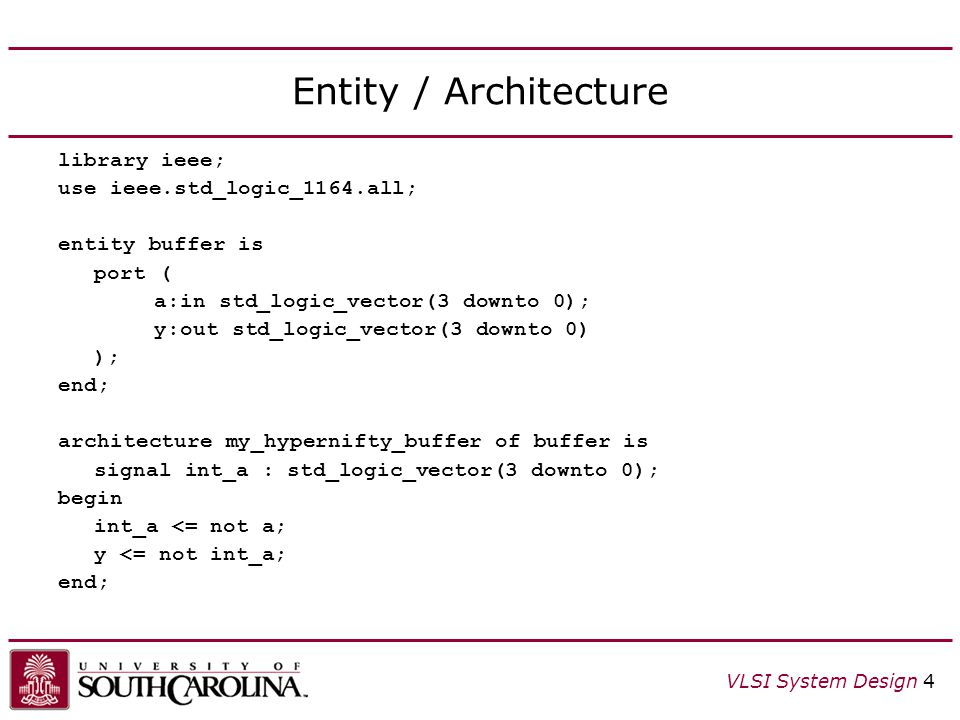

4. VLSI System Design 4 Entity / Architecture library ieee; use ieee.std_logic_1164.all; entity buffer is port ( a:in std_logic_vector(3 downto 0); y:out std_logic_vector(3 downto 0) ); end; architecture my_hypernifty_buffer of buffer is signal int_a : std_logic_vector(3 downto 0); begin int_a <= not a; y <= not int_a; end;

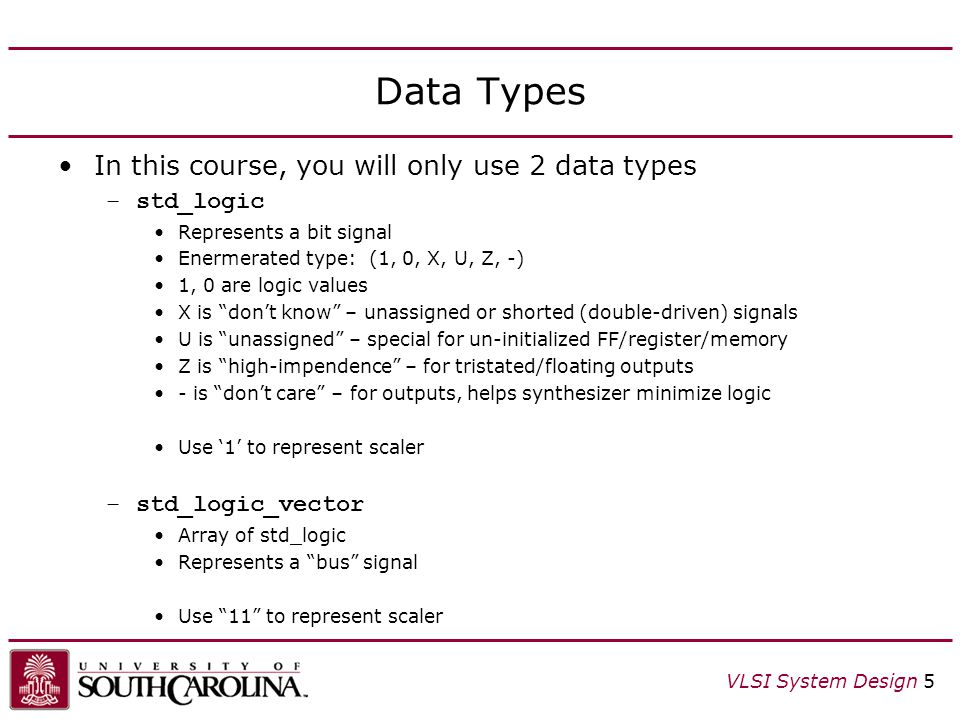

5. VLSI System Design 5 Data Types In this course, you will only use 2 data types –std_logic Represents a bit signal Enermerated type: (1, 0, X, U, Z, -) 1, 0 are logic values X is “don’t know” – unassigned or shorted (double-driven) signals U is “unassigned” – special for un-initialized FF/register/memory Z is “high-impendence” – for tristated/floating outputs - is “don’t care” – for outputs, helps synthesizer minimize logic Use ‘1’ to represent scaler –std_logic_vector Array of std_logic Represents a “bus” signal Use “11” to represent scaler

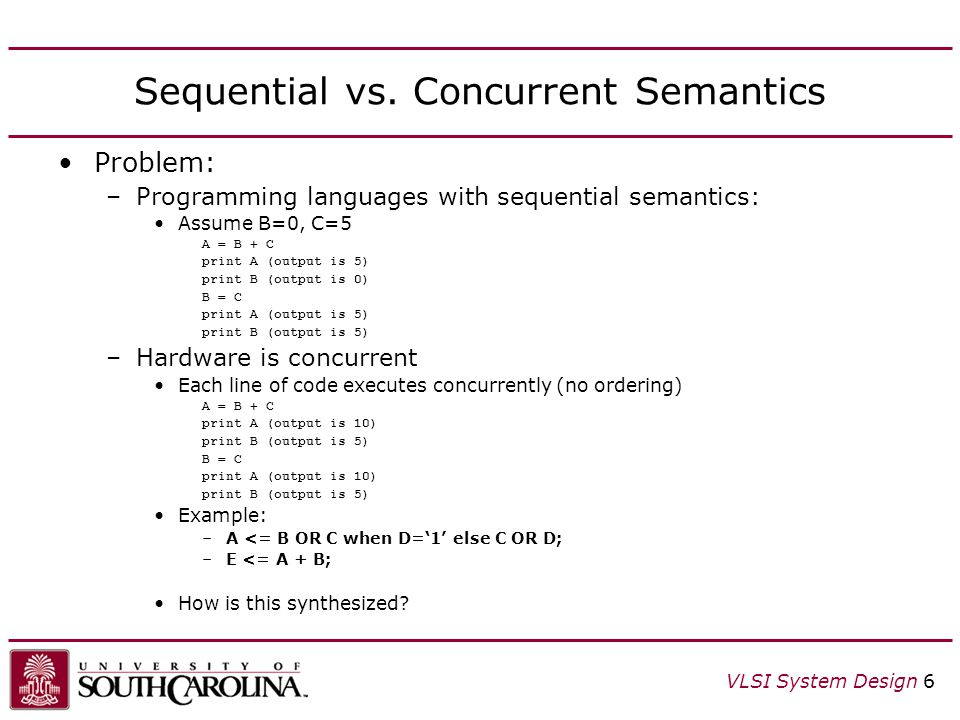

6. VLSI System Design 6 Sequential vs. Concurrent Semantics Problem: –Programming languages with sequential semantics: Assume B=0, C=5 A = B + C print A (output is 5) print B (output is 0) B = C print A (output is 5) print B (output is 5) –Hardware is concurrent Each line of code executes concurrently (no ordering) A = B + C print A (output is 10) print B (output is 5) B = C print A (output is 10) print B (output is 5) Example: –A <= B OR C when D=‘1’ else C OR D; –E <= A + B; How is this synthesized?

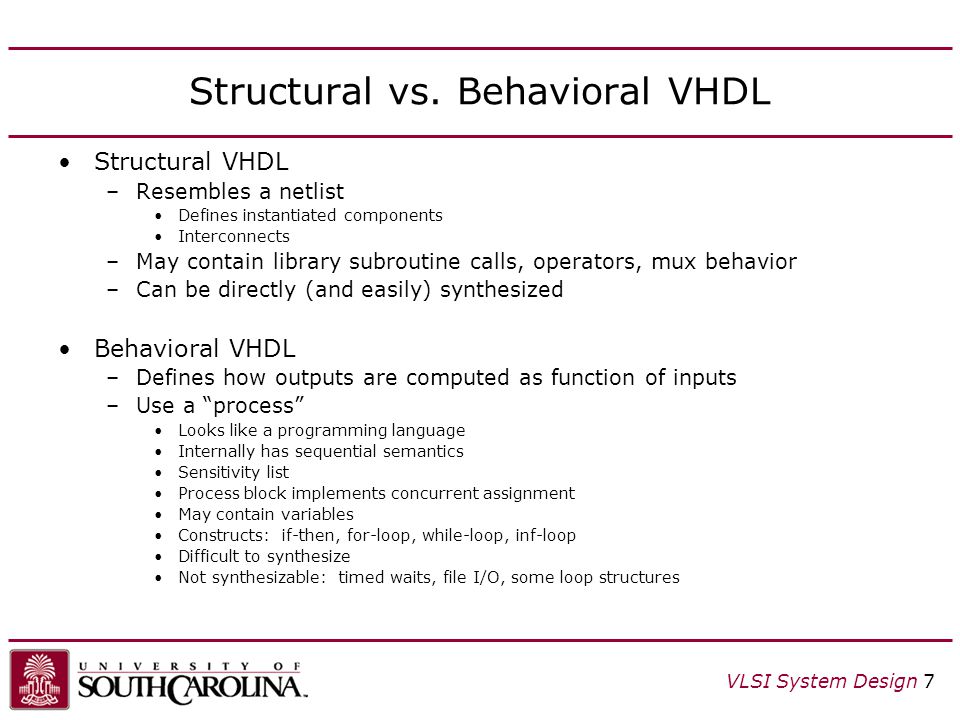

7. VLSI System Design 7 Structural vs. Behavioral VHDL Structural VHDL –Resembles a netlist Defines instantiated components Interconnects –May contain library subroutine calls, operators, mux behavior –Can be directly (and easily) synthesized Behavioral VHDL –Defines how outputs are computed as function of inputs –Use a “process” Looks like a programming language Internally has sequential semantics Sensitivity list Process block implements concurrent assignment May contain variables Constructs: if-then, for-loop, while-loop, inf-loop Difficult to synthesize Not synthesizable: timed waits, file I/O, some loop structures

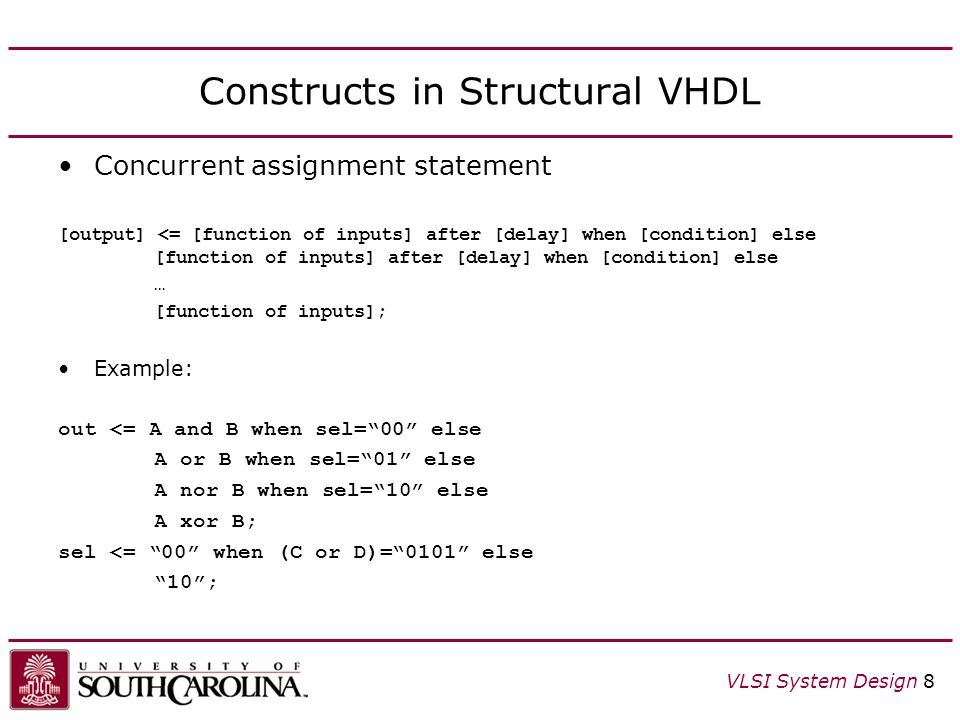

8. VLSI System Design 8 Constructs in Structural VHDL Concurrent assignment statement [output] <= [function of inputs] after [delay] when [condition] else [function of inputs] after [delay] when [condition] else … [function of inputs]; Example: out <= A and B when sel=“00” else A or B when sel=“01” else A nor B when sel=“10” else A xor B; sel <= “00” when (C or D)=“0101” else “10”;

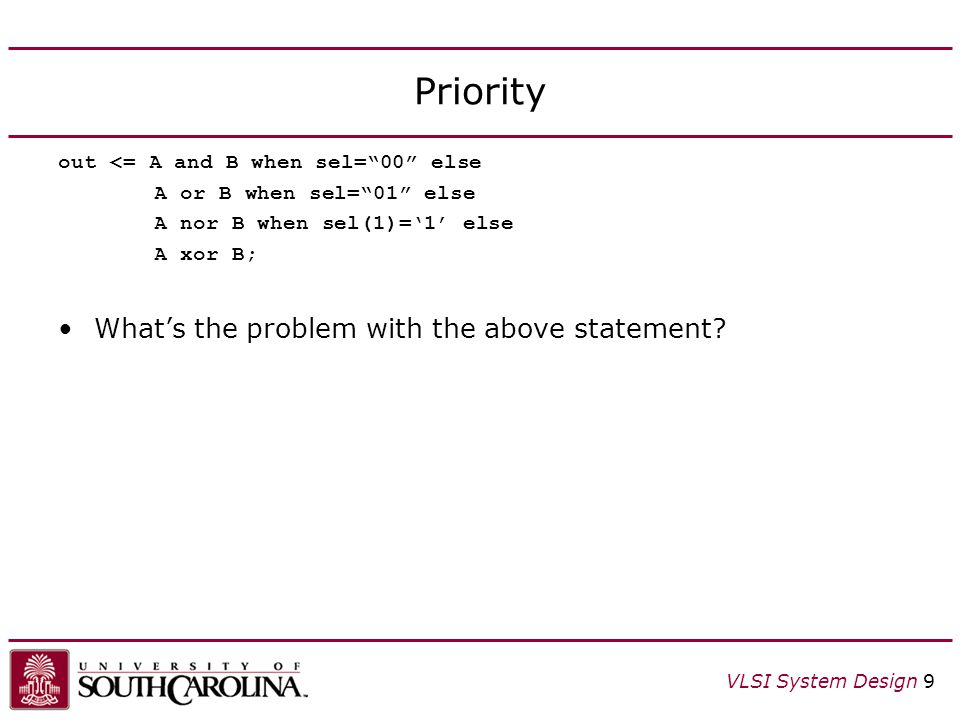

9. VLSI System Design 9 Priority out <= A and B when sel=“00” else A or B when sel=“01” else A nor B when sel(1)=‘1’ else A xor B; What’s the problem with the above statement?

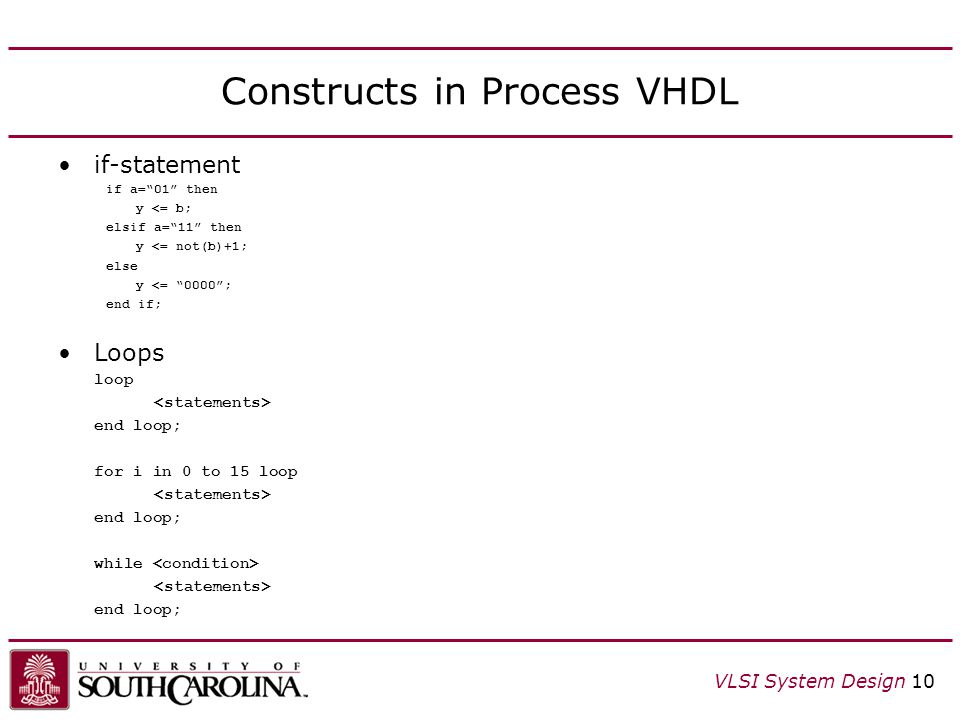

10. VLSI System Design 10 Constructs in Process VHDL if-statement if a=“01” then y <= b; elsif a=“11” then y <= not(b)+1; else y <= “0000”; end if; Loops loop end loop; for i in 0 to 15 loop end loop; while end loop;

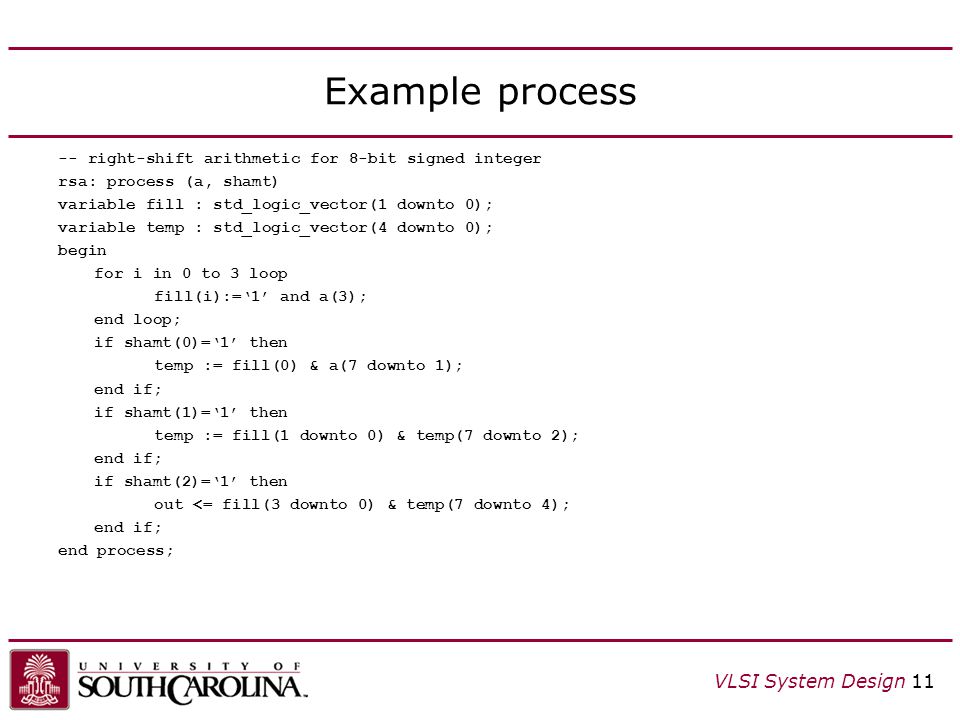

11. VLSI System Design 11 Example process -- right-shift arithmetic for 8-bit signed integer rsa: process (a, shamt) variable fill : std_logic_vector(1 downto 0); variable temp : std_logic_vector(4 downto 0); begin for i in 0 to 3 loop fill(i):=‘1’ and a(3); end loop; if shamt(0)=‘1’ then temp := fill(0) & a(7 downto 1); end if; if shamt(1)=‘1’ then temp := fill(1 downto 0) & temp(7 downto 2); end if; if shamt(2)=‘1’ then out <= fill(3 downto 0) & temp(7 downto 4); end if; end process;

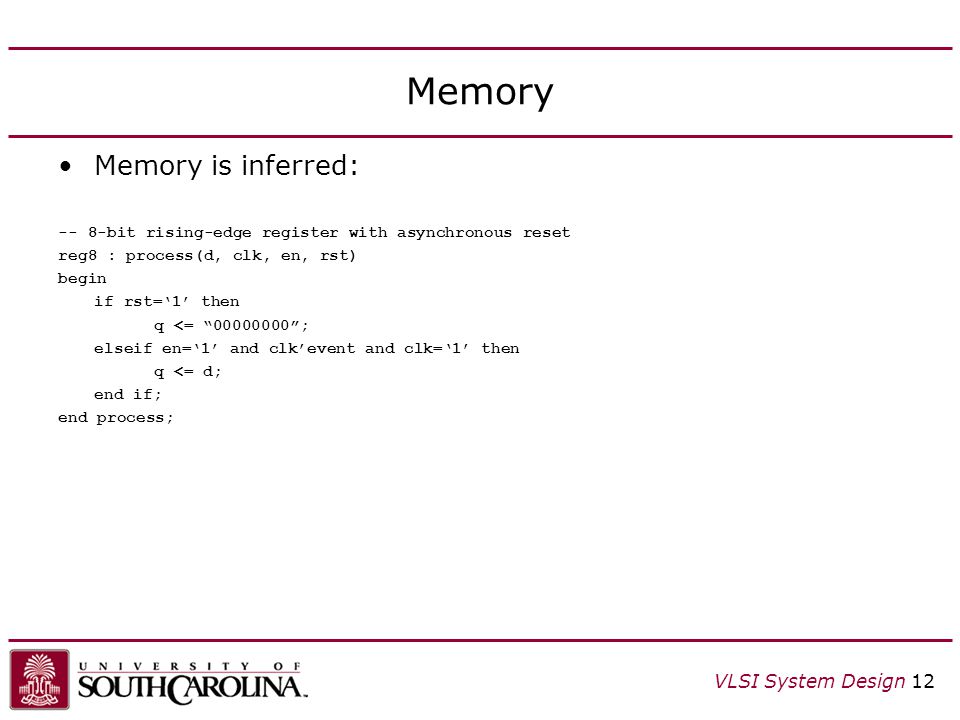

12. VLSI System Design 12 Memory Memory is inferred: -- 8-bit rising-edge register with asynchronous reset reg8 : process(d, clk, en, rst) begin if rst=‘1’ then q <= “00000000”; elseif en=‘1’ and clk’event and clk=‘1’ then q <= d; end if; end process;

13. VLSI System Design 13 HDL Designer Allows for rapid VHDL development –graphical design entry –generated VHDL –automated design flows Views –Block diagram –State machine –Truth table –Flow chart –VHDL view (combined or architecture-only) –Symbol

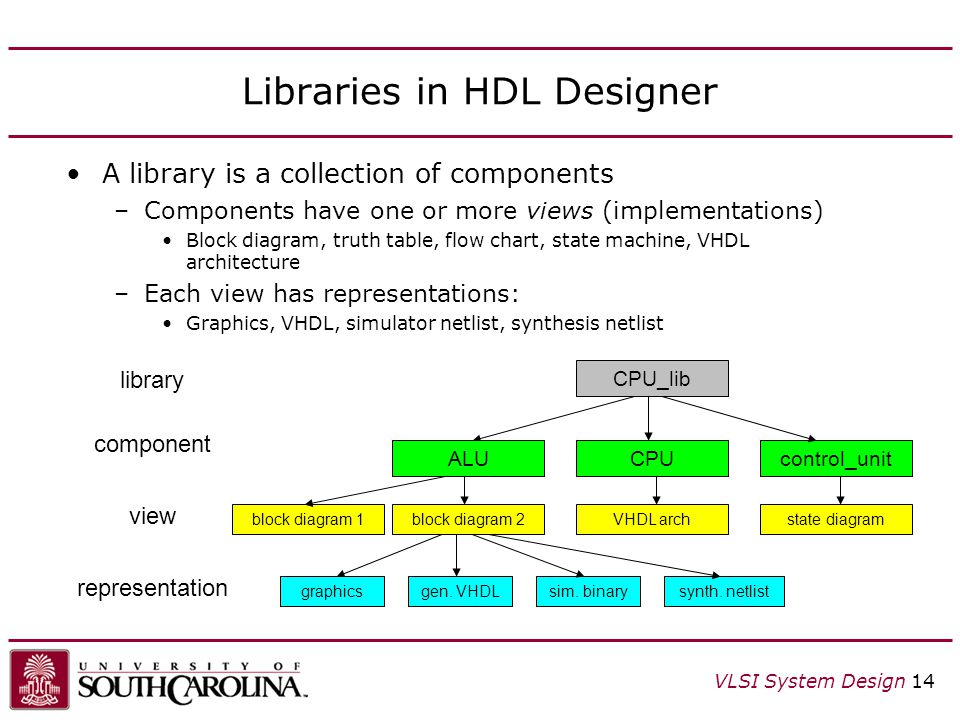

14. VLSI System Design 14 Libraries in HDL Designer A library is a collection of components –Components have one or more views (implementations) Block diagram, truth table, flow chart, state machine, VHDL architecture –Each view has representations: Graphics, VHDL, simulator netlist, synthesis netlist CPUcontrol_unit CPU_lib VHDL archstate diagram gen. VHDLsim. binarysynth. netlist library component view representation graphics block diagram 2block diagram 1 ALU

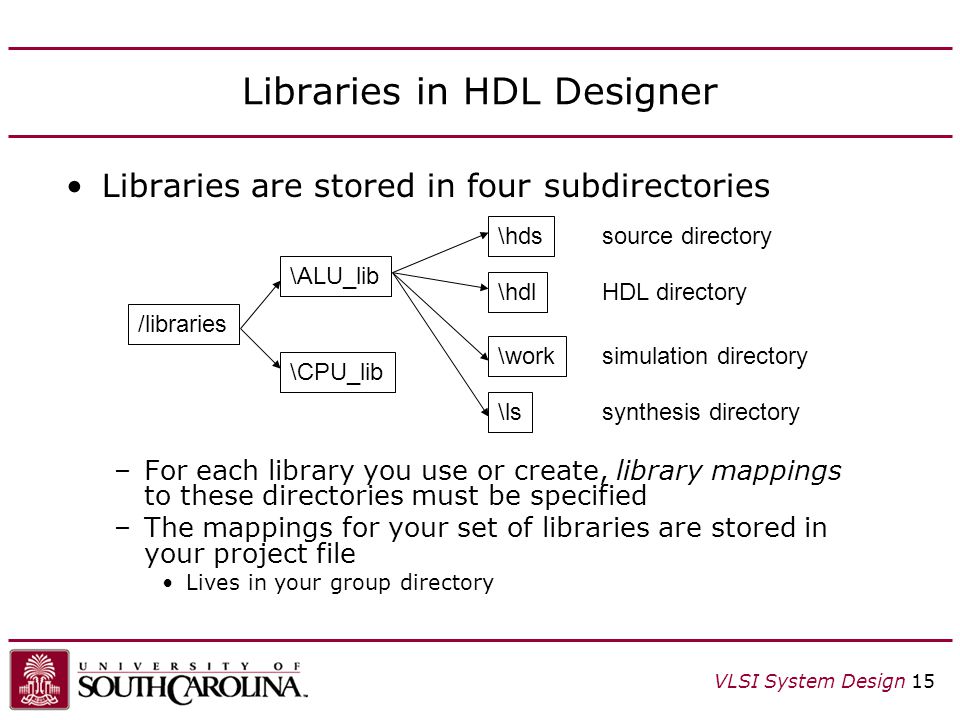

15. VLSI System Design 15 Libraries in HDL Designer Libraries are stored in four subdirectories –For each library you use or create, library mappings to these directories must be specified –The mappings for your set of libraries are stored in your project file Lives in your group directory /libraries \ALU_lib \CPU_lib \hds \hdl \work \ls source directory HDL directory simulation directory synthesis directory

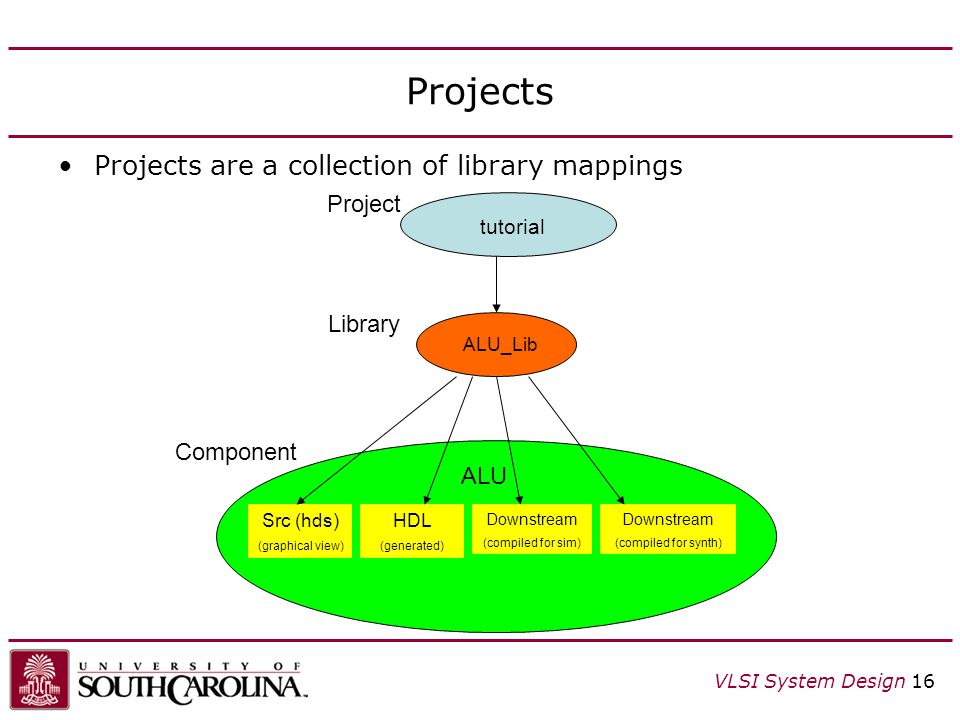

16. VLSI System Design 16 Projects Projects are a collection of library mappings tutorial ALU_Lib ALU Src (hds) (graphical view) HDL (generated) Downstream (compiled for sim) Downstream (compiled for synth) Project Library Component

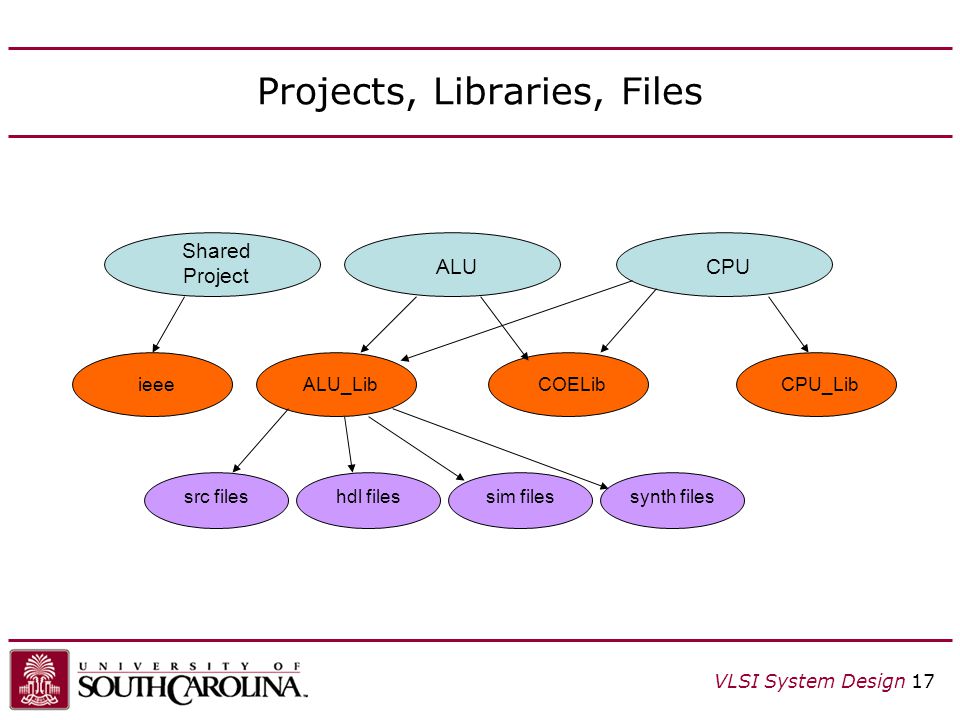

17. VLSI System Design 17 Projects, Libraries, Files ALUCPU ALU_LibCOELibCPU_Lib Shared Project ieee src fileshdl filessim filessynth files

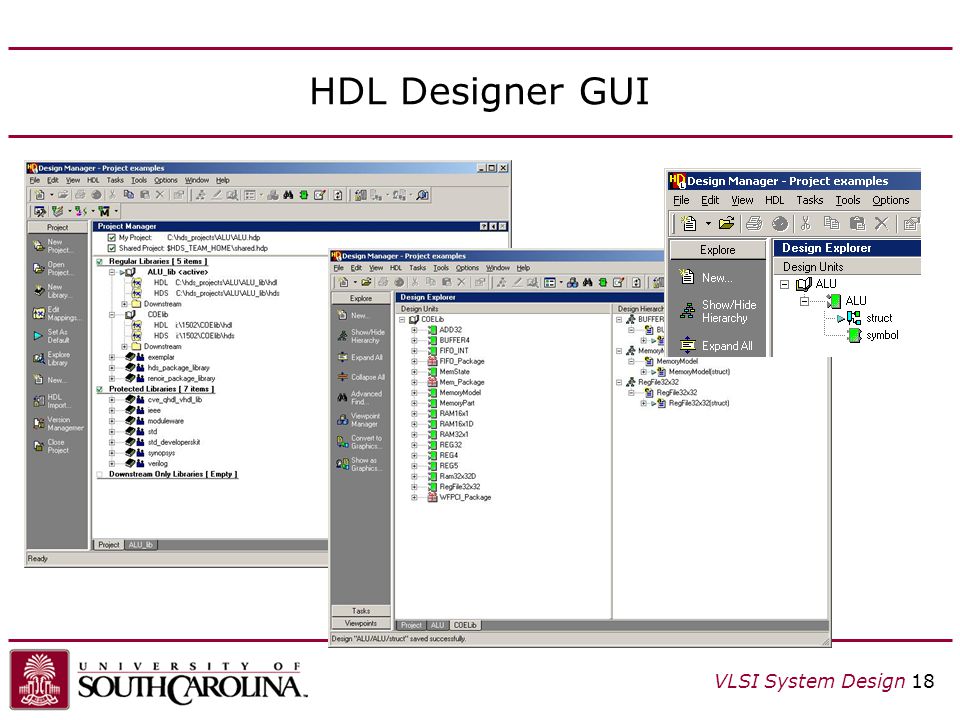

18. VLSI System Design 18 HDL Designer GUI

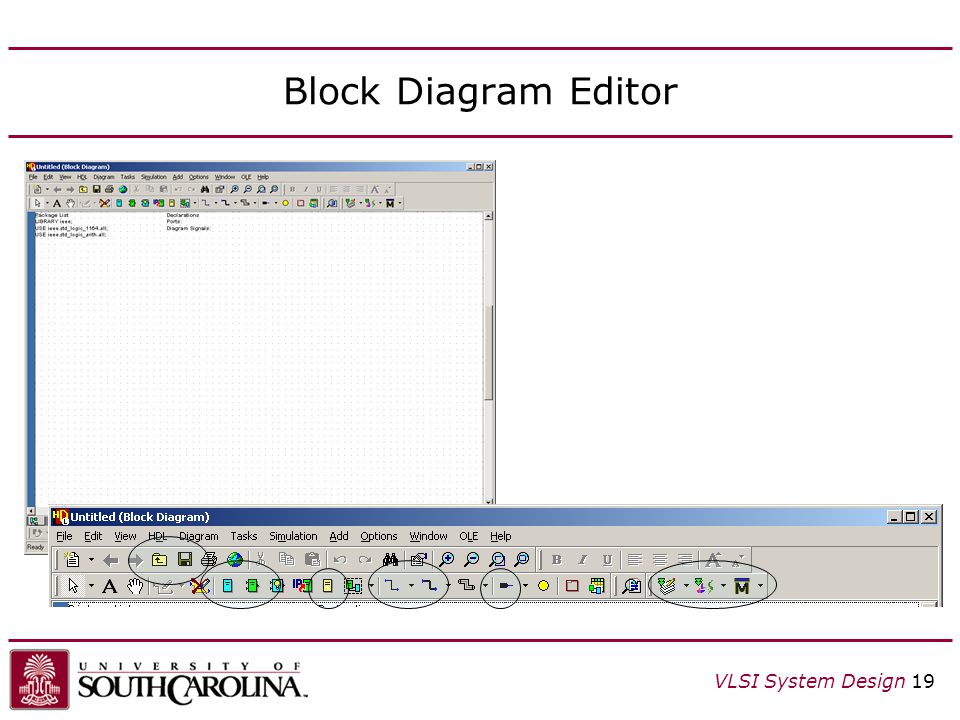

19. VLSI System Design 19 Block Diagram Editor

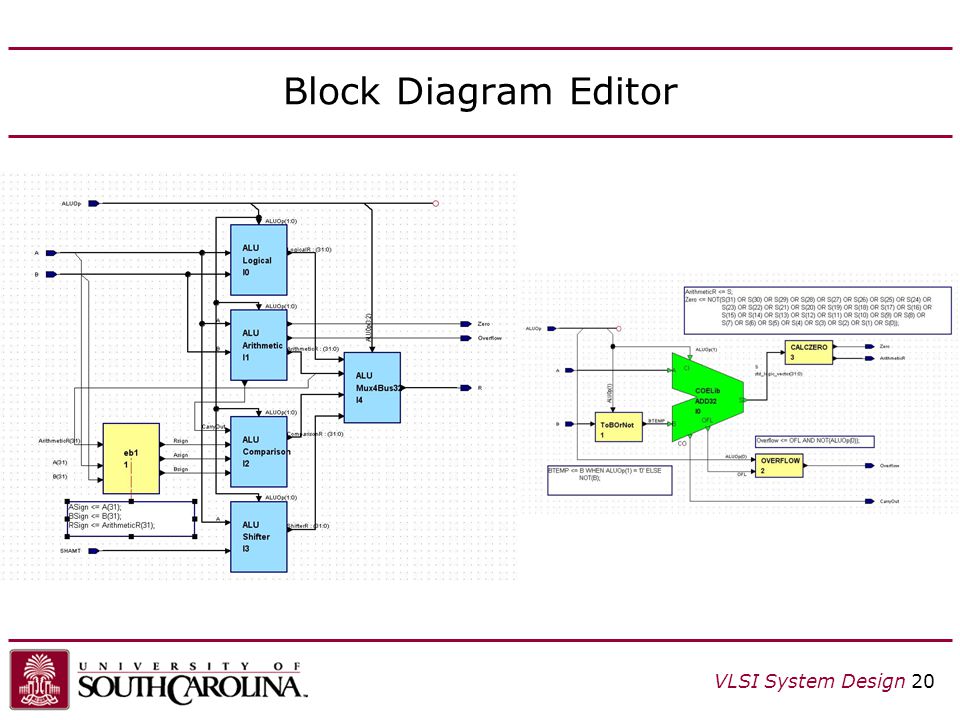

20. VLSI System Design 20 Block Diagram Editor

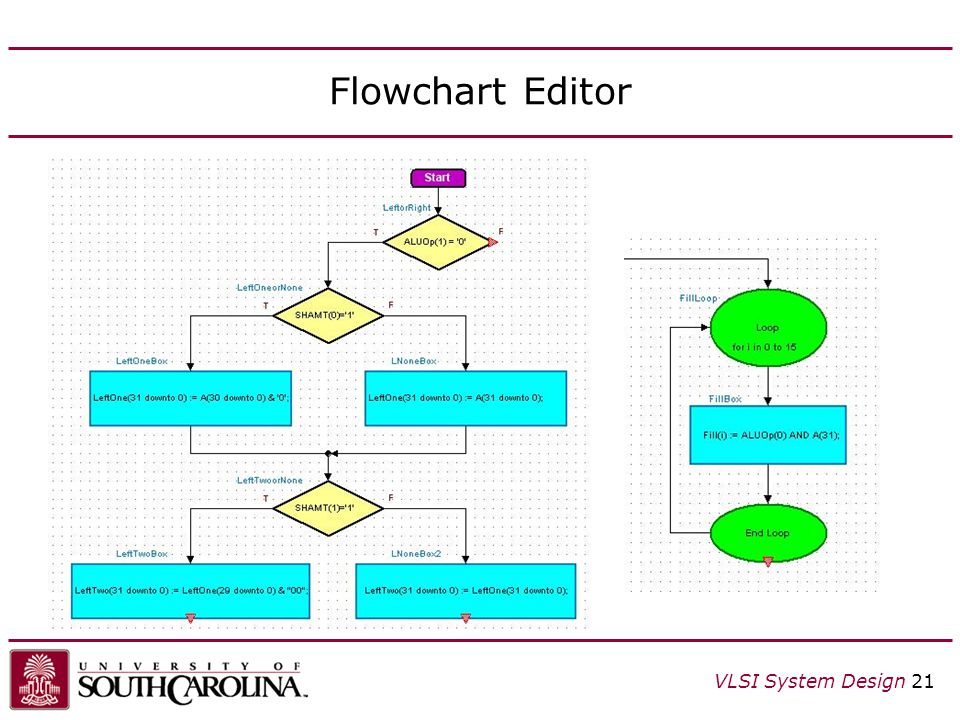

21. VLSI System Design 21 Flowchart Editor

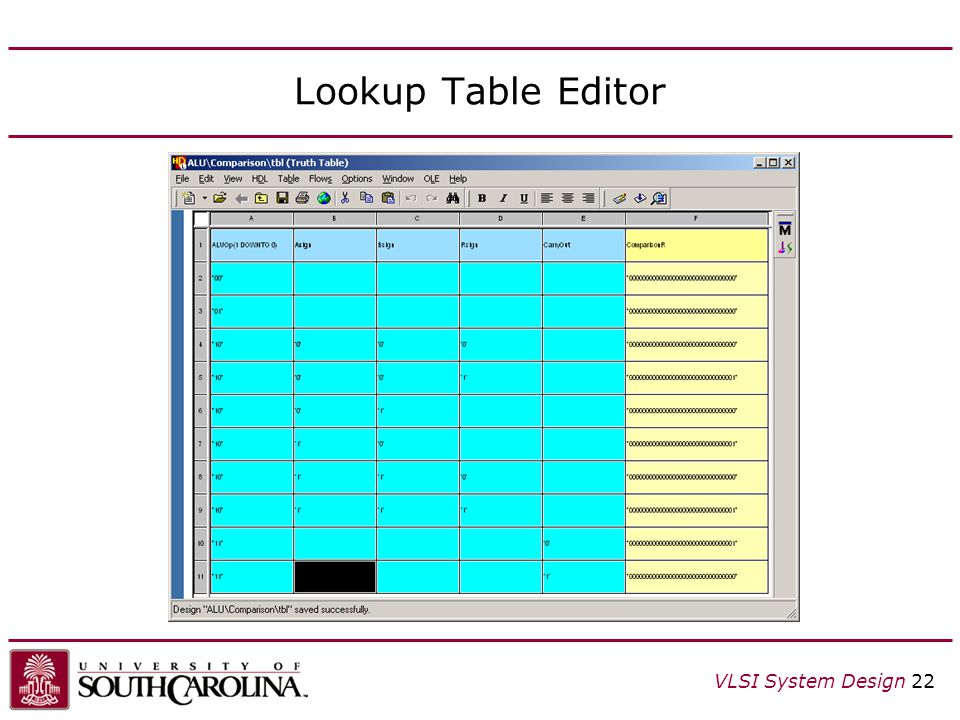

22. VLSI System Design 22 Lookup Table Editor

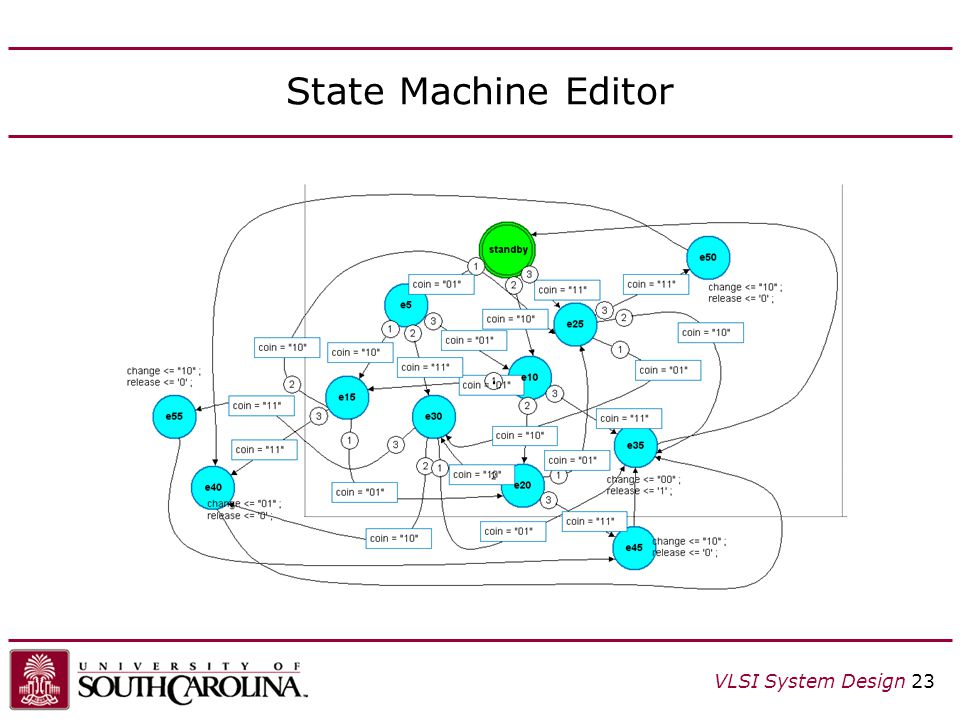

23. VLSI System Design 23 State Machine Editor

24. VLSI System Design 24 VHDL Editor

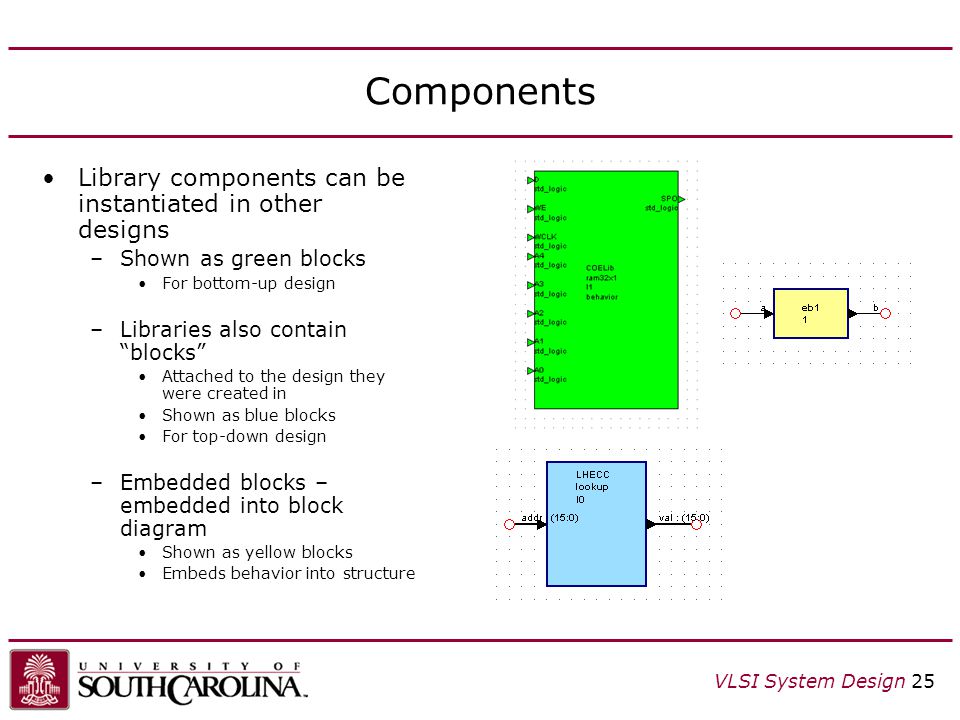

25. VLSI System Design 25 Components Library components can be instantiated in other designs –Shown as green blocks For bottom-up design –Libraries also contain “blocks” Attached to the design they were created in Shown as blue blocks For top-down design –Embedded blocks – embedded into block diagram Shown as yellow blocks Embeds behavior into structure

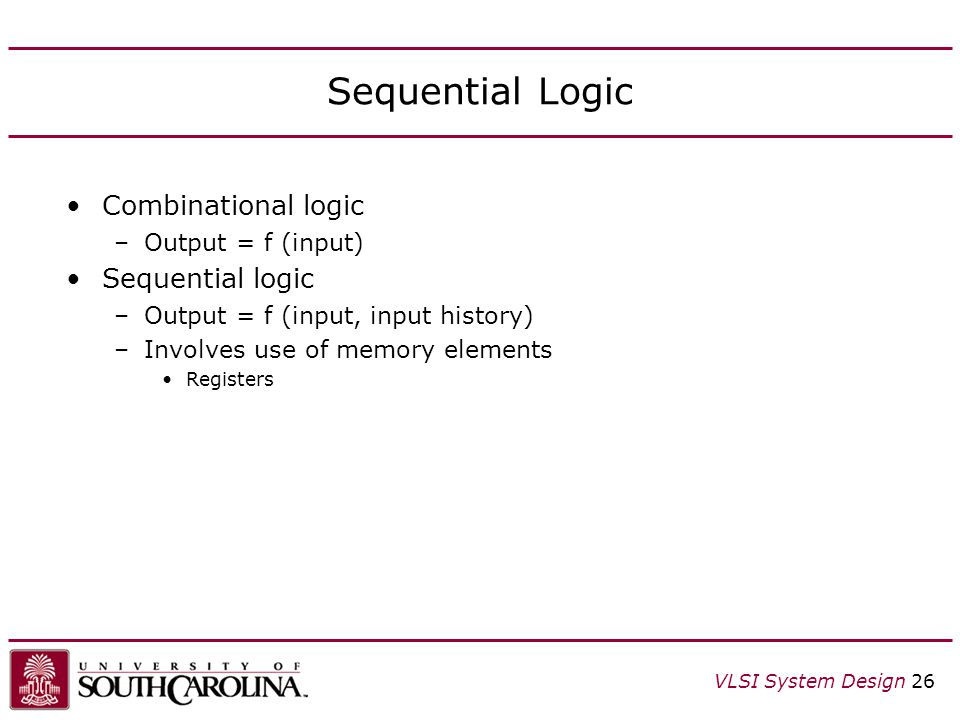

26. VLSI System Design 26 Sequential Logic Combinational logic –Output = f (input) Sequential logic –Output = f (input, input history) –Involves use of memory elements Registers

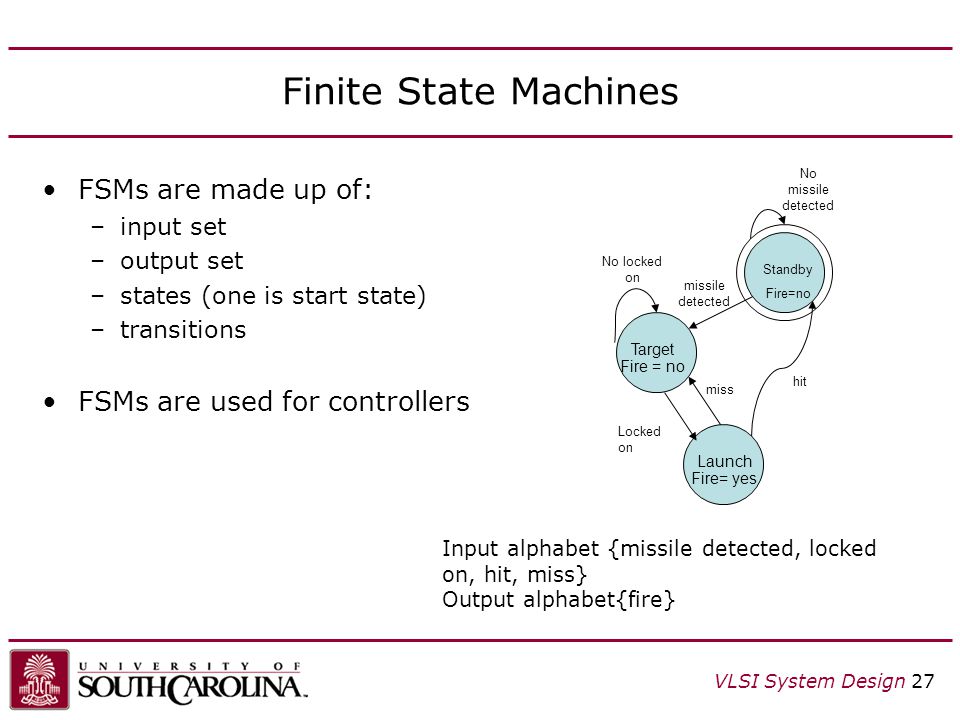

27. VLSI System Design 27 Finite State Machines FSMs are made up of: –input set –output set –states (one is start state) –transitions FSMs are used for controllers No missile detected Standby Fire=no Target Fire = no missile detected Launch Fire= yes miss hit Locked on Input alphabet {missile detected, locked on, hit, miss} Output alphabet{fire} No locked on

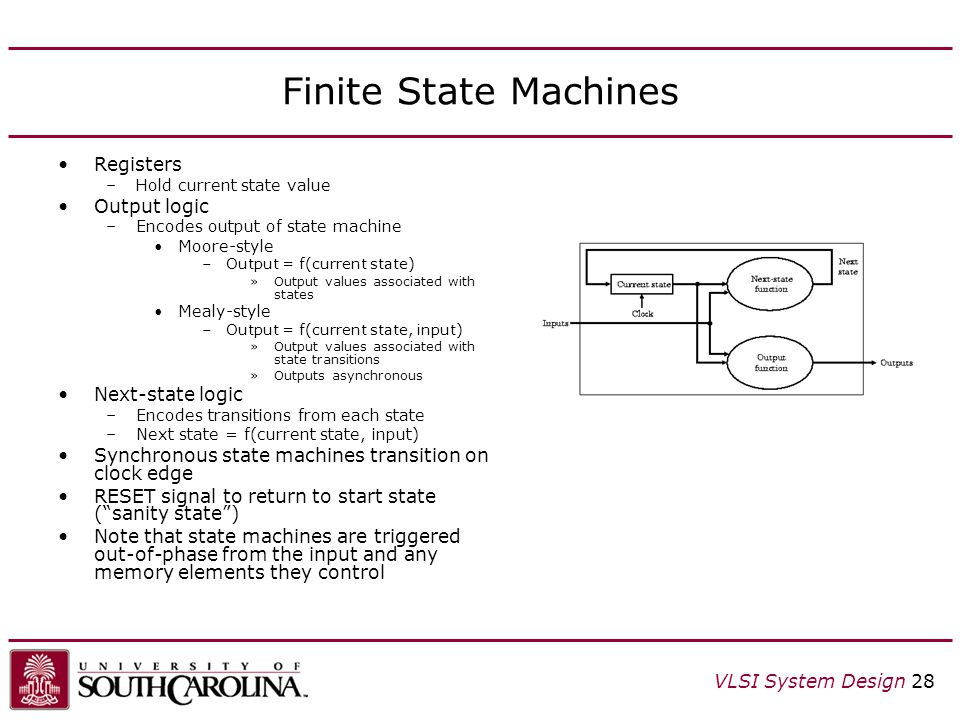

28. VLSI System Design 28 Finite State Machines Registers –Hold current state value Output logic –Encodes output of state machine Moore-style –Output = f(current state) »Output values associated with states Mealy-style –Output = f(current state, input) »Output values associated with state transitions »Outputs asynchronous Next-state logic –Encodes transitions from each state –Next state = f(current state, input) Synchronous state machines transition on clock edge RESET signal to return to start state (“sanity state”) Note that state machines are triggered out-of-phase from the input and any memory elements they control

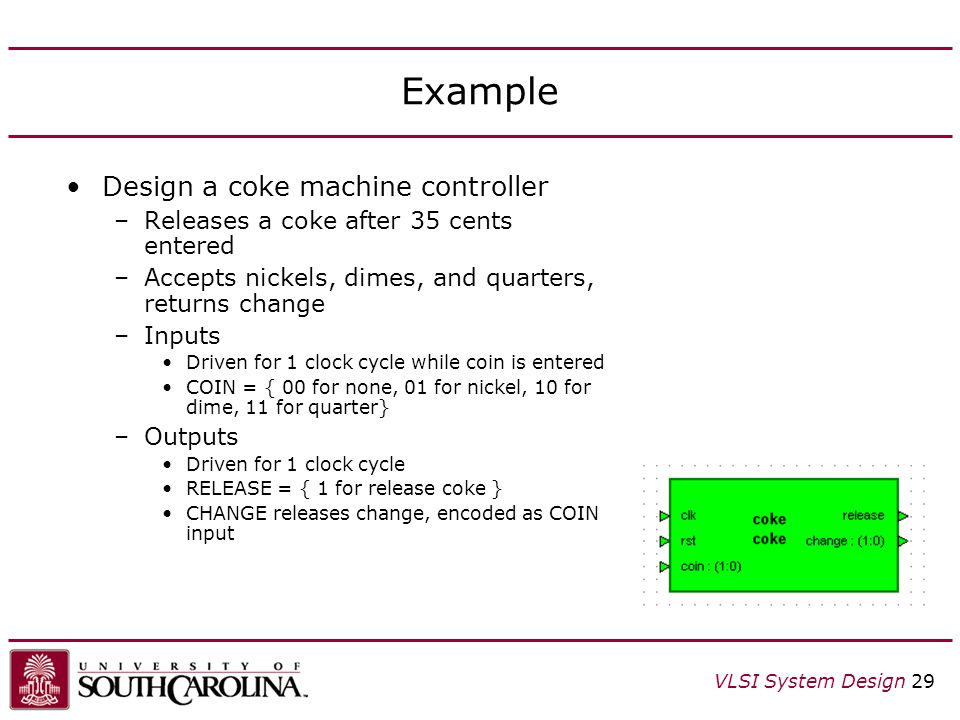

29. VLSI System Design 29 Example Design a coke machine controller –Releases a coke after 35 cents entered –Accepts nickels, dimes, and quarters, returns change –Inputs Driven for 1 clock cycle while coin is entered COIN = { 00 for none, 01 for nickel, 10 for dime, 11 for quarter} –Outputs Driven for 1 clock cycle RELEASE = { 1 for release coke } CHANGE releases change, encoded as COIN input

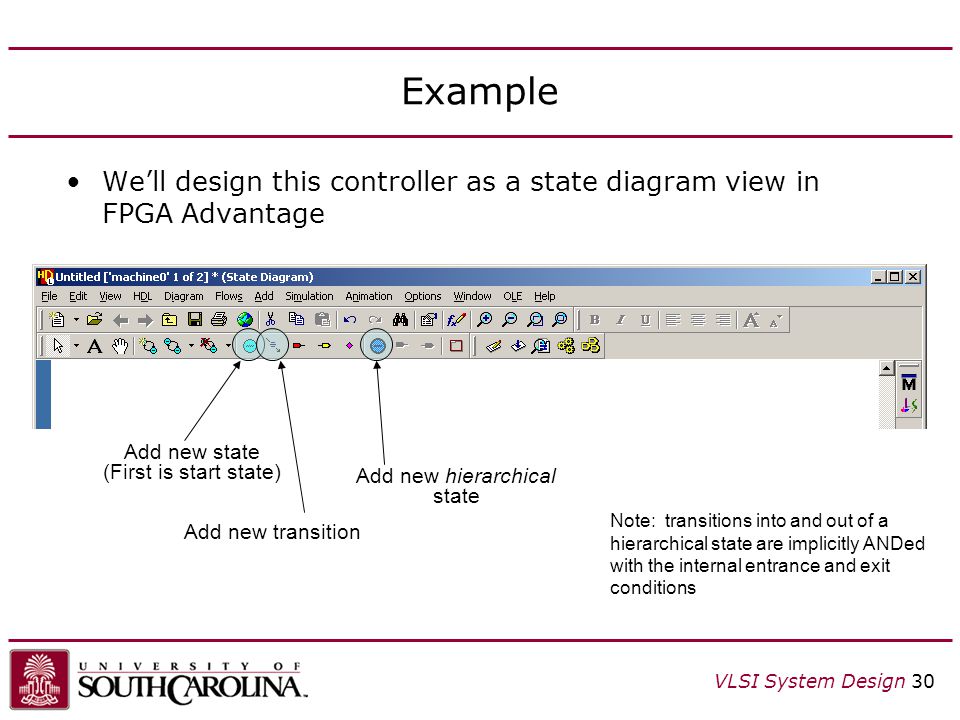

30. VLSI System Design 30 Example We’ll design this controller as a state diagram view in FPGA Advantage Add new state (First is start state) Add new transition Add new hierarchical state Note: transitions into and out of a hierarchical state are implicitly ANDed with the internal entrance and exit conditions

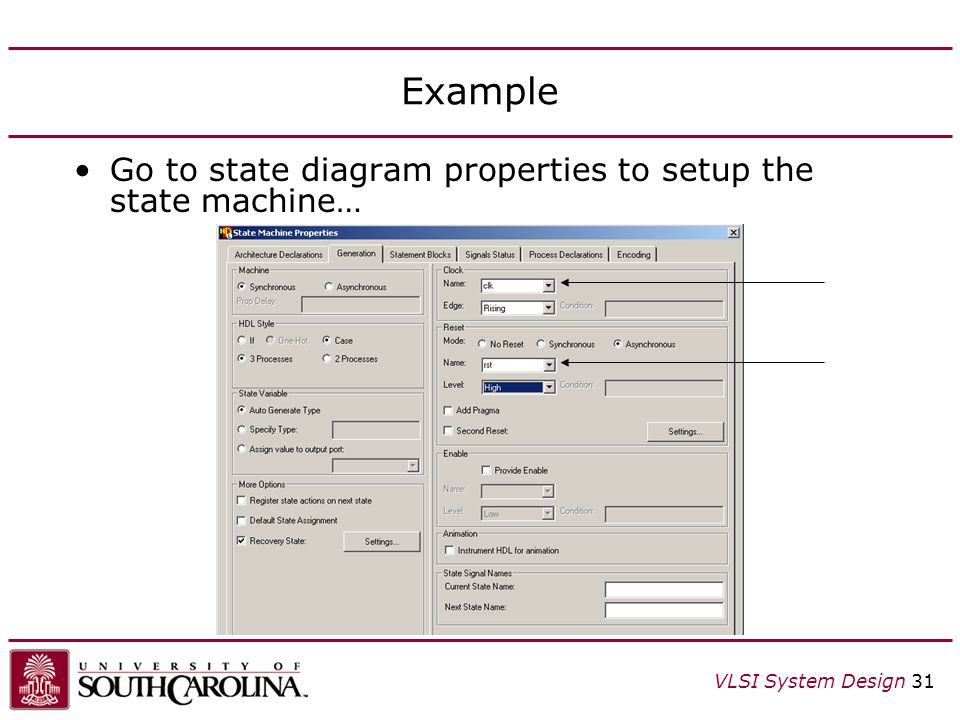

31. VLSI System Design 31 Example Go to state diagram properties to setup the state machine…

32. VLSI System Design 32 Example Specify the output values for each state in the state properties

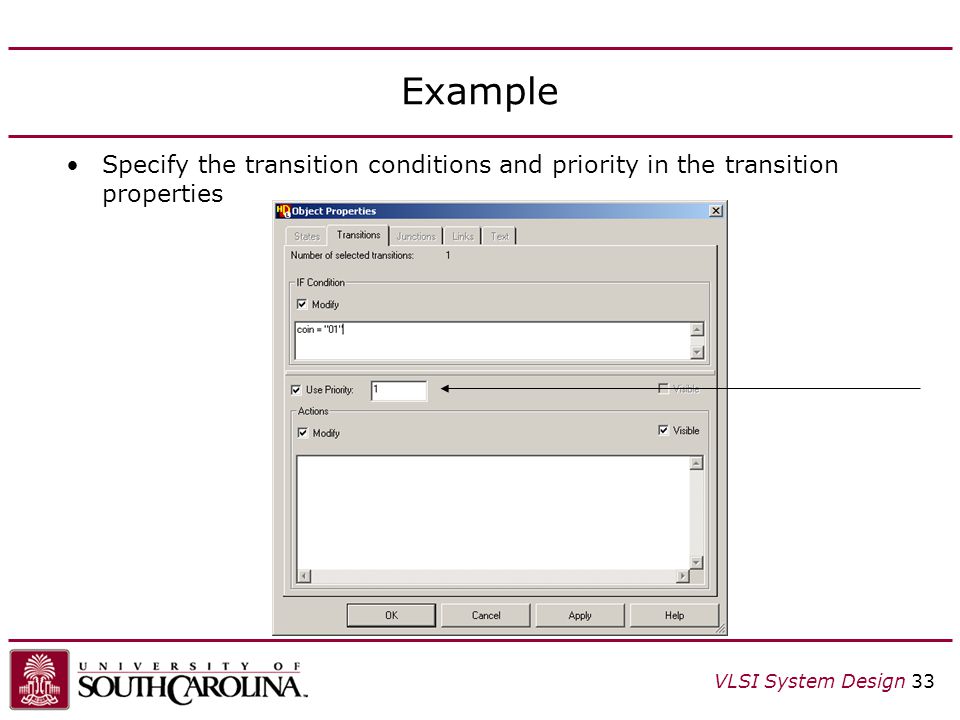

33. VLSI System Design 33 Example Specify the transition conditions and priority in the transition properties

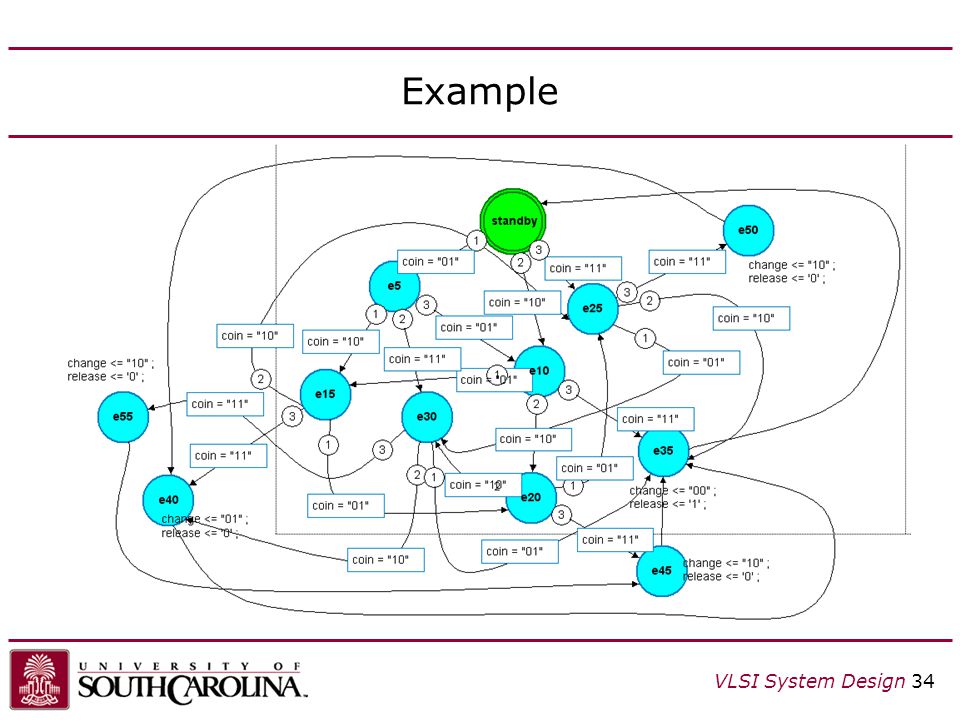

34. VLSI System Design 34 Example

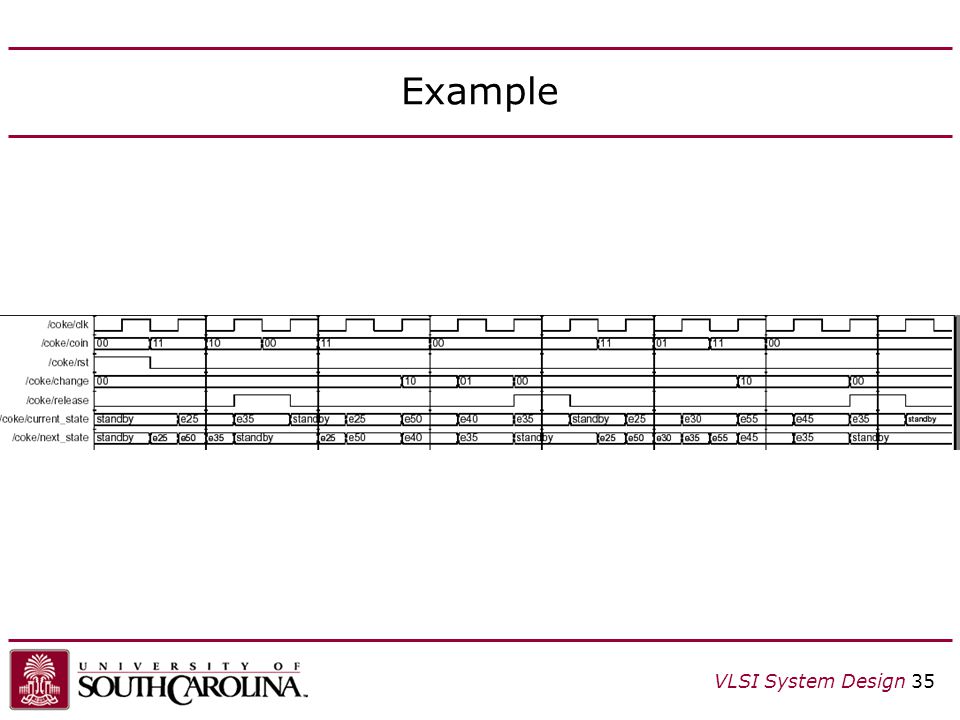

35. VLSI System Design 35 Example

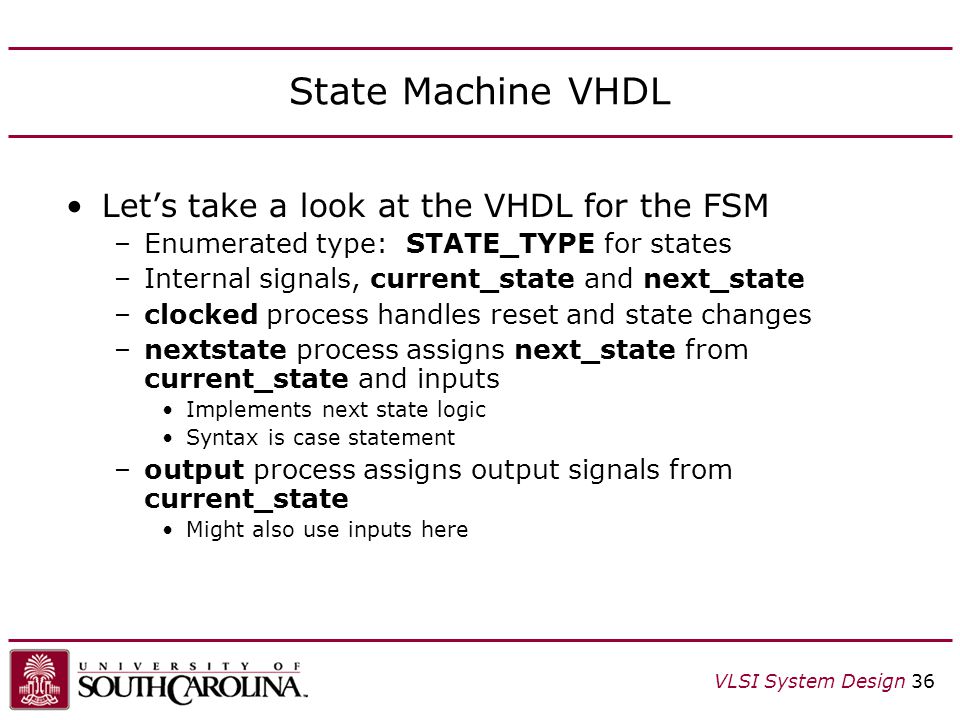

36. VLSI System Design 36 State Machine VHDL Let’s take a look at the VHDL for the FSM –Enumerated type: STATE_TYPE for states –Internal signals, current_state and next_state –clocked process handles reset and state changes –nextstate process assigns next_state from current_state and inputs Implements next state logic Syntax is case statement –output process assigns output signals from current_state Might also use inputs here

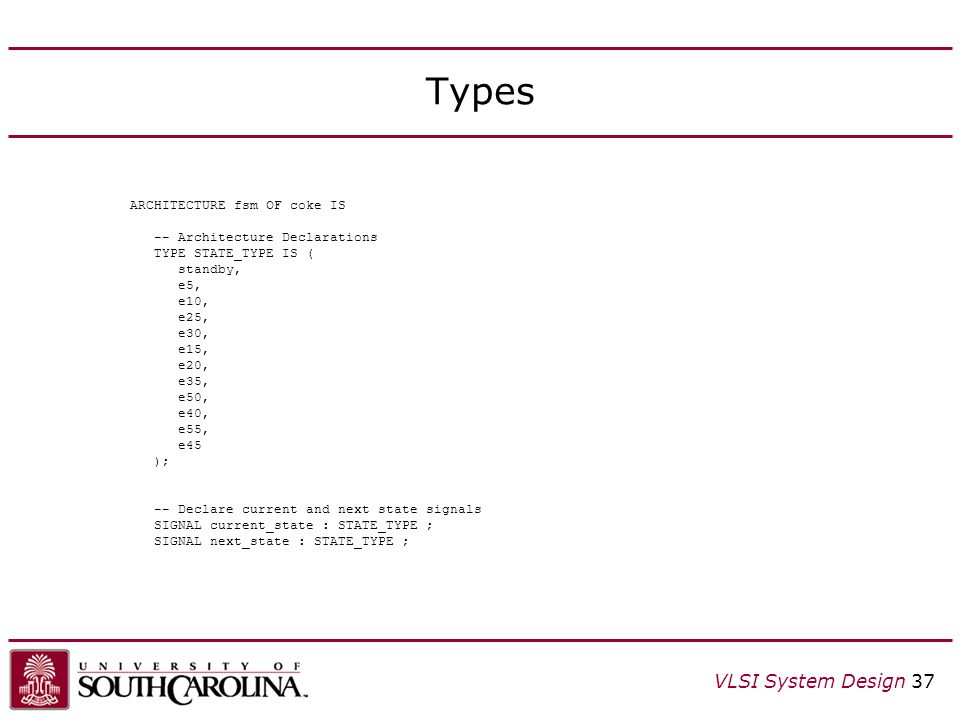

37. VLSI System Design 37 Types ARCHITECTURE fsm OF coke IS -- Architecture Declarations TYPE STATE_TYPE IS ( standby, e5, e10, e25, e30, e15, e20, e35, e50, e40, e55, e45 ); -- Declare current and next state signals SIGNAL current_state : STATE_TYPE ; SIGNAL next_state : STATE_TYPE ;

38. VLSI System Design 38 “clocked” Process ---------------------------------------------------------------------------- clocked : PROCESS( clk, rst ) ---------------------------------------------------------------------------- BEGIN IF (rst = '1') THEN current_state <= standby; -- Reset Values ELSIF (clk'EVENT AND clk = '1') THEN current_state <= next_state; -- Default Assignment To Internals END IF; END PROCESS clocked;

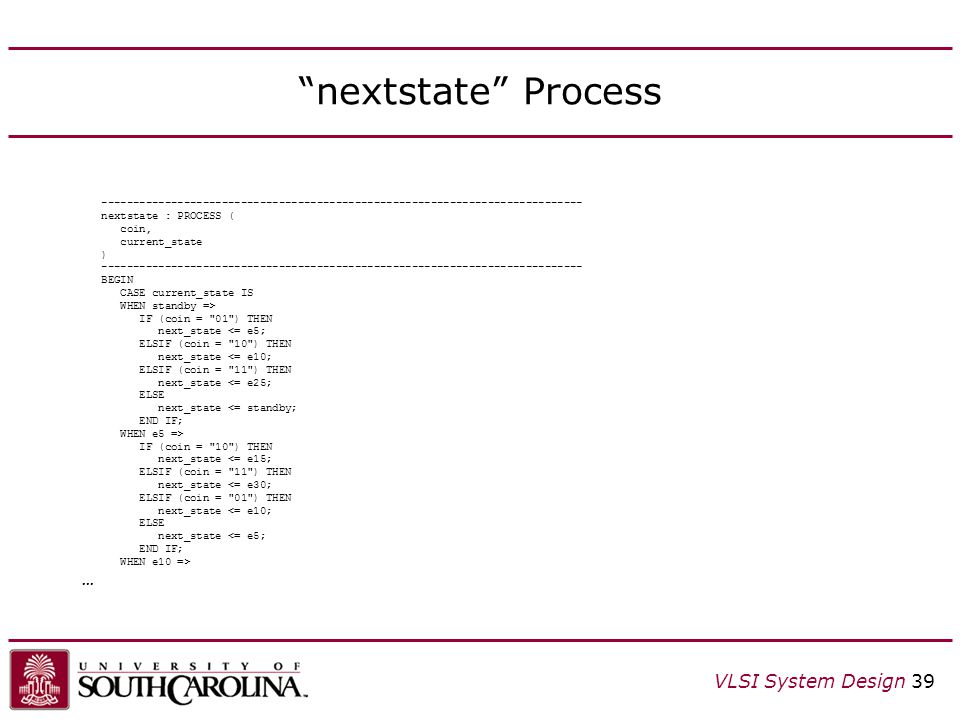

39. VLSI System Design 39 “nextstate” Process ---------------------------------------------------------------------------- nextstate : PROCESS ( coin, current_state ) ---------------------------------------------------------------------------- BEGIN CASE current_state IS WHEN standby => IF (coin = "01") THEN next_state <= e5; ELSIF (coin = "10") THEN next_state <= e10; ELSIF (coin = "11") THEN next_state <= e25; ELSE next_state <= standby; END IF; WHEN e5 => IF (coin = "10") THEN next_state <= e15; ELSIF (coin = "11") THEN next_state <= e30; ELSIF (coin = "01") THEN next_state <= e10; ELSE next_state <= e5; END IF; WHEN e10 => …

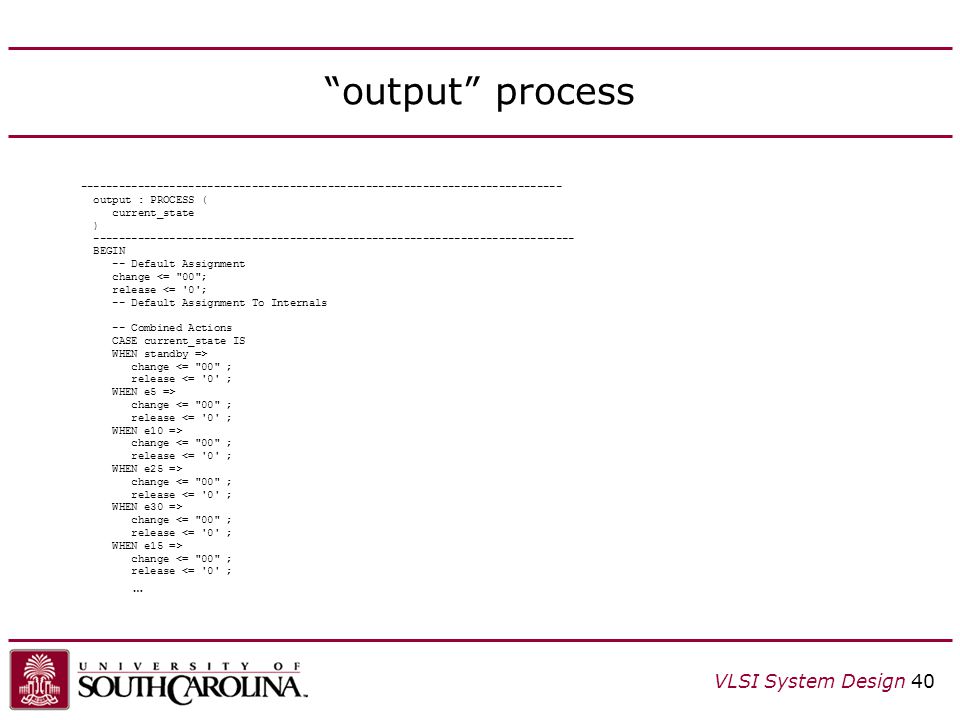

40. VLSI System Design 40 “output” process ---------------------------------------------------------------------------- output : PROCESS ( current_state ) ---------------------------------------------------------------------------- BEGIN -- Default Assignment change <= "00"; release <= '0'; -- Default Assignment To Internals -- Combined Actions CASE current_state IS WHEN standby => change <= "00" ; release <= '0' ; WHEN e5 => change <= "00" ; release <= '0' ; WHEN e10 => change <= "00" ; release <= '0' ; WHEN e25 => change <= "00" ; release <= '0' ; WHEN e30 => change <= "00" ; release <= '0' ; WHEN e15 => change <= "00" ; release <= '0' ; …

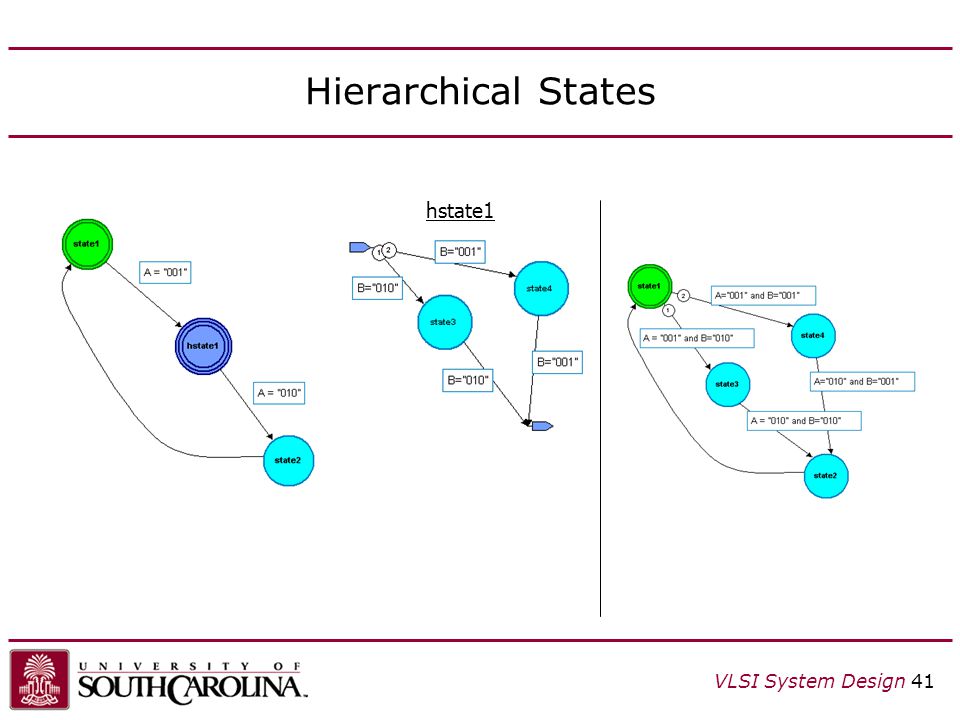

41. VLSI System Design 41 Hierarchical States hstate1

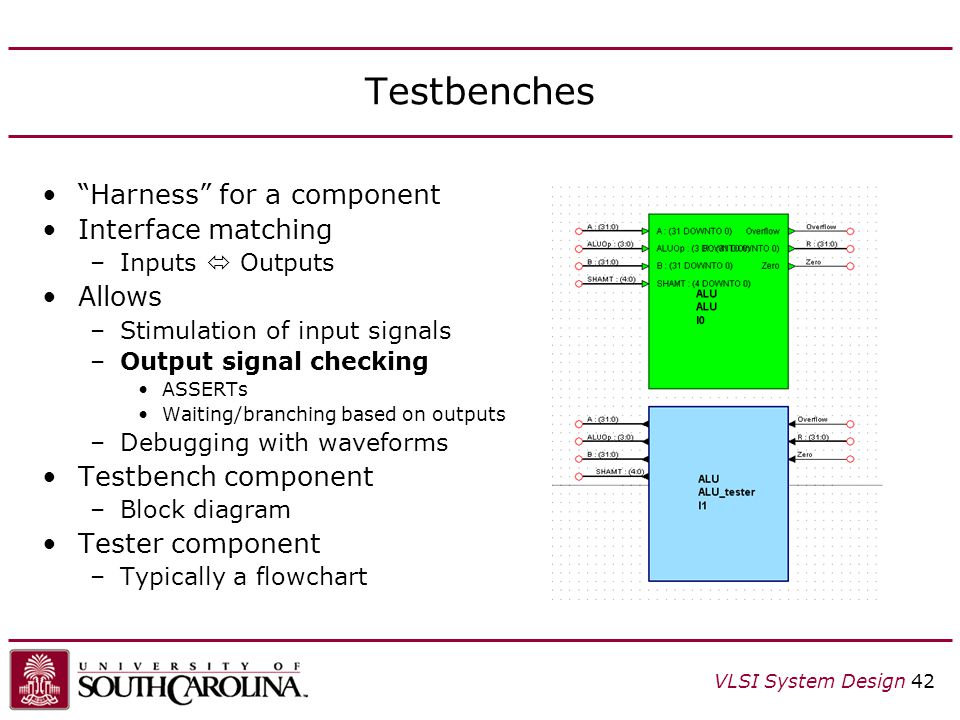

42. VLSI System Design 42 Testbenches “Harness” for a component Interface matching –Inputs  Outputs Allows –Stimulation of input signals –Output signal checking ASSERTs Waiting/branching based on outputs –Debugging with waveforms Testbench component –Block diagram Tester component –Typically a flowchart

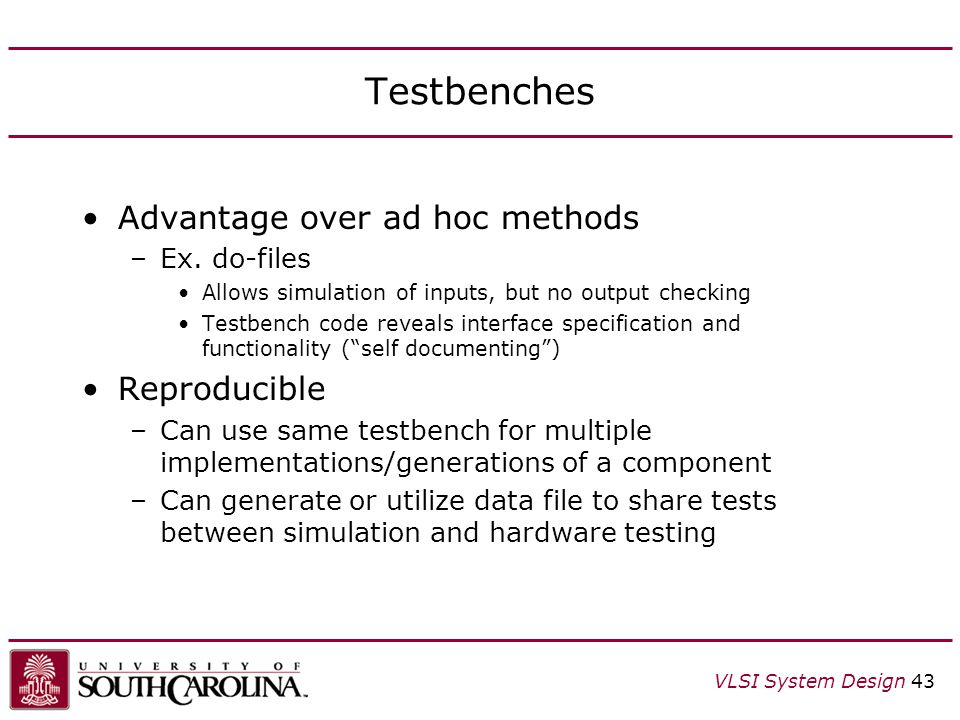

43. VLSI System Design 43 Testbenches Advantage over ad hoc methods –Ex. do-files Allows simulation of inputs, but no output checking Testbench code reveals interface specification and functionality (“self documenting”) Reproducible –Can use same testbench for multiple implementations/generations of a component –Can generate or utilize data file to share tests between simulation and hardware testing

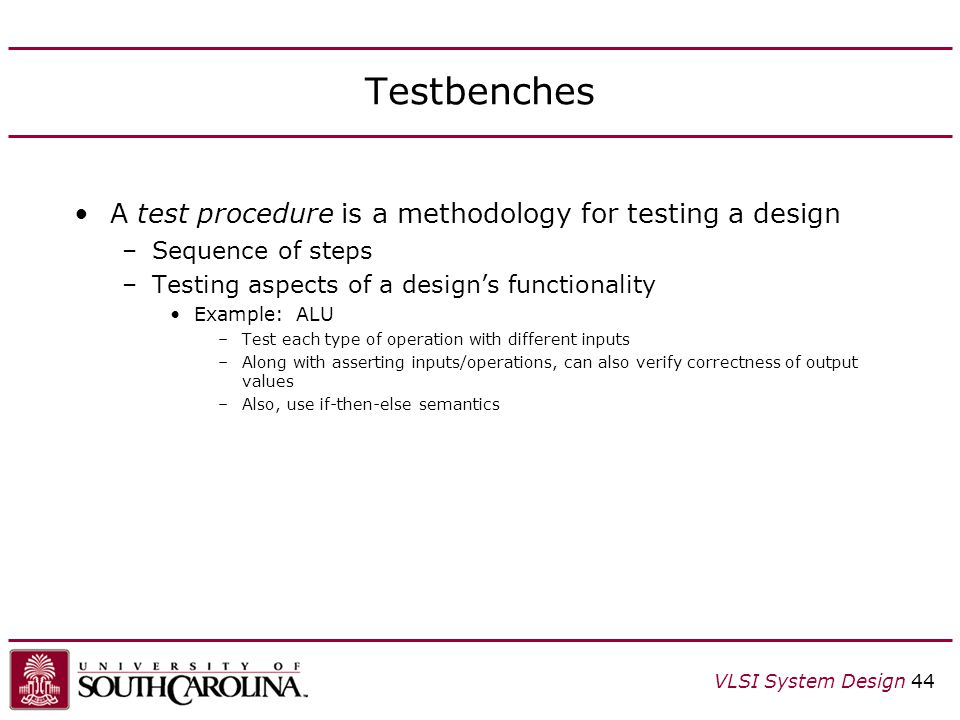

44. VLSI System Design 44 Testbenches A test procedure is a methodology for testing a design –Sequence of steps –Testing aspects of a design’s functionality Example: ALU –Test each type of operation with different inputs –Along with asserting inputs/operations, can also verify correctness of output values –Also, use if-then-else semantics

45. VLSI System Design 45 Testbenches Facilities in HDL Designer –Easy creation of tester/testbench –Flowchart view is natural choice for implementing a test bench Mirrors test procedure in a graphical representation –VHDL support for testbenches ASSERT/REPORT/SEVERITY clause –Can use boolean operators here Testbench operates in simulation

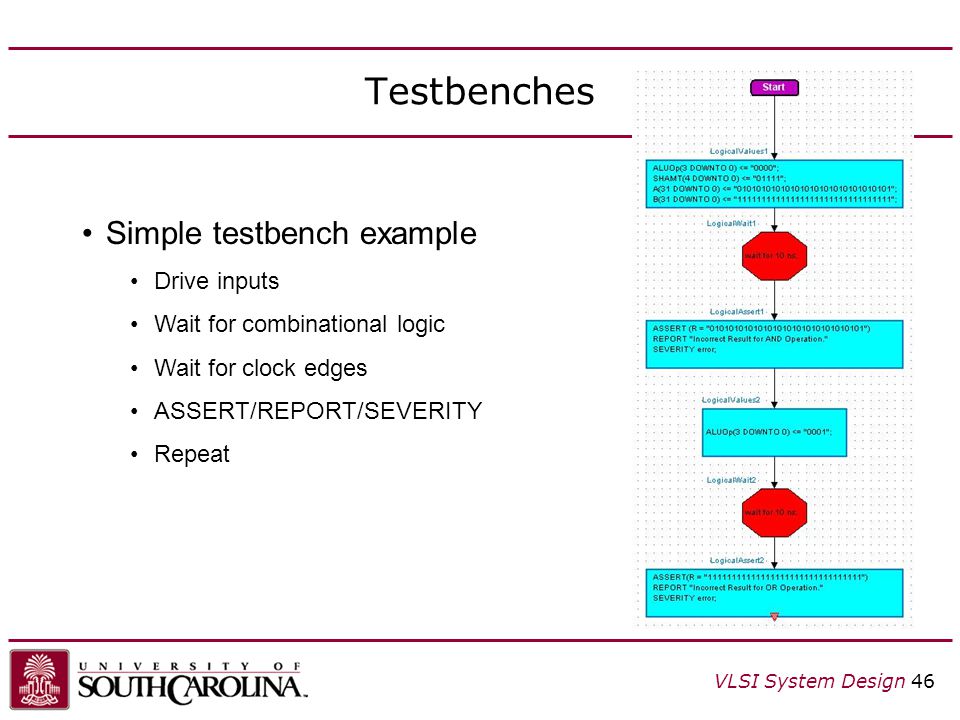

46. VLSI System Design 46 Testbenches Simple testbench example Drive inputs Wait for combinational logic Wait for clock edges ASSERT/REPORT/SEVERITY Repeat
