1. Chapter 9 Chapter 9: Managing Server Folders, Permissions, and Software Installation

2. Chapter 9 Learning Objectives n Manage folders on a server, including: u Planning a folder structure u Viewing and creating folders u Setting folder properties such as attributes, permissions, auditing, and ownership u Setting up shared folders u Moving and copying files and folders n Install and manage application software continued

3. Chapter 9 Learning Objectives n Use the Registry to configure Windows NT Server and application software, and use Windows NT Diagnostics to view Registry contents n Set system policies using the System Policy Editor n Configure and use License Manager n Configure and use Directory Replicator

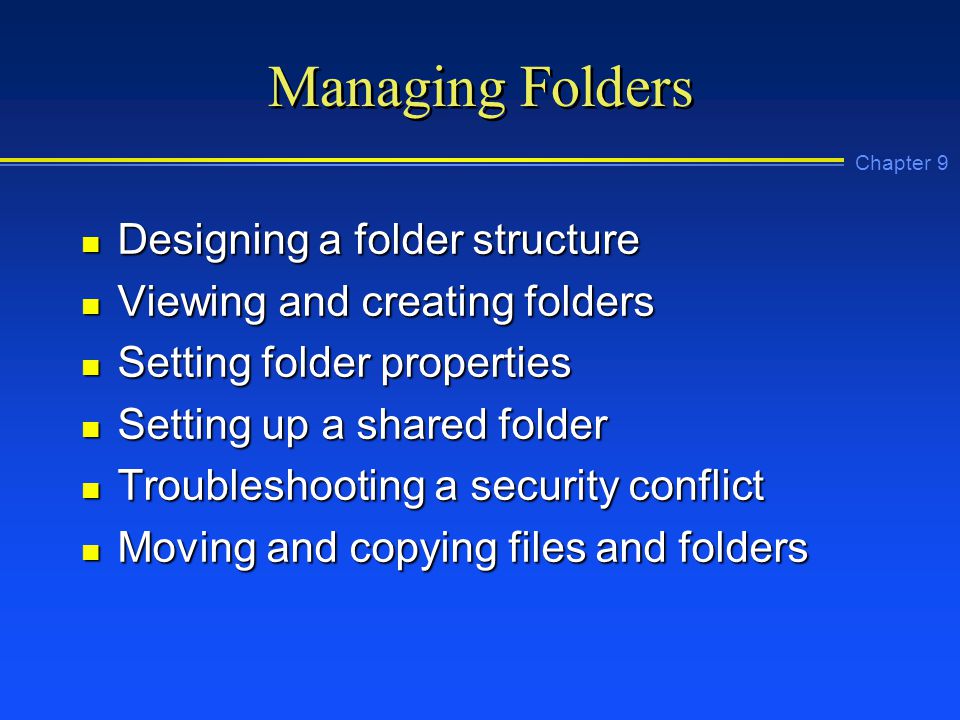

4. Chapter 9 Managing Folders n Designing a folder structure n Viewing and creating folders n Setting folder properties n Setting up a shared folder n Troubleshooting a security conflict n Moving and copying files and folders

5. Chapter 9 Designing a Folder Structure n A chaotic file structure makes it difficult to run or remove programs n Avoid confusion by having a place for: u Software applications u Confidential files shared by certain groups u Public files shared by everyone u Software utilities for all users u Server management utilities

6. Chapter 9 Folder Structure Design Considerations n Root folder should not be cluttered with files or too many folders n Each software application should have its own folder or subfolder n Similar information should be grouped n Folders should have names that clearly reflect their purpose

7. Chapter 9 A Sample Folder Structure Folders off the Root UsersDataWord Forms Manage Ntserver ContractsCourt Wills Tax Bankruptcy RealEstate Msoffice Winnt (created by NT Server setup) Access Clipart Excel Office Queries Templates Winword

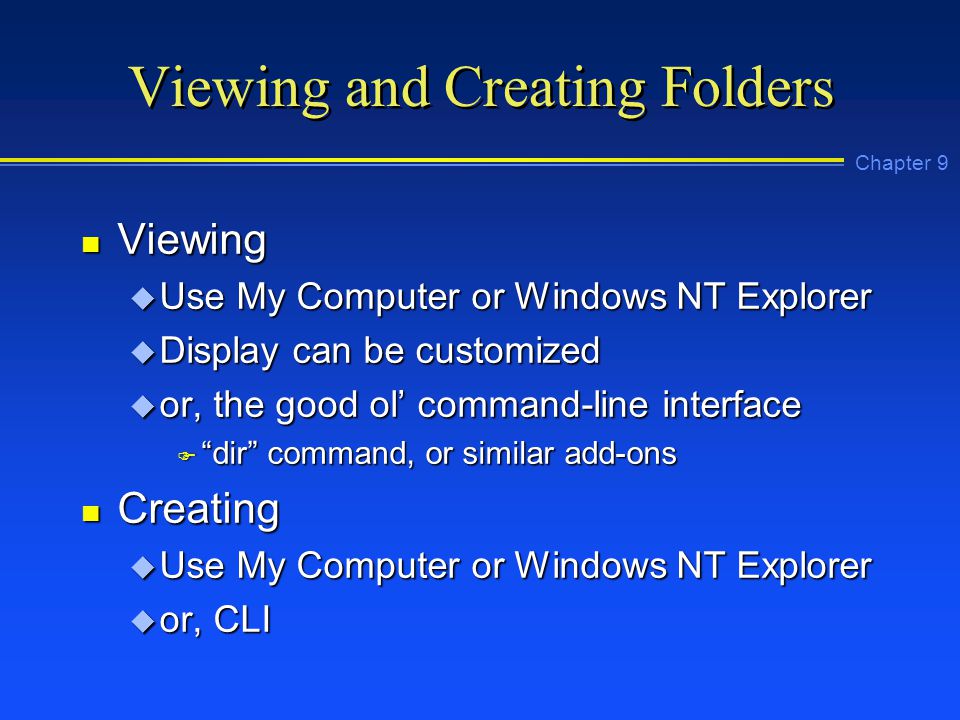

8. Chapter 9 Viewing and Creating Folders n Viewing u Use My Computer or Windows NT Explorer u Display can be customized u or, the good ol’ command-line interface F “dir” command, or similar add-ons n Creating u Use My Computer or Windows NT Explorer u or, CLI

9. Chapter 9 Setting Folder Properties n General properties n Folder and permission security n Permissions n Auditing n Ownership

10. Chapter 9 General Properties n Descriptive information u Location u Size u Number of files/folders n Folder name and creation date n Folder attributes

11. Chapter 9 Attributes n A characteristic associated with a folder or file, used to help mange access and backups n Largely ignored by NT administrators (except for backup purposes) in favor of rights and permissions

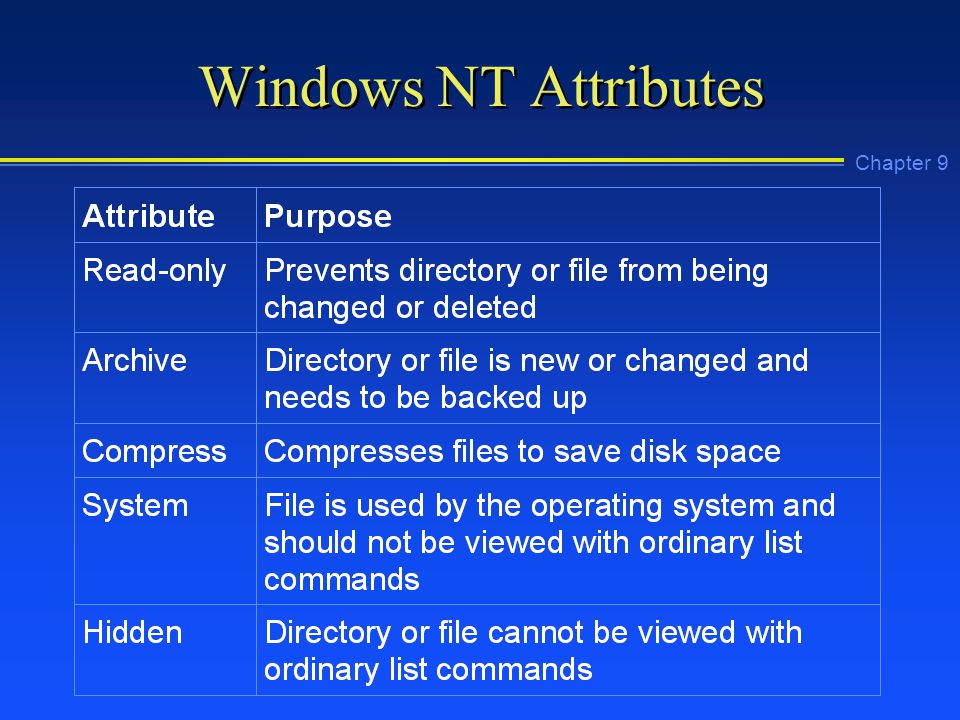

12. Chapter 9 Windows NT Attributes

13. Chapter 9 Folder and Permission Security n Three security options u Permissions: Control access to the folder and its contents u Auditing: Enables administrator to audit activities on a folder or file u Ownership: Designates the folder owner who has full control of that folder

14. Chapter 9 NTFS Folder and File Permissions

15. Chapter 9 Directory Permissions Dialog Box Note: would usually have >1 group/username under “Name”.

16. Chapter 9 Microsoft Guidelines for Setting Permissions n Protect the Winnt folder that contains operating system files from general users (No Access or Read) but give Administrators Full Control access n Protect server utility folders with access permissions only for Administrators, and Server and Backup Operators continued

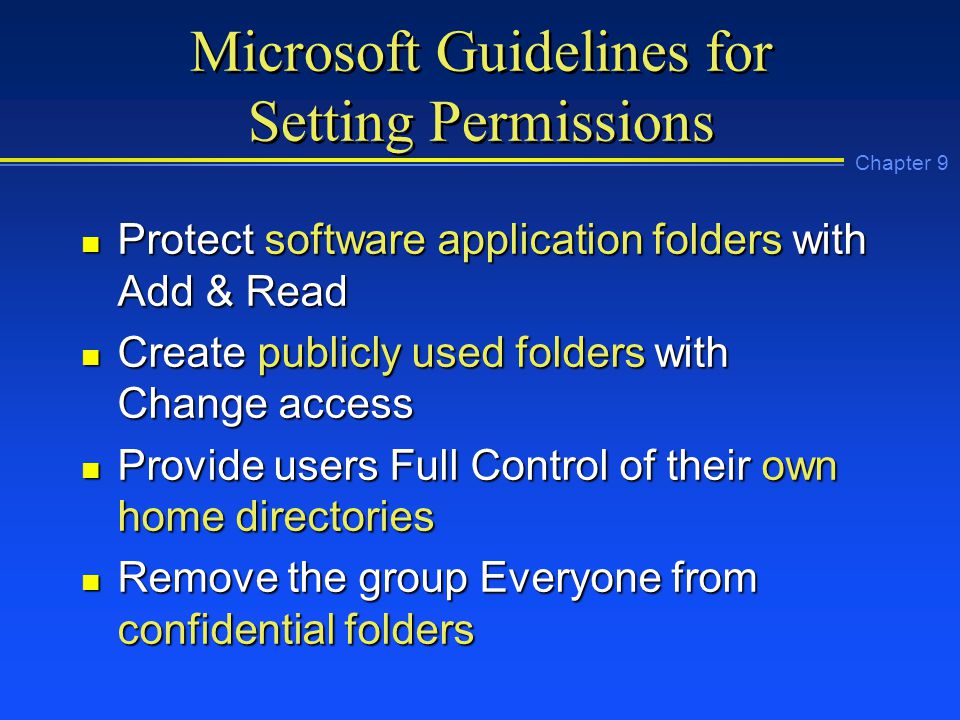

17. Chapter 9 Microsoft Guidelines for Setting Permissions n Protect software application folders with Add & Read n Create publicly used folders with Change access n Provide users Full Control of their own home directories n Remove the group Everyone from confidential folders

18. Chapter 9 Special Folder and Special File Access Options n Enable customization of folders or file access beyond standard permissions u different combinations of the aforementioned abilities F R, W, X, D, C, “take owner” u useful for special situations, if need be

19. Chapter 9 Auditing n Tracks access to folders and files n Directory Auditing dialog box enables auditing of a variety of successful and failed events F track success/fail, whichever is more important for that particular case F remember, auditing can be expensive -- that is, can dramatically affect server performance

20. Chapter 9 Ownership n Folder owners have Full Control permissions for the folders they create Taking ownership of a folder

21. Chapter 9 Setting Up a Shared Folder n Share permissions u No Access u Read u Change u Full Control n Can be overridden u NT uses most restrictive permission, whichever is stricter

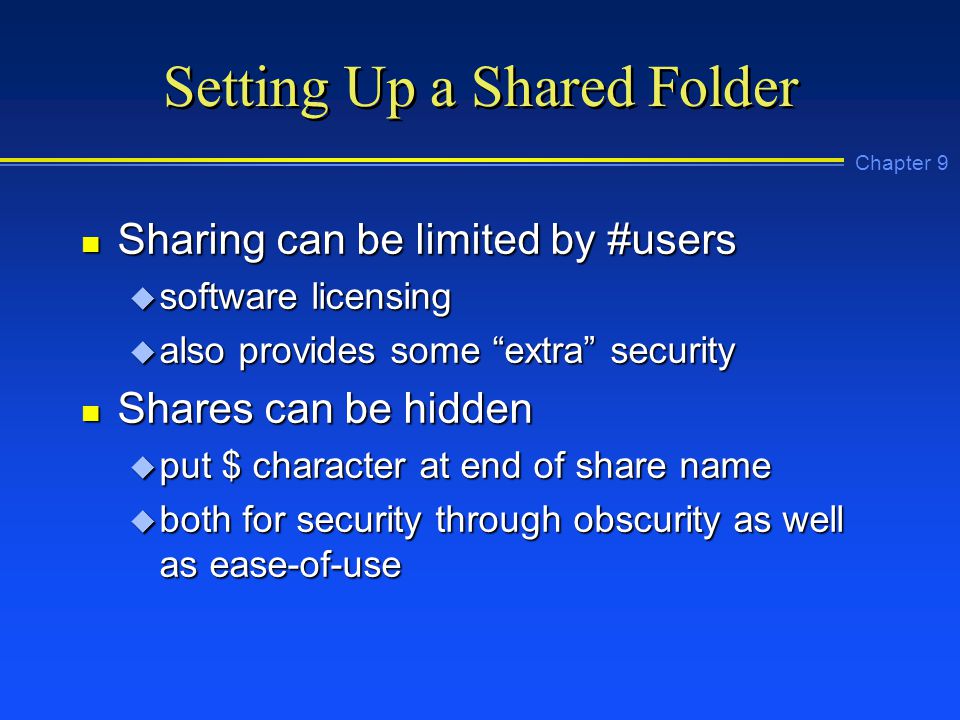

22. Chapter 9 Setting Up a Shared Folder n Sharing can be limited by #users u software licensing u also provides some “extra” security n Shares can be hidden u put $ character at end of share name u both for security through obscurity as well as ease-of-use

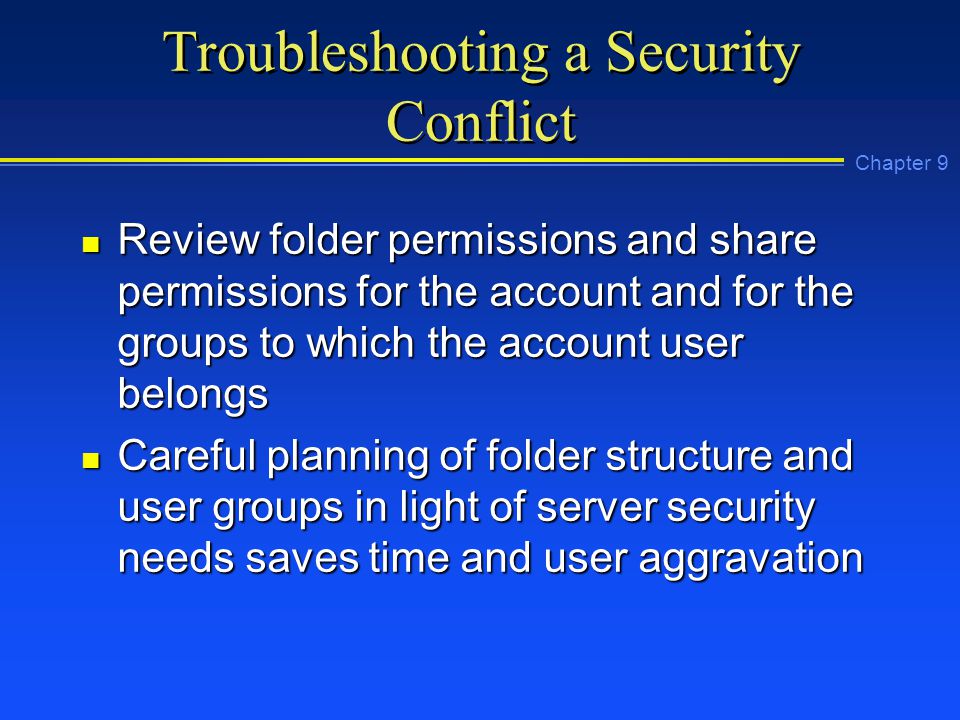

23. Chapter 9 Troubleshooting a Security Conflict n Review folder permissions and share permissions for the account and for the groups to which the account user belongs n Careful planning of folder structure and user groups in light of server security needs saves time and user aggravation

24. Chapter 9 Moving and Copying Files and Folders n Creating, moving, or copying a file can affect the file and folder permissions u Moving: File is deleted from the original location placed in a different folder u Copying: Original file remains intact and a copy is made in another folder n New file permissions depend on F copy/create - inherit from folder F move - retain existing F unless move to different volume - like copy

25. Chapter 9 Installing and Managing Application Software n Software licensing n Network compatibility n Network performance n Location of temporary files n Software testing n Loading software from the network n Restrictions for MS-DOS-based software

26. Chapter 9 Software Licensing n Read and follow licensing agreement before loading software n Copy protect the software F user education important n License monitoring: A process used to ensure that the number of software licenses in use does not exceed the number for which the network is authorized

27. Chapter 9 Network Compatibility n Check all applications to be certain they are network-compatible, i.e., designed for multiuser access, often with network capabilities such as options to send files through e-mail u with popularity of the Internet, new applications generally are network-friendly u but remember, Internet features can be a security hole

28. Chapter 9 Network Performance n Closely monitor network activity and traffic associated with software applications u some applications have BIG effect on network traffic u remember, software is one consideration when choosing topology

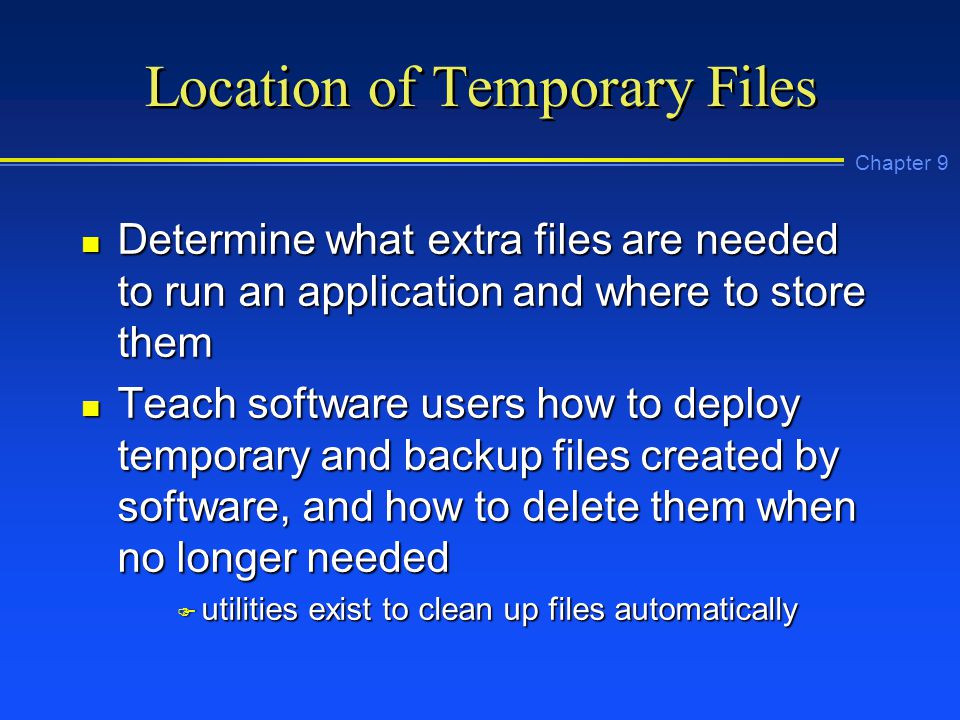

29. Chapter 9 Location of Temporary Files n Determine what extra files are needed to run an application and where to store them n Teach software users how to deploy temporary and backup files created by software, and how to delete them when no longer needed F utilities exist to clean up files automatically

30. Chapter 9 Software Testing n Test each software installation before releasing it to users n An important way to determine that the software is working, is network compatible, and that the permissions are correctly set

31. Chapter 9 Loading Software from the Network n One option: Install software application files from network onto each client workstation n Another option: Install client software so that application files are loaded from server u Advantage: Save workstation disk space u Advantage: Ease of management u Disadvantage: Extra network traffic

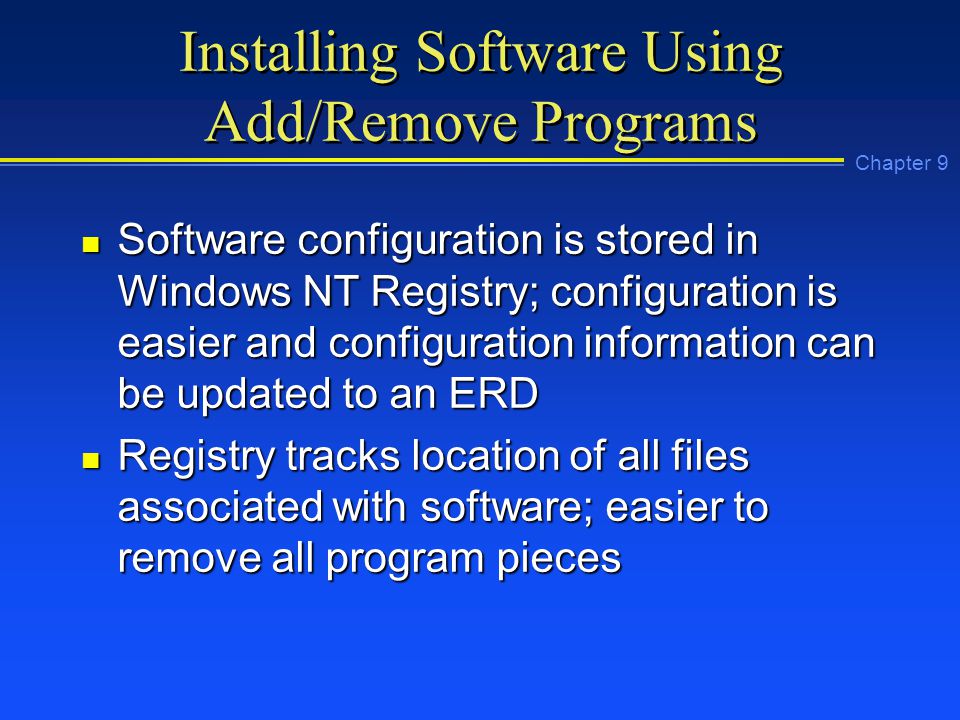

32. Chapter 9 Installing Software Using Add/Remove Programs n Software configuration is stored in Windows NT Registry; configuration is easier and configuration information can be updated to an ERD n Registry tracks location of all files associated with software; easier to remove all program pieces

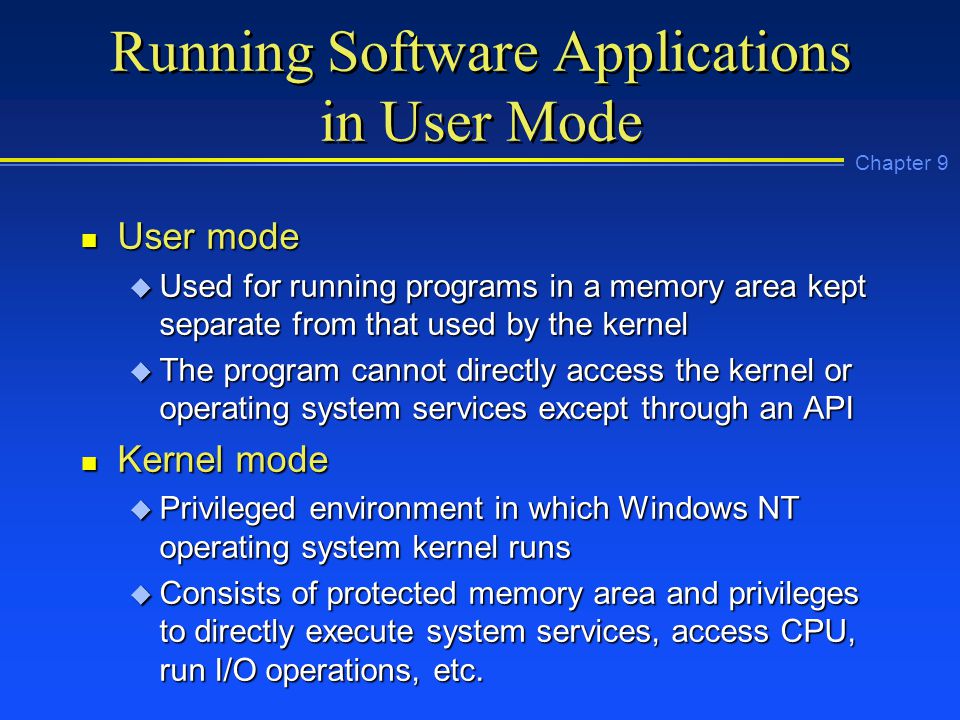

33. Chapter 9 Running Software Applications in User Mode n User mode u Used for running programs in a memory area kept separate from that used by the kernel u The program cannot directly access the kernel or operating system services except through an API n Kernel mode u Privileged environment in which Windows NT operating system kernel runs u Consists of protected memory area and privileges to directly execute system services, access CPU, run I/O operations, etc.

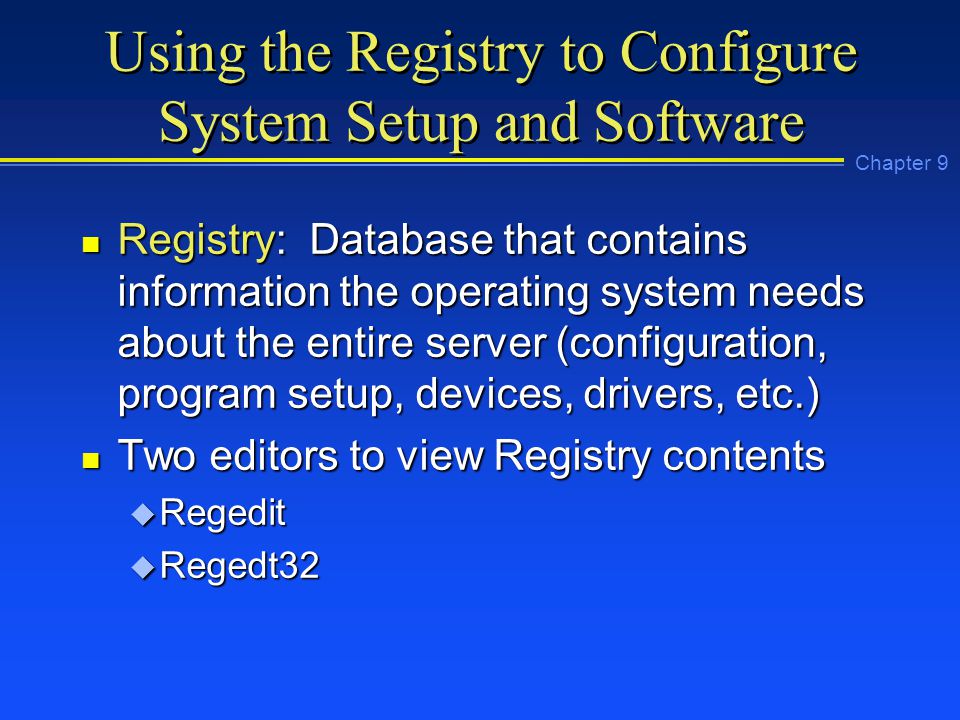

34. Chapter 9 Using the Registry to Configure System Setup and Software n Registry: Database that contains information the operating system needs about the entire server (configuration, program setup, devices, drivers, etc.) n Two editors to view Registry contents u Regedit u Regedt32

35. Chapter 9 The Five Root Keys n Root key (or subtree): Highest category of data contained in the Registry n The five root keys u HKEY_LOCAL_MACHINE u HKEY_CURRENT_USER u HKEY_USERS u HKEY_CLASSES_ROOT u HKEY_CURRENT_CONFIG

36. Chapter 9 The Five Root Keys

37. Chapter 9 Backing Up the Registry n The Registry is vitally important to Windows NT Server n Plan to back it up regularly when you back up other files F ERD - via RDISK F separately - via REGBACK F 3rd-party backup software often has specific options for registry

38. Chapter 9 Setting System Policies n Override registry settings in Windows NT Server n Used to set up special conditions for individual users F security F ease-of-use n Used to set up restrictions for all users F security F ease-of-use

39. Chapter 9 System Policies to Govern All Users n Control Panel display options n Desktop wallpaper and color schemes n Operating system shell restrictions F hiding drives, Net Neighborhood, etc. n System restrictions F run only certain programs, etc. n Windows NT Shell options n Windows NT System options

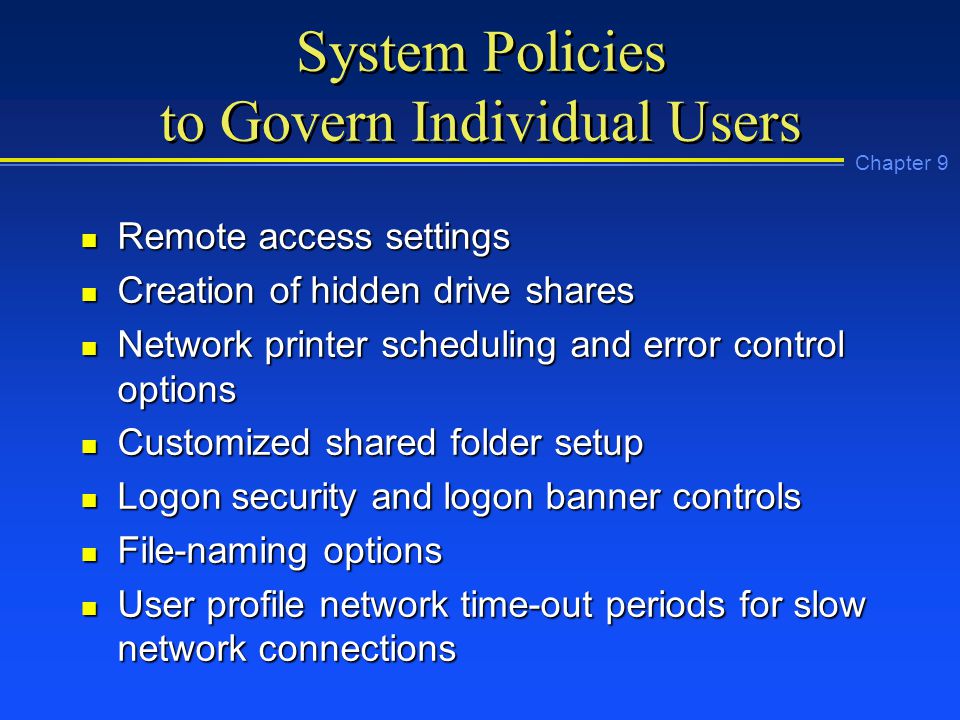

40. Chapter 9 System Policies to Govern Individual Users n Remote access settings n Creation of hidden drive shares n Network printer scheduling and error control options n Customized shared folder setup n Logon security and logon banner controls n File-naming options n User profile network time-out periods for slow network connections

41. Chapter 9 Setting Up and Using License Manager n “License” = right to use software F license terms differ by vendor F select the best option based on needs & price n Per seat licensing: Requires that there be enough licensees for all network client workstations n Per server licensing: Based on maximum number of clients that use an application at one time

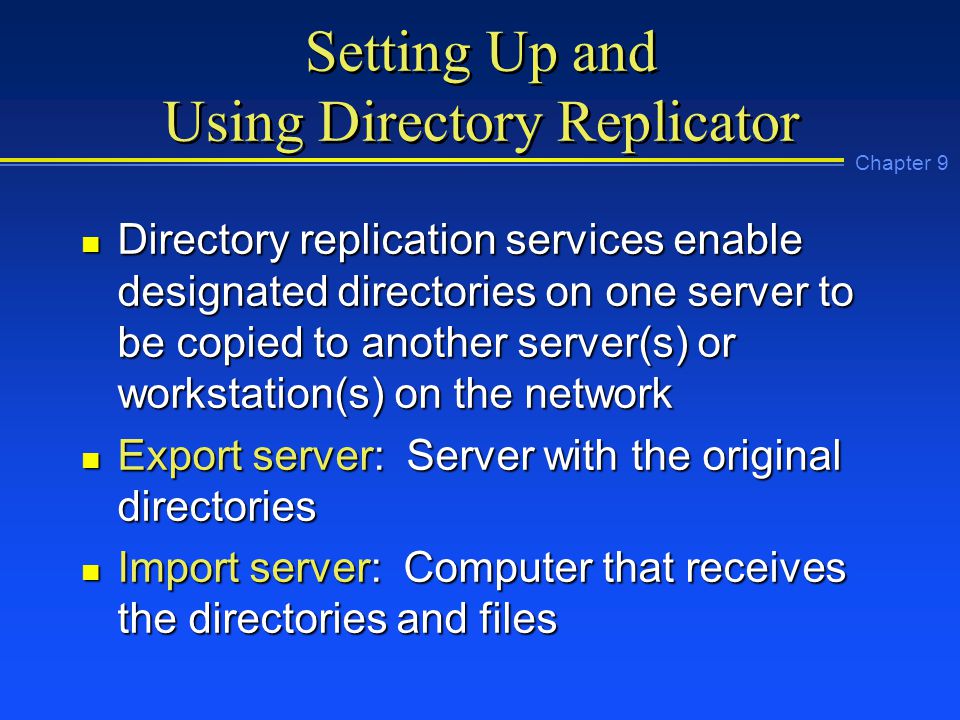

42. Chapter 9 Setting Up and Using Directory Replicator n Directory replication services enable designated directories on one server to be copied to another server(s) or workstation(s) on the network n Export server: Server with the original directories n Import server: Computer that receives the directories and files

43. Chapter 9 Directory Replication Uses n To copy an update database on a member server in a client/server system to a reporting database on a different member server n To create a backup copy of account- related information

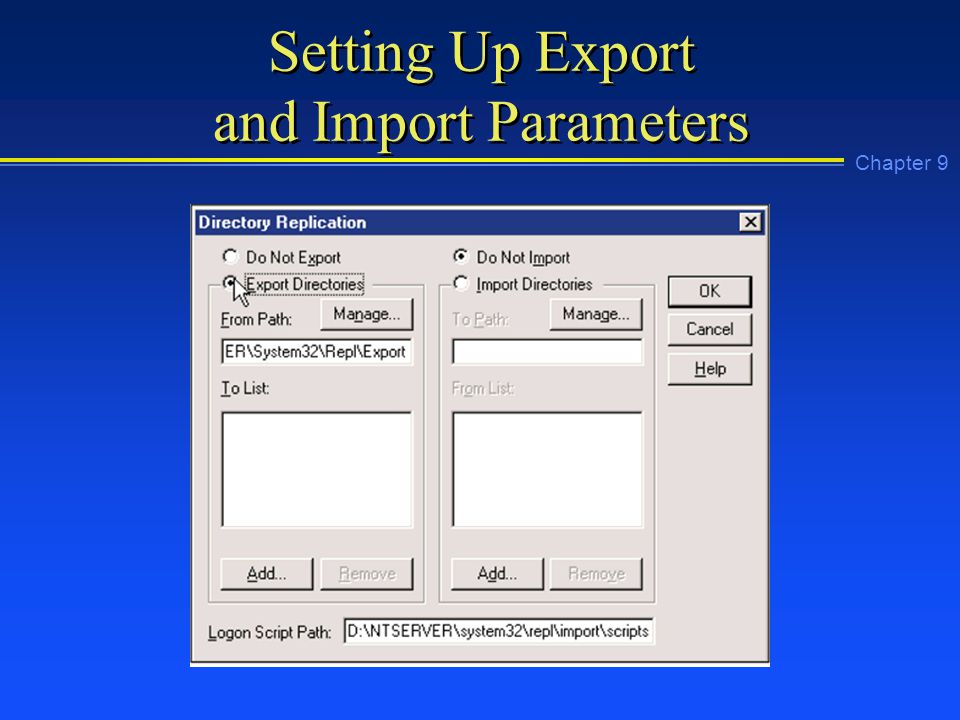

44. Chapter 9 Setting Up Export and Import Parameters

45. Chapter 9 Chapter Summary n Plan folder structure in advance. u Create distinct folders for user directories, software applications, server utilities, etc. u Set up folder properties F Set up permissions according to purpose of folder continued

46. Chapter 9 Chapter Summary n Before installing application software in a folder, make sure the software is network-compatible. n Use Add/Remove Programs tool to install software so that installation is coordinated with the Windows NT Registry. continued

47. Chapter 9 Chapter Summary n System policies offer another way to change Registry settings and to customize how users access Windows NT Server. n License Manager records and monitors the number of licenses. n Directory Replicator copies folders from a server to other network computers.
