1. CS 337 Project Presentation Asset Management and Tracking Developers: –Jimmy Hoo –Edwin Panameno –Manuel Segura –Sheng-Tian Lin Customers –Alexandre Lomovtsev –Guanhua Xie

2. CS 337 Project Presentation Project Description Software will gather software, hardware and operating system information properties from workstations on the network. This information will then be made available for administrators to view and manage.

3. CS 337 Project Presentation Analysis Classes Computer Server Users Administrators PC Reports Theft Reports

4. CS 337 Project Presentation Computer Properties/Attributes –Name –User Information –Hardware Information –OS Information –Software Information Operations –Generates Data –Sends Data to Server

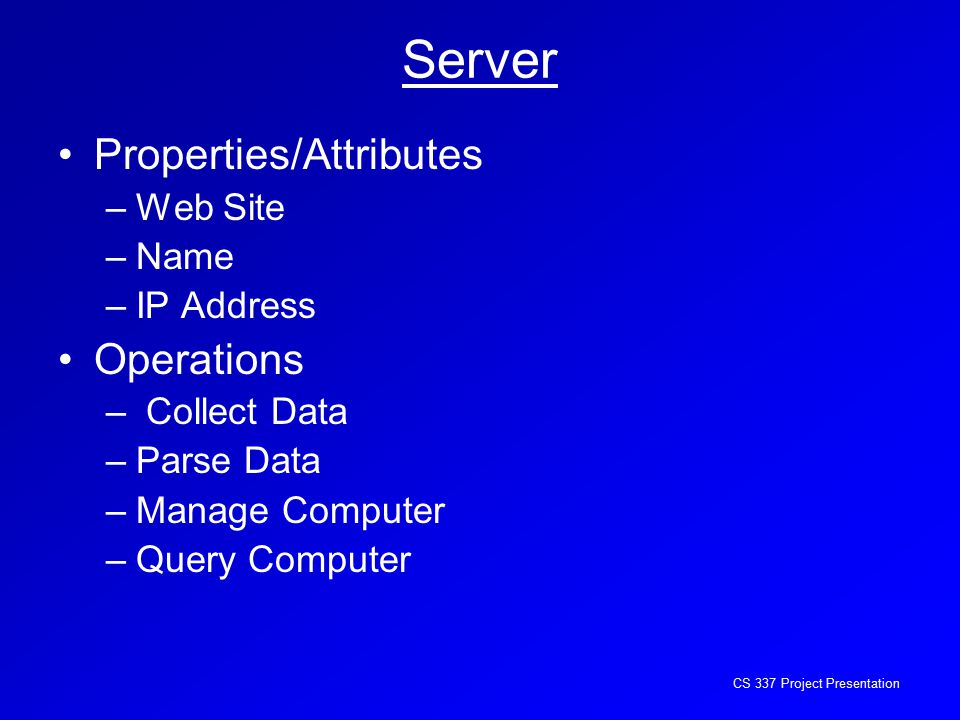

5. CS 337 Project Presentation Server Properties/Attributes –Web Site –Name –IP Address Operations – Collect Data –Parse Data –Manage Computer –Query Computer

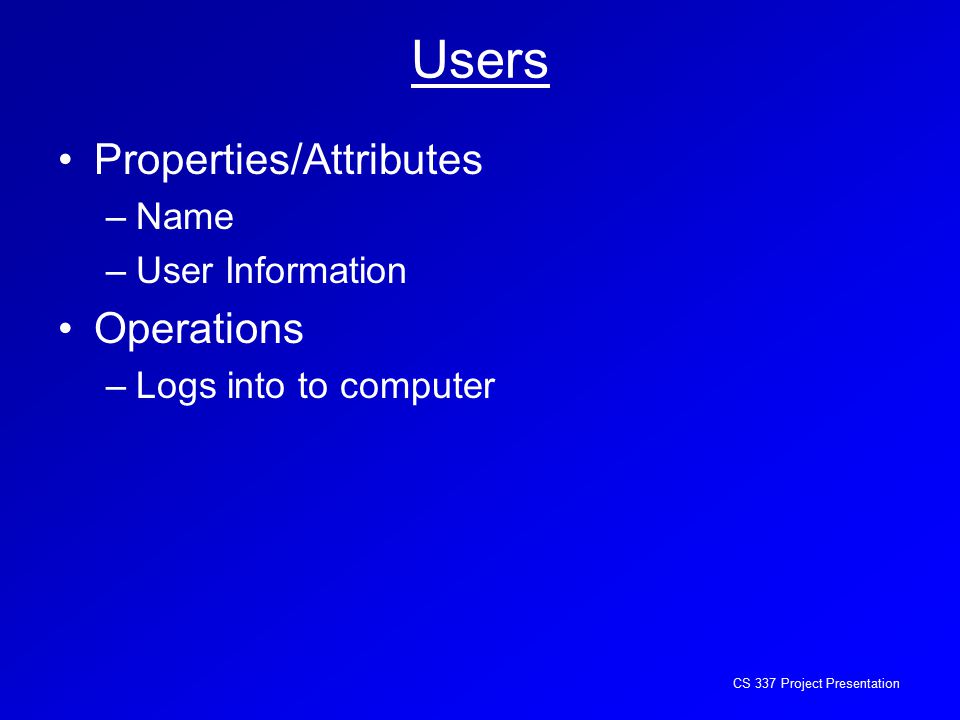

6. CS 337 Project Presentation Users Properties/Attributes –Name –User Information Operations –Logs into to computer

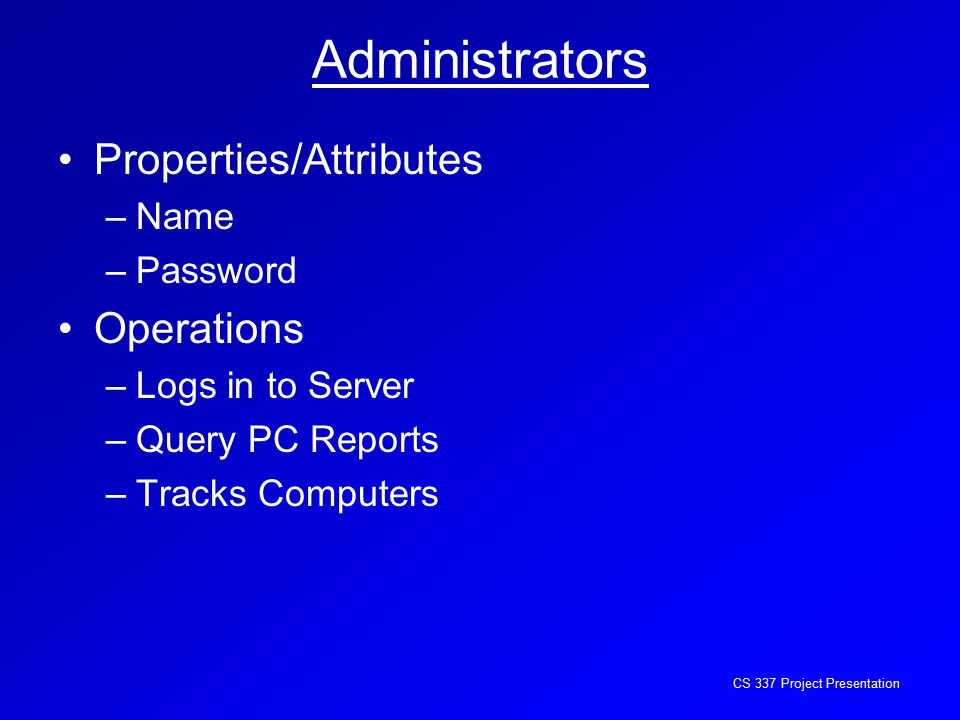

7. CS 337 Project Presentation Administrators Properties/Attributes –Name –Password Operations –Logs in to Server –Query PC Reports –Tracks Computers

8. CS 337 Project Presentation PC Reports Properties/Attributes –Computer Name –Hardware Information –Software Information –OS Information Operations –View Report

9. CS 337 Project Presentation Theft Reports Properties/Attributes –Computer Info –Date Reported –Location –IP Address Operations –View Report –Generate Report

10. CS 337 Project Presentation Persistent Data List of: –All computers in network –Hardware information –Software Information –OS Information List of Generated Reports –PC Reports –Theft Reports Administrators List –Login Names –Passwords

11. CS 337 Project Presentation Use Cases Missing/Stolen Computers Live Audits Scheduled Audit

12. CS 337 Project Presentation Missing/Stolen Computer Use Case

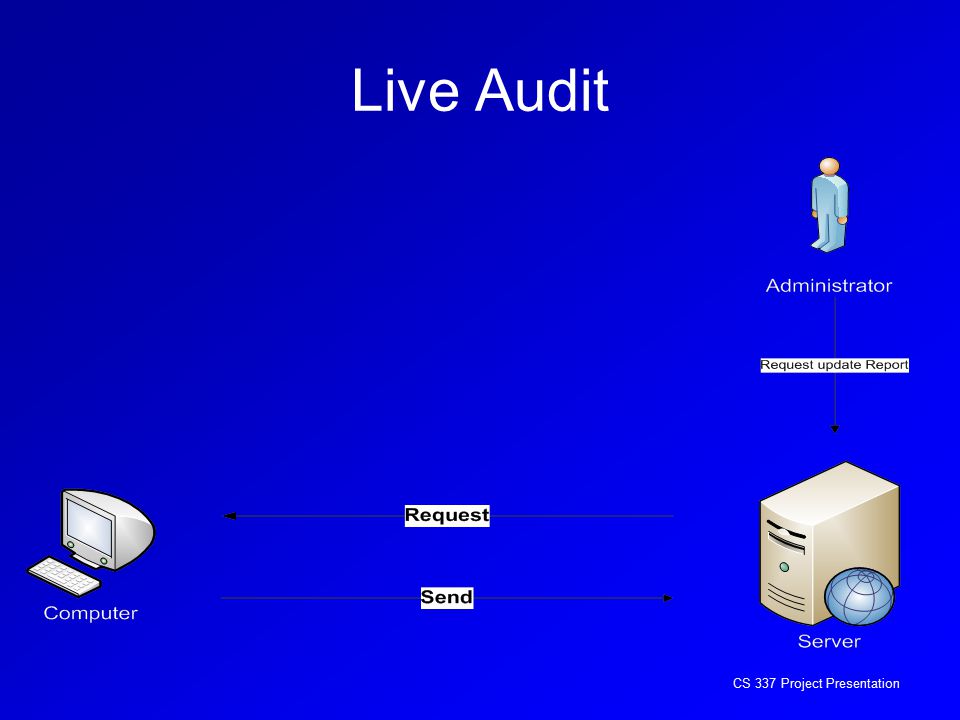

13. CS 337 Project Presentation Live Audit

14. CS 337 Project Presentation Scheduled Audit

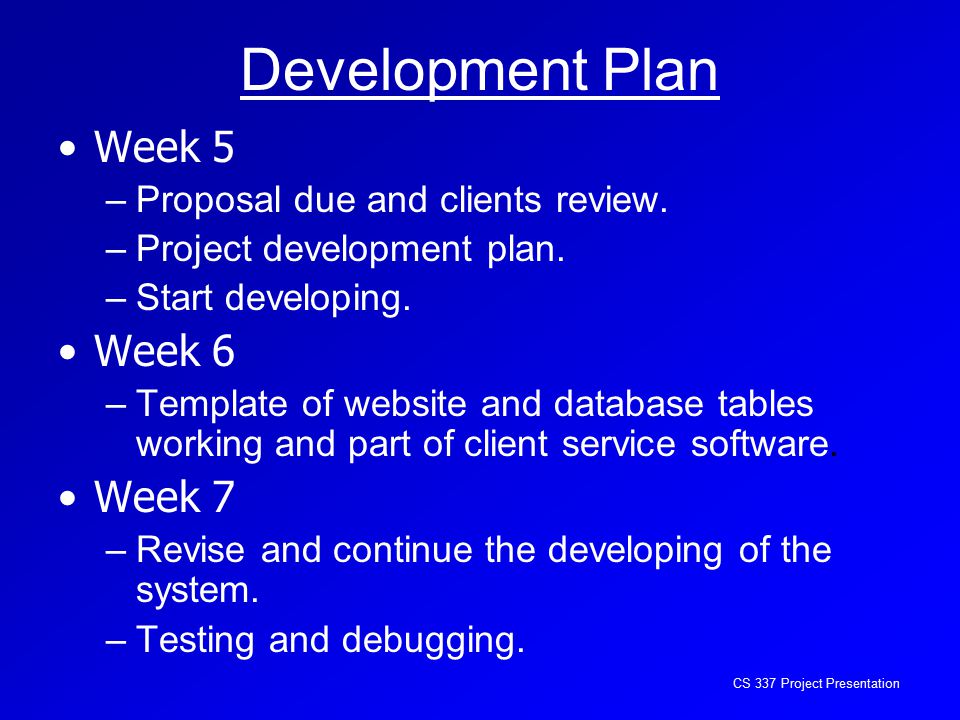

15. CS 337 Project Presentation Development Plan Week 5 –Proposal due and clients review. –Project development plan. –Start developing. Week 6 –Template of website and database tables working and part of client service software. Week 7 –Revise and continue the developing of the system. –Testing and debugging.

16. CS 337 Project Presentation Development Plan (cont) Week 8 –Presentation to customer of RC1 system. –Meeting with customer for any changes and second part of payment. –Continue developing Week 9 –Testing and debugging. –Team meeting. –Measurement and maintenance. Week 10 –Second presentation of RC2 system
