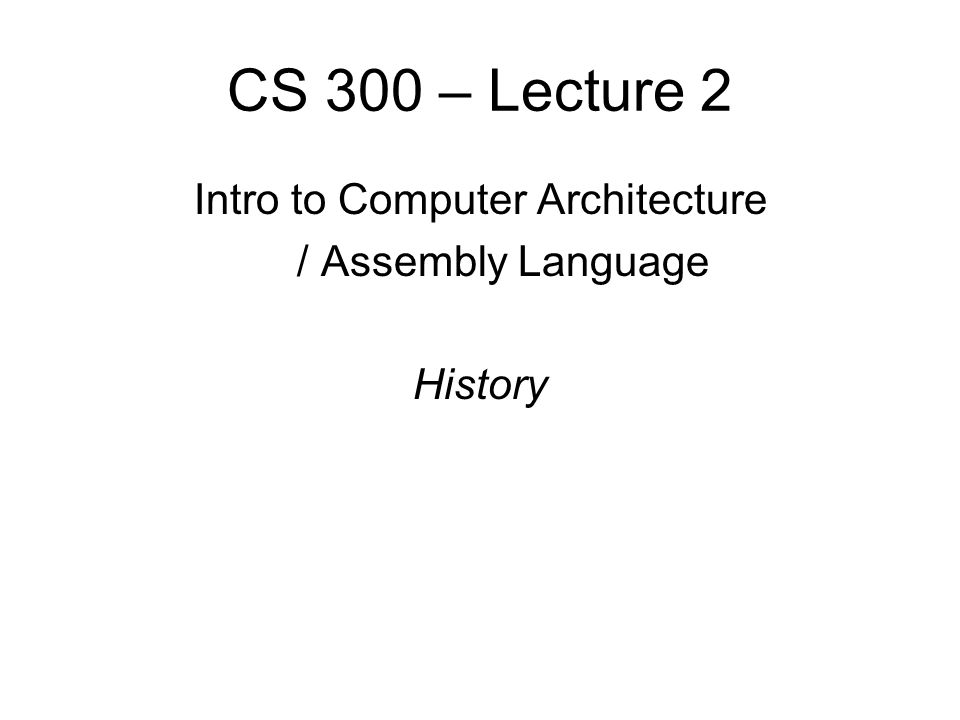

1. CS 300 – Lecture 2 Intro to Computer Architecture / Assembly Language History

2. Help! 190 needs your help! Can you be a TA?

3. Homework 1 Due next Friday. Check the wiki.

4. Stored Programs The key idea in a computer is to execute arbitrary programs for the user. Computers use "machine language" - language understood by the hardware that controls what the computer does. Different processors have different machine languages. Somehow, all of our programs need to get turned into this machine language.

5. Instructions Machine language breaks the computational process into instructions. An instruction is just data (0s and 1s) that is executed. Instructions have two representations: * Binary (in the computer) * Textual (the assembler or textbook) The translation between binary and textual representations is done using an assembler (or disassembler).

6. Data Data in an executing program can live in many different places: * Memory * Registers * Disk * Cache An instruction mutates this data (the "processor state") in some predefined way

7. Programming * Bad old days: Program by rewiring the computer logic * Early computers: program written in binary * Back in my day: program written in assembly language * Low level languages (Fortran, C, Pascal) * High level languages (Java, Haskell, C#, …) What's the difference between low and high level languages?

8. The "Von Neumann" Computer John Von Neumann was one of the first to describe in detail the architecture of a computer. Ideas: * Memory to hold data / program * Various "wired-in" functionality (math, for the most part) * Instructions that perform calculations and move data around * A single thread of control (instruction at a time processing) * Instructions for conditional branching

9. A Short History of Computer Architecture 1940s and 50s: Simple architectures, based on the "Von Neumann" model. Emphasis was on building hardware capable of carrying out basic math and control. Programming in assembly language and some primitive high level languages.

10. A Short History of Computer Architecture 1960's: Commercialization of computing – the "Mainframe" era. Development of "tricks" in the processor to make execution go faster or programming easier: * Instruction pipelining / Prefetch * Virtual memory / Security issues * Microcode High level languages began to take over My first computer!!

11. A Short History of Computer Architecture The 1970s was an area of much architectural diversity as the computing field expanded. Mini-computers PDP-8, -11, Data General Nova Super Computers: Cray 1 Unusual mainframes: B6700

12. Seymour Cray Cray was one of the true geniuses of computer architecture Studying his machines reveals an essential simplicity that is missing from many current architectures. Cray died in a traffic accident in Colorado Springs in 1996. Burton Smith carried Cray's legacy on after his death.

13. A Short History of Computer Architecture 1980's: the RISC vs CISC debate Patterson postulated that it would be easier to optimize execution if the instruction language is simplified. He demonstrated a processor (RISC-1) that outperformed current CPUs using ¼ the transistors. This led to SPARC and a host of other chip designs. VLSI begins to take over. C becomes the language of choice for low level programming.

14. A Short History of Computer Architecture 1990s: * Increasing clock speed * Dominance of Intel / Pentium * multi-processor architectures * memory concerns * networking * Embedded systems becomes a big market

15. A Short History of Computer Architecture Architecture today: * clock speed limitations hit * power issues become more critical * parallel processing / Multicore chips * embedded systems are everywhere * more special purpose processors * pervasive use of computing * Custom chips become cheaper and cheaper * Devices like FPGAs sit between hardware and software

16. About This Course Why are we here? * Systems are composed of both "hard" and "soft" components. We need to understand what "hard" components can do * Hardware is fundamentally different from software: it is inherently parallel. We'll learn about exploiting parallelism in computation * All "soft" programs are executed on hardware – we can't understand how a program performs without knowing a lot about hardware * Many issues in hardware design are also present in software systems

17. Starting at the Bottom We're going to go bottom up through this material. So we'll start with logic gates and start working our way up. Gates use electrons (voltage) to represent information. Low = 0, High = 1. We can use a probe (light) to see the current state of the voltage in a circuit.

18. How Logic Gates Work A gate has “inputs” and “outputs” (wires). The outputs are determined by the inputs. For a relay: input is voltage on the coil, outputs are connections between terminals Transistors are similar except a lot smaller Key characteristics: Delay: how soon the output has the “right” answer Power dissipation: how much heat is generated Size: how much silicon is needed on the chip
