1 Logic Design Fundamentals - 2 Lecture L1.2

2 Logic Design Fundamentals - 2 Basic Gates Basic Combinational Circuits Basic Sequential Circuits

3 Basic Combinational Circuits Multiplexers 7-Segment Decoder Comparators Decoders Adders Shifters Code Converters Arithmetic Logic Units ROM

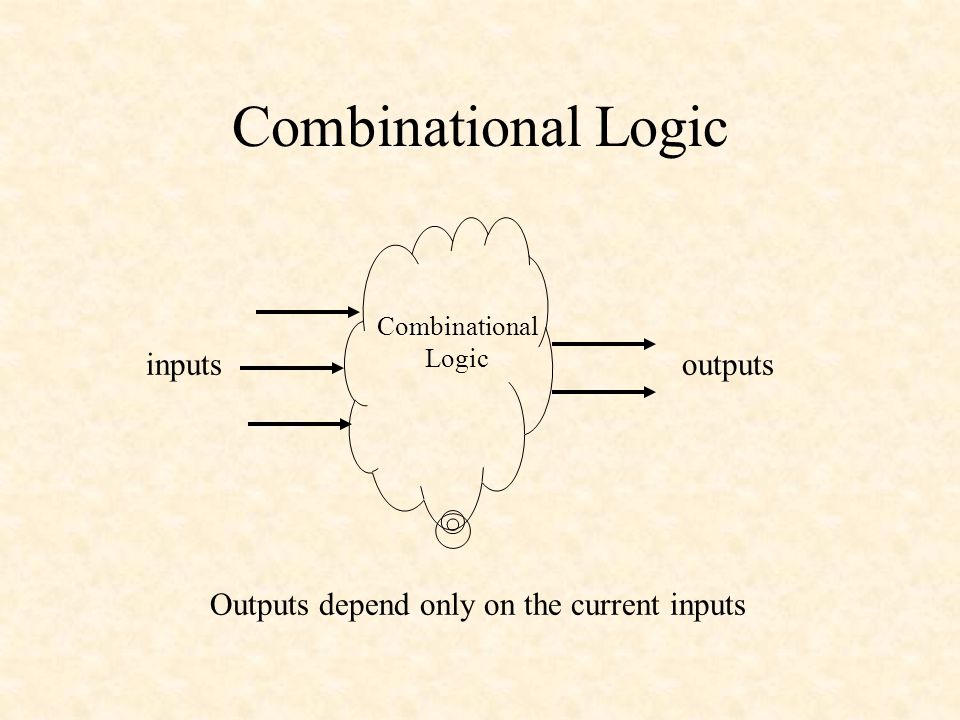

4 Combinational Logic Combinational Logic inputsoutputs Outputs depend only on the current inputs

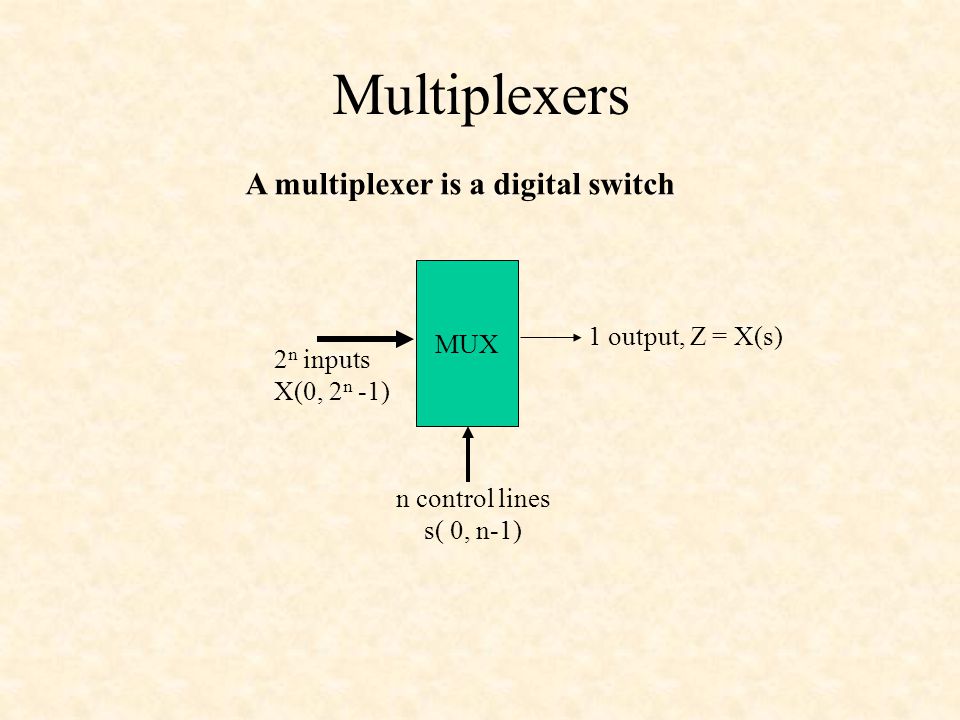

5 Multiplexers A multiplexer is a digital switch MUX n control lines s( 0, n-1) 2 n inputs X(0, 2 n -1) 1 output, Z = X(s)

6 Multiplexers Y 4 x 1 MUX s0s1 C0 C1 C2 C3 Y s1s0 0 0 C0 0 1 C1 1 0 C2 1 1 C3

7 Multiplexers Y 4 x 1 MUX s0s1 C0 C1 C2 C3 Y s1s0 0 0 C0 0 1 C1 1 0 C2 1 1 C3 0 A multiplexer is a digital switch

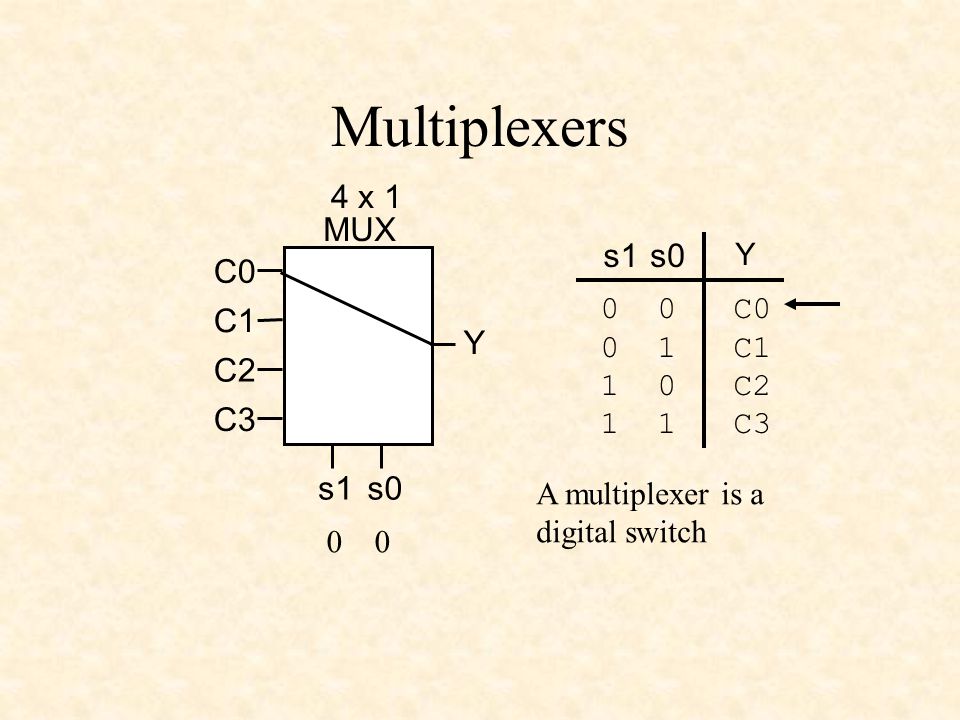

8 Multiplexers Y 4 x 1 MUX s0s1 C0 C1 C2 C3 Y s1s0 0 0 C0 0 1 C1 1 0 C2 1 1 C3 0 1

9 Multiplexers Y 4 x 1 MUX s0s1 C0 C1 C2 C3 Y s1s0 0 0 C0 0 1 C1 1 0 C2 1 1 C3 1 0

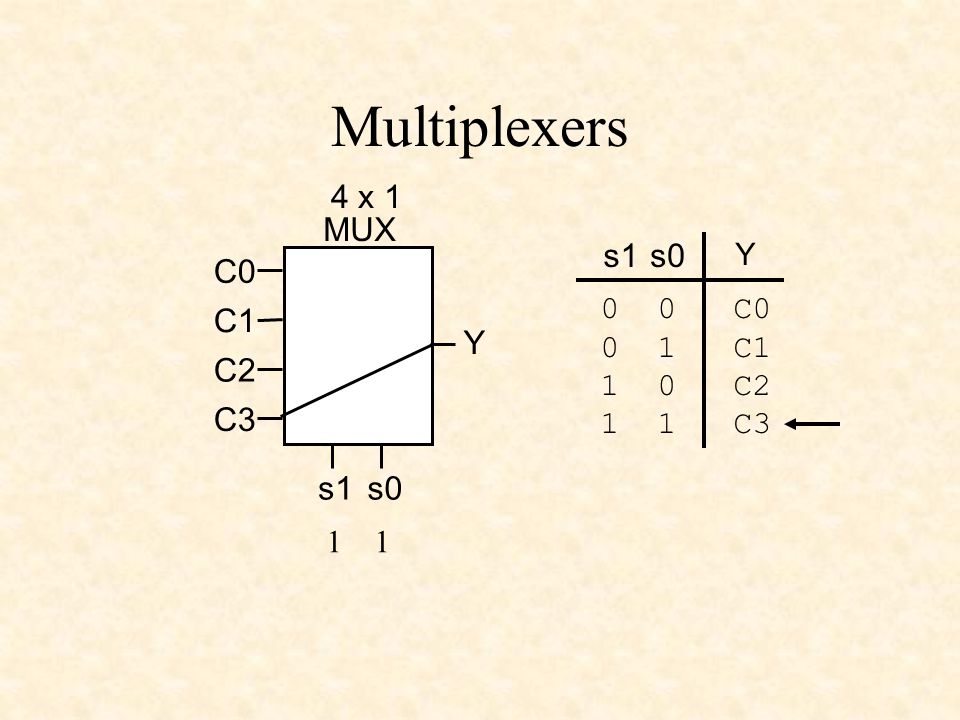

10 Multiplexers Y 4 x 1 MUX s0s1 C0 C1 C2 C3 Y s1s0 0 0 C0 0 1 C1 1 0 C2 1 1 C3 1

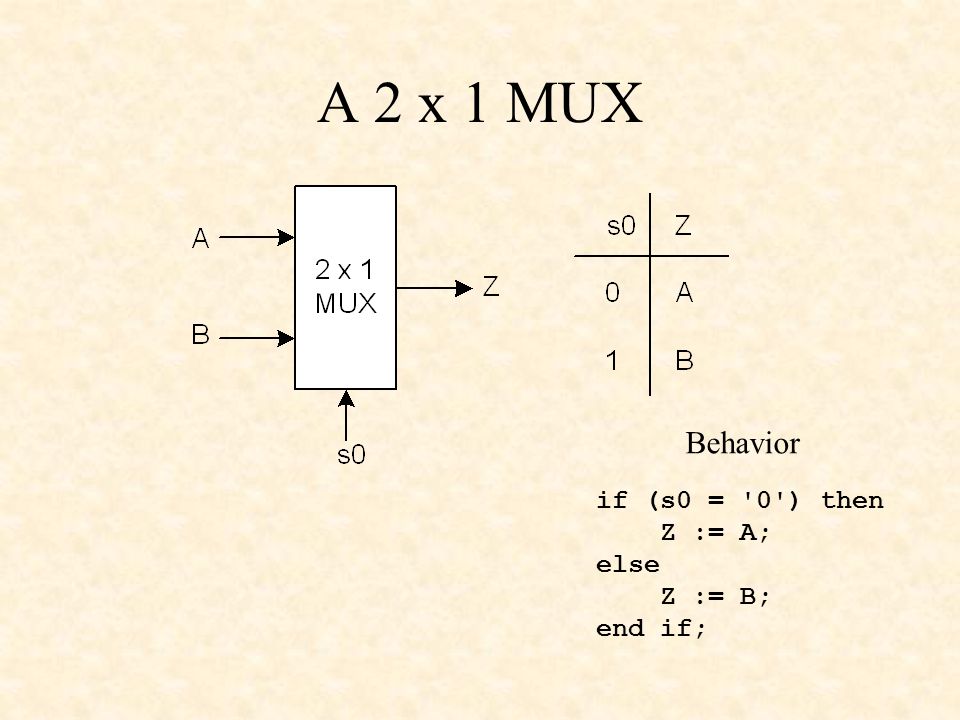

11 A 2 x 1 MUX Behavior if (s0 = '0') then Z := A; else Z := B; end if;

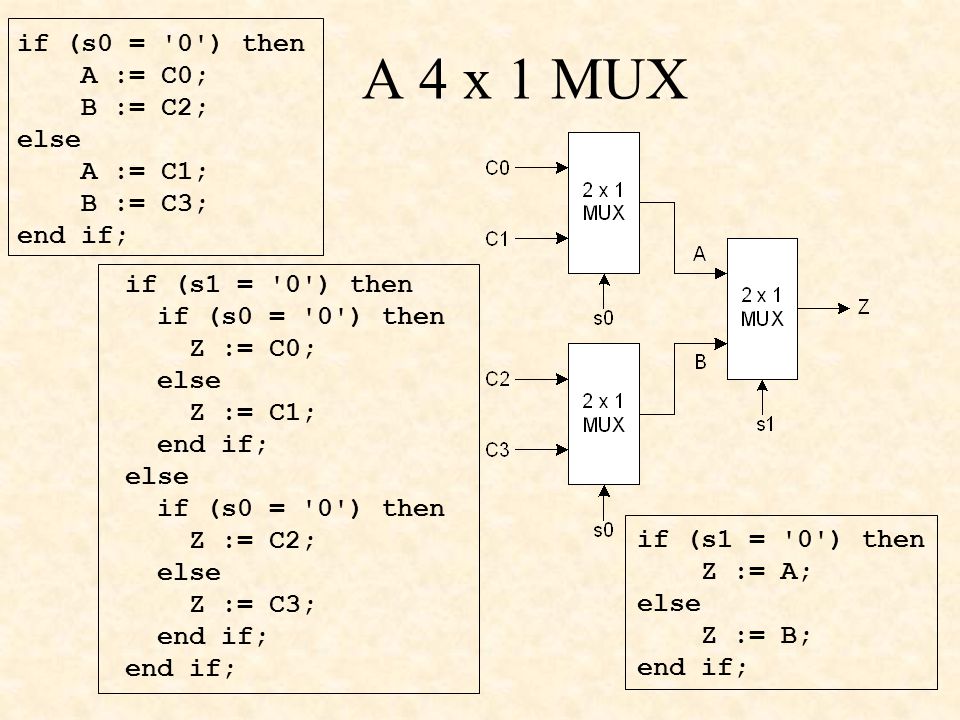

12 A 4 x 1 MUX if (s0 = '0') then A := C0; B := C2; else A := C1; B := C3; end if; if (s1 = '0') then Z := A; else Z := B; end if; if (s1 = '0') then if (s0 = '0') then Z := C0; else Z := C1; end if; else if (s0 = '0') then Z := C2; else Z := C3; end if;

13 A 4 x 1 MUX case s is when "00" => Z <= C0; when "01" => Z <= C1; when "10" => Z <= C2; when others => Z <= C3; end case;

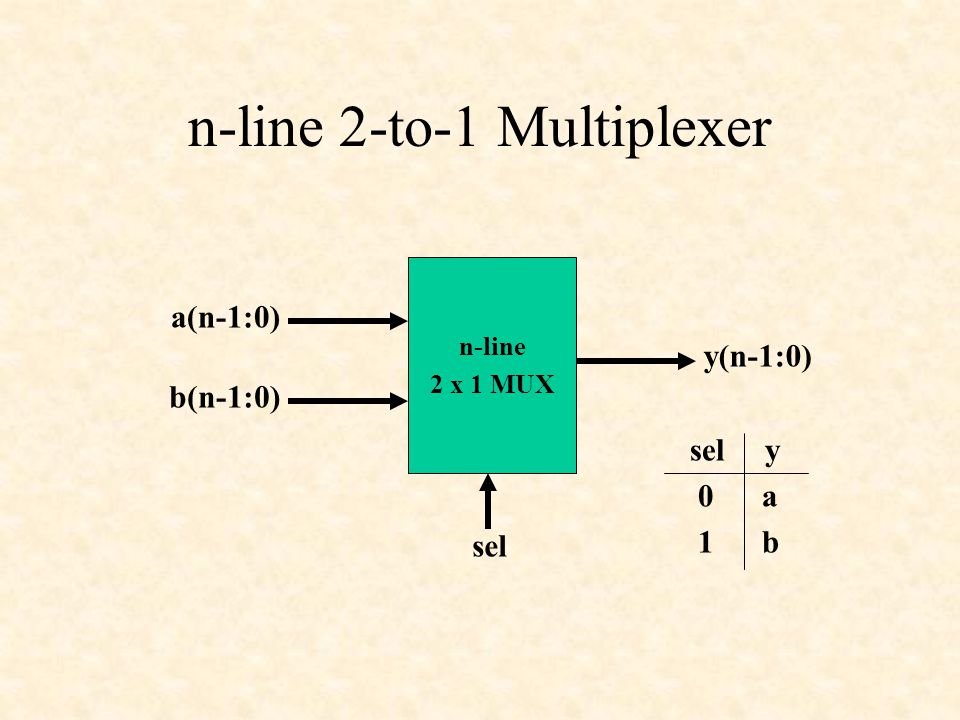

14 n-line 2-to-1 Multiplexer n-line 2 x 1 MUX a(n-1:0) b(n-1:0) y(n-1:0) sel sel y 0 a 1 b

15 library IEEE; use IEEE.std_logic_1164.all; entity mux2g is generic (width:positive); port ( a: in STD_LOGIC_VECTOR(width-1 downto 0); b: in STD_LOGIC_VECTOR(width-1 downto 0); sel: in STD_LOGIC; y: out STD_LOGIC_VECTOR(width-1 downto 0) ); end mux2g; An n-line 2 x 1 MUX a(n-1:0) b(n-1:0) y(n-1:0) sel n-line 2 x 1 MUX

16 library IEEE; use IEEE.std_logic_1164.all; entity mux2g is generic (width:positive); port ( a: in STD_LOGIC_VECTOR(width-1 downto 0); b: in STD_LOGIC_VECTOR(width-1 downto 0); sel: in STD_LOGIC; y: out STD_LOGIC_VECTOR(width-1 downto 0) ); end mux2g; Entity Each entity must begin with these library and use statements port statement defines inputs and outputs generic statement defines width of bus

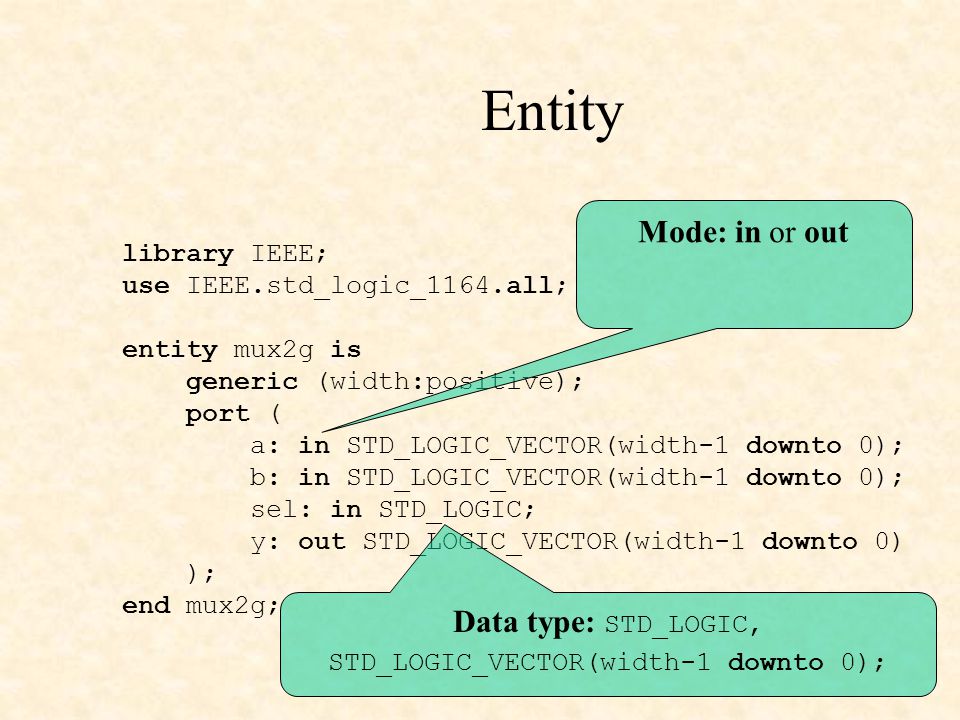

17 library IEEE; use IEEE.std_logic_1164.all; entity mux2g is generic (width:positive); port ( a: in STD_LOGIC_VECTOR(width-1 downto 0); b: in STD_LOGIC_VECTOR(width-1 downto 0); sel: in STD_LOGIC; y: out STD_LOGIC_VECTOR(width-1 downto 0) ); end mux2g; Entity Mode: in or out Data type: STD_LOGIC, STD_LOGIC_VECTOR(width-1 downto 0);

18 Standard Logic type std_ulogic is (‘U’, -- Uninitialized ‘X’ -- Forcing unknown ‘0’ -- Forcing zero ‘1’ -- Forcing one ‘Z’ -- High impedance ‘W’ -- Weak unknown ‘L’ -- Weak zero ‘H’ -- Weak one ‘-’); -- Don’t care library IEEE; use IEEE.std_logic_1164.all;

19 Standard Logic Type std_ulogic is unresolved. Resolved signals provide a mechanism for handling the problem of multiple output signals connected to one signal. subtype std_logic is resolved std_ulogic;

20 architecture mux2g_arch of mux2g is begin mux2_1: process(a, b, sel) begin if sel = '0' then y <= a; else y <= b; end if; end process mux2_1; end mux2g_arch; Architecture a(n-1:0) b(n-1:0) y(n-1:0) sel n-line 2 x 1 MUX Note: <= is signal assignment

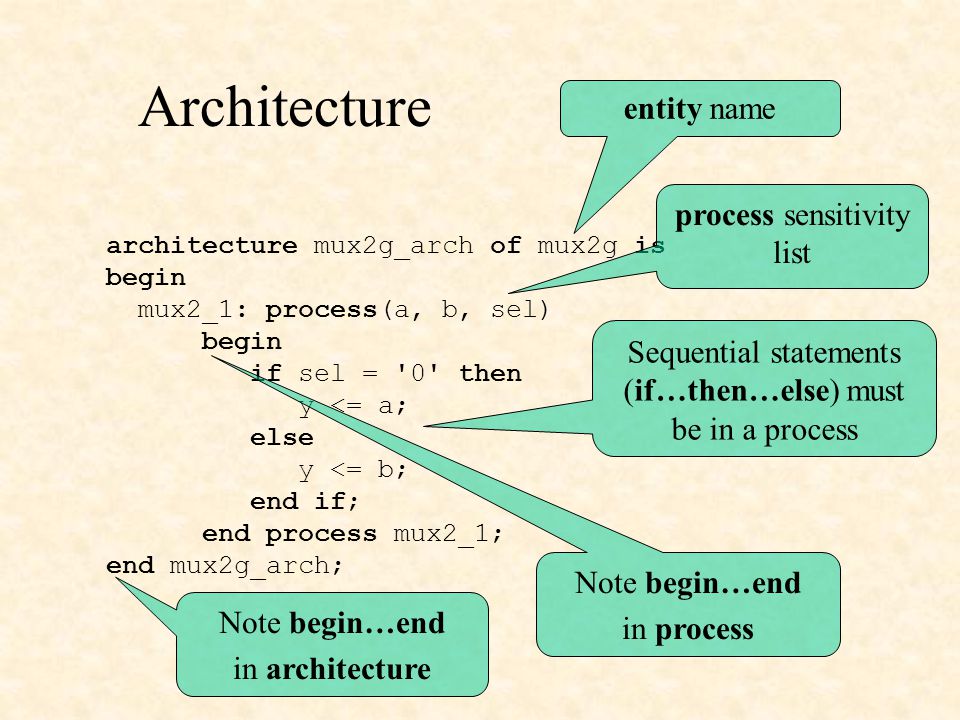

21 architecture mux2g_arch of mux2g is begin mux2_1: process(a, b, sel) begin if sel = '0' then y <= a; else y <= b; end if; end process mux2_1; end mux2g_arch; Architecture entity name process sensitivity list Sequential statements (if…then…else) must be in a process Note begin…end in process Note begin…end in architecture

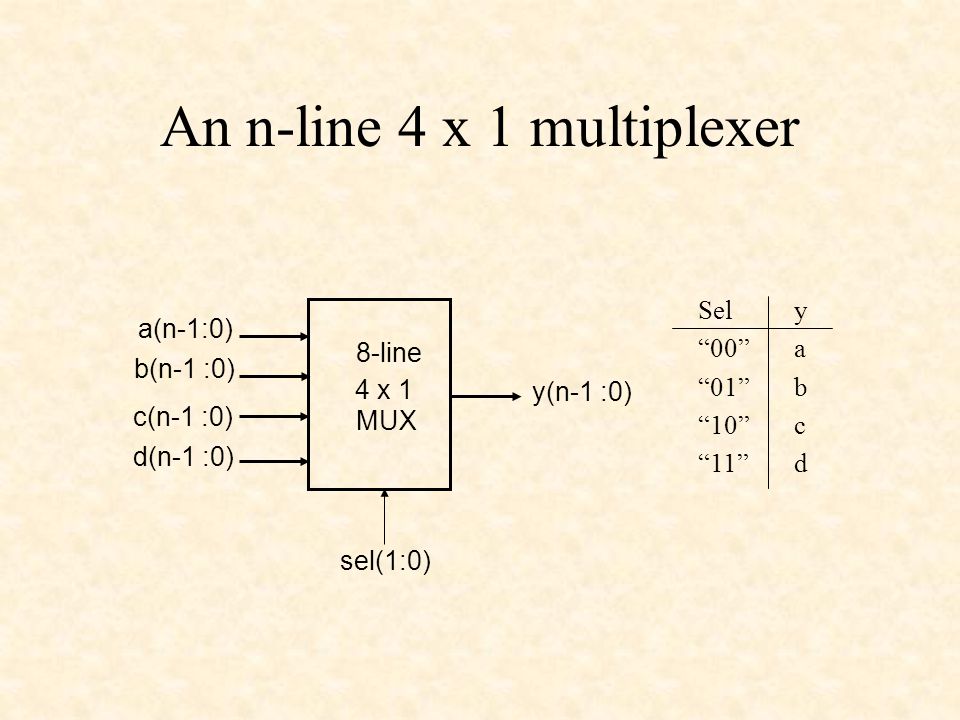

22 An n-line 4 x 1 multiplexer a(n-1:0) b(n-1 :0) y(n-1 :0) sel(1:0) 8-line 4 x 1 MUX c(n-1 :0) d(n-1 :0) Sely “00”a “01”b “10”c “11”d

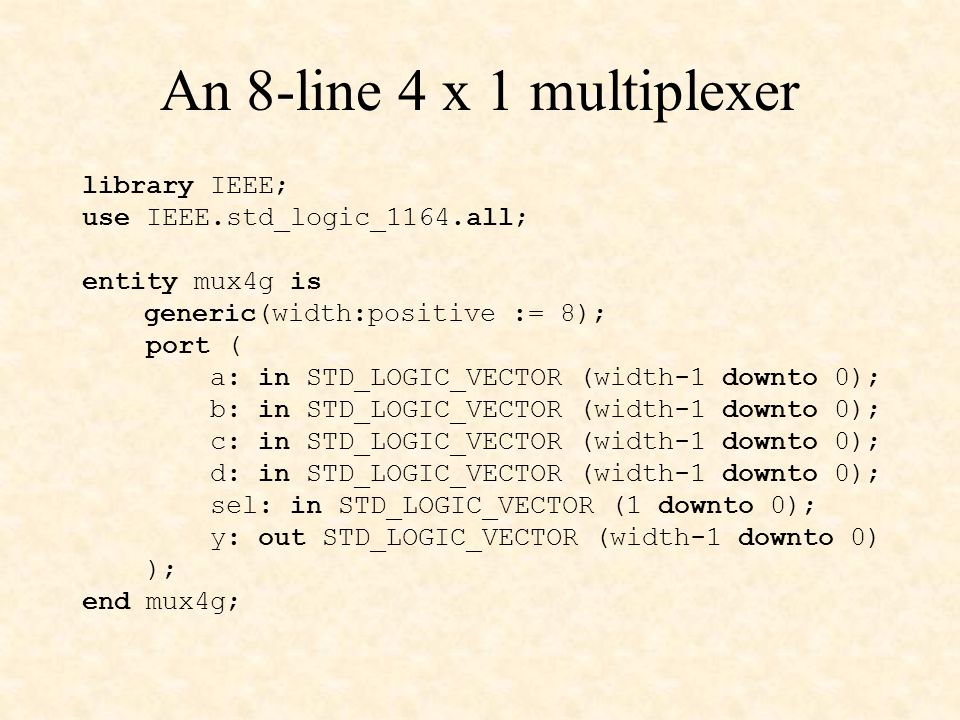

23 An 8-line 4 x 1 multiplexer library IEEE; use IEEE.std_logic_1164.all; entity mux4g is generic(width:positive := 8); port ( a: in STD_LOGIC_VECTOR (width-1 downto 0); b: in STD_LOGIC_VECTOR (width-1 downto 0); c: in STD_LOGIC_VECTOR (width-1 downto 0); d: in STD_LOGIC_VECTOR (width-1 downto 0); sel: in STD_LOGIC_VECTOR (1 downto 0); y: out STD_LOGIC_VECTOR (width-1 downto 0) ); end mux4g;

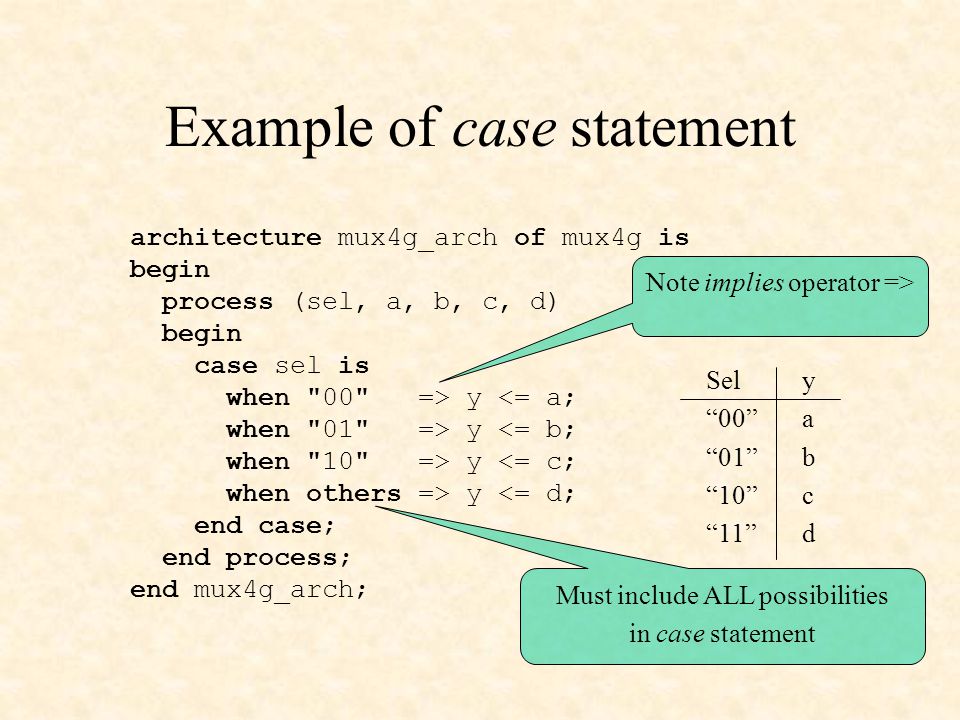

24 Example of case statement architecture mux4g_arch of mux4g is begin process (sel, a, b, c, d) begin case sel is when "00" => y <= a; when "01" => y <= b; when "10" => y <= c; when others => y <= d; end case; end process; end mux4g_arch; Must include ALL possibilities in case statement Note implies operator => Sely “00”a “01”b “10”c “11”d

25 7-Segment Display D a b c d e f g 0 1 1 1 1 1 1 0 1 0 1 1 0 0 0 0 2 1 1 0 1 1 0 1 3 1 1 1 1 0 0 1 4 0 1 1 0 0 1 1 5 1 0 1 1 0 1 1 6 1 0 1 1 1 1 1 7 1 1 1 0 0 0 0 D a b c d e f g 8 1 1 1 1 1 1 1 9 1 1 1 1 0 1 1 A 1 1 1 0 1 1 1 b 0 0 1 1 1 1 1 C 1 0 0 1 1 1 0 d 0 1 1 1 1 0 1 E 1 0 0 1 1 1 1 F 1 0 0 0 1 1 1 Truth table seg7dec D(3:0) AtoG(6:0)

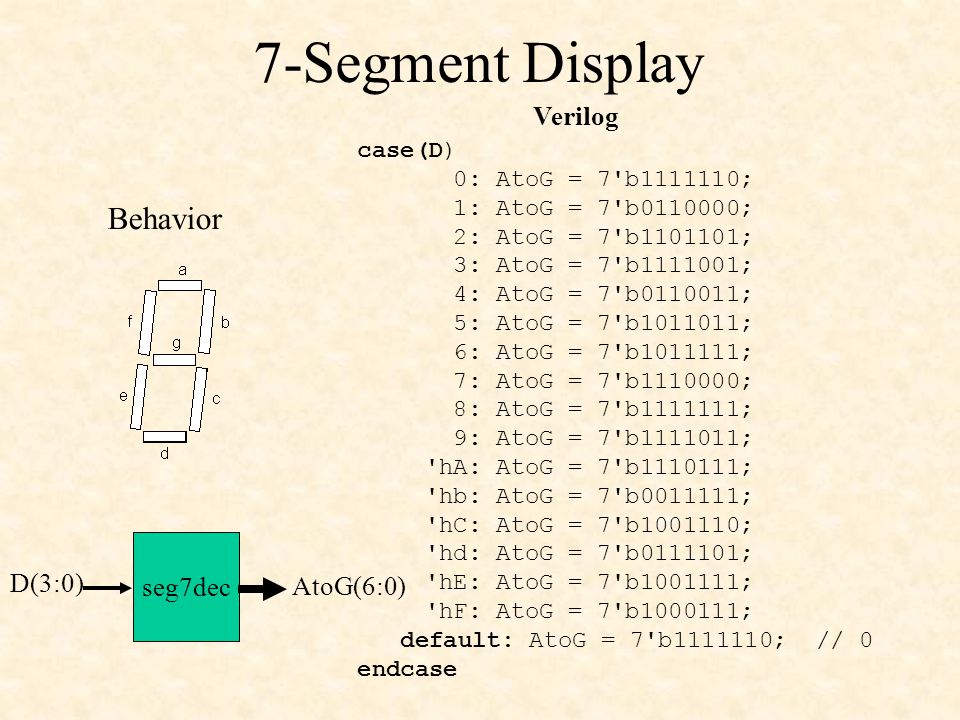

26 case(D) 0: AtoG = 7'b1111110; 1: AtoG = 7'b0110000; 2: AtoG = 7'b1101101; 3: AtoG = 7'b1111001; 4: AtoG = 7'b0110011; 5: AtoG = 7'b1011011; 6: AtoG = 7'b1011111; 7: AtoG = 7'b1110000; 8: AtoG = 7'b1111111; 9: AtoG = 7'b1111011; 'hA: AtoG = 7'b1110111; 'hb: AtoG = 7'b0011111; 'hC: AtoG = 7'b1001110; 'hd: AtoG = 7'b0111101; 'hE: AtoG = 7'b1001111; 'hF: AtoG = 7'b1000111; default: AtoG = 7'b1111110; // 0 endcase 7-Segment Display Behavior Verilog seg7dec D(3:0) AtoG(6:0)

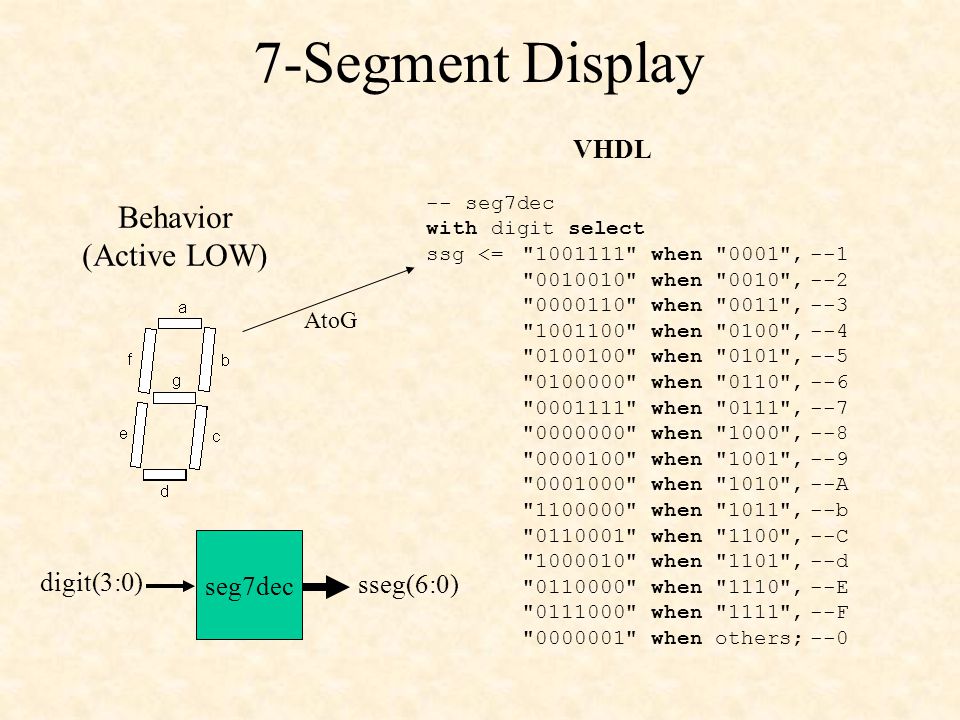

27 -- seg7dec with digit select ssg <="1001111" when "0001",--1 "0010010" when "0010",--2 "0000110" when "0011",--3 "1001100" when "0100",--4 "0100100" when "0101",--5 "0100000" when "0110",--6 "0001111" when "0111",--7 "0000000" when "1000",--8 "0000100" when "1001",--9 "0001000" when "1010",--A "1100000" when "1011",--b "0110001" when "1100",--C "1000010" when "1101",--d "0110000" when "1110",--E "0111000" when "1111",--F "0000001" when others;--0 7-Segment Display Behavior (Active LOW) VHDL AtoG seg7dec digit(3:0) sseg(6:0)

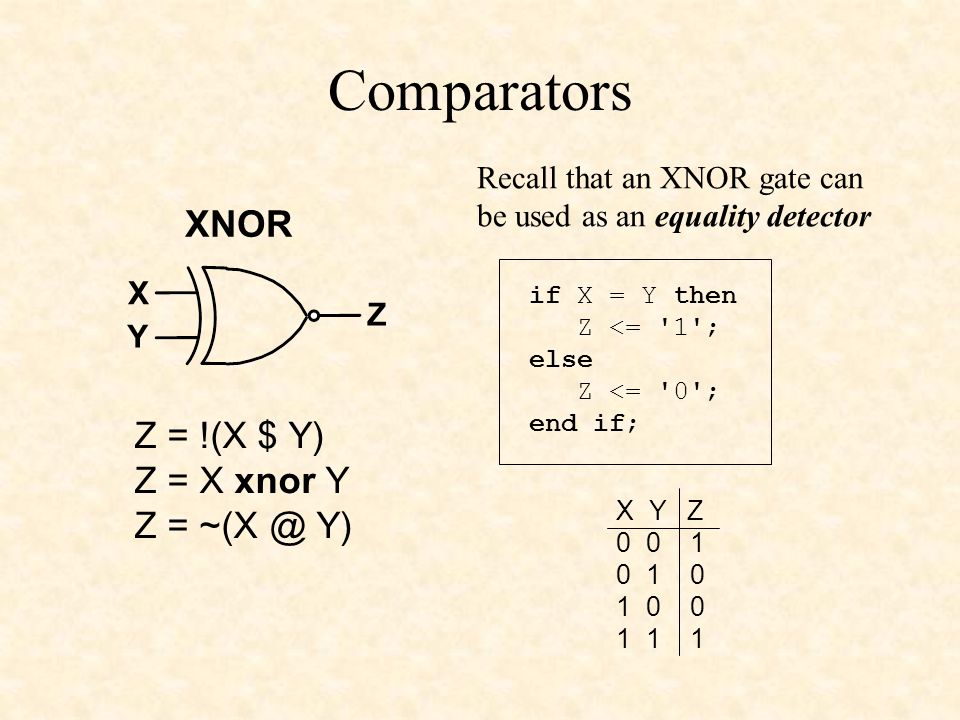

28 Comparators XNOR X Y Z 0 0 1 0 1 0 1 0 0 1 1 1 Z = !(X $ Y) Z = X xnor Y Z = ~(X @ Y) Recall that an XNOR gate can be used as an equality detector X Y Z if X = Y then Z <= '1'; else Z <= '0'; end if;

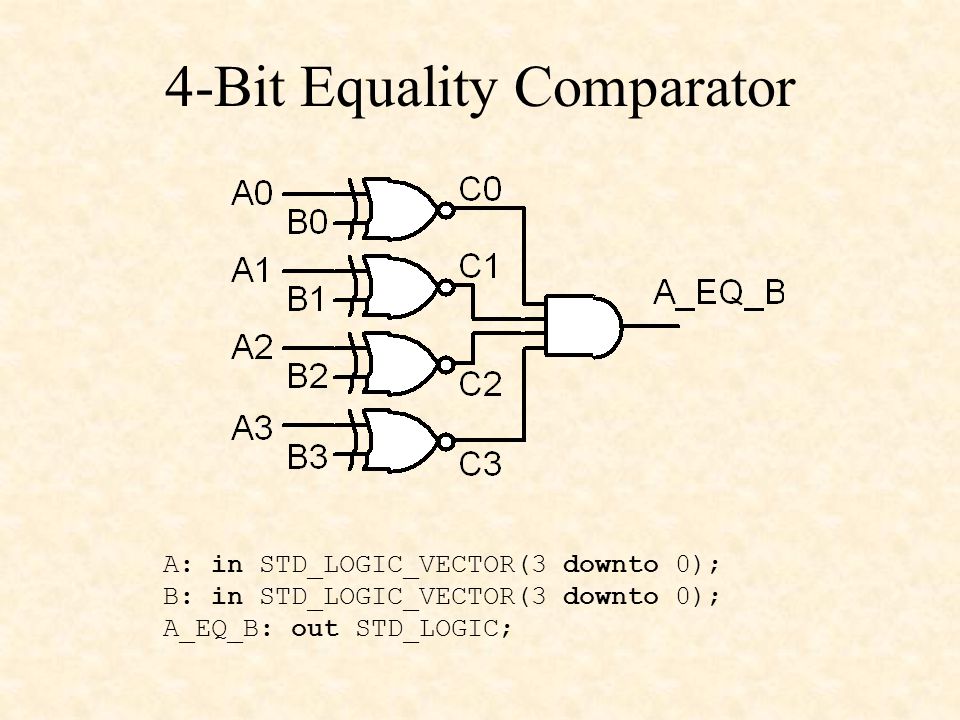

29 4-Bit Equality Comparator A: in STD_LOGIC_VECTOR(3 downto 0); B: in STD_LOGIC_VECTOR(3 downto 0); A_EQ_B: out STD_LOGIC;

30 library IEEE; use IEEE.STD_LOGIC_1164.ALL; use IEEE.STD_LOGIC_ARITH.ALL; use IEEE.STD_LOGIC_UNSIGNED.ALL; entity eqdet4 is Port ( A : in std_logic_vector(3 downto 0); B : in std_logic_vector(3 downto 0); A_EQ_B : out std_logic); end eqdet4; architecture Behavioral of eqdet4 is signal C: std_logic_vector(3 downto 0); begin C <= A xnor B; A_EQ_B <= C0 and C1 and C2 and C3; end Behavioral;

31 Comparators comp A(n-1:0) B(n-1:0) A_EQ_B A_GT_B A_LT_B A_UGT_B A_ULT_B A, B signed A, B unsigned Signed: 2's complement signed numbers

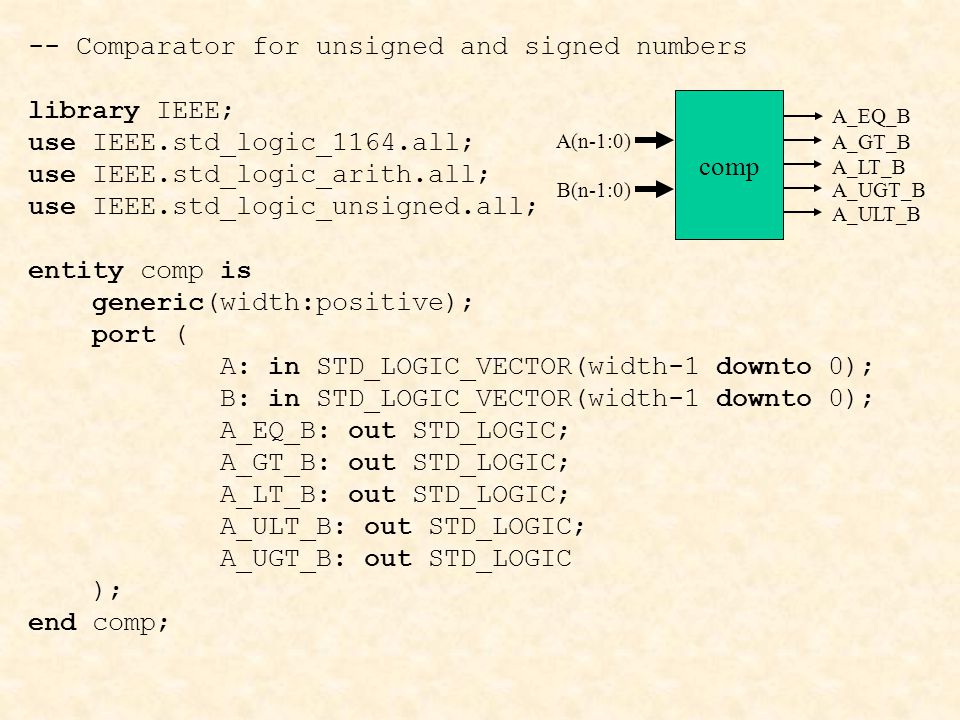

32 -- Comparator for unsigned and signed numbers library IEEE; use IEEE.std_logic_1164.all; use IEEE.std_logic_arith.all; use IEEE.std_logic_unsigned.all; entity comp is generic(width:positive); port ( A: in STD_LOGIC_VECTOR(width-1 downto 0); B: in STD_LOGIC_VECTOR(width-1 downto 0); A_EQ_B: out STD_LOGIC; A_GT_B: out STD_LOGIC; A_LT_B: out STD_LOGIC; A_ULT_B: out STD_LOGIC; A_UGT_B: out STD_LOGIC ); end comp; comp A(n-1:0) B(n-1:0) A_EQ_B A_GT_B A_LT_B A_UGT_B A_ULT_B

33 architecture comp_arch of comp is begin CMP: process(A,B) variable AVS, BVS: signed(width-1 downto 0); begin for i in 0 to width-1 loop AVS(i) := A(i); BVS(i) := B(i); end loop; A_EQ_B <= '0'; A_GT_B <= '0'; A_LT_B <= '0'; A_ULT_B <= '0'; A_UGT_B <= '0'; if (A = B) then A_EQ_B <= '1'; end if; if (AVS > BVS) then A_GT_B <= '1'; end if; if (AVS < BVS) then A_LT_B <= '1'; end if; if (A > B) then A_UGT_B <= '1'; end if; if (A < B) then A_ULT_B <= '1'; end if; end process CMP; end comp_arch; comp A(n-1:0) B(n-1:0) A_EQ_B A_GT_B A_LT_B A_UGT_B A_ULT_B Note: All outputs must be assigned some value. The last signal assignment in a process is the value assigned

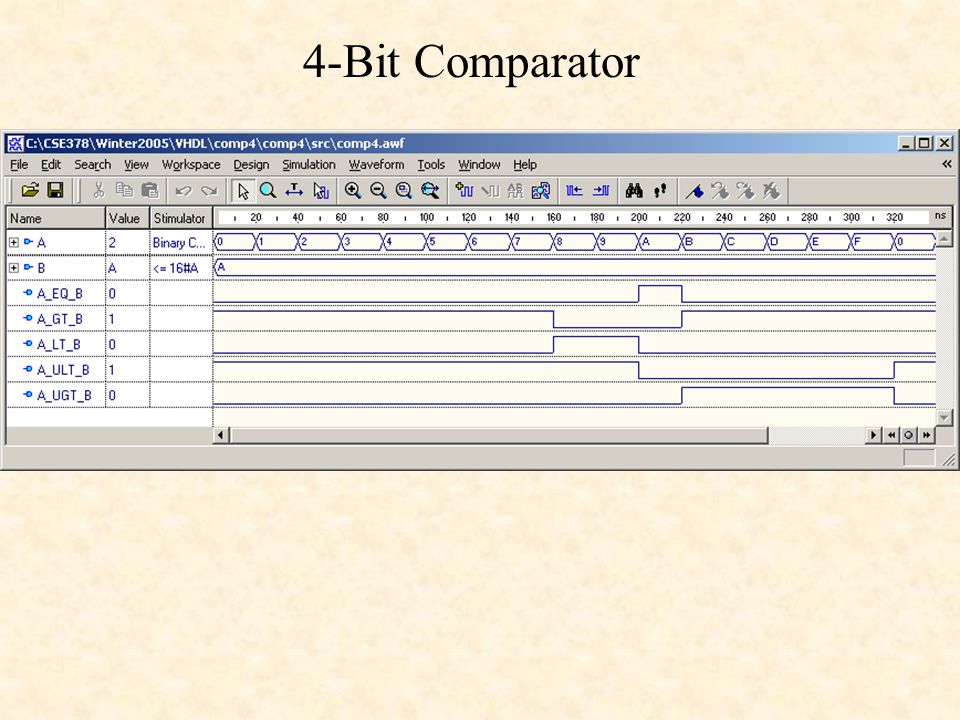

34 4-Bit Comparator

35 Full Adder Truth table CiCi AiAi BiBi SiSi C i+1 Behavior C i+1 :S i = C i + A i + B i

36 Full Adder Block Diagram

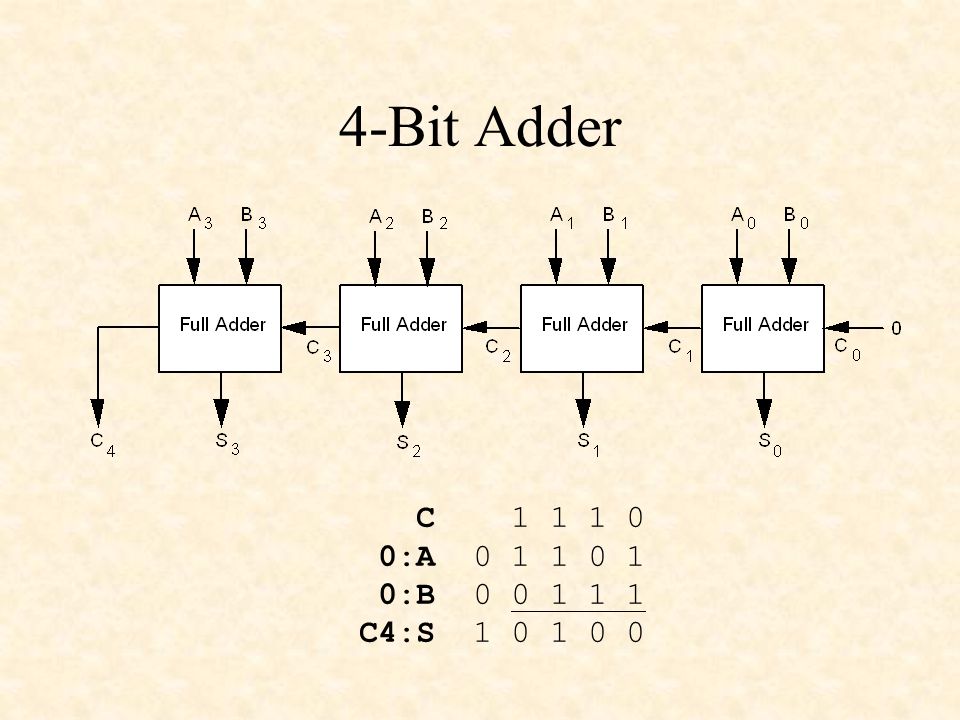

37 4-Bit Adder C 1 1 1 0 0:A 0 1 1 0 1 0:B 0 0 1 1 1 C4:S 1 0 1 0 0

38 library IEEE; use IEEE.STD_LOGIC_1164.all; use IEEE.STD_LOGIC_unsigned.all; entity adder4 is port( A : in STD_LOGIC_VECTOR(3 downto 0); B : in STD_LOGIC_VECTOR(3 downto 0); carry : out STD_LOGIC; S : out STD_LOGIC_VECTOR(3 downto 0) ); end adder4; architecture adder4 of adder4 is begin process(A,B) variable temp: STD_LOGIC_VECTOR(4 downto 0); begin temp := ('0' & A) + ('0' & B); S <= temp(3 downto 0); carry <= temp(4); end process; end adder4;

39 4-Bit Adder

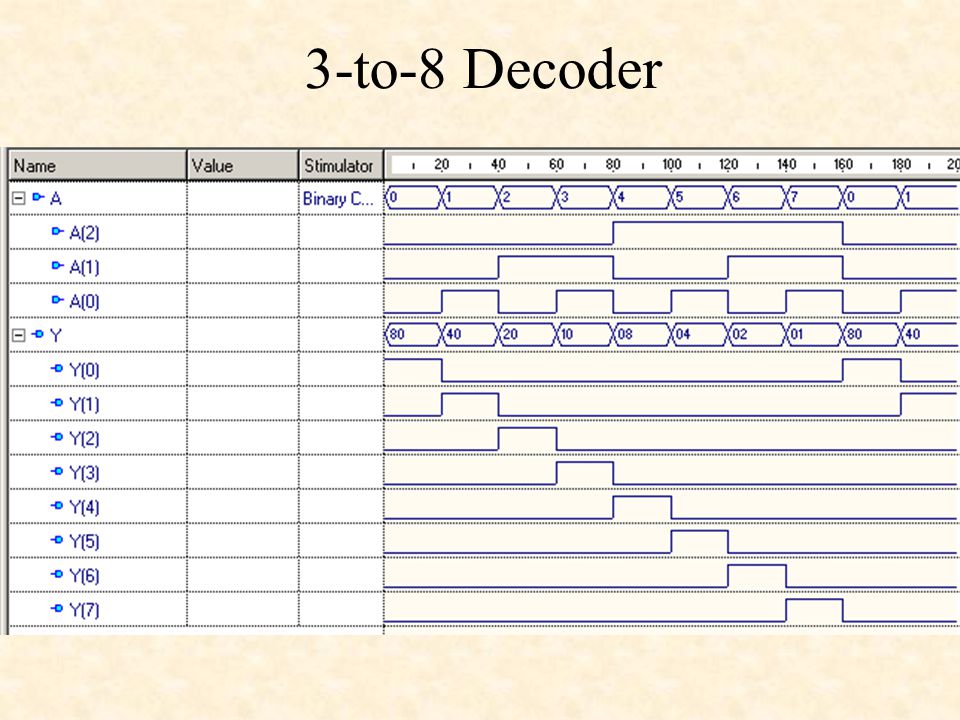

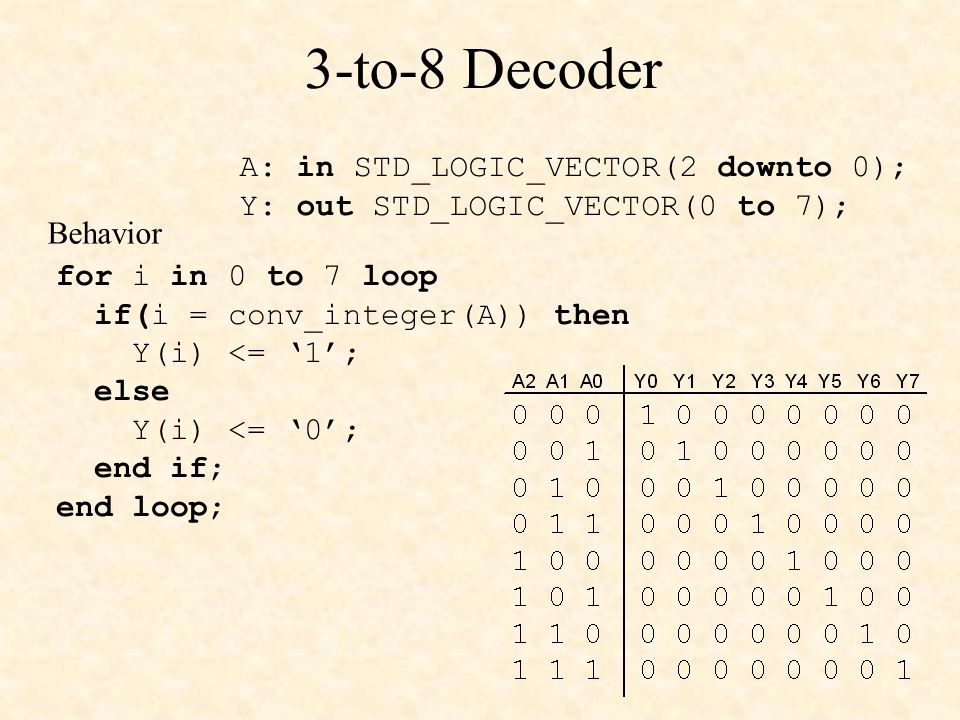

40 3-to-8 Decoder Behavior for i in 0 to 7 loop if(i = conv_integer(A)) then Y(i) <= ‘1’; else Y(i) <= ‘0’; end if; end loop; A: in STD_LOGIC_VECTOR(2 downto 0); Y: out STD_LOGIC_VECTOR(0 to 7);

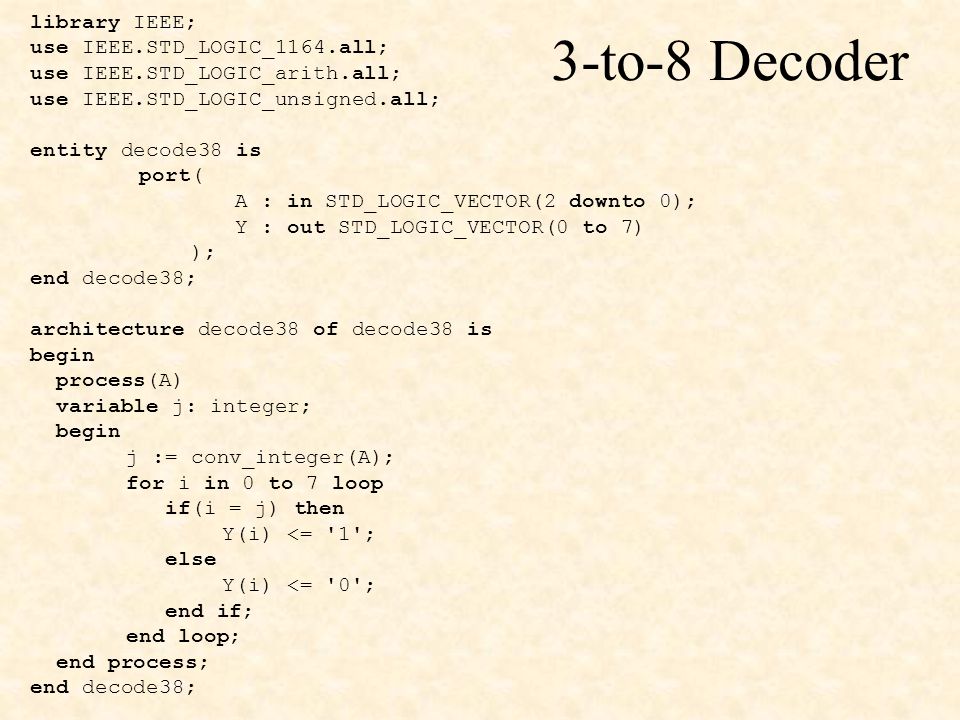

41 library IEEE; use IEEE.STD_LOGIC_1164.all; use IEEE.STD_LOGIC_arith.all; use IEEE.STD_LOGIC_unsigned.all; entity decode38 is port( A : in STD_LOGIC_VECTOR(2 downto 0); Y : out STD_LOGIC_VECTOR(0 to 7) ); end decode38; architecture decode38 of decode38 is begin process(A) variable j: integer; begin j := conv_integer(A); for i in 0 to 7 loop if(i = j) then Y(i) <= '1'; else Y(i) <= '0'; end if; end loop; end process; end decode38; 3-to-8 Decoder

42

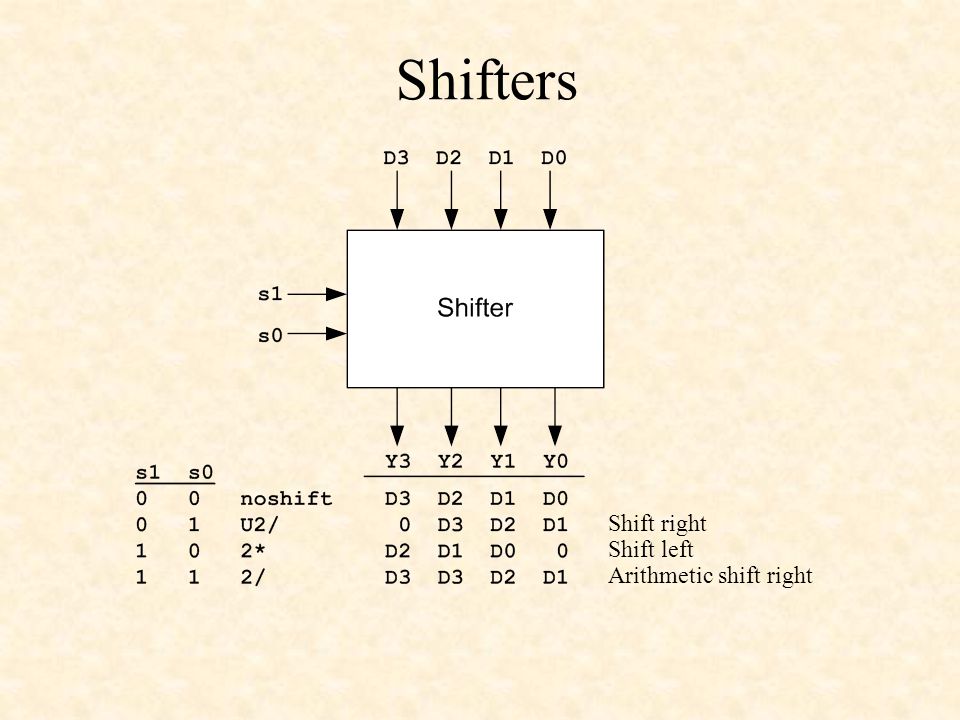

43 Shifters Shift right Shift left Arithmetic shift right

44 library IEEE; use IEEE.std_logic_1164.all; use IEEE.std_logic_unsigned.all; entity shifter is generic(width:positive := 4); port ( D: in STD_LOGIC_VECTOR(width-1 downto 0); s: in STD_LOGIC_VECTOR(1 downto 0); Y: out STD_LOGIC_VECTOR(width-1 downto 0) ); end shifter; shift4.vhd

45 architecture shifter_arch of shifter is begin shift_1: process(D, s) begin case s is when "00" =>-- no shift Y <= D; when "01" =>-- U2/ Y <= '0' & D(width-1 downto 1); when "10" =>-- 2* Y <= D(width-2 downto 0) & '0'; when "11" =>-- 2/ Y <= D(width-1) & D(width-1 downto 1); when others =>-- no shift Y <= D; end case; end process shift_1; end shifter_arch;

46

47 Code Converters Gray Code Converter Binary-to-BCD Converter

48 Gray Code One method for generating a Gray code sequence: Start with all bits zero and successively flip the right-most bit that produces a new string. Binary coding {0...7}: {000, 001, 010, 011, 100, 101, 110, 111} Gray coding {0...7}: {000, 001, 011, 010, 110, 111, 101, 100} Definition: An ordering of 2 n binary numbers such that only one bit changes from one entry to the next. Not unique

49 Binary coding {0...7}: {000, 001, 010, 011, 100, 101, 110, 111} Gray coding {0...7}: {000, 001, 011, 010, 110, 111, 101, 100} Binary - Gray Code Conversions Gray code: G(i), i = n – 1 downto 0 Binary code: B(i), i = n – 1 downto 0 Convert Binary to Gray: Copy the most significant bit. For each smaller i G(i) = B(i+1) xor B(i) Convert Gray to Binary: Copy the most significant bit. For each smaller i B(i) = B(i+1) xor G(i)

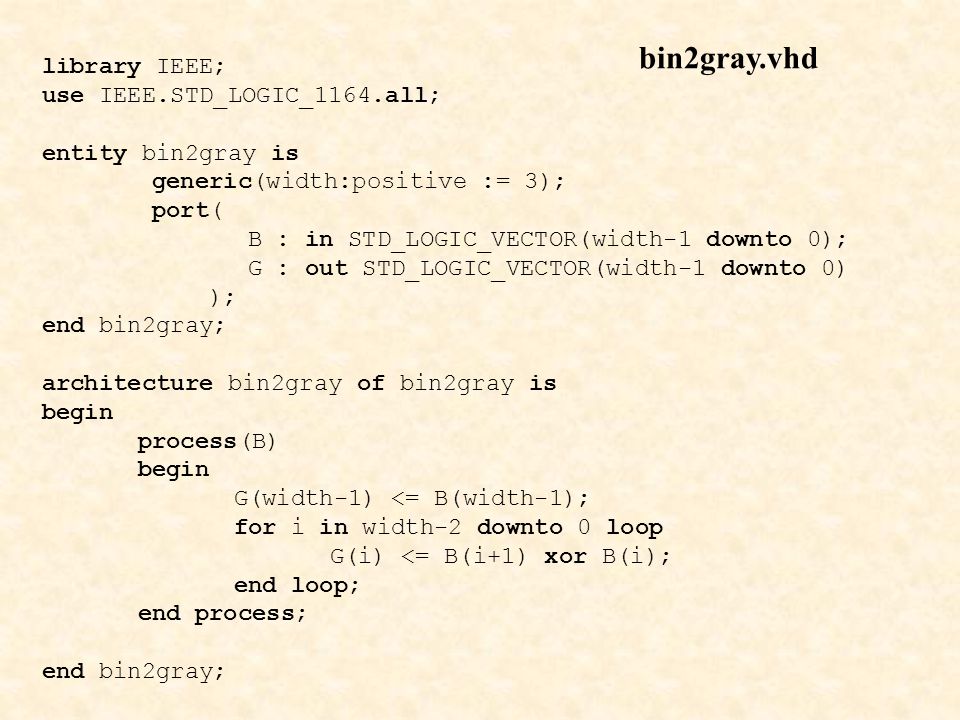

50 library IEEE; use IEEE.STD_LOGIC_1164.all; entity bin2gray is generic(width:positive := 3); port( B : in STD_LOGIC_VECTOR(width-1 downto 0); G : out STD_LOGIC_VECTOR(width-1 downto 0) ); end bin2gray; architecture bin2gray of bin2gray is begin process(B) begin G(width-1) <= B(width-1); for i in width-2 downto 0 loop G(i) <= B(i+1) xor B(i); end loop; end process; end bin2gray; bin2gray.vhd

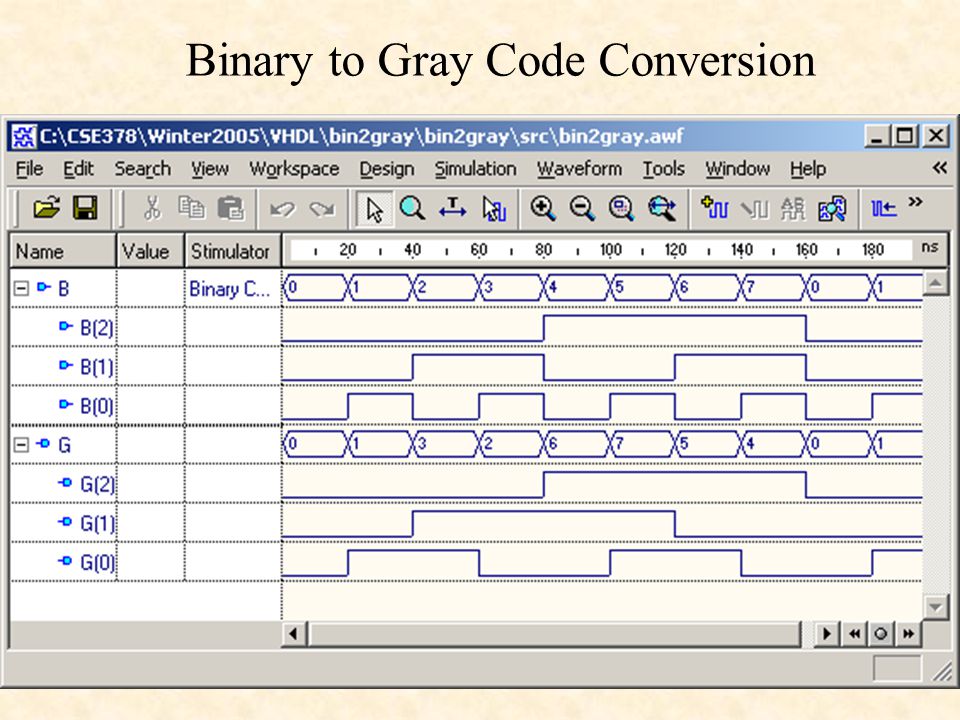

51 Binary to Gray Code Conversion

52 library IEEE; use IEEE.STD_LOGIC_1164.all; entity gray2bin is generic(width:positive := 3); port( G : in STD_LOGIC_VECTOR(width-1 downto 0); B : out STD_LOGIC_VECTOR(width-1 downto 0) ); end gray2bin; architecture gray2bin of gray2bin is begin process(G) variable BV: STD_LOGIC_VECTOR(width-1 downto 0); begin BV(width-1) := G(width-1); for i in width-2 downto 0 loop BV(i) := BV(i+1) xor G(i); end loop; B <= BV; end process; end gray2bin; gray2bin.vhd

53 Gray Code to Binary Conversion

54 Binary-to-BCD Conversion Shift and add 3 algorithm RTL solution Behavioral solution

55 Shift and Add-3 Algorithm 11. Shift the binary number left one bit. 22. If 8 shifts have taken place, the BCD number is in the Hundreds, Tens, and Units column. 33. If the binary value in any of the BCD columns is 5 or greater, add 3 to that value in that BCD column. 44. Go to 1.

56 Steps to convert an 8-bit binary number to BCD

57 Truth table for Add-3 Module C A3 A2 A1 A0 S3 S2 S1 S0

58 Binary-to-BCD Converter RTL Solution

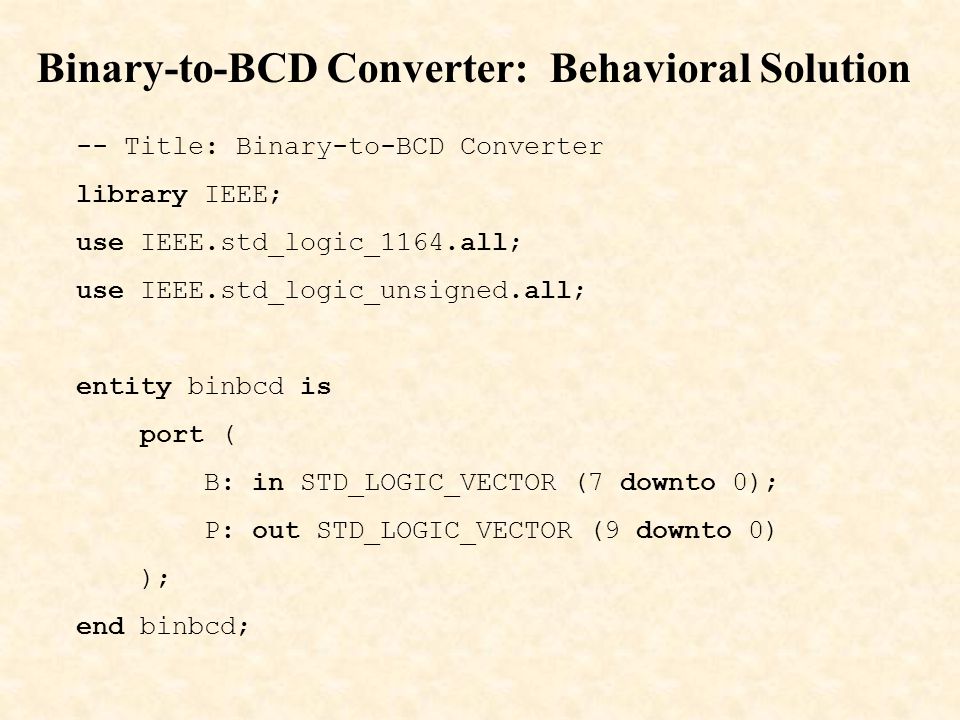

59 -- Title: Binary-to-BCD Converter library IEEE; use IEEE.std_logic_1164.all; use IEEE.std_logic_unsigned.all; entity binbcd is port ( B: in STD_LOGIC_VECTOR (7 downto 0); P: out STD_LOGIC_VECTOR (9 downto 0) ); end binbcd; Binary-to-BCD Converter: Behavioral Solution

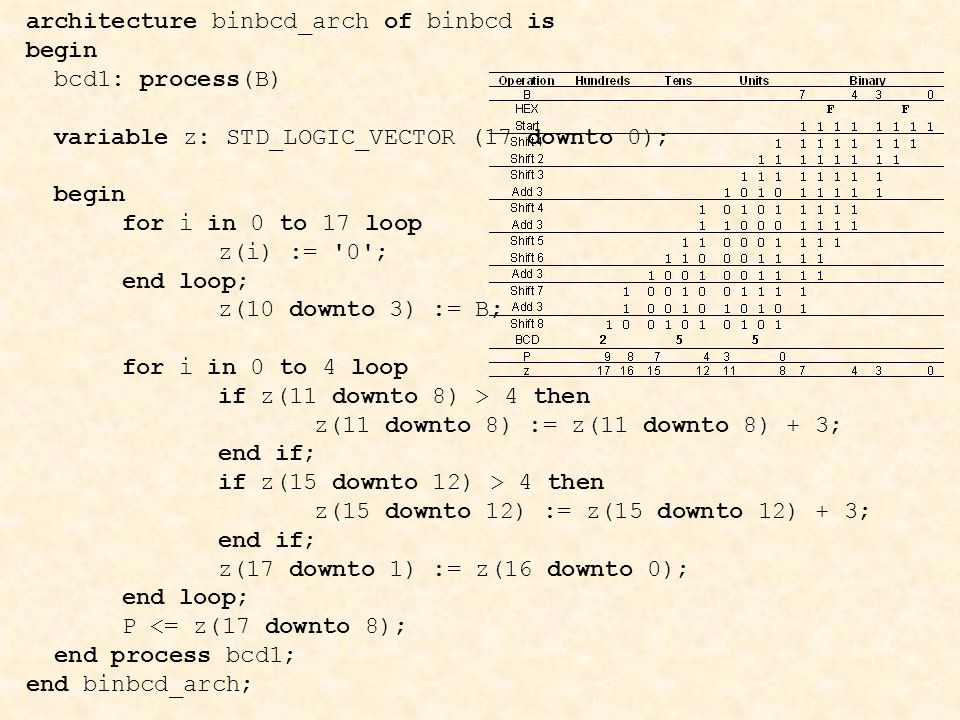

60 architecture binbcd_arch of binbcd is begin bcd1: process(B) variable z: STD_LOGIC_VECTOR (17 downto 0); begin for i in 0 to 17 loop z(i) := '0'; end loop; z(10 downto 3) := B; for i in 0 to 4 loop if z(11 downto 8) > 4 then z(11 downto 8) := z(11 downto 8) + 3; end if; if z(15 downto 12) > 4 then z(15 downto 12) := z(15 downto 12) + 3; end if; z(17 downto 1) := z(16 downto 0); end loop; P <= z(17 downto 8); end process bcd1; end binbcd_arch;

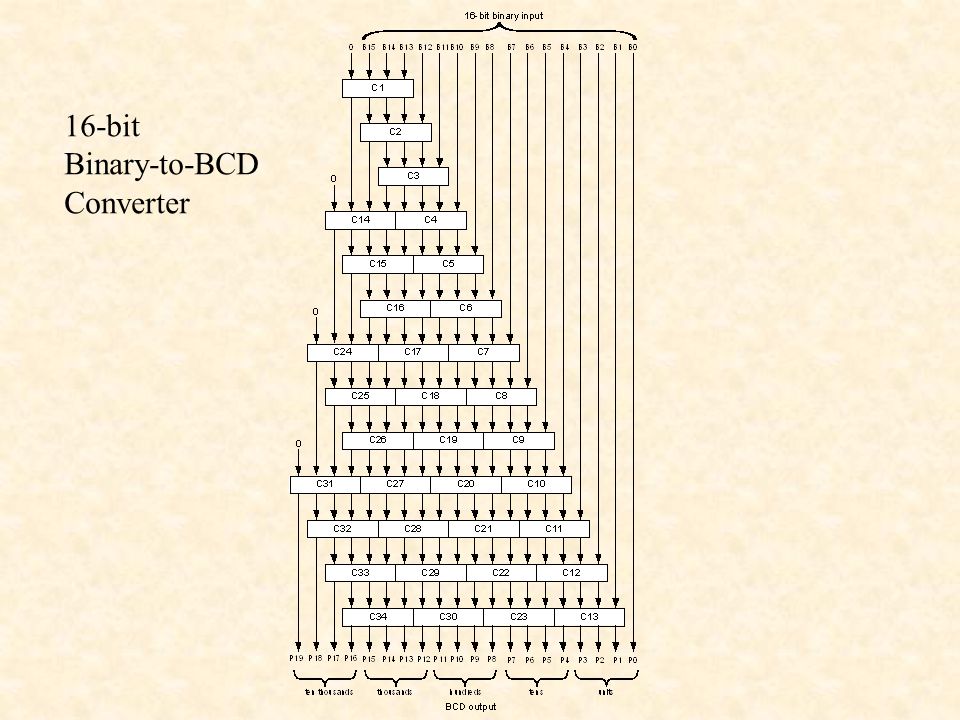

61 16-bit Binary-to-BCD Converter

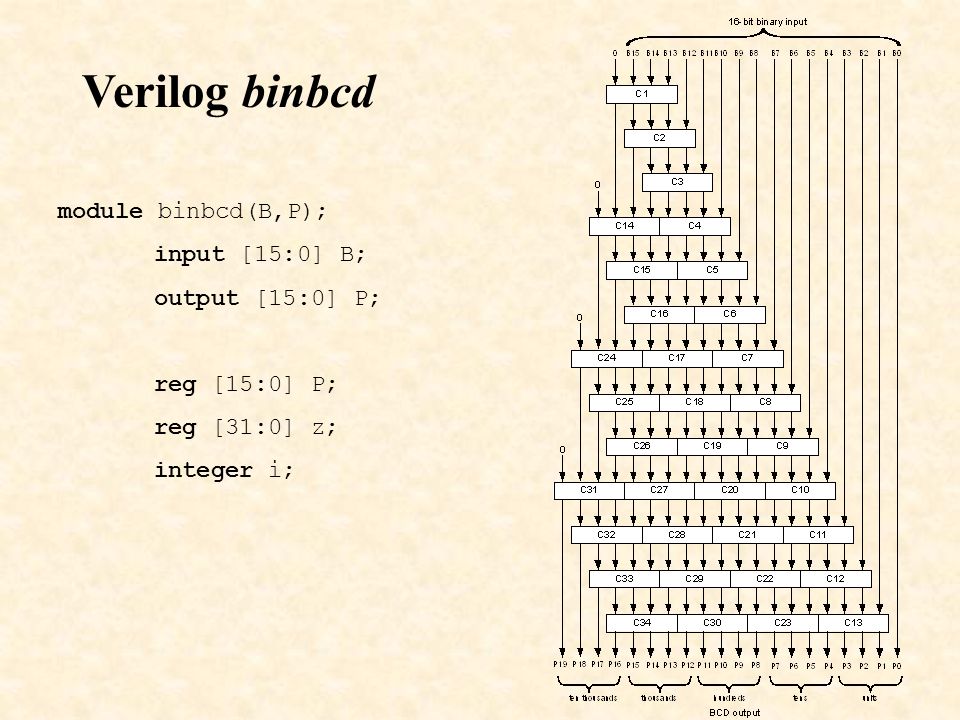

62 module binbcd(B,P); input [15:0] B; output [15:0] P; reg [15:0] P; reg [31:0] z; integer i; Verilog binbcd

63 always @(B) begin for(i = 0; i <= 31; i = i+1) z[i] = 0; z[18:3] = B; for(i = 0; i <= 12; i = i+1) begin if(z[19:16] > 4) z[19:16] = z[19:16] + 3; if(z[23:20] > 4) z[23:20] = z[23:20] + 3; if(z[27:24] > 4) z[27:24] = z[27:24] + 3; if(z[31:28] > 4) z[31:28] = z[31:28] + 3; z[31:1] = z[30:0]; end P = z[31:16]; end endmodule

64 Arithmetic Logic Units ALU1 –Shifting, Increment and Decrement Instructions ALU2 –Arithmetic and Logic Instructions ALU3 –Comparators

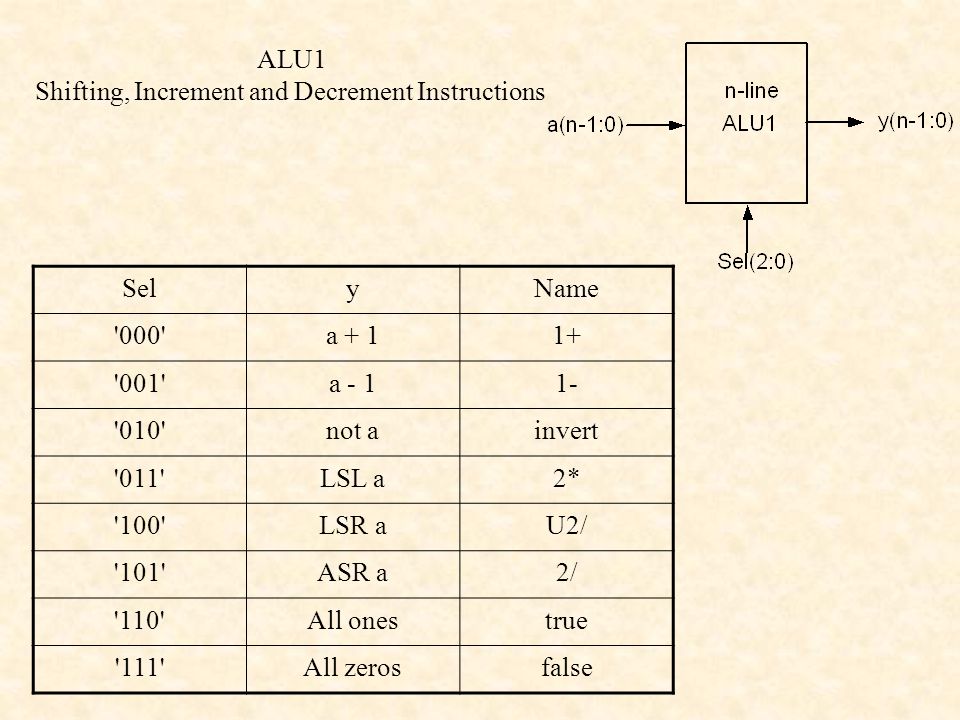

65 SelyName '000'a + 11+ '001'a - 11- '010'not ainvert '011'LSL a2* '100'LSR aU2/ '101'ASR a2/ '110'All onestrue '111'All zerosfalse ALU1 Shifting, Increment and Decrement Instructions

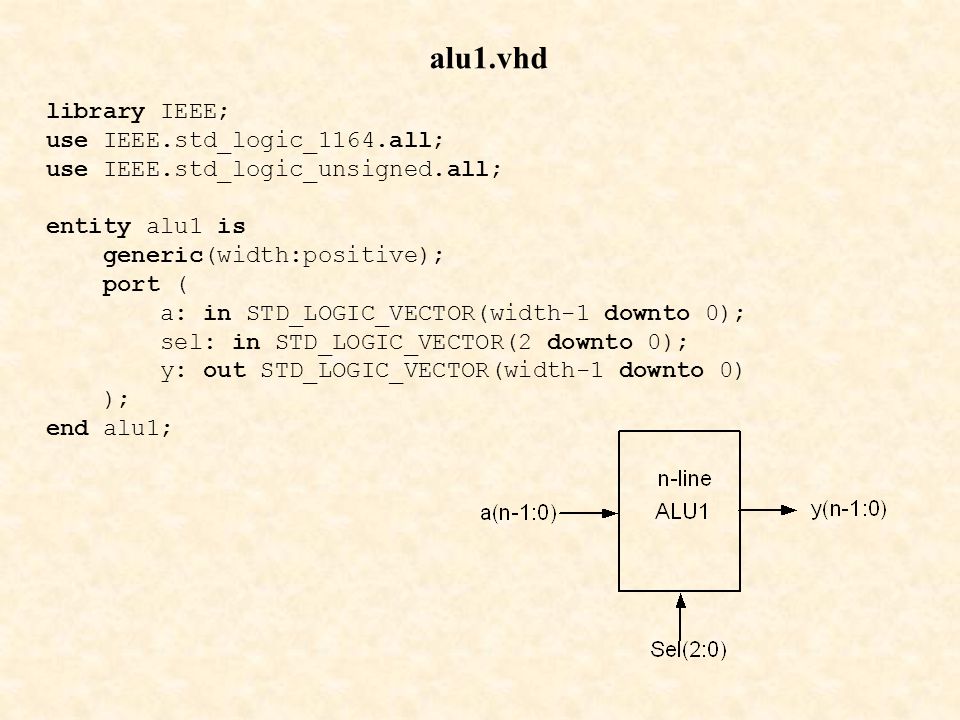

66 library IEEE; use IEEE.std_logic_1164.all; use IEEE.std_logic_unsigned.all; entity alu1 is generic(width:positive); port ( a: in STD_LOGIC_VECTOR(width-1 downto 0); sel: in STD_LOGIC_VECTOR(2 downto 0); y: out STD_LOGIC_VECTOR(width-1 downto 0) ); end alu1; alu1.vhd

67 architecture alu1_arch of alu1 is begin alu_1: process(a, sel) variable true, false: STD_LOGIC_VECTOR (width-1 downto 0); begin -- true is all ones; false is all zeros for i in 0 to width-1 loop true(i) := '1'; false(i) := '0'; end loop; case sel is when "000" =>-- 1+ y <= a + 1; when "001" =>-- 1- y <= a - 1; when "010" =>-- invert y <= not a; when "011" =>-- 2* y <= a(width-2 downto 0) & '0'; when "100" =>-- U2/ y <= '0' & a(width-1 downto 1); when "101" =>-- 2/ y <= a(width-1) & a(width-1 downto 1); when "110" =>-- TRUE y <= true; when others =>-- FALSE y <= false; end case; end process alu_1; end alu1_arch;

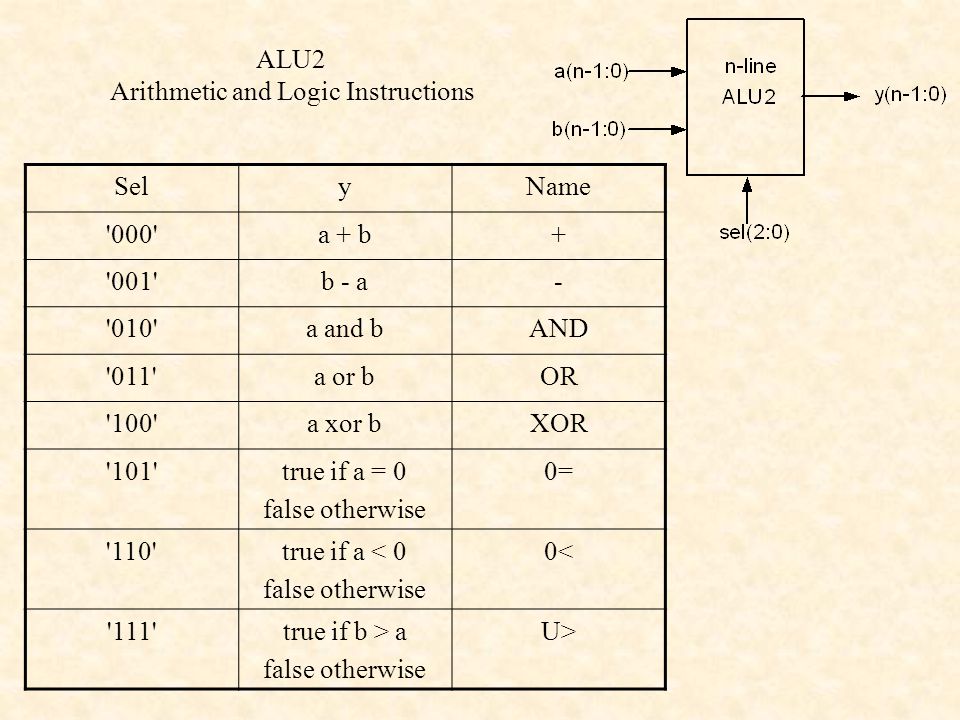

68 SelyName '000'a + b+ '001'b - a- '010'a and bAND '011'a or bOR '100'a xor bXOR '101'true if a = 0 false otherwise 0= '110'true if a < 0 false otherwise 0< '111'true if b > a false otherwise U> ALU2 Arithmetic and Logic Instructions

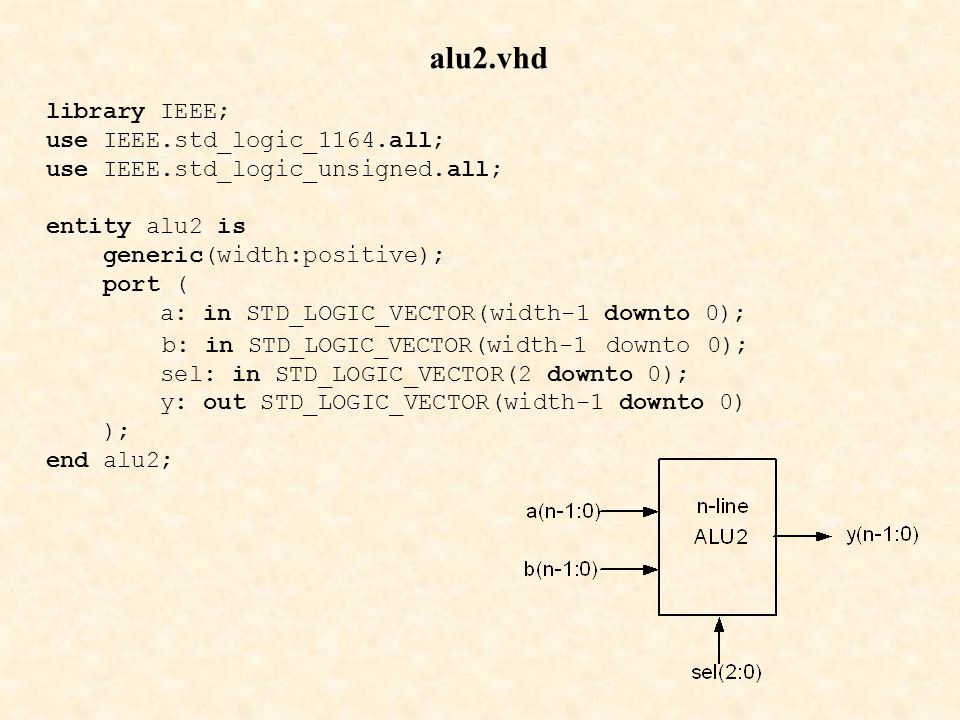

69 library IEEE; use IEEE.std_logic_1164.all; use IEEE.std_logic_unsigned.all; entity alu2 is generic(width:positive); port ( a: in STD_LOGIC_VECTOR(width-1 downto 0); b: in STD_LOGIC_VECTOR(width-1 downto 0); sel: in STD_LOGIC_VECTOR(2 downto 0); y: out STD_LOGIC_VECTOR(width-1 downto 0) ); end alu2; alu2.vhd

70 architecture alu2_arch of alu2 is begin alu_2: process(a, b, sel) variable true, false: STD_LOGIC_VECTOR (width-1 downto 0); variable Z: STD_LOGIC; begin Z := '0'; for i in 0 to width-1 loop true(i) := '1'; -- true is all ones; false(i) := '0'; -- false is all zeros Z := Z or a(i); -- Z = '0' if all a(i) = '0' end loop; case sel is when "000" =>-- + y <= a + b; when "001" =>-- - y <= b - a; when "010" =>-- AND y <= a and b; when "011" =>-- OR y <= a or b; when "100" =>-- XOR y <= A xor B;

71 when "101" =>-- 0= NOT if (Z = '0') then y <= true; else y <= false; end if; when "110" =>-- 0< if (a(width-1) = '1') then y <= true; else y <= false; end if; when "111" =>-- U> if (b > a) then y <= true; else y <= false; end if; when others => null; end case; end process alu_2; end alu2_arch;

72 SelyName '000'true if b = a false otherwise = '001'true if b /= a false otherwise <> '010'true if b < a (unsigned) false otherwise U< '011'true if b > a (unsigned) false otherwise U> '100'true if b <= a (unsigned) false otherwise U<= '101'true if b < a (signed) false otherwise < '110'true if b > a (signed) false otherwise > '111'true if b <= a (signed) false otherwise <= ALU3 Comparators

73 library IEEE; use IEEE.std_logic_1164.all; use IEEE.std_logic_arith.all; use IEEE.std_logic_unsigned.all; entity alu3 is generic(width:positive); port ( a: in STD_LOGIC_VECTOR(width-1 downto 0); b: in STD_LOGIC_VECTOR(width-1 downto 0); sel: in STD_LOGIC_VECTOR(2 downto 0); y: out STD_LOGIC_VECTOR(width-1 downto 0) ); end alu3; alu3.vhd

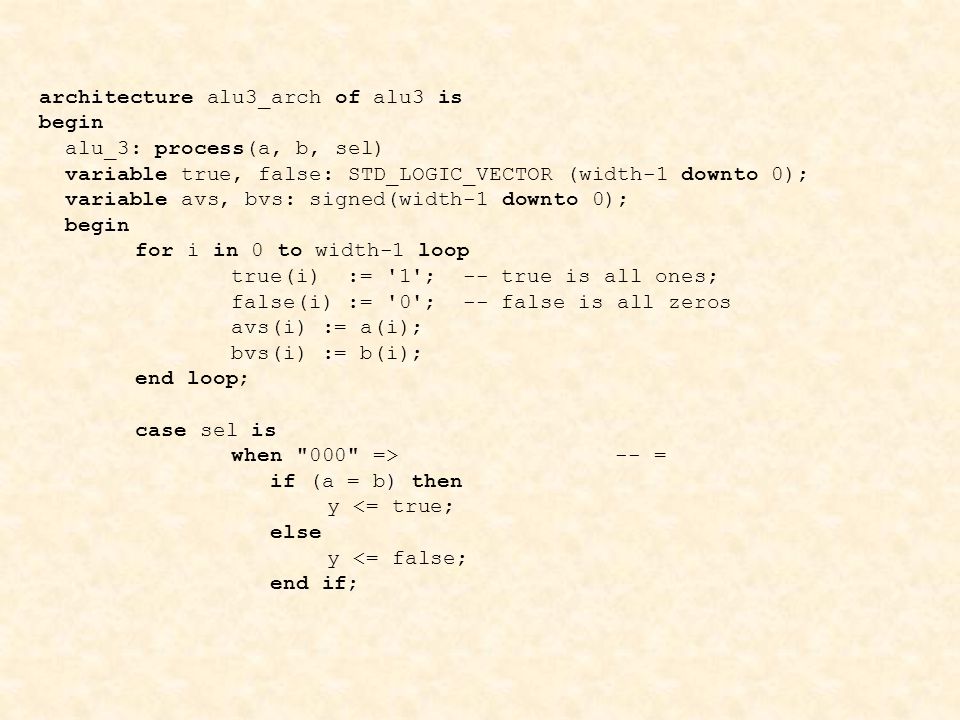

74 architecture alu3_arch of alu3 is begin alu_3: process(a, b, sel) variable true, false: STD_LOGIC_VECTOR (width-1 downto 0); variable avs, bvs: signed(width-1 downto 0); begin for i in 0 to width-1 loop true(i) := '1'; -- true is all ones; false(i) := '0'; -- false is all zeros avs(i) := a(i); bvs(i) := b(i); end loop; case sel is when "000" =>-- = if (a = b) then y <= true; else y <= false; end if;

75 when "001" =>-- <> if (a /= b) then y <= true; else y <= false; end if; when "010" =>-- U< if (b < a) then y <= true; else y <= false; end if; when "011" =>-- U> if (b > a) then y <= true; else y <= false; end if; when "100" =>-- U<= if (b <= a) then y <= true; else y <= false; end if;

76 when "101" =>-- < if (bvs < avs) then y <= true; else y <= false; end if; when "110" =>-- > if (bvs > avs) then y <= true; else y <= false; end if; when "111" =>-- <= if (bvs <= avs) then y <= true; else y <= false; end if; when others => null; end case; end process alu_3; end alu3_arch;

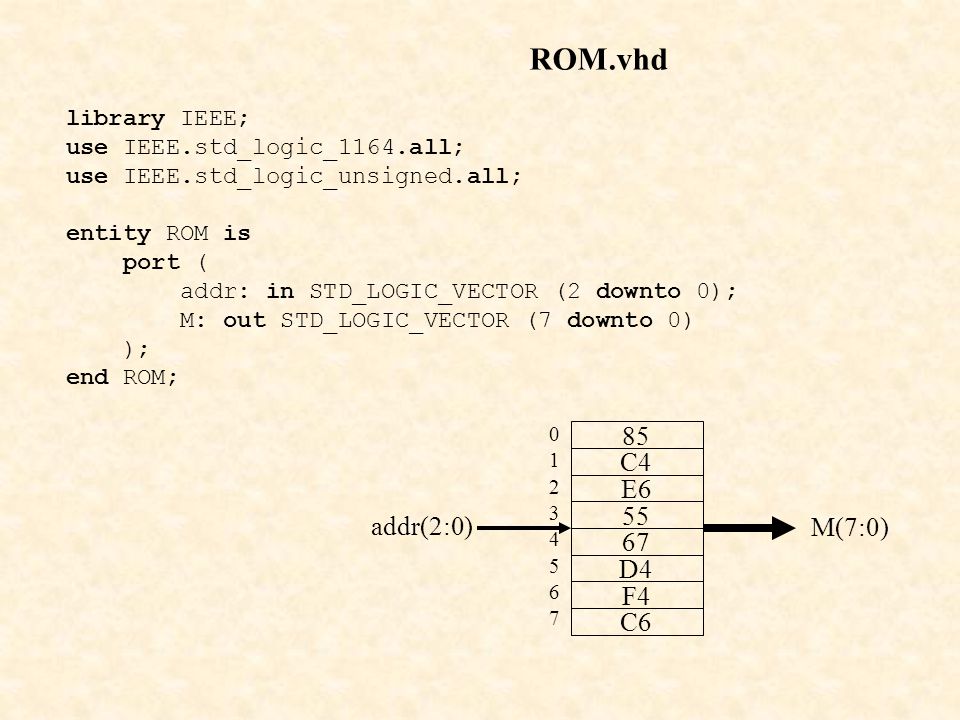

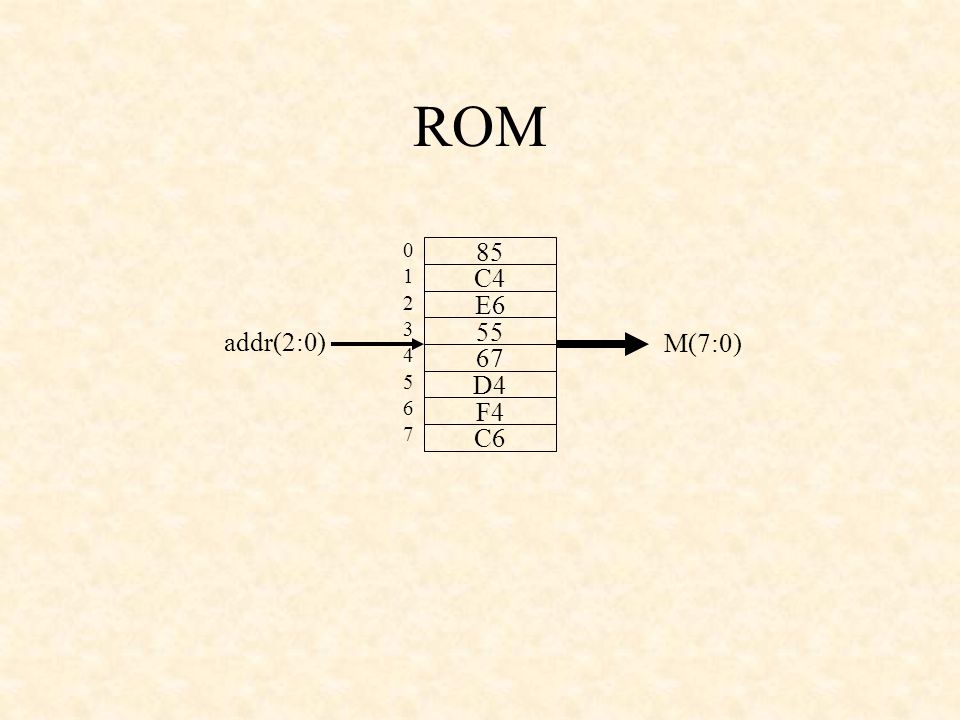

77 ROM 85 C4 E6 55 67 D4 F4 C6 addr(2:0) M(7:0) 0123456701234567

78 library IEEE; use IEEE.std_logic_1164.all; use IEEE.std_logic_unsigned.all; entity ROM is port ( addr: in STD_LOGIC_VECTOR (2 downto 0); M: out STD_LOGIC_VECTOR (7 downto 0) ); end ROM; 85 C4 E6 55 67 D4 F4 C6 addr(2:0) M(7:0) 0123456701234567 ROM.vhd

79 architecture ROM_arch of ROM is constant data0: STD_LOGIC_VECTOR (7 downto 0) := "10000101"; constant data1: STD_LOGIC_VECTOR (7 downto 0) := "11000100"; constant data2: STD_LOGIC_VECTOR (7 downto 0) := X"E6"; constant data3: STD_LOGIC_VECTOR (7 downto 0) := X"55"; constant data4: STD_LOGIC_VECTOR (7 downto 0) := X"67"; constant data5: STD_LOGIC_VECTOR (7 downto 0) := X"D4"; constant data6: STD_LOGIC_VECTOR (7 downto 0) := "11110100"; constant data7: STD_LOGIC_VECTOR (7 downto 0) := "11000110"; type rom_array is array (NATURAL range <>) of STD_LOGIC_VECTOR (7 downto 0); constant rom: rom_array := ( data0, data1, data2, data3, data4, data5, data6, data7 ); begin process(addr) variable j: integer; begin j := conv_integer(addr); M <= rom(j); end process; end ROM_arch; 85 C4 E6 55 67 D4 F4 C6 addr(2:0) M(7:0) 0123456701234567

80
