1. ARM programmer’s model and assembler Embedded Systems Programming

2. Memory Formats The ARM views memory as a linear collection of bytes numbered upwards from zero. Bytes 0 to 3 hold the first stored word, bytes 4 to 7 the second and so on. The ARM can treat words in memory as being stored either in Big Endian or Little Endian format. A word is 32 bits Addresses are 32 bits

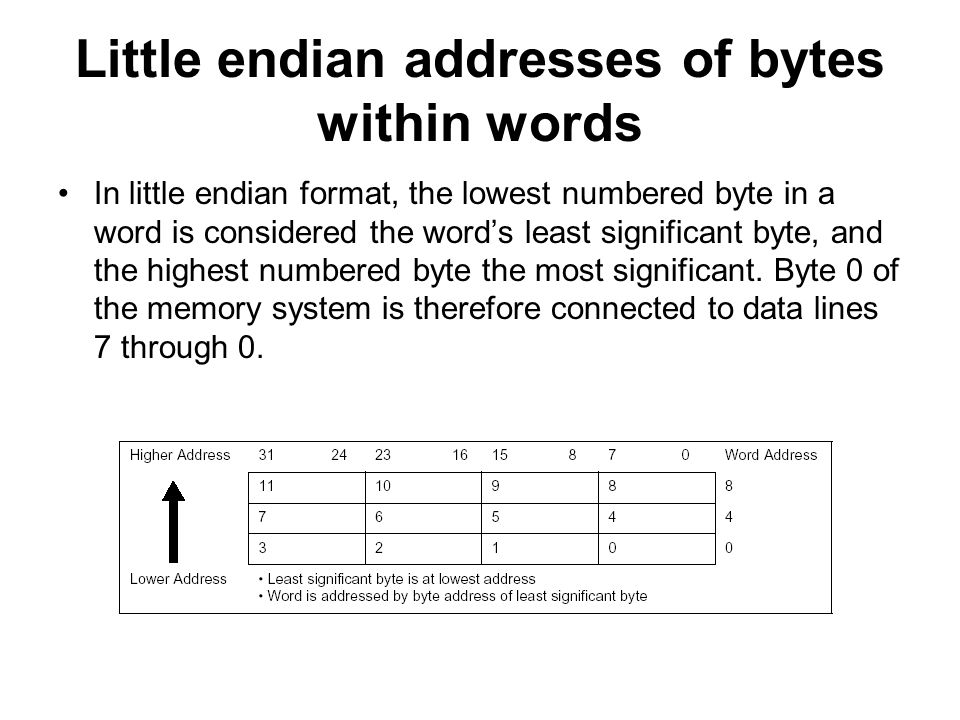

3. Little endian addresses of bytes within words In little endian format, the lowest numbered byte in a word is considered the word’s least significant byte, and the highest numbered byte the most significant. Byte 0 of the memory system is therefore connected to data lines 7 through 0.

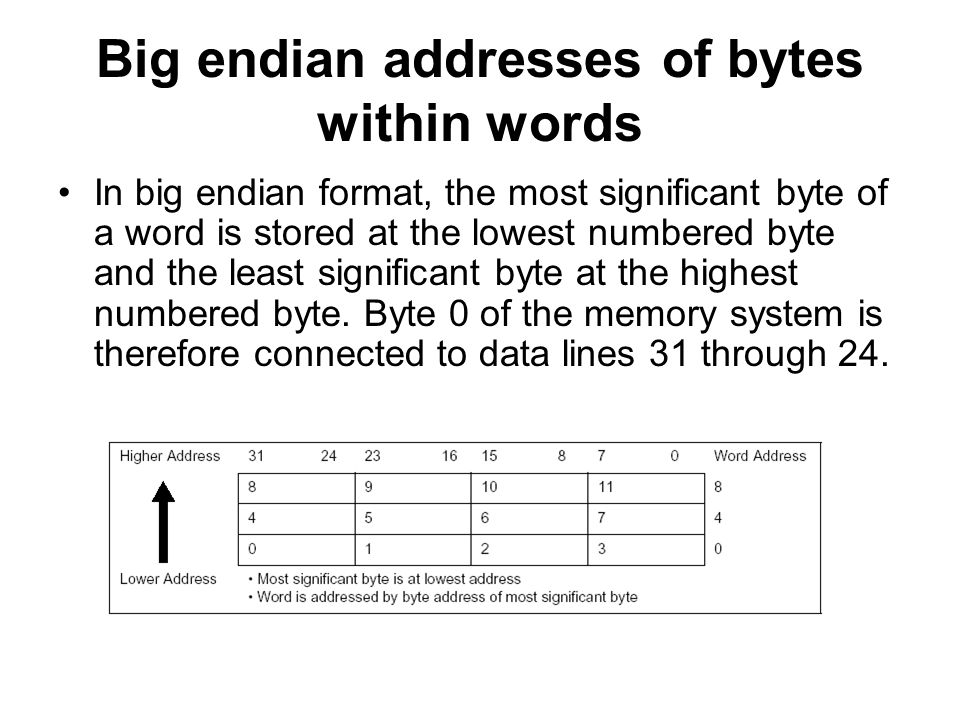

4. Big endian addresses of bytes within words In big endian format, the most significant byte of a word is stored at the lowest numbered byte and the least significant byte at the highest numbered byte. Byte 0 of the memory system is therefore connected to data lines 31 through 24.

5. ARM processor modes

6. The ARM register set

8. Program Status Register format In user programs only the top 4 bits of the CPSR are relevant N - the result was negative Z - the result was zero C - the result produced a carry out V - the result generated an arithmetic overflow I, F – interrupt enable bits T – instruction set (Thumb/ARM)

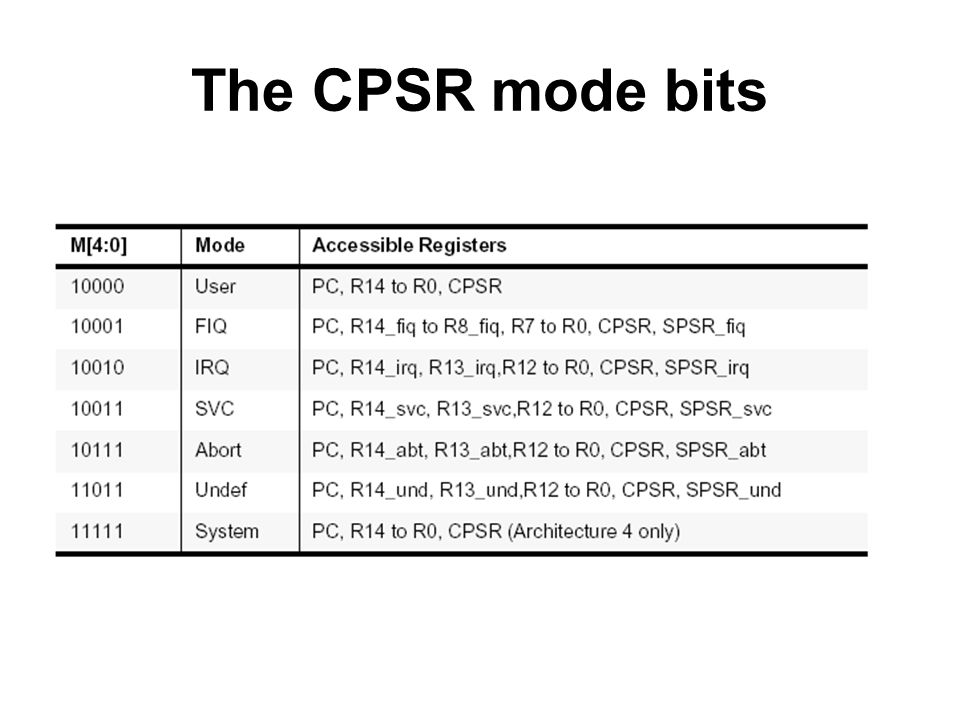

9. The CPSR mode bits

10. Exception processing modes

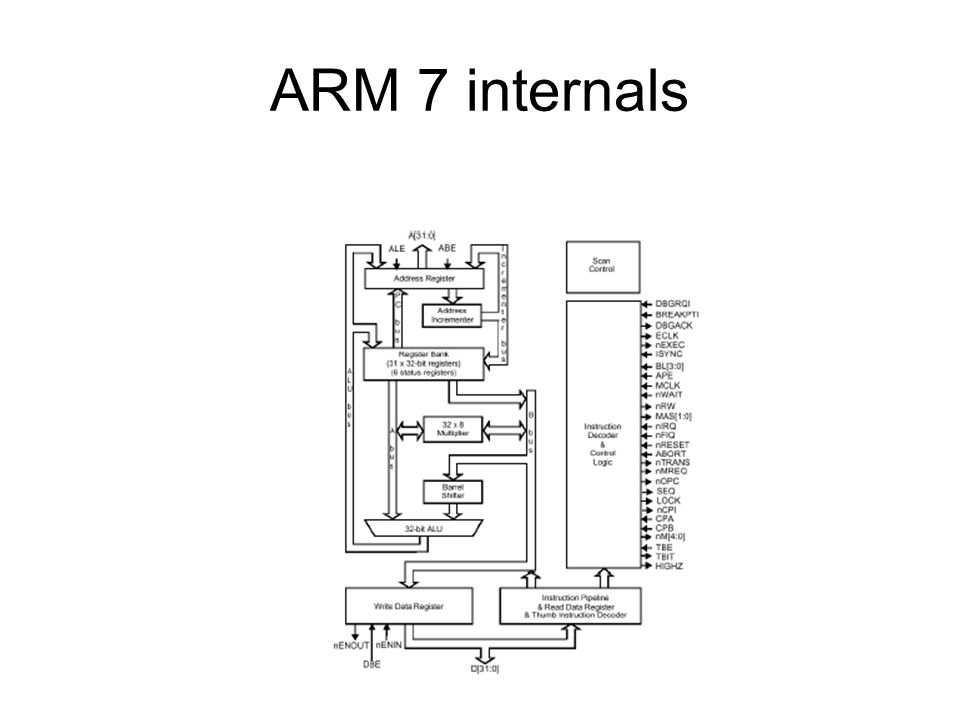

11. ARM 7 internals

12. The ARM instruction set a) Data processing instructions b) Data transfer instructions c) Control flow & conditional execution d) Special instructions

13. Data processing instructions ALL operands are 32-bits wide and either: come from registers, or are literals (´immediate´ values ) specified in the instruction The result, if any, is 32-bits wide and goes into a register –except long multiplies generate 64-bit results All operand and result registers are specified independently
