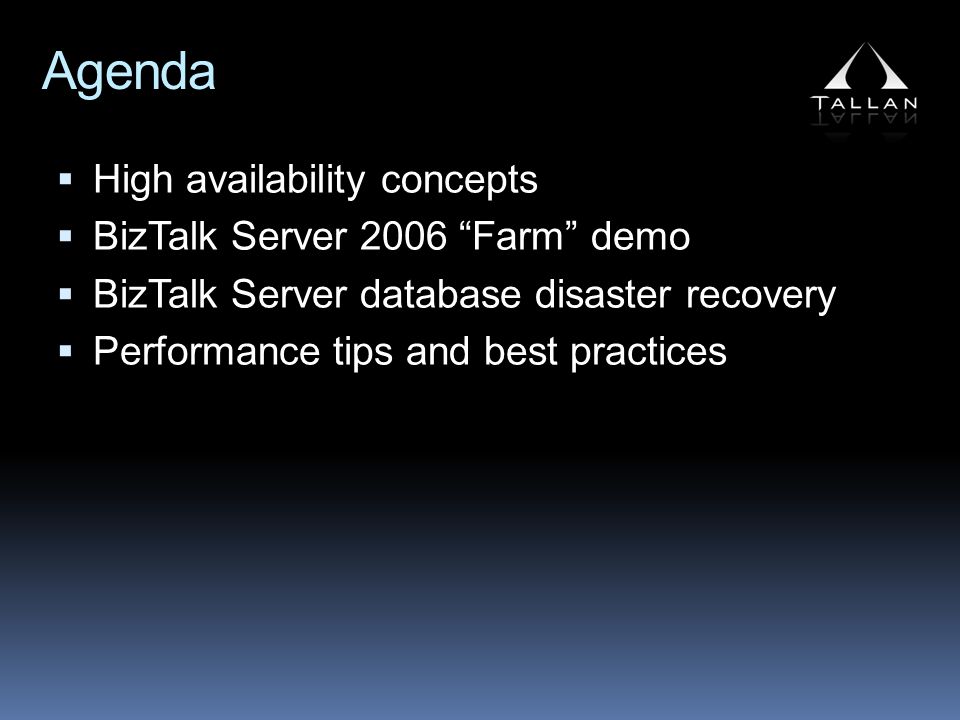

5. Agenda  High availability concepts  BizTalk Server 2006 “Farm” demo  BizTalk Server database disaster recovery  Performance tips and best practices

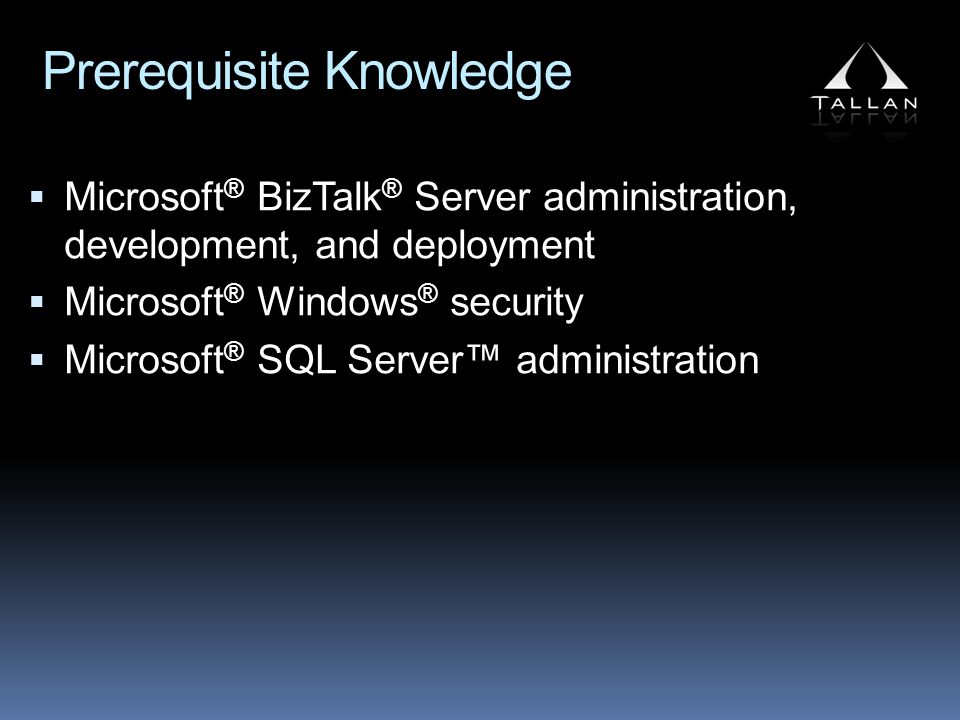

6. Prerequisite Knowledge  Microsoft ® BizTalk ® Server administration, development, and deployment  Microsoft ® Windows ® security  Microsoft ® SQL Server™ administration

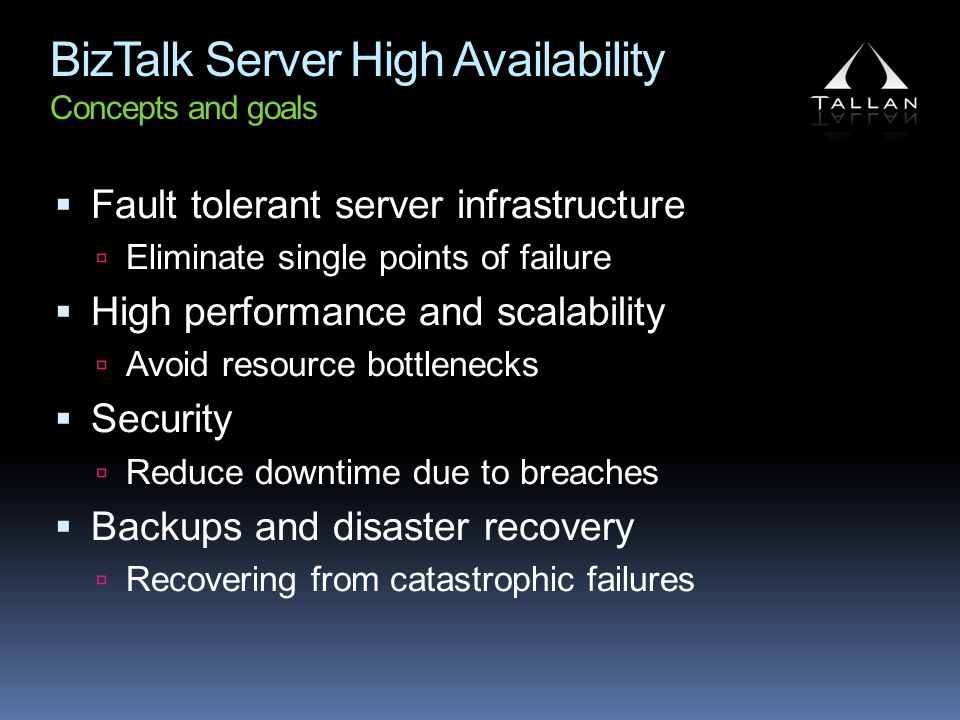

7. BizTalk Server High Availability Concepts and goals  Fault tolerant server infrastructure  Eliminate single points of failure  High performance and scalability  Avoid resource bottlenecks  Security  Reduce downtime due to breaches  Backups and disaster recovery  Recovering from catastrophic failures

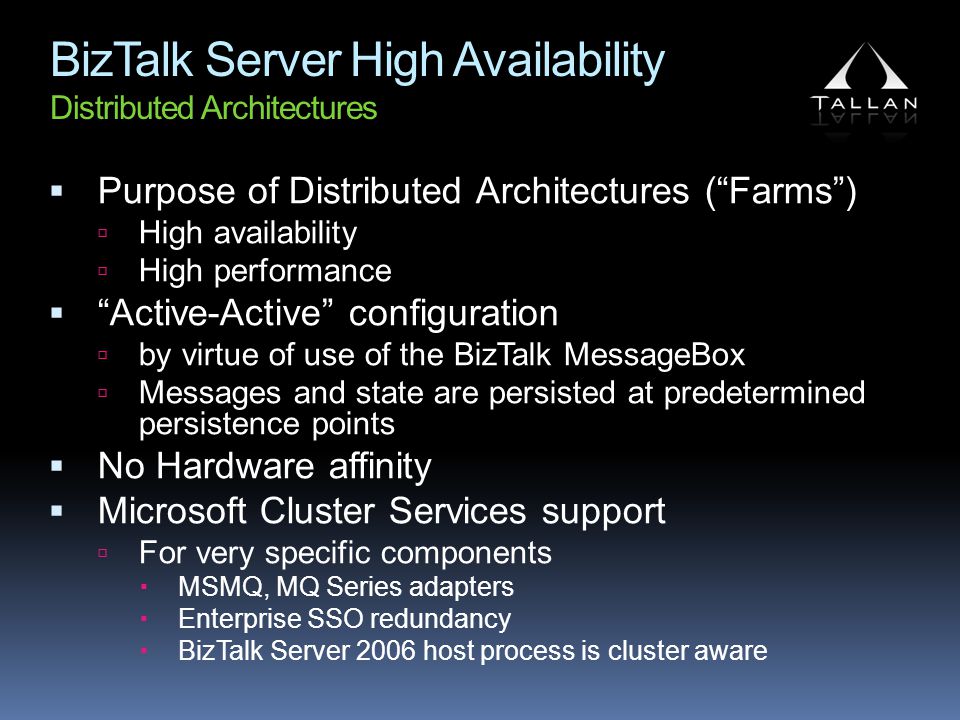

8. BizTalk Server High Availability Distributed Architectures  Purpose of Distributed Architectures (“Farms”)  High availability  High performance  “Active-Active” configuration  by virtue of use of the BizTalk MessageBox  Messages and state are persisted at predetermined persistence points  No Hardware affinity  Microsoft Cluster Services support  For very specific components  MSMQ, MQ Series adapters  Enterprise SSO redundancy  BizTalk Server 2006 host process is cluster aware

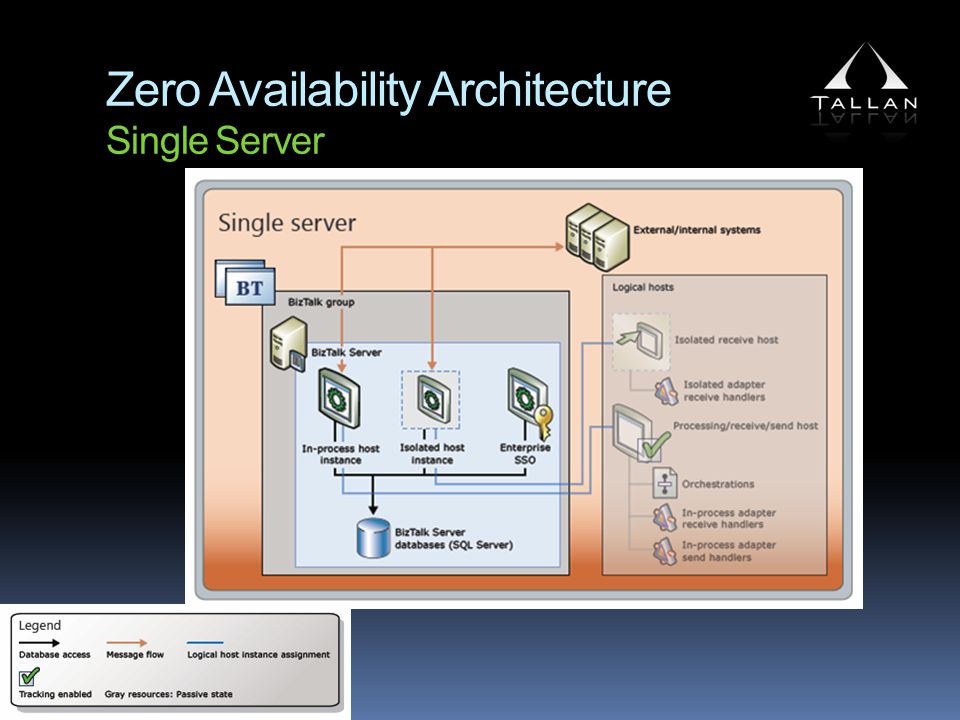

9. Zero Availability Architecture Single Server

10. High Availability Architectures Small BizTalk Server deployment

12. SQL Server Cluster options

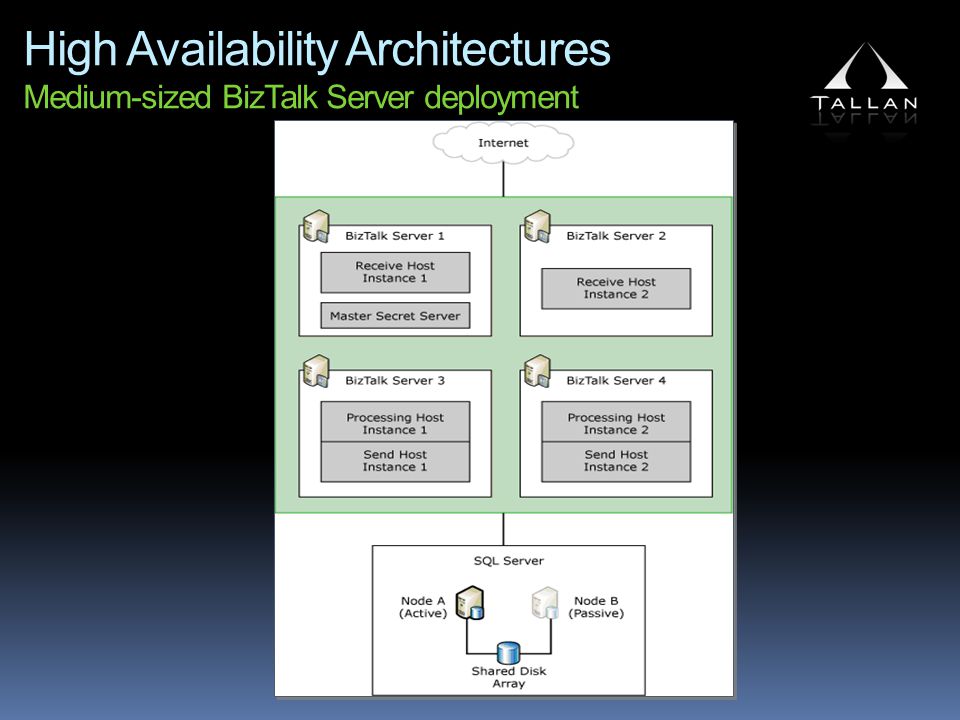

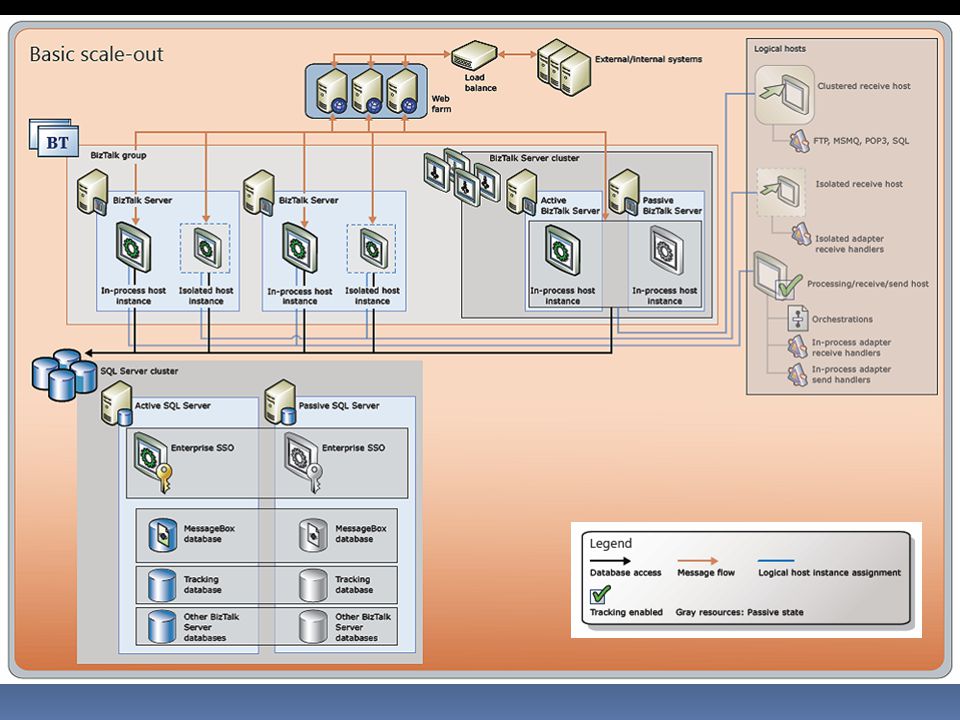

14. High Availability Architectures Medium-sized BizTalk Server deployment

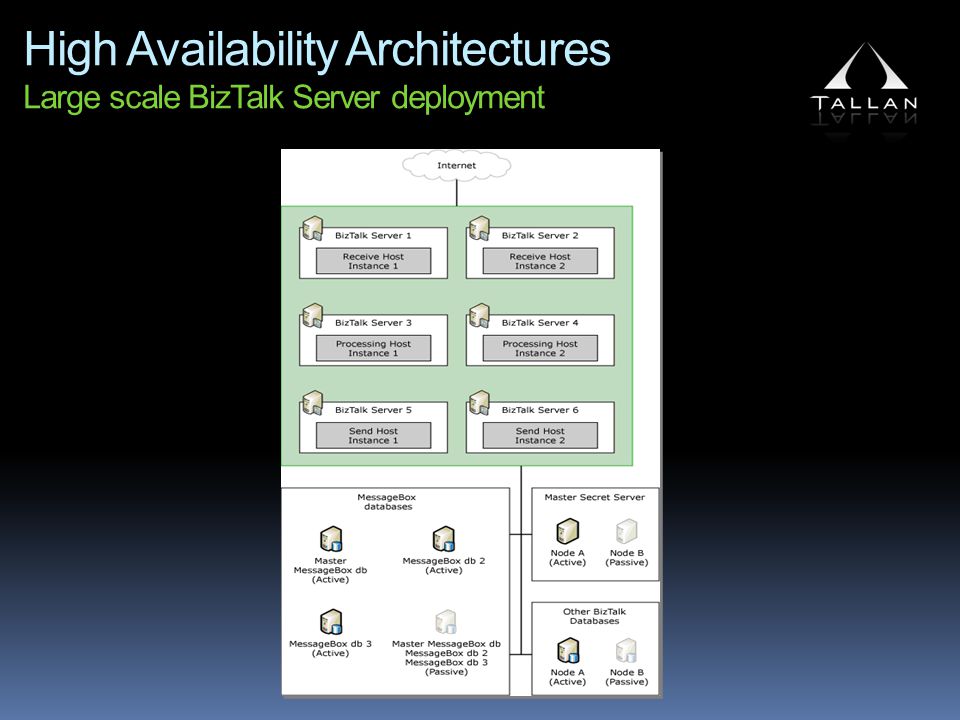

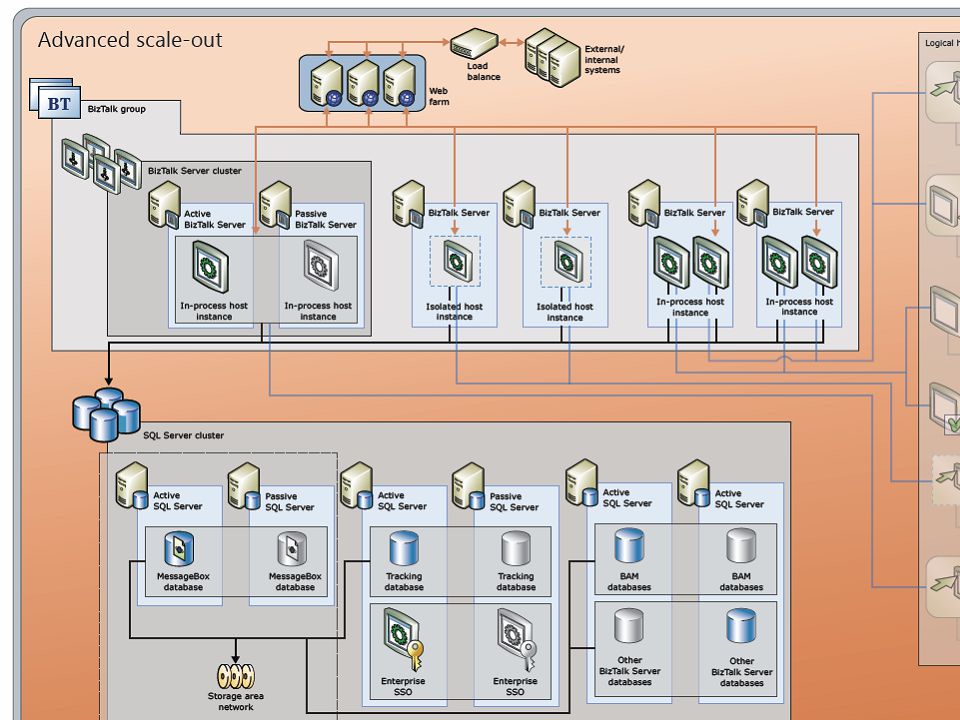

16. High Availability Architectures Large scale BizTalk Server deployment

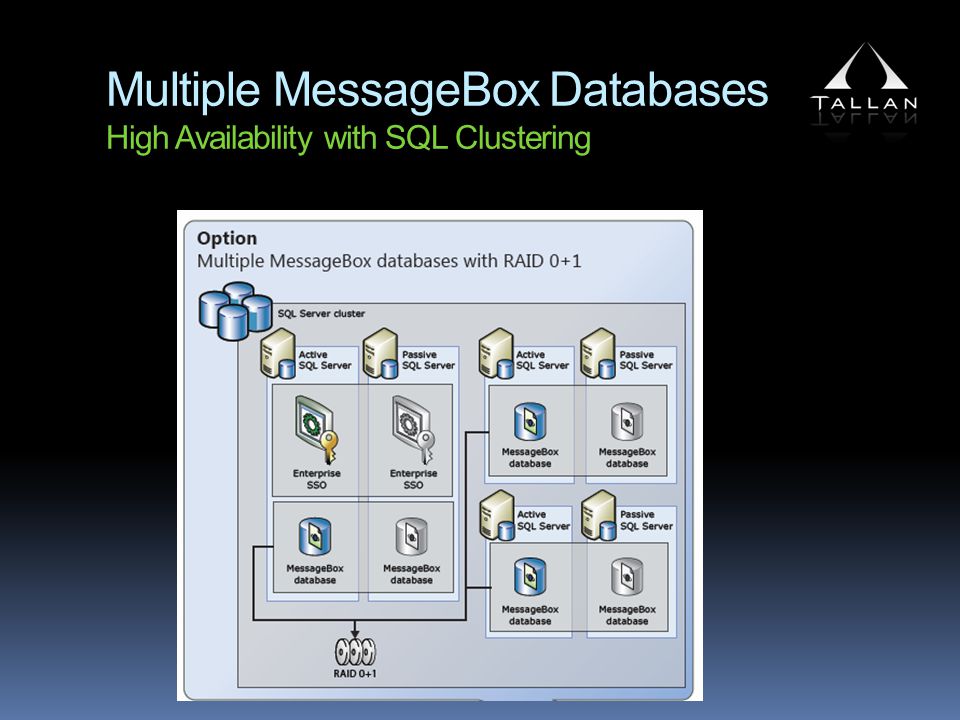

17. Multiple MessageBox Databases High Availability with SQL Clustering

18. Multiple MessageBox Databases  Minimum of 3 – otherwise no benefit  One Master messagebox  Used for Routing  Disable new message publication (be careful if using MSMQT)  Multiple secondary messageboxes  Used for Processing  Load Balancing is automatic and handled by BizTalk automatically

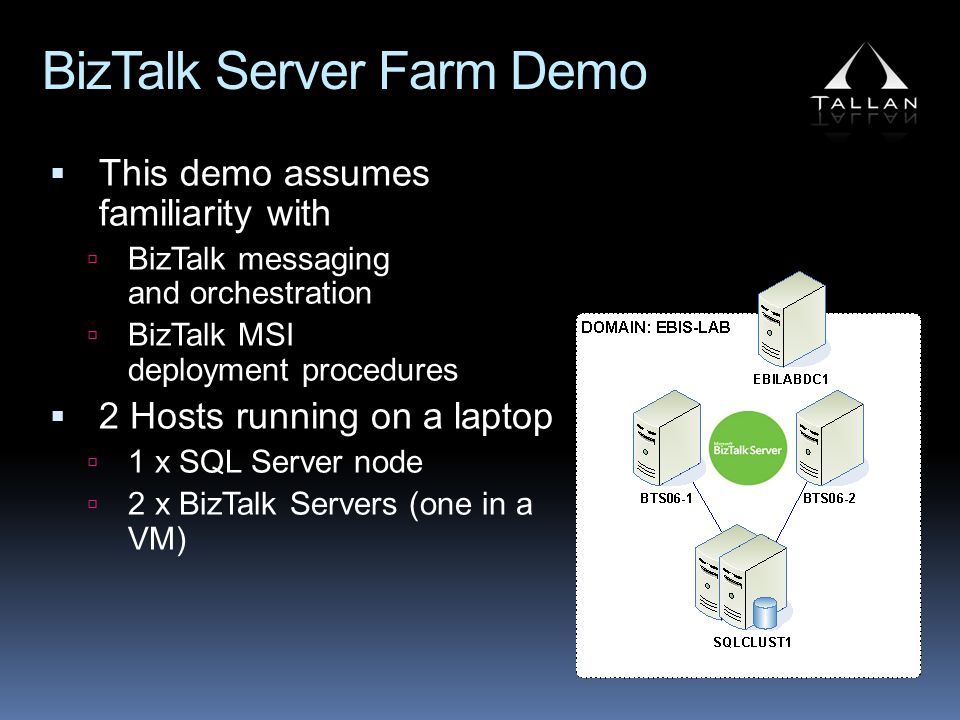

19. BizTalk Server Farm Demo  This demo assumes familiarity with  BizTalk messaging and orchestration  BizTalk MSI deployment procedures  2 Hosts running on a laptop  1 x SQL Server node  2 x BizTalk Servers (one in a VM)

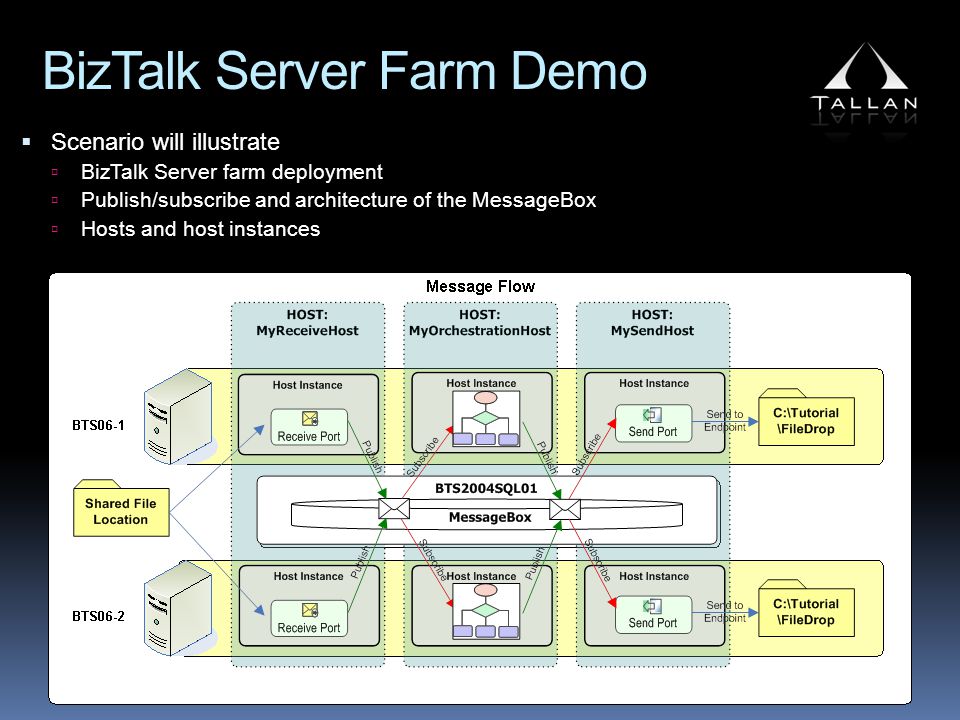

20. BizTalk Server Farm Demo  Scenario will illustrate  BizTalk Server farm deployment  Publish/subscribe and architecture of the MessageBox  Hosts and host instances

21. BizTalk Server 2006 “Farm”

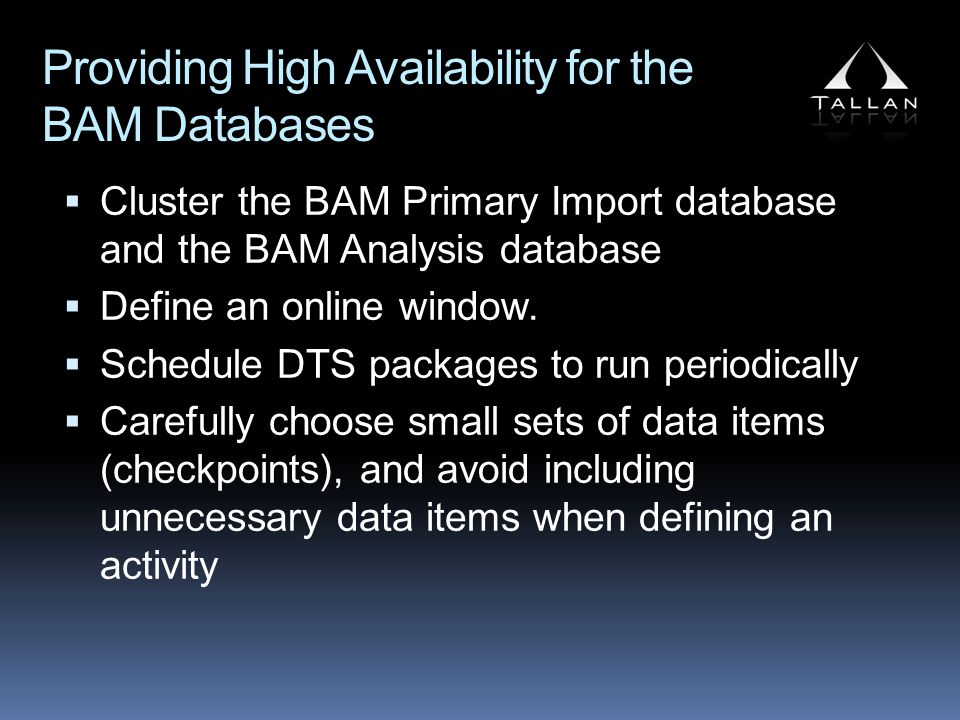

22. Providing High Availability for the BAM Databases  Cluster the BAM Primary Import database and the BAM Analysis database  Define an online window.  Schedule DTS packages to run periodically  Carefully choose small sets of data items (checkpoints), and avoid including unnecessary data items when defining an activity

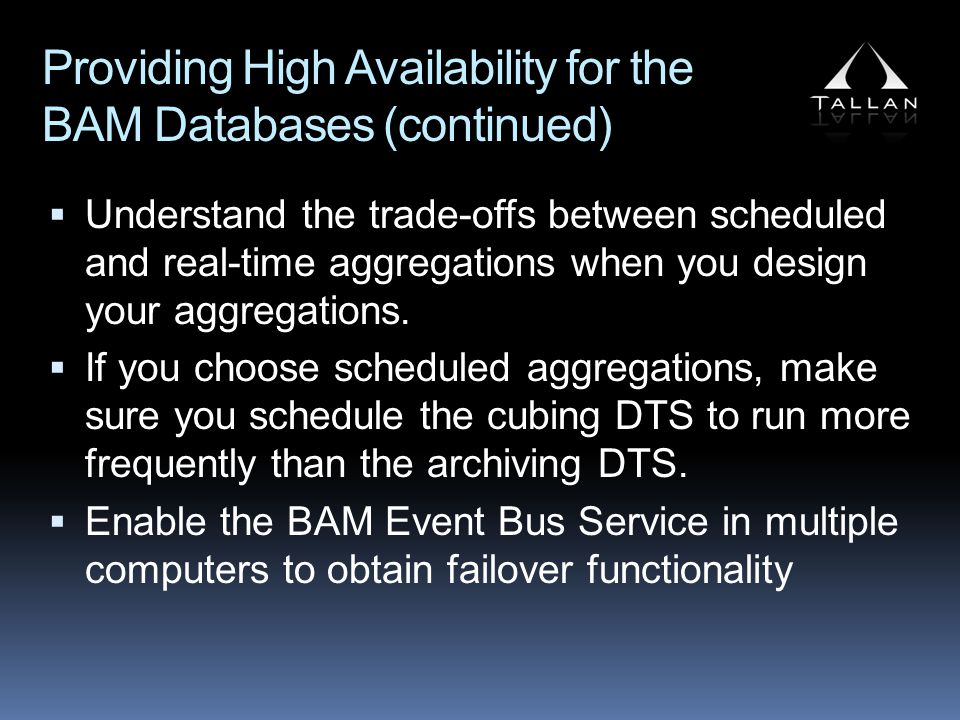

23. Providing High Availability for the BAM Databases (continued)  Understand the trade-offs between scheduled and real-time aggregations when you design your aggregations.  If you choose scheduled aggregations, make sure you schedule the cubing DTS to run more frequently than the archiving DTS.  Enable the BAM Event Bus Service in multiple computers to obtain failover functionality

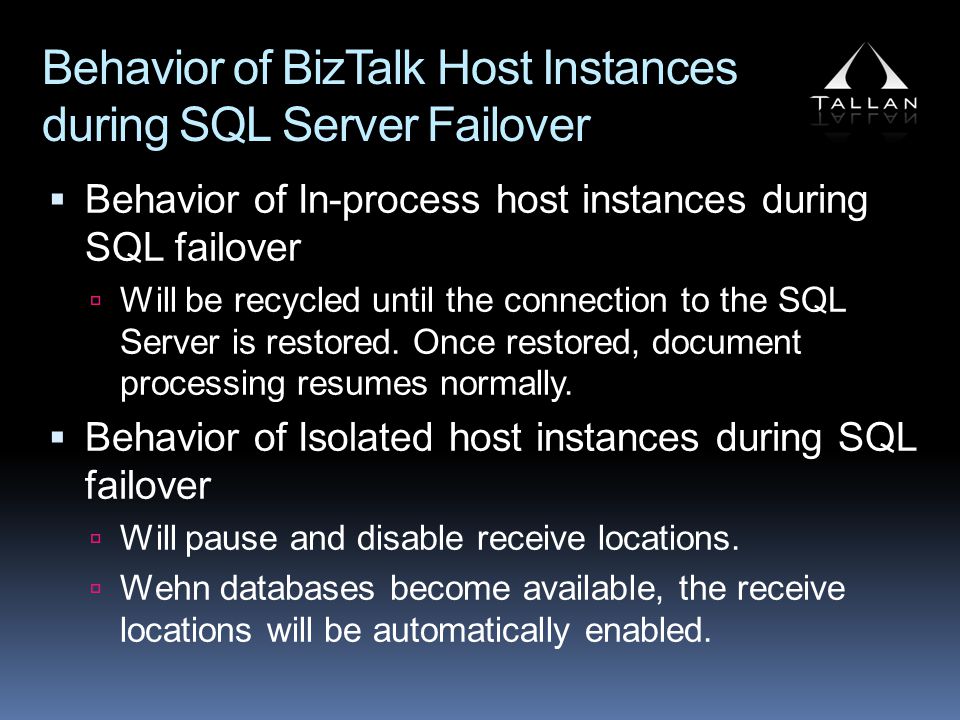

24. Behavior of BizTalk Host Instances during SQL Server Failover  Behavior of In-process host instances during SQL failover  Will be recycled until the connection to the SQL Server is restored. Once restored, document processing resumes normally.  Behavior of Isolated host instances during SQL failover  Will pause and disable receive locations.  Wehn databases become available, the receive locations will be automatically enabled.

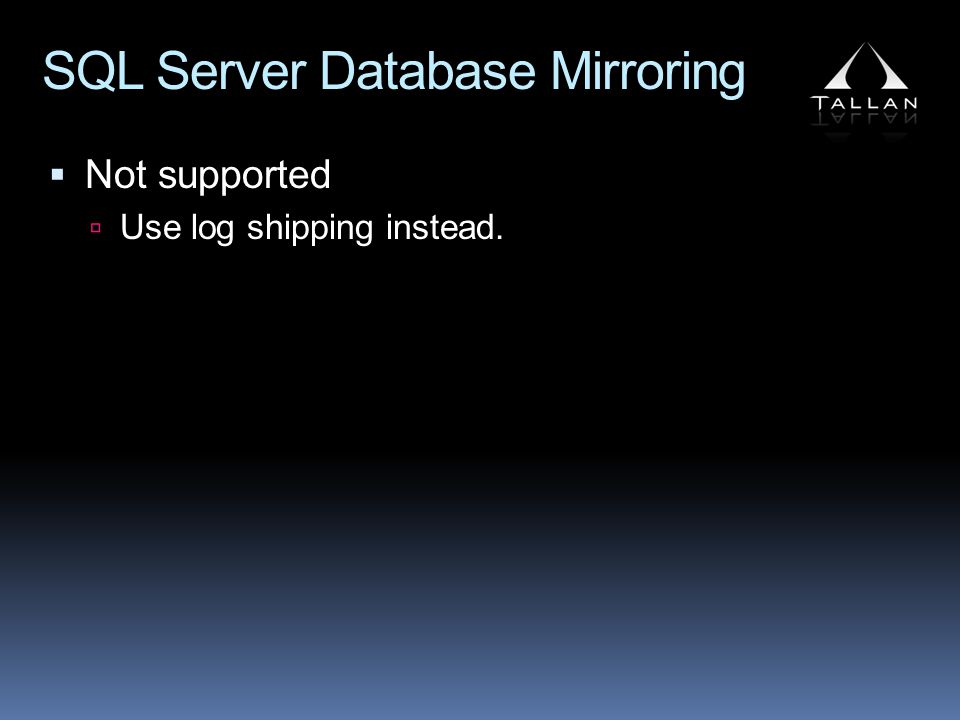

25. SQL Server Database Mirroring  Not supported  Use log shipping instead.

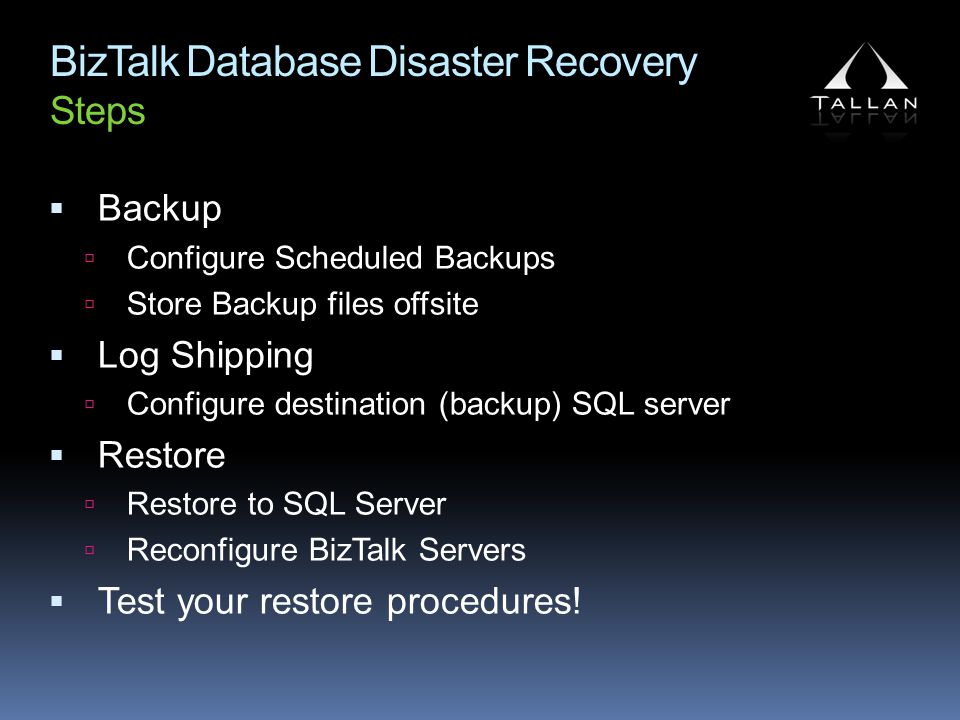

26. BizTalk Database Disaster Recovery Steps  Backup  Configure Scheduled Backups  Store Backup files offsite  Log Shipping  Configure destination (backup) SQL server  Restore  Restore to SQL Server  Reconfigure BizTalk Servers  Test your restore procedures!

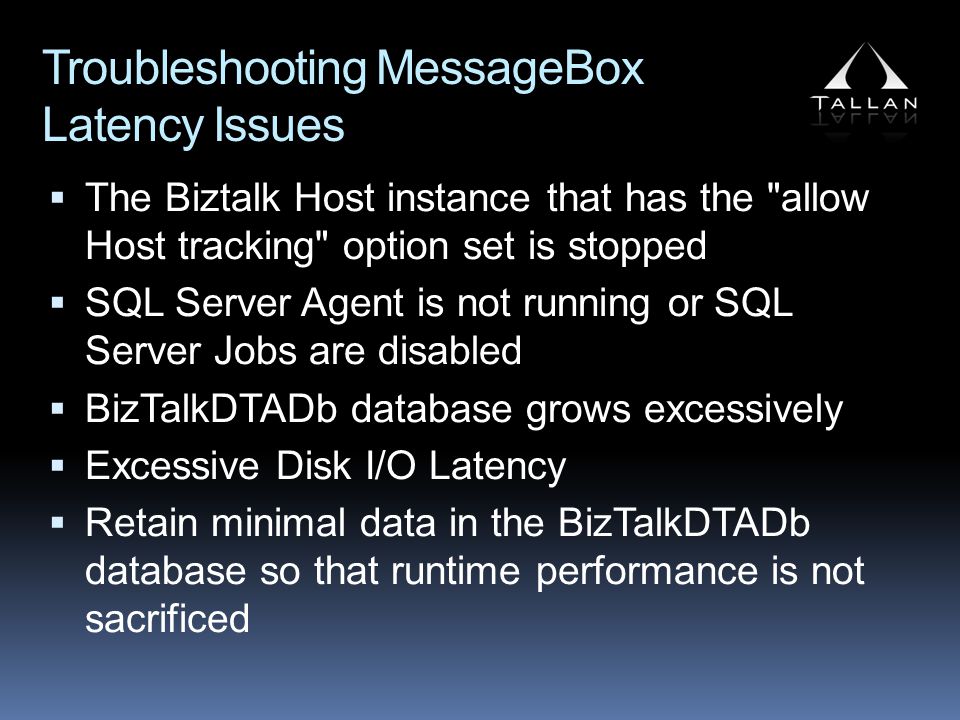

27. Troubleshooting MessageBox Latency Issues  The Biztalk Host instance that has the "allow Host tracking" option set is stopped  SQL Server Agent is not running or SQL Server Jobs are disabled  BizTalkDTADb database grows excessively  Excessive Disk I/O Latency  Retain minimal data in the BizTalkDTADb database so that runtime performance is not sacrificed

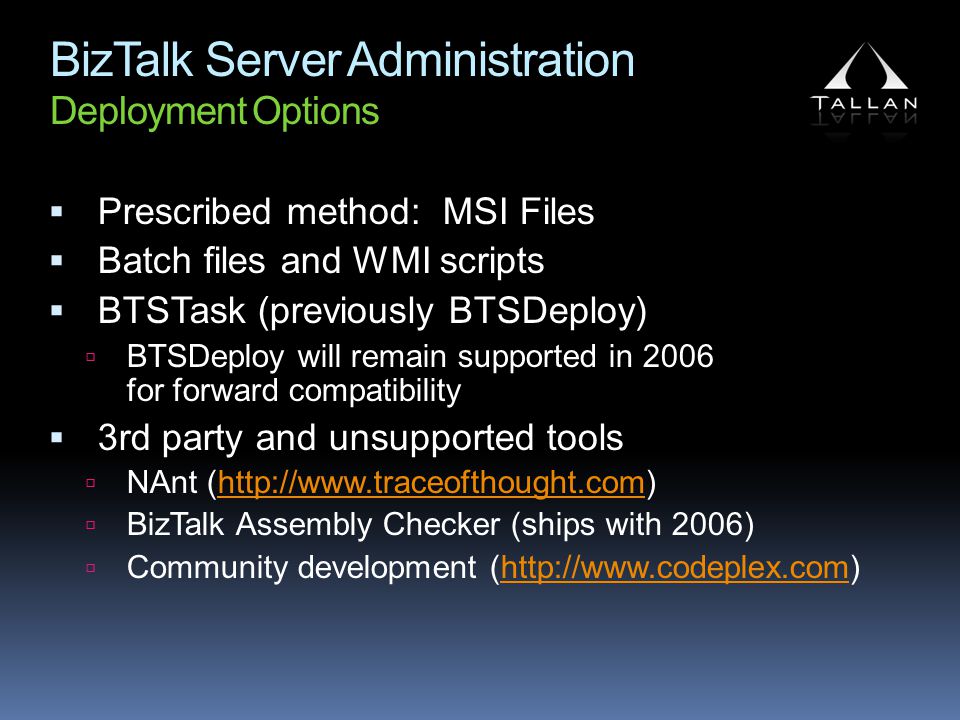

28. BizTalk Server Administration Deployment Options  Prescribed method: MSI Files  Batch files and WMI scripts  BTSTask (previously BTSDeploy)  BTSDeploy will remain supported in 2006 for forward compatibility  3rd party and unsupported tools  NAnt (http://www.traceofthought.com)http://www.traceofthought.com  BizTalk Assembly Checker (ships with 2006)  Community development (http://www.codeplex.com)http://www.codeplex.com

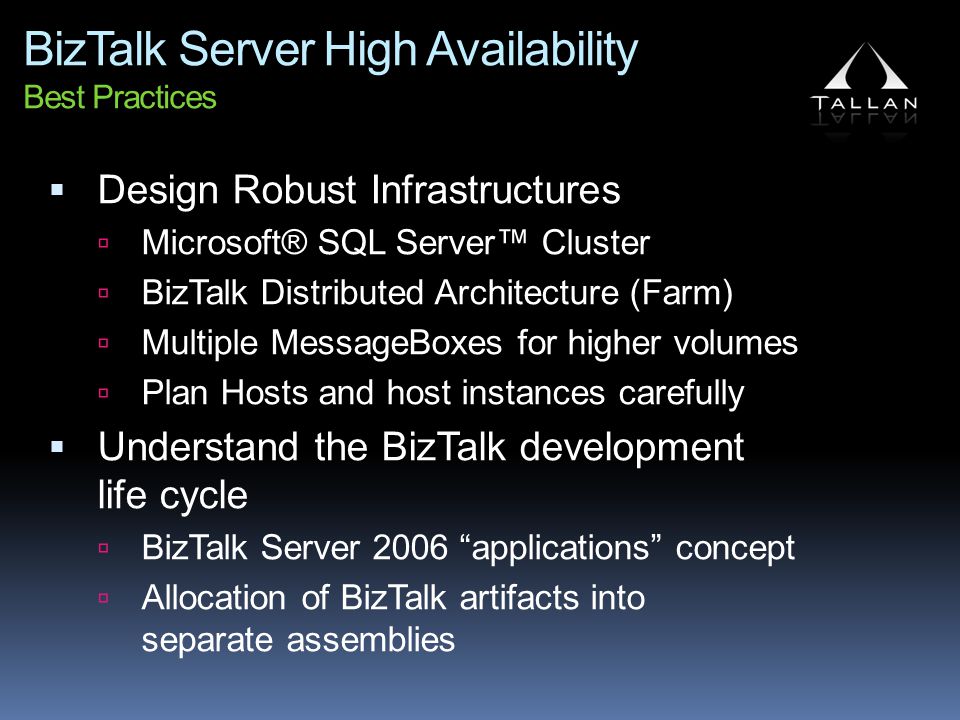

29. BizTalk Server High Availability Best Practices  Design Robust Infrastructures  Microsoft® SQL Server™ Cluster  BizTalk Distributed Architecture (Farm)  Multiple MessageBoxes for higher volumes  Plan Hosts and host instances carefully  Understand the BizTalk development life cycle  BizTalk Server 2006 “applications” concept  Allocation of BizTalk artifacts into separate assemblies

30. BizTalk Server High Availability Best Practices  Plan and test your disaster recovery strategy  Backing up your BizTalk Databases  BizTalk Log Shipping  Archiving and Purging Document Tracking DB  Documentation  Hardware Architecture  Server Operations  Implemented Solution Architectures  Deployment procedures

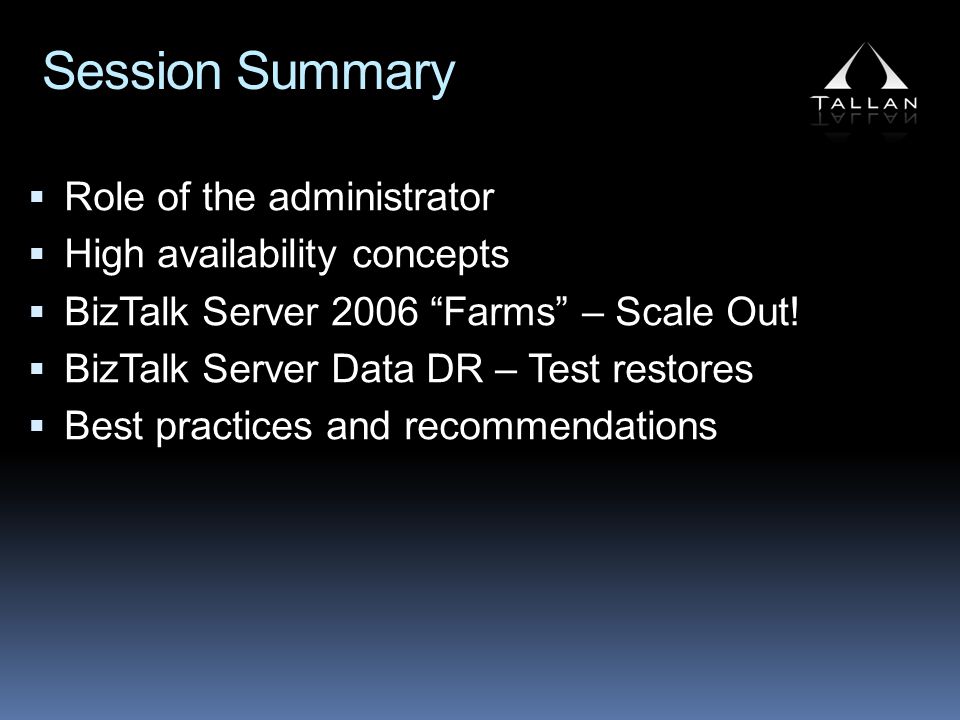

31. Session Summary  Role of the administrator  High availability concepts  BizTalk Server 2006 “Farms” – Scale Out!  BizTalk Server Data DR – Test restores  Best practices and recommendations

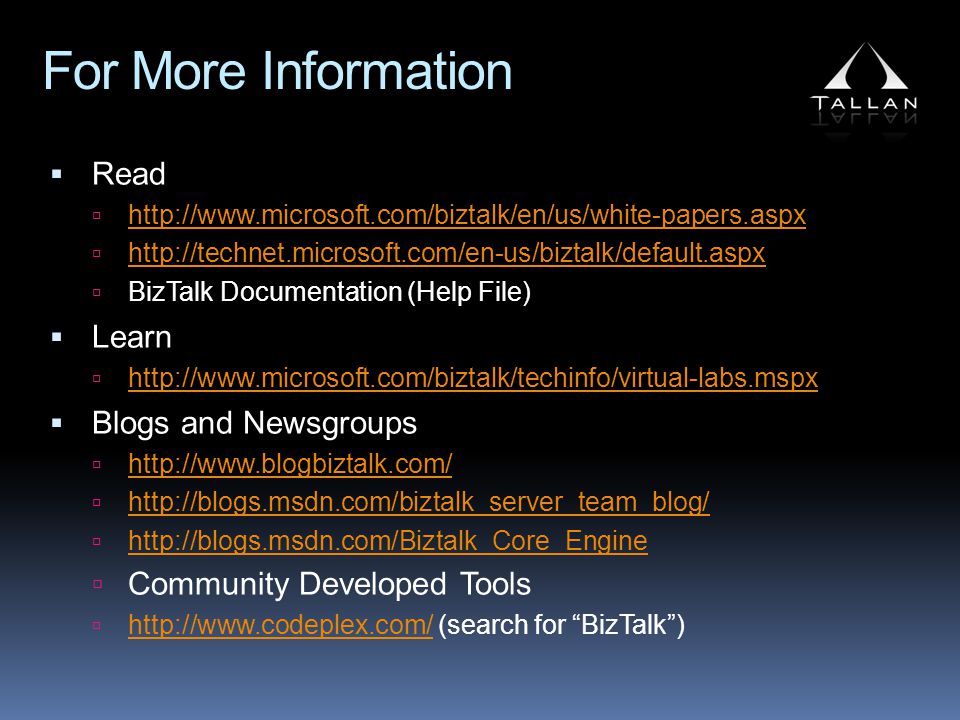

32. For More Information  Read  http://www.microsoft.com/biztalk/en/us/white-papers.aspx http://www.microsoft.com/biztalk/en/us/white-papers.aspx  http://technet.microsoft.com/en-us/biztalk/default.aspx http://technet.microsoft.com/en-us/biztalk/default.aspx  BizTalk Documentation (Help File)  Learn  http://www.microsoft.com/biztalk/techinfo/virtual-labs.mspx http://www.microsoft.com/biztalk/techinfo/virtual-labs.mspx  Blogs and Newsgroups  http://www.blogbiztalk.com/ http://www.blogbiztalk.com/  http://blogs.msdn.com/biztalk_server_team_blog/ http://blogs.msdn.com/biztalk_server_team_blog/  http://blogs.msdn.com/Biztalk_Core_Engine http://blogs.msdn.com/Biztalk_Core_Engine  Community Developed Tools  http://www.codeplex.com/ (search for “BizTalk”) http://www.codeplex.com/

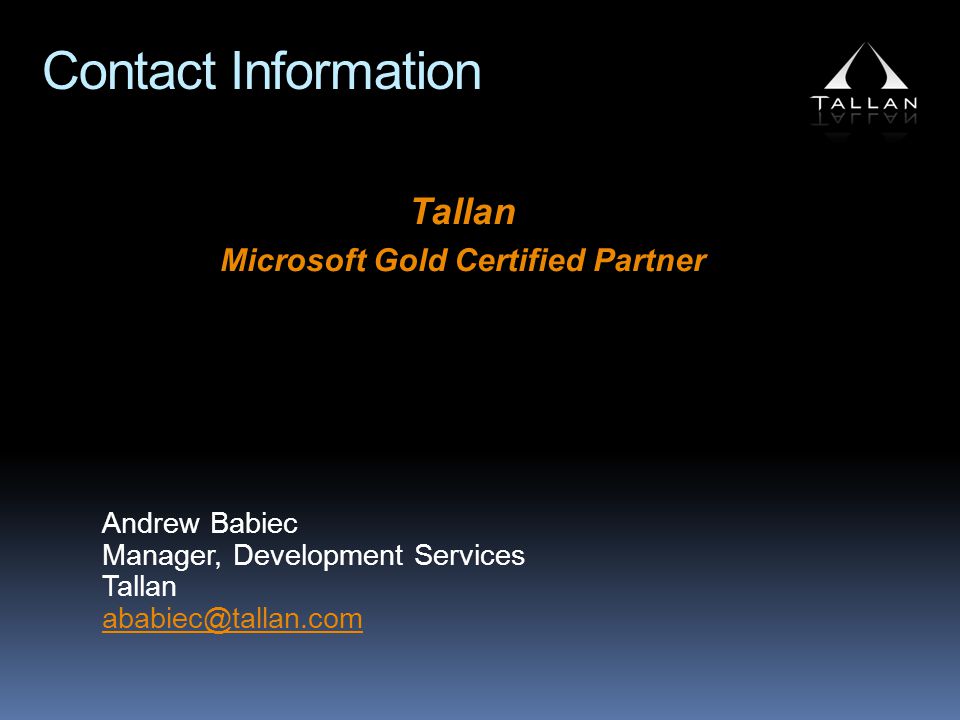

33. Contact Information Andrew Babiec Manager, Development Services Tallan ababiec@tallan.com ababiec@tallan.com Tallan Microsoft Gold Certified Partner
