1 Ramrod IV Micromouse 396

2 The Team  Andrew Igarashi – Programming  Kevin Li – Hardware  Amy Maruyama – Hardware  Stephen Nakamura – Hardware  Quang Ngu – Programming

3 Project Overview  To design a fully autonomous robot, a “mouse”, that can move through a maze, know where it is in the maze, and find the center

4 System SoftwareHardware Decide Direction Read WallsMoveSensorsMotor

5 Basic Chassis  Plexiglas frame  2 Sliders  2 Wheels  8 Batteries (formerly 10)

6 Hardware Module MotorSensors Rabbit ADC Converter Motor Driver Chips Move

7 Wheels Sensors Batteries Rabbit ADC Converter Switch Motor Driver Circuit 5 Volt Regulator/ Heat Sink

8 Sensor Sensor ADC Converter Rabbit light Sensor -Distance judgment (analog signal) - -0.3 V to +0.3V ADC Converter -Converts analog into digital --8 bit digital Signal Rabbit - Information to software

9 How a Side Senor Works Light Emitter Light Detector

10 Sensor Placement 1.25 in Sensor 1Sensor 2 Sensor 3

11 Motor Rabbit Motor Driver Chips Motors Rabbit -One clock to each chip -Counter Clockwise or Clockwise --Full or half step Motor Driver Chips -High current outputs for the motor coil Bipolar Motors -Wheels Move

12 Circuit Diagram ADC Converter Resistors Motor Chip Power Switch RABBIT

13 Problems with Hardware  Errors on circuit board  Heated 5V regulator  Bad motor driver chip  Bad wire and solder connections  Loose wheel  Unstable chassis  7-Segment Display

14 Solutions to Problems with Hardware  Created new circuit boards  Switching 5V regulator  Added metal plate and support pilar to chassis  Should add more LEDs instead

15 Software Control InputMove

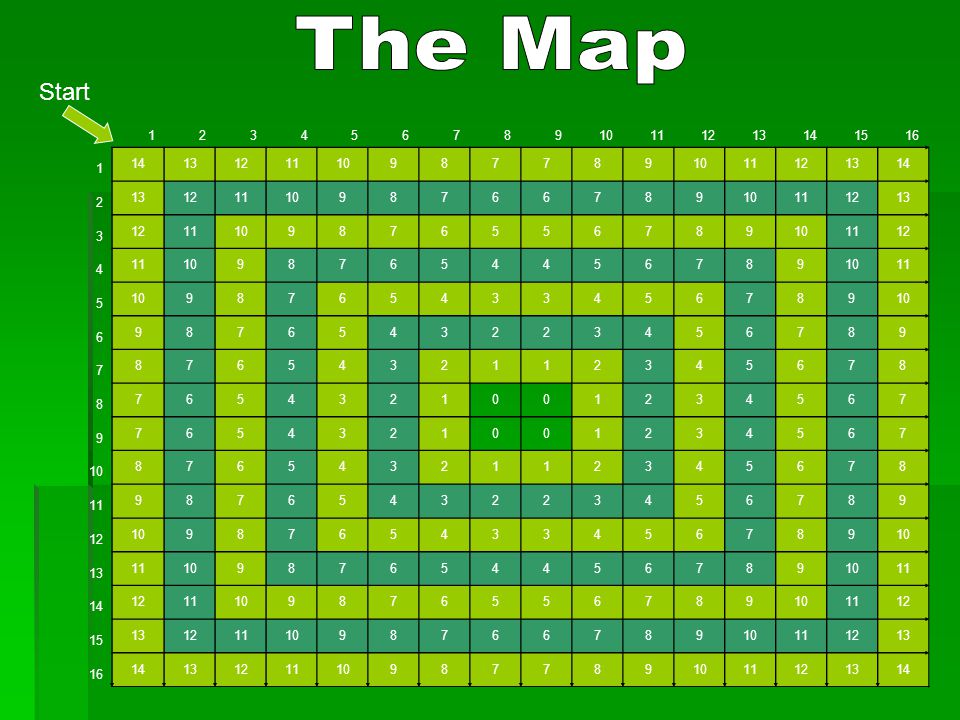

16 12345678910111213141516 1 1413121110987789 11121314 2 1312111098766789 111213 3 1211109876556789 1112 4 1110987654456789 11 5 1098765433456789 6 9876543223456789 7 8765432112345678 8 7654321001234567 9 7654321001234567 8765432112345678 11 9876543223456789 12 1098765433456789 13 1110987654456789 11 14 1211109876556789 1112 15 1312111098766789 111213 16 1413121110987789 11121314 Start

17 Current Task  Fixing Problems  Working on our Solving Code  Increasing Speed  Designing our mouse to be more compact

18 Schedule

19 Questions ?
