1 MET 112 Global Climate Change - CLOUDS and CLIMATE Prof. Menglin Susan Jin Department of Meteorology, San Jos State University Outline Clouds Formation Clouds Climatology Clouds and the Radiation Budget

2 Clouds by Christina Rossetti White sheep, white sheep, On a blue hill, When the wind stops You all stand still When the wind blows You walk away slow. White sheep, white sheep, Where do you go?

3 Clouds are formed when air containing water vapor is cooled below a critical temperature called the dew point and the resulting moisture condensesdew into droplets on microscopic dust particles (condensation nuclei) in the atmosphere. A Scientists’ view of Clouds CLOUDS: A visible mass of liquid water droplets suspended in the atmosphere above Earth's surface. http://earthobservatory.nasa.gov/Library/glossary.php3

4 A good repository of cloud photos in various categories can be found at www.cloudappreciationsociety.org/gallery

5 5 MET 112 Global Climate Change Video: cloud formation in Tucson  http://www.youtube.com/watch?v=NiCSk1zxME s http://www.youtube.com/watch?v=NiCSk1zxME s Timelapse of Tucson cloud formations

6 Questions  What role do clouds play on the Earth’s climate?  What would happen to our climate if clouds were to increase/decrease?  How does clouds formation change with pollution?

7 7 MET 112 Global Climate Change Video  http://www.met.sjsu.edu/metr112- videos/MET%20112%20Video%20Library- MP4/clouds/ http://www.met.sjsu.edu/metr112- videos/MET%20112%20Video%20Library- MP4/clouds/ DTS-5.mp4 Clouds-1.mp4 –clouds and aerosols

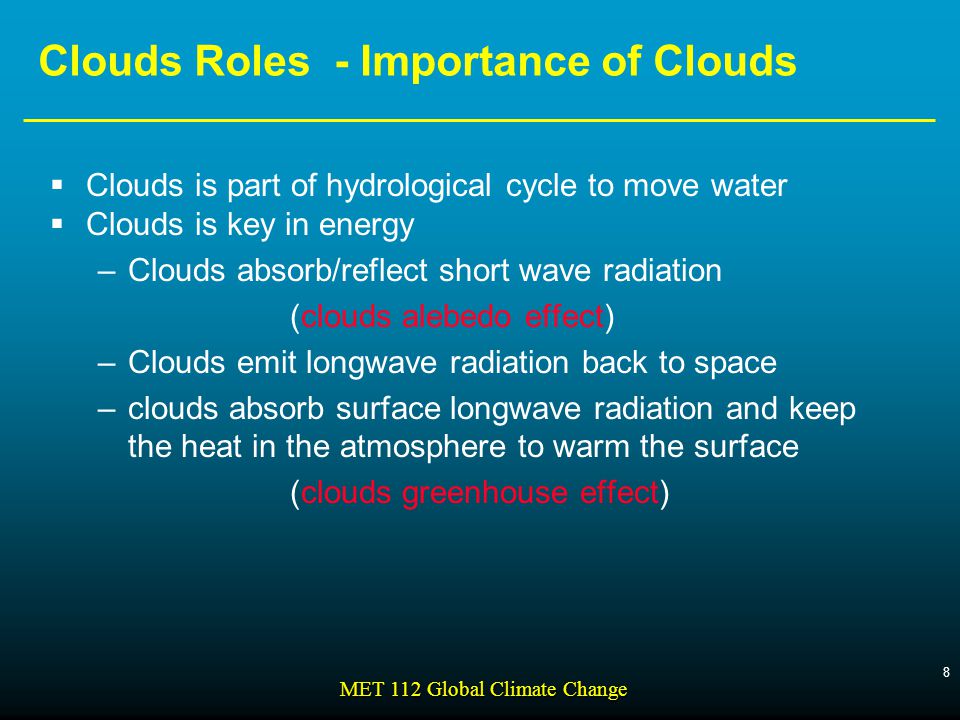

8 8 MET 112 Global Climate Change Clouds Roles - Importance of Clouds  Clouds is part of hydrological cycle to move water  Clouds is key in energy –Clouds absorb/reflect short wave radiation (clouds alebedo effect) –Clouds emit longwave radiation back to space –clouds absorb surface longwave radiation and keep the heat in the atmosphere to warm the surface (clouds greenhouse effect)

9 Earth System Water Cycle

10 100% of the incoming energy from the sun is balanced by 100% percent total energy outgoing from the earth. incoming energy from the Sun = outgoing energy from the Earth.

11 11 MET 112 Global Climate Change since the Earth is much cooler than the Sun, its radiating energy is much weaker (long wavelength) infrared energy. energy radiation into the atmosphere as heat, rising from a hot road, creating shimmers on hot sunny days. The earth-atmosphere energy balance is achieved as the energy received from the Sun balances the energy lost by the Earth back into space. So, the Earth maintains a stable average temperature and therefore a stable climate. http://www.srh.noaa.gov/jetstream//atmos/energy.htm

12 Clouds are formed when air containing water vapor is cooled below a critical temperature called the dew point and the resulting moisture condensesdew into droplets on microscopic dust particles (condensation nuclei) in the atmosphere. Clouds Formation CLOUDS: A visible mass of liquid water droplets suspended in the atmosphere above Earth's surface. http://earthobservatory.nasa.gov/Library/glossary.php3

13

14 14 MET 112 Global Climate Change Water freely evaporating and condensing

15 15 MET 112 Global Climate Change Water freely evaporating and condensing Since more water molecules are evaporating than condensing, then net evaporation is occurring.

16 Clouds can form along warm and cold fronts, where air flows up the side of the mountain and cools as it rises higher into the atmosphere, and when warm air blows over a colder surface, such as a cool body of water.

17 Water in the atmosphere  Definitions: –Evaporation: –Condensation: –Precipitation:

18 Water in the atmosphere  Definitions: –Evaporation: –Condensation: –Precipitation: Process where a liquid changes into a gas Any liquid or solid water that falls from the atmosphere to the ground. (i.e. RAIN!) Process where a gas changes into a liquid

19 Condensation  The process by which water vapor changes to a cloud droplet  Water vapor molecules may ‘stick’ to condensation nuclei and grow (billions) to eventually form cloud droplet.  Examples of condensation nuclei include: a. Dust b. Salt c. Smoke  Condensation occurs primarily as temperature cools: -colder the molecules more likely they are to ‘stick’ to other molecules

20

21 21 MET 112 Global Climate Change Aerosols Affect Cloud Droplet Size CCN 1.Aerosols serve as cloud condensation nuclie (CCN) CCN 2. More aerosols, they will compete for water vapor to condense on, so smaller cloud droplet Ocean case Land case

22 Zonal Mean Cloud Effective Radius (M. D. King, S. Platnick et al. – NASA GSFC) July 2006 (Collection 5) Aqua Why ocean has larger cloud droplets than land?

23 Clouds and radiation Cloud - Climate Interactions Albedo effect - COOLING  Clouds reflect incoming solar radiation.  The cloud droplet size and total water content determine the overall reflectivity. Greenhouse effect - WARMING  Clouds are good absorbers (and emitters) of long wave (infrared) radiation.

24 Clouds and day to day temperatures Imagine that you are going camping in the Sierras with your friends. On the first day (and evening) it is clear, while on the second day (and evening) it is cloud. Based on this information alone: Which day would be warmer? Which evening would be warmer? Explain your answers.

25 Which day would be warmer? 1.First day (clear) 2.Second day (cloudy) 3.Both the same

26 Which evening would be warmer? 1.First day (clear) 2.Second day (cloudy) 3.Both the same

27 Clouds types

28 Low and High clouds Consider two types of clouds: 1.Low levels clouds 2.High levels clouds Q: How is the Earth’s surface energy budget different for low clouds compared to high clouds?

29 Clouds and Climate Cloud A: Low level, (dark, thick) Cloud B: High level, light (sub visible or thin) (sub visible or thin)

30 Clouds and climate Cloud A: Low level, (dark, thick) Cloud B: High level, light (sub visible or thin) (sub visible or thin) Excellent reflector of incoming radiation; good absorber/emitter of infrared radiation Fair/poor reflector of incoming radiation; good/excellent absorber/emitter of infrared radiation  So, clouds both warm and cool the earth.  Overall, though, clouds act to cool the earth

31 Changes in clouds  Increases in low level clouds will: –  Increases in high level clouds will:

32 Changes in clouds  Increases in low level clouds will: –cool the surface (cooling outweighs warming)  Increases in high level clouds will: –warm the surface (warming outweighs cooling)

33 Cirrus

34 Altocumulus (possibly cirrocumulus, depending on altitude of the clouds)

35 Stratocumulus

36 Broken stratocumulus

37 Nimbostratus

38 Cumulus humilis (commonly called 'fair weather cumulus')

39 Cumulus

40

41

42

43 Cumulonimbus

44 Stratus

45

46 Cirrus

47

48 Clouds That Look Like Things

49 Explain how the earth’s climate would change as a result of aircraft contrails.

50 Class Participation Concept Map

51 Activity : Water Concept Map Draw a concept map using the following terms. You may add additional terms if you wish. Water vapor Ice Liquid water Condensation Evaporation Gas High Cloud Low Cloud Precipitation Condensation nuclei Temperature Warming Cooling Air
