1. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Lecture V Higher Level Motion Control CS274: Computer Animation and Simulation

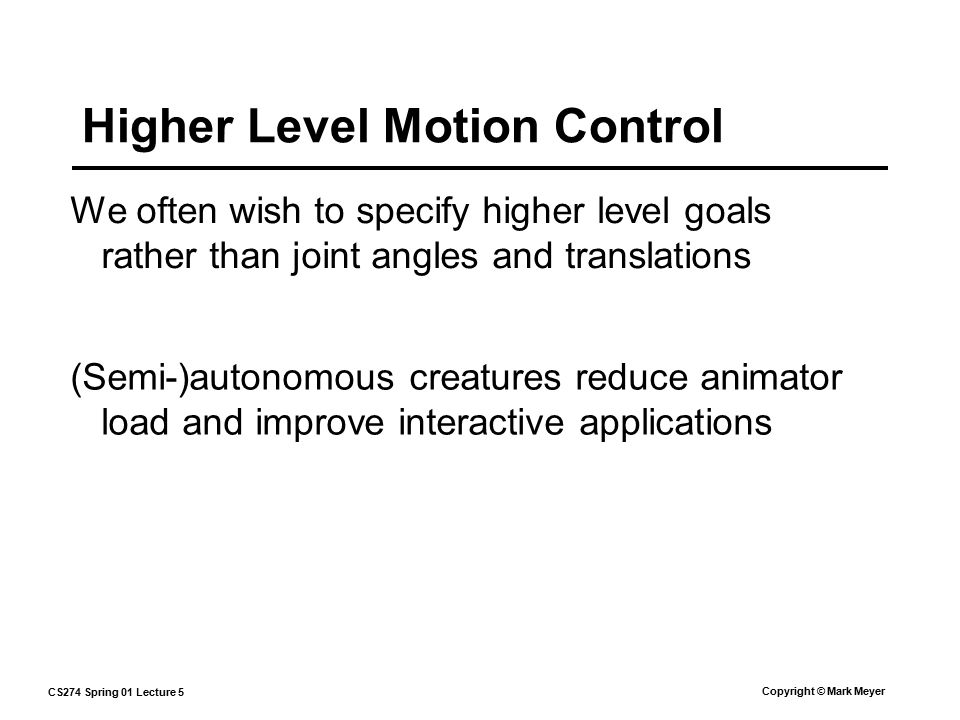

2. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Higher Level Motion Control We often wish to specify higher level goals rather than joint angles and translations (Semi-)autonomous creatures reduce animator load and improve interactive applications

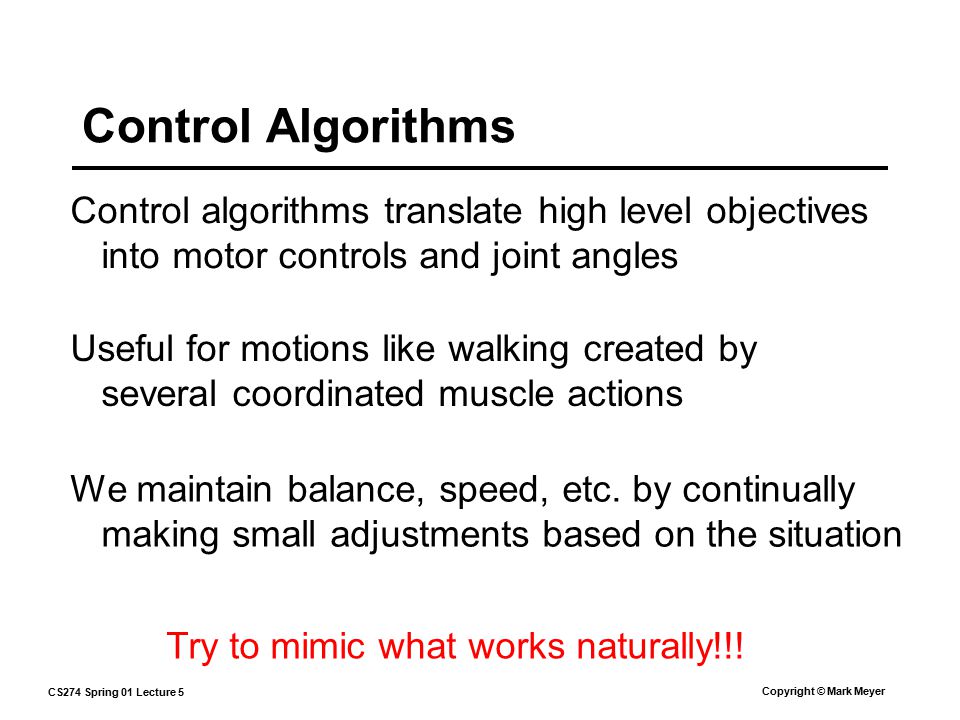

3. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Control Algorithms Control algorithms translate high level objectives into motor controls and joint angles Useful for motions like walking created by several coordinated muscle actions We maintain balance, speed, etc. by continually making small adjustments based on the situation Try to mimic what works naturally!!!

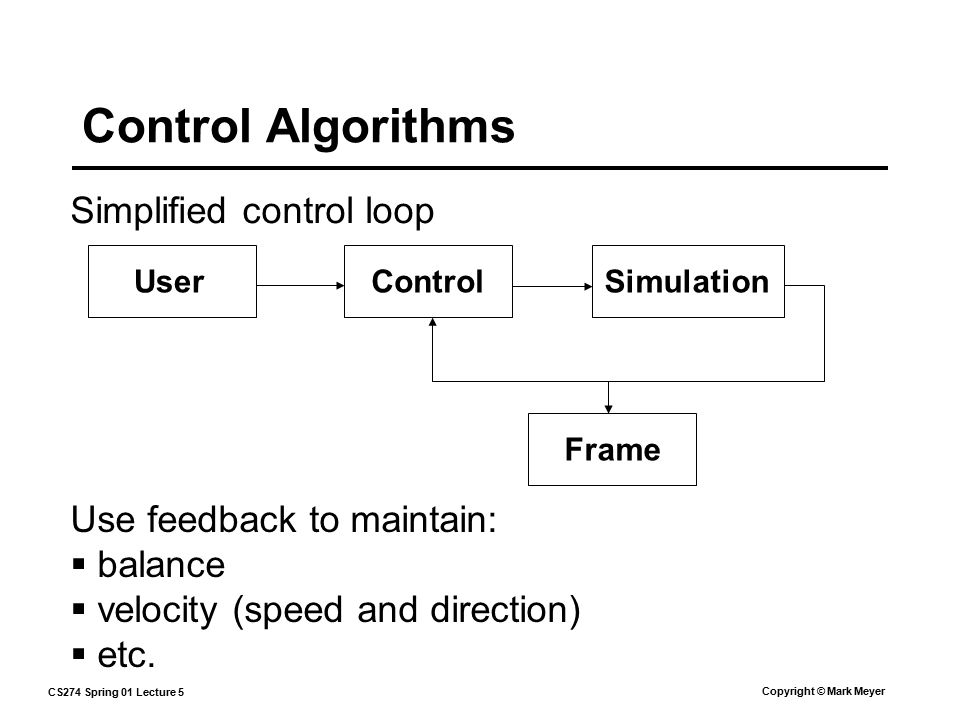

4. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Control Algorithms Simplified control loop Use feedback to maintain:  balance  velocity (speed and direction)  etc. UserControlSimulation Frame

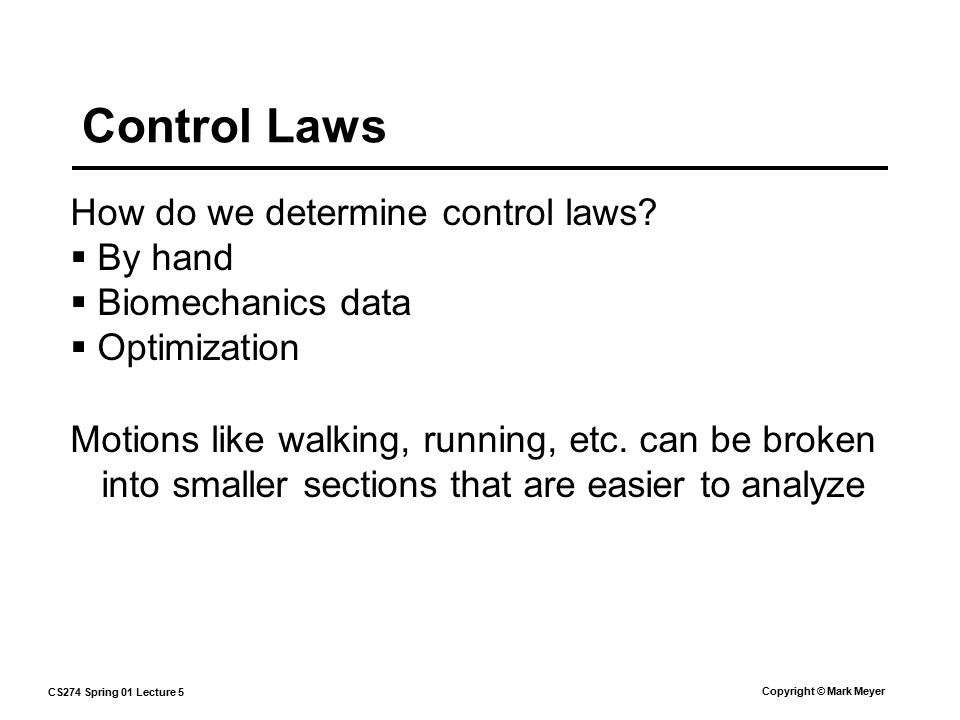

5. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Control Laws How do we determine control laws?  By hand  Biomechanics data  Optimization Motions like walking, running, etc. can be broken into smaller sections that are easier to analyze

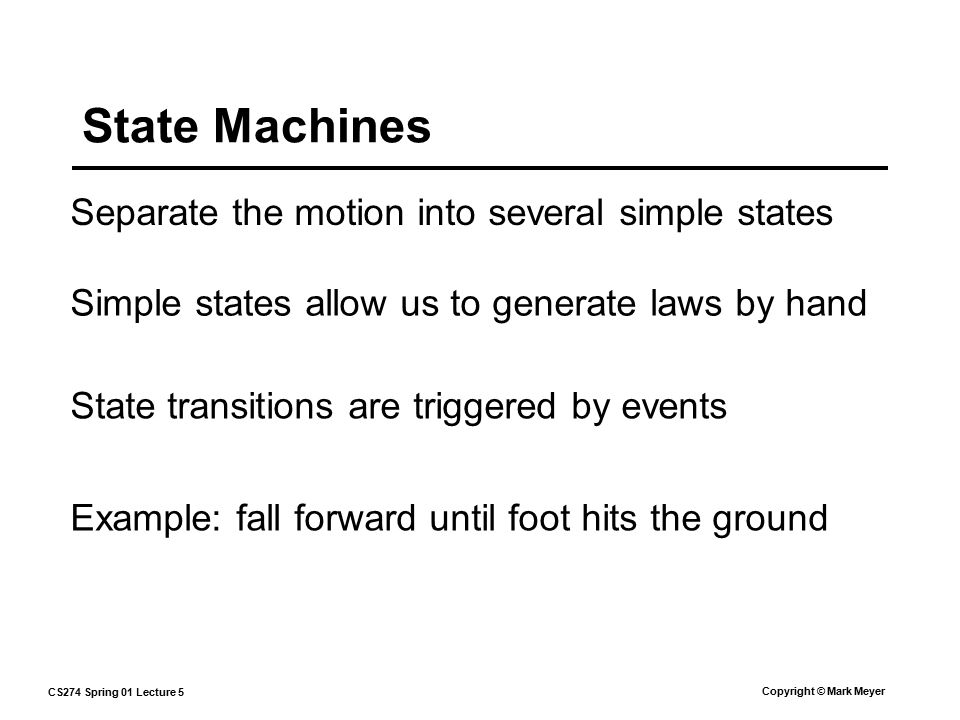

6. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer State Machines Separate the motion into several simple states State transitions are triggered by events Example: fall forward until foot hits the ground Simple states allow us to generate laws by hand

7. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Events Often simple binary sensors

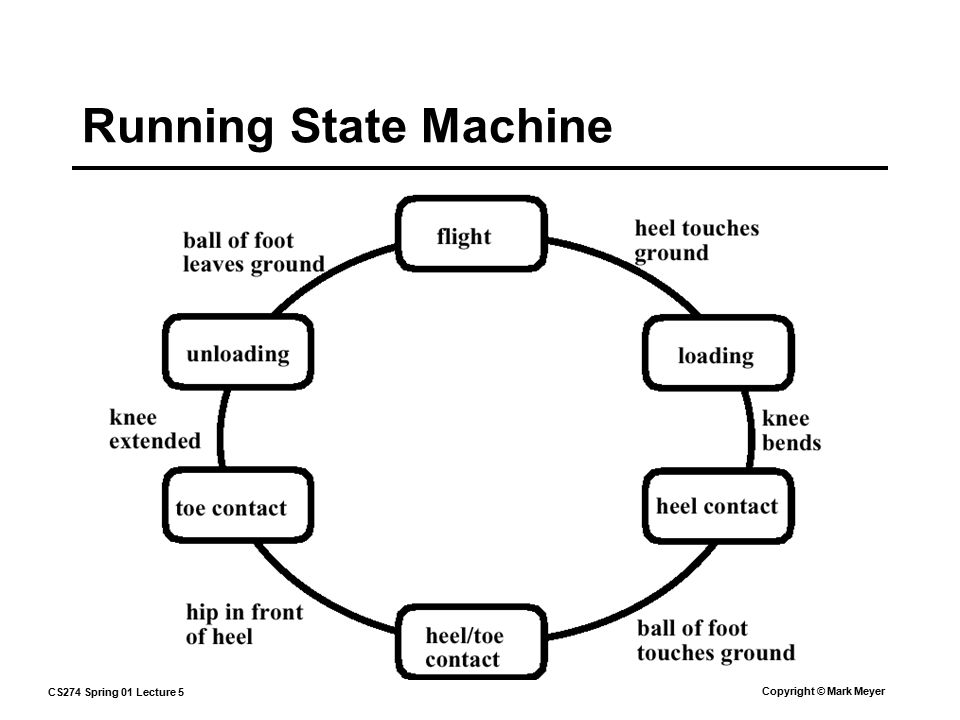

8. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Running State Machine

9. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Flight Stage Active Leg  swing leg forward  straighten knee Passive Leg  mirror active hip angle  bend knee

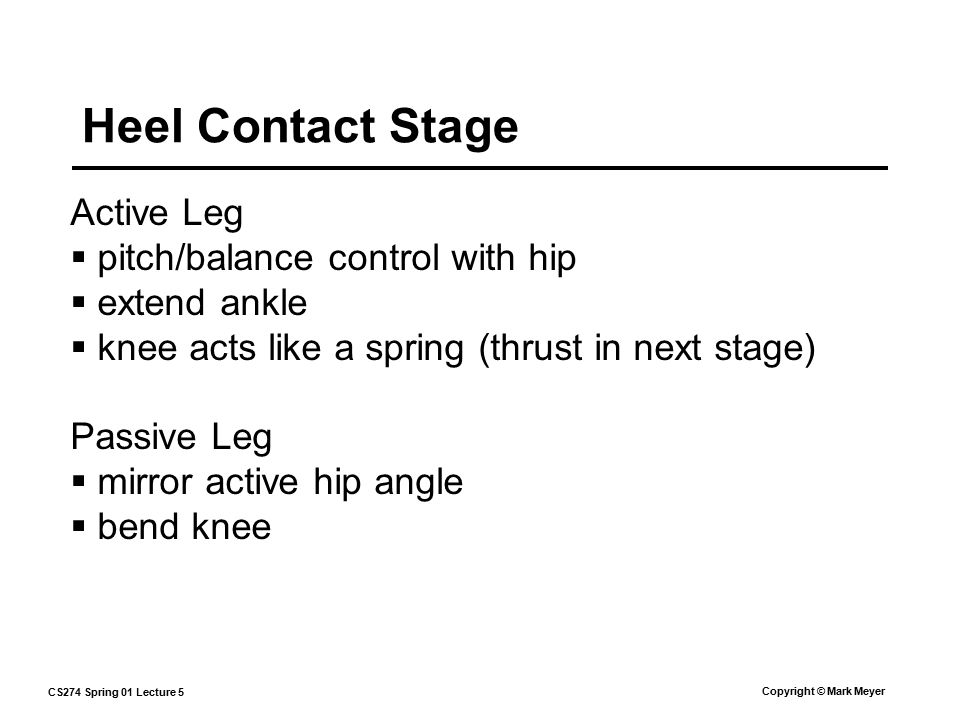

10. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Heel Contact Stage Active Leg  pitch/balance control with hip  extend ankle  knee acts like a spring (thrust in next stage) Passive Leg  mirror active hip angle  bend knee

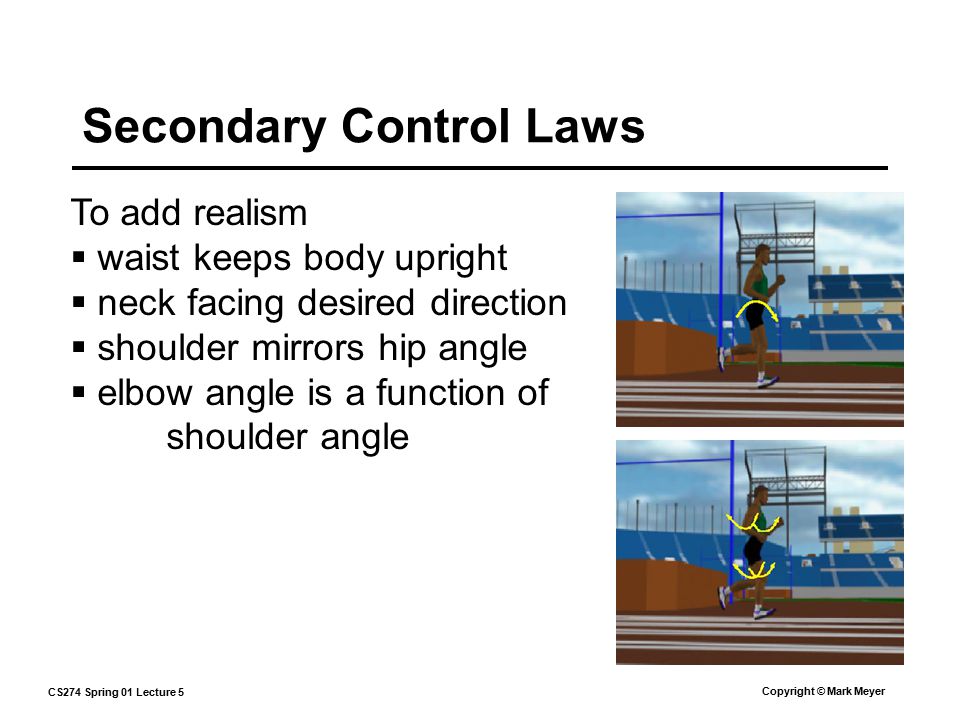

11. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Secondary Control Laws To add realism  waist keeps body upright  neck facing desired direction  shoulder mirrors hip angle  elbow angle is a function of shoulder angle

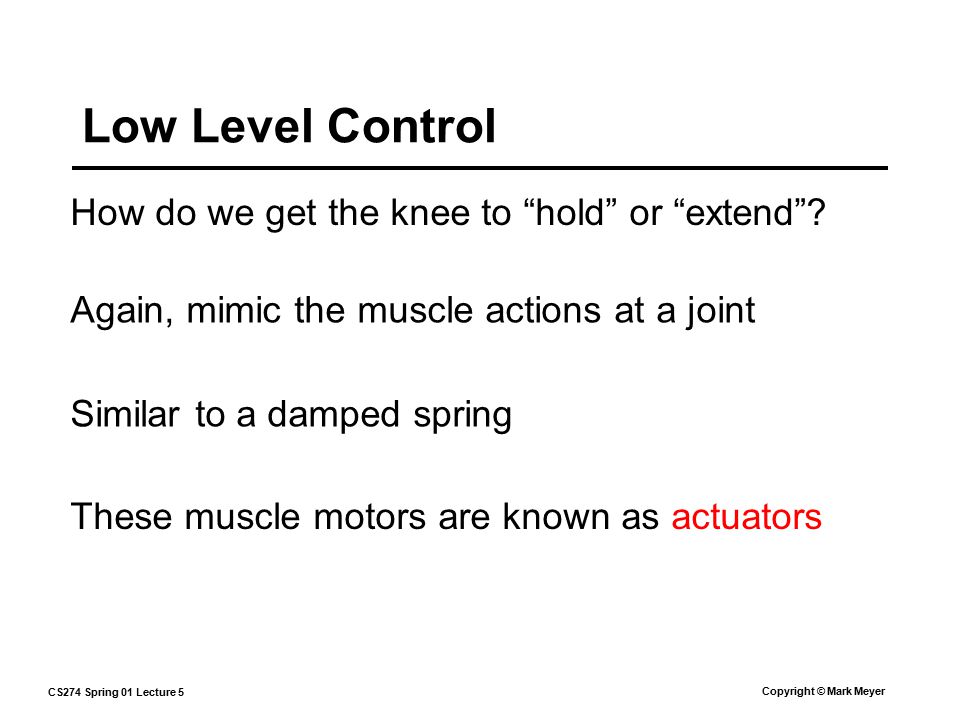

12. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Low Level Control How do we get the knee to “hold” or “extend”? Again, mimic the muscle actions at a joint Similar to a damped spring These muscle motors are known as actuators

13. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Actuators Actuators make the joint move to a desired pose Also known as proportional derivative controllers Angular springLinear spring

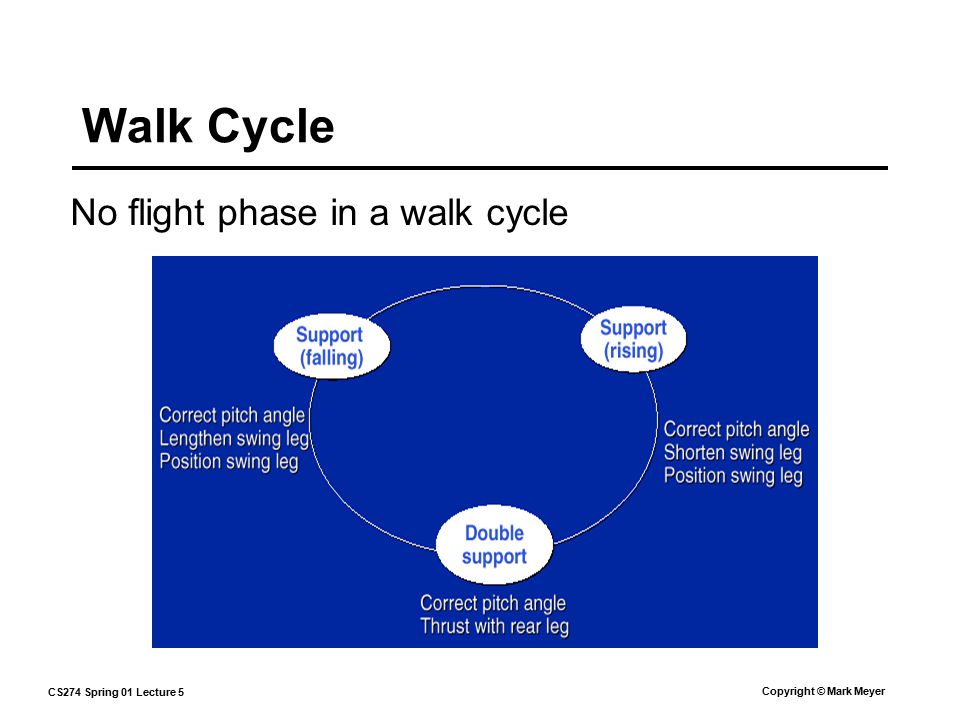

14. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Walk Cycle No flight phase in a walk cycle

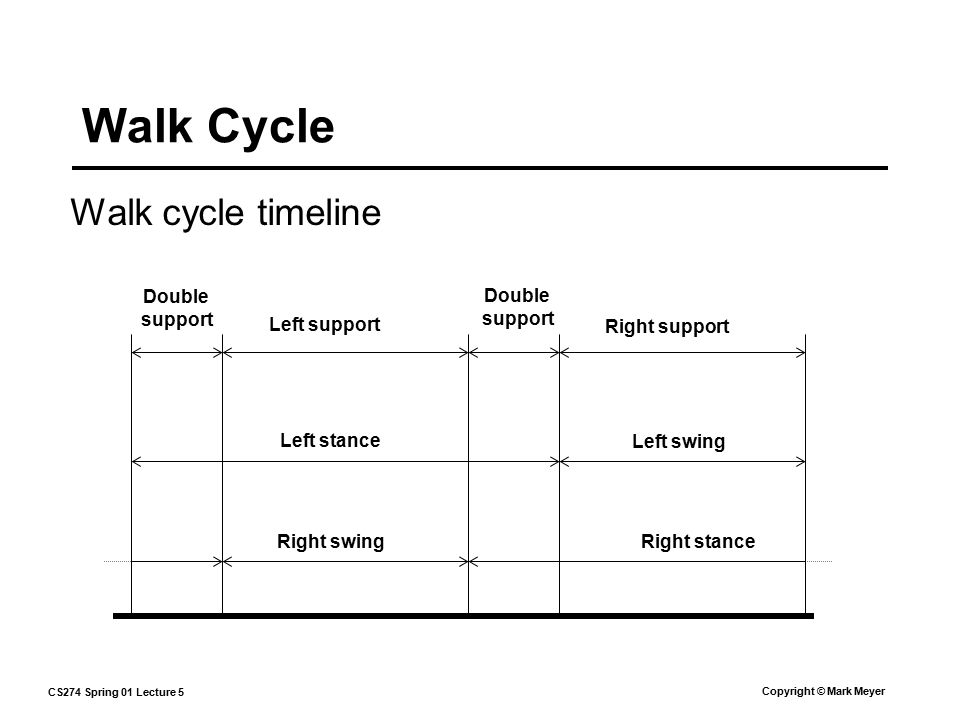

15. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Walk Cycle Walk cycle timeline Double support Double support Left support Right support Left stance Right stance Left swing Right swing

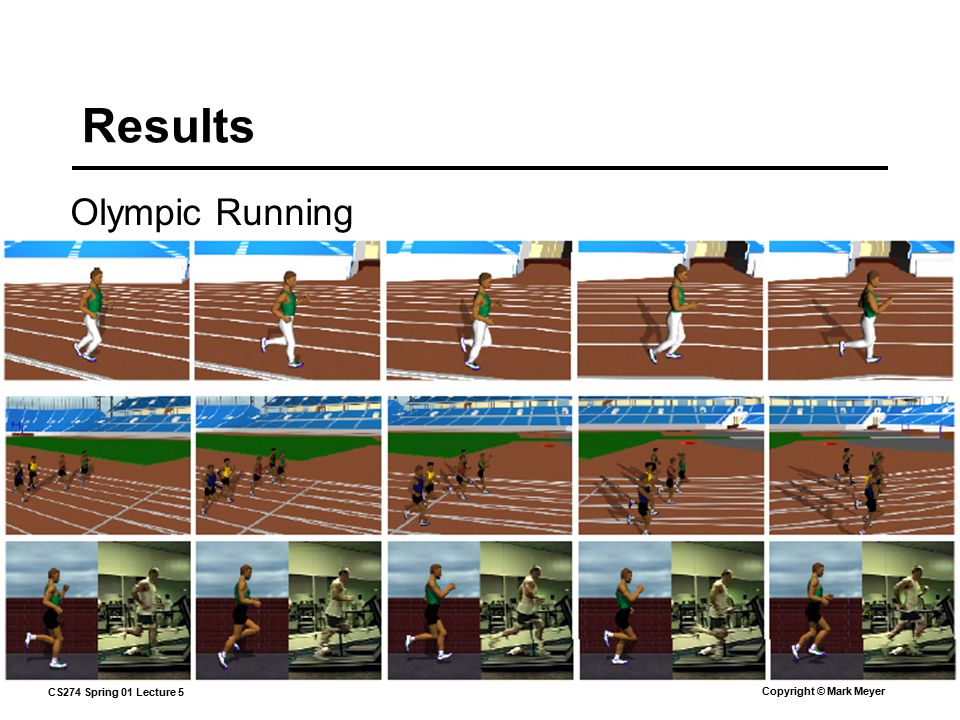

16. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Results Olympic Running

17. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Results Vaulting, Cycling and Running

18. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Results Combining controllers and retargetting

19. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Self-taught creatures?  Sensor-Actuator networks:  Using the same basic tools  Try to find the right coefficients to maximize speed, or efficiency, or any energy.  Your humanoid learns to run on his own!  Slow, though…

20. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Self Taught Creatures Creatures that can learn to move on their own Consists of sensor-actuator networks  sensors tell the character about the environment  actuators allow the character to flex its muscles As the character moves, it remembers muscle movements that create “good” motion  maximize speed, accuracy, efficiency, etc. measures energy used measures motion quality

21. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Spacetime Constraints Solve for the forces required to reach constraints Animator specifies: What the character has to do (constraints)  initial, intermediate, final positions, velocities, etc. How the motion should be performed (metric)  jump this high, this much force at impact The character’s physical structure  mass, joints, etc. What the physical resources are  constraints on the muscles

22. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Spacetime Constraints Given the constraints  Animator specified constraints  Muscle and joint constraints  Physical laws And the metric to optimize  How to perform the action Solve the constrained optimization for the force curves over the entire time of the motion

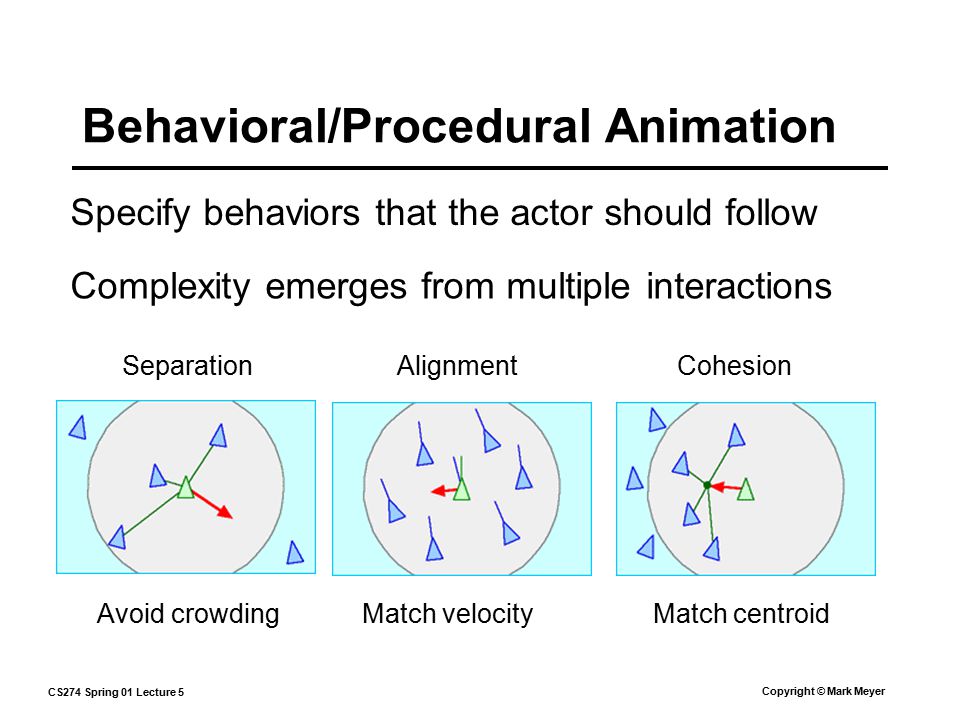

23. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Behavioral/Procedural Animation Separation Avoid crowding Alignment Match velocity Cohesion Match centroid Specify behaviors that the actor should follow Complexity emerges from multiple interactions

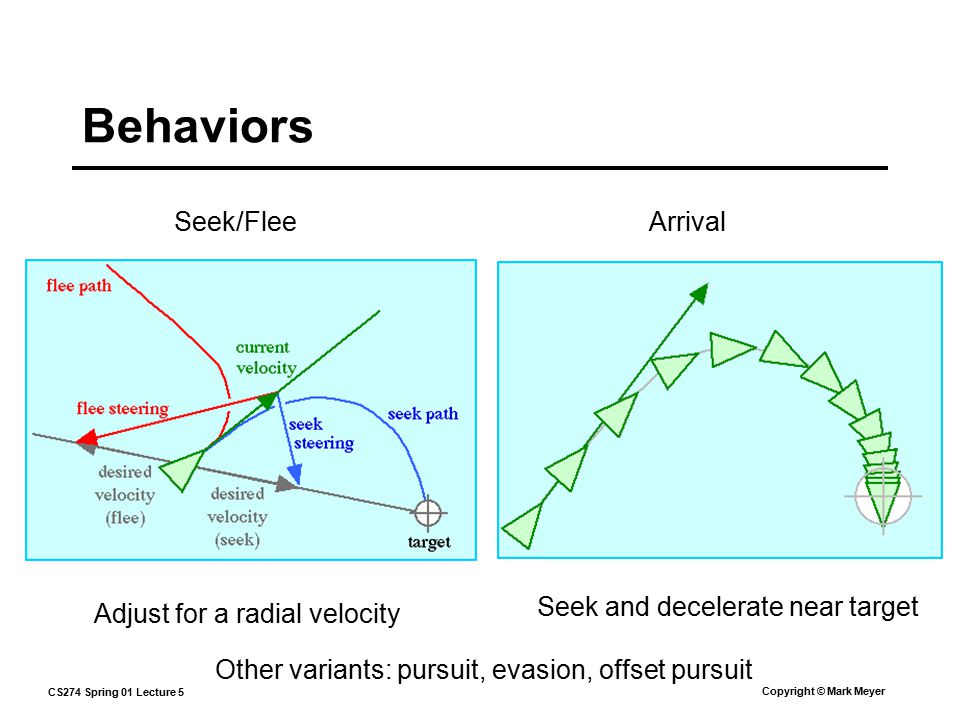

24. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Behaviors Seek/Flee Adjust for a radial velocity Arrival Seek and decelerate near target Other variants: pursuit, evasion, offset pursuit

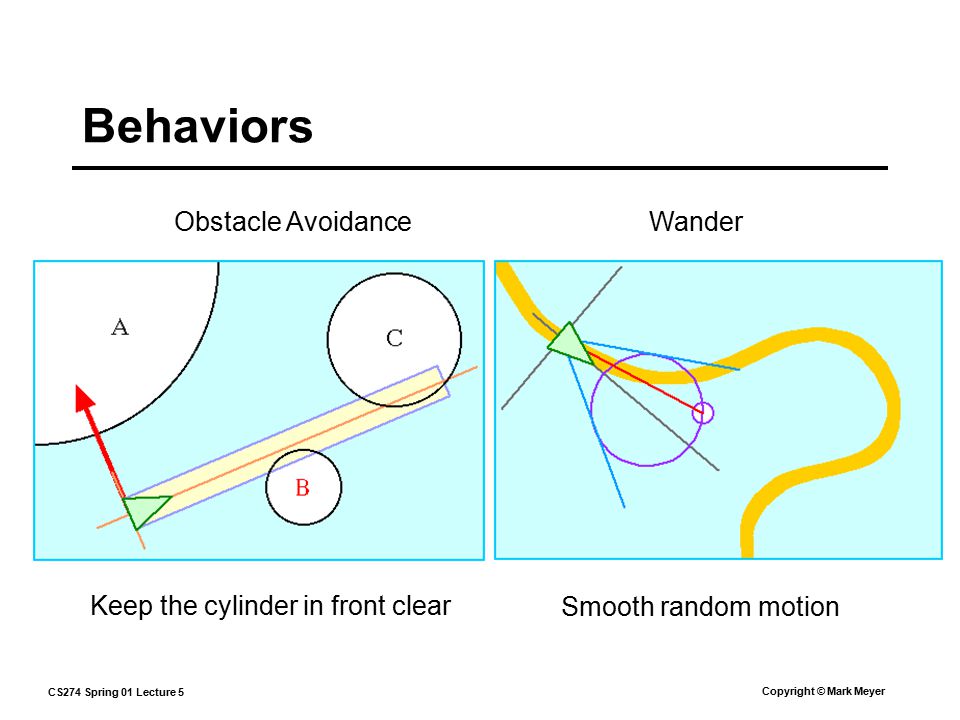

25. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Behaviors Obstacle Avoidance Keep the cylinder in front clear Wander Smooth random motion

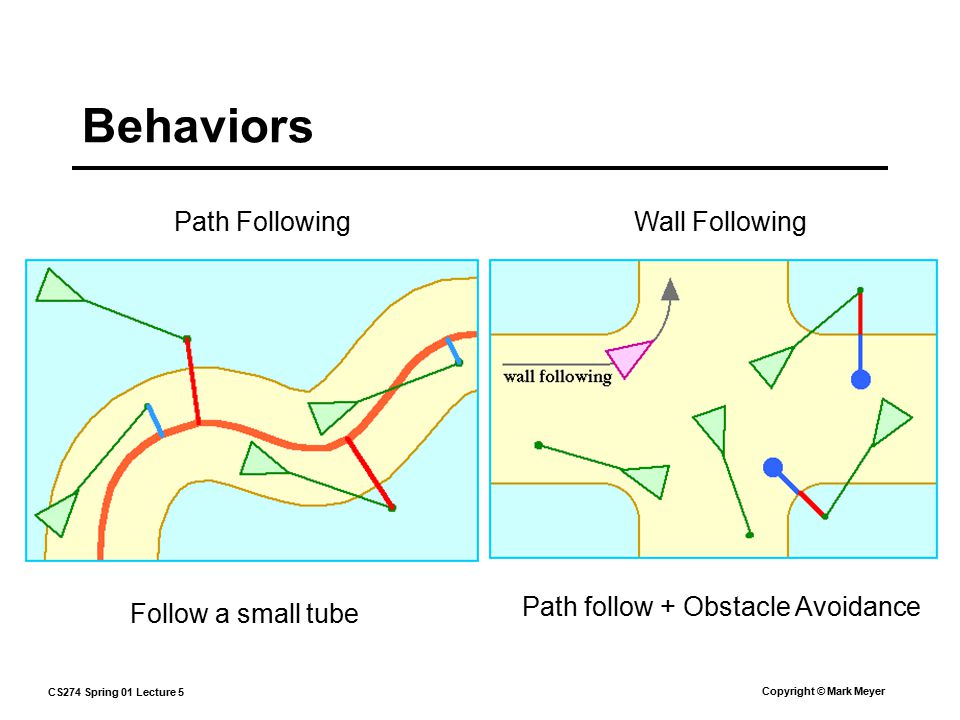

26. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Behaviors Path Following Follow a small tube Wall Following Path follow + Obstacle Avoidance

27. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Behavioral/Procedural Animation Useful for crowd animations

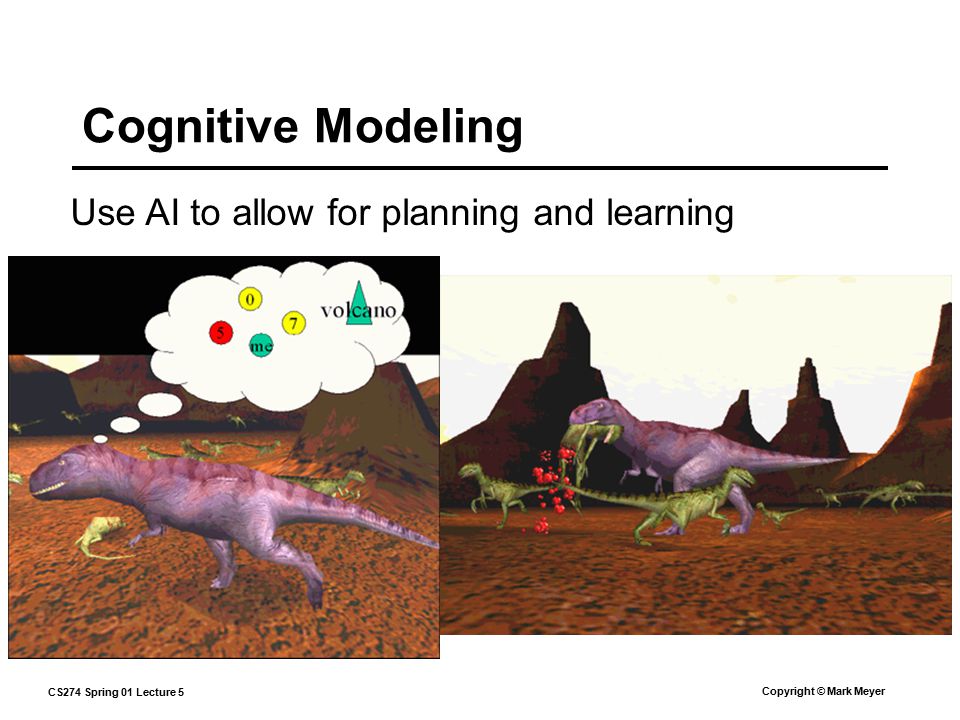

28. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Cognitive Modeling Use AI to allow for planning and learning

29. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Putting It All Together Behavior + Learning + Motor Control Schooling

30. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Putting It All Together Behavior + Learning + Motor Control Preying

31. CS274 Spring 01 Lecture 5 Copyright © Mark Meyer Putting It All Together Behavior + Learning + Motor Control Cousto World
