1 1 N. Davidson E/p minimum bias update with Athena 12.0.6 Jet Note 8 Meeting 7 th June 2007

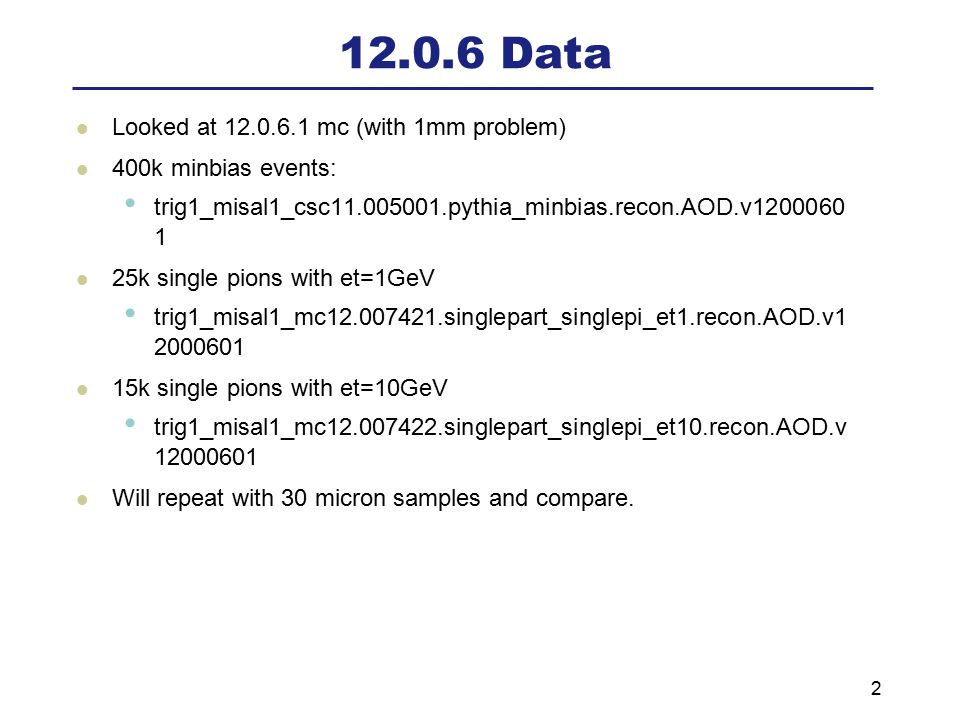

2 2 12.0.6 Data Looked at 12.0.6.1 mc (with 1mm problem) 400k minbias events: trig1_misal1_csc11.005001.pythia_minbias.recon.AOD.v1200060 1 25k single pions with et=1GeV trig1_misal1_mc12.007421.singlepart_singlepi_et1.recon.AOD.v1 2000601 15k single pions with et=10GeV trig1_misal1_mc12.007422.singlepart_singlepi_et10.recon.AOD.v 12000601 Will repeat with 30 micron samples and compare.

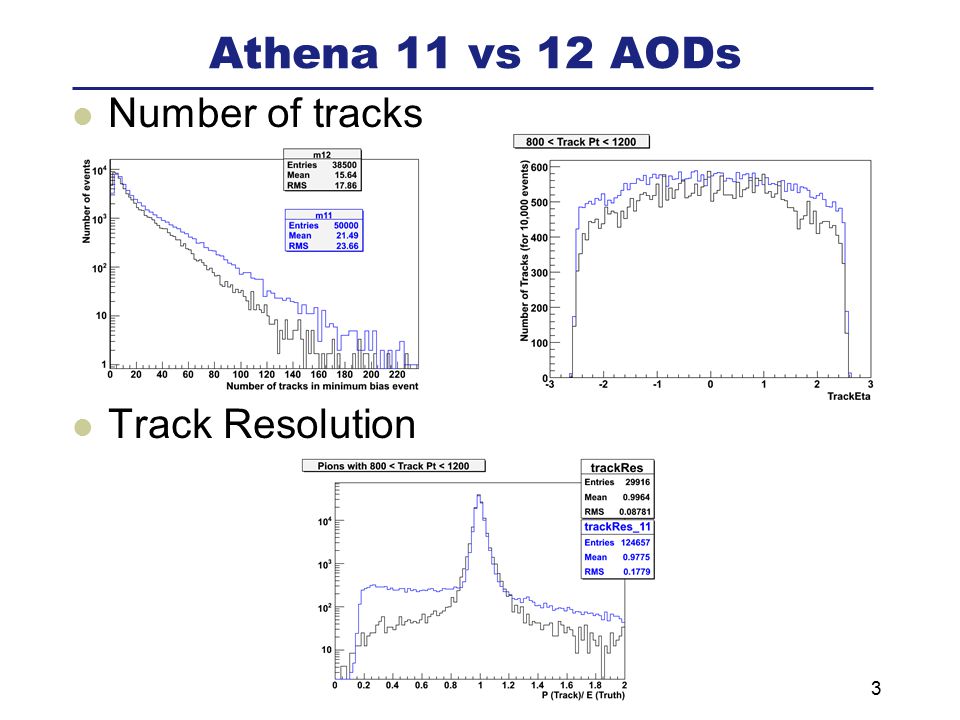

3 3 Athena 11 vs 12 AODs Number of tracks Track Resolution

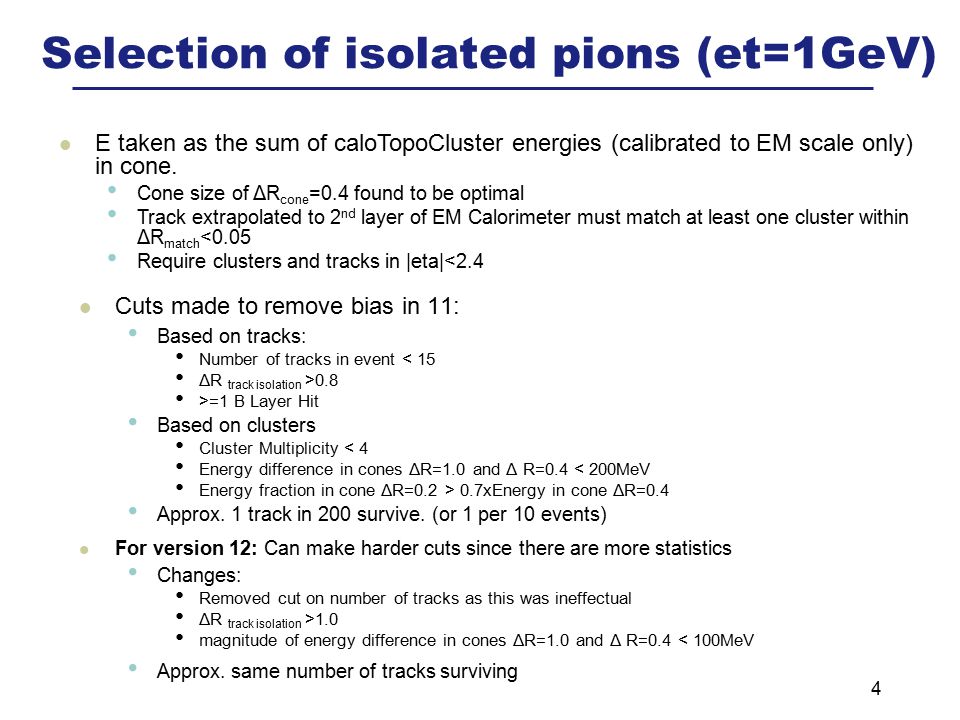

4 4 Selection of isolated pions (et=1GeV) Cuts made to remove bias in 11: Based on tracks: Number of tracks in event < 15 ΔR track isolation >0.8 >=1 B Layer Hit Based on clusters Cluster Multiplicity < 4 Energy difference in cones ΔR=1.0 and Δ R=0.4 < 200MeV Energy fraction in cone ΔR=0.2 > 0.7xEnergy in cone ΔR=0.4 Approx. 1 track in 200 survive. (or 1 per 10 events) For version 12: Can make harder cuts since there are more statistics Changes: Removed cut on number of tracks as this was ineffectual ΔR track isolation >1.0 magnitude of energy difference in cones ΔR=1.0 and Δ R=0.4 < 100MeV Approx. same number of tracks surviving E taken as the sum of caloTopoCluster energies (calibrated to EM scale only) in cone. Cone size of ΔR cone =0.4 found to be optimal Track extrapolated to 2 nd layer of EM Calorimeter must match at least one cluster within ΔR match <0.05 Require clusters and tracks in |eta|<2.4

5 5 Results An improvement to the E/p bias can be made using a smaller cone size of 0.2 By requiring an isolated 0.2 cone get E/p comparable to 0.4 cone for the single sample For Cone 0.2: Sample E/p mean RMS -minimum 0.647 0.441 bias (0.2) -single pion 0.645 0.401 cone 0.4 -single pion 0.639 0.401 cone 0.2 Error: ±0.007 Sample E/p mean RMS -minimum 0.668 0.441 bias -single pion 0.645 0.401 (after cuts) -single pion 0.631 0.409 (before cuts) Error: ±0.007

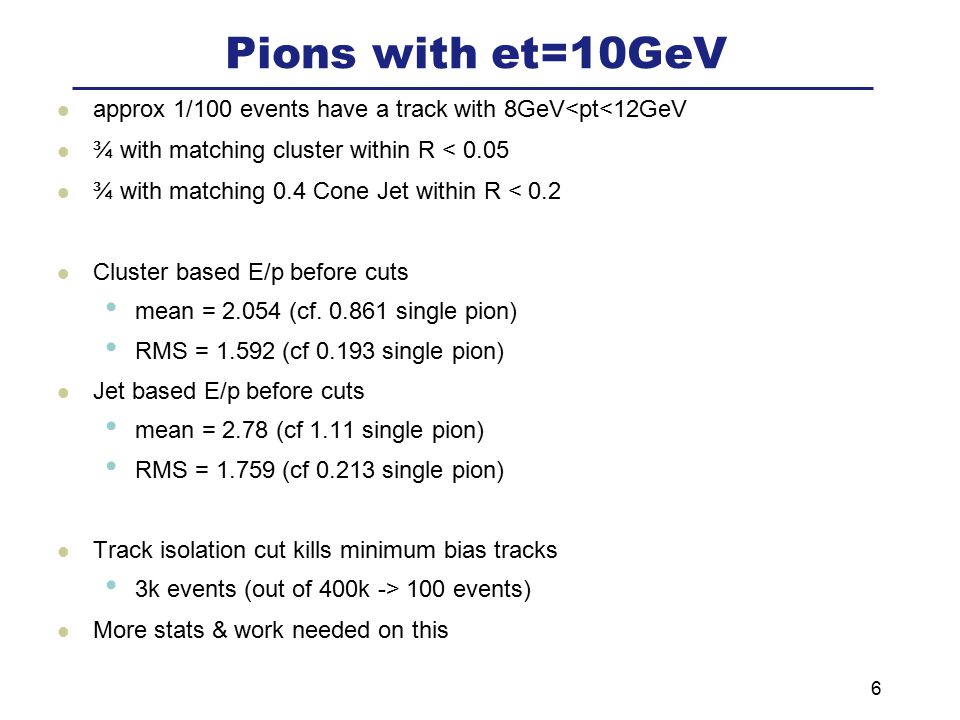

6 6 Pions with et=10GeV approx 1/100 events have a track with 8GeV<pt<12GeV ¾ with matching cluster within R < 0.05 ¾ with matching 0.4 Cone Jet within R < 0.2 Cluster based E/p before cuts mean = 2.054 (cf. 0.861 single pion) RMS = 1.592 (cf 0.193 single pion) Jet based E/p before cuts mean = 2.78 (cf 1.11 single pion) RMS = 1.759 (cf 0.213 single pion) Track isolation cut kills minimum bias tracks 3k events (out of 400k -> 100 events) More stats & work needed on this

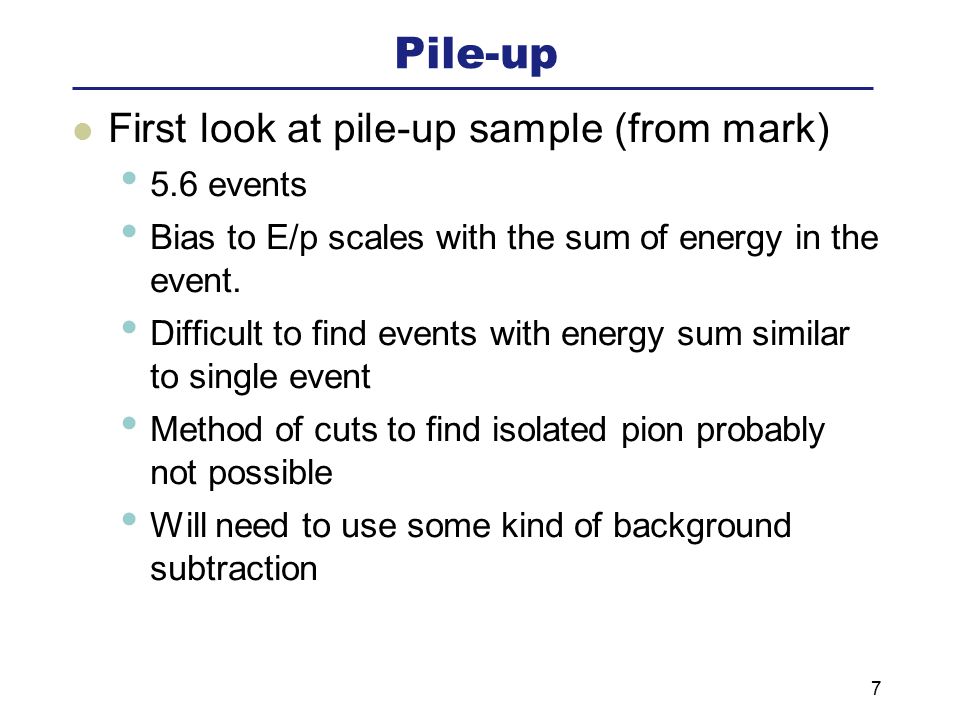

7 7 Pile-up First look at pile-up sample (from mark) 5.6 events Bias to E/p scales with the sum of energy in the event. Difficult to find events with energy sum similar to single event Method of cuts to find isolated pion probably not possible Will need to use some kind of background subtraction
