1. Locality in Concurrent Data Structures Hagit Attiya Technion

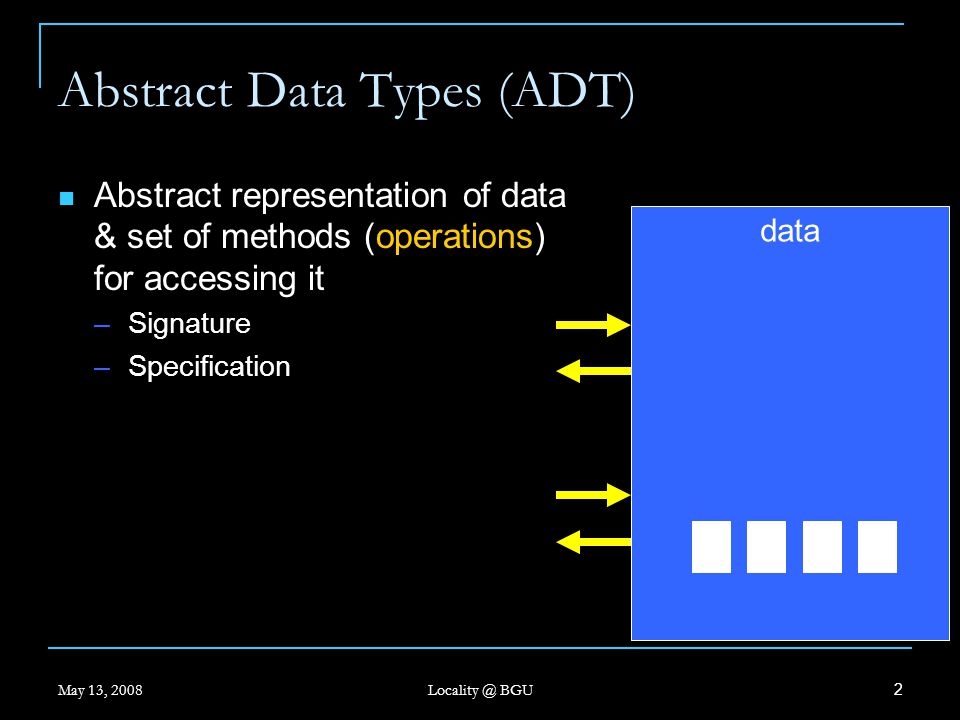

2. May 13, 2008 Locality @ BGU 2 data Abstract Data Types (ADT) Abstract representation of data & set of methods (operations) for accessing it –Signature –Specification

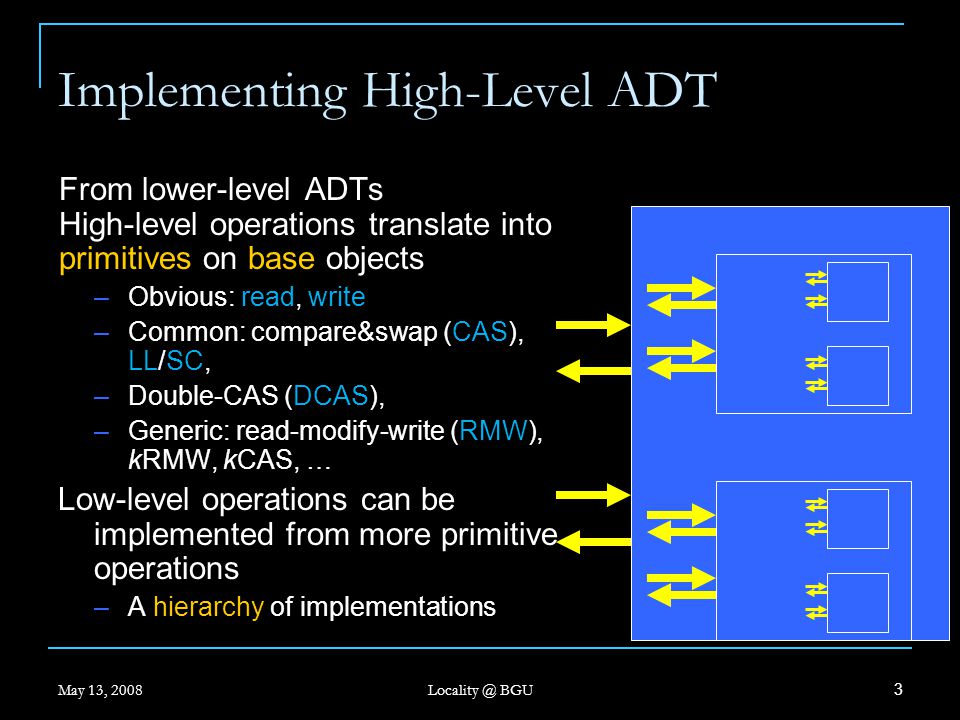

3. May 13, 2008 Locality @ BGU 3 Implementing High-Level ADT From lower-level ADTs High-level operations translate into primitives on base objects –Obvious: read, write –Common: compare&swap (CAS), LL/SC, –Double-CAS (DCAS), –Generic: read-modify-write (RMW), kRMW, kCAS, … Low-level operations can be implemented from more primitive operations –A hierarchy of implementations

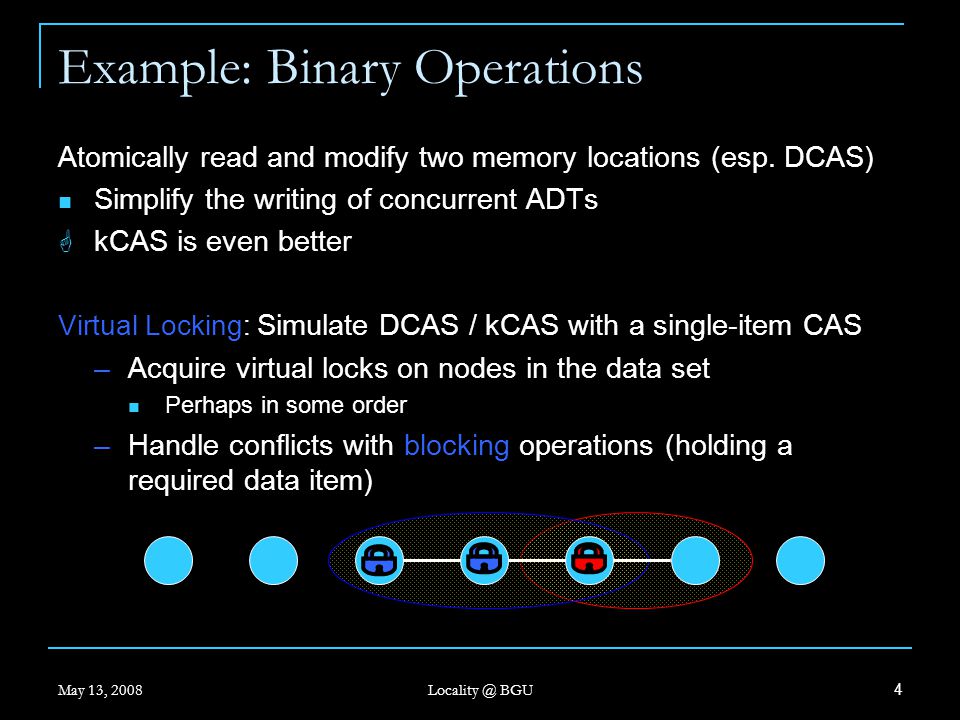

4. May 13, 2008 Locality @ BGU 4 Example: Binary Operations Atomically read and modify two memory locations (esp. DCAS) Simplify the writing of concurrent ADTs  kCAS is even better Virtual Locking: Simulate DCAS / kCAS with a single-item CAS –Acquire virtual locks on nodes in the data set Perhaps in some order –Handle conflicts with blocking operations (holding a required data item)

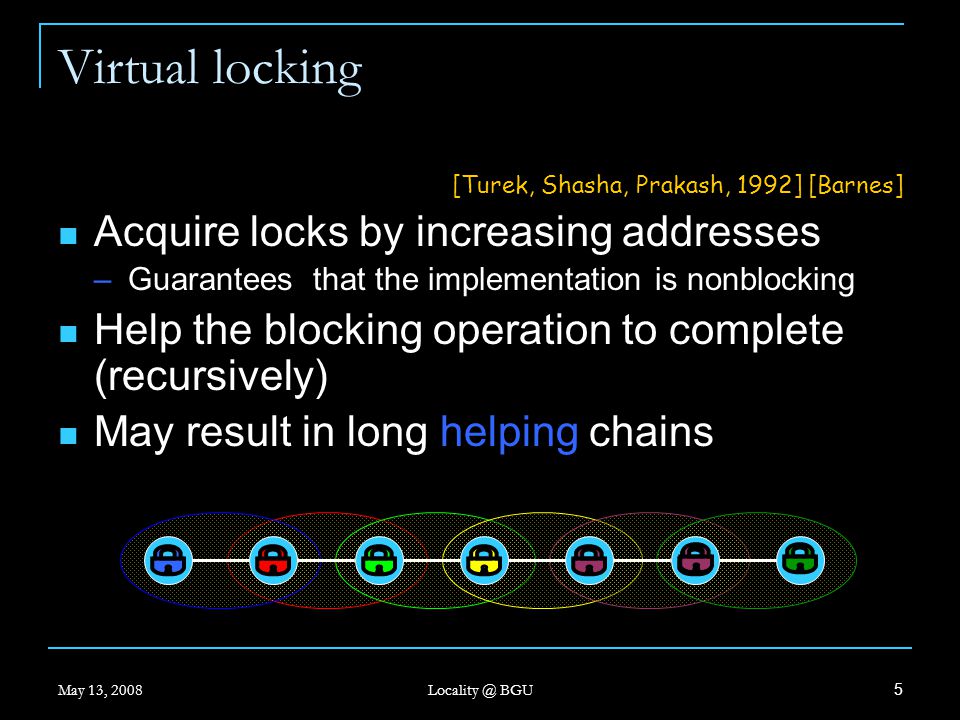

5. May 13, 2008 Locality @ BGU 5 Virtual locking [Turek, Shasha, Prakash, 1992] [Barnes] Acquire locks by increasing addresses –Guarantees that the implementation is nonblocking Help the blocking operation to complete (recursively) May result in long helping chains

6. May 13, 2008 Locality @ BGU 6 Virtual Locking: Reducing Contention [Shavit, Touitou, 1995] Release locks when the operation is blocked Help an immediate neighbor (only) & retry… Short helping chains But long delay chains

7. May 13, 2008 Locality @ BGU 7 Randomization: How Often this Happens? [Ha, Tsigas, Wattenhofer, Wattenhofer, 2005] Operations choose locking order at random Chains’ length depends on log n / loglog n –Also experimentally –Better, and yet… Similar analysis for chains’ length when ops choose items at random –Depends on the operations’ density [Dragojevic, Guerraoui & Kapalka, 2008 ]

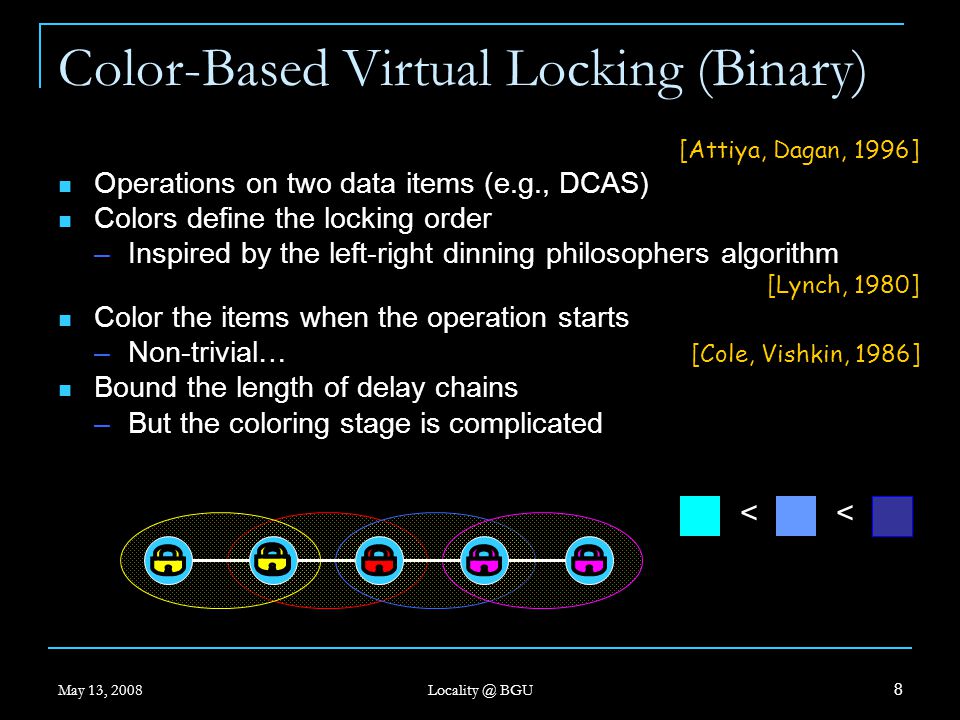

8. May 13, 2008 Locality @ BGU 8 Color-Based Virtual Locking (Binary) [Attiya, Dagan, 1996] Operations on two data items (e.g., DCAS) Colors define the locking order –Inspired by the left-right dinning philosophers algorithm [Lynch, 1980] Color the items when the operation starts –Non-trivial… [Cole, Vishkin, 1986] Bound the length of delay chains –But the coloring stage is complicated <

9. May 13, 2008 Locality @ BGU 9 [Afek, Merritt, Taubenfeld, Touitou, 1997] Implements operations on k items, for a fixed k Based on the memory addresses, the conflict graph is decomposed into trees & items are legally colored [Goldberg, Plotkin, Shannon] –Need to have the data set from the beginning –Recursive, with A&D at the basis and in each step –Even more complicated Color-Based Virtual Locking (Fixed k)

10. May 13, 2008 Locality @ BGU 10 Virtual Locking: More Concurrency, Simpler [Attiya, Hillel, 2008] Acquire locks in arbitrary order –No need to know the data set (or its size) in advance –No pre-computation Possible ways to handle conflicts between operations contending for a data item –Wait for the other operation –Help the other operation –Reset the other operation

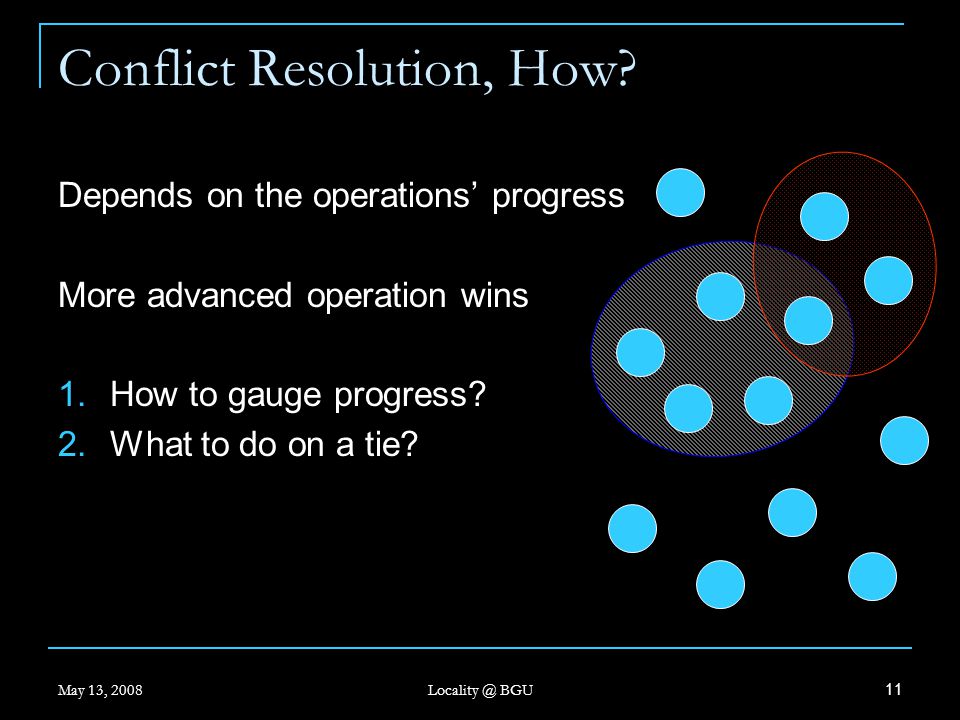

11. May 13, 2008 Locality @ BGU 11 Conflict Resolution, How? Depends on the operations’ progress More advanced operation wins 1.How to gauge progress? 2.What to do on a tie?

12. May 13, 2008 Locality @ BGU 12 Who’s More Advanced? The operation that locked more data items If a less advanced operation needs an item  help the conflicting operation or  wait (blocking in a limited radius) If a more advanced operation needs an item  reset the conflicting operation and claim the item

13. May 13, 2008 Locality @ BGU 13 What about Ties? Happen when two transactions locked the same number of items A transaction has a descriptor and a lock Use DCAS to race for locking the two descriptors –Winner calls the shots… 22

14. May 13, 2008 Locality @ BGU 14 Measuring Concurrency: Data Items and Operations A data structure is a collection of items An operation accesses a data set –not necessarily a pair A set of operations induces a conflict graph –Nodes represent items –Edges connect items of the same operation

15. May 13, 2008 Locality @ BGU 15 Spatial Relations between Operations Disjoint access –Non adjacent edges –Distance is infinite Overlapping operations –Adjacent edges –Distance is 0 Chains of operations –Paths –Distance is length of path (here, 2) d-neighborhood of an operation: all operations at distance ≤ d

16. May 13, 2008 Locality @ BGU 16 Interference between Operations Disjoint access Overlapping operations Non-overlapping operations Provides more concurrency & yields better throughput Interference inevitable no interference Should not interfere!

17. May 13, 2008 Locality @ BGU 17 Measuring Concurrency: Locality d failure locality [Choi, Singh, 1992] some operation completes in the d-neighborhood unless a failure occurs in the d-neighborhood d-local nonblocking some operation completes in the d-neighborhood even if a failure occurs in the d-neighborhood 17

18. May 13, 2008 Locality @ BGU 18 Quantitative Measures of Locality 18 [Afek, Merritt, Taubenfeld, Touitou, 1997] Distance in the conflict graph between overlapping operations that interfere d-local step complexity: Only operations at distance ≤ d delay each other d-local contention: Only operations at distance ≤ d access the same memory location

19. May 13, 2008 Locality @ BGU 19 In Retrospect CommentsMemory locality Step localityAlgorithm O(n) Turek et al. O(1)O(n)Shavit, Touitou BinaryO(log*n) Attiya, Dagan Fixed kO(k+log*n) Afek et al. Flexible kO(k+log*n) Attiya, Hillel

20. May 13, 2008 Locality @ BGU 20 Customized Virtual Locking Can be viewed as software transactional memory –High overhead Or handled by specialized algorithms –Ad-hoc and very delicate, mistakes happen Instead, design algorithms in a systematic manner…  Lock the items that have to be changed & apply a sequential implementation on these items  Lock items by colors to increase concurrency  No need to re-color at the start of each operations since with a specific data structure We manage a data structure since its infancy The data sets of operations are predictable

21. May 13, 2008 Locality @ BGU 21 Example: Doubly-Linked Lists An important special case underlying many distributed data structures –E.g., priority queue is used as job queue Insert and Remove operations –Sometimes only at the ends (deques) –The data set is an item and its left / right neighbors (or left / right anchor)

22. May 13, 2008 Locality @ BGU 22 Built-In Coloring for Doubly-Linked Lists An important special case underlying many distributed data structures –E.g., priority queue is used as job queue Insert and Remove operations –Sometimes only at the ends (deques) –The data set is an item and its left / right neighbors (or left / right anchor) [Attiya, Hillel, 2006]  Always maintain the list items legally colored –Adjacent items have different colors –Adjust colors when inserting or removing items –No need to color from scratch in each operation!  Constant locality: operations that access disjoint data sets do not delay each other

23. May 13, 2008 Locality @ BGU 23 new item Insert Operation New items are assigned a temporary color Remove from the ends is similar to Insert –Locks three items, one of them an anchor < < <

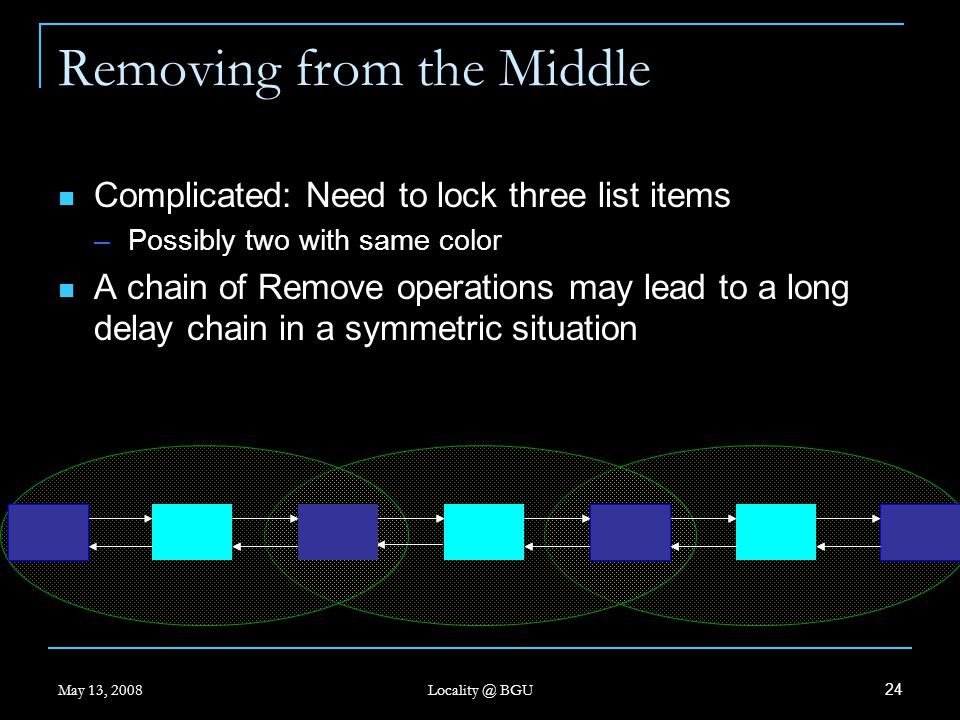

24. May 13, 2008 Locality @ BGU 24 Removing from the Middle Complicated: Need to lock three list items –Possibly two with same color A chain of Remove operations may lead to a long delay chain in a symmetric situation

25. May 13, 2008 Locality @ BGU 25 To the Rescue: DCAS Again  Use DCAS to lock equally colored nodes

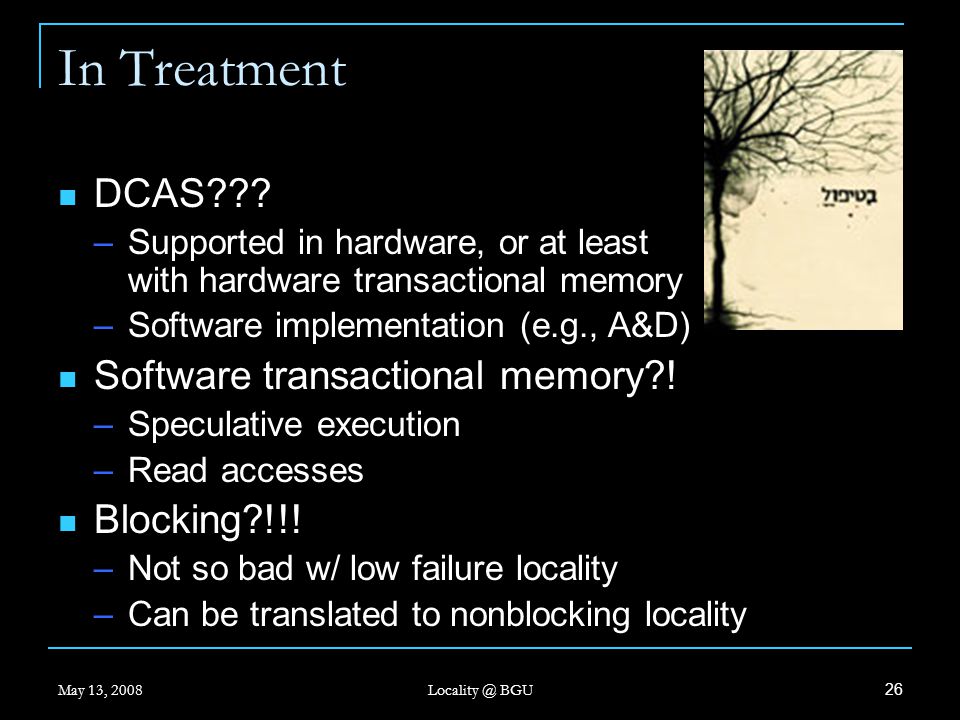

26. May 13, 2008 Locality @ BGU 26 In Treatment DCAS??? –Supported in hardware, or at least with hardware transactional memory –Software implementation (e.g., A&D) Software transactional memory?! –Speculative execution –Read accesses Blocking?!!! –Not so bad w/ low failure locality –Can be translated to nonblocking locality

27. May 13, 2008 Locality @ BGU 27 In Treatment DCAS??? –Supported in hardware, or at least with hardware transactional memory –Software implementation (e.g., A&D) Software transactional memory?! –Read accesses –Speculative execution Blocking?!!! –Not so bad with low failure locality –Can be translated to nonblocking locality

28. May 13, 2008 Locality @ BGU 28 data Implementing High-Level ADT

29. May 13, 2008 Locality @ BGU 29 Implementing High-Level ADT data ------------------ ------------------- ------------------ ---------------- --------------- ------------------ ------------------- ------------------ ------------------- ------------------ ---------------- --------------- ------------------ ------------------- Using lower-level ADTs & procedures

30. May 13, 2008 Locality @ BGU 30 Correctness: Linearizability [Herlihy & Wing, 1990] For every concurrent execution there is a sequential execution that –Contains the same operations –Is legal (obeys the specification of the ADTs) –Preserves the real-time order of non-overlapping operations Each operation appears to takes effect instantaneously at some point between its invocation and its response (atomicity)

31. May 13, 2008 Locality @ BGU 31 Liveness Conditions (Eventual) Wait-free: every operation completes within a finite number of (its own) steps  no starvation for mutex Nonblocking: some operation completes within a finite number of (some other process) steps  deadlock-freedom for mutex Obstruction-free: an operation (eventually) running solo completes within a finite number of (its own) steps –Also called solo termination wait-free  nonblocking  obstruction-free

32. May 13, 2008 Locality @ BGU 32 Randomization: How Often this Happens? [Ha, Tsigas, Wattenhofer, Wattenhofer, 2005] Operations choose locking order at random Chains’ length depends on log n / loglog n –better, and yet… Similar analysis for chains’ length when ops choose items at random –Depends on the operations’ density [Dragojevic, Guerraoui & Kapalka, 2008 ]
