1. ARIZONA PROVING GROUND – NI WSN Project 1 Ford Arizona Proving Ground Wireless Sensor Network (WSN) Project Bruce Stedwell May 10, 2011

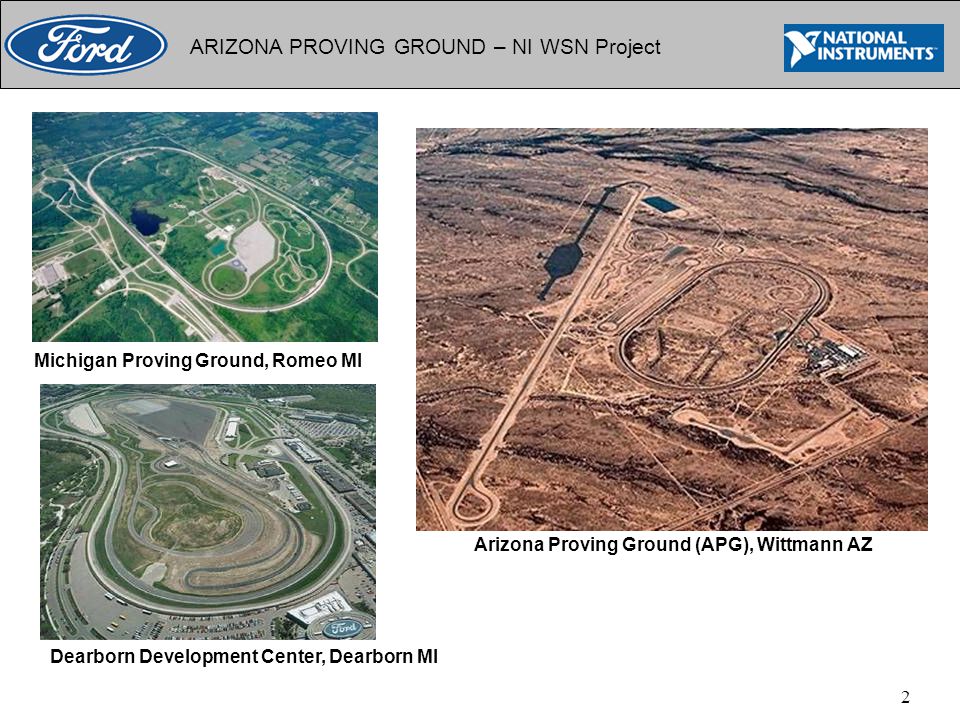

2. ARIZONA PROVING GROUND – NI WSN Project 2 Dearborn Development Center, Dearborn MI Michigan Proving Ground, Romeo MI Arizona Proving Ground (APG), Wittmann AZ

3. ARIZONA PROVING GROUND – NI WSN Project 3 Vehicle Testing at Ford’s Proving Grounds

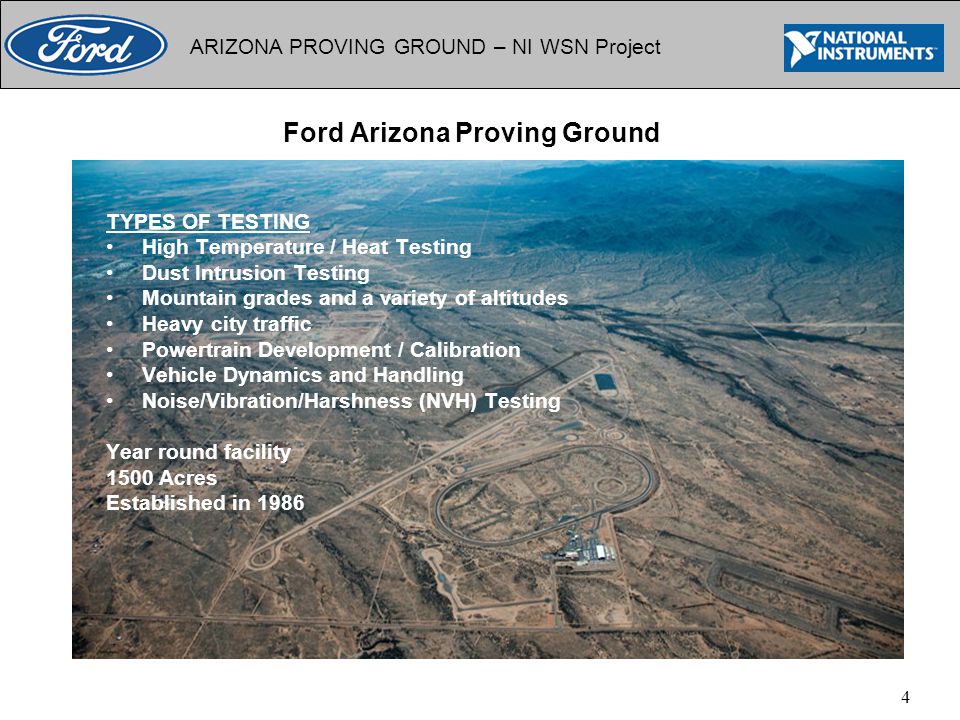

4. ARIZONA PROVING GROUND – NI WSN Project 4 Ford Arizona Proving Ground TYPES OF TESTING High Temperature / Heat Testing Dust Intrusion Testing Mountain grades and a variety of altitudes Heavy city traffic Powertrain Development / Calibration Vehicle Dynamics and Handling Noise/Vibration/Harshness (NVH) Testing Year round facility 1500 Acres Established in 1986

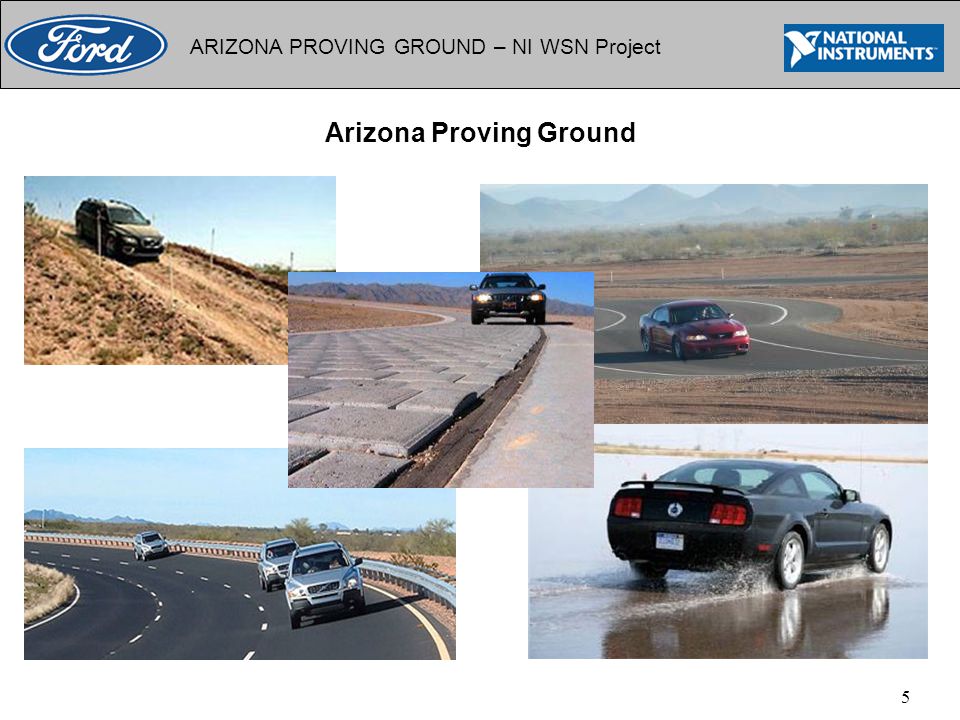

5. ARIZONA PROVING GROUND – NI WSN Project 5 Arizona Proving Ground

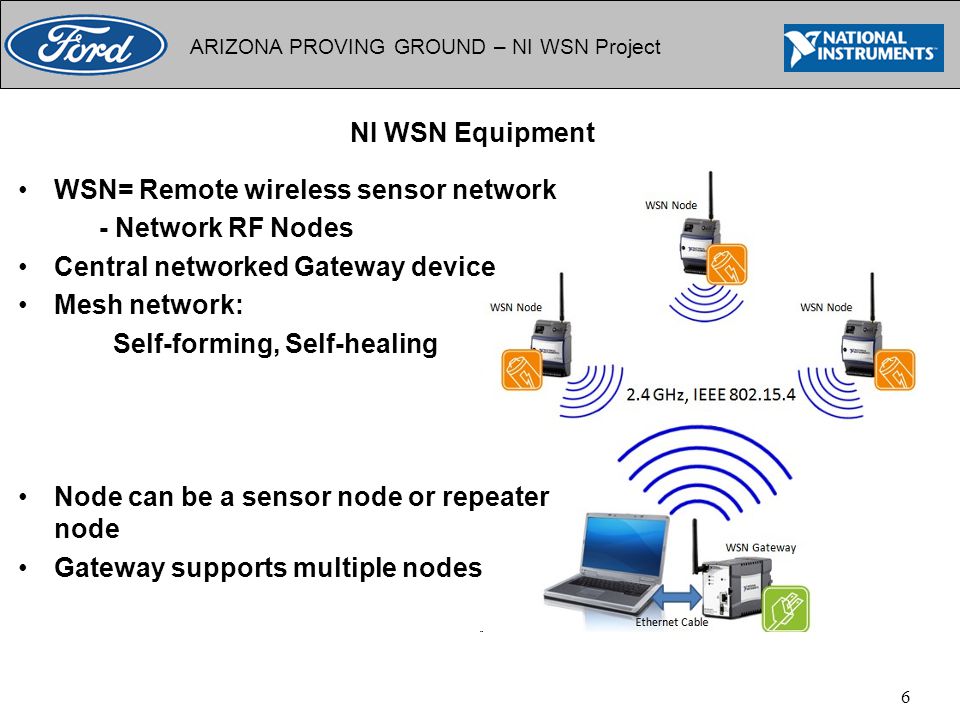

6. ARIZONA PROVING GROUND – NI WSN Project 6 NI WSN Equipment WSN= Remote wireless sensor network - Network RF Nodes Central networked Gateway device Mesh network: Self-forming, Self-healing Node can be a sensor node or repeater node Gateway supports multiple nodes

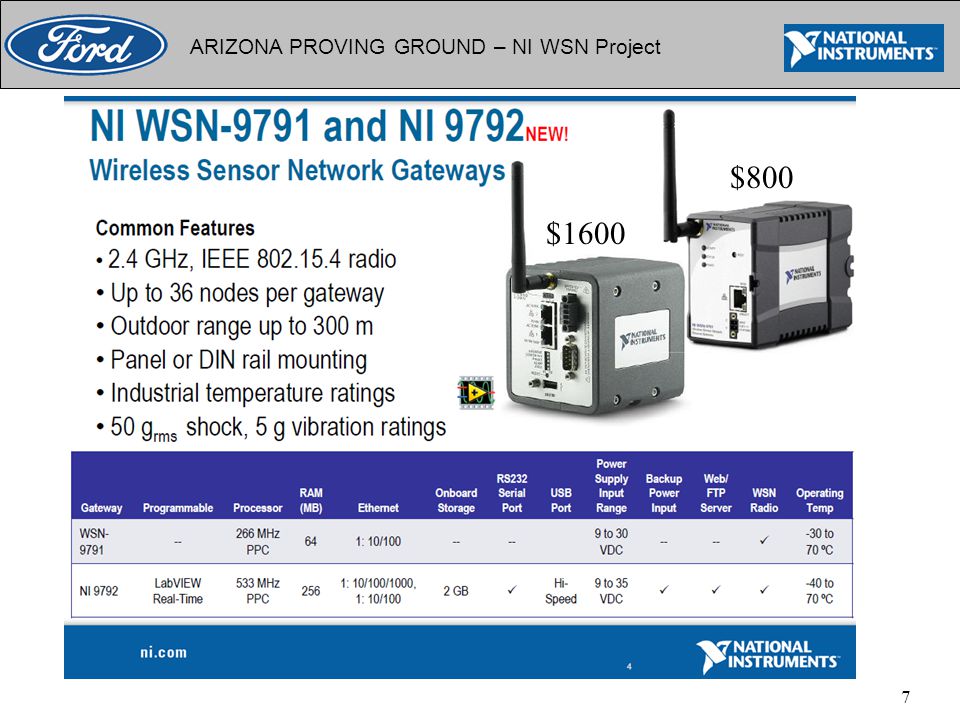

7. ARIZONA PROVING GROUND – NI WSN Project 7 $800 $1600

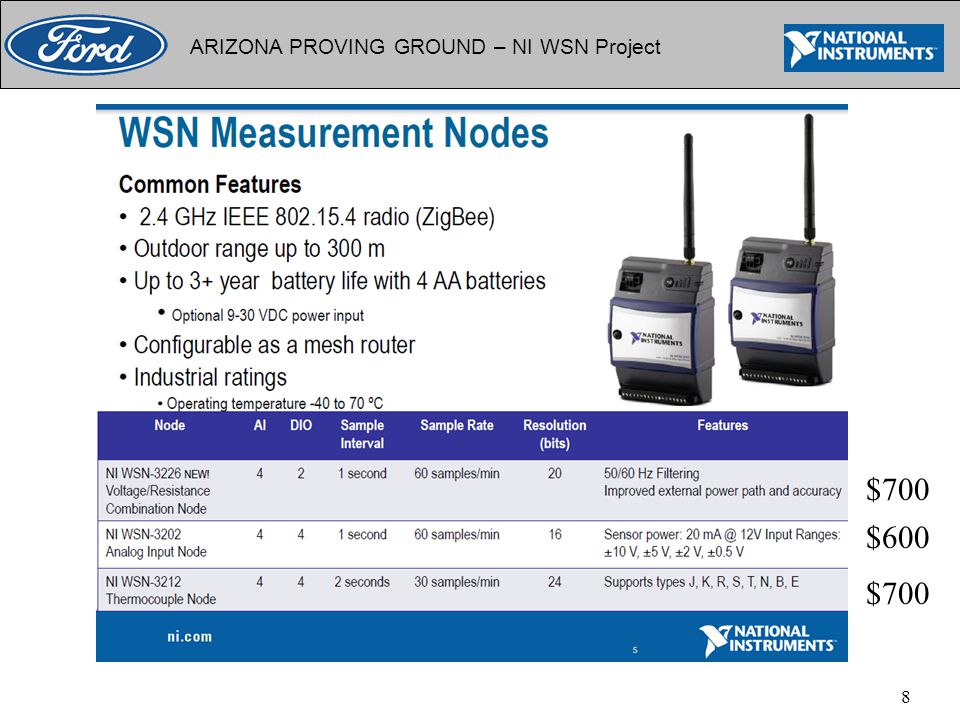

8. ARIZONA PROVING GROUND – NI WSN Project 8 $700 $600 $700

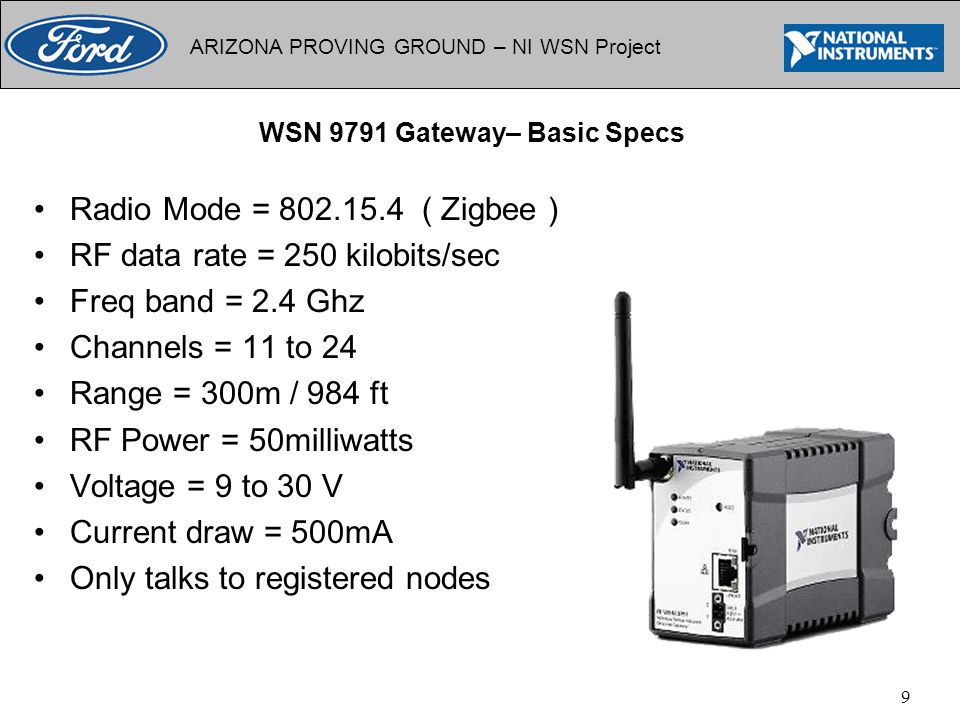

9. ARIZONA PROVING GROUND – NI WSN Project 9 Radio Mode = 802.15.4 ( Zigbee ) RF data rate = 250 kilobits/sec Freq band = 2.4 Ghz Channels = 11 to 24 Range = 300m / 984 ft RF Power = 50milliwatts Voltage = 9 to 30 V Current draw = 500mA Only talks to registered nodes WSN 9791 Gateway– Basic Specs

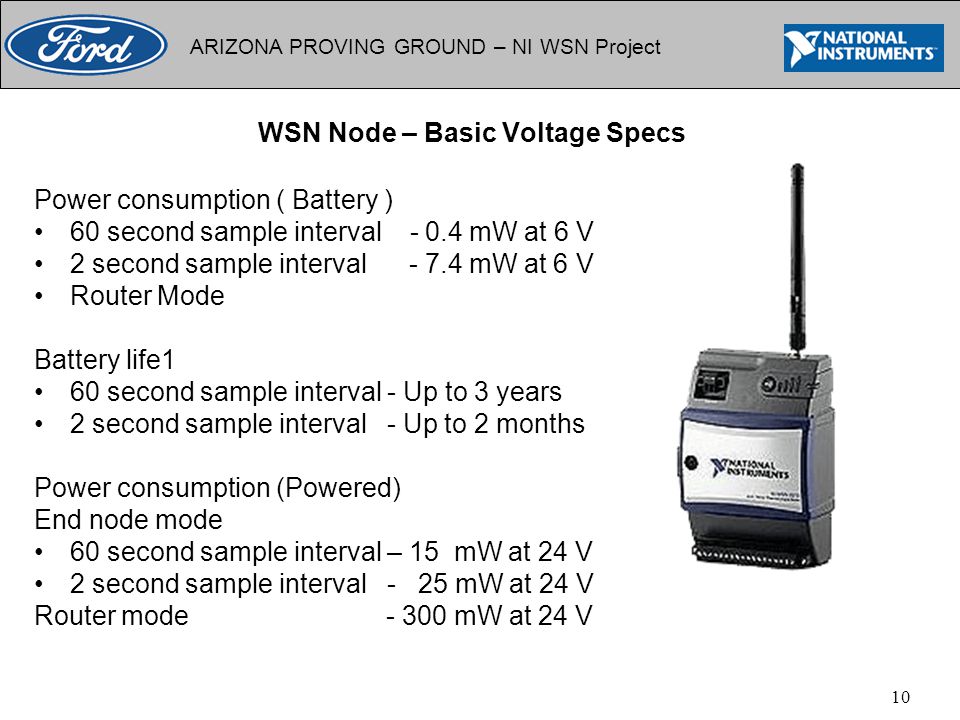

10. ARIZONA PROVING GROUND – NI WSN Project 10 WSN Node – Basic Voltage Specs Power consumption ( Battery ) 60 second sample interval - 0.4 mW at 6 V 2 second sample interval - 7.4 mW at 6 V Router Mode Battery life1 60 second sample interval - Up to 3 years 2 second sample interval - Up to 2 months Power consumption (Powered) End node mode 60 second sample interval – 15 mW at 24 V 2 second sample interval - 25 mW at 24 V Router mode - 300 mW at 24 V

11. ARIZONA PROVING GROUND – NI WSN Project 11 Applying WSN Technology at APG Proving Ground Weather Station Enhancement Project

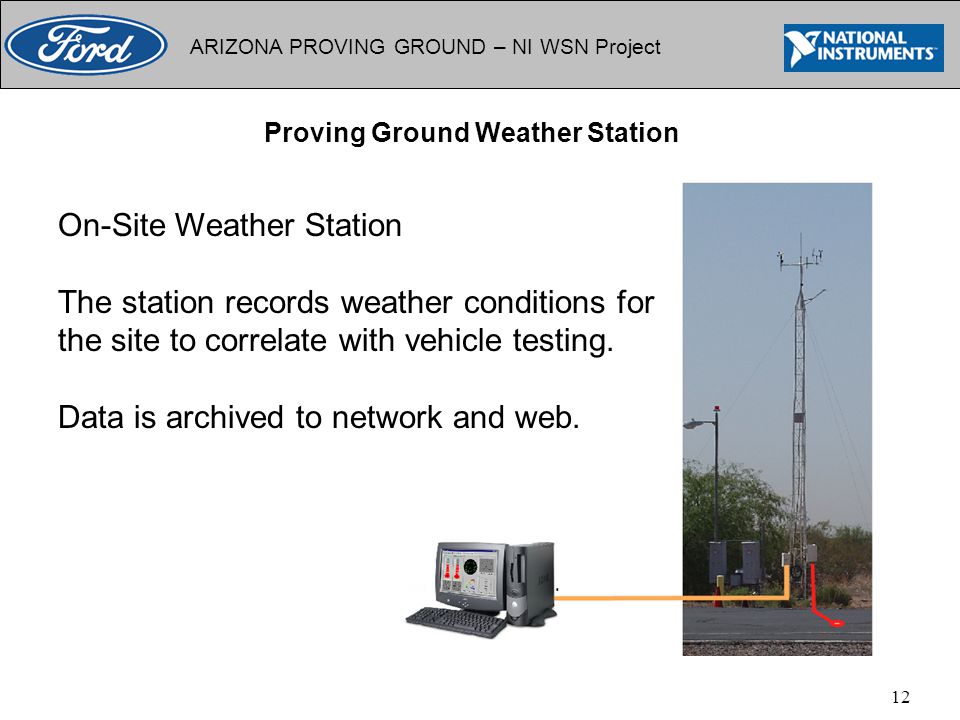

12. ARIZONA PROVING GROUND – NI WSN Project 12 Proving Ground Weather Station On-Site Weather Station The station records weather conditions for the site to correlate with vehicle testing. Data is archived to network and web.

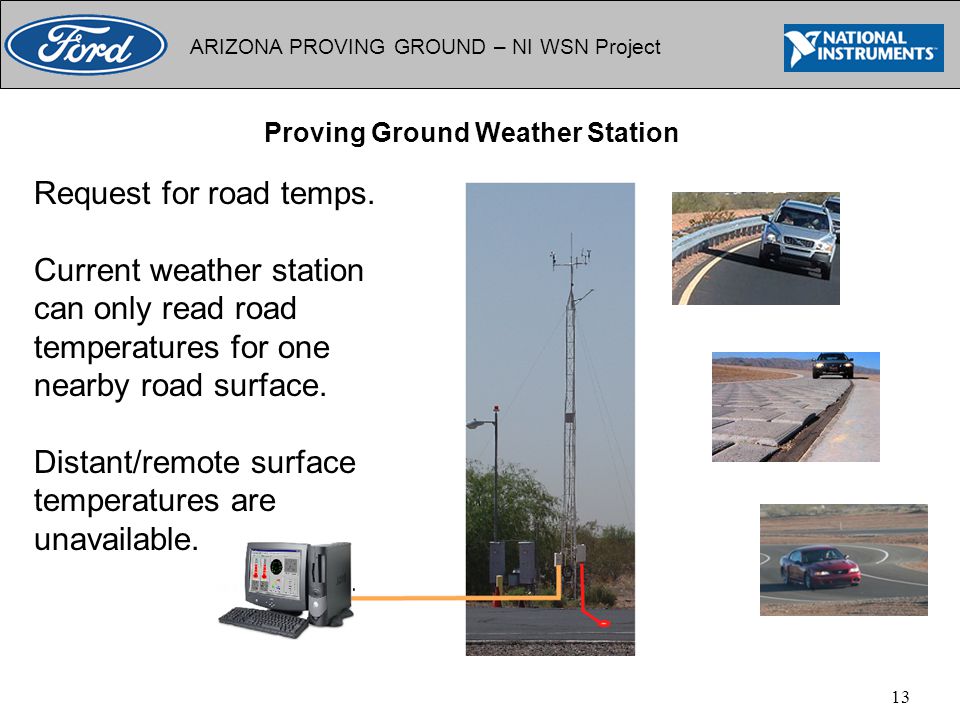

13. ARIZONA PROVING GROUND – NI WSN Project 13 Proving Ground Weather Station Request for road temps. Current weather station can only read road temperatures for one nearby road surface. Distant/remote surface temperatures are unavailable.

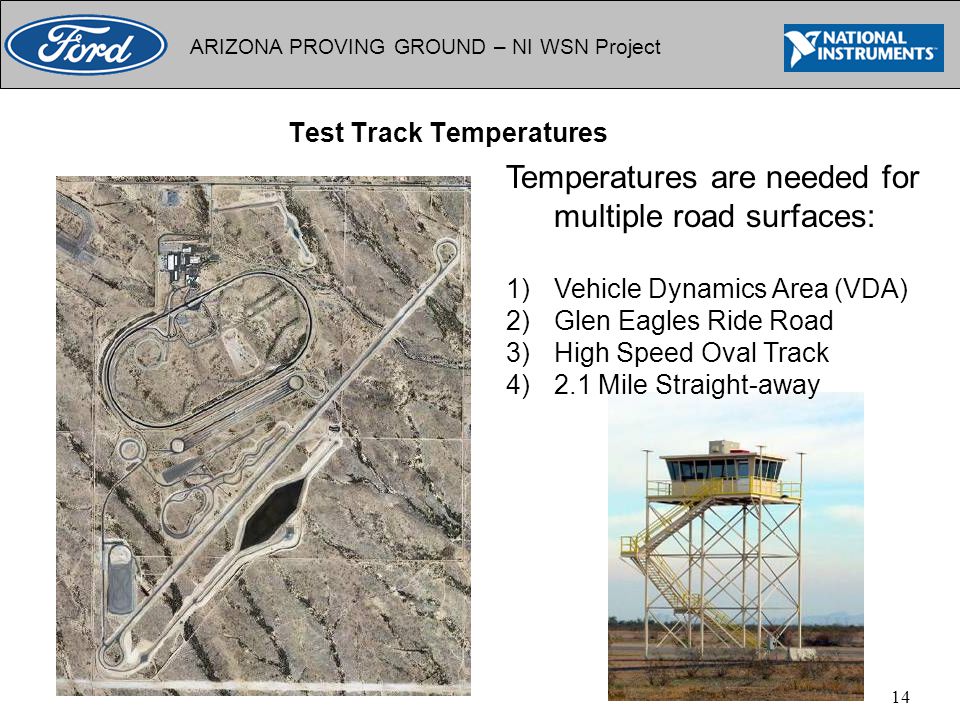

14. ARIZONA PROVING GROUND – NI WSN Project 14 Test Track Temperatures Temperatures are needed for multiple road surfaces: 1)Vehicle Dynamics Area (VDA) 2)Glen Eagles Ride Road 3)High Speed Oval Track 4)2.1 Mile Straight-away

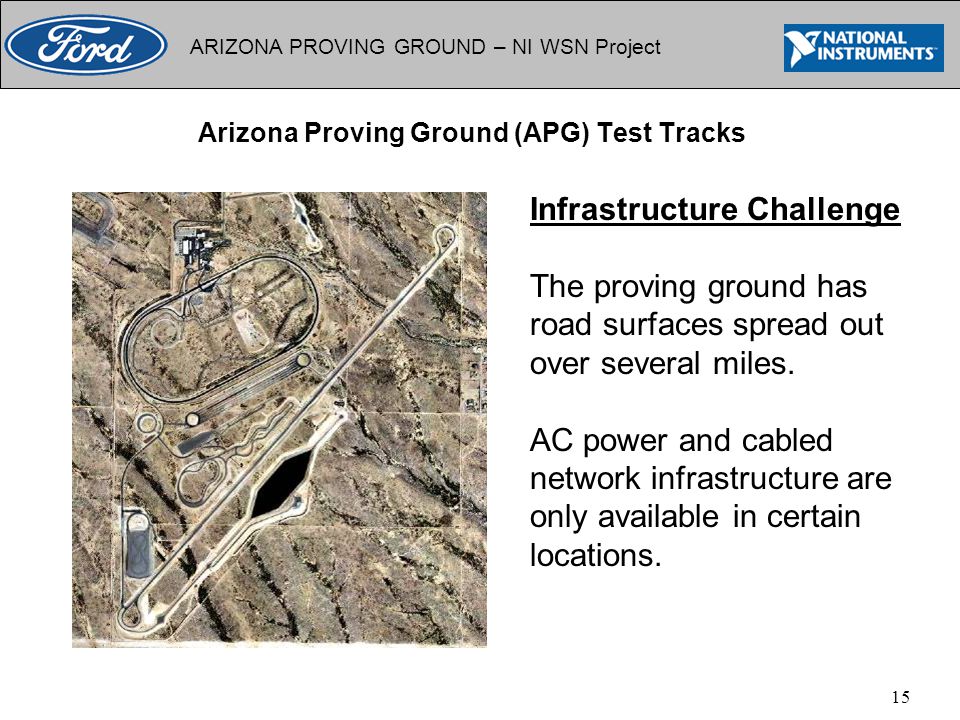

15. ARIZONA PROVING GROUND – NI WSN Project 15 Arizona Proving Ground (APG) Test Tracks Infrastructure Challenge The proving ground has road surfaces spread out over several miles. AC power and cabled network infrastructure are only available in certain locations.

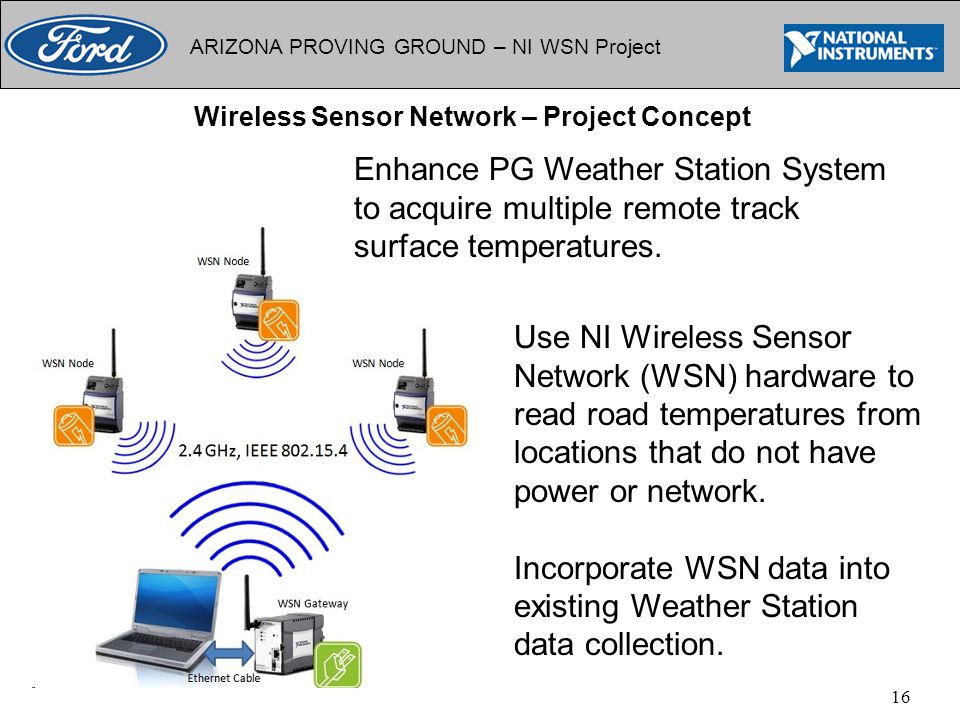

16. ARIZONA PROVING GROUND – NI WSN Project 16 Wireless Sensor Network – Project Concept Use NI Wireless Sensor Network (WSN) hardware to read road temperatures from locations that do not have power or network. Incorporate WSN data into existing Weather Station data collection. Enhance PG Weather Station System to acquire multiple remote track surface temperatures.

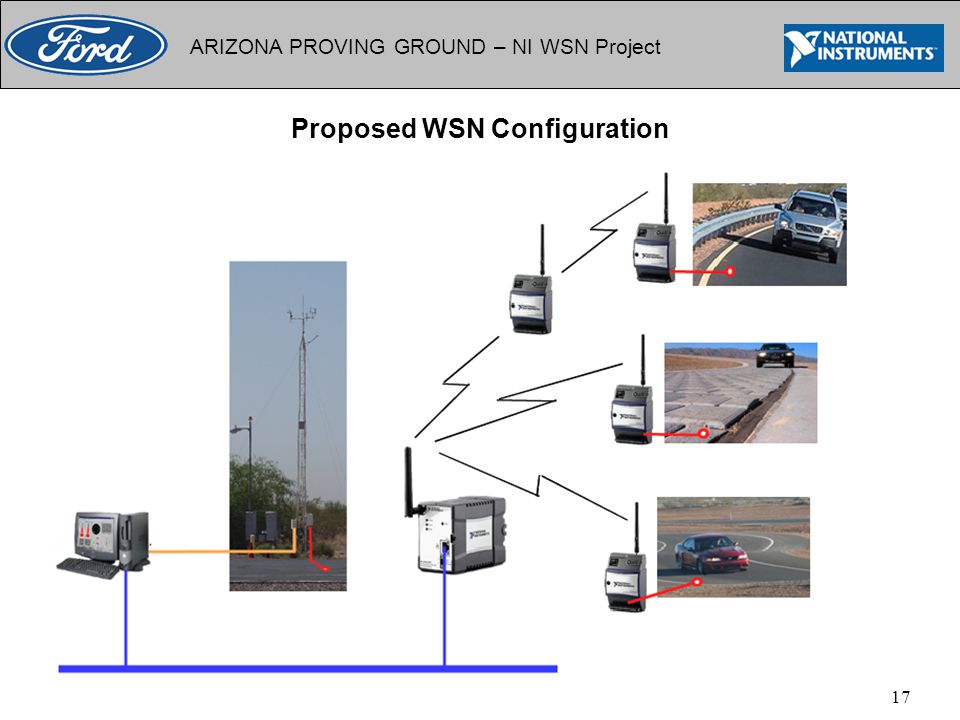

17. ARIZONA PROVING GROUND – NI WSN Project 17 Proposed WSN Configuration

18. ARIZONA PROVING GROUND – NI WSN Project 18 WSN Coverage Plan The APG application is targeted to use one 9791 gateway, three (3) 3212 T/C wireless nodes, and one WSN Router node. APG is the proof of concept site. Michigan and Dearborn test sites to follow.

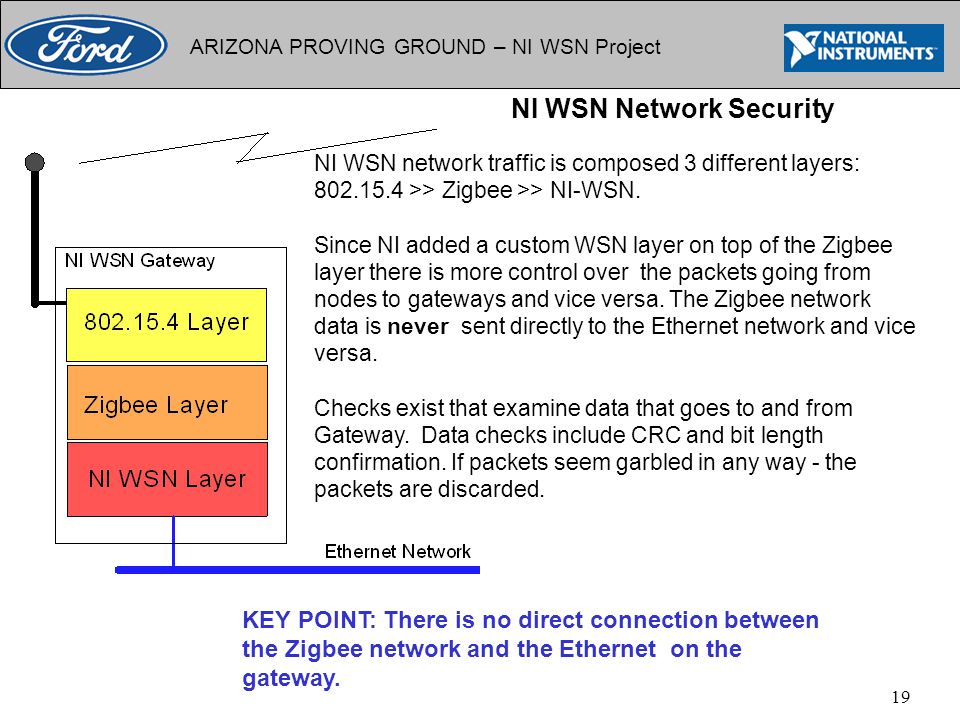

19. ARIZONA PROVING GROUND – NI WSN Project 19 NI WSN network traffic is composed 3 different layers: 802.15.4 >> Zigbee >> NI-WSN. Since NI added a custom WSN layer on top of the Zigbee layer there is more control over the packets going from nodes to gateways and vice versa. The Zigbee network data is never sent directly to the Ethernet network and vice versa. Checks exist that examine data that goes to and from Gateway. Data checks include CRC and bit length confirmation. If packets seem garbled in any way - the packets are discarded. NI WSN Network Security KEY POINT: There is no direct connection between the Zigbee network and the Ethernet on the gateway.

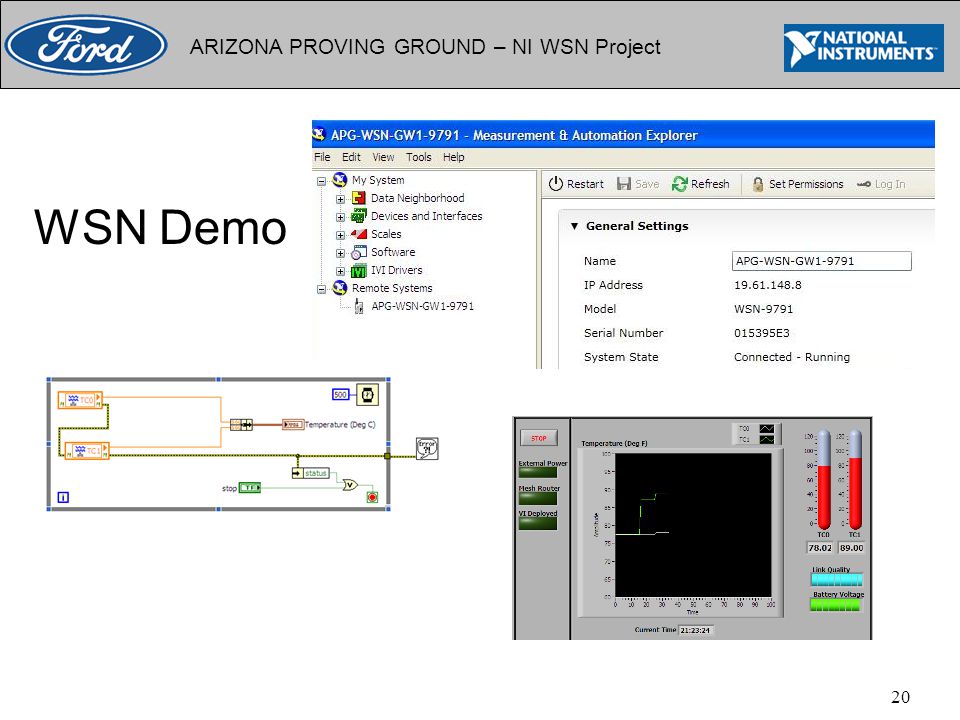

20. ARIZONA PROVING GROUND – NI WSN Project 20 WSN Demo

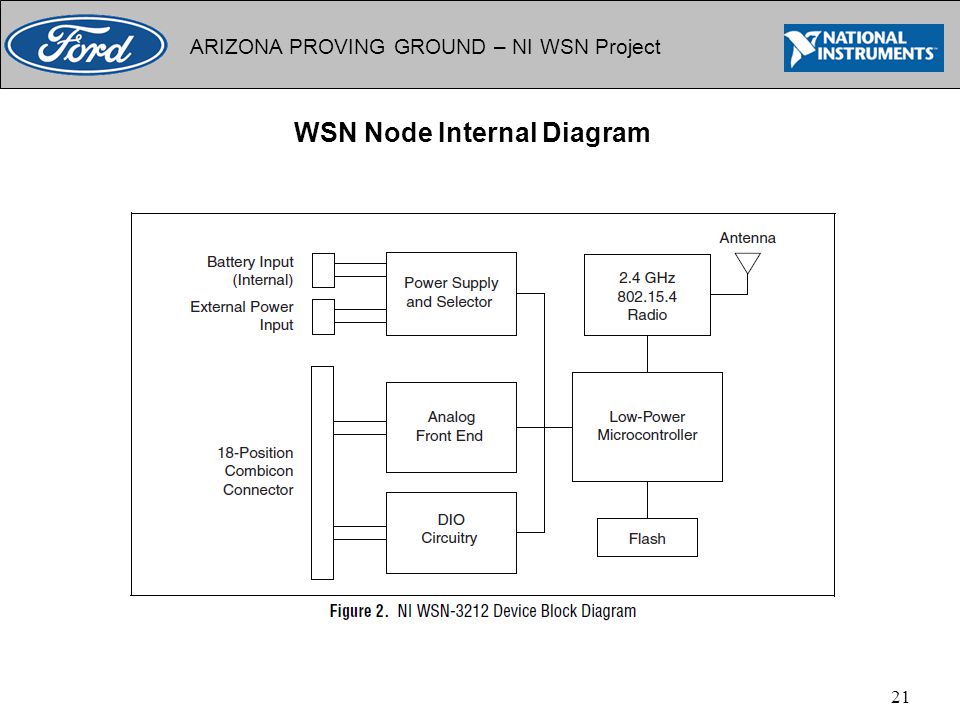

21. ARIZONA PROVING GROUND – NI WSN Project 21 WSN Node Internal Diagram

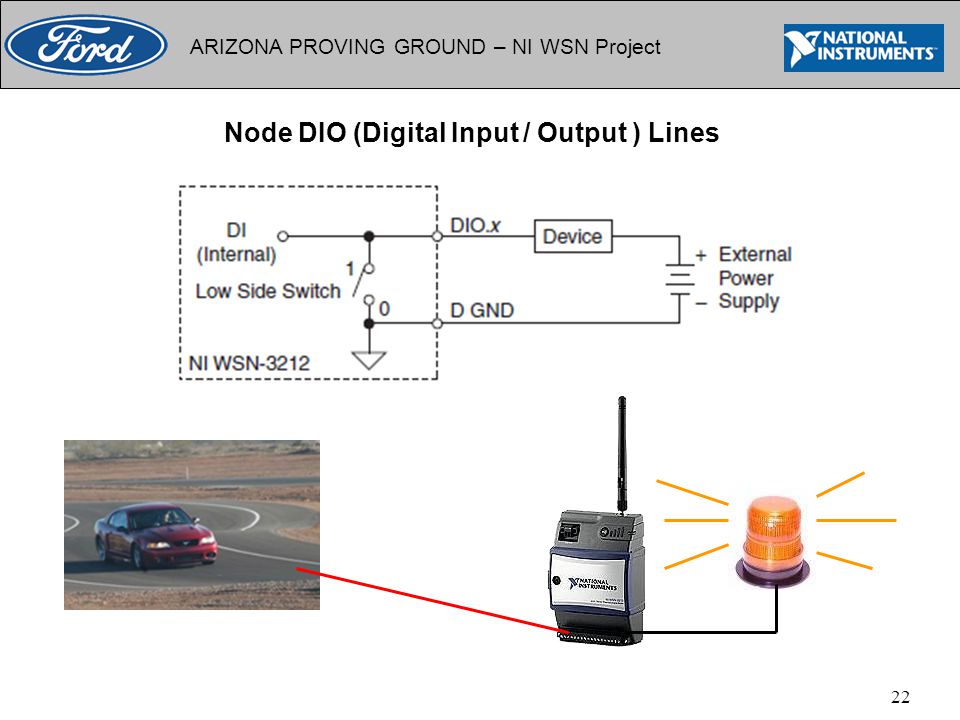

22. ARIZONA PROVING GROUND – NI WSN Project 22 Node DIO (Digital Input / Output ) Lines

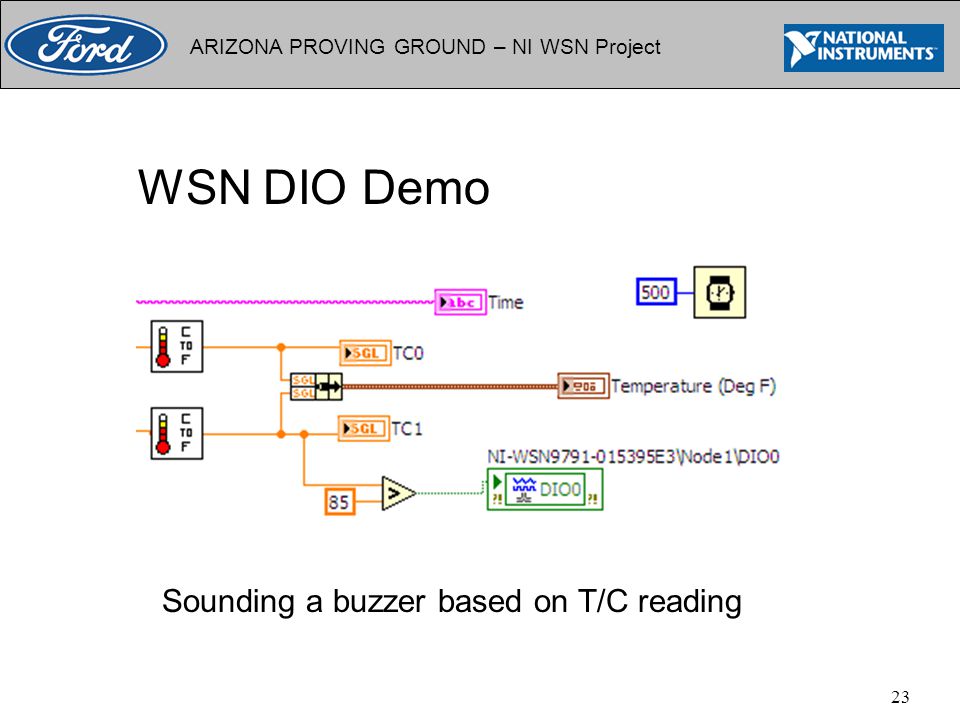

23. ARIZONA PROVING GROUND – NI WSN Project 23 WSN DIO Demo Sounding a buzzer based on T/C reading

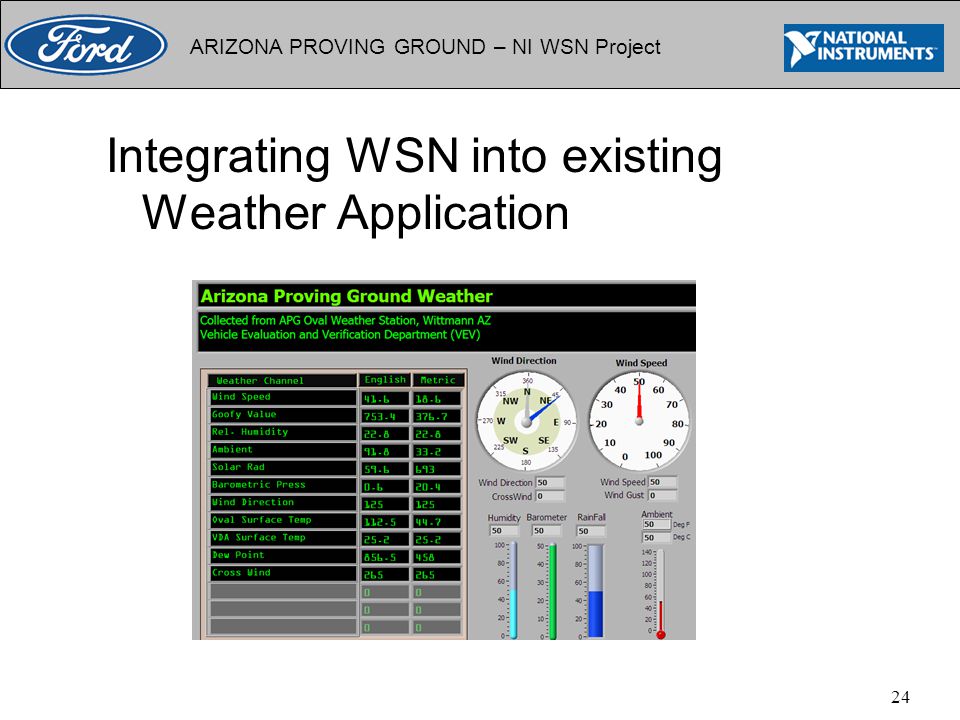

24. ARIZONA PROVING GROUND – NI WSN Project 24 Integrating WSN into existing Weather Application

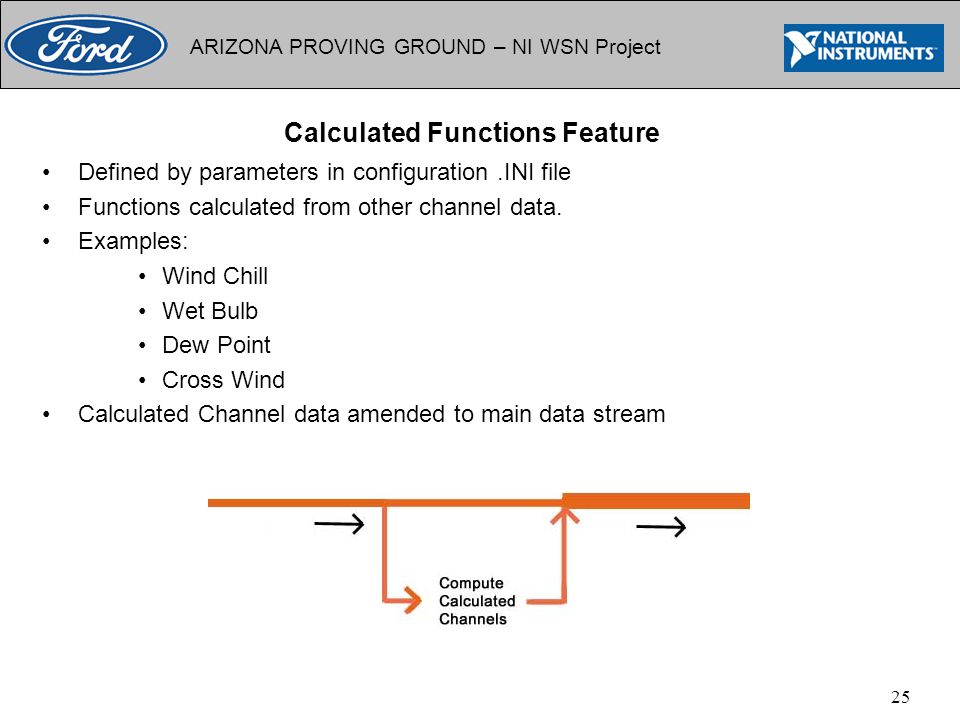

25. ARIZONA PROVING GROUND – NI WSN Project 25 Calculated Functions Feature Defined by parameters in configuration.INI file Functions calculated from other channel data. Examples: Wind Chill Wet Bulb Dew Point Cross Wind Calculated Channel data amended to main data stream

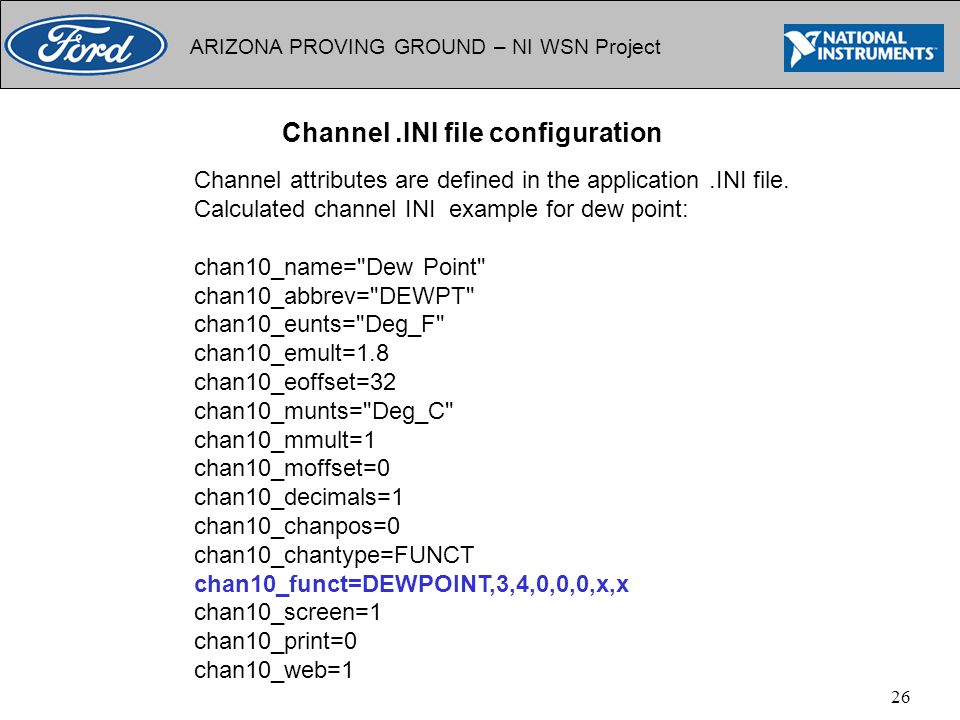

26. ARIZONA PROVING GROUND – NI WSN Project 26 Channel.INI file configuration Channel attributes are defined in the application.INI file. Calculated channel INI example for dew point: chan10_name="Dew Point" chan10_abbrev="DEWPT" chan10_eunts="Deg_F" chan10_emult=1.8 chan10_eoffset=32 chan10_munts="Deg_C" chan10_mmult=1 chan10_moffset=0 chan10_decimals=1 chan10_chanpos=0 chan10_chantype=FUNCT chan10_funct=DEWPOINT,3,4,0,0,0,x,x chan10_screen=1 chan10_print=0 chan10_web=1

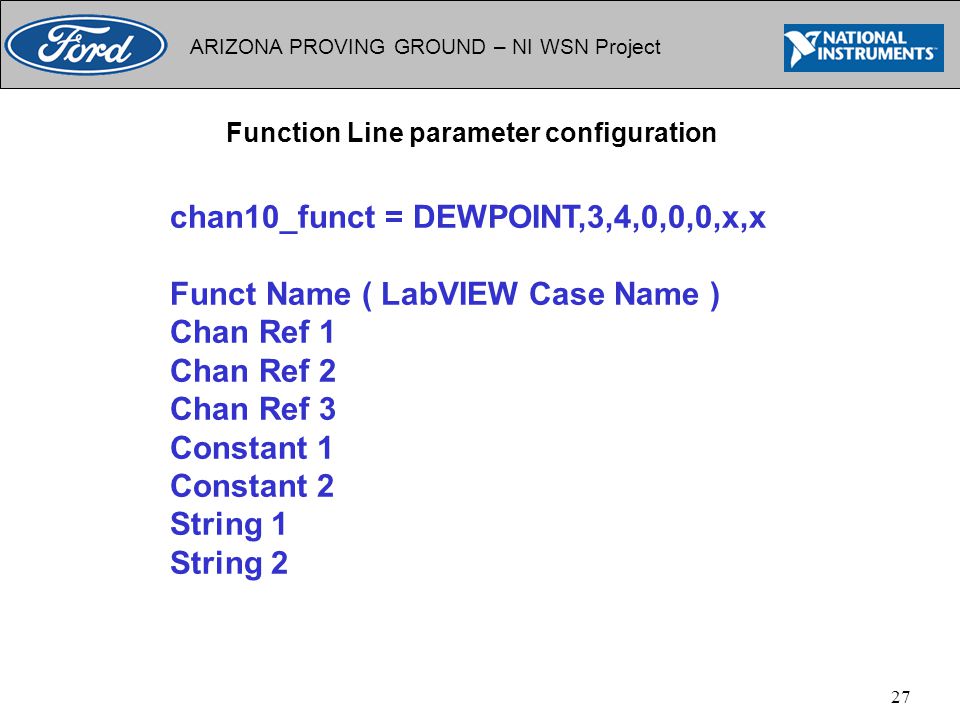

27. ARIZONA PROVING GROUND – NI WSN Project 27 Function Line parameter configuration chan10_funct = DEWPOINT,3,4,0,0,0,x,x Funct Name ( LabVIEW Case Name ) Chan Ref 1 Chan Ref 2 Chan Ref 3 Constant 1 Constant 2 String 1 String 2

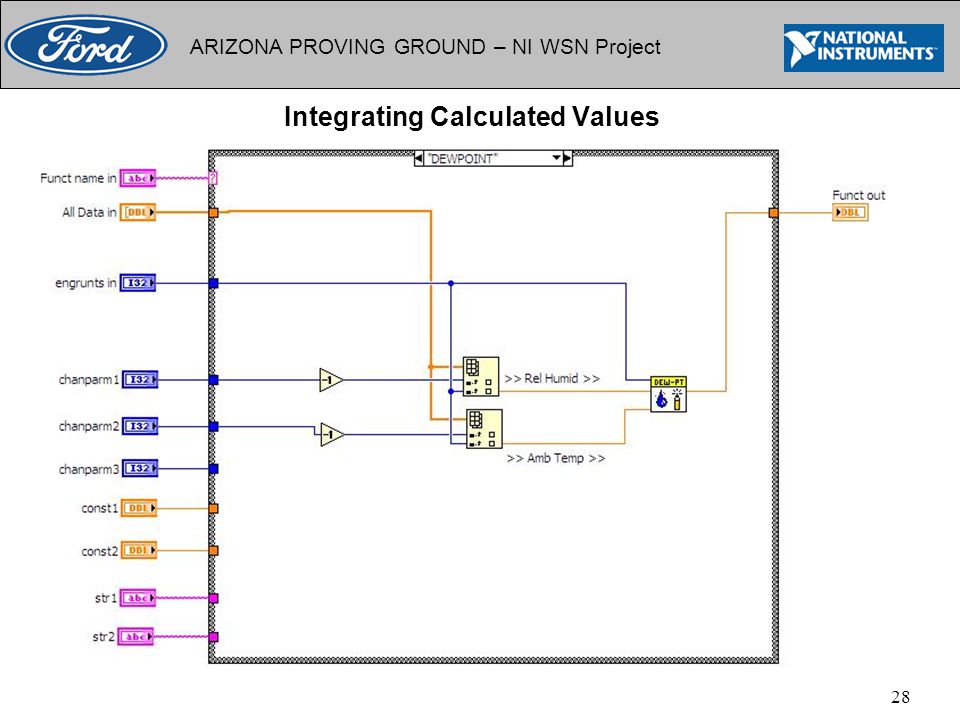

28. ARIZONA PROVING GROUND – NI WSN Project 28 Integrating Calculated Values

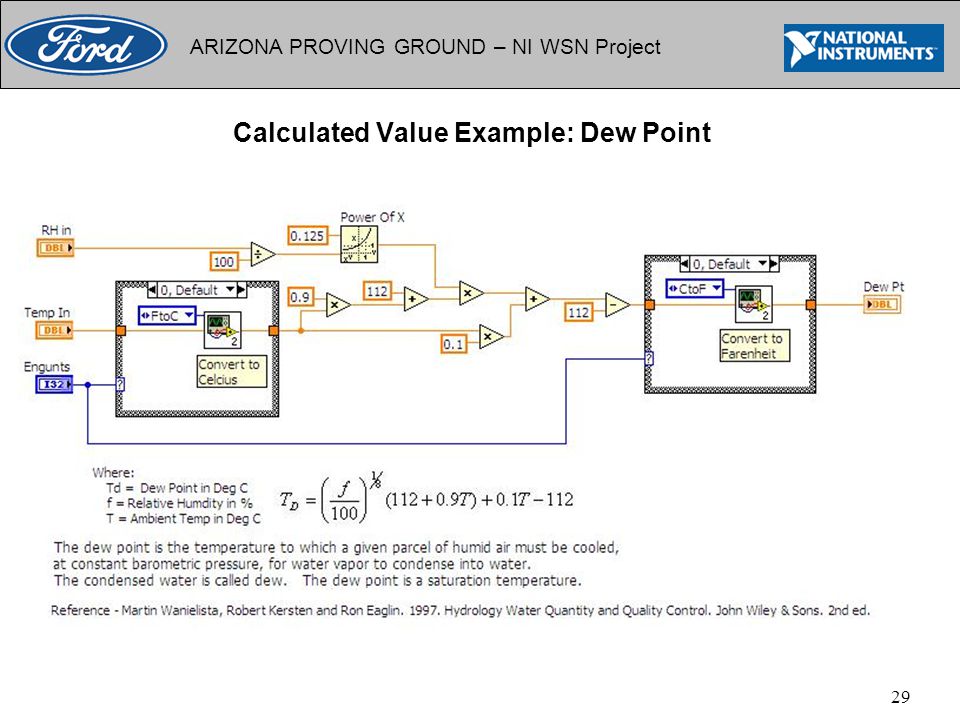

29. ARIZONA PROVING GROUND – NI WSN Project 29 Calculated Value Example: Dew Point

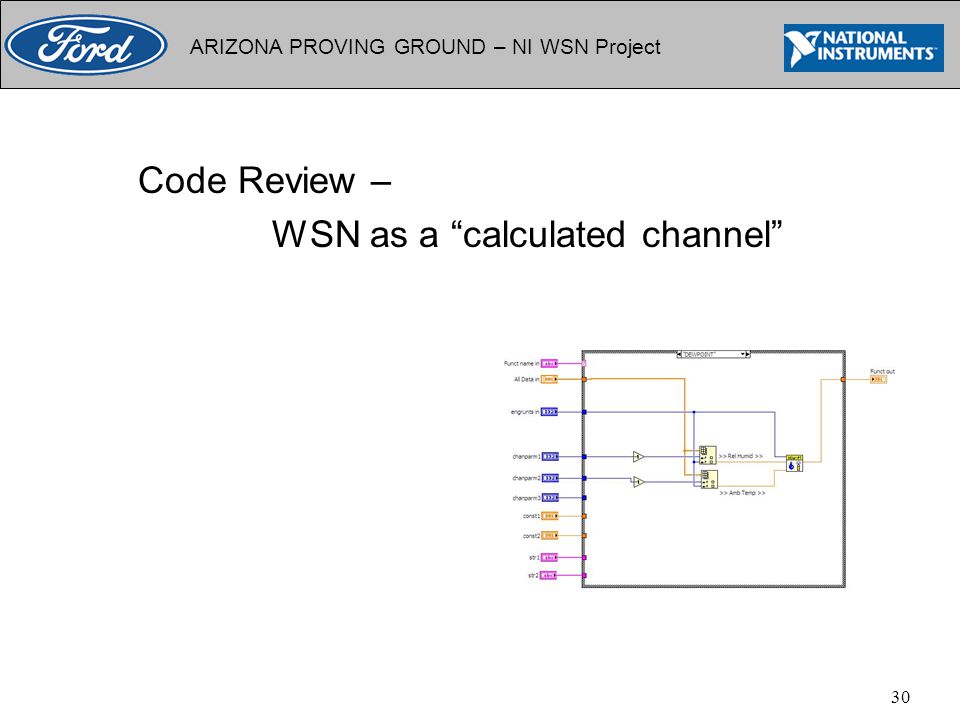

30. ARIZONA PROVING GROUND – NI WSN Project 30 Code Review – WSN as a “calculated channel”

31. ARIZONA PROVING GROUND – NI WSN Project 31 Questions?
