G000317-00-M LIGO “First Lock” Barry Barish 21 October 2000.

Similar presentations


Presentation on theme: "G000317-00-M LIGO “First Lock” Barry Barish 21 October 2000."— Presentation transcript:

1

2 G000317-00-M LIGO “First Lock” Barry Barish 21 October 2000

3 G000317-00-M LIGO Livingston Observatory Hanford Observatory LIGO is operated by MIT & Caltech for the National Science Foundation

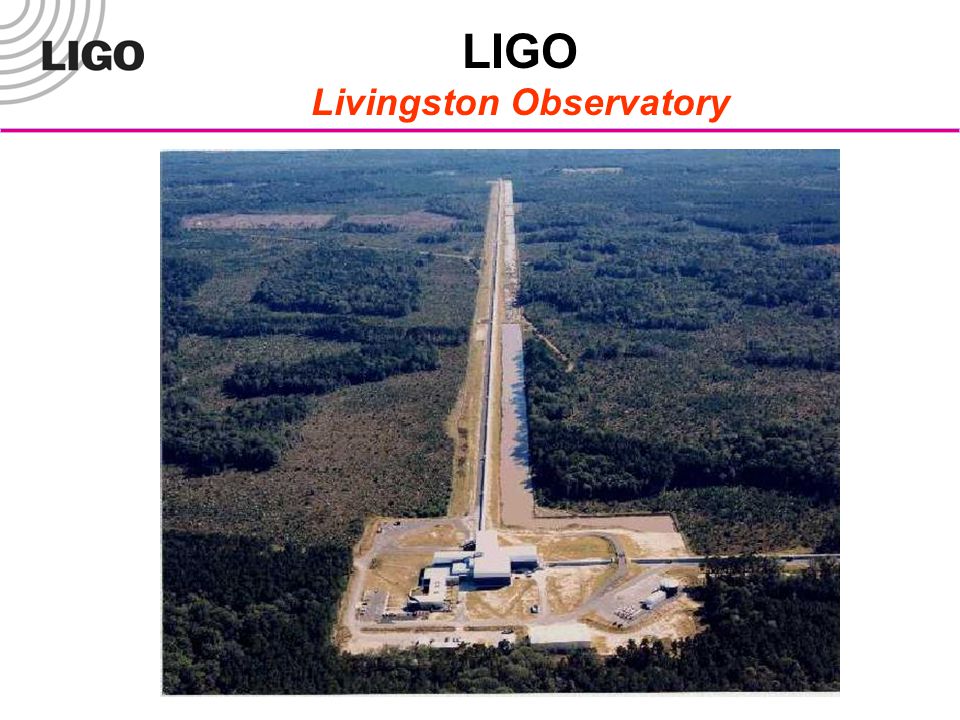

4 G000317-00-M LIGO Livingston Observatory

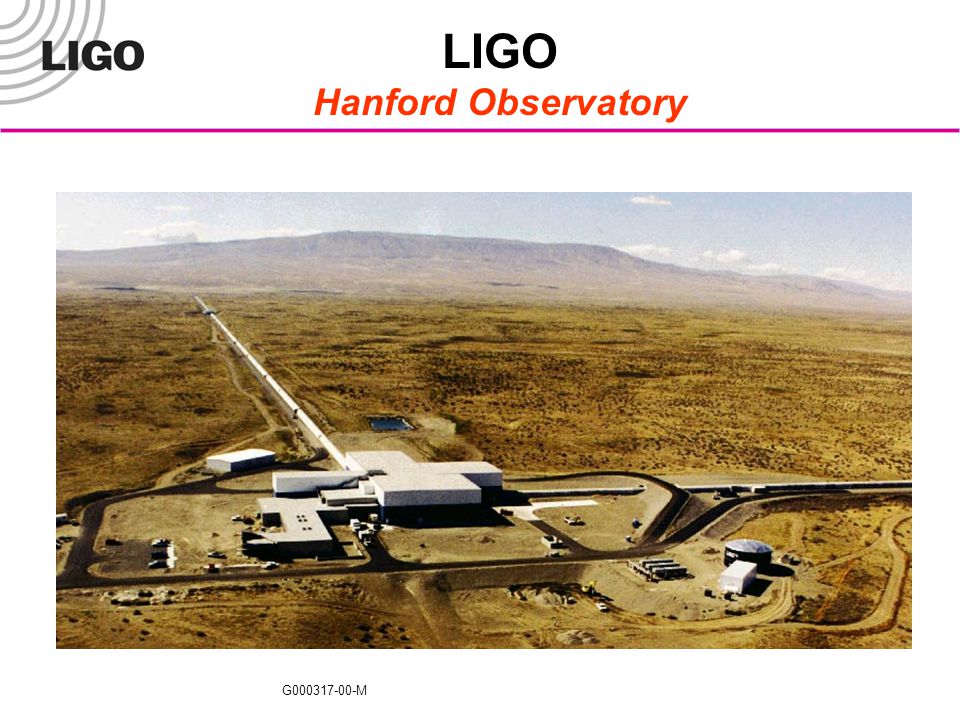

5 G000317-00-M LIGO Hanford Observatory

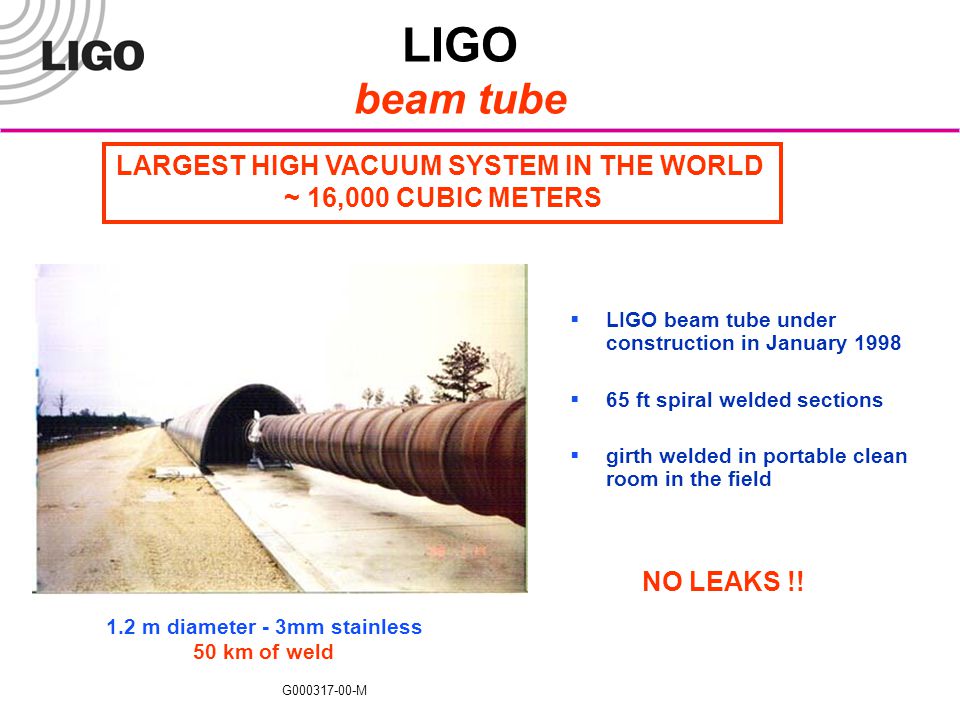

6 G000317-00-M LIGO beam tube  LIGO beam tube under construction in January 1998  65 ft spiral welded sections  girth welded in portable clean room in the field 1.2 m diameter - 3mm stainless 50 km of weld NO LEAKS !! LARGEST HIGH VACUUM SYSTEM IN THE WORLD ~ 16,000 CUBIC METERS

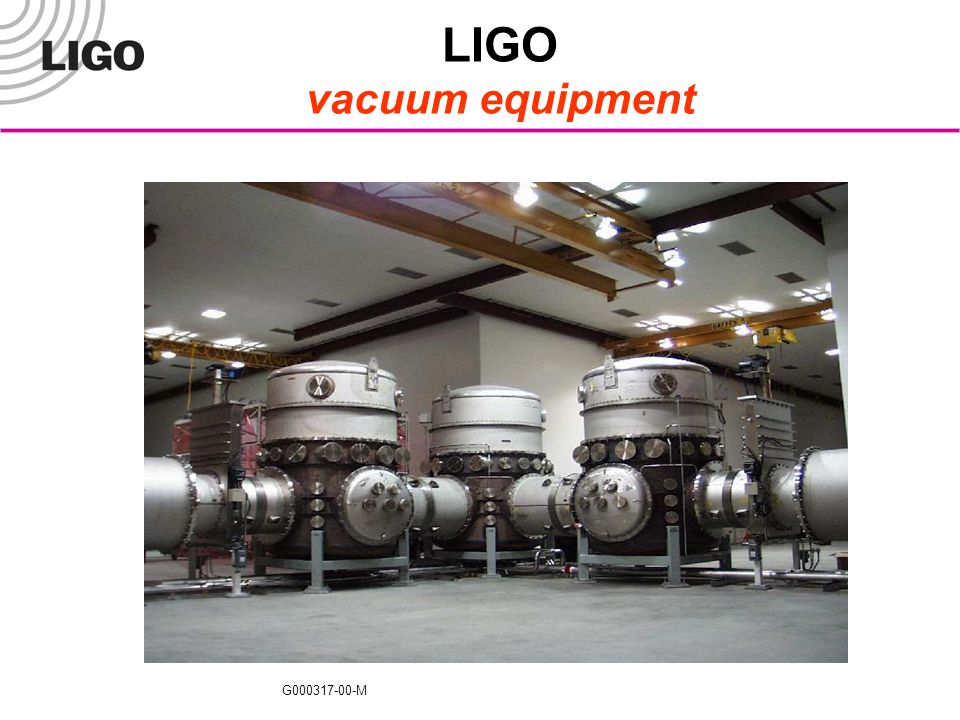

7 G000317-00-M LIGO vacuum equipment

8 G000317-00-M Detection of Gravitational Waves precision optical instrument LIGO (4 km) will be able to detect a stretch (squash) of 10 -18 m !! ( a small fraction of the size of a proton) This will enable detection of gravitational waves from a distance as far as 600 Million light years LIGO interferometer

9 G000317-00-M Einstein’s Theory of Gravitation Newton’s Theory “instantaneous action at a distance” Einstein’s Theory information carried by gravitational radiation at the speed of light

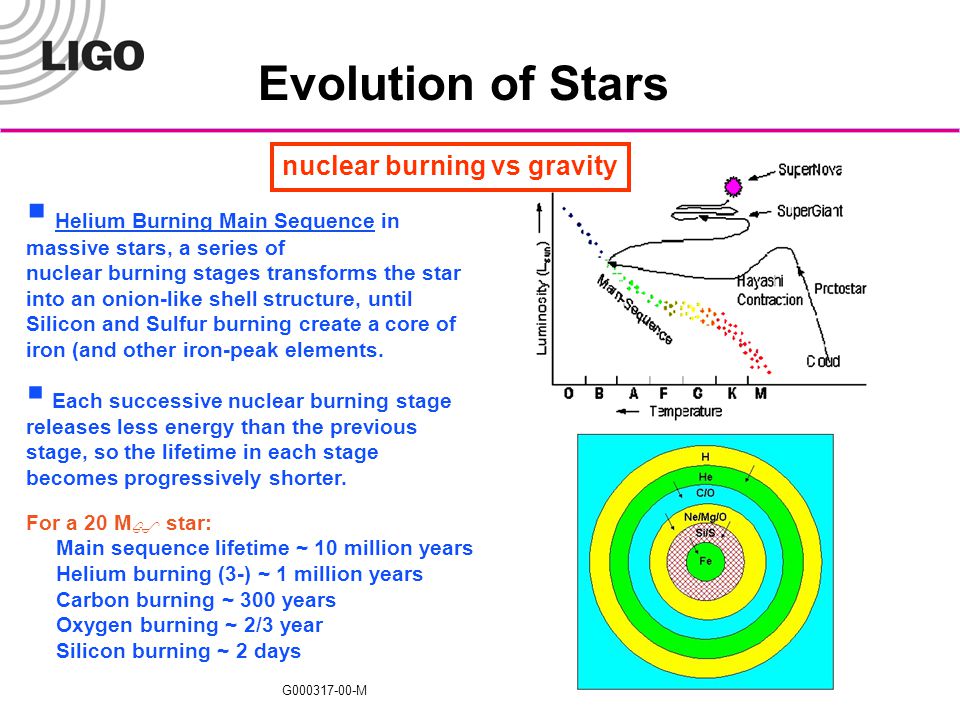

10 G000317-00-M  Helium Burning Main Sequence in massive stars, a series of nuclear burning stages transforms the star into an onion-like shell structure, until Silicon and Sulfur burning create a core of iron (and other iron-peak elements.  Each successive nuclear burning stage releases less energy than the previous stage, so the lifetime in each stage becomes progressively shorter. Evolution of Stars For a 20 M  star: Main sequence lifetime ~ 10 million years Helium burning (3-) ~ 1 million years Carbon burning ~ 300 years Oxygen burning ~ 2/3 year Silicon burning ~ 2 days nuclear burning vs gravity

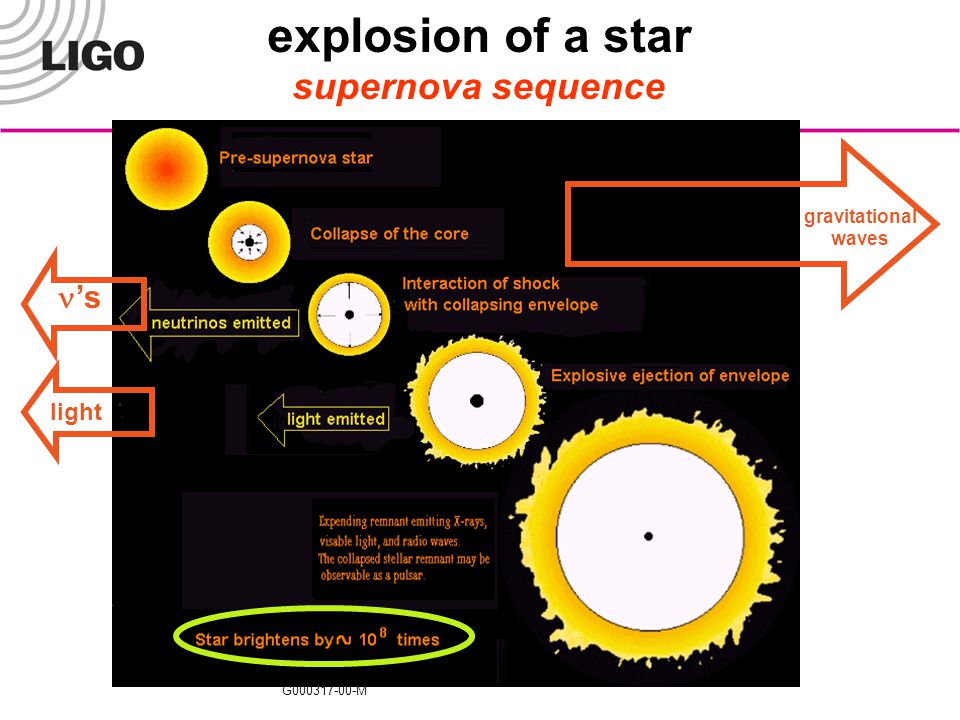

11 G000317-00-M explosion of a star supernova sequence gravitational waves ’s light

12 G000317-00-M SN 1987A Large Magellanic Cloud (LMC) First SN with observations of star that exploded - Sk -69 202 Supergiant with T = 16000K Luminosity = 100,000L  Mass ~ 20M 

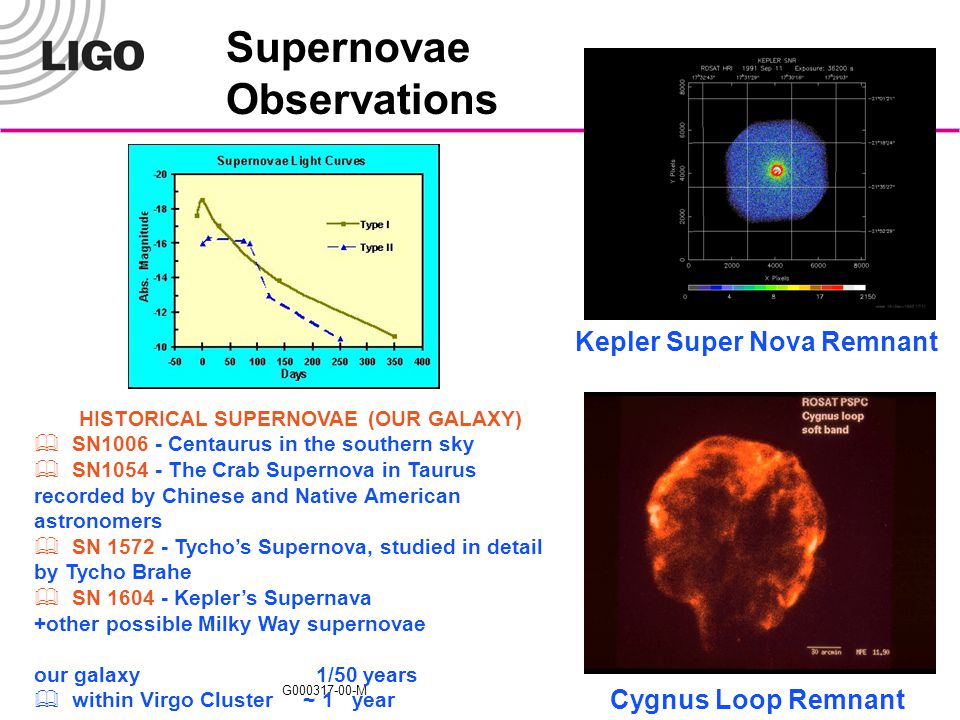

13 G000317-00-M Supernovae Observations HISTORICAL SUPERNOVAE (OUR GALAXY) & SN1006 - Centaurus in the southern sky & SN1054 - The Crab Supernova in Taurus recorded by Chinese and Native American astronomers & SN 1572 - Tycho’s Supernova, studied in detail by Tycho Brahe & SN 1604 - Kepler’s Supernava +other possible Milky Way supernovae our galaxy 1/50 years & within Virgo Cluster ~ 1 year Kepler Super Nova Remnant Cygnus Loop Remnant

14 G000317-00-M Supernova Remnants pulsars PSR 0329+54 is among the strongest known pulsars (radio signal – Arecibo)

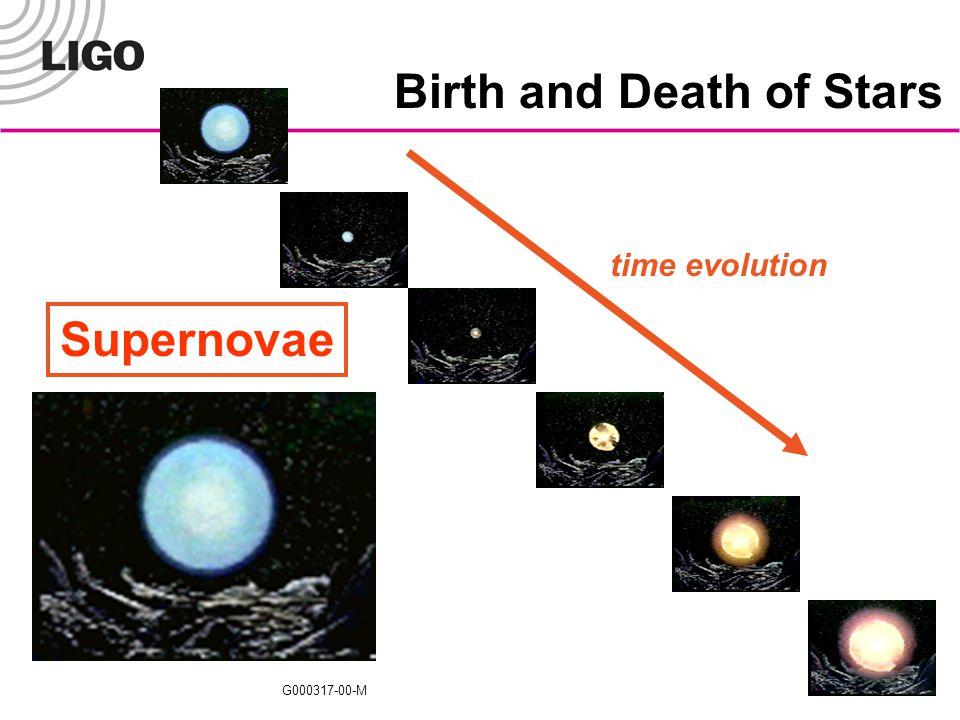

15 G000317-00-M Supernovae time evolution Birth and Death of Stars

16 G000317-00-M Supernovae gravitational waves Non axisymmetric collapse ‘burst’ signal Rate 1/50 yr - our galaxy 3/yr - Virgo cluster

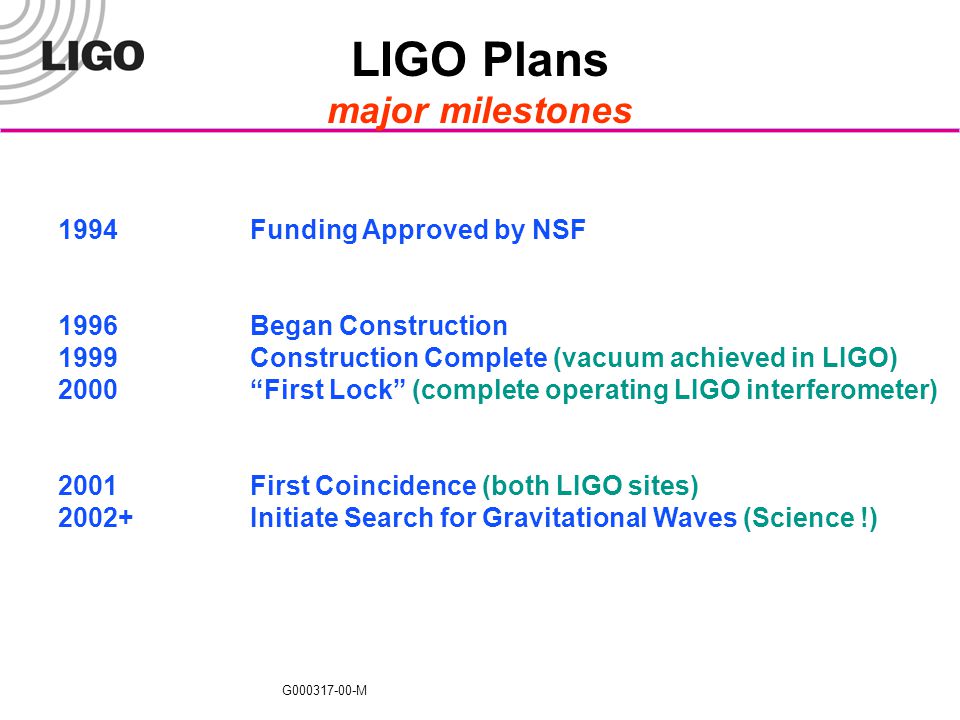

17 G000317-00-M LIGO Plans major milestones 1994 Funding Approved by NSF 1996 Began Construction 1999Construction Complete (vacuum achieved in LIGO) 2000“First Lock” (complete operating LIGO interferometer) 2001First Coincidence (both LIGO sites) 2002+Initiate Search for Gravitational Waves (Science !)
