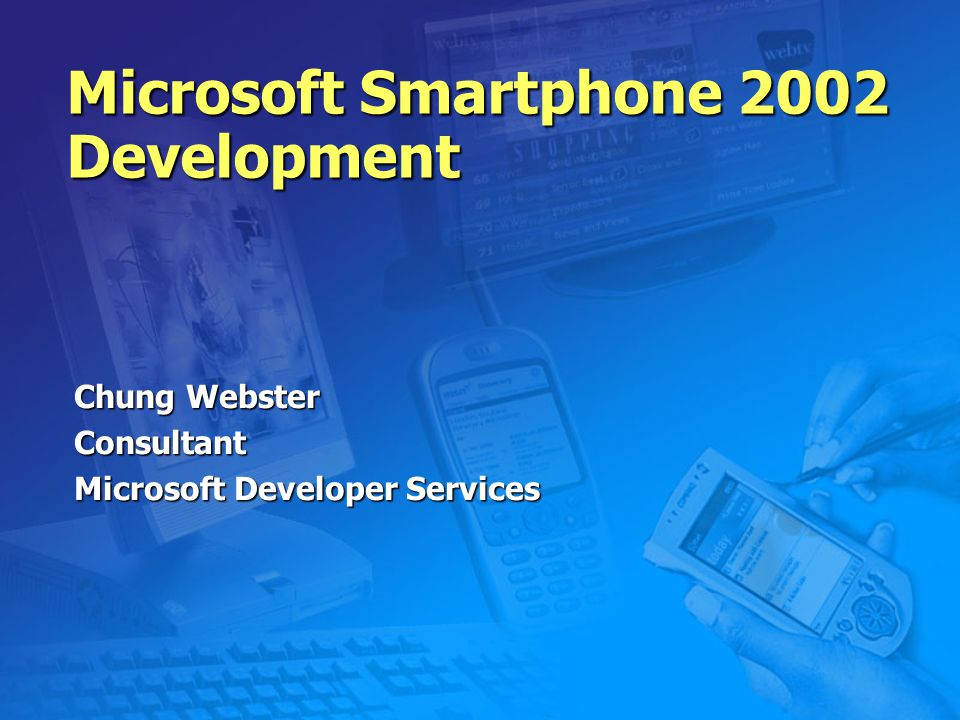

1. Microsoft Smartphone 2002 Development Chung Webster Consultant Microsoft Developer Services

2. Agenda  Smartphone Hardware  Smartphone OS  Smartphone User Interface  Development Tools  Application Security & Deployment  Working with Telephony .NET Compact Framework

3. Smartphone 2002 Hardware  120MHz ARM processor  16MB RAM for application execution and temporary storage  32MB flash ROM for OS and permanent data storage  176x220 16-bit colour display

4. Storage and Memory  ROM (~24MB)  Permanent content from Microsoft, OEM, and Operator provided applications.  Can be updated over-the-air.  Flash (~8MB)  Permanent data storage for application data, registry, and files, and databases.  Survives power loss, reboots, etc.  RAM (~16MB)  Application execution and radio.  Cleared on power off and reboot.

5. Smartphone 2002 OS Logic Connection Manager Toolkit Sync Engine TAPISIMWAPSMS Core APIs GSM SIM Radio Stack CDMA Apps / UI Dialler Control Panel Home Screen InboxThreadingNetworkingWinsockCryptoAPI CE 3.0

6. Not Supported Not Recommended New Controls Supported WinCE Controls  CheckBox  DatePicker  Edit  Header  Listbox  Listview  Progress  Scrollbar  Static  Status  Trackbar  Treeview  Buttons  Radio Buttons  Combo box  Month Calendar  Property Sheets/Pages  Toolbar  Expandable Edit  Multi-Item Picker

7. Smartphone User Interface  Form factor require control changes  Menus  Multiline Text Edit  Listboxes  Stylus / SIP Input Softkeys Expandable Edit Spinners Input Modes

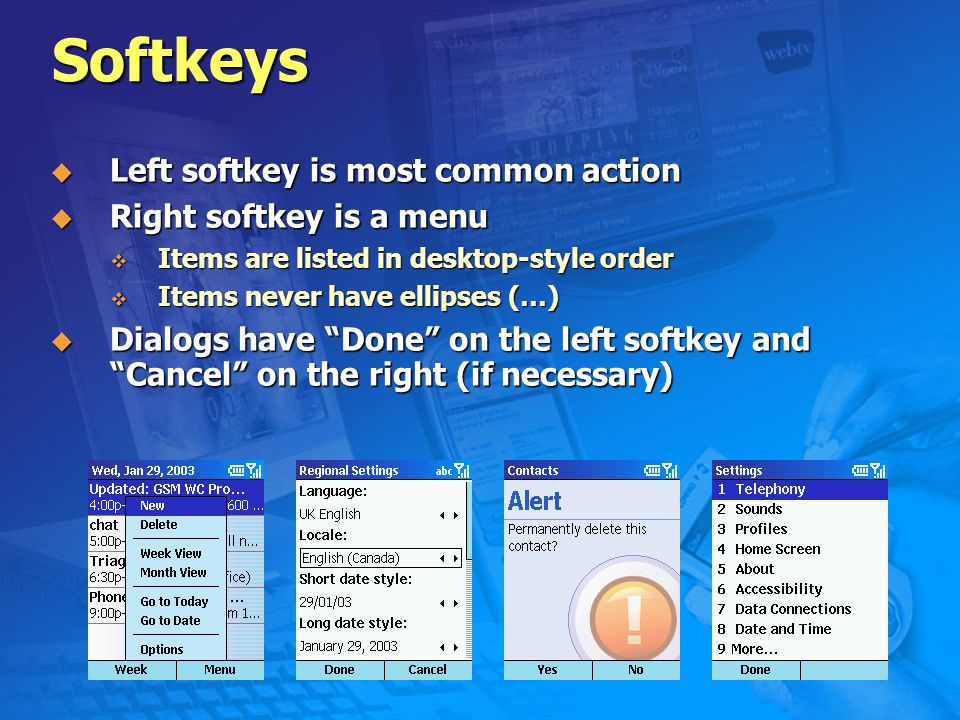

8. Softkeys  Left softkey is most common action  Right softkey is a menu  Items are listed in desktop-style order  Items never have ellipses (…)  Dialogs have “Done” on the left softkey and “Cancel” on the right (if necessary)

9. Edit Controls  Edit controls support multiple input methods  Typically the methods available will be numeric, multi- tap, and T9  Multi-line edit controls support zooming in for a larger view

10. Spinner Control  Replaces combo boxes, radio buttons, and list boxes  Multi-item selection available

11. Typical Application Flow  List view -> card view -> edit view  Contacts is a classic example

12. Development Tools  eMbedded Visual C++ 3.0  Smartphone 2002 SDK  Emulator  No MFC / ATL  No eVB  Remote Tools  Registry Viewer  Process Viewer  File Viewer

13. Useful Code Samples

14. Finding the Persistent Storage Path  To persist data, it must be stored in the registry or under in persistent storage directory  Use SHGetSpecialFolderPath() for root path  CSIDL_APPDATA\ for files internal to your app  CSIDL_PERSONAL for files the user needs to work with (“My Documents”)  Data stored in RAM file system will be lost on power off

15. Finding the Persistent Storage Path TCHAR szVolumeFile[MAX_PATH]; if(!SHGetSpecialFolderPath(NULL, szVolumeFile, CSIDL_APPDATA, TRUE)) {ASSERT(FALSE); hr = HRESULT_FROM_WIN32(GetLastError()); return 0; } // szVolumeFile - \IPSM\Application Data

16. Creating Softkeys and Handling Back  Softkeys are just PocketPC menu bars that only have two items  Send a message to the menu bar to request messages for the back key

17. Creating Softkeys and Handling Back #define TPC //Create a MenuBar SHMENUBARINFO mbi; memset(&mbi, 0, sizeof(SHMENUBARINFO)); mbi.cbSize = sizeof(SHMENUBARINFO); mbi.hwndParent = hParent; mbi.nToolBarId = IDM_MAIN_MENU; mbi.hInstRes = g_hInst; mbi.nBmpId = 0; mbi.cBmpImages = 0; // Create the menu bar if (!SHCreateMenuBar(&mbi)) { MessageBox(hParent, TEXT("SHCreateMenuBar Failed"), TEXT("Error"), MB_OK); return false; }

18. Creating Softkeys and Handling Back // Request notifications for the back key SendMessage(mbi.hwndMB, SHCMBM_OVERRIDEKEY, VK_TBACK, MAKELPARAM(SHMBOF_NODEFAULT | SHMBOF_NOTIFY, SHMBOF_NODEFAULT | SHMBOF_NOTIFY));

19. Creating Softkeys and Handling Back // Handle the back key in the main window proc LRESULT CALLBACK MainWndProc(HWND hWnd, UINT uMessage, WPARAM wParam, LPARAM lParam) { switch (uMessage) {… case WM_HOTKEY: { if((VK_TBACK == HIWORD(lParam)) { // Send back key to control with focus // Send back key to control with focus SHSendBackToFocusWindow(message, wParam, lParam); SHSendBackToFocusWindow(message, wParam, lParam); }}}}

20. Voice Calls  Based on TAPI, with extensions for GSM- specific functionality  One simple API to make a voice call  tapiRequestMakeCall

21. Voice Calls Example 1 #include #include LONG result; result = tapiRequestMakeCall(TEXT(“+18005551212”), NULL NULL, NULL); if (result != 0) { // Insert error handling code here // Insert error handling code here}

22. Voice Calls Example #include #include PHONEMAKECALLINFO mci; int result; memset(&mci, 0, sizeof(mci)); mci.cbSize = sizeof(mci); mci.dwFlags = PMCF_PROMPTBEFORECALLING; mci.pszDestAddress = TEXT(“+18005551212"); result = PhoneMakeCall(mci); if (result != 0) { // Insert error handling code here // Insert error handling code here}

23. Changing Input Modes //Set input mode to multitap SendDlgItemMessage(hDlg, IDC_CONTROL, EM_SETINPUTMODE, 0, EIM_SPELL); //Set input mode to numeric SendDlgItemMessage(hDlg, IDC_CONTROL, EM_SETINPUTMODE, 0, EIM_NUMBERS); //Set input mode to T9 SendDlgItemMessage(hDlg, IDC_CONTROL, EM_SETINPUTMODE, 0, EIM_AMBIG); //Set input mode to multitap SendDlgItemMessage(hDlg, IDC_CONTROL, EM_SETINPUTMODE, 0, EIM_SPELL); //Set input mode to numeric SendDlgItemMessage(hDlg, IDC_CONTROL, EM_SETINPUTMODE, 0, EIM_NUMBERS); //Set input mode to T9 SendDlgItemMessage(hDlg, IDC_CONTROL, EM_SETINPUTMODE, 0, EIM_AMBIG);

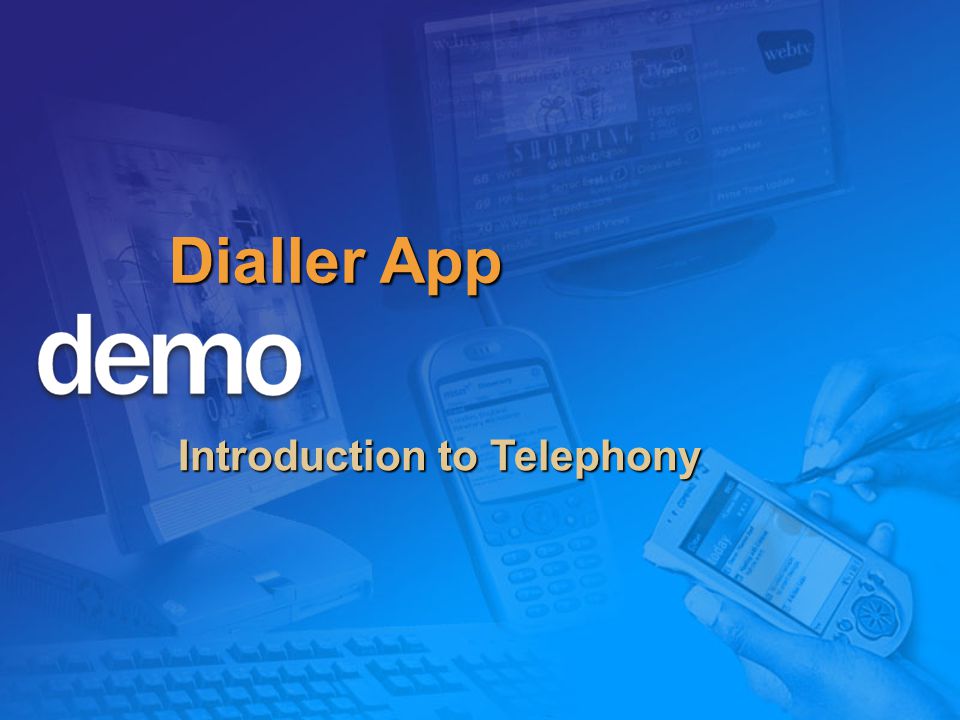

24. Dialler App Introduction to Telephony

25. Application Security and Deployment

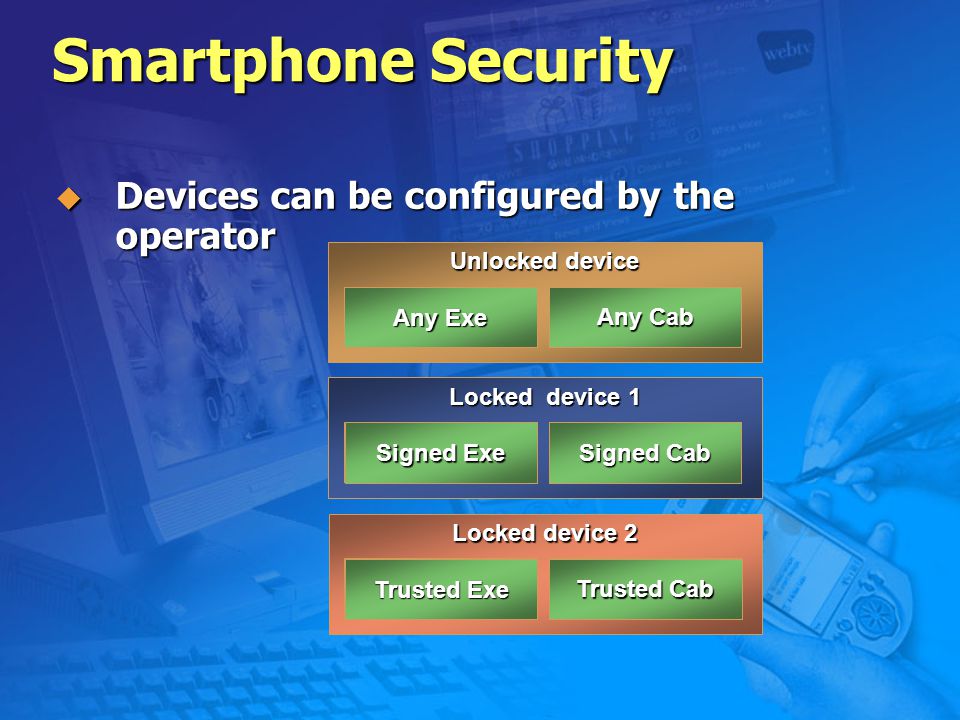

26. Locked device 2 Any Exe Any Cab Smartphone Security  Devices can be configured by the operator Unlocked device Any Exe Any Cab Locked device 1 Signed Exe Signed Cab Any Exe Any Cab Signed Exe Signed Cab Trusted Exe Trusted Cab

27. Application Management Execution  Two modes of execution  Unprivileged – has access to most APIs, registry keys, and files  Privileged – has access to everything  Modes allow operators to protect sensitive areas of the device and network

28. Application Management Execution  When do you need privileged?  Inbox plugins  Intercept SMS messages  Device drivers  How do you get privileged?  On a test device: sign with a test cert  On a shipping device: get signed with an operator cert

29. Debugging Applications  To debug against device need to sign files and provision device for cert.

30. Packaging Process  Create a CAB file using CABWizSP under the SDK \Tools directory  Create an INF file detailing application and company details, files to copy, shortcut creation Application Package (.CAB) Your Files CABWizSP Information File (.inf)

31. Packaging Process  To enable security signed applications  Sign the Exe and Cab using Signcode.exe Application Package (.CAB) Your Files CABWizSP Information File (.inf)

32. Application Management Distribution  Choose a channel to distribute your application  Use Mobile2Market to increase distribution channels  http://www.microsoft.com/mobile/developer/developerprog rams/mobile2market/default.asp http://www.microsoft.com/mobile/developer/developerprog rams/mobile2market/default.asp http://www.microsoft.com/mobile/developer/developerprog rams/mobile2market/default.asp  Choose a transport to distribute your application  Pocket Internet Explorer  Email attachment  Storage card  ActiveSync

33. Create a Package

34. Smartphone Futures  Microsoft are committed to the platform  V. Next release  Based on Win CE 4.2  Compact Framework 1.0 in ROM  ATL Support  JIT Debugging  RTTI / Exception Handling

35. .NET Compact Framework 1.0 For Smartphone  Will be a feature of next version of Smartphone  New UI Support  ROM - only – no CAB Install of Framework  Managed apps follow native security model  Added support for 5 new languages  Dutch, Danish, Swedish, Portuguese Brasilia, UK English  Multilingual User Interface (MUI) Support  Entire v1 feature set supported  SQL Server CE not supported

36. NETCF Supported Controls Pocket PC and Windows CE.NET ButtonCheckBoxComboBoxContextMenuDataGridDomainUpDownFileOpenDialogHScrollBarImageListLabelListBoxListViewTreeViewFileSaveDialog  Supported controls MainMenuNumericUpDownPanelPictureBoxProgressBarRadioButtonStatusBarTabControlTextBoxTimerToolBarVScrollBarMessageBoxForm

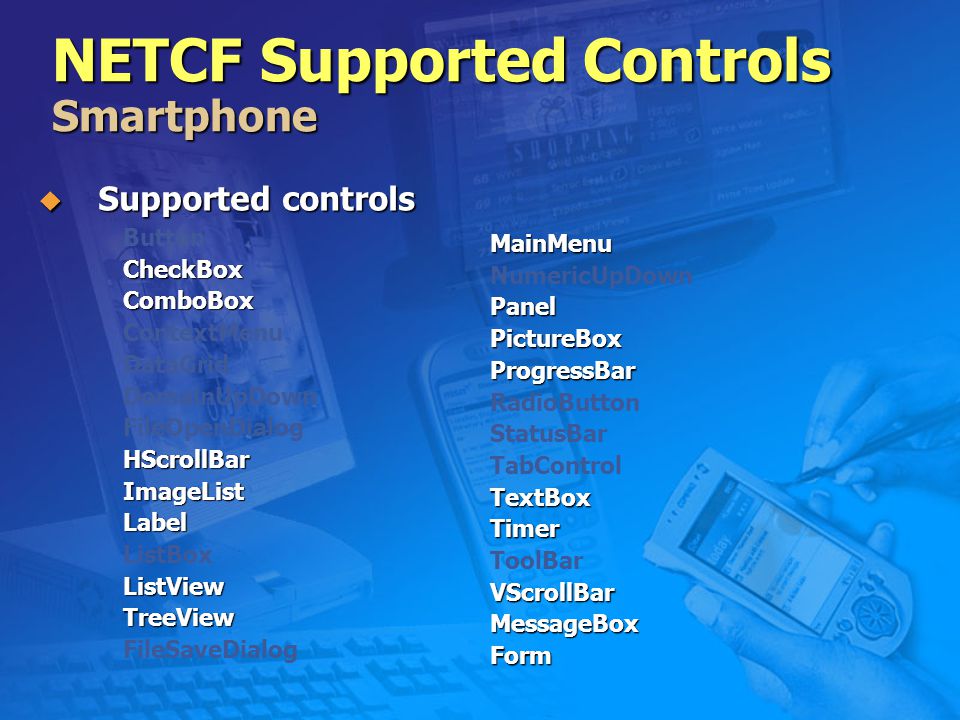

37. NETCF Supported Controls Smartphone ButtonCheckBoxComboBox ContextMenu DataGrid DomainUpDown FileOpenDialogHScrollBarImageListLabel ListBoxListViewTreeView FileSaveDialog  Supported controls MainMenu NumericUpDownPanelPictureBoxProgressBar RadioButton StatusBar TabControlTextBoxTimer ToolBarVScrollBarMessageBoxForm

38. Smartphone Controls  TextBox .Multiline = True: MLE Control .Multiline = False: Edit Control

39. Smartphone Controls  ComboBox  Action to view all items full screen

40. Smartphone Controls  TreeView  Recommended Full Screen  No CheckBoxes on Smartphone  ListView  Recommended Full Screen

41. Soft Keys (Menus)  Left SoftKey can not have menu items  If there is no MainMenu on the form  SoftKey press raises KeyDown and KeyUp events  KeyEventArgs.KeyCode is Keys.F1 and F2

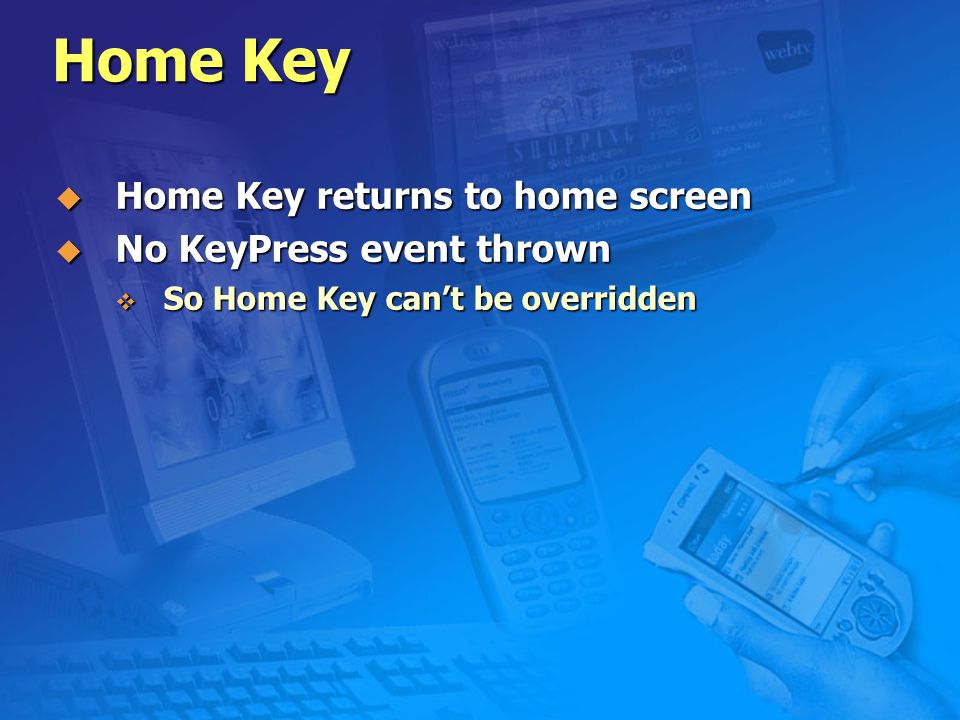

42. Home Key  Home Key returns to home screen  No KeyPress event thrown  So Home Key can’t be overridden

43. Back Key  Back Key navigates back to previous screen  Next window in z - order brought to front  Exceptions  Always cancels out of modal dialogs  Backspace when focus on Textbox  When menu showing cancels out of menu  Overriding Default Behavior  Set KeyPressEventArgs.Handled = true  Intended for custom controls or games

44. Control Focus And Tabbing  Focus is critical to Smartphone UI model  Up and Down navigation keys switch between controls  Focusable Controls  CheckBox, ComboBox, ListView, TreeView, Form, TextBox  Tab order goes in order of focusable controls in controls collection  Custom Controls  Focusable unless Enabled property set to false  Developer must ‘tab out’ of their control by overriding the up/down keys and giving focus to next control  Designer Issue  Designer adds controls to code in reverse order

45. Security And Managed Code .NET Compact Framework adapts native application-level security model  Managed apps follow native security policy  Security check also done on P/Invoke call  Application must be signed with carrier approved cert to run on locked devices  Code Access Security will come in.NET Compact Framework 2.0  More granular security, unique to.NET

46. Application Architecture ApplicationEngine Utility Libraries User Interface ApplicationEngine Utility Libraries Pocket PC UI Smartphone UI  Applies to Native and NETCF code

47. Smartphone Developer Kit  Exclusive to MSPP members (~550€)  eVT 3.0  Smartphone 2002 SDK  Documentation  Whitepapers  Samples  Compal AR11  SIM Unlocked  Security Unlocked

48. Summary  eVC++ 3.0 to target Smartphone 2002  Design your user interface  Left menubar is default action  Spinners  Expandable Edits  Keep as simple as possible  Your application may need signing  Compact Framework is coming
