1 What is color for?

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

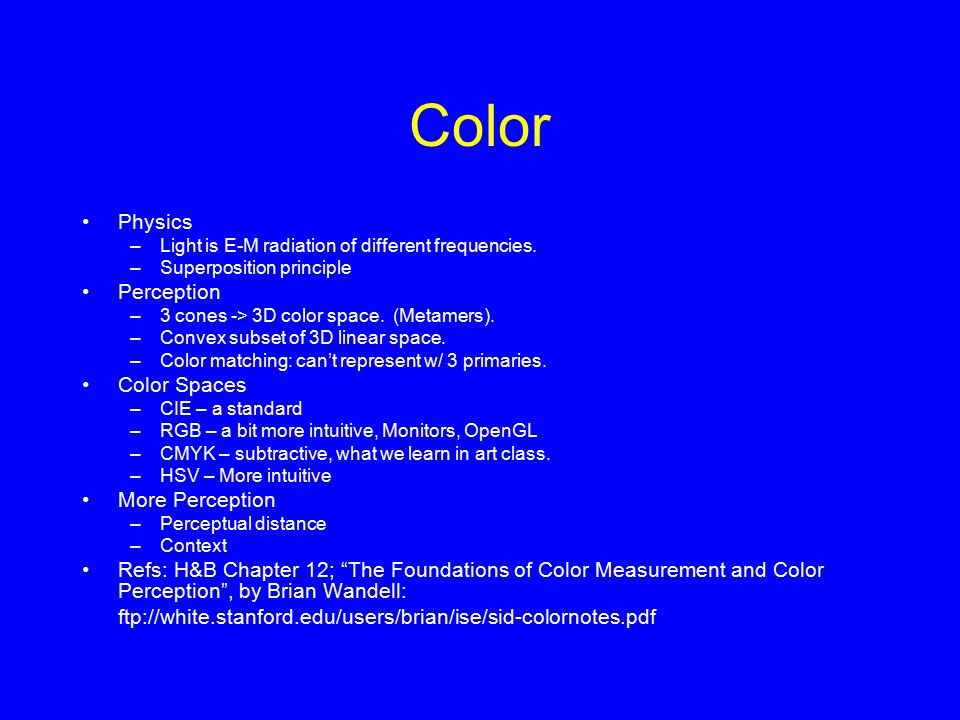

20 Color Physics –Light is E-M radiation of different frequencies. –Superposition principle Perception –3 cones -> 3D color space. (Metamers). –Convex subset of 3D linear space. –Color matching: can’t represent w/ 3 primaries. Color Spaces –CIE – a standard –RGB – a bit more intuitive, Monitors, OpenGL –CMYK – subtractive, what we learn in art class. –HSV – More intuitive More Perception –Perceptual distance –Context Refs: H&B Chapter 12; “The Foundations of Color Measurement and Color Perception”, by Brian Wandell: ftp://white.stanford.edu/users/brian/ise/sid-colornotes.pdf

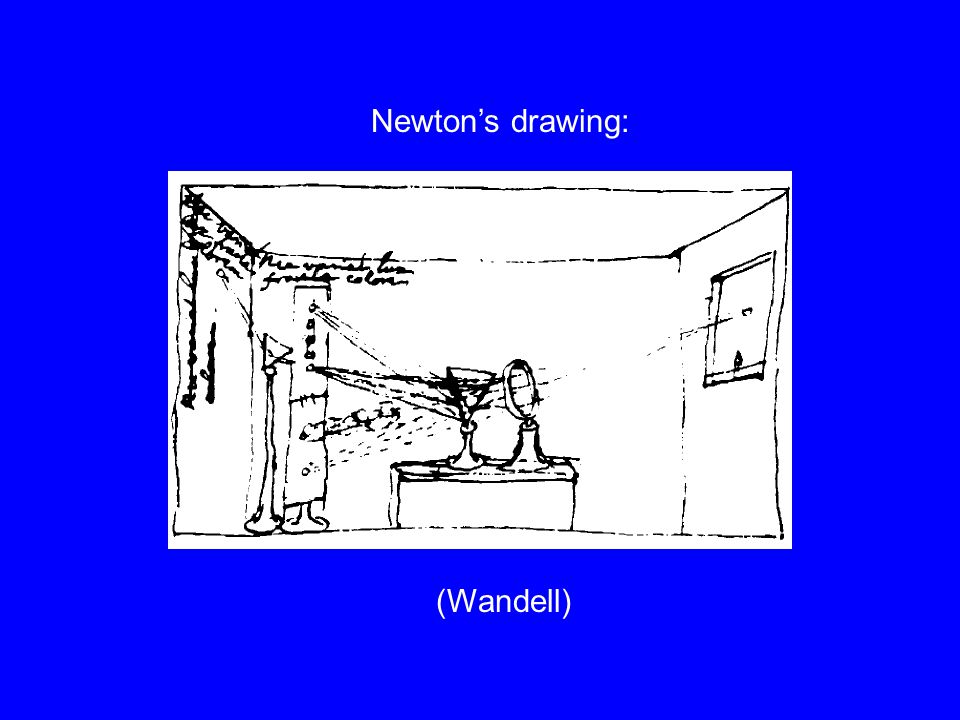

21 (Wandell) Newton’s drawing:

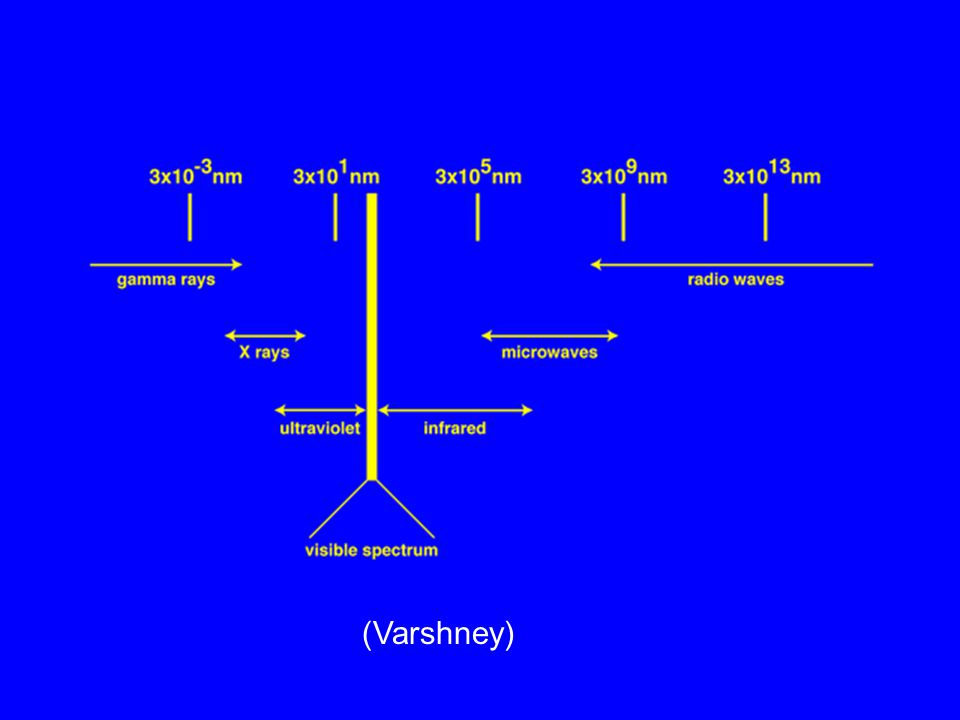

22 (Varshney)

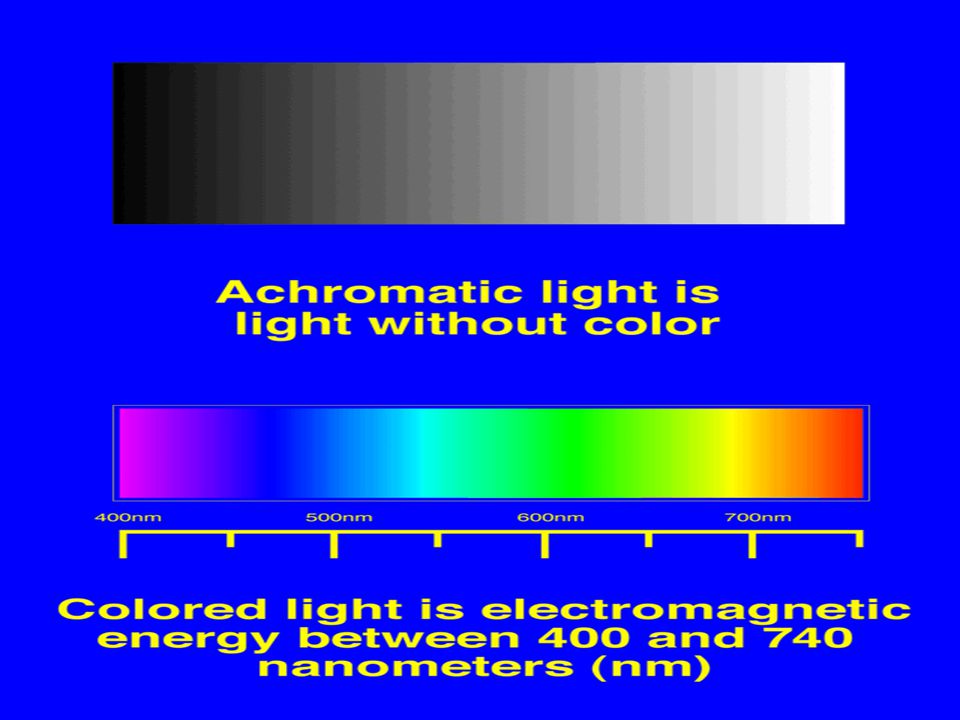

23

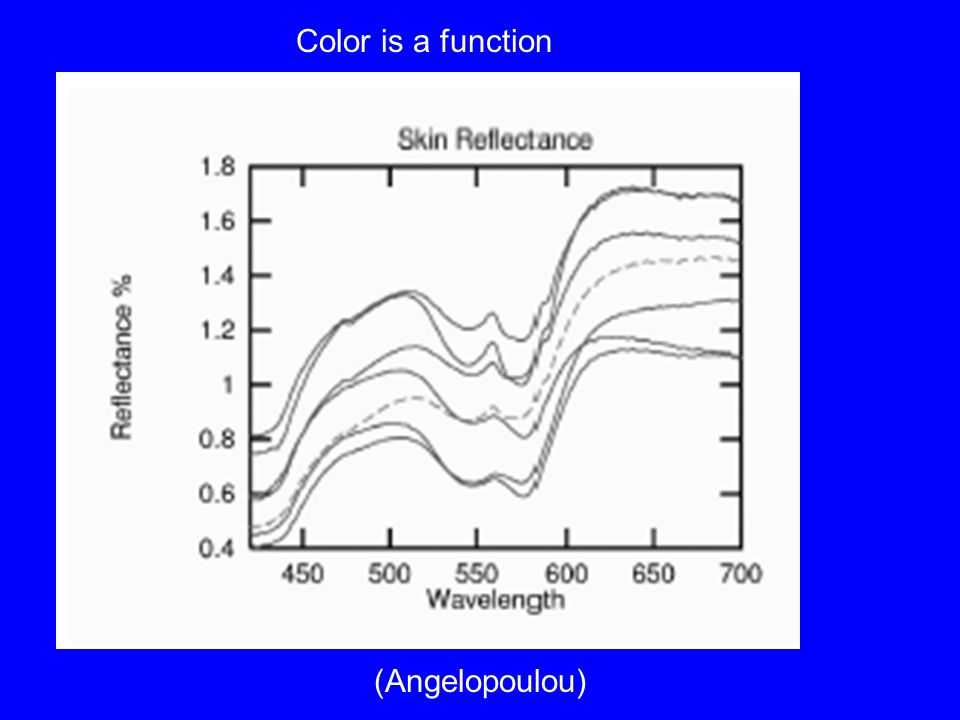

24 Color is a function (Angelopoulou)

25 Superposition Light is linear. Light from source A + light from source B = Light from sources A & B. –Any color is a combination of pure colors. Doubling intensity of source doubles amount of light reaching us.

26 Human Color Perception Cones allow color perception. 3 types of cones sensitive to different frequencies Perceptual color depends on how these are stimulated.

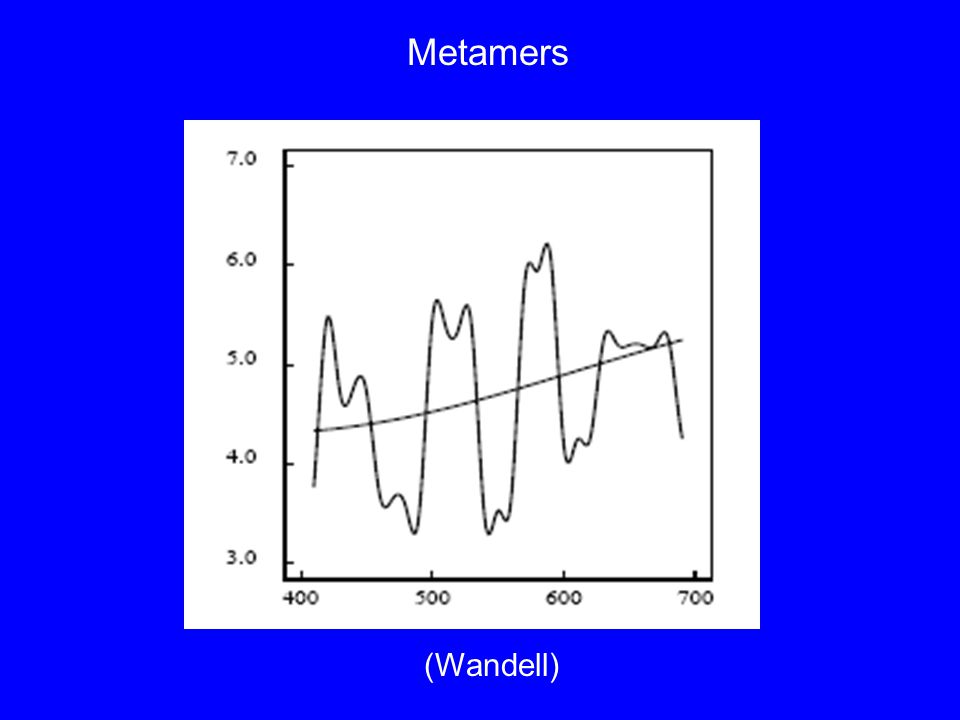

27 Metamers (Wandell)

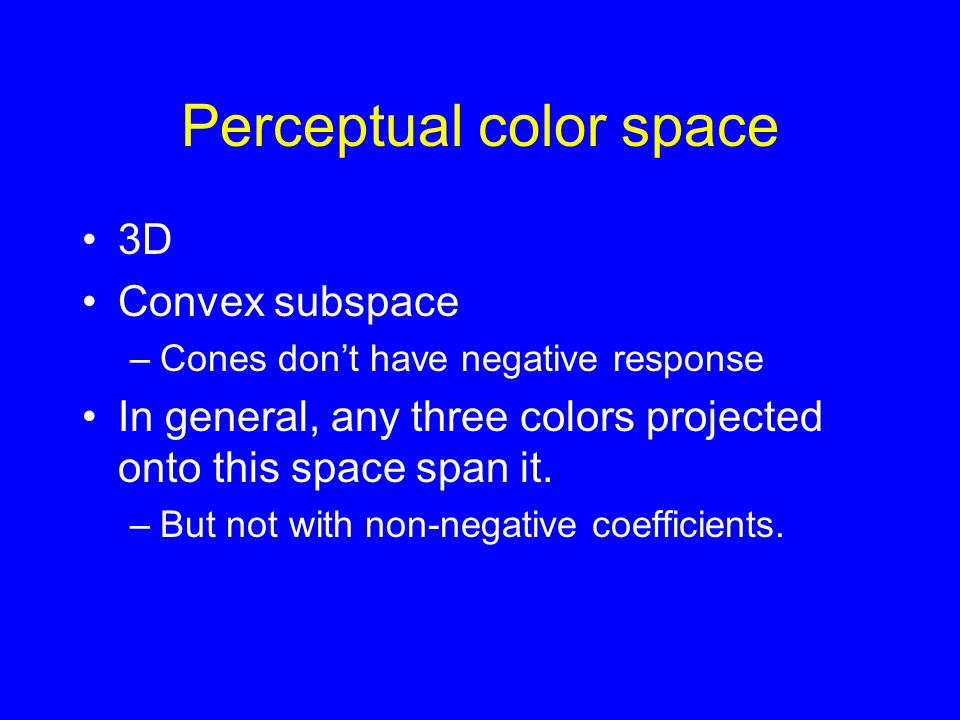

28 Perceptual color space 3D Convex subspace –Cones don’t have negative response In general, any three colors projected onto this space span it. –But not with non-negative coefficients.

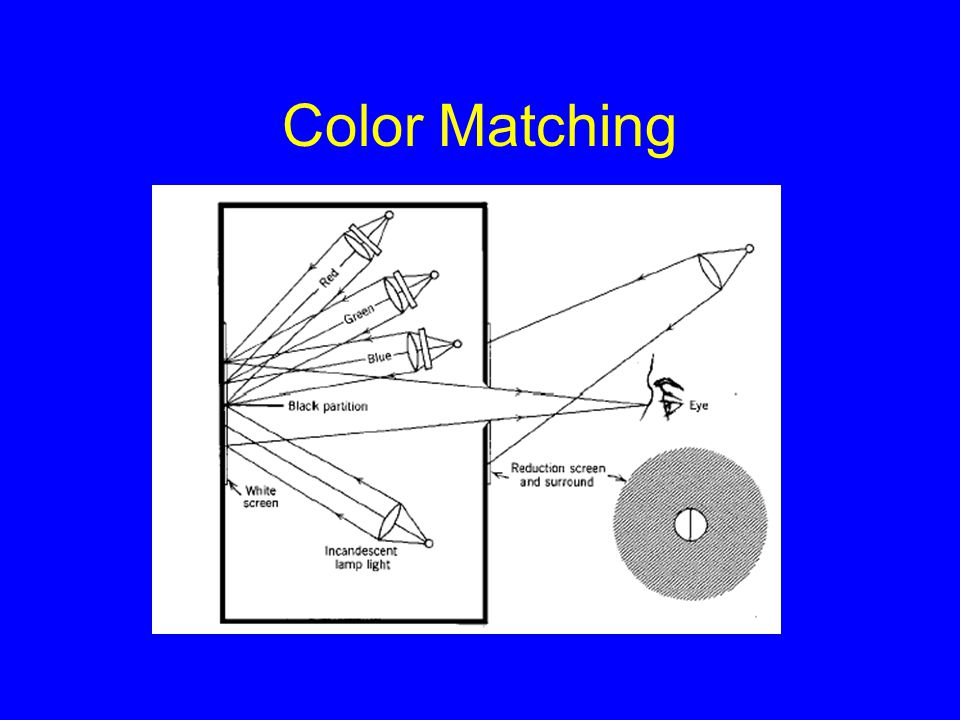

29 Color Matching

30 Some colors can’t be matched There isn’t a unique color for each cone. –“Green” light also excites “red” cones. –So to produce some greenish lights we need negative red light. But we can match that color + a primary color, using the other two primaries. Adding red to our color is like matching it with negative red. All colors can be matched like this –Shows perceptually color is 3D –But we can’t have negative light in a display. –Display space is convex too, but can’t match perceptual convex space.

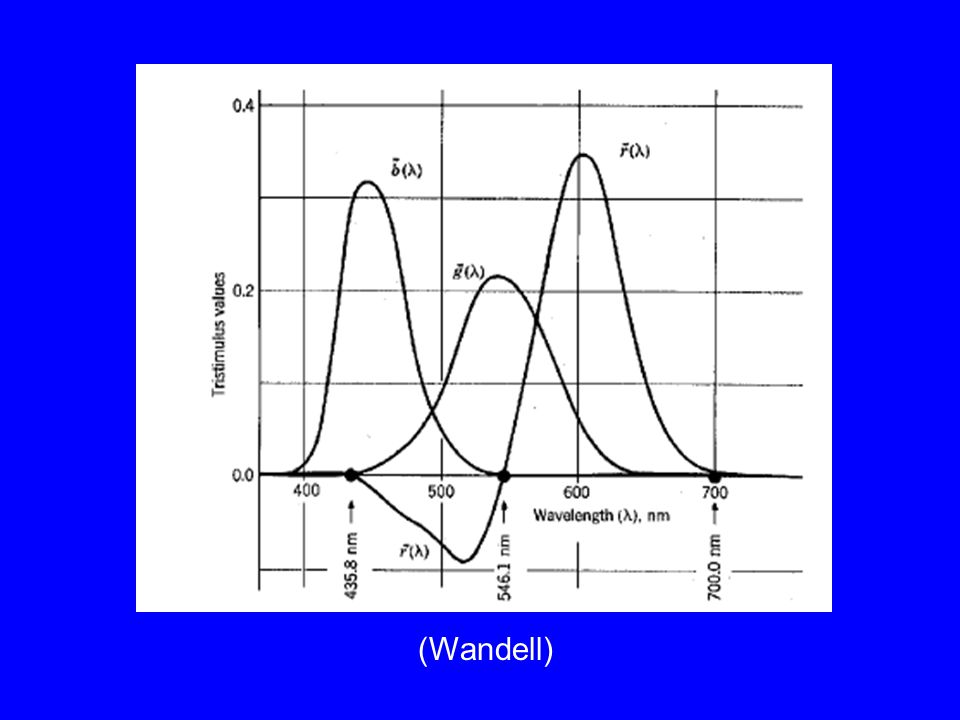

31 (Wandell)

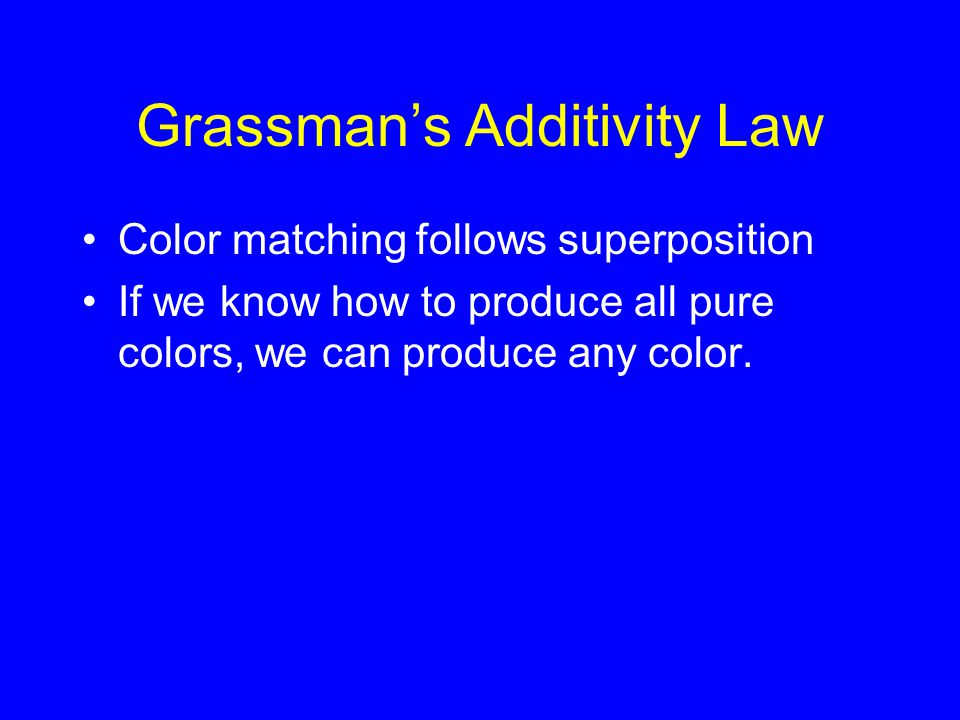

32 Grassman’s Additivity Law Color matching follows superposition If we know how to produce all pure colors, we can produce any color.

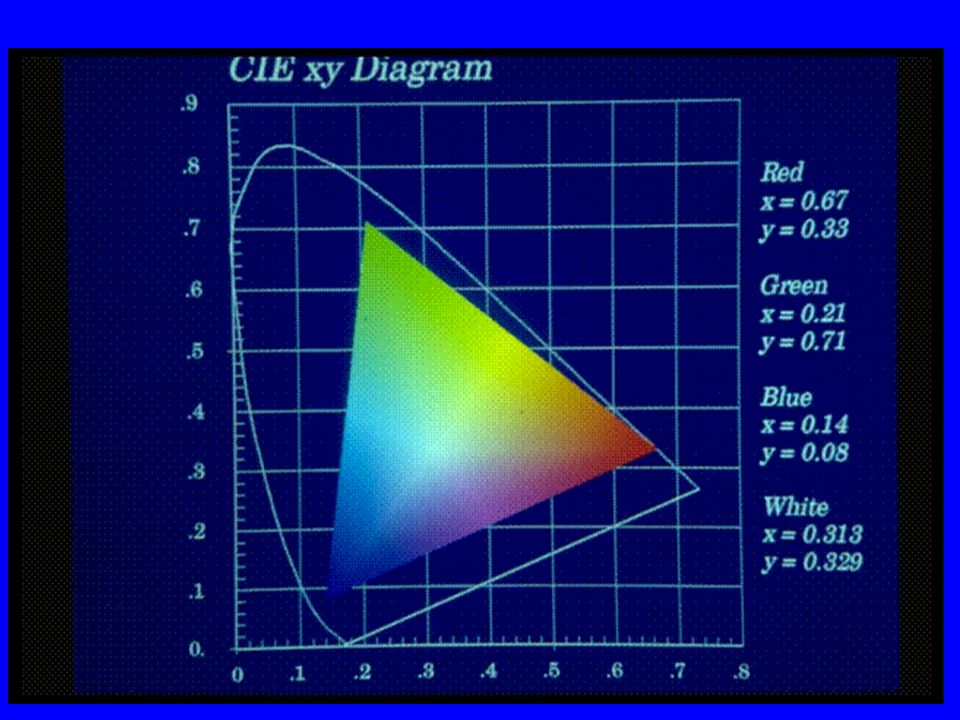

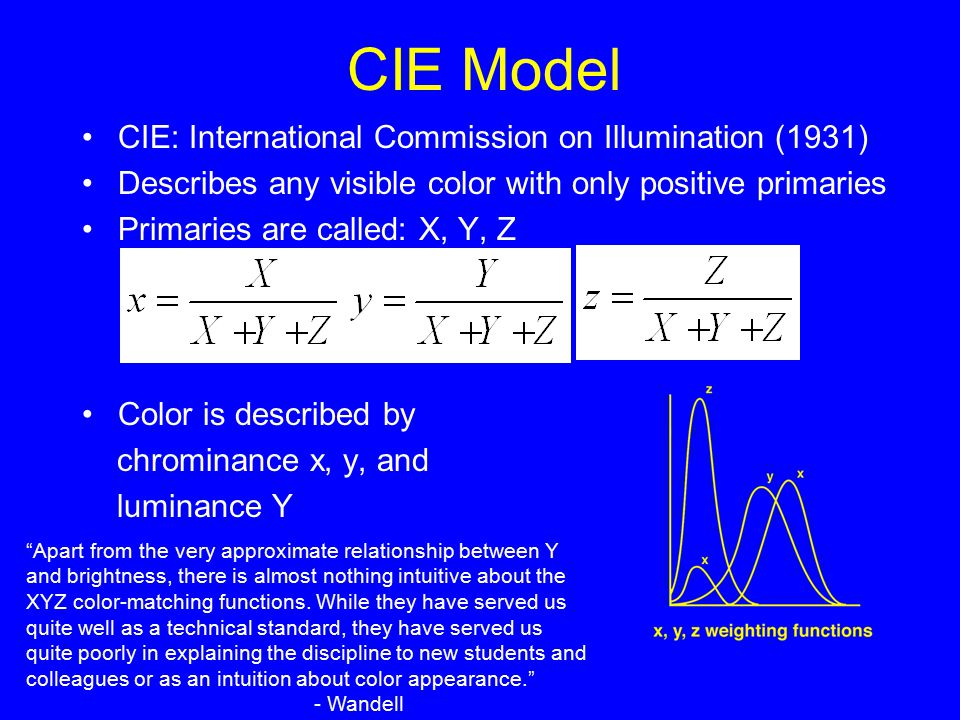

33 CIE Model CIE: International Commission on Illumination (1931) Describes any visible color with only positive primaries Primaries are called: X, Y, Z Color is described by chrominance x, y, and luminance Y “Apart from the very approximate relationship between Y and brightness, there is almost nothing intuitive about the XYZ color-matching functions. While they have served us quite well as a technical standard, they have served us quite poorly in explaining the discipline to new students and colleagues or as an intuition about color appearance.” - Wandell

34

35

36

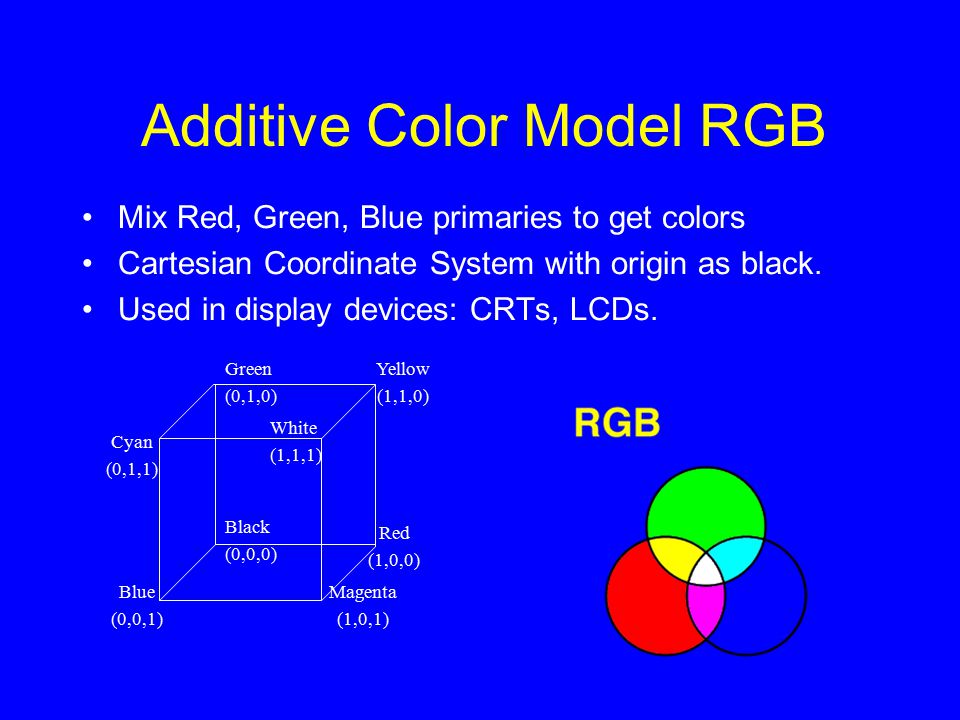

37 Additive Color Model RGB Mix Red, Green, Blue primaries to get colors Cartesian Coordinate System with origin as black. Used in display devices: CRTs, LCDs. Black (0,0,0) White (1,1,1) Red (1,0,0) Green (0,1,0) Blue (0,0,1) Yellow (1,1,0) Magenta (1,0,1) Cyan (0,1,1)

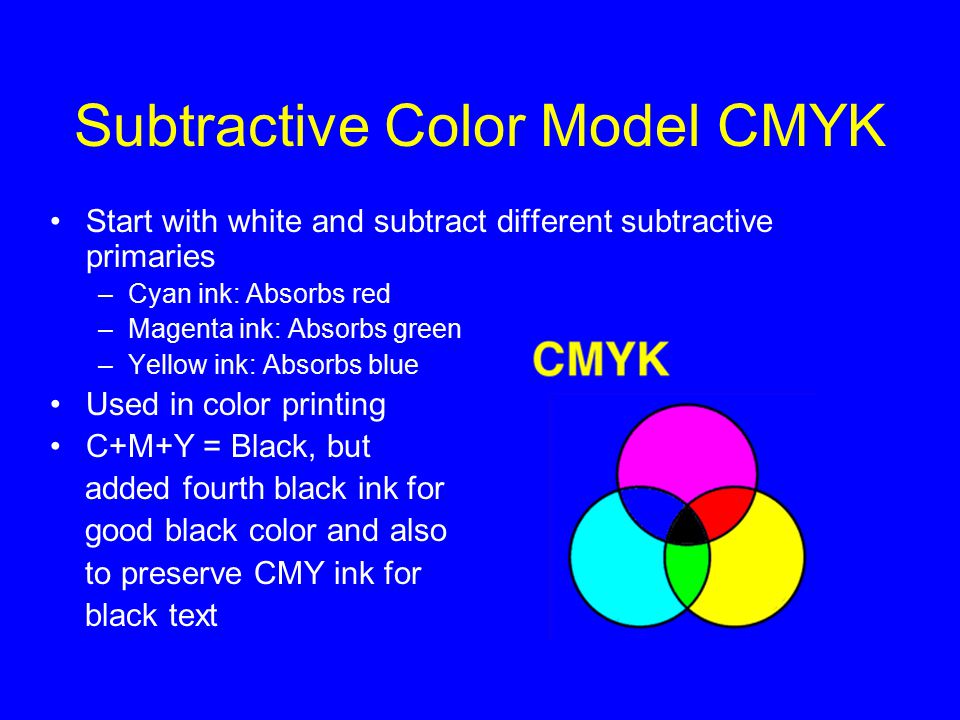

38 Subtractive Color Model CMYK Start with white and subtract different subtractive primaries –Cyan ink: Absorbs red –Magenta ink: Absorbs green –Yellow ink: Absorbs blue Used in color printing C+M+Y = Black, but added fourth black ink for good black color and also to preserve CMY ink for black text

39 Color Specification Hue: Distinguishes among colors –red, yellow, blue Saturation: Color Purity (difference from white) –blue and sky blue Lightness: Perceived intensity of reflected light –blue and darker shades of blue Brightness: Perceived intensity of self-luminous objects Artists: –Tint: Add white (decrease saturation) –Shade: Add black (decrease lightness)

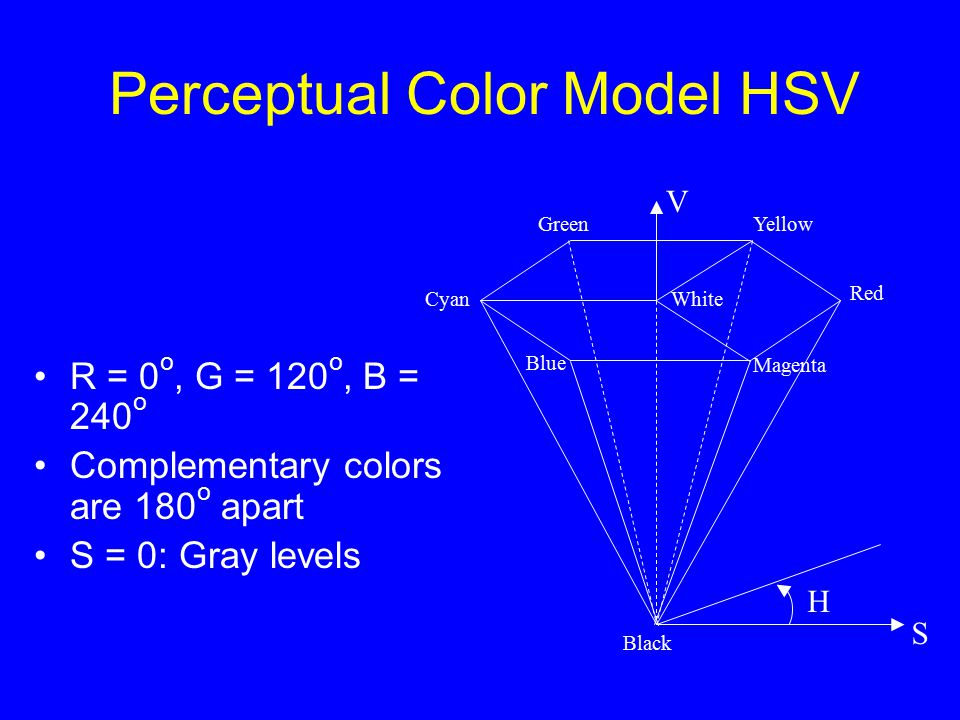

40 Perceptual Color Model HSV R = 0 o, G = 120 o, B = 240 o Complementary colors are 180 o apart S = 0: Gray levels V S H Red YellowGreen Cyan Blue Magenta White Black

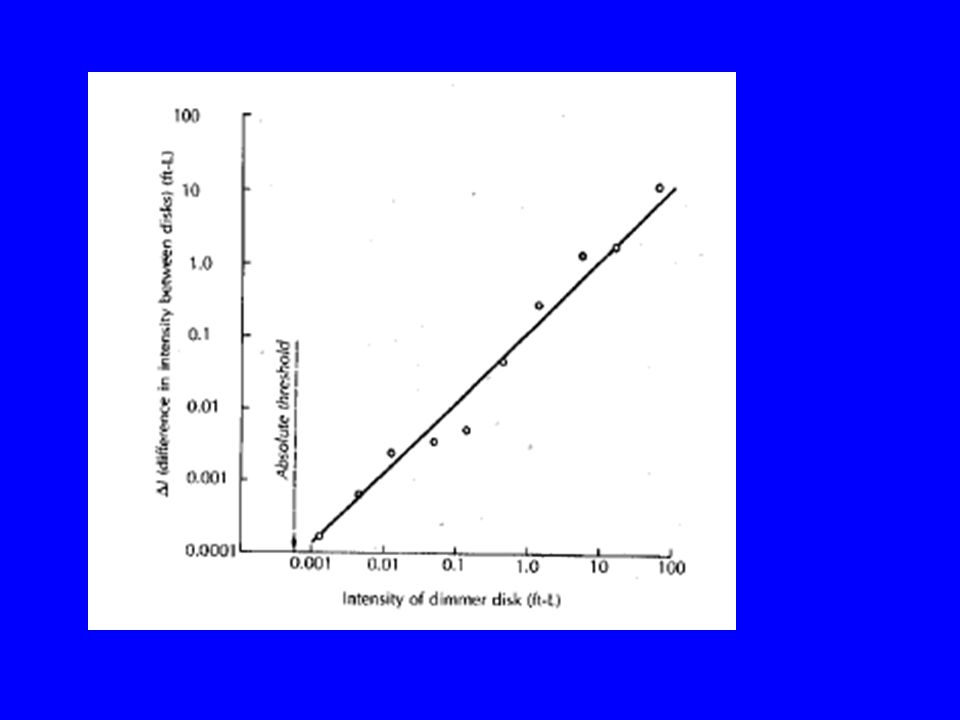

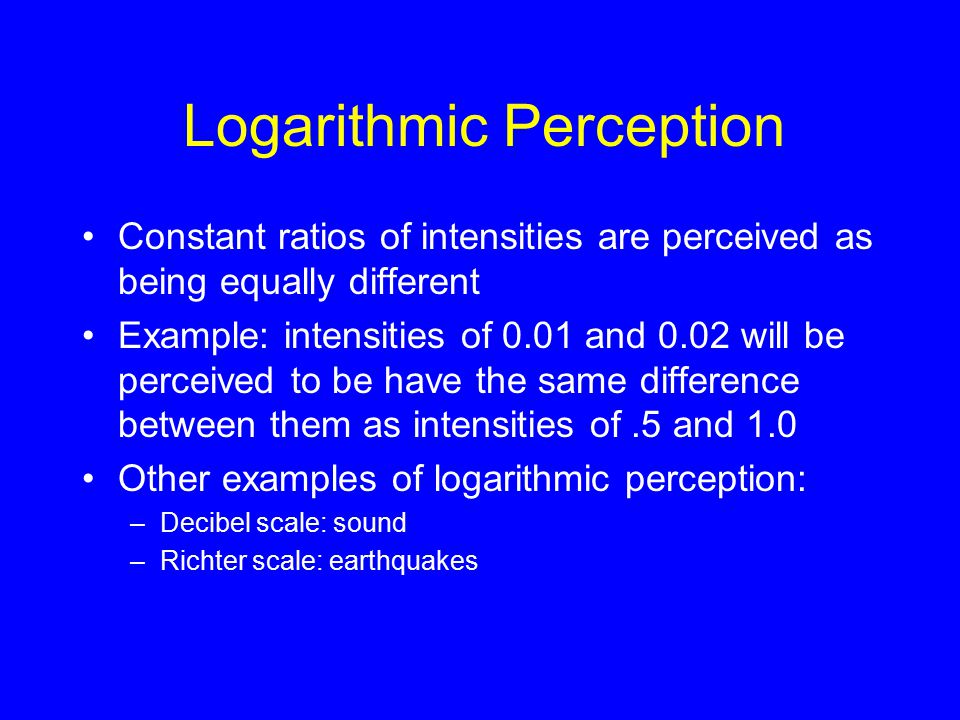

41 Logarithmic Perception Constant ratios of intensities are perceived as being equally different Example: intensities of 0.01 and 0.02 will be perceived to be have the same difference between them as intensities of.5 and 1.0 Other examples of logarithmic perception: –Decibel scale: sound –Richter scale: earthquakes

42

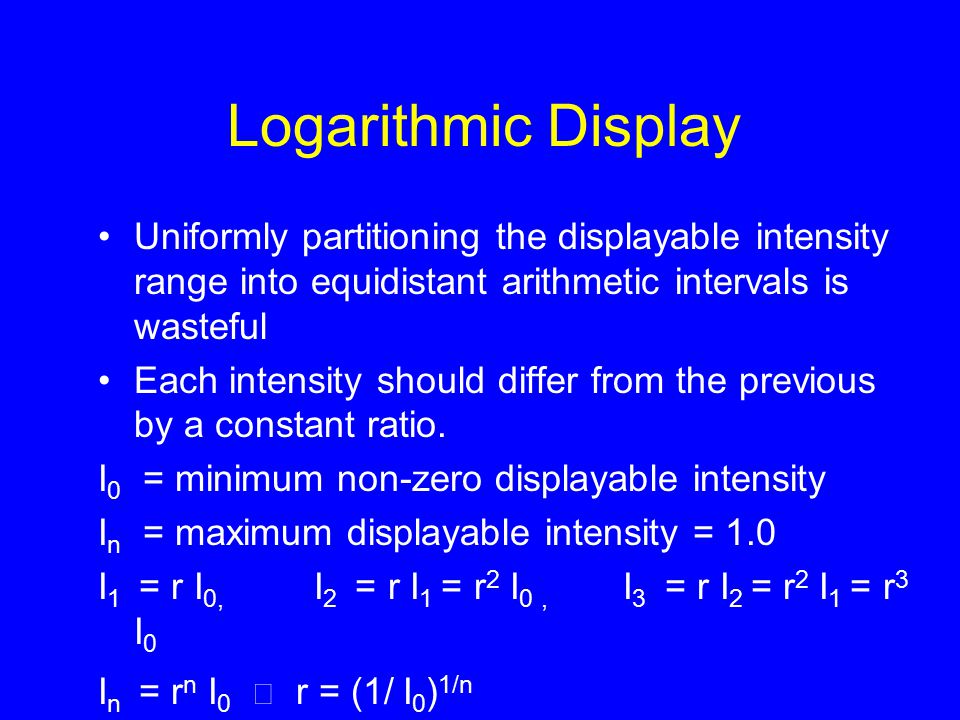

43 Logarithmic Display Uniformly partitioning the displayable intensity range into equidistant arithmetic intervals is wasteful Each intensity should differ from the previous by a constant ratio. I 0 = minimum non-zero displayable intensity I n = maximum displayable intensity = 1.0 I 1 = r I 0, I 2 = r I 1 = r 2 I 0, I 3 = r I 2 = r 2 I 1 = r 3 I 0 I n = r n I 0  r = (1/ I 0 ) 1/n

44

45 Intensity depends on context (Adelson)

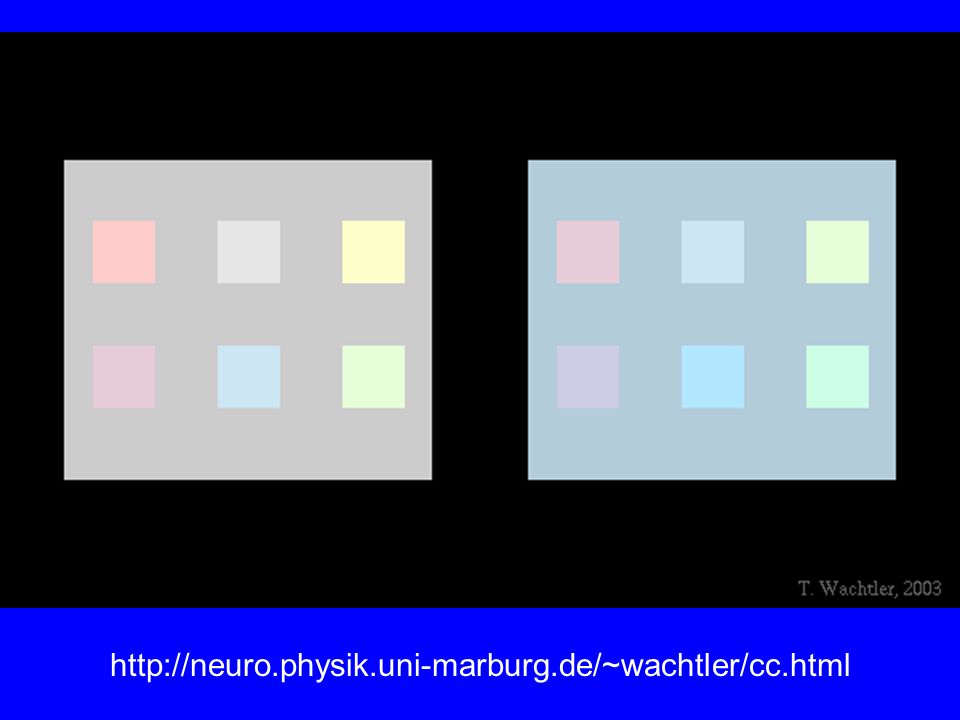

46 http://neuro.physik.uni-marburg.de/~wachtler/cc.html

47 Color Constancy Our color vision is based on signals of the the three photoreceptor types which respond to light of three different wavelength regions. But if we look at an object, its color that we perceive is not only determined by the spectral composition of the light coming from the object. Object colors depend on the context in which the object is seen. Look at the image below. On the left are six color fields on a grey field, representing six objects on a background. On the right, esentially the same arrrangement is shown, but all colors have a slightly bluish tint. It is as if we see the same scene under a bluish illumination. Incidentally, the spectral composition of the light coming from the three fields in the upper row on the right side are exactly the same as those of the lower row on the left side. Furthermore, the colors on the right that match most closely those on the left are the ones in the corresponding positions of the scenes, not those with the same physical spectrum:

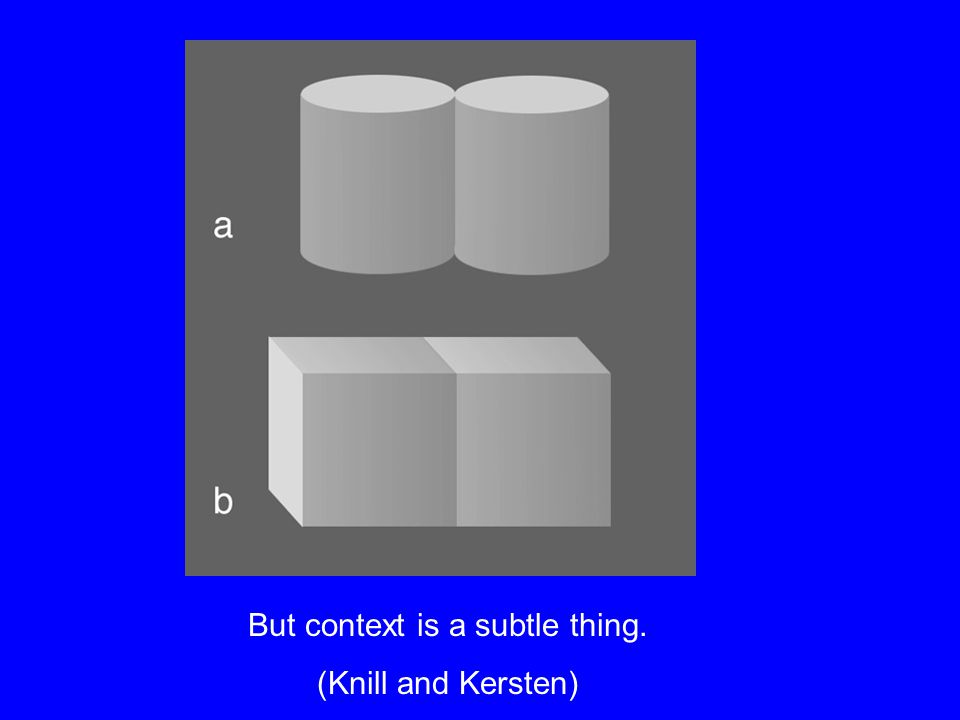

48 But context is a subtle thing. (Knill and Kersten)

49 Color constancy Interesting algorithms exist –Mostly for somewhat controlled/idealized conditions –Useful in applications, but not so much in natural images –This makes it hard to use color in recognition. –Segmentation can be ok as long as lighting is locally constant.

50 Color Segmentation Color quantization –Compression by using a small set of colors. –Represent each color with one of these. –Cost function of k-means is natural. Spatial position is irrelevant.

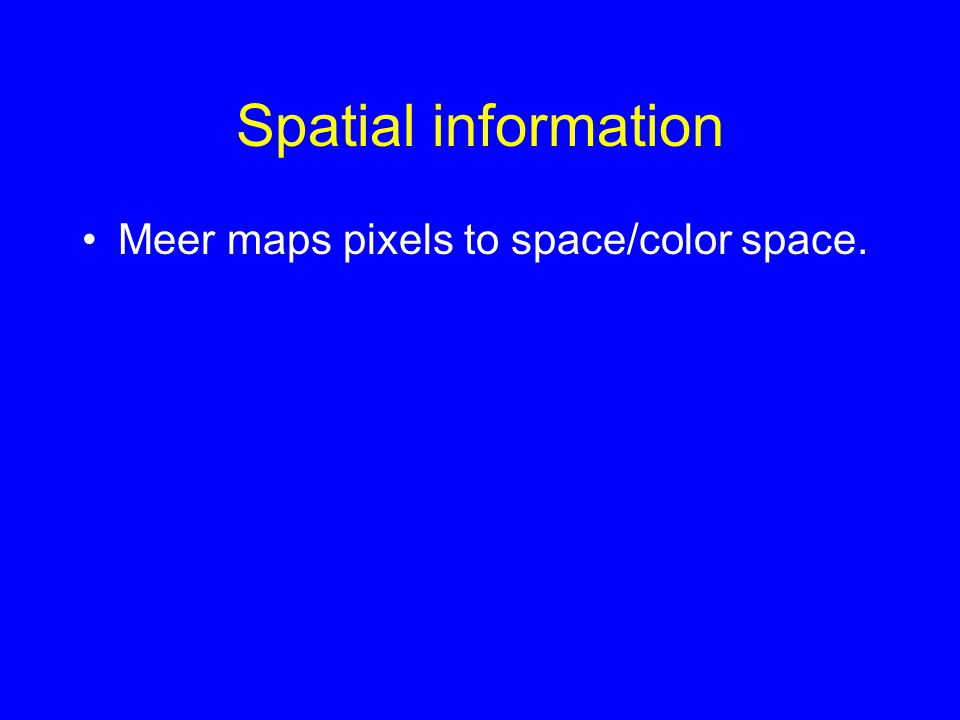

51 Spatial information Meer maps pixels to space/color space.
