1. Update on PCA R&D 07-10a Investigating the Effect of Potassium Acetate on Concrete Durability Larry Sutter Director, Michigan Tech Transportation Institute

2. Overview Work has been performed in the areas: – Literature review – Repeating previous tests – Exploring effects of KAc on silica solubility

3. Silica Dissolution Literature Review Geology/Geochemical – Dissolution of different silicates in the presence of organic acids (carboxylates) were covered – In all cases, dissolution rates and/or solubility increased with the addition of small amounts of OA (0.1 – 0.5 M) – Conditions did not match those found in pore sol’ns but effect of carboxylate addition were reproducible

4. Silica Dissolution Literature Review Industrial water treatment – Colloidal silica (analogous to reactive aggregate) deposits commonly foul process cooling water circuits – Several treatment methods for the removal of silica use carboxylates (formates and acetates) to dissolve silica – Polycarboxylates having one to five acetate groups are very effective – Increased pH serves to increase solubility even more – Carboxylates increase the solubility limit of silica and also increases the dissolution rate

5. Silica Dissolution Literature Review Steel slag dissolution – One paper described a novel approach dissolving steel making slags in acetic acid to sequestor CO 2 w/ Ca dissolved from slag forming CaCO 3 – Reported complete dissolution in a solution of 33% acetic acid and 50°C – both Si and Ca dissolved completely – Silica gel stability greater at >70°C allowing researchers to filter silica out thereby making higher grade CaCO 3

6. Progress to Date Completed modified ASTM C1260 procedure utilizing glass beads for reactive aggregate at 4°C, 20°C and 38°C with similar results to previous work Although ASTM C1260 tests were reproducible – they do not align with observed distress Upon review of ASR chemistry, performed literature review of silica dissolution which resulted in modification of experimental approach.

7. New Experimental Approach Focusing on silica dissolution as a primary driver since the deicing regime appears to provide conditions for greatly enhanced silica solubility Performing solubility tests based upon ASTM C289 - 07 “Standard Test Method for Potential Alkali-Silica Reactivity of Aggregates (Chemical Method)”

8. Modified ASTM C289 ASTM C289 is a chemical method of evaluating potential reactive aggregates based upon the amount of silica dissolved during a 24 hour digestion at 80° C in 1N NaOH Modification of method consists of replacing NaOH with reactant of interest; 1N KOH, saturated Ca(OH) 2, as-received KAc deicer and KAc deicer + Ca(OH) 2 as well as 1N NaOH

9. Modified ASTM C289 Both solids and solutions are being characterized – full solution chemistries via XRF – solids by optical and SEM analyses with elemental mapping. Using local reactive chert for aggregate tests Potential paste alteration is being evaluated with tests conducted on neat cement paste

10. C289 Test Progress Three test have been performed with reactive chert Solutions are at lab for analysis Solids are being analyzed, preliminary results follow One neat cement paste run has been completed. Solutions are awaiting shipment to lab. Solids are being analyzed

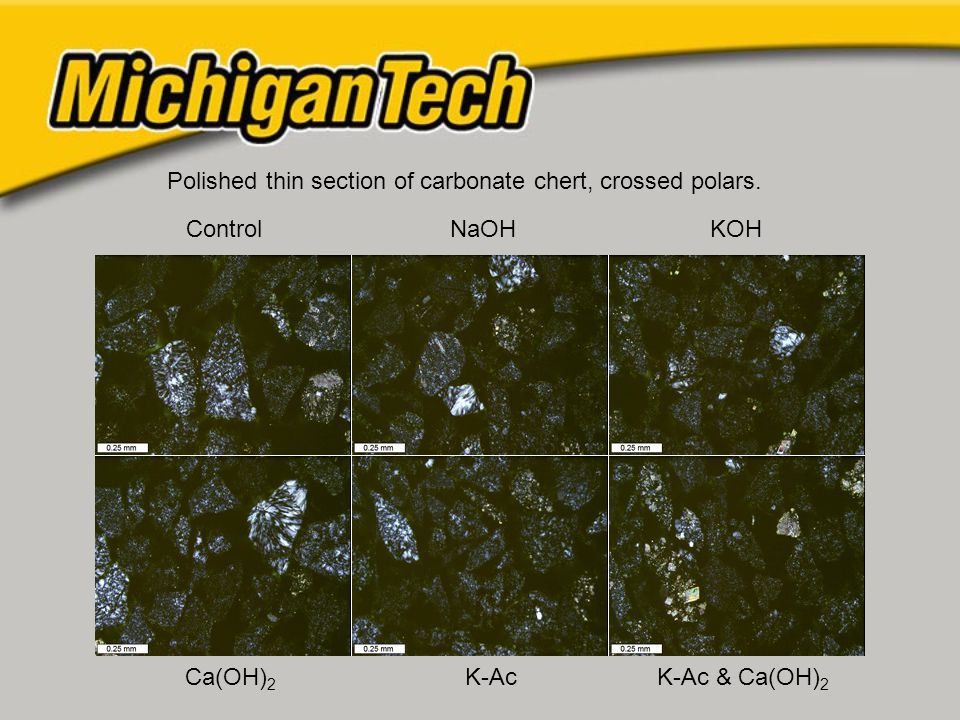

11. Control NaOH KOH Ca(OH) 2 K-Ac K-Ac & Ca(OH) 2 Polished thin section of carbonate chert, crossed polars.

12. Control NaOH KOH Ca(OH) 2 K-Ac K-Ac & Ca(OH) 2 Polished thin section of carbonate chert, SEM EDX elemental map for silicon.

13. Control NaOH KOH Ca(OH) 2 K-Ac K-Ac & Ca(OH) 2 Polished thin section of carbonate chert, SEM EDX elemental map for calcium.

14. Control NaOH KOH Ca(OH) 2 K-Ac K-Ac & Ca(OH) 2 Polished thin section of carbonate chert, SEM EDX elemental map for potassium.

15. Control NaOH KOH Ca(OH) 2 K-Ac K-Ac & Ca(OH) 2 Polished thin section of carbonate chert, SEM EDX elemental map for sodium.

16. Future work Continue studies on KAc effects on silica solubility and dissolution rates Spratt aggregate is on-site and being prepared for testing Additional aggregates are being identified with particular interest in moderately reactive aggregates (Sioux Quartzite) Cement paste alteration studies will continue. A matrix of cements having different properties (alkali content) will be developed and procured for testing
