1. Review of Chapter 5 張啟中

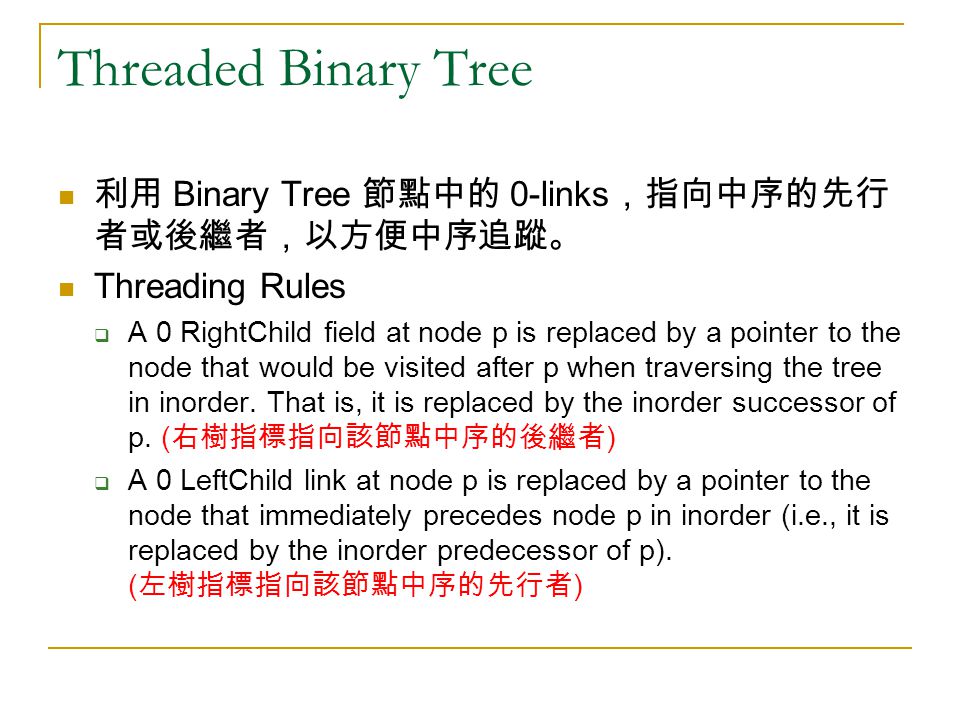

2. Threaded Binary Tree 利用 Binary Tree 節點中的 0-links ，指向中序的先行 者或後繼者，以方便中序追蹤。 Threading Rules  A 0 RightChild field at node p is replaced by a pointer to the node that would be visited after p when traversing the tree in inorder. That is, it is replaced by the inorder successor of p. ( 右樹指標指向該節點中序的後繼者 )  A 0 LeftChild link at node p is replaced by a pointer to the node that immediately precedes node p in inorder (i.e., it is replaced by the inorder predecessor of p). ( 左樹指標指向該節點中序的先行者 )

3. Threaded Binary Tree A HI B DE C GF Inorder sequence: H, D, I, B, E, A, F, C, G

4. f -f f Af f Bf f Df t Ht t It tEt f Bf fDf tEt Threaded Binary Tree with Head Node TRUEFALSE LeftThreadLeftChildRightChildRightThread data Head Node

5. Manipulation of Threaded Binary Tree Traversal (Inorder 不需 Stack) Insert a Node Delete a Node

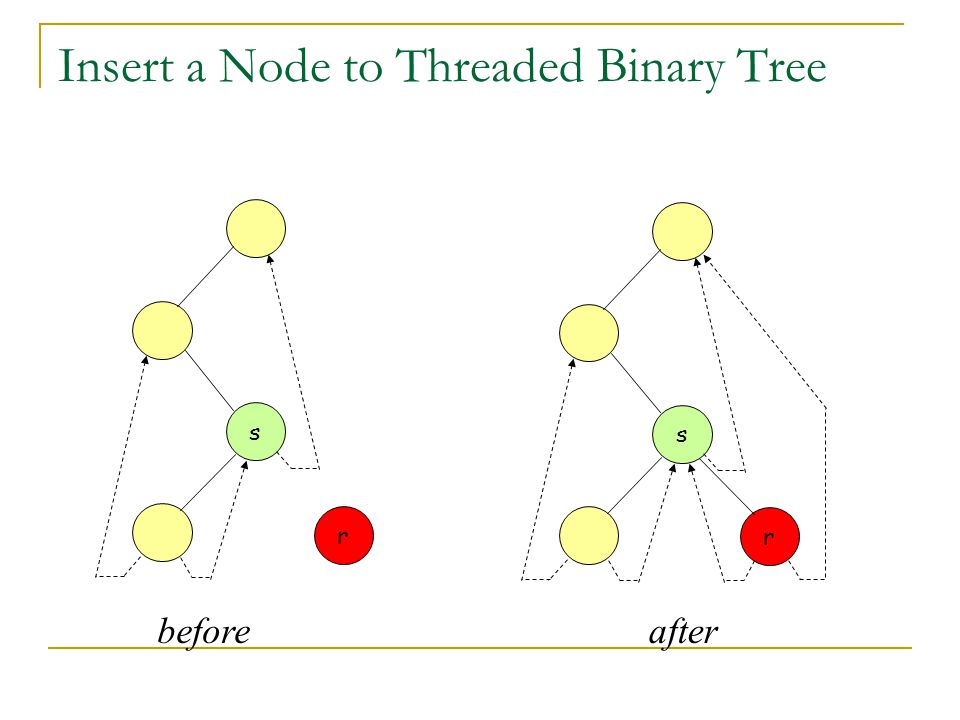

6. Insert a Node to Threaded Binary Tree s r s r beforeafter

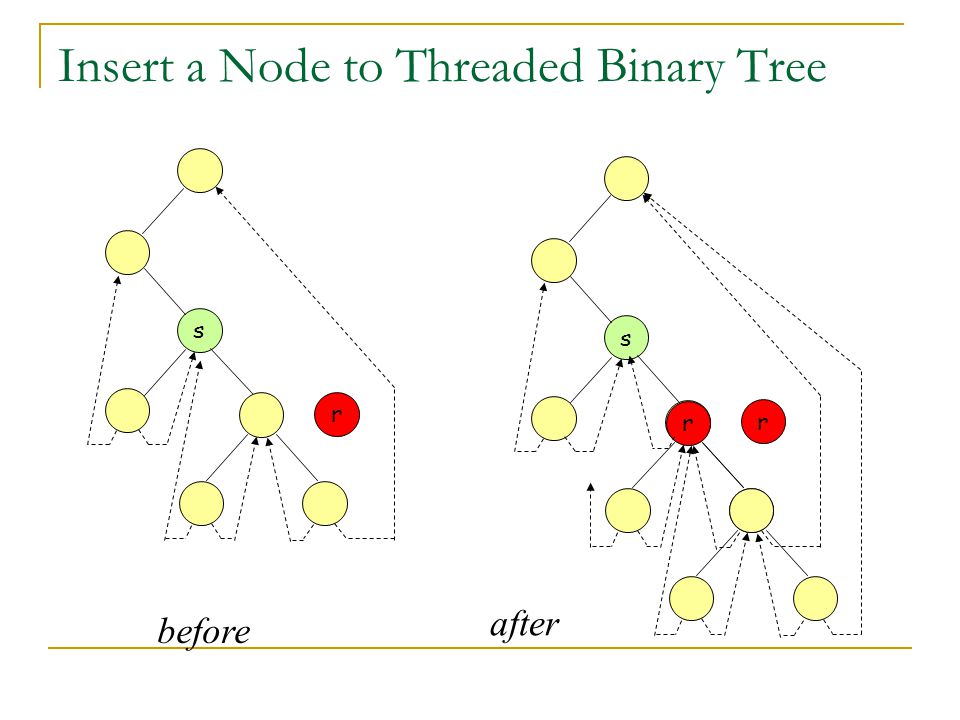

7. Insert a Node to Threaded Binary Tree r r s r s before after

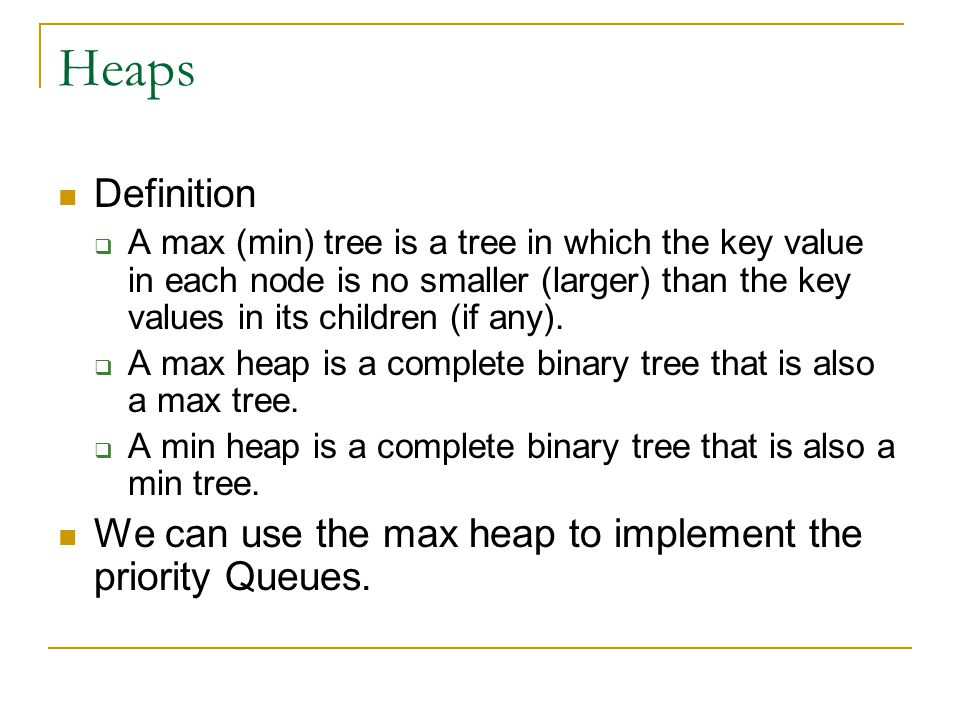

8. Heaps Definition  A max (min) tree is a tree in which the key value in each node is no smaller (larger) than the key values in its children (if any).  A max heap is a complete binary tree that is also a max tree.  A min heap is a complete binary tree that is also a min tree. We can use the max heap to implement the priority Queues.

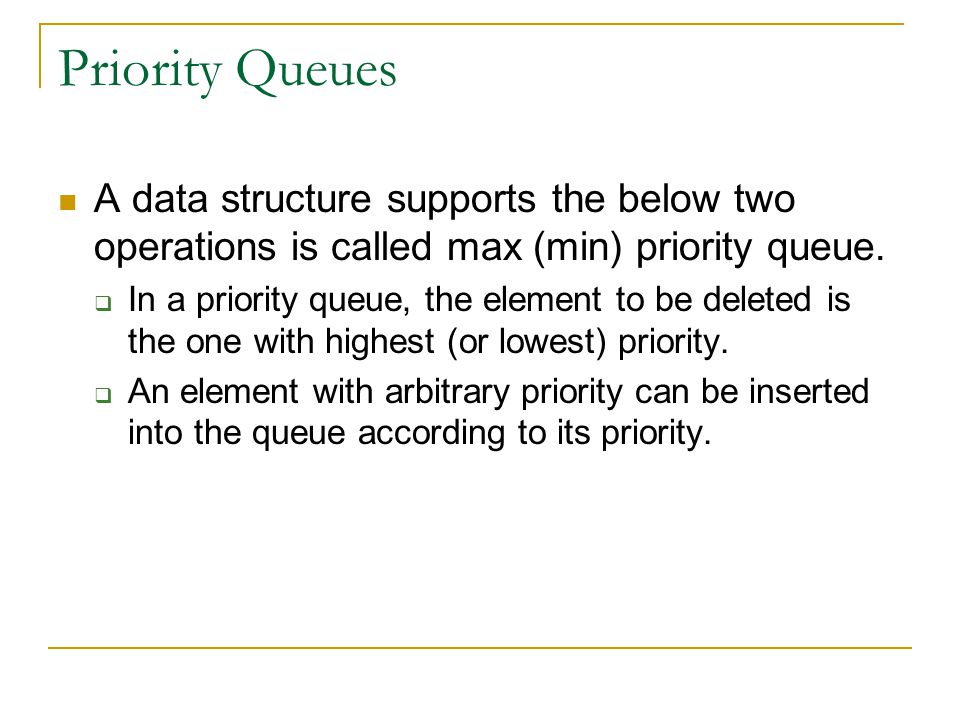

9. Priority Queues A data structure supports the below two operations is called max (min) priority queue.  In a priority queue, the element to be deleted is the one with highest (or lowest) priority.  An element with arbitrary priority can be inserted into the queue according to its priority.

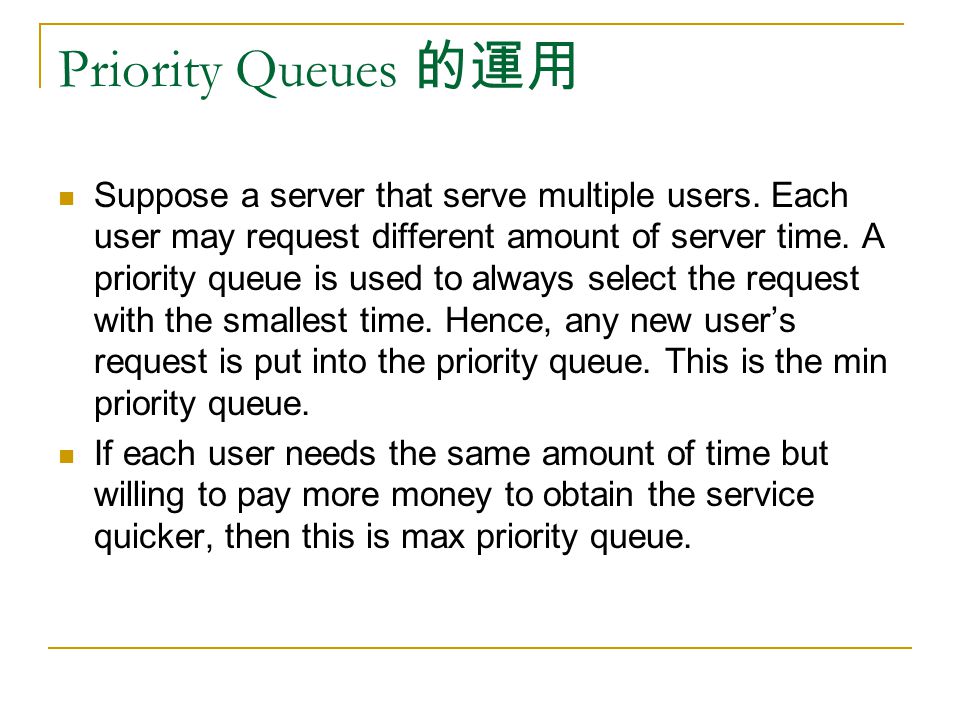

10. Priority Queues 的運用 Suppose a server that serve multiple users. Each user may request different amount of server time. A priority queue is used to always select the request with the smallest time. Hence, any new user’s request is put into the priority queue. This is the min priority queue. If each user needs the same amount of time but willing to pay more money to obtain the service quicker, then this is max priority queue.

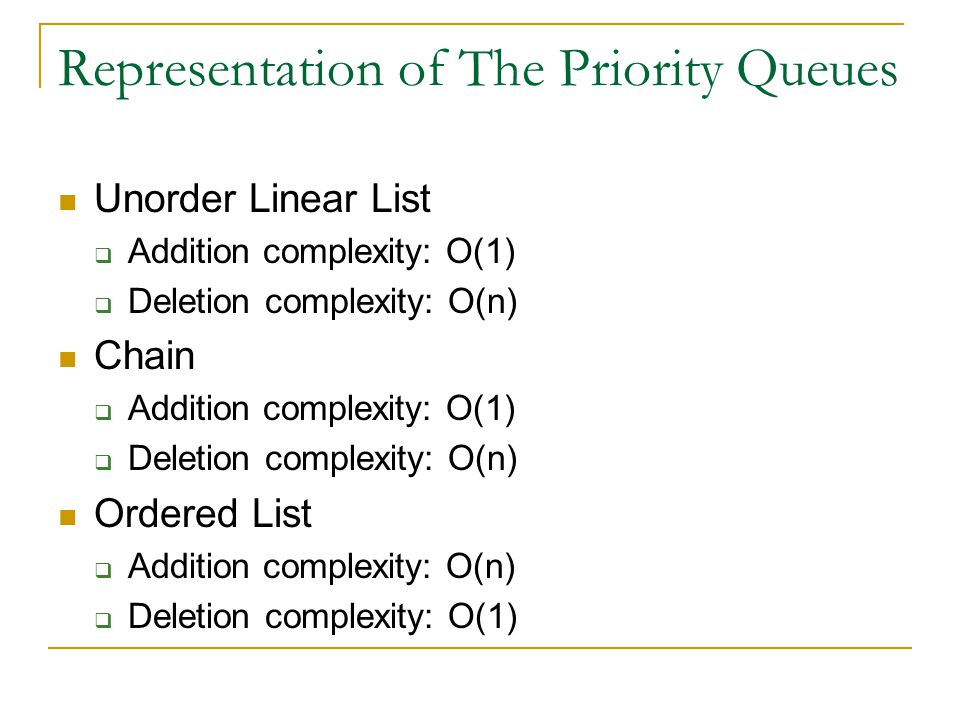

11. Representation of The Priority Queues Unorder Linear List  Addition complexity: O(1)  Deletion complexity: O(n) Chain  Addition complexity: O(1)  Deletion complexity: O(n) Ordered List  Addition complexity: O(n)  Deletion complexity: O(1)

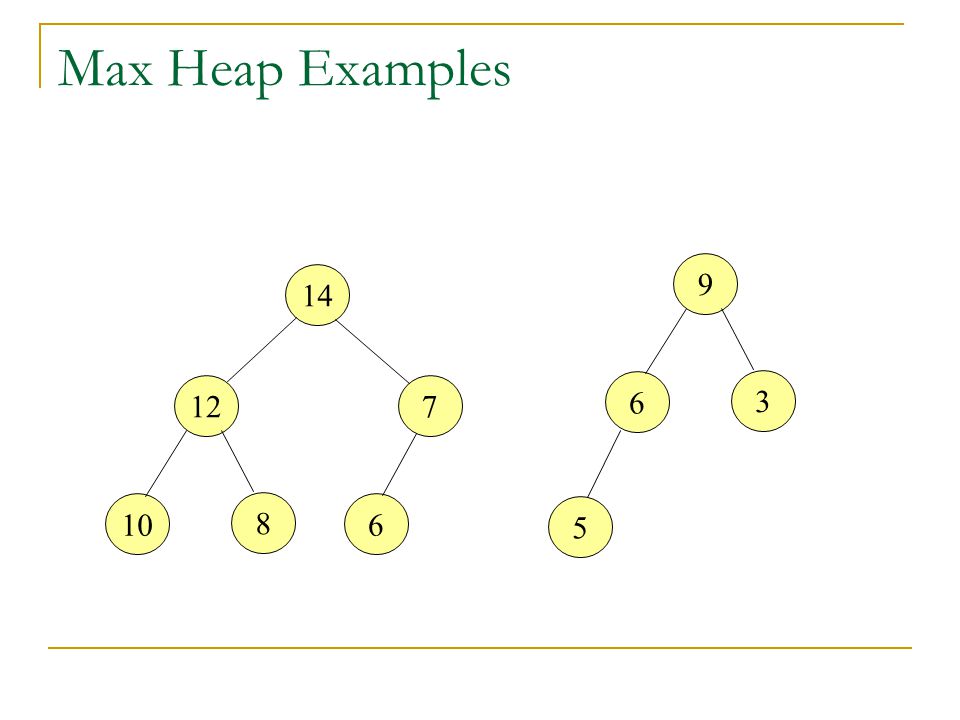

12. Max Heap Examples 14 127 10 8 6 9 6 3 5

13. Manipulation of The Heap Create of an empty heap Insertion of a new element into the heap. Deletion of the largest element from the heap Please see book p286 ADT 5.2

14. Insertion into a Max Heap 5 2 20 152 14 10 20 15 14 10 5 5 2 O(logn)

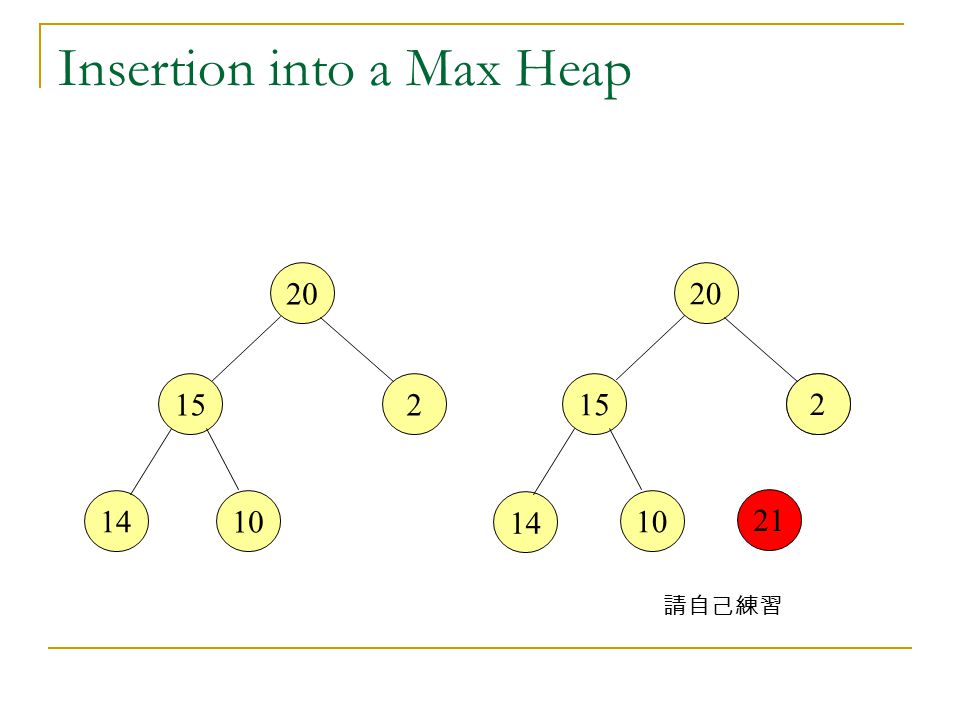

15. Insertion into a Max Heap 5 2 20 152 14 10 20 15 14 10 21 請自己練習

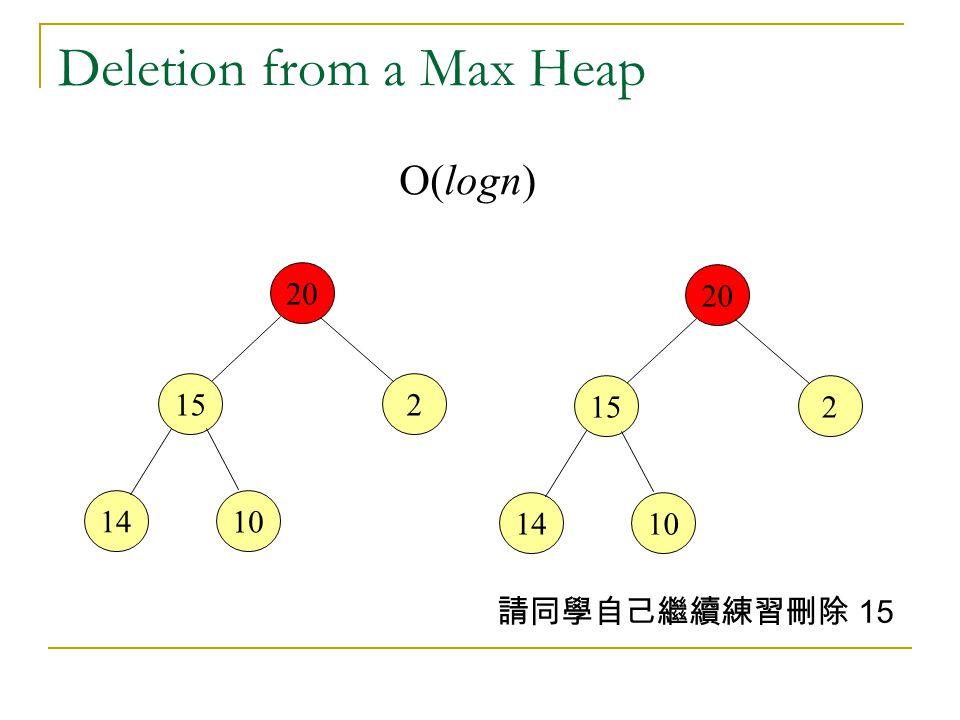

16. Deletion from a Max Heap 20 152 14 10 20 152 14 10 請同學自己繼續練習刪除 15 O(logn)

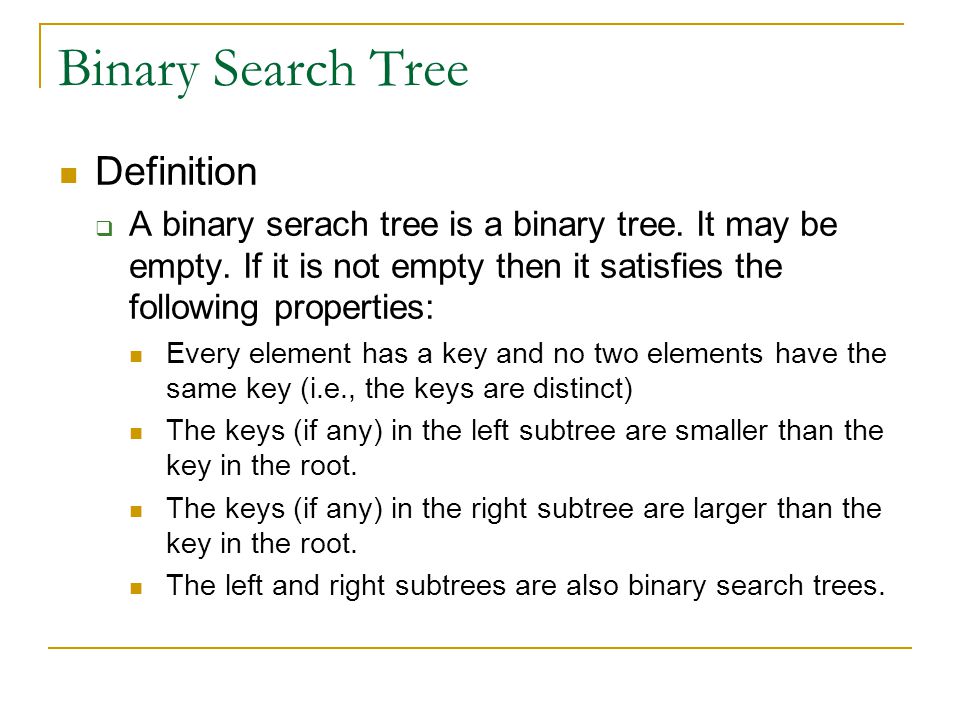

17. Binary Search Tree Definition  A binary serach tree is a binary tree. It may be empty. If it is not empty then it satisfies the following properties: Every element has a key and no two elements have the same key (i.e., the keys are distinct) The keys (if any) in the left subtree are smaller than the key in the root. The keys (if any) in the right subtree are larger than the key in the root. The left and right subtrees are also binary search trees.

18. Binary Search Tree Examples 20 1525 14 10 22 30 5 40 2 60 70 80 65 Not binary search tree Binary search trees Yes!

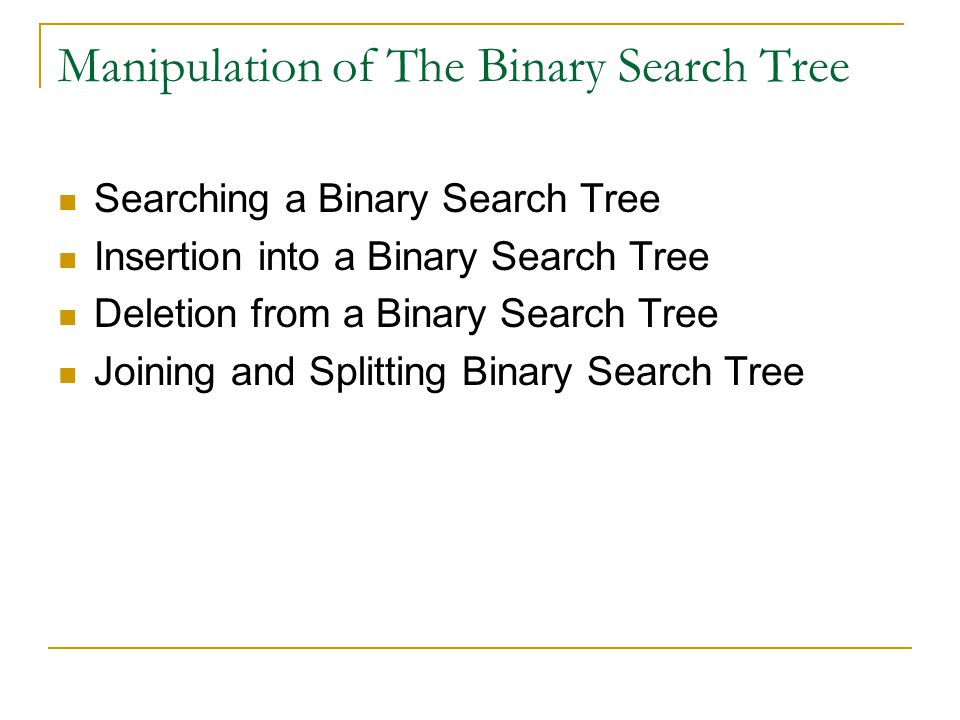

19. Manipulation of The Binary Search Tree Searching a Binary Search Tree Insertion into a Binary Search Tree Deletion from a Binary Search Tree Joining and Splitting Binary Search Tree

20. Searching A Binary Search Tree If the root is 0, then this is an empty tree. No search is needed. If the root is not 0, compare the x with the key of root.  If x equals to the key of the root, then it’s done.  If x is less than the key of the root, then only need to search the left tree.  If x larger than the key of the root, only the right subtree is to be searched.

21. Insertion into a Binary Search Tree 30 5 40 2 80 30 5 40 2 80 35

22. Deletion from a Binary Search Tree Delete a leaf node  A leaf node which is a right child of its parent  A leaf node which is a left child of its parent Delete a non-leaf node  A node that has one child  A node that has two children Replaced by the largest element in its left subtree, or Replaced by the smallest element in its right subtree Again, the delete function has complexity of O(h)

23. Deletion from a Binary Search Tree 5 30 40 2 80 35 80 5

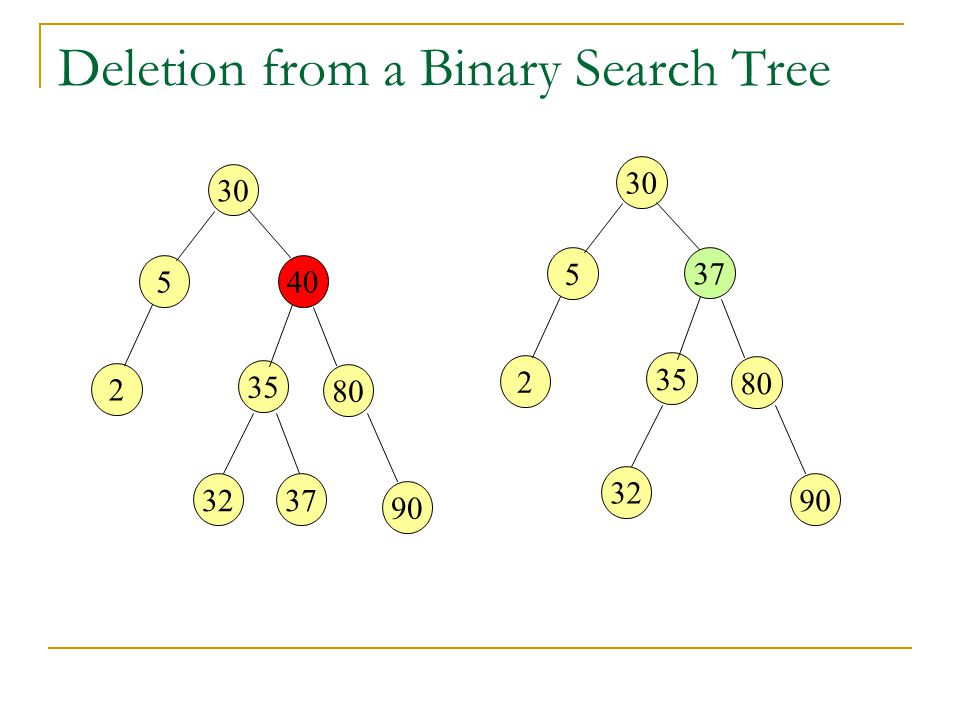

24. Deletion from a Binary Search Tree 30 5 40 2 80 35 3237 90 30 5 2 80 35 32 37 90

25. Deletion from a Binary Search Tree 30 5 40 2 80 35 3237 90 30 5 2 80 35 3237 90

26. Joining and Splitting Binary Trees C.ThreeWayJoin(A, x, B)  Creates a binary search tree C that consists of binary search tree A, B, and element x. C.TwoWayJoin(A, B)  Joins two binary search trees A and B to obtain a single binary search tree C. A.Split(i, B, x, C)  Binary search tree A splits into three parts: B (a binary search tree that contains all elements of A that have key less than i); if A contains a key i than this element is copied into x and a pointer to x returned; C is a binary search tree that contains all records of A that have key larger than i

27. ThreeWayJoin(A, x, B) 30 5 40 2 80 35 90 85 94 84 92 81 ABx

28. C.TwoWayJoin(A, B) 30 5 40 2 80 35 A 90 85 94 84 92 B 80 84

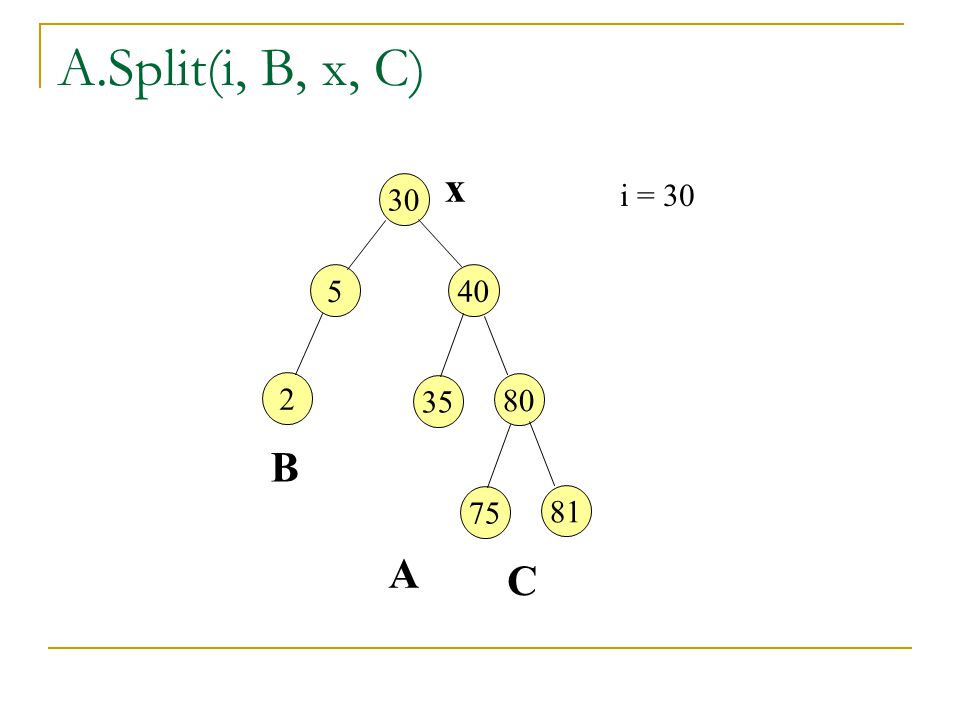

29. A.Split(i, B, x, C) 30 5 40 2 80 35 A 81 75 i = 30 B C x

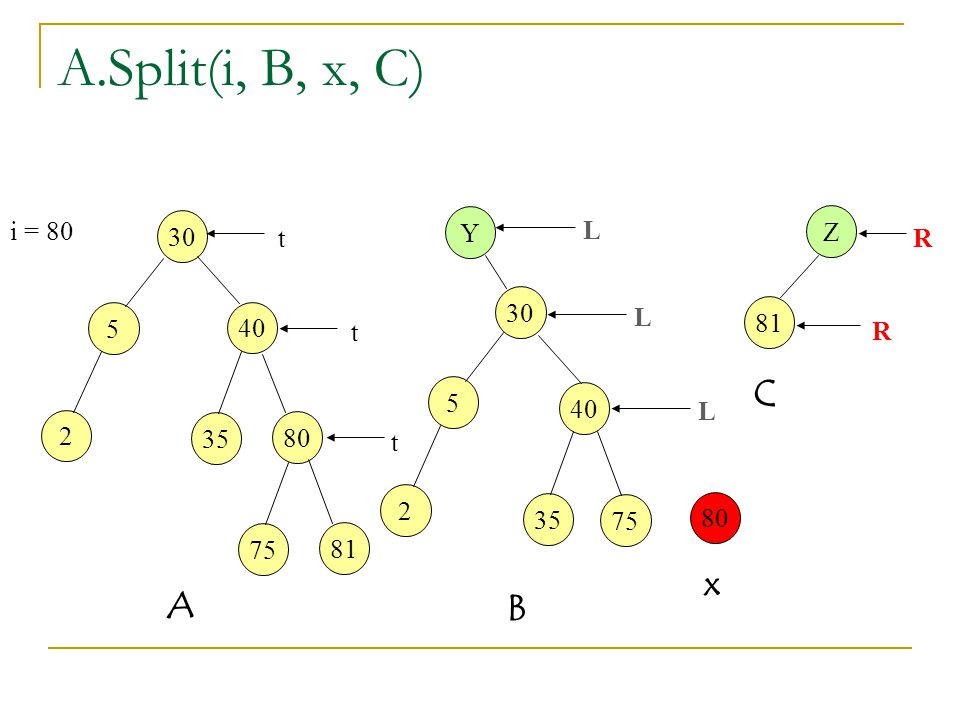

30. A.Split(i, B, x, C) 30 5 40 2 80 35 A 81 75 i = 80 B C Z Y 30 L t t 5 2 L t 40 35 80 x L 75 81 R R
