Lecture 6 Adiabatic Processes

2

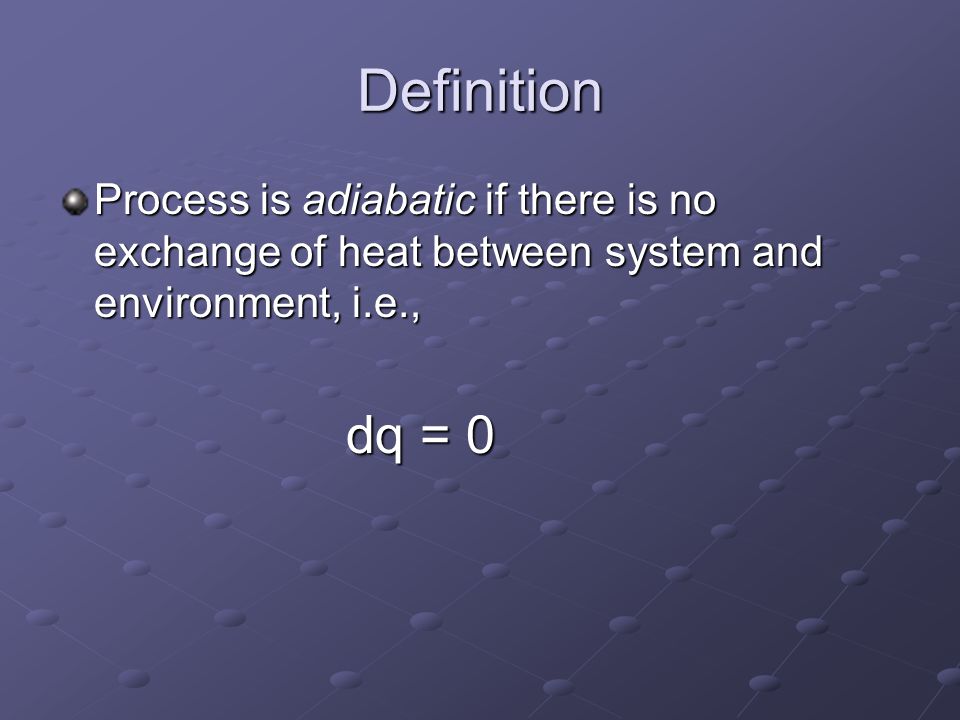

Definition Process is adiabatic if there is no exchange of heat between system and environment, i.e., dq = 0 dq = 0

3
Work and Temperature (General) First law: dU = dQ – dW Adiabatic process: dU = -dW If system does work (dW > 0), dU 0), dU < 0 system cools If work is done on system (dW 0 system warms system warms

4

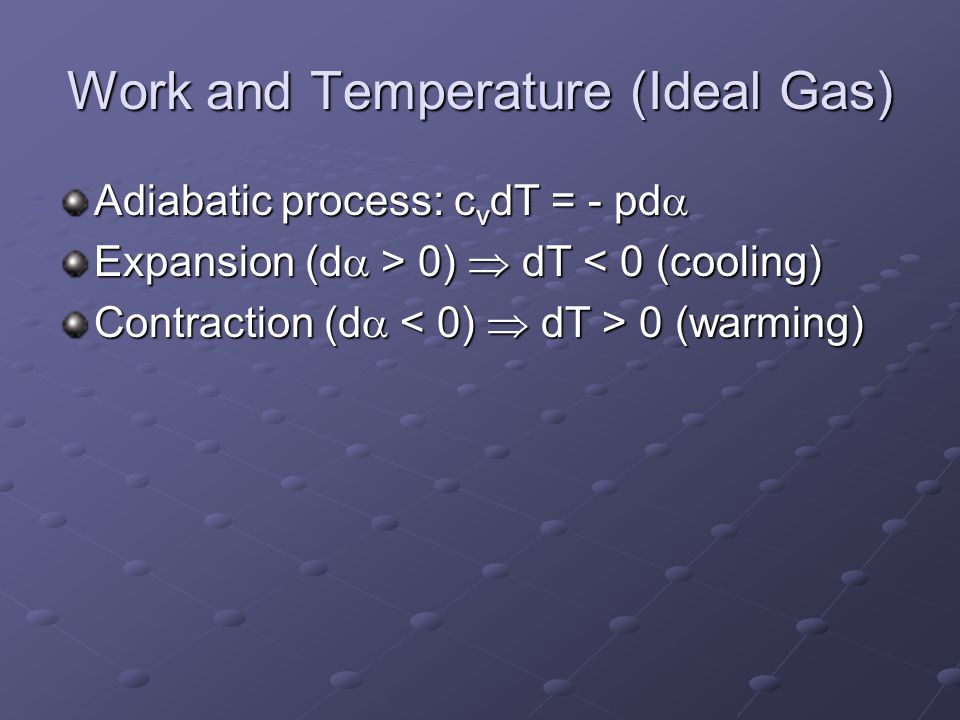

Work and Temperature (Ideal Gas) Adiabatic process: c v dT = - pd Expansion (d > 0) dT 0) dT < 0 (cooling) Contraction (d 0 (warming)

5
Relationship between T and p dq = 0 But, [Eq. (4) from last lecture.]

6
Thus

7
Adiabatic Transition Suppose system starts in state with thermodynamic “coordinates” (T 0, p 0 ) System makes an adiabatic transition to state with coordinates (T 1, p 1 )

8

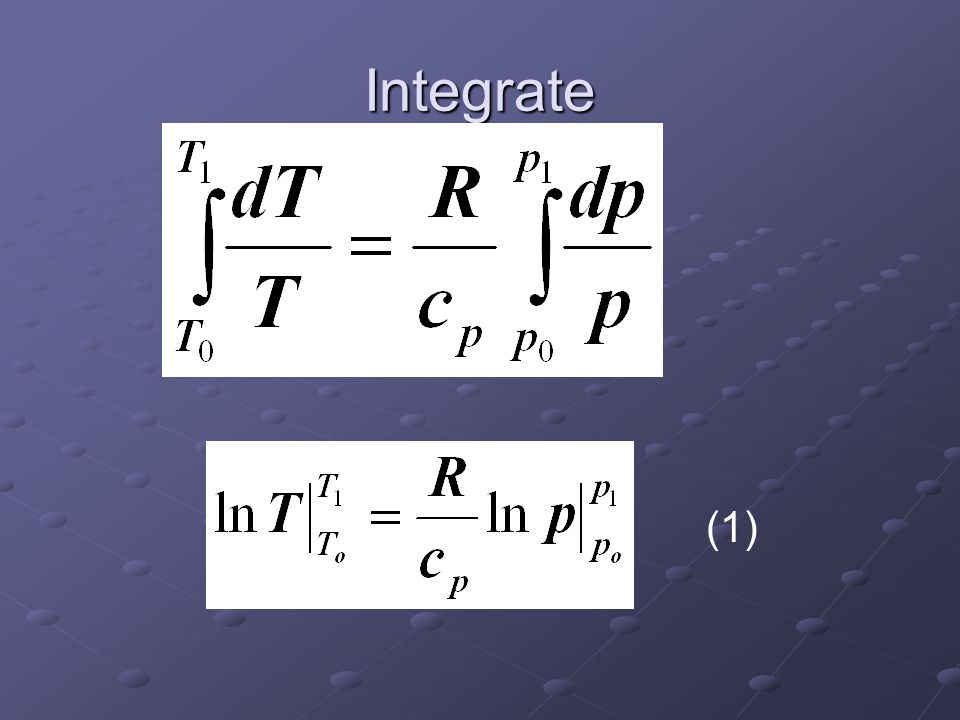

Integrate (1)

9
Continue (1) (2)

10
Review

11
Thus, (2) becomes (3)

12
Thus, (3) becomes Poisson’s Equation (4)

13
Dry Air

14
Exercise p 0 = 989 hPa T 0 = 276 K p 1 = 742 hPa T 1 = ? Answer: T 1 = 254 K

15
Exercise p 0 = 503 hPa T 0 = 230 K p 1 = 1000 hPa T 1 = ? Answer: 280 K

16
Potential Temperature Potential Temperature Let p 0 = 1000 hPa Remove the subscripts from p 1 and T 1 Denote T 0 by is called the potential temperature

17
Physical Meaning Initial state: (T, p) Suppose system makes an adiabatic transition to pressure of 1000 hPa New temperature = Potential temperature is the temperature a parcel would have if it were to expand or compress adiabatically from its present pressure and temperature to a reference pressure level. Po = 1000 mb.

18
Physical Meaning Removes adiabatic temperature changes experienced during vertical motion ºC and K are interchangeable; best to convert it to K when making calculations such as differences. is invariant along an adiabatic path adiabatic behavior of individual air parcels is a good approximation for many atmospheric applications…from small parcels to larger convection.

19
Adiabats Let be given Re-write last equation: In the T-p plane, this describes a curve. Curve is called a dry adiabat.

20
Dry Adiabats

21
= 290 K Initial state: T = 290.0 K, p = 1000 hPa

22
Reduce pressure to 900 hPa New temperature: T 281 K

23

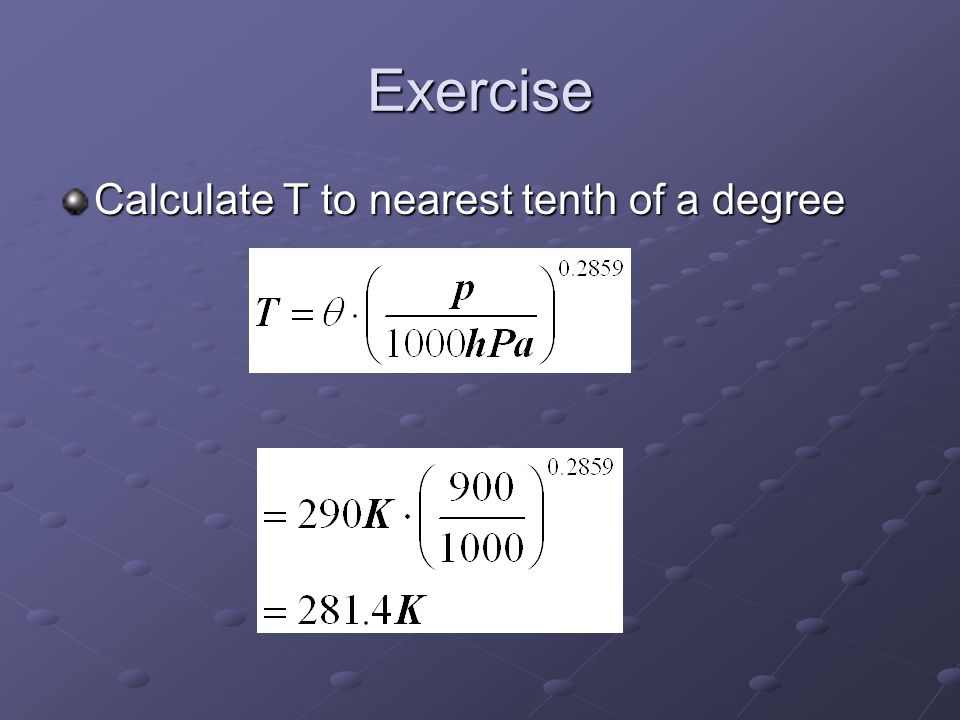

Exercise Calculate T to nearest tenth of a degree

24
Reduce pressure to 700 hPa New temperature: T 262 K

25
Exercise Calculate new T to nearest tenth of a degree Answer: 261.9 K

26

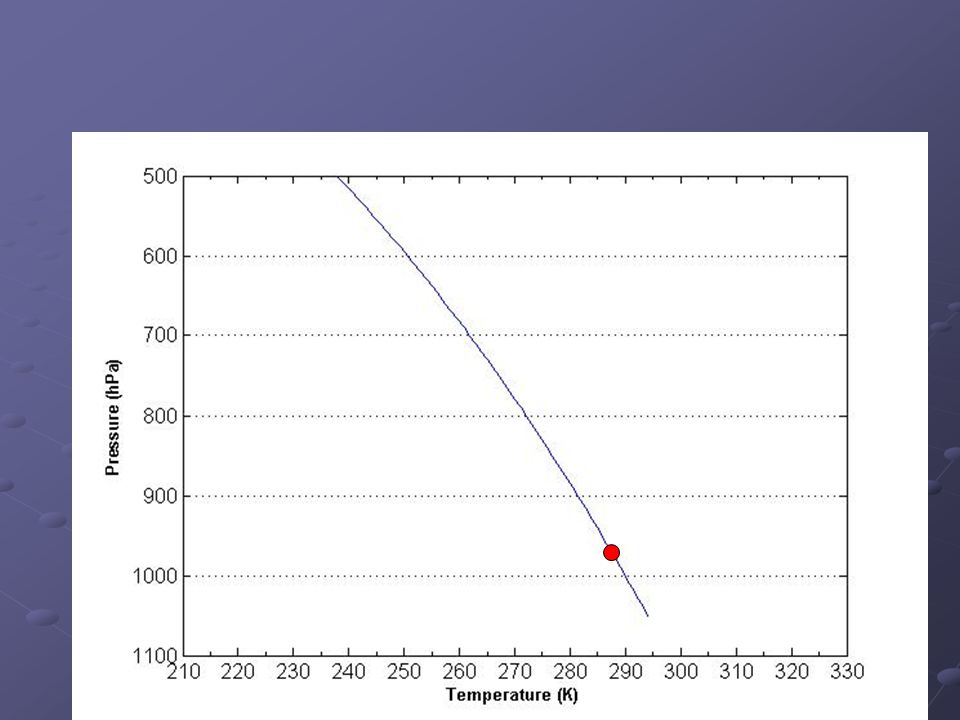

Adiabatic Processes In the T-p plane, an adiabatic process can be thought of as a point moving along an adiabat.

39
The Parcel Model The Parcel Model 1.An air parcel is a hypothetical volume of air that does not mix with its surroundings 1. Parcel is a closed system. 2.Parcel moves adiabatically if there is no exchange of heat with surroundings. 1 and 2 parcel is isolated Parcel doesn’t interact with surroundings. Parcel doesn’t interact with surroundings.

40
Rising & Sinking Parcels If a parcel rises adiabatically, its pressure decreases parcel cools If a parcel sinks adiabatically, its pressure increases parcel warms

41
Movie: “The Day After Tomorrow” Premise: global warming produces gigantic storms In these storms, cold air from upper troposphere is brought down to surface, causing sudden cooling (People freeze in their tracks!) (People freeze in their tracks!)

42

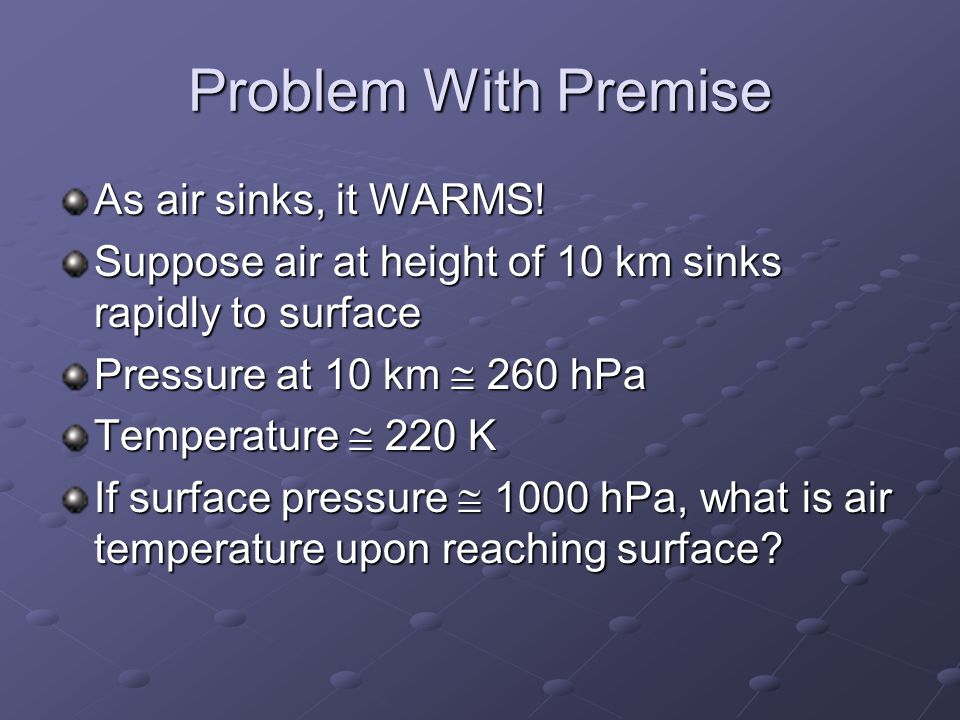

Problem With Premise As air sinks, it WARMS! Suppose air at height of 10 km sinks rapidly to surface Pressure at 10 km 260 hPa Temperature 220 K If surface pressure 1000 hPa, what is air temperature upon reaching surface?

43
Solution

44
Height Dependence of T * Start with

45
Parcel Temperature Consider a parcel with pressure p and temperature T. Assume the parcel rises adiabatically is constant Goal: Determine dT/dz. Method: logarithmic differentiation

46
Step 1 Take log of both sides of * Constants

47
Step 2: Differentiate **

48
Step 3: Hydrostatic Equation Substitute into **

49
Step 4

50
Exercise Simplify the expression for dT/dz.

51
Result Constant!

52
z Parcel temperature

53
Conclusion A parcel that rises adiabatically cools at the rate g/c p A parcel that sinks adiabatically warms at the rate g/c p Exercise: Calculate g/c p (in K km -1 ) Answer: 9.8 K km -1 Answer: 9.8 K km -1

54
Dry-Adiabatic “Lapse Rate”

55
Important Note Previous discussion assumed that there was no condensation. We will look at the effect of water vapor next.
