1. Socket Layer COMS W6998 Spring 2010 Erich Nahum

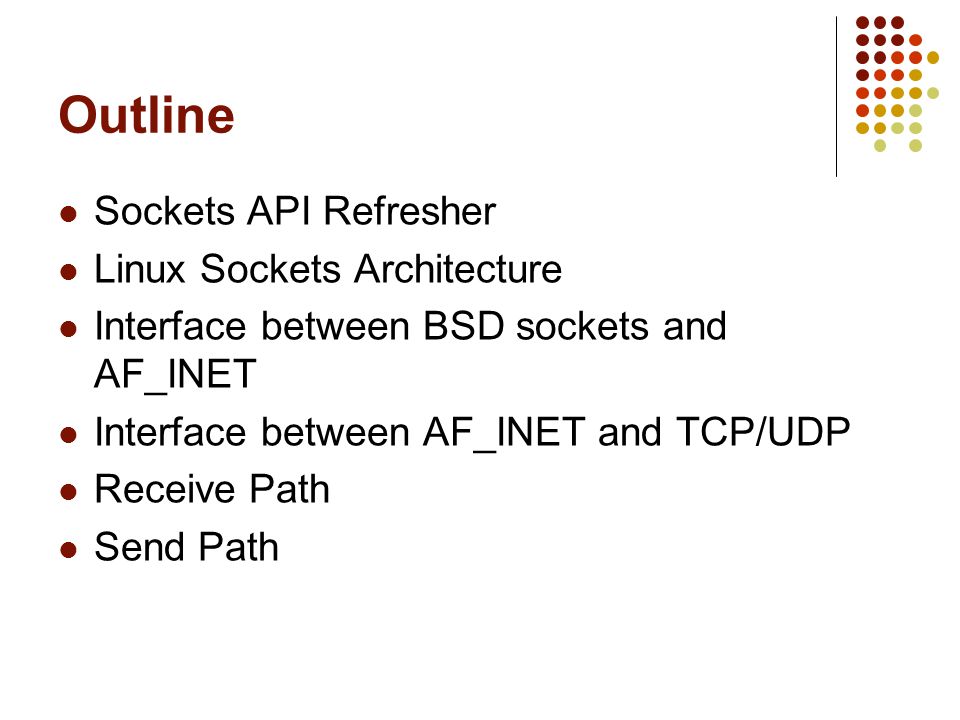

2. Outline Sockets API Refresher Linux Sockets Architecture Interface between BSD sockets and AF_INET Interface between AF_INET and TCP/UDP Receive Path Send Path

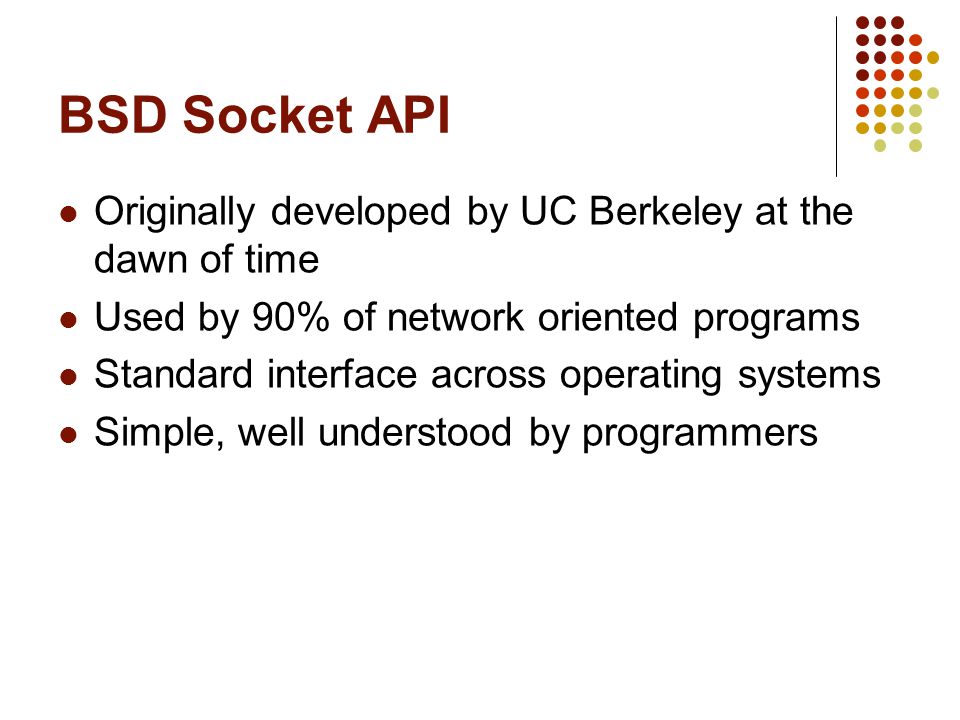

3. BSD Socket API Originally developed by UC Berkeley at the dawn of time Used by 90% of network oriented programs Standard interface across operating systems Simple, well understood by programmers

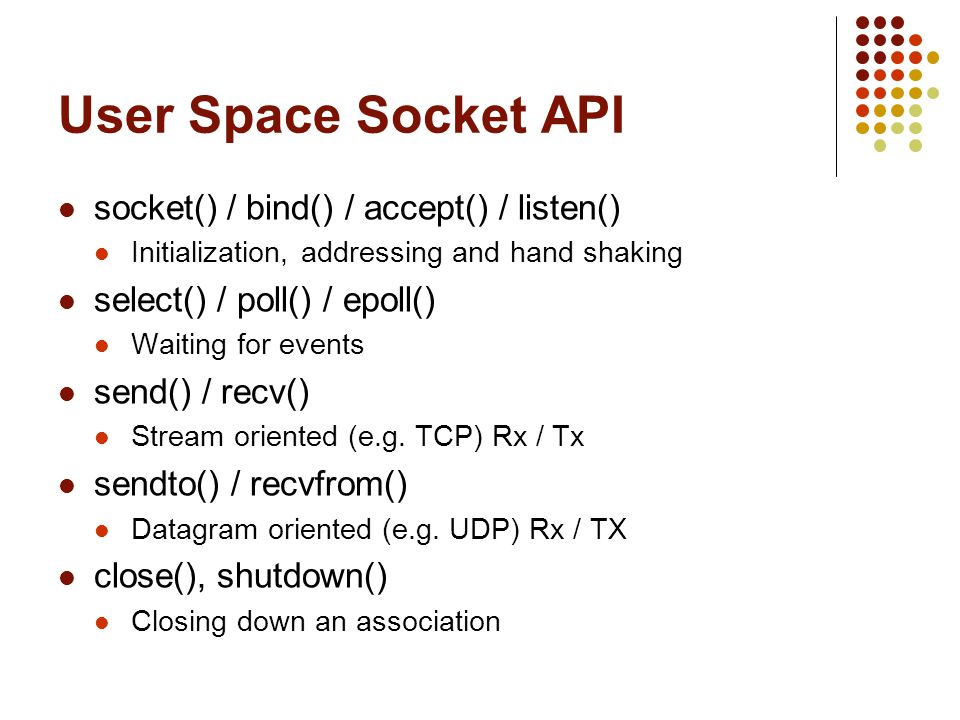

4. User Space Socket API socket() / bind() / accept() / listen() Initialization, addressing and hand shaking select() / poll() / epoll() Waiting for events send() / recv() Stream oriented (e.g. TCP) Rx / Tx sendto() / recvfrom() Datagram oriented (e.g. UDP) Rx / TX close(), shutdown() Closing down an association

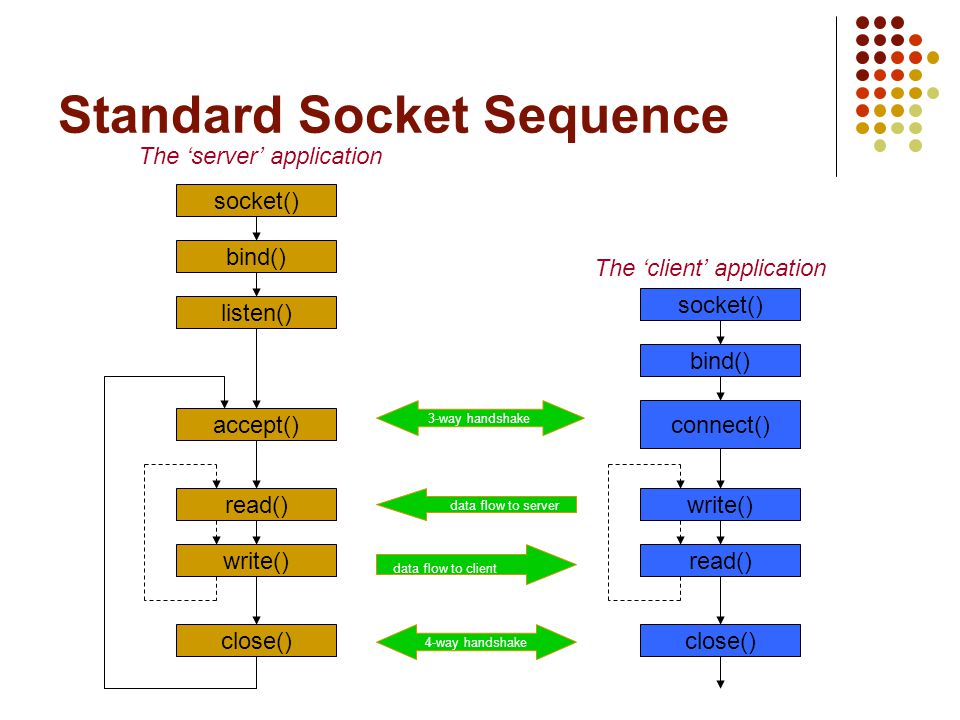

5. socket() bind() listen() accept() read() write() close() socket() bind() connect() write() read() close() The ‘server’ application The ‘client’ application 3-way handshake data flow to server data flow to client 4-way handshake Standard Socket Sequence

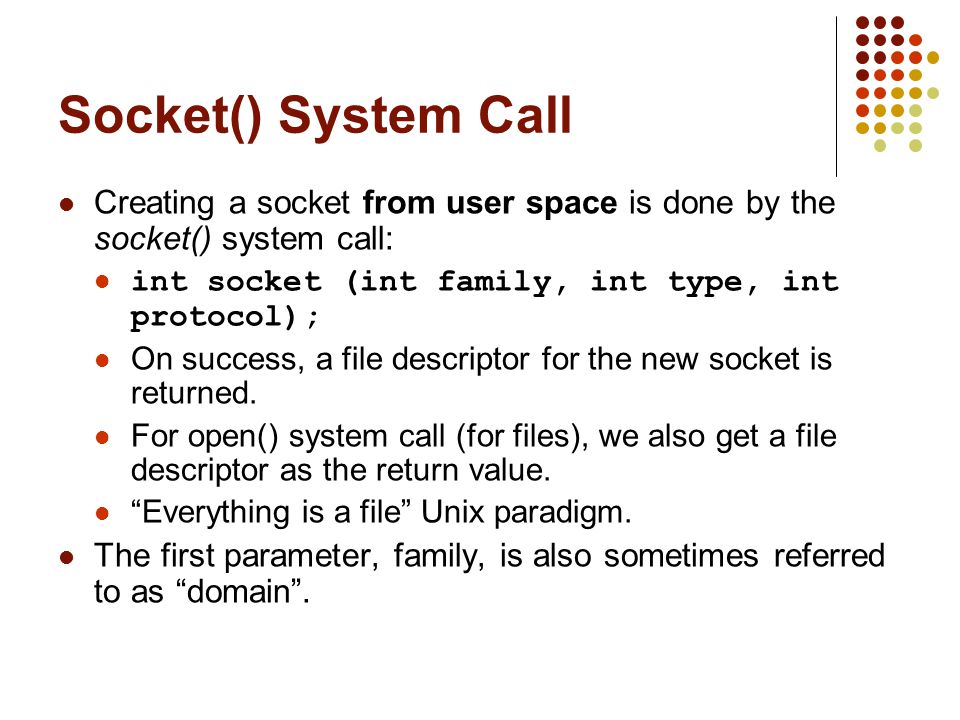

6. Socket() System Call Creating a socket from user space is done by the socket() system call: int socket (int family, int type, int protocol); On success, a file descriptor for the new socket is returned. For open() system call (for files), we also get a file descriptor as the return value. “Everything is a file” Unix paradigm. The first parameter, family, is also sometimes referred to as “domain”.

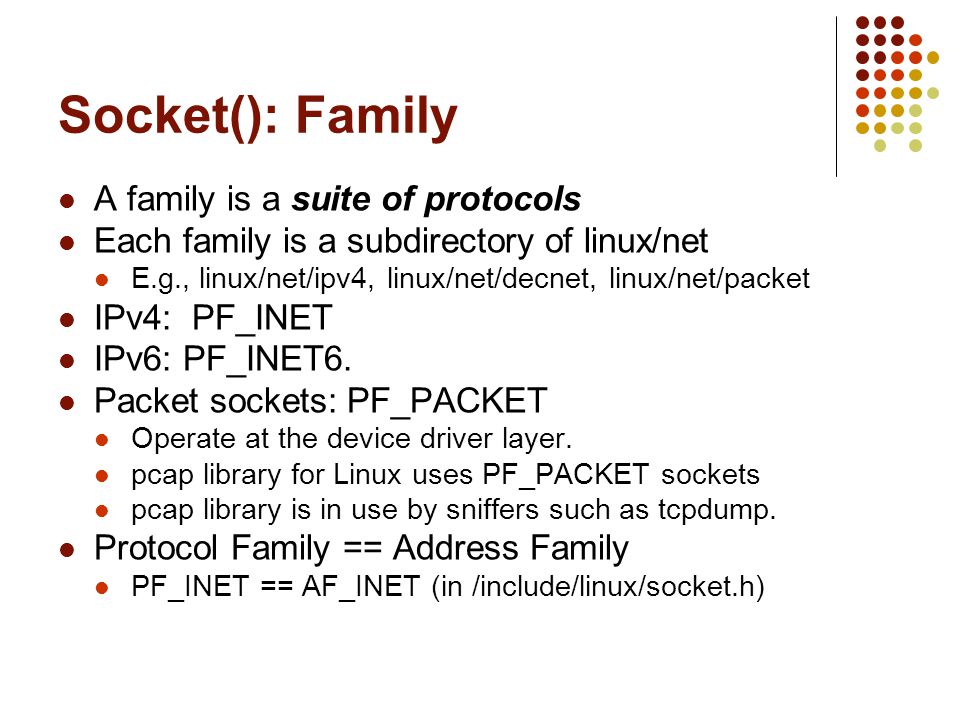

7. Socket(): Family A family is a suite of protocols Each family is a subdirectory of linux/net E.g., linux/net/ipv4, linux/net/decnet, linux/net/packet IPv4: PF_INET IPv6: PF_INET6. Packet sockets: PF_PACKET Operate at the device driver layer. pcap library for Linux uses PF_PACKET sockets pcap library is in use by sniffers such as tcpdump. Protocol Family == Address Family PF_INET == AF_INET (in /include/linux/socket.h)

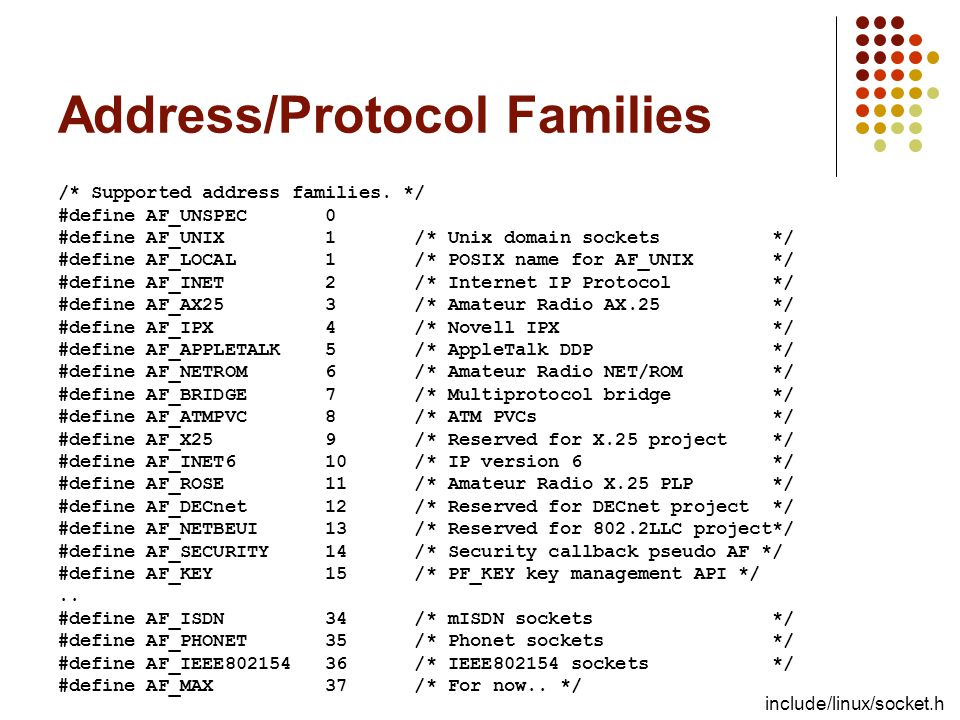

8. Address/Protocol Families /* Supported address families. */ #define AF_UNSPEC 0 #define AF_UNIX 1 /* Unix domain sockets */ #define AF_LOCAL 1 /* POSIX name for AF_UNIX */ #define AF_INET 2 /* Internet IP Protocol */ #define AF_AX25 3 /* Amateur Radio AX.25 */ #define AF_IPX 4 /* Novell IPX */ #define AF_APPLETALK 5 /* AppleTalk DDP */ #define AF_NETROM 6 /* Amateur Radio NET/ROM */ #define AF_BRIDGE 7 /* Multiprotocol bridge */ #define AF_ATMPVC 8 /* ATM PVCs */ #define AF_X25 9 /* Reserved for X.25 project */ #define AF_INET6 10 /* IP version 6 */ #define AF_ROSE 11 /* Amateur Radio X.25 PLP */ #define AF_DECnet 12 /* Reserved for DECnet project */ #define AF_NETBEUI 13 /* Reserved for 802.2LLC project*/ #define AF_SECURITY 14 /* Security callback pseudo AF */ #define AF_KEY 15 /* PF_KEY key management API */.. #define AF_ISDN 34 /* mISDN sockets */ #define AF_PHONET 35 /* Phonet sockets */ #define AF_IEEE802154 36 /* IEEE802154 sockets */ #define AF_MAX 37 /* For now.. */ include/linux/socket.h

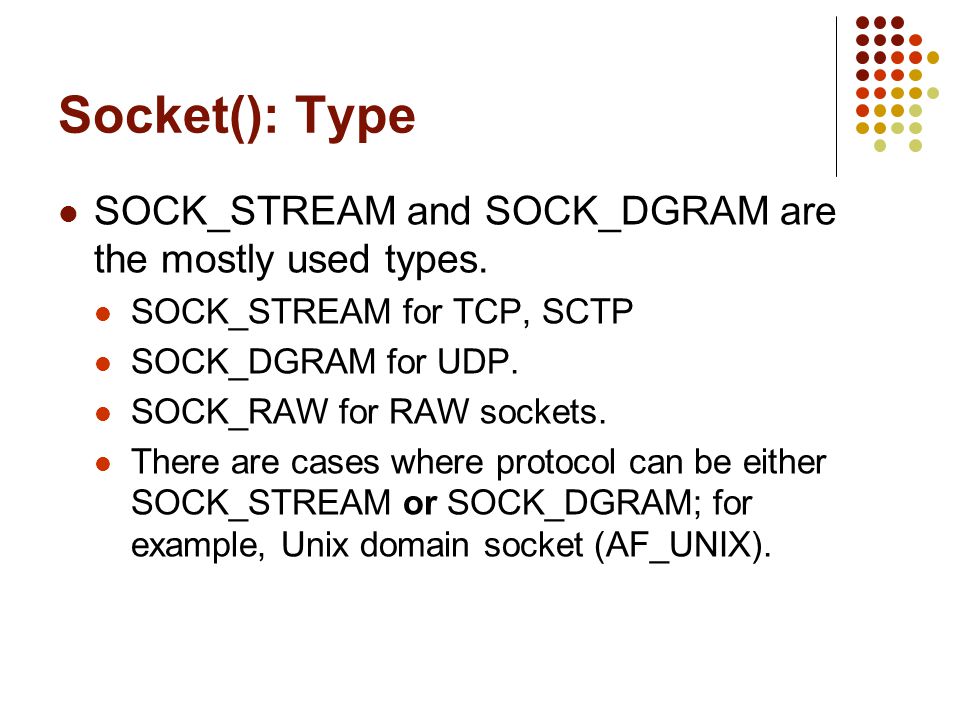

9. Socket(): Type SOCK_STREAM and SOCK_DGRAM are the mostly used types. SOCK_STREAM for TCP, SCTP SOCK_DGRAM for UDP. SOCK_RAW for RAW sockets. There are cases where protocol can be either SOCK_STREAM or SOCK_DGRAM; for example, Unix domain socket (AF_UNIX).

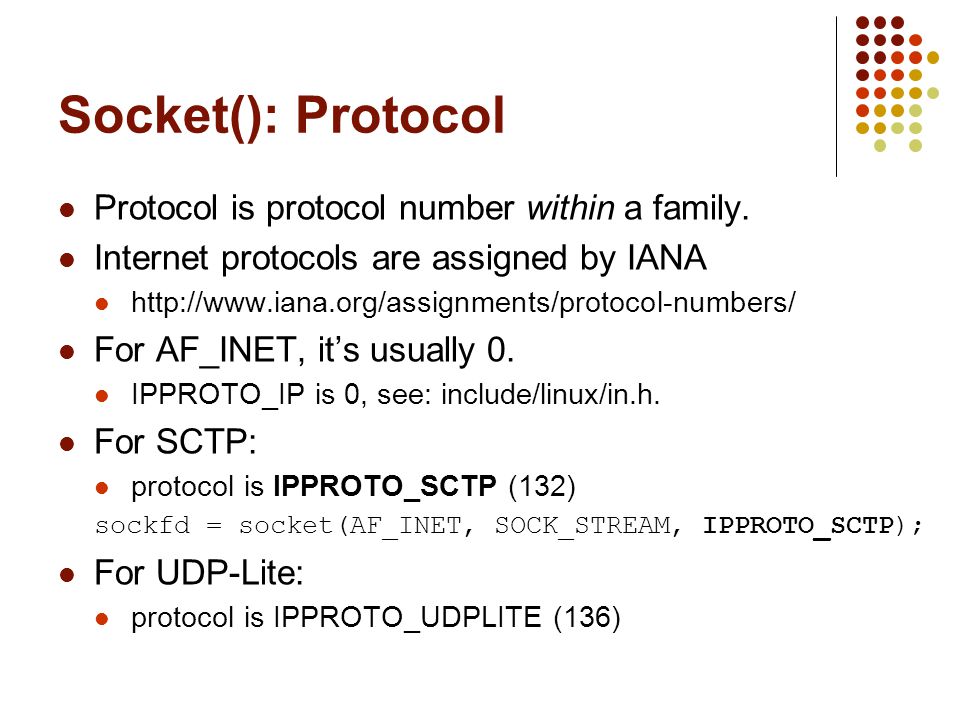

10. Socket(): Protocol Protocol is protocol number within a family. Internet protocols are assigned by IANA http://www.iana.org/assignments/protocol-numbers/ For AF_INET, it’s usually 0. IPPROTO_IP is 0, see: include/linux/in.h. For SCTP: protocol is IPPROTO_SCTP (132) sockfd = socket(AF_INET, SOCK_STREAM, IPPROTO_SCTP); For UDP-Lite: protocol is IPPROTO_UDPLITE (136)

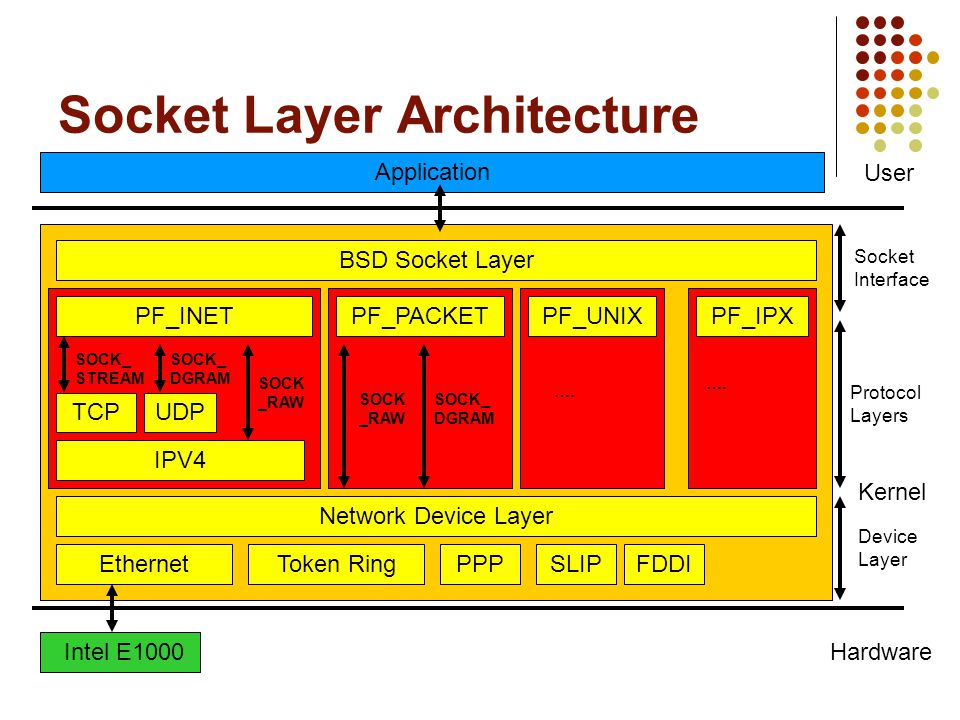

11. Socket Layer Architecture BSD Socket Layer User Kernel UDP Hardware Application Intel E1000 Ethernet PF_INET TCP Network Device Layer IPV4 SOCK_ STREAM SOCK_ DGRAM SOCK _RAW PF_PACKET SOCK _RAW SOCK_ DGRAM PF_UNIXPF_IPX …. Socket Interface Protocol Layers Token RingPPPSLIPFDDI Device Layer

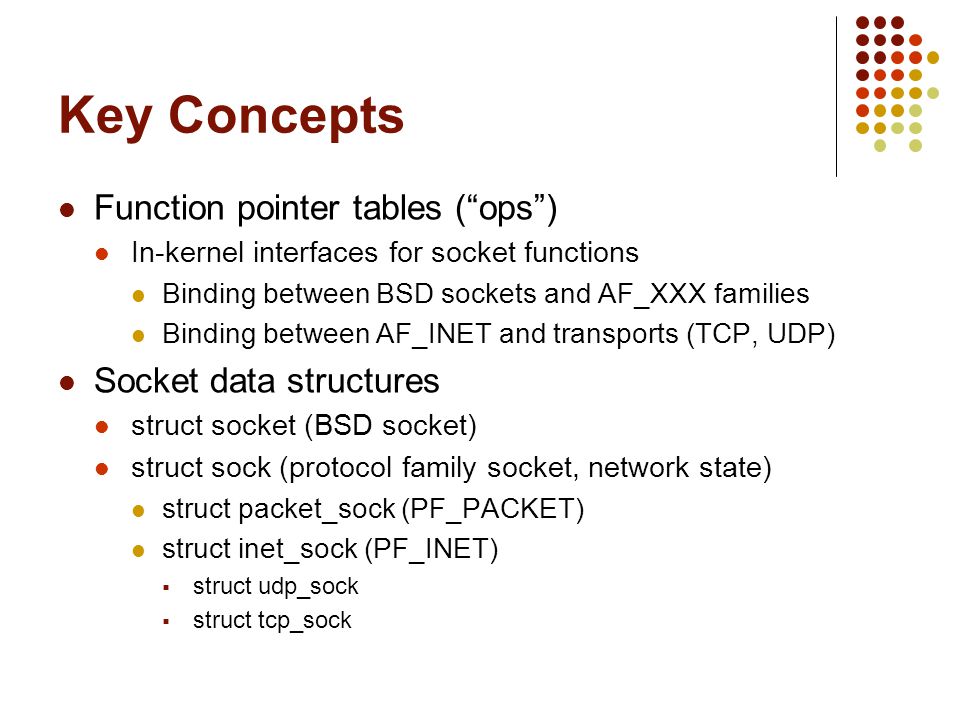

12. Key Concepts Function pointer tables (“ops”) In-kernel interfaces for socket functions Binding between BSD sockets and AF_XXX families Binding between AF_INET and transports (TCP, UDP) Socket data structures struct socket (BSD socket) struct sock (protocol family socket, network state) struct packet_sock (PF_PACKET) struct inet_sock (PF_INET)  struct udp_sock  struct tcp_sock

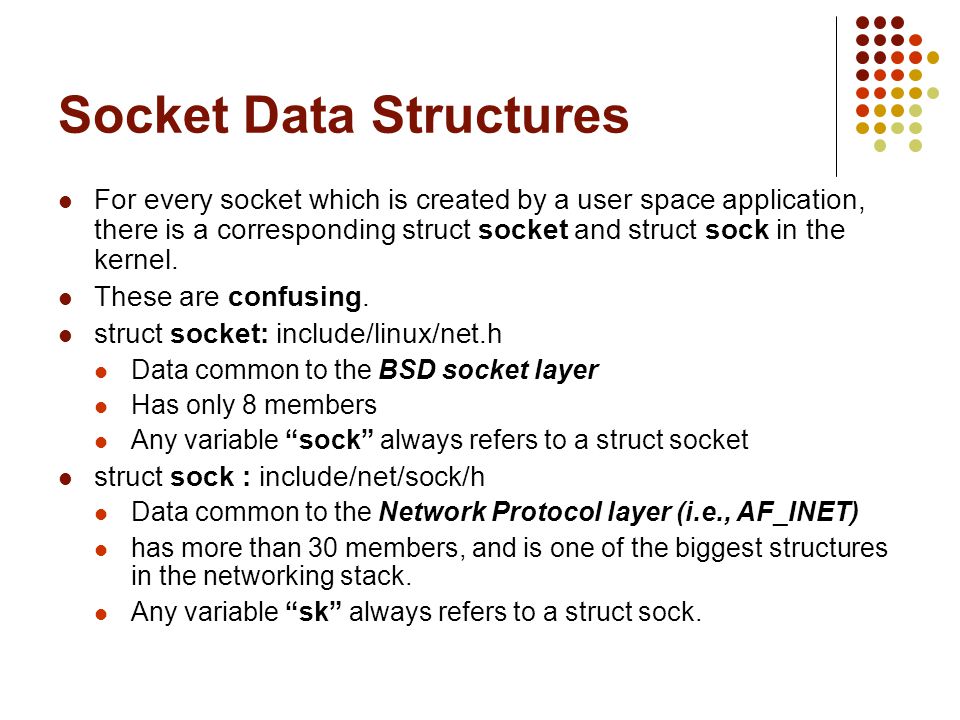

13. Socket Data Structures For every socket which is created by a user space application, there is a corresponding struct socket and struct sock in the kernel. These are confusing. struct socket: include/linux/net.h Data common to the BSD socket layer Has only 8 members Any variable “sock” always refers to a struct socket struct sock : include/net/sock/h Data common to the Network Protocol layer (i.e., AF_INET) has more than 30 members, and is one of the biggest structures in the networking stack. Any variable “sk” always refers to a struct sock.

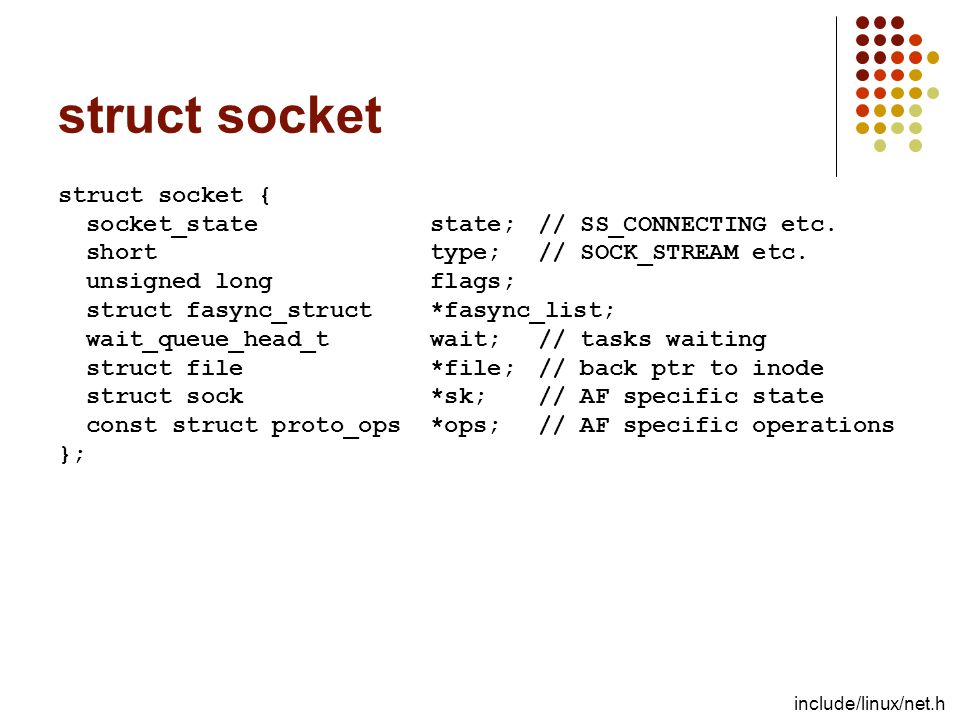

14. struct socket struct socket { socket_state state;// SS_CONNECTING etc. short type;// SOCK_STREAM etc. unsigned long flags; struct fasync_struct *fasync_list; wait_queue_head_t wait;// tasks waiting struct file *file;// back ptr to inode struct sock *sk;// AF specific state const struct proto_ops *ops;// AF specific operations }; include/linux/net.h

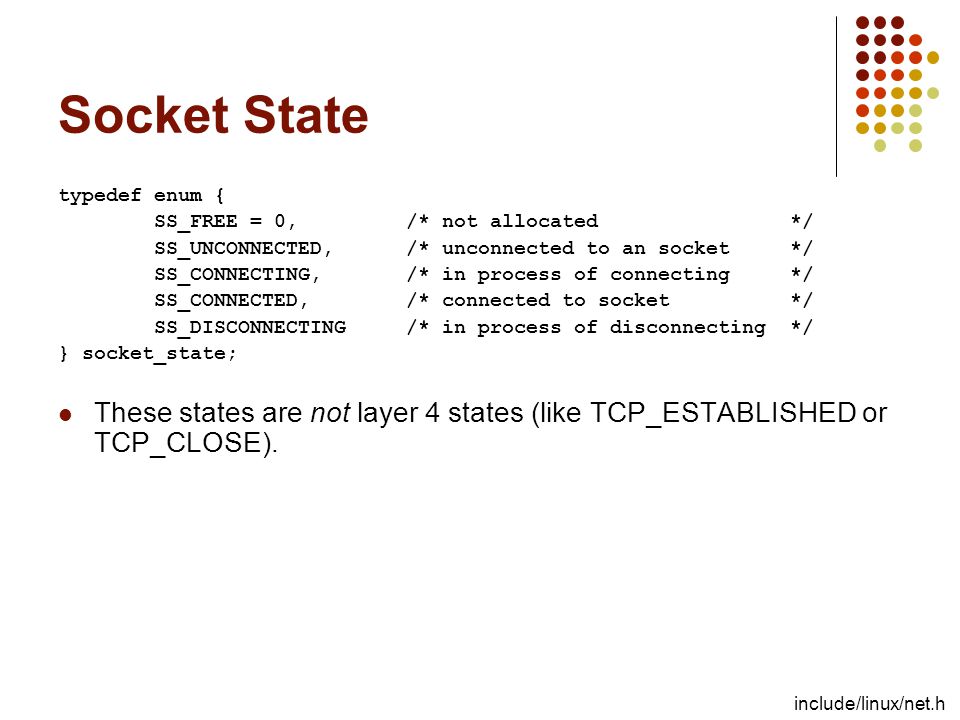

15. Socket State typedef enum { SS_FREE = 0, /* not allocated */ SS_UNCONNECTED, /* unconnected to an socket */ SS_CONNECTING, /* in process of connecting */ SS_CONNECTED, /* connected to socket */ SS_DISCONNECTING /* in process of disconnecting */ } socket_state; These states are not layer 4 states (like TCP_ESTABLISHED or TCP_CLOSE). include/linux/net.h

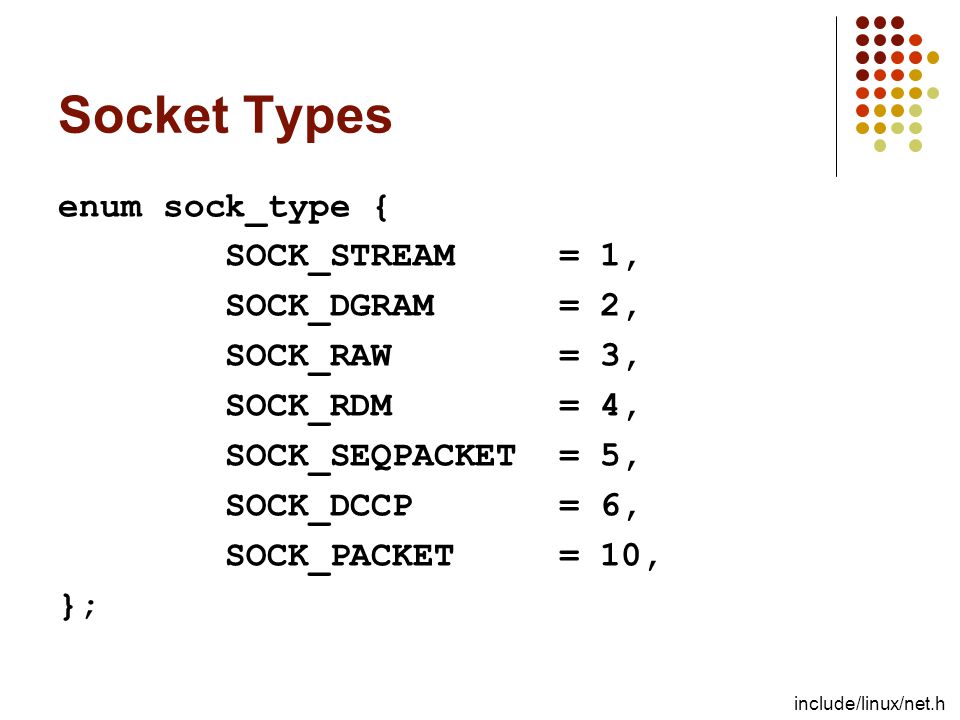

16. Socket Types enum sock_type { SOCK_STREAM = 1, SOCK_DGRAM = 2, SOCK_RAW = 3, SOCK_RDM = 4, SOCK_SEQPACKET = 5, SOCK_DCCP = 6, SOCK_PACKET = 10, }; include/linux/net.h

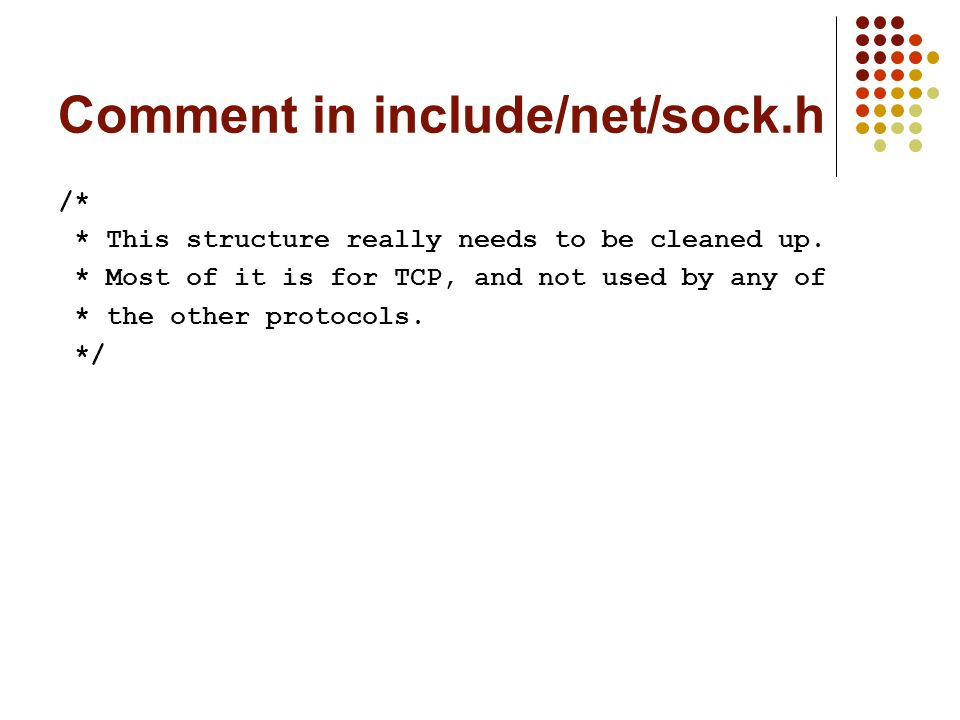

17. Comment in include/net/sock.h /* * This structure really needs to be cleaned up. * Most of it is for TCP, and not used by any of * the other protocols. */

18. struct sock_common /* minimal network layer representation of sockets */ struct sock_common { /* * first fields are not copied in sock_copy() */ union { struct hlist_node skc_node; // main hash linkage for lookup struct hlist_nulls_node skc_nulls_node; // main hash for TCP/UDP }; atomic_t skc_refcnt; int skc_tx_queue_mapping; // tx queue for this connection union { unsigned int skc_hash; // hash value for lookup __u16 skc_u16hashes[2]; }; unsigned short skc_family; // network address family volatile unsigned char skc_state; // Connection state unsigned char skc_reuse; // SO_REUSEADDR setting int skc_bound_dev_if; // bound if !=0 union { struct hlist_node skc_bind_node; // bind hash linkage struct hlist_nulls_node skc_portaddr_node; // bind hash for UDP/Lite }; struct proto *skc_prot; // protocol handlers in a net family }; include/net/sock.h

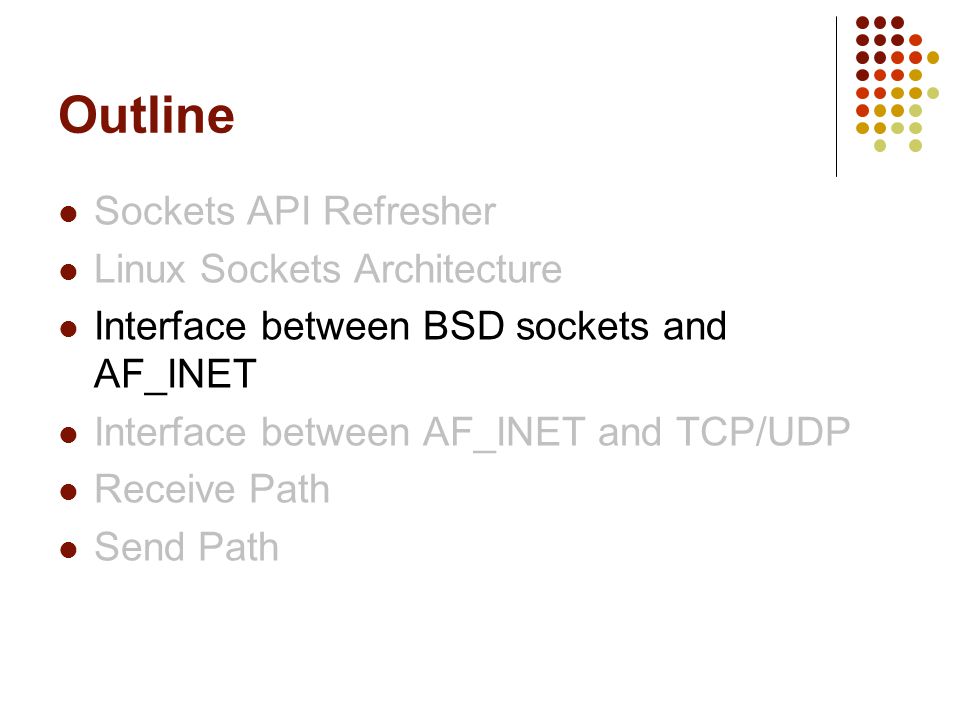

19. Outline Sockets API Refresher Linux Sockets Architecture Interface between BSD sockets and AF_INET Interface between AF_INET and TCP/UDP Receive Path Send Path

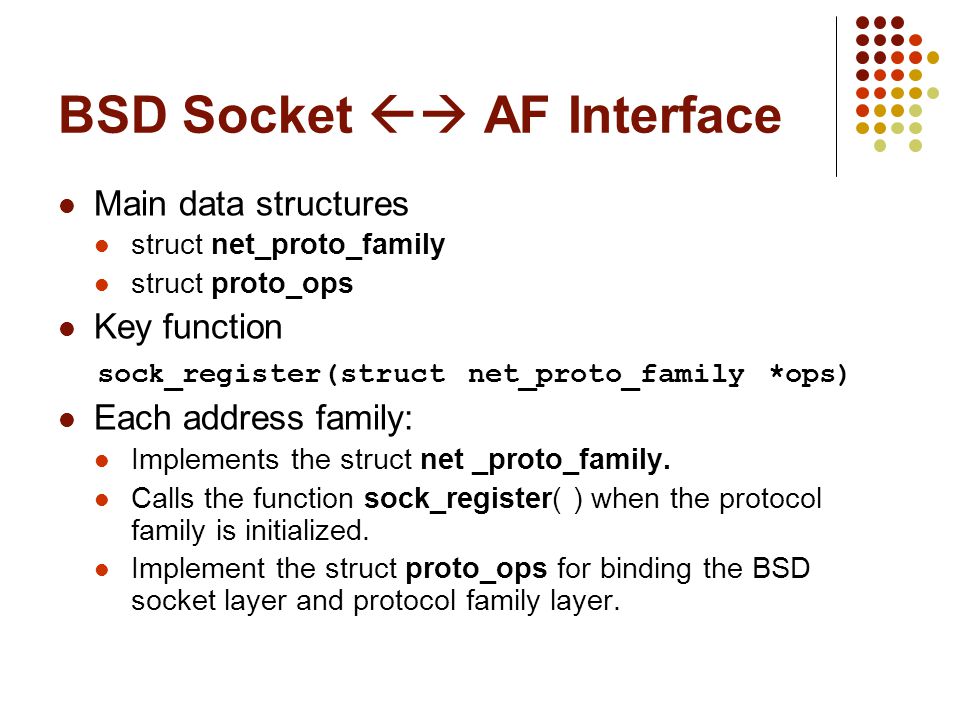

20. BSD Socket  AF Interface Main data structures struct net_proto_family struct proto_ops Key function sock_register(struct net_proto_family *ops) Each address family: Implements the struct net _proto_family. Calls the function sock_register( ) when the protocol family is initialized. Implement the struct proto_ops for binding the BSD socket layer and protocol family layer.

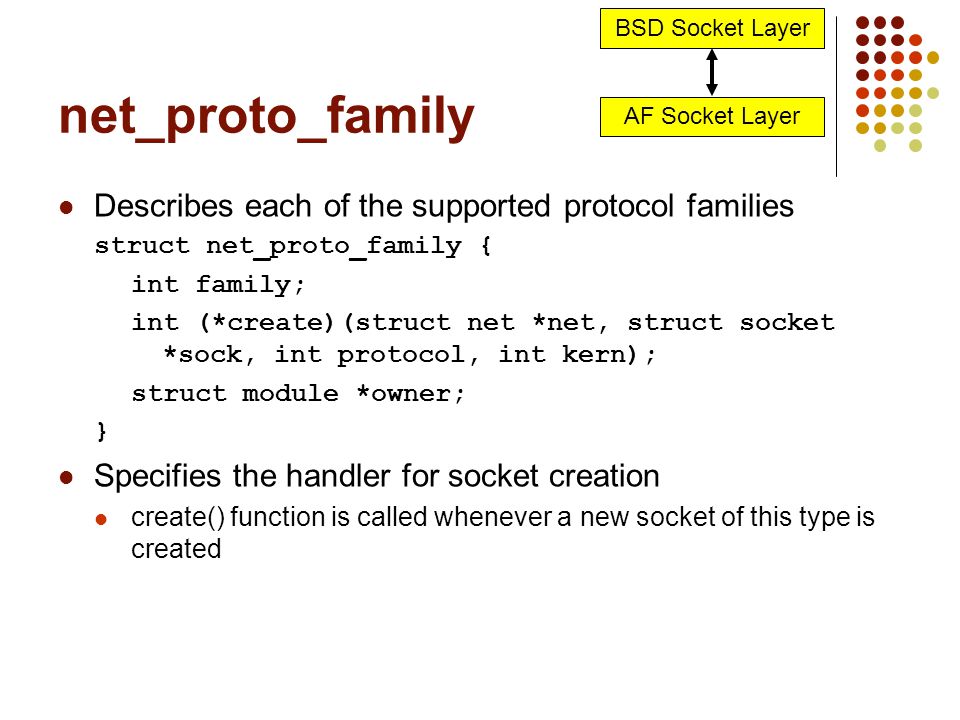

21. net_proto_family Describes each of the supported protocol families struct net_proto_family { int family; int (*create)(struct net *net, struct socket *sock, int protocol, int kern); struct module *owner; } Specifies the handler for socket creation create() function is called whenever a new socket of this type is created BSD Socket Layer AF Socket Layer

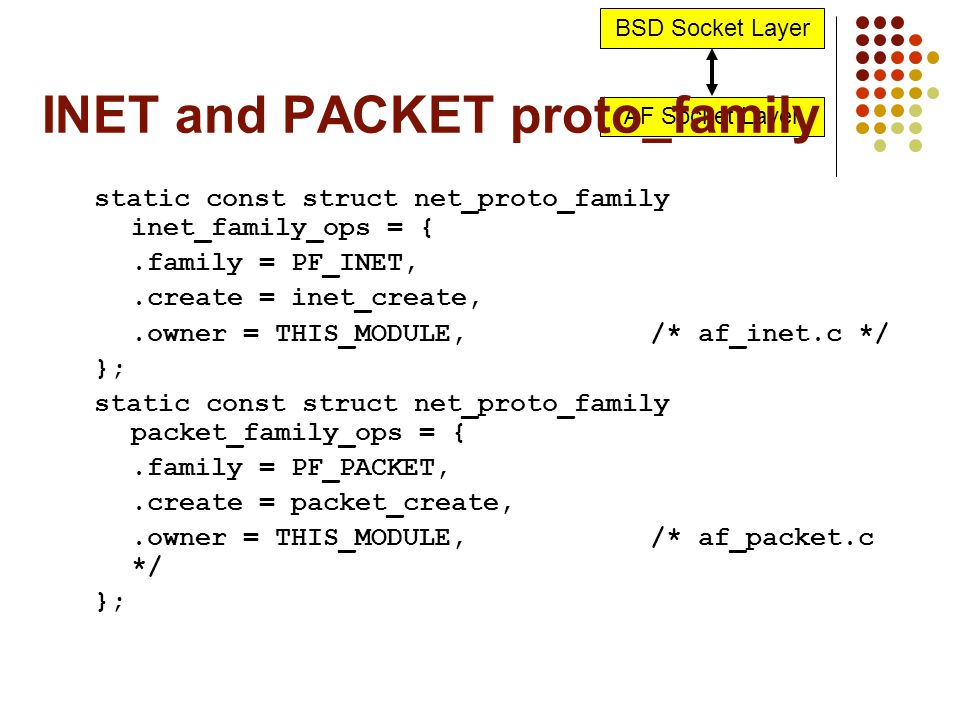

22. INET and PACKET proto_family static const struct net_proto_family inet_family_ops = {.family = PF_INET,.create = inet_create,.owner = THIS_MODULE, /* af_inet.c */ }; static const struct net_proto_family packet_family_ops = {.family = PF_PACKET,.create = packet_create,.owner = THIS_MODULE, /* af_packet.c */ }; BSD Socket Layer

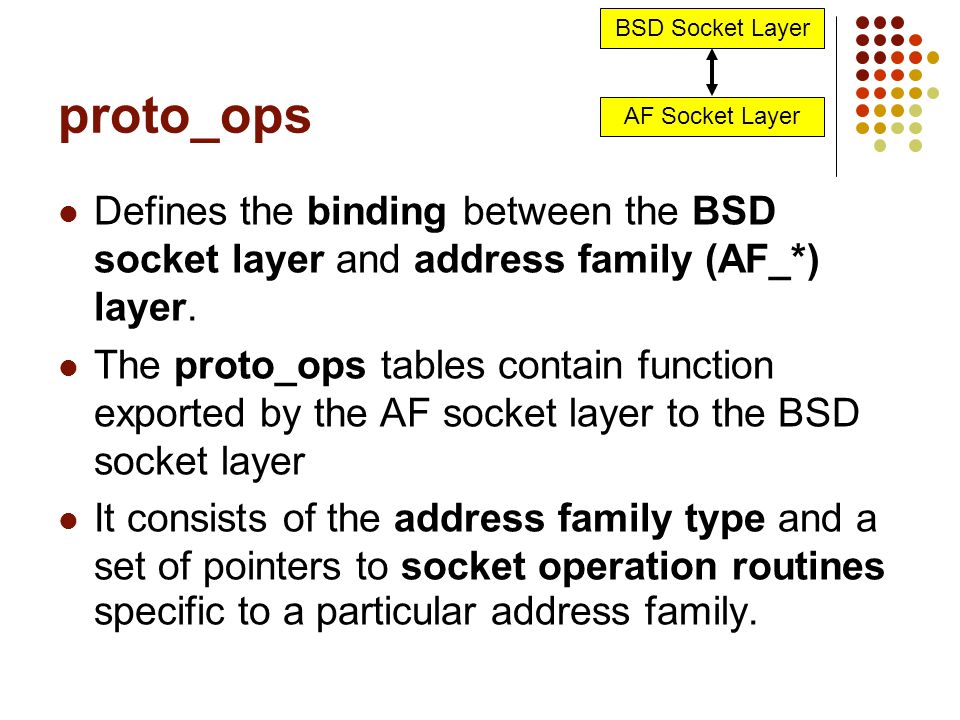

23. proto_ops Defines the binding between the BSD socket layer and address family (AF_*) layer. The proto_ops tables contain function exported by the AF socket layer to the BSD socket layer It consists of the address family type and a set of pointers to socket operation routines specific to a particular address family. BSD Socket Layer AF Socket Layer

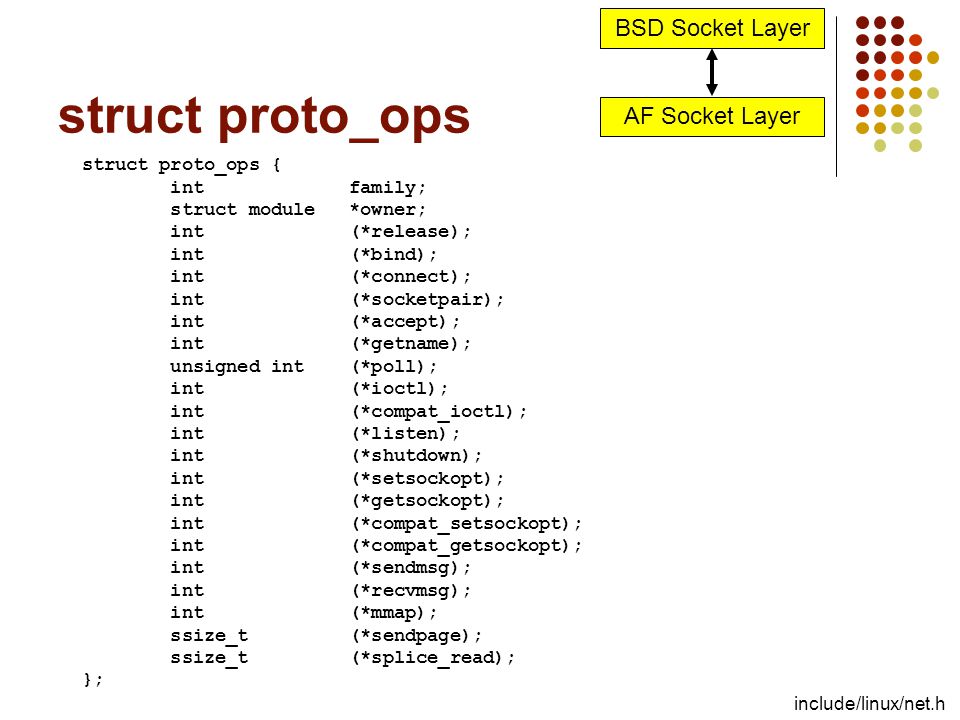

24. struct proto_ops struct proto_ops { int family; struct module *owner; int (*release); int (*bind); int (*connect); int (*socketpair); int (*accept); int (*getname); unsigned int (*poll); int (*ioctl); int (*compat_ioctl); int (*listen); int (*shutdown); int (*setsockopt); int (*getsockopt); int (*compat_setsockopt); int (*compat_getsockopt); int (*sendmsg); int (*recvmsg); int (*mmap); ssize_t (*sendpage); ssize_t (*splice_read); }; include/linux/net.h BSD Socket Layer AF Socket Layer

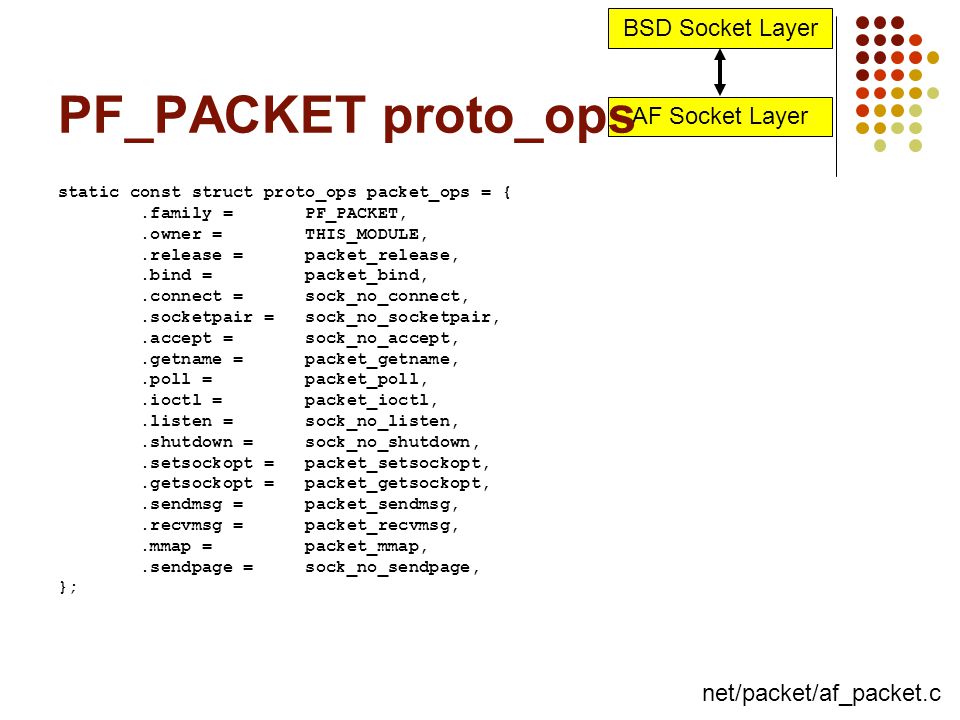

25. PF_PACKET proto_ops static const struct proto_ops packet_ops = {.family = PF_PACKET,.owner = THIS_MODULE,.release = packet_release,.bind = packet_bind,.connect = sock_no_connect,.socketpair = sock_no_socketpair,.accept = sock_no_accept,.getname = packet_getname,.poll = packet_poll,.ioctl = packet_ioctl,.listen = sock_no_listen,.shutdown = sock_no_shutdown,.setsockopt = packet_setsockopt,.getsockopt = packet_getsockopt,.sendmsg = packet_sendmsg,.recvmsg = packet_recvmsg,.mmap = packet_mmap,.sendpage = sock_no_sendpage, }; net/packet/af_packet.c BSD Socket Layer

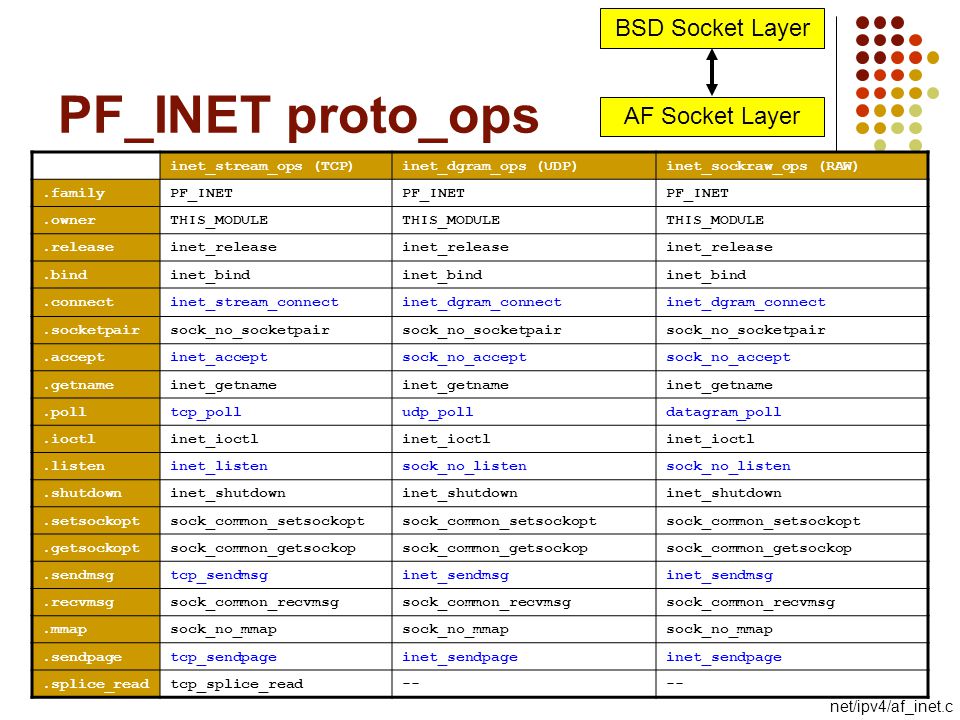

26. PF_INET proto_ops inet_stream_ops (TCP)inet_dgram_ops (UDP)inet_sockraw_ops (RAW).familyPF_INET.ownerTHIS_MODULE.releaseinet_release.bindinet_bind.connectinet_stream_connectinet_dgram_connect.socketpairsock_no_socketpair.acceptinet_acceptsock_no_accept.getnameinet_getname.polltcp_polludp_polldatagram_poll.ioctlinet_ioctl.listeninet_listensock_no_listen.shutdowninet_shutdown.setsockoptsock_common_setsockopt.getsockoptsock_common_getsockop.sendmsgtcp_sendmsginet_sendmsg.recvmsgsock_common_recvmsg.mmapsock_no_mmap.sendpagetcp_sendpageinet_sendpage.splice_readtcp_splice_read-- net/ipv4/af_inet.c BSD Socket Layer AF Socket Layer

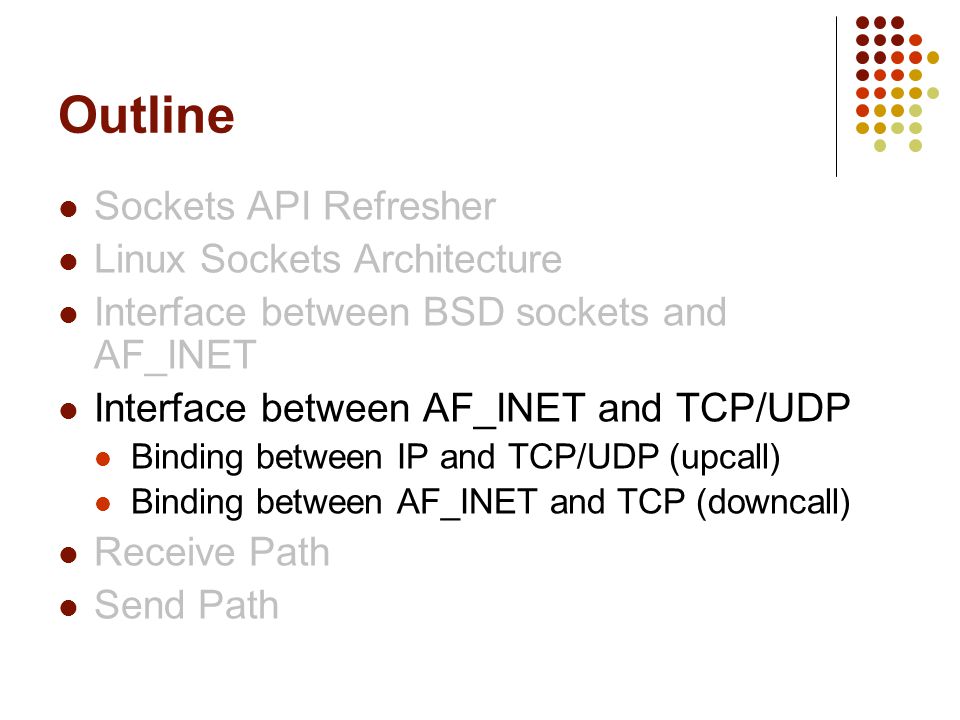

27. Outline Sockets API Refresher Linux Sockets Architecture Interface between BSD sockets and AF_INET Interface between AF_INET and TCP/UDP Binding between IP and TCP/UDP (upcall) Binding between AF_INET and TCP (downcall) Receive Path Send Path

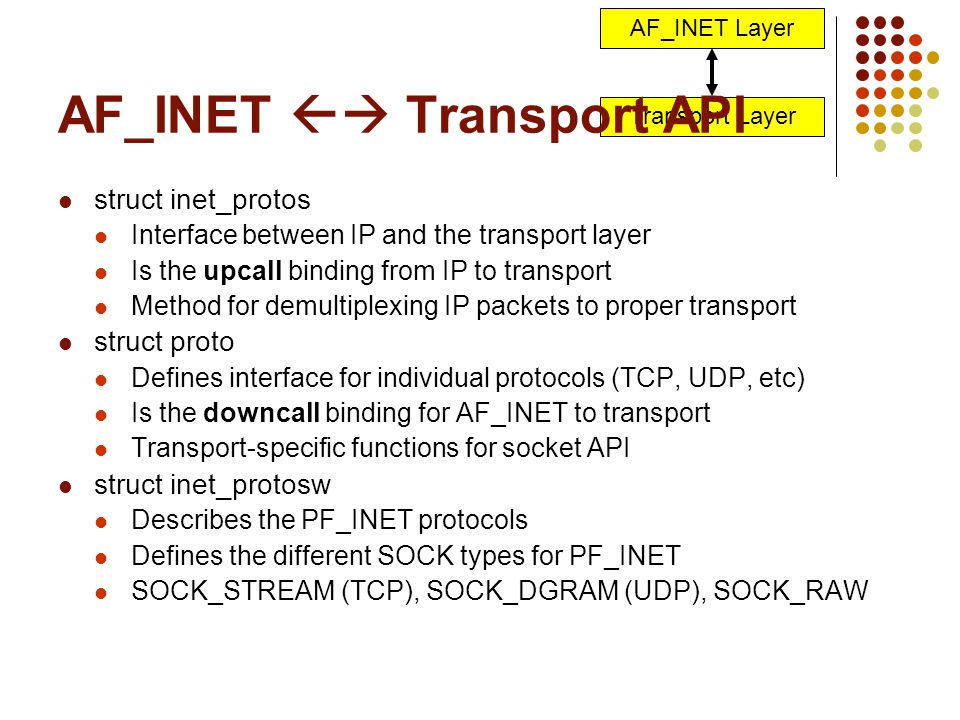

28. Transport Layer AF_INET  Transport API struct inet_protos Interface between IP and the transport layer Is the upcall binding from IP to transport Method for demultiplexing IP packets to proper transport struct proto Defines interface for individual protocols (TCP, UDP, etc) Is the downcall binding for AF_INET to transport Transport-specific functions for socket API struct inet_protosw Describes the PF_INET protocols Defines the different SOCK types for PF_INET SOCK_STREAM (TCP), SOCK_DGRAM (UDP), SOCK_RAW AF_INET Layer

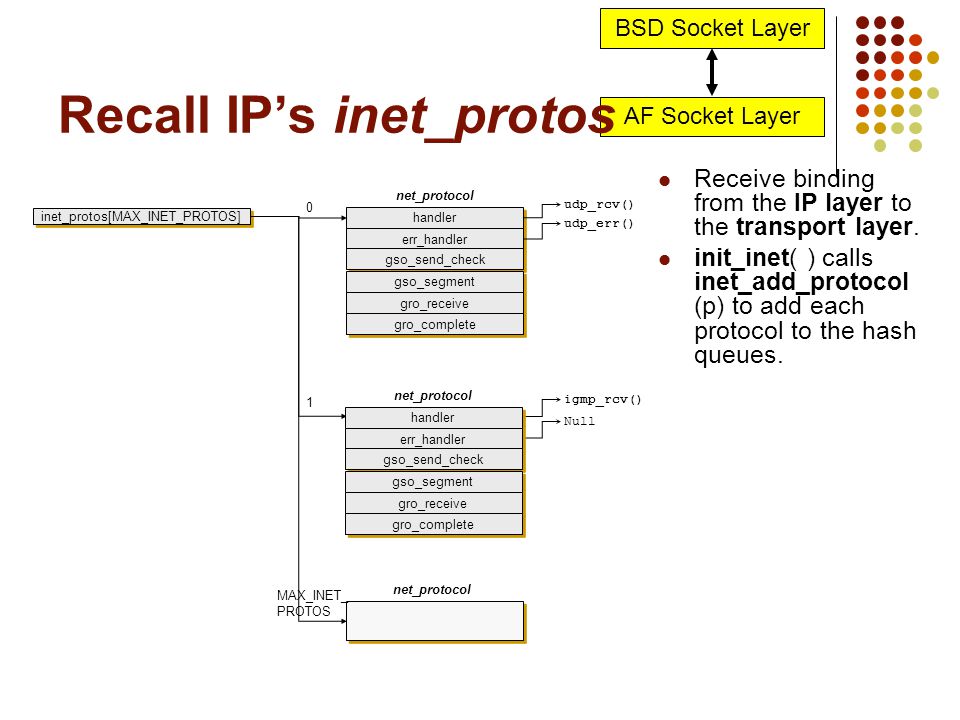

29. AF Socket Layer Recall IP’s inet_protos handler err_handler net_protocol gso_send_check udp_rcv() udp_err() igmp_rcv() Null inet_protos[MAX_INET_PROTOS] 0 1 MAX_INET_ PROTOS net_protocol gso_segment gro_receive gro_complete handler err_handler net_protocol gso_send_check gso_segment gro_receive gro_complete Receive binding from the IP layer to the transport layer. init_inet( ) calls inet_add_protocol (p) to add each protocol to the hash queues. BSD Socket Layer

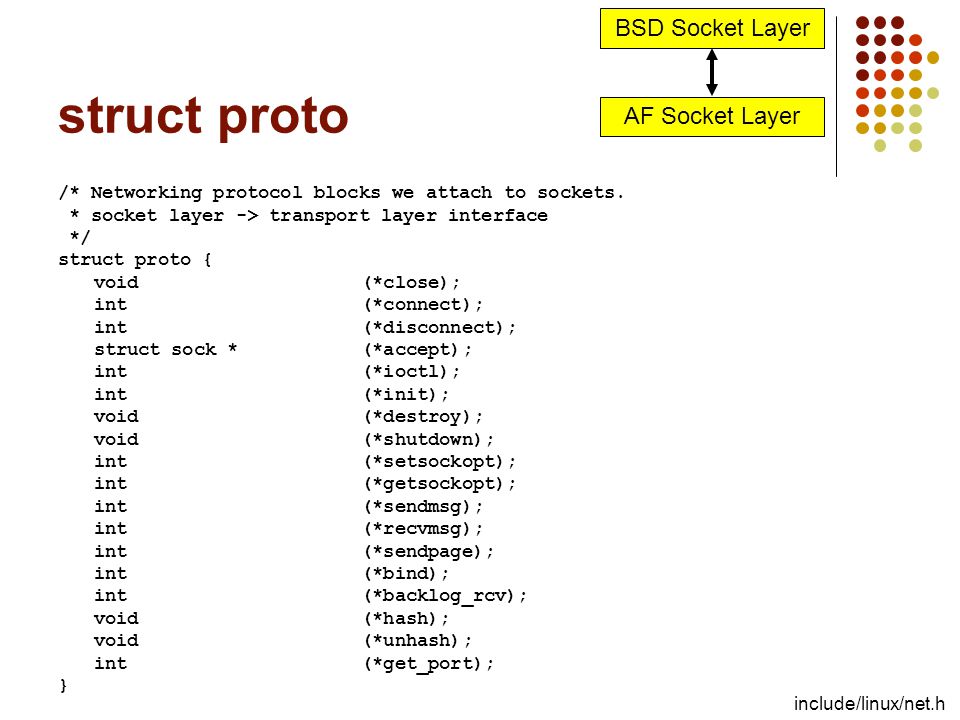

30. struct proto /* Networking protocol blocks we attach to sockets. * socket layer -> transport layer interface */ struct proto { void (*close); int (*connect); int (*disconnect); struct sock * (*accept); int (*ioctl); int (*init); void (*destroy); void (*shutdown); int (*setsockopt); int (*getsockopt); int (*sendmsg); int (*recvmsg); int (*sendpage); int (*bind); int (*backlog_rcv); void (*hash); void (*unhash); int (*get_port); } include/linux/net.h BSD Socket Layer AF Socket Layer

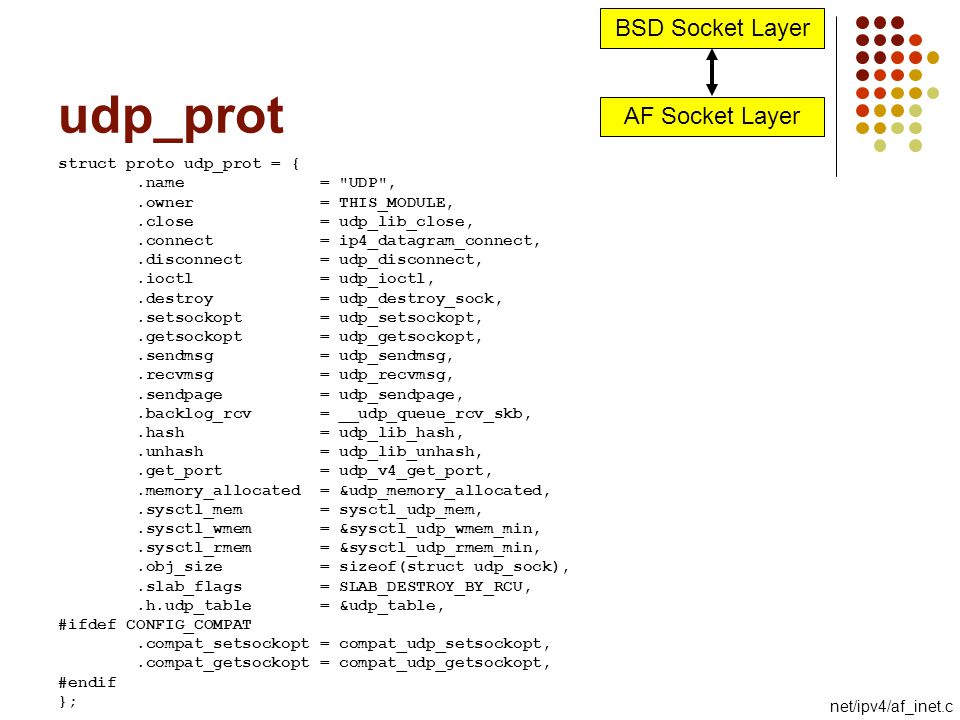

31. udp_prot net/ipv4/af_inet.c struct proto udp_prot = {.name = "UDP",.owner = THIS_MODULE,.close = udp_lib_close,.connect = ip4_datagram_connect,.disconnect = udp_disconnect,.ioctl = udp_ioctl,.destroy = udp_destroy_sock,.setsockopt = udp_setsockopt,.getsockopt = udp_getsockopt,.sendmsg = udp_sendmsg,.recvmsg = udp_recvmsg,.sendpage = udp_sendpage,.backlog_rcv = __udp_queue_rcv_skb,.hash = udp_lib_hash,.unhash = udp_lib_unhash,.get_port = udp_v4_get_port,.memory_allocated = &udp_memory_allocated,.sysctl_mem = sysctl_udp_mem,.sysctl_wmem = &sysctl_udp_wmem_min,.sysctl_rmem = &sysctl_udp_rmem_min,.obj_size = sizeof(struct udp_sock),.slab_flags = SLAB_DESTROY_BY_RCU,.h.udp_table = &udp_table, #ifdef CONFIG_COMPAT.compat_setsockopt = compat_udp_setsockopt,.compat_getsockopt = compat_udp_getsockopt, #endif }; BSD Socket Layer AF Socket Layer

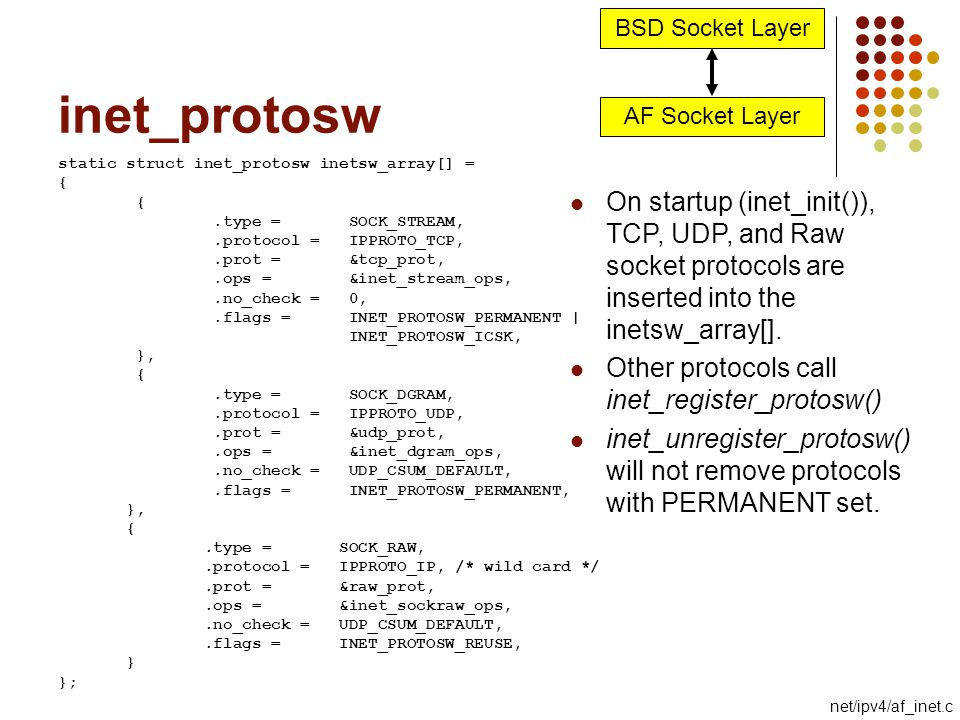

32. inet_protosw static struct inet_protosw inetsw_array[] = {.type = SOCK_STREAM,.protocol = IPPROTO_TCP,.prot = &tcp_prot,.ops = &inet_stream_ops,.no_check = 0,.flags = INET_PROTOSW_PERMANENT | INET_PROTOSW_ICSK, }, {.type = SOCK_DGRAM,.protocol = IPPROTO_UDP,.prot = &udp_prot,.ops = &inet_dgram_ops,.no_check = UDP_CSUM_DEFAULT,.flags = INET_PROTOSW_PERMANENT, }, {.type = SOCK_RAW,.protocol = IPPROTO_IP, /* wild card */.prot = &raw_prot,.ops = &inet_sockraw_ops,.no_check = UDP_CSUM_DEFAULT,.flags = INET_PROTOSW_REUSE, } }; net/ipv4/af_inet.c On startup (inet_init()), TCP, UDP, and Raw socket protocols are inserted into the inetsw_array[]. Other protocols call inet_register_protosw() inet_unregister_protosw() will not remove protocols with PERMANENT set. BSD Socket Layer AF Socket Layer

33. Relationships struct sock sk_common sk_lock sk_backlog... struct socket state type flags fasync_list struct proto_ops inet_release inet_bind inet_accept... wait file sk proto_ops struct proto udp_lib_close ipv4_dgram_connect udp_sendmsg udp_recvmsg... af_inet.c PF_INET (*sk_prot_creator) sk_socket struct sock_common skc_node skc_refcnt skc_hash... skc_proto skc_net sk_send_head...

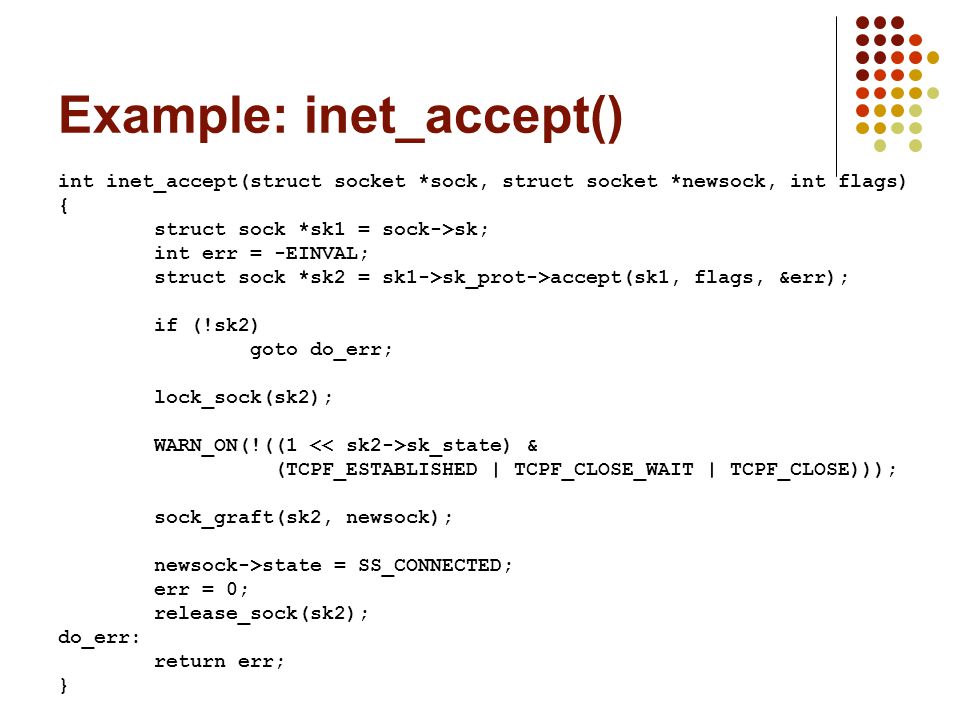

34. Example: inet_accept() int inet_accept(struct socket *sock, struct socket *newsock, int flags) { struct sock *sk1 = sock->sk; int err = -EINVAL; struct sock *sk2 = sk1->sk_prot->accept(sk1, flags, &err); if (!sk2) goto do_err; lock_sock(sk2); WARN_ON(!((1 sk_state) & (TCPF_ESTABLISHED | TCPF_CLOSE_WAIT | TCPF_CLOSE))); sock_graft(sk2, newsock); newsock->state = SS_CONNECTED; err = 0; release_sock(sk2); do_err: return err; }
