1. Interfacing with ELF files An introduction to the Executable and Linkable Format (ELF) binary file specification standard

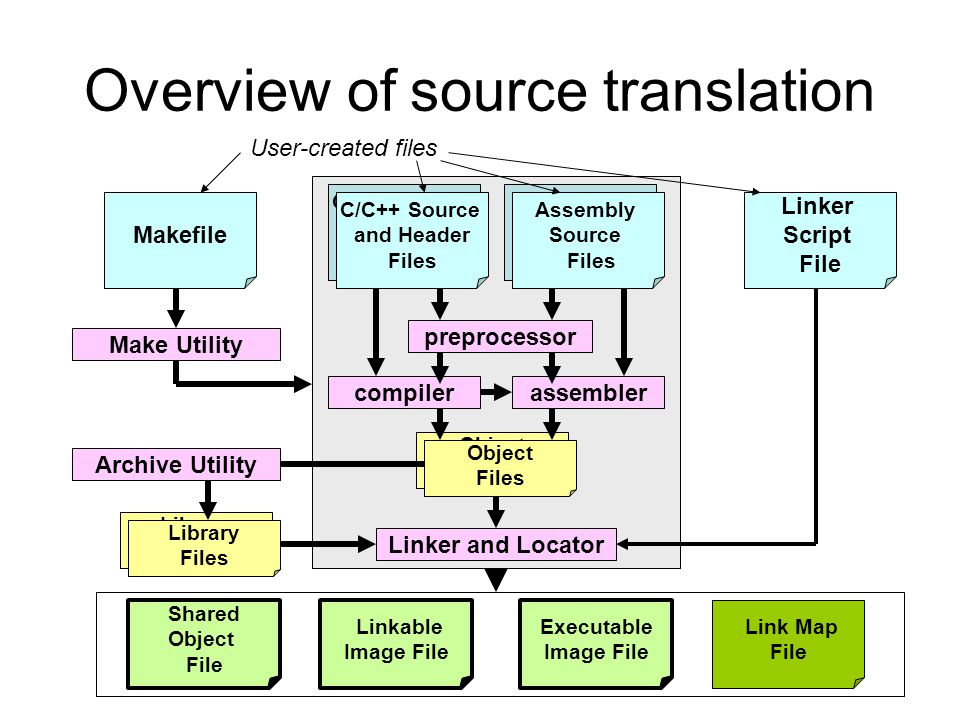

2. Library Files Object Files Assembly Source Files C/C++ Source and Header Files Overview of source translation Makefile C/C++ Source and Header Files Assembly Source Files Linker Script File User-created files preprocessor compilerassembler Make Utility Object Files Shared Object File Linkable Image File Executable Image File Link Map File Linker and Locator Library Files Archive Utility

3. Section-Header Table (optional) Executable versus Linkable ELF Header Section 2 Data Section 3 Data … Section n Data Segment 1 Data Segment 2 Data Segment 3 Data … Segment n Data Linkable FileExecutable File Section-Header Table Program-Header Table (optional) Program-Header Table ELF Header Section 1 Data

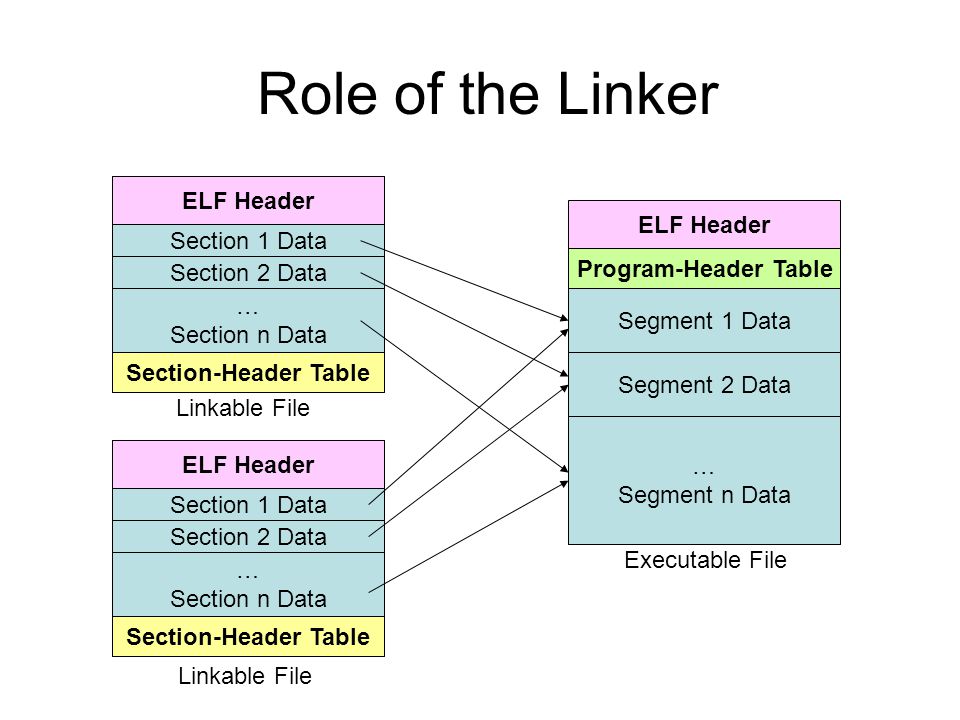

4. Role of the Linker ELF Header Section-Header Table Section 1 Data Section 2 Data … Section n Data ELF Header Section-Header Table Section 1 Data Section 2 Data … Section n Data ELF Header Program-Header Table Segment 1 Data Segment 2 Data … Segment n Data Linkable File Executable File

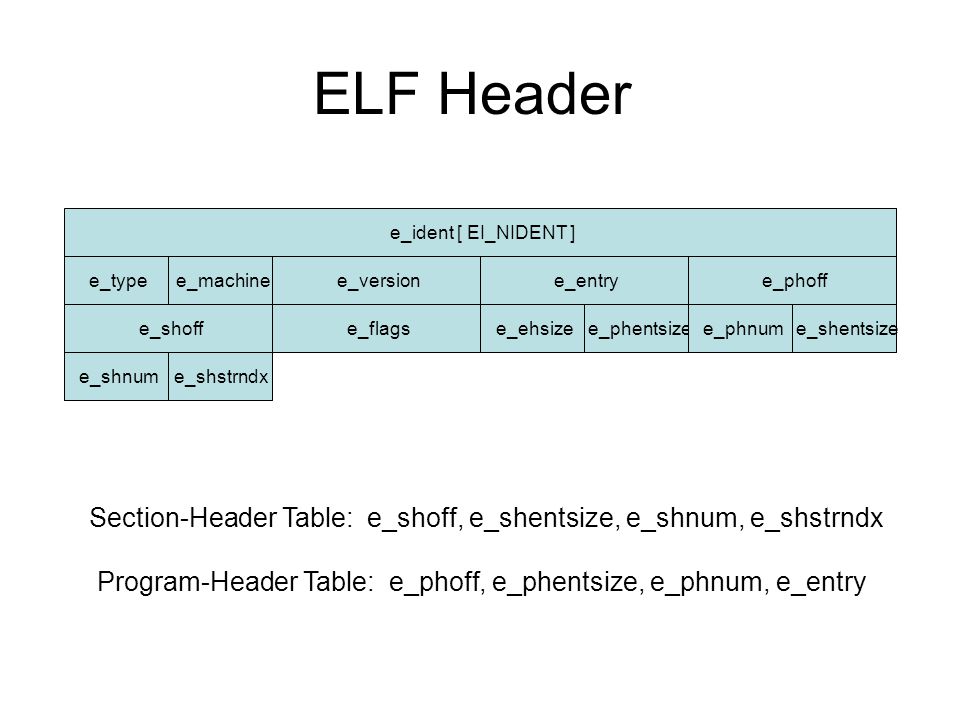

5. ELF Header e_type e_machine e_version e_entry e_phoff e_shoff e_flags e_ehsize e_phentsize e_phnum e_shentsize e_shnume_shstrndx e_ident [ EI_NIDENT ] Section-Header Table: e_shoff, e_shentsize, e_shnum, e_shstrndx Program-Header Table: e_phoff, e_phentsize, e_phnum, e_entry

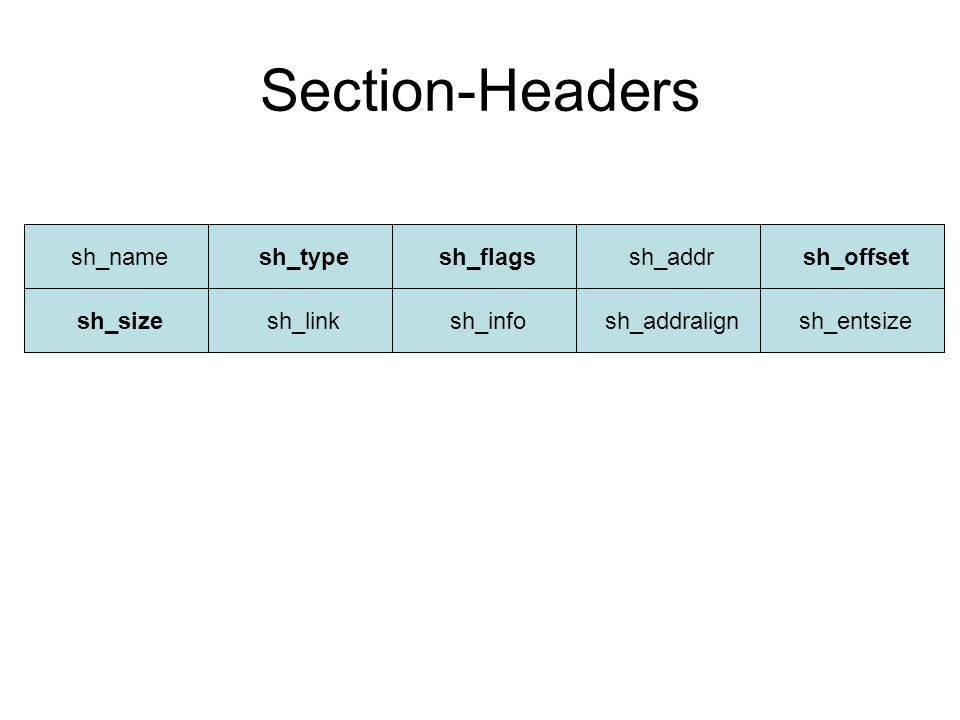

6. Section-Headers sh_name sh_type sh_flags sh_addr sh_offset sh_size sh_link sh_info sh_addralign sh_entsize

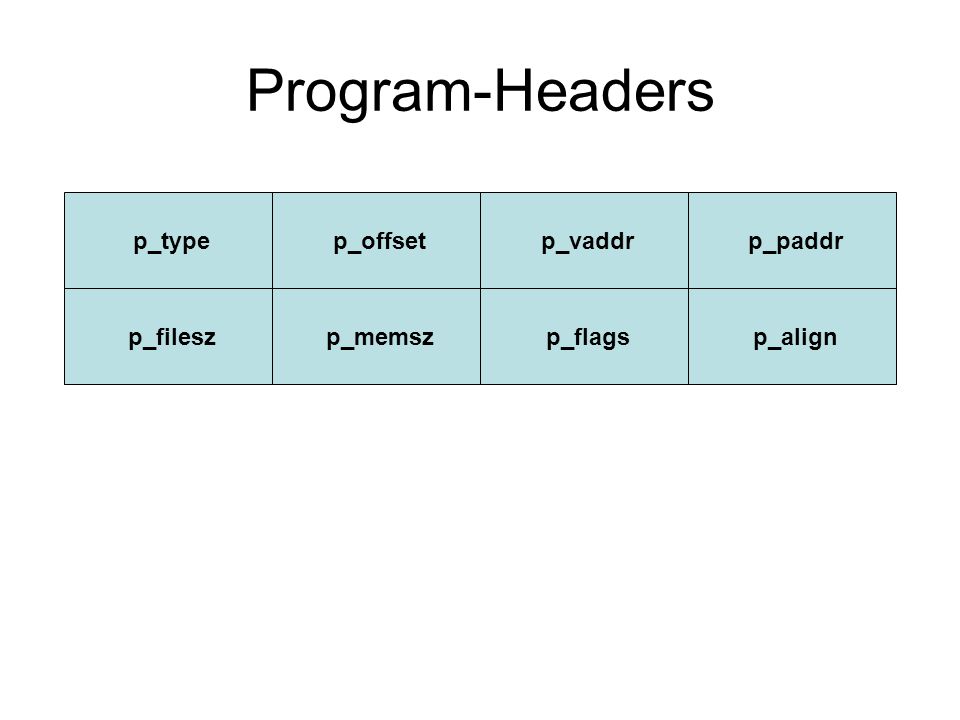

7. Program-Headers p_type p_offset p_vaddr p_paddr p_filesz p_memsz p_flags p_align

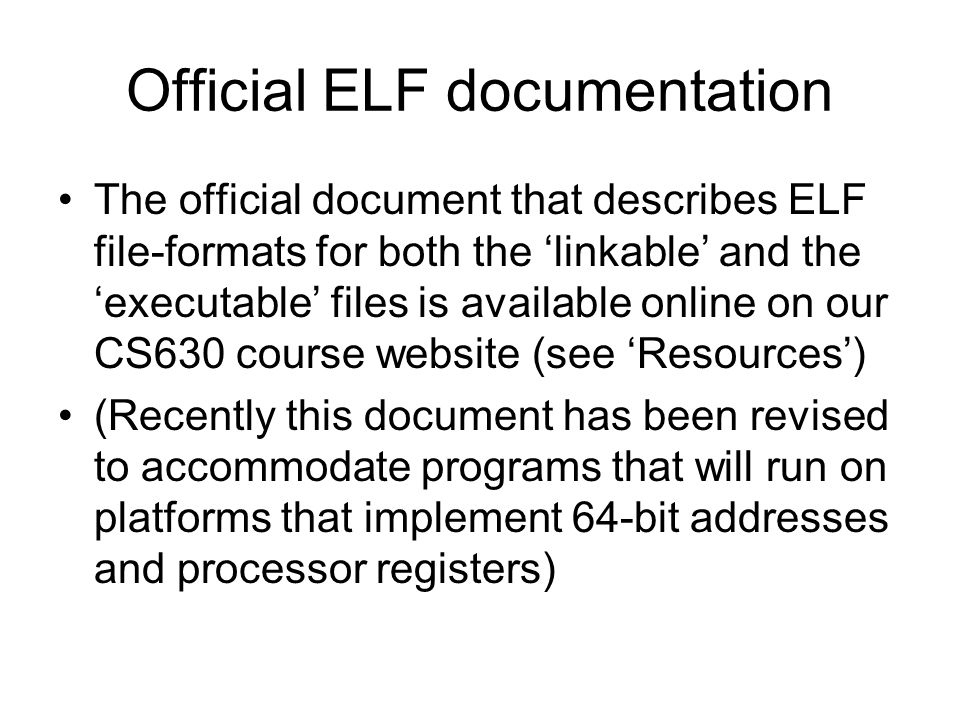

8. Official ELF documentation The official document that describes ELF file-formats for both the ‘linkable’ and the ‘executable’ files is available online on our CS630 course website (see ‘Resources’) (Recently this document has been revised to accommodate programs that will run on platforms that implement 64-bit addresses and processor registers)

9. Memory: Physical vs. Virtual Virtual Address Space (4 GB) Physical address space (2 GB) Portions of physical memory are “mapped” by the CPU into regions of each task’s ‘virtual’ address-space

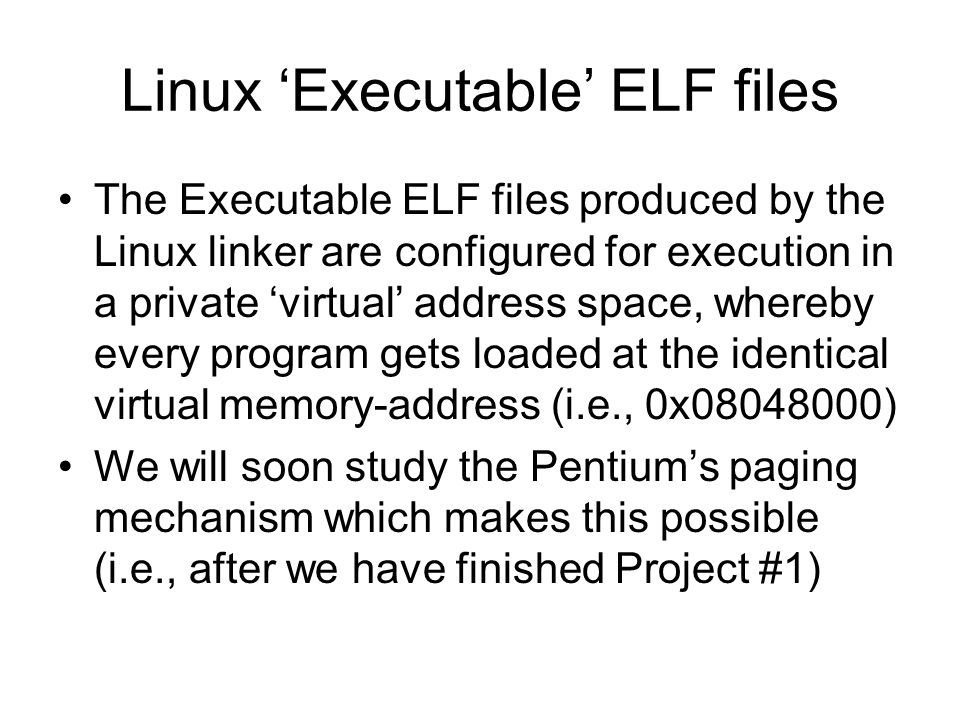

10. Linux ‘Executable’ ELF files The Executable ELF files produced by the Linux linker are configured for execution in a private ‘virtual’ address space, whereby every program gets loaded at the identical virtual memory-address (i.e., 0x08048000) We will soon study the Pentium’s paging mechanism which makes this possible (i.e., after we have finished Project #1)

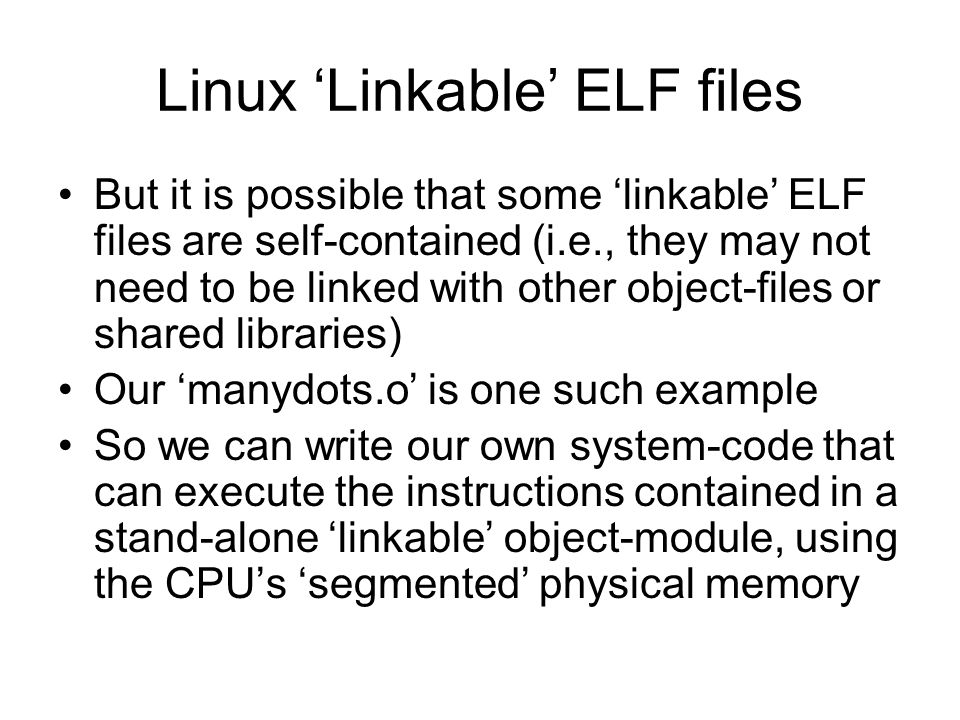

11. Linux ‘Linkable’ ELF files But it is possible that some ‘linkable’ ELF files are self-contained (i.e., they may not need to be linked with other object-files or shared libraries) Our ‘manydots.o’ is one such example So we can write our own system-code that can execute the instructions contained in a stand-alone ‘linkable’ object-module, using the CPU’s ‘segmented’ physical memory

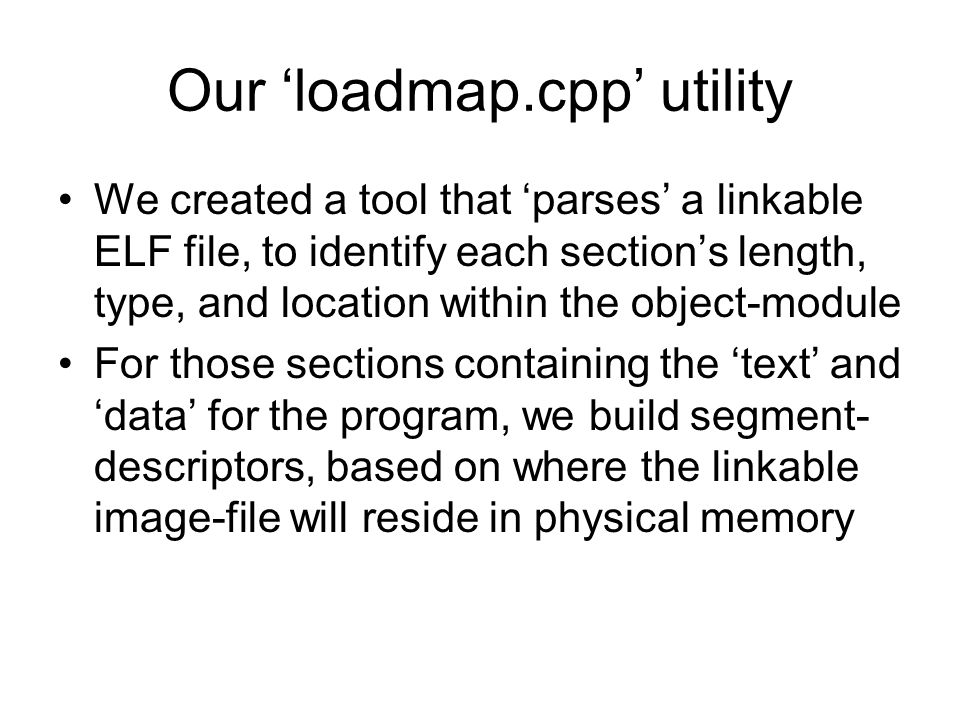

12. Our ‘loadmap.cpp’ utility We created a tool that ‘parses’ a linkable ELF file, to identify each section’s length, type, and location within the object-module For those sections containing the ‘text’ and ‘data’ for the program, we build segment- descriptors, based on where the linkable image-file will reside in physical memory

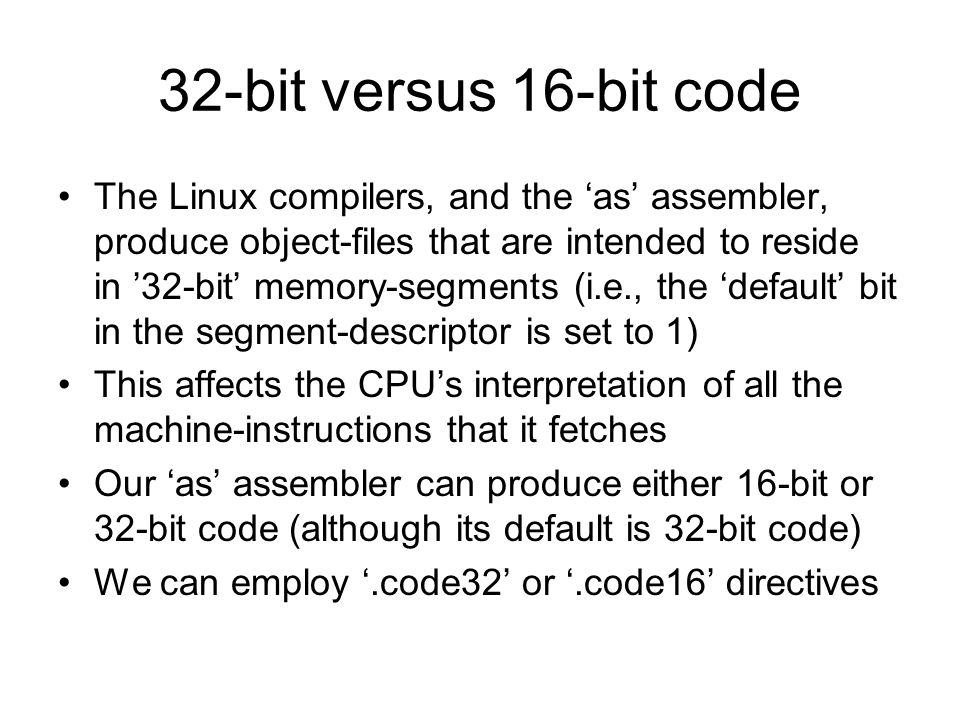

13. 32-bit versus 16-bit code The Linux compilers, and the ‘as’ assembler, produce object-files that are intended to reside in ’32-bit’ memory-segments (i.e., the ‘default’ bit in the segment-descriptor is set to 1) This affects the CPU’s interpretation of all the machine-instructions that it fetches Our ‘as’ assembler can produce either 16-bit or 32-bit code (although its default is 32-bit code) We can employ ‘.code32’ or ‘.code16’ directives

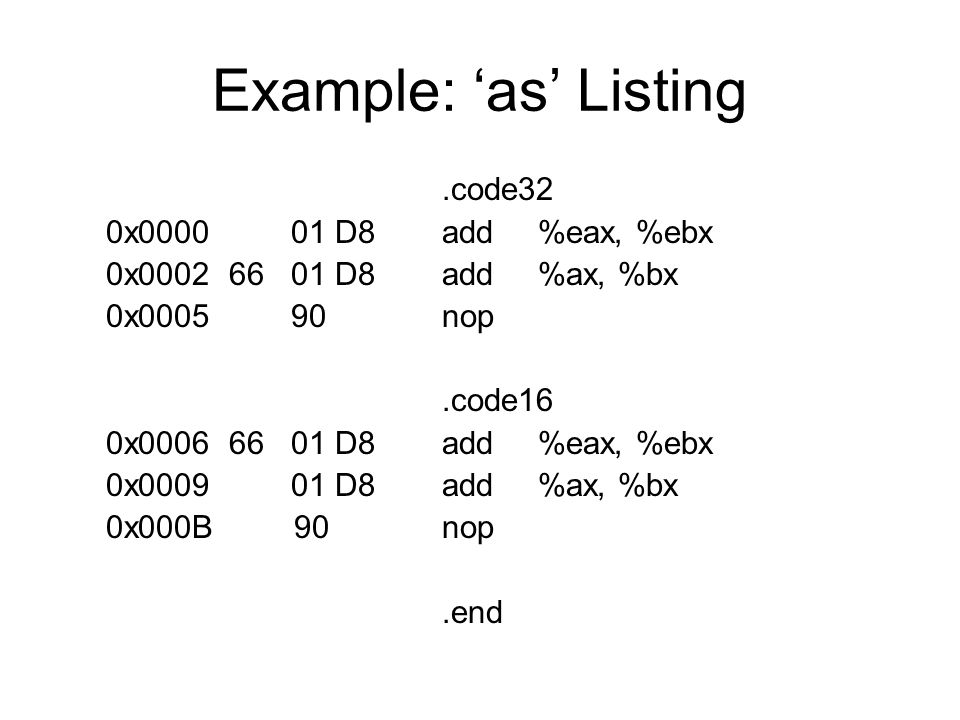

14. Example: ‘as’ Listing.code32 0x0000 01 D8add%eax, %ebx 0x0002 66 01 D8add%ax, %bx 0x0005 90nop.code16 0x0006 66 01 D8add%eax, %ebx 0x0009 01 D8add%ax, %bx 0x000B 90nop.end

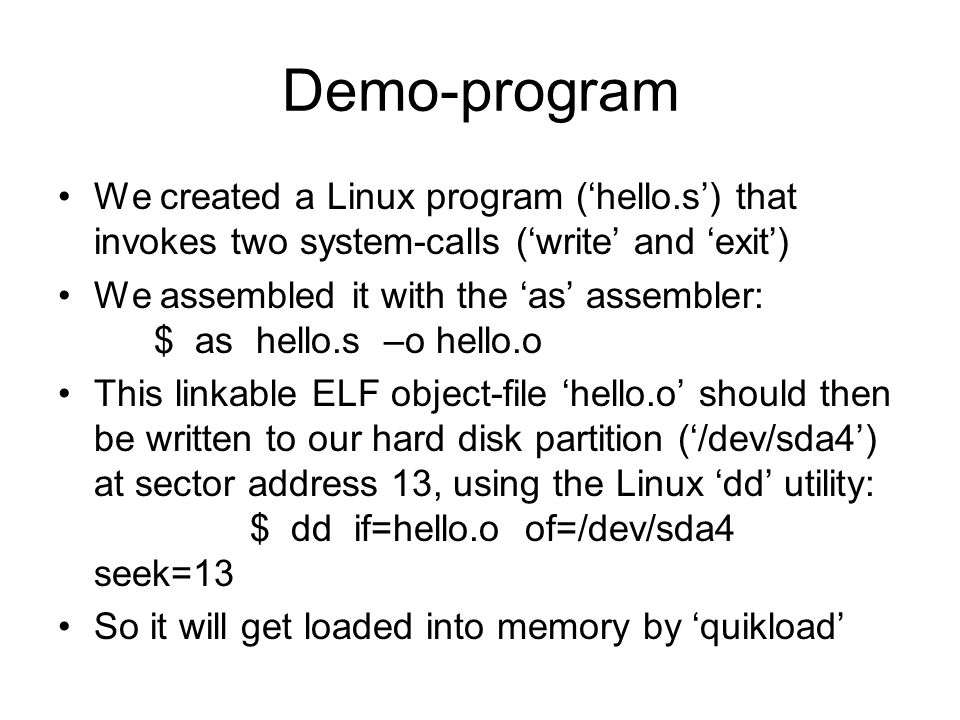

15. Demo-program We created a Linux program (‘hello.s’) that invokes two system-calls (‘write’ and ‘exit’) We assembled it with the ‘as’ assembler: $ as hello.s –o hello.o This linkable ELF object-file ‘hello.o’ should then be written to our hard disk partition (‘/dev/sda4’) at sector address 13, using the Linux ‘dd’ utility: $ dd if=hello.o of=/dev/sda4 seek=13 So it will get loaded into memory by ‘quikload’

16. Memory-Map IVT ROM-BIOS DATA BOOT-LOADER ‘try32bit.b’ image Loaded into ram from sectors 1..16 of disk-partition by our ‘quikload.b’ program-loader 0x00010000 0x00011800 0x00000400 0x00007C00 ‘quikload.b’ reads from CS630 disk partition via ROM-BIOS bootstrap ‘hello.o’ image

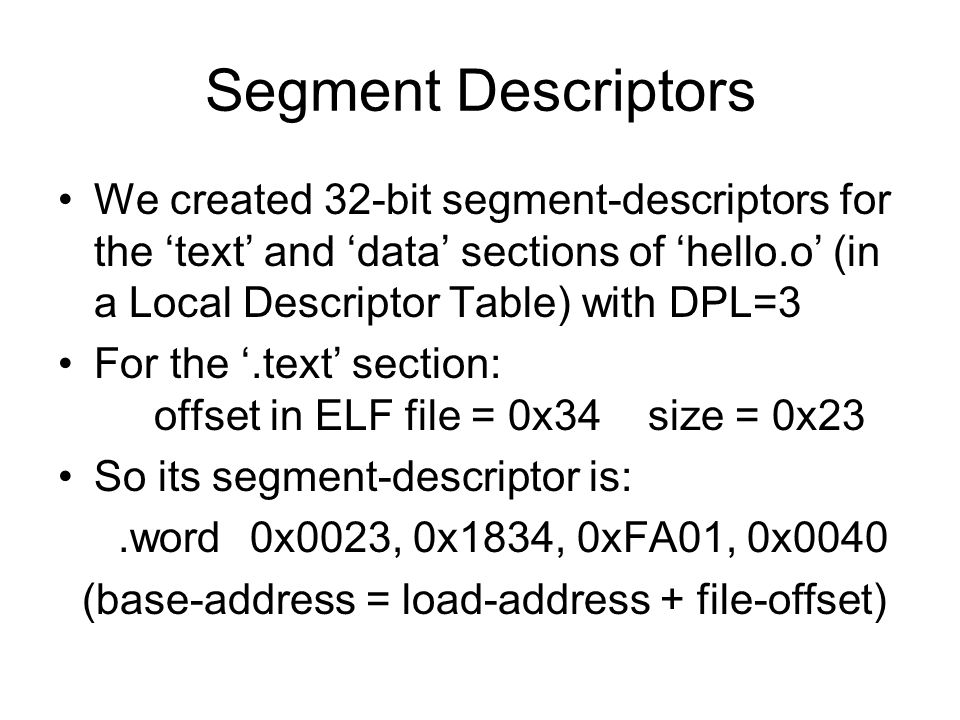

17. Segment Descriptors We created 32-bit segment-descriptors for the ‘text’ and ‘data’ sections of ‘hello.o’ (in a Local Descriptor Table) with DPL=3 For the ‘.text’ section: offset in ELF file = 0x34 size = 0x23 So its segment-descriptor is:.word0x0023, 0x1834, 0xFA01, 0x0040 (base-address = load-address + file-offset)

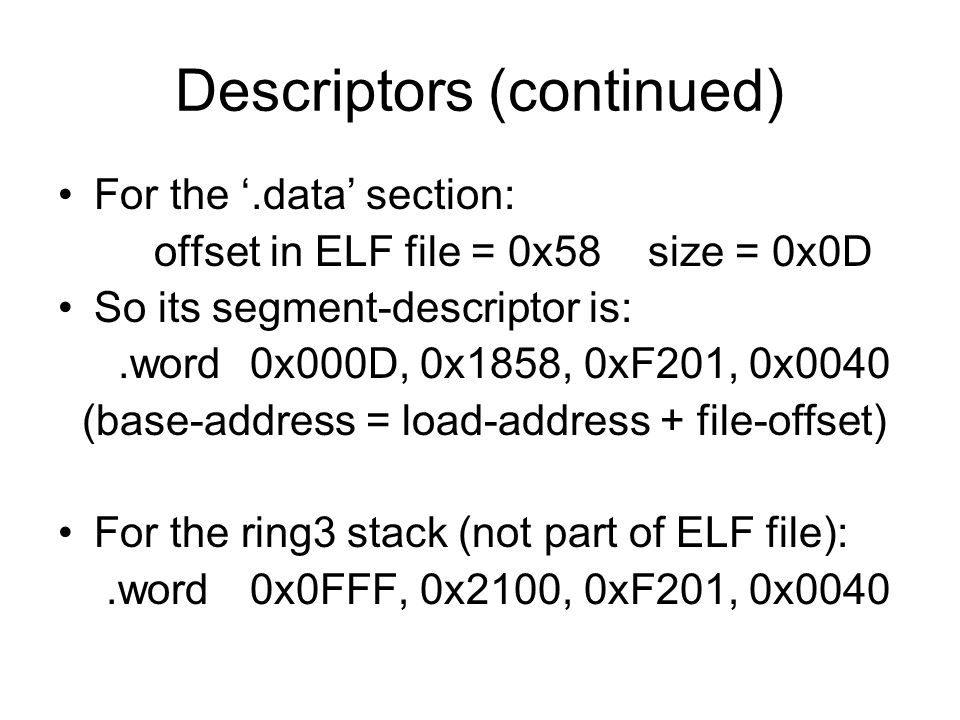

18. Descriptors (continued) For the ‘.data’ section: offset in ELF file = 0x58 size = 0x0D So its segment-descriptor is:.word0x000D, 0x1858, 0xF201, 0x0040 (base-address = load-address + file-offset) For the ring3 stack (not part of ELF file):.word0x0FFF, 0x2100, 0xF201, 0x0040

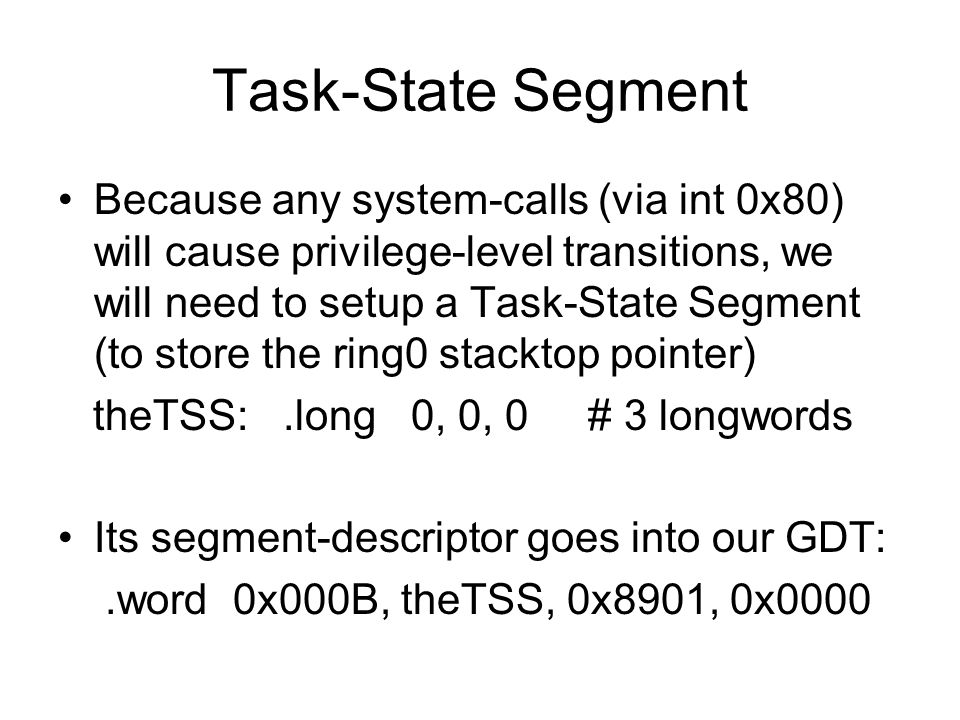

19. Task-State Segment Because any system-calls (via int 0x80) will cause privilege-level transitions, we will need to setup a Task-State Segment (to store the ring0 stacktop pointer) theTSS:.long 0, 0, 0 # 3 longwords Its segment-descriptor goes into our GDT:.word 0x000B, theTSS, 0x8901, 0x0000

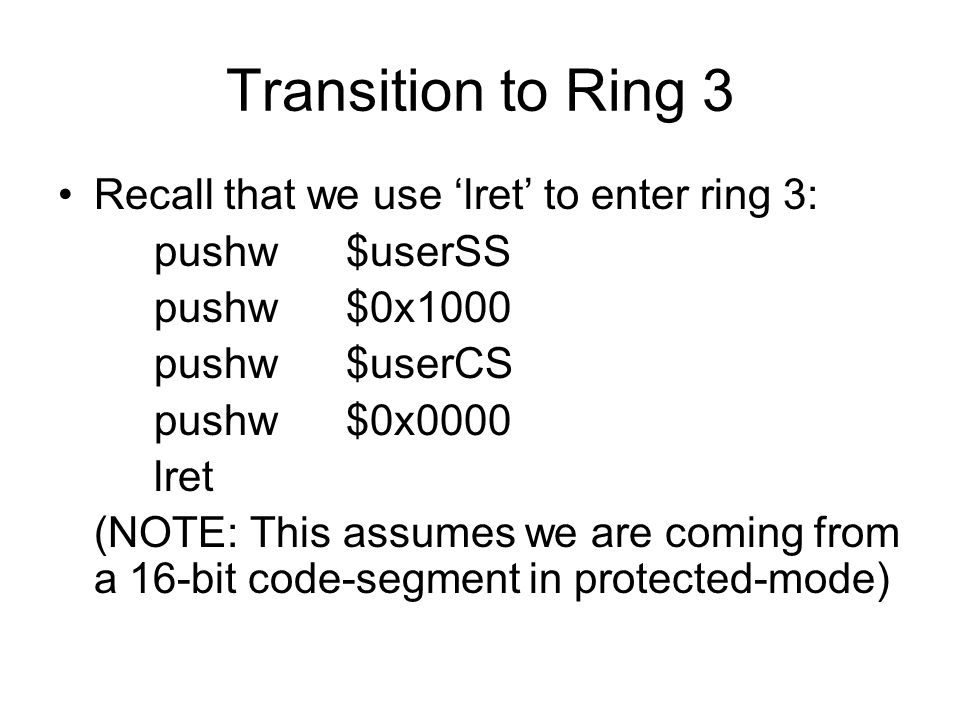

20. Transition to Ring 3 Recall that we use ‘lret’ to enter ring 3: pushw$userSS pushw$0x1000 pushw$userCS pushw$0x0000 lret (NOTE: This assumes we are coming from a 16-bit code-segment in protected-mode)

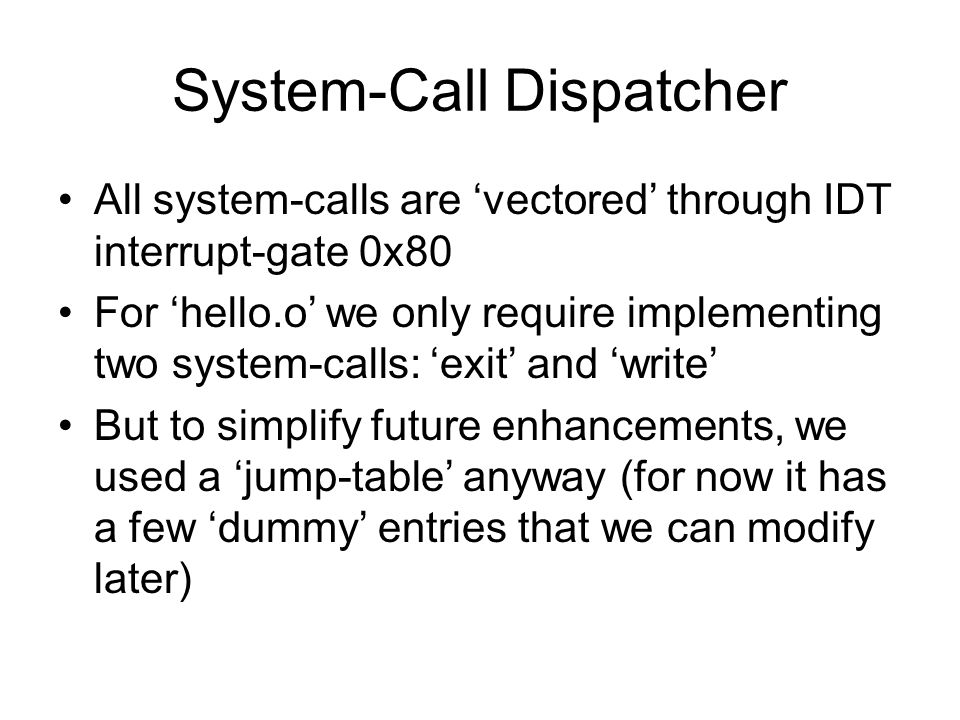

21. System-Call Dispatcher All system-calls are ‘vectored’ through IDT interrupt-gate 0x80 For ‘hello.o’ we only require implementing two system-calls: ‘exit’ and ‘write’ But to simplify future enhancements, we used a ‘jump-table’ anyway (for now it has a few ‘dummy’ entries that we can modify later)

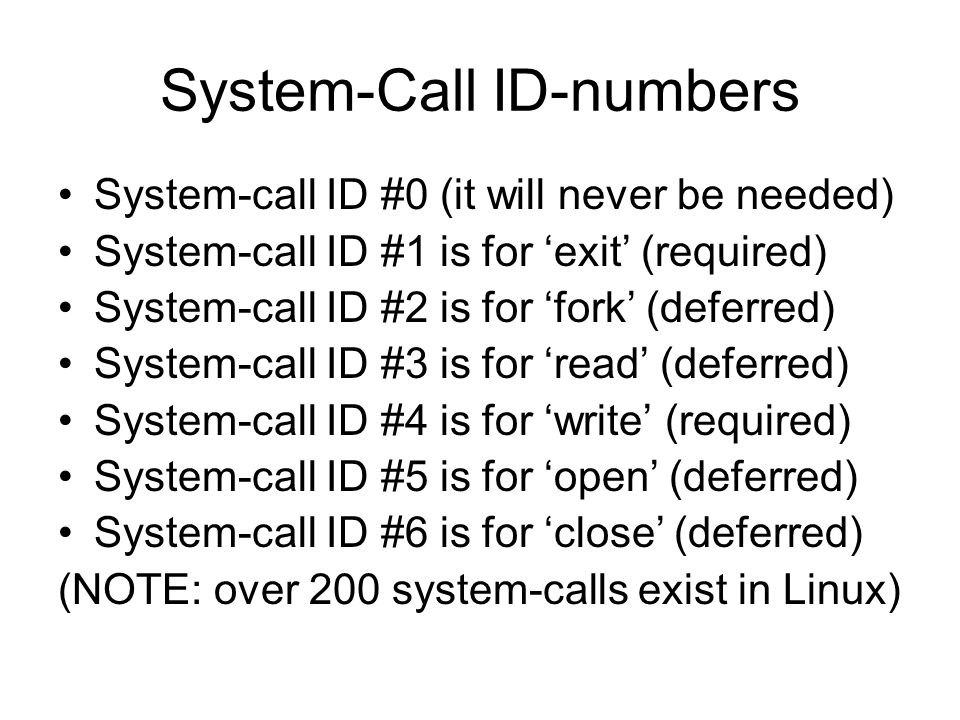

22. System-Call ID-numbers System-call ID #0 (it will never be needed) System-call ID #1 is for ‘exit’ (required) System-call ID #2 is for ‘fork’ (deferred) System-call ID #3 is for ‘read’ (deferred) System-call ID #4 is for ‘write’ (required) System-call ID #5 is for ‘open’ (deferred) System-call ID #6 is for ‘close’ (deferred) (NOTE: over 200 system-calls exist in Linux)

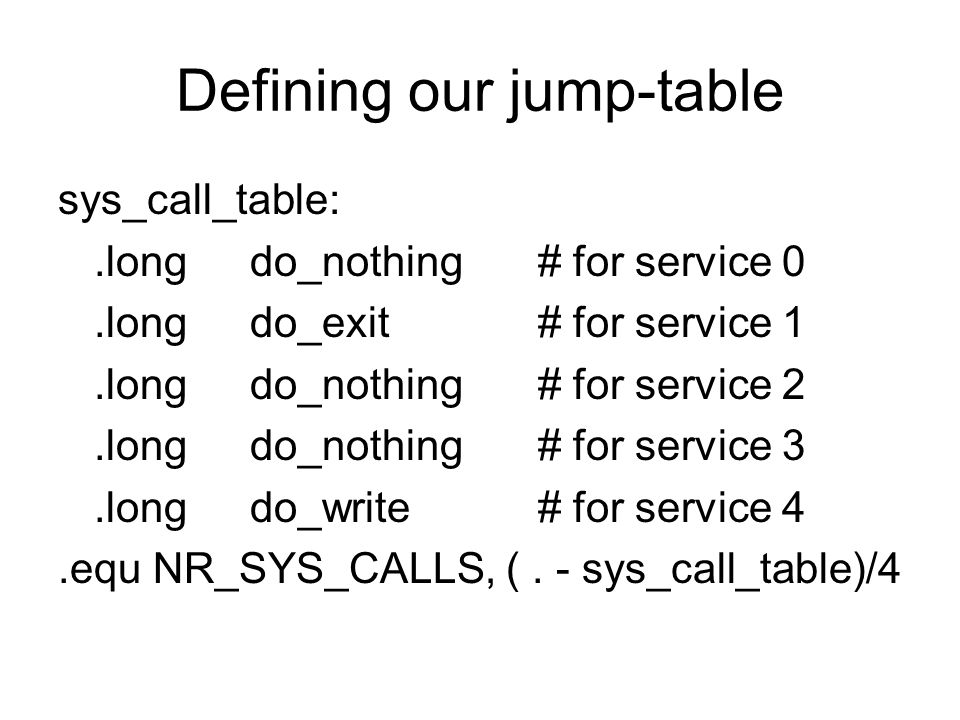

23. Defining our jump-table sys_call_table:.longdo_nothing# for service 0.longdo_exit# for service 1.longdo_nothing# for service 2.longdo_nothing# for service 3.longdo_write# for service 4.equ NR_SYS_CALLS, (. - sys_call_table)/4

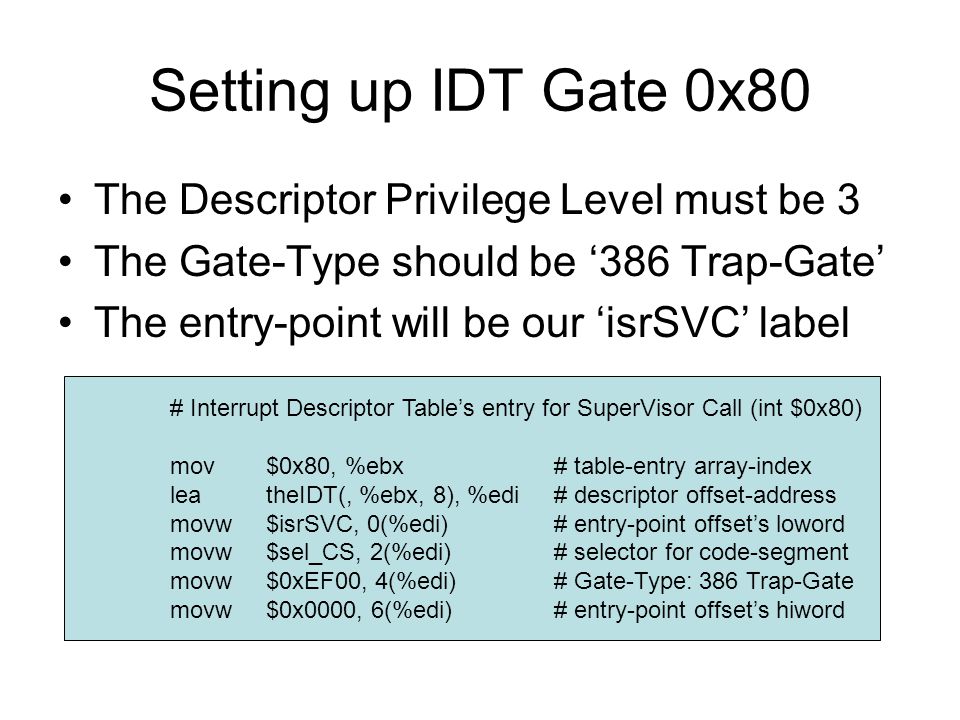

24. Setting up IDT Gate 0x80 The Descriptor Privilege Level must be 3 The Gate-Type should be ‘386 Trap-Gate’ The entry-point will be our ‘isrSVC’ label # Interrupt Descriptor Table’s entry for SuperVisor Call (int $0x80) mov$0x80, %ebx# table-entry array-index leatheIDT(, %ebx, 8), %edi# descriptor offset-address movw$isrSVC, 0(%edi)# entry-point offset’s loword movw$sel_CS, 2(%edi)# selector for code-segment movw$0xEF00, 4(%edi)# Gate-Type: 386 Trap-Gate movw$0x0000, 6(%edi)# entry-point offset’s hiword

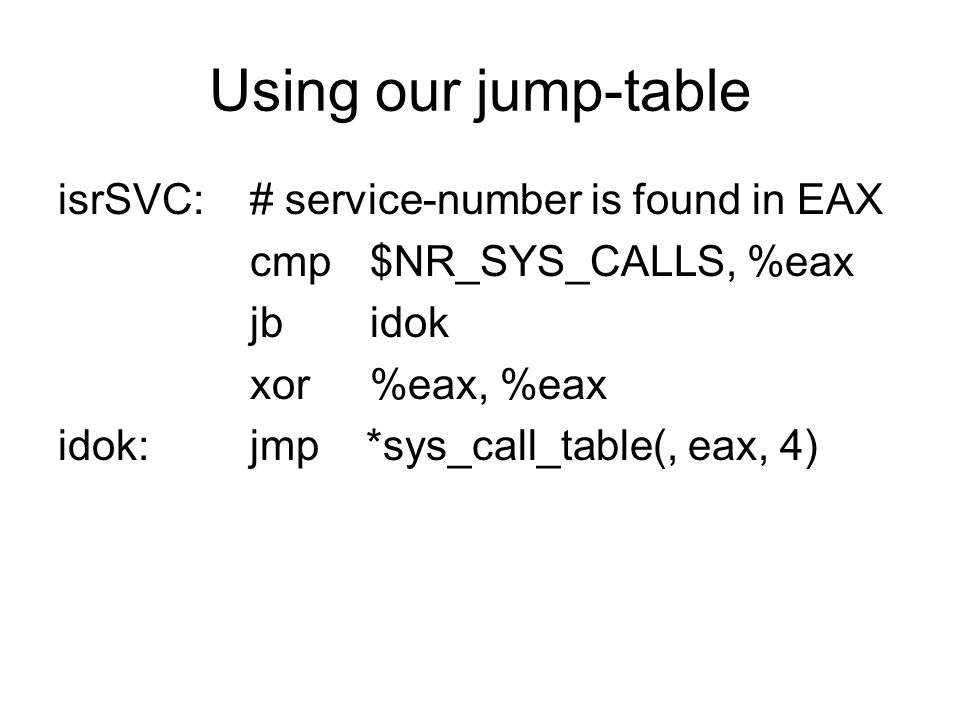

25. Using our jump-table isrSVC:# service-number is found in EAX cmp $NR_SYS_CALLS, %eax jb idok xor %eax, %eax idok:jmp *sys_call_table(, eax, 4)

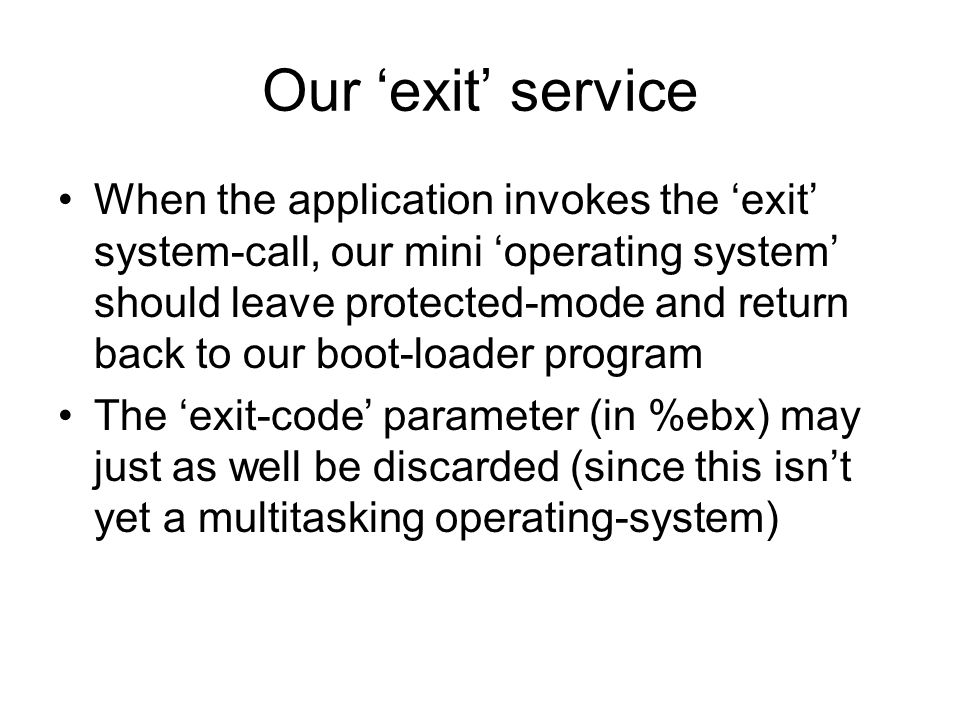

26. Our ‘exit’ service When the application invokes the ‘exit’ system-call, our mini ‘operating system’ should leave protected-mode and return back to our boot-loader program The ‘exit-code’ parameter (in %ebx) may just as well be discarded (since this isn’t yet a multitasking operating-system)

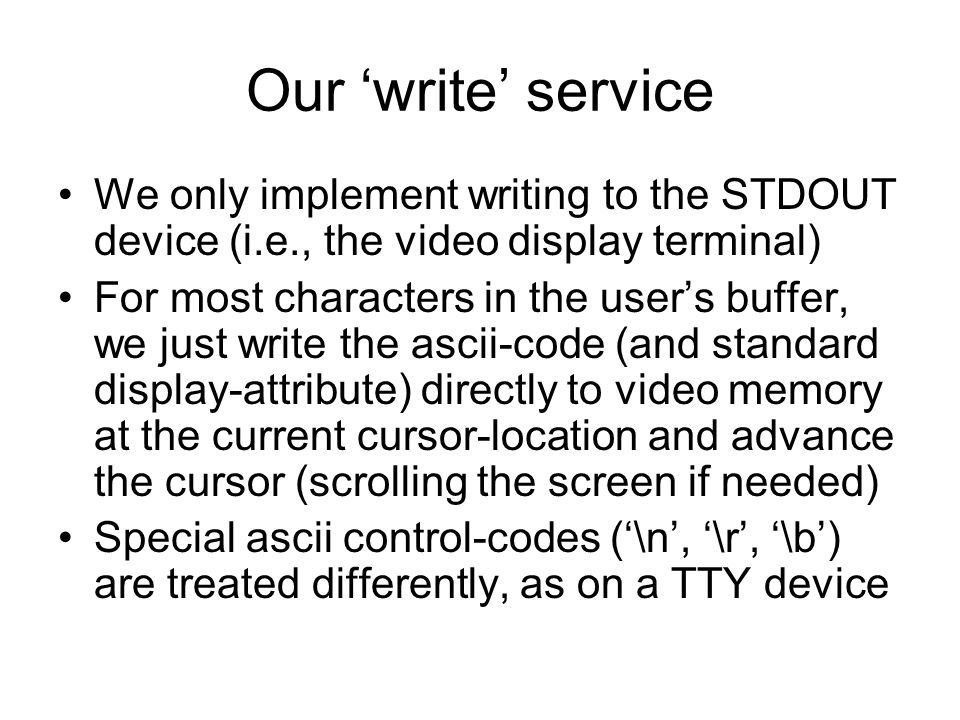

27. Our ‘write’ service We only implement writing to the STDOUT device (i.e., the video display terminal) For most characters in the user’s buffer, we just write the ascii-code (and standard display-attribute) directly to video memory at the current cursor-location and advance the cursor (scrolling the screen if needed) Special ascii control-codes (‘\n’, ‘\r’, ‘\b’) are treated differently, as on a TTY device

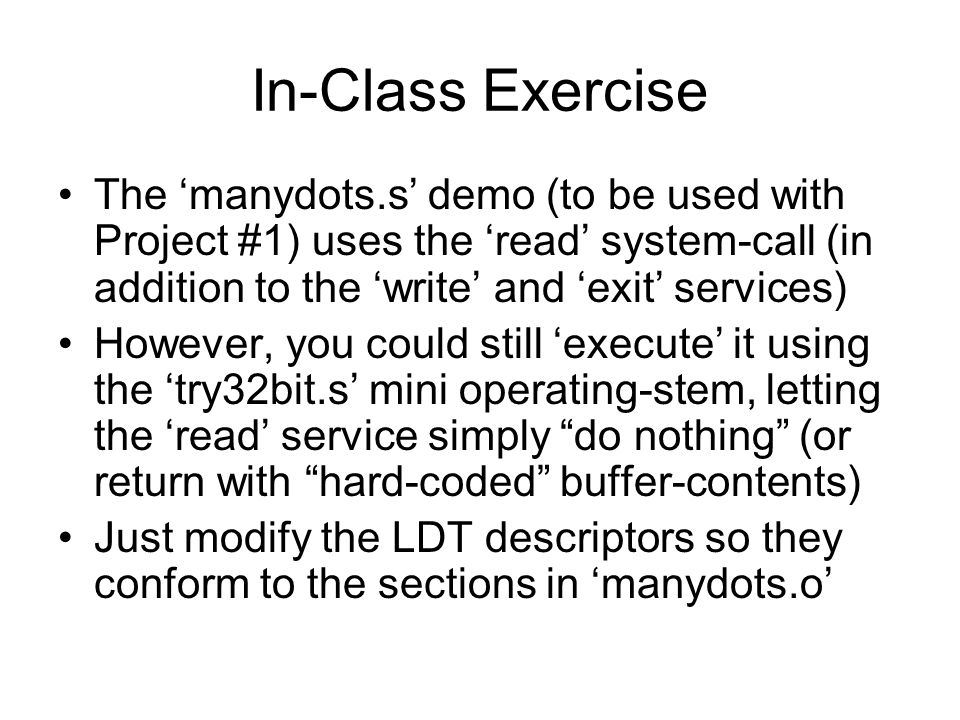

28. In-Class Exercise The ‘manydots.s’ demo (to be used with Project #1) uses the ‘read’ system-call (in addition to the ‘write’ and ‘exit’ services) However, you could still ‘execute’ it using the ‘try32bit.s’ mini operating-stem, letting the ‘read’ service simply “do nothing” (or return with “hard-coded” buffer-contents) Just modify the LDT descriptors so they conform to the sections in ‘manydots.o’
