1. © Eric Xing @ CMU, 2006-2010 Machine Learning Introduction & Nonparametric Classifiers Eric Xing Lecture 1, August 12, 2010 Reading:

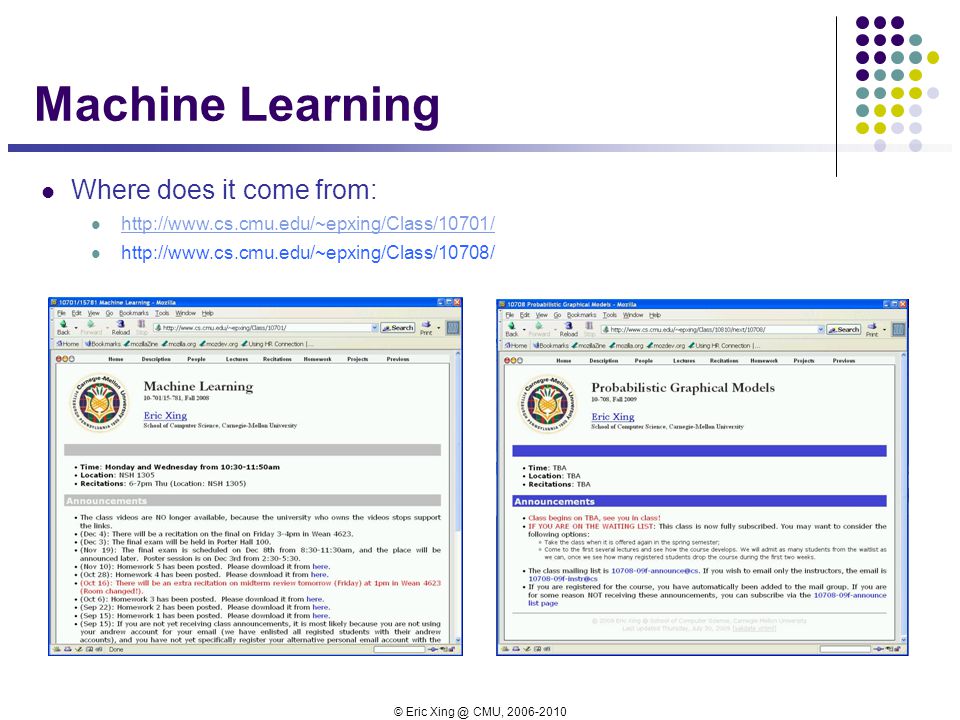

2. © Eric Xing @ CMU, 2006-2010 Where does it come from: http://www.cs.cmu.edu/~epxing/Class/10701/ http://www.cs.cmu.edu/~epxing/Class/10708/ Machine Learning

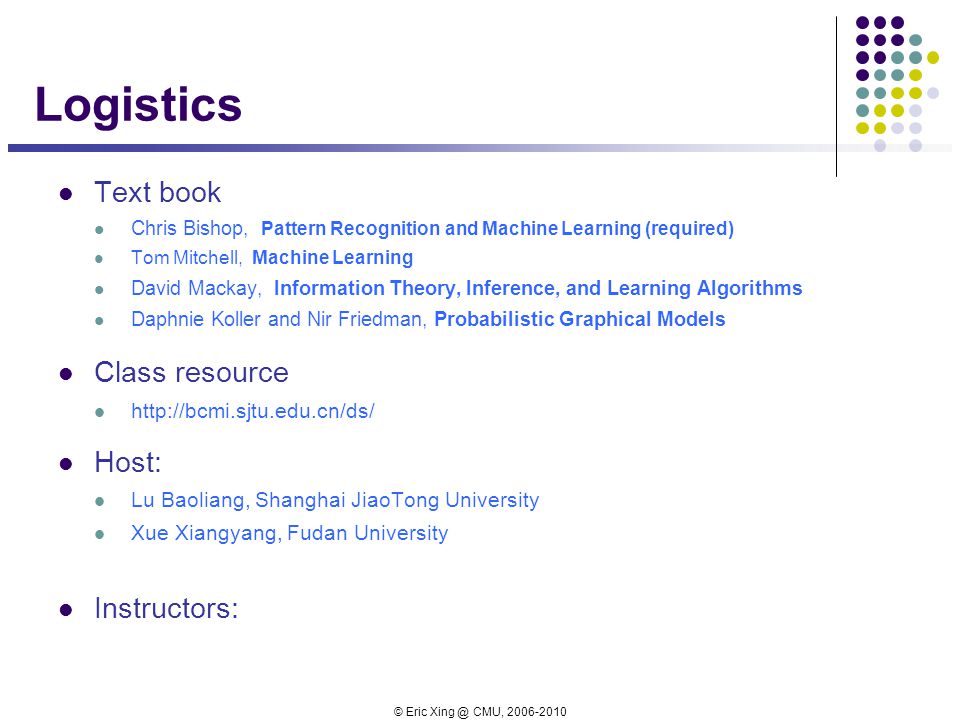

3. © Eric Xing @ CMU, 2006-2010 Logistics Text book Chris Bishop, Pattern Recognition and Machine Learning (required) Tom Mitchell, Machine Learning David Mackay, Information Theory, Inference, and Learning Algorithms Daphnie Koller and Nir Friedman, Probabilistic Graphical Models Class resource http://bcmi.sjtu.edu.cn/ds/ Host: Lu Baoliang, Shanghai JiaoTong University Xue Xiangyang, Fudan University Instructors:

4. © Eric Xing @ CMU, 2006-2010 Local Hosts and co-instructors

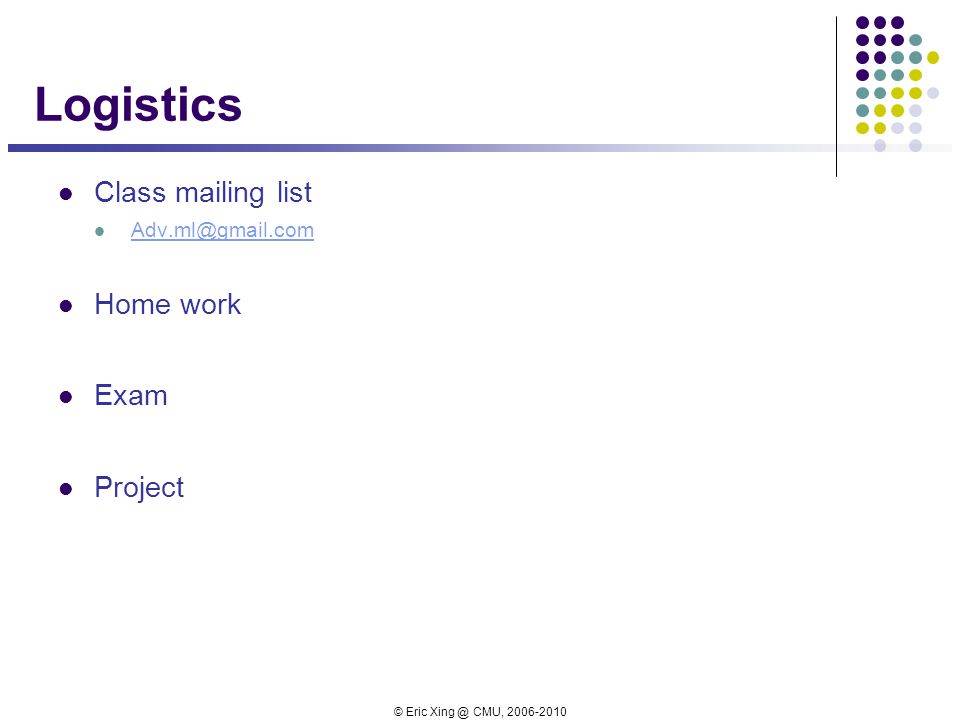

5. © Eric Xing @ CMU, 2006-2010 Logistics Class mailing list Adv.ml@gmail.com Home work Exam Project

6. © Eric Xing @ CMU, 2006-2010 Apoptosis + Medicine What is Learning Grammatical rules Manufacturing procedures Natural laws … Inference Learning is about seeking a predictive and/or executable understanding of natural/artificial subjects, phenomena, or activities from …

7. © Eric Xing @ CMU, 2006-2010 Machine Learning

8. © Eric Xing @ CMU, 2006-2010 Fetching a stapler from inside an office --- the Stanford STAIR robot

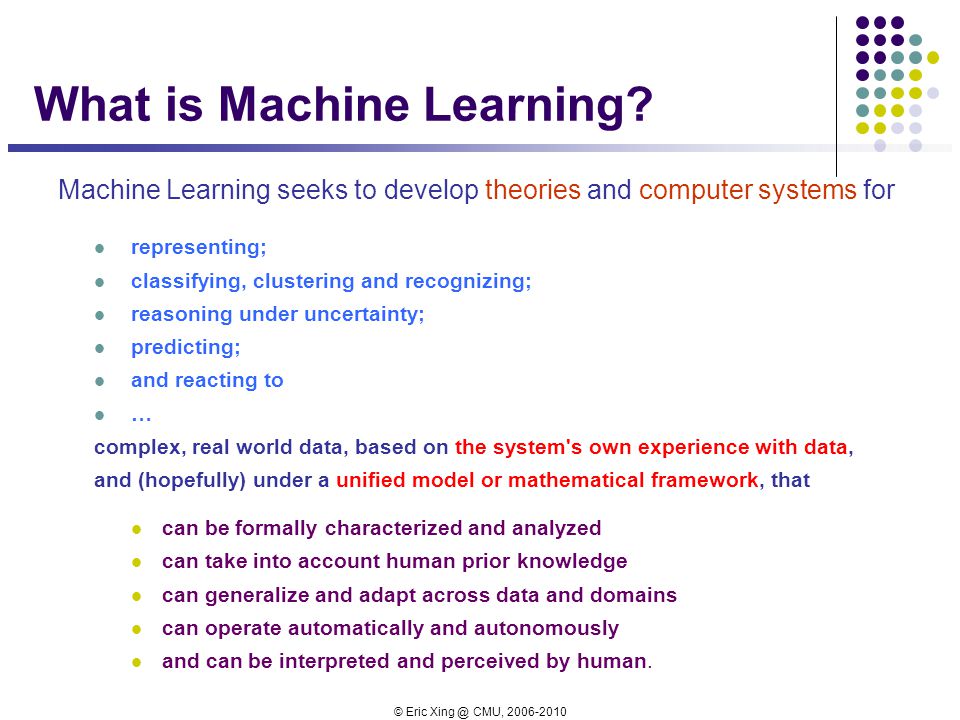

9. © Eric Xing @ CMU, 2006-2010 What is Machine Learning? Machine Learning seeks to develop theories and computer systems for representing; classifying, clustering and recognizing; reasoning under uncertainty; predicting; and reacting to … complex, real world data, based on the system's own experience with data, and (hopefully) under a unified model or mathematical framework, that can be formally characterized and analyzed can take into account human prior knowledge can generalize and adapt across data and domains can operate automatically and autonomously and can be interpreted and perceived by human.

10. © Eric Xing @ CMU, 2006-2010 Where Machine Learning is being used or can be useful? Speech recognition Information retrieval Computer vision Robotic control Planning Games Evolution Pedigree

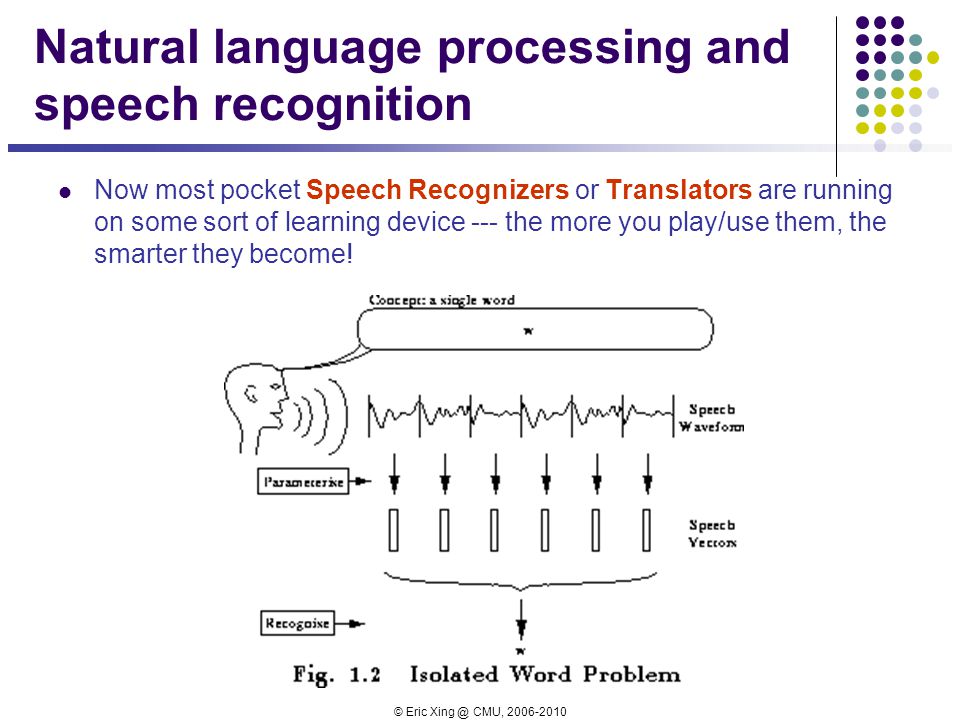

11. © Eric Xing @ CMU, 2006-2010 Natural language processing and speech recognition Now most pocket Speech Recognizers or Translators are running on some sort of learning device --- the more you play/use them, the smarter they become!

12. © Eric Xing @ CMU, 2006-2010 Object Recognition Behind a security camera, most likely there is a computer that is learning and/or checking!

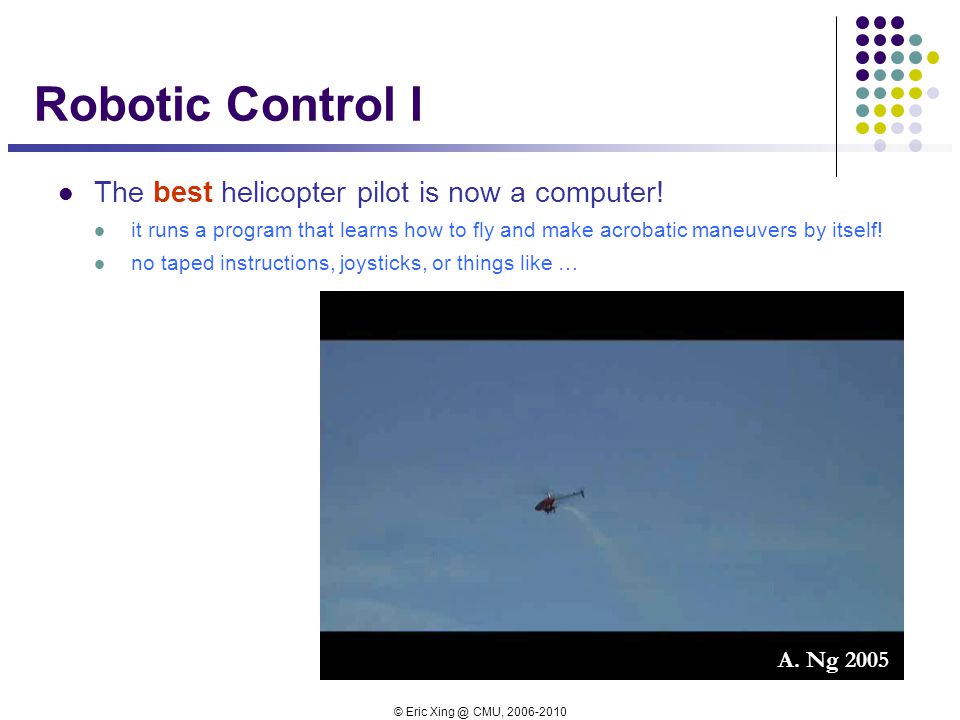

13. © Eric Xing @ CMU, 2006-2010 Robotic Control I The best helicopter pilot is now a computer! it runs a program that learns how to fly and make acrobatic maneuvers by itself! no taped instructions, joysticks, or things like … A. Ng 2005

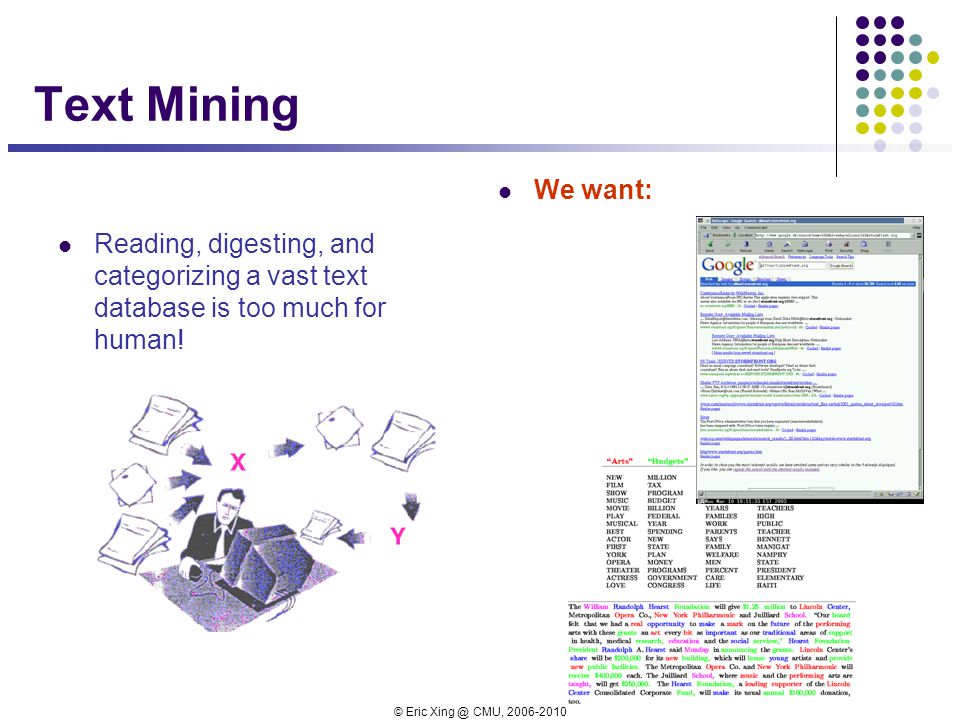

14. © Eric Xing @ CMU, 2006-2010 Text Mining Reading, digesting, and categorizing a vast text database is too much for human! We want:

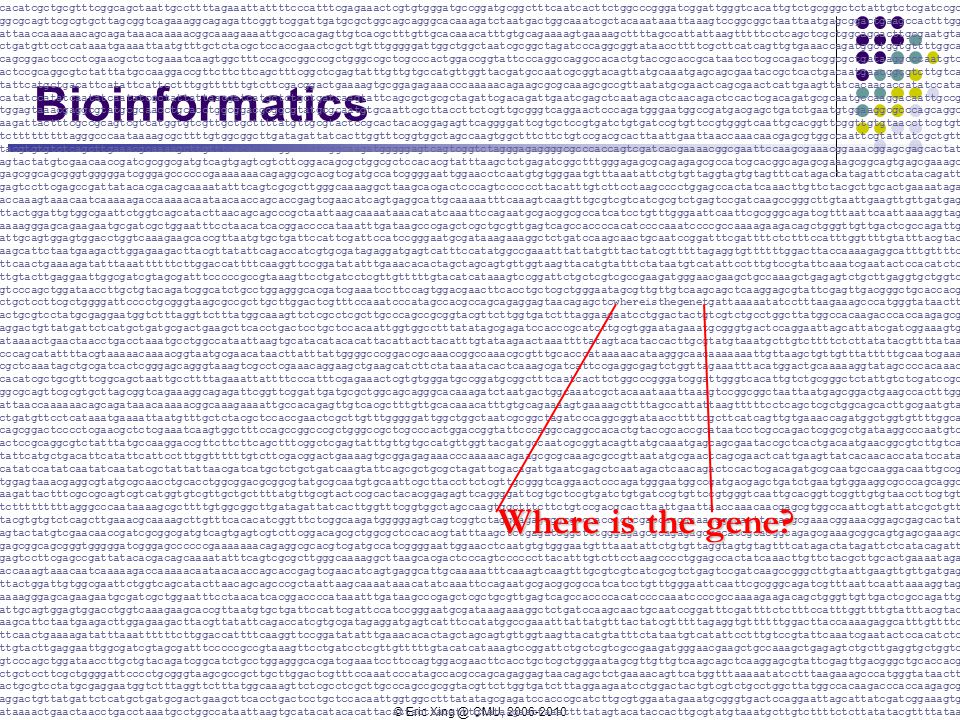

15. © Eric Xing @ CMU, 2006-2010 Bioinformatics tgtatcccagcatattttacgtaaaaacaaaacggtaatgcgaacataacttatttattggggcccggaccgcaaaccggccaaacgcgtttgcacccataaaaacataagggcaacaaaaaaattgttaagctgttgtttatttttgcaatcgaaaatc gaaagcgctcaaatagctgcgatcactcgggagcagggtaaagtcgcctcgaaacaggaagctgaagcatcttctataaatacactcaaagcgatcattccgaggcgagtctggttagaaatttacatggactgcaaaaaggtatagccccacaaactgc gtctccacatcgctgcgtttcggcagctaattgccttttagaaattattttcccatttcgagaaactcgtgtgggatgccggatgcggctttcaatcacttctggcccgggatcggattgggtcacattgtctgcgggctctattgtctcgatccgcgga tttaaggcgcagttcgcgtgcttagcggtcagaaaggcagagattcggttcggattgatgcgctggcagcagggcacaaagatctaatgactggcaaatcgctacaaataaattaaagtccggcggctaattaatgagcggactgaagccactttggcgg agttcattaaccaaaaaacagcagataaacaaaaacggcaaagaaaattgccacagagttgtcacgctttgttgcacaaacatttgtgcagaaaagtgaaaagcttttagccattattaagtttttcctcagctcgctggcagcacttgcgaatgtaaat tgaaactgatgttcctcataaatgaaaattaatgtttgctctacgctccaccgaactcgcttgtttgggggattggctggctaatcgcggctagatcccaggcggtataaccttttcgcttcatcagttgtgaaaccagatggctggtgttttggcaacg acagccagcggactcccctcgaacgctctcgaaatcaagtggctttccagccggcccgctgggccgctcgcccactggaccggtattcccaggccaggccacactgtaccgcaccgcataatcctcgccagactcggcgctgataaggcccaatgtcaag accgcactccgcaggcgtctatttatgccaaggaccgttcttcttcagctttcggctcgagtatttgttgtgccatgttggttacgatgccaatcgcggtacagttatgcaaatgagcagcgaataccgctcactgacaatgaacggcgtcttgtcaacc attcatattcatgctgacattcatattcattcctttggttttttgtcttcgacggactgaaaagtgcggagagaaacccaaaaacagaagcgcgcaaagcgccgttaatatgcgaactcagcgaactcattgaagttatcacaacaccatatccataacc atacccatatccatatcaatatcaatatcgctattattaacgatcatgctctgctgatcaagtattcagcgctgcgctagattcgacagattgaatcgagctcaatagactcaacagactccactcgacagatgcgcaatgccaaggacaattgccgtgt gtaagtggagtaaacgaggcgtatgcgcaacctgcacctggcggacgcggcgtatgcgcaatgtgcaattcgcttaccttctcgttgcgggtcaggaactcccagatgggaatggccgatgacgagctgatctgaatgtggaaggcgcccagcaggcagc aggccaagattactttcgccgcagtcgtcatggtgtcgttgctgcttttatgttgcgtactccgcactacacggagagttcaggggattcgtgctccgtgatctgtgatccgtgttccgtgggtcaattgcacggttcggttgtgtaaccttcgtgtggc gactttctttttttttagggcccaataaaagcgcttttgtggcggcttgatagattatcacttggtttcggtggctagccaagtggctttcttctgtccgacgcacttaattgaattaaccaaacaacgagcgtggccaattcgtattatcgctgttttc gggtgtacgtgtgtctcagcttgaaacgcaaaagcttgtttcacacatcggtttctcggcaagatgggggagtcagtcggtctagggagaggggcgcccaccagtcgatcacgaaaacggcgaattccaagcgaaacggaaacggagcgagcactataat cttgcagtactatgtcgaacaaccgatcgcggcgatgtcagtgagtcgtcttcggacagcgctggcgctccacacgtatttaagctctgagatcggctttgggagagcgcagagagcgccatcgcacggcagagcgaaagcggcagtgagcgaaagcgag agggagagcggcagcgggtgggggatcgggagccccccgaaaaaaacagaggcgcacgtcgatgccatcggggaattggaacctcaatgtgtgggaatgtttaaatattctgtgttaggtagtgtagtttcatagactatagattctcatacagattgta tctgagagtccttcgagccgattatacacgacagcaaaatatttcagtcgcgcttgggcaaaaggcttaagcacgactcccagtccccccttacatttgtcttcctaagcccctggagccactatcaaacttgttctacgcttgcactgaaaatagaaat taaaaaccaaagtaaacaatcaaaaagaccaaaaacaataacaaccagcaccgagtcgaacatcagtgaggcattgcaaaaatttcaaagtcaagtttgcgtcgtcatcgcgtctgagtccgatcaagccgggcttgtaattgaagttgttgatgagccg cgggattactggattgtggcgaattctggtcagcatacttaacagcagcccgctaattaagcaaaataaacatatcaaattccagaatgcgacggcgccatcatcctgtttgggaattcaattcgcgggcagatcgtttaattcaattaaaaggtagaag tcggtaaaagggagcagaagaatgcgatcgctggaatttcctaacatcacggaccccataaatttgataagcccgagctcgctgcgttgagtcagccaccccacatccccaaatccccgccaaaagaagacagctgggttgttgactcgccagattgagg tgcggattgcagtggagtggacctggtcaaagaagcaccgttaatgtgctgattccattcgattccatccgggaatgcgataaagaaaggctctgatccaagcaactgcaatccggatttcgattttctctttccatttggttttgtatttacgtactta tgggaaagcattctaatgaagacttggagaagacttacgttatattcagaccatcgtgcgatagaggatgagtcatttccatatggccgaaatttattatgtttactatcgtttttagaggtgttttttggacttaccaaaagaggcatttgttttctgg gattattcaactgaaaagatatttaaattttttcttggaccattttcaaggttccggatatatttgaaacacactagctagcagtgttggtaagttacatgtatttctataatgtcatattcctttgtccgtattcaaatcgaatactccacatctcaca ggatgttgtacttgaggaattggcgatcgtagcgatttcccccgccgtaaagttcctgatcctcgttgtttttgtacatcataaagtccggattctgctcgtcgccgaagatgggaacgaagctgccaaagctgagagtctgcttgaggtgctggtccgg acggcgtcccagctggataaccttgctgtacagatcggcatctgcctggagggcacgatcgaaatccttccagtggacgaacttcacctgctcgctgggaatagcgttgttgtcaagcagctcaaggagcgtattcgagttgacgggctgcaccacgtta agttcctgctccttcgctggggattcccctgcgggtaagcgccgcttgcttggactcgtttccaaatcccatagccacgccagcagaggagtaacagagctcwhereisthegenetgattaaaaatatcctttaagaaagcccatgggtataacttacg tgctcactgcgtcctatgcgaggaatggtctttaggttctttatggcaaagttctcgcctcgcttgcccagccgcggtacgttcttggtgatctttaggaagaatcctggactactgtcgtctgcctggcttatggccacaagacccaccaagagcgaaa cagacaggactgttatgattctcatgctgatgcgactgaagcttcacctgactcctgctccacaattggtggcctttatatagcgagatccacccgcatcttgcgtggaatagaaatgcgggtgactccaggaattagcattatcgatcggaaagtgcaa agcagataaaactgaactaacctgacctaaatgcctggccataattaagtgcatacatacacattacattacttacatttgtataagaactaaattttatagtacataccacttgcgtatgtaaatgcttgtcttttctcttatatacgttttataaatt tgtatcccagcatattttacgtaaaaacaaaacggtaatgcgaacataacttatttattggggcccggaccgcaaaccggccaaacgcgtttgcacccataaaaacataagggcaacaaaaaaattgttaagctgttgtttatttttgcaatcgaaaatc gaaagcgctcaaatagctgcgatcactcgggagcagggtaaagtcgcctcgaaacaggaagctgaagcatcttctataaatacactcaaagcgatcattccgaggcgagtctggttagaaatttacatggactgcaaaaaggtatagccccacaaactgc gtctccacatcgctgcgtttcggcagctaattgccttttagaaattattttcccatttcgagaaactcgtgtgggatgccggatgcggctttcaatcacttctggcccgggatcggattgggtcacattgtctgcgggctctattgtctcgatccgcgga tttaaggcgcagttcgcgtgcttagcggtcagaaaggcagagattcggttcggattgatgcgctggcagcagggcacaaagatctaatgactggcaaatcgctacaaataaattaaagtccggcggctaattaatgagcggactgaagccactttggcgg agttcattaaccaaaaaacagcagataaacaaaaacggcaaagaaaattgccacagagttgtcacgctttgttgcacaaacatttgtgcagaaaagtgaaaagcttttagccattattaagtttttcctcagctcgctggcagcacttgcgaatgtaaat tgaaactgatgttcctcataaatgaaaattaatgtttgctctacgctccaccgaactcgcttgtttgggggattggctggctaatcgcggctagatcccaggcggtataaccttttcgcttcatcagttgtgaaaccagatggctggtgttttggcaacg acagccagcggactcccctcgaacgctctcgaaatcaagtggctttccagccggcccgctgggccgctcgcccactggaccggtattcccaggccaggccacactgtaccgcaccgcataatcctcgccagactcggcgctgataaggcccaatgtcaag accgcactccgcaggcgtctatttatgccaaggaccgttcttcttcagctttcggctcgagtatttgttgtgccatgttggttacgatgccaatcgcggtacagttatgcaaatgagcagcgaataccgctcactgacaatgaacggcgtcttgtcaacc attcatattcatgctgacattcatattcattcctttggttttttgtcttcgacggactgaaaagtgcggagagaaacccaaaaacagaagcgcgcaaagcgccgttaatatgcgaactcagcgaactcattgaagttatcacaacaccatatccataacc atacccatatccatatcaatatcaatatcgctattattaacgatcatgctctgctgatcaagtattcagcgctgcgctagattcgacagattgaatcgagctcaatagactcaacagactccactcgacagatgcgcaatgccaaggacaattgccgtgt gtaagtggagtaaacgaggcgtatgcgcaacctgcacctggcggacgcggcgtatgcgcaatgtgcaattcgcttaccttctcgttgcgggtcaggaactcccagatgggaatggccgatgacgagctgatctgaatgtggaaggcgcccagcaggcagc aggccaagattactttcgccgcagtcgtcatggtgtcgttgctgcttttatgttgcgtactccgcactacacggagagttcaggggattcgtgctccgtgatctgtgatccgtgttccgtgggtcaattgcacggttcggttgtgtaaccttcgtgtggc gactttctttttttttagggcccaataaaagcgcttttgtggcggcttgatagattatcacttggtttcggtggctagccaagtggctttcttctgtccgacgcacttaattgaattaaccaaacaacgagcgtggccaattcgtattatcgctgttttc gggtgtacgtgtgtctcagcttgaaacgcaaaagcttgtttcacacatcggtttctcggcaagatgggggagtcagtcggtctagggagaggggcgcccaccagtcgatcacgaaaacggcgaattccaagcgaaacggaaacggagcgagcactataat cttgcagtactatgtcgaacaaccgatcgcggcgatgtcagtgagtcgtcttcggacagcgctggcgctccacacgtatttaagctctgagatcggctttgggagagcgcagagagcgccatcgcacggcagagcgaaagcggcagtgagcgaaagcgag agggagagcggcagcgggtgggggatcgggagccccccgaaaaaaacagaggcgcacgtcgatgccatcggggaattggaacctcaatgtgtgggaatgtttaaatattctgtgttaggtagtgtagtttcatagactatagattctcatacagattgta tctgagagtccttcgagccgattatacacgacagcaaaatatttcagtcgcgcttgggcaaaaggcttaagcacgactcccagtccccccttacatttgtcttcctaagcccctggagccactatcaaacttgttctacgcttgcactgaaaatagaaat taaaaaccaaagtaaacaatcaaaaagaccaaaaacaataacaaccagcaccgagtcgaacatcagtgaggcattgcaaaaatttcaaagtcaagtttgcgtcgtcatcgcgtctgagtccgatcaagccgggcttgtaattgaagttgttgatgagccg cgggattactggattgtggcgaattctggtcagcatacttaacagcagcccgctaattaagcaaaataaacatatcaaattccagaatgcgacggcgccatcatcctgtttgggaattcaattcgcgggcagatcgtttaattcaattaaaaggtagaag tcggtaaaagggagcagaagaatgcgatcgctggaatttcctaacatcacggaccccataaatttgataagcccgagctcgctgcgttgagtcagccaccccacatccccaaatccccgccaaaagaagacagctgggttgttgactcgccagattgagg tgcggattgcagtggagtggacctggtcaaagaagcaccgttaatgtgctgattccattcgattccatccgggaatgcgataaagaaaggctctgatccaagcaactgcaatccggatttcgattttctctttccatttggttttgtatttacgtactta tgggaaagcattctaatgaagacttggagaagacttacgttatattcagaccatcgtgcgatagaggatgagtcatttccatatggccgaaatttattatgtttactatcgtttttagaggtgttttttggacttaccaaaagaggcatttgttttctgg gattattcaactgaaaagatatttaaattttttcttggaccattttcaaggttccggatatatttgaaacacactagctagcagtgttggtaagttacatgtatttctataatgtcatattcctttgtccgtattcaaatcgaatactccacatctcaca ggatgttgtacttgaggaattggcgatcgtagcgatttcccccgccgtaaagttcctgatcctcgttgtttttgtacatcataaagtccggattctgctcgtcgccgaagatgggaacgaagctgccaaagctgagagtctgcttgaggtgctggtccgg acggcgtcccagctggataaccttgctgtacagatcggcatctgcctggagggcacgatcgaaatccttccagtggacgaacttcacctgctcgctgggaatagcgttgttgtcaagcagctcaaggagcgtattcgagttgacgggctgcaccacgtta agttcctgctccttcgctggggattcccctgcgggtaagcgccgcttgcttggactcgtttccaaatcccatagccacgccagcagaggagtaacagagctctgaaaacagttcatggtttaaaaatatcctttaagaaagcccatgggtataacttacg tgctcactgcgtcctatgcgaggaatggtctttaggttctttatggcaaagttctcgcctcgcttgcccagccgcggtacgttcttggtgatctttaggaagaatcctggactactgtcgtctgcctggcttatggccacaagacccaccaagagcgaaa cagacaggactgttatgattctcatgctgatgcgactgaagcttcacctgactcctgctccacaattggtggcctttatatagcgagatccacccgcatcttgcgtggaatagaaatgcgggtgactccaggaattagcattatcgatcggaaagtgcaa agcagataaaactgaactaacctgacctaaatgcctggccataattaagtgcatacatacacattacattacttacatttgtataagaactaaattttatagtacataccacttgcgtatgtaaatgcttgtcttttctcttatatacgttttataaatt Where is the gene?

16. © Eric Xing @ CMU, 2006-2010 Paradigms of Machine Learning Supervised Learning Given, learn, s.t. Unsupervised Learning Given, learn, s.t. Reinforcement Learning Given learn, s.t. Active Learning Given, learn, s.t.

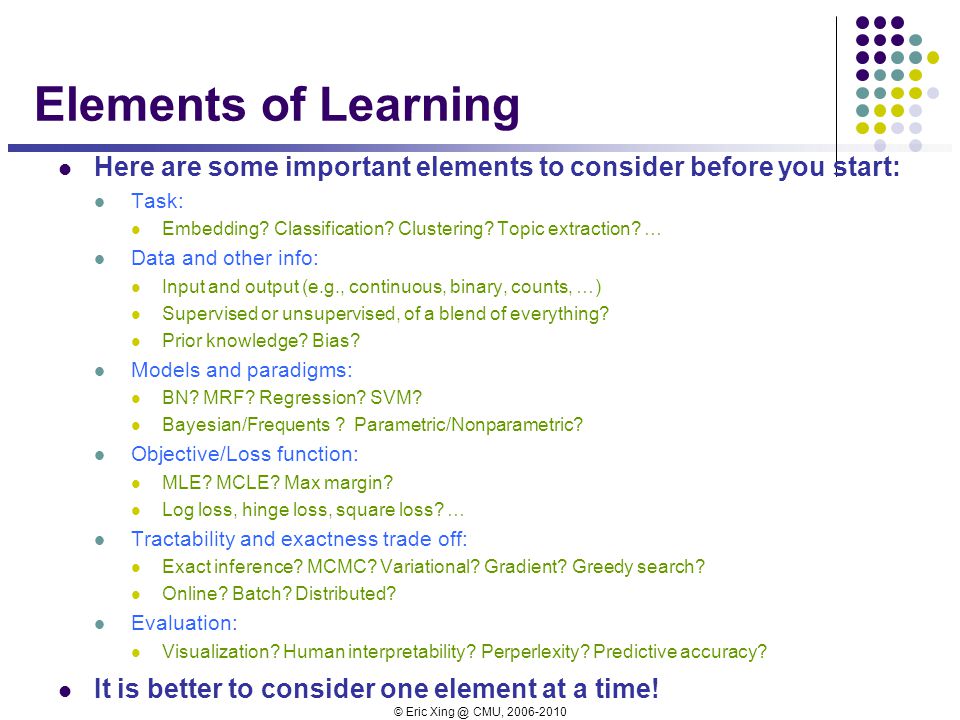

17. © Eric Xing @ CMU, 2006-2010 Elements of Learning Here are some important elements to consider before you start: Task: Embedding? Classification? Clustering? Topic extraction? … Data and other info: Input and output (e.g., continuous, binary, counts, …) Supervised or unsupervised, of a blend of everything? Prior knowledge? Bias? Models and paradigms: BN? MRF? Regression? SVM? Bayesian/Frequents ? Parametric/Nonparametric? Objective/Loss function: MLE? MCLE? Max margin? Log loss, hinge loss, square loss? … Tractability and exactness trade off: Exact inference? MCMC? Variational? Gradient? Greedy search? Online? Batch? Distributed? Evaluation: Visualization? Human interpretability? Perperlexity? Predictive accuracy? It is better to consider one element at a time!

18. © Eric Xing @ CMU, 2006-2010 Theories of Learning  For the learned F(;  ) Consistency (value, pattern, …) Bias versus variance Sample complexity Learning rate Convergence Error bound Confidence Stability …

19. © Eric Xing @ CMU, 2006-2010 Classification Representing data: Hypothesis (classifier)

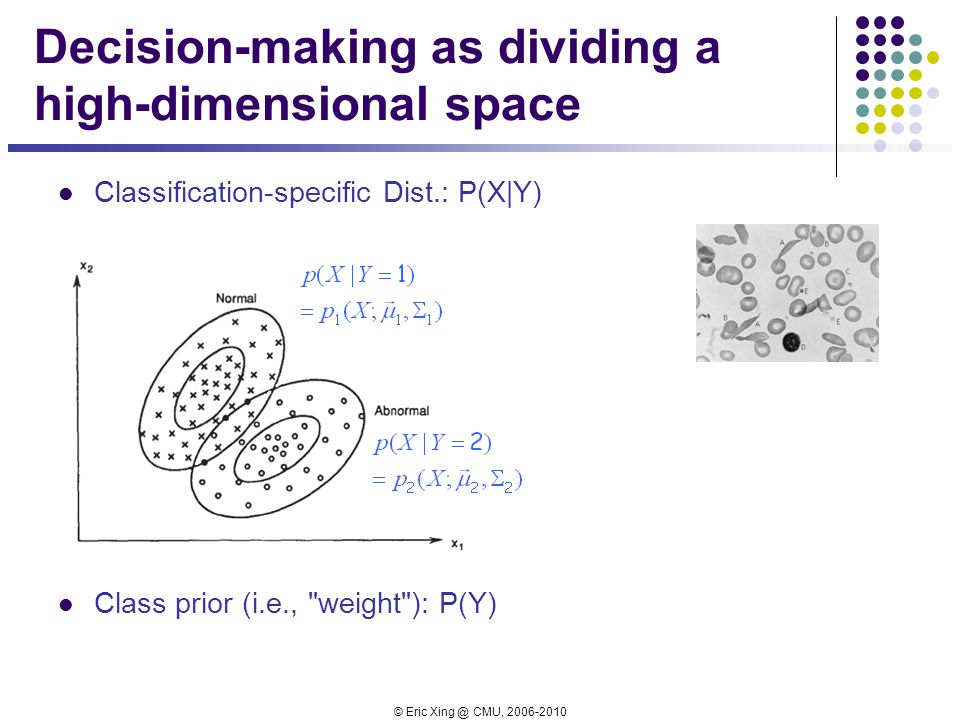

20. © Eric Xing @ CMU, 2006-2010 Decision-making as dividing a high-dimensional space Classification-specific Dist.: P(X|Y) Class prior (i.e., "weight"): P(Y)

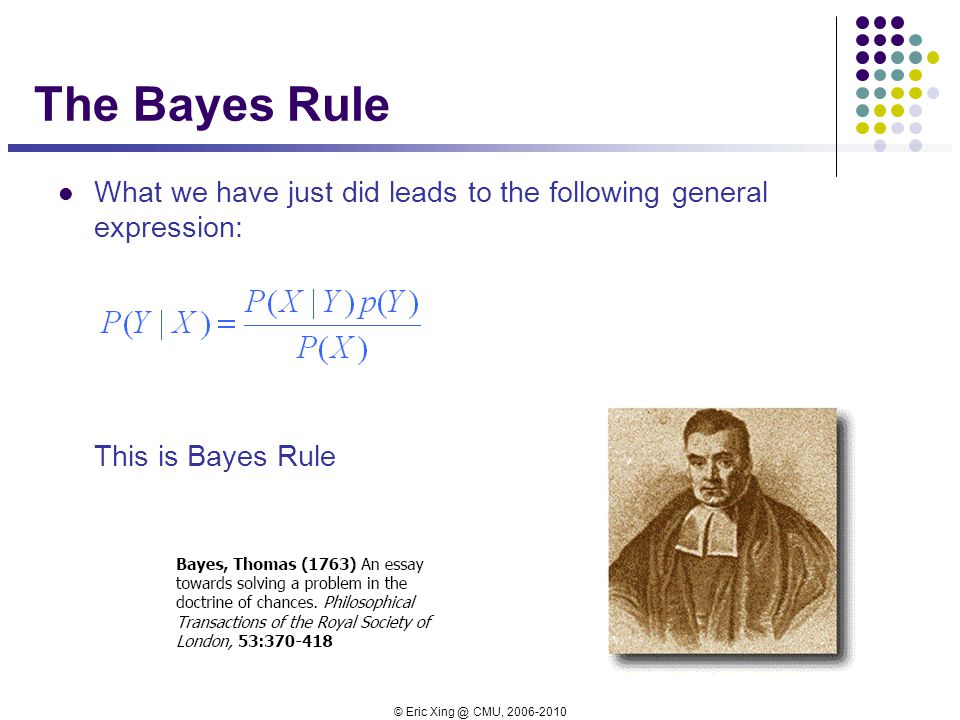

21. © Eric Xing @ CMU, 2006-2010 The Bayes Rule What we have just did leads to the following general expression: This is Bayes Rule

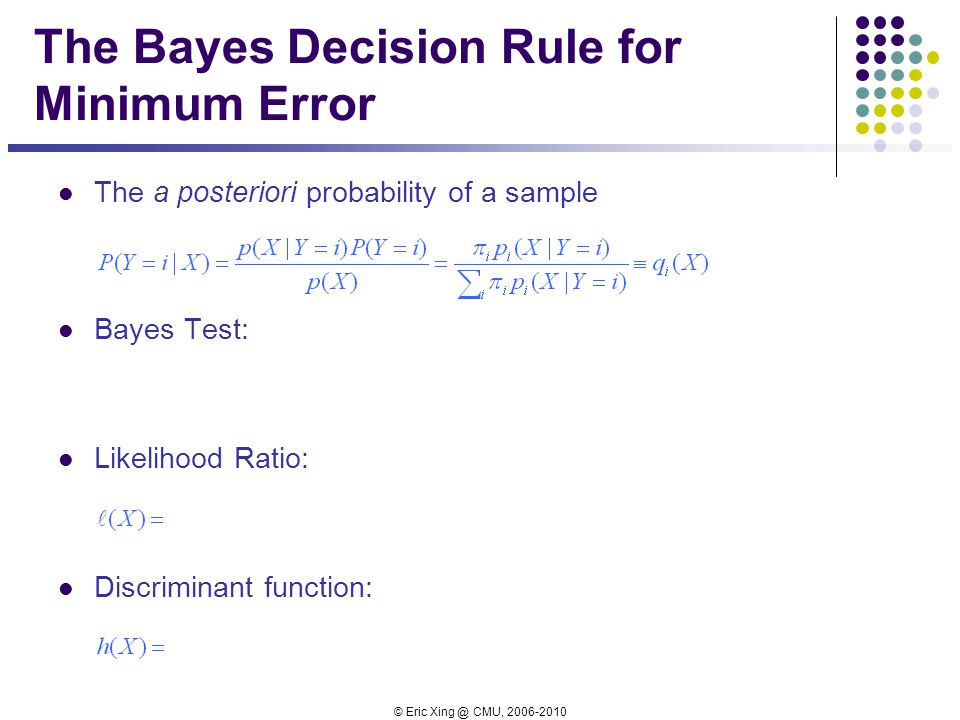

22. © Eric Xing @ CMU, 2006-2010 The Bayes Decision Rule for Minimum Error The a posteriori probability of a sample Bayes Test: Likelihood Ratio: Discriminant function:

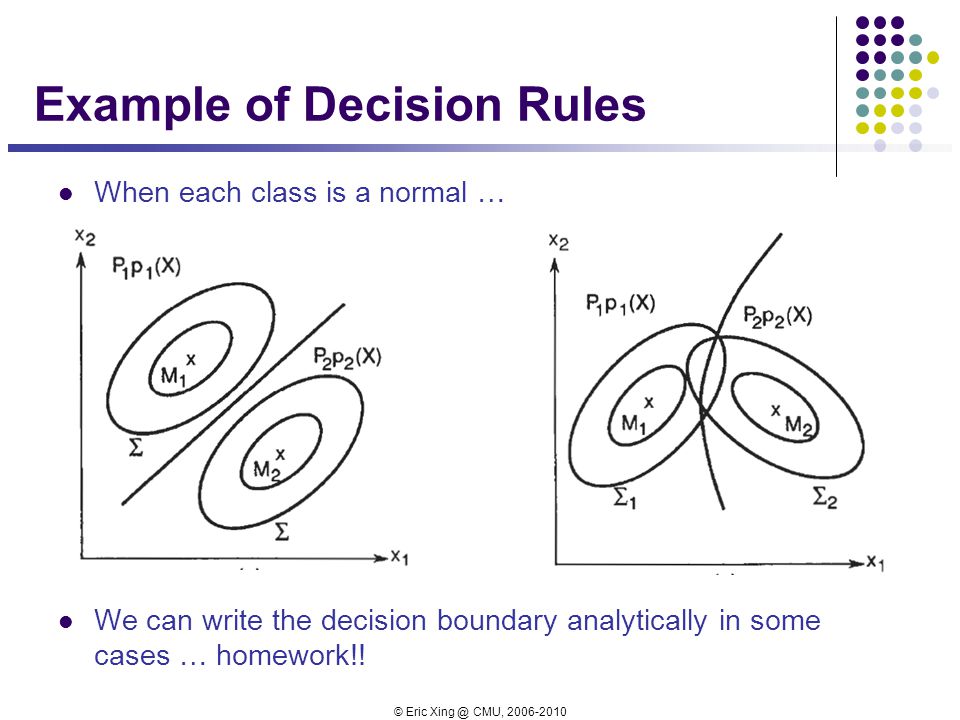

23. © Eric Xing @ CMU, 2006-2010 Example of Decision Rules When each class is a normal … We can write the decision boundary analytically in some cases … homework!!

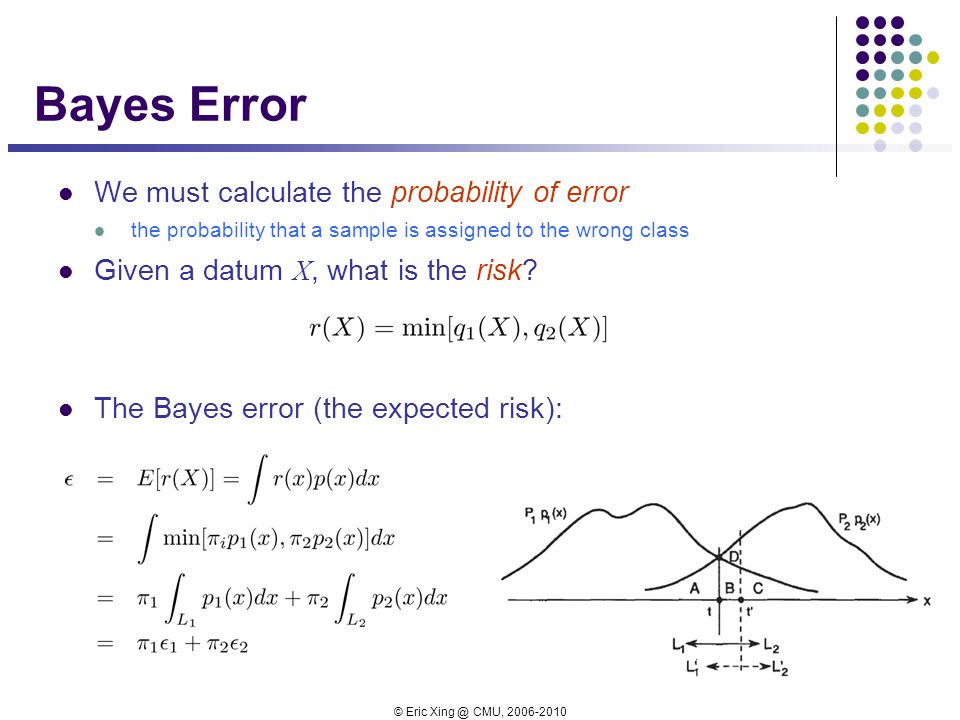

24. © Eric Xing @ CMU, 2006-2010 Bayes Error We must calculate the probability of error the probability that a sample is assigned to the wrong class Given a datum X, what is the risk? The Bayes error (the expected risk):

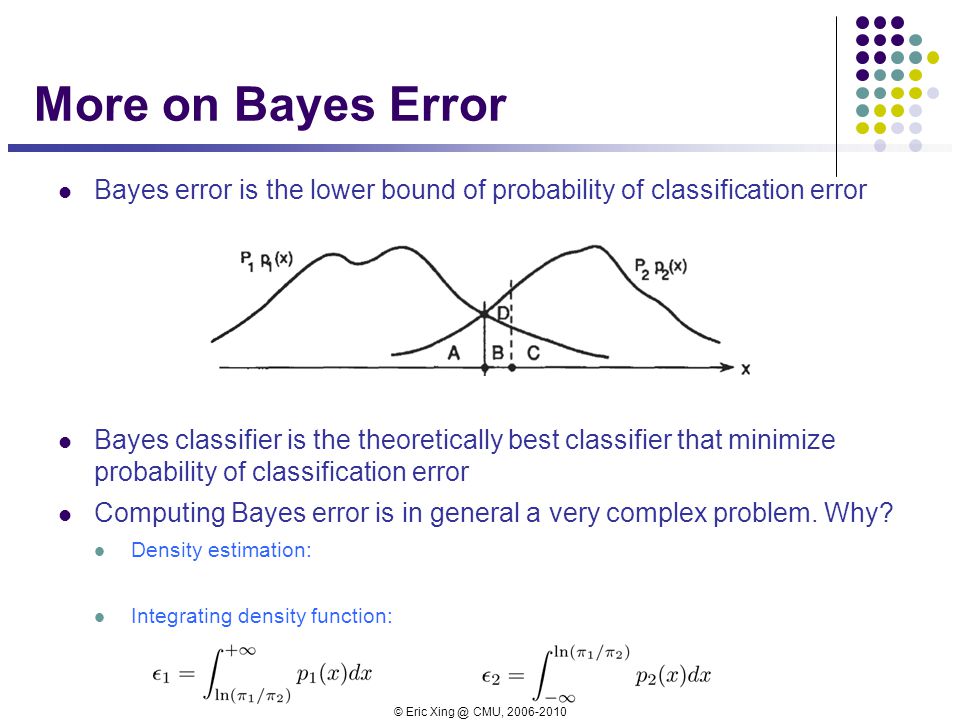

25. © Eric Xing @ CMU, 2006-2010 More on Bayes Error Bayes error is the lower bound of probability of classification error Bayes classifier is the theoretically best classifier that minimize probability of classification error Computing Bayes error is in general a very complex problem. Why? Density estimation: Integrating density function:

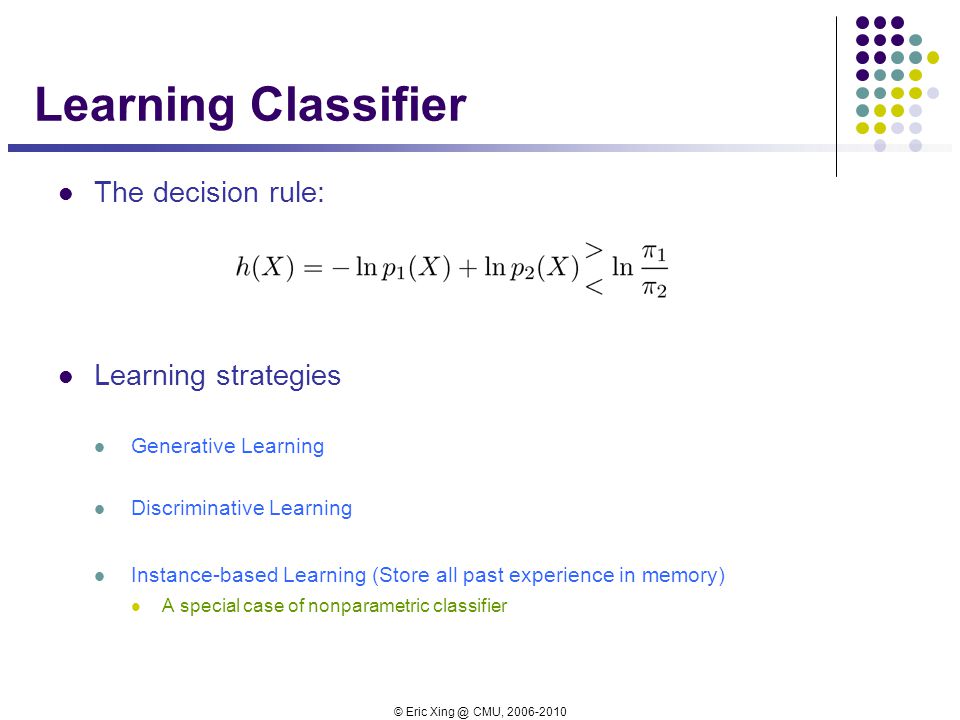

26. © Eric Xing @ CMU, 2006-2010 Learning Classifier The decision rule: Learning strategies Generative Learning Discriminative Learning Instance-based Learning (Store all past experience in memory) A special case of nonparametric classifier

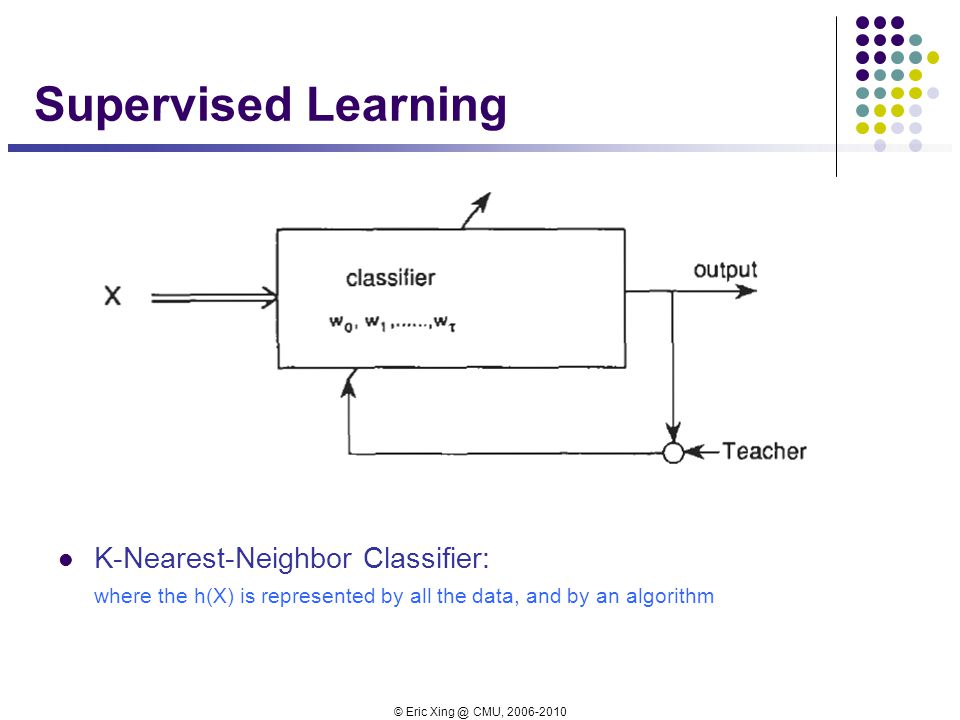

27. © Eric Xing @ CMU, 2006-2010 Supervised Learning K-Nearest-Neighbor Classifier: where the h(X) is represented by all the data, and by an algorithm

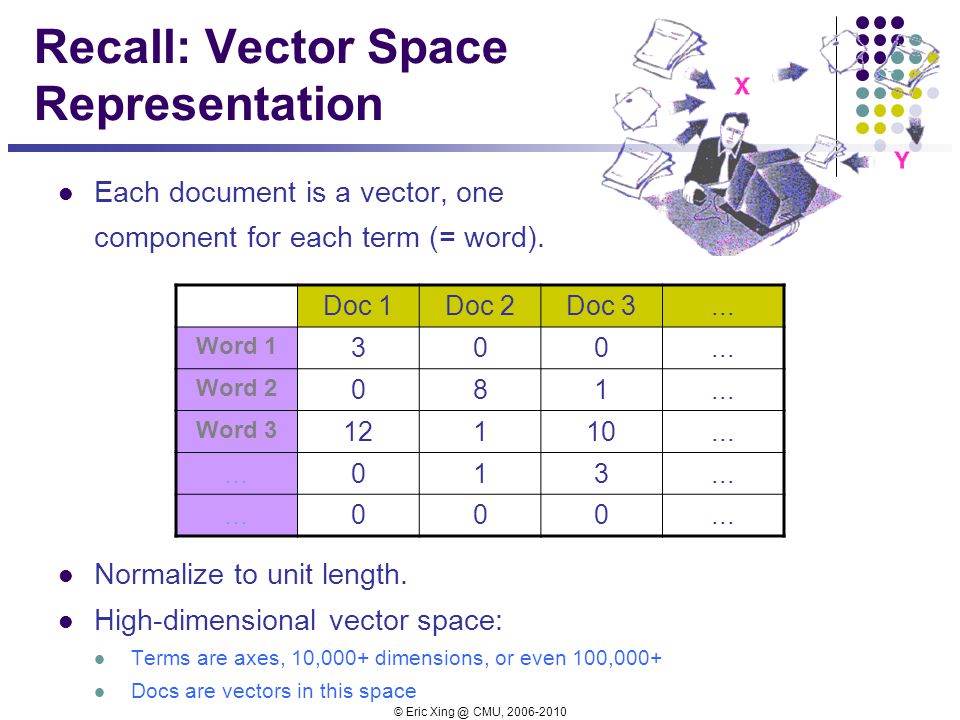

28. © Eric Xing @ CMU, 2006-2010 Recall: Vector Space Representation Doc 1Doc 2Doc 3... Word 1 300... Word 2 081... Word 3 12110... 013 000 Each document is a vector, one component for each term (= word). Normalize to unit length. High-dimensional vector space: Terms are axes, 10,000+ dimensions, or even 100,000+ Docs are vectors in this space

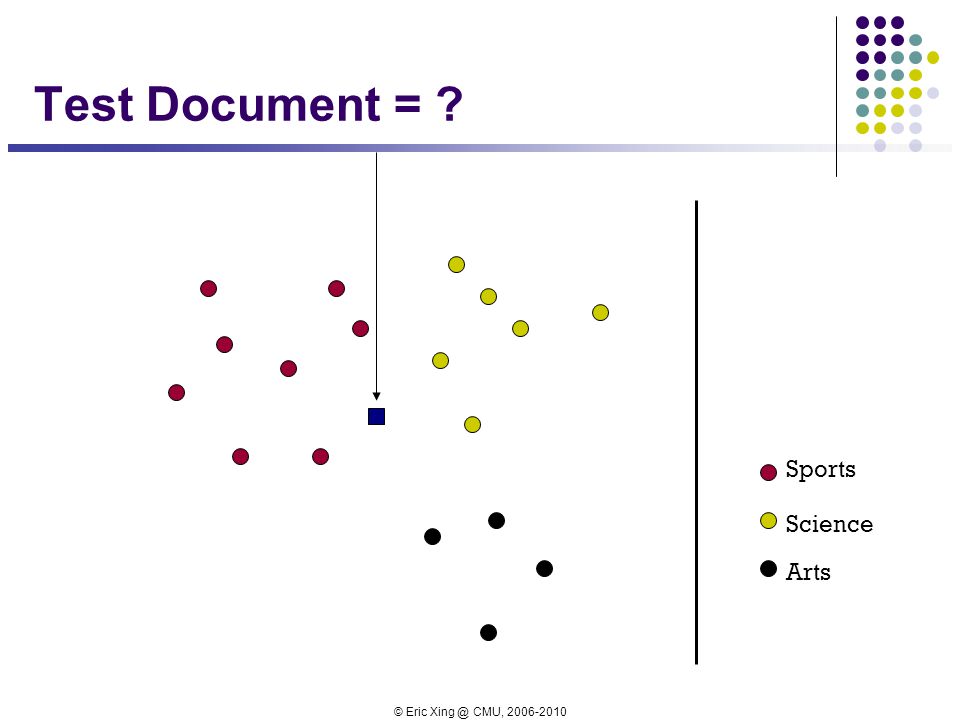

29. © Eric Xing @ CMU, 2006-2010 Test Document = ? Sports Science Arts

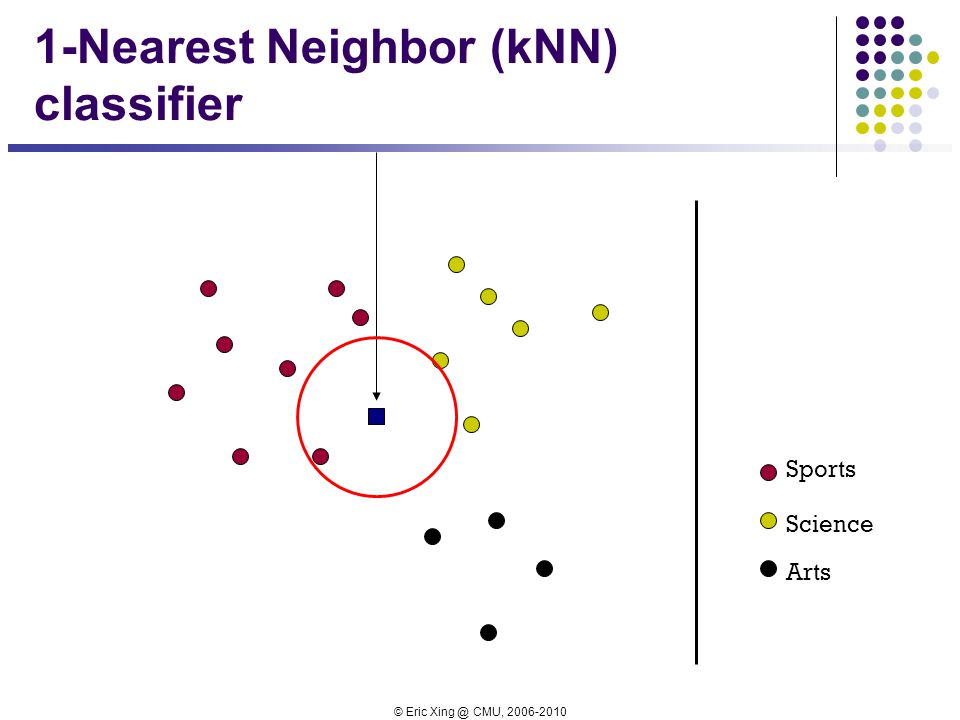

30. © Eric Xing @ CMU, 2006-2010 1-Nearest Neighbor (kNN) classifier Sports Science Arts

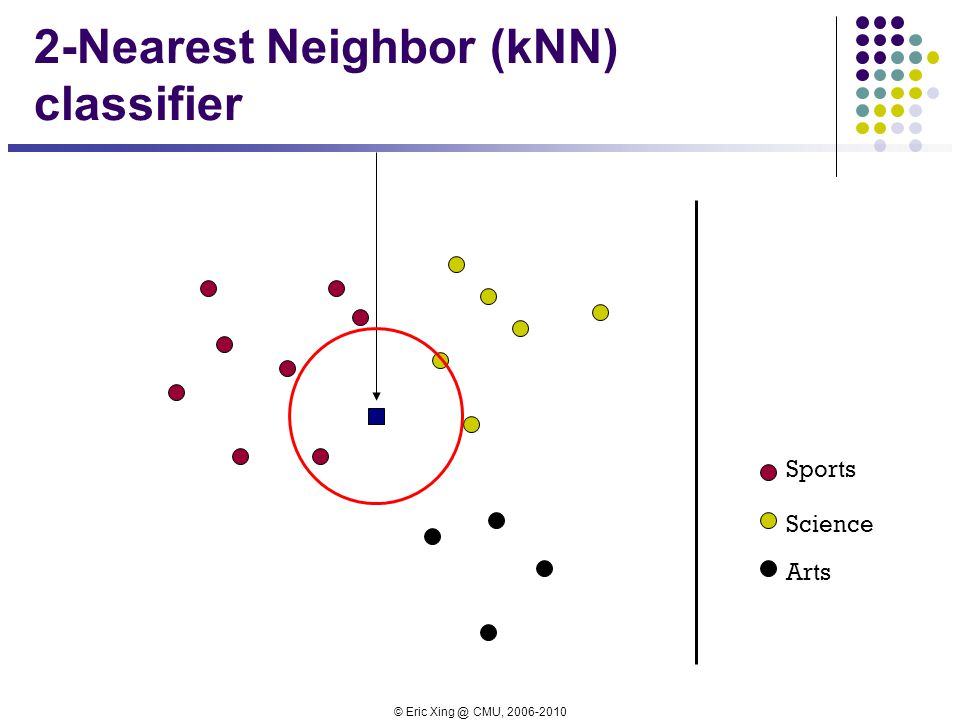

31. © Eric Xing @ CMU, 2006-2010 2-Nearest Neighbor (kNN) classifier Sports Science Arts

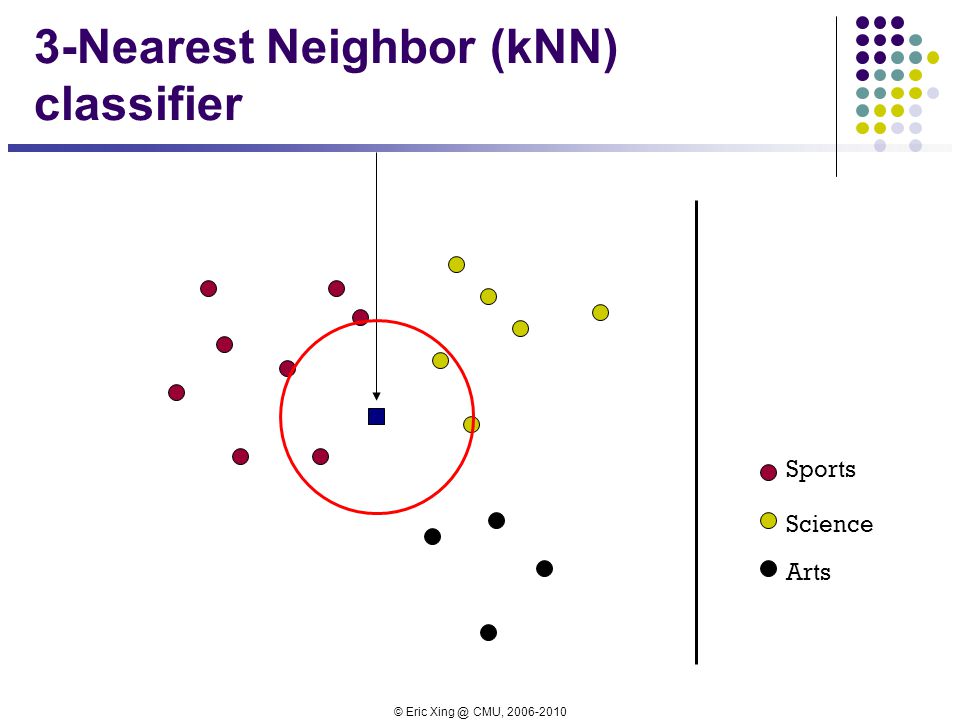

32. © Eric Xing @ CMU, 2006-2010 3-Nearest Neighbor (kNN) classifier Sports Science Arts

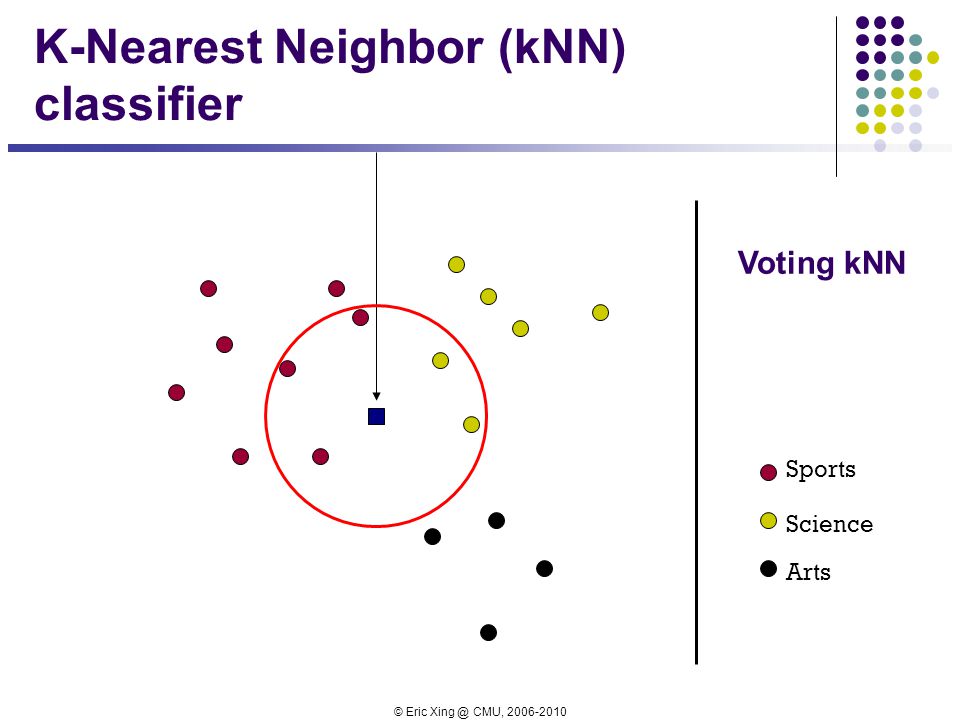

33. © Eric Xing @ CMU, 2006-2010 K-Nearest Neighbor (kNN) classifier Sports Science Arts Voting kNN

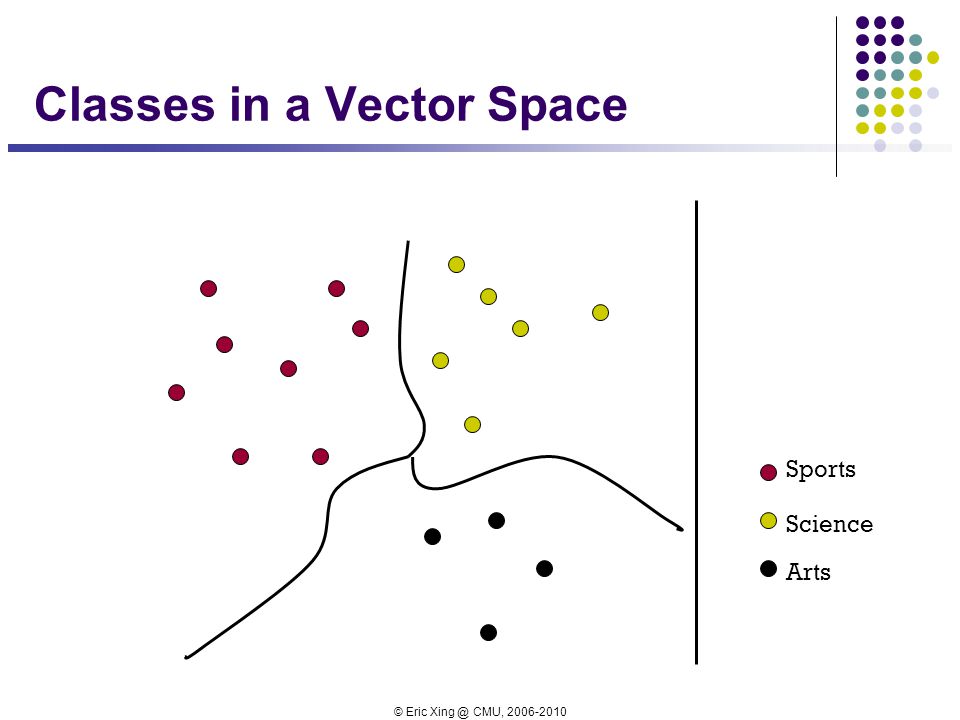

34. © Eric Xing @ CMU, 2006-2010 Classes in a Vector Space Sports Science Arts

35. © Eric Xing @ CMU, 2006-2010 kNN Is Close to Optimal Cover and Hart 1967 Asymptotically, the error rate of 1-nearest-neighbor classification is less than twice the Bayes rate [error rate of classifier knowing model that generated data] In particular, asymptotic error rate is 0 if Bayes rate is 0. Where does kNN come from? Nonparametric density estimation

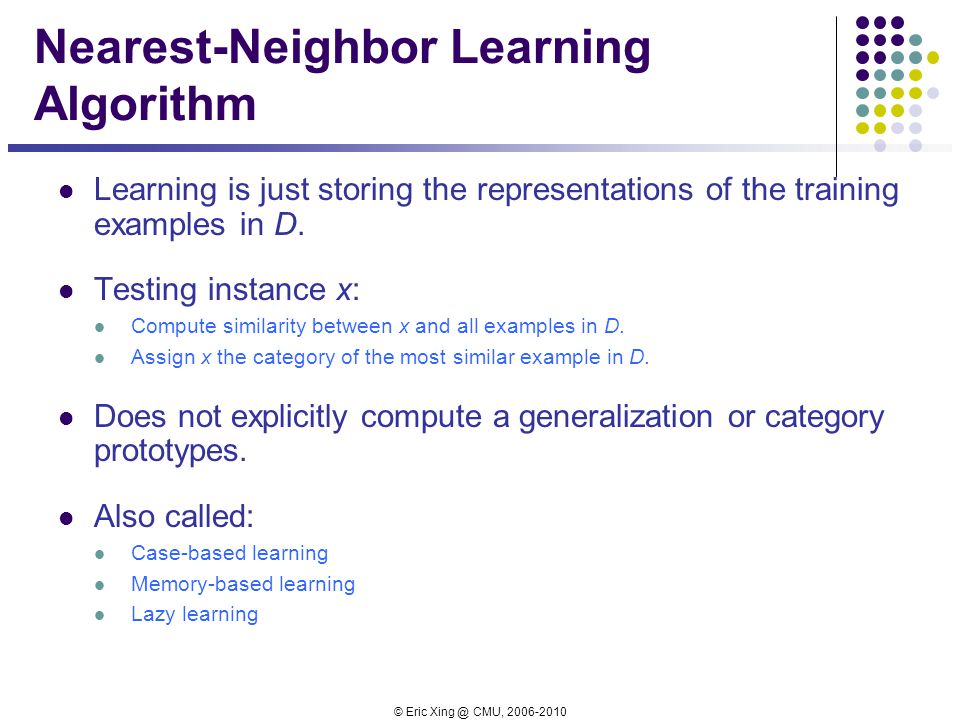

36. © Eric Xing @ CMU, 2006-2010 Nearest-Neighbor Learning Algorithm Learning is just storing the representations of the training examples in D. Testing instance x: Compute similarity between x and all examples in D. Assign x the category of the most similar example in D. Does not explicitly compute a generalization or category prototypes. Also called: Case-based learning Memory-based learning Lazy learning

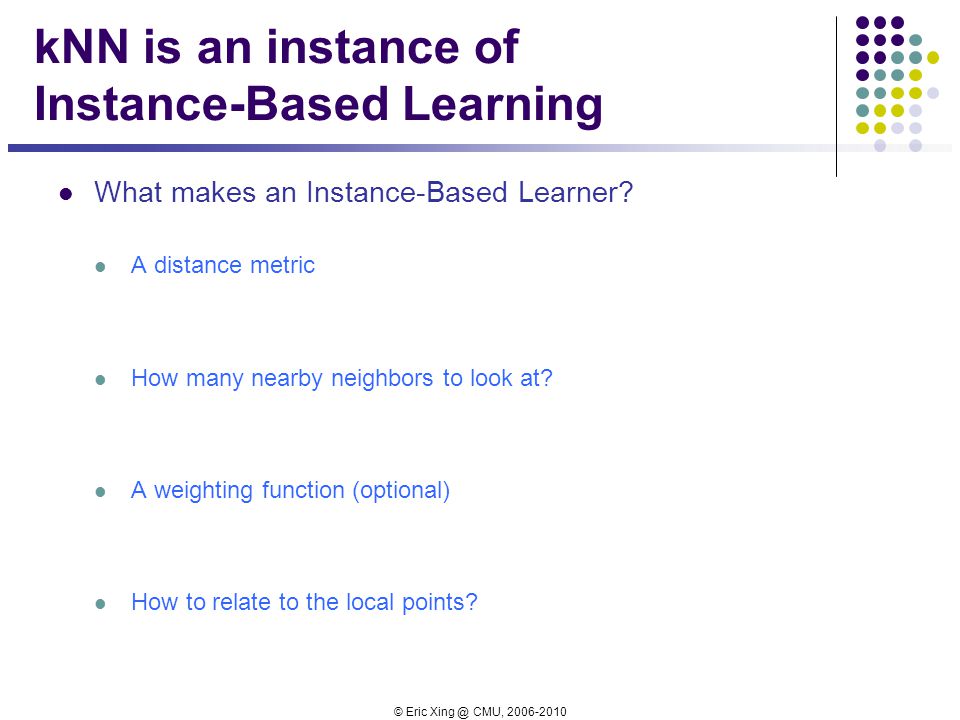

37. © Eric Xing @ CMU, 2006-2010 kNN is an instance of Instance-Based Learning What makes an Instance-Based Learner? A distance metric How many nearby neighbors to look at? A weighting function (optional) How to relate to the local points?

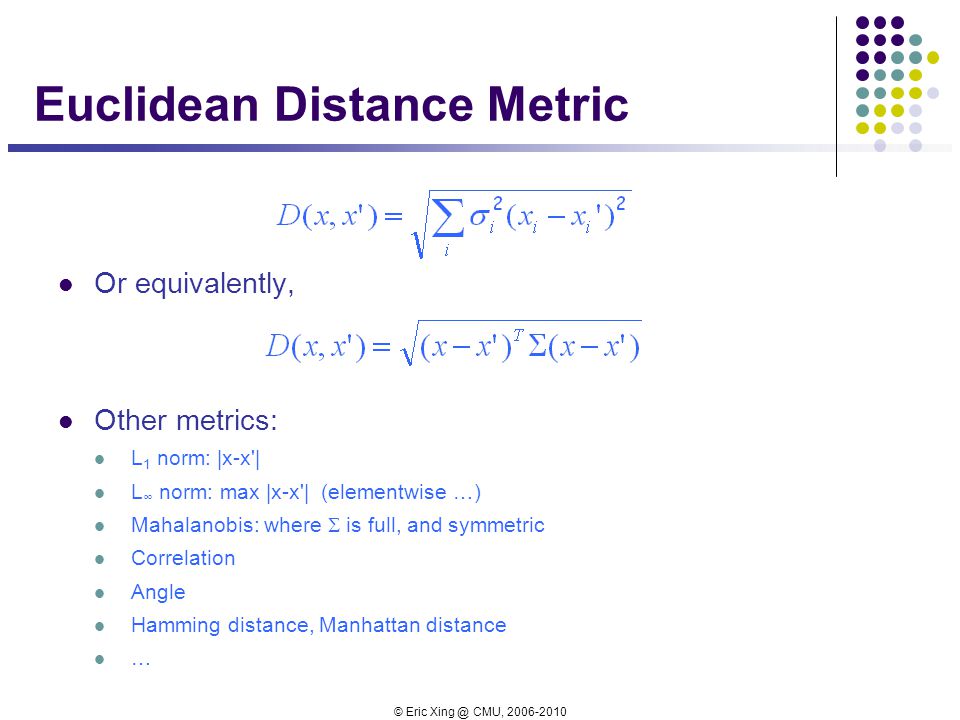

38. © Eric Xing @ CMU, 2006-2010 Euclidean Distance Metric Or equivalently, Other metrics: L 1 norm: |x-x'| L ∞ norm: max |x-x'| (elementwise …) Mahalanobis: where  is full, and symmetric Correlation Angle Hamming distance, Manhattan distance …

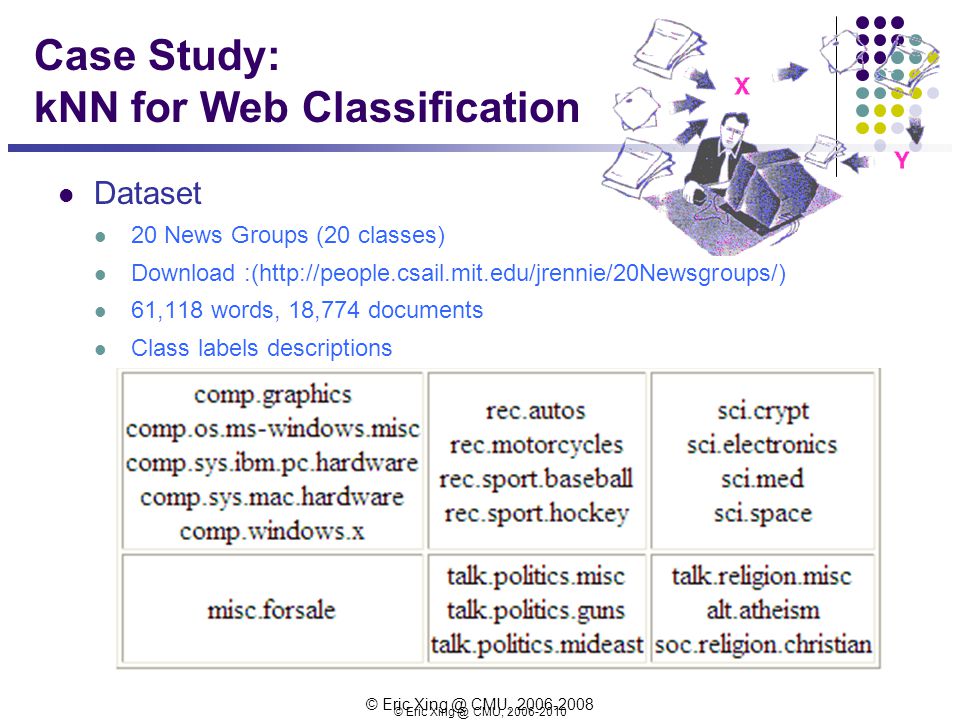

39. © Eric Xing @ CMU, 2006-2010 Case Study: kNN for Web Classification Dataset 20 News Groups (20 classes) Download :(http://people.csail.mit.edu/jrennie/20Newsgroups/) 61,118 words, 18,774 documents Class labels descriptions © Eric Xing @ CMU, 2006-2008

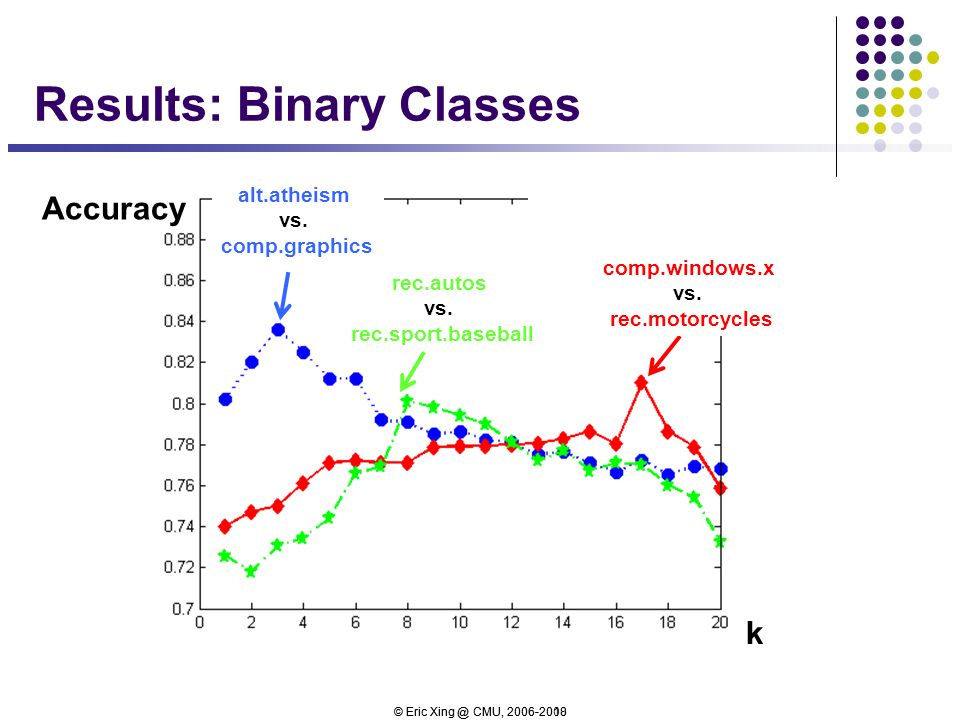

40. © Eric Xing @ CMU, 2006-2010 Results: Binary Classes © Eric Xing @ CMU, 2006-2008 alt.atheism vs. comp.graphics rec.autos vs. rec.sport.baseball comp.windows.x vs. rec.motorcycles k Accuracy

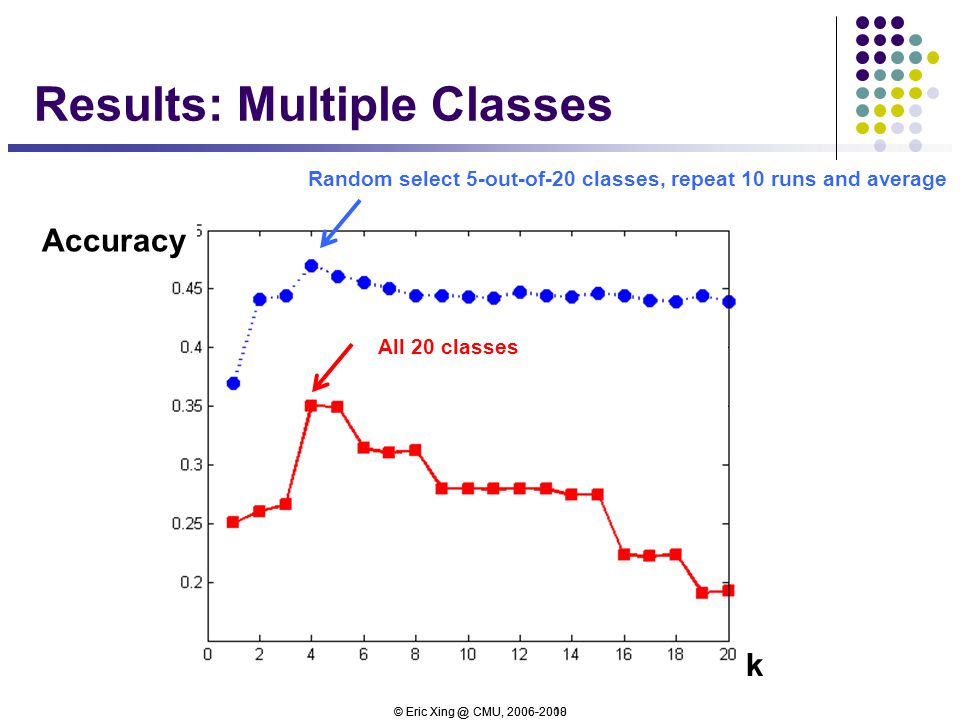

41. © Eric Xing @ CMU, 2006-2010 Results: Multiple Classes © Eric Xing @ CMU, 2006-2008 k Accuracy Random select 5-out-of-20 classes, repeat 10 runs and average All 20 classes

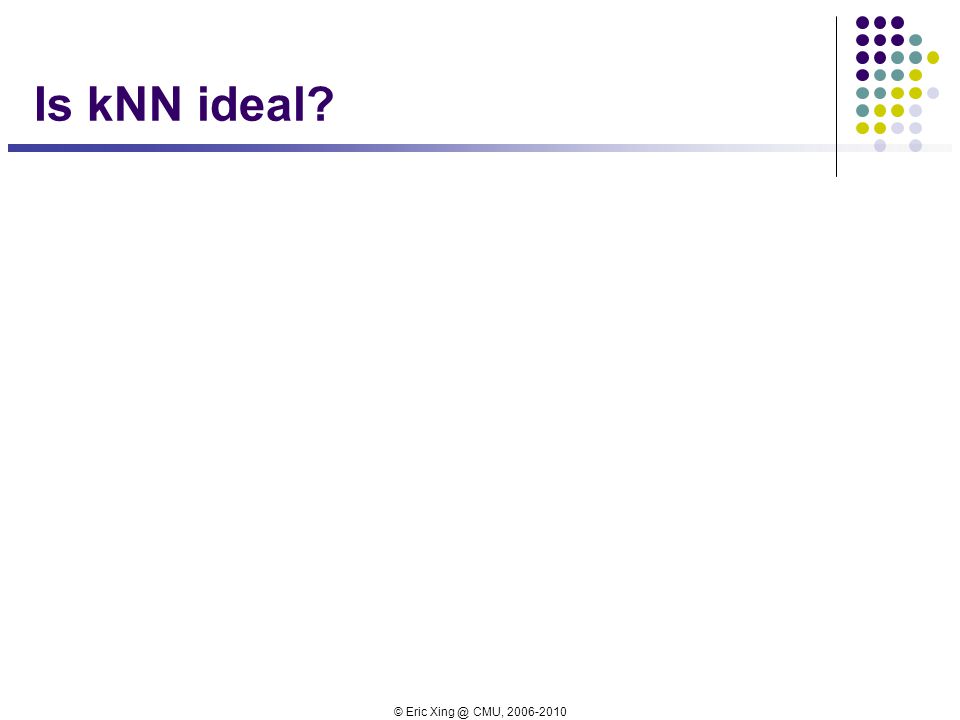

42. © Eric Xing @ CMU, 2006-2010 Is kNN ideal?

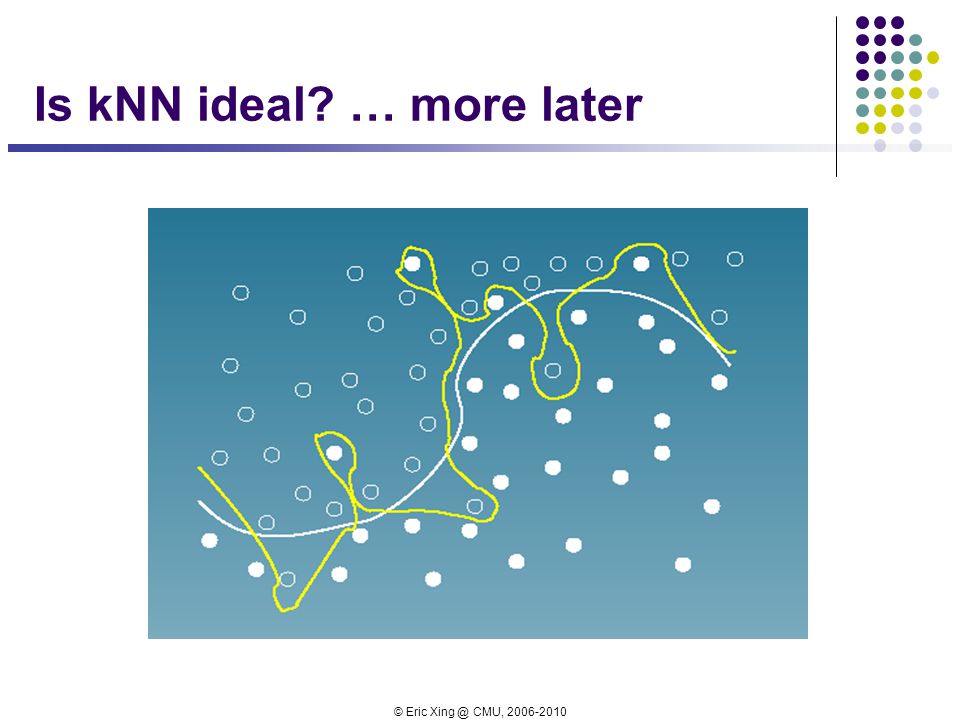

43. © Eric Xing @ CMU, 2006-2010 Is kNN ideal? … more later

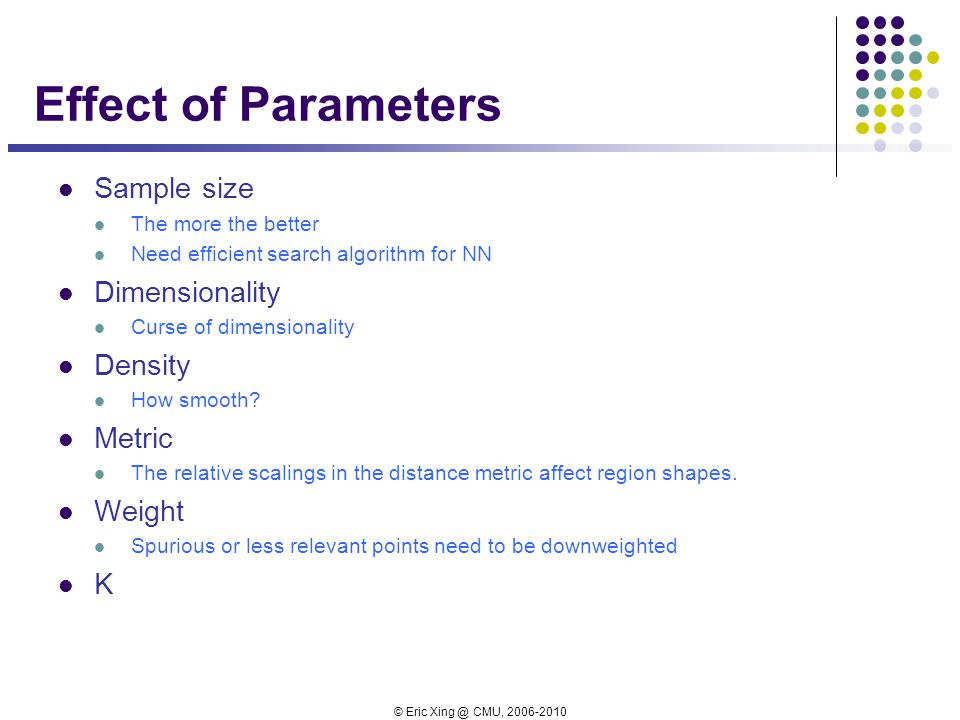

44. © Eric Xing @ CMU, 2006-2010 Effect of Parameters Sample size The more the better Need efficient search algorithm for NN Dimensionality Curse of dimensionality Density How smooth? Metric The relative scalings in the distance metric affect region shapes. Weight Spurious or less relevant points need to be downweighted K

45. © Eric Xing @ CMU, 2006-2010 Summary Machine Learning is Cool and Useful!! Paradigms of Machine Learning. Design elements learning Theories on learning Fundamental theory of classification Bayes optimal classifier Instance-based learning: kNN – a Nonparametric classifier A nonparametric method does not rely on any assumption concerning the structure of the underlying density function. Very little “learning” is involved in these methods Good news: Simple and powerful methods; Flexible and easy to apply to many problems. kNN classifier asymptotically approaches the Bayes classifier, which is theoretically the best classifier that minimizes the probability of classification error. Bad news: High memory requirements Very dependant on the scale factor for a specific problem.
