1. Microbes in service of humans Ames, IA, September, 2010 J. (Hans) van Leeuwen Professor of Environmental and Biological Engineering & Vlasta Klima Balloun Professor

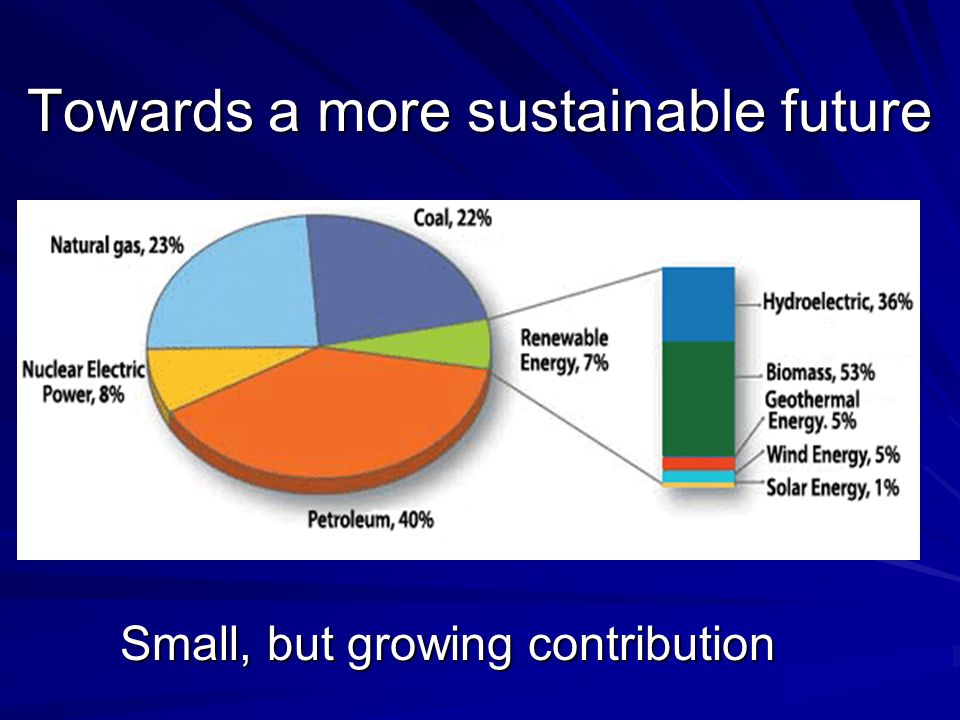

2. Towards a more sustainable future Small, but growing contribution

3. Historical perspective Antiquity Microbial processes used long before development of microbiology as a science remnants of a fermented drink in fragments of 9,000-year-old Chinese vessels Antonie Philips van Leeuwenhoek (1632-1723) The very first microbiologist made small lenses by fusion and discovered and described both bacteria and protists. Also studied sperm cells and sections of plants and muscular fibers. Later became a Fellow of the Royal Society.

4. The first systematic applications of microbiology Louis Pasteur (1822-1895) 1857 Microbiology of lactic acid fermentation 1860 Role of yeast in ethanolic fermentation advances in applied microbiology led to the development of microbiology His discoveries reduced mortality from puerperal fever, and he created the first vaccine for rabies. He also made it important to make sure surgeries were more sterile. in 1888 he founded the Pasteur Institute and was named director. He is regarded as one of the main founders of modern microbiology, together with Ferdinand Cohn and Robert Koch. puerperal fever vaccinerabiesmicrobiologyFerdinand CohnRobert Koch

5. Microbial applications 1.Food and beverage biotechnology fermented foods, alcoholic beverages (beer, wine, kumis, sake)  distilled liquors flavors 2.Enzyme technology production and application of enzymes 3.Metabolites from microorganisms amino acids antibiotics, vaccines, biopharmaceuticals bacterial polysaccharides and polyesters specialty chemicals for organic synthesis (chiral synthons)

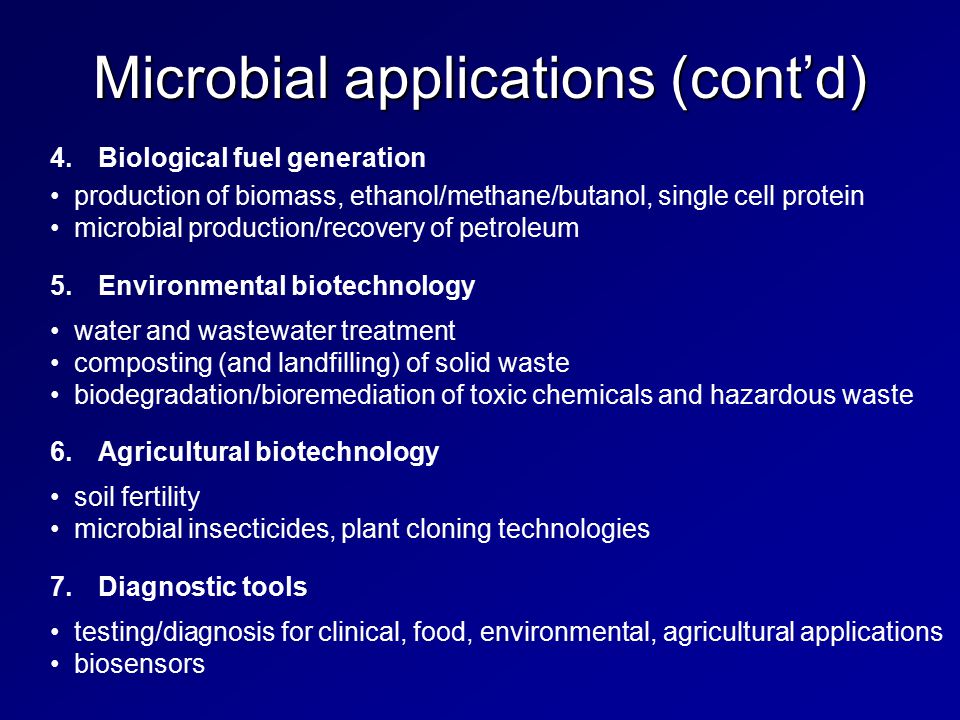

6. Microbial applications (cont’d) 4.Biological fuel generation production of biomass, ethanol/methane/butanol, single cell protein microbial production/recovery of petroleum 5.Environmental biotechnology water and wastewater treatment composting (and landfilling) of solid waste biodegradation/bioremediation of toxic chemicals and hazardous waste 6.Agricultural biotechnology soil fertility microbial insecticides, plant cloning technologies 7.Diagnostic tools testing/diagnosis for clinical, food, environmental, agricultural applications biosensors

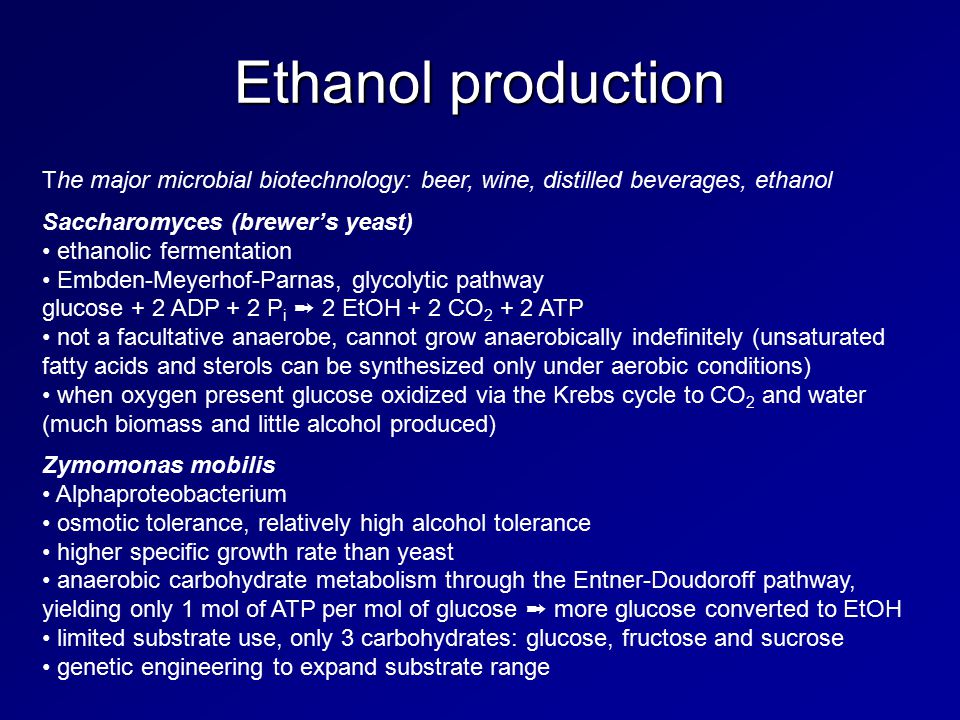

7. Ethanol production The major microbial biotechnology: beer, wine, distilled beverages, ethanol Saccharomyces (brewer’s yeast) ethanolic fermentation Embden-Meyerhof-Parnas, glycolytic pathway glucose + 2 ADP + 2 P i ➞ 2 EtOH + 2 CO 2 + 2 ATP not a facultative anaerobe, cannot grow anaerobically indefinitely (unsaturated fatty acids and sterols can be synthesized only under aerobic conditions) when oxygen present glucose oxidized via the Krebs cycle to CO 2 and water (much biomass and little alcohol produced) Zymomonas mobilis Alphaproteobacterium osmotic tolerance, relatively high alcohol tolerance higher specific growth rate than yeast anaerobic carbohydrate metabolism through the Entner-Doudoroff pathway, yielding only 1 mol of ATP per mol of glucose ➞ more glucose converted to EtOH limited substrate use, only 3 carbohydrates: glucose, fructose and sucrose genetic engineering to expand substrate range

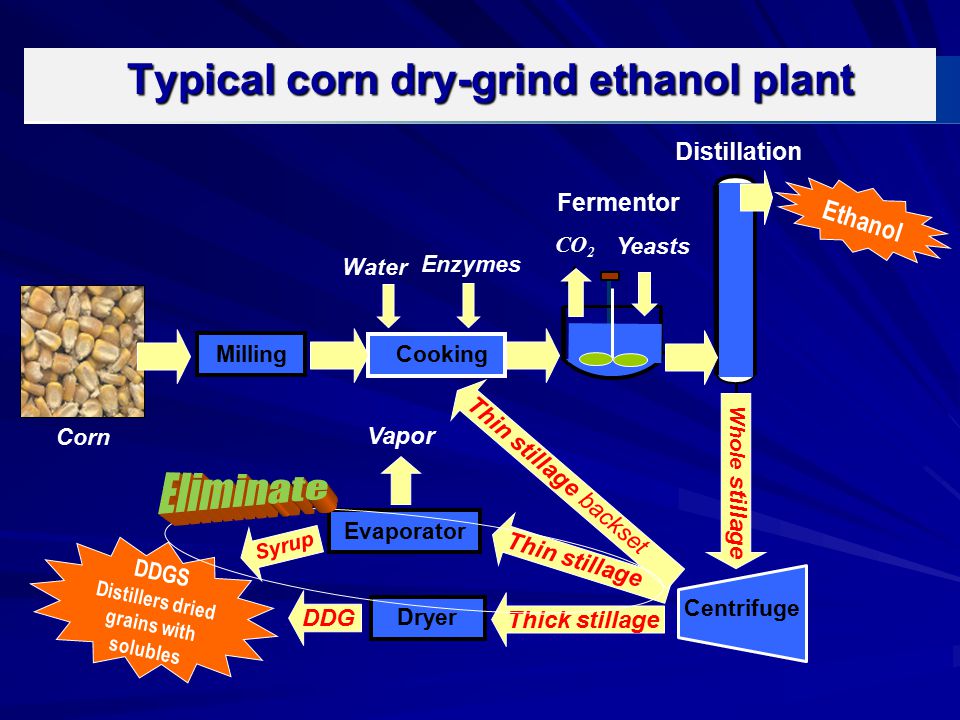

8. CO 2 Enzymes Fermentor Cooking Corn Milling Distillation Ethanol Typical corn dry-grind ethanol plant Typical corn dry-grind ethanol plant Vapor Centrifuge Dryer Evaporator DDGS Distillers dried grains with solubles DDGS Distillers dried grains with solubles Water Thin stillage Thin stillage backset Thick stillage Whole stillage Syrup DDG Yeasts

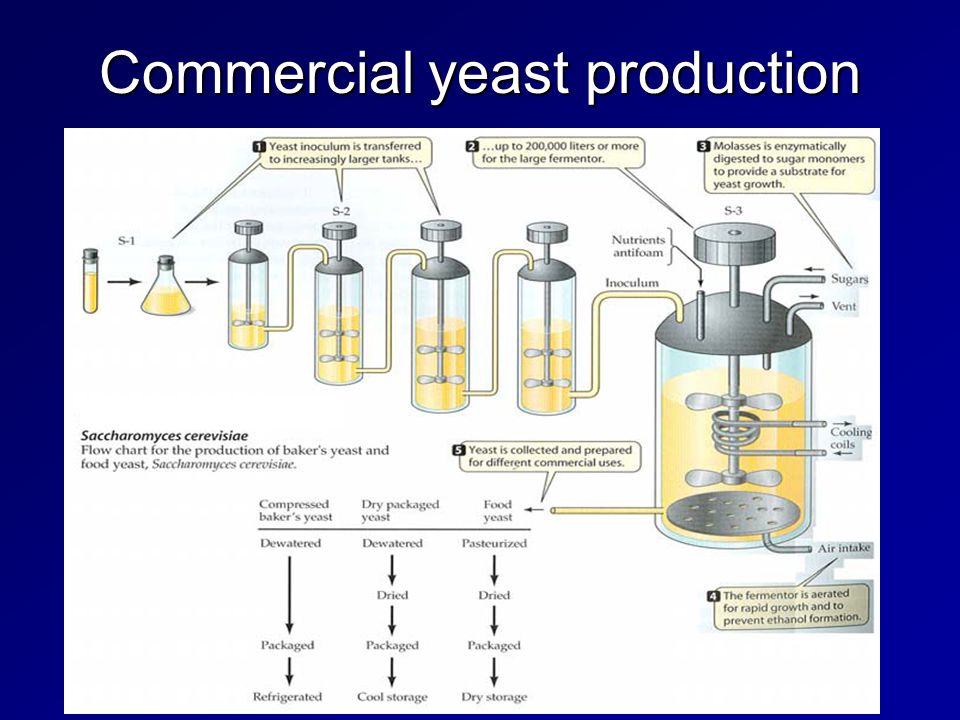

9. Commercial yeast production …………………………..

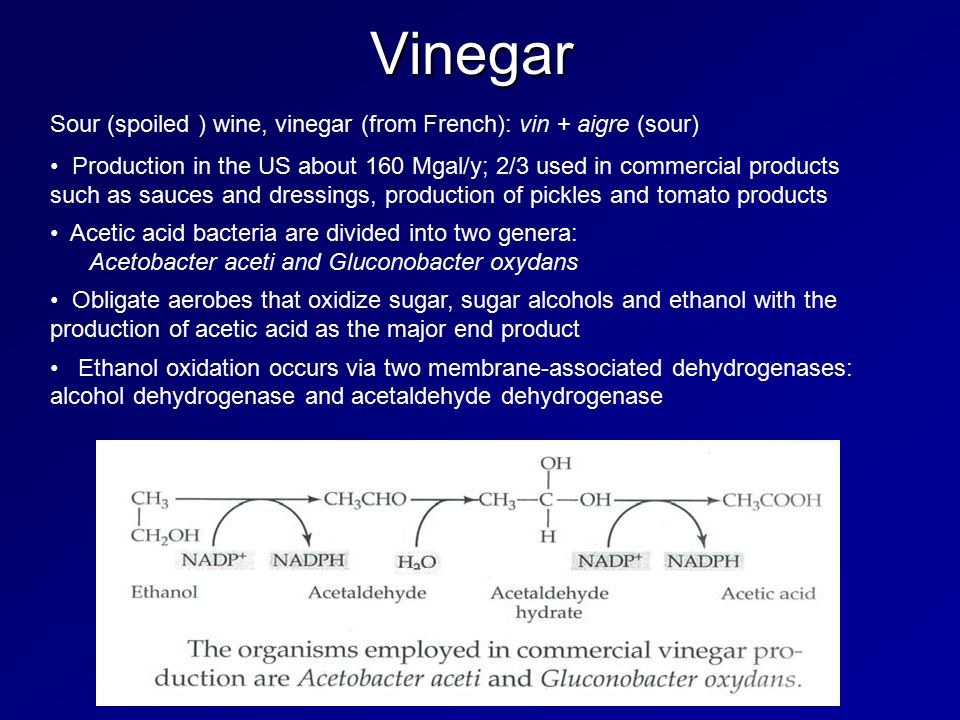

10. Vinegar Sour (spoiled ) wine, vinegar (from French): vin + aigre (sour) Production in the US about 160 Mgal/y; 2/3 used in commercial products such as sauces and dressings, production of pickles and tomato products Acetic acid bacteria are divided into two genera: Acetobacter aceti and Gluconobacter oxydans Obligate aerobes that oxidize sugar, sugar alcohols and ethanol with the production of acetic acid as the major end product Ethanol oxidation occurs via two membrane-associated dehydrogenases: alcohol dehydrogenase and acetaldehyde dehydrogenase

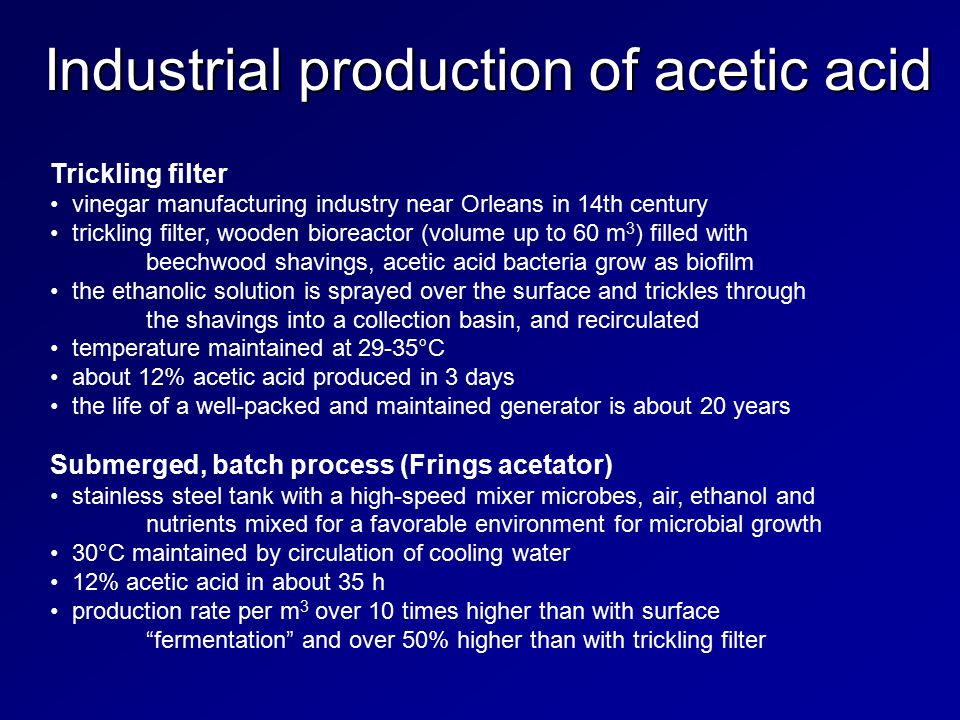

11. Industrial production of acetic acid Trickling filter vinegar manufacturing industry near Orleans in 14th century trickling filter, wooden bioreactor (volume up to 60 m 3 ) filled with beechwood shavings, acetic acid bacteria grow as biofilm the ethanolic solution is sprayed over the surface and trickles through the shavings into a collection basin, and recirculated temperature maintained at 29-35°C about 12% acetic acid produced in 3 days the life of a well-packed and maintained generator is about 20 years Submerged, batch process (Frings acetator) stainless steel tank with a high-speed mixer microbes, air, ethanol and nutrients mixed for a favorable environment for microbial growth 30°C maintained by circulation of cooling water 12% acetic acid in about 35 h production rate per m 3 over 10 times higher than with surface “fermentation” and over 50% higher than with trickling filter

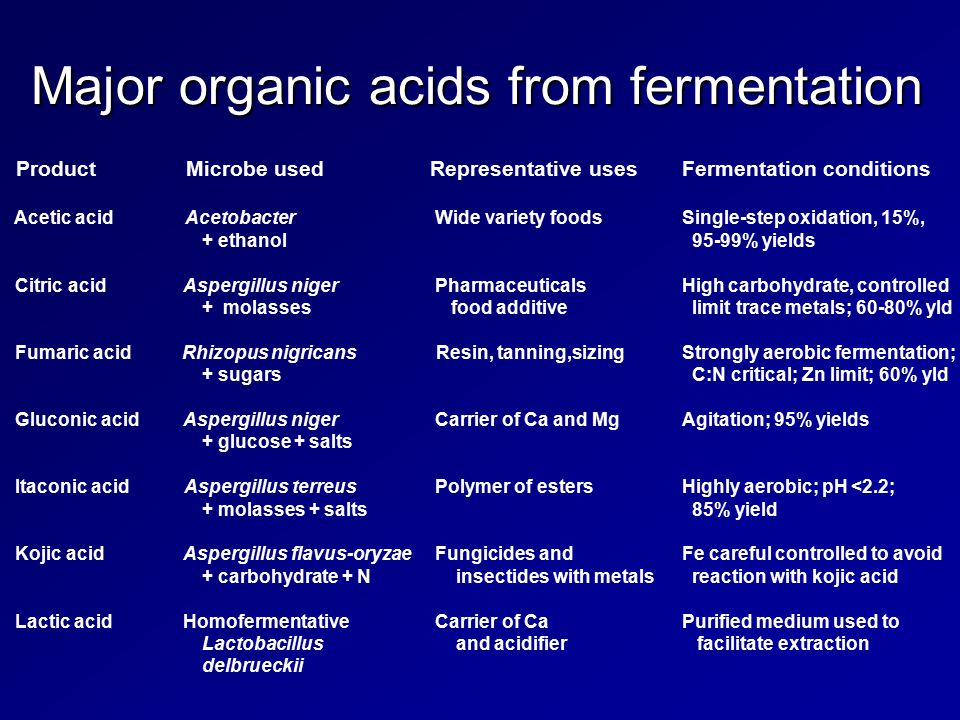

12. Major organic acids from fermentation Product Microbe used Representative uses Fermentation conditions Acetic acid Acetobacter Wide variety foodsSingle-step oxidation, 15%, + ethanol 95-99% yields Citric acid Aspergillus niger PharmaceuticalsHigh carbohydrate, controlled + molasses food additive limit trace metals; 60-80% yld Fumaric acid Rhizopus nigricans Resin, tanning,sizingStrongly aerobic fermentation; + sugars C:N critical; Zn limit; 60% yld Gluconic acid Aspergillus niger Carrier of Ca and MgAgitation; 95% yields + glucose + salts Itaconic acid Aspergillus terreus Polymer of estersHighly aerobic; pH <2.2; + molasses + salts 85% yield Kojic acid Aspergillus flavus-oryzae Fungicides andFe careful controlled to avoid + carbohydrate + N insectides with metals reaction with kojic acid Lactic acid Homofermentative Carrier of CaPurified medium used to Lactobacillus and acidifier facilitate extraction delbrueckii

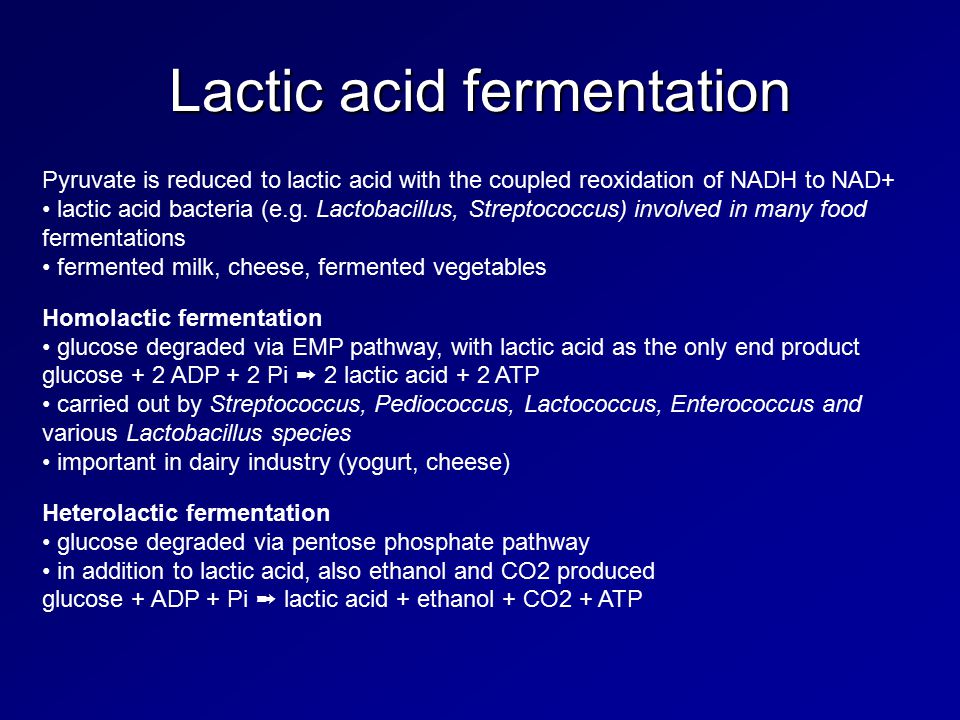

13. Lactic acid fermentation Pyruvate is reduced to lactic acid with the coupled reoxidation of NADH to NAD+ lactic acid bacteria (e.g. Lactobacillus, Streptococcus) involved in many food fermentations fermented milk, cheese, fermented vegetables Homolactic fermentation glucose degraded via EMP pathway, with lactic acid as the only end product glucose + 2 ADP + 2 Pi ➞ 2 lactic acid + 2 ATP carried out by Streptococcus, Pediococcus, Lactococcus, Enterococcus and various Lactobacillus species important in dairy industry (yogurt, cheese) Heterolactic fermentation glucose degraded via pentose phosphate pathway in addition to lactic acid, also ethanol and CO2 produced glucose + ADP + Pi ➞ lactic acid + ethanol + CO2 + ATP

14. Lactococcal products Nisin yield - 620 mg/L Biomass yield - 2.3g/L Lactic acid production 0h24h16h

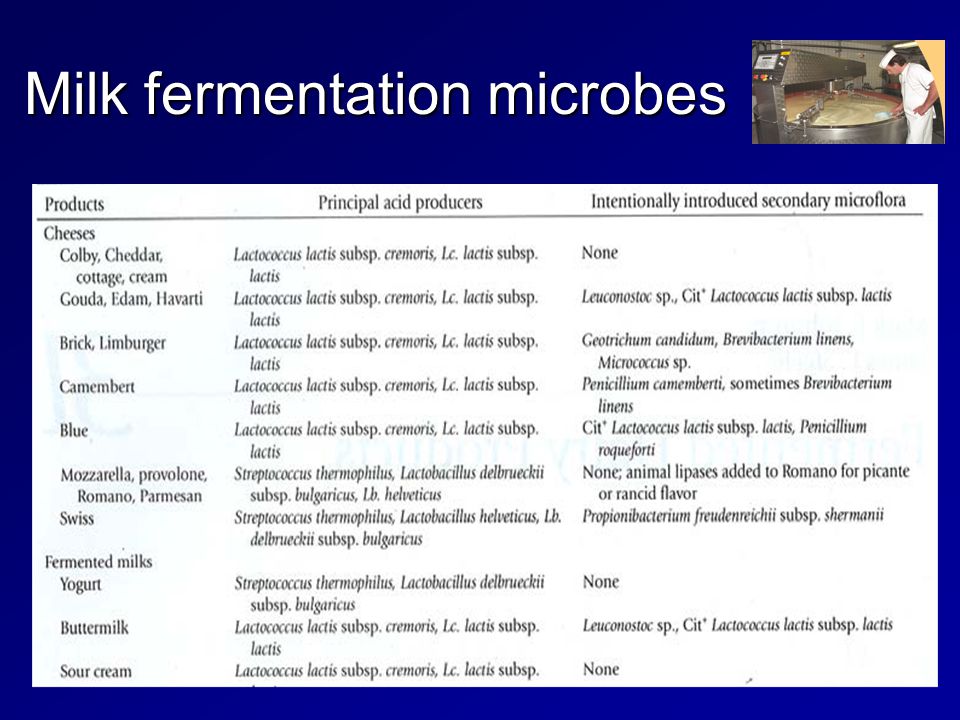

15. Milk fermentation microbes

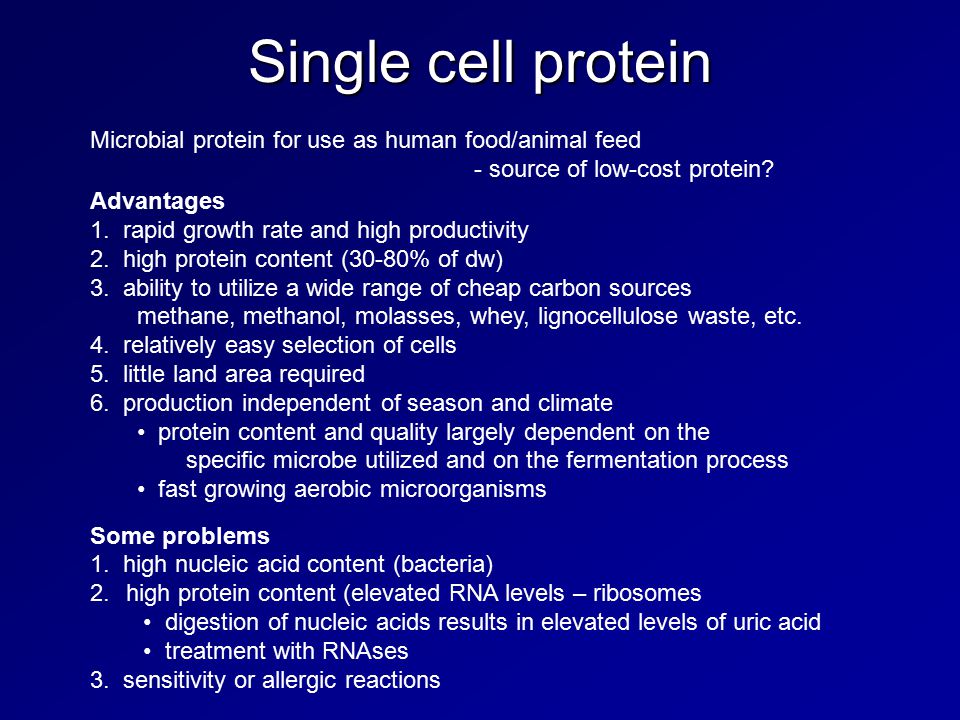

16. Single cell protein Microbial protein for use as human food/animal feed - source of low-cost protein? Advantages 1. rapid growth rate and high productivity 2. high protein content (30-80% of dw) 3. ability to utilize a wide range of cheap carbon sources methane, methanol, molasses, whey, lignocellulose waste, etc. 4. relatively easy selection of cells 5. little land area required 6. production independent of season and climate protein content and quality largely dependent on the specific microbe utilized and on the fermentation process fast growing aerobic microorganisms Some problems 1. high nucleic acid content (bacteria) 2.high protein content (elevated RNA levels – ribosomes digestion of nucleic acids results in elevated levels of uric acid treatment with RNAses 3. sensitivity or allergic reactions

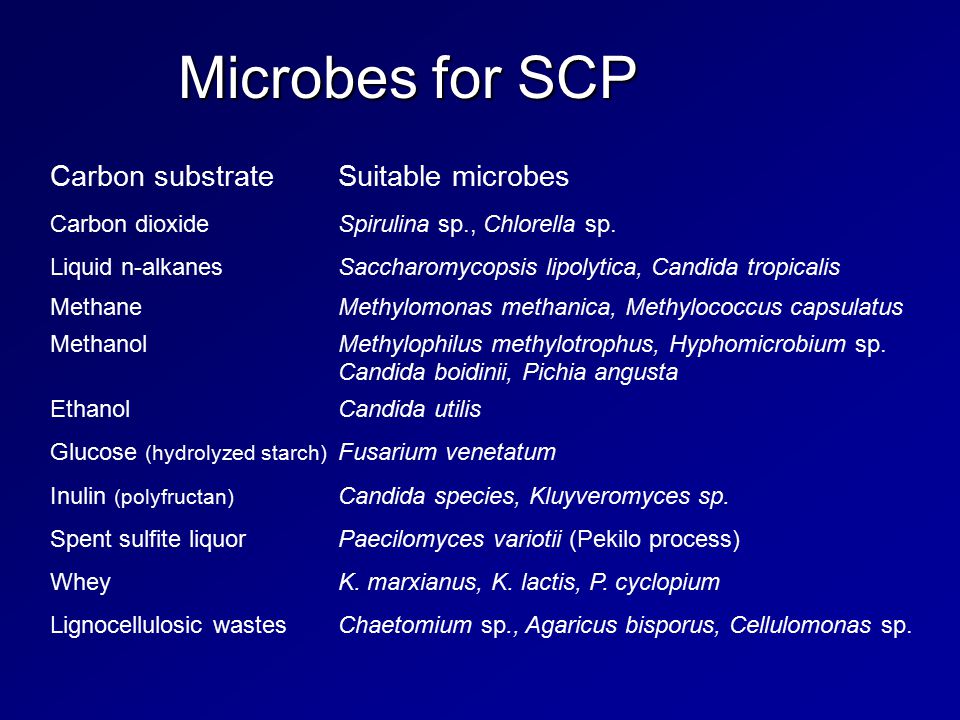

17. Microbes for SCP Carbon substrateSuitable microbes Carbon dioxideSpirulina sp., Chlorella sp. Liquid n-alkanesSaccharomycopsis lipolytica, Candida tropicalis MethaneMethylomonas methanica, Methylococcus capsulatus MethanolMethylophilus methylotrophus, Hyphomicrobium sp. Candida boidinii, Pichia angusta EthanolCandida utilis Glucose (hydrolyzed starch) Fusarium venetatum Inulin (polyfructan) Candida species, Kluyveromyces sp. Spent sulfite liquorPaecilomyces variotii (Pekilo process) WheyK. marxianus, K. lactis, P. cyclopium Lignocellulosic wastesChaetomium sp., Agaricus bisporus, Cellulomonas sp.

18. GRAS microorganisms Generally Regarded As Safe by the Food and Drug Administration Normally, these organisms need no further testing if cultivated under acceptable conditions Bacteria Bacillus subtilis Lactobacillus bulgaricus Leuconostoc oenos Yeasts Candida utilis Kluyveromyces lactis Saccharomyces cerevisiae Filamentous fungi Aspergillus niger Aspergillus oryzae Mucor circinelloides Rhizopus microsporus Penicillium roqueforti

19. SCP examples Mushrooms Pekilo prossess filamentous fungus Paecilomyces variotii use of waste from wood processing (monosaccharides + acetate) use as animal feed Pruteen methanol (from methane - natural gas) as C1 carbon source methylotrophic bacteria (Methylophilus methylotrophus) feed protein Quorn fungal mycelium, Fusarium graminarium for human consumption (mycoprotein) processed to resemble meat MycoMax/MycoMeal

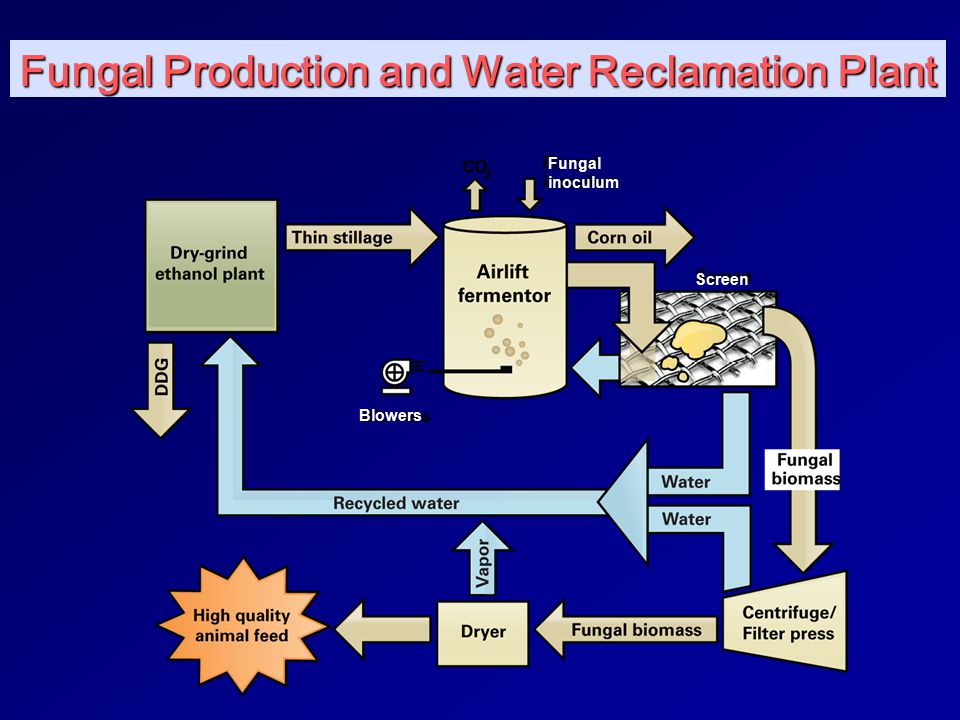

20. Fungal Production and Water Reclamation Plant Fungal inoculum Screen Blowers

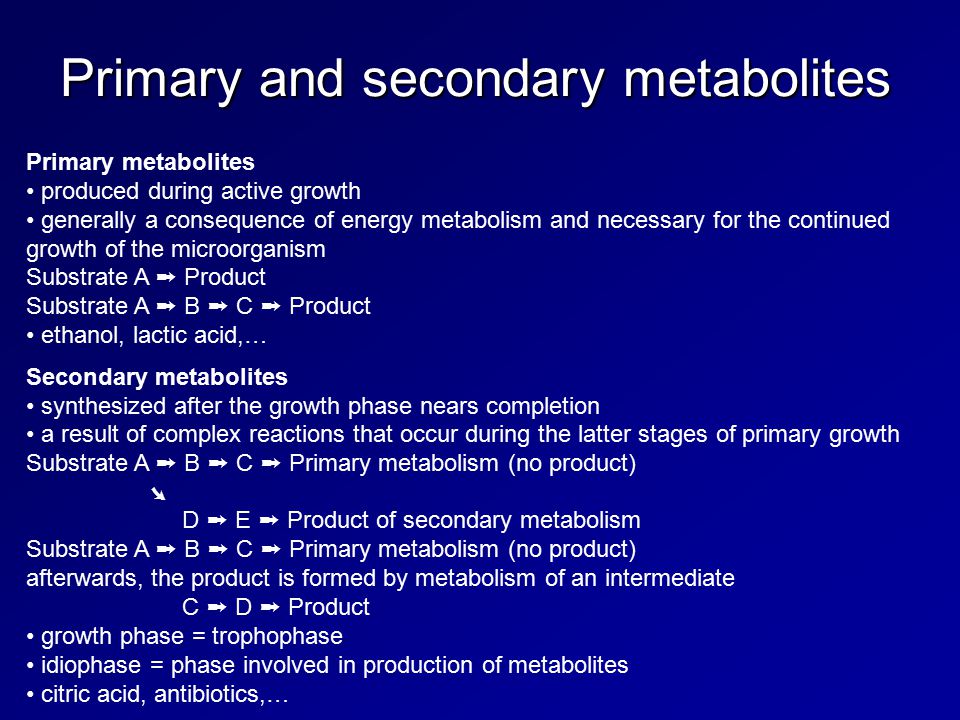

21. Primary and secondary metabolites Primary metabolites produced during active growth generally a consequence of energy metabolism and necessary for the continued growth of the microorganism Substrate A ➞ Product Substrate A ➞ B ➞ C ➞ Product ethanol, lactic acid,… Secondary metabolites synthesized after the growth phase nears completion a result of complex reactions that occur during the latter stages of primary growth Substrate A ➞ B ➞ C ➞ Primary metabolism (no product) ➘ D ➞ E ➞ Product of secondary metabolism Substrate A ➞ B ➞ C ➞ Primary metabolism (no product) afterwards, the product is formed by metabolism of an intermediate C ➞ D ➞ Product growth phase = trophophase idiophase = phase involved in production of metabolites citric acid, antibiotics,…

22. Growth in batch Primary metabolite Secondary metabolite

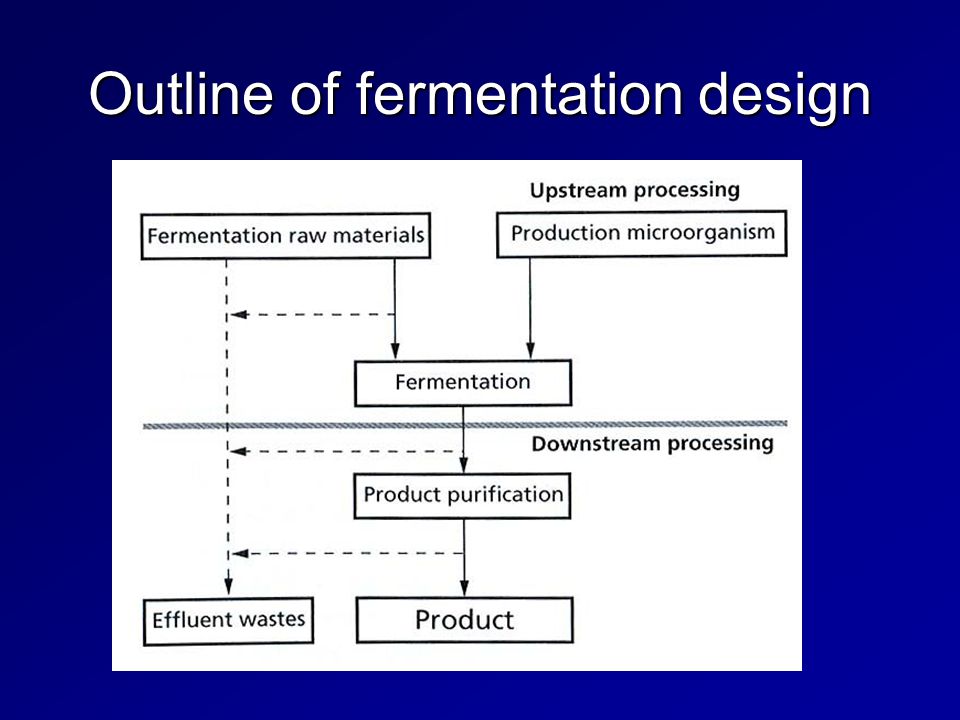

23. Outline of fermentation design

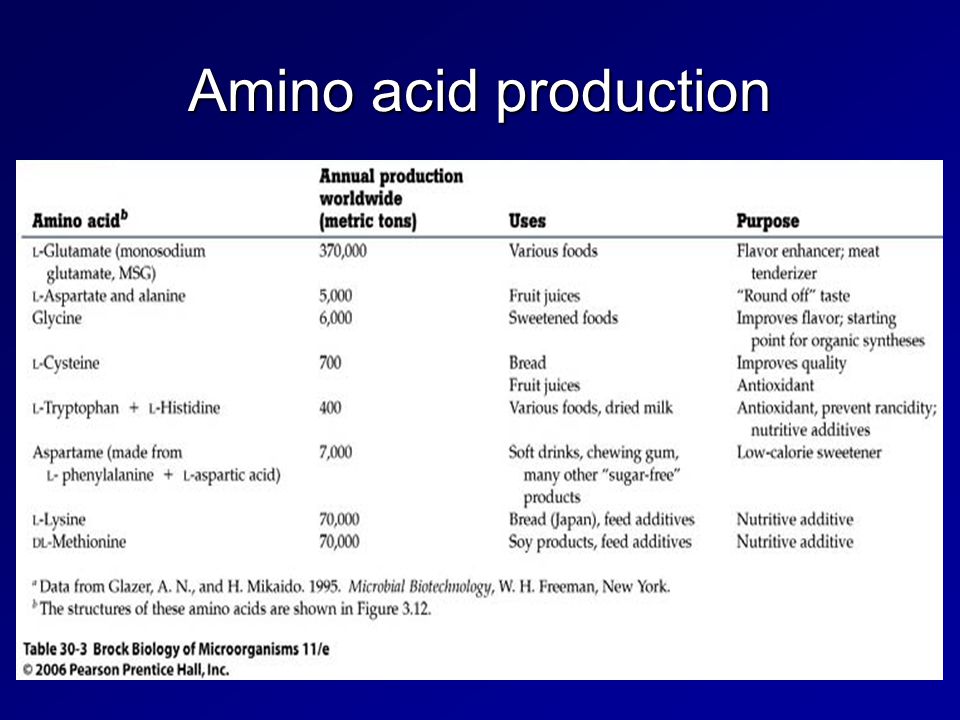

24. Amino acid production

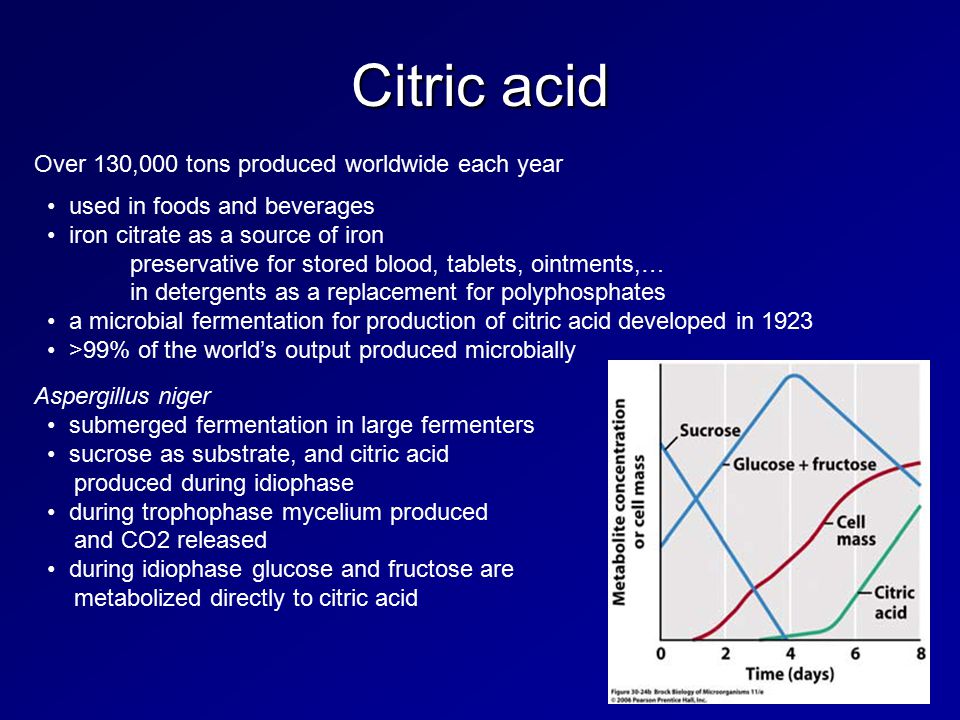

25. Citric acid Over 130,000 tons produced worldwide each year used in foods and beverages iron citrate as a source of iron preservative for stored blood, tablets, ointments,… in detergents as a replacement for polyphosphates a microbial fermentation for production of citric acid developed in 1923 >99% of the world’s output produced microbially Aspergillus niger submerged fermentation in large fermenters sucrose as substrate, and citric acid produced during idiophase during trophophase mycelium produced and CO2 released during idiophase glucose and fructose are metabolized directly to citric acid

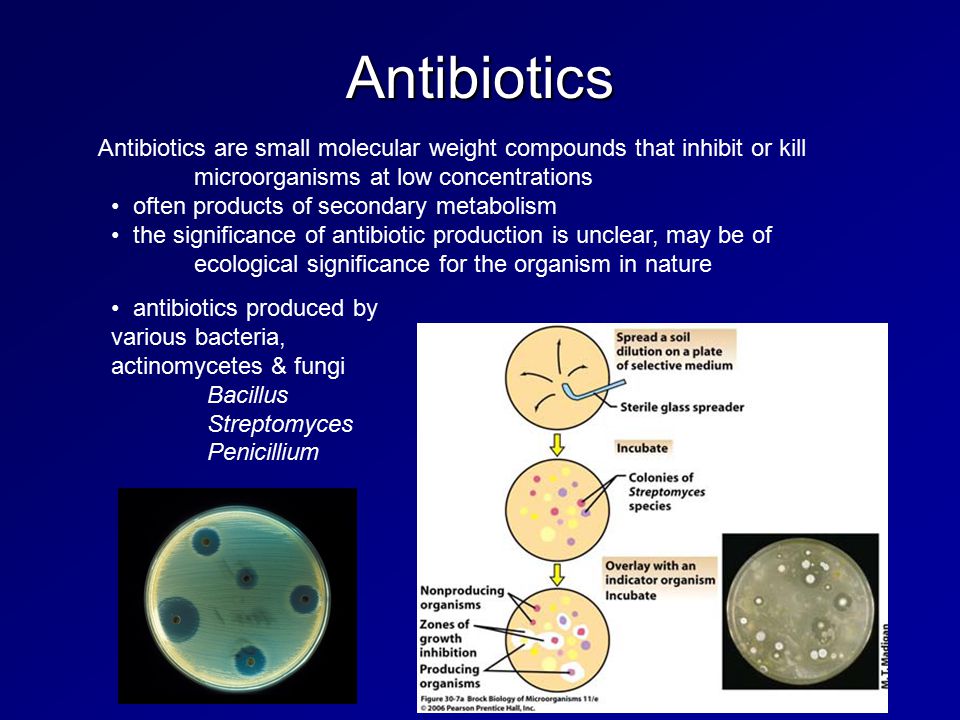

26. Antibiotics Antibiotics are small molecular weight compounds that inhibit or kill microorganisms at low concentrations often products of secondary metabolism the significance of antibiotic production is unclear, may be of ecological significance for the organism in nature antibiotics produced by various bacteria, actinomycetes & fungi Bacillus Streptomyces Penicillium

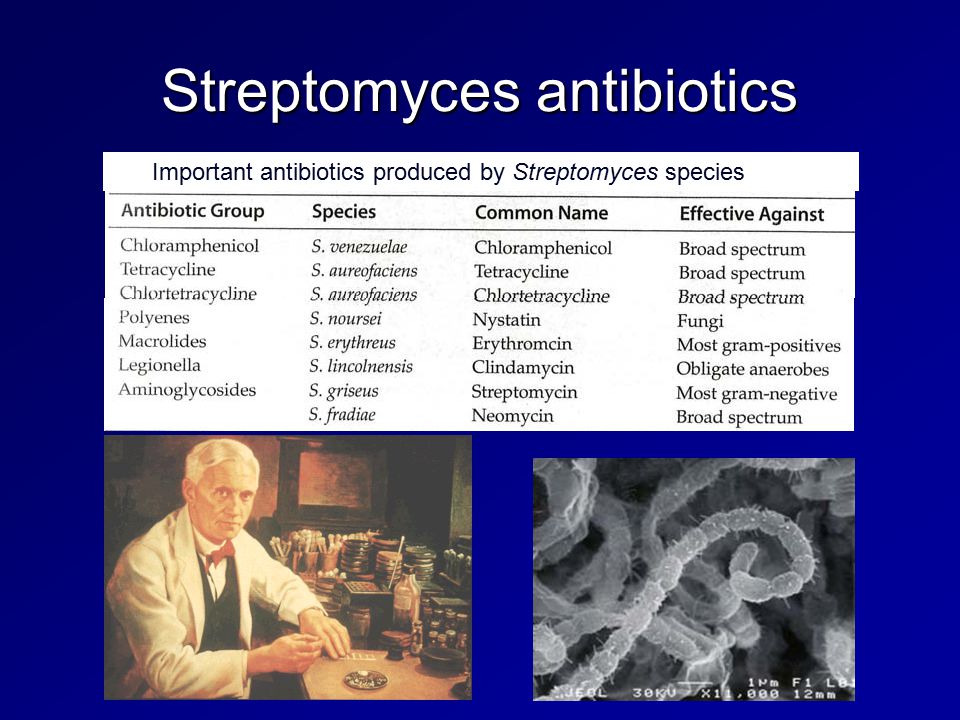

27. Streptomyces antibiotics Important antibiotics produced by Streptomyces species

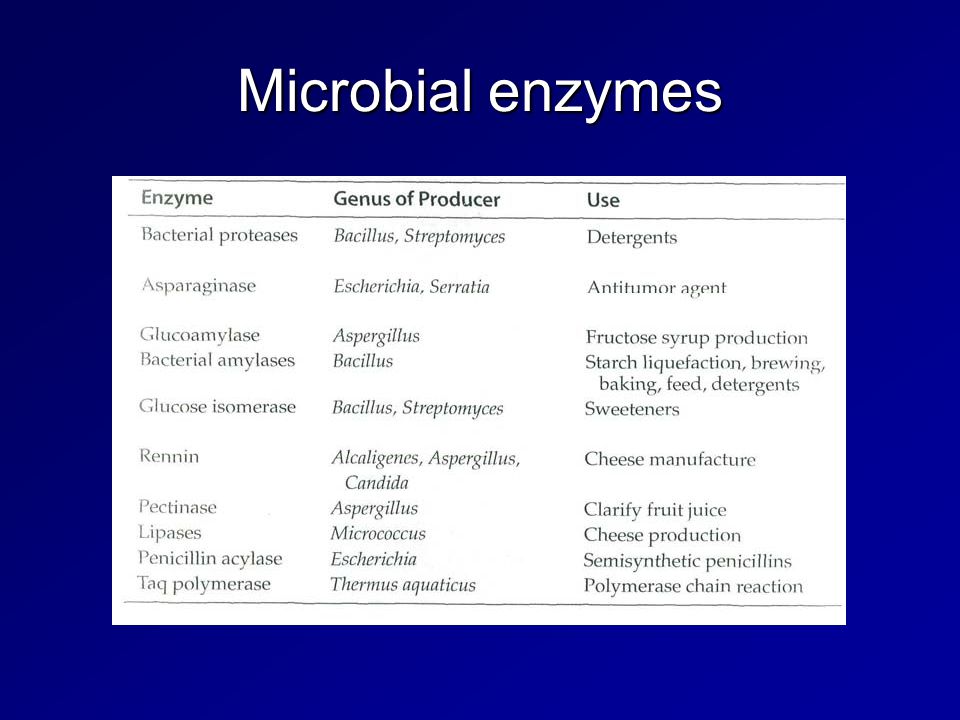

28. Microbial enzymes

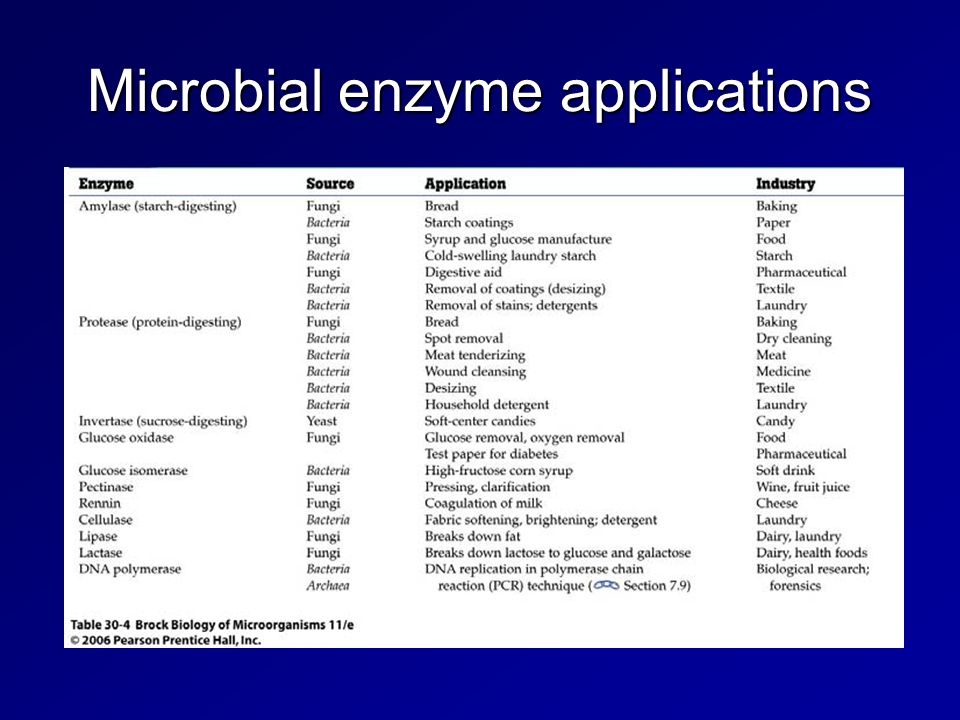

29. Microbial enzyme applications

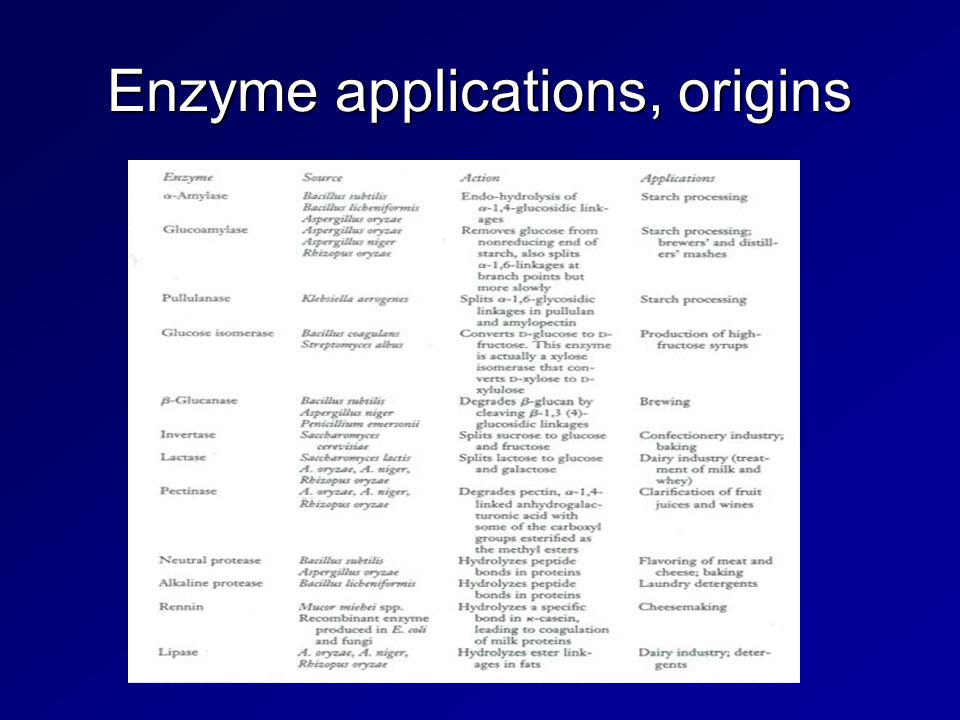

30. Enzyme applications, origins

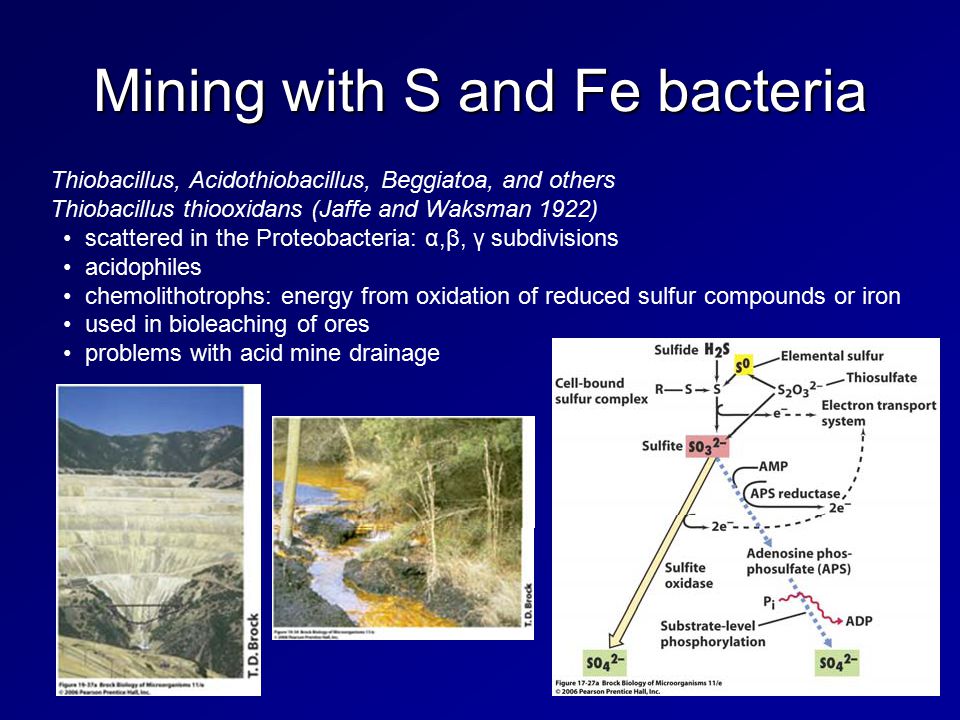

31. Mining with S and Fe bacteria Thiobacillus, Acidothiobacillus, Beggiatoa, and others Thiobacillus thiooxidans (Jaffe and Waksman 1922) scattered in the Proteobacteria: α,β, γ subdivisions acidophiles chemolithotrophs: energy from oxidation of reduced sulfur compounds or iron used in bioleaching of ores problems with acid mine drainage

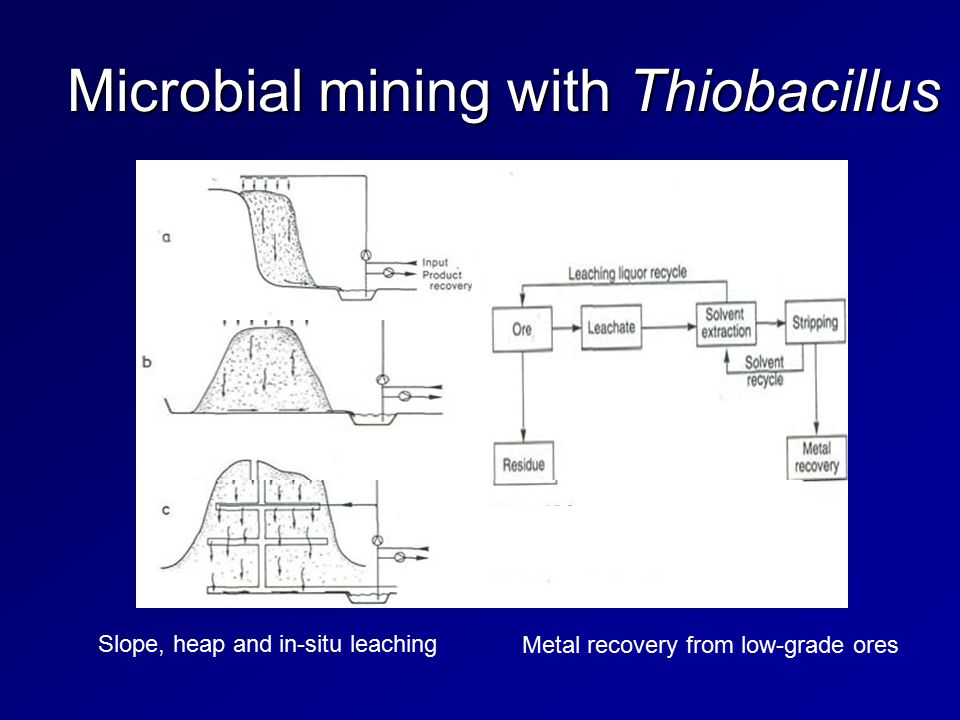

32. Microbial mining with Thiobacillus Slope, heap and in-situ leaching Metal recovery from low-grade ores Metal recovery from low-grade ores

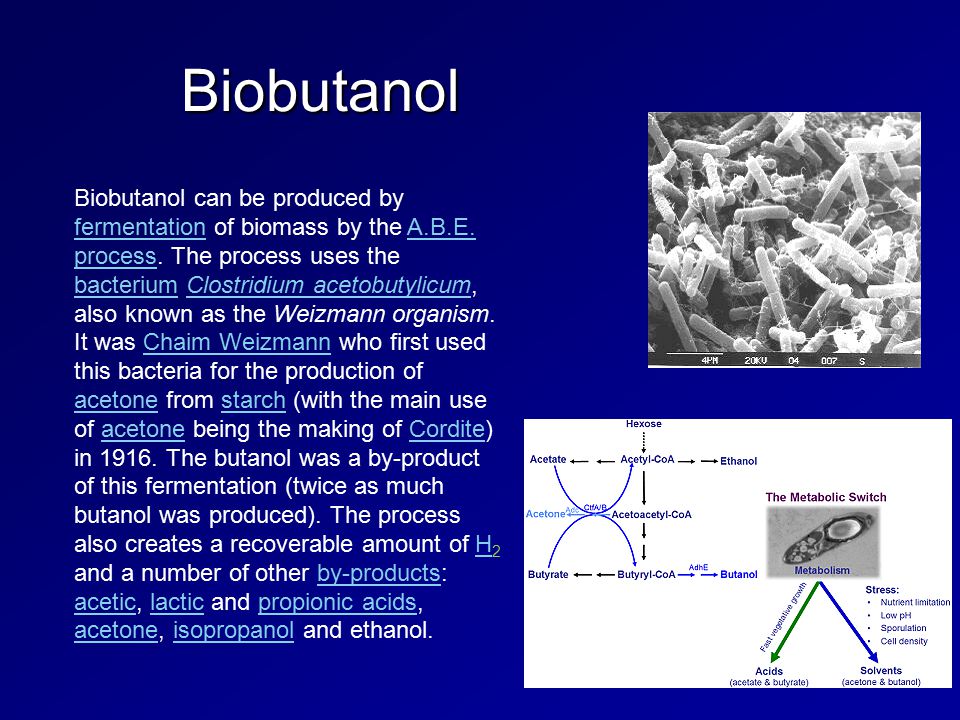

33. Biobutanol Biobutanol can be produced by fermentation of biomass by the A.B.E. process. The process uses the bacterium Clostridium acetobutylicum, also known as the Weizmann organism. It was Chaim Weizmann who first used this bacteria for the production of acetone from starch (with the main use of acetone being the making of Cordite) in 1916. The butanol was a by-product of this fermentation (twice as much butanol was produced). The process also creates a recoverable amount of H 2 and a number of other by-products: acetic, lactic and propionic acids, acetone, isopropanol and ethanol. fermentationA.B.E. process bacteriumClostridium acetobutylicumChaim Weizmann acetonestarchacetoneCorditeHby-products aceticlacticpropionic acids acetoneisopropanol

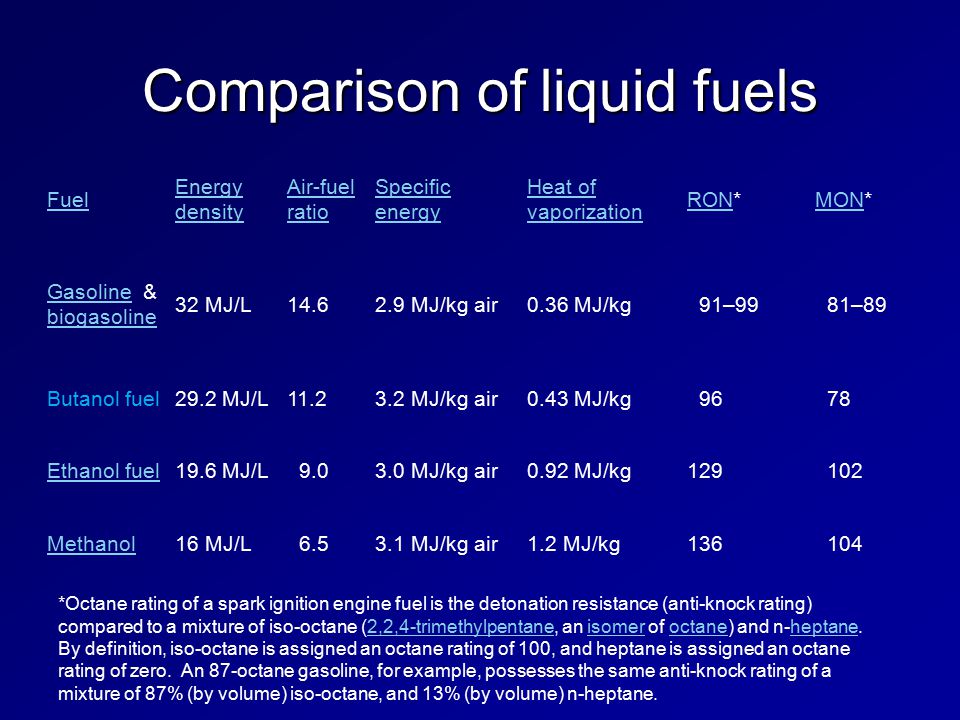

34. Comparison of liquid fuels Fuel Energy density Air-fuel ratio Specific energy Heat of vaporization RONRON*MONMON* GasolineGasoline & biogasoline biogasoline 32 MJ/L14.62.9 MJ/kg air0.36 MJ/kg 91–99 81–89 Butanol fuel29.2 MJ/L11.23.2 MJ/kg air0.43 MJ/kg 96 78 Ethanol fuel19.6 MJ/L 9.03.0 MJ/kg air0.92 MJ/kg129 102 Methanol16 MJ/L 6.53.1 MJ/kg air1.2 MJ/kg136 104 *Octane rating of a spark ignition engine fuel is the detonation resistance (anti-knock rating) compared to a mixture of iso-octane (2,2,4-trimethylpentane, an isomer of octane) and n-heptane. By definition, iso-octane is assigned an octane rating of 100, and heptane is assigned an octane rating of zero. An 87-octane gasoline, for example, possesses the same anti-knock rating of a mixture of 87% (by volume) iso-octane, and 13% (by volume) n-heptane.2,2,4-trimethylpentaneisomeroctaneheptane

35. Utilization of resources

36. Algal and cyanobacterial cultivation High-rate photosynthesis J. (Hans) van Leeuwen

37. Cyanobacteria Certain cyanobacteria produce cyanotoxins including anatoxin-a, anatoxin-as, aplysiatoxin, cylindrospermopsin, domoic acid, microcystin LR, nodularin R (from Nodularia), or saxitoxin. Sometimes a mass-reproduction of cyanobacteria results in algal blooms. cyanotoxinsanatoxin-a anatoxin-asaplysiatoxin cylindrospermopsindomoic acid microcystin LRnodularin R Nodulariasaxitoxinreproductionalgal blooms These toxins can be neurotoxins, hepatotoxins, cytotoxins, and endotoxins, and can be dangerous to animals and humans. Several cases of human poisoning have been documented but a lack of knowledge prevents an accurate assessment of the risks.neurotoxins hepatotoxinscytotoxins endotoxins ChloroplastsChloroplasts in plants and eukaryotic algae have evolved from cyanobacteria via endosymbiosis.plants algaeendosymbiosis

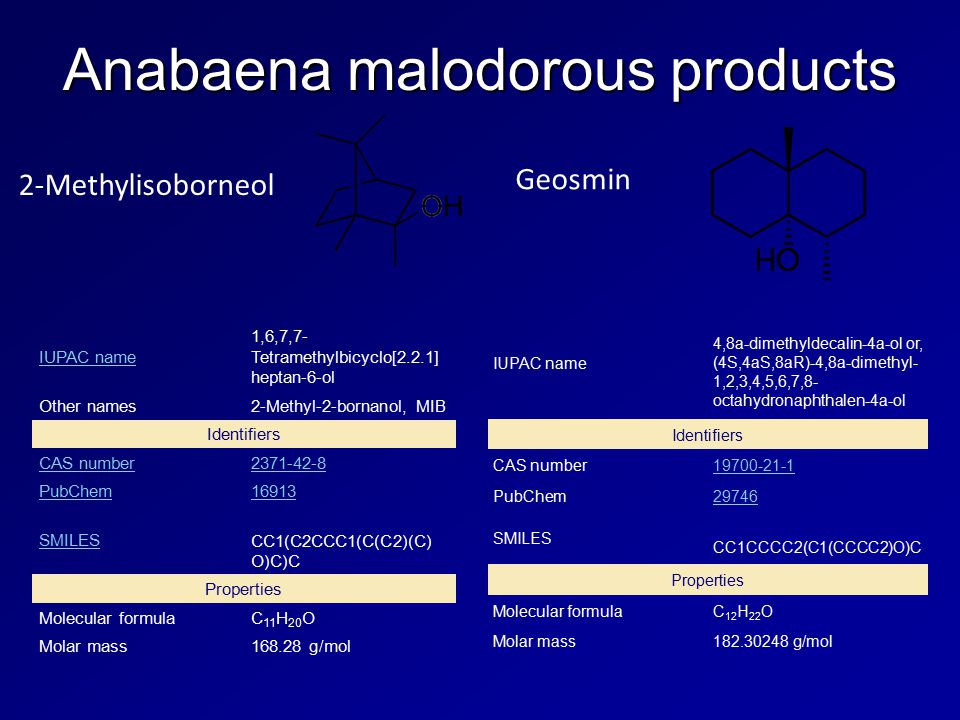

38. Anabaena malodorous products IUPAC name 1,6,7,7- Tetramethylbicyclo[2.2.1] heptan-6-ol Other names2-Methyl-2-bornanol, MIB Identifiers CAS number2371-42-8 PubChem16913 SMILESCC1(C2CCC1(C(C2)(C) O)C)C Properties Molecular formulaC 11 H 20 O Molar mass168.28 g/mol IUPAC name 4,8a-dimethyldecalin-4a-ol or, (4S,4aS,8aR)-4,8a-dimethyl- 1,2,3,4,5,6,7,8- octahydronaphthalen-4a-ol Identifiers CAS number19700-21-1 PubChem29746 SMILES CC1CCCC2(C1(CCCC2)O)C Properties Molecular formulaC 12 H 22 O Molar mass182.30248 g/mol 2-Methylisoborneol Geosmin

39. Algal oil production Microalgae have much faster growth-rates than terrestrial crops. The per unit area yield of oil from algae is estimated to be from between 5,000 to 20,000 US gallons per acre per year (4,700 to 18,000 m 3 /km 2 ·a); this is 7 to 30 times > than the next best crop, Chinese tallow (700 US gal/acre·a or 650 m 3 /km 2 ·a).Chinese tallow

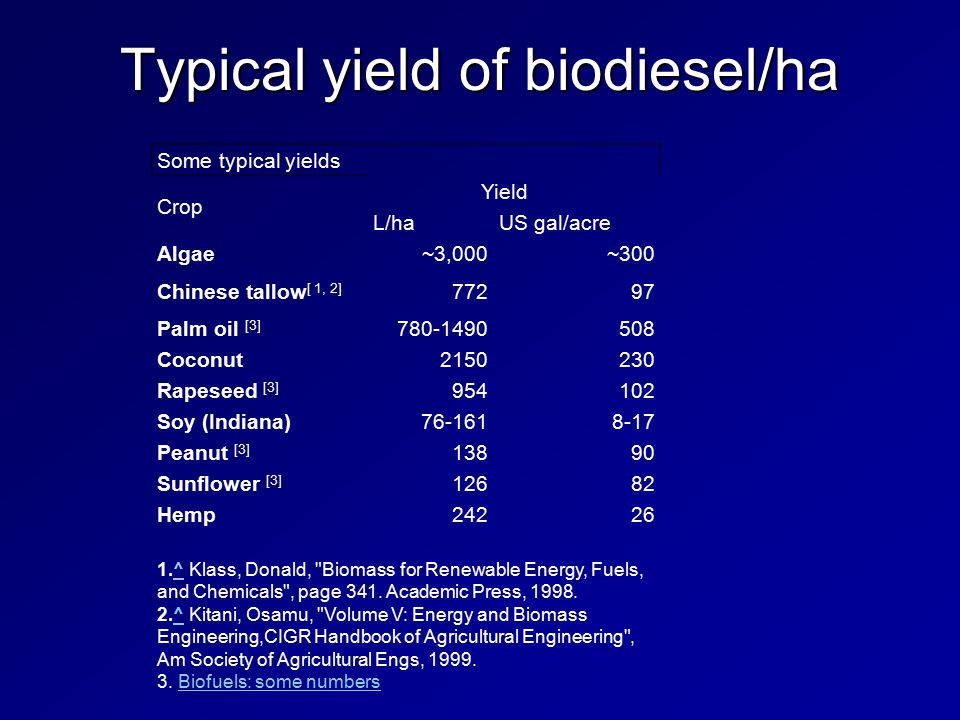

40. Typical yield of biodiesel/ha Some typical yields Crop Yield L/haUS gal/acre Algae~3,000~300 Chinese tallow [ 1, 2] 77297 Palm oil [3] 780-1490508 Coconut2150230 Rapeseed [3] 954102 Soy (Indiana)76-1618-17 Peanut [3] 13890 Sunflower [3] 12682 Hemp24226 1.^ Klass, Donald, "Biomass for Renewable Energy, Fuels, and Chemicals", page 341. Academic Press, 1998.^ 2.^ Kitani, Osamu, "Volume V: Energy and Biomass Engineering,CIGR Handbook of Agricultural Engineering", Am Society of Agricultural Engs, 1999.^ 3. Biofuels: some numbersBiofuels: some numbers

41. Spirulina Spirulina Domain:Bacteria Phylum:CyanobacteriaCyanobacteria = Chroobacteria Chroobacteria Order:Oscillatoriales Family:Phormidiaceae Genus:Arthrospira Species About 35 Arthrospira maxima Arthrospira platensis Spirulina common name for food supplements from two species of cyanobacteria: Arthrospira platensis, and Arthrospira maxima. These and other Arthrospira species were once classified in the genus Spirulina. There is now agreement that they are a distinct genus, and that the food species belong to Arthrospira; nonetheless, the older term Spirulina remains the popular name. Spirulina is cultivated around the world, and is used as a human dietary supplement as well as a whole food and is available in tablet, flake, and powder form. It is also used as a feed supplement in the aquaculture, aquarium, and poultry industries. [1]cyanobacteriaSpirulinadietary supplementwhole foodfeed aquacultureaquariumpoultry [1]

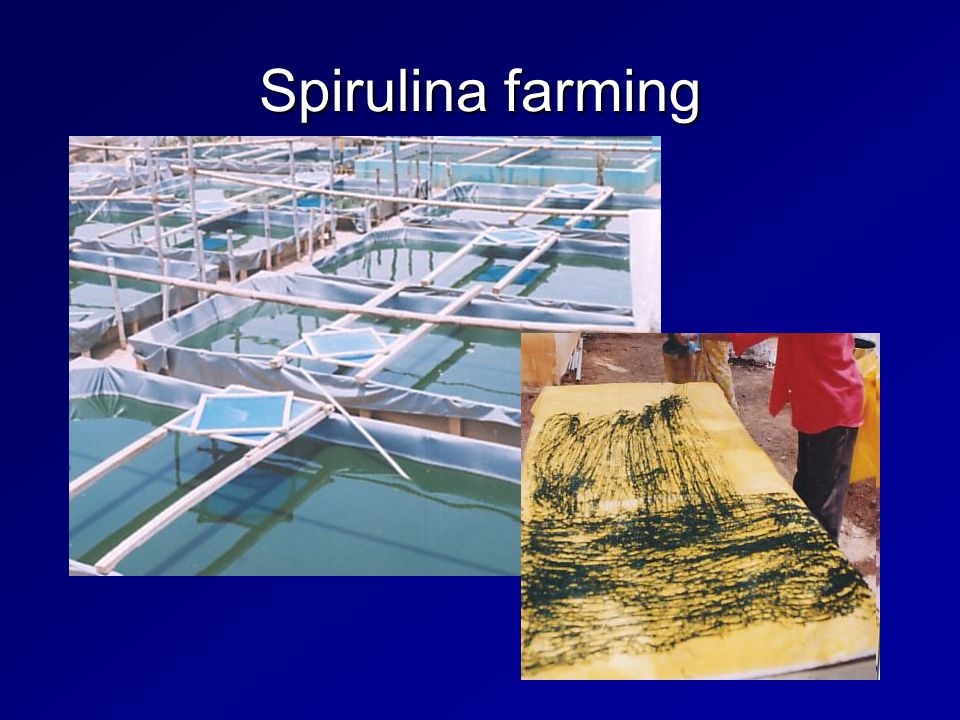

42. Spirulina farming

43. Edible algae Dulse (‘’Palmaria palmata’’) is a red species sold in Ireland and Atlantic Canada. It is eaten raw, fresh, dried, or cooked like spinachPalmaria palmataIrelandCanada

44. Edible algae: Porphyra Domain:Eukaryota (unranked):Archaeplastid a Phylum:Rhodophyta Class:Bangiophyce ae Order:Bangiales Family:Bangiaceae Genus:Porphyra Porphyra the most domesticated of the marine algae, [5] known as laver, nori (Japanese), amanori (Japanese), [6] zakai, kim (Korean), [6] zicai (Chinese), [6] karengo, sloke or slukos. [2] The marine red alga has been cultivated extensively in Asian countries as edible seaweed to wrap rice and fish that compose the Japanese food sushi, and the Korean food gimbap. Japanese annual production of Porphyra spp. is valued at 100 billion yen (US$ 1 billion). [7] [5]lavernoriJapanese [6]Korean [6]Chinese [6]karengo [2]sushigimbap [7]

45. Chondrus crispus Kingdom:Archaeplastida Archaeplastida (earlier Plantae) Phylum:Rhodophyta Class:Rhodophycea e Order:Gigartinales Family:Gigartinaceae Genus:Chondrus Species:C. crispus Irish moss (Chondrus crispus), often confused with Mastocarpus stellatus, is the source of carrageenan, which is used as a stiffening agent in instant puddings, sauces, and dairy products such as ice cream. Irish moss is also used by beer brewers as a fining agent.Chondrus crispusMastocarpus stellatus carrageenanfining

46. Other uses of algae Fertilizer and agar For centuries seaweed has been used as fertilizer. It is also an excellent source of potassium for manufacture of potash and potassium nitrate. Both microalgae and macroalgae are used to make agar.agar Pollution Control With concern over global warming, new methods for the thorough and efficient capture of CO 2 are being sought out. The carbon dioxide that a carbon-fuel burning plant produces can feed into open or closed algae systems, fixing the CO 2 and accelerating algae growth. Untreated wastewater can supply additional nutrients, thus turning two pollutants into valuable commodities. Algae cultivation is under study for uranium/plutonium sequestration and purifying fertilizer runoff.global warming Chlorella, particularly a transgenic strain which carries an extra mercury reductase gene, has been studied as an agent for environmental remediation due to its ability to reduce Hg 2+ to the less toxic elemental mercury. reductasegeneenvironmental remediation Cultivated algae serve many other purposes, including bioplastic production, dyes and colorant production, chemical feedstock production, and pharmaceutical ingredients.

47. Sea otters and kelp Fast Facts Type: Mammal Diet: Carnivore Average lifespan in the wild: 23 y Size: 4 ft (1.25 m) Weight: 65 lbs (30 kg) Protection status: ThreatenedThreatened

48. Tool using sea otters

49. Sea otter distribution Sea otters were hunted for their fur to the point of near extinction. Early in the 20th century only 1,000 to 2,000 animals remained. Today, 100,000 to 150,000 sea otters are protected by law. Diet Sea urchins, abalone, mussels, clams, crabs, snails and about 40 other marine species. Sea otters eat approximately 25% of their weight in food each day. Importance to kelp protection For discussion

50. Hypoxia Gulf of Mexico "Dead Zone" due to excessive algal growth supported by fertilizer runoff in the Mississippi Low-oxygen areas appear in red. (NASA and NOAA)
