1. Gas Exchange

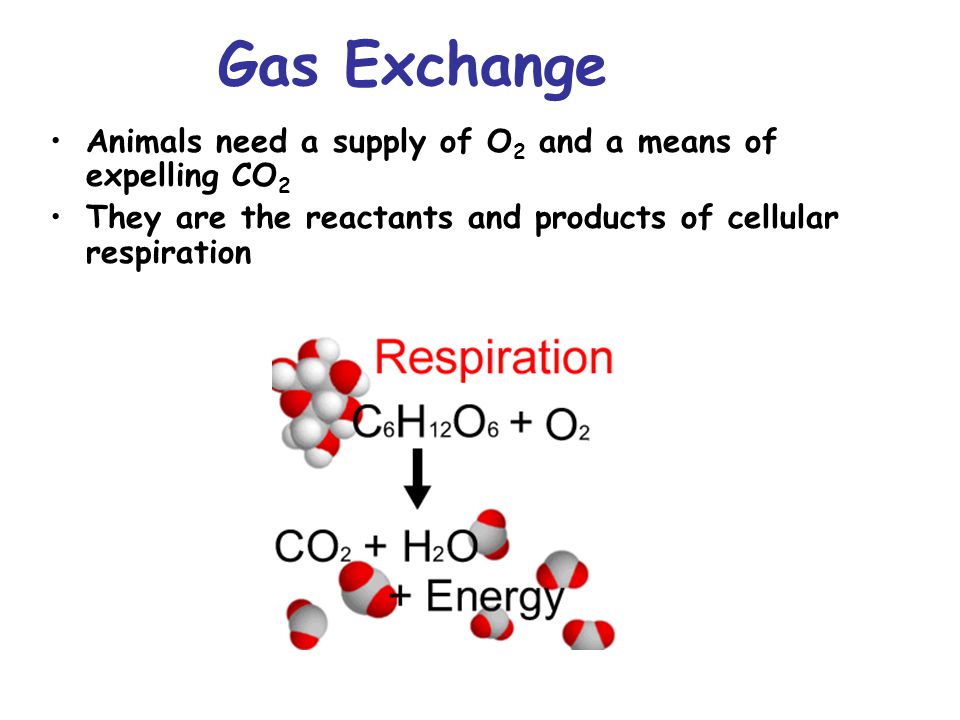

2. Animals need a supply of O 2 and a means of expelling CO 2 They are the reactants and products of cellular respiration Gas Exchange

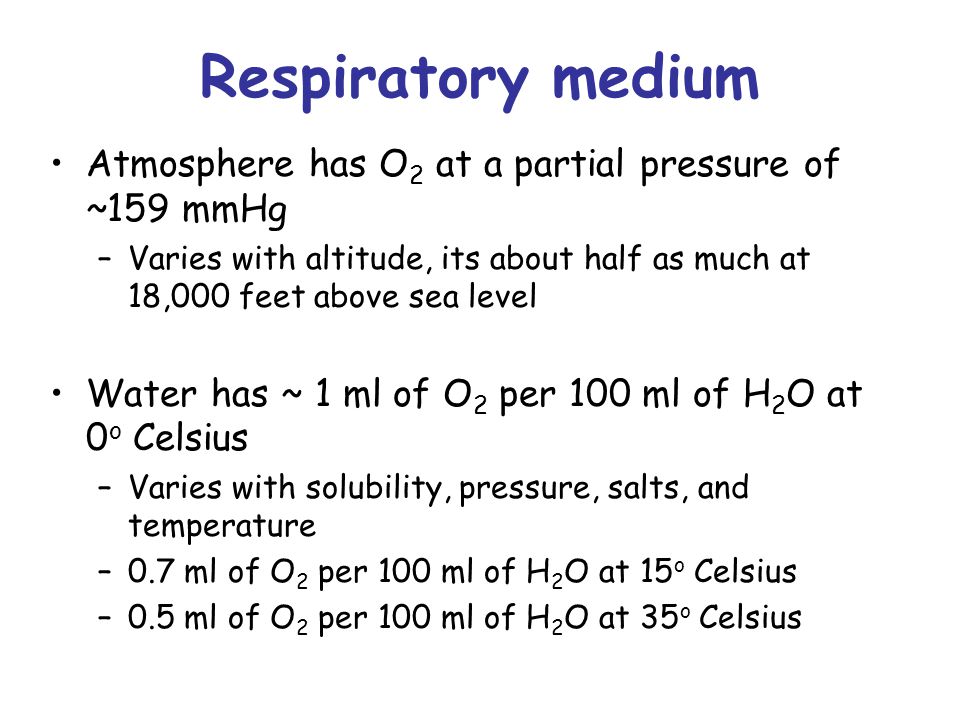

3. Respiratory medium Atmosphere has O 2 at a partial pressure of ~159 mmHg –Varies with altitude, its about half as much at 18,000 feet above sea level Water has ~ 1 ml of O 2 per 100 ml of H 2 O at 0 o Celsius –Varies with solubility, pressure, salts, and temperature –0.7 ml of O 2 per 100 ml of H 2 O at 15 o Celsius –0.5 ml of O 2 per 100 ml of H 2 O at 35 o Celsius

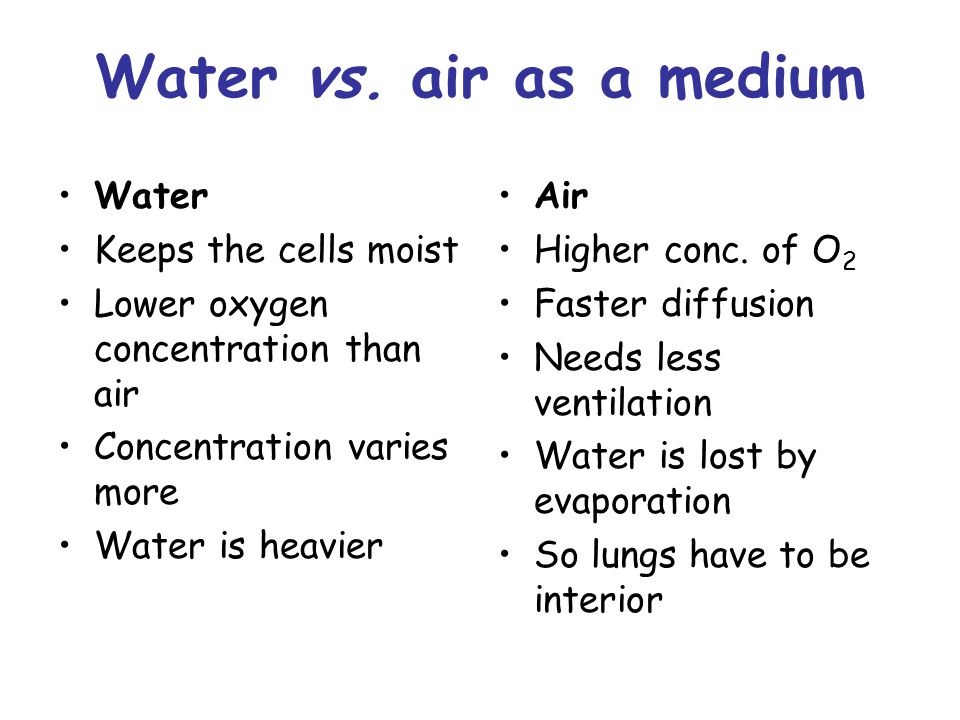

4. Water vs. air as a medium Water Keeps the cells moist Lower oxygen concentration than air Concentration varies more Water is heavier Air Higher conc. of O 2 Faster diffusion Needs less ventilation Water is lost by evaporation So lungs have to be interior

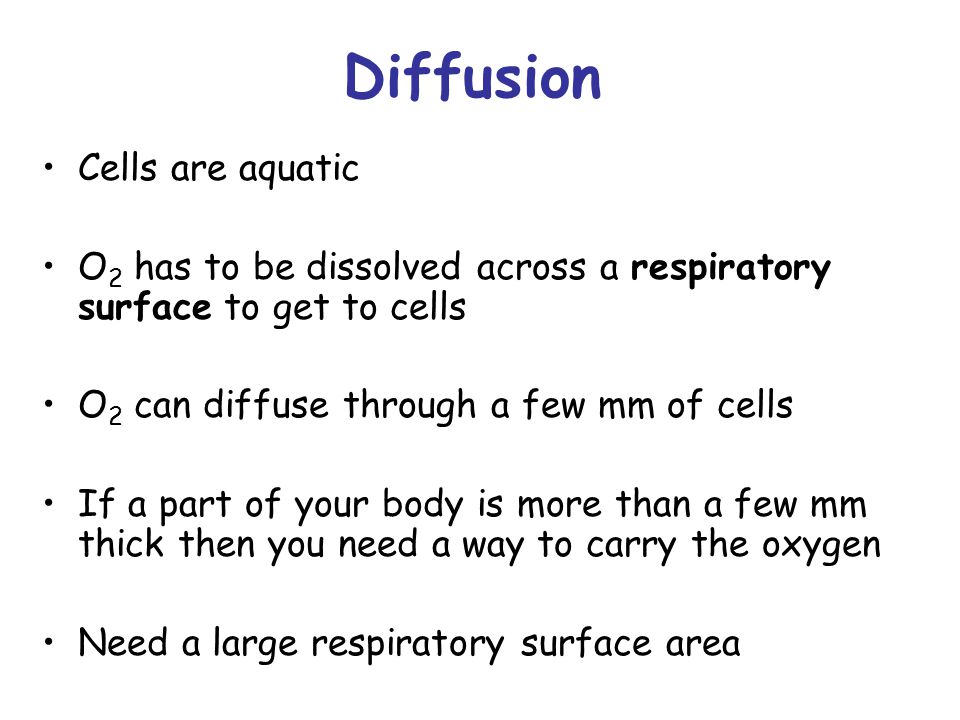

6. Diffusion Cells are aquatic O 2 has to be dissolved across a respiratory surface to get to cells O 2 can diffuse through a few mm of cells If a part of your body is more than a few mm thick then you need a way to carry the oxygen Need a large respiratory surface area

7. Skin breathers Earthworms –Keep skin moist and exchange gases across their entire surface Amphibians –Supplement their lungs with gills

8. Form and function Depends on whether environment is terrestrial or aquatic Simple animals have nearly every plasma membrane in contact with the outside environment –Protozoans –Sponges –Cnidarians – hydra, anemones –Flat worms

9. Lungs/gills –Highly folded or branched body region –Creates a large surface area for absorption Gills –External –Problem - losing water due to osmolarity of salt water Lungs –Internal – prevents drying out of membranes –Allow use of air as a medium –Terrestrial life poses problem of dessication

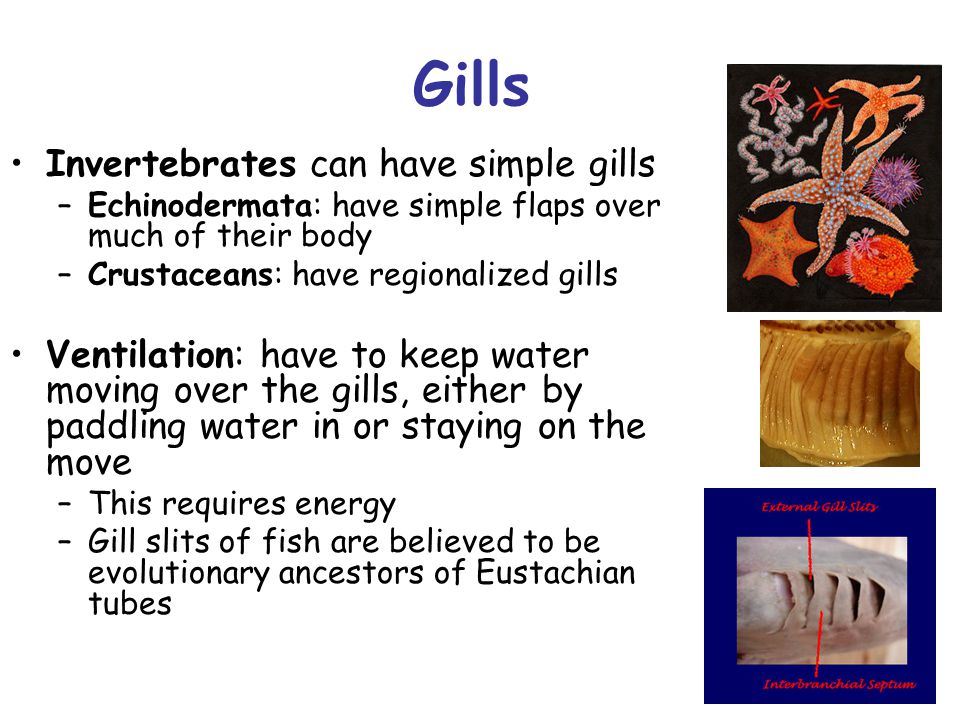

10. Gills Invertebrates can have simple gills –Echinodermata: have simple flaps over much of their body –Crustaceans: have regionalized gills Ventilation: have to keep water moving over the gills, either by paddling water in or staying on the move –This requires energy –Gill slits of fish are believed to be evolutionary ancestors of Eustachian tubes

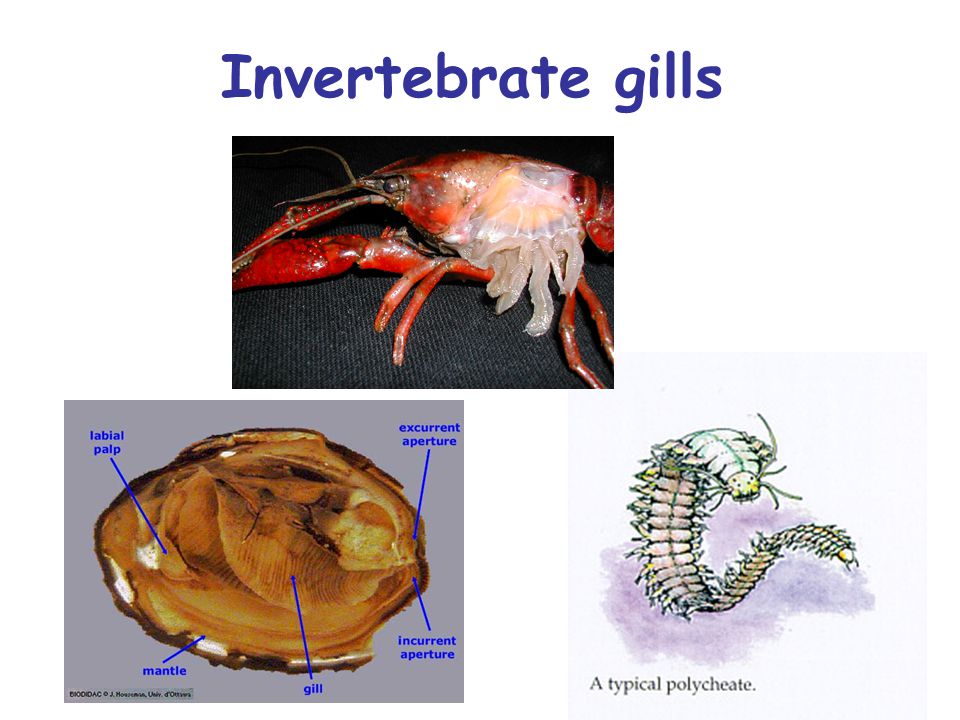

11. Invertebrate gills

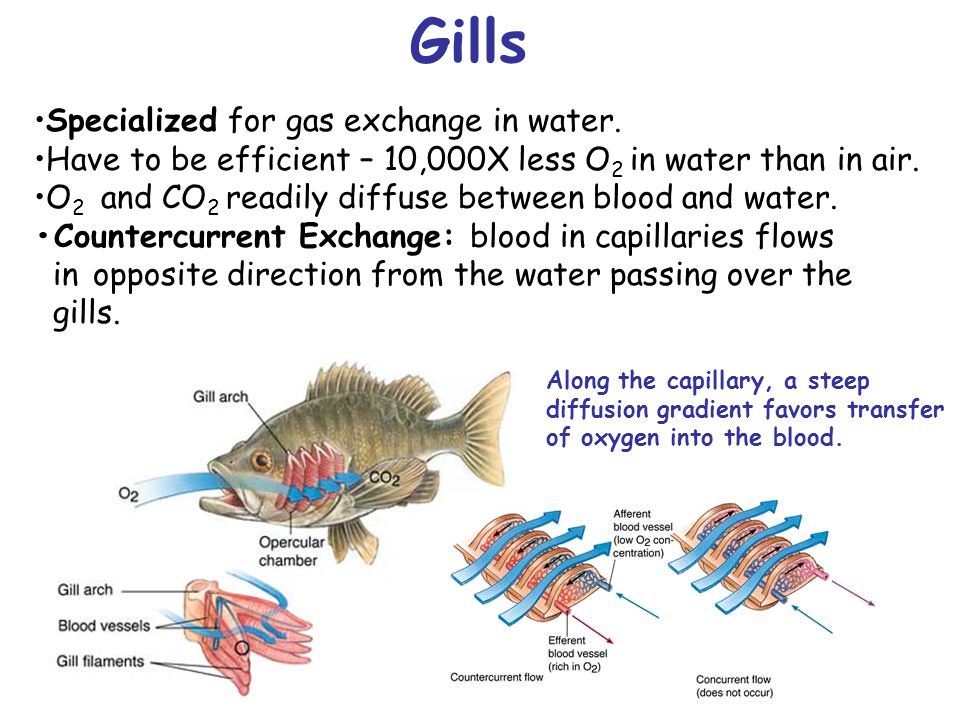

12. Gills Specialized for gas exchange in water. Have to be efficient – 10,000X less O 2 in water than in air. O 2 and CO 2 readily diffuse between blood and water. Countercurrent Exchange: blood in capillaries flows in opposite direction from the water passing over the gills. Along the capillary, a steep diffusion gradient favors transfer of oxygen into the blood.

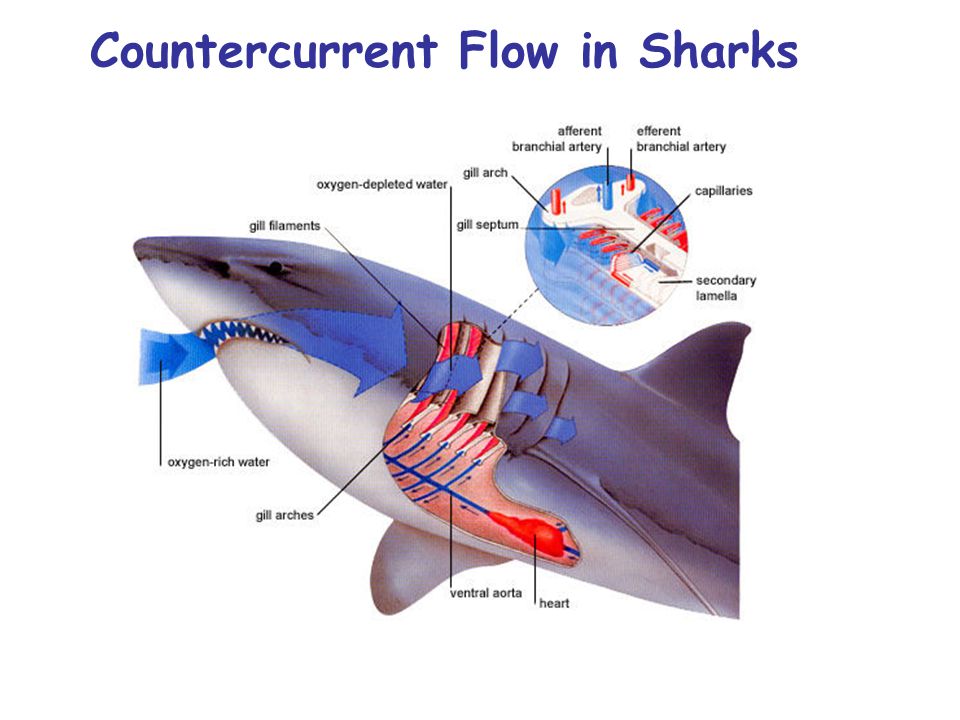

13. Countercurrent Flow in Sharks

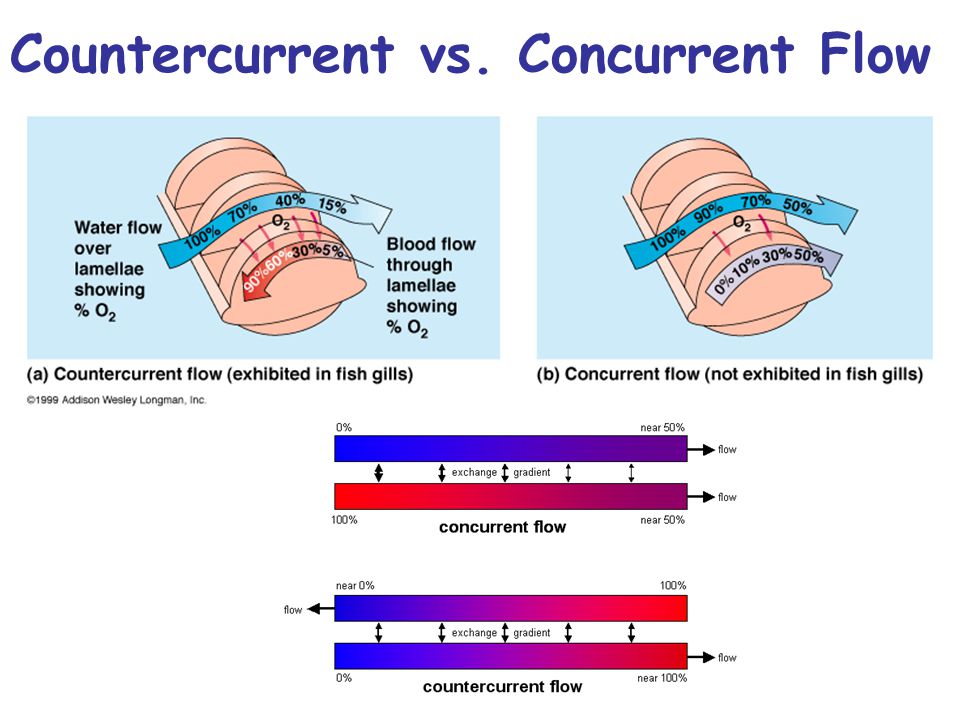

14. Countercurrent vs. Concurrent Flow

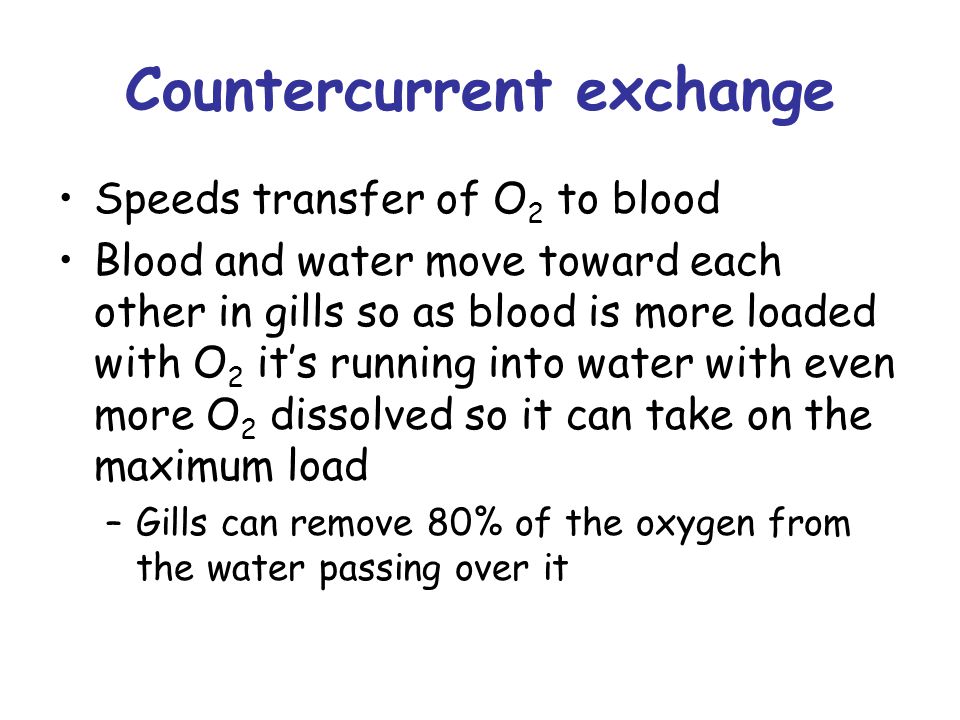

15. Countercurrent exchange Speeds transfer of O 2 to blood Blood and water move toward each other in gills so as blood is more loaded with O 2 it’s running into water with even more O 2 dissolved so it can take on the maximum load –Gills can remove 80% of the oxygen from the water passing over it

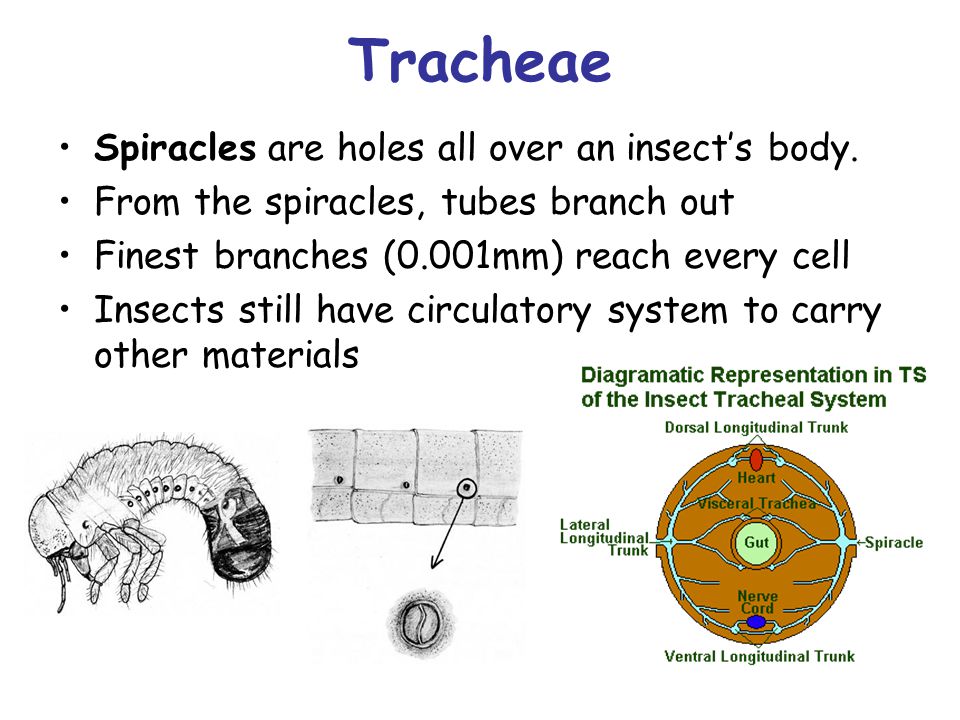

16. Tracheae Spiracles are holes all over an insect’s body. From the spiracles, tubes branch out Finest branches (0.001mm) reach every cell Insects still have circulatory system to carry other materials

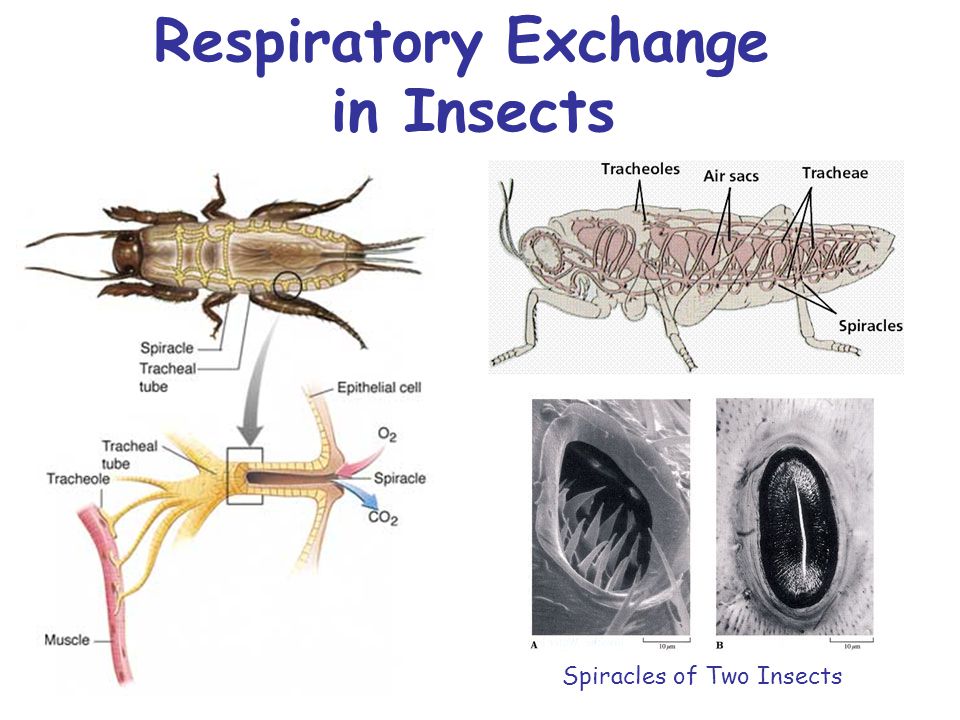

17. Respiratory Exchange in Insects Spiracles of Two Insects

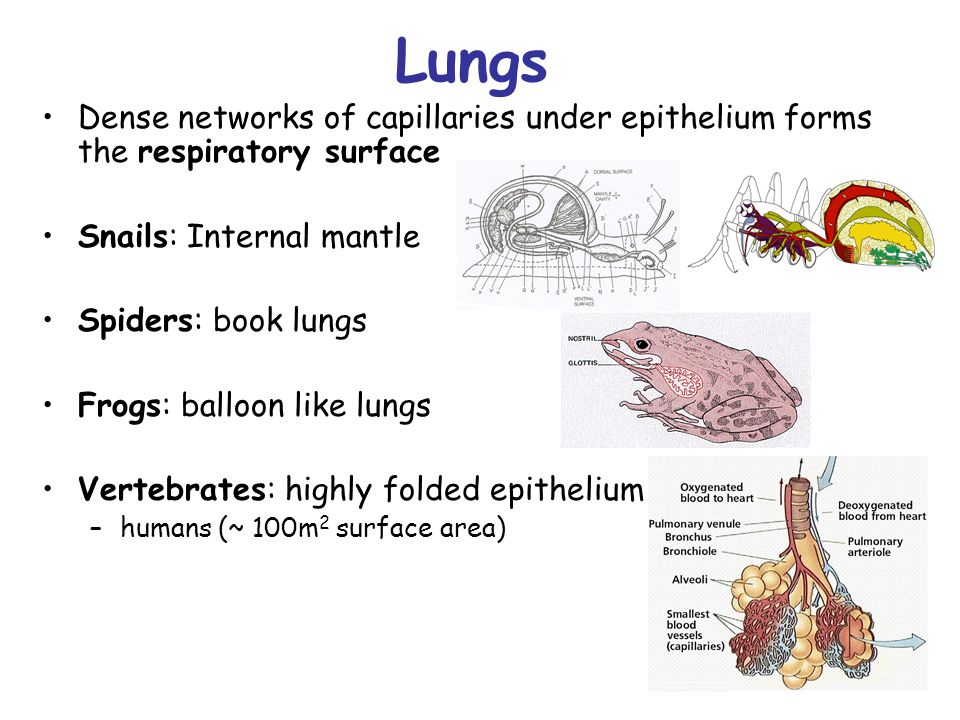

18. Lungs Dense networks of capillaries under epithelium forms the respiratory surface Snails: Internal mantle Spiders: book lungs Frogs: balloon like lungs Vertebrates: highly folded epithelium –humans (~ 100m 2 surface area)

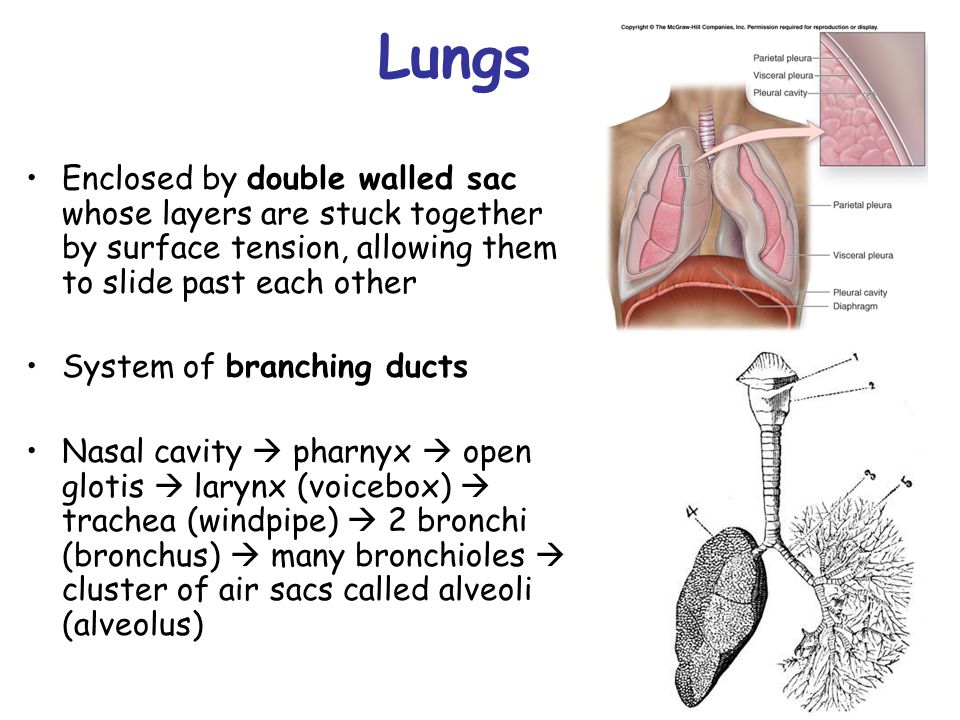

19. Enclosed by double walled sac whose layers are stuck together by surface tension, allowing them to slide past each other System of branching ducts Nasal cavity  pharnyx  open glotis  larynx (voicebox)  trachea (windpipe)  2 bronchi (bronchus)  many bronchioles  cluster of air sacs called alveoli (alveolus) Lungs

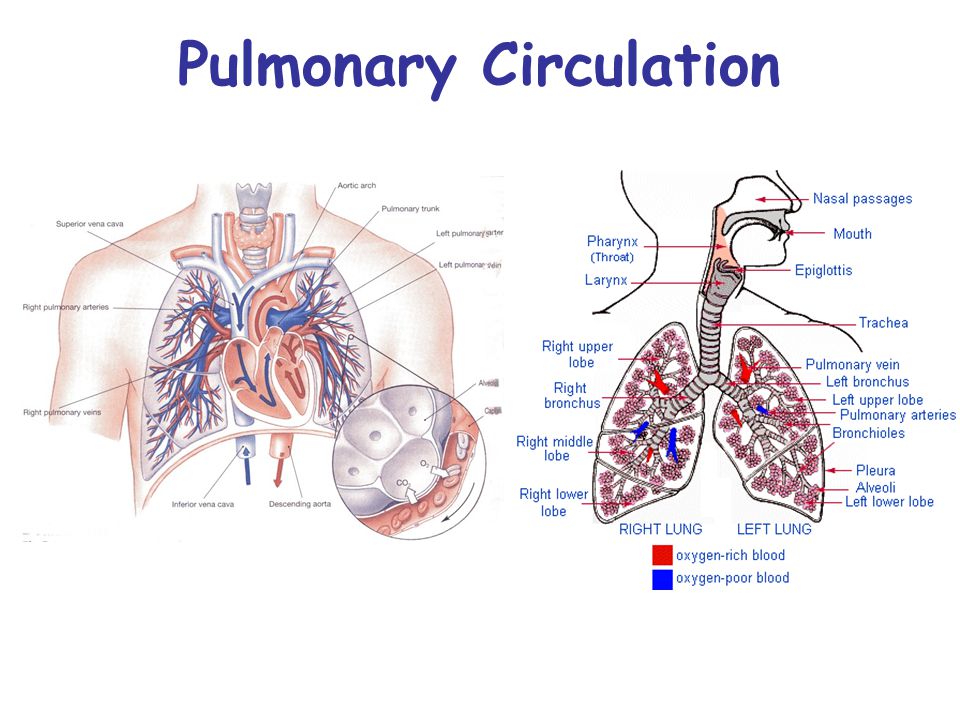

20. Pulmonary Circulation

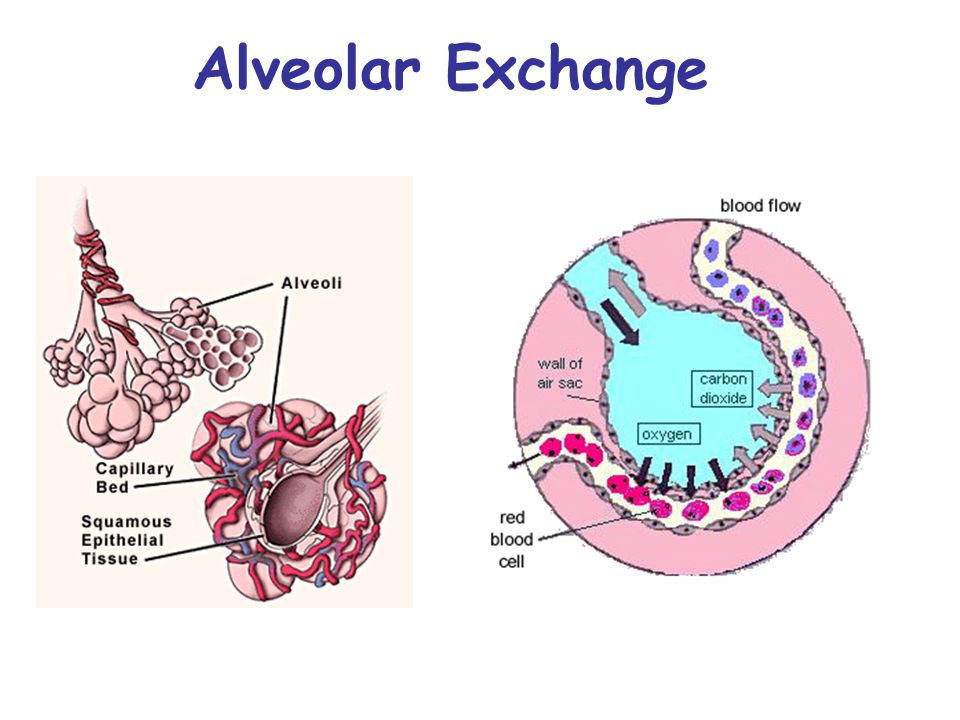

21. Alveolar Exchange

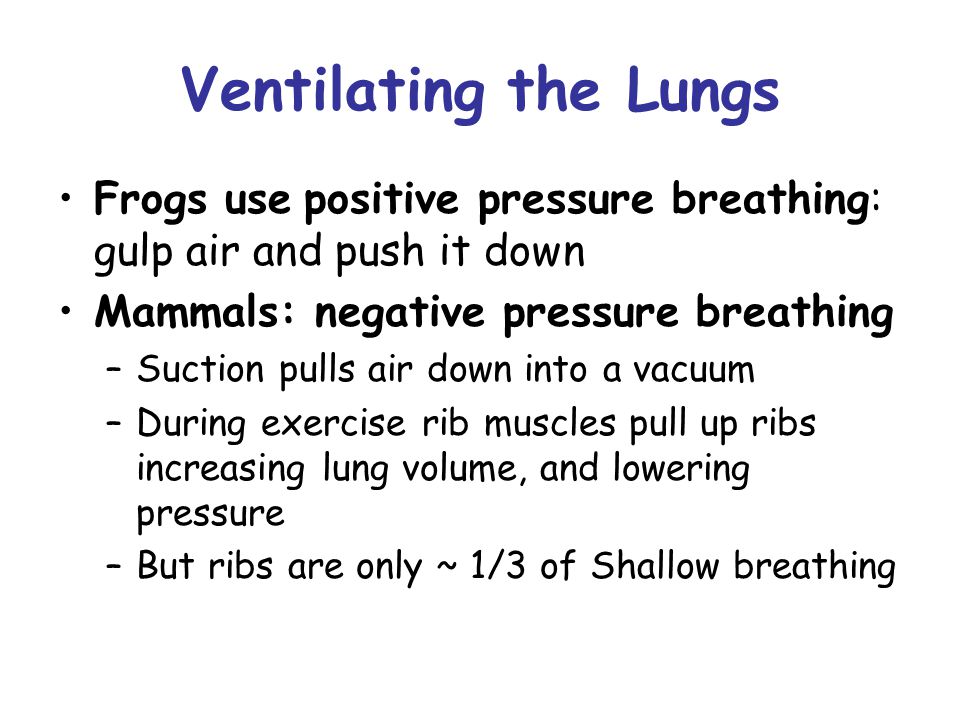

22. Ventilating the Lungs Frogs use positive pressure breathing: gulp air and push it down Mammals: negative pressure breathing –Suction pulls air down into a vacuum –During exercise rib muscles pull up ribs increasing lung volume, and lowering pressure –But ribs are only ~ 1/3 of Shallow breathing

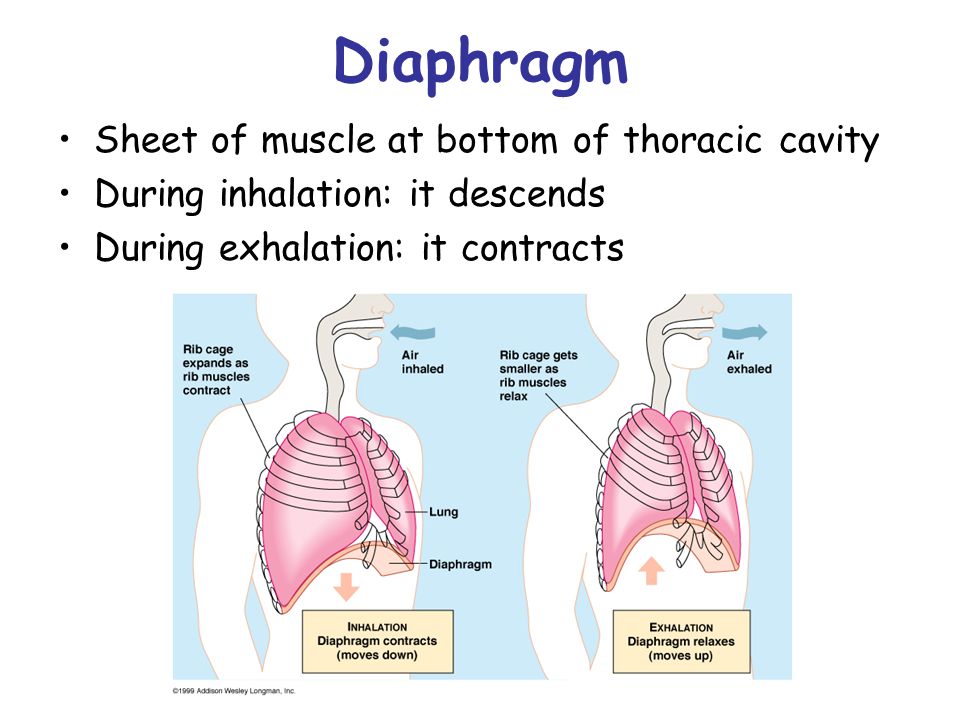

23. Diaphragm Sheet of muscle at bottom of thoracic cavity During inhalation: it descends During exhalation: it contracts

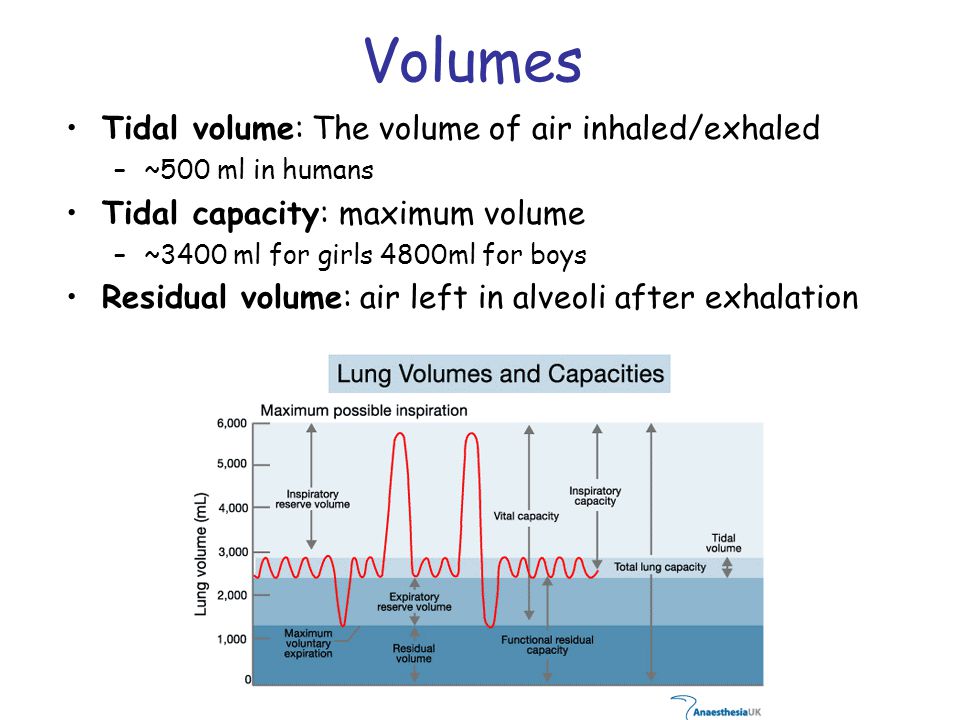

24. Volumes Tidal volume: The volume of air inhaled/exhaled –~500 ml in humans Tidal capacity: maximum volume –~3400 ml for girls 4800ml for boys Residual volume: air left in alveoli after exhalation

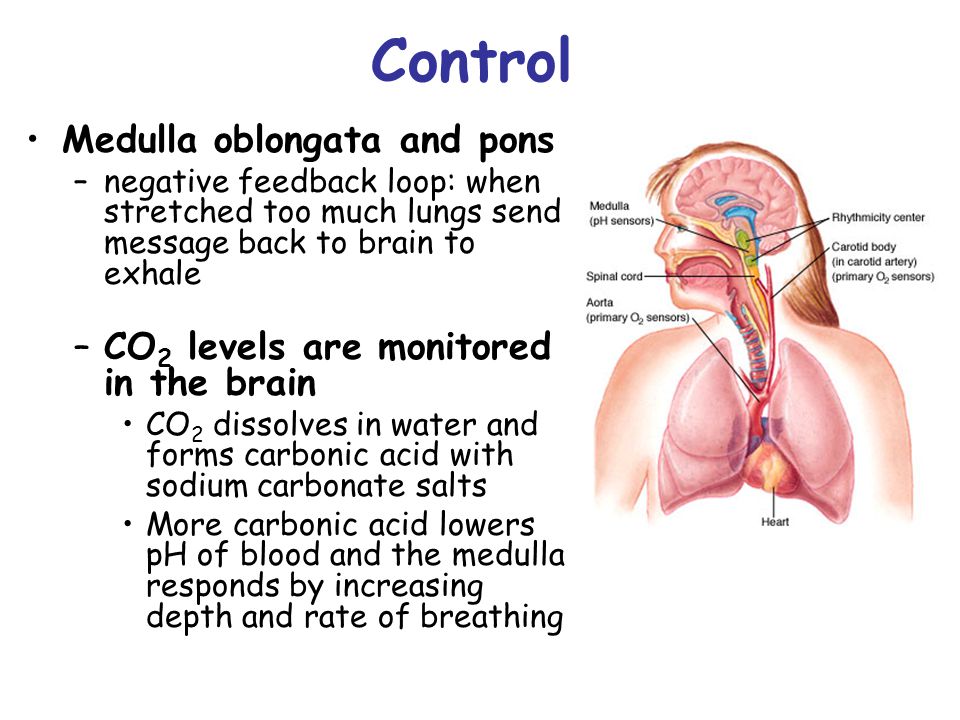

25. Control Medulla oblongata and pons –negative feedback loop: when stretched too much lungs send message back to brain to exhale –CO 2 levels are monitored in the brain CO 2 dissolves in water and forms carbonic acid with sodium carbonate salts More carbonic acid lowers pH of blood and the medulla responds by increasing depth and rate of breathing

26. Hyperventilating Trick the brain by purging blood of CO 2 so breathing slows

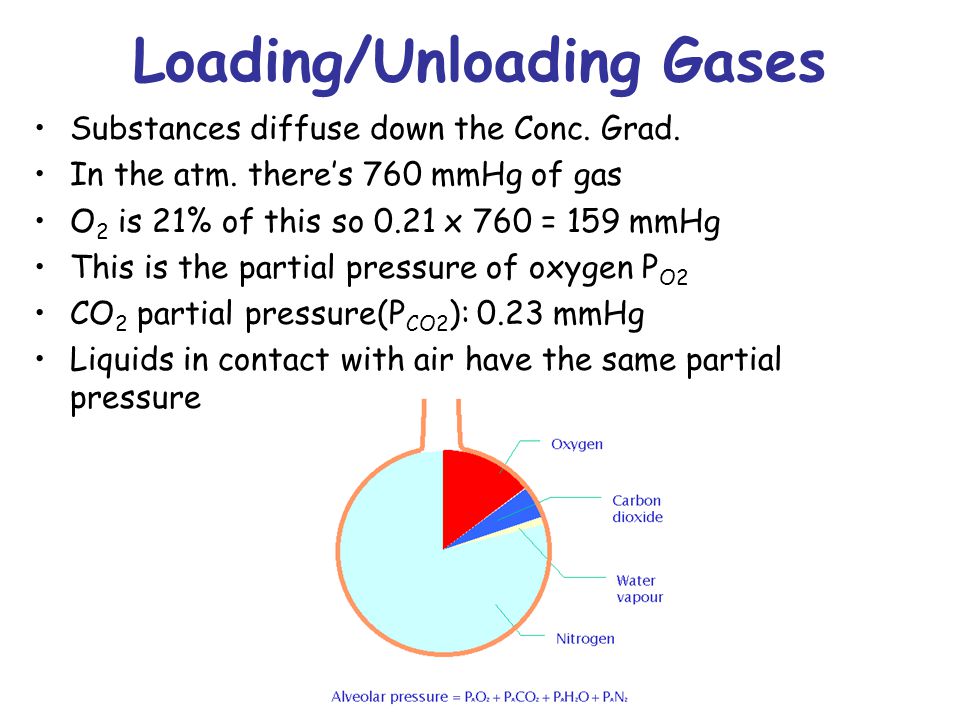

27. Loading/Unloading Gases Substances diffuse down the Conc. Grad. In the atm. there’s 760 mmHg of gas O 2 is 21% of this so 0.21 x 760 = 159 mmHg This is the partial pressure of oxygen P O2 CO 2 partial pressure(P CO2 ): 0.23 mmHg Liquids in contact with air have the same partial pressure

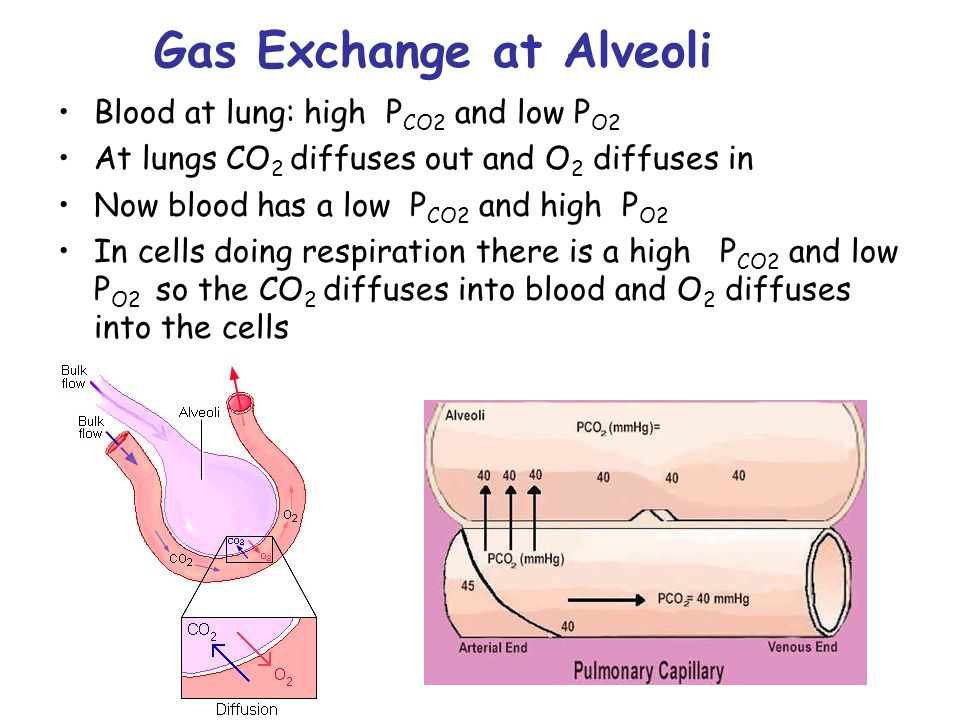

28. Blood at lung: high P CO2 and low P O2 At lungs CO 2 diffuses out and O 2 diffuses in Now blood has a low P CO2 and high P O2 In cells doing respiration there is a high P CO2 and low P O2 so the CO 2 diffuses into blood and O 2 diffuses into the cells Gas Exchange at Alveoli

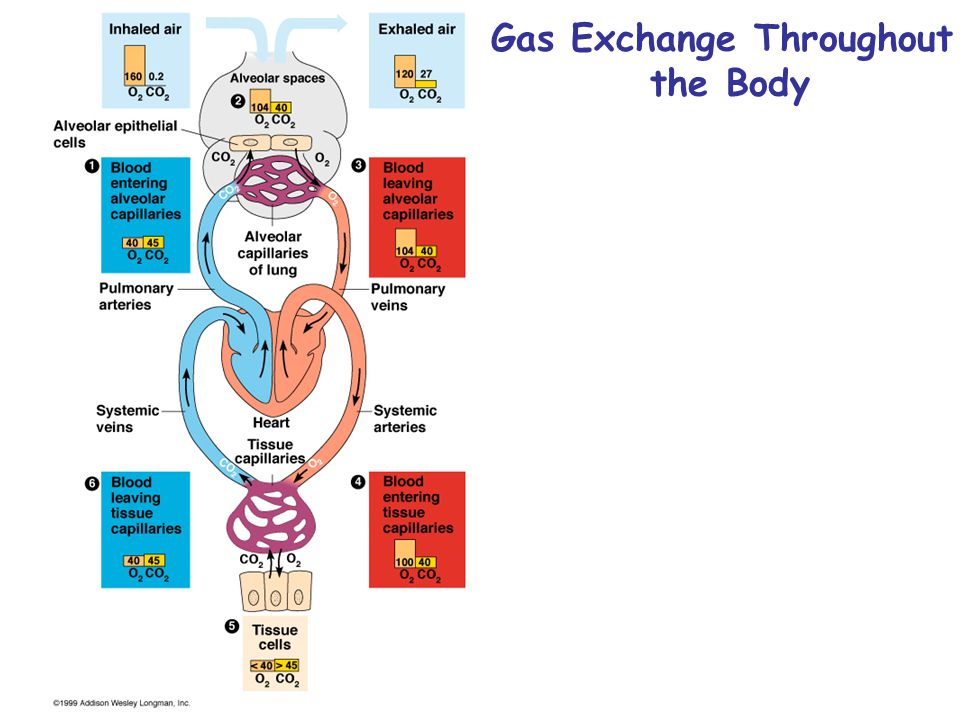

29. Gas Exchange Throughout the Body

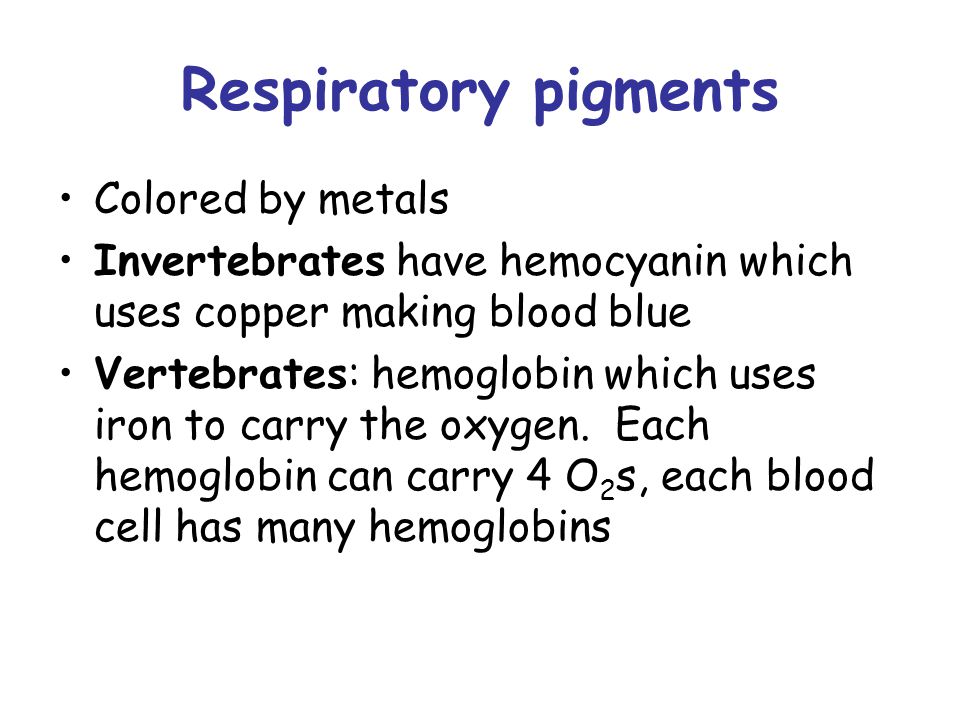

30. Respiratory pigments Colored by metals Invertebrates have hemocyanin which uses copper making blood blue Vertebrates: hemoglobin which uses iron to carry the oxygen. Each hemoglobin can carry 4 O 2 s, each blood cell has many hemoglobins

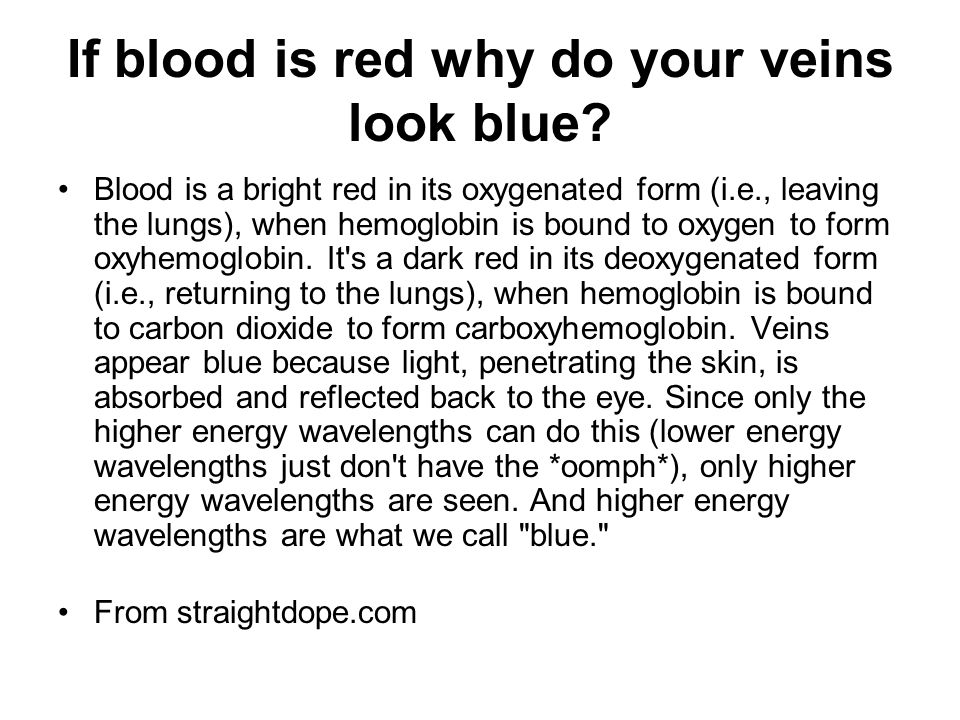

31. If blood is red why do your veins look blue? Blood is a bright red in its oxygenated form (i.e., leaving the lungs), when hemoglobin is bound to oxygen to form oxyhemoglobin. It's a dark red in its deoxygenated form (i.e., returning to the lungs), when hemoglobin is bound to carbon dioxide to form carboxyhemoglobin. Veins appear blue because light, penetrating the skin, is absorbed and reflected back to the eye. Since only the higher energy wavelengths can do this (lower energy wavelengths just don't have the *oomph*), only higher energy wavelengths are seen. And higher energy wavelengths are what we call "blue." From straightdope.com

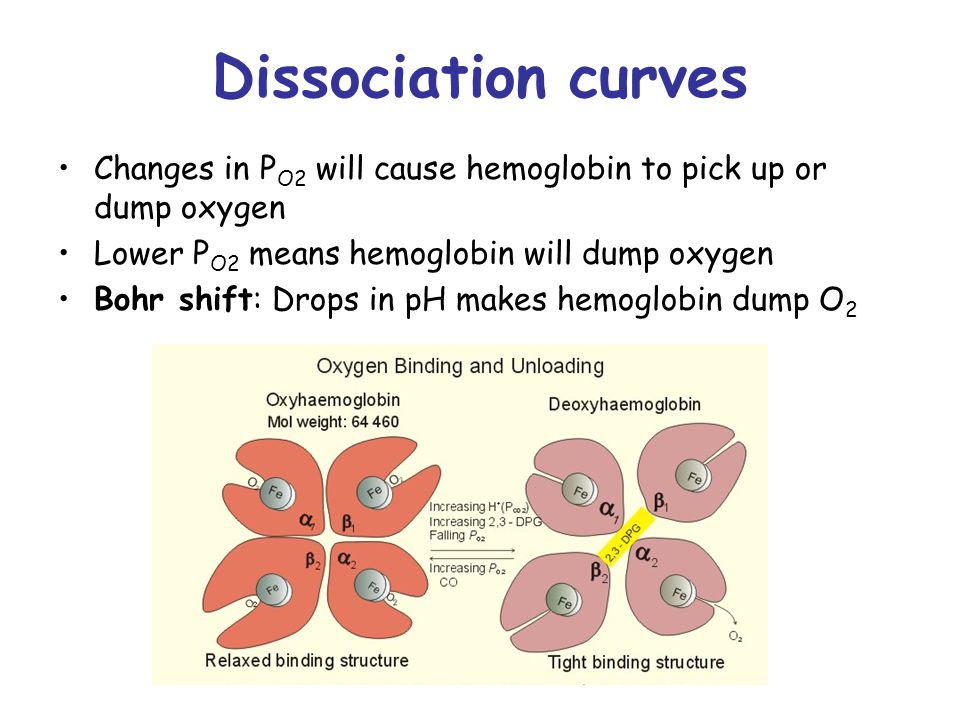

33. Dissociation curves Changes in P O2 will cause hemoglobin to pick up or dump oxygen Lower P O2 means hemoglobin will dump oxygen Bohr shift: Drops in pH makes hemoglobin dump O 2

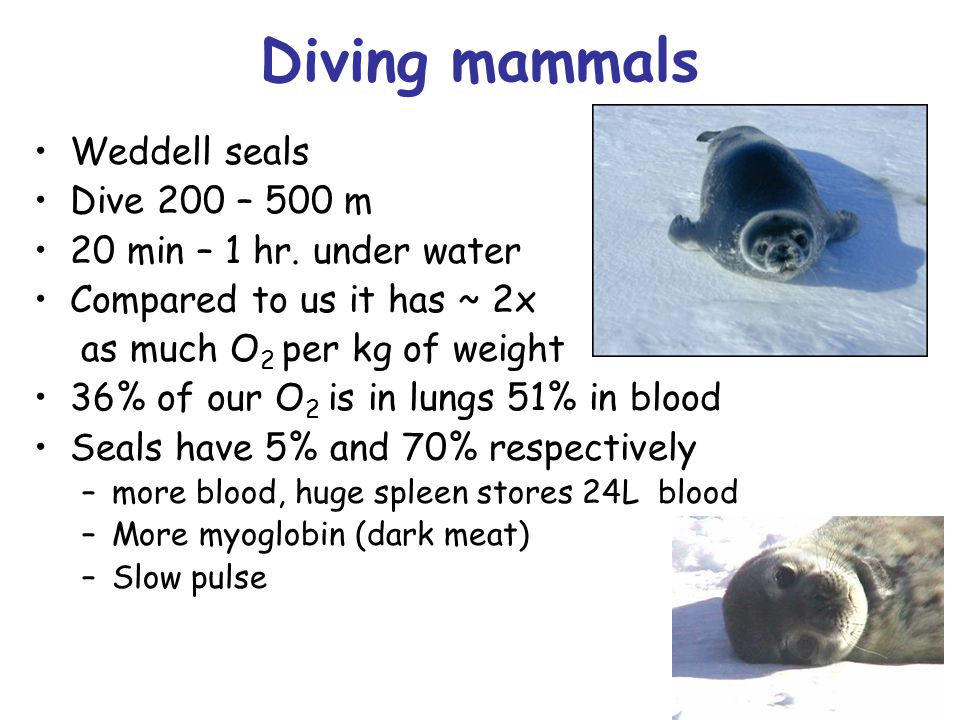

34. Diving mammals Weddell seals Dive 200 – 500 m 20 min – 1 hr. under water Compared to us it has ~ 2x as much O 2 per kg of weight 36% of our O 2 is in lungs 51% in blood Seals have 5% and 70% respectively –more blood, huge spleen stores 24L blood –More myoglobin (dark meat) –Slow pulse

35. Liquid Ventilation Perfluorocarbon liquids – ~65 mL O 2 per 100 mL Problems with expelling the CO 2 Remember this is a liquid 1.8 times as dense as water so it is hard to breath Could someday be used for diving, or medical applications (ex: supporting injured lungs, radiology)
