1
Continuous Random Variable (1)

2

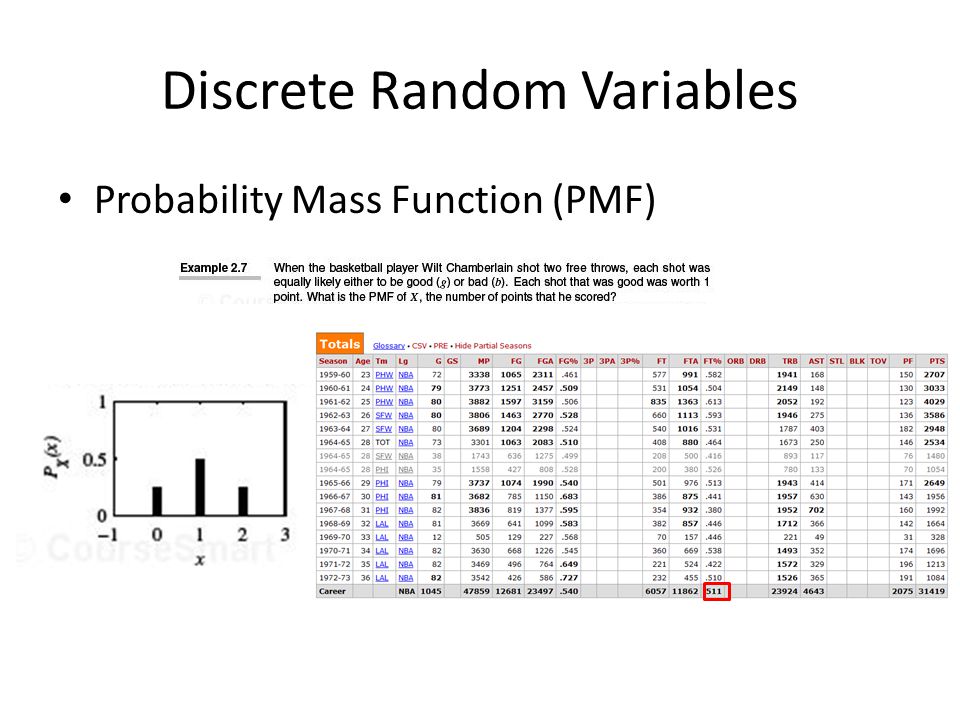

Discrete Random Variables Probability Mass Function (PMF)

3

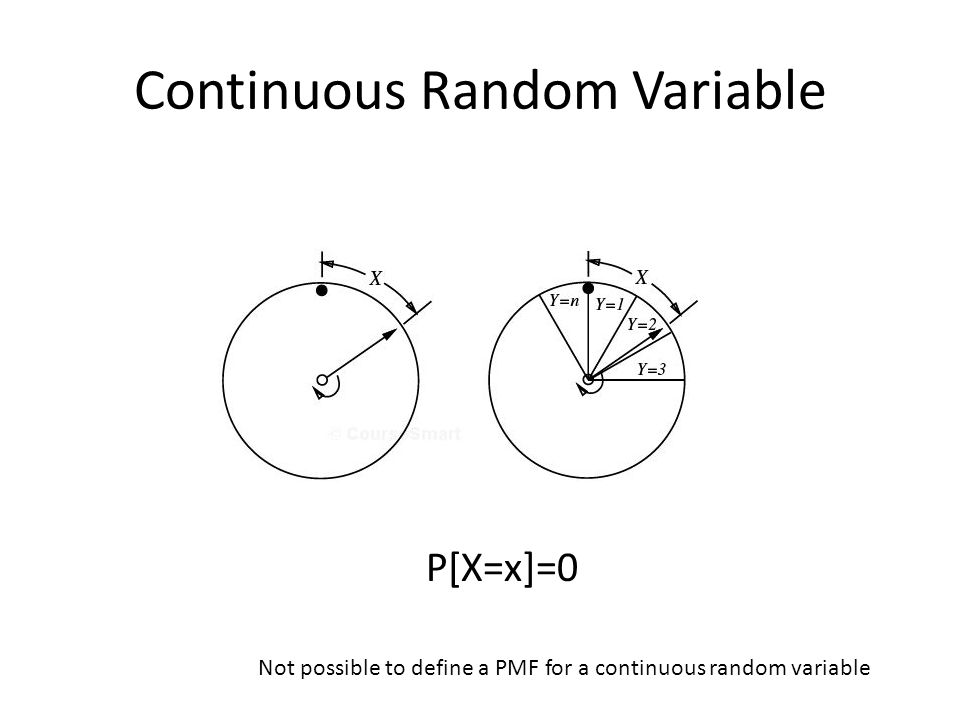

Continuous Random Variable P[X=x]=0 Not possible to define a PMF for a continuous random variable

4

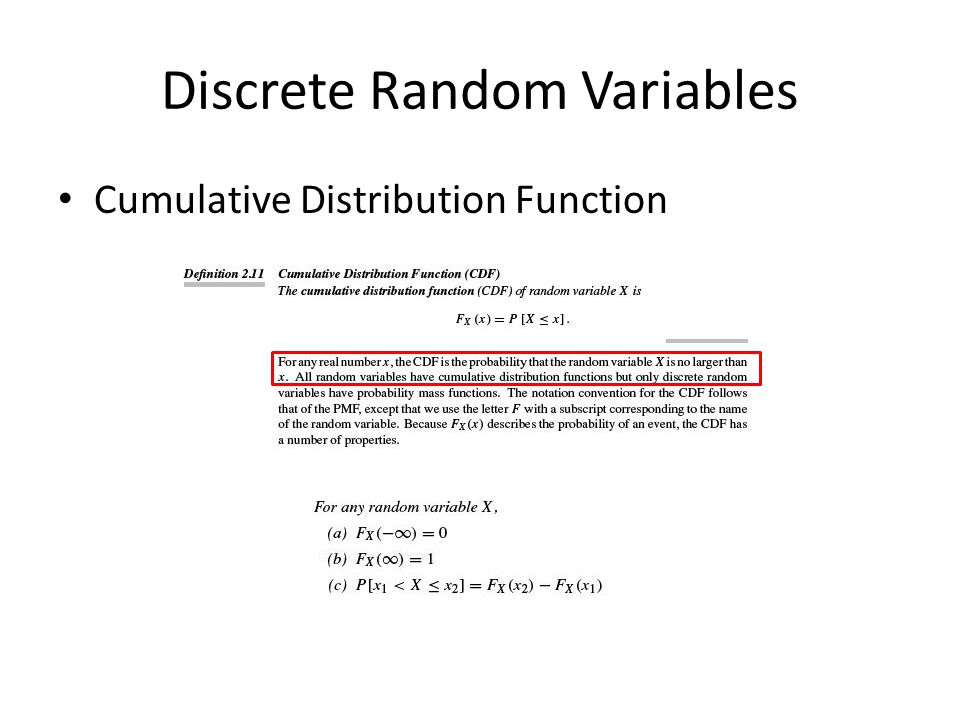

Discrete Random Variables Cumulative Distribution Function

5
PMF to CDF

6

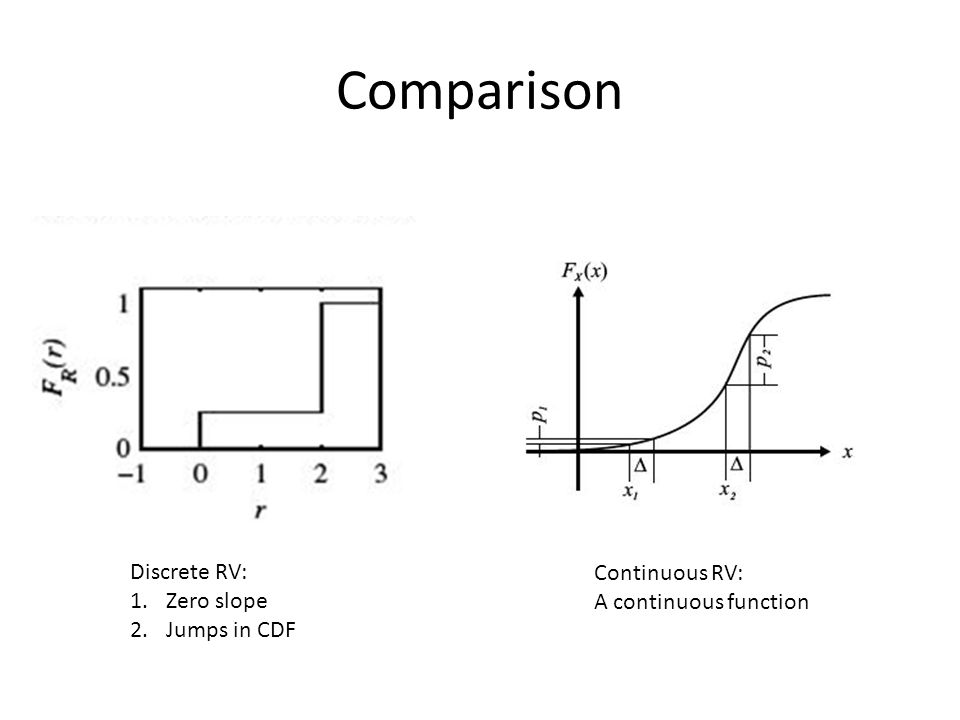

Comparison Discrete RV: 1.Zero slope 2.Jumps in CDF Continuous RV: A continuous function

7

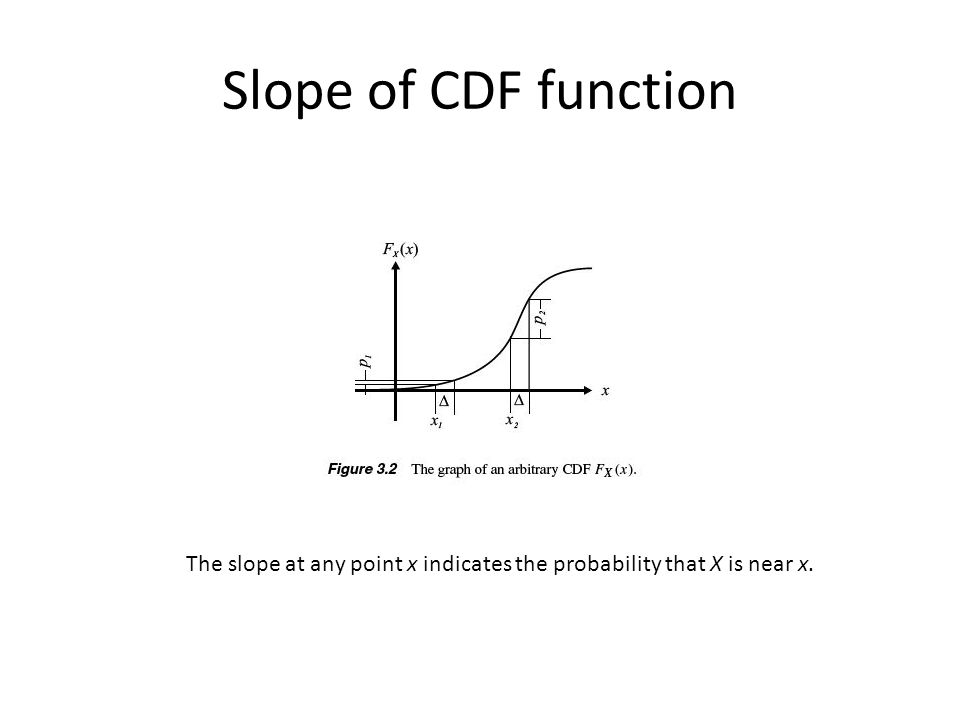

Slope of CDF function The slope at any point x indicates the probability that X is near x.

8
Probability Density Function (PDF) It is not possible to define a PMF function for a continuous variable because P[X=x]=0. We can, however, define a probability density function.

9

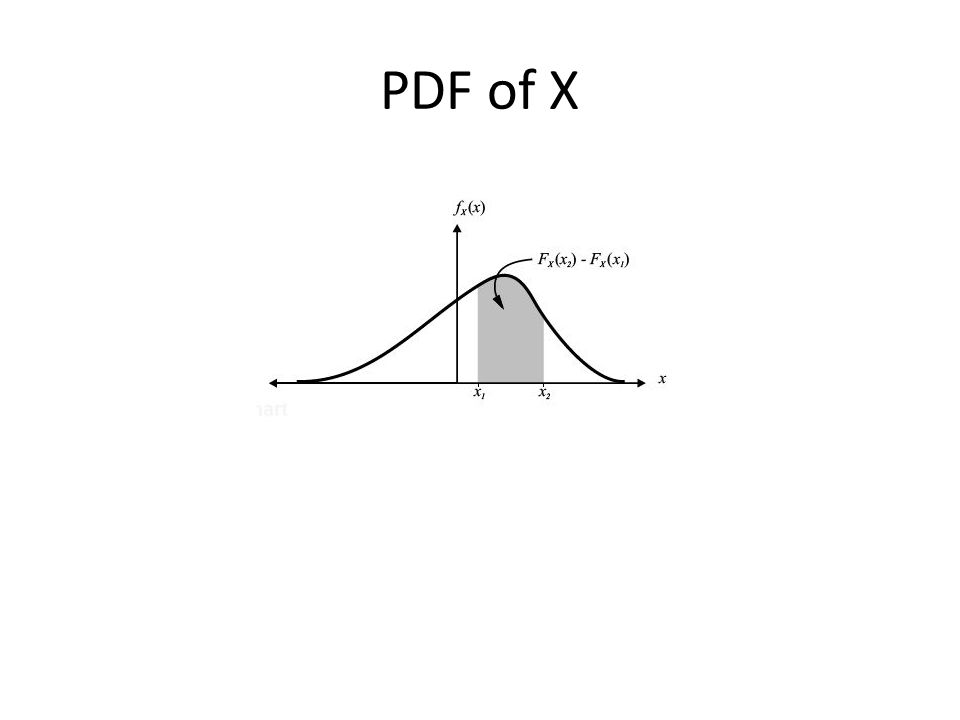

PDF of X

10

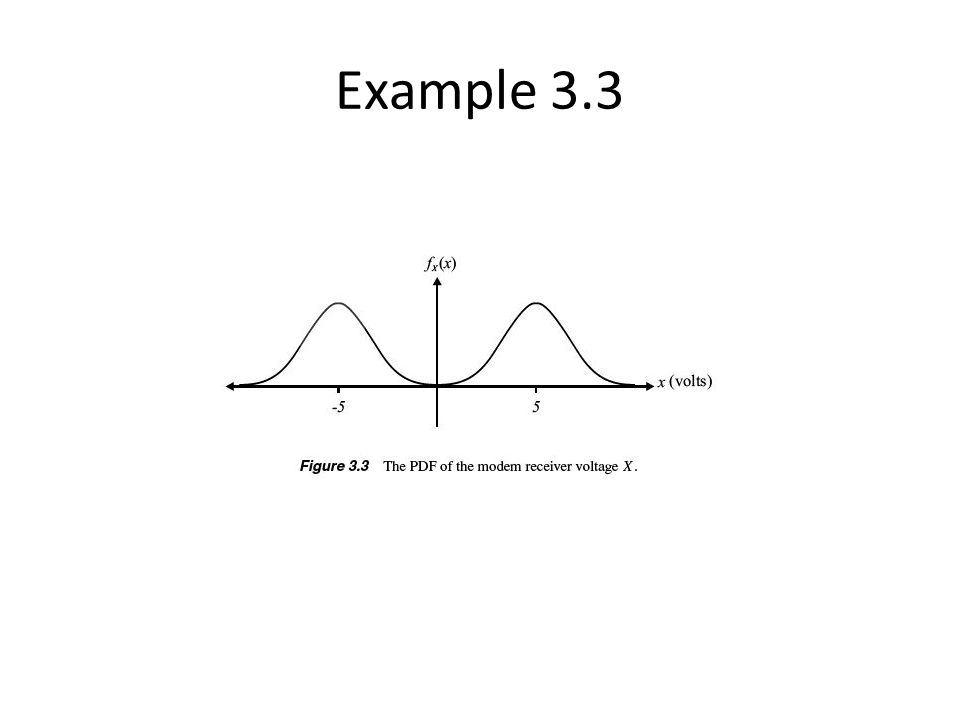

Example 3.3

11
Expected Value Discrete Random Variable

12

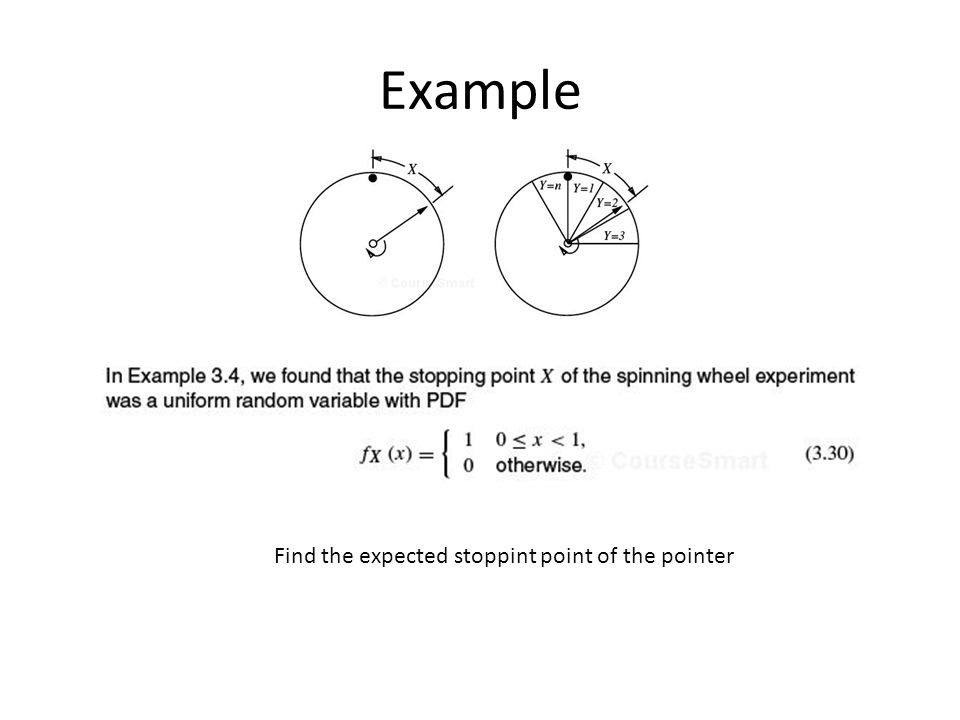

Example Find the expected stoppint point of the pointer

13
The Expected Value of a function Derived Discrete Random Variable Derived Continuous Random Variable Discrete Example

14
Variance and Standard Deviation

15

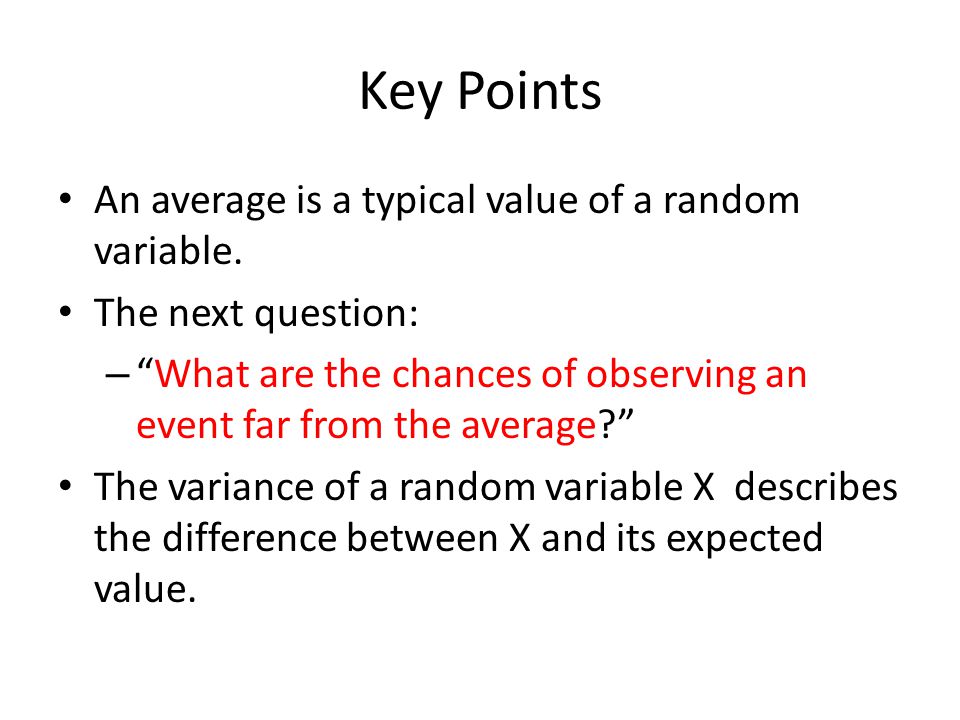

Key Points An average is a typical value of a random variable. The next question: – “What are the chances of observing an event far from the average?” The variance of a random variable X describes the difference between X and its expected value.

16

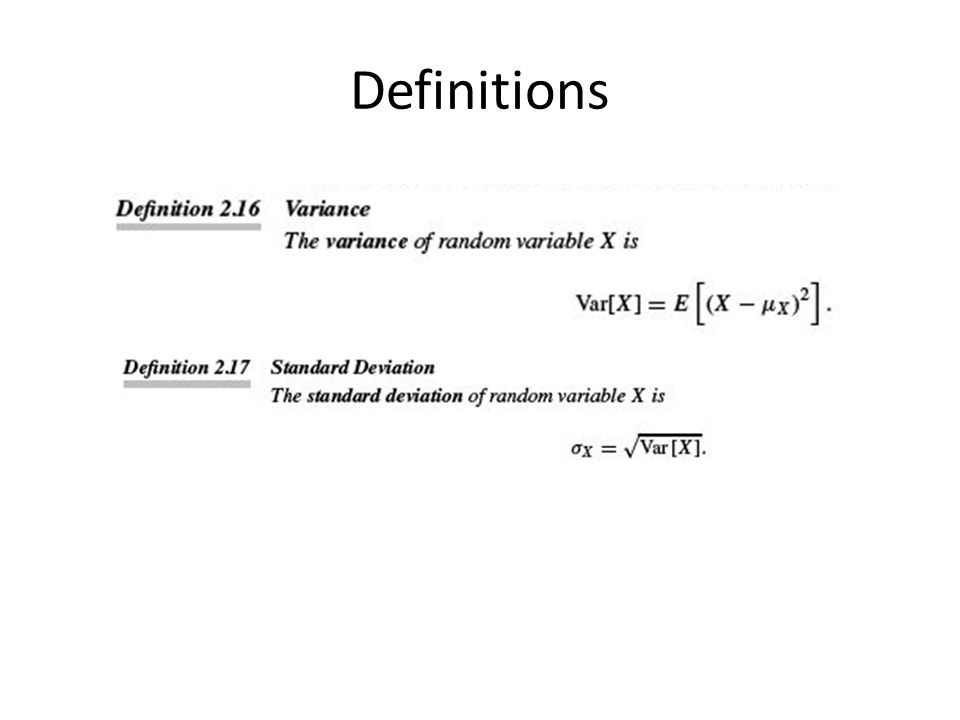

Definitions

17

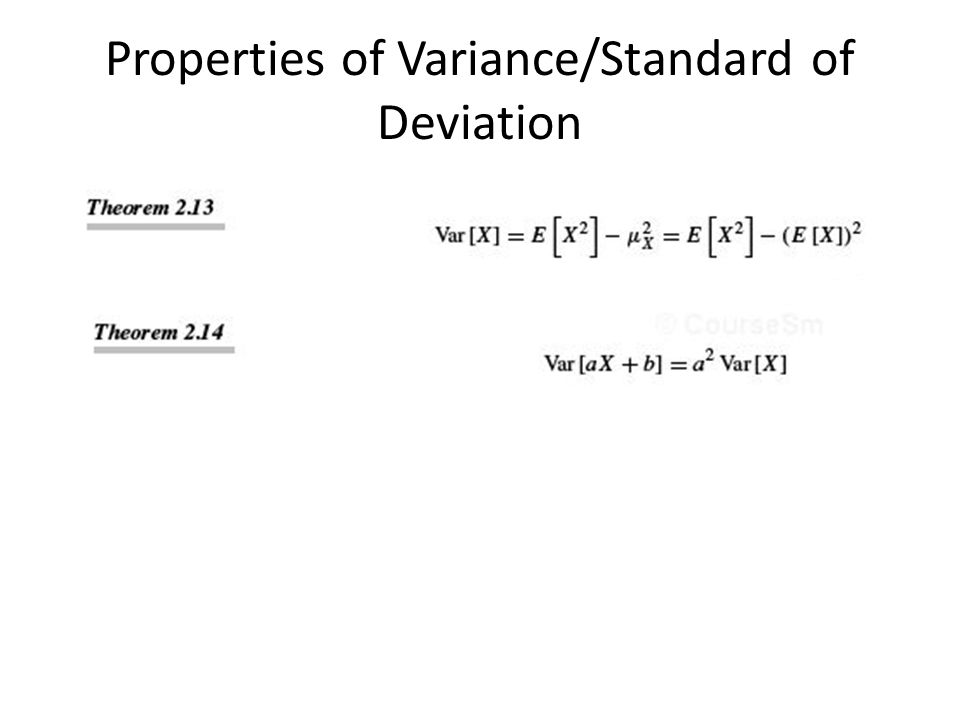

Properties of Variance/Standard of Deviation

18

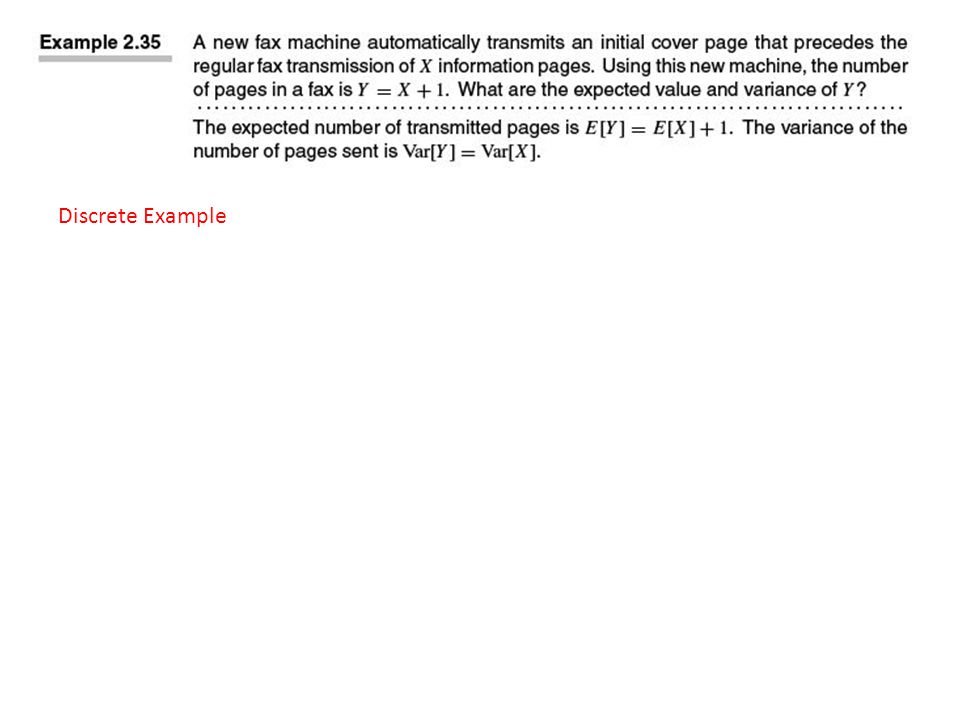

Discrete Example

19

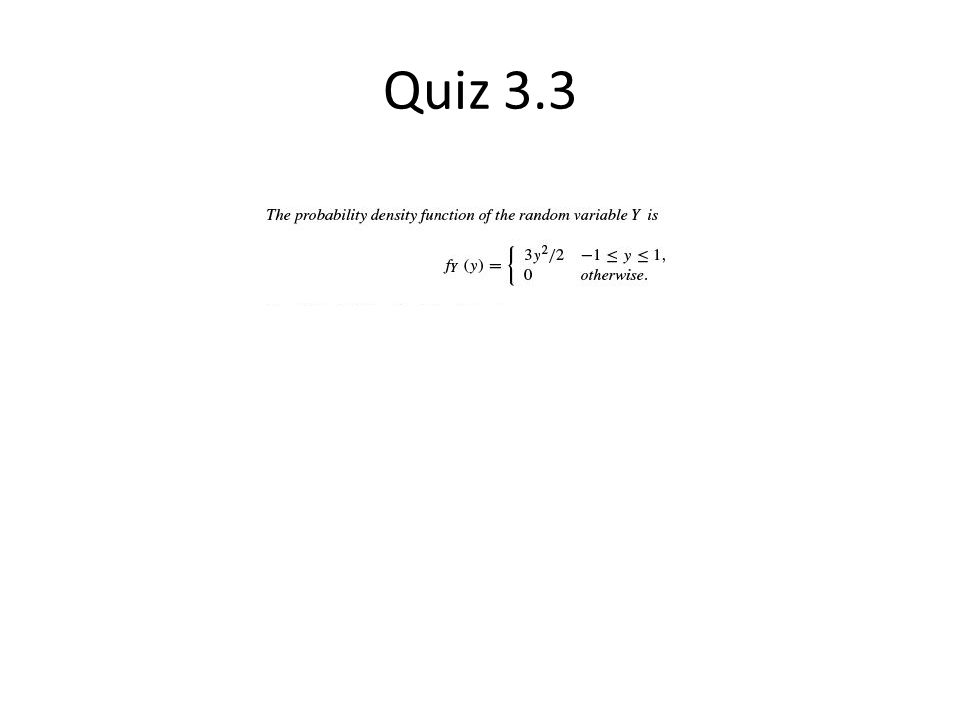

Quiz 3.3
