1. The Grid Needs You. Enlist Now! Professor Carole Goble University of Manchester, UK, carole@cs.man.ac.ukcarole@cs.man.ac.uk Co-director e-Science North West UK regional centre Director myGrid UK e-Science pilot project Co-chair Global Grid Forum Semantic Grid Research Group

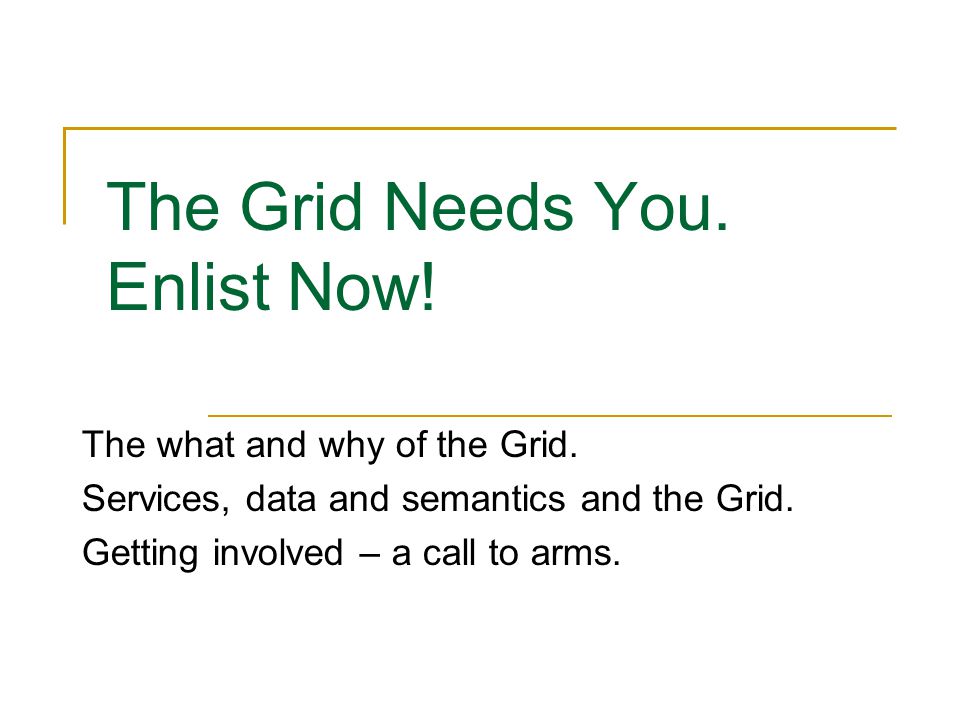

2. The Grid Needs You. Enlist Now! The what and why of the Grid. Services, data and semantics and the Grid. Getting involved – a call to arms.

3. The take home “The Grid is the next big thing” – and it isn’t just big computers and fat pipes. The Grid is actually the latest attempt at distributed computing If you aren’t involved yet maybe its because you don’t think its relevant, or its done already or you haven’t anything to offer You are most likely wrong If you are already into the Grid this is a “ra ra” exercise

4. Origins of the Grid The Grid: Blueprint for a New Computing Infrastructure Edited by Ian Foster and Carl Kesselman July 1998, 701 pages. a proposed distributed computing infrastructure for advanced science and engineering pervasive and dependable

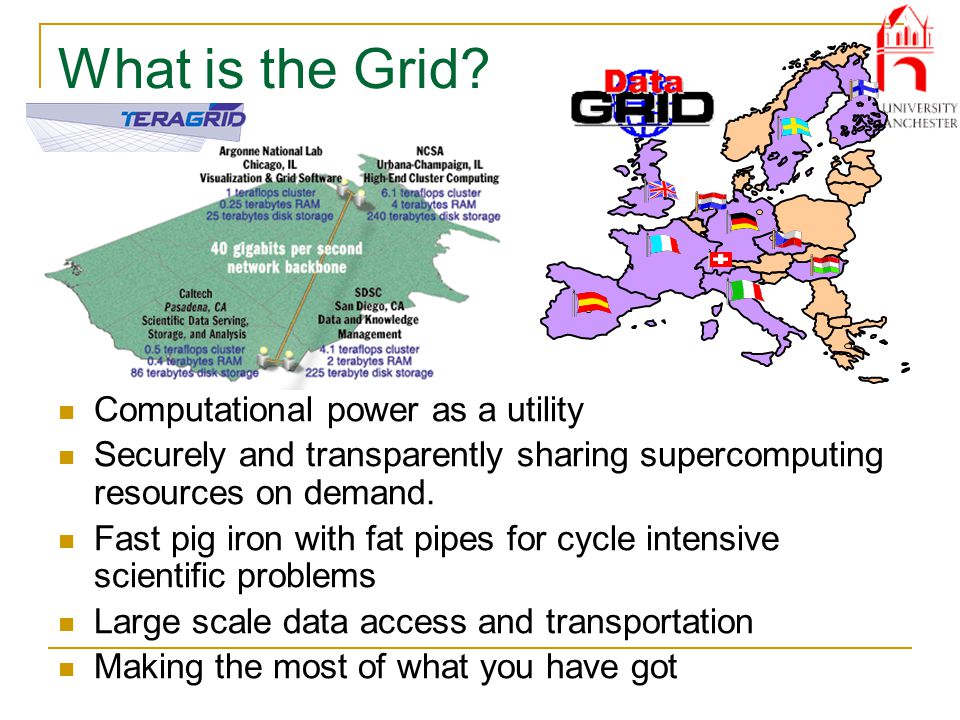

5. What is the Grid? Computational power as a utility Securely and transparently sharing supercomputing resources on demand. Fast pig iron with fat pipes for cycle intensive scientific problems Large scale data access and transportation Making the most of what you have got

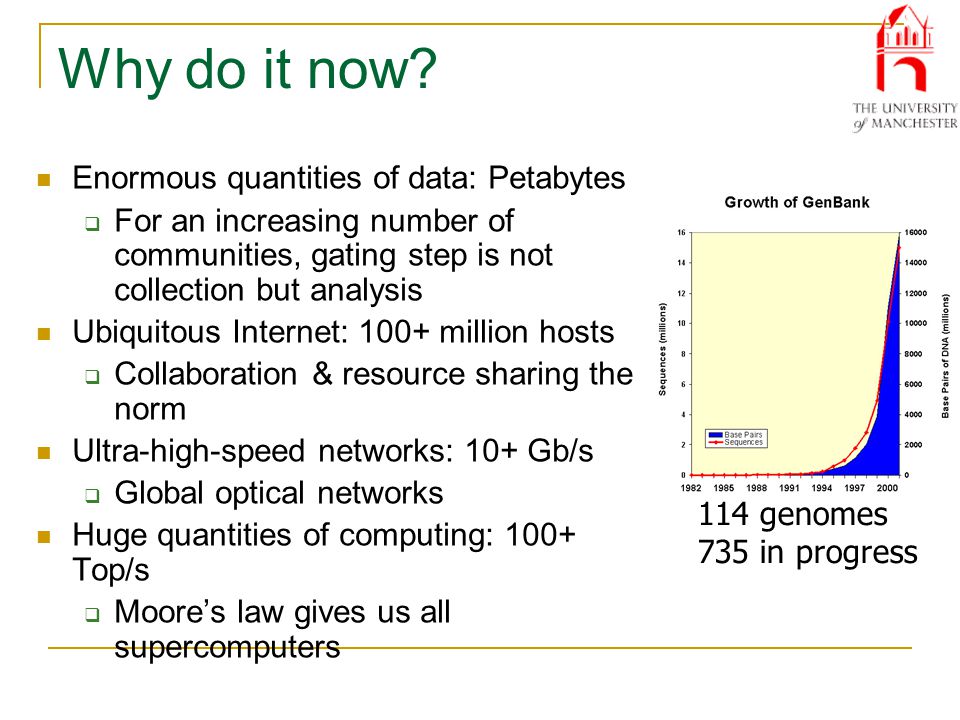

6. Why do it now? Enormous quantities of data: Petabytes  For an increasing number of communities, gating step is not collection but analysis Ubiquitous Internet: 100+ million hosts  Collaboration & resource sharing the norm Ultra-high-speed networks: 10+ Gb/s  Global optical networks Huge quantities of computing: 100+ Top/s  Moore’s law gives us all supercomputers 114 genomes 735 in progress

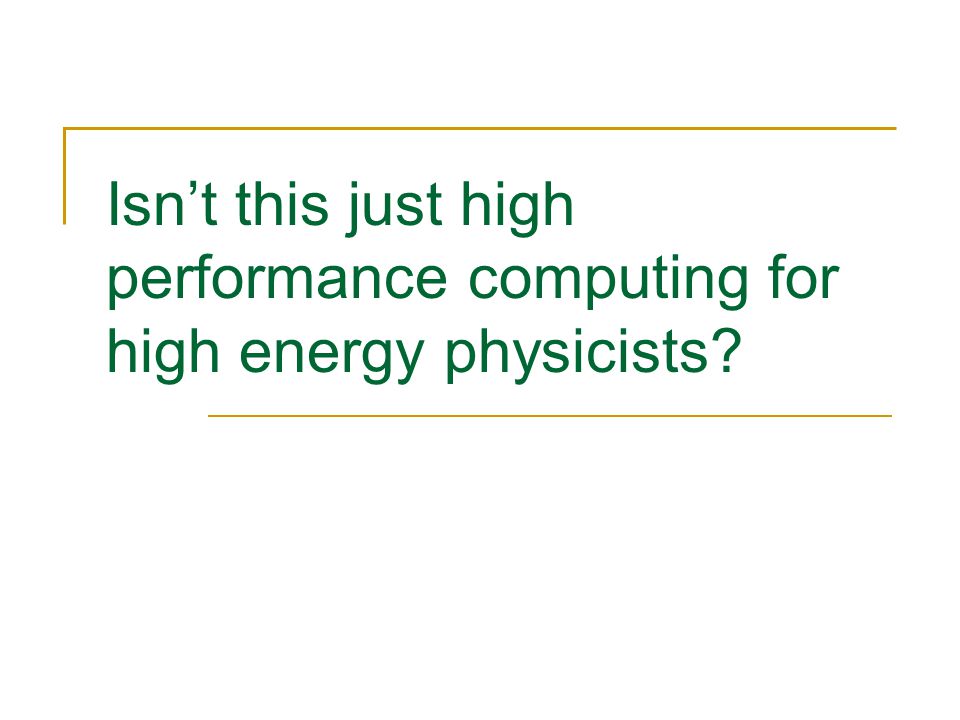

7. Isn’t this just high performance computing for high energy physicists?

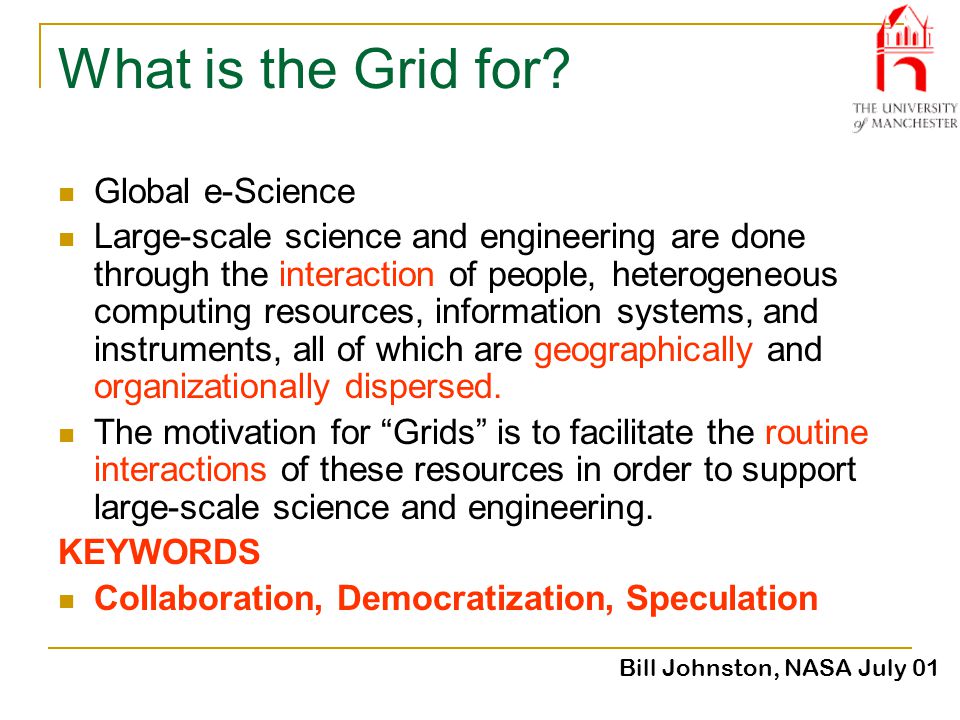

8. What is the Grid for? Global e-Science Large-scale science and engineering are done through the interaction of people, heterogeneous computing resources, information systems, and instruments, all of which are geographically and organizationally dispersed. The motivation for “Grids” is to facilitate the routine interactions of these resources in order to support large-scale science and engineering. KEYWORDS Collaboration, Democratization, Speculation Bill Johnston, NASA July 01

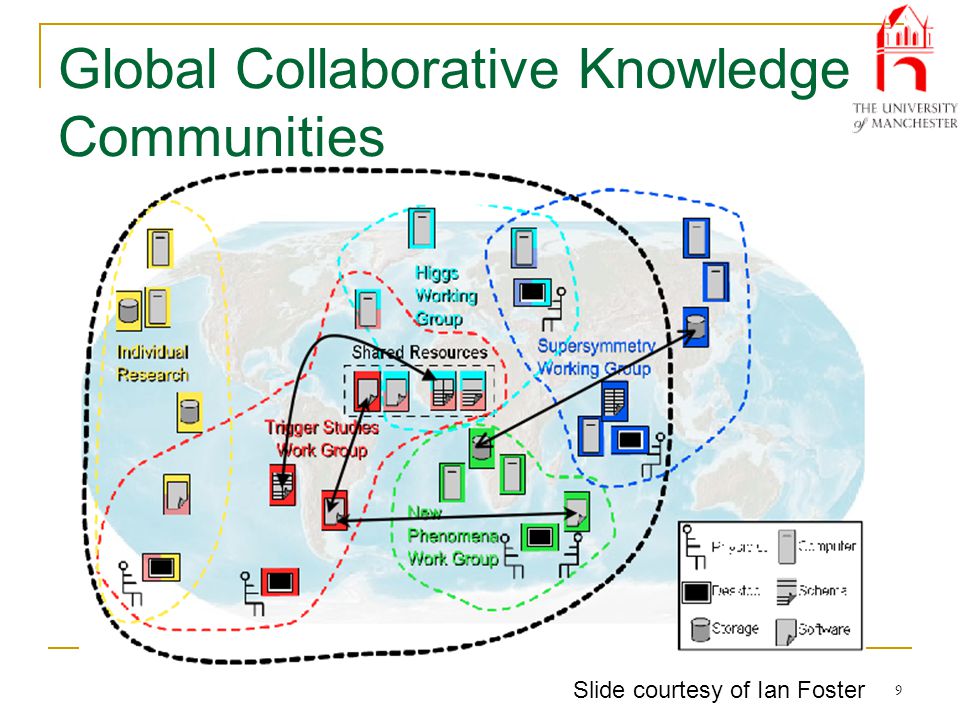

9. 9 Global Collaborative Knowledge Communities Slide courtesy of Ian Foster

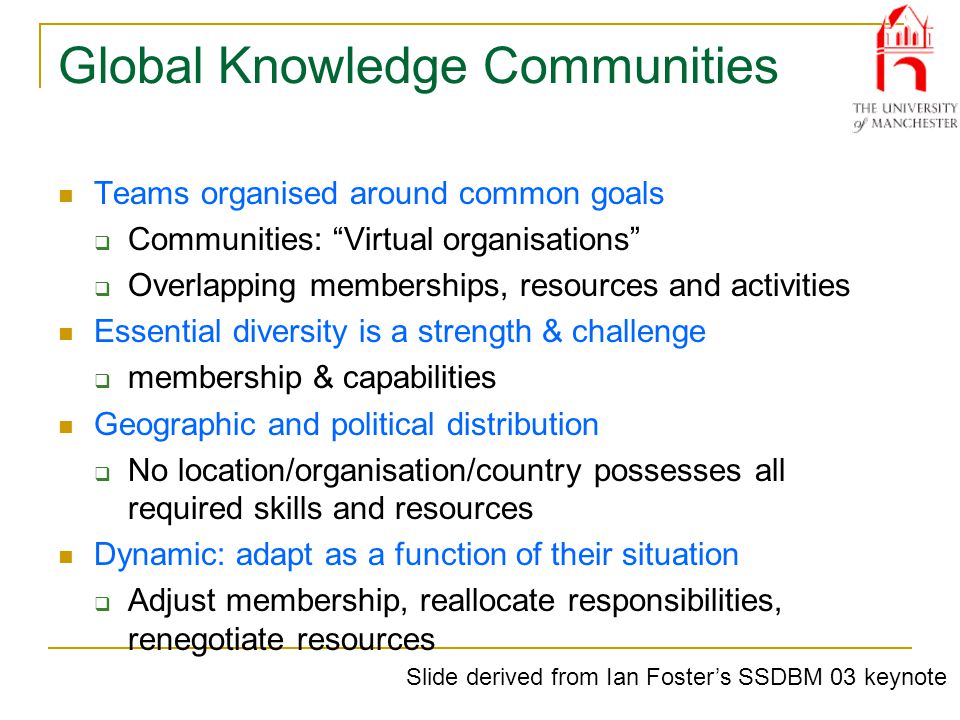

10. Global Knowledge Communities Teams organised around common goals  Communities: “Virtual organisations”  Overlapping memberships, resources and activities Essential diversity is a strength & challenge  membership & capabilities Geographic and political distribution  No location/organisation/country possesses all required skills and resources Dynamic: adapt as a function of their situation  Adjust membership, reallocate responsibilities, renegotiate resources Slide derived from Ian Foster’s SSDBM 03 keynote

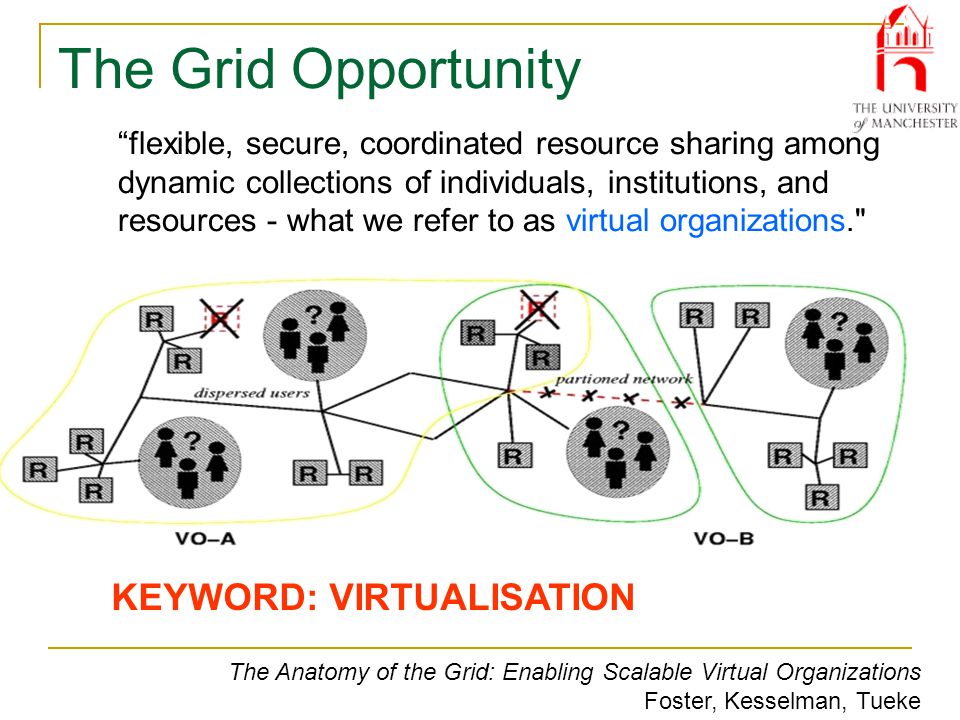

11. The Grid Opportunity “flexible, secure, coordinated resource sharing among dynamic collections of individuals, institutions, and resources - what we refer to as virtual organizations." The Anatomy of the Grid: Enabling Scalable Virtual Organizations Foster, Kesselman, Tueke KEYWORD: VIRTUALISATION

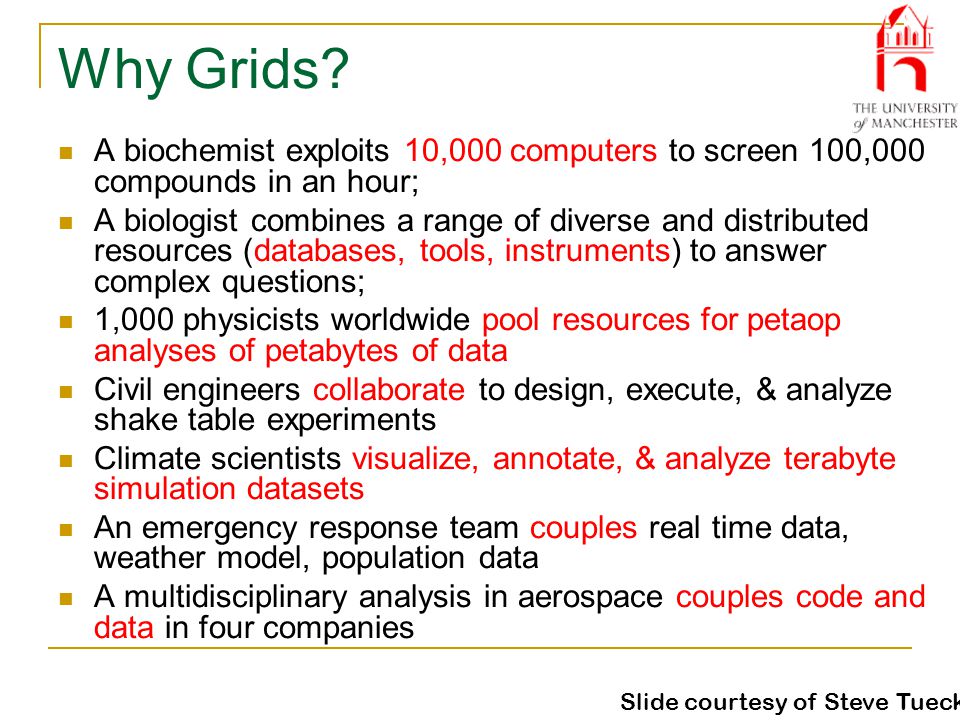

12. Why Grids? A biochemist exploits 10,000 computers to screen 100,000 compounds in an hour; A biologist combines a range of diverse and distributed resources (databases, tools, instruments) to answer complex questions; 1,000 physicists worldwide pool resources for petaop analyses of petabytes of data Civil engineers collaborate to design, execute, & analyze shake table experiments Climate scientists visualize, annotate, & analyze terabyte simulation datasets An emergency response team couples real time data, weather model, population data A multidisciplinary analysis in aerospace couples code and data in four companies Slide courtesy of Steve Tuecke

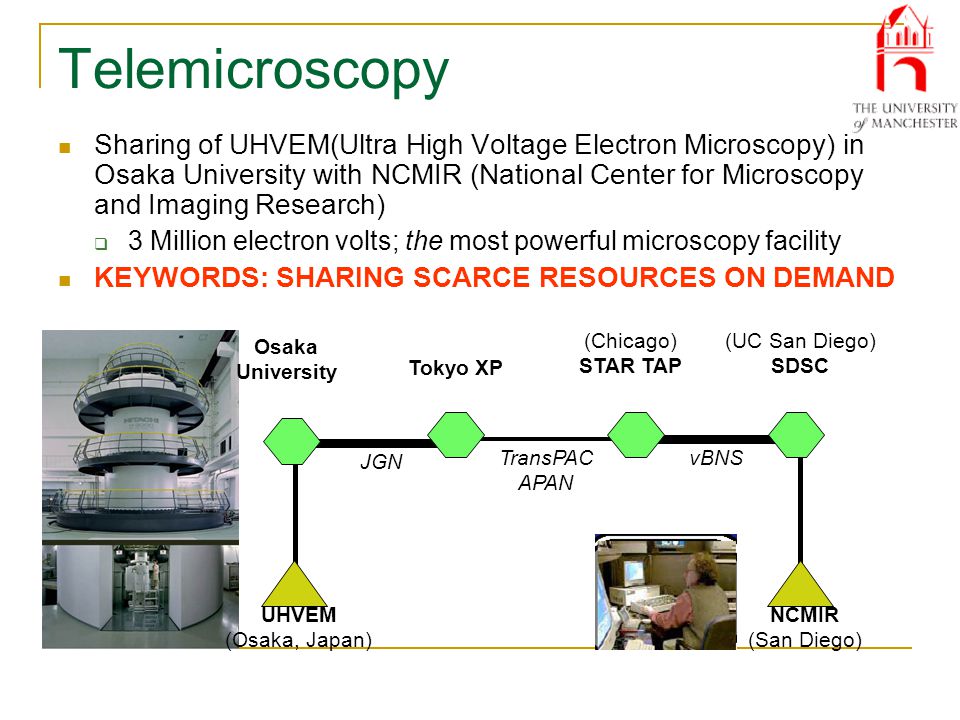

13. Telemicroscopy Sharing of UHVEM(Ultra High Voltage Electron Microscopy) in Osaka University with NCMIR (National Center for Microscopy and Imaging Research)  3 Million electron volts; the most powerful microscopy facility KEYWORDS: SHARING SCARCE RESOURCES ON DEMAND Tokyo XP (Chicago) STAR TAP TransPAC APAN vBNS (UC San Diego) SDSC NCMIR (San Diego) UHVEM (Osaka, Japan) JGN Osaka University

14. Smallpox Grid United Devices, IBM, Oxford University, Accelrys Analysis of 35 million drug compounds against nine smallpox proteins to try to find a way to stop the replication of the virus. Volunteers from over 190 countries donated their spare CPU power at www.grid.org, the world's largest public computing resourcewww.grid.org Contributed over 39,000 years of computing time in less than six months. September 30, 2003 — delivered the results of the Smallpox Research Grid project to representatives from the United States Department of Defense in an event hosted by the British Embassy in Washington, D.C.

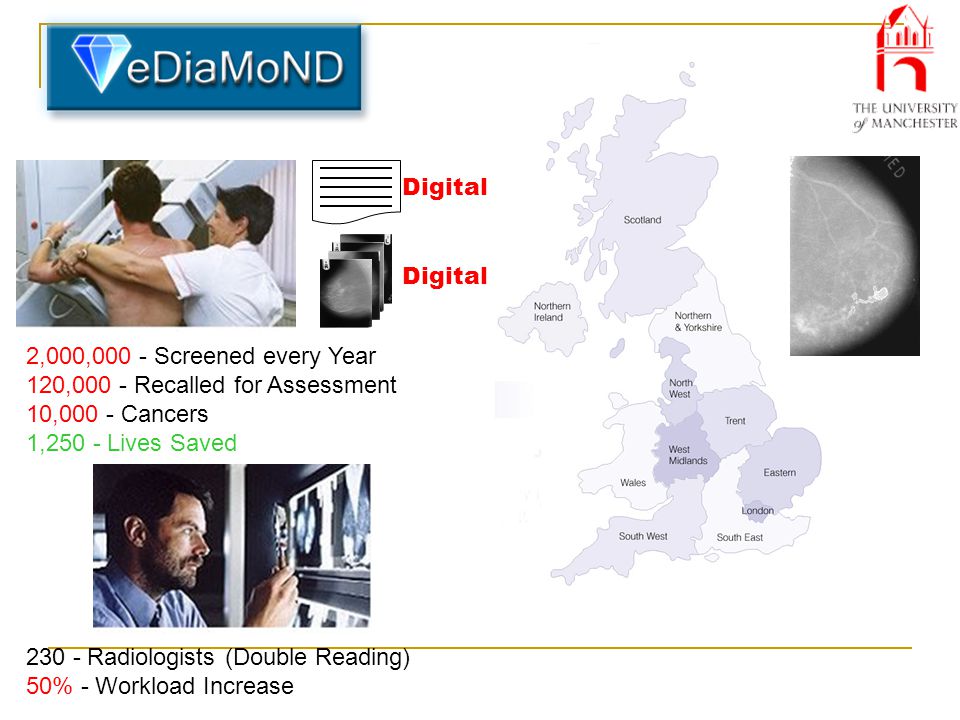

15. 230 - Radiologists (Double Reading) 50% - Workload Increase 2,000,000 - Screened every Year 120,000 - Recalled for Assessment 10,000 - Cancers 1,250 - Lives Saved Digital

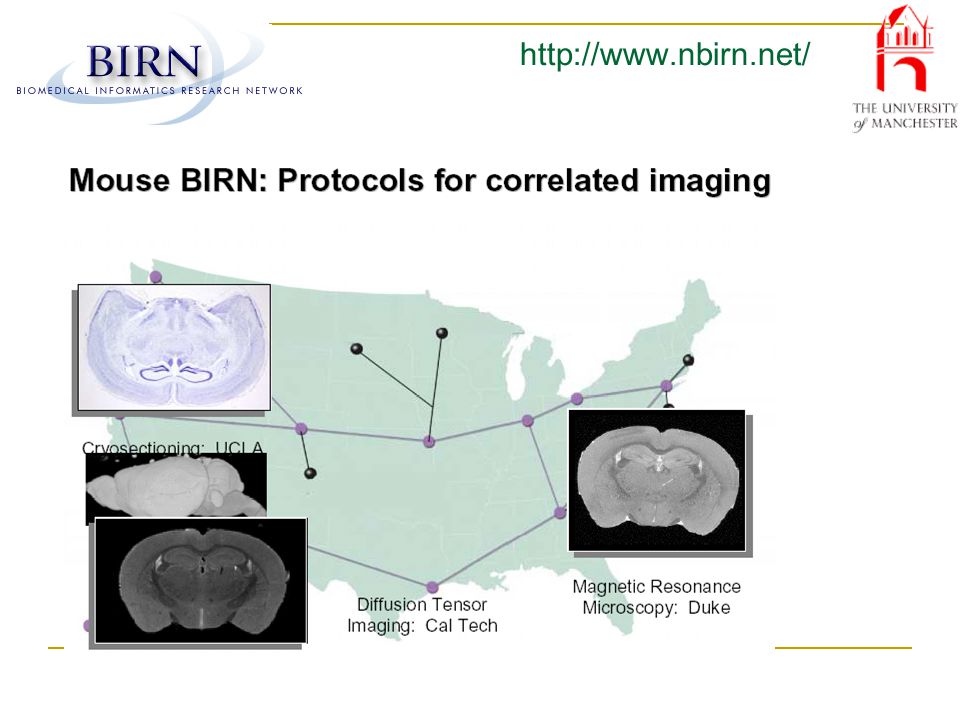

16. http://www.nbirn.net/

17. RealityGrid http://www.realitygrid.org Closely coupling computation and experiment to speed up scientific discovery. Simulation, visualization and data gathering coupled X-ray microtomography produces 3D X-ray attenuation maps of specimens at a microscopic level Scientist remotely steers calculation from laptop Visualization and computation use supercomputers accessed via Grid.

18. Collaboration Interactive environments and virtual presence integrated with Grid middleware SARS Combat Grid, Taiwan Emergency Access Grids Integration of patient data and models of dissemination http://www.accessgrid.org

19. Access Grid

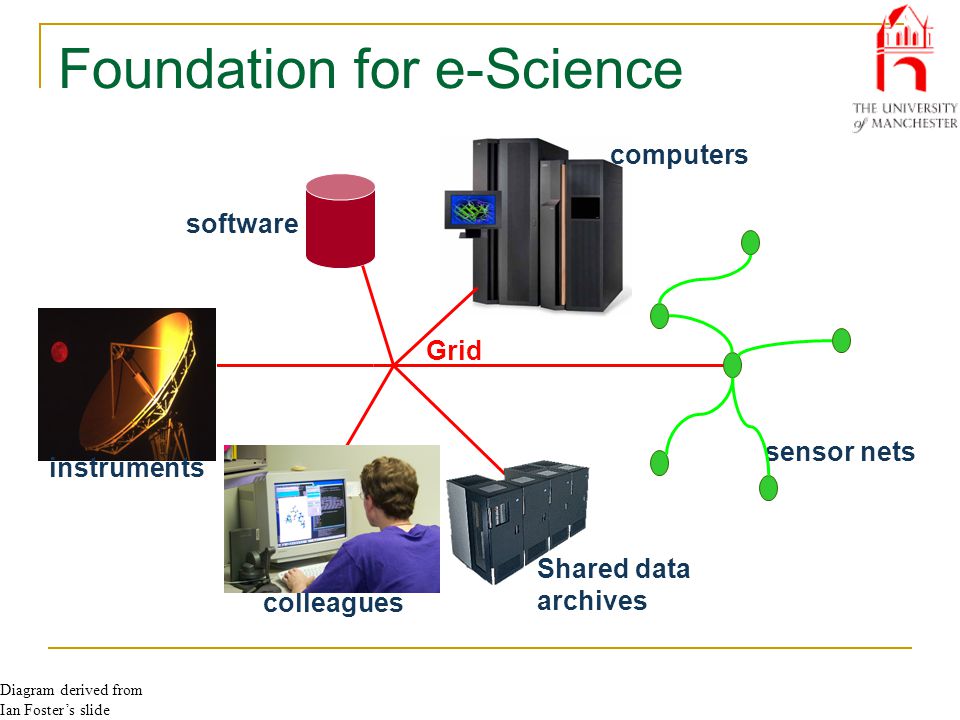

20. Foundation for e-Science sensor nets Shared data archives computers software colleagues instruments Grid Diagram derived from Ian Foster’s slide

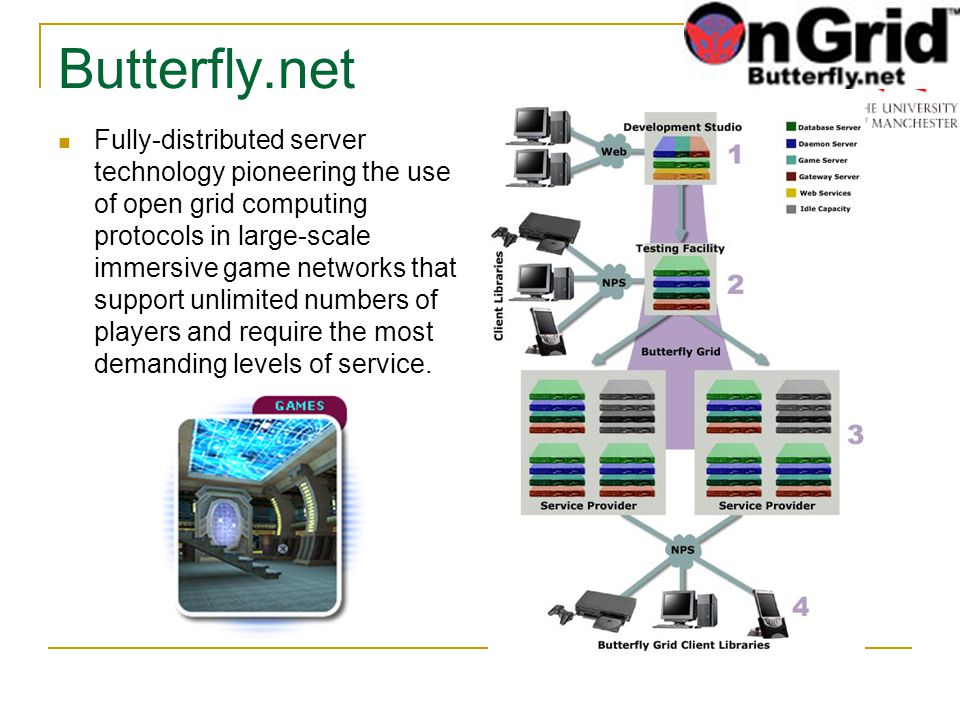

21. Butterfly.net Fully-distributed server technology pioneering the use of open grid computing protocols in large-scale immersive game networks that support unlimited numbers of players and require the most demanding levels of service.

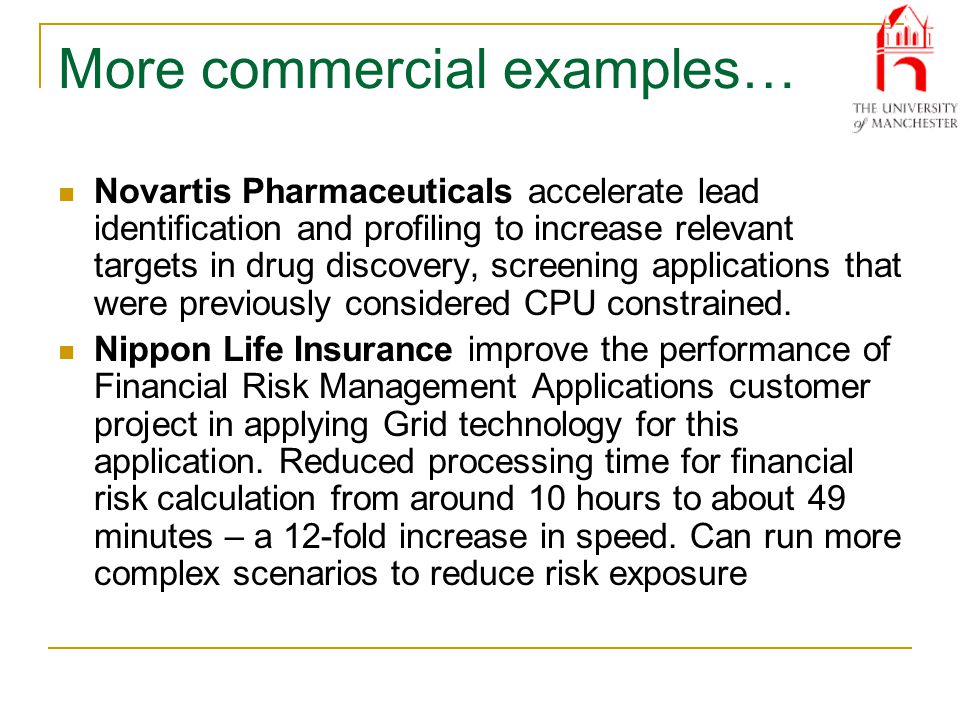

22. More commercial examples… Novartis Pharmaceuticals accelerate lead identification and profiling to increase relevant targets in drug discovery, screening applications that were previously considered CPU constrained. Nippon Life Insurance improve the performance of Financial Risk Management Applications customer project in applying Grid technology for this application. Reduced processing time for financial risk calculation from around 10 hours to about 49 minutes – a 12-fold increase in speed. Can run more complex scenarios to reduce risk exposure

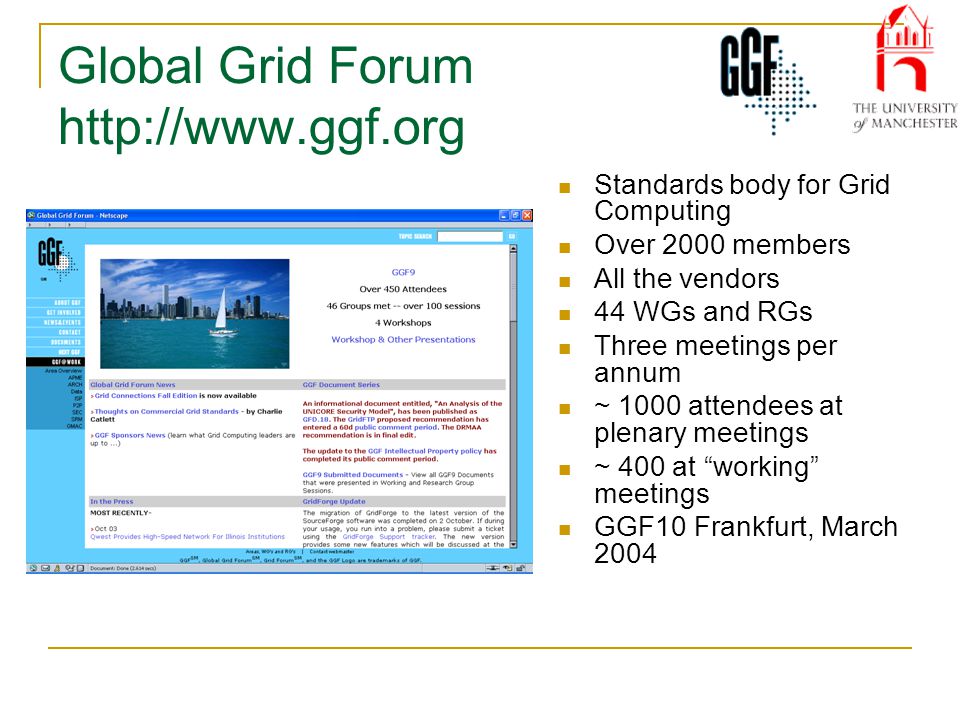

23. Global Grid Forum http://www.ggf.org Standards body for Grid Computing Over 2000 members All the vendors 44 WGs and RGs Three meetings per annum ~ 1000 attendees at plenary meetings ~ 400 at “working” meetings GGF10 Frankfurt, March 2004

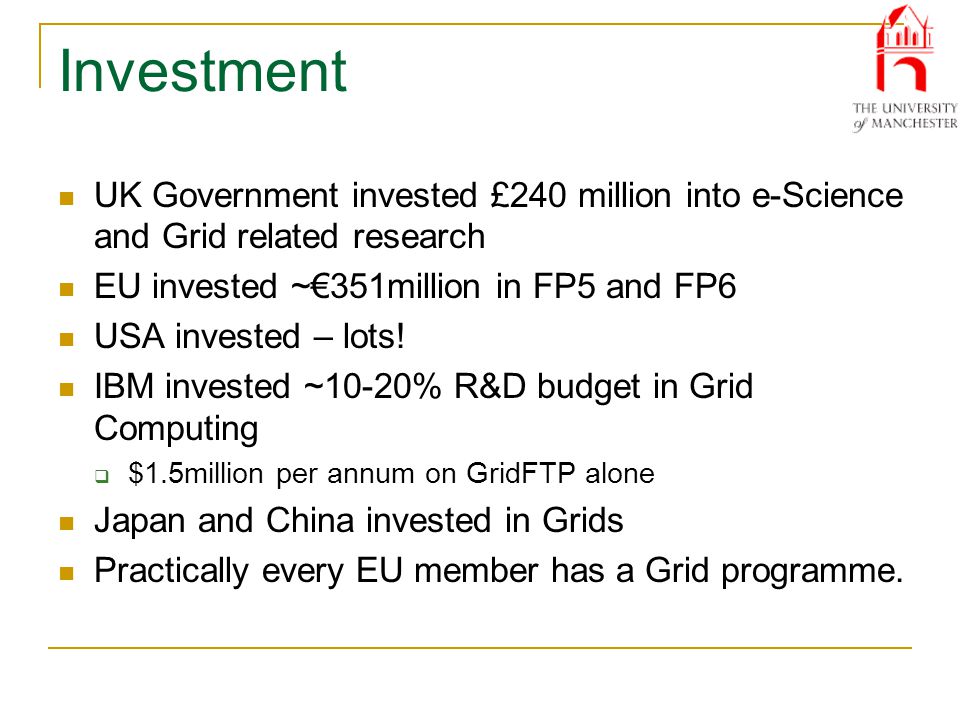

24. Investment UK Government invested £240 million into e-Science and Grid related research EU invested ~€351million in FP5 and FP6 USA invested – lots! IBM invested ~10-20% R&D budget in Grid Computing  $1.5million per annum on GridFTP alone Japan and China invested in Grids Practically every EU member has a Grid programme.

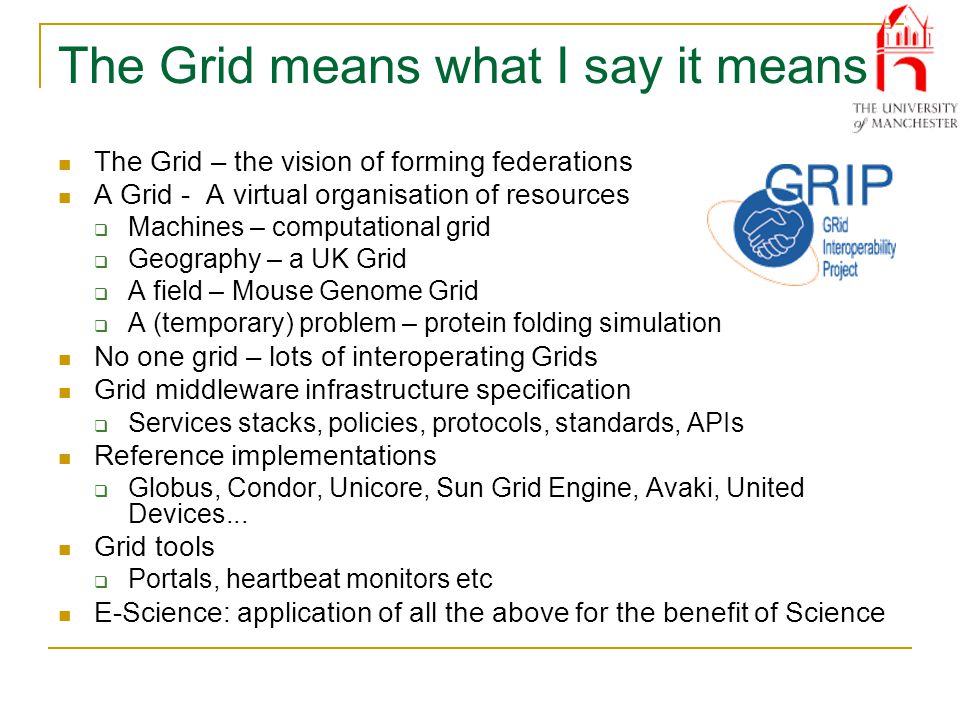

25. The Grid means what I say it means The Grid – the vision of forming federations A Grid - A virtual organisation of resources  Machines – computational grid  Geography – a UK Grid  A field – Mouse Genome Grid  A (temporary) problem – protein folding simulation No one grid – lots of interoperating Grids Grid middleware infrastructure specification  Services stacks, policies, protocols, standards, APIs Reference implementations  Globus, Condor, Unicore, Sun Grid Engine, Avaki, United Devices... Grid tools  Portals, heartbeat monitors etc E-Science: application of all the above for the benefit of Science

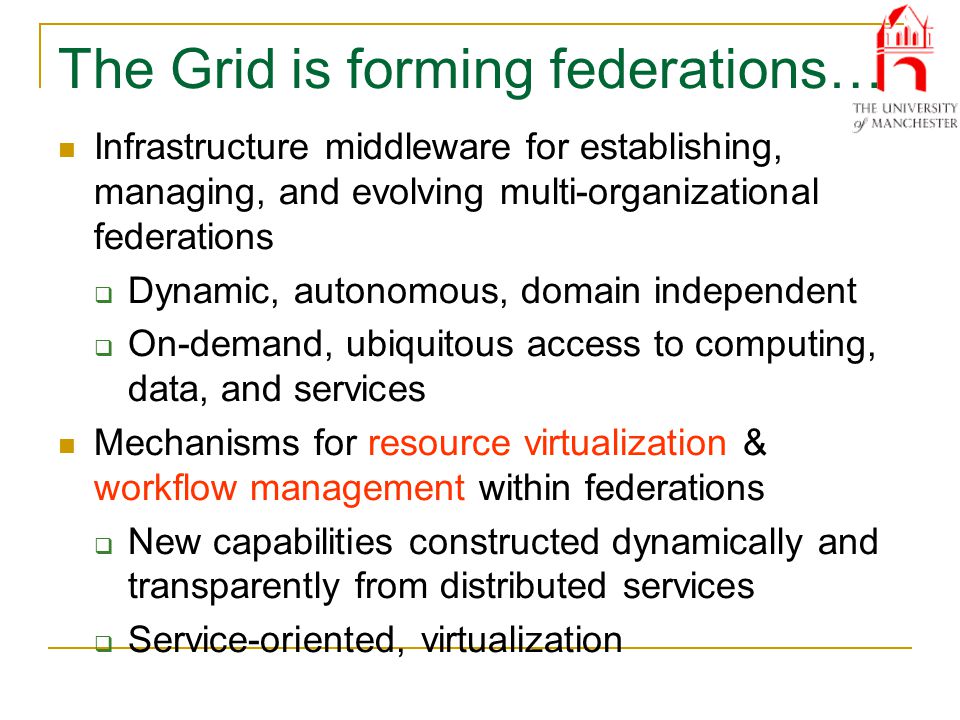

26. The Grid is forming federations… Infrastructure middleware for establishing, managing, and evolving multi-organizational federations  Dynamic, autonomous, domain independent  On-demand, ubiquitous access to computing, data, and services Mechanisms for resource virtualization & workflow management within federations  New capabilities constructed dynamically and transparently from distributed services  Service-oriented, virtualization

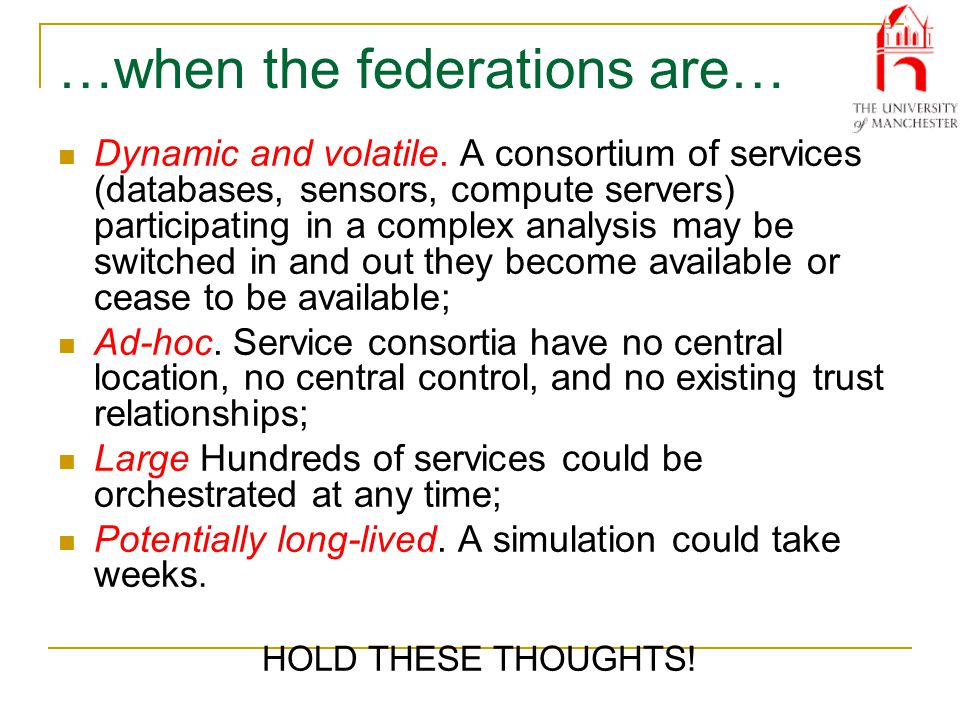

27. …when the federations are… Dynamic and volatile. A consortium of services (databases, sensors, compute servers) participating in a complex analysis may be switched in and out they become available or cease to be available; Ad-hoc. Service consortia have no central location, no central control, and no existing trust relationships; Large Hundreds of services could be orchestrated at any time; Potentially long-lived. A simulation could take weeks. HOLD THESE THOUGHTS!

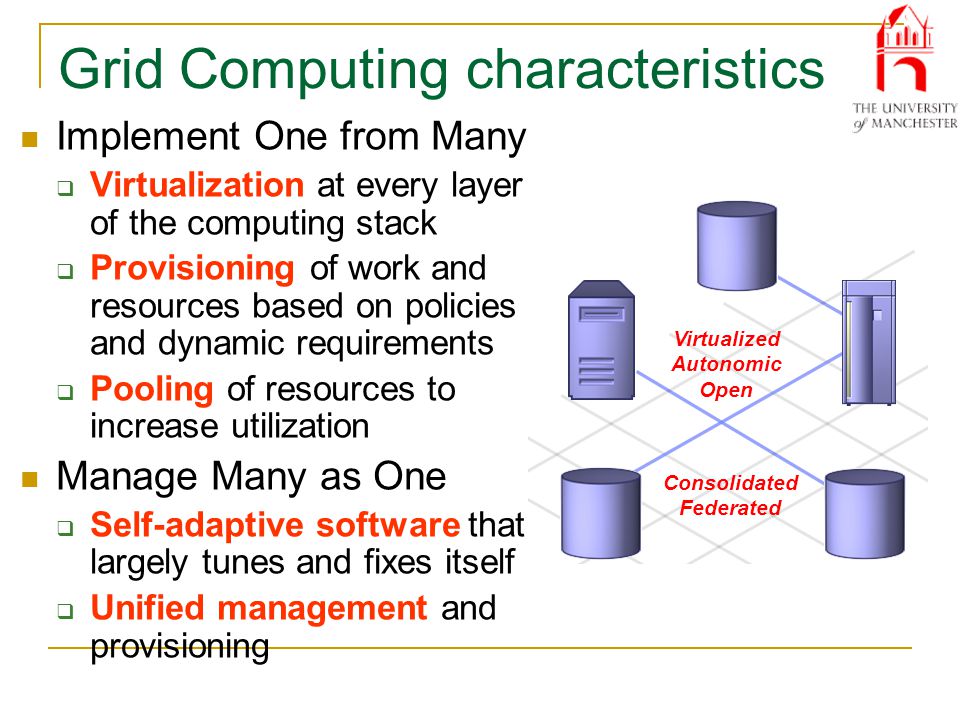

28. Grid Computing characteristics Implement One from Many  Virtualization at every layer of the computing stack  Provisioning of work and resources based on policies and dynamic requirements  Pooling of resources to increase utilization Manage Many as One  Self-adaptive software that largely tunes and fixes itself  Unified management and provisioning Virtualized Autonomic Open Consolidated Federated

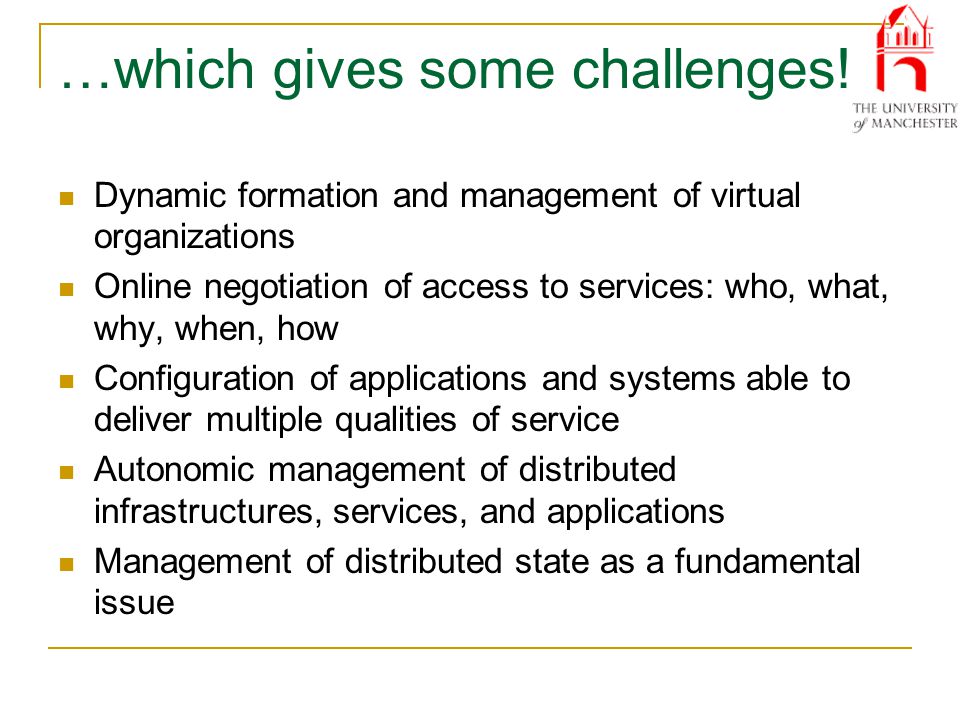

29. …which gives some challenges! Dynamic formation and management of virtual organizations Online negotiation of access to services: who, what, why, when, how Configuration of applications and systems able to deliver multiple qualities of service Autonomic management of distributed infrastructures, services, and applications Management of distributed state as a fundamental issue

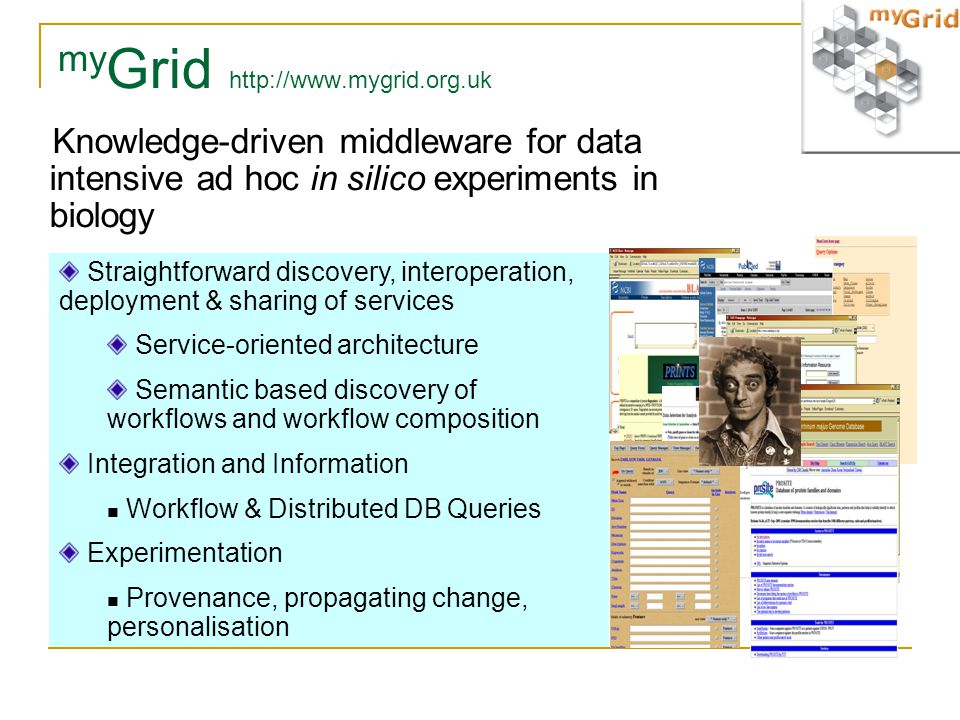

30. my Grid http://www.mygrid.org.uk Knowledge-driven middleware for data intensive ad hoc in silico experiments in biology Straightforward discovery, interoperation, deployment & sharing of services Service-oriented architecture Semantic based discovery of workflows and workflow composition Integration and Information Workflow & Distributed DB Queries Experimentation Provenance, propagating change, personalisation

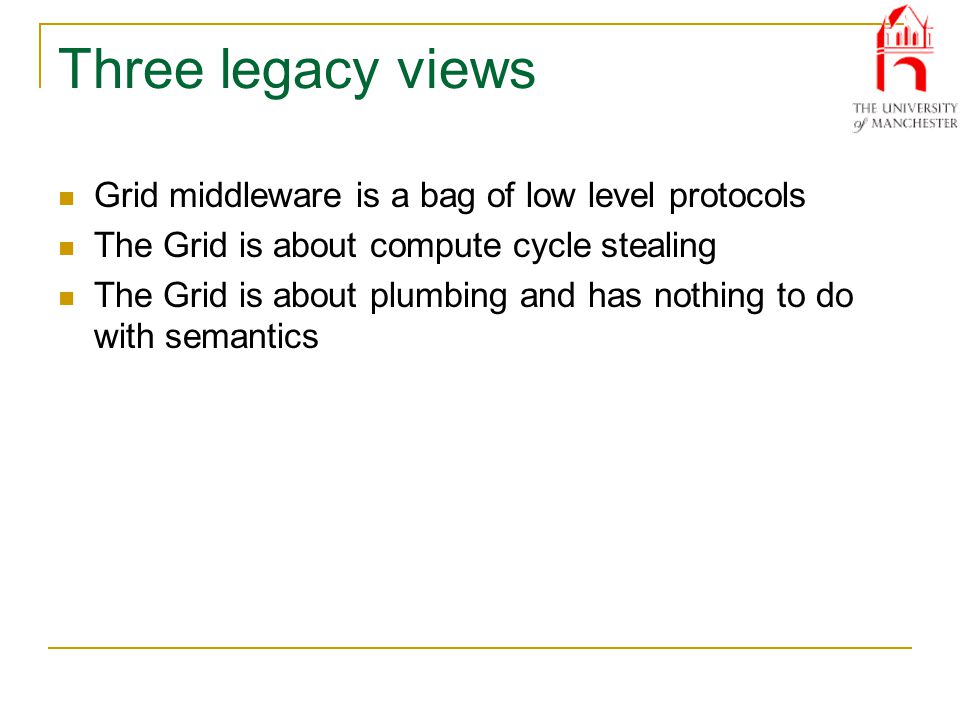

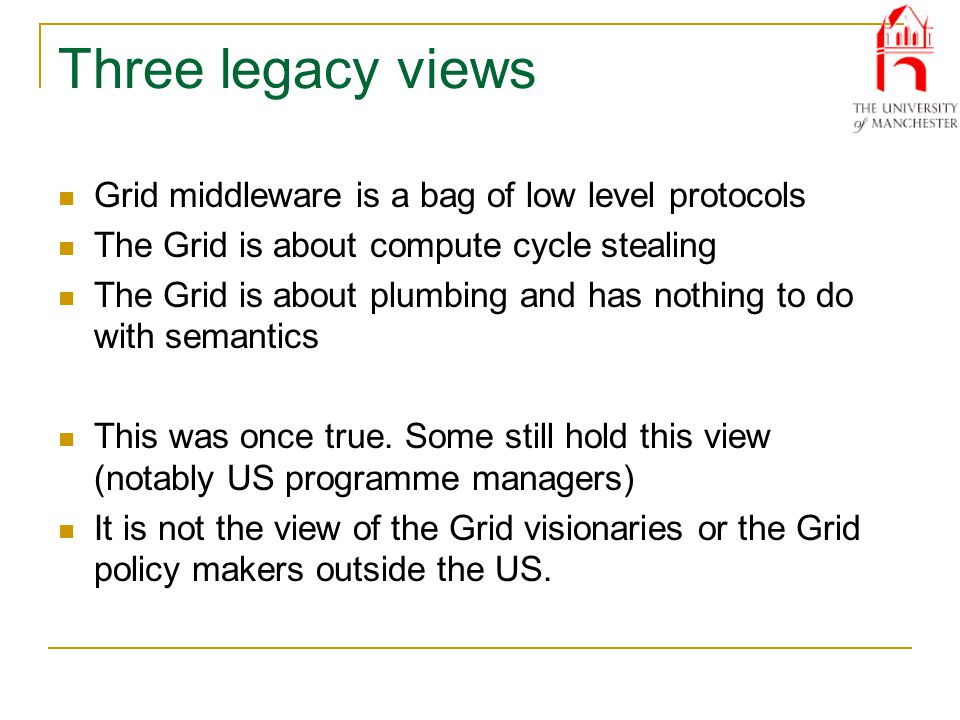

31. Three legacy views Grid middleware is a bag of low level protocols The Grid is about compute cycle stealing The Grid is about plumbing and has nothing to do with semantics

32. Three legacy views Grid middleware is a bag of low level protocols The Grid is about compute cycle stealing The Grid is about plumbing and has nothing to do with semantics This was once true. Some still hold this view (notably US programme managers) It is not the view of the Grid visionaries or the Grid policy makers outside the US.

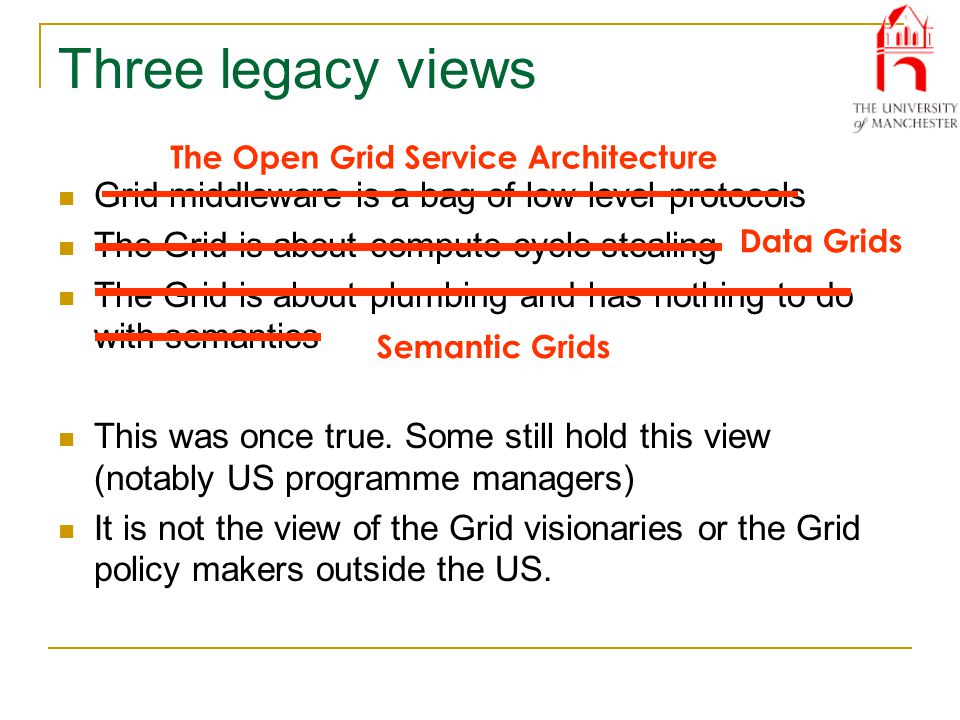

33. Three legacy views Grid middleware is a bag of low level protocols The Grid is about compute cycle stealing The Grid is about plumbing and has nothing to do with semantics This was once true. Some still hold this view (notably US programme managers) It is not the view of the Grid visionaries or the Grid policy makers outside the US. The Open Grid Service Architecture Data Grids Semantic Grids

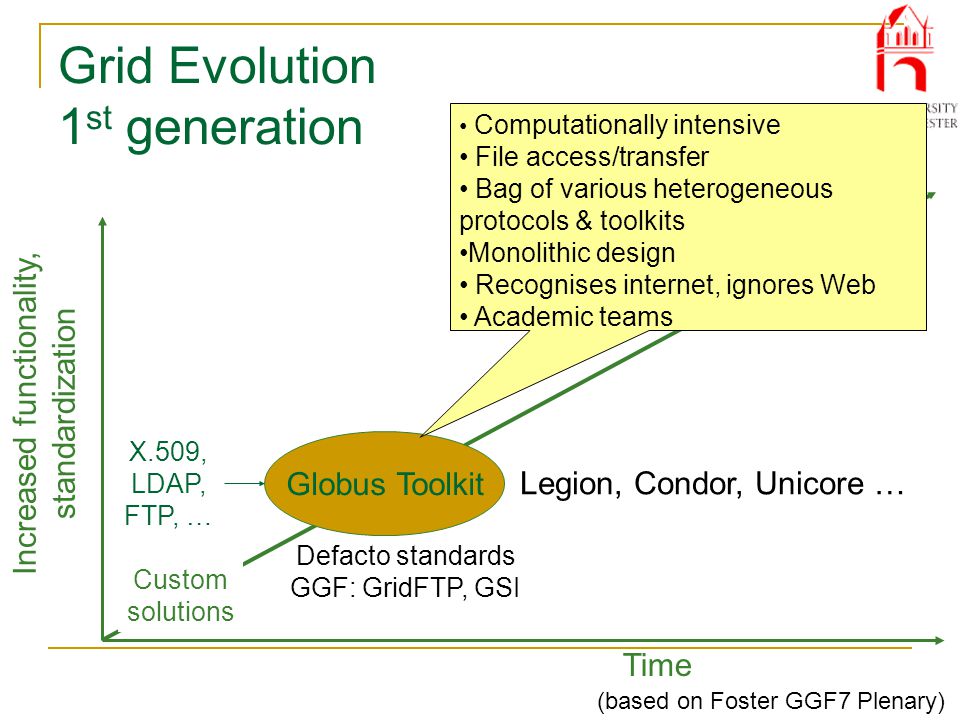

34. Grid Evolution 1 st generation Increased functionality, standardization Time Custom solutions Globus Toolkit Defacto standards GGF: GridFTP, GSI X.509, LDAP, FTP, … (based on Foster GGF7 Plenary) Computationally intensive File access/transfer Bag of various heterogeneous protocols & toolkits Monolithic design Recognises internet, ignores Web Academic teams Legion, Condor, Unicore …

35. Grid Evolution 2 nd Generation Increased functionality, standardization Time Custom solutions Open Grid Services Arch GGF: OGSI, … (+ OASIS, W3C) Multiple implementations, including Globus Toolkit 3 Web services Globus Toolkit Defacto standards GGF: GridFTP, GSI X.509, LDAP, FTP, … App-specific Services Data intensive -> knowledge intensive Open services-based architecture Recognises Web services Global Grid Forum Industry participation (based on Foster GGF7 Plenary)

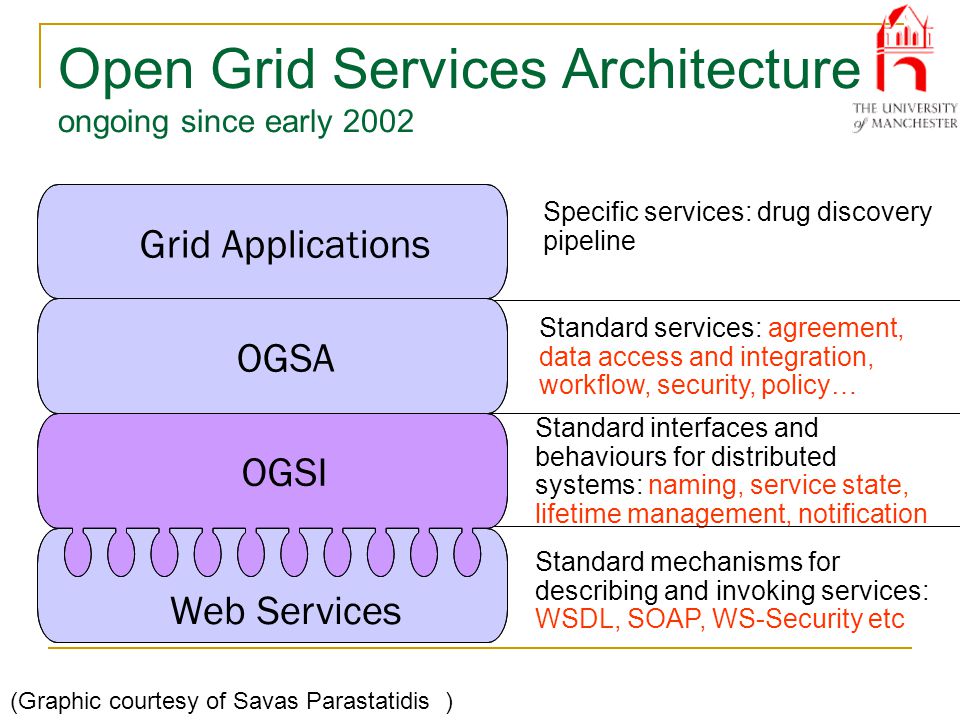

36. Open Grid Services Architecture ongoing since early 2002 Standard mechanisms for describing and invoking services: WSDL, SOAP, WS-Security etc Standard interfaces and behaviours for distributed systems: naming, service state, lifetime management, notification Standard services: agreement, data access and integration, workflow, security, policy… Specific services: drug discovery pipeline OGSA OGSI Web Services Grid Applications (Graphic courtesy of Savas Parastatidis )

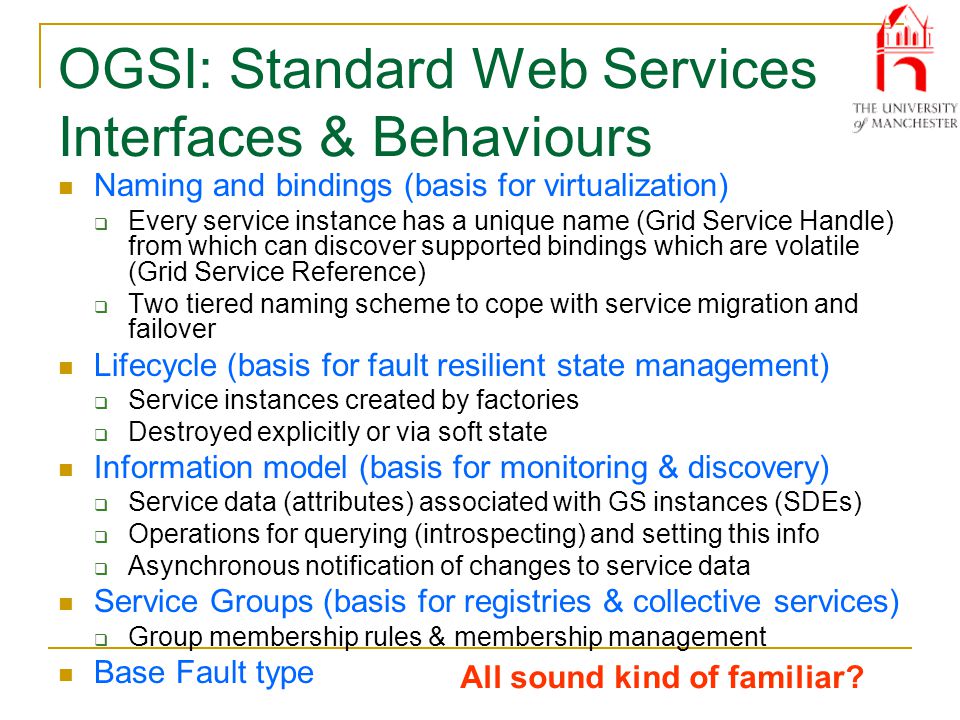

37. OGSI: Standard Web Services Interfaces & Behaviours Naming and bindings (basis for virtualization)  Every service instance has a unique name (Grid Service Handle) from which can discover supported bindings which are volatile (Grid Service Reference)  Two tiered naming scheme to cope with service migration and failover Lifecycle (basis for fault resilient state management)  Service instances created by factories  Destroyed explicitly or via soft state Information model (basis for monitoring & discovery)  Service data (attributes) associated with GS instances (SDEs)  Operations for querying (introspecting) and setting this info  Asynchronous notification of changes to service data Service Groups (basis for registries & collective services)  Group membership rules & membership management Base Fault type All sound kind of familiar?

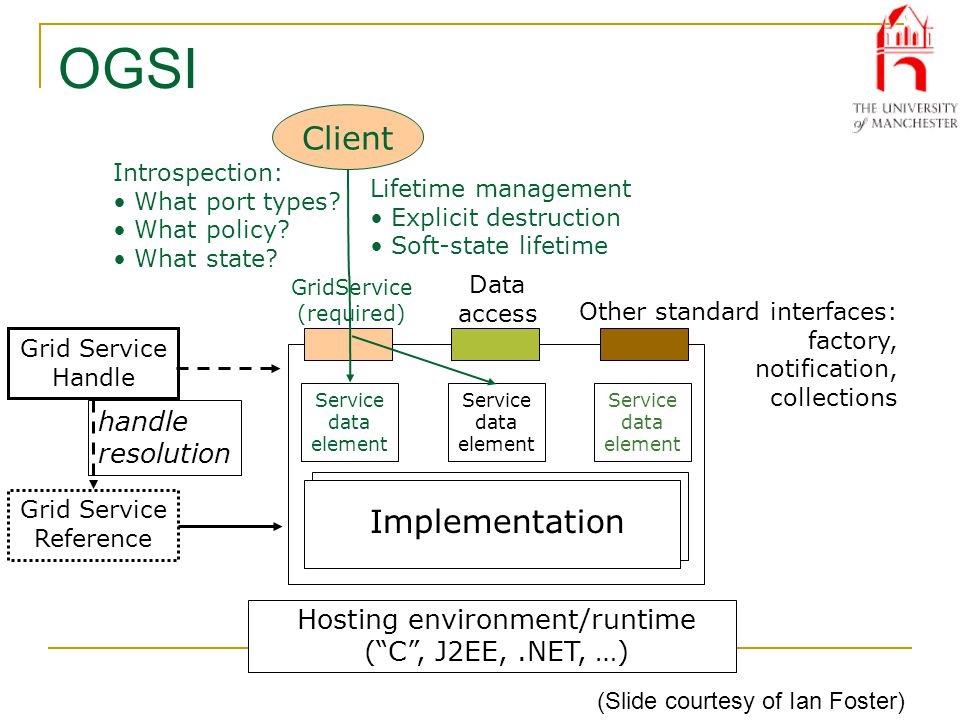

38. OGSI Implementation Service data element Other standard interfaces: factory, notification, collections Hosting environment/runtime (“C”, J2EE,.NET, …) Service data element Service data element GridService (required) Data access Lifetime management Explicit destruction Soft-state lifetime Introspection: What port types? What policy? What state? Client Grid Service Handle Grid Service Reference handle resolution (Slide courtesy of Ian Foster)

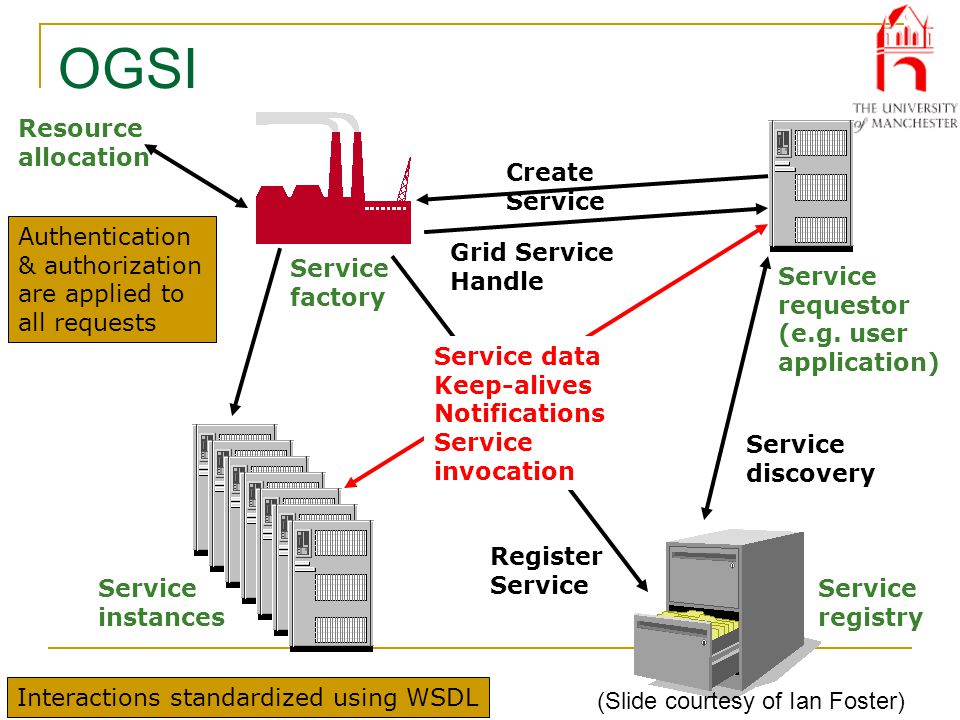

39. Service registry Service requestor (e.g. user application) Service factory Create Service Grid Service Handle Resource allocation Service instances Register Service Service discovery Interactions standardized using WSDL Service data Keep-alives Notifications Service invocation Authentication & authorization are applied to all requests OGSI (Slide courtesy of Ian Foster)

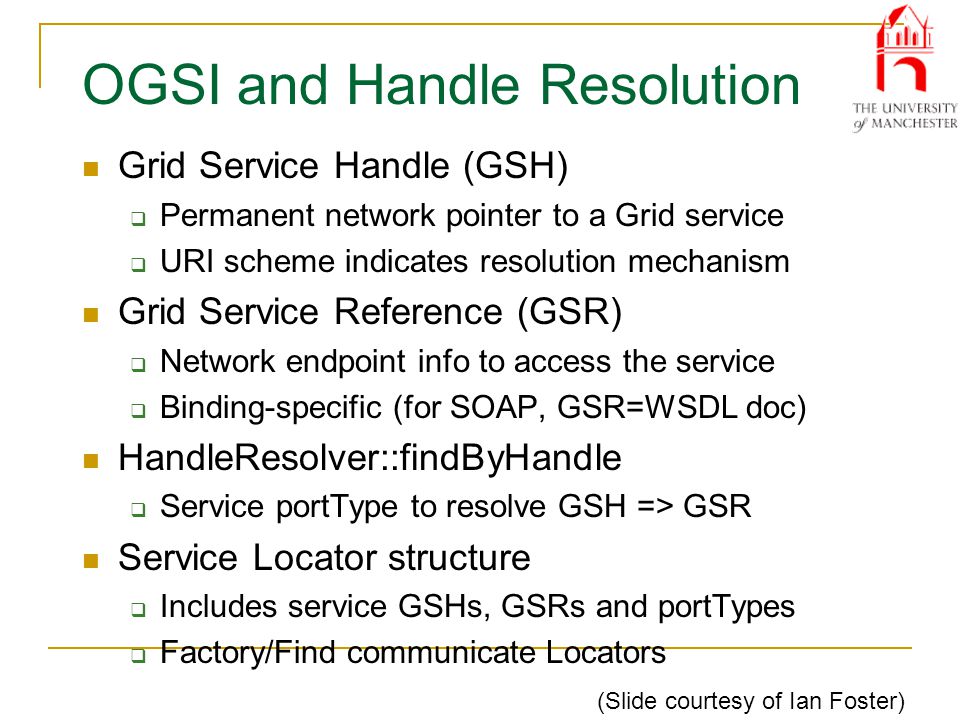

40. OGSI and Handle Resolution Grid Service Handle (GSH)  Permanent network pointer to a Grid service  URI scheme indicates resolution mechanism Grid Service Reference (GSR)  Network endpoint info to access the service  Binding-specific (for SOAP, GSR=WSDL doc) HandleResolver::findByHandle  Service portType to resolve GSH => GSR Service Locator structure  Includes service GSHs, GSRs and portTypes  Factory/Find communicate Locators (Slide courtesy of Ian Foster)

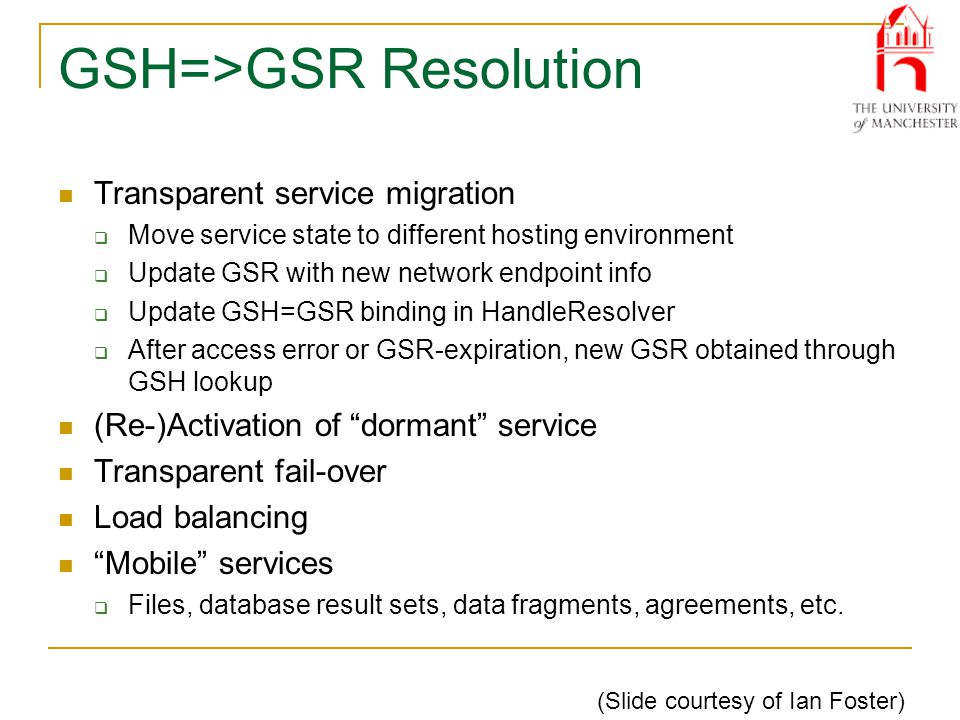

41. GSH=>GSR Resolution Transparent service migration  Move service state to different hosting environment  Update GSR with new network endpoint info  Update GSH=GSR binding in HandleResolver  After access error or GSR-expiration, new GSR obtained through GSH lookup (Re-)Activation of “dormant” service Transparent fail-over Load balancing “Mobile” services  Files, database result sets, data fragments, agreements, etc. (Slide courtesy of Ian Foster)

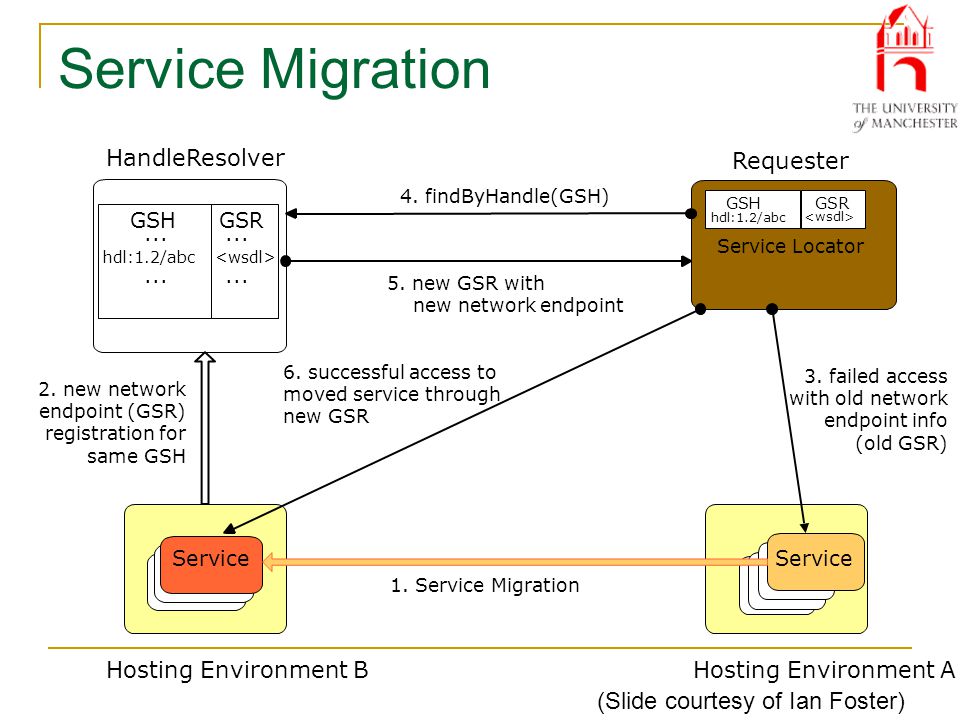

42. Service Migration Hosting Environment B GSH... hdl:1.2/abc... GSR...... Service Hosting Environment A Service 1. Service Migration Requester HandleResolver 2. new network endpoint (GSR) registration for same GSH 3. failed access with old network endpoint info (old GSR) 6. successful access to moved service through new GSR 5. new GSR with new network endpoint 4. findByHandle(GSH) GSH hdl:1.2/abc GSR Service Locator (Slide courtesy of Ian Foster)

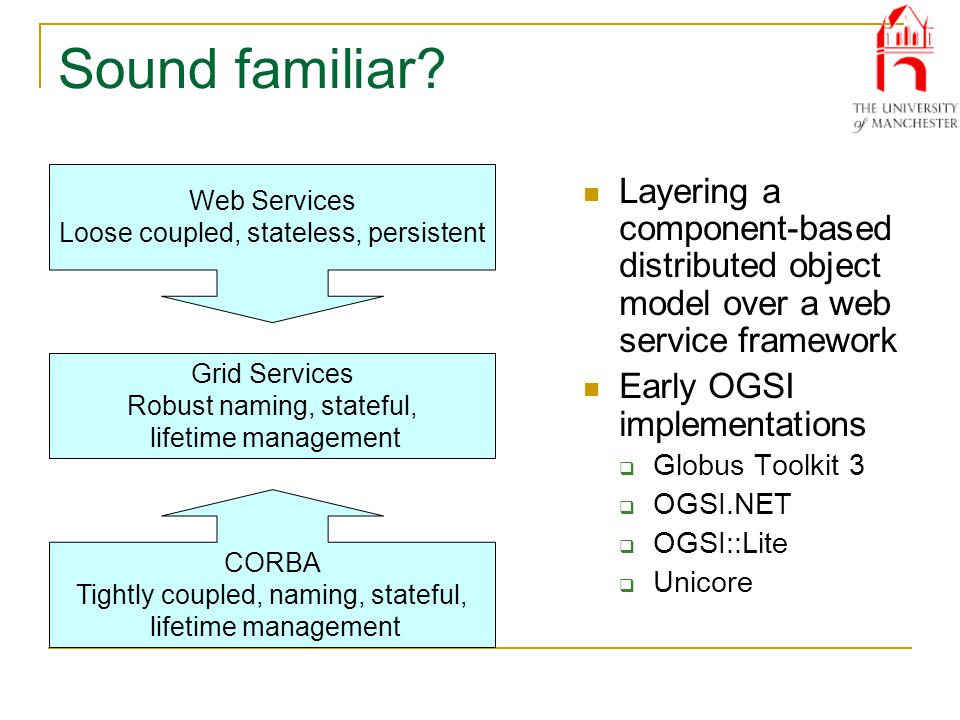

43. Sound familiar? Layering a component-based distributed object model over a web service framework Early OGSI implementations  Globus Toolkit 3  OGSI.NET  OGSI::Lite  Unicore Web Services Loose coupled, stateless, persistent CORBA Tightly coupled, naming, stateful, lifetime management Grid Services Robust naming, stateful, lifetime management

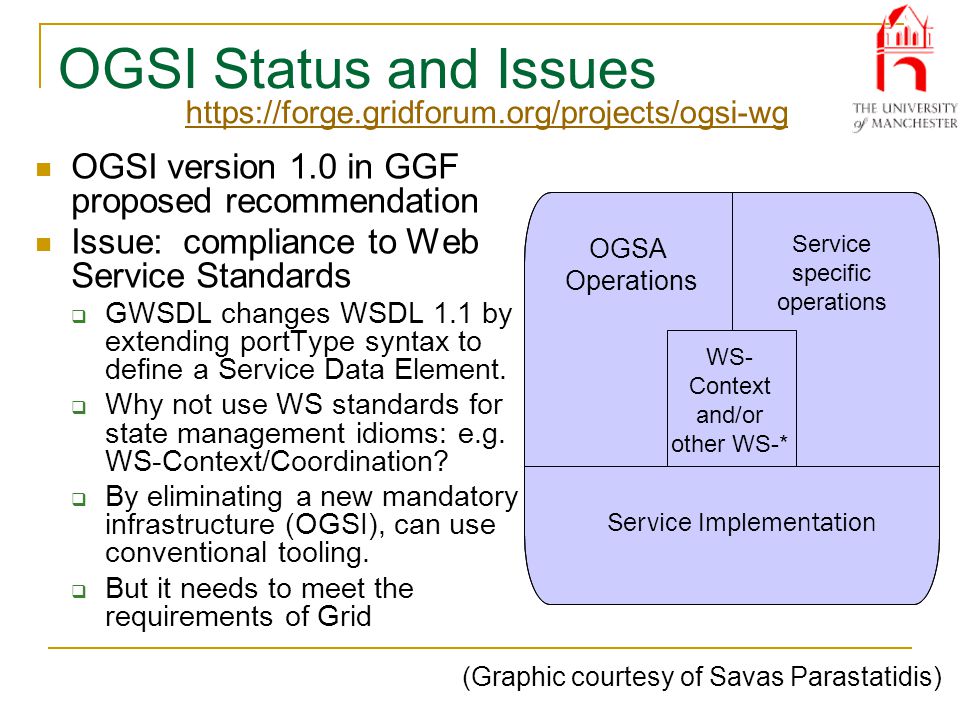

44. OGSI Status and Issues OGSI version 1.0 in GGF proposed recommendation Issue: compliance to Web Service Standards  GWSDL changes WSDL 1.1 by extending portType syntax to define a Service Data Element.  Why not use WS standards for state management idioms: e.g. WS-Context/Coordination?  By eliminating a new mandatory infrastructure (OGSI), can use conventional tooling.  But it needs to meet the requirements of Grid Service Implementation OGSA Operations Service specific operations WS- Context and/or other WS-* https://forge.gridforum.org/projects/ogsi-wg (Graphic courtesy of Savas Parastatidis)

45. 300 pound gorillas If you want to use standards then you have to use them or work with them W3C and OASIS are big gorillas E.g. GSH/GSR, Handle.net, Life Science Identifer and WS-address

46. Open Grid Service Architecture: “where are the OGSI services” Technical specifications  Open Grid Services Infrastructure is almost complete  Security, data access, Java binding, common resource models, etc., etc., in the pipeline Implementations and compliant products  OGSA-based Globus Toolkit v3, OGSA::Lite, OGSA.NET, …  IBM, Avaki, Platform, Sun, NEC, Oracle, …  Rich set of service definitions & implementations  Starting on OGSI-compliant services  OGSA Use Cases https://forge.gridforum.org/projects/ogsa-wg  OGSA-Data Access and Integration

47. Grid Applications On The Move The rise of the Information Grid Large scale data Large number of machines Computationally intensive Simple semantics Small homogeneous communities Smaller scale data Data intensive Complex heterogeneous applications Complex semantics Large diverse communities High Energy PhysicsFunctional Genomics Oceanography Biodiversity Earth Science Neuroscience …

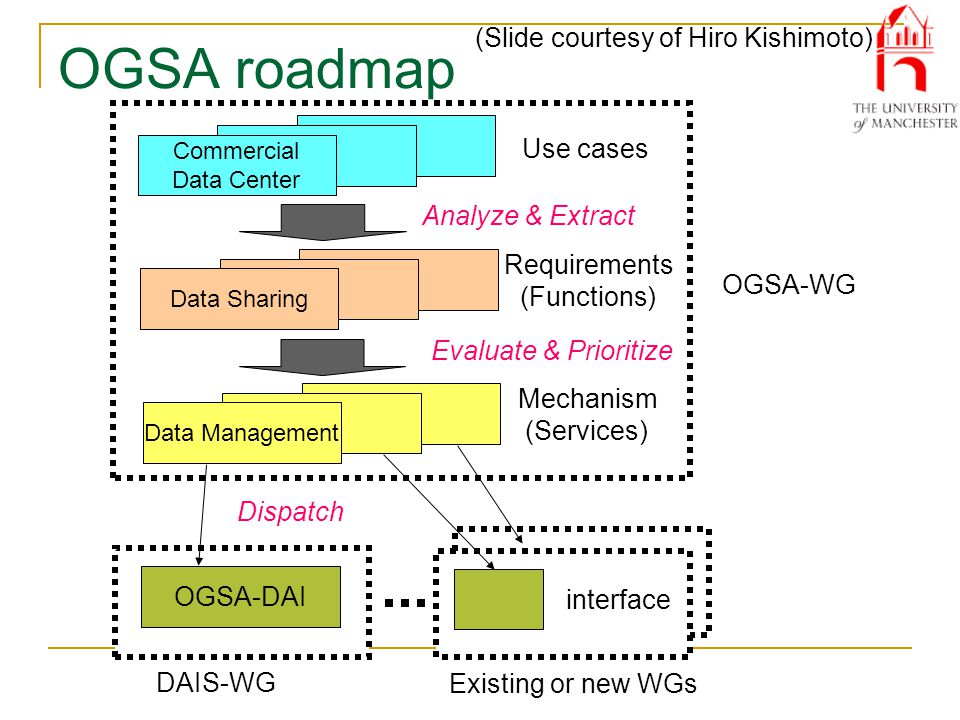

48. OGSA roadmap Commercial Data Center Data Sharing Data Management Analyze & Extract Evaluate & Prioritize OGSA-DAI OGSA-WG Existing or new WGs Dispatch Use cases Requirements (Functions) Mechanism (Services) DAIS-WG interface (Slide courtesy of Hiro Kishimoto)

49. Data-intensive integration: what the e-scientist REALLY wants Scientists do data integration  Actually they do application and model integration too! Cooperative information systems Workflows Data virtualisation

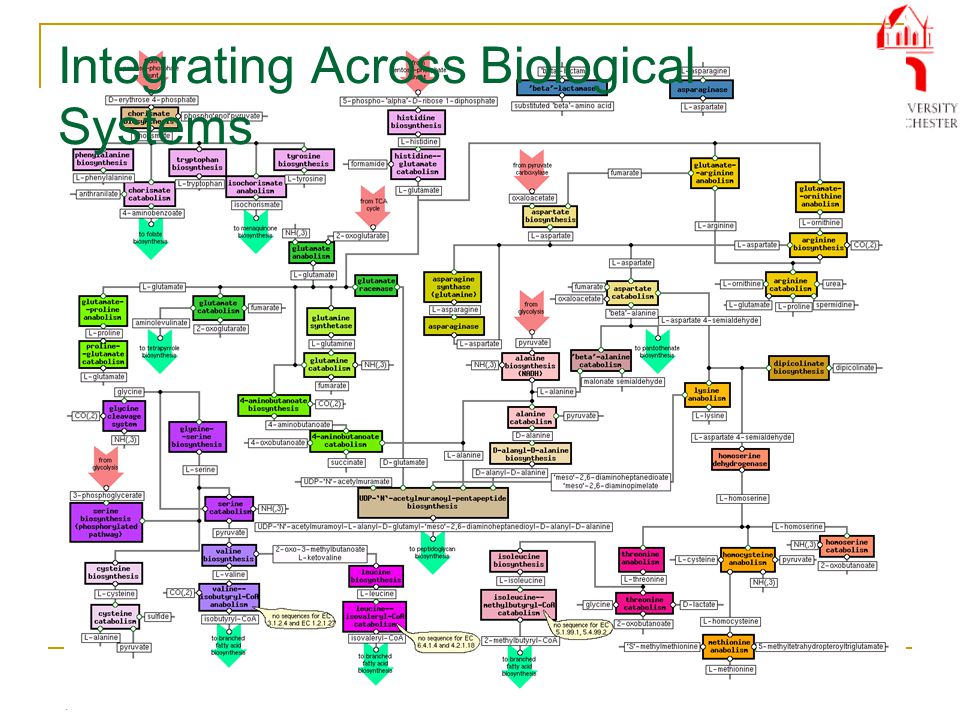

50. Integrating Across Biological Systems

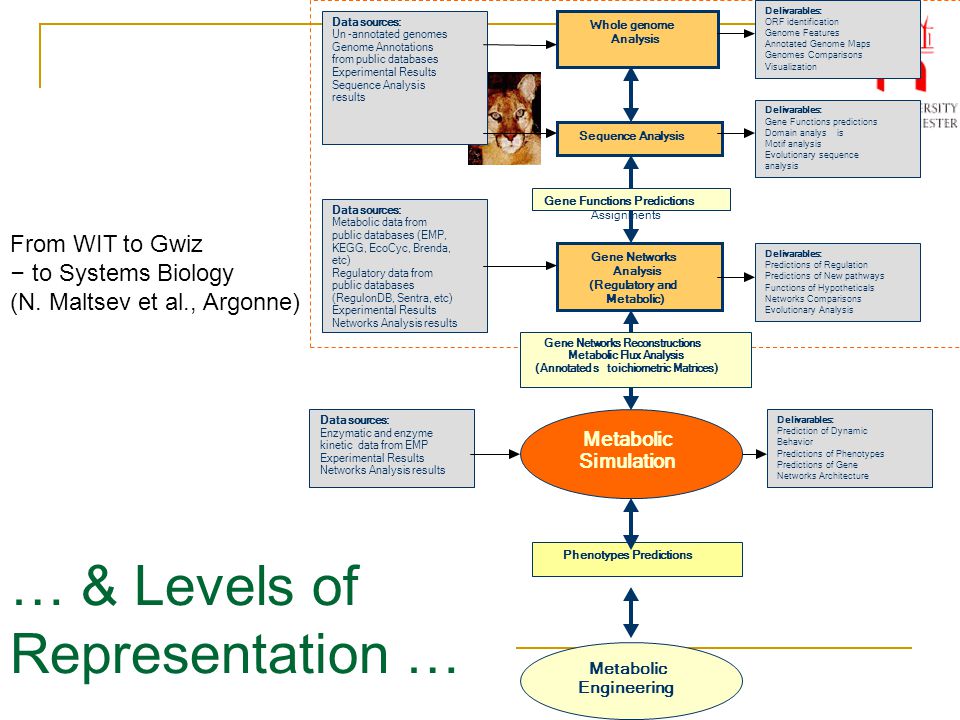

51. From WIT to Gwiz – to Systems Biology (N. Maltsev et al., Argonne) Sequence Analysis Whole genome Analysis Gene Networks Analysis (Regulatory and Metabolic) Metabolic Simulation Phenotypes Predictions Metabolic Engineering Data sources: Un-annotated genomes Genome Annotations from public databases Experimental Results Sequence Analysis results Delivarables: ORF identification Genome Features Annotated Genome Maps Genomes Comparisons Visualization Gene Networks Reconstructions Metabolic Flux Analysis (Annotated stoichiometric Matrices) Delivarables: Predictions of Regulation Predictions of New pathways Functions of Hypotheticals Networks Comparisons Evolutionary Analysis Delivarables: Gene Functions predictions Domain analysis Motif analysis Evolutionary sequence analysis Gene Functions Predictions Assignments Data sources: Metabolic data from public databases (EMP, KEGG, EcoCyc, Brenda, etc) Regulatory data from public databases (RegulonDB, Sentra, etc) Experimental Results Networks Analysis results Data sources: Enzymatic and enzyme kinetic data from EMP Experimental Results Networks Analysis results Delivarables: Prediction of Dynamic Behavior Predictions of Phenotypes Predictions of Gene Networks Architecture … & Levels of Representation …

52. … & Types of Information ID MURA_BACSU STANDARD; PRT; 429 AA. DE PROBABLE UDP-N-ACETYLGLUCOSAMINE 1-CARBOXYVINYLTRANSFERASE DE (EC 2.5.1.7) (ENOYLPYRUVATE TRANSFERASE) (UDP-N-ACETYLGLUCOSAMINE DE ENOLPYRUVYL TRANSFERASE) (EPT). GN MURA OR MURZ. OS BACILLUS SUBTILIS. OC BACTERIA; FIRMICUTES; BACILLUS/CLOSTRIDIUM GROUP; BACILLACEAE; OC BACILLUS. KW PEPTIDOGLYCAN SYNTHESIS; CELL WALL; TRANSFERASE. FT ACT_SITE 116 116 BINDS PEP (BY SIMILARITY). FT CONFLICT 374 374 S -> A (IN REF. 3). SQ SEQUENCE 429 AA; 46016 MW; 02018C5C CRC32; MEKLNIAGGD SLNGTVHISG AKNSAVALIP ATILANSEVT IEGLPEISDI ETLRDLLKEI GGNVHFENGE MVVDPTSMIS MPLPNGKVKK LRASYYLMGA MLGRFKQAVI GLPGGCHLGP RPIDQHIKGF EALGAEVTNE QGAIYLRAER LRGARIYLDV VSVGATINIM LAAVLAEGKT IIENAAKEPE IIDVATLLTS MGAKIKGAGT NVIRIDGVKE LHGCKHTIIP DRIEAGTFMI

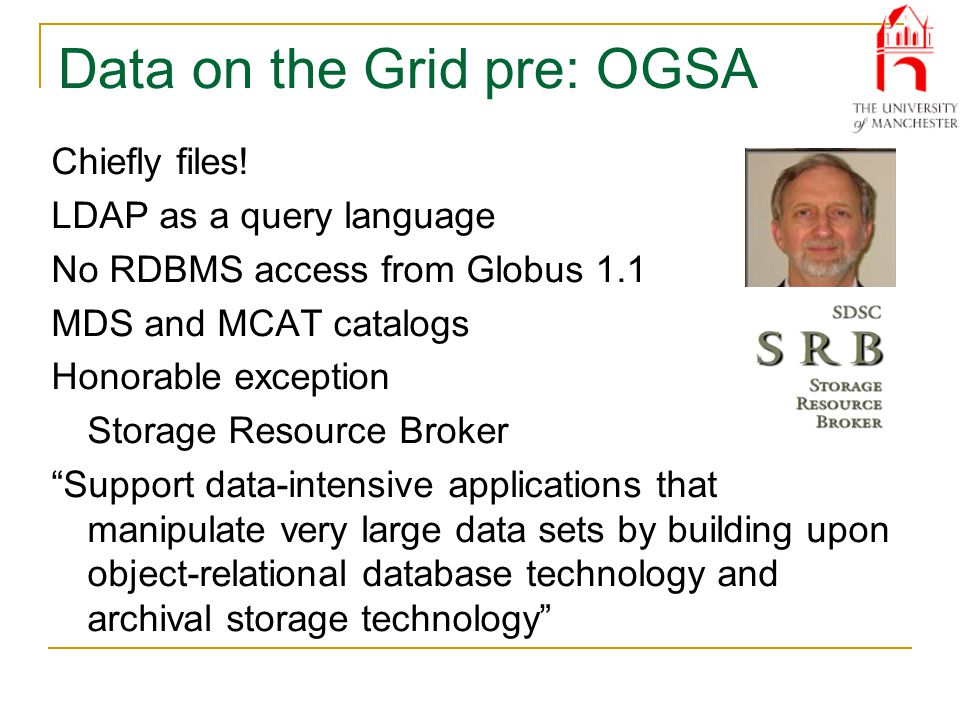

53. Data on the Grid pre: OGSA Chiefly files! LDAP as a query language No RDBMS access from Globus 1.1 MDS and MCAT catalogs Honorable exception Storage Resource Broker “Support data-intensive applications that manipulate very large data sets by building upon object-relational database technology and archival storage technology”

54. OGSA-Data Access and Integration GGF OGSA-DAIS WG Data Grid applications benefit from many lower level services:  Data movement.  Data Replication.  Data Virtualisation  Database access and integration. Work underway on designing, developing and standardising many core Grid Data Management services. Designing services in a dynamic and heterogeneous environment is non-trivial, Plenty to be done!! OGSA-DAI Basic Services OGSA-DAI Distributed Query Database, Communication, OS… Technology Resource Grid Infrastructure – OGSA… Data Grid Infrastructure – Location, Delivery, Replication… Clever semantic integration stuff here

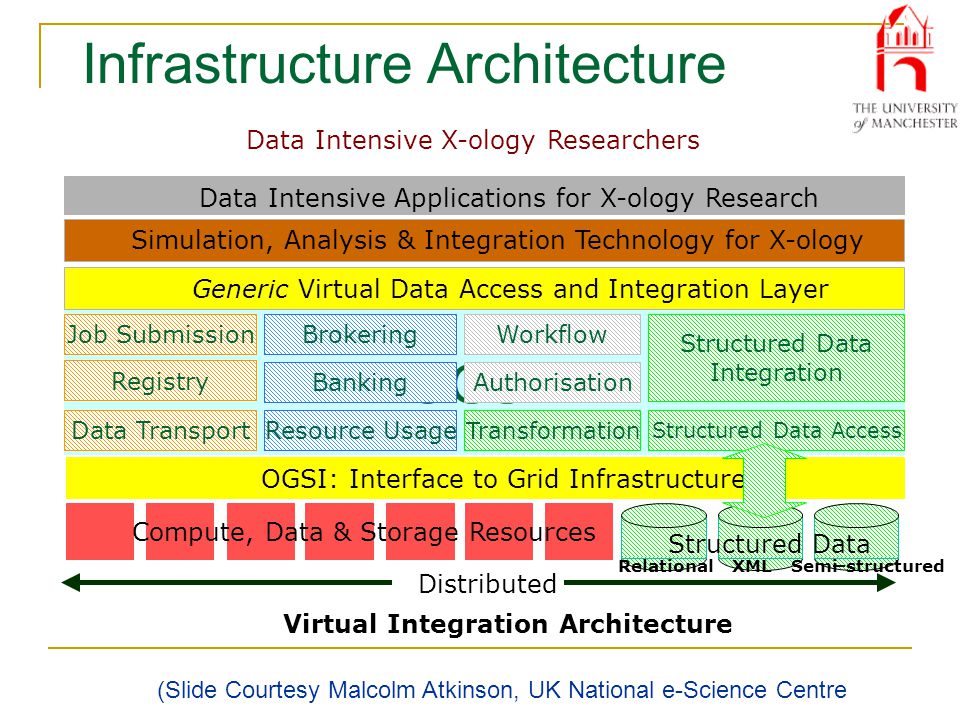

55. Infrastructure Architecture OGSA OGSI: Interface to Grid Infrastructure Data Intensive Applications for X-ology Research Compute, Data & Storage Resources Distributed Simulation, Analysis & Integration Technology for X-ology Data Intensive X-ology Researchers Virtual Integration Architecture Generic Virtual Data Access and Integration Layer Structured Data Integration Structured Data Access Structured Data Relational XML Semi-structured- Transformation Registry Job Submission Data TransportResource Usage Banking BrokeringWorkflow Authorisation (Slide Courtesy Malcolm Atkinson, UK National e-Science Centre

56. OGSA-DAIS, OGSA-DAIS, OGSA-DAIT DB2 Oracle 10g Part of Globus Toolkit 3 Data can be XML, RDBMS and ODBMS UK dominance

57. 1a. Request to Registry for sources of data about “x” 1b. Registry responds with Factory handle 2a. Request to Factory for access to database 2c. Factory returns handle of GDS to client 3a. Client queries GDS with XPath, SQL, etc 3b. GDS interacts with database 3c. Results of query returned to client as XML SOAP/HTTP service creation API interactions RegistryFactory 2b. Factory creates GridDataService to manage access Grid Data Service Client XML / Relationa l database Data Access & Integration Services Slide Courtesy Malcolm Atkinson, UK eScience Center

58. Any database challenges? Performance Scalability Unpredictablility Meta-data-driven access  From registries Federation  DQP  Workflows Dynamic provisioning for meeting quality of service Data Virtualisation  Enable the user to view the output of a computation as an answer to a query.  User defines the “what” rather than the “how”.  Planners map query to an execution plan (eager, lazy and “just in time”).  Workflow manager executes plan.  Schedulers manage tasks. Terabytes of data to ship around Very long lived workflows Services disappear under your feet!

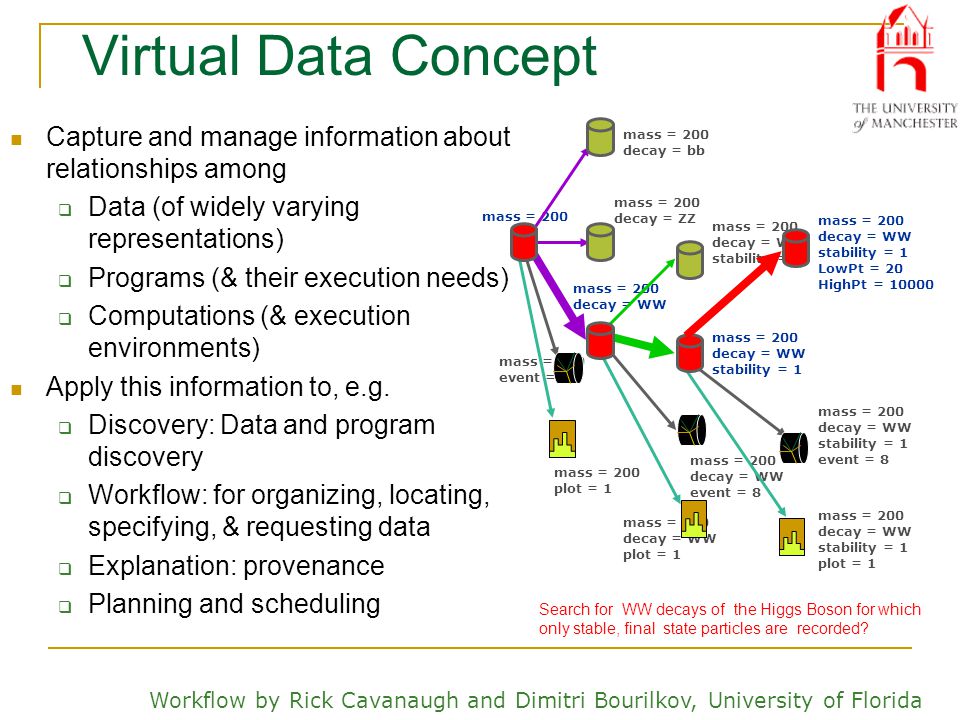

59. Virtual Data Concept Capture and manage information about relationships among  Data (of widely varying representations)  Programs (& their execution needs)  Computations (& execution environments) Apply this information to, e.g.  Discovery: Data and program discovery  Workflow: for organizing, locating, specifying, & requesting data  Explanation: provenance  Planning and scheduling mass = 200 decay = WW stability = 1 event = 8 mass = 200 decay = WW stability = 1 plot = 1 mass = 200 decay = WW plot = 1 mass = 200 decay = WW event = 8 mass = 200 decay = WW stability = 1 mass = 200 decay = WW stability = 3 mass = 200 decay = WW mass = 200 decay = ZZ mass = 200 decay = bb mass = 200 plot = 1 mass = 200 event = 8 mass = 200 decay = WW stability = 1 LowPt = 20 HighPt = 10000 Search for WW decays of the Higgs Boson for which only stable, final state particles are recorded? Workflow by Rick Cavanaugh and Dimitri Bourilkov, University of Florida

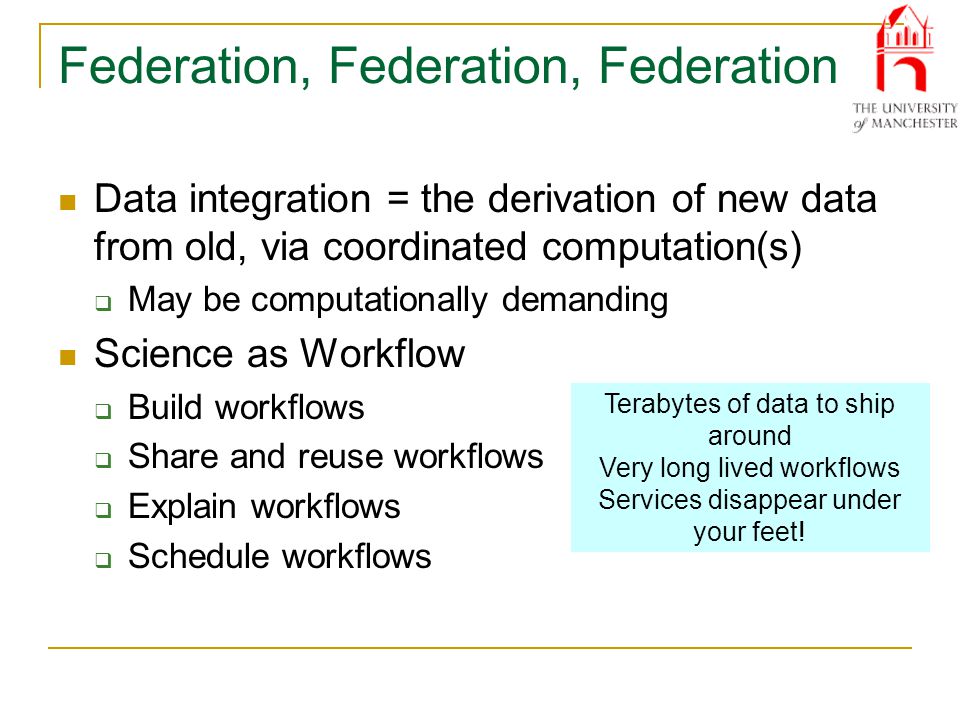

60. Federation, Federation, Federation Data integration = the derivation of new data from old, via coordinated computation(s)  May be computationally demanding Science as Workflow  Build workflows  Share and reuse workflows  Explain workflows  Schedule workflows Terabytes of data to ship around Very long lived workflows Services disappear under your feet!

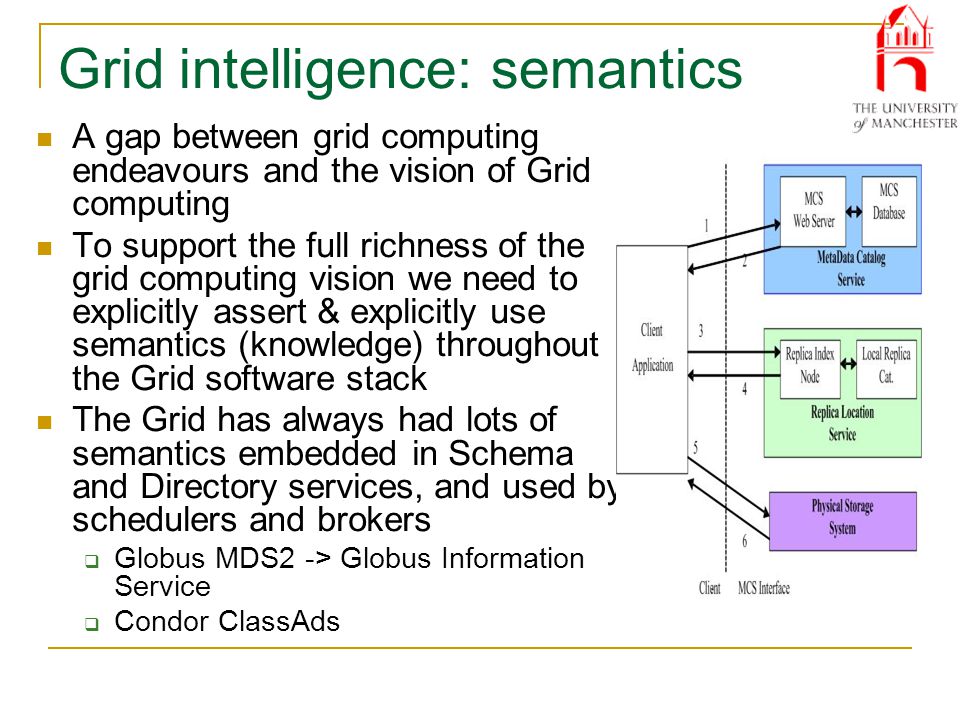

61. Grid intelligence: semantics A gap between grid computing endeavours and the vision of Grid computing To support the full richness of the grid computing vision we need to explicitly assert & explicitly use semantics (knowledge) throughout the Grid software stack The Grid has always had lots of semantics embedded in Schema and Directory services, and used by schedulers and brokers  Globus MDS2 -> Globus Information Service  Condor ClassAds

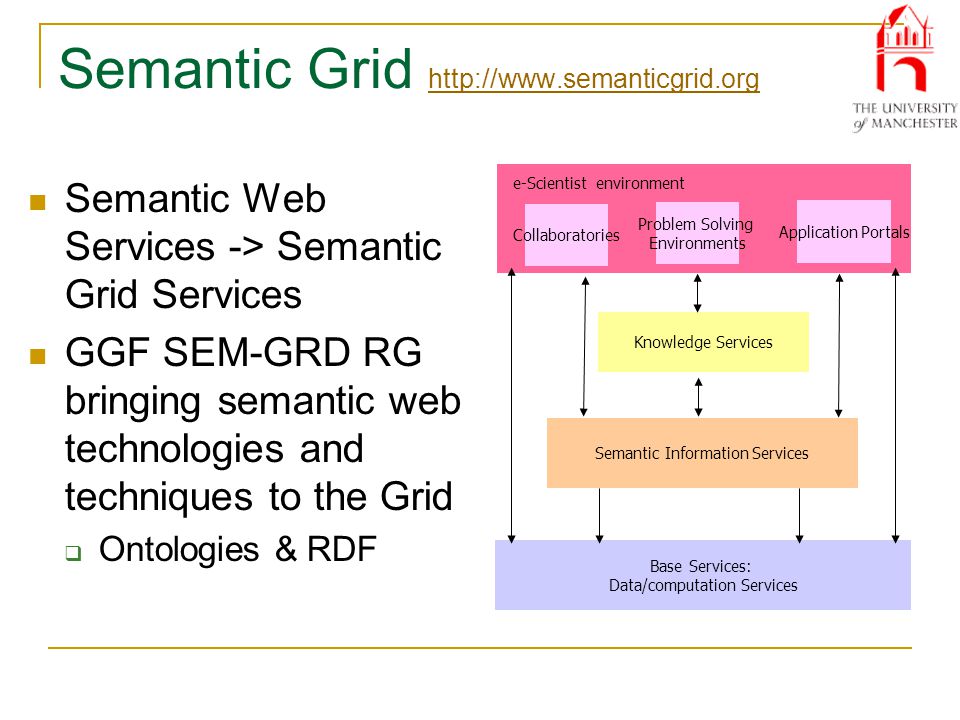

62. Semantic Grid http://www.semanticgrid.org http://www.semanticgrid.org Semantic Web Services -> Semantic Grid Services GGF SEM-GRD RG bringing semantic web technologies and techniques to the Grid  Ontologies & RDF Knowledge Services Semantic Information Services Base Services: Data/computation Services e-Scientist environment Problem Solving Environments Application Portals Collaboratories

63. Grids are driven by metadata The semantics might be buried but they are there nonetheless! Grid Applications  Operational know-how of the domain. a query or workflow; the annotation of results, parameters, personal notes, provenance data describing sources and derivation paths of information, etc  Knowledge about the domain: its data and its processes

64. A Multi-Hierarchical Rock Classification Ontology (GSC) Composition Genesis Fabric Texture Slide courtesy of Bertram Ludascher

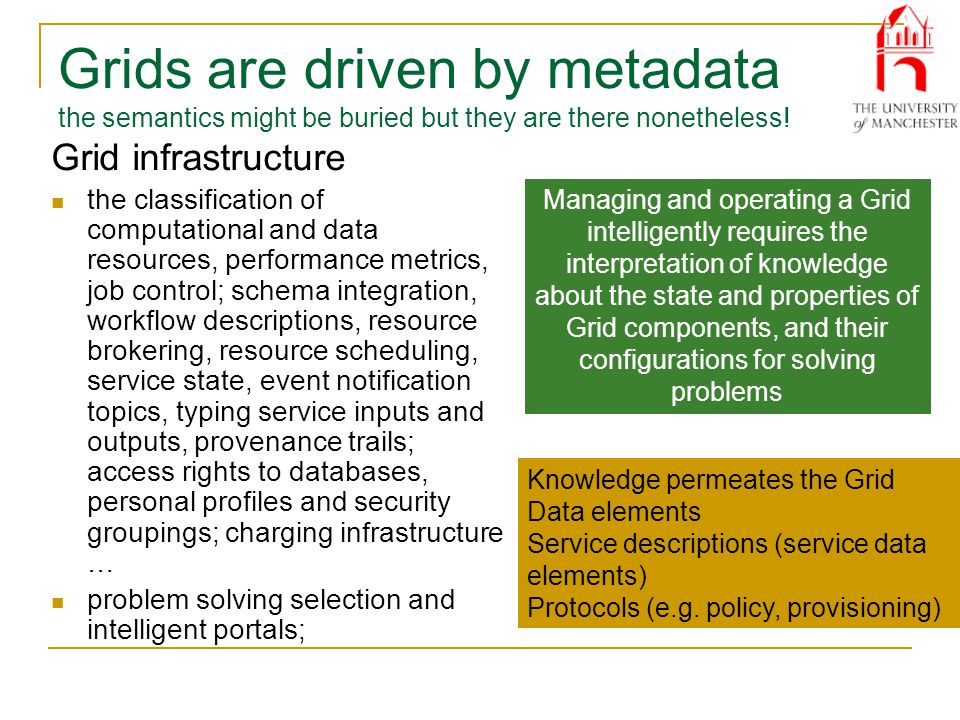

65. Grids are driven by metadata the semantics might be buried but they are there nonetheless! Grid infrastructure the classification of computational and data resources, performance metrics, job control; schema integration, workflow descriptions, resource brokering, resource scheduling, service state, event notification topics, typing service inputs and outputs, provenance trails; access rights to databases, personal profiles and security groupings; charging infrastructure … problem solving selection and intelligent portals; Managing and operating a Grid intelligently requires the interpretation of knowledge about the state and properties of Grid components, and their configurations for solving problems Knowledge permeates the Grid Data elements Service descriptions (service data elements) Protocols (e.g. policy, provisioning)

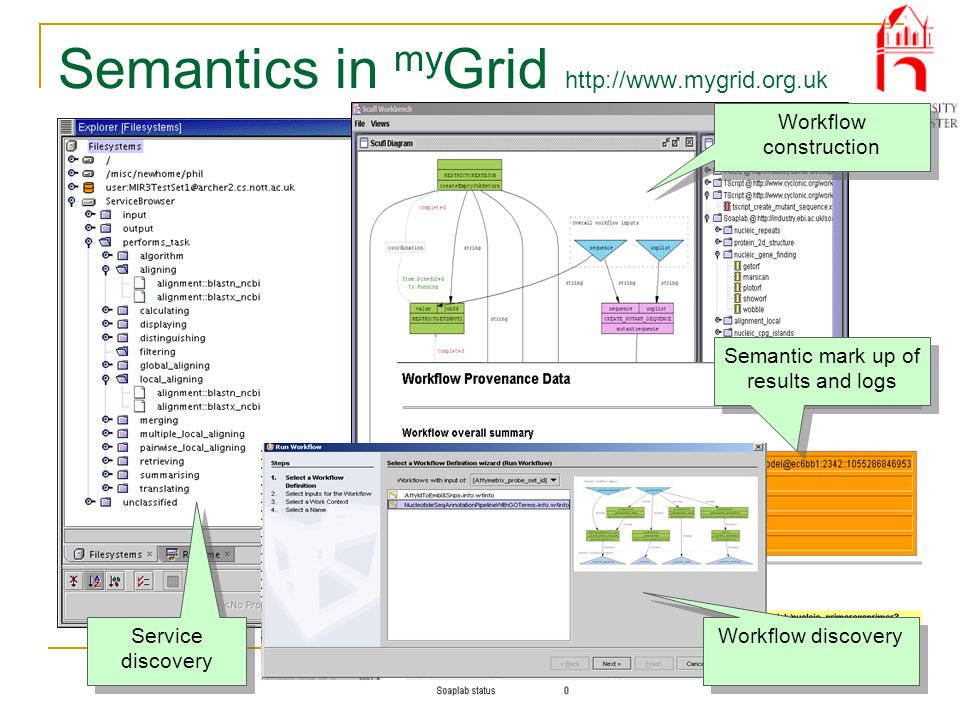

66. Semantics in my Grid http://www.mygrid.org.uk Service discovery Workflow construction Workflow discovery Semantic mark up of results and logs

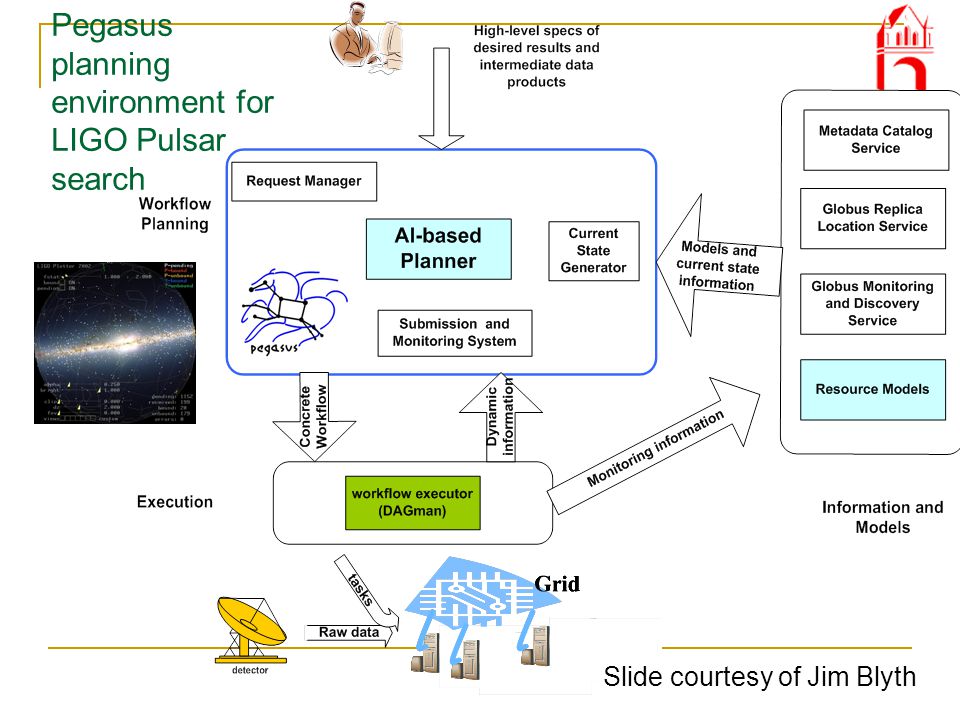

67. Pegasus planning environment for LIGO Pulsar search Slide courtesy of Jim Blyth

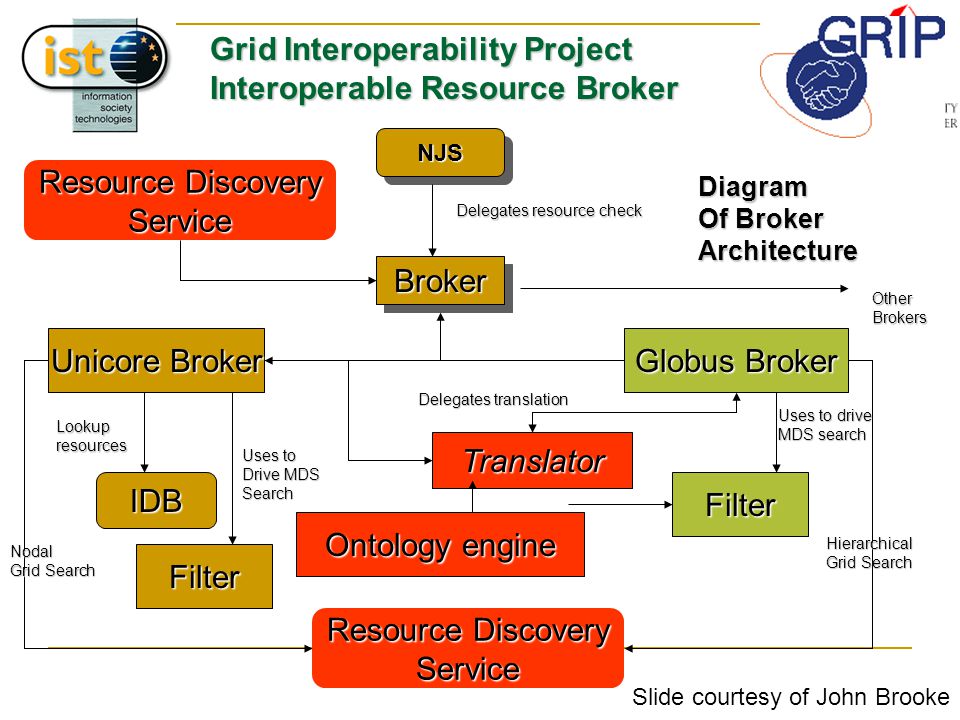

68. NJSNJS BrokerBroker Unicore Broker Globus Broker IDB Translator Filter Ontology engine Resource Discovery Service Delegates resource check Lookupresources Delegates translation Uses to drive MDS search Hierarchical Grid Search Diagram Of Broker Architecture Grid Interoperability Project Interoperable Resource Broker Filter Uses to Drive MDS Search Nodal Grid Search OtherBrokers Resource Discovery Service Slide courtesy of John Brooke

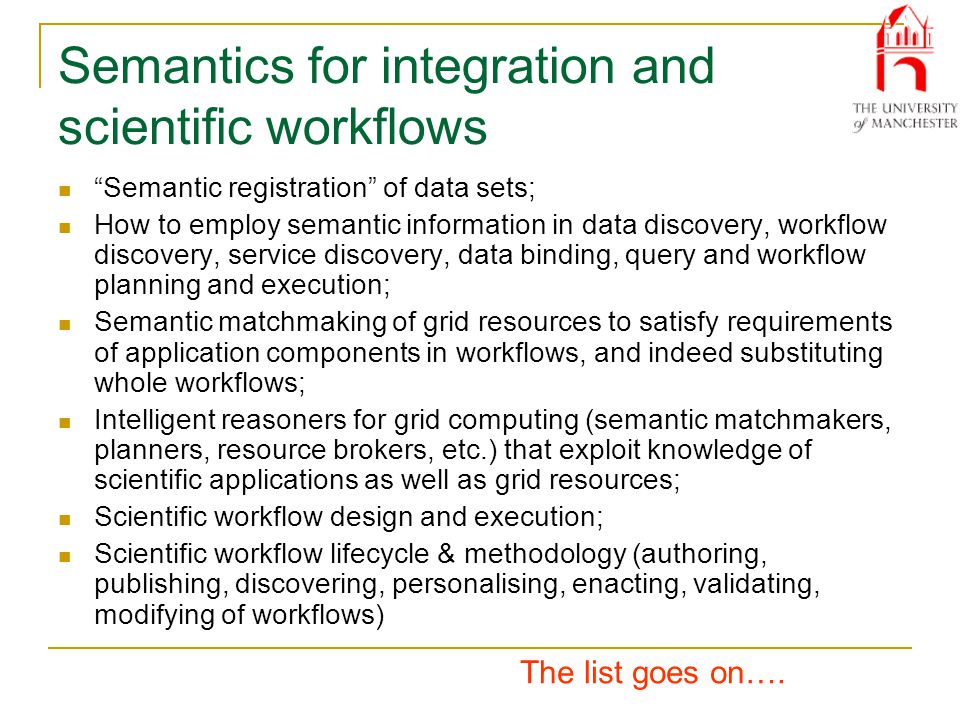

69. Semantics for integration and scientific workflows “Semantic registration” of data sets; How to employ semantic information in data discovery, workflow discovery, service discovery, data binding, query and workflow planning and execution; Semantic matchmaking of grid resources to satisfy requirements of application components in workflows, and indeed substituting whole workflows; Intelligent reasoners for grid computing (semantic matchmakers, planners, resource brokers, etc.) that exploit knowledge of scientific applications as well as grid resources; Scientific workflow design and execution; Scientific workflow lifecycle & methodology (authoring, publishing, discovering, personalising, enacting, validating, modifying of workflows) The list goes on….

70. Semantic Grid Web Services Grid Semantic Web Semantic Grid services Semantic Web Services Semantics for the Grid Grid-ware Semantic Services

71. Semantic Grid Classical Web Classical Computational Grid Semantic Web Data and Semantics complexity Computational complexity Dynamic Web Info/Data Web Web Services Grid Services An attempt at a context picture

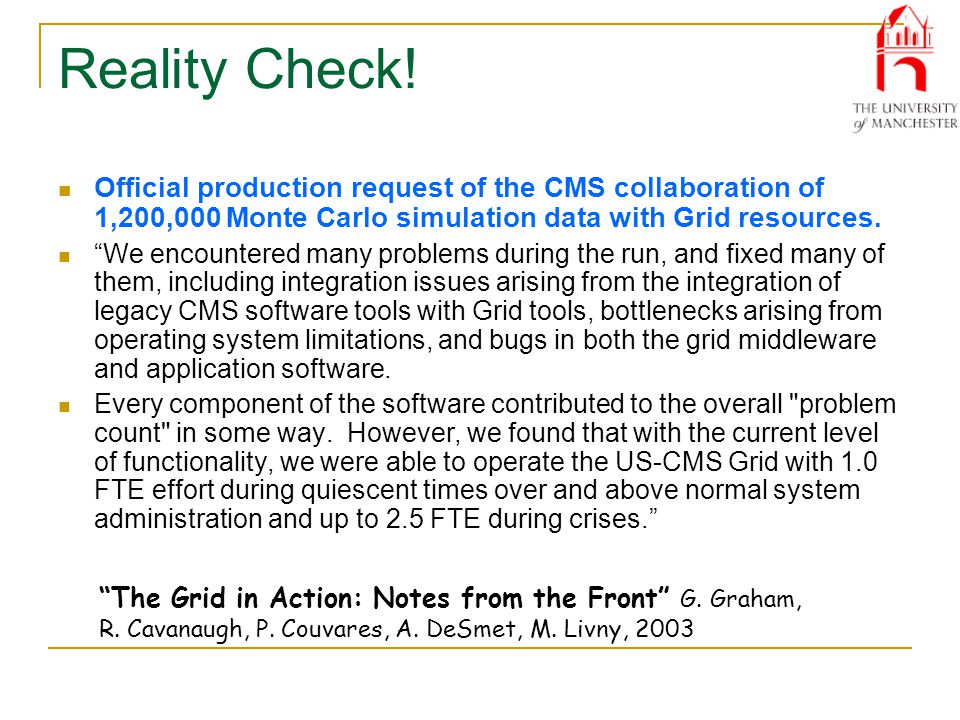

72. Reality Check! Official production request of the CMS collaboration of 1,200,000 Monte Carlo simulation data with Grid resources. “We encountered many problems during the run, and fixed many of them, including integration issues arising from the integration of legacy CMS software tools with Grid tools, bottlenecks arising from operating system limitations, and bugs in both the grid middleware and application software. Every component of the software contributed to the overall "problem count" in some way. However, we found that with the current level of functionality, we were able to operate the US-CMS Grid with 1.0 FTE effort during quiescent times over and above normal system administration and up to 2.5 FTE during crises.” “The Grid in Action: Notes from the Front” G. Graham, R. Cavanaugh, P. Couvares, A. DeSmet, M. Livny, 2003

73. Slide courtesy of Miron Livny BenefitsBenefits Effort Goal Intra Grids You are here One of a kind … or here

74. Ok, what’s the reality? The Grid is in the same state as the Web was 10 years ago Few production grids and not many killer demos - something you couldn’t have done before. Middleware hard to use and incomplete (and certainly not invisible!) OGSA in its infancy. Varying degrees of maturity, but people use it anyway! Deployment, research, development, applications and standardisation all happening together Danger of half-baked solutions, premature standardisation, a Grid Winter Pioneering spirit! It’s the Wild West!! It’s all very exciting and rather daunting

75. Are you involved in Grid? There is hardly a paper at OTM that isn’t relevant. But participation in Grid is largely from the “Grid Community” When the database people came to town they rocked it! But there are not so many that take part, and it’s the vendors that dominate though there are many research problems to overcome. Reinvention, muddle, confusion ensues. Why aren’t you involved?

76. Why you should be involved in Grid Established communities can be hard work to get involved in the latest thing DCOM, CORBA, WS…we have seen it all before! So your history is valuable. And its not just rehashing your history either (crossing out agents and crayoning in grid ain’t gonna work!) An amazing, open and active community. With tons of real applications and users who really need this stuff.  GridPP had better work!! Some substantial industry and government backing.

77. Between community travellers Pioneers on tour! The Web The Grid The Semantic Web WWW2002 Waikiki, Hawaii SSDBM2003 ISWC2002 WWW2002 VLDB2003 OTM2003 AIMA2003

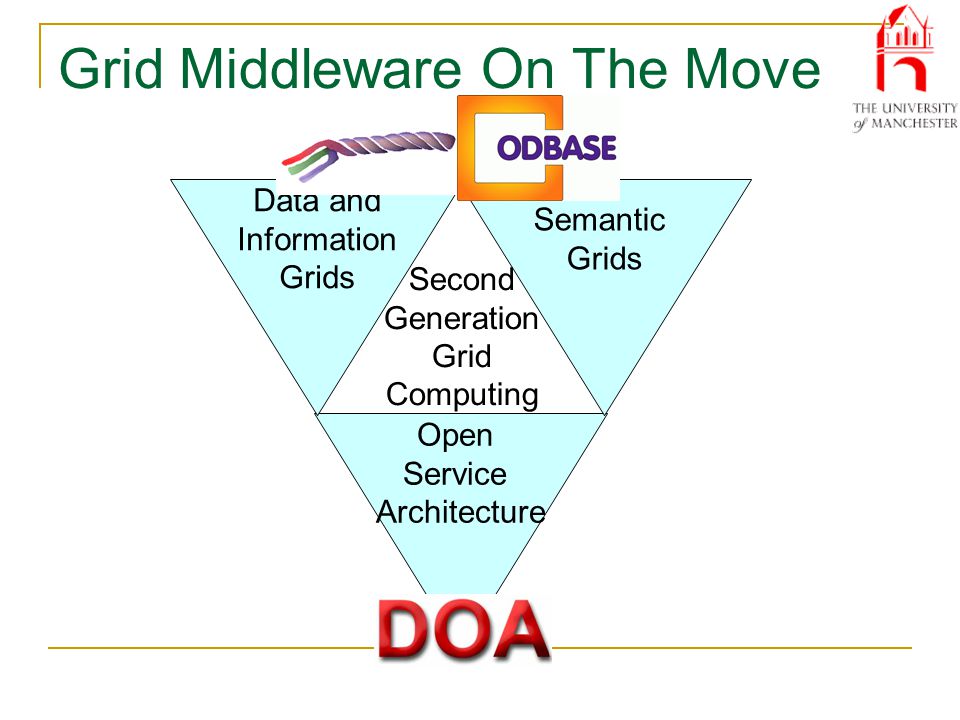

78. Grid Middleware On The Move Open Service Architecture Data and Information Grids Semantic Grids Second Generation Grid Computing

79. The Grid Needs You! Enlist Now! http://www.ggf.org The Grid Now with added services architecture, data management and semantics!!
