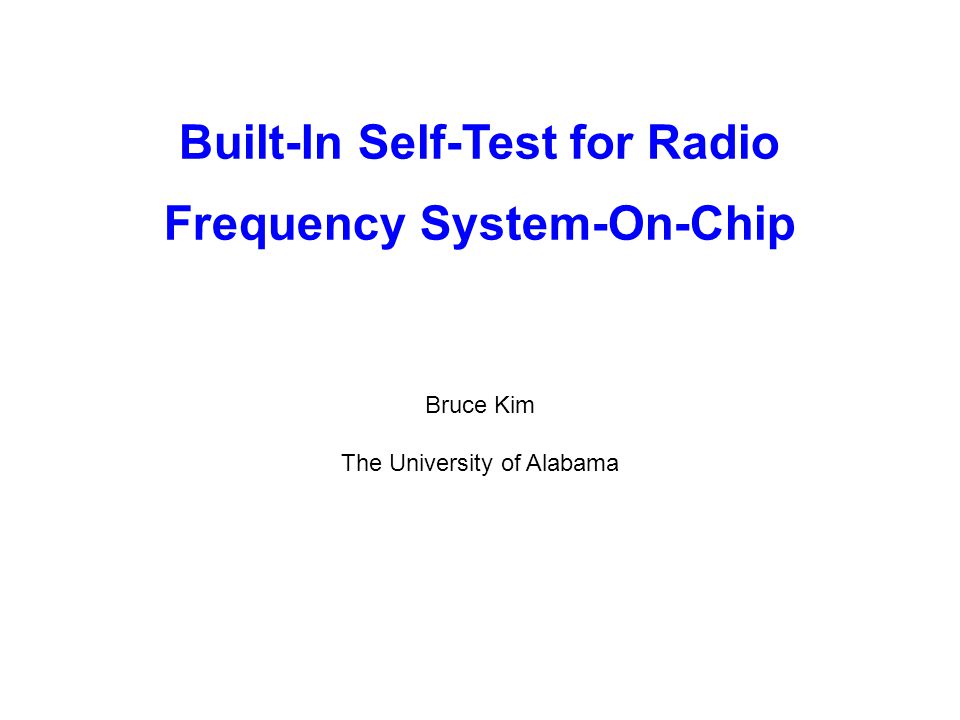

1 Built-In Self-Test for Radio Frequency System-On-Chip Bruce Kim The University of Alabama

2 2 Outline Proposed BIST Architecture Developed Equations Measurement Results Conclusions

3 3 Motivation Today System-On-Board (SOB) Future System-On-Chip (SOC)

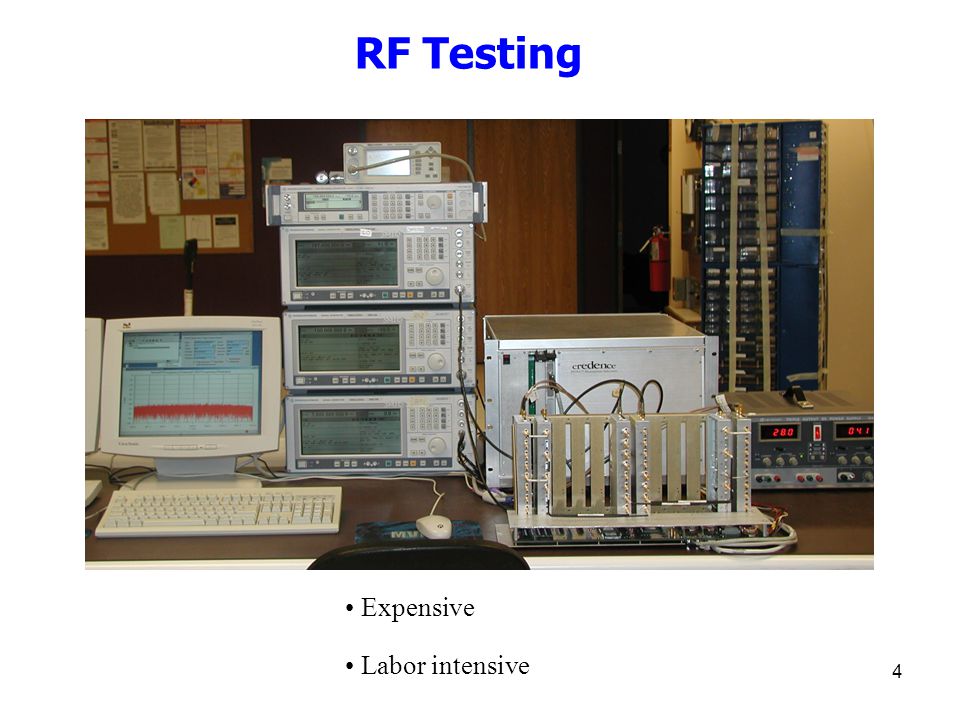

4 4 RF Testing Expensive Labor intensive

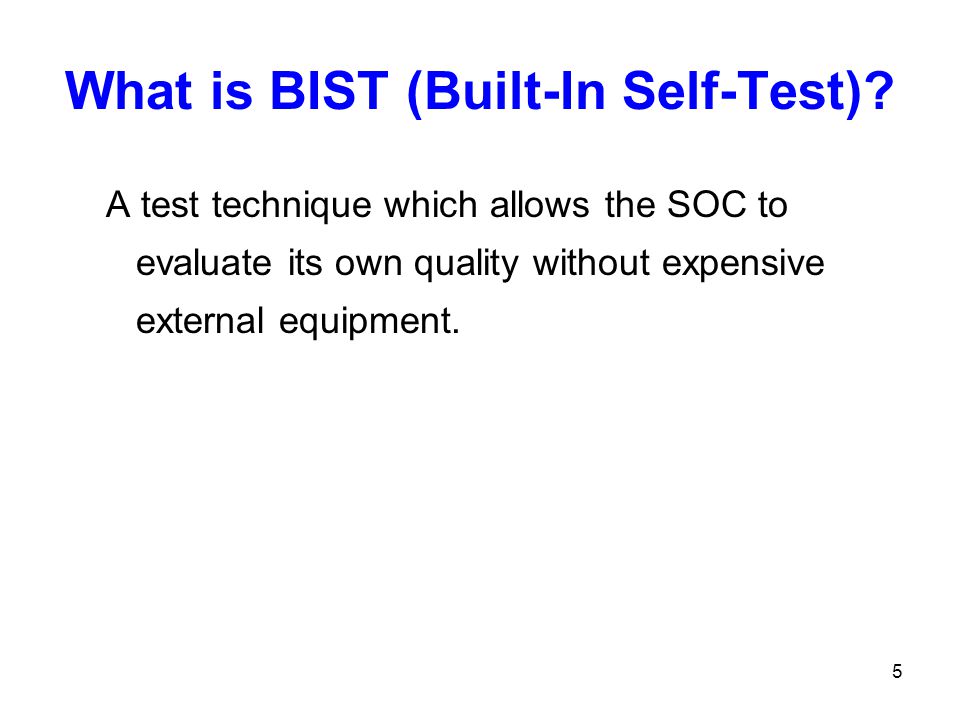

5 5 What is BIST (Built-In Self-Test)? A test technique which allows the SOC to evaluate its own quality without expensive external equipment.

6 6 Test Flow Functional Test Proposed BIST (Go-No Go) Singulated Wafer Level Testing Package Proposed BIST Functional Testing

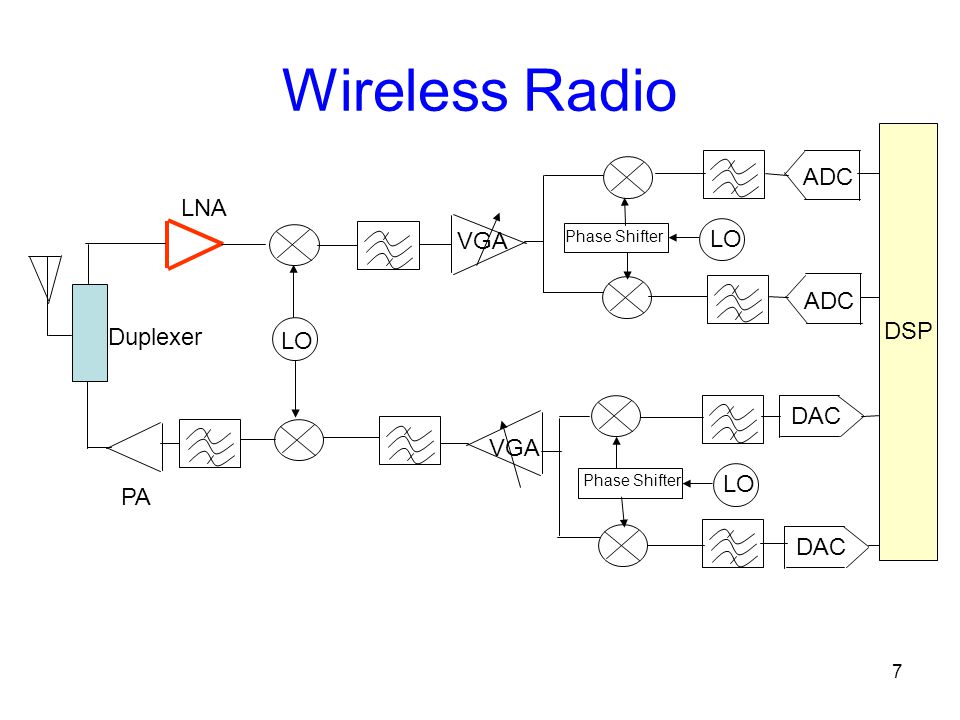

7 7 Wireless Radio Duplexer VGA LO VGA ADC DSP DAC LO Phase Shifter LO Phase Shifter LNA PA

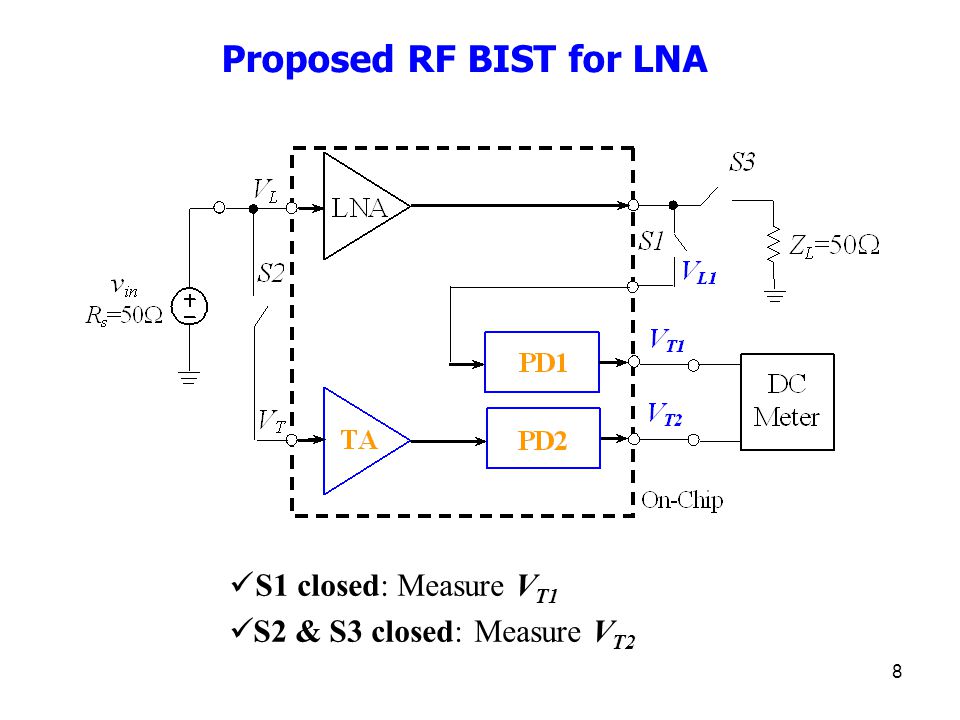

8 8 Proposed RF BIST for LNA S1 closed: Measure V T1 S2 & S3 closed: Measure V T2

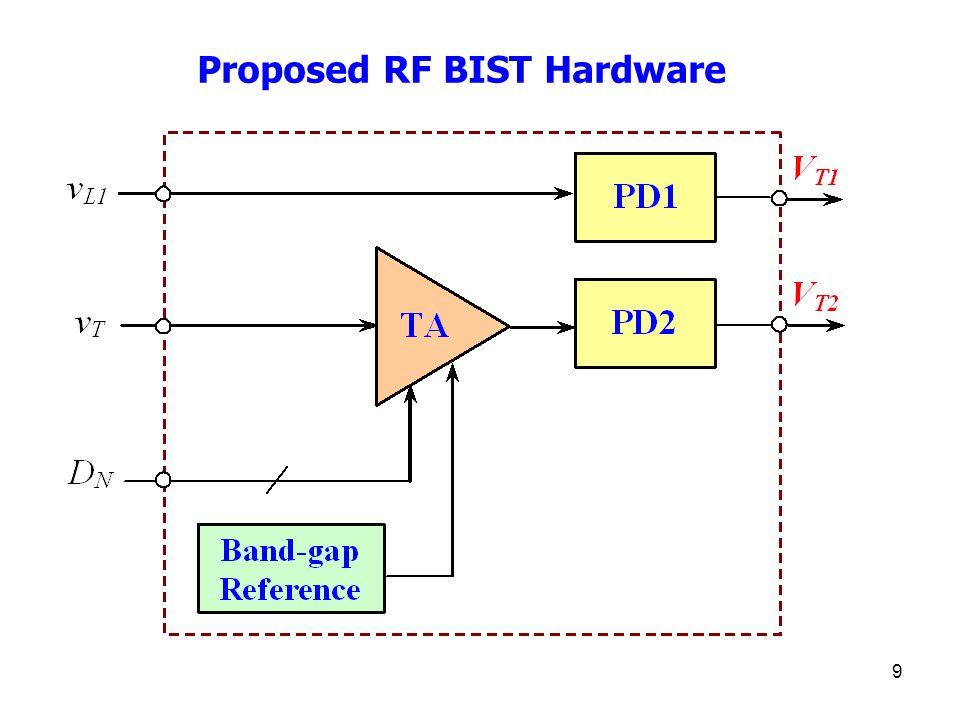

9 9 Proposed RF BIST Hardware

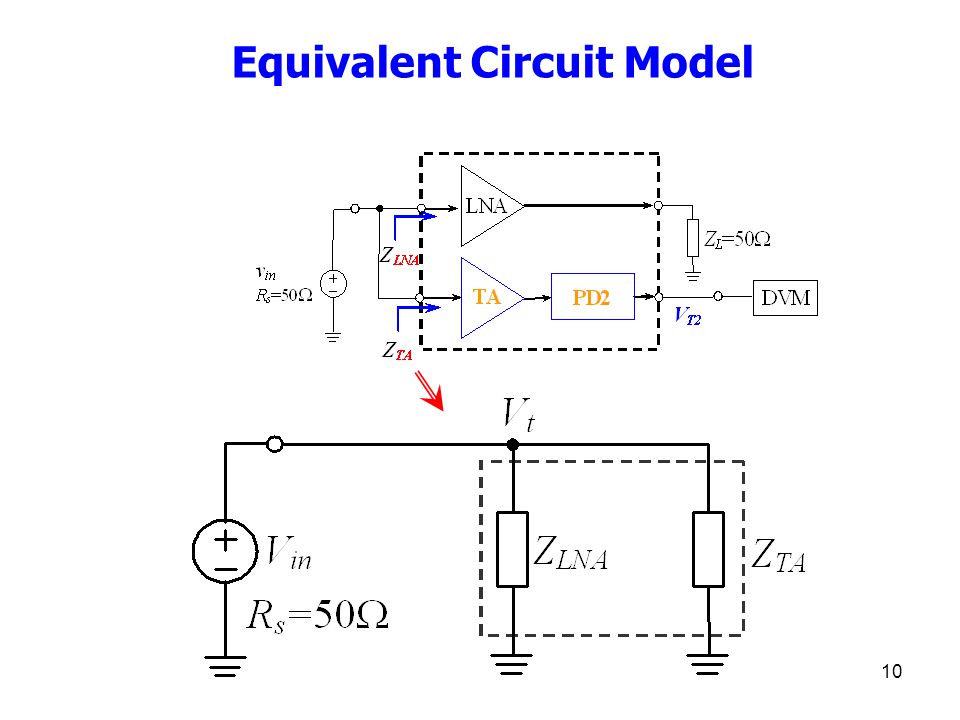

10 10 Equivalent Circuit Model

11 11 Development of Equations (1) (2) (3)

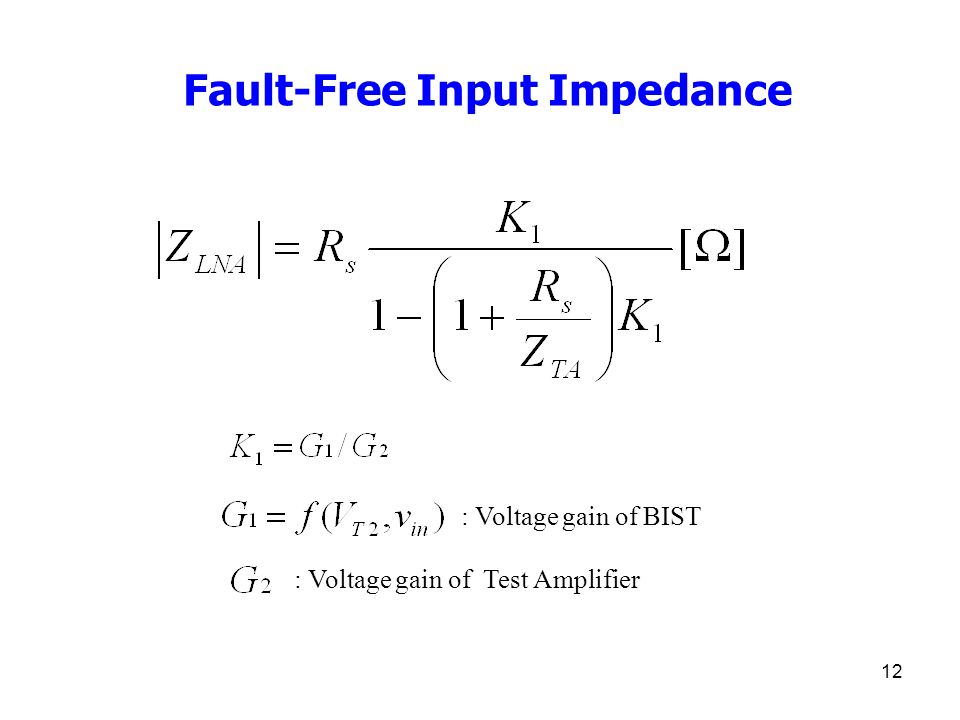

12 12 Fault-Free Input Impedance : Voltage gain of Test Amplifier : Voltage gain of BIST

13 13 Faulty-Case Input Impedance( V T2 ) : Voltage gain of BIST under faulty case

14 14 Fault-Free Voltage Gain : Voltage gain of BIST

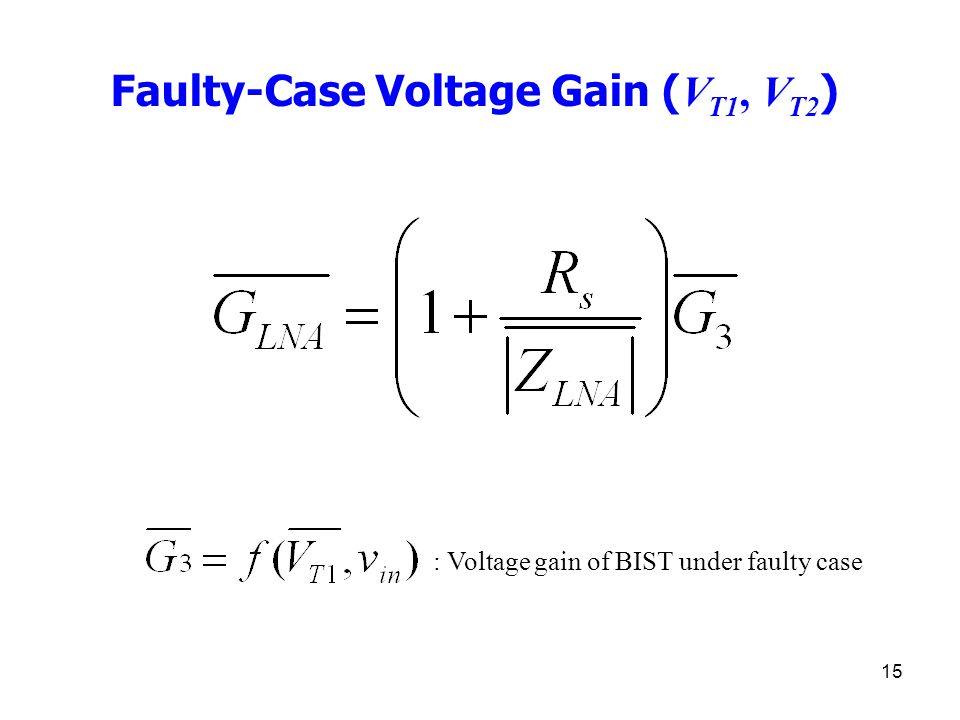

15 15 Faulty-Case Voltage Gain ( V T1, V T2 ) : Voltage gain of BIST under faulty case

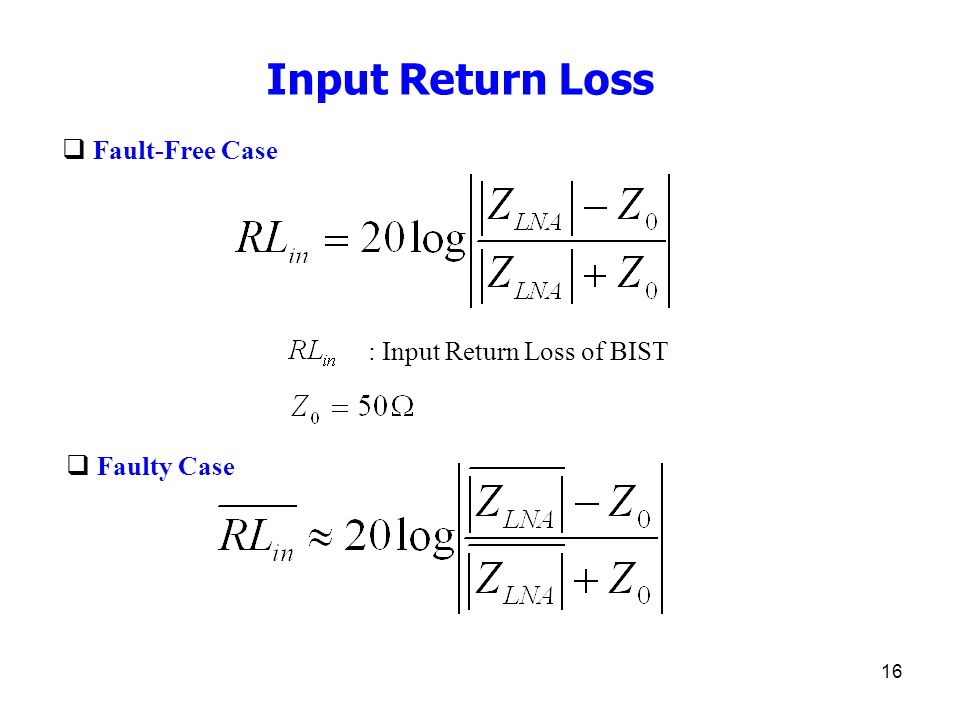

16 16 Input Return Loss : Input Return Loss of BIST  Fault-Free Case  Faulty Case

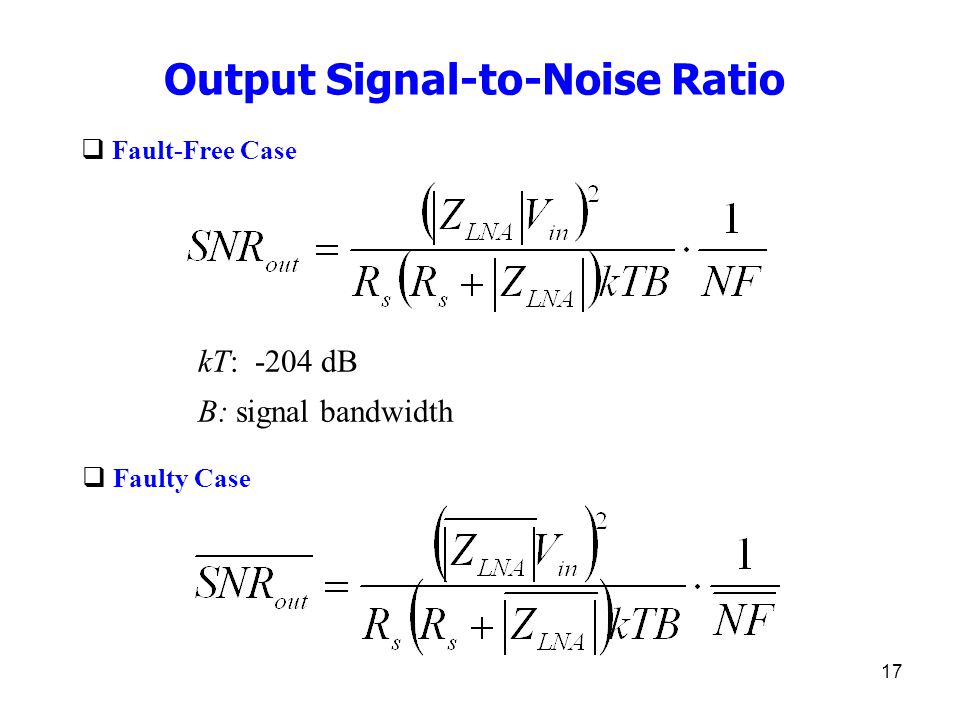

17 17 Output Signal-to-Noise Ratio  Faulty Case  Fault-Free Case kT: -204 dB B: signal bandwidth

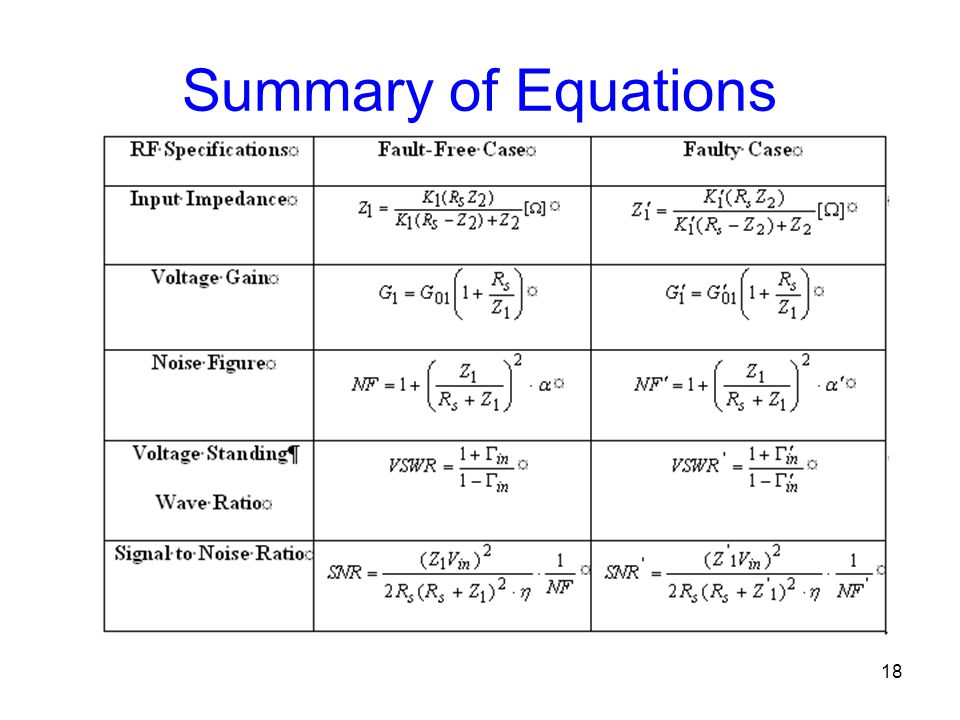

18 18 Summary of Equations

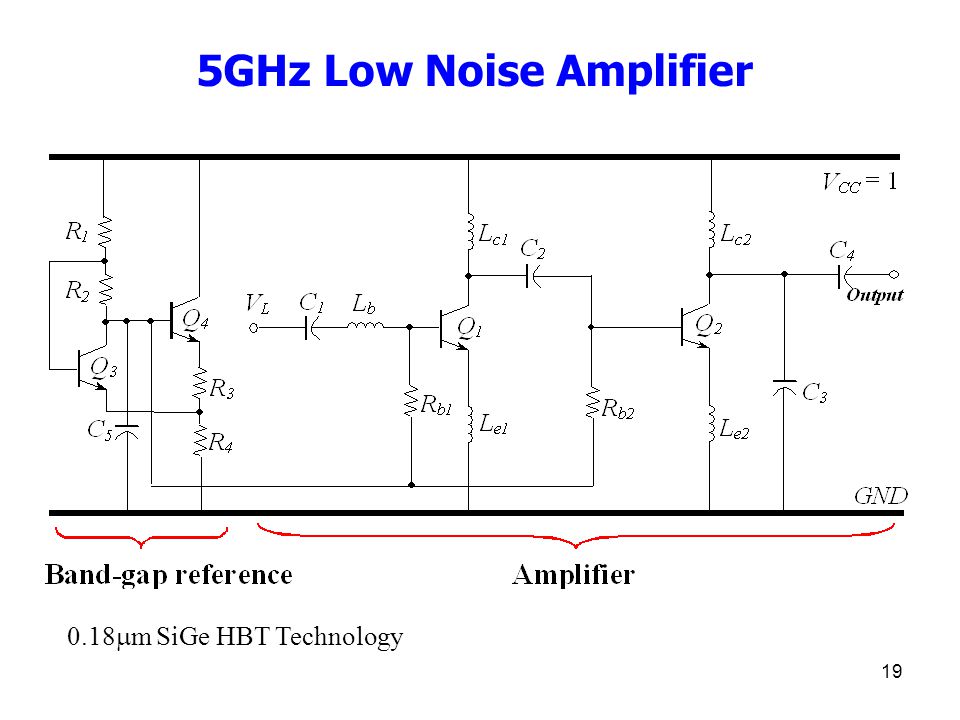

19 19 5GHz Low Noise Amplifier 0.18  m SiGe HBT Technology

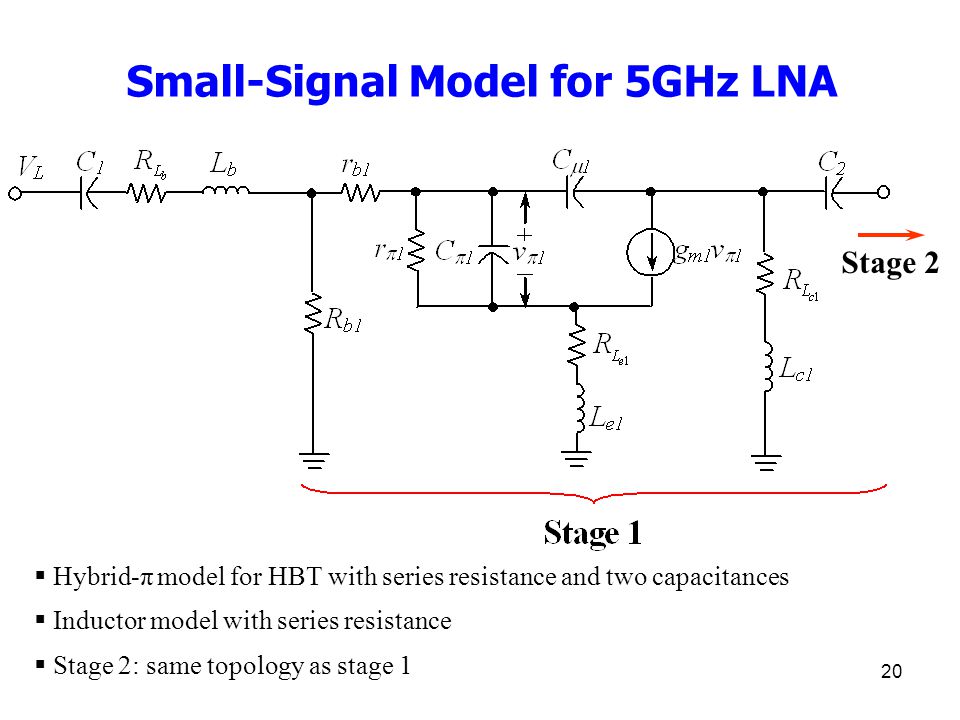

20 20 Small-Signal Model for 5GHz LNA  Hybrid-π model for HBT with series resistance and two capacitances  Inductor model with series resistance  Stage 2: same topology as stage 1 Stage 2

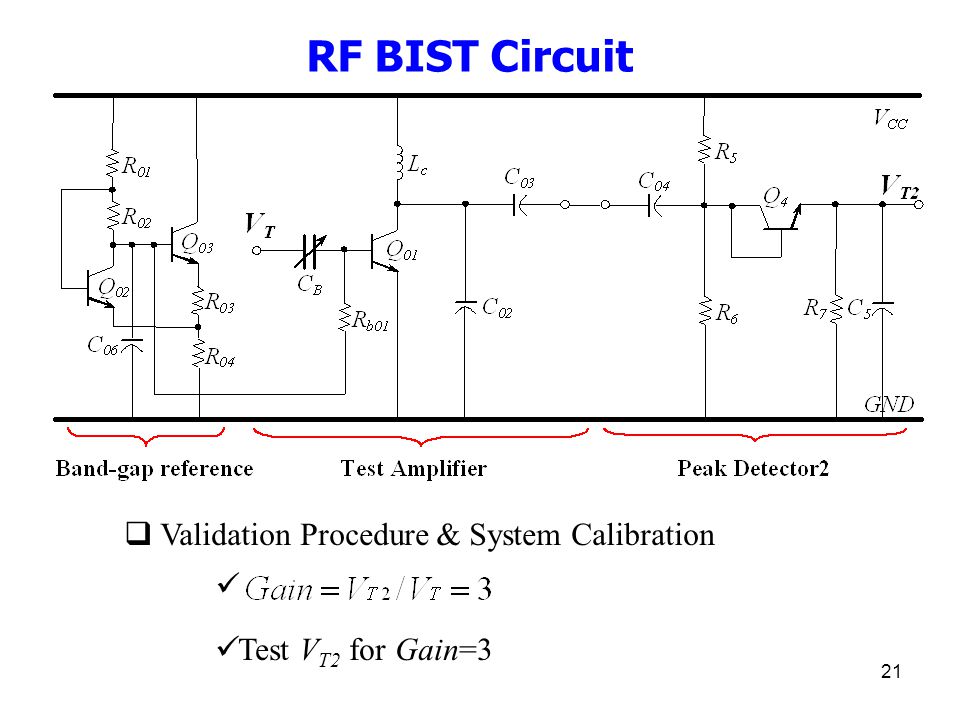

21 21 RF BIST Circuit  Validation Procedure & System Calibration Test V T2 for Gain=3

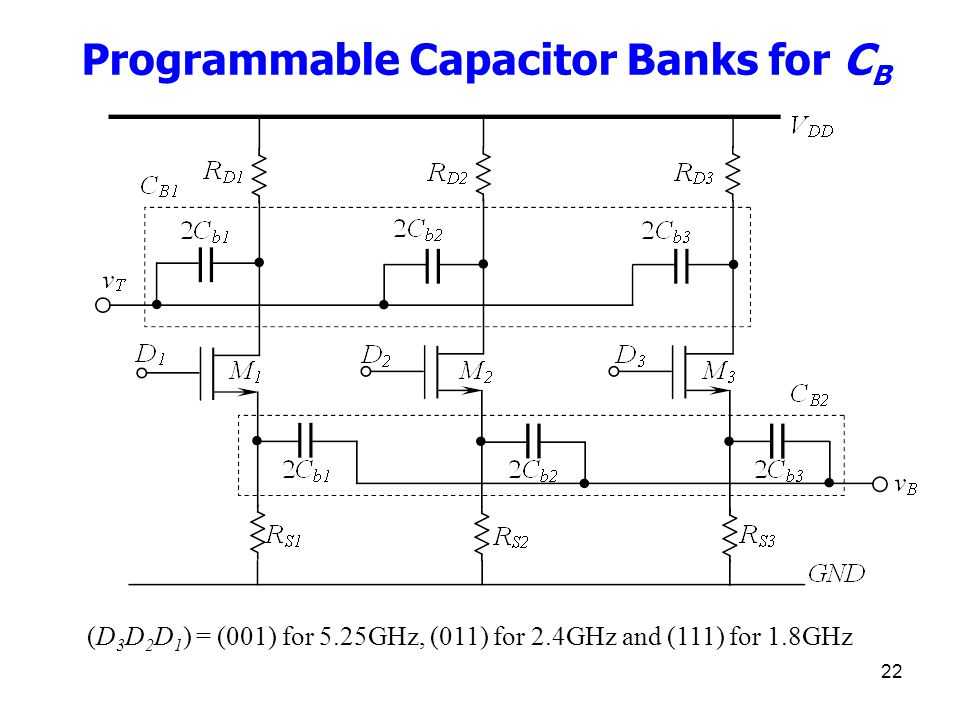

22 22 Programmable Capacitor Banks for C B (D 3 D 2 D 1 ) = (001) for 5.25GHz, (011) for 2.4GHz and (111) for 1.8GHz

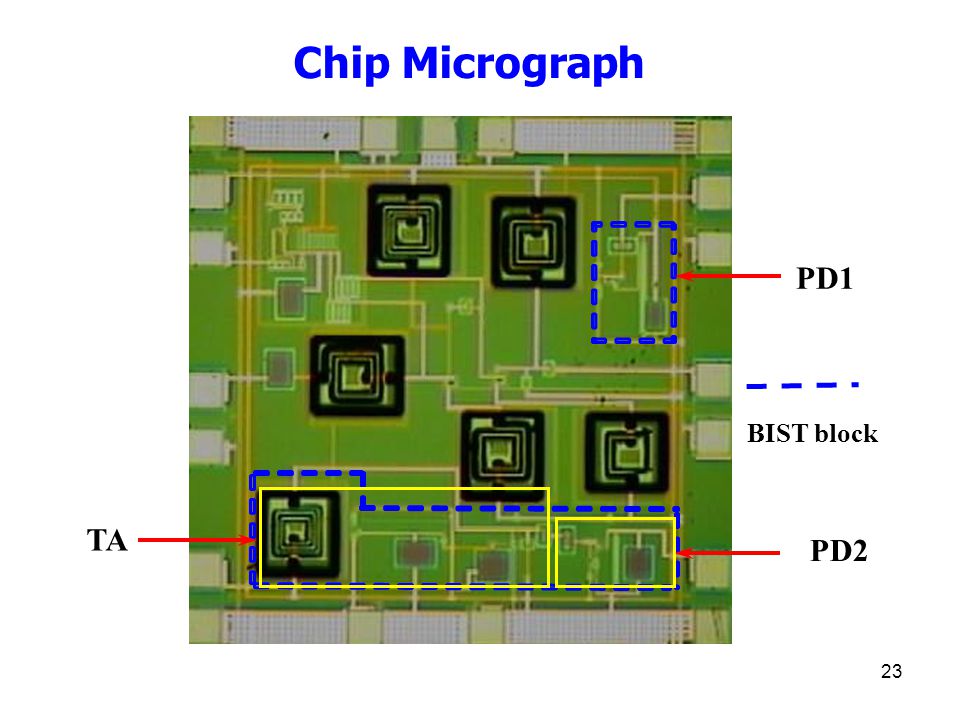

23 23 Chip Micrograph BIST block TA PD2 PD1

24 24 Defect Models  Defect Models for Actives

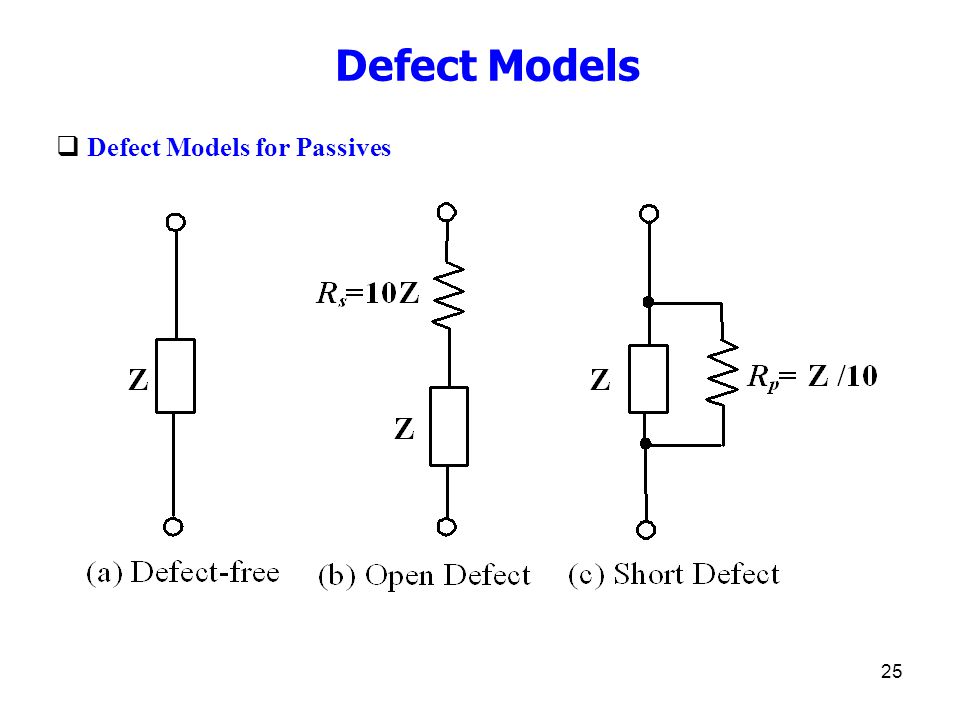

25 25 Defect Models  Defect Models for Passives

26 26 Measurement Set-Up for LNA and TA LNA TA PD1 PD2 S1 S2 V T1 V T2 v in R s =50  Z L  Labview Board S3 V L V T

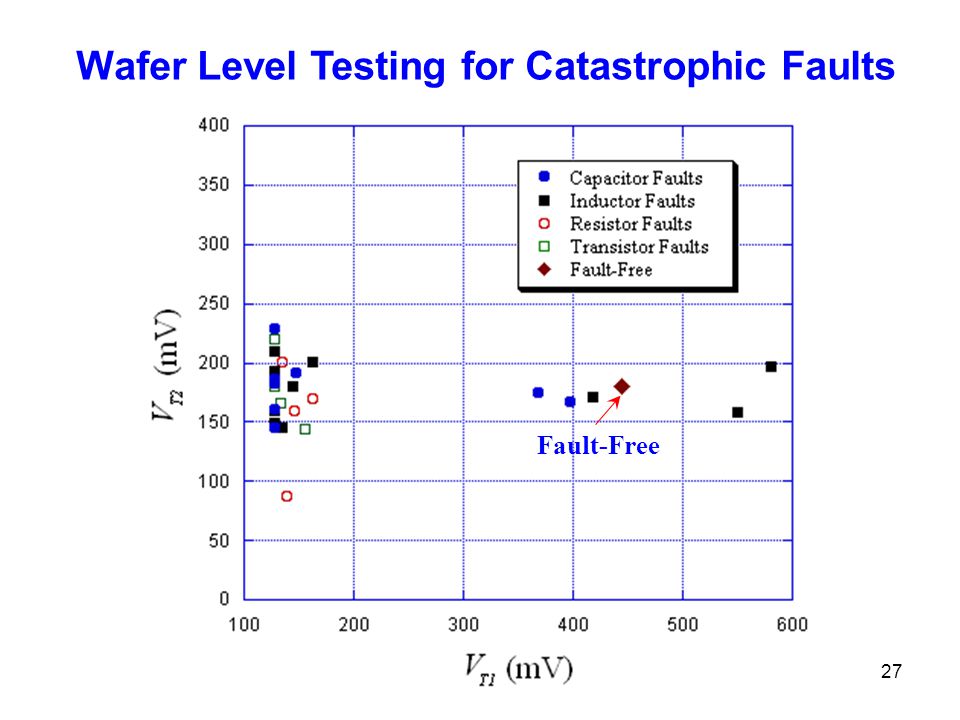

27 27 Fault-Free Wafer Level Testing for Catastrophic Faults

28 28 Wafer Level Testing for Parametric Variations Tolerance:  20% Good Device Fault Free Device

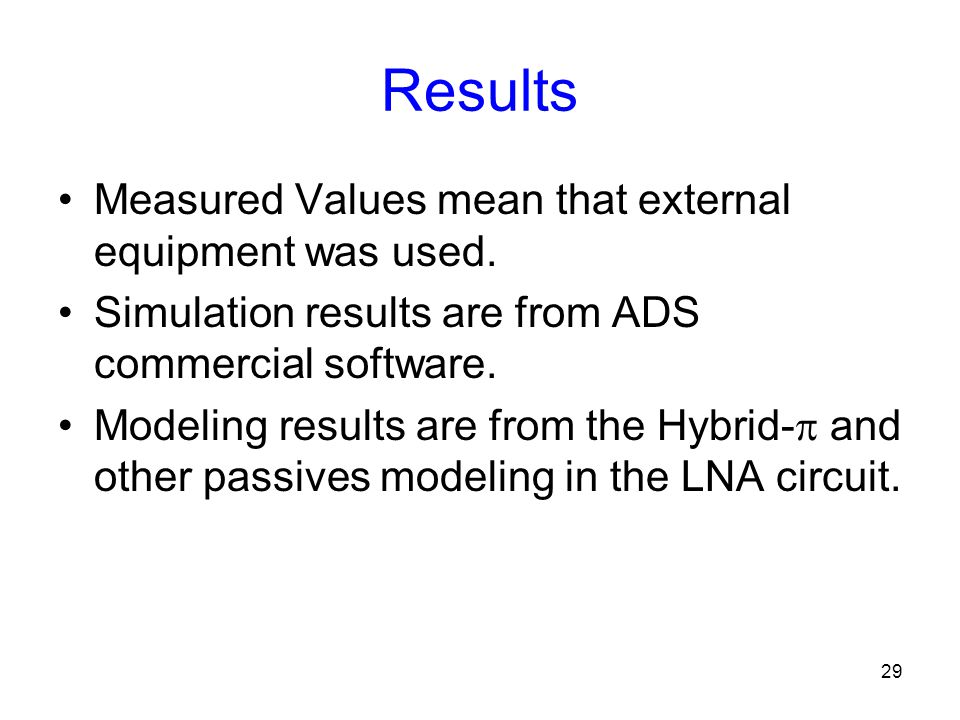

29 29 Results Measured Values mean that external equipment was used. Simulation results are from ADS commercial software. Modeling results are from the Hybrid-  and other passives modeling in the LNA circuit.

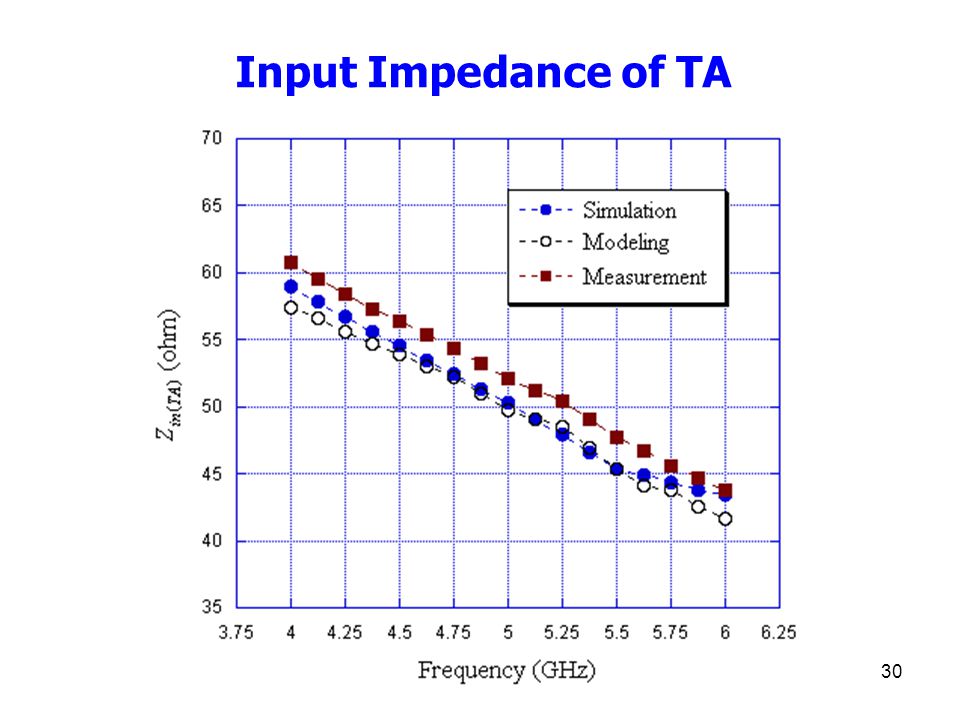

30 30 Input Impedance of TA

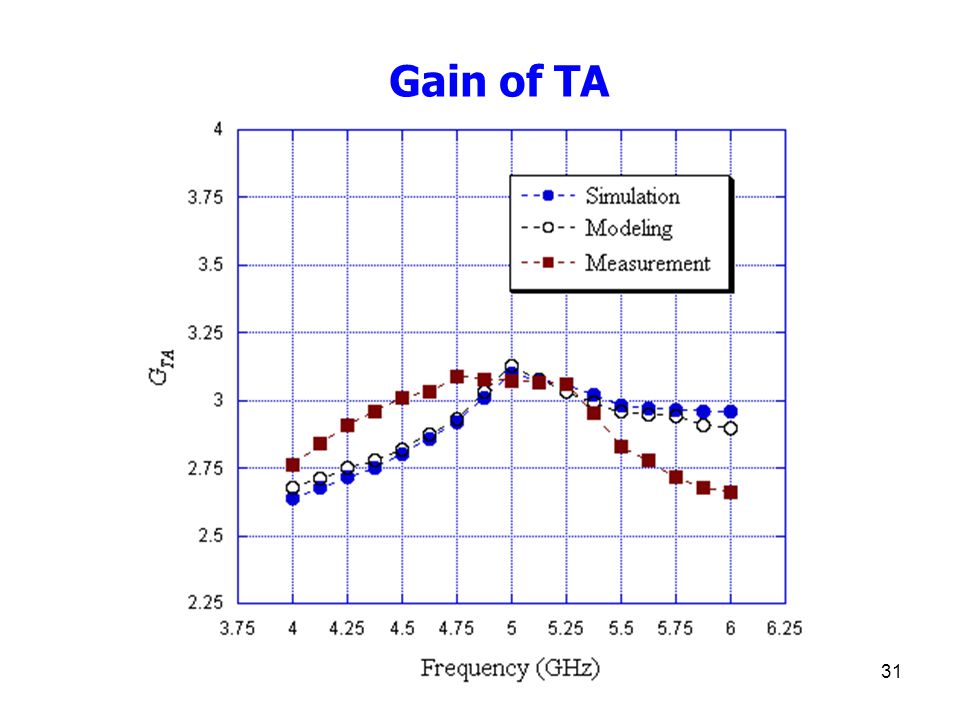

31 31 Gain of TA

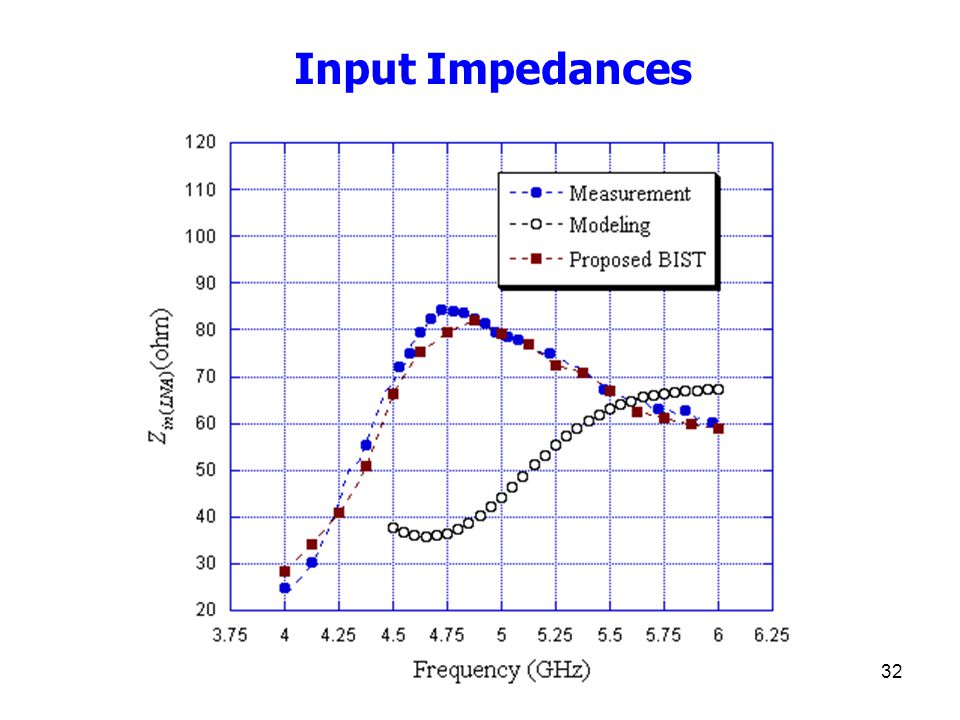

32 32 Input Impedances

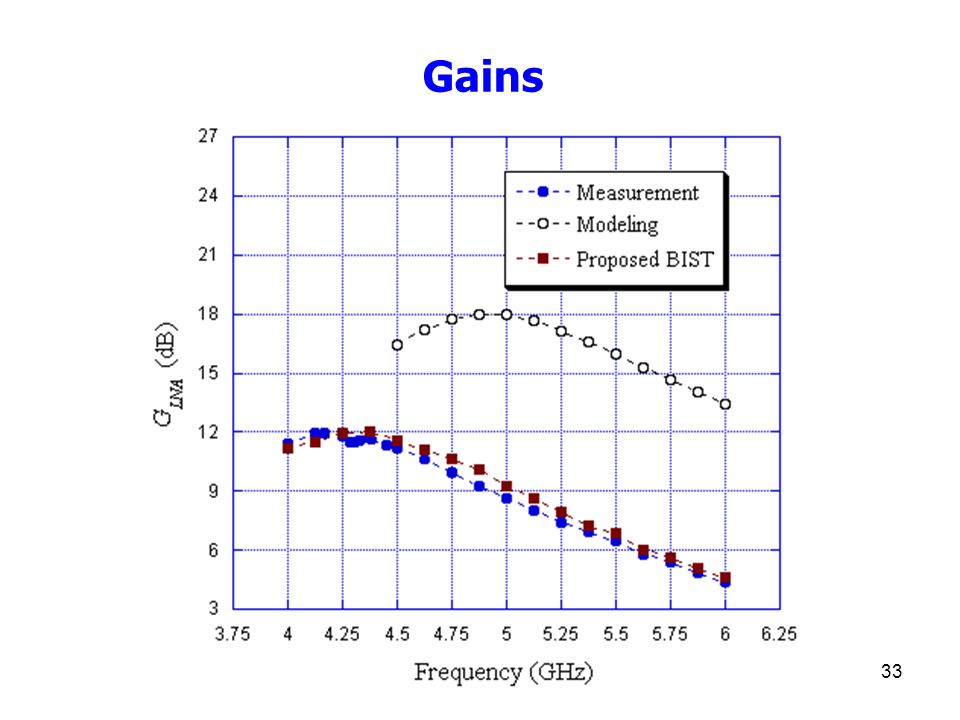

33 33 Gains

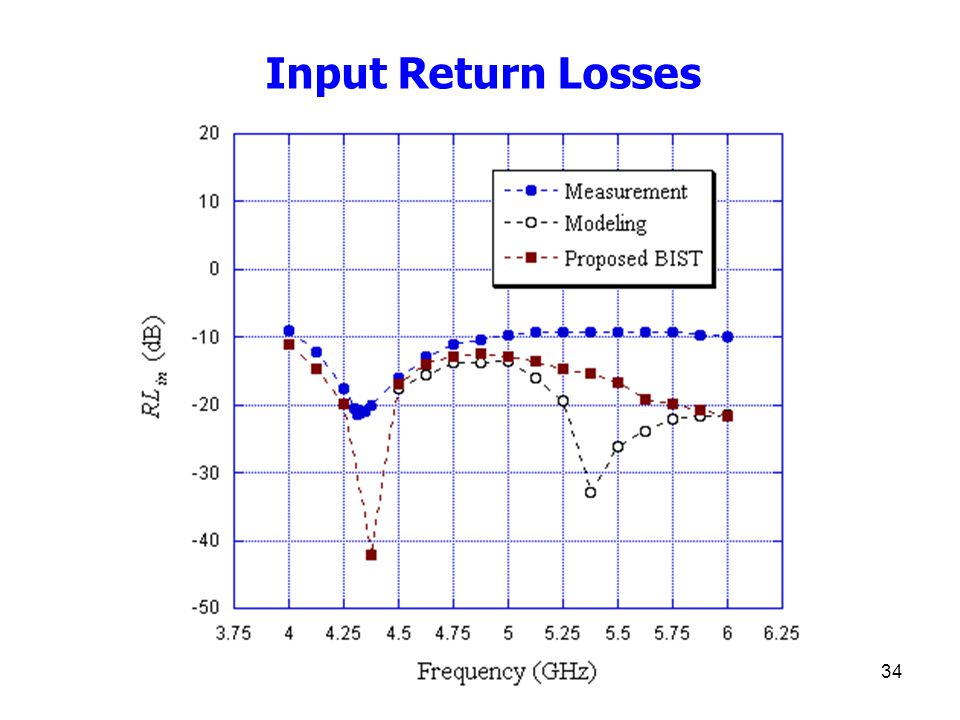

34 34 Input Return Losses

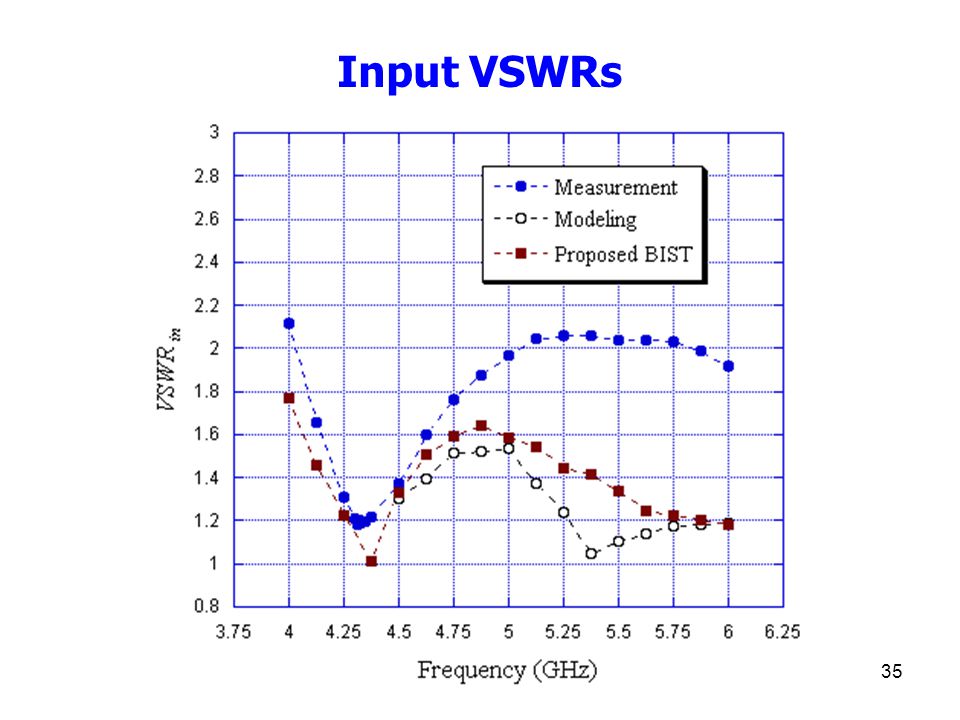

35 35 Input VSWRs

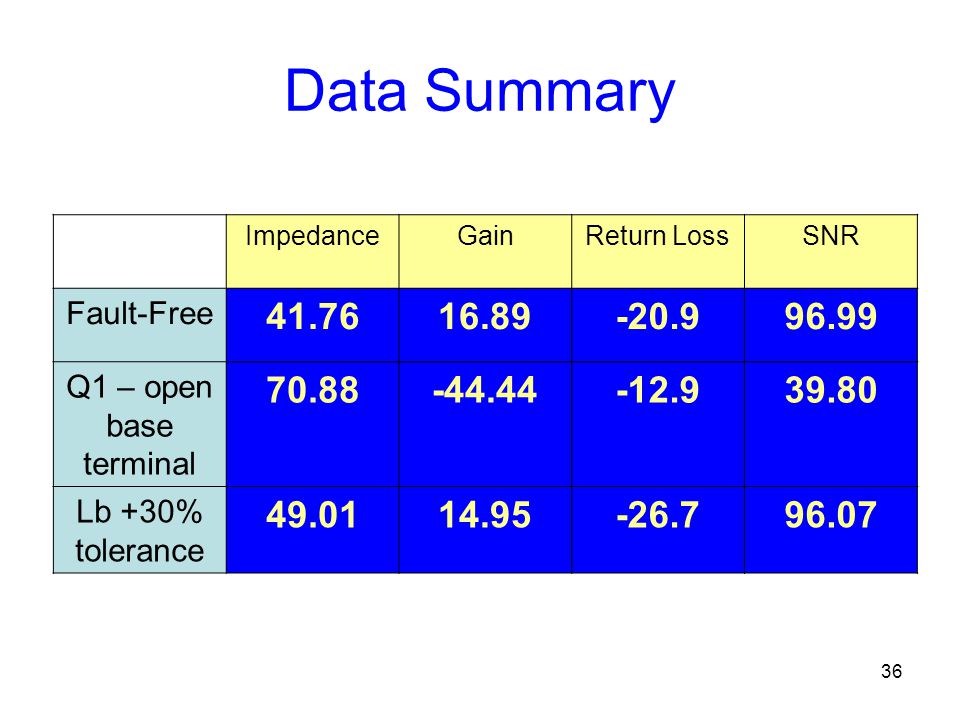

36 36 Data Summary ImpedanceGainReturn LossSNR Fault-Free 41.7616.89-20.996.99 Q1 – open base terminal 70.88-44.44-12.939.80 Lb +30% tolerance 49.0114.95-26.796.07

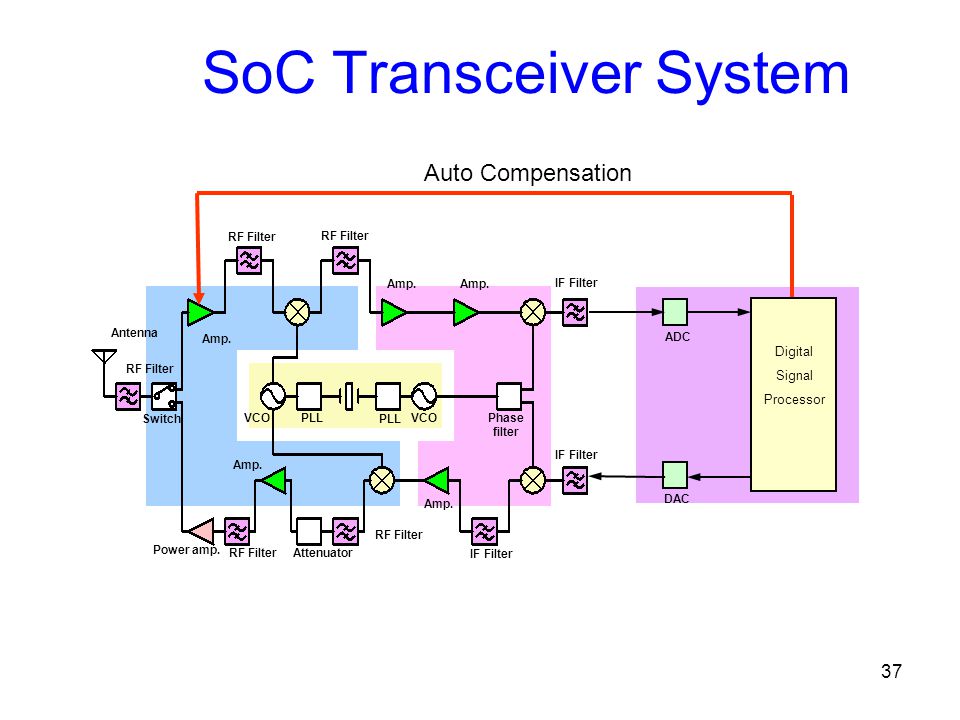

37 37 ADC DAC Digital Signal Processor IF Filter RF Filter Power amp. Attenuator RF Filter IF Filter RF Filter Phase filter Amp. PLL VCO Switch RF Filter Antenna SoC Transceiver System Auto Compensation

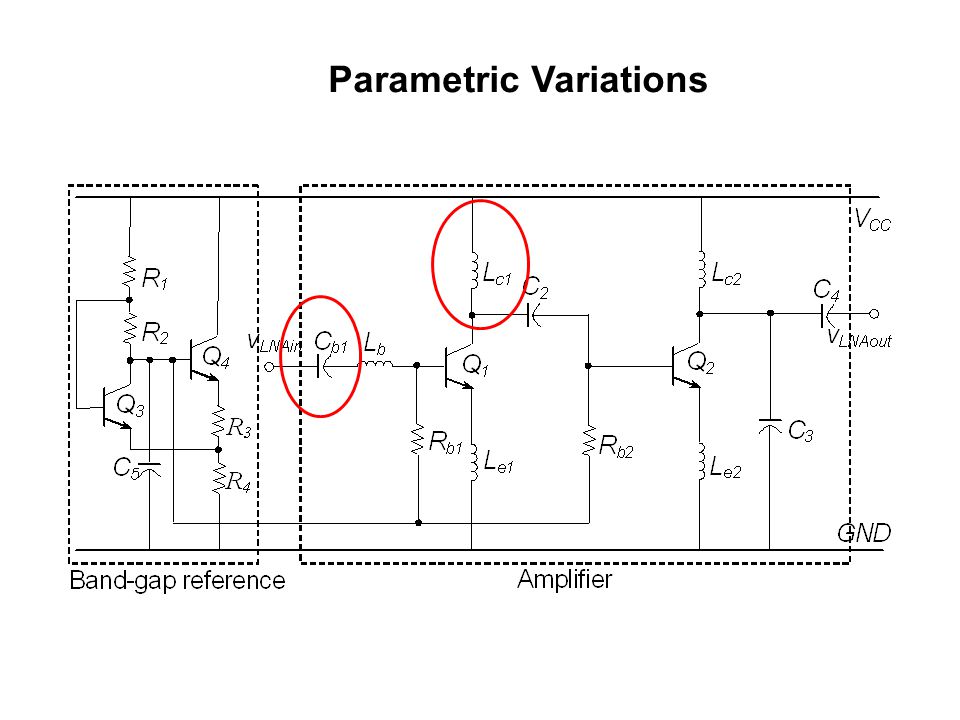

38 Parametric Variations

39 39 Capacitor Mirror Banks (CMB) N = 8-bit: When (D 11 D 10 …D 5 D 4 ) = (00…01), C B = C b /8

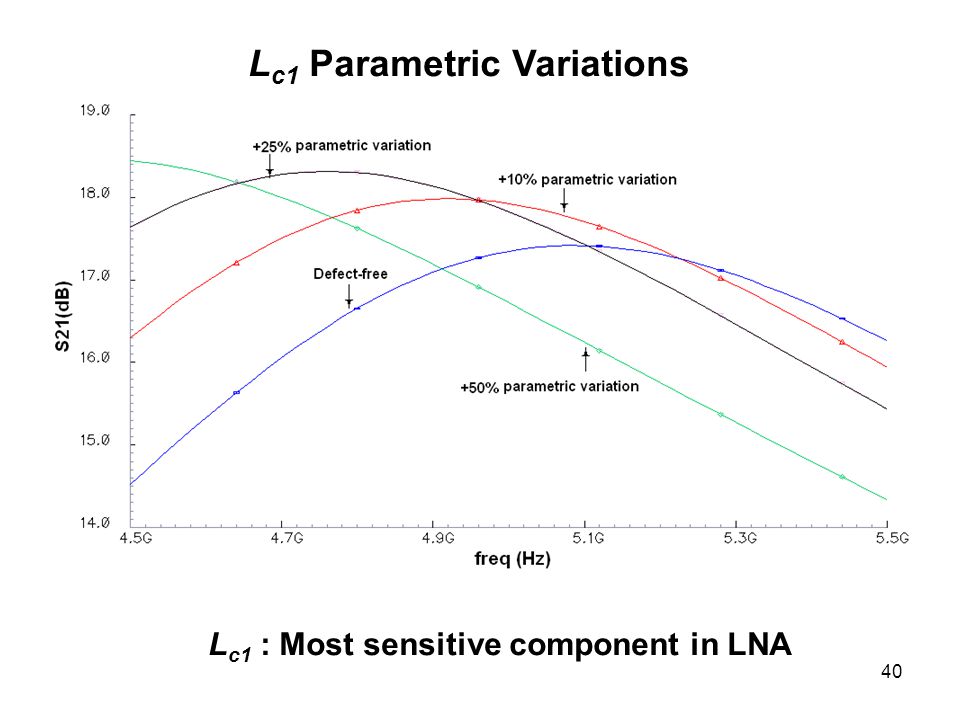

40 40 L c1 Parametric Variations L c1 : Most sensitive component in LNA

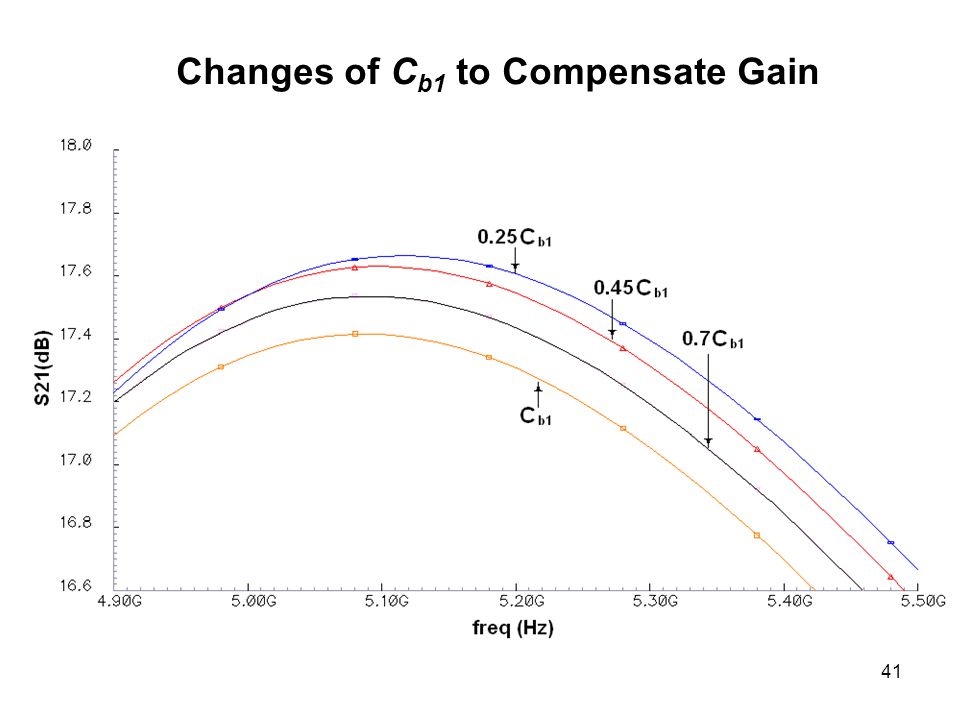

41 41 Changes of C b1 to Compensate Gain

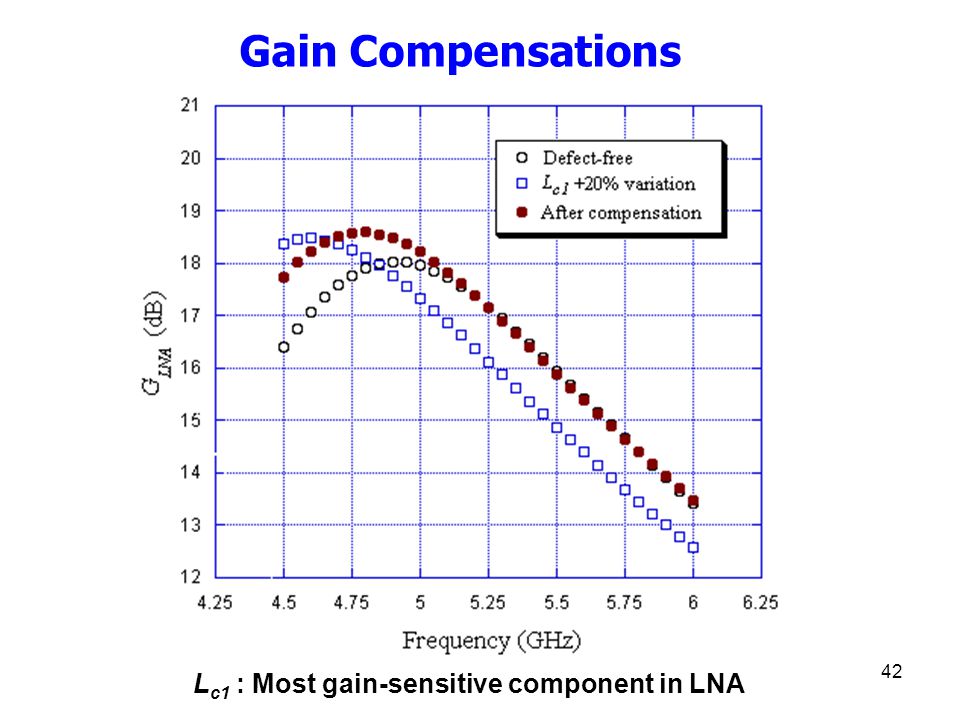

42 42 Gain Compensations L c1 : Most gain-sensitive component in LNA

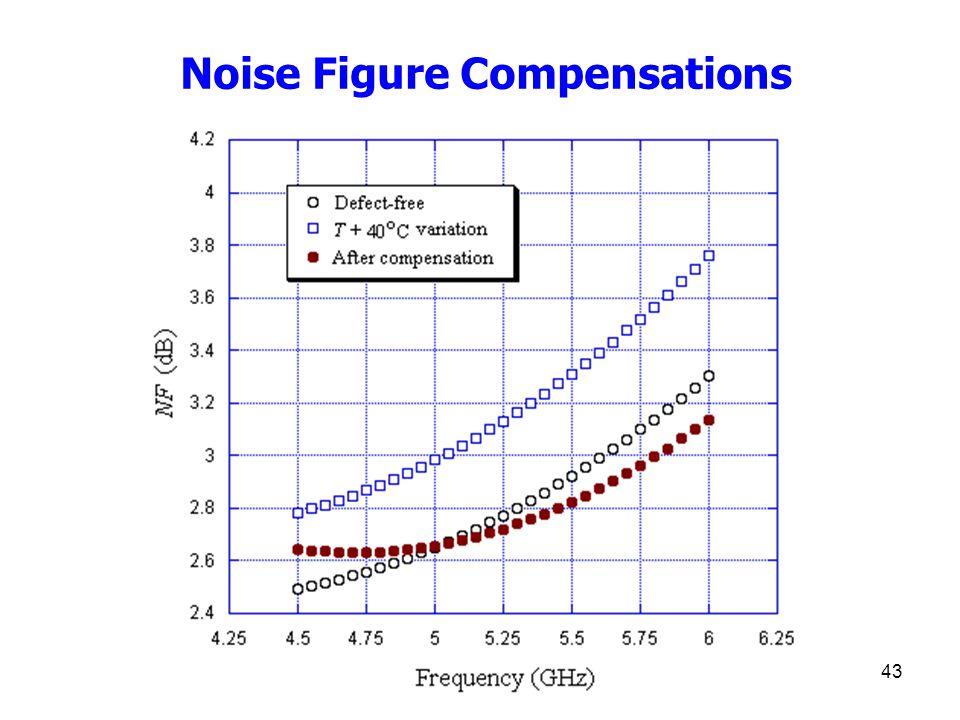

43 43 Noise Figure Compensations

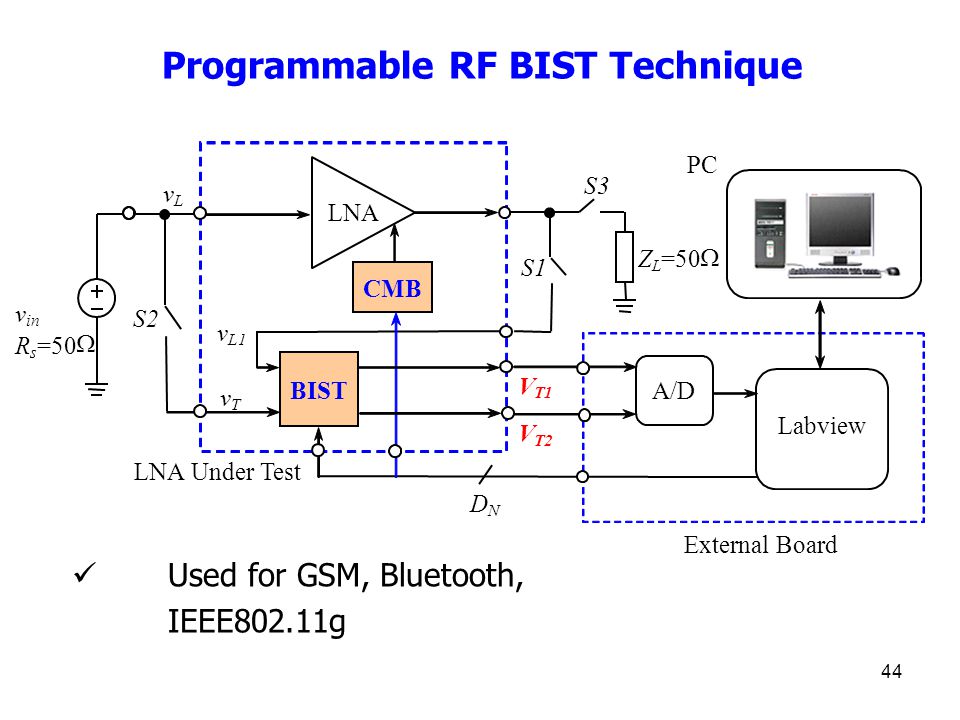

44 44 Programmable RF BIST Technique Used for GSM, Bluetooth, IEEE802.11g LNA S1 S2 V T1 V T2 v in R s =50  Z L  S3 LNA Under Test v L v T External Board BIST v L1 A/D Labview D N PC CMB

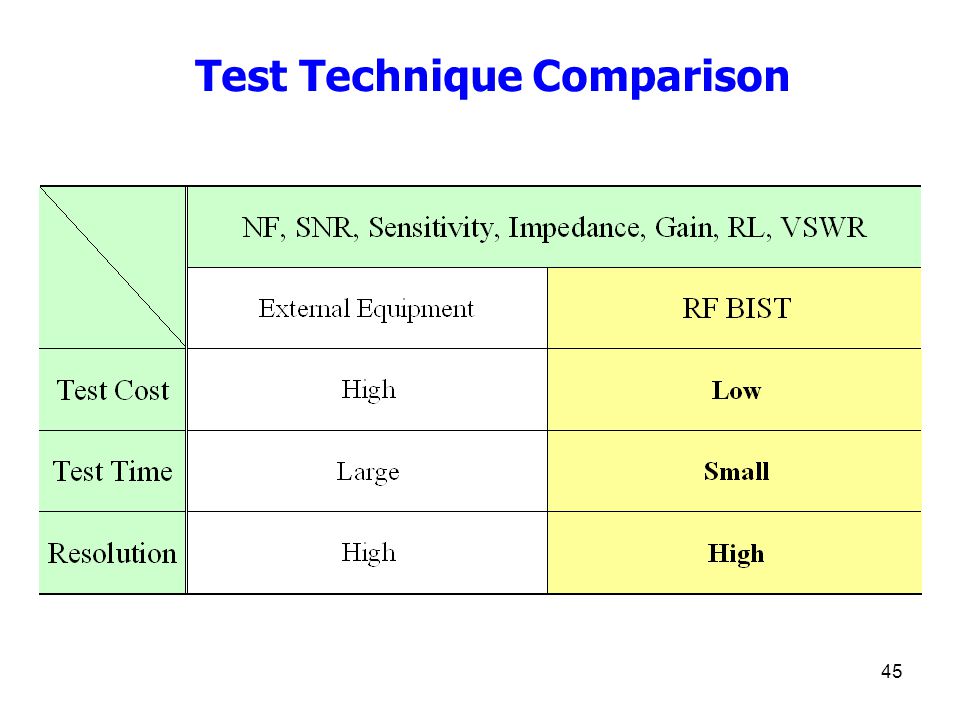

45 45 Test Technique Comparison

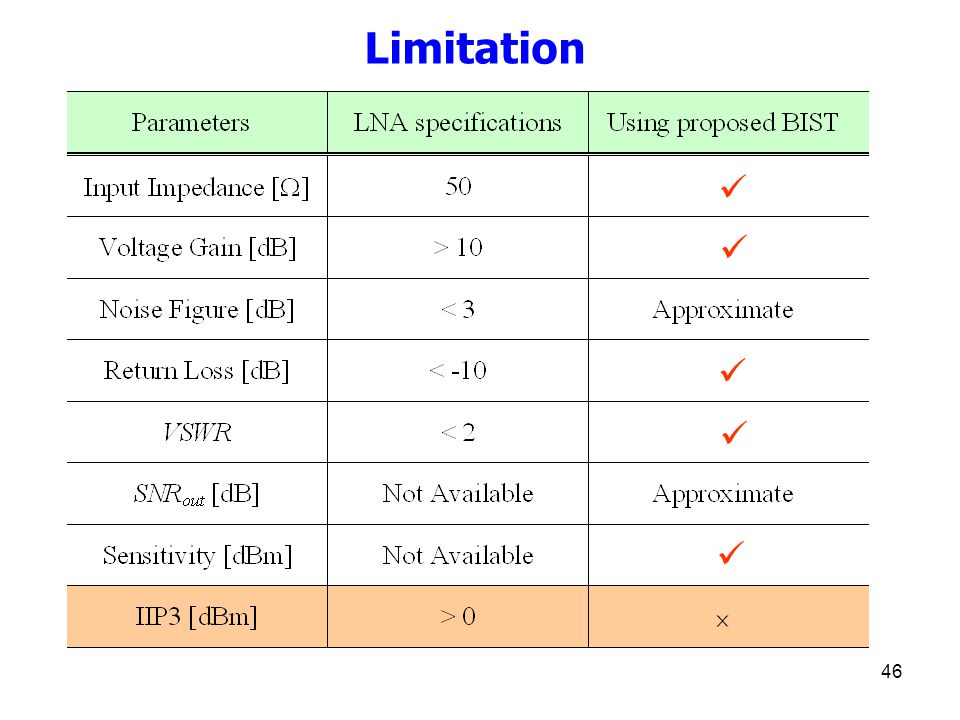

46 46 Limitation

47 47 On-going Work Construct automatic test structure with on- chip BIST structure and relays on a load board Develop a LabView software for test automation

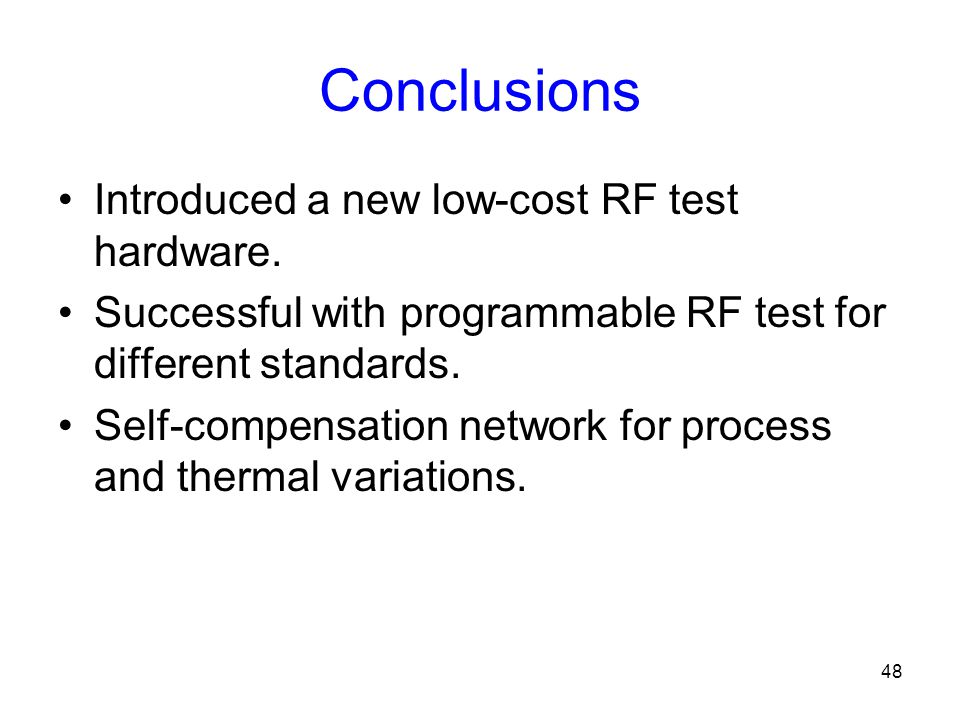

48 48 Conclusions Introduced a new low-cost RF test hardware. Successful with programmable RF test for different standards. Self-compensation network for process and thermal variations.
