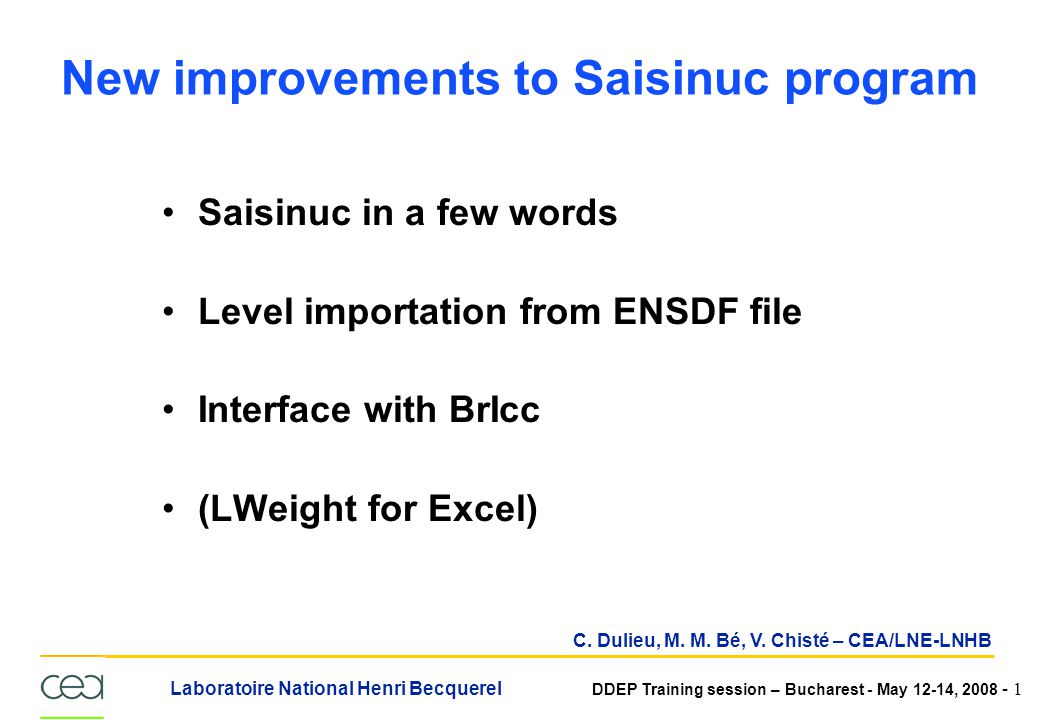

1 Laboratoire National Henri Becquerel DDEP Training session – Bucharest - May 12-14, 2008 - 1 New improvements to Saisinuc program Saisinuc in a few words Level importation from ENSDF file Interface with BrIcc (LWeight for Excel) C. Dulieu, M. M. Bé, V. Chisté – CEA/LNE-LNHB

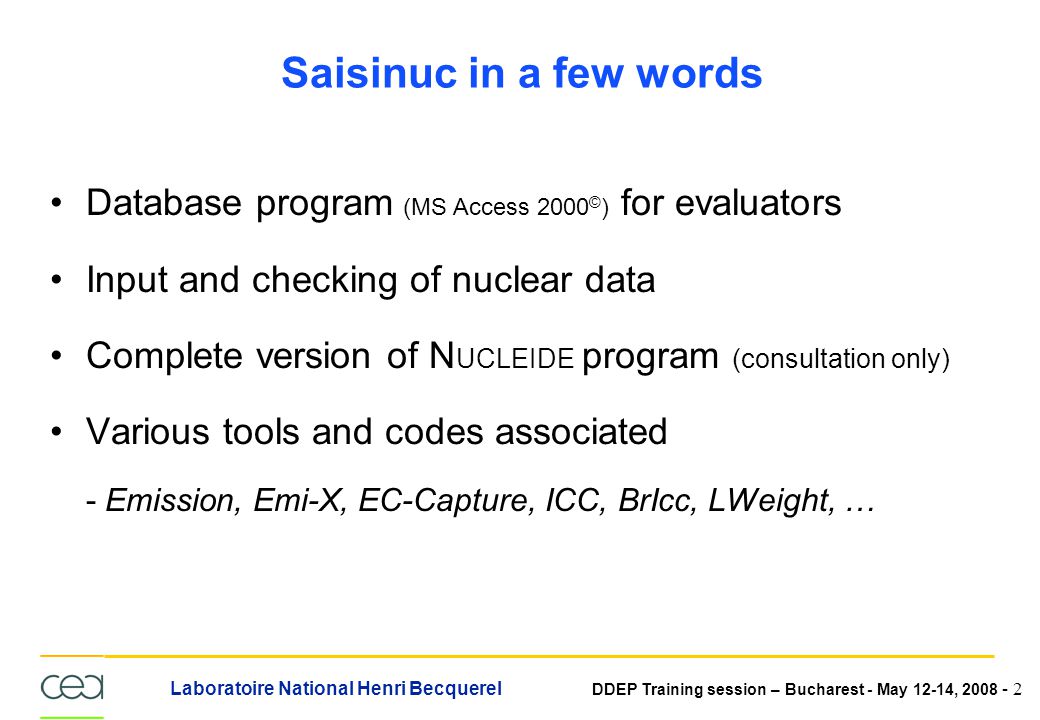

2 Laboratoire National Henri Becquerel DDEP Training session – Bucharest - May 12-14, 2008 - 2 Saisinuc in a few words Database program (MS Access 2000 © ) for evaluators Input and checking of nuclear data Complete version of N UCLEIDE program (consultation only) Various tools and codes associated - Emission, Emi-X, EC-Capture, ICC, BrIcc, LWeight, …

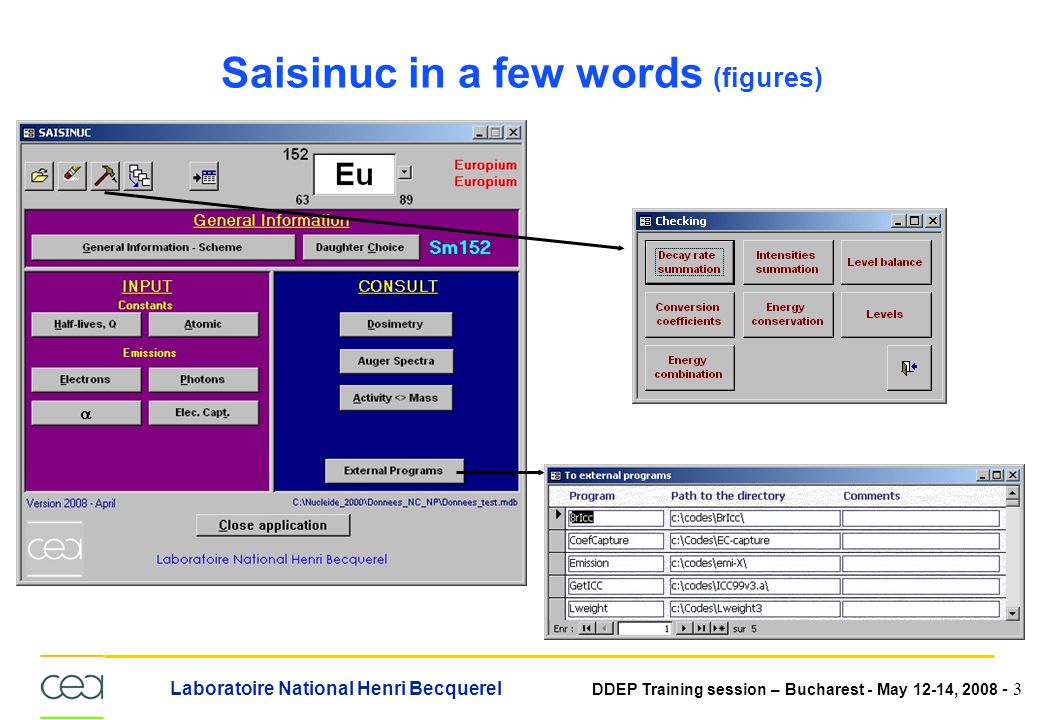

3 Laboratoire National Henri Becquerel DDEP Training session – Bucharest - May 12-14, 2008 - 3 Saisinuc in a few words (figures)

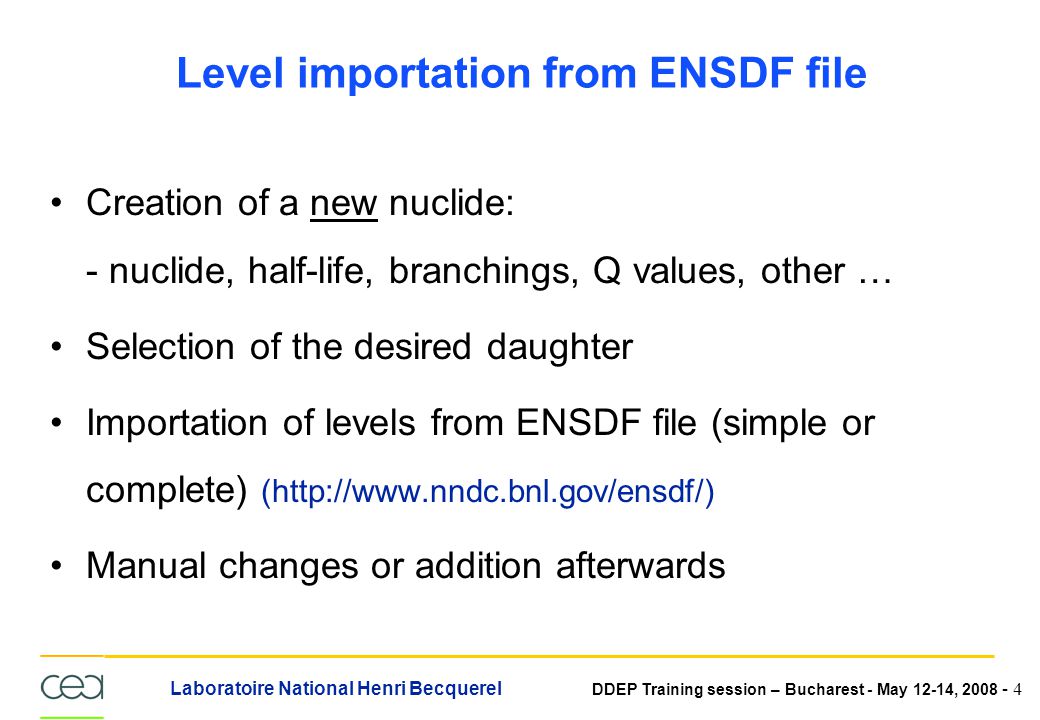

4 Laboratoire National Henri Becquerel DDEP Training session – Bucharest - May 12-14, 2008 - 4 Level importation from ENSDF file Creation of a new nuclide: - nuclide, half-life, branchings, Q values, other … Selection of the desired daughter Importation of levels from ENSDF file (simple or complete) (http://www.nndc.bnl.gov/ensdf/) Manual changes or addition afterwards

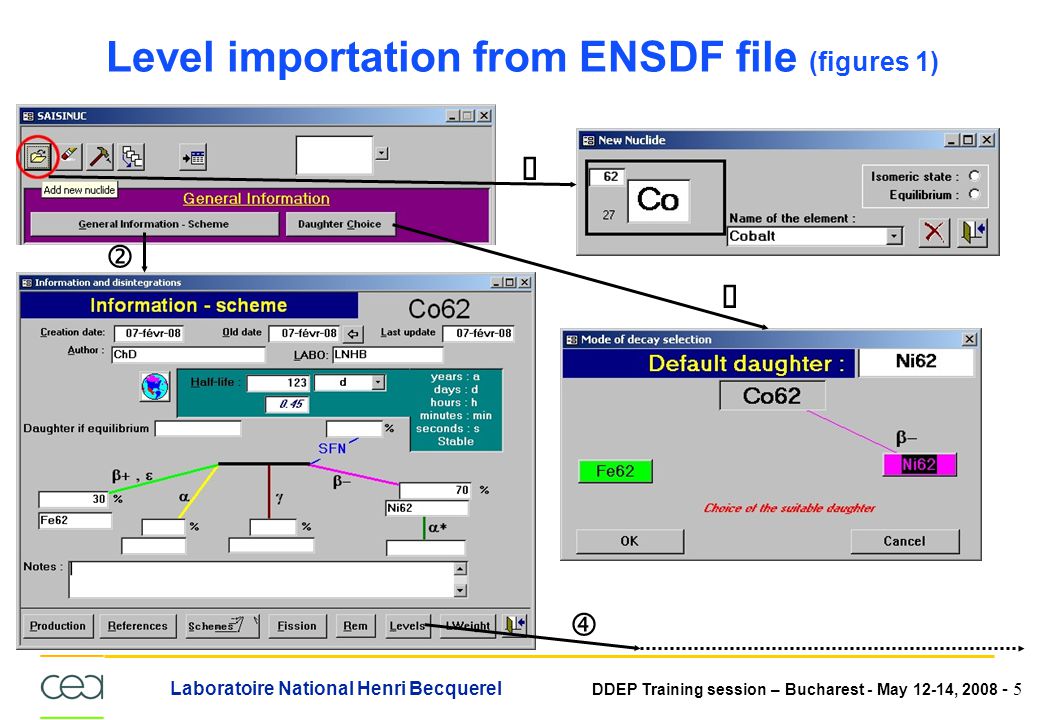

5 Laboratoire National Henri Becquerel DDEP Training session – Bucharest - May 12-14, 2008 - 5 Level importation from ENSDF file (figures 1)  ‚  „

6 Laboratoire National Henri Becquerel DDEP Training session – Bucharest - May 12-14, 2008 - 6 Level importation from ENSDF file (figures 2) „  62NI 62CO B- DECAY (123.00 D) 03NDS 200311 62CO P 0.0 5+ 123.00 D 45 5315 20 62NI L 0.0 0+ STABLE 62NI L 1332.508 4 2+ 0.9 PS 3 62NI L 2158.61 3 3/2,5/2- 62NI L 2505.748 5 4+ 0.30 PS 9 Simple ENSDF file 

7 Laboratoire National Henri Becquerel DDEP Training session – Bucharest - May 12-14, 2008 - 7 Interface with BrIcc (internal conversion coefficient calculations) Open gamma emissions form for the desired energy Enter the mandatory values: - Multipolarity and Mixing ratio (if necessary) - other useful data will be sent to BrIcc (Z, E, u(E)) Launch "BrIcc calculation" and select an interpolation mode Accept (or not) the calculated values Manual changes or addition afterwards are possible

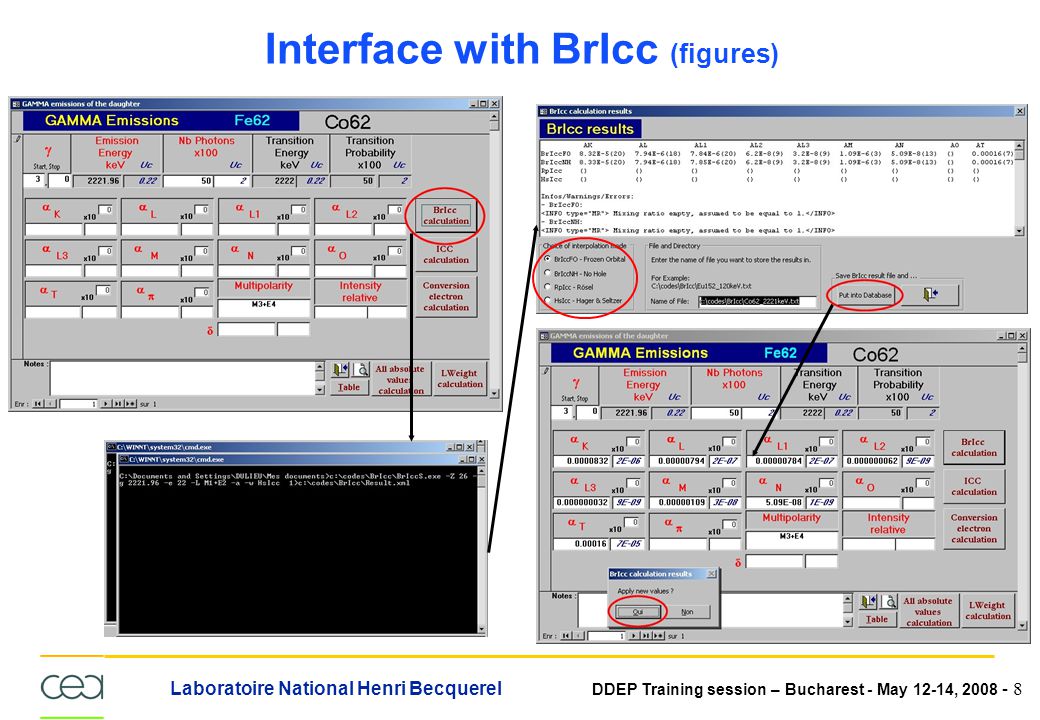

8 Laboratoire National Henri Becquerel DDEP Training session – Bucharest - May 12-14, 2008 - 8 Interface with BrIcc (figures)

9 Laboratoire National Henri Becquerel DDEP Training session – Bucharest - May 12-14, 2008 - 9 LWeight & LWeight for Excel Lweight : - What is it used to ? - A brief presentation. Lweight for Excel : - Why ? - How to use it ?

10 Laboratoire National Henri Becquerel DDEP Training session – Bucharest - May 12-14, 2008 - 10 LWeight Fortran program (D. MacMahon & E. Browne) Calculation of averages for data sets Rejection of outliers input values Limitation of Relative Statistical Weight One iteration calculation

11 Laboratoire National Henri Becquerel DDEP Training session – Bucharest - May 12-14, 2008 - 11 Lweight for Excel Excel data sheet formulas Calculation of averages for data sets Rejection of outliers input values Limitation of Relative Statistical Weight One iteration calculation : Lweight41, or … Complete calculation : Lweight4

12 Laboratoire National Henri Becquerel DDEP Training session – Bucharest - May 12-14, 2008 - 12 Lweight4 : all iterations

13 Laboratoire National Henri Becquerel DDEP Training session – Bucharest - May 12-14, 2008 - 13 Lweight4 : all iterations (2)

14 Laboratoire National Henri Becquerel DDEP Training session – Bucharest - May 12-14, 2008 - 14 Lweight4 : all iterations (3)

15 Laboratoire National Henri Becquerel DDEP Training session – Bucharest - May 12-14, 2008 - 15 Lweight41 : one iteration

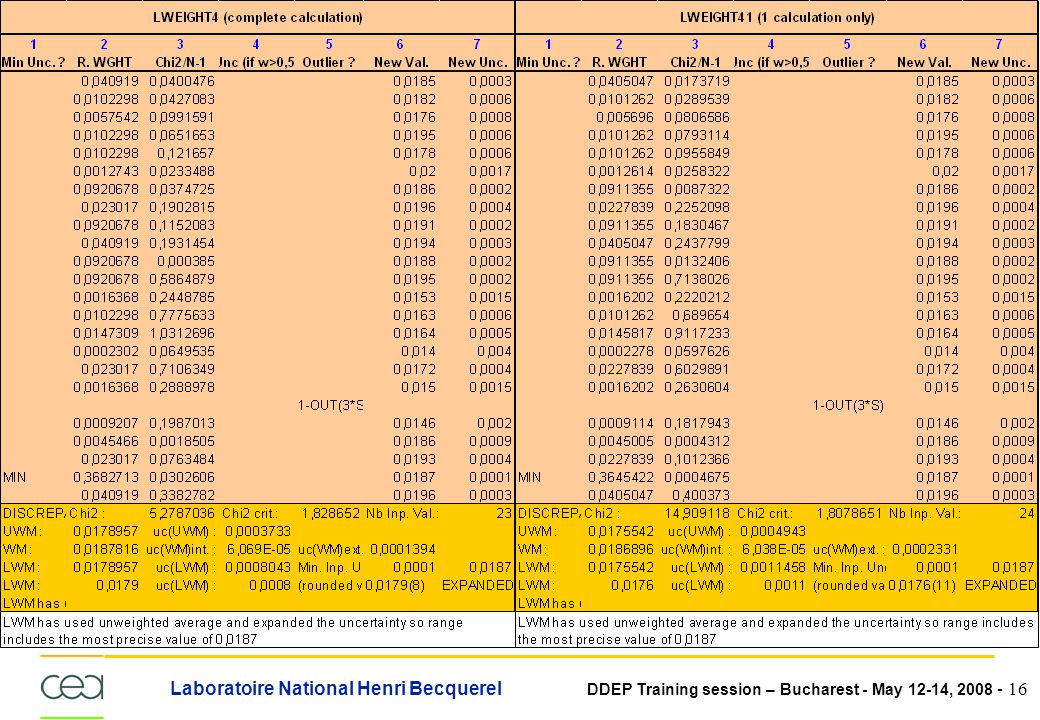

16 Laboratoire National Henri Becquerel DDEP Training session – Bucharest - May 12-14, 2008 - 16
