1 1/18 Long-term Scenarios for Climate Change-Implications for Energy, GHG Emissions and Air Quality Shilpa Rao, International Institute of Applied Systems Analysis Laxenburg, Austria Workshop on aspirational targets, Utrecht, Mar 5 2009

2 2/18 Trends in Long-Term Scenario Development SRES scenarios (IPCC 2001) developed to examine a range of economic and demographic development outcomes- representative of uncertainty rangeSRES scenarios (IPCC 2001) developed to examine a range of economic and demographic development outcomes- representative of uncertainty range Scenarios broadly reflect policies that influence GHG emission drivers, such as demographic change, social and economic development, technological change, resource use, and pollution management. Scenarios broadly reflect policies that influence GHG emission drivers, such as demographic change, social and economic development, technological change, resource use, and pollution management. Recent long-term scenario development exercises are oriented towards examining wide range of climate change outcomes –i.e. climate first thinkingRecent long-term scenario development exercises are oriented towards examining wide range of climate change outcomes –i.e. climate first thinking

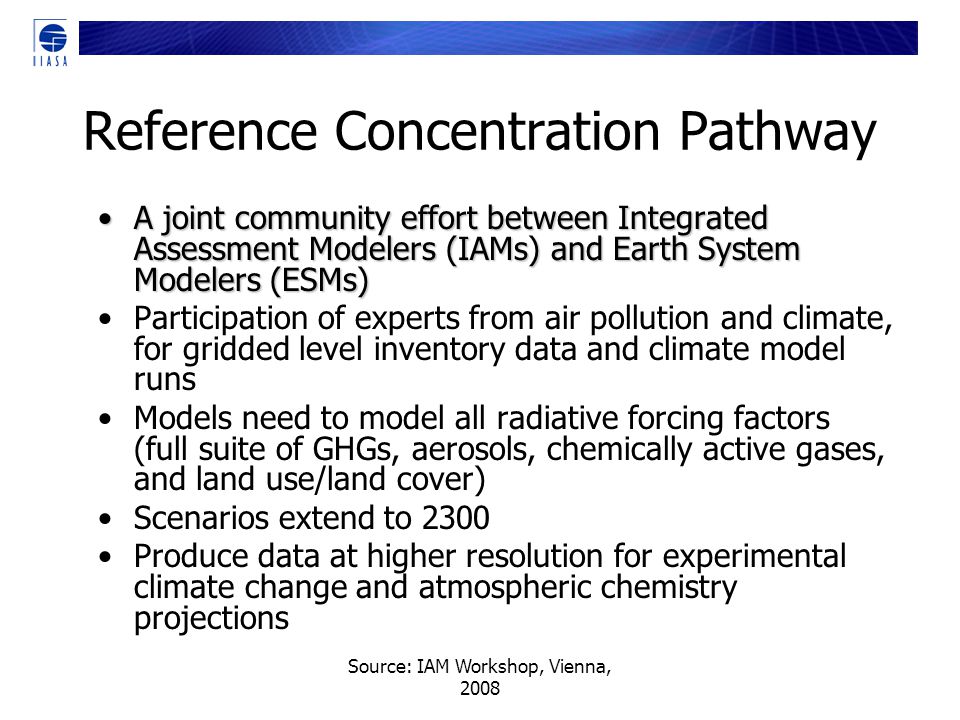

3 Source: IAM Workshop, Vienna, 2008 Reference Concentration Pathway A joint community effort between Integrated Assessment Modelers (IAMs) and Earth System Modelers (ESMs)A joint community effort between Integrated Assessment Modelers (IAMs) and Earth System Modelers (ESMs) Participation of experts from air pollution and climate, for gridded level inventory data and climate model runs Models need to model all radiative forcing factors (full suite of GHGs, aerosols, chemically active gases, and land use/land cover) Scenarios extend to 2300 Produce data at higher resolution for experimental climate change and atmospheric chemistry projections

4 4/18 Emissions Pathways

5 5/18 Integrated Scenario Analysis at IIASA Explore uncertainty of long-term development under climate constraints through limited set of scenarios (3): A2r, B2, B1 Scenario taxonomy (H/M/L) based on: -- emissions, -- vulnerability, -- stabilization levels, Integration: energy – agriculture – forestry sectors Multi-gas analysis Assess also implications of stabilization: -- technology choice (e.g. efficiency vs. supply) -- sectorial measures (which gas, when, where) -- economics (costs and savings) -- geopolitics of energy (winners/losers)

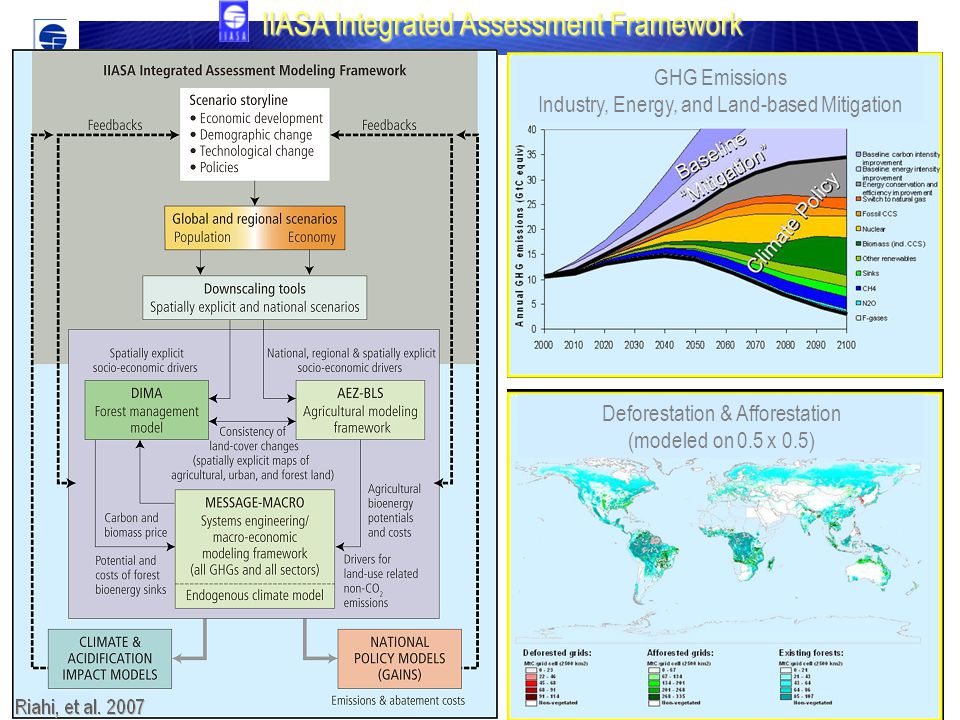

6 6/18 IIASA Integrated Assessment Framework GHG Emissions Industry, Energy, and Land-based Mitigation Deforestation & Afforestation (modeled on 0.5 x 0.5)

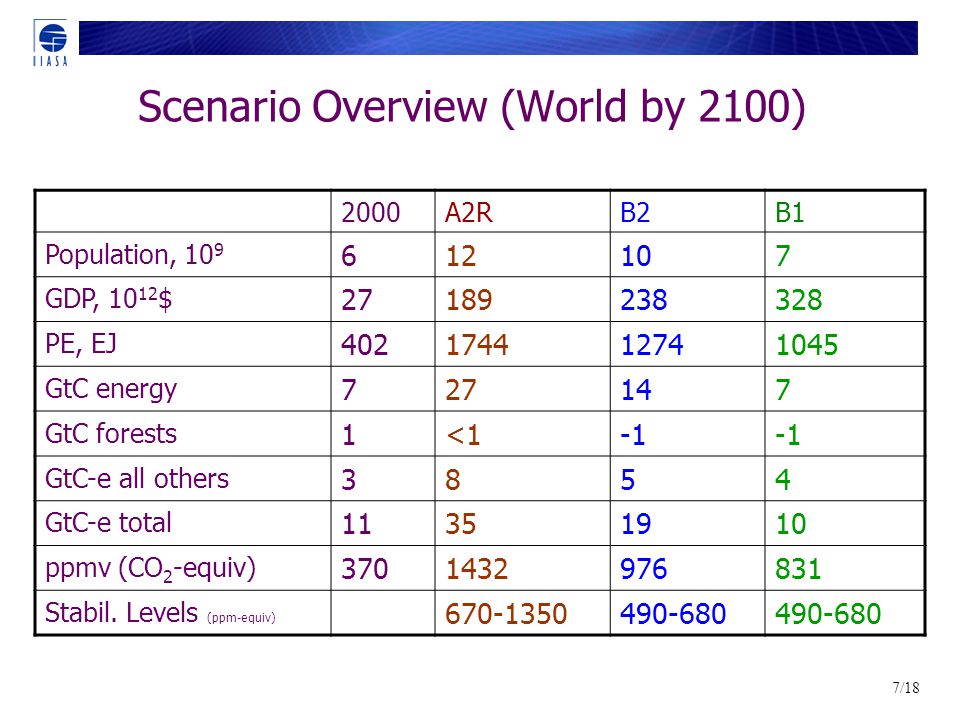

7 7/18 Scenario Overview (World by 2100) 2000A2RB2B1 Population, 10 9 612107 GDP, 10 12 $ 27189238328 PE, EJ 402174412741045 GtC energy 727147 GtC forests 1<1 GtC-e all others 3854 GtC-e total 11351910 ppmv (CO 2 -equiv) 3701432976831 Stabil. Levels (ppm-equiv) 670-1350490-680

8 8/18 Evolution of Global Primary Energy Historical Development Biomass (including Non-Commercial) Coal Oil Nuclear Renewables Gas

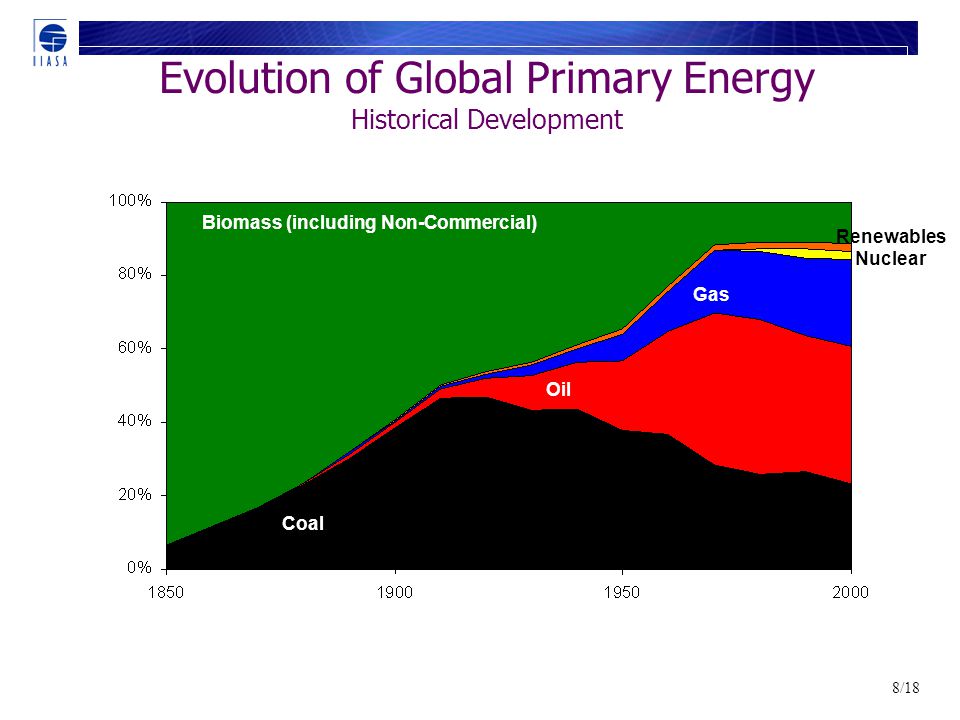

9 9/18 Evolution of Global Primary Energy Historical Development Coal Oil Nuclear Renewables Gas Biomass (including Non-Commercial)

10 10/18 Evolution of Global Primary Energy Historical Development Biomass (including Non-Commercial) Coal Oil Nuclear Renewables Gas

11 11/18 Evolution of Global Primary Energy A2r GGI Scenario Biomass (including Non-Commercial) Coal Oil Nuclear Renewables Gas

12 12/18 Evolution of Global Primary Energy B2 GGI Scenario Biomass (including Non-Commercial) Coal Oil Nuclear Renewables Gas

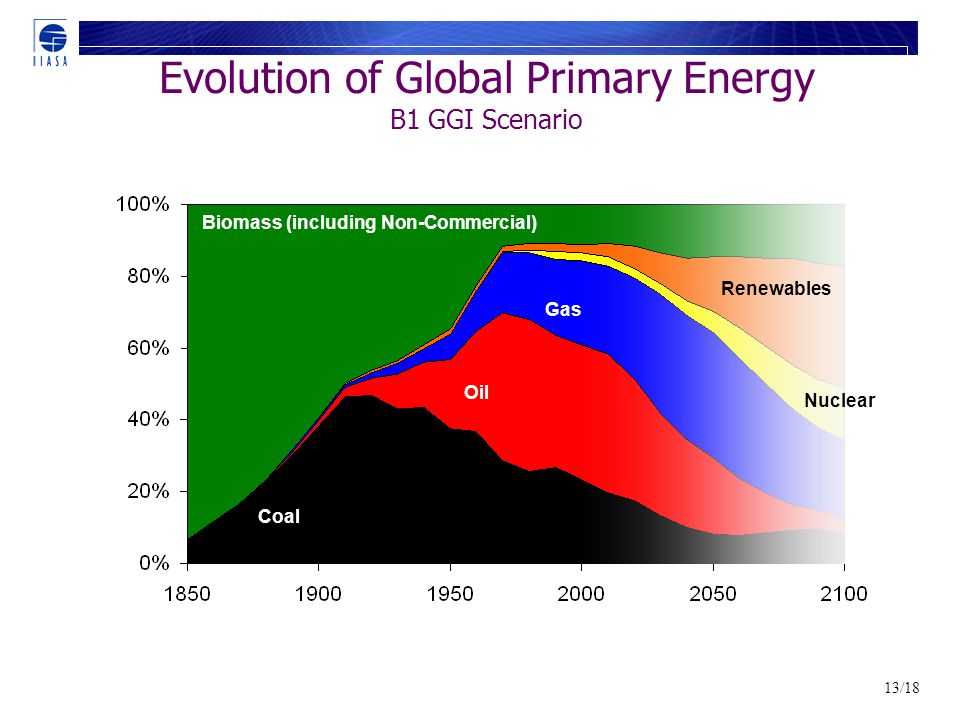

13 13/18 Evolution of Global Primary Energy B1 GGI Scenario Biomass (including Non-Commercial) Coal Oil Renewables Gas Nuclear

14 14/18 Global Liquids Supply A2r Scenario

15 15/18 Global Liquids Supply A2r Scenario

16 16/18 Global Liquids Supply A2r Scenario

17 17/18 Global Liquids Supply A2r Scenario

18 18/18 Global Liquids Supply B1 Scenario

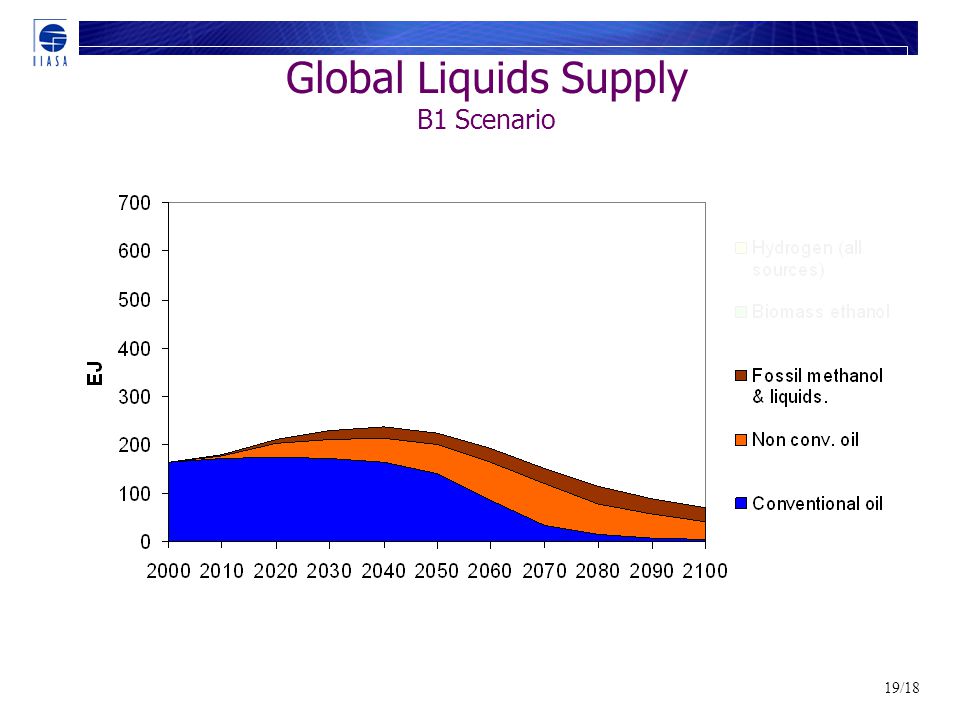

19 19/18 Global Liquids Supply B1 Scenario

20 20/18 Global Liquids Supply B1 Scenario

21 21/18 Global Liquids Supply B1 Scenario

22 22/18 Climate Stabilization Scenarios Climate Sensitivity ~2.5 degrees

23 23/18 Emissions & Reduction Measures Principal technology clusters – 1390 ppm target

24 24/18 Emissions & Reduction Measures Principal technology clusters – 1090 ppm target

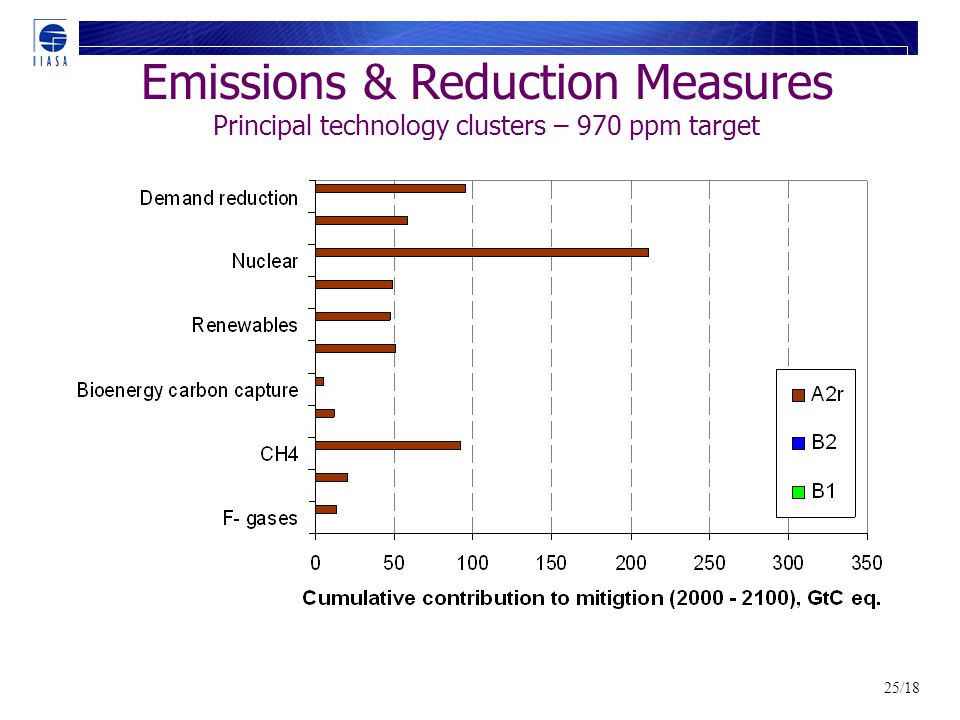

25 25/18 Emissions & Reduction Measures Principal technology clusters – 970 ppm target

26 26/18 Emissions & Reduction Measures Principal technology clusters – 820 ppm target

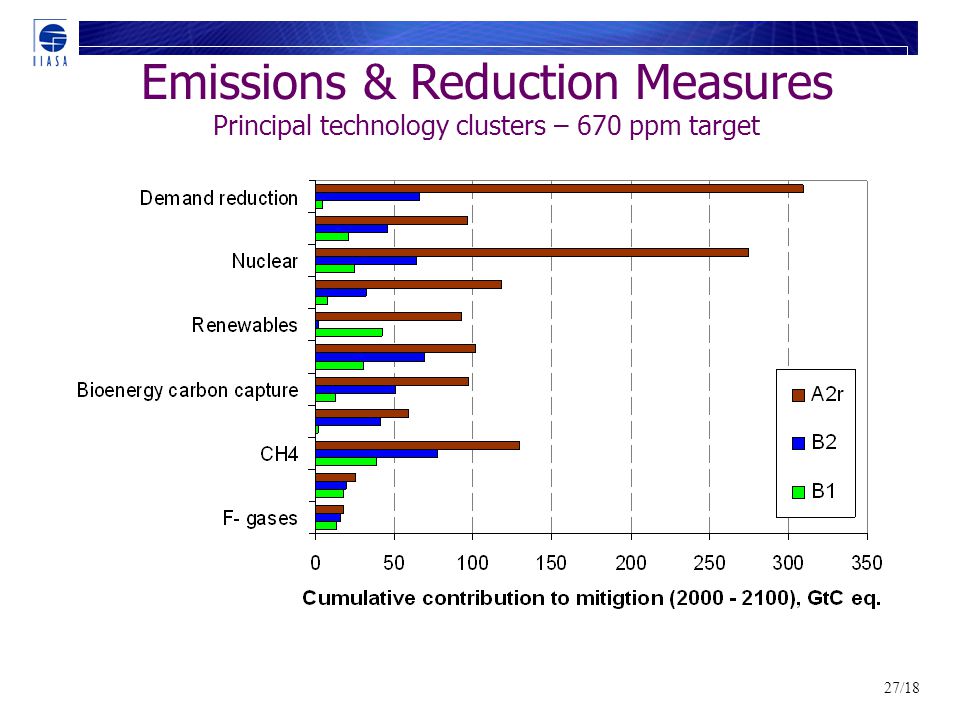

27 27/18 Emissions & Reduction Measures Principal technology clusters – 670 ppm target

28 28/18 Emissions & Reduction Measures Principal technology clusters – 480 ppm target

29 29/18 Contribution by GHG to Mitigation

30 30/18 Contribution by Sector to Mitigation

31 31/18 Baseline Scenarios Primary Energy per Capita

32 32/18

33 33/18

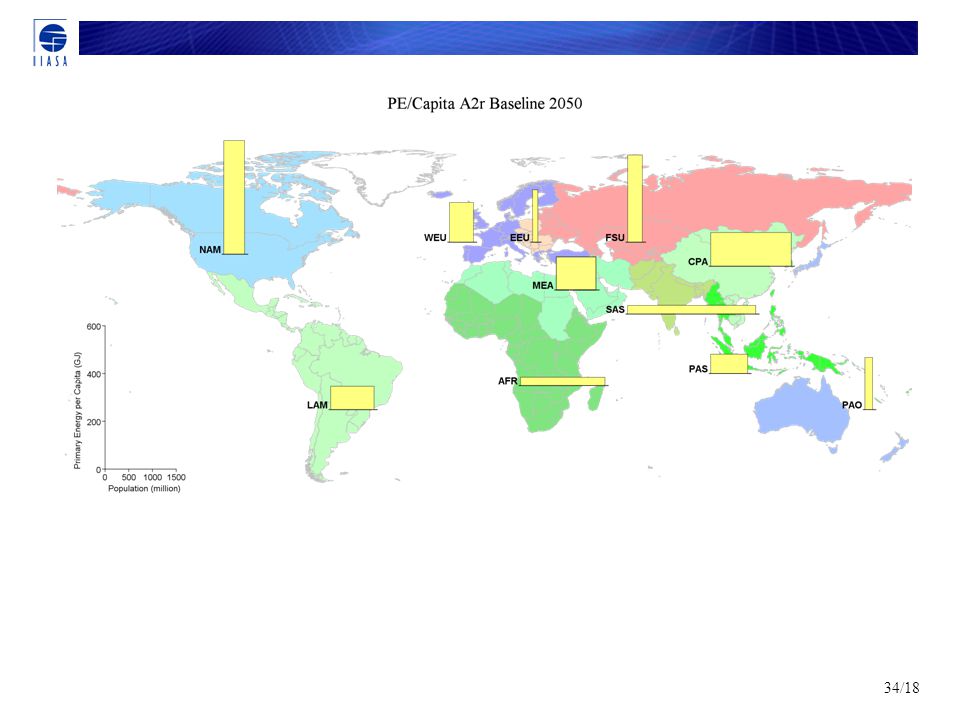

34 34/18

35 35/18

36 36/18

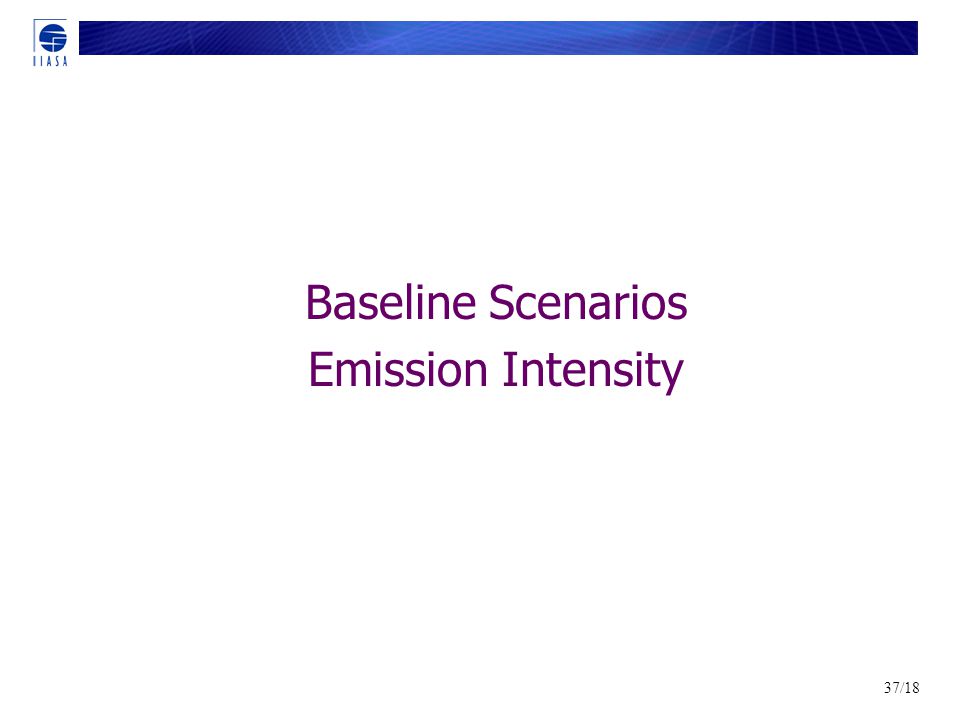

37 37/18 Baseline Scenarios Emission Intensity

38 38/18

39 39/18

40 40/18

41 41/18

42 42/18

43 43/18 A2r Climate Policy-670 ppm CO2eq.

44 44/18 Electricity Generation Western Europe, A2r_670

45 45/18 Electricity Generation Centrally Planned Asia, A2r_670

46 46/18 Transport Sector Centrally Planned Asia A2r_670

47 47/18 Residential Sector Centrally Planned Asia, A2r_670

48 48/18 NOX Emissions, A2r scenario Western Europe

49 49/18 NOX Emissions, A2r scenario China

50 50/18 BC Emissions, A2r In industrialized countries emissions decline in transport and industrial sectors, due to stringent regulations, technology improvement and fuel switching (synthetic fuels, hydrogen) In industrialized countries emissions decline in transport and industrial sectors, due to stringent regulations, technology improvement and fuel switching (synthetic fuels, hydrogen) In developing countries, there is a shift from traditional fuels to gas and liquid-based systems in the residential sector In developing countries, there is a shift from traditional fuels to gas and liquid-based systems in the residential sector

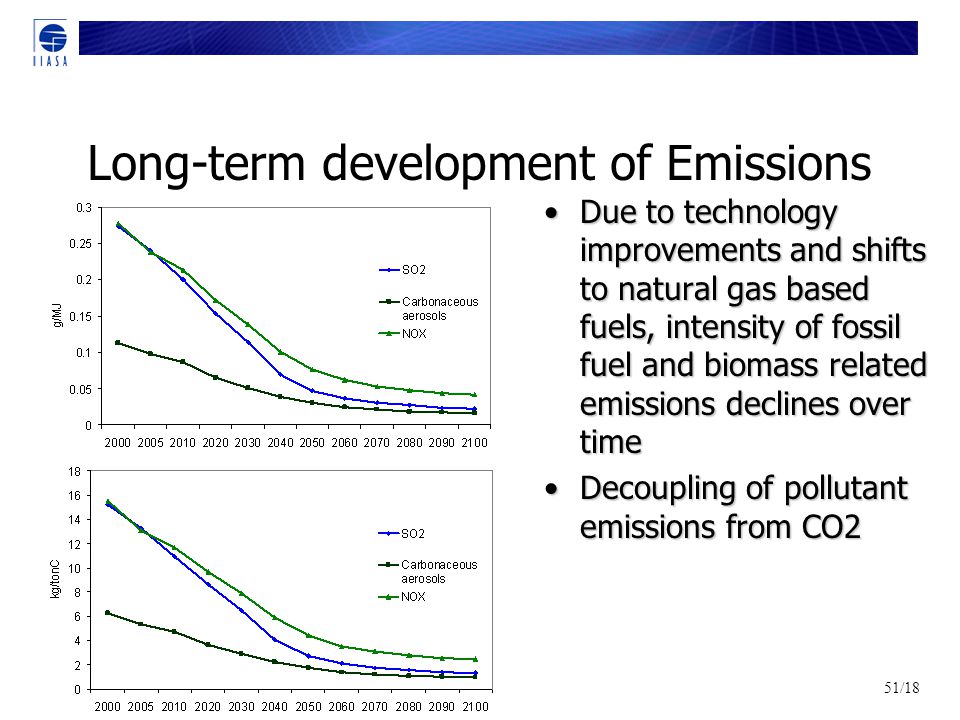

51 51/18 Long-term development of Emissions Due to technology improvements and shifts to natural gas based fuels, intensity of fossil fuel and biomass related emissions declines over time Due to technology improvements and shifts to natural gas based fuels, intensity of fossil fuel and biomass related emissions declines over time Decoupling of pollutant emissions from CO2 Decoupling of pollutant emissions from CO2

52 52/18 Co-benefits of climate mitigation, CPA A2_670 SO2, NOX

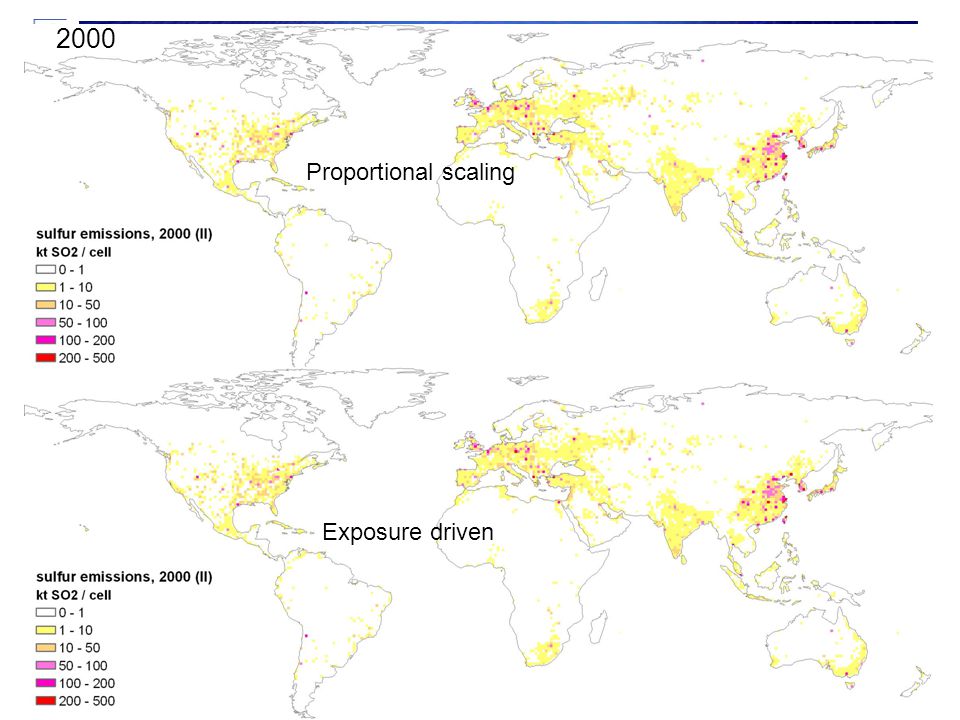

53 53/18 2000 Proportional scaling Exposure driven

54 54/18 2030 Proportional scaling Exposure driven

55 55/18 2050 Proportional scaling Exposure driven

56 56/18 2070 Proportional scaling Exposure driven

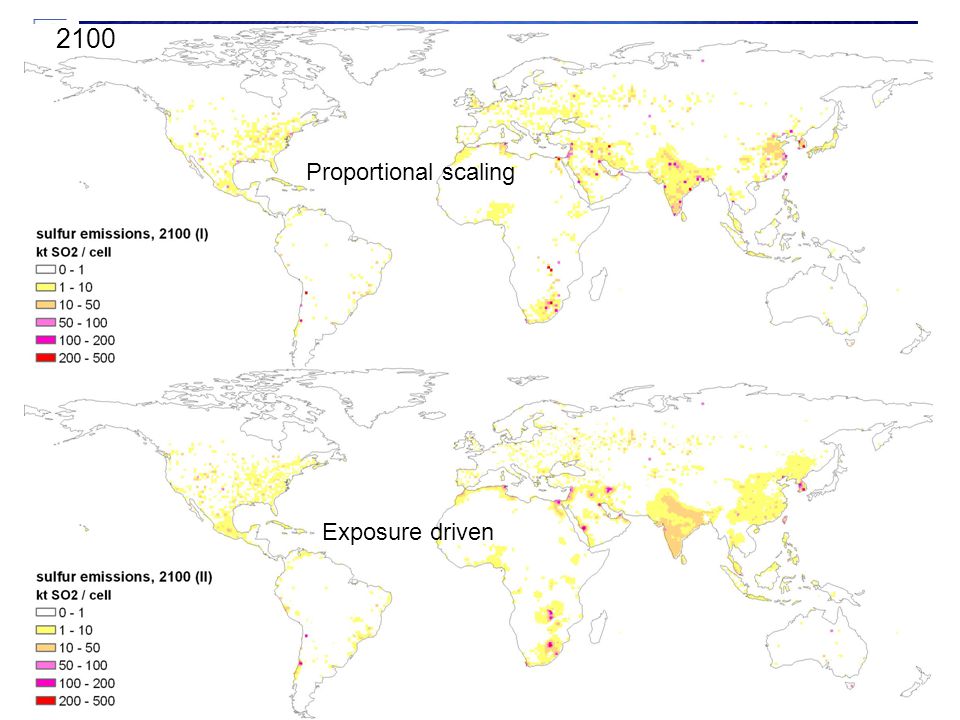

57 57/18 2100 Proportional scaling Exposure driven

58 58/18 Concluding Thoughts Current trends in long-term scenario development include detailed technological information for climate policy analysis Include detailed information on air pollutants developed with the AP community-albeit so far for the CMC Possibility to provide useful support to air pollution community and contribute to issues of co-benefits Possible in future to examine wide range of issues related to air quality- for example pollution related health impacts
