1. CASH DRAWER CONFIGURATION GUIDE

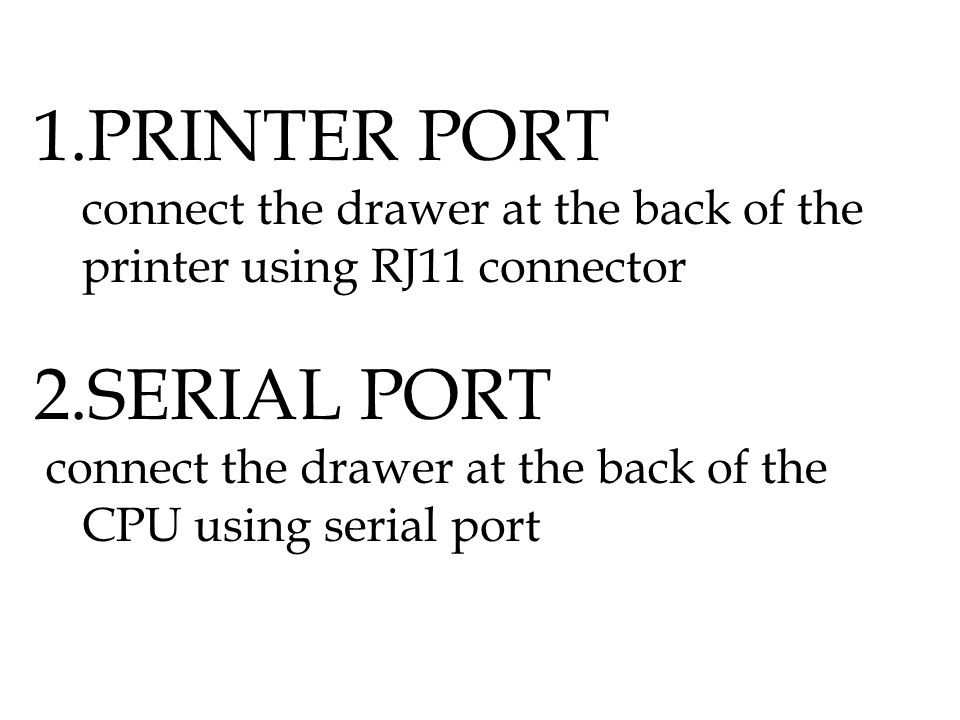

2. 1.PRINTER PORT connect the drawer at the back of the printer using RJ11 connector 2.SERIAL PORT connect the drawer at the back of the CPU using serial port

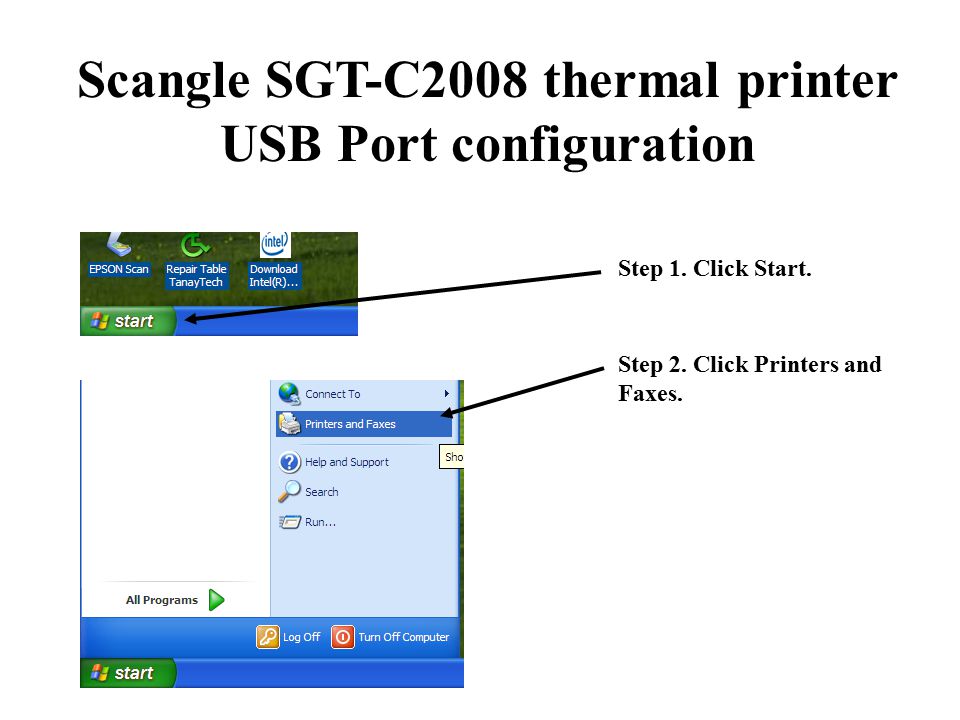

3. Scangle SGT-C2008 thermal printer USB Port configuration Step 1. Click Start. Step 2. Click Printers and Faxes.

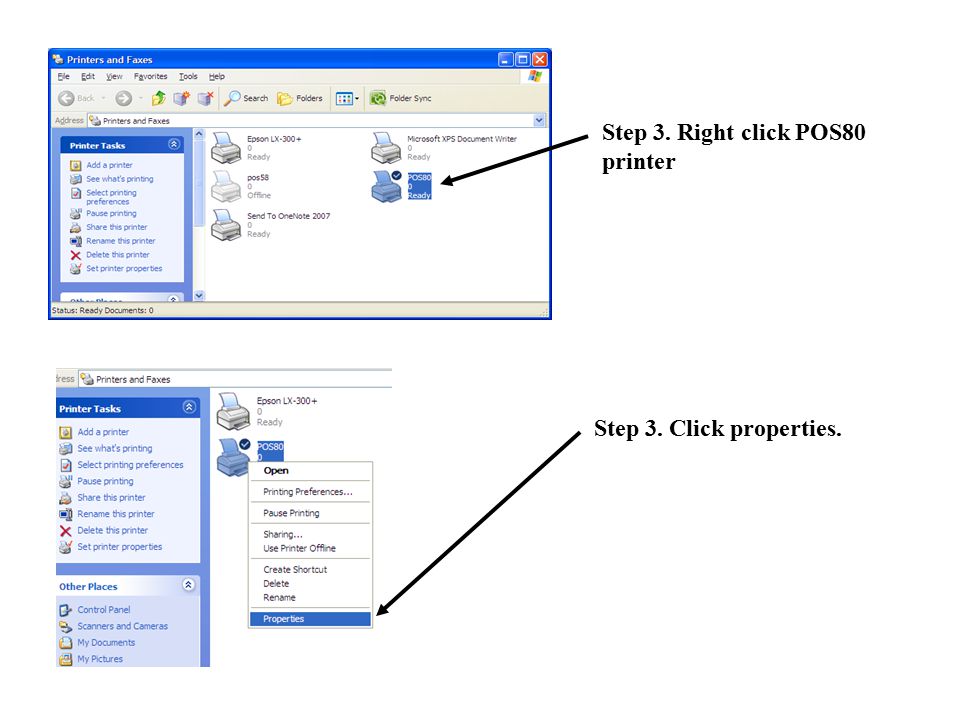

4. Step 3. Right click POS80 printer Step 3. Click properties.

5. Step 4. Click Ports. Step 5. Pull down the ports. Step 6. Click check the USB001. Step 7. Click Apply.

6. Step 8. Click OK. To print test page. Step 9. Click Print Test Page.

7. Configure the drawer in the POS system Step 1. At the cashier window. Click System setup. Step 2. Input the admin/supervisor user name and password. Step 3. Click OK.

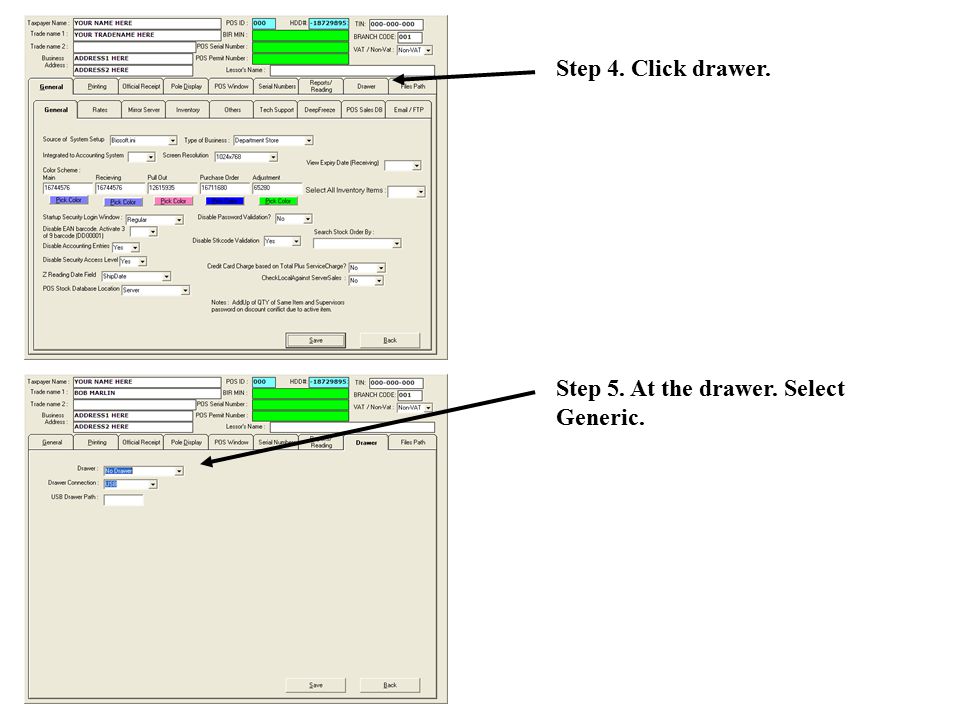

8. Step 4. Click drawer. Step 5. At the drawer. Select Generic.

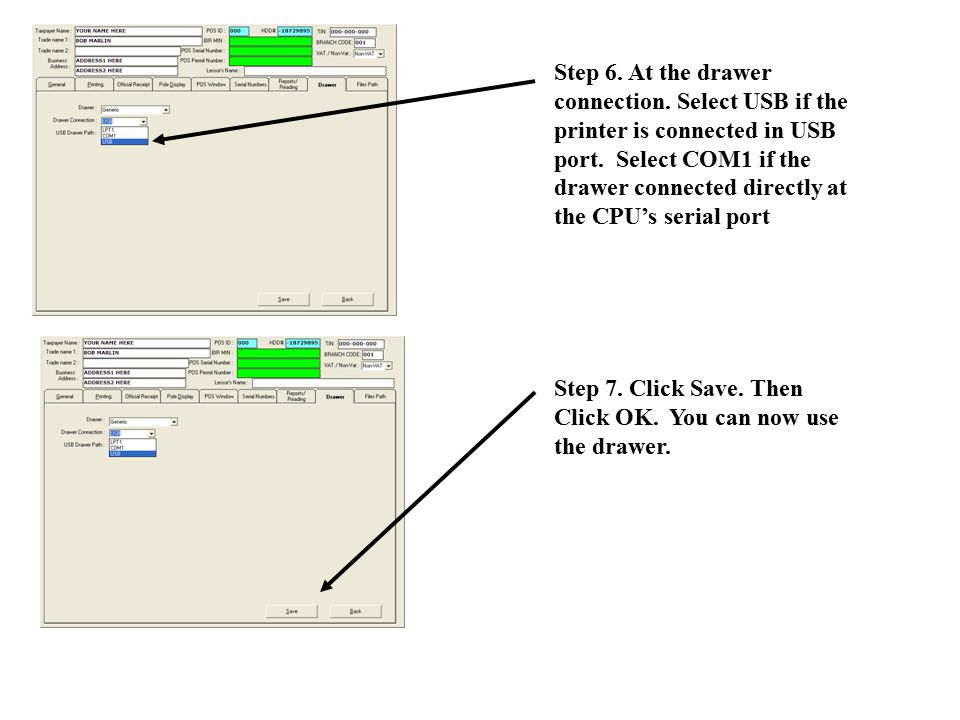

9. Step 6. At the drawer connection. Select USB if the printer is connected in USB port. Select COM1 if the drawer connected directly at the CPU’s serial port Step 7. Click Save. Then Click OK. You can now use the drawer.
