3. HORIZONT 3 XINFO ® What is XINFO? A complete cross referencing tool for reporting and to analyze data from a wide variety of systems of the datacenter: XINFO Assembler, C, Cobol, PL/I, Java, … JCL, Script, CICS, DB2, IMS, SMF, … Automic, CA7, Control-M TWS, Zeke, …

4. HORIZONT 4 XINFO ® What is XINFO? XINFO analyzes your Automic definitions XINFO analyzes z/OS, UNIX and Windows data: JCL, job and program run times, etc. XINFO analyzes SAP Systems XINFO loads the result into a database XINFO has dialogs to query and visualize the data XINFO is an IT information system. It enables you to cross reference data from various systems.

5. HORIZONT 5 XINFO ® UNIX, Windows File content SAP File Scanner SAP Scanner Technical overview zOS, UNIX, Windows Unix, Windows Automic Automic Scanner XINFO Database (DB2, ORACLE, MS-SQL) PC client z/OS JCL SMF JCL Scanner SMF Scanner z/OS, Unix, Windows Own data own scanner z/OS, Windows COBOL, PL1, C, Java, etc. Source code Scanner

6. HORIZONT 6 XINFO ® Typical Questions Which successors has a Job? Which jobs run on which Agents? What is the average runtime of a job? Wich Jobs are not longer used Where is a SYNC used ? When did the Job run last time ? Wich Jobs are inactive ? What is the critical Path? A major part of daily work consists of gathering information. XINFO enables you to access that information. Some typical questions are:

7. HORIZONT 7 XINFO ® Who needs XINFO? Production Planning System Administrators Application Programming Project Groups (Merger, Migration, Implementation)... Everyone, who is involved in batch production, especially:

8. HORIZONT 8 XINFO ® Unix/WindowsWindows XINFO Automic Architecture Oracle, MS-SQL or DB2 z/OS XINFO Automic DBI (Database Interface) Windows PC-Client Oracle/MS-SQL Server Scanner Data

9. HORIZONT 9 XINFO ® XINFO and Automic Universal job netplans (flowcharts), through all JobPlans. You can analyze all dependencies at job level. Fast and powerful search function. You can combine all properties of all objects. Helps to: – Do some evaluations like “which jobs run on server xy?” (even if the host name is set by a variable) – Automatic check your naming standards and rules – „unlimited“ job run time information, to discharge the Automic- Database Easy to use: Enables everybody to get Automic information XINFO is a useful Automic add-on and offers:

10. HORIZONT 10 XINFO ® XINFO and Automic Object definitions: JobPlan, jobs, file transfer, events, etc. for all platforms Pre-Script, script, post-script including script-functions and variables (at z/OS optional output of the JCL „as it will run“) Schedules Sync usage SAP Variants in Automic Jobs Statistic, job run times Forecast (no own XINFO forecast) Activities Revision reports The XINFO Automic Interface analyzes following Data:

11. HORIZONT 11 XINFO ® Automic – Selection Cross- Reference of Automic data Graphical Netplan and Barchart Job-History and Forecast The PC-Client gives you easy access to the data:

12. HORIZONT 12 XINFO ® Automic – Job Definitions Search for all UNIX JOBS with Archive Key „TSM“

13. HORIZONT 13 XINFO ® Automic – Job Definitions The Jobs Archive keys of the jobs HOST and LOGIN are also determined from pre-script and script

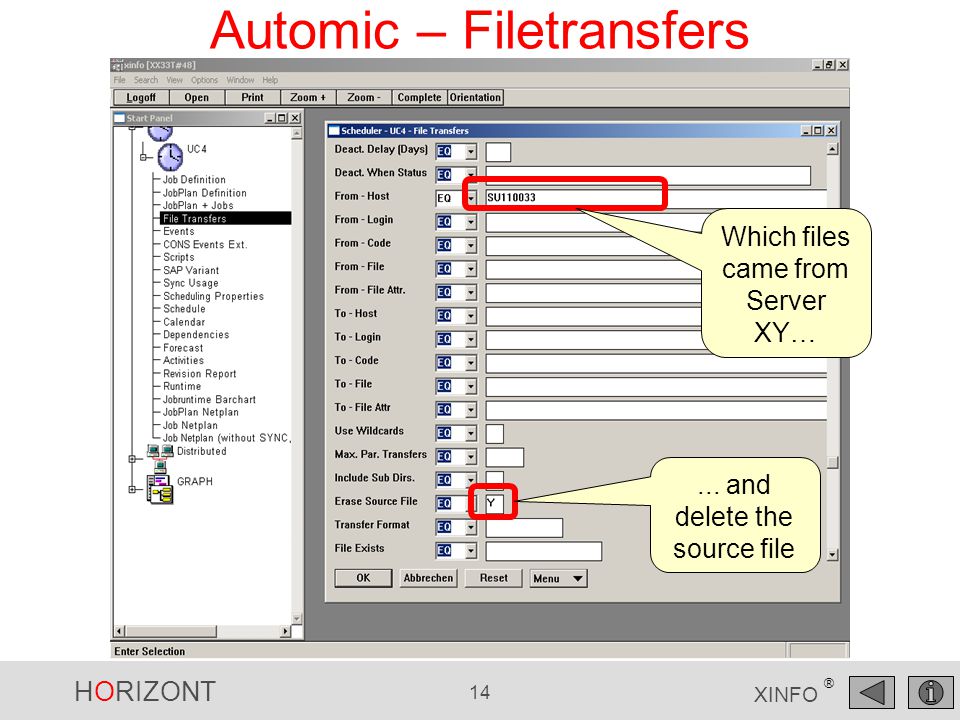

14. HORIZONT 14 XINFO ® Automic – Filetransfers... and delete the source file Which files came from Server XY…

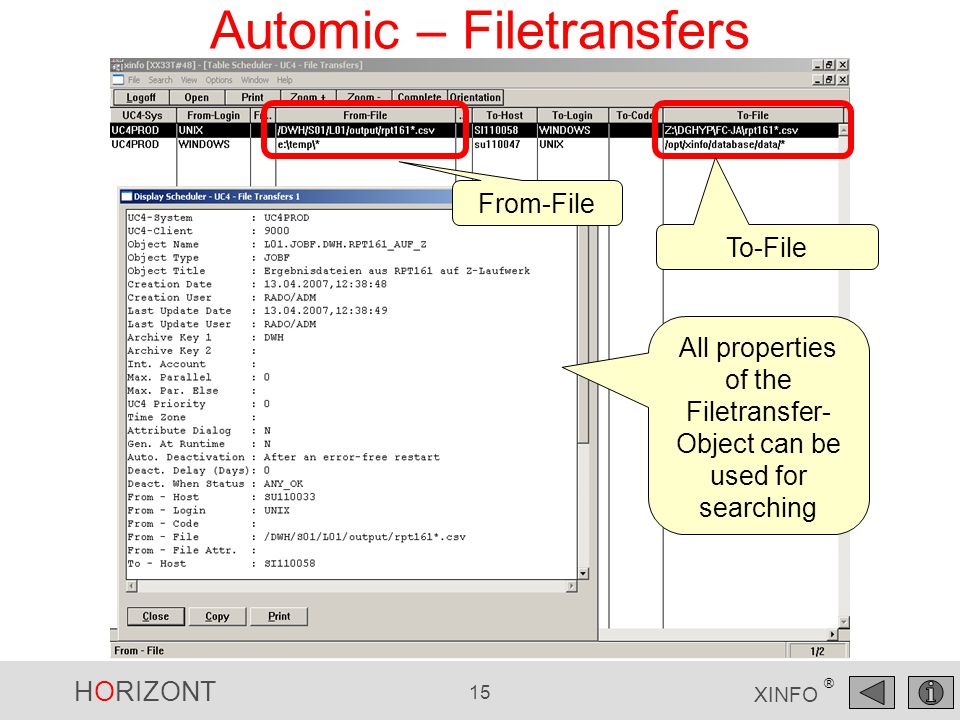

15. HORIZONT 15 XINFO ® Automic – Filetransfers From-File To-File All properties of the Filetransfer- Object can be used for searching

16. HORIZONT 16 XINFO ® Automic – Calendar Which objects are using this calendar keyword

17. HORIZONT 17 XINFO ® Automic – Calendar In this JobPlans...... this objects (JOBS, JOBP etc.) are using......this calendar key

18. HORIZONT 18 XINFO ® XINFO – Line Commands On all result displays you can use “right mouse click” to jump directly to other XINFO data

19. HORIZONT 19 XINFO ® XINFO – Line Commands e.g. from Job definition to “run time”, or to SAP, or to JCL,…

20. HORIZONT 20 XINFO ® Automic – Runtime (Job History) When did in January the backup jobs run?

21. HORIZONT 21 XINFO ® Automic – Runtime (Job History) Automic Objects (Jobs, JobPlans, Filetransfer etc.) Start / End Status, Duration, CPU-Time … You can keep this run time information in XINFO for a very long time

22. HORIZONT 22 XINFO ® Automic – Runtime Barchart Time axis Yellow: Activation Green: run time Red: Error Number active Automic Objects (Jobs, JobPlans, Filetransfer etc.)

23. HORIZONT 23 XINFO ® XINFO – Export Use „File save as“ to export XINFO-Data Choose file type: txt, csv, htm, wmf, bmp, jpg, u.v.w.

24. HORIZONT 24 XINFO ® Automic – (Auto) Forecast Look in the future: When will the “backups” run?

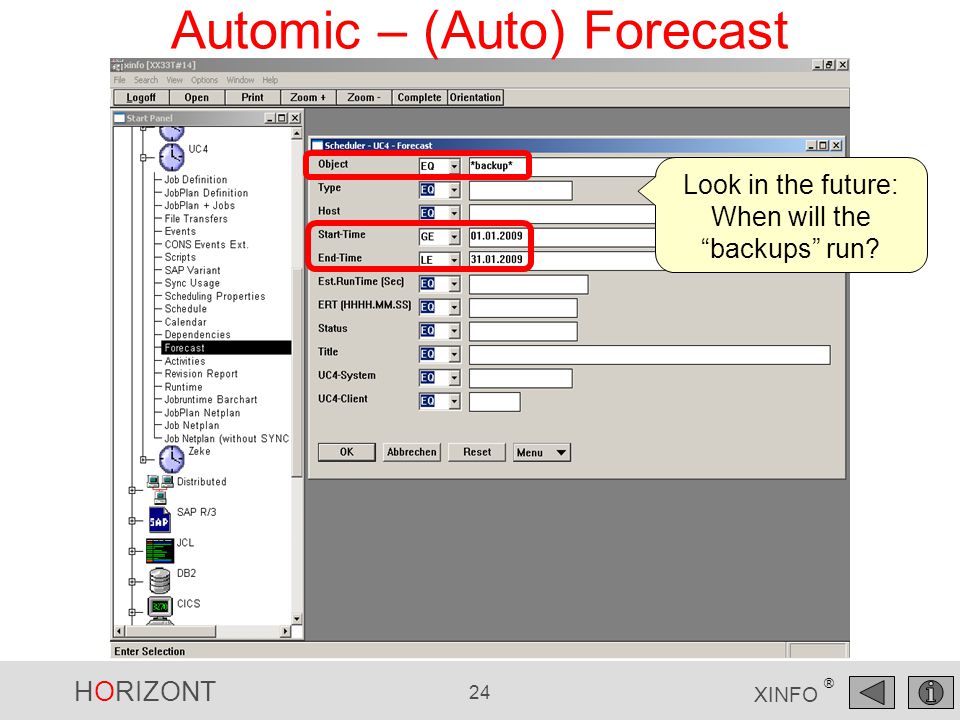

25. HORIZONT 25 XINFO ® Automic – Forecast Automic Objects (Jobs, JobPlans, Filetransfer etc.) Planned Start / End Planned Duration The calculation will be done by the Automic forecast function. The time span is set in UC_CLIENT_SETTINGS and AUTO_FORECAST_DAYS

26. HORIZONT 26 XINFO ® Automic – JobPlan Netplan, the Objects EVNT JobPlan Object CALL Cluster, here JobPlan End SCRI JOBS JOBFiletransfer SYNC Start

27. HORIZONT 27 XINFO ® Automic – JobPlan Netplan Detail information by double click. These fields can be added to all Symbols (e.g. Host)

28. HORIZONT 28 XINFO ® Automic – JobPlan Netplan You can optional change the color, shape, fields etc. of all symbols

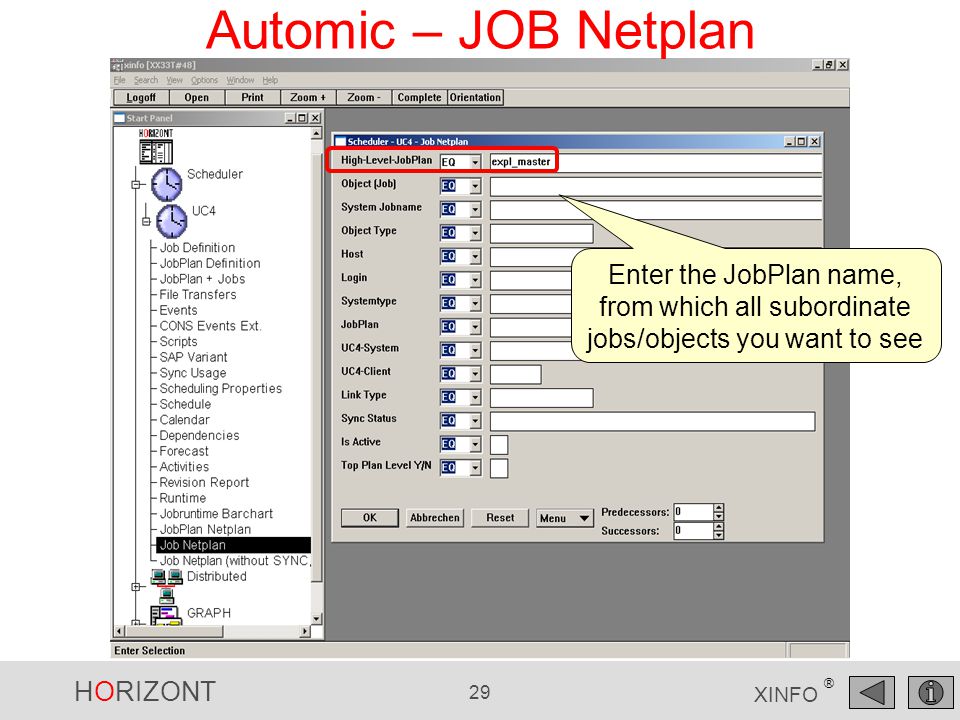

29. HORIZONT 29 XINFO ® Automic – JOB Netplan Enter the JobPlan name, from which all subordinate jobs/objects you want to see

30. HORIZONT 30 XINFO ® Automic – JOB Netplan Jobnetplan with all objects of the „master plan“ plus all objects of its JobPlans

31. HORIZONT 31 XINFO ® Automic – JOB Netplan Option Cluster by „JobPlan“

32. HORIZONT 32 XINFO ® Automic – JOB Netplan „Master-Plan“ JobPlan-A JobPlan-B JobPlan-C

33. HORIZONT 33 XINFO ® Automic – JOB Netplan, Pred/Succ-Level „Right mouse“, Predecessor/Success or Netplan

34. HORIZONT 34 XINFO ® Automic – JOB Netplan One level predecessor and „all“ Successor Plan comprehensive Automic flowcharts can only be found in XINFO

35. HORIZONT 35 XINFO ® Automic – JOB Netplan Printing XINFO print preview for Netplans

36. HORIZONT 36 XINFO ® Hierarchical Netplan The new graphic „Object Hierarchy“ shows which objects contain which objects (Plan in Plan)

37. HORIZONT 37 XINFO ® Hierarchical Netplan JOBP „MASTER“ contain EXPL_MASTER and TEST_MASTER

38. HORIZONT 38 XINFO ® Hierarchical Netplan JOBP EXPL_C is member of EXPL_MASTER and contains some JOBS etc.

39. HORIZONT 39 XINFO ® Critical Path in Automic Jobnetplan Based on „ERT“ the longest Way and the estimated duration for this will be calculated

40. HORIZONT 40 XINFO ® Automic – Analyzed Script Functions XINFO is analyzing Automic script functions (also in Includes) – :INCLUDE ACTIVATE_UC_OBJECT – :SET SYS_ACT_ME_NAME, GET_ATT, GET_UC_SYSTEM_NAME, SYS_ACT_PARENT_TYPE, SYS_ACT_JP, SYS_ACT_TOP_NAME, SYS_ACT_CLIENT, SYS_ACT_ME_TYPE SYS_ACT_PARENT_NAME, STR_SUB, STR_CAT, STR_FIND, SUBSTR, STR_LENGTH, STR_FIND_REVERSE, ADD GET_VAR

41. HORIZONT 41 XINFO ® Automic – Analyzed Script Functions XINFO is analyzing Automic script functions (also in Includes) – Prep Process Var get_process_line Get Var Terminate – IF ELSE ENDIF

42. HORIZONT 42 XINFO ® Automic – Analyzed Script Functions XINFO is analyzing Automic script functions – : PUT_ATT for Jobs, Events und Filetransfers HOST LOGIN – For File Transfers: FT_SRC_HOST FT_SRC_LOGIN FT_SRC_CODE FT_SRC_FILE FT_SRC_FILE_ATTRIBUTES FT_DST_HOST FT_DST_LOGIN FT_DST_CODE FT_DST_FILE FT_DST_FILE_ATTRIBUTES

43. HORIZONT 43 XINFO ® Automic – Analyzed Script Functions XINFO is analyzing Automic script functions :PSET and functions GET_ATT,, ADD, SYS_ACT_PARENT_NAME, SYS_ACT_PARENT_TYPE, SYS_ACT_JP, SYS_ACT_TOP_NAME

44. HORIZONT 44 XINFO ® XINFO - Batch Interface /*********************************************************************/ /* */ /* Logon-Parameter for automatische Batchsteuerung */ /* */ /*********************************************************************/ CLOSE=ALL LOGON= 'C:\PROGRAMME\XINFO\LOGON_USER_MAX.LGN ' /*********************************************************************/ /* */ /* Ein- & Ausgabedateien */ /* */ /*********************************************************************/ LOAD_PRED=99 LOAD_SUCC=99 /*********************************************************************/ SELECTION_FILE='C:\PROGRAMME\XINFO\AUSWAHL_AUTOMIC.TXT' CREATE_JPG_FILE='C:\TEMP\GRAFIK_1.JPG' /*********************************************************************/ EXIT /* Exit XINFO */ XINFO.EXE /CMD=BATCH.BIF encrypted logon-Data A saved selection Output file name and type

45. HORIZONT 45 XINFO ® XINFO - Batch Interface BIF Statements like ARRANGE, IF, SCAN and GOTO are available. Using this and the XINFO- Linecommands, you can create complex reports and documentations.

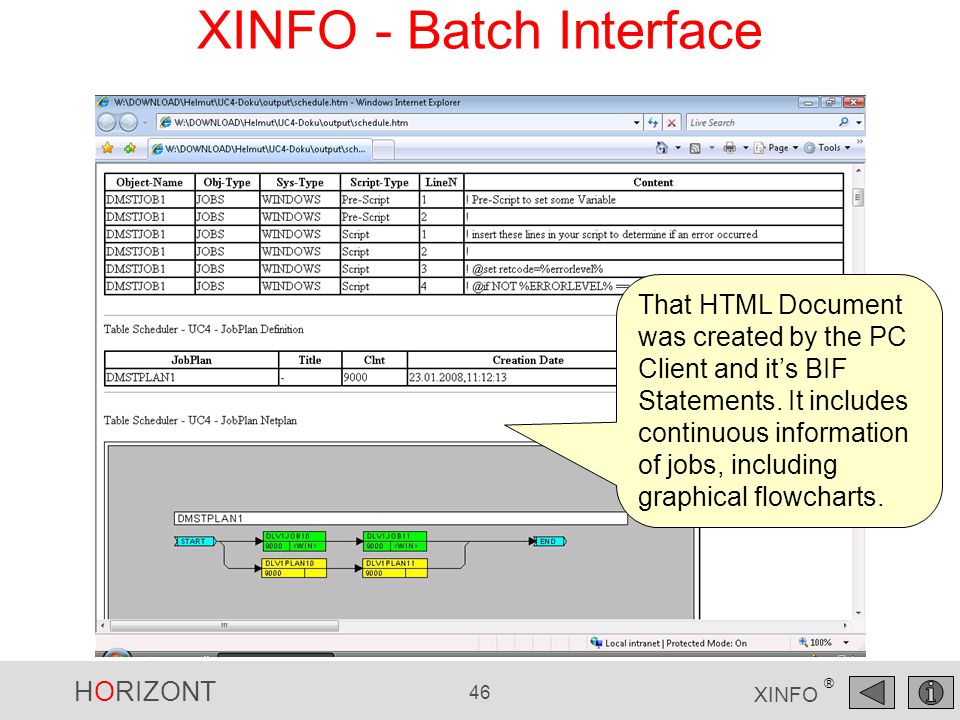

46. HORIZONT 46 XINFO ® XINFO - Batch Interface That HTML Document was created by the PC Client and it’s BIF Statements. It includes continuous information of jobs, including graphical flowcharts.

47. HORIZONT 47 XINFO ® New since XINFO-Automic 3.7 Support of Automic version 10. Several new Tables : Script Definitions Queue Definitions Login Definitions - (In wich Login Object User x is defined ) Variable Definitions - (Search for the content of a Vara) Agents - (To wich Client did the Agent belong to) Transfered Files - (Wich File was really transferred) Conditions/Actions Recurring Tasks

48. HORIZONT 48 XINFO ® New with XINFO 3.7 Schedules are displayed in a Netplan Deleted Objects are shown in a Netplan with a new Symbol
