1. 11 Office of the Manager, NCS NGN Priority Services Efforts Presentation to CSRIC Office of the Manager, NCS NGN Priority Services Efforts Presentation to CSRIC Frank J Suraci GETS/WPS Prog Mgr March 22, 2010

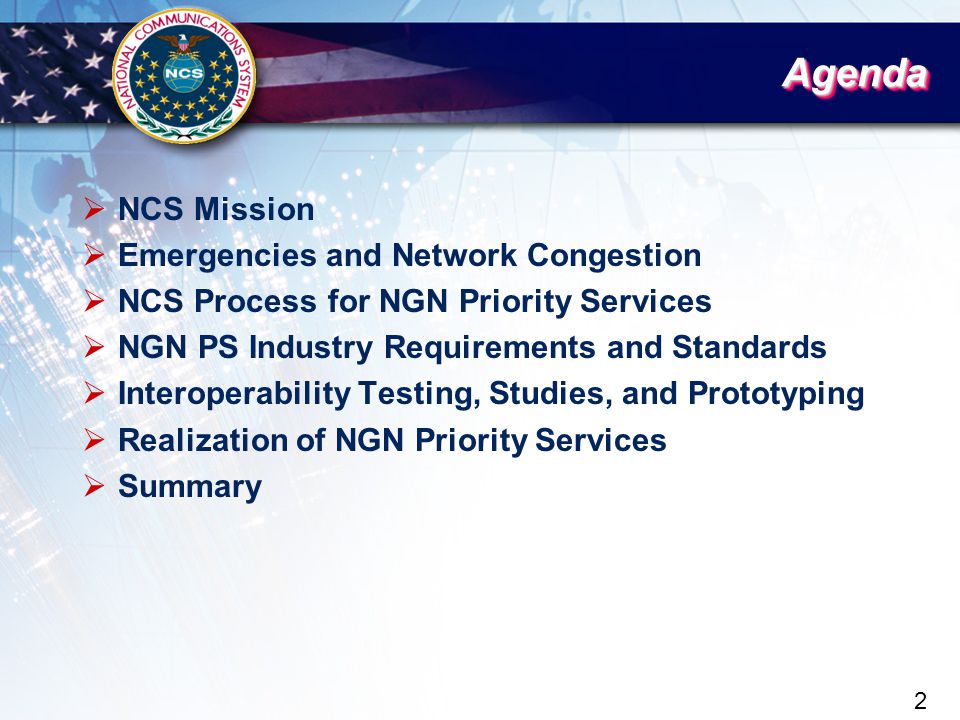

2. 2 AgendaAgenda  NCS Mission  Emergencies and Network Congestion  NCS Process for NGN Priority Services  NGN PS Industry Requirements and Standards  Interoperability Testing, Studies, and Prototyping  Realization of NGN Priority Services  Summary

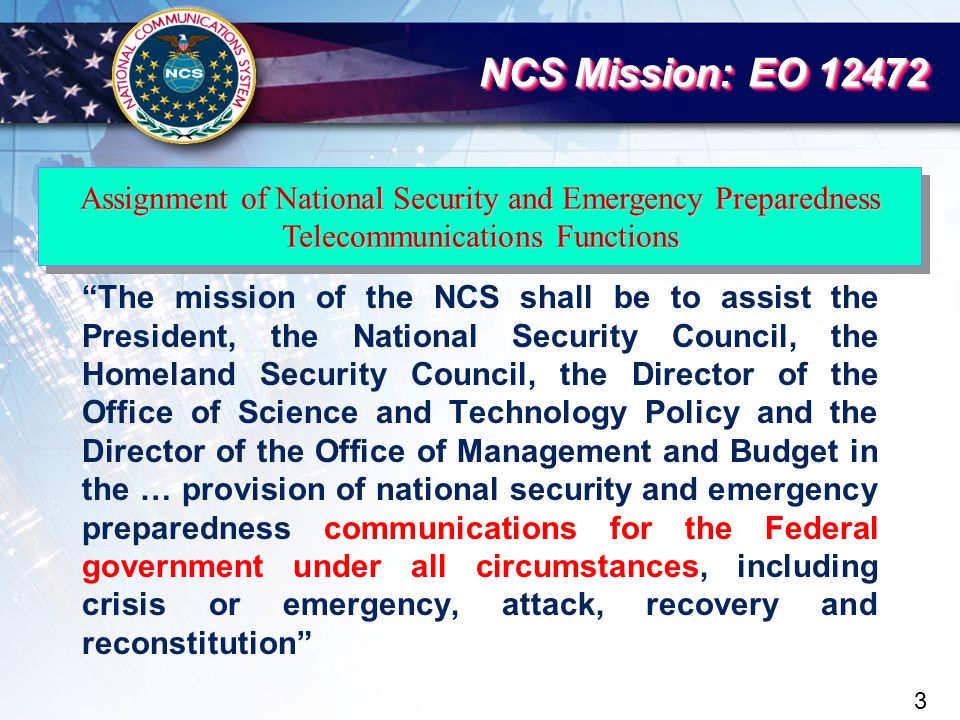

3. 3 NCS Mission: EO 12472 Assignment of National Security and Emergency Preparedness Telecommunications Functions “The mission of the NCS shall be to assist the President, the National Security Council, the Homeland Security Council, the Director of the Office of Science and Technology Policy and the Director of the Office of Management and Budget in the … provision of national security and emergency preparedness communications for the Federal government under all circumstances, including crisis or emergency, attack, recovery and reconstitution”

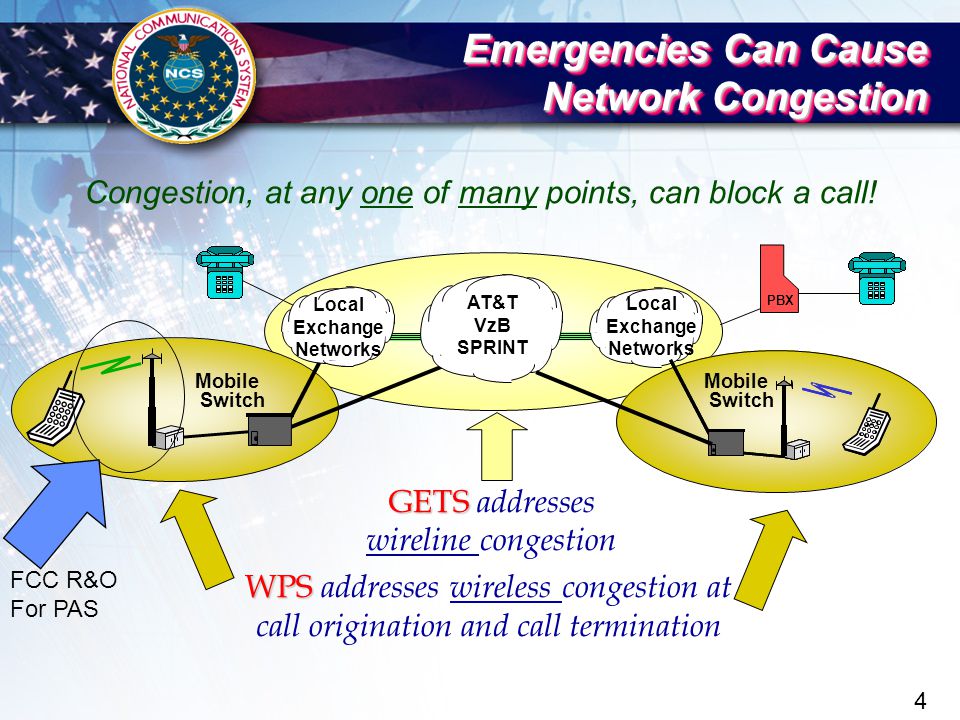

4. 4 Emergencies Can Cause Network Congestion AT&T VzB SPRINT Local Exchange Networks Mobile Switch GETS GETS addresses wireline congestion Local Exchange Networks WPS WPS addresses wireless congestion at call origination and call termination PBX Congestion, at any one of many points, can block a call! Mobile Switch FCC R&O For PAS

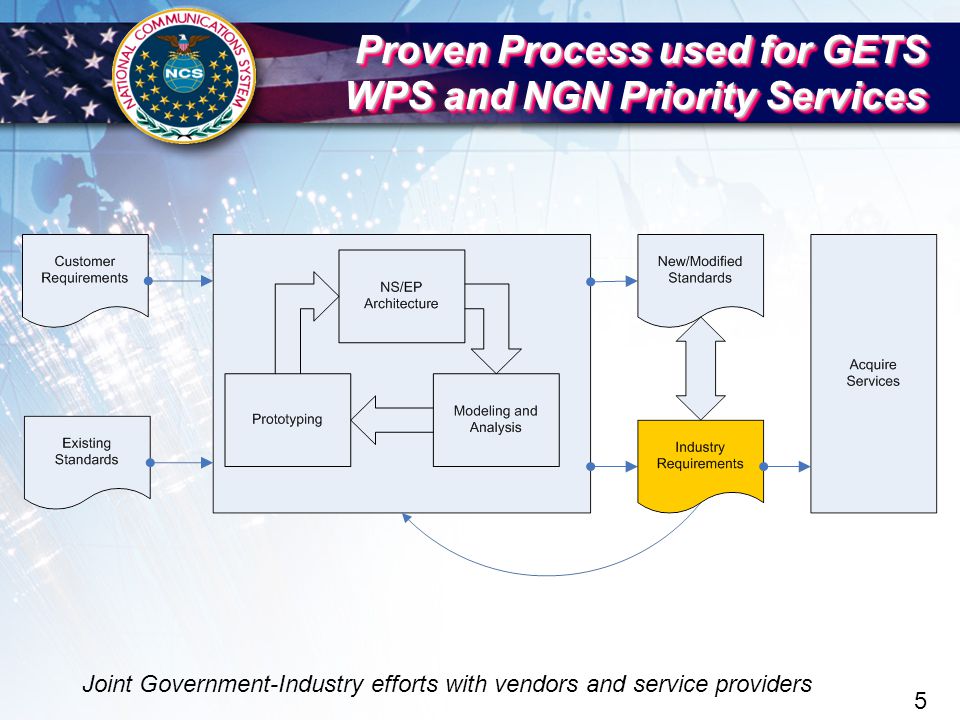

5. 5 Proven Process used for GETS WPS and NGN Priority Services Joint Government-Industry efforts with vendors and service providers

6. 6 White House CWG Report July 2001 NS/EP Telecommunication Services Functional Recommendations Description Voice Band Service The service must provide voice band service in support of presidential and other communications. Interoperability Services must interconnect and interoperate with other selected government or private facilities, systems, and networks. Survivability/Endurability Services must be robust to support surviving users under a broad range of circumstances, from the widespread damage of a natural or man-made disaster up to and including nuclear war. International Connectivity Services must provide access to and egress from international carriers. Ubiquitous Coverage Services must be readily accessible to support the national security leadership and inter- and intra-agency emergency operations, wherever they are located. Enhanced Priority Treatment Services supporting NS/EP missions must be provided priority treatment over other traffic. Anonymity Selected users must be able to use NS/EP services without risk of usage being traced (i.e., without risk of user or location being identified).

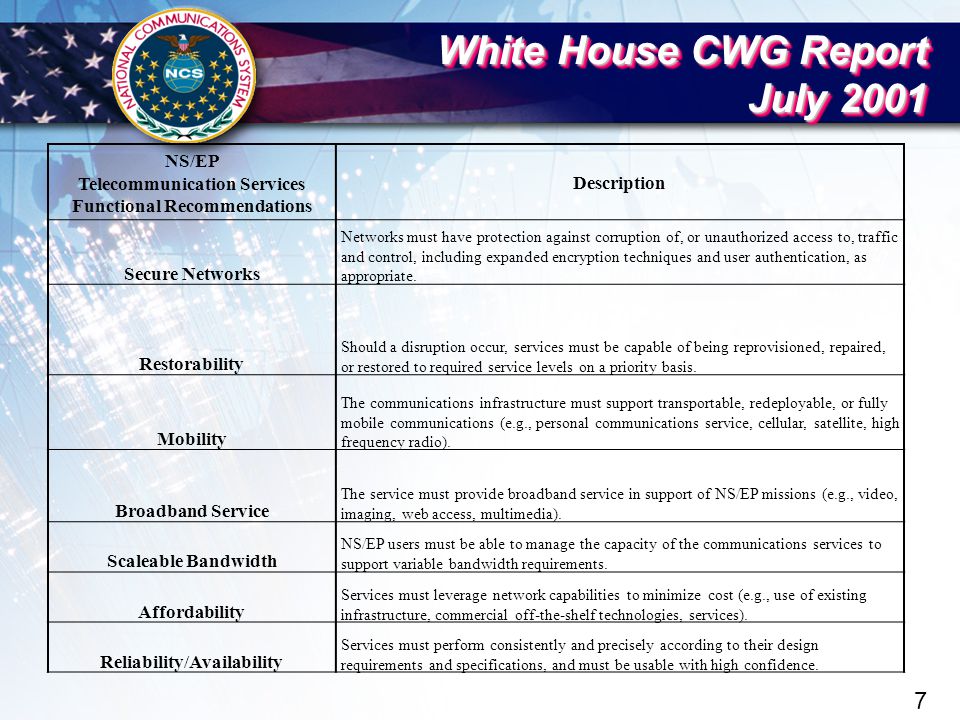

7. 7 White House CWG Report July 2001 NS/EP Telecommunication Services Functional Recommendations Description Secure Networks Networks must have protection against corruption of, or unauthorized access to, traffic and control, including expanded encryption techniques and user authentication, as appropriate. Restorability Should a disruption occur, services must be capable of being reprovisioned, repaired, or restored to required service levels on a priority basis. Mobility The communications infrastructure must support transportable, redeployable, or fully mobile communications (e.g., personal communications service, cellular, satellite, high frequency radio). Broadband Service The service must provide broadband service in support of NS/EP missions (e.g., video, imaging, web access, multimedia). Scaleable Bandwidth NS/EP users must be able to manage the capacity of the communications services to support variable bandwidth requirements. Affordability Services must leverage network capabilities to minimize cost (e.g., use of existing infrastructure, commercial off-the-shelf technologies, services). Reliability/Availability Services must perform consistently and precisely according to their design requirements and specifications, and must be usable with high confidence.

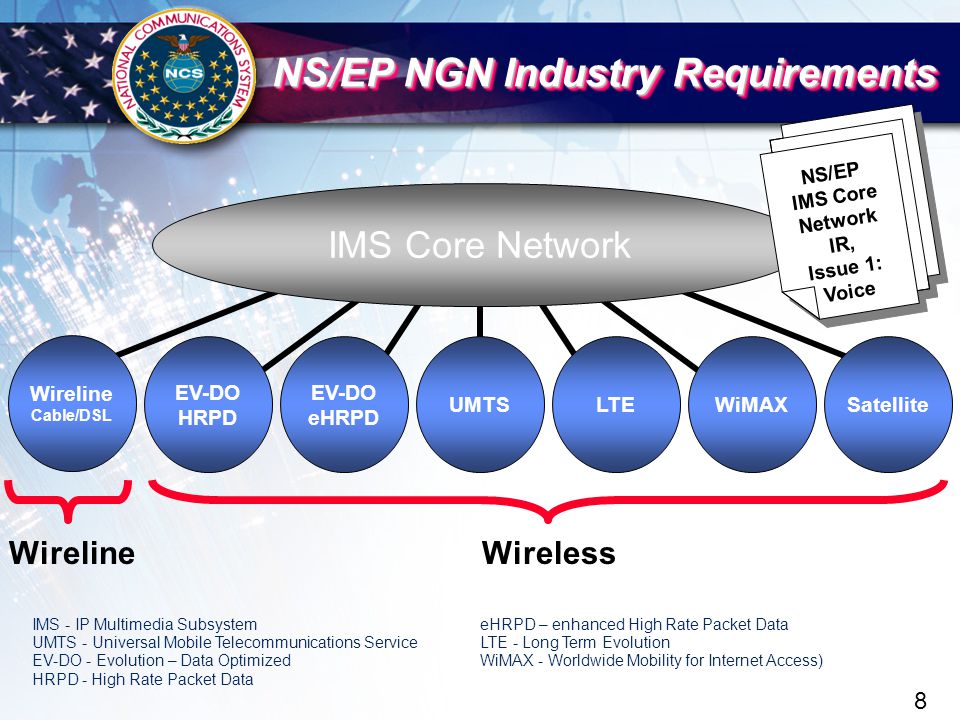

8. 8 Wireline Cable/DSL IMS Core Network EV-DO HRPD EV-DO eHRPD UMTSLTEWiMAXSatellite NS/EP IMS Core Network IR, Issue 1: Voice NS/EP IMS Core Network IR, Issue 1: Voice NS/EP NGN Industry Requirements IMS - IP Multimedia Subsystem UMTS - Universal Mobile Telecommunications Service EV-DO - Evolution – Data Optimized HRPD - High Rate Packet Data eHRPD – enhanced High Rate Packet Data LTE - Long Term Evolution WiMAX - Worldwide Mobility for Internet Access) WirelineWireless

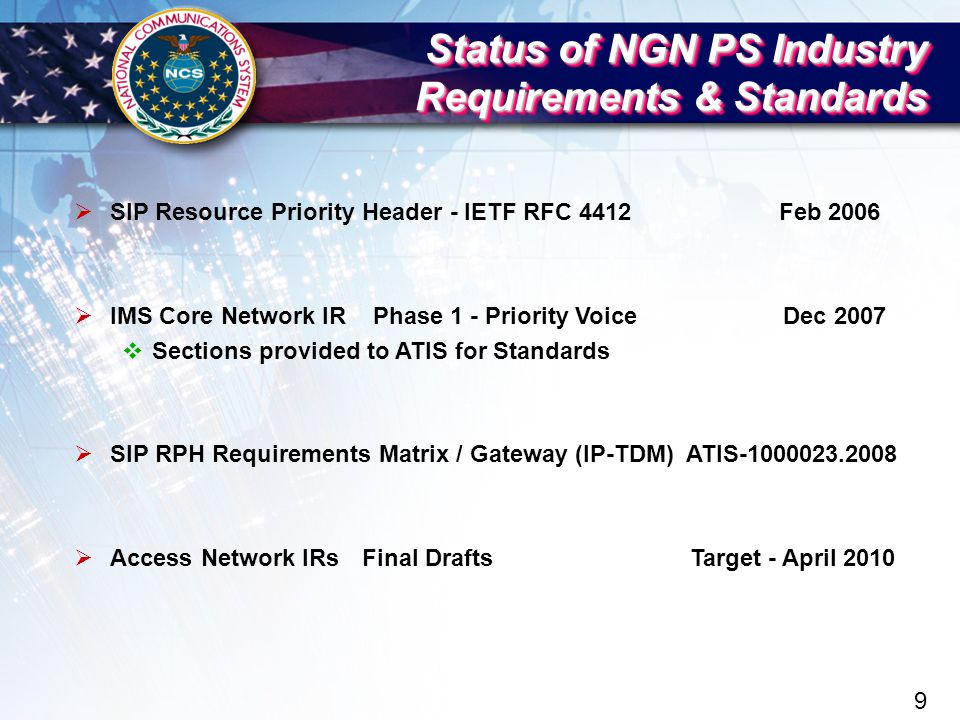

9. 9 Status of NGN PS Industry Requirements & Standards  SIP Resource Priority Header - IETF RFC 4412 Feb 2006  IMS Core Network IR Phase 1 - Priority Voice Dec 2007  Sections provided to ATIS for Standards  SIP RPH Requirements Matrix / Gateway (IP-TDM) ATIS-1000023.2008  Access Network IRs Final Drafts Target - April 2010

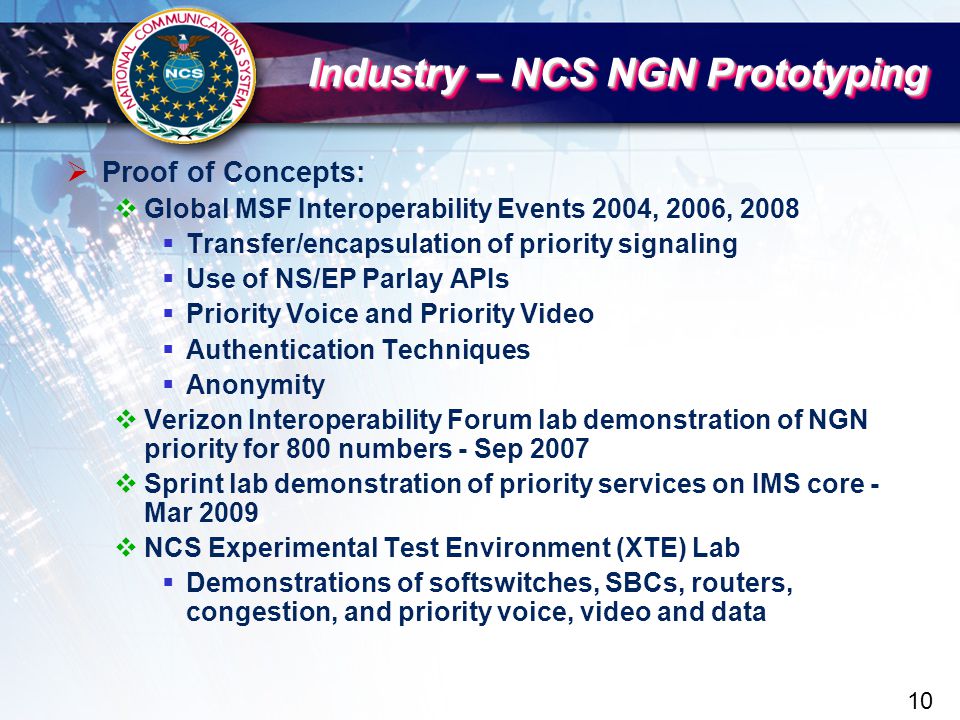

10. 10 Industry – NCS NGN Prototyping  Proof of Concepts:  Global MSF Interoperability Events 2004, 2006, 2008  Transfer/encapsulation of priority signaling  Use of NS/EP Parlay APIs  Priority Voice and Priority Video  Authentication Techniques  Anonymity  Verizon Interoperability Forum lab demonstration of NGN priority for 800 numbers - Sep 2007  Sprint lab demonstration of priority services on IMS core - Mar 2009  NCS Experimental Test Environment (XTE) Lab  Demonstrations of softswitches, SBCs, routers, congestion, and priority voice, video and data

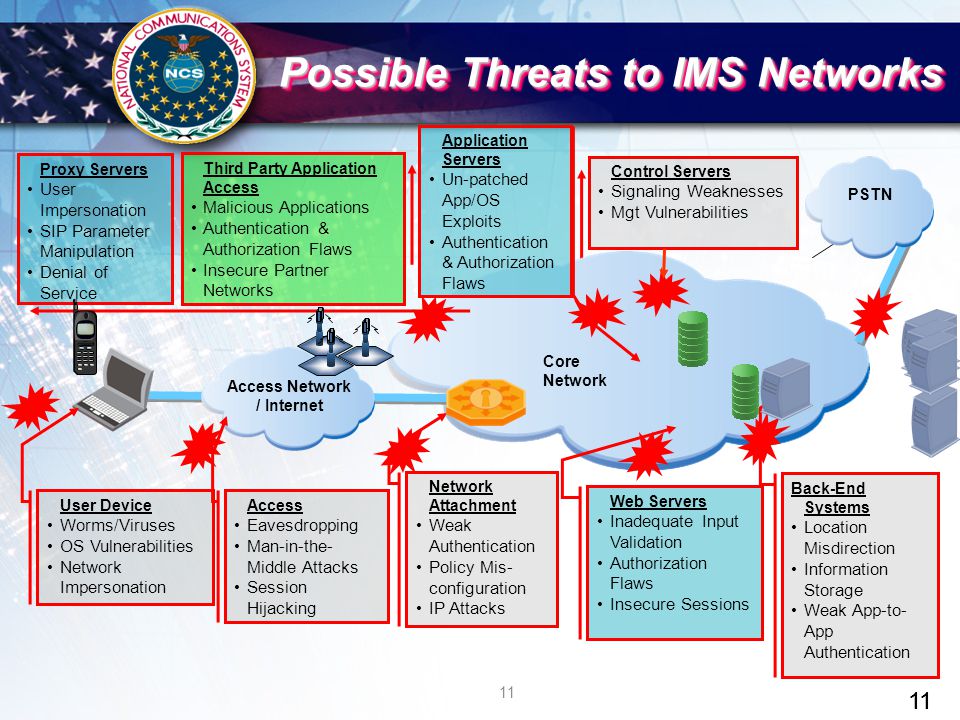

11. 11 Control Servers Signaling Weaknesses Mgt Vulnerabilities Access Network / Internet User Device Worms/Viruses OS Vulnerabilities Network Impersonation Access Eavesdropping Man-in-the- Middle Attacks Session Hijacking Network Attachment Weak Authentication Policy Mis- configuration IP Attacks Application Servers Un-patched App/OS Exploits Authentication & Authorization Flaws Back-End Systems Location Misdirection Information Storage Weak App-to- App Authentication Web Servers Inadequate Input Validation Authorization Flaws Insecure Sessions Proxy Servers User Impersonation SIP Parameter Manipulation Denial of Service Third Party Application Access Malicious Applications Authentication & Authorization Flaws Insecure Partner Networks PSTN Core Network Possible Threats to IMS Networks

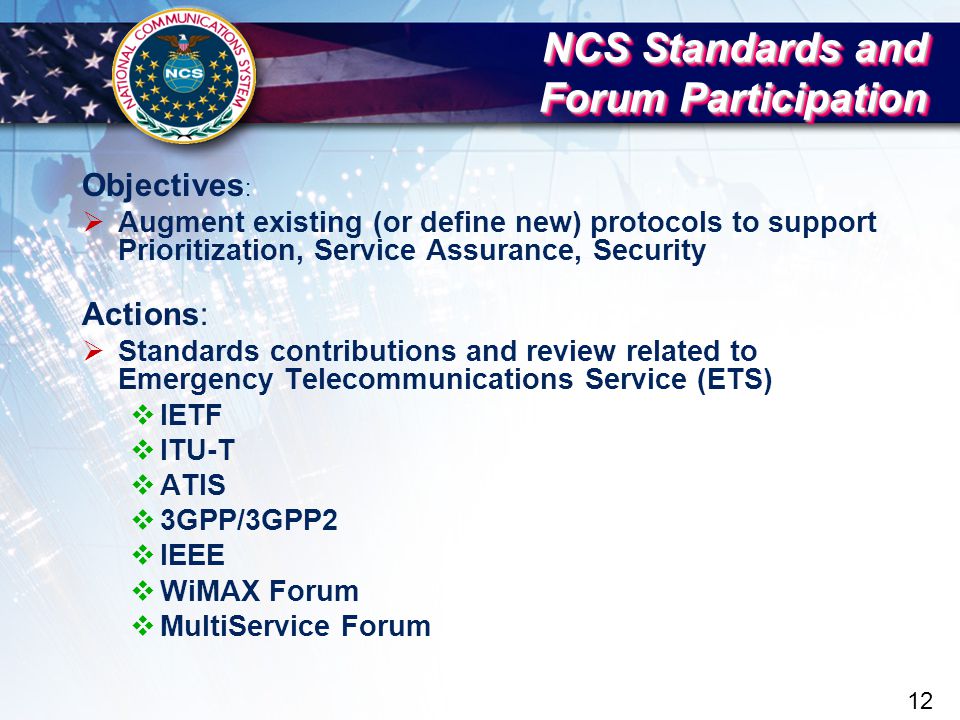

12. 12 NCS Standards and Forum Participation Objectives :  Augment existing (or define new) protocols to support Prioritization, Service Assurance, Security Actions:  Standards contributions and review related to Emergency Telecommunications Service (ETS)  IETF  ITU-T  ATIS  3GPP/3GPP2  IEEE  WiMAX Forum  MultiService Forum

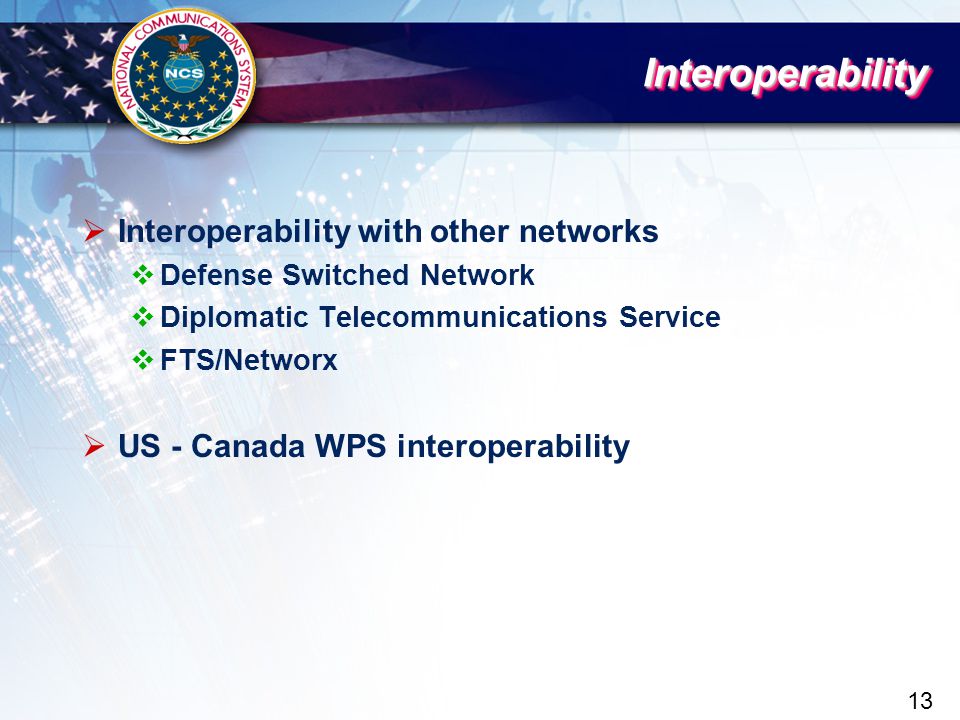

13. 13 InteroperabilityInteroperability  Interoperability with other networks  Defense Switched Network  Diplomatic Telecommunications Service  FTS/Networx  US - Canada WPS interoperability

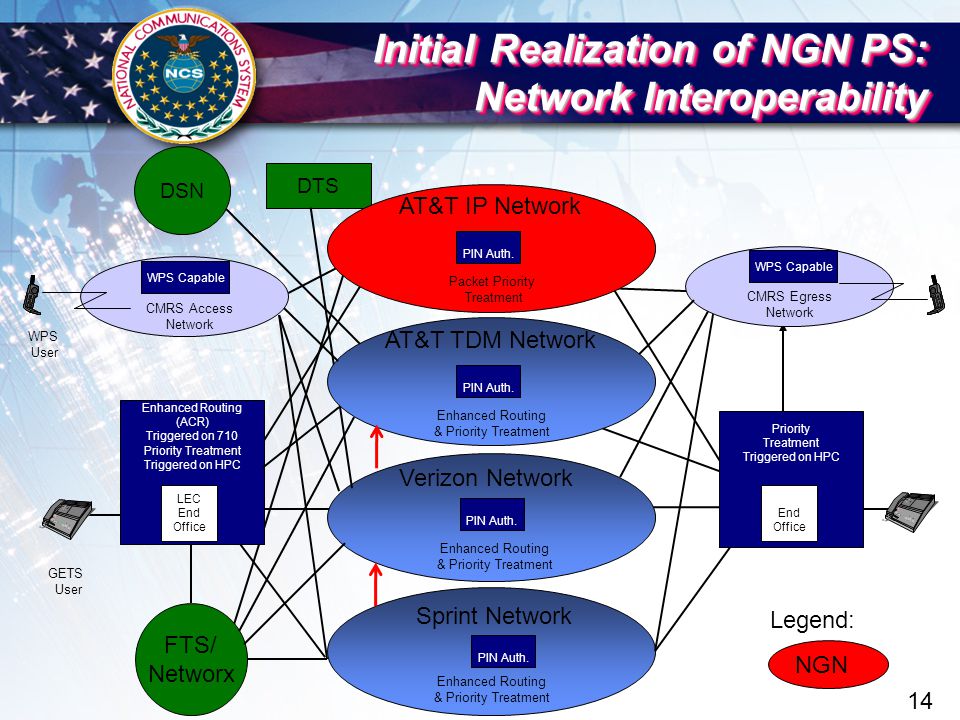

14. 14 Initial Realization of NGN PS: Network Interoperability Enhanced Routing (ACR) Triggered on 710 Priority Treatment Triggered on HPC LEC End Office Priority Treatment Triggered on HPC End Office PIN Auth. Enhanced Routing & Priority Treatment Verizon Network PIN Auth. Enhanced Routing & Priority Treatment Sprint Network WPS Capable CMRS Access Network FTS/ Networx DSN DTS WPS Capable CMRS Egress Network GETS User WPS User PIN Auth. Enhanced Routing & Priority Treatment AT&T TDM Network PIN Auth. Packet Priority Treatment AT&T IP Network NGN Legend:

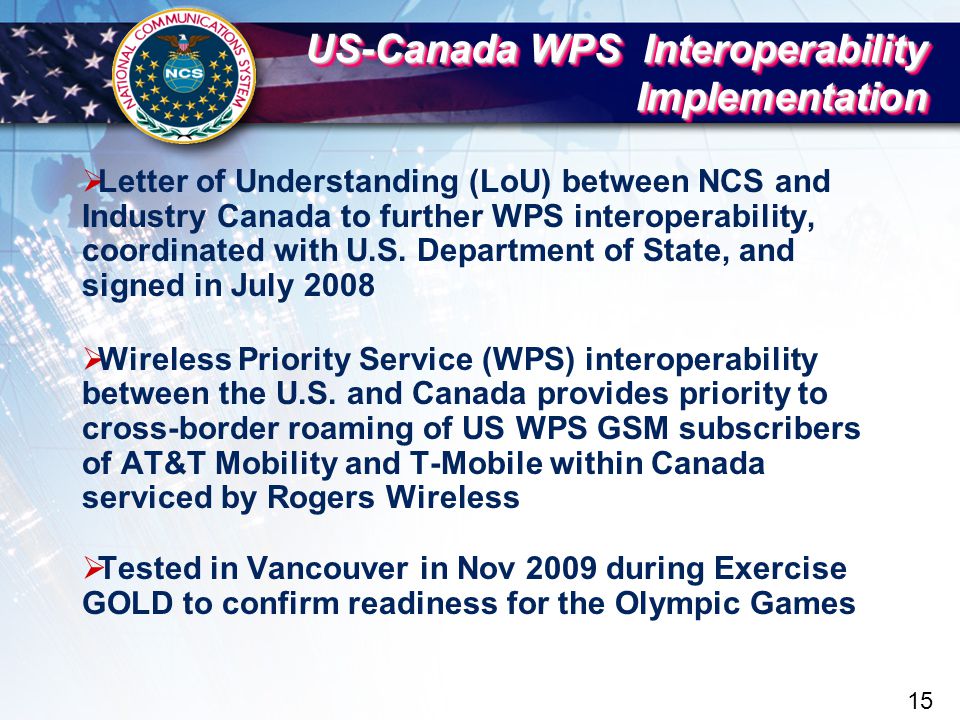

15. 15 US-Canada WPS Interoperability Implementation  Letter of Understanding (LoU) between NCS and Industry Canada to further WPS interoperability, coordinated with U.S. Department of State, and signed in July 2008  Wireless Priority Service (WPS) interoperability between the U.S. and Canada provides priority to cross-border roaming of US WPS GSM subscribers of AT&T Mobility and T-Mobile within Canada serviced by Rogers Wireless  Tested in Vancouver in Nov 2009 during Exercise GOLD to confirm readiness for the Olympic Games

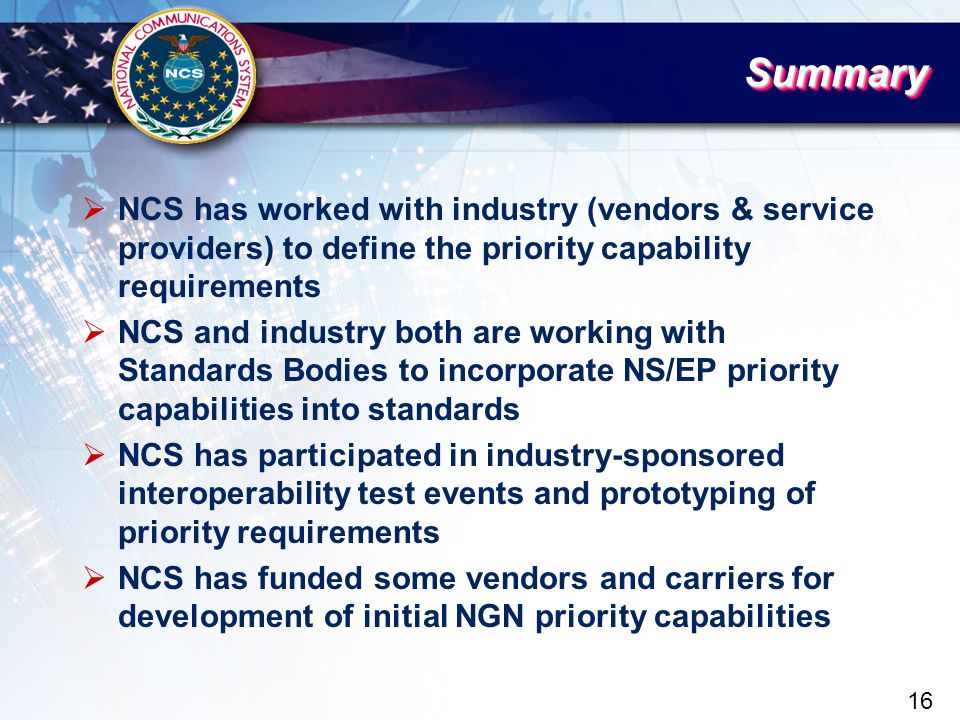

16. 16 SummarySummary  NCS has worked with industry (vendors & service providers) to define the priority capability requirements  NCS and industry both are working with Standards Bodies to incorporate NS/EP priority capabilities into standards  NCS has participated in industry-sponsored interoperability test events and prototyping of priority requirements  NCS has funded some vendors and carriers for development of initial NGN priority capabilities

17. 17 Questions?

18. 18 BACKUPS

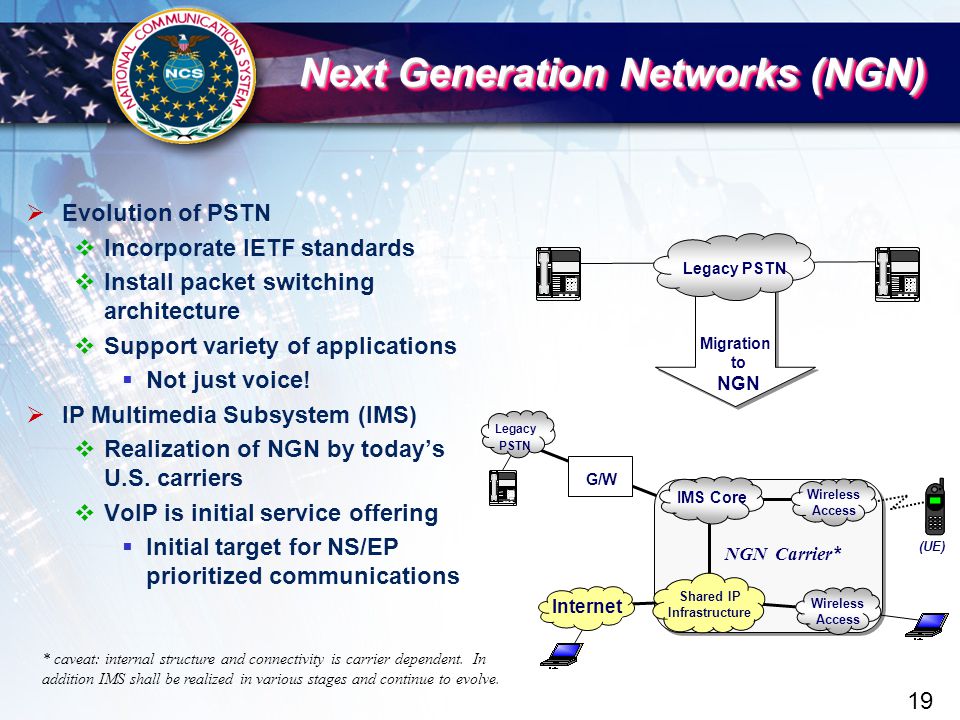

19. 19 Next Generation Networks (NGN)  Evolution of PSTN  Incorporate IETF standards  Install packet switching architecture  Support variety of applications  Not just voice!  IP Multimedia Subsystem (IMS)  Realization of NGN by today’s U.S. carriers  VoIP is initial service offering  Initial target for NS/EP prioritized communications Migration to NGN NGN Carrier Internet (UE) Wireless Access Legacy PSTN 123 456 789 * 8# 123 456 789 * 8# Legacy PSTN IMS Core Shared IP Infrastructure Wireless Access * caveat: internal structure and connectivity is carrier dependent. In addition IMS shall be realized in various stages and continue to evolve. * G/W

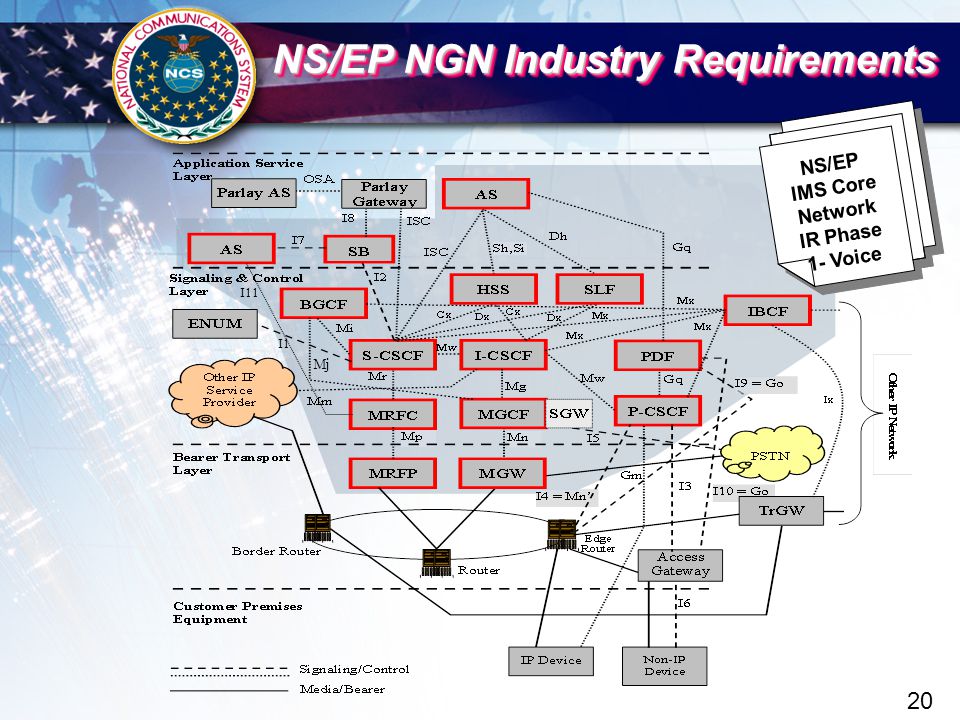

20. 20 NS/EP NGN Industry Requirements Mj I1 I11 NS/EP IMS Core Network IR Phase 1- Voice NS/EP IMS Core Network IR Phase 1- Voice

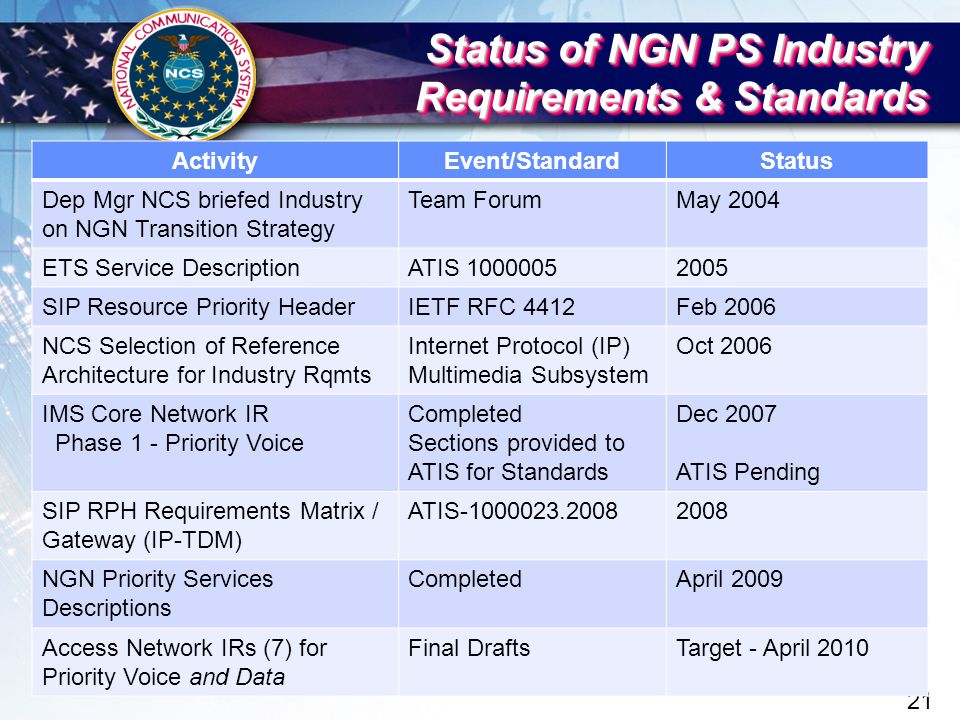

21. 21 Status of NGN PS Industry Requirements & Standards 21 ActivityEvent/StandardStatus Dep Mgr NCS briefed Industry on NGN Transition Strategy Team ForumMay 2004 ETS Service DescriptionATIS 10000052005 SIP Resource Priority HeaderIETF RFC 4412Feb 2006 NCS Selection of Reference Architecture for Industry Rqmts Internet Protocol (IP) Multimedia Subsystem Oct 2006 IMS Core Network IR Phase 1 - Priority Voice Completed Sections provided to ATIS for Standards Dec 2007 ATIS Pending SIP RPH Requirements Matrix / Gateway (IP-TDM) ATIS-1000023.20082008 NGN Priority Services Descriptions CompletedApril 2009 Access Network IRs (7) for Priority Voice and Data Final DraftsTarget - April 2010

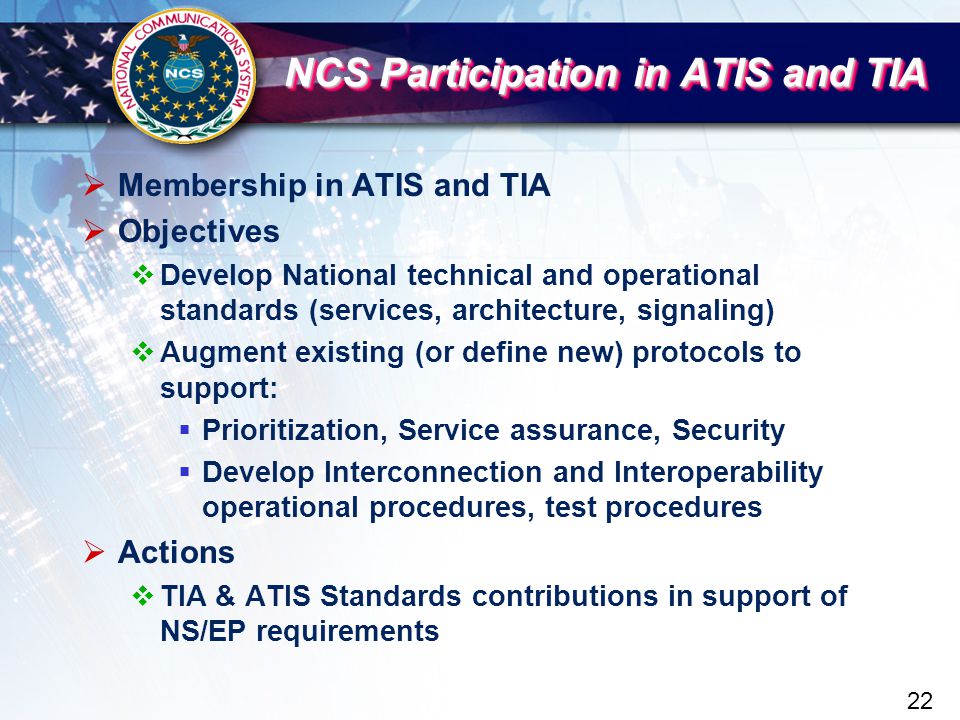

22. 22 NCS Participation in ATIS and TIA  Membership in ATIS and TIA  Objectives  Develop National technical and operational standards (services, architecture, signaling)  Augment existing (or define new) protocols to support:  Prioritization, Service assurance, Security  Develop Interconnection and Interoperability operational procedures, test procedures  Actions  TIA & ATIS Standards contributions in support of NS/EP requirements

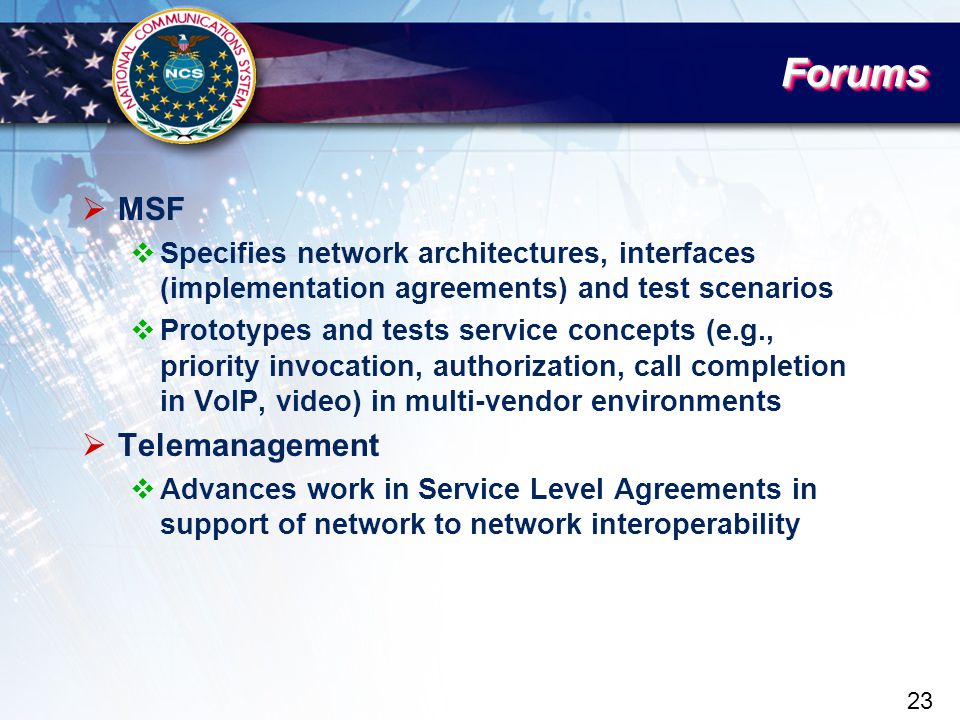

23. 23 ForumsForums  MSF  Specifies network architectures, interfaces (implementation agreements) and test scenarios  Prototypes and tests service concepts (e.g., priority invocation, authorization, call completion in VoIP, video) in multi-vendor environments  Telemanagement  Advances work in Service Level Agreements in support of network to network interoperability
