1 Body Plans 008a

2 The Animal Kingdom Though there is great diversity in the animal kingdom, animals can be distinguished from the other kingdoms by a set of characteristics. Though other types of life may share some of these characteristics, the set of characteristics as a whole provide a distinction from the other kingdoms.kingdoms

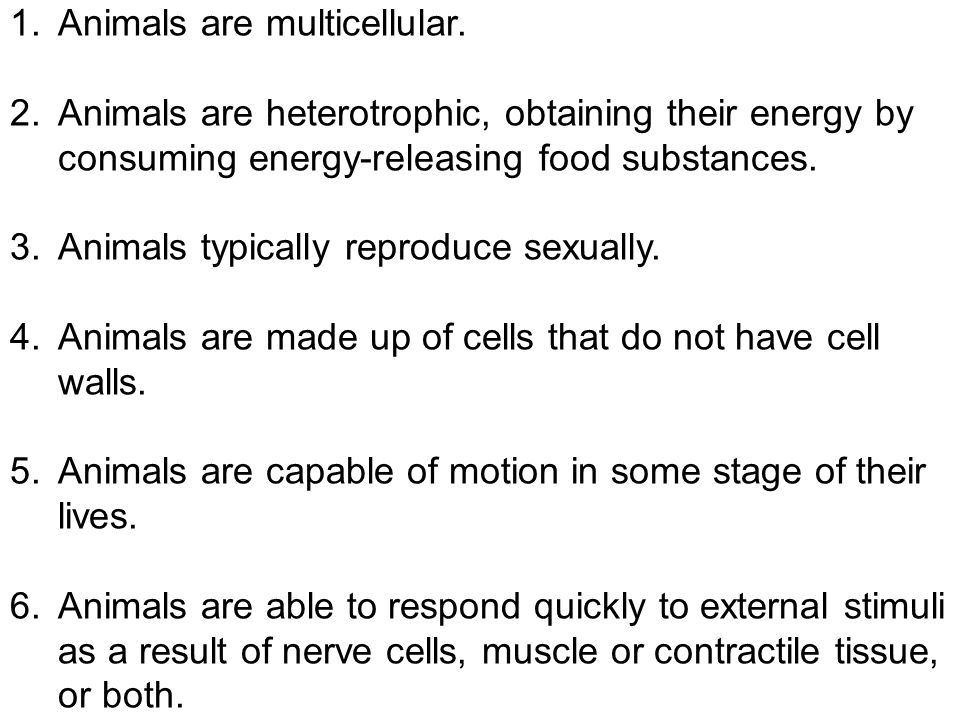

3 1.Animals are multicellular. 2.Animals are heterotrophic, obtaining their energy by consuming energy-releasing food substances. 3.Animals typically reproduce sexually. 4.Animals are made up of cells that do not have cell walls. 5.Animals are capable of motion in some stage of their lives. 6.Animals are able to respond quickly to external stimuli as a result of nerve cells, muscle or contractile tissue, or both.

4 Animal Body Plans

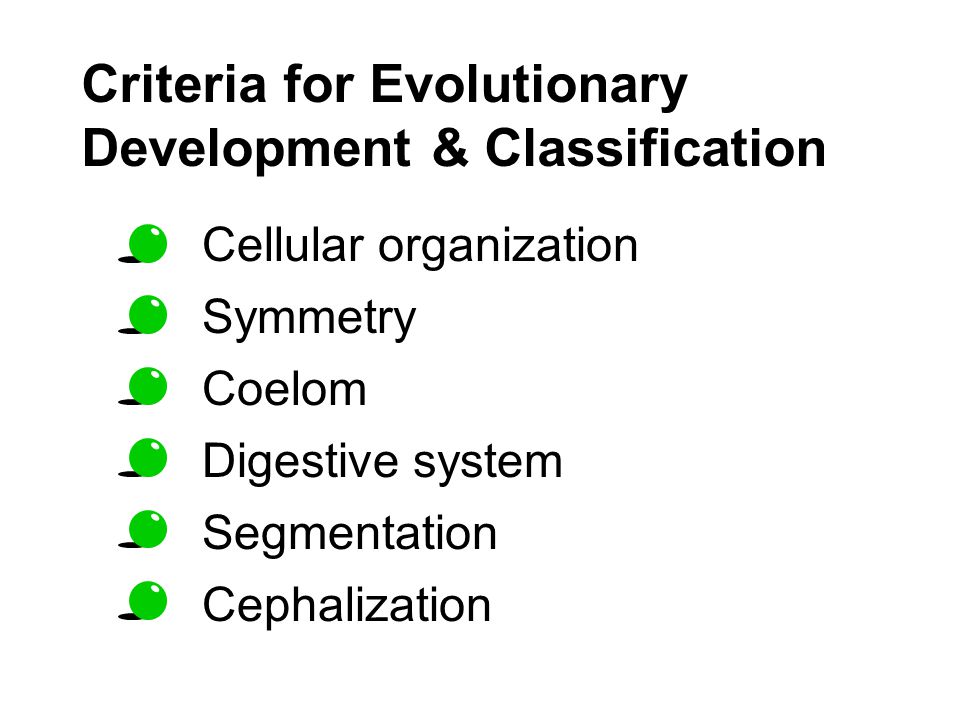

5 Criteria for Evolutionary Development & Classification Cellular organization Symmetry Coelom Digestive system Segmentation Cephalization

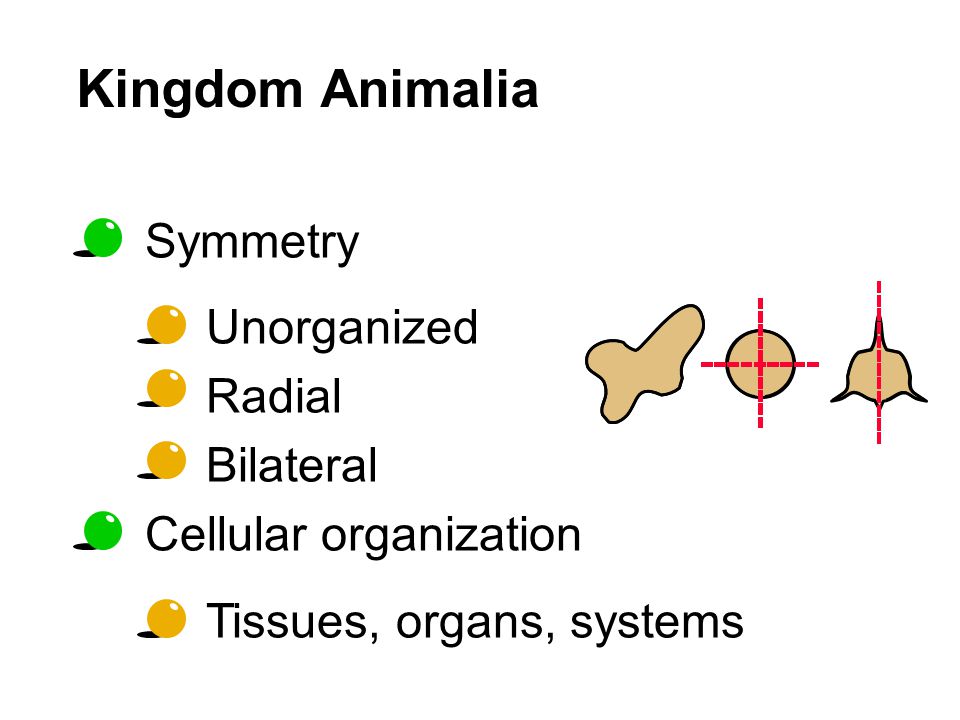

6 Kingdom Animalia Symmetry Unorganized Radial Bilateral Cellular organization Tissues, organs, systems

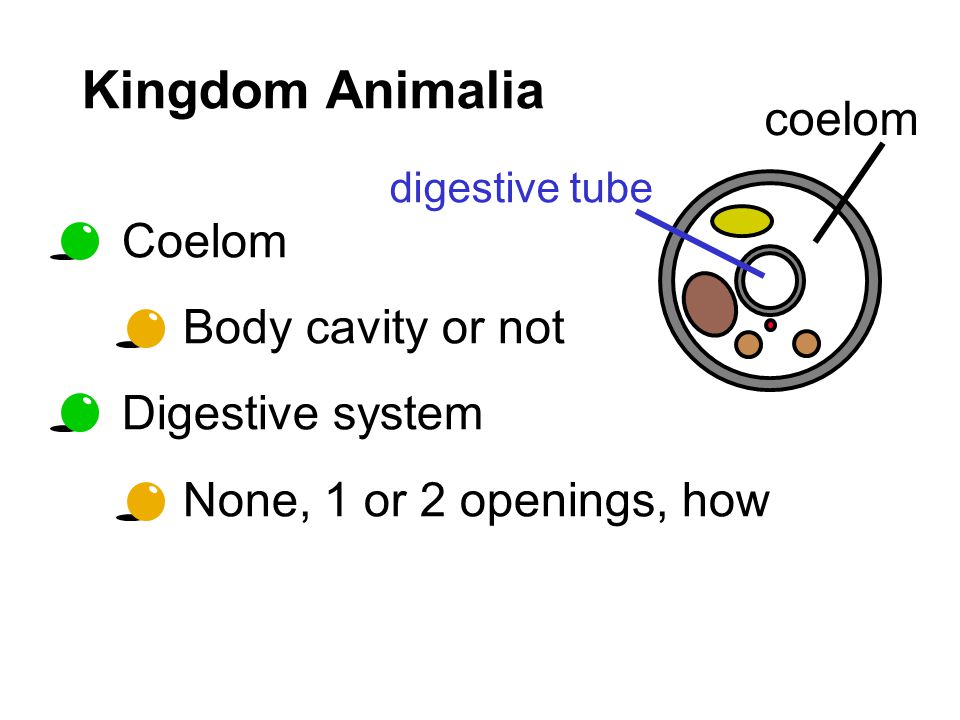

7 Coelom Body cavity or not Digestive system None, 1 or 2 openings, how Kingdom Animalia coelom digestive tube

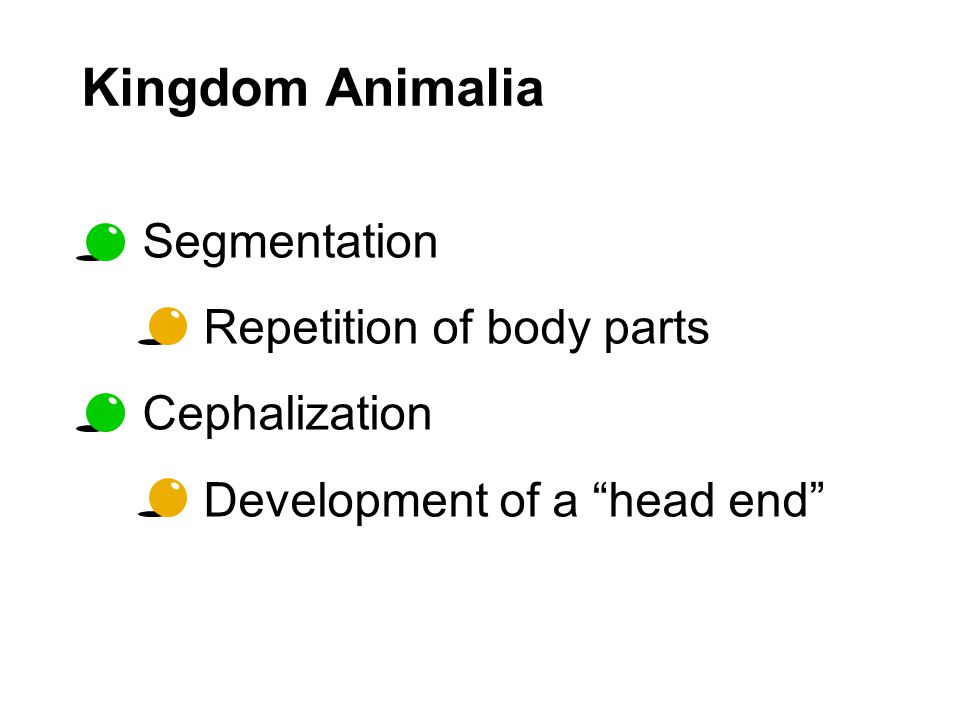

8 Segmentation Repetition of body parts Cephalization Development of a “head end” Kingdom Animalia

9 Phylogentic Relationships of Animals Ancestral Protist segmentation true tissue radial symmetry bilateral symmetry Deuterostomes: eucoelom Protostome: schizocoelem pseudo coelom Porifera Cnideria Platyhelminthes Nematoda Mollusca Annelida Echinodermata Chordata Arthropoda no true tissues acoelom

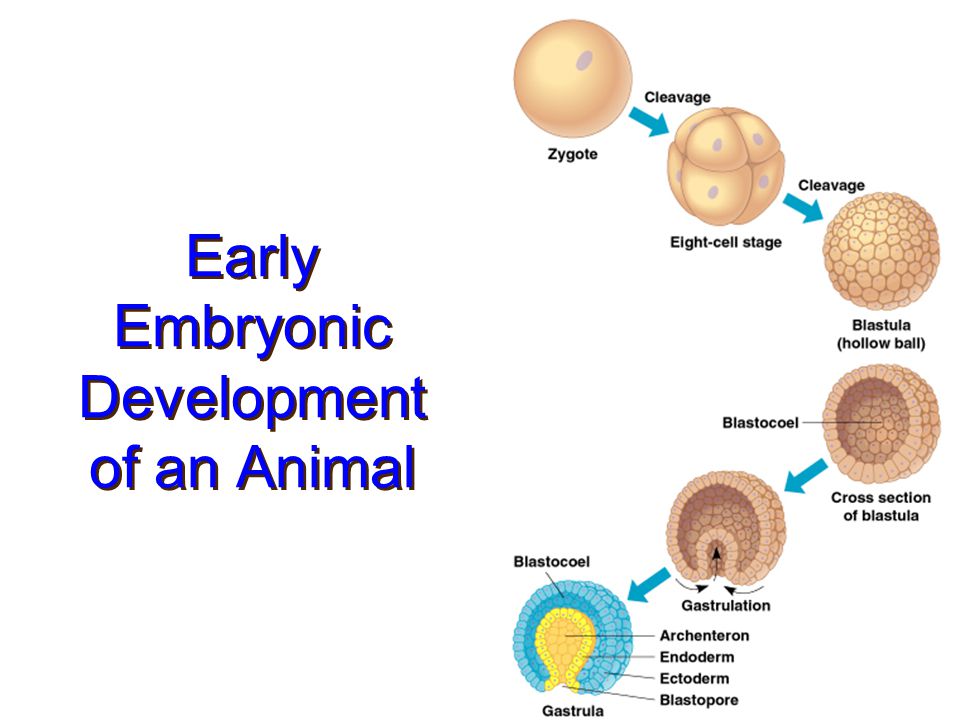

10 Early Embryonic Development of an Animal

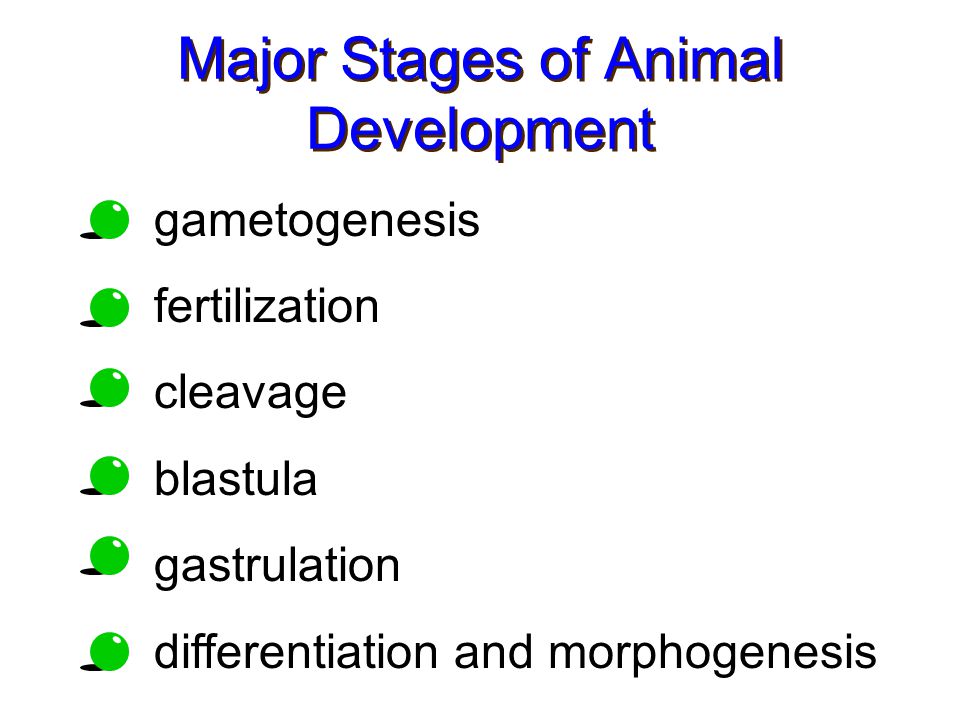

11 Major Stages of Animal Development gametogenesis fertilization cleavage blastula gastrulation differentiation and morphogenesis

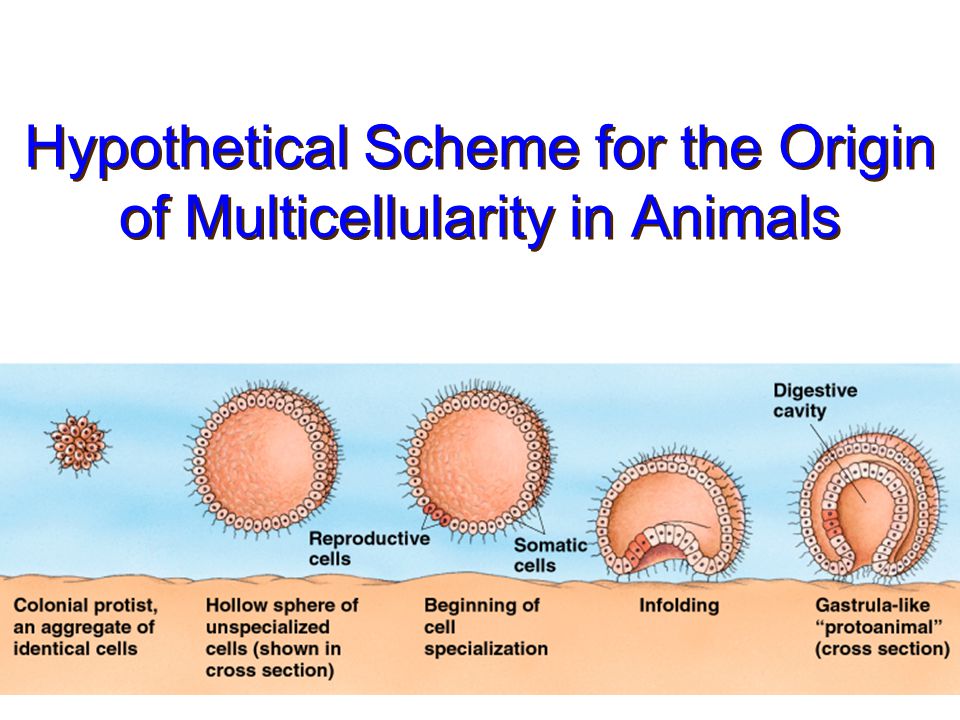

12 Hypothetical Scheme for the Origin of Multicellularity in Animals

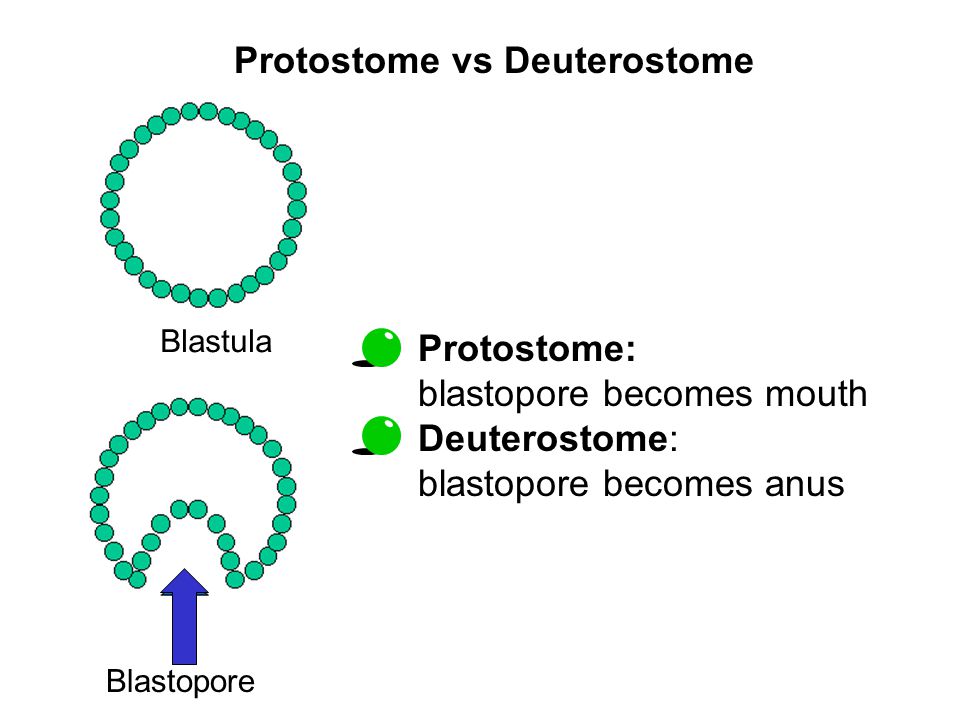

13 Protostome vs Deuterostome Protostome: blastopore becomes mouth Deuterostome: blastopore becomes anus Blastula Blastopore

14 What is a Phylum?

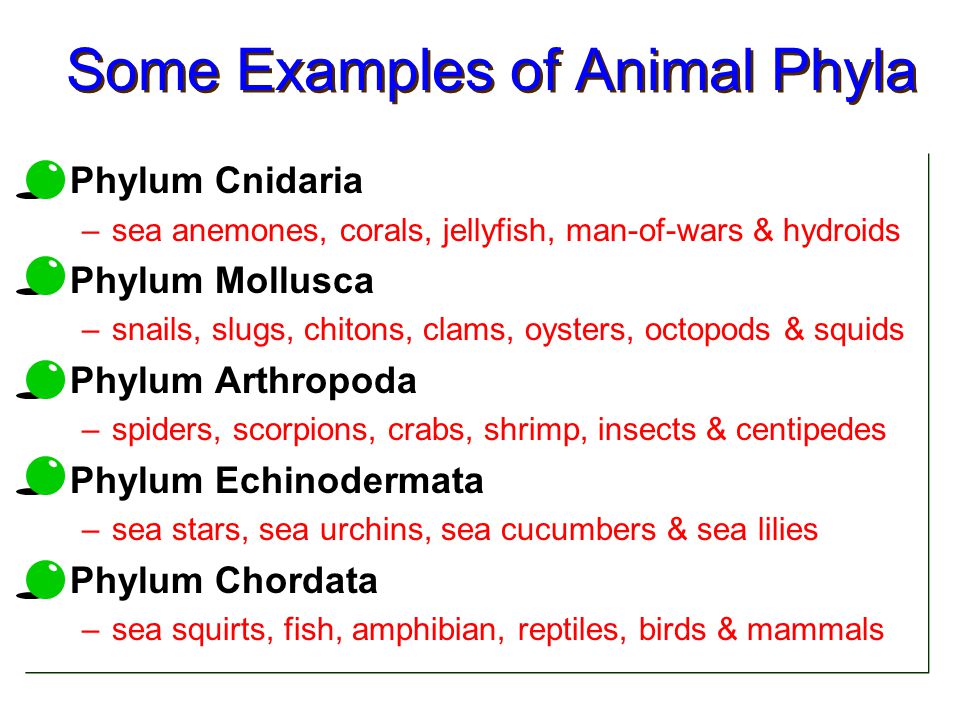

15 Some Examples of Animal Phyla Phylum Cnidaria –sea anemones, corals, jellyfish, man-of-wars & hydroids Phylum Mollusca –snails, slugs, chitons, clams, oysters, octopods & squids Phylum Arthropoda –spiders, scorpions, crabs, shrimp, insects & centipedes Phylum Echinodermata –sea stars, sea urchins, sea cucumbers & sea lilies Phylum Chordata –sea squirts, fish, amphibian, reptiles, birds & mammals Phylum Cnidaria –sea anemones, corals, jellyfish, man-of-wars & hydroids Phylum Mollusca –snails, slugs, chitons, clams, oysters, octopods & squids Phylum Arthropoda –spiders, scorpions, crabs, shrimp, insects & centipedes Phylum Echinodermata –sea stars, sea urchins, sea cucumbers & sea lilies Phylum Chordata –sea squirts, fish, amphibian, reptiles, birds & mammals

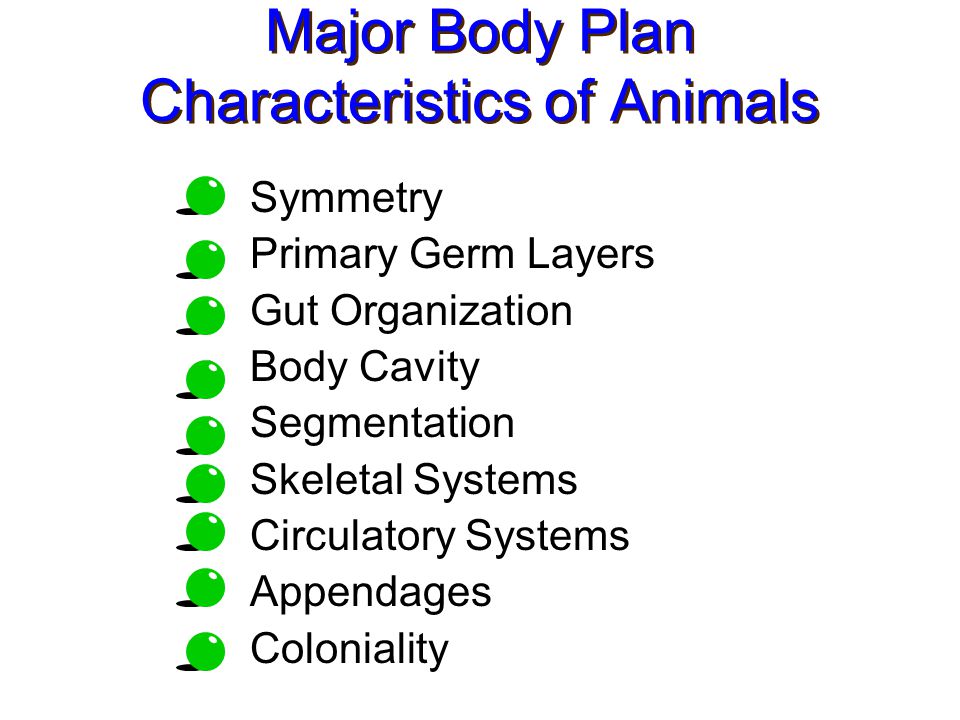

16 Major Body Plan Characteristics of Animals Symmetry Primary Germ Layers Gut Organization Body Cavity Segmentation Skeletal Systems Circulatory Systems Appendages Coloniality

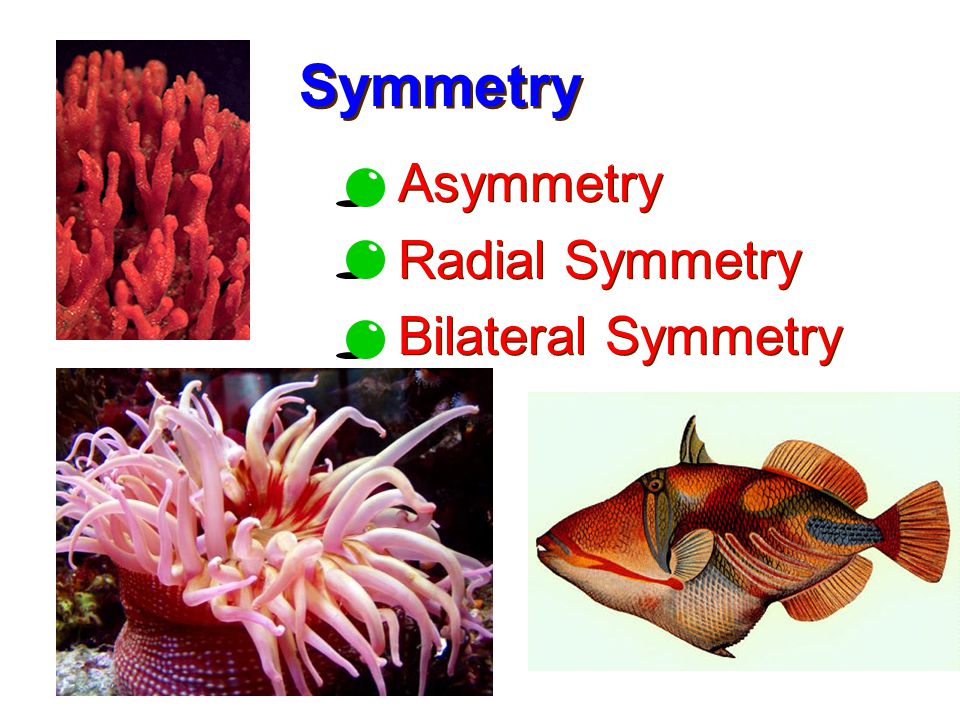

17 Symmetry Asymmetry Radial Symmetry Bilateral Symmetry Asymmetry Radial Symmetry Bilateral Symmetry

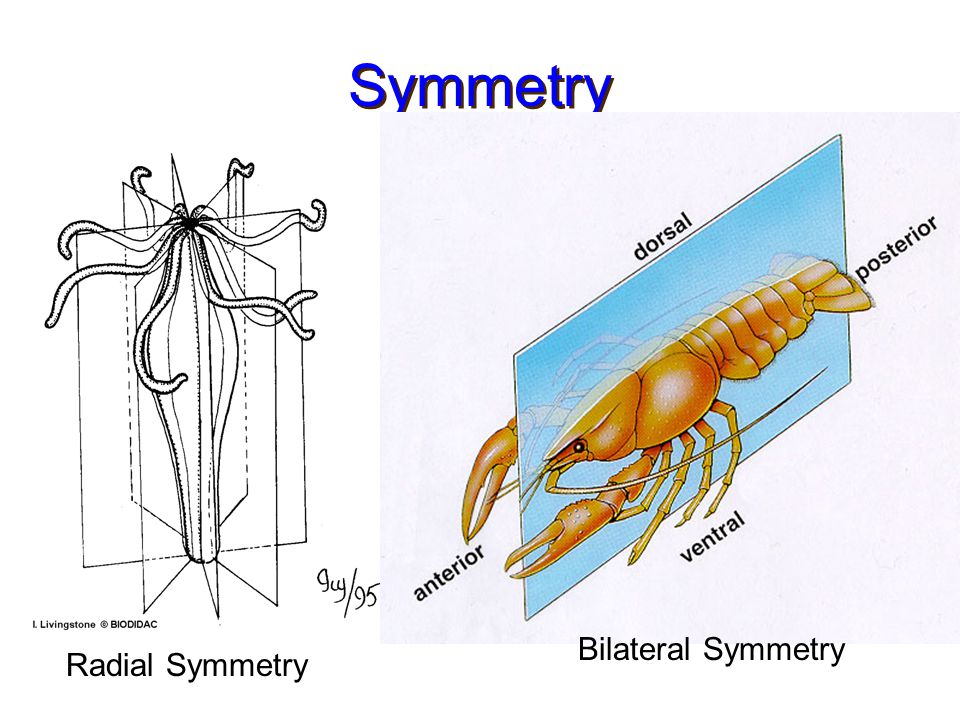

18 Symmetry Radial Symmetry Bilateral Symmetry

19 Radial Symmetry Jellyfish Phylum Cnidaria

20 Pentamerous Radial Symmetry Sea Stars Phylum Echinodermata

21 Bilateral Symmetry Slug Phylum Mollusca

22 Bilateral Symmetry Squid Phylum Mollusca

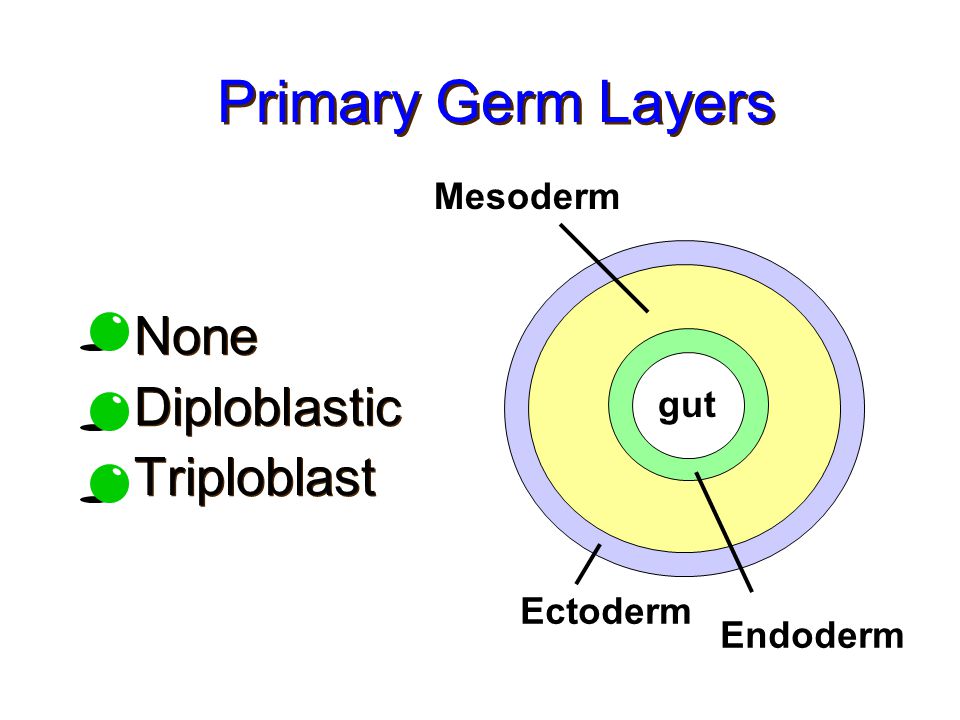

23 Primary Germ Layers None Diploblastic Triploblast None Diploblastic Triploblast Mesoderm Ectoderm Endoderm gut

24 Fates of the Primary Germ Layers Ectoderm –hair, nails, epidermis, brain, nerves Mesoderm –notochord (in chordates), dermis, blood vessels, heart, bones, cartilage, muscle Endoderm –internal lining of the gut and respiratory pathways, liver, pancreas

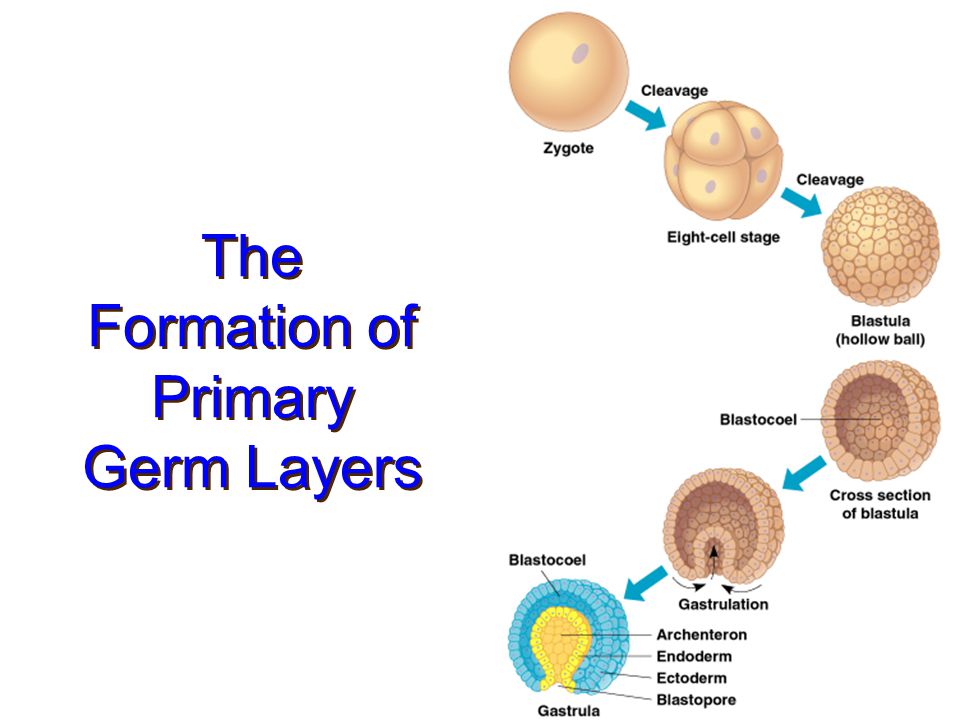

25 The Formation of Primary Germ Layers

26

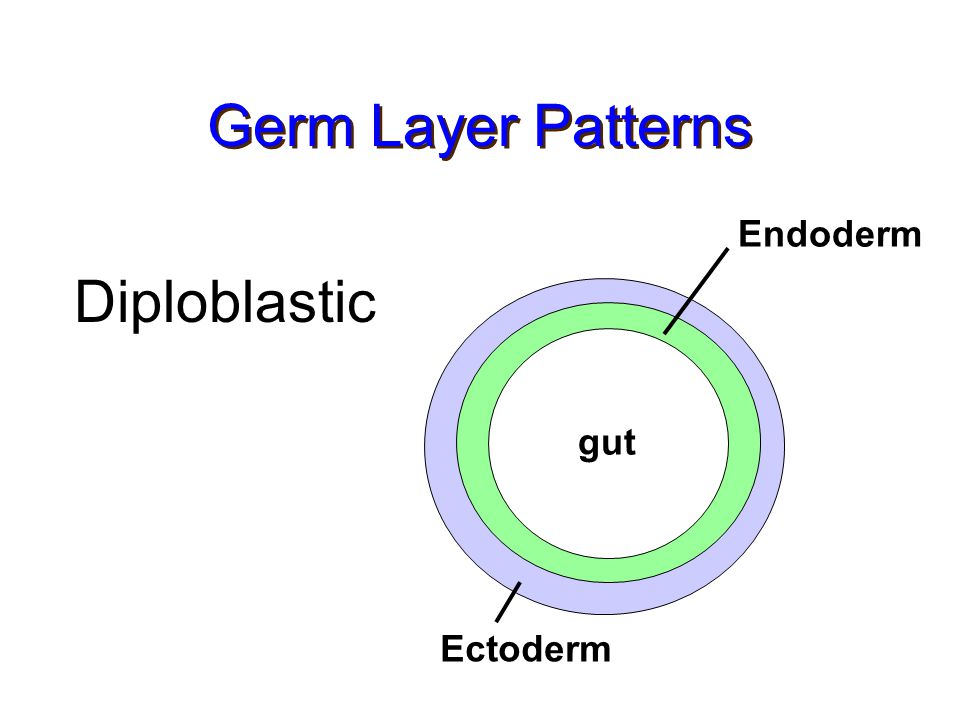

27 Germ Layer Patterns Ectoderm Endoderm gut Diploblastic

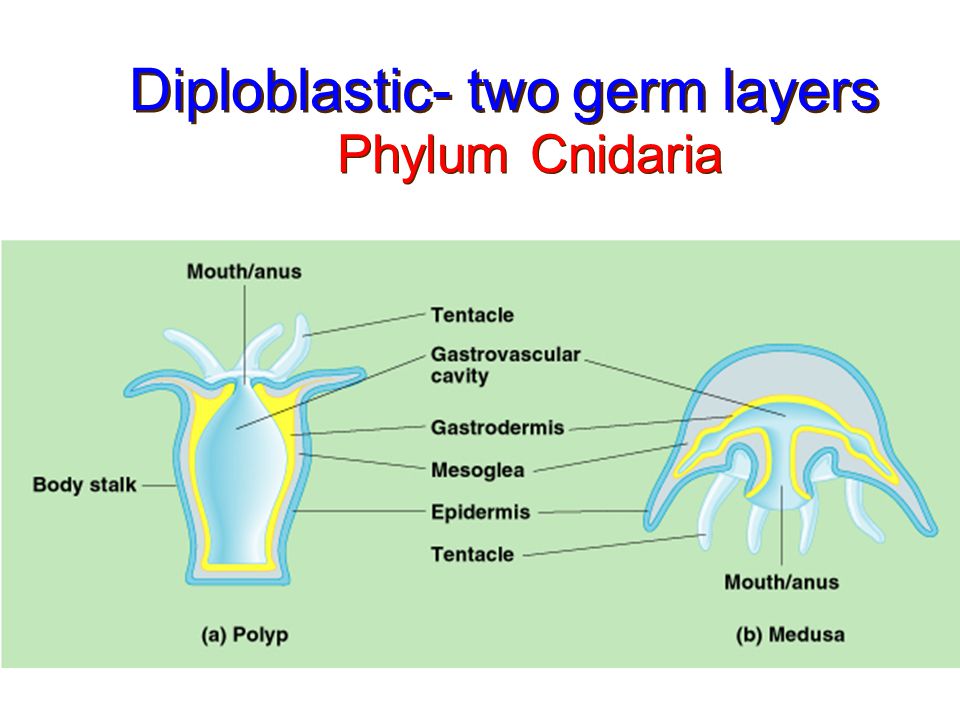

28 Diploblastic- two germ layers Phylum Cnidaria

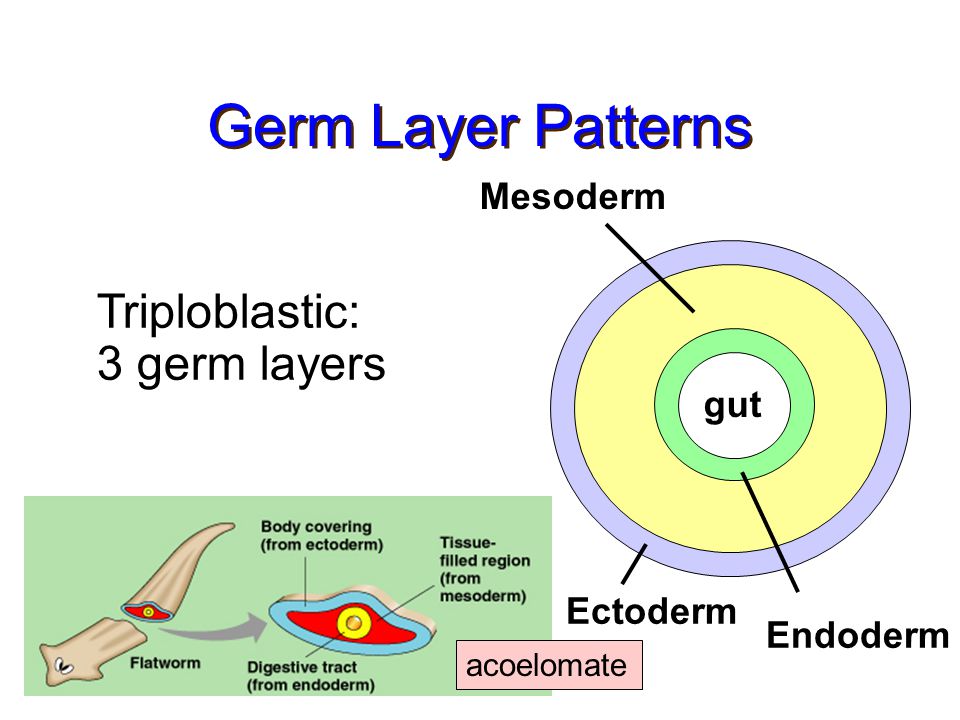

29 Germ Layer Patterns acoelomate Triploblastic: 3 germ layers Mesoderm Ectoderm Endoderm gut

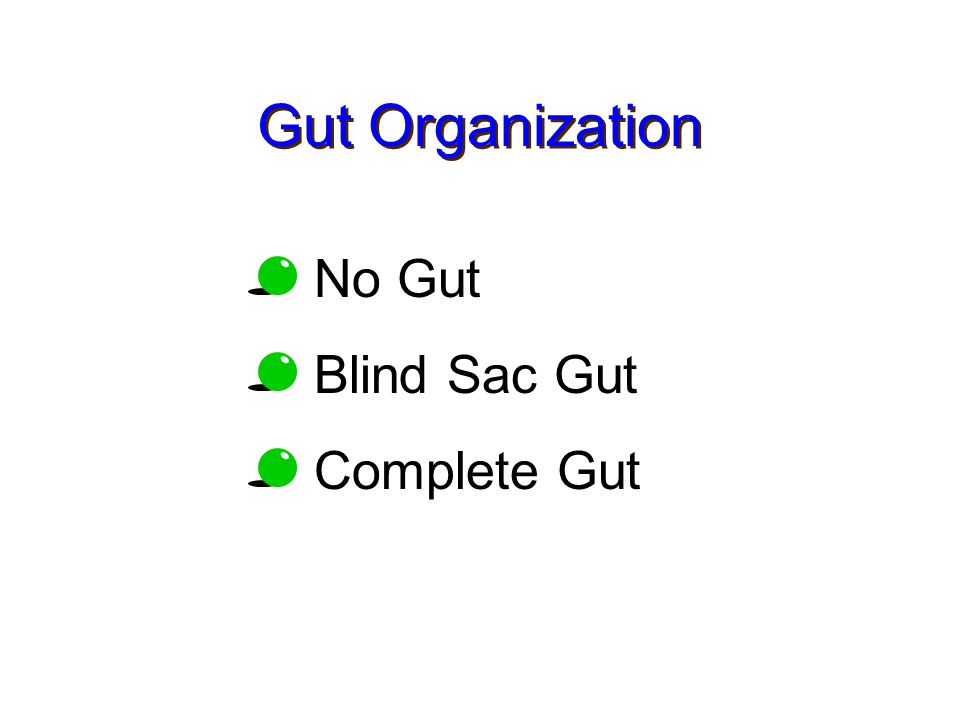

30 No Gut Blind Sac Gut Complete Gut Gut Organization

31 No Gut Sponges Phylum Porifera

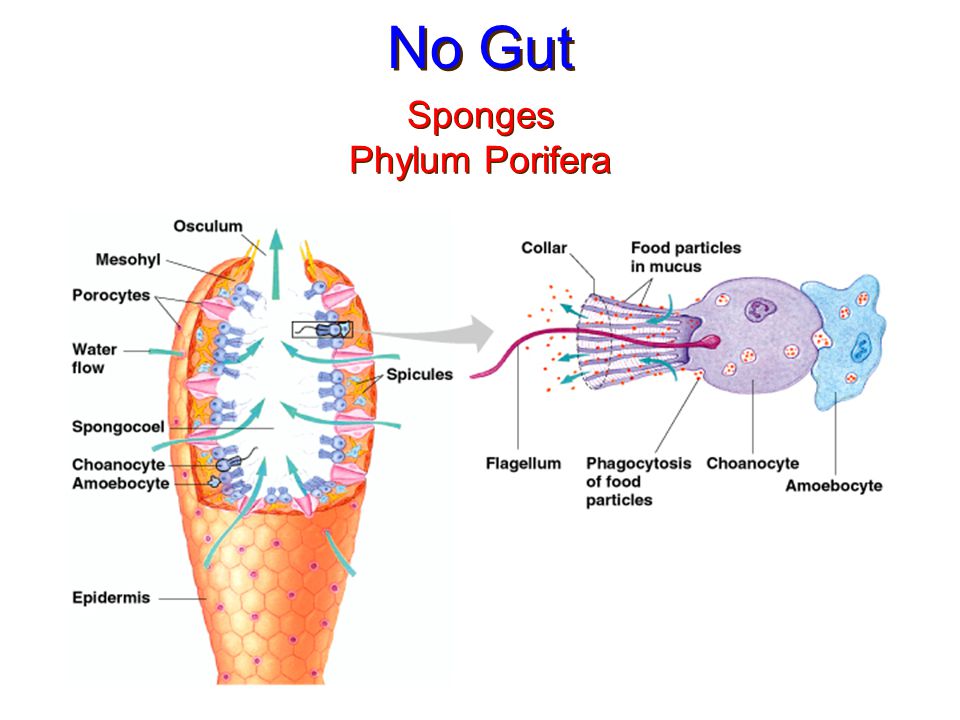

32 No Gut Sponges Phylum Porifera

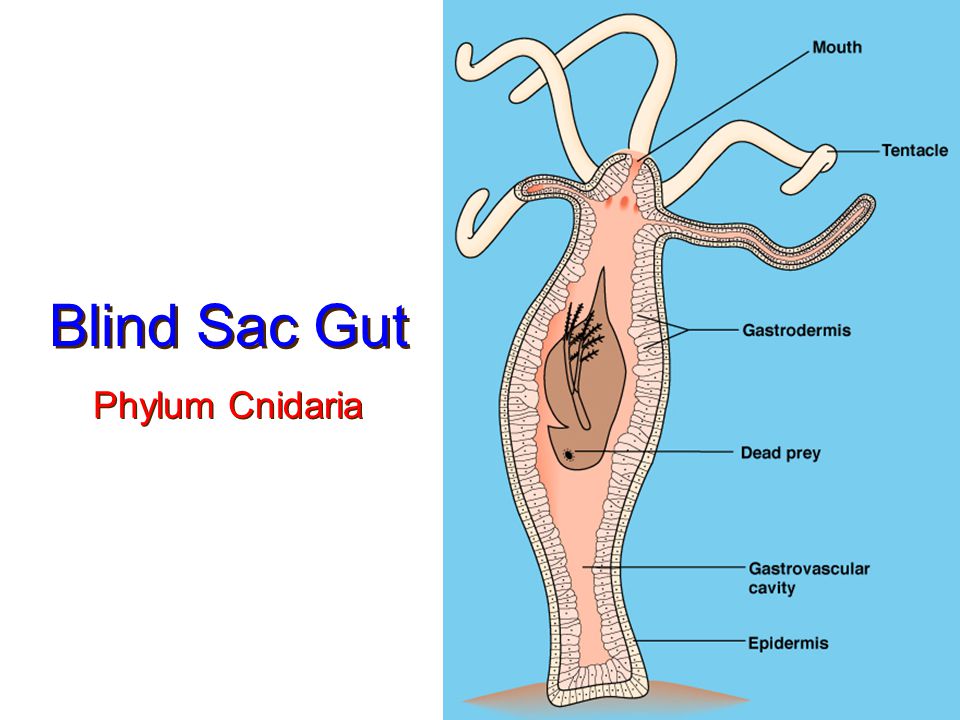

33 Blind Sac Gut Phylum Cnidaria

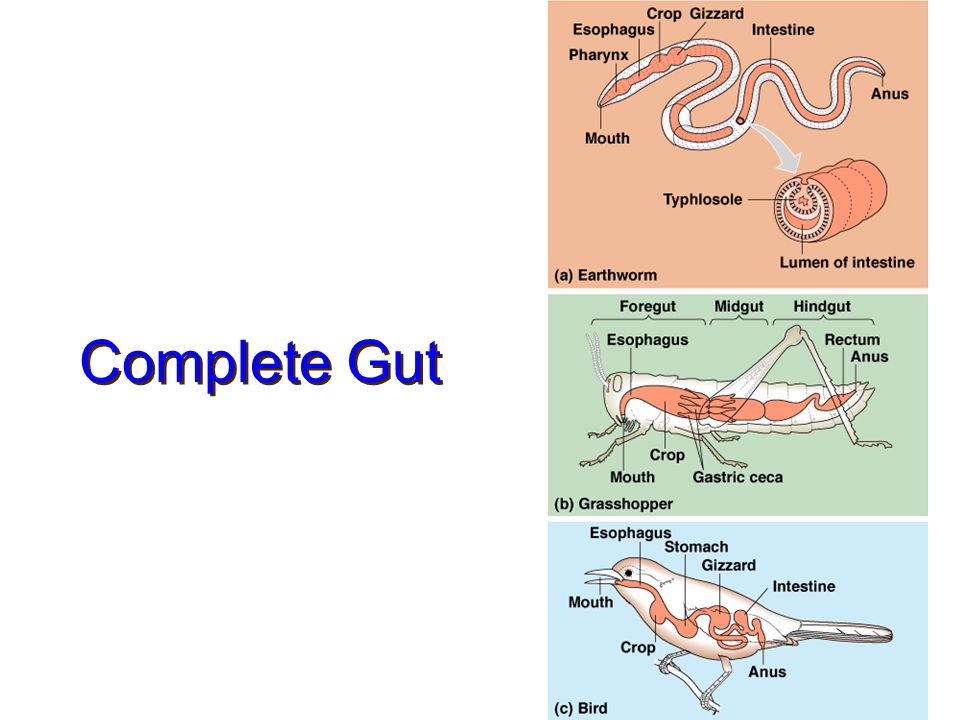

34 Complete Gut

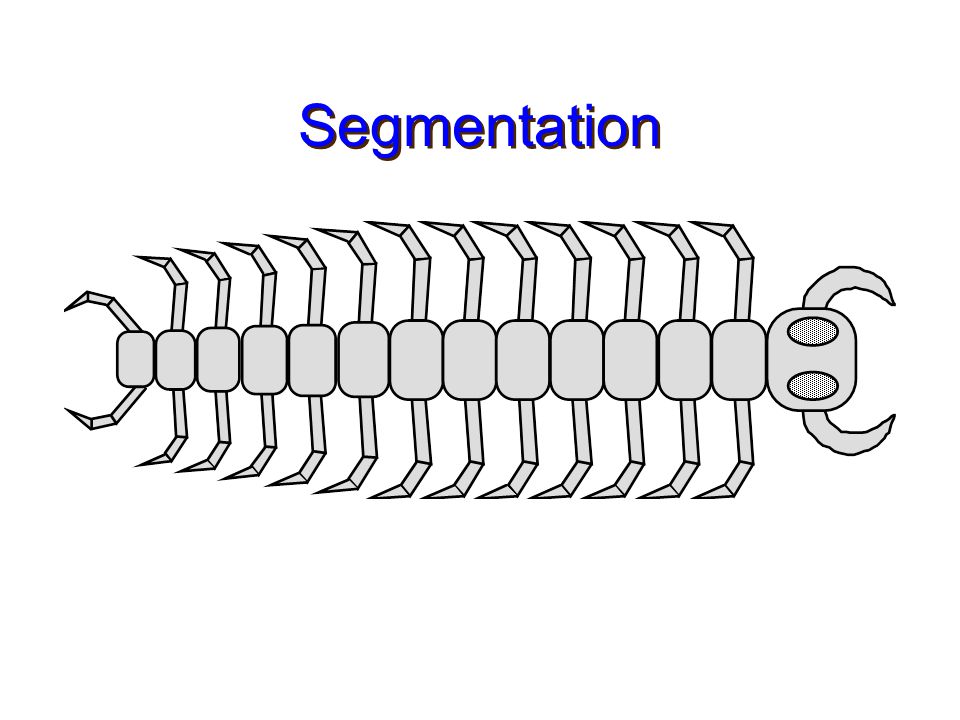

35 Segmentation

36 Centipede Phylum Arthropoda

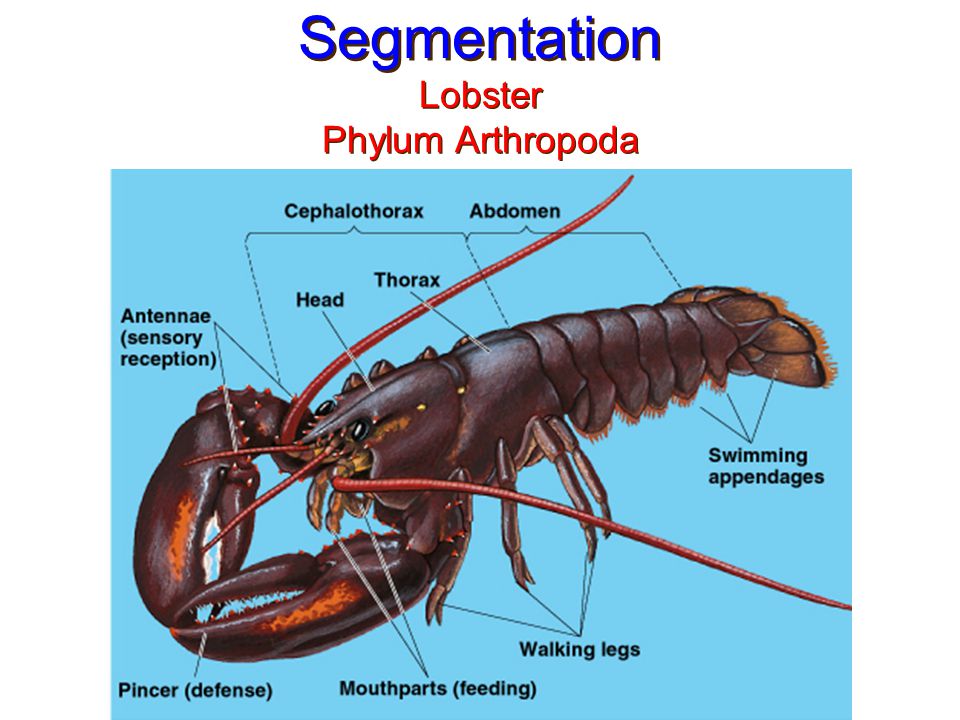

37 Segmentation Lobster Phylum Arthropoda

38 Skeleton

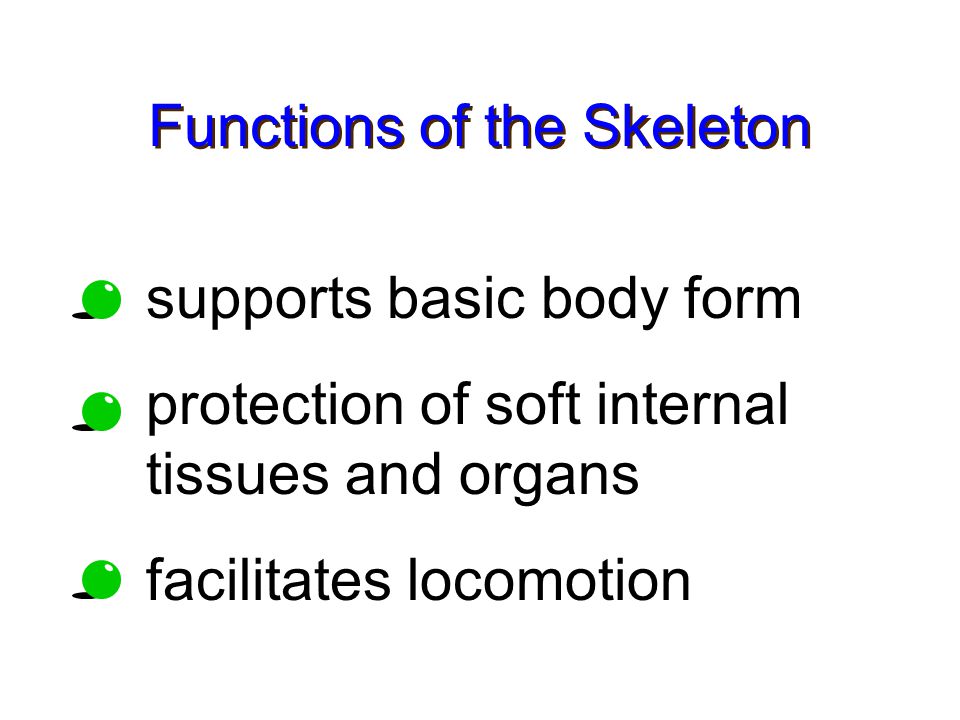

39 Functions of the Skeleton supports basic body form protection of soft internal tissues and organs facilitates locomotion

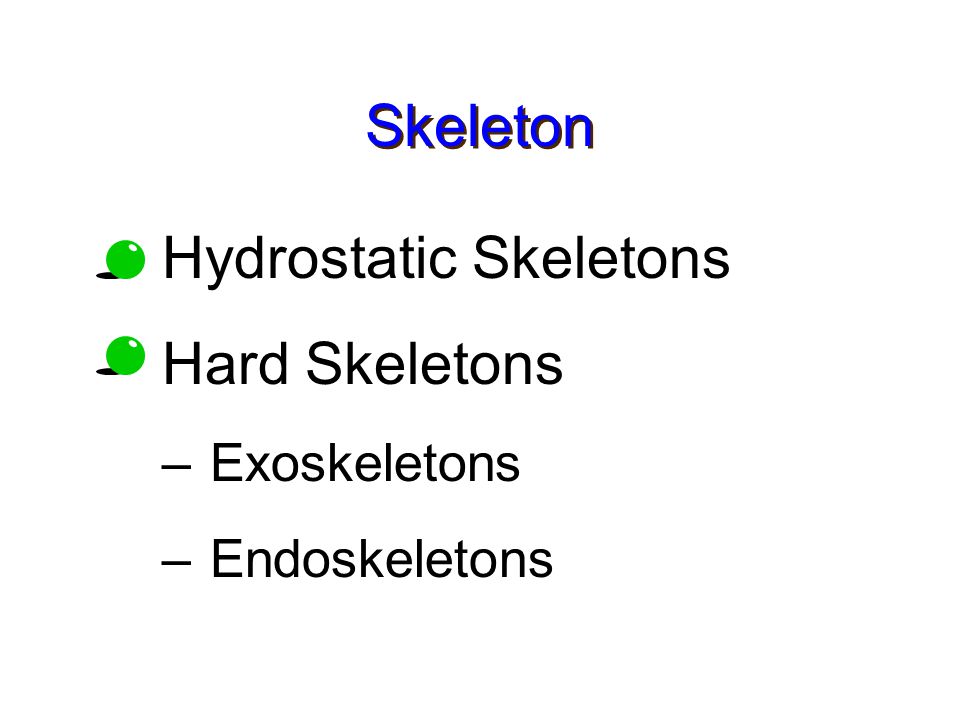

40 Skeleton Hydrostatic Skeletons Hard Skeletons –Exoskeletons –Endoskeletons

41 Hydrostatic Skeleton Sea Anemone Phylum Cnidaria

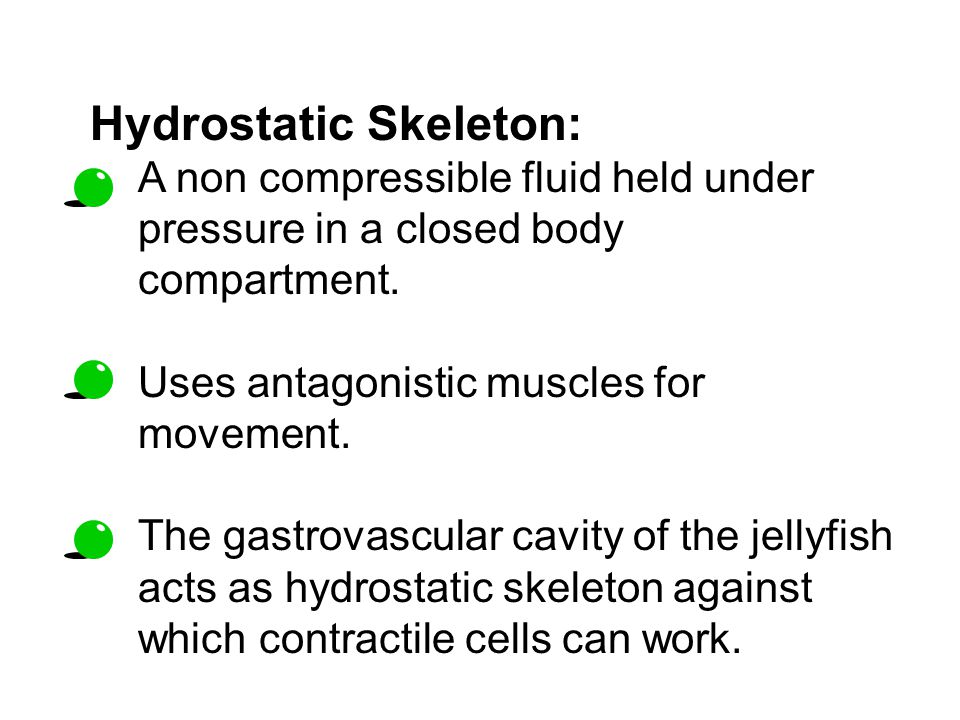

42 Hydrostatic Skeleton: A non compressible fluid held under pressure in a closed body compartment. Uses antagonistic muscles for movement. The gastrovascular cavity of the jellyfish acts as hydrostatic skeleton against which contractile cells can work.

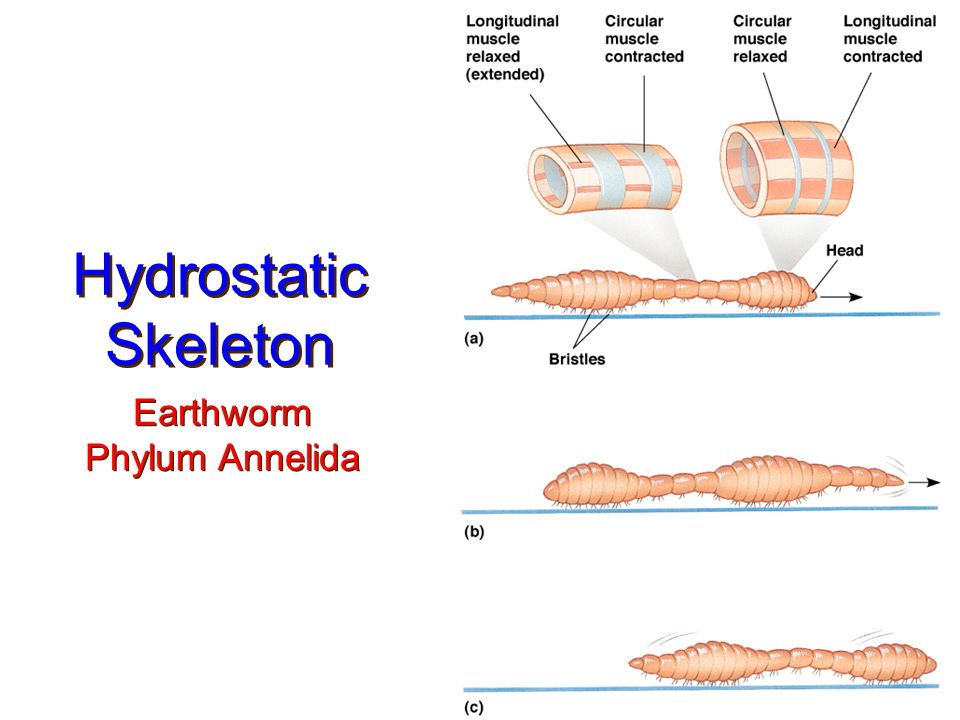

43 Hydrostatic Skeleton Earthworm Phylum Annelida

44 Exoskeleton Chiton Phylum Mollusca

45 Exoskeleton Stony Coral Phylum Cnidaria

46 Endoskeletons Vertebrates Phylum Chordata Vertebrates Phylum Chordata

47 Types of Appendages

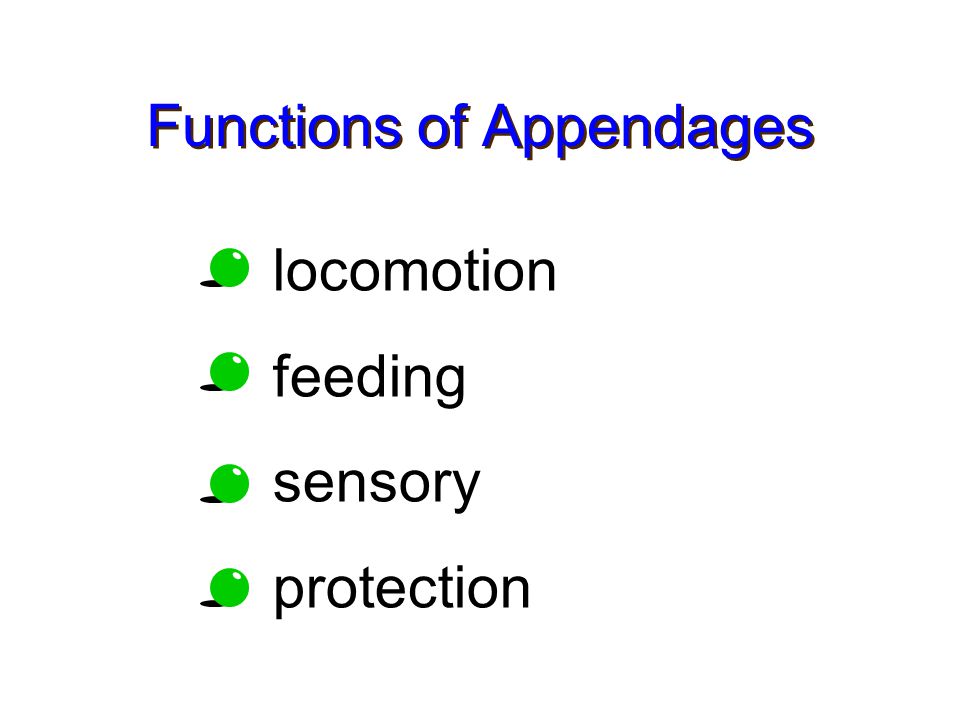

48 Functions of Appendages locomotion feeding sensory protection

49 Tentacles Sea Anemone Phylum Cnidaria

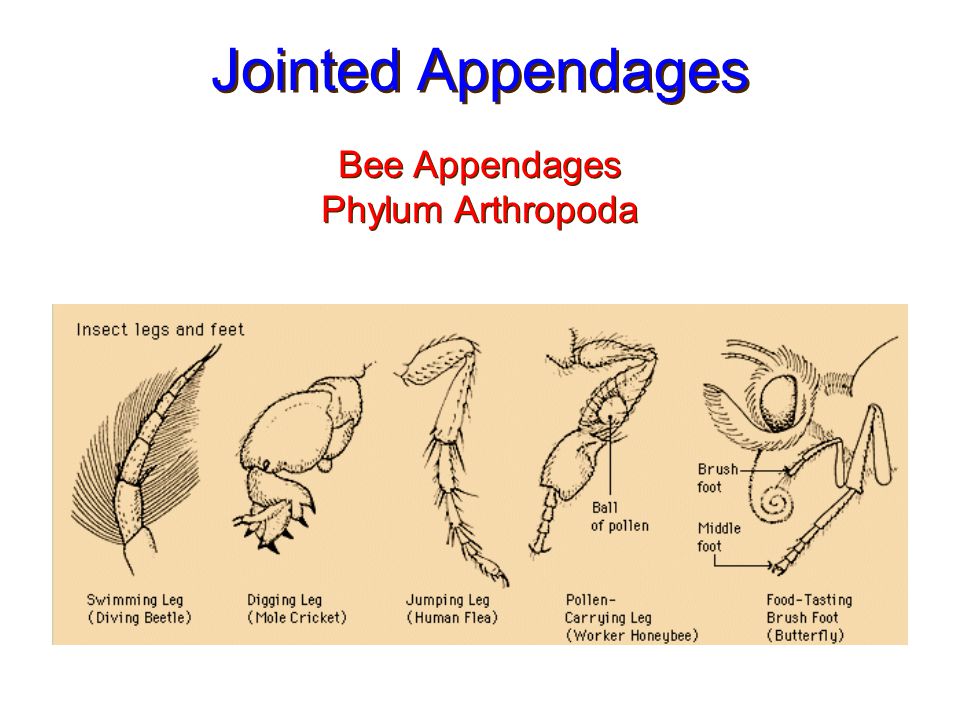

50 Jointed Appendages Bee Appendages Phylum Arthropoda Bee Appendages Phylum Arthropoda

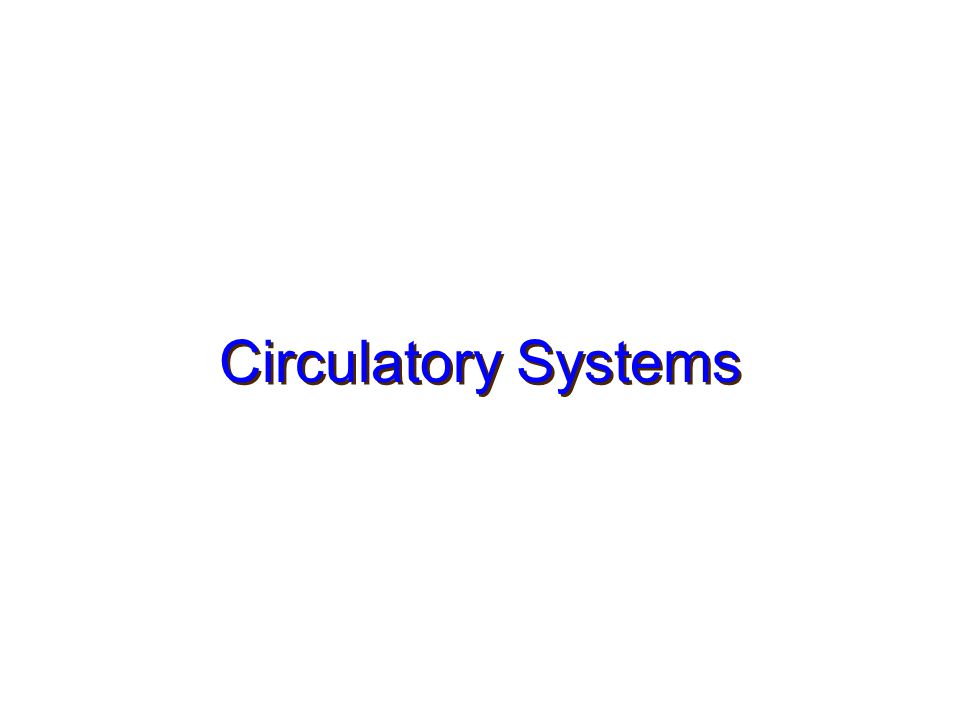

51 Circulatory Systems

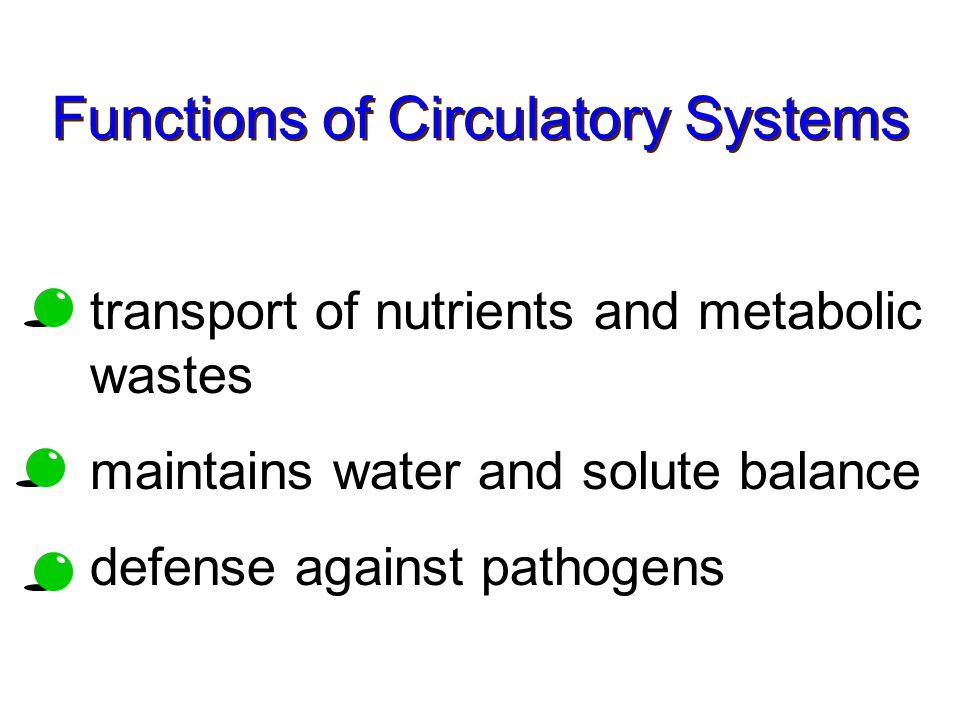

52 Functions of Circulatory Systems transport of nutrients and metabolic wastes maintains water and solute balance defense against pathogens

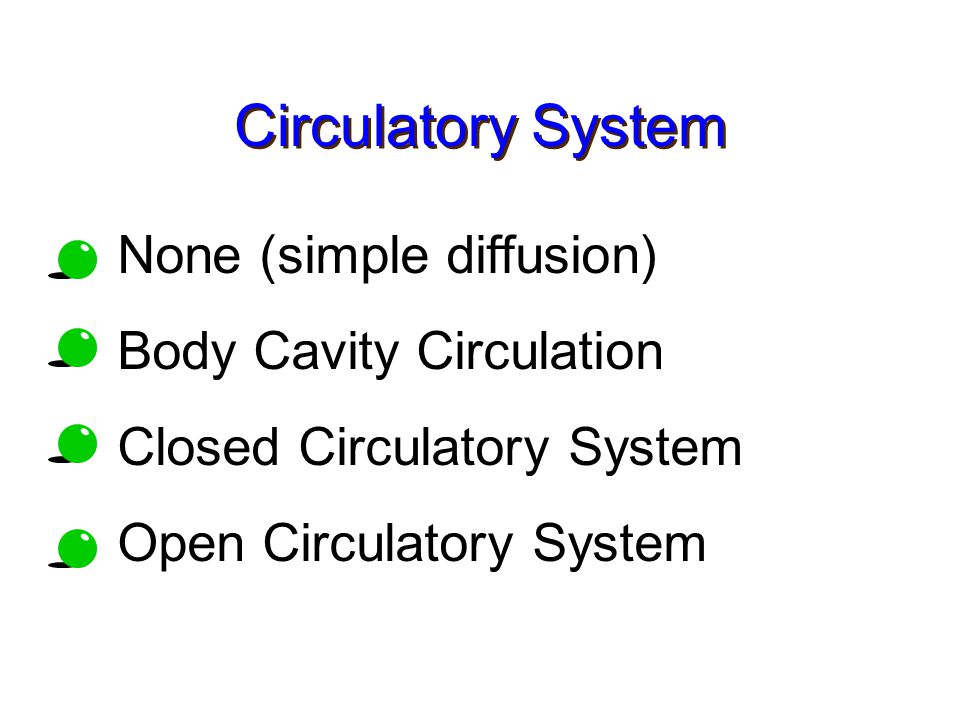

53 Circulatory System None (simple diffusion) Body Cavity Circulation Closed Circulatory System Open Circulatory System

54 No Circulatory System Comb Jelly Phylum Ctenophora

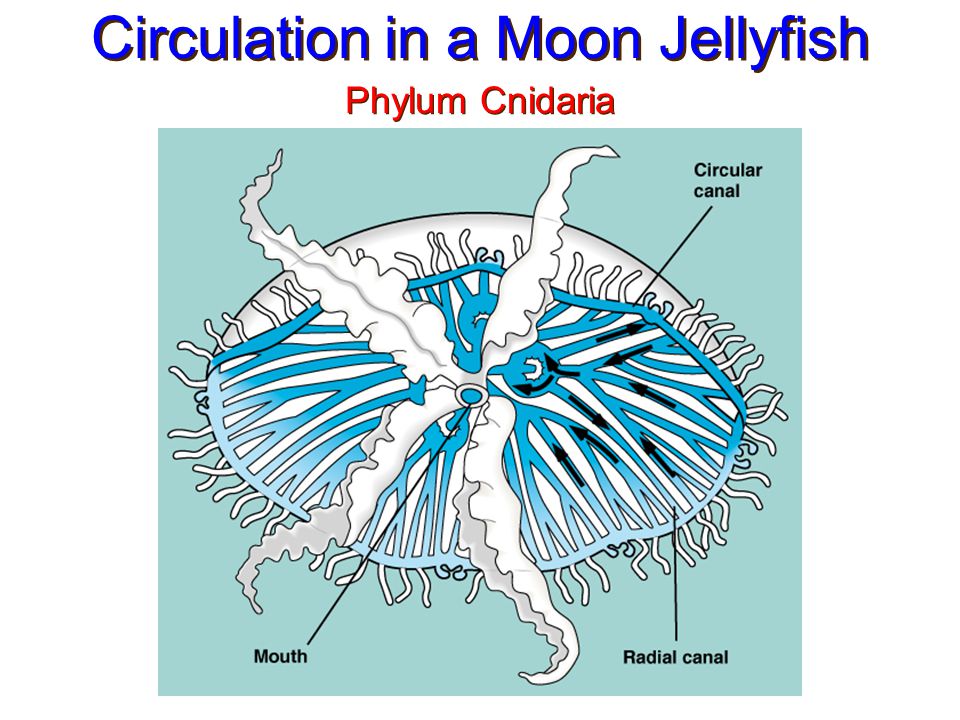

55 Circulation in a Moon Jellyfish Phylum Cnidaria

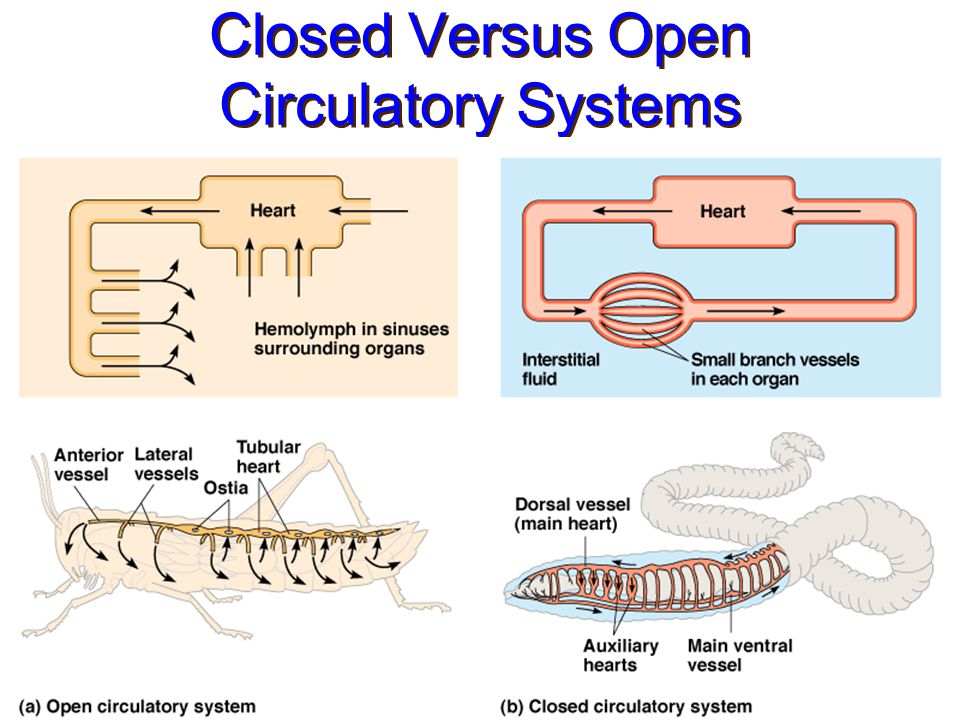

56 Closed Versus Open Circulatory Systems

57 Nervous Systems

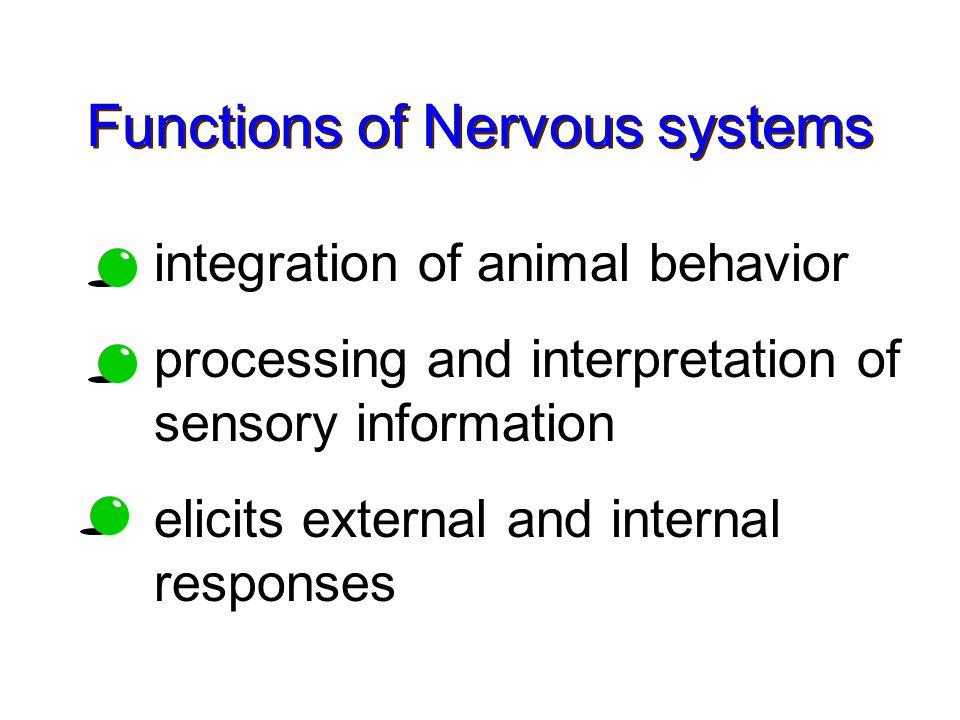

58 Functions of Nervous systems integration of animal behavior processing and interpretation of sensory information elicits external and internal responses

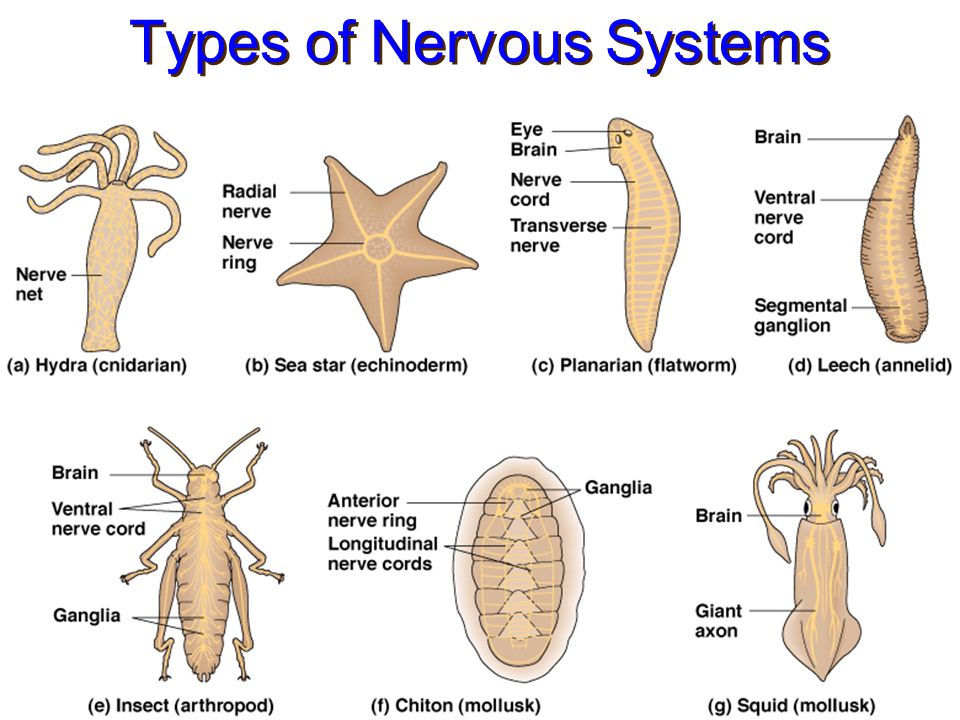

59 Types of Nervous Systems

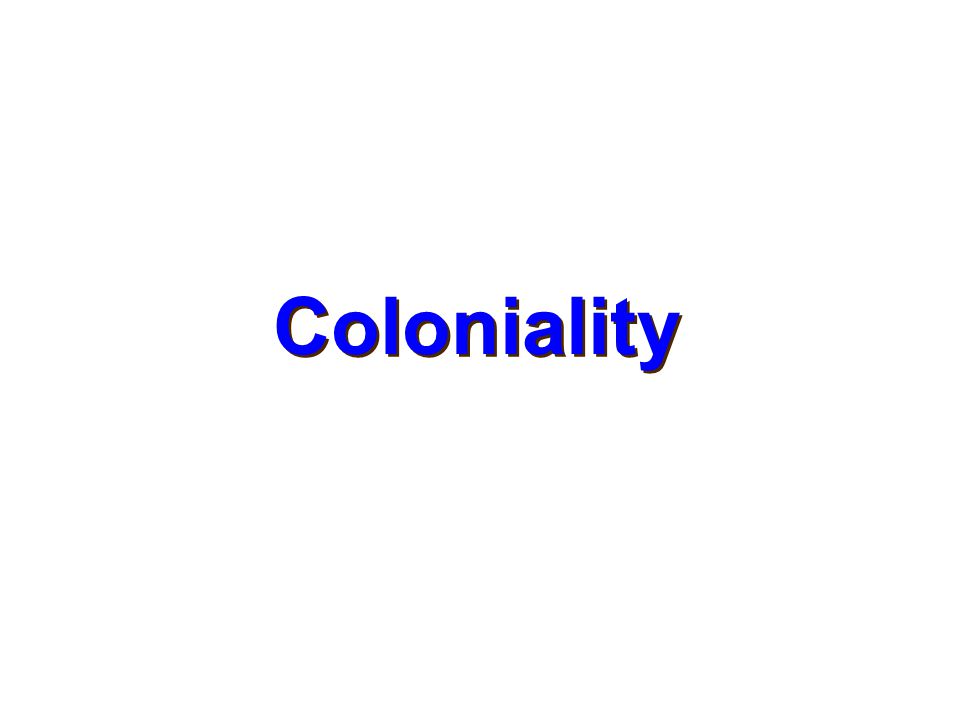

60 Coloniality

61 Coral Phylum Cnidaria

62 Coloniality Sea Fan Phylum Cnidaria

63 Coloniality Man-of-War Phylum Cnidaria

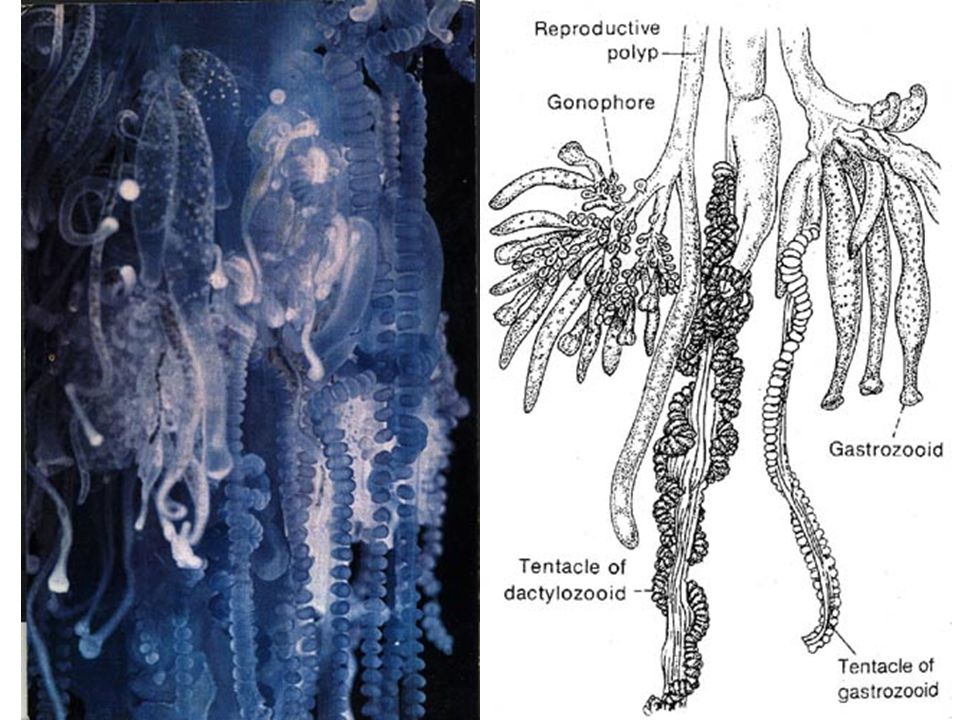

64 Polymorphism in the Portuguese Man- of-War
