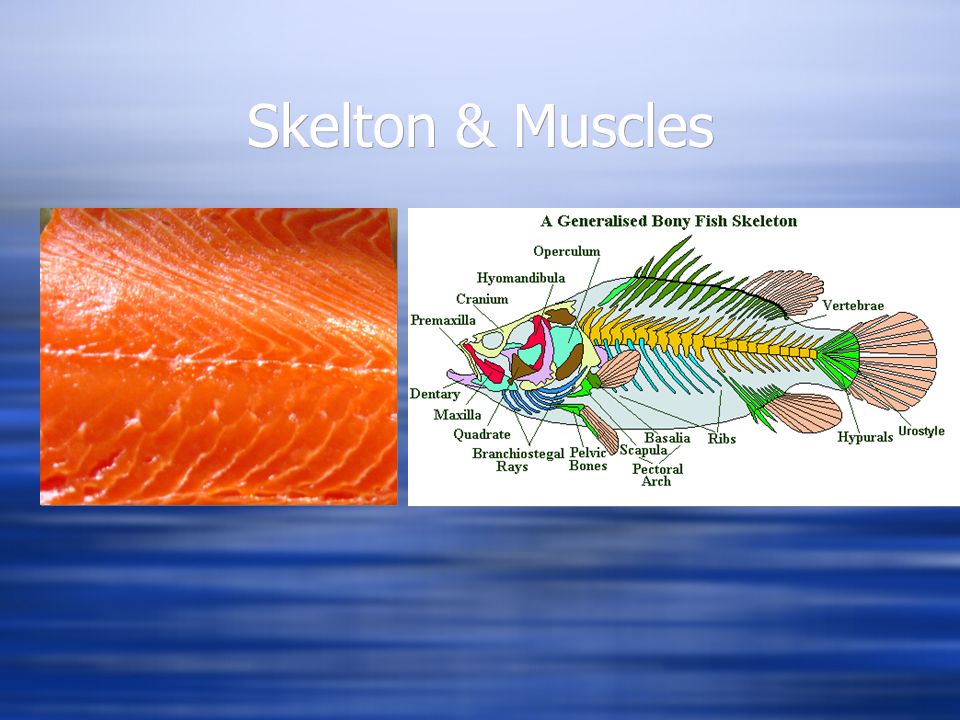

1. Skelton & Muscles

2. Hagfish  No true vertebrae - sheath of cartilage surrounding notochord  Few skull bones  No true vertebrae - sheath of cartilage surrounding notochord  Few skull bones

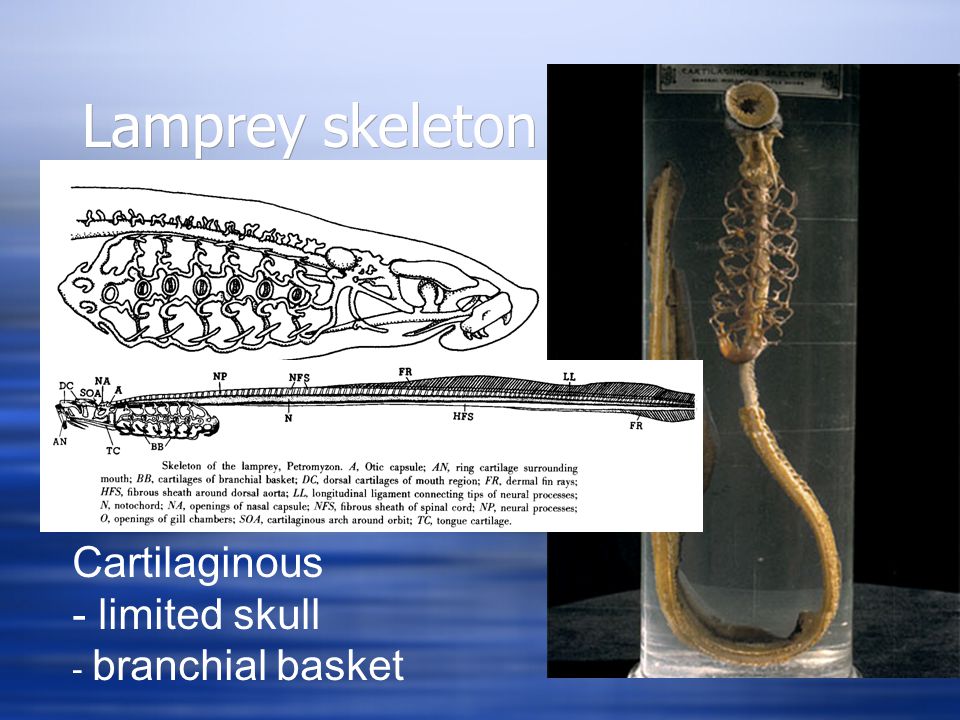

3. Lamprey skeleton Cartilaginous - limited skull - branchial basket

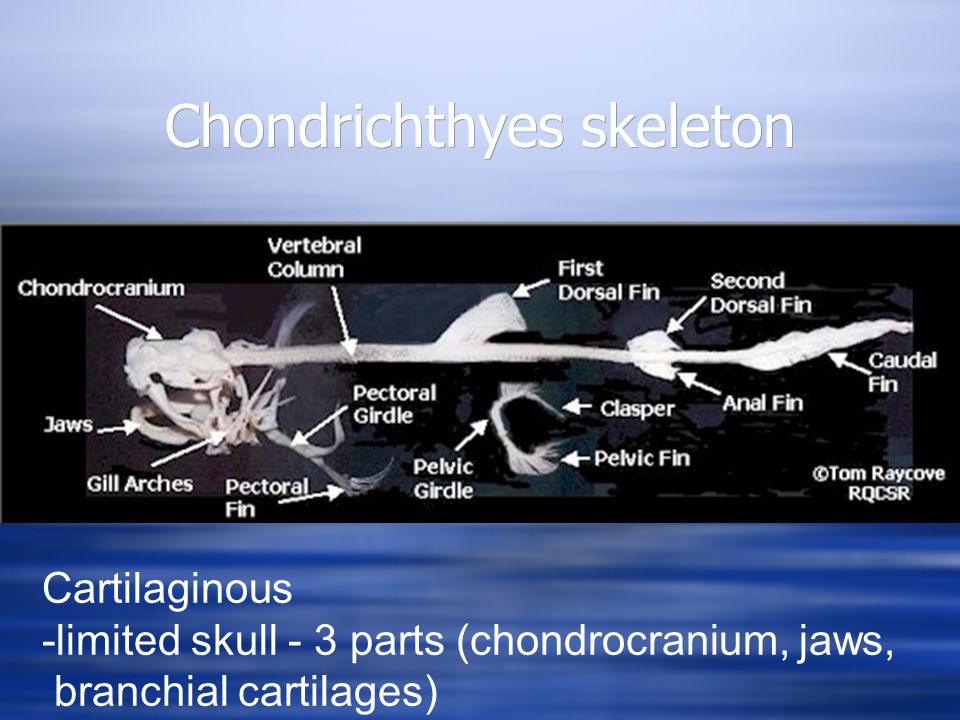

4. Chondrichthyes skeleton Cartilaginous -limited skull - 3 parts (chondrocranium, jaws, branchial cartilages)

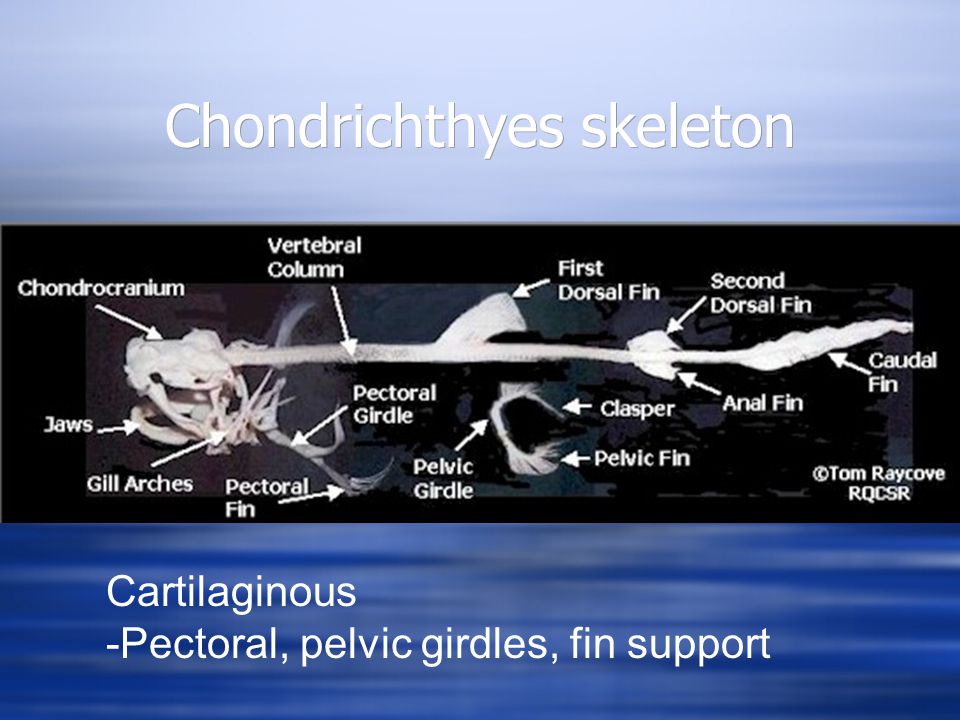

5. Chondrichthyes skeleton Cartilaginous -Pectoral, pelvic girdles, fin support

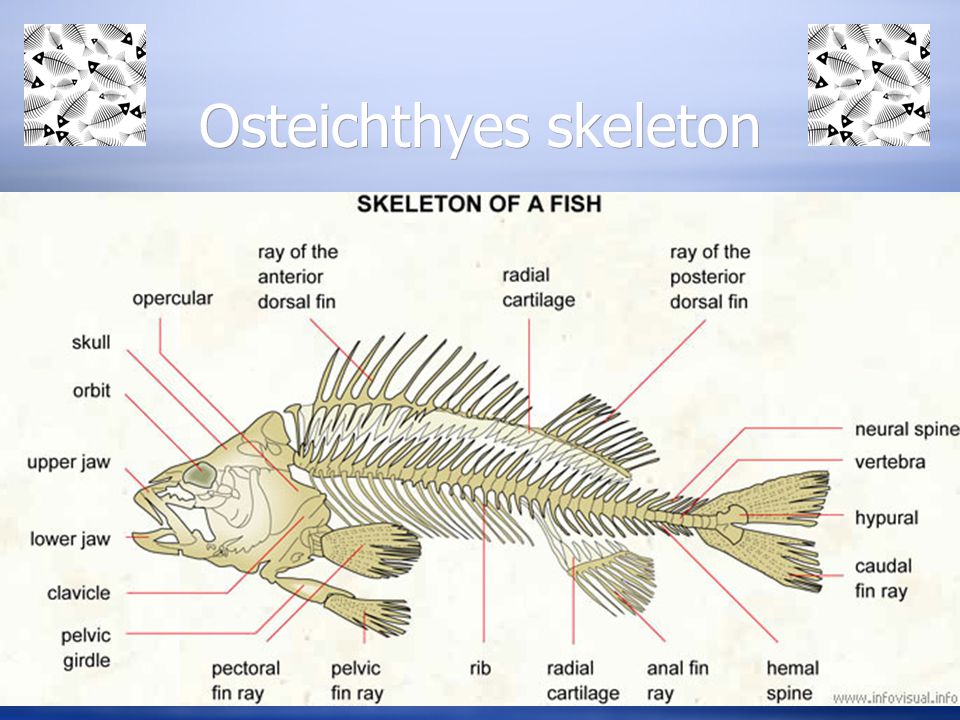

6. Osteichthyes skeleton

7.  Solid bone with complete vertebral column  Simple vertebrae that lack interlocking processes  One vertebra per body segment - match with muscle masses for coordinated swimming movements

8. Osteichthyes skeleton Vertebrae modified anteriorly for skull articulation, posteriorly for caual fin articulation

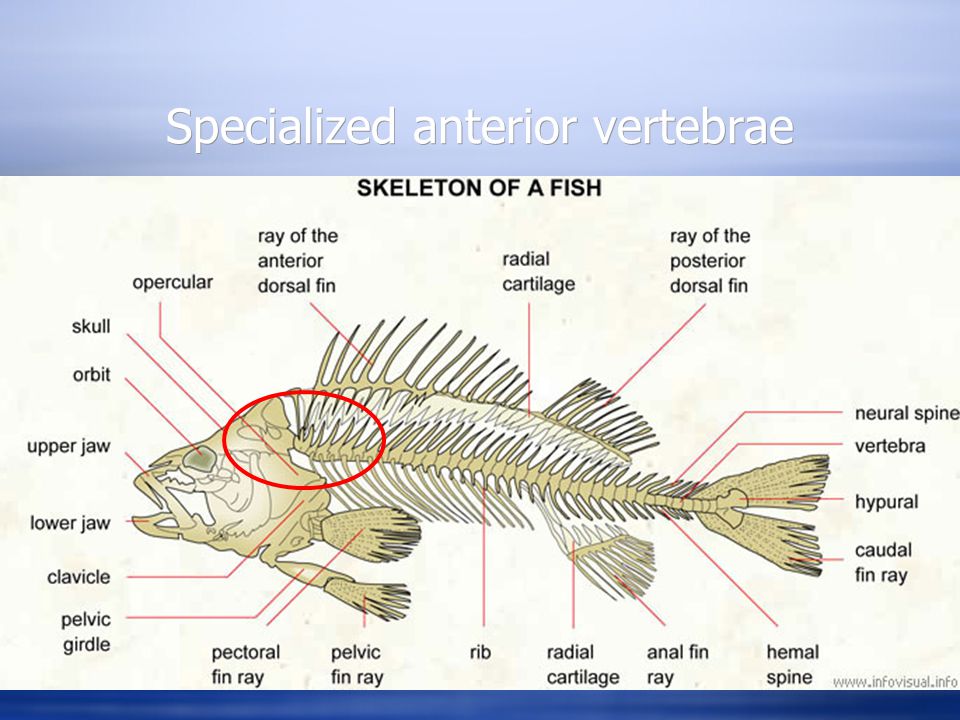

9. Specialized anterior vertebrae

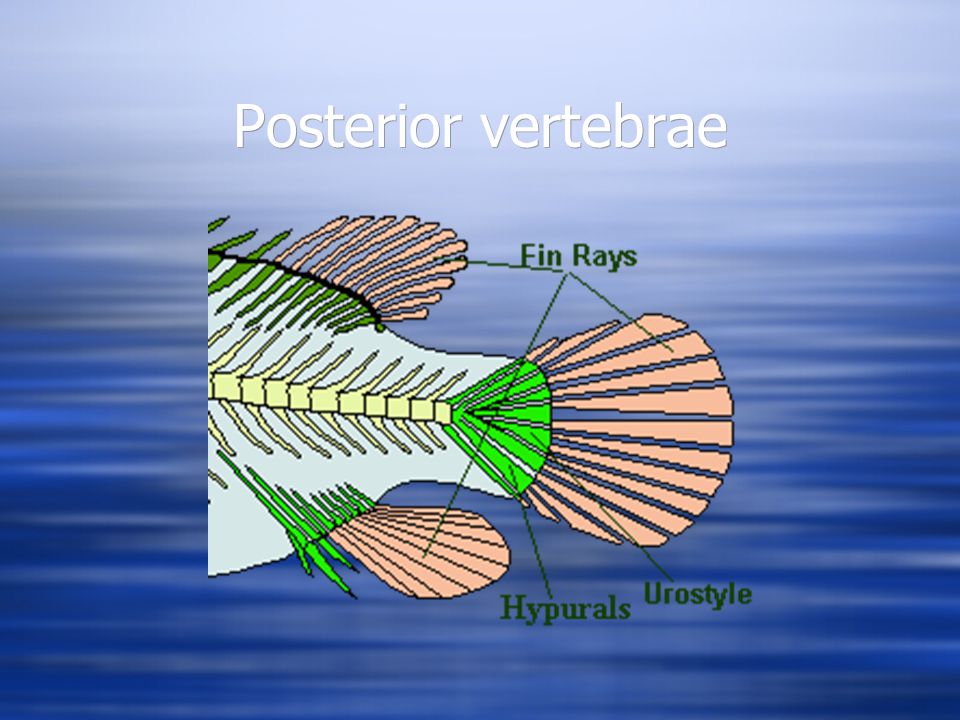

10. Posterior vertebrae

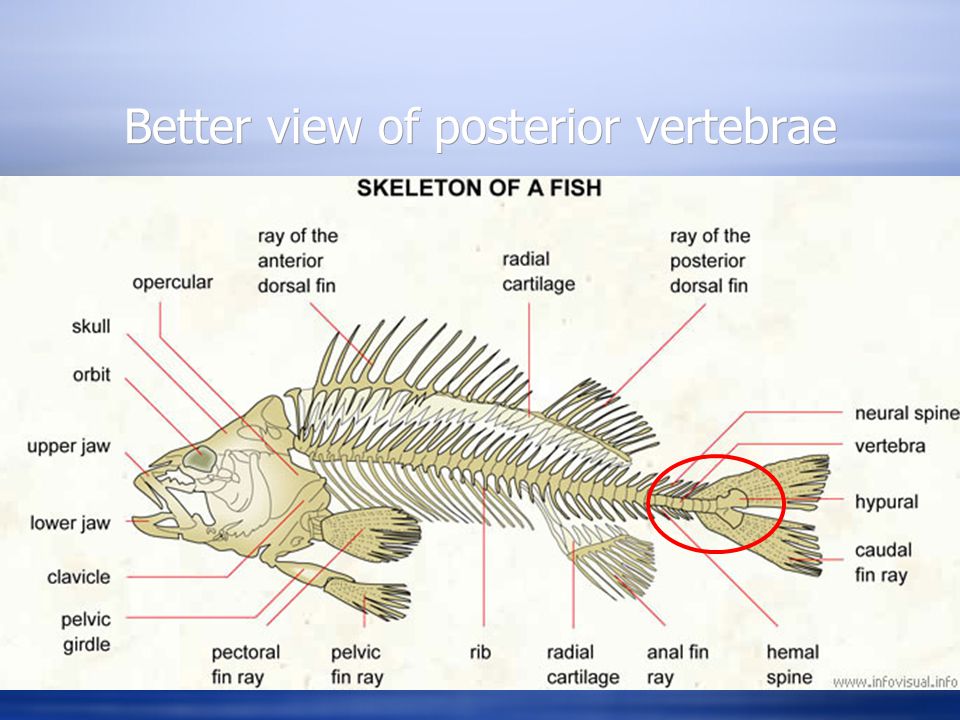

11. Better view of posterior vertebrae

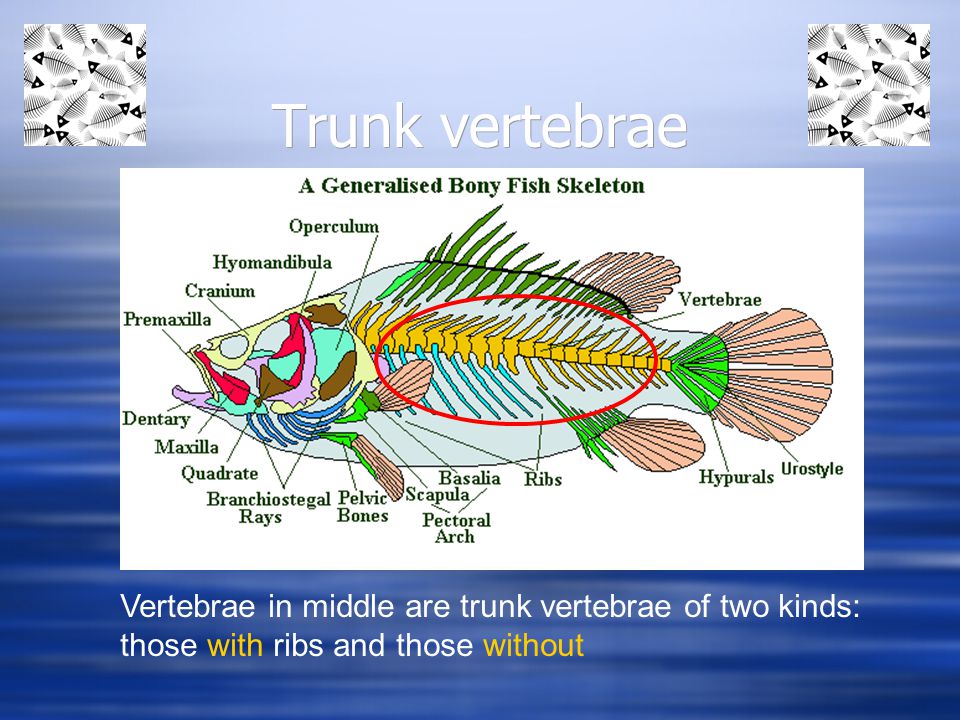

12. Trunk vertebrae Vertebrae in middle are trunk vertebrae of two kinds: those with ribs and those without

13. Vertebrae  Vertebrae without ribs  Dorsal process  Neural arch with neural spine  Neural canal for spinal cord  Vertebrae without ribs  Dorsal process  Neural arch with neural spine  Neural canal for spinal cord

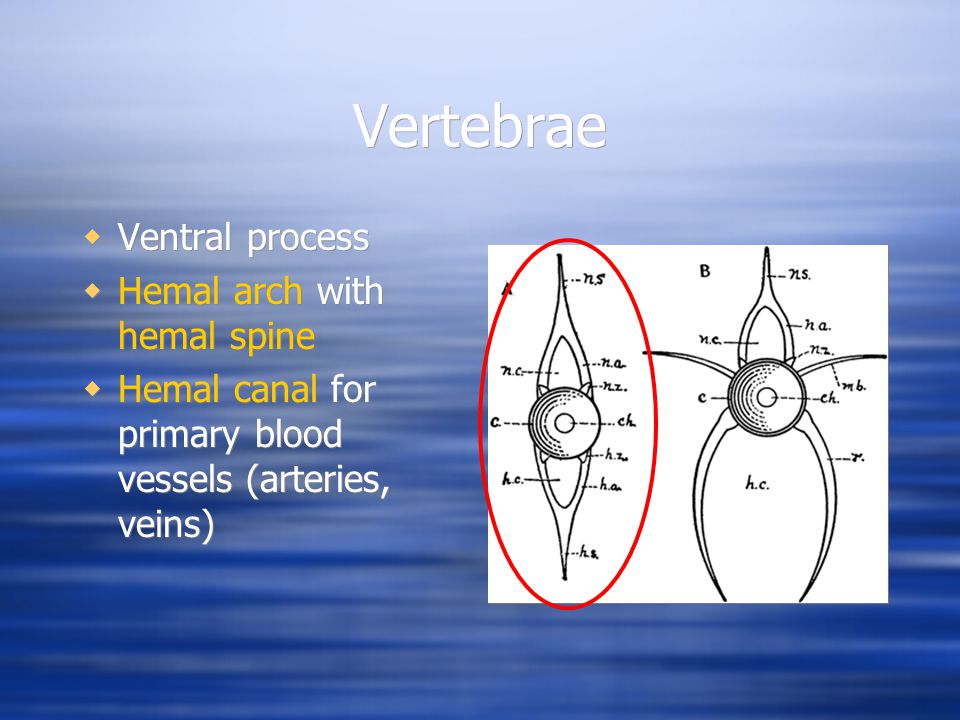

14. Vertebrae  Ventral process  Hemal arch with hemal spine  Hemal canal for primary blood vessels (arteries, veins)  Ventral process  Hemal arch with hemal spine  Hemal canal for primary blood vessels (arteries, veins)

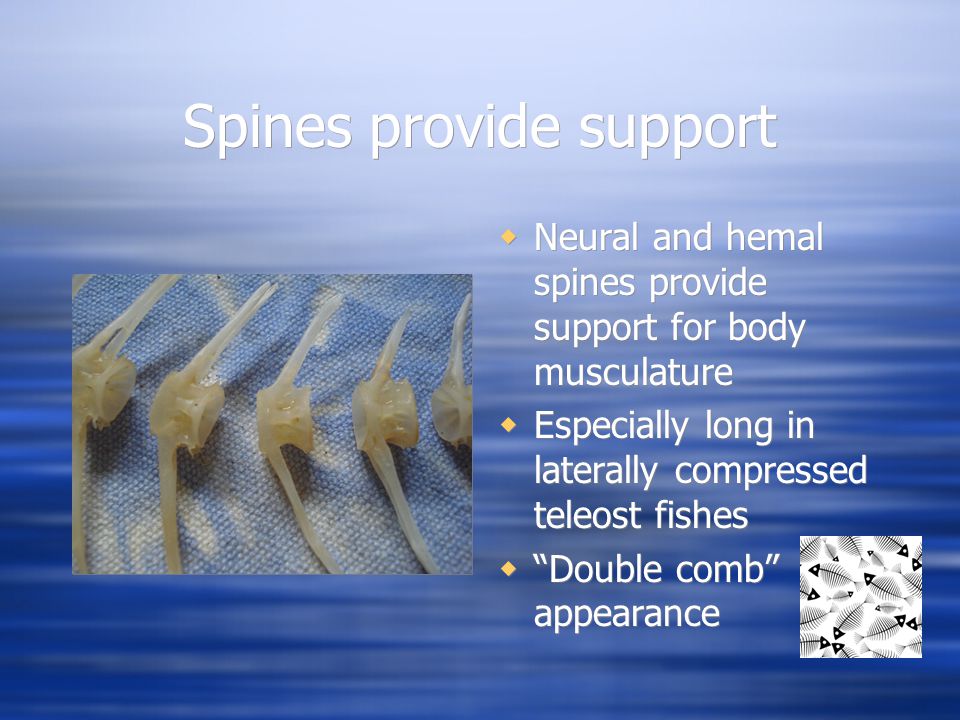

15. Spines provide support  Neural and hemal spines provide support for body musculature  Especially long in laterally compressed teleost fishes  “Double comb” appearance

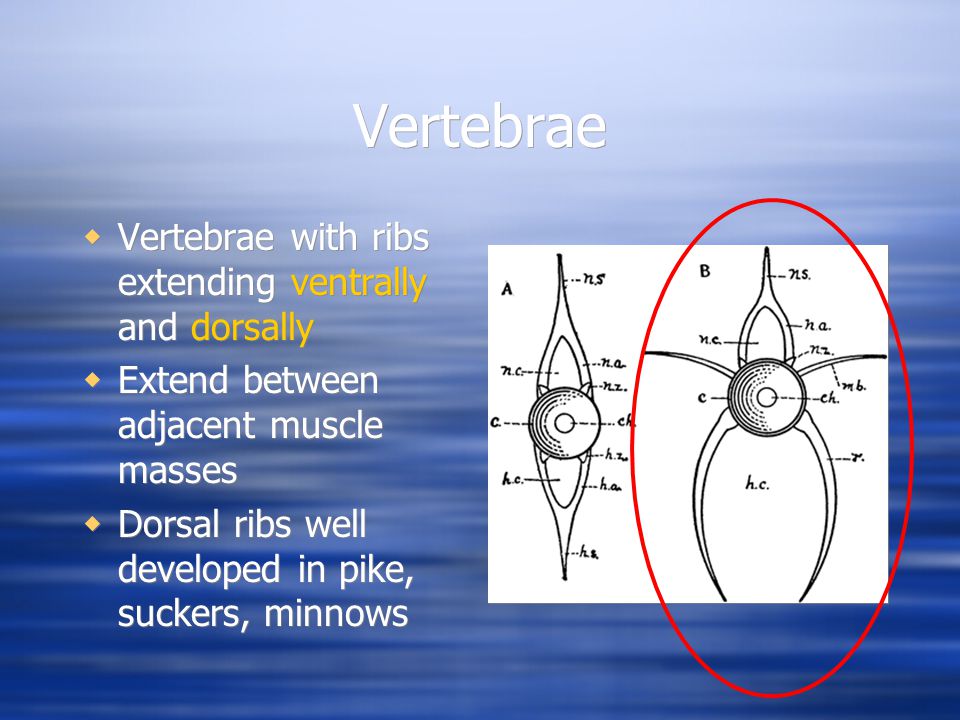

16. Vertebrae  Vertebrae with ribs extending ventrally and dorsally  Extend between adjacent muscle masses  Dorsal ribs well developed in pike, suckers, minnows  Vertebrae with ribs extending ventrally and dorsally  Extend between adjacent muscle masses  Dorsal ribs well developed in pike, suckers, minnows

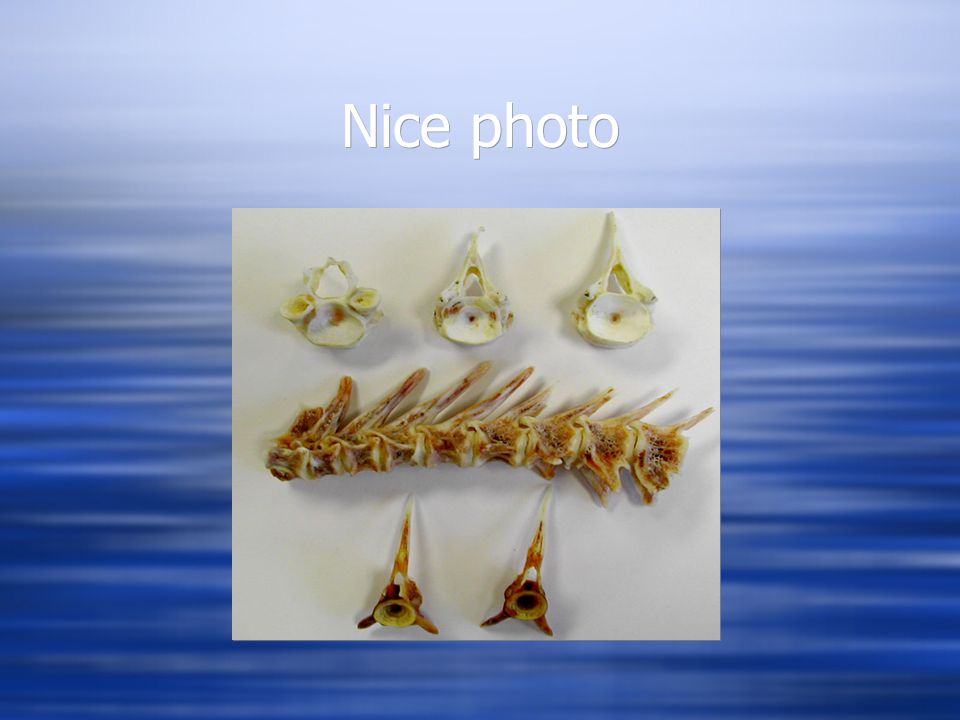

17. Nice photo

18. Vertebrae in various fishes

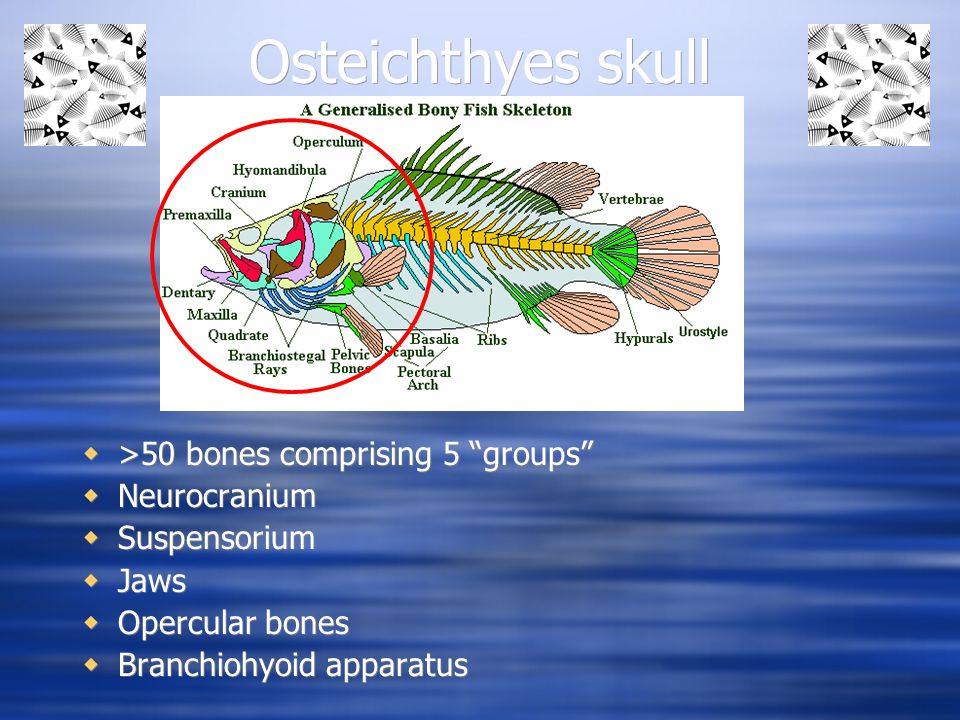

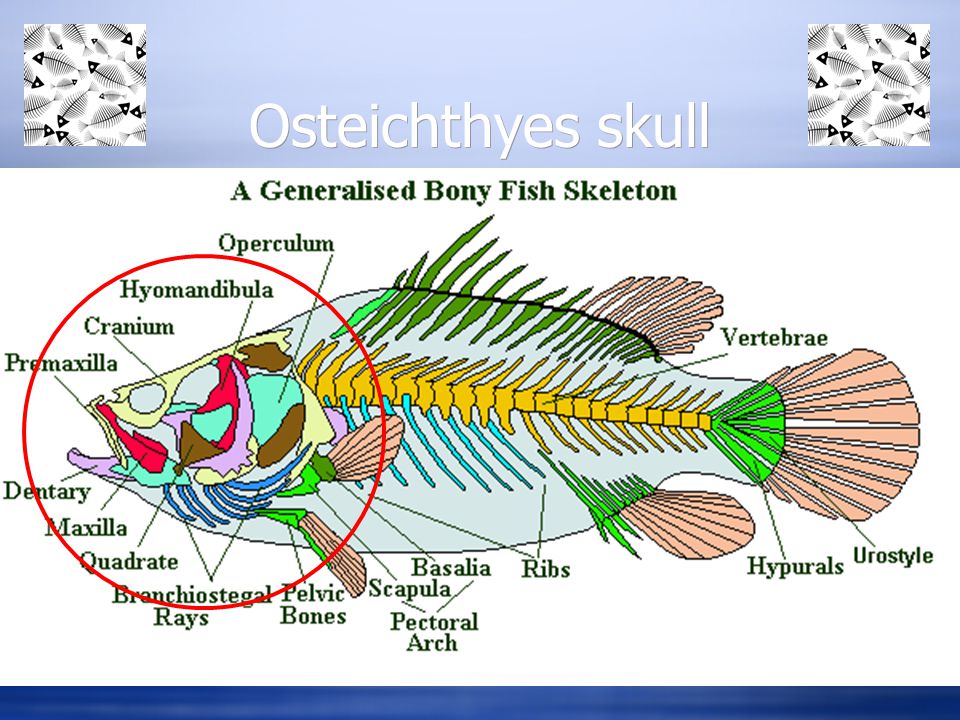

19. Osteichthyes skull

20.  >50 bones comprising 5 “groups”  Neurocranium  Suspensorium  Jaws  Opercular bones  Branchiohyoid apparatus

21. Neurocranium  Braincase  Most of the bones  Core of solid bone around the brain plus loosely articulated bones to permit feeding (suction) and respiratory (pump) movements

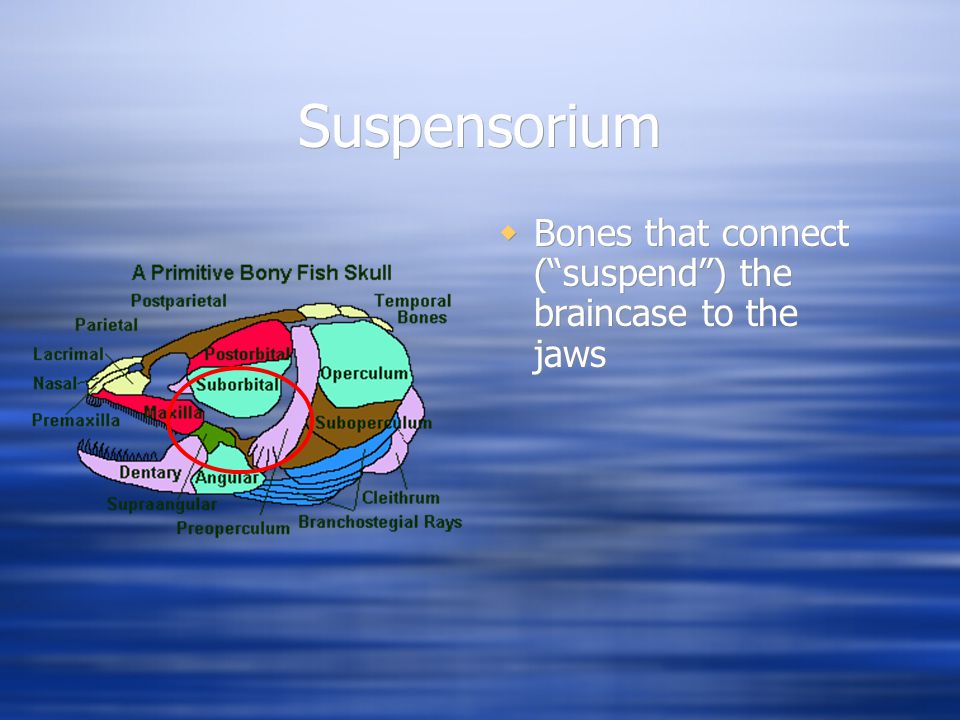

22. Suspensorium  Bones that connect (“suspend”) the braincase to the jaws

23. Jaws  Upper and lower jaws  Change from stiff, biting mouth to flexible, sucking mouth  Maxilla (primitive), premaxilla (advanced), dentaries

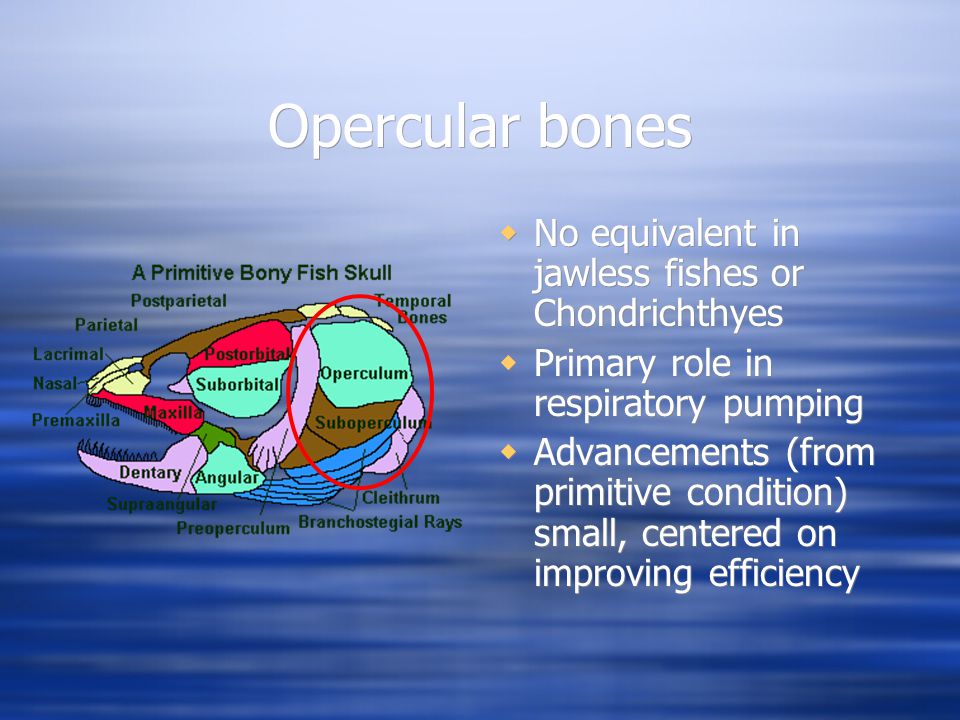

24. Opercular bones  No equivalent in jawless fishes or Chondrichthyes  Primary role in respiratory pumping  Advancements (from primitive condition) small, centered on improving efficiency

25. Branchiohyoid apparatus  Floor of the mouth, support for the gills  Includes the branchiostegal rays  Function in expansion of branchial chamber for respiration, suction feeding

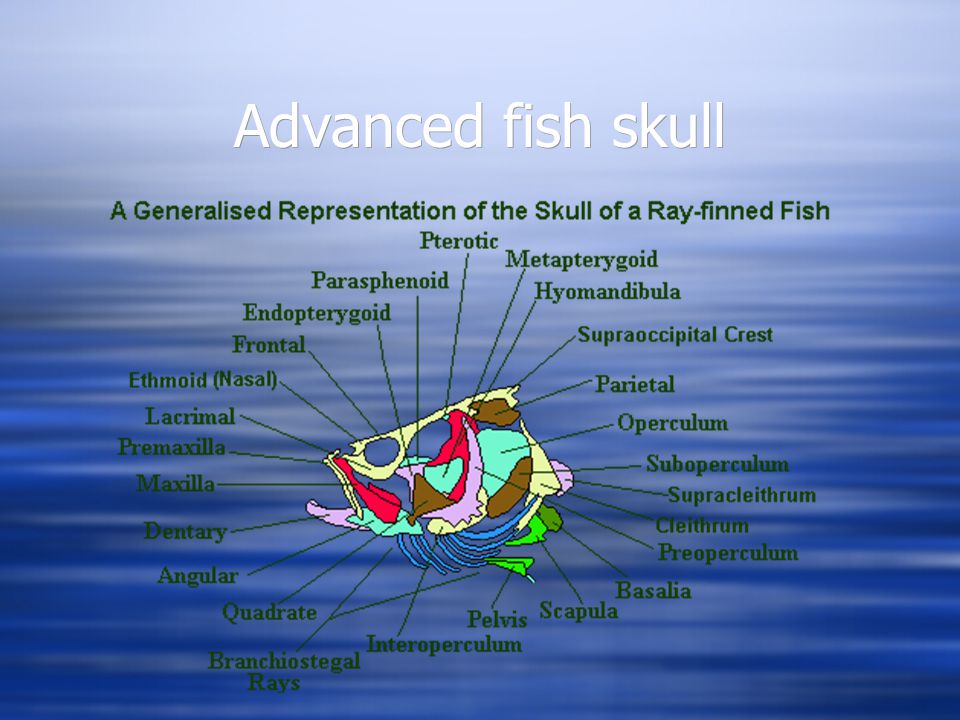

26. Advanced fish skull

27. Pectoral, pelvic girdles

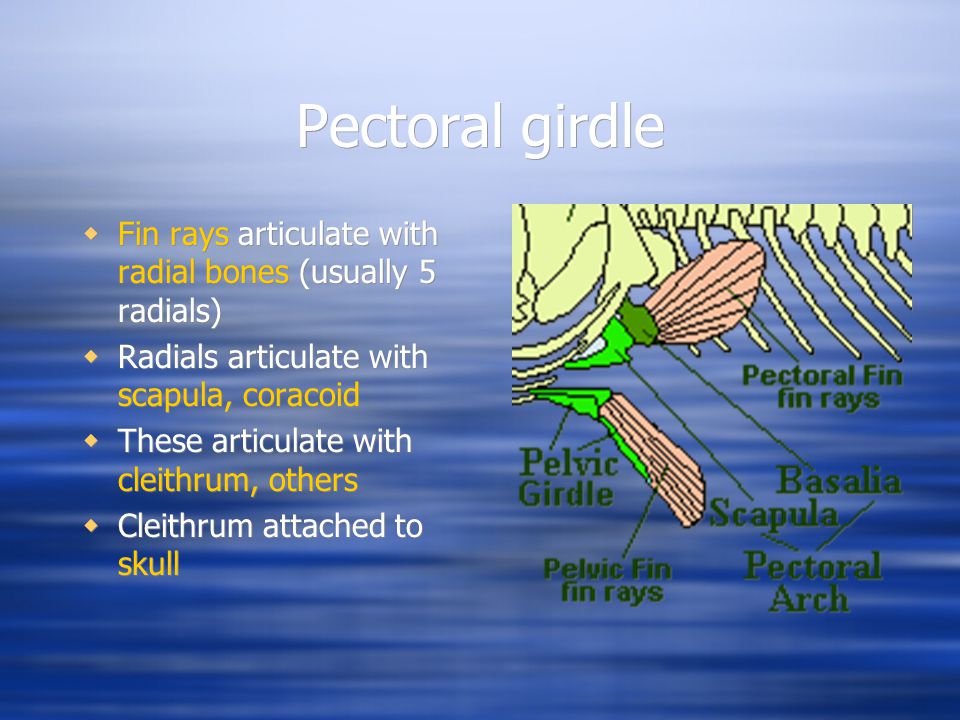

28. Pectoral girdle  Fin rays articulate with radial bones (usually 5 radials)  Radials articulate with scapula, coracoid  These articulate with cleithrum, others  Cleithrum attached to skull  Fin rays articulate with radial bones (usually 5 radials)  Radials articulate with scapula, coracoid  These articulate with cleithrum, others  Cleithrum attached to skull

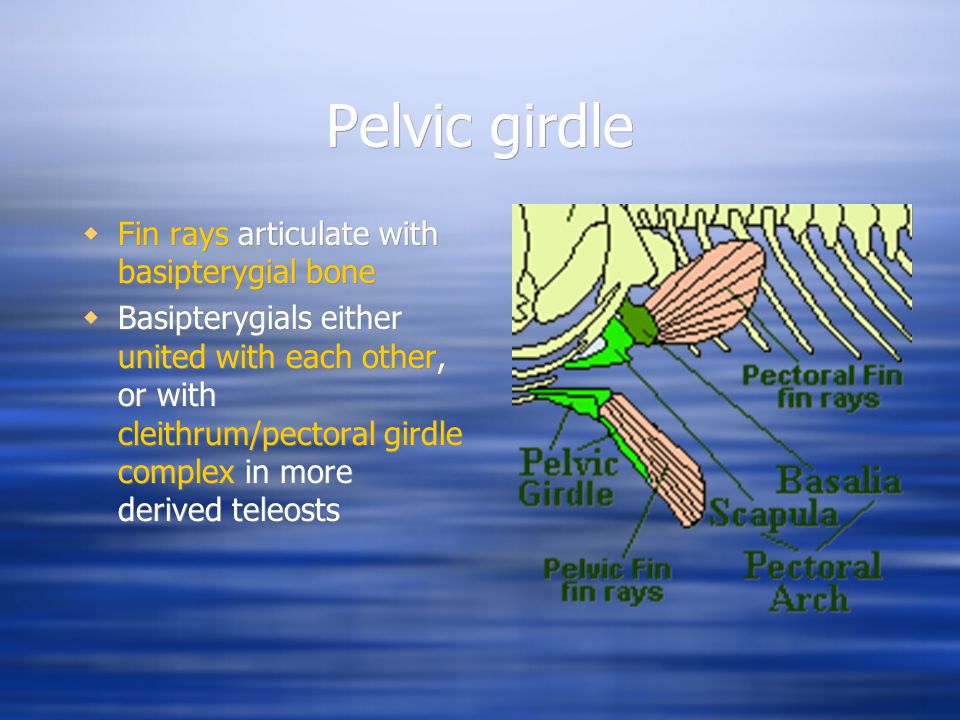

29. Pelvic girdle  Fin rays articulate with basipterygial bone  Basipterygials either united with each other, or with cleithrum/pectoral girdle complex in more derived teleosts  Fin rays articulate with basipterygial bone  Basipterygials either united with each other, or with cleithrum/pectoral girdle complex in more derived teleosts

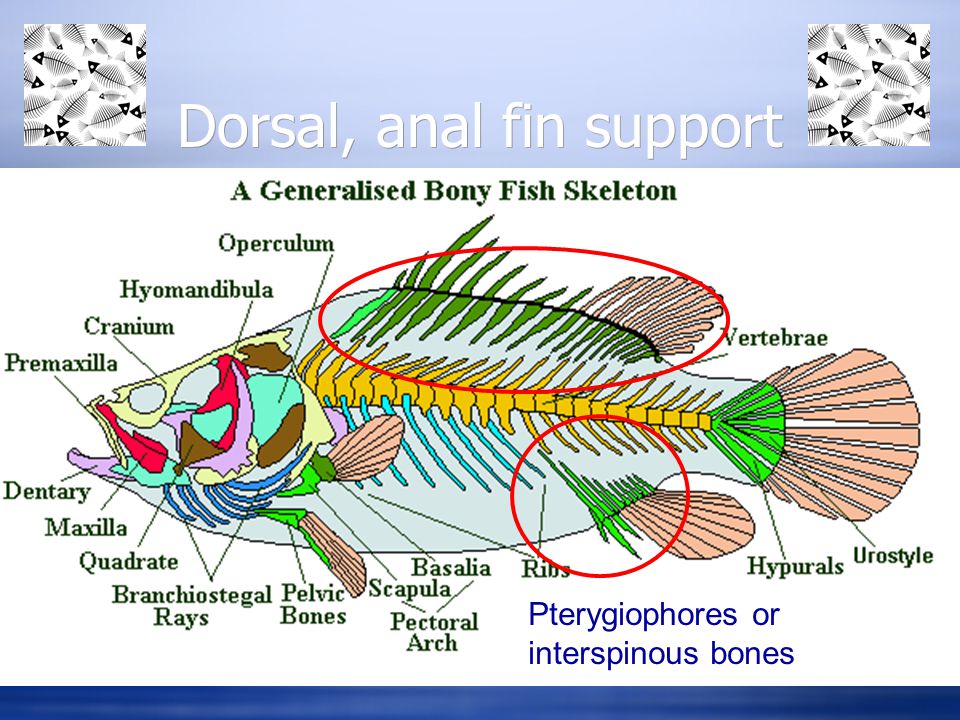

30. Dorsal, anal fin support Pterygiophores or interspinous bones

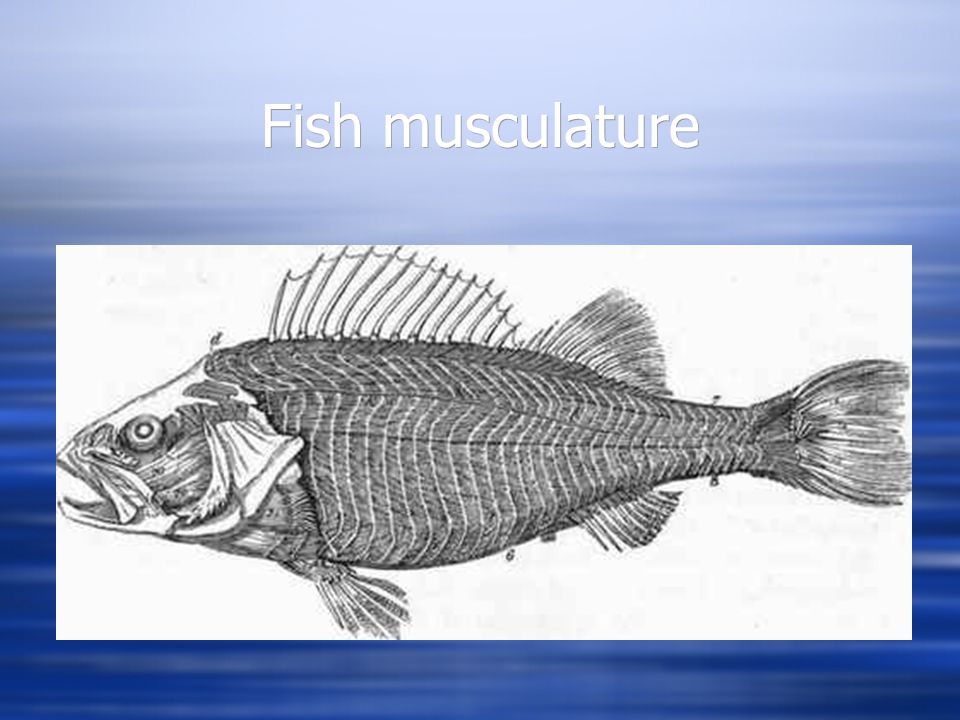

31. Fish musculature

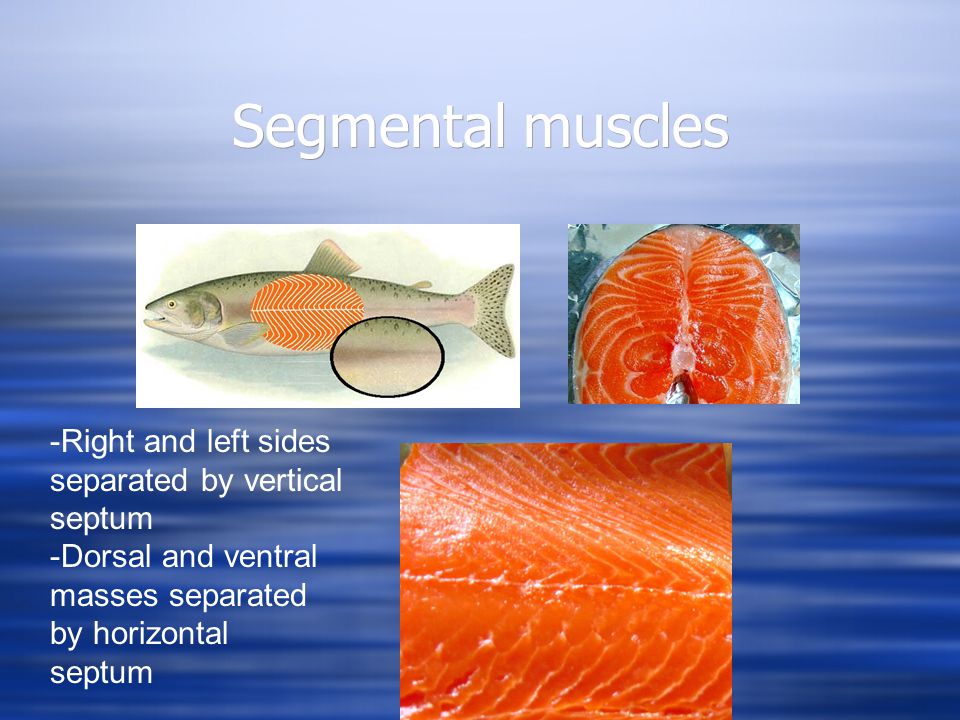

32. Segmental muscles -Right and left sides separated by vertical septum -Dorsal and ventral masses separated by horizontal septum

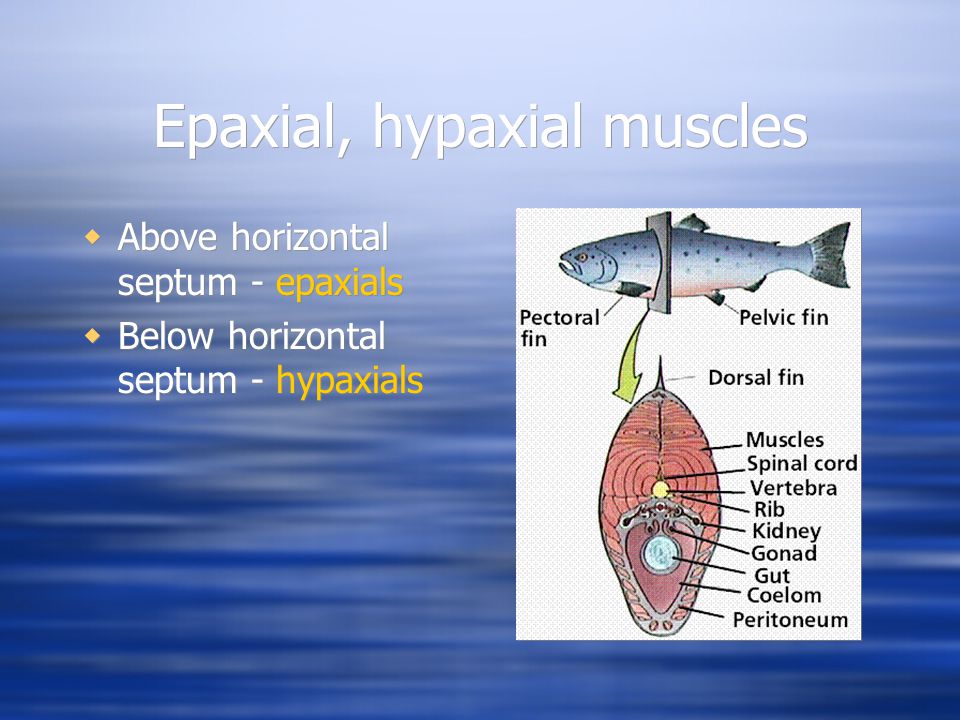

33. Epaxial, hypaxial muscles  Above horizontal septum - epaxials  Below horizontal septum - hypaxials  Above horizontal septum - epaxials  Below horizontal septum - hypaxials

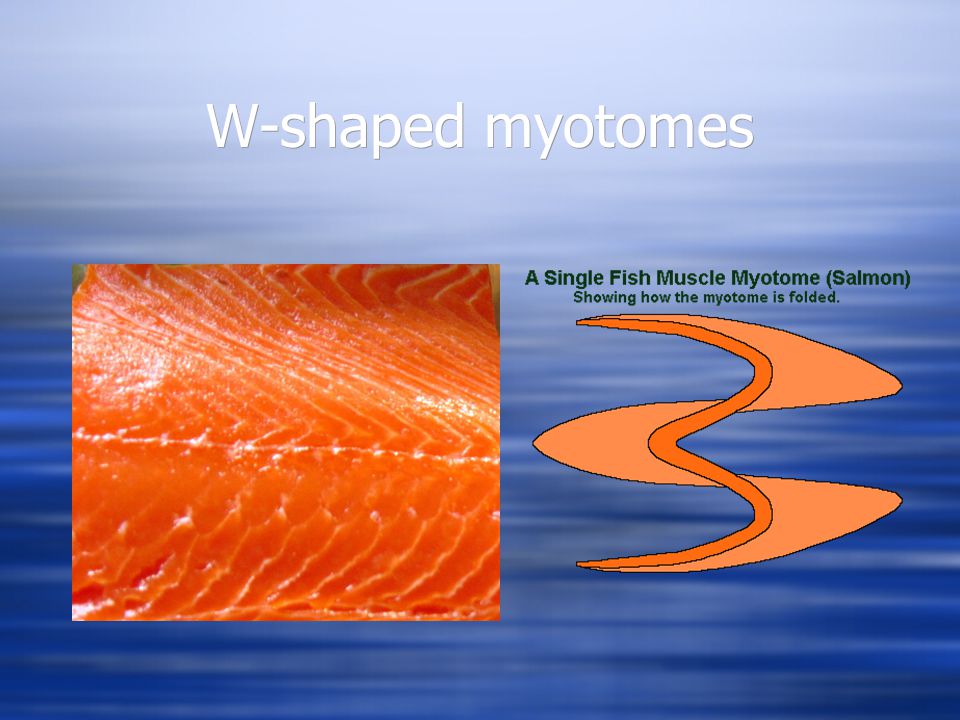

34. W-shaped myotomes

35. Red vs. white muscles -Red - rich in blood supply - aerobic swimming (slow) -White - poor in blood supply - burst swimming (fast) -Pink - intermediate -Color may be diet-based (carotenoids/crustaceans)
