1. Stay ahead with RAD Training Presented by: Illy Sarid AIRMUX-400

2. … for TS2008 Slide 2 Target Markets The Airmux-400 series is targeting the global markets of Cellular Backhaul, WiMAX and ISP Backhaul, Broadband Access and Private and Government Networks All these markets require higher bandwidth (TDM & ETH) with longer range, robustness; while keeping the best price performance

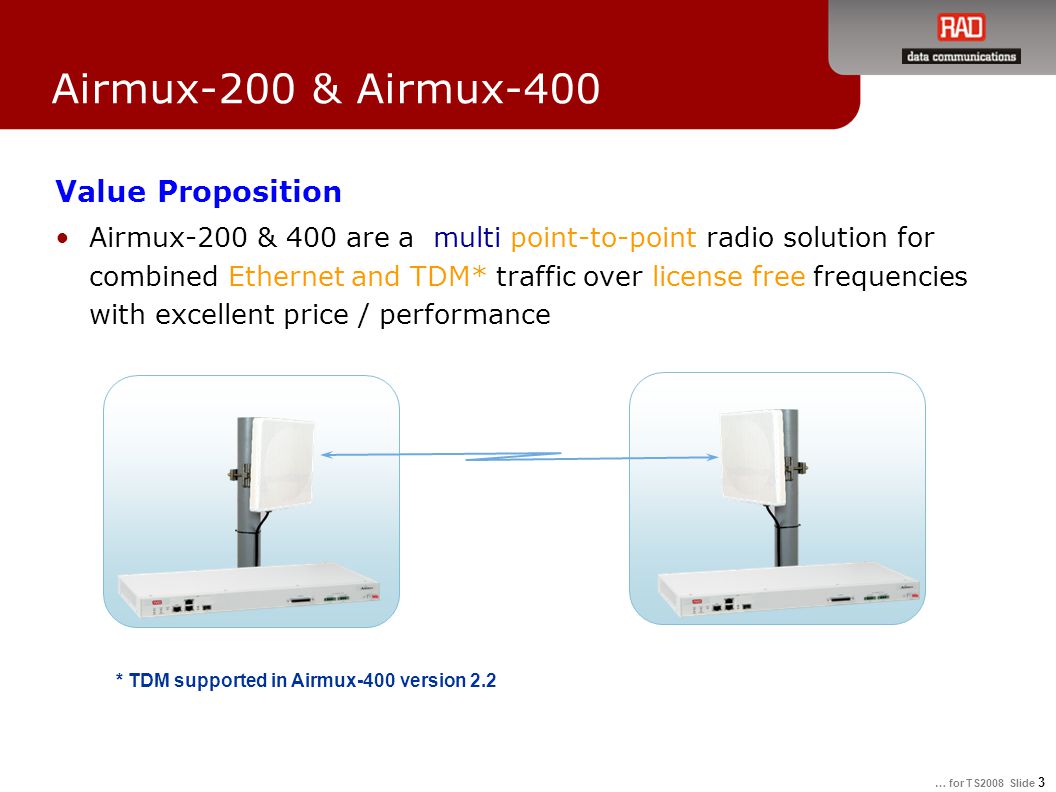

3. … for TS2008 Slide 3 Airmux-200 & Airmux-400 Value Proposition Airmux-200 & 400 are a multi point-to-point radio solution for combined Ethernet and TDM* traffic over license free frequencies with excellent price / performance * TDM supported in Airmux-400 version 2.2

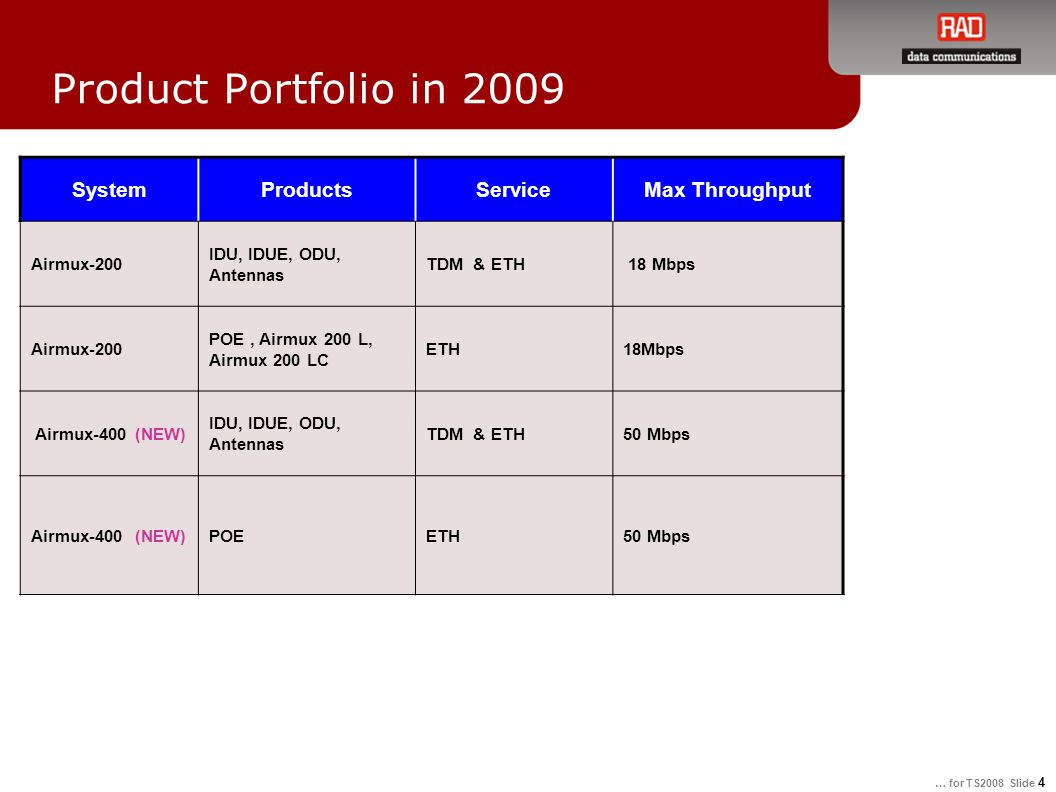

4. … for TS2008 Slide 4 Product Portfolio in 2009 SystemProductsServiceMax Throughput Airmux-200 IDU, IDUE, ODU, Antennas TDM & ETH 18 Mbps Airmux-200 POE, Airmux 200 L, Airmux 200 LC ETH18Mbps Airmux-400 (NEW) IDU, IDUE, ODU, Antennas TDM & ETH50 Mbps Airmux-400 (NEW)POEETH50 Mbps

5. … for TS2008 Slide 5

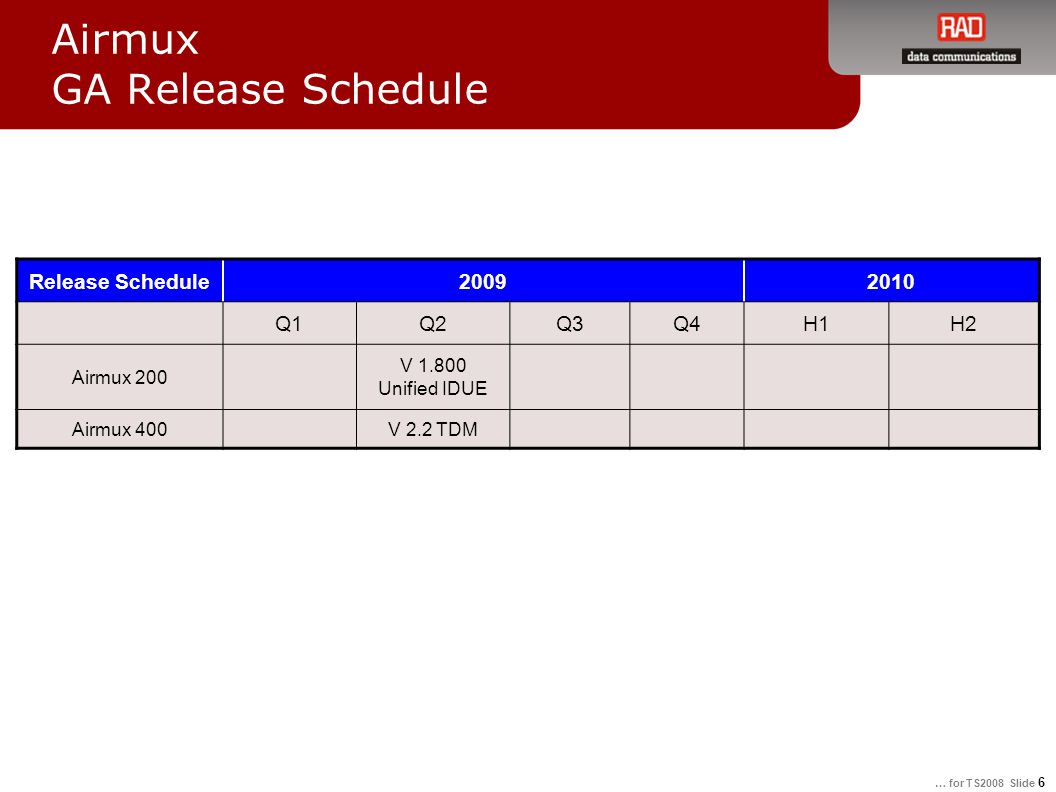

6. … for TS2008 Slide 6 Airmux GA Release Schedule Release Schedule20092010 Q1Q2Q3Q4H1H2 Airmux 200 V 1.800 Unified IDUE Airmux 400 V 2.2 TDM

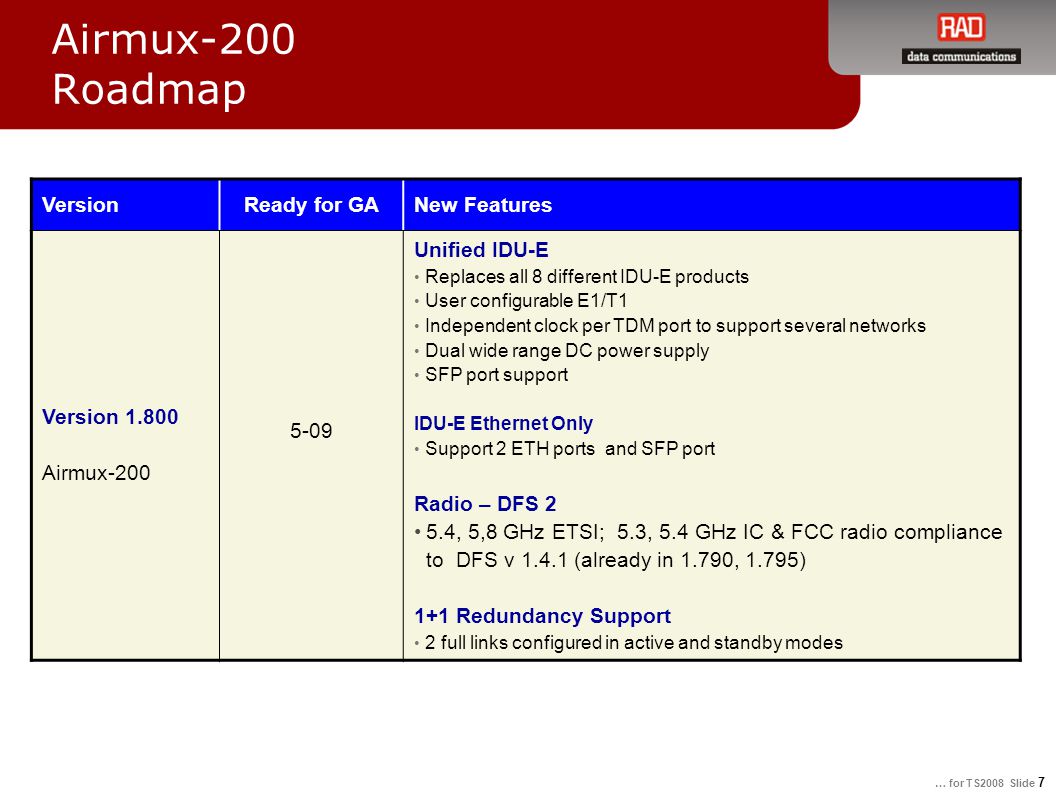

7. … for TS2008 Slide 7 Airmux-200 Roadmap VersionReady for GANew Features Version 1.800 Airmux-200 5-09 Unified IDU-E Replaces all 8 different IDU-E products User configurable E1/T1 Independent clock per TDM port to support several networks Dual wide range DC power supply SFP port support IDU-E Ethernet Only Support 2 ETH ports and SFP port Radio – DFS 2 5.4, 5,8 GHz ETSI; 5.3, 5.4 GHz IC & FCC radio compliance to DFS v 1.4.1 (already in 1.790, 1.795) 1+1 Redundancy Support 2 full links configured in active and standby modes

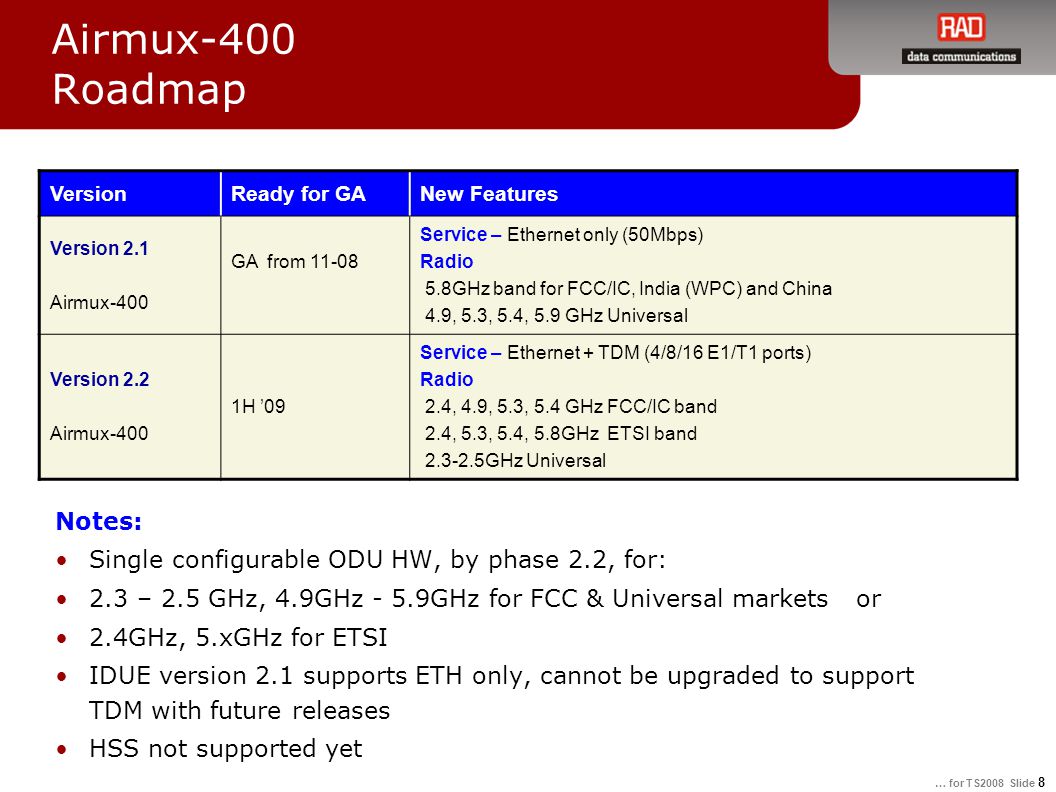

8. … for TS2008 Slide 8 Airmux-400 Roadmap Notes: Single configurable ODU HW, by phase 2.2, for: 2.3 – 2.5 GHz, 4.9GHz - 5.9GHz for FCC & Universal markets or 2.4GHz, 5.xGHz for ETSI IDUE version 2.1 supports ETH only, cannot be upgraded to support TDM with future releases HSS not supported yet VersionReady for GANew Features Version 2.1 Airmux-400 GA from 11-08 Service – Ethernet only (50Mbps) Radio 5.8GHz band for FCC/IC, India (WPC) and China 4.9, 5.3, 5.4, 5.9 GHz Universal Version 2.2 Airmux-400 1H ’09 Service – Ethernet + TDM (4/8/16 E1/T1 ports) Radio 2.4, 4.9, 5.3, 5.4 GHz FCC/IC band 2.4, 5.3, 5.4, 5.8GHz ETSI band 2.3-2.5GHz Universal

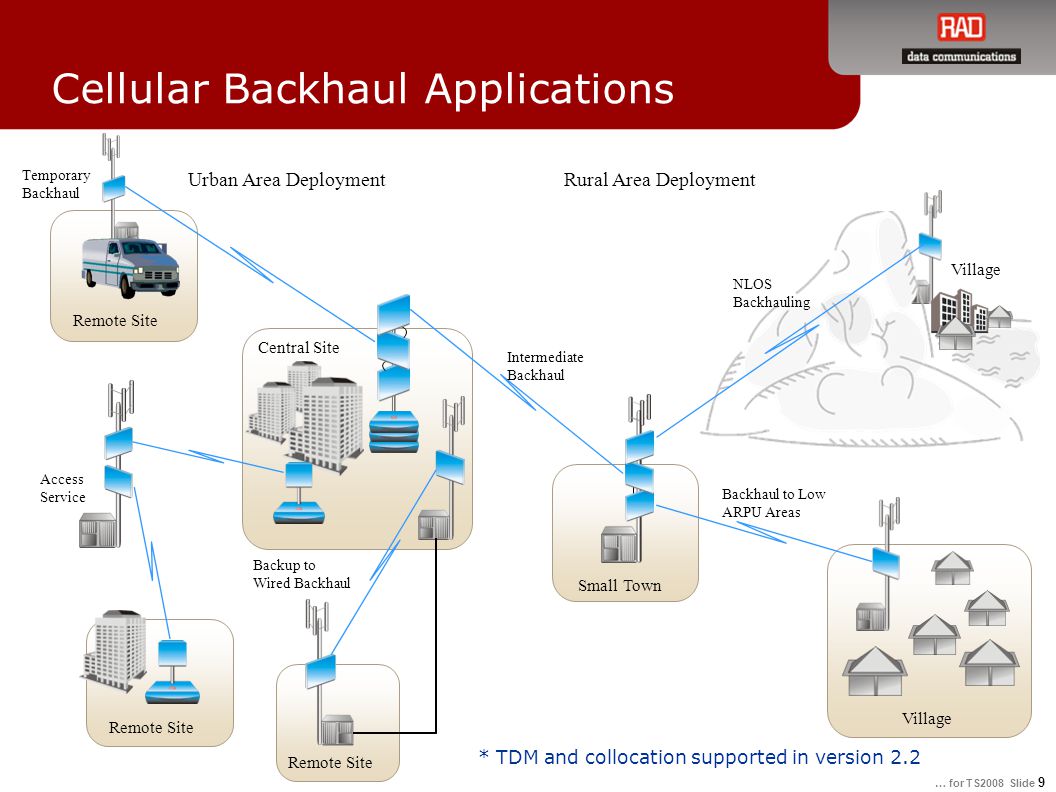

9. … for TS2008 Slide 9 Central Site Small Town Cellular Backhaul Applications Village NLOS Backhauling Rural Area Deployment Village Urban Area Deployment Remote Site Access Service Remote Site Temporary Backhaul Remote Site Backup to Wired Backhaul Backhaul to Low ARPU Areas Intermediate Backhaul * TDM and collocation supported in version 2.2

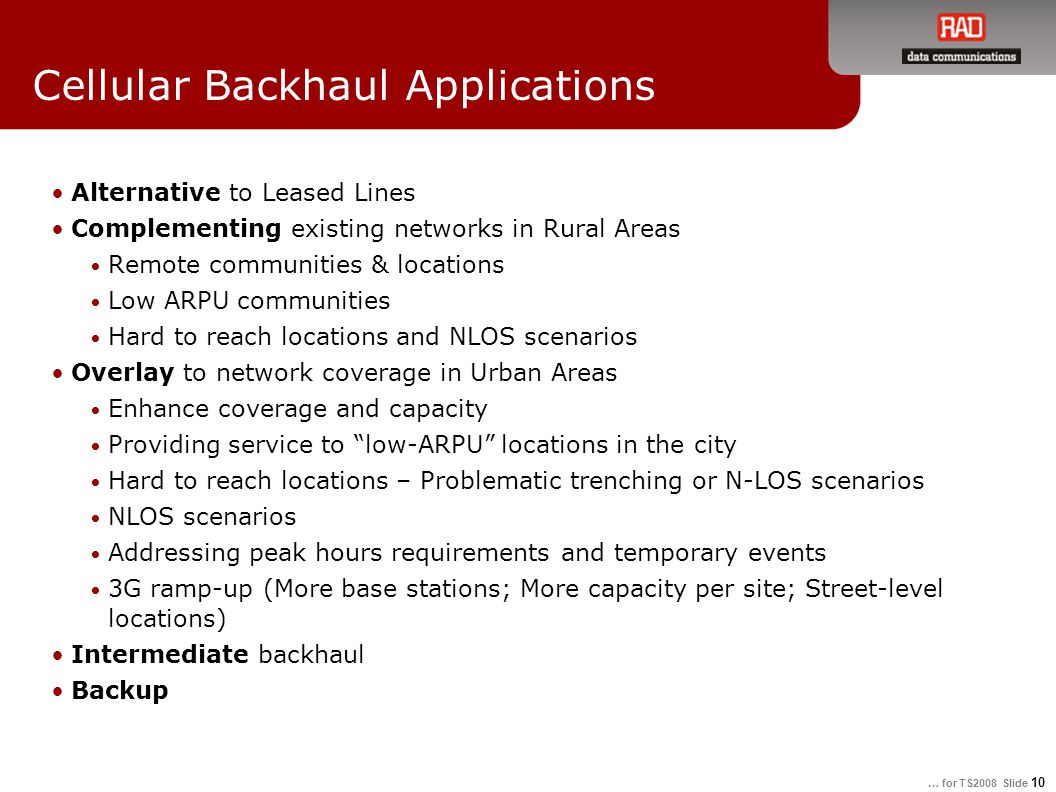

10. … for TS2008 Slide 10 Cellular Backhaul Applications Alternative to Leased Lines Complementing existing networks in Rural Areas Remote communities & locations Low ARPU communities Hard to reach locations and NLOS scenarios Overlay to network coverage in Urban Areas Enhance coverage and capacity Providing service to “low-ARPU” locations in the city Hard to reach locations – Problematic trenching or N-LOS scenarios NLOS scenarios Addressing peak hours requirements and temporary events 3G ramp-up (More base stations; More capacity per site; Street-level locations) Intermediate backhaul Backup

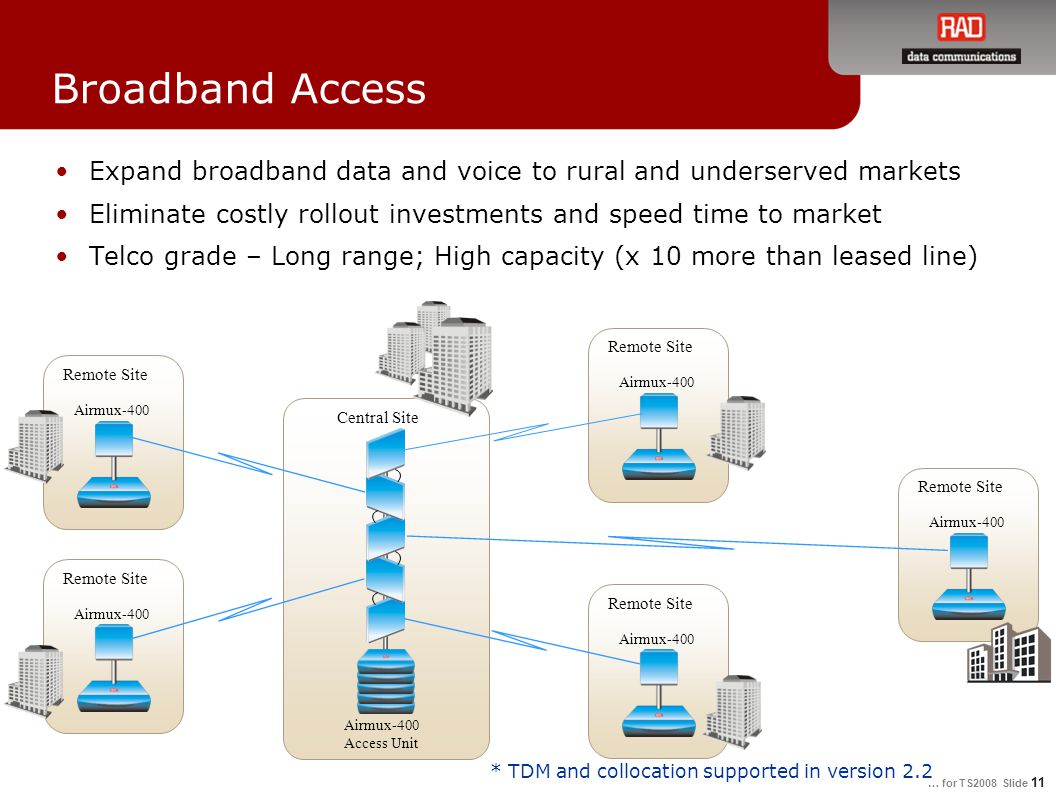

11. … for TS2008 Slide 11 Airmux-400 Remote Site Airmux-400 Remote Site Airmux-400 Remote Site Airmux-400 Remote Site Airmux-400 Access Unit Central Site Broadband Access Expand broadband data and voice to rural and underserved markets Eliminate costly rollout investments and speed time to market Telco grade – Long range; High capacity (x 10 more than leased line) Airmux-400 Remote Site * TDM and collocation supported in version 2.2

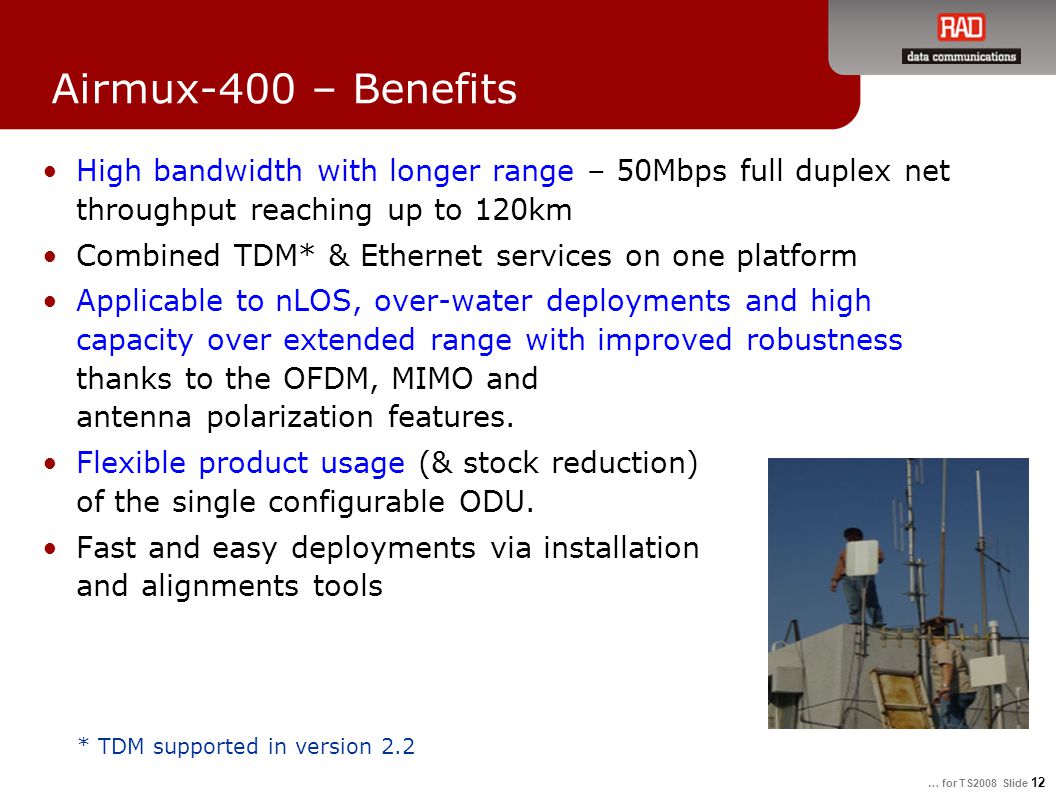

12. … for TS2008 Slide 12 Airmux-400 – Benefits High bandwidth with longer range – 50Mbps full duplex net throughput reaching up to 120km Combined TDM* & Ethernet services on one platform Applicable to nLOS, over-water deployments and high capacity over extended range with improved robustness thanks to the OFDM, MIMO and antenna polarization features. Flexible product usage (& stock reduction) of the single configurable ODU. Fast and easy deployments via installation and alignments tools * TDM supported in version 2.2

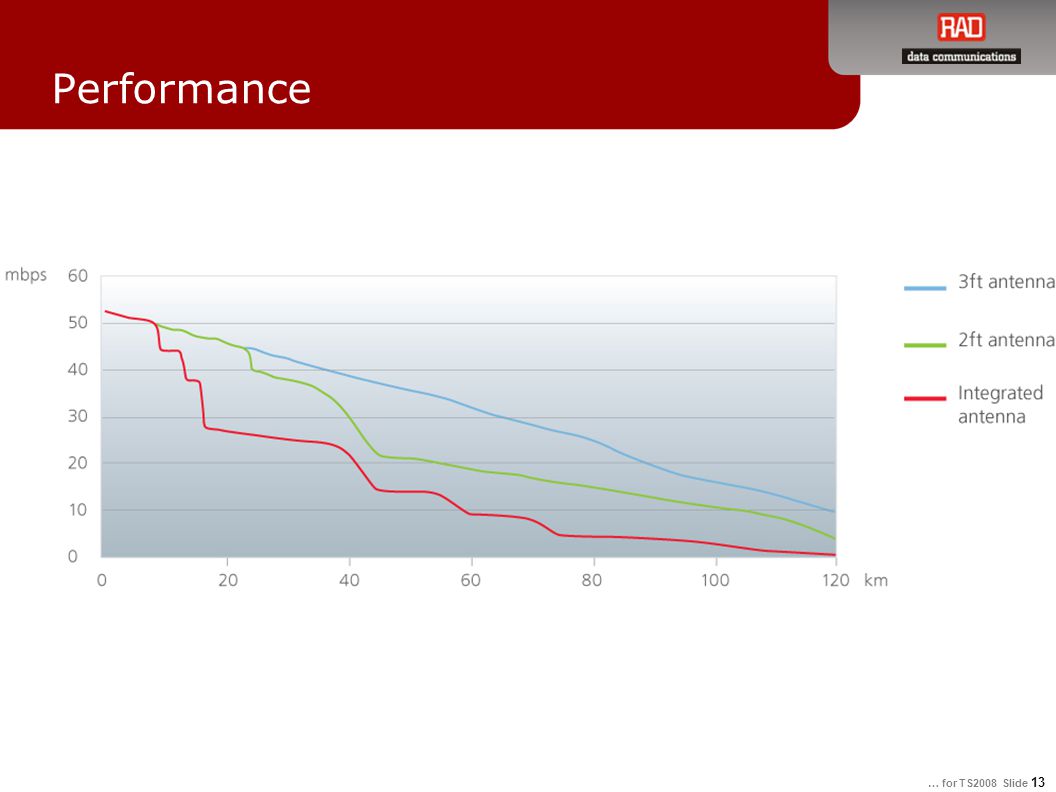

13. … for TS2008 Slide 13 Performance

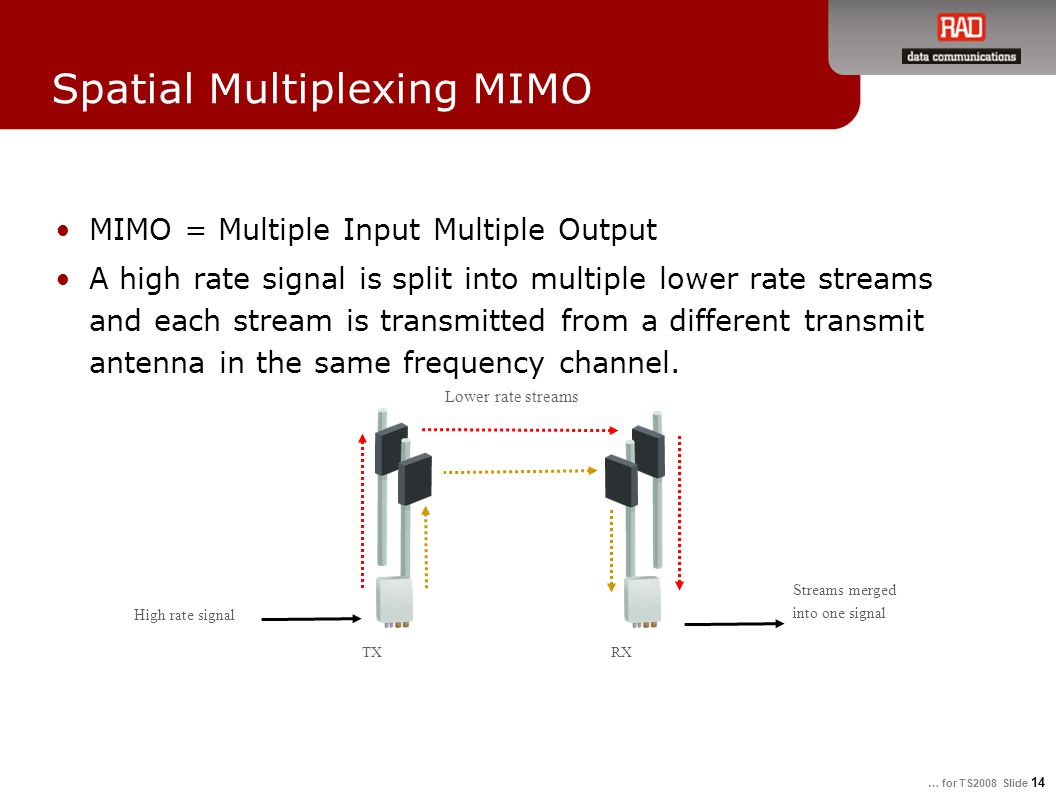

14. … for TS2008 Slide 14 Spatial Multiplexing MIMO MIMO = Multiple Input Multiple Output A high rate signal is split into multiple lower rate streams and each stream is transmitted from a different transmit antenna in the same frequency channel. Streams merged into one signal TX Lower rate streams High rate signal RX

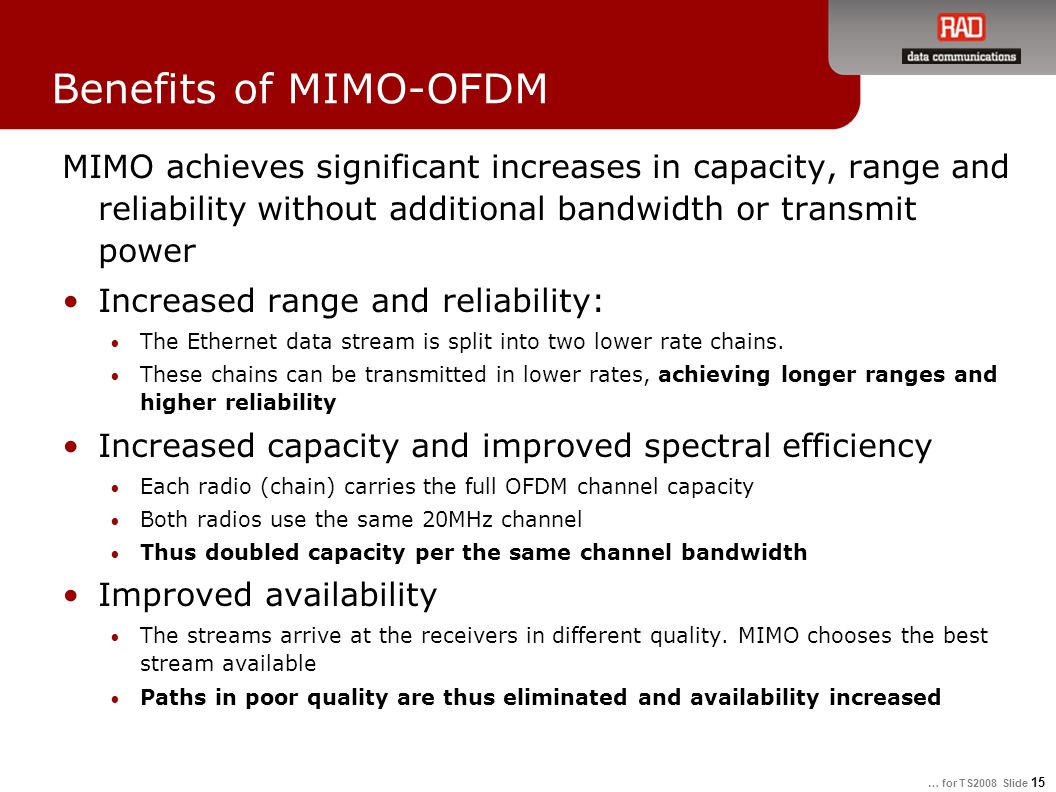

15. … for TS2008 Slide 15 Benefits of MIMO-OFDM MIMO achieves significant increases in capacity, range and reliability without additional bandwidth or transmit power Increased range and reliability: The Ethernet data stream is split into two lower rate chains. These chains can be transmitted in lower rates, achieving longer ranges and higher reliability Increased capacity and improved spectral efficiency Each radio (chain) carries the full OFDM channel capacity Both radios use the same 20MHz channel Thus doubled capacity per the same channel bandwidth Improved availability The streams arrive at the receivers in different quality. MIMO chooses the best stream available Paths in poor quality are thus eliminated and availability increased

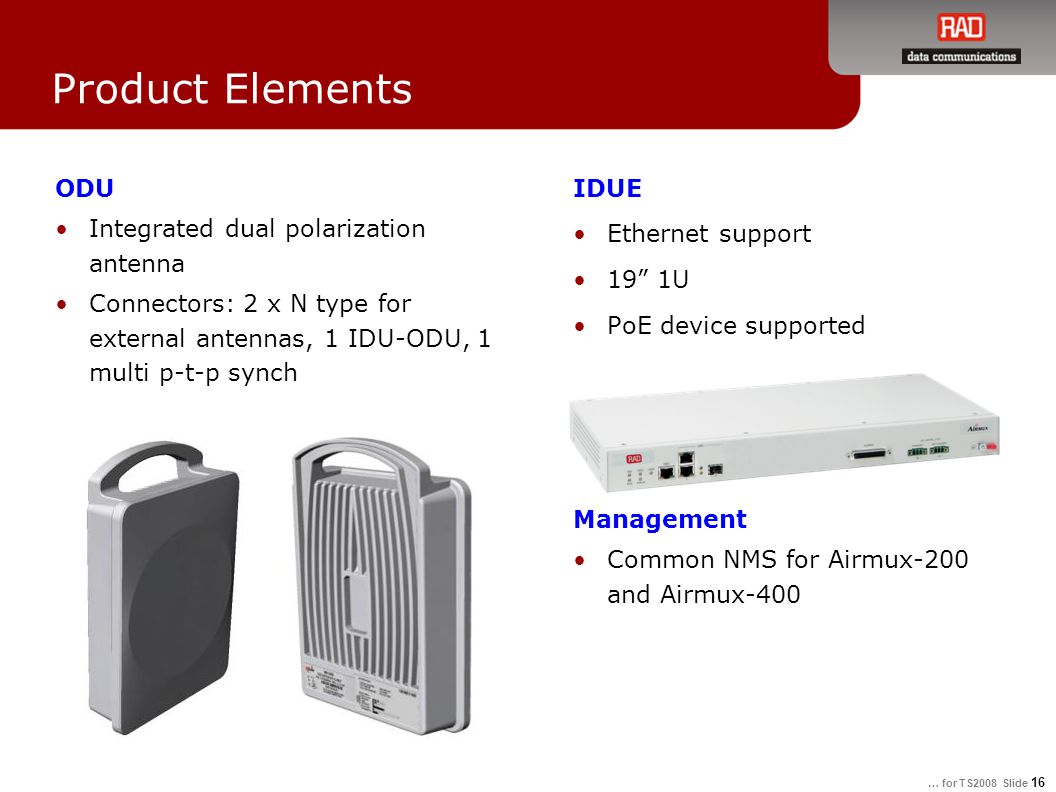

16. … for TS2008 Slide 16 Product Elements ODU Integrated dual polarization antenna Connectors: 2 x N type for external antennas, 1 IDU-ODU, 1 multi p-t-p synch IDUE Ethernet support 19” 1U PoE device supported Management Common NMS for Airmux-200 and Airmux-400
