1 Comparison and Implications of Three Optical Microscopy Data Acquisition Modalities James Butler Ph.D. Nikon Instruments, Inc. Widefield Fluorescence Confocal Laser Scanning Cytometry (LSC) LSC Images Courtesy CompuCyte Corporation

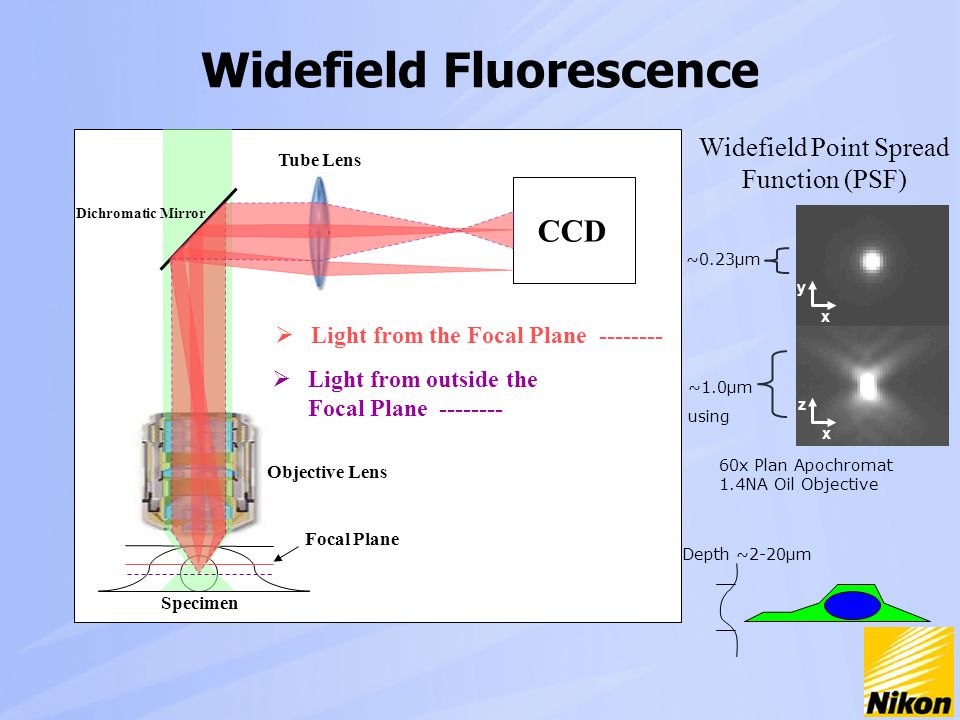

2 Widefield Fluorescence CCD Tube Lens Objective Lens Specimen Focal Plane Dichromatic Mirror  Light from the Focal Plane --------  Light from outside the Focal Plane -------- Depth ~2-20μm Widefield Point Spread Function (PSF) y x z x ~0.23μm 60x Plan Apochromat 1.4NA Oil Objective ~1.0μm using

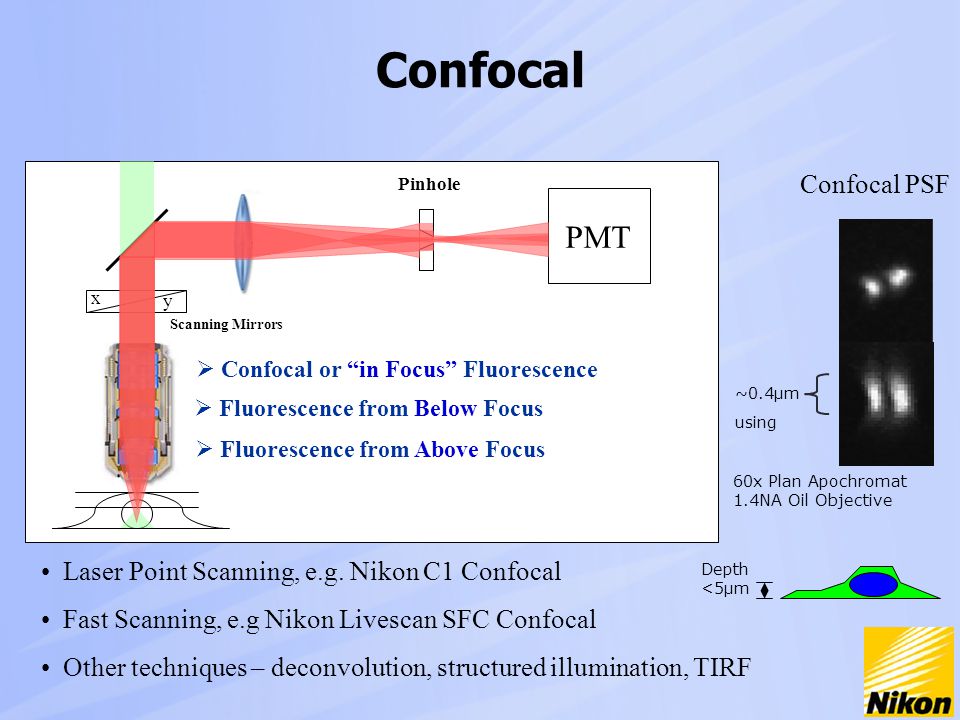

3 Confocal Confocal PSF PMT x y  Confocal or “in Focus” Fluorescence Pinhole Scanning Mirrors  Fluorescence from Below Focus  Fluorescence from Above Focus Depth <5μm 60x Plan Apochromat 1.4NA Oil Objective ~0.4μm using Laser Point Scanning, e.g. Nikon C1 Confocal Fast Scanning, e.g Nikon Livescan SFC Confocal Other techniques – deconvolution, structured illumination, TIRF

4 Laser Scanning Cytometry (LSC) PMT y Scanning Mirror (1 direction = line scan) Stage Translation (>=0.25µm steps) Perpendicular to Scan line  Light from extended depth of field above and below objective focal plane > 20µm Collimated laser light for extended depth excitation Depth ~20-100μm Scan line width 2.5 to 10µm – possibly smaller depending on objective used Including: CompuCyte iCyte, iCys Laser Scan Image Confocal Image

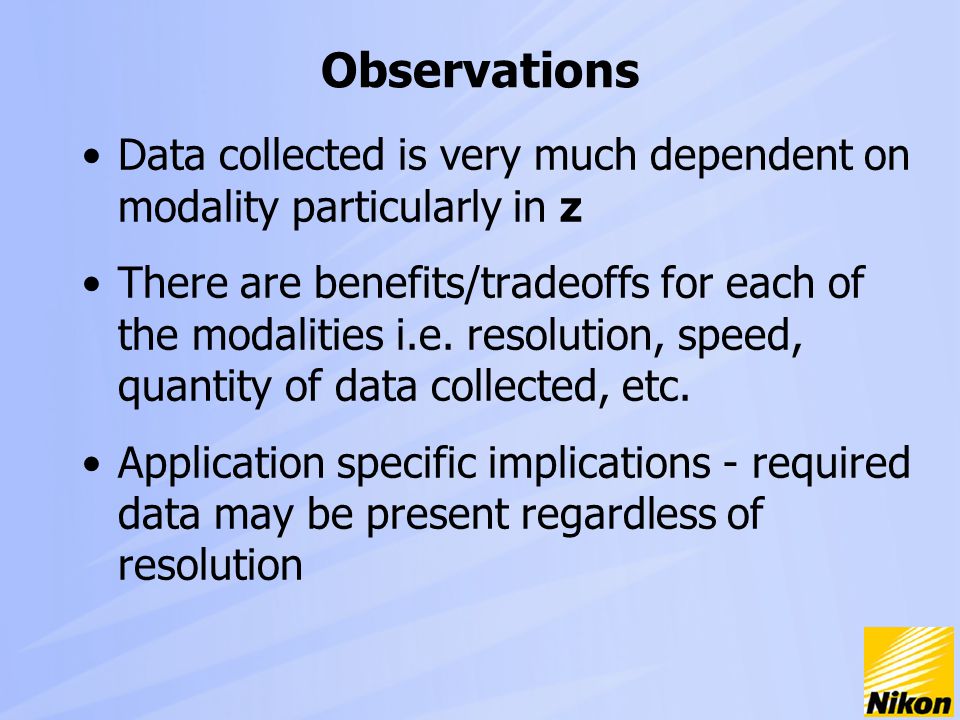

5 Observations Data collected is very much dependent on modality particularly in z There are benefits/tradeoffs for each of the modalities i.e. resolution, speed, quantity of data collected, etc. Application specific implications - required data may be present regardless of resolution
